The GE Mark VIe series provides advanced control for turbines and critical machinery. These systems offer precise regulation, high reliability, and easy integration with industrial automation solutions, helping to maintain stable operations and protect assets.
GE Mark VIe
-

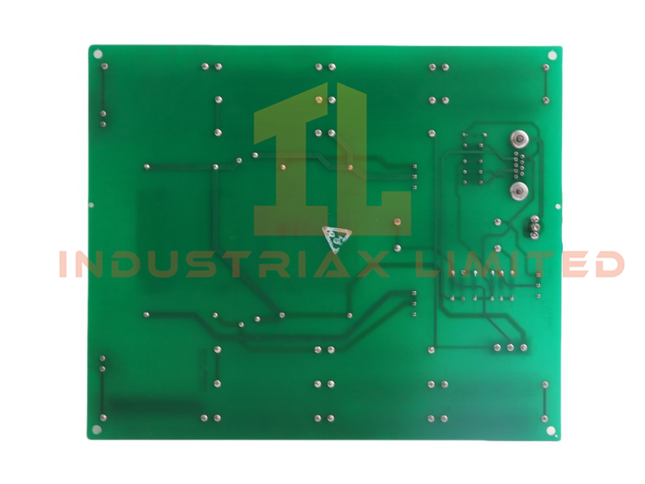

GE GE IS200EXAMG1BAA Exciter Attenuation Module
Product Overview The IS200EXAMG1BAA from GE is an Exciter Attenuation Module designed for the EX2100 Series excitation control system. It works in tandem with the IS200EGDM ground detector module to form a complete ground detection solution. This module mounts inside the High Voltage Interface (HVI) and senses high voltage from the bridge. It attenuates and scales the signal to a usable level for ground detection. The board connects to the IS200EPBP Exciter Power Backplane via a 9-pin cable and supports both simplex and TMR configurations. Technical Specifications Specification Details Manufacturer GE Part Number IS200EXAMG1BAA Ordering Code IS200EXAMG1BAA Series EX2100 Series Voltage 24 Vdc Current 20 mA Dimensions 18 cm × 12 cm × 12 cm Weight 0.8 kg Mounting Location High Voltage Interface (HVI) Interface Cable 9-pin to IS200EPBP Ground Detection Pair Works with IS200EGDM or EROC Alternate Use Standalone PGDM system Installation & Configuration Mount the IS200EXAMG1BAA inside the auxiliary cabinet’s HVI module. Connect it to the IS200EPBP backplane using the designated 9-pin cable. The module receives feedback signals from the bridge and scales them for ground detection. In some EX2100 versions, the board interfaces with EROC instead of IS200EGDM, offering equivalent functionality. The system’s computational tasks are handled by the DSPX control board. Applications & Compatibility The IS200EXAMG1BAA is essential for ground fault detection in EX2100 excitation systems. It supports both simplex and TMR setups and integrates with IS200EGDM, EROC, and DSPX boards. It also functions in standalone PGDM systems using BGTB, BFGD, and BPPB boards. Use this module in high-voltage environments requiring precise attenuation and reliable ground detection.
$200.00 $100.00
-
GE GE IS420YAICS1B Analog I/O Module
Product Overview The IS420YAICS1B from GE is a high-performance analog I/O module designed for Mark VIeS control systems. It serves as the electrical interface between one or two Ethernet networks and an analog I/O terminal board. This module combines a processor board and an acquisition board tailored for analog input functions. It supports up to 10 analog inputs, with flexible configuration options for voltage and current signals. The first eight inputs accept ±5 V, ±10 V, or 4–20 mA current loops, while the last two support ±1 mA or 4–20 mA. Additionally, the module provides two 0–20 mA current loop outputs. Technical Specifications Specification Details Manufacturer GE Part Number IS420YAICS1B Ordering Code IS420YAICS1B Series Mark VIeS Voltage Input Range ±10 V Current Range 20 mA Dimensions 8.3 cm × 4.2 cm × 12.2 cm Weight 340 g Analog Inputs 10 total (8 configurable, 2 fixed) Analog Outputs 2 current loop outputs (0–20 mA) Ethernet Ports Dual RJ-45 connectors Power Connector 3-pin input Output Connector DC-37 pin to terminal board Diagnostics LED indicators Installation & Configuration Mount the IS420YAICS1B securely and connect it to the terminal board using the DC-37 pin connector. Use the dual RJ-45 ports to interface with one or two Ethernet networks. Configure input types via the terminal board and ensure proper resistor placement for current loop sensing. Power the module through the 3-pin connector and monitor system status using onboard LED indicators. This compact design simplifies integration into control cabinets with limited space. Applications & Compatibility The IS420YAICS1B is ideal for industrial automation, turbine control, and process monitoring. It integrates seamlessly with Mark VIeS systems and supports flexible analog signal acquisition and output. Use this module in environments requiring precise analog input handling, dual-network communication, and compact form factor. It supports both simplex and redundant configurations.
$200.00 $100.00
-
GE GE IS420PPNGH1A PROFINET Gateway Module
Product Overview The IS420PPNGH1A PROFINET Gateway Module from GE’s Mark VIe series enables seamless integration of PROFINET I/O devices into industrial control systems. It connects the Mark VIe controller to a high-speed PROFINET LAN, supporting real-time data exchange and diagnostics. This single-module gateway functions as an I/O pack and uses the ToolboxST application for configuration. It supports multiple network topologies and allows cyclic data exchange between smart sensors and the controller. Technical Specifications Specification Details Manufacturer GE Series Mark VIe Model IS420PPNGH1A Description PROFINET Gateway Module Processor 1066 MHz Intel EP80579 Operating System QNX Neutrino Voltage Input 28 Vdc I/O Memory 8 KB input / 8 KB output Dimensions 20 cm x 16 cm x 3 cm Weight 1 kg Ethernet Ports 3 RJ-45 (1 PROFINET, 2 IONet) Status Indicators LEDs for Ethernet, power, processor Configuration Tool ToolboxST Flash Memory Updatable Internal Clock Synchronized with Mark VIe controller Features & Benefits The IS420PPNGH1A includes one PROFINET port and two IONet ports for flexible connectivity. Its compact 20×16×3 cm size fits easily into control cabinets. The 1 kg weight ensures easy handling during installation and maintenance. No jumper settings, battery, or fan simplify setup and reduce maintenance needs. Flash memory updates and LED indicators improve usability and diagnostics. The internal clock aligns with the Mark VIe controller for accurate time-stamped logs. Application & Compatibility The IS420PPNGH1A module suits industrial automation environments requiring PROFINET RT Version 2.2 compliance. It supports star, line, and mixed topologies, making it ideal for flexible network designs. Compatible with ControlST tools, it integrates with smart sensors and I/O devices in power generation, oil & gas, and manufacturing systems. Multiple IS420PPNGH1A modules can operate under a single Mark VIe controller, expanding system scalability. The ToolboxST application enables real-time monitoring and configuration of connected devices.
$200.00 $100.00
-
GE GE IS420ESWBH3A Ethernet IONet Switch
Product Overview The IS420ESWBH3A Ethernet IONet Switch from GE’s Mark VIe series delivers high-speed, real-time networking for industrial control systems. It supports 10/100 Mbps copper connections with auto-negotiation and includes a dedicated 100 Mbps FX uplink port. Designed for reliability, this switch features redundant power inputs and LED indicators for link, activity, duplex, speed, and power status. Its compact form factor and robust specifications make it essential for Mark VIe and Mark VIeS Safety control architectures. The switch complies with IEEE 802.3 standards and supports HP-MDIX auto sensing for flexible installation. Technical Specifications Specification Details Manufacturer GE Series Mark VIe Model IS420ESWBH3A Description Ethernet IONet Switch Voltage Input 28 Vdc Current Rating 1 A Dimensions 18.8 cm x 8.6 cm x 5.6 cm Weight 1 kg Ethernet Ports 10/100 base copper + 100 Mbps FX uplink Buffer Memory Minimum 256 KB MAC Address Capacity 4,000 entries LED Indicators Link, Activity, Duplex, Speed, Power Standards Compliance IEEE 802.3, 802.3u, 802.3x Power Redundancy Diode-OR’d dual input Features & Benefits The IS420ESWBH3A supports full and half duplex auto-negotiation for efficient data transmission. Its 256 KB buffer and 4K MAC address table ensure smooth traffic handling in busy networks. The unit’s 1 kg weight and 18.8×8.6×5.6 cm dimensions allow easy mounting in control panels. Redundant power inputs enhance system reliability in critical applications. LED indicators provide clear visual feedback for each port’s operational status. HP-MDIX auto sensing simplifies cable management and port configuration. Application & Compatibility The IS420ESWBH3A switch is required for all IONet configurations within GE Mark VIe and Mark VIeS Safety systems. It supports real-time industrial control environments such as power generation, oil & gas, and manufacturing. Its compatibility with IEEE standards and flexible topology options makes it suitable for both legacy and modern network designs. Use this switch to connect controllers, I/O packs, and smart devices across a secure and responsive Ethernet infrastructure. The FX uplink port ensures fast backbone connectivity, while copper ports handle local device communication.
$200.00 $100.00
-
GE GE IS410SRLYS2A Simplex Relay Output Terminal Board
Product Overview The IS410SRLYS2A Simplex Relay Output Terminal Board from GE’s Mark VIeS series delivers reliable relay control for industrial automation systems. It supports 12 form-C relay circuits and connects through 48 customer terminals. The board accepts a YDOA I/O pack and maintains a low profile for double stacking in compact installations. This S-type terminal board includes Euro-style pluggable terminal blocks and two connectors for optional daughterboards. Each relay provides isolated contact feedback to the I/O pack, enhancing system diagnostics and control precision. Technical Specifications Specification Details Manufacturer GE Series Mark VIeS Model IS410SRLYS2A Description Simplex Relay Output Terminal Board Voltage Input 24 Vdc Current Rating 2.25 A Dimensions 15.9 cm x 17.8 cm x 8.6 cm Weight 2 kg Relay Circuits 12 form-C Terminal Count 48 customer terminals Terminal Type Euro-style box-type I/O Pack Compatibility YDOA Optional Boards IS400WROBH1A, IS400WROFH1A, IS400WROGH1A Features & Benefits The IS410SRLYS2A supports 12 independent relays with form-C contact configuration. Its compact 15.9×17.8×8.6 cm size allows efficient use of panel space. The 2 kg weight ensures stable mounting and easy handling during installation. Euro-style terminal blocks simplify wiring and improve connection reliability. Two onboard connectors enable flexible expansion with optional daughterboards. No components exceed the I/O pack height, allowing vertical stacking of boards. Each relay includes isolated feedback contacts for enhanced control diagnostics. Application & Compatibility The IS410SRLYS2A board integrates seamlessly into GE Mark VIeS control systems. It suits applications requiring reliable relay outputs, including power generation, process control, and safety systems. Compatible with the YDOA I/O pack, it supports optional boards like IS400WROBH1A, IS400WROFH1A, and IS400WROGH1A to expand functionality. These daughterboards offer fused power distribution, voltage feedback, and enhanced relay protection. The board’s design supports high-density installations and simplifies maintenance in demanding environments.
$200.00 $100.00
-
GE GE IS220YTURS1A Turbine Specific Primary Trip I/O Pack
Product Overview The IS220YTURS1A Turbine Specific Primary Trip I/O Pack from GE’s Mark VIeS series delivers precise turbine protection and control. It interfaces directly with the TTUR terminal board and supports critical trip functions, voltage sensing, and speed measurement. This compact module handles high-speed pulse inputs and outputs trip signals for overspeed protection. Designed for both simplex and TMR systems, the IS220YTURS1A uses PR3 and JR4 connectors in simplex mode, and expands to PS3, PT3, JS4, and JT4 in TMR configurations. Technical Specifications Specification Details Manufacturer GE Series Mark VIeS Model IS220YTURS1A Description Turbine Specific Primary Trip I/O Pack Voltage Output 125 Vdc Pulse Rate Devices 12 Dimensions 8.3 cm × 4.2 cm × 12.2 cm Weight 340 g Connector Types PR3, JR4 (Simplex); PR3–JT4 (TMR) Compatible Terminal Board TTUR Features & Benefits The IS220YTURS1A supports 12 pulse rate inputs for turbine speed sensing. Its compact 8.3×4.2×12.2 cm size fits easily into dense control environments. Weighing just 340 g, the module offers lightweight installation and handling. It delivers 125 Vdc output to the main breaker coil for generator synchronization. Inputs from shaft voltage and current sensors enhance protection accuracy. Three overspeed trip outputs ensure fast response to critical turbine conditions. Additional I/O signals from the trip board expand control capabilities. Application & Compatibility The IS220YTURS1A module is ideal for turbine control systems requiring precise speed and voltage monitoring. It integrates with GE’s TTUR terminal board and supports both simplex and TMR configurations. Use this I/O pack in power generation, industrial turbines, and safety-critical environments. Its compatibility with multiple connectors and trip boards allows flexible deployment across various Mark VIeS architectures. The module supports induced shaft voltage and current sensing, making it suitable for advanced diagnostic applications.
$200.00 $100.00
-
GE GE IS220YDIAS1A Discrete Input Module
Product Overview The IS220YDIAS1A Discrete Input Module from GE’s Mark VIeS series provides a reliable interface between Ethernet networks and discrete input terminal boards. It combines a common processor board with a dedicated acquisition board to manage up to 24 contact inputs and feedback signals. The module supports three voltage levels and includes LED indicators for visual diagnostics. System input connects via dual RJ-45 Ethernet ports and a three-pin power connector. Discrete signals enter through a DC-37 pin connector, ensuring secure and direct communication with the terminal board. Technical Specifications Specification Details Manufacturer GE Series Mark VIeS Model IS220YDIAS1A Description Discrete Input Module Voltage Input 28 Vdc Current Rating 110 mA Dimensions 8.3 cm × 4.2 cm × 12.2 cm Weight 340 g Contact Inputs Up to 24 Ethernet Ports 2 × RJ-45 Power Connector 3-pin Signal Connector DC-37 pin Diagnostic Indicators LED status lights Features & Benefits The IS220YDIAS1A supports 24 discrete inputs for flexible signal acquisition. Its compact 8.3×4.2×12.2 cm size fits easily into tight control enclosures. Weighing only 340 g, the module simplifies installation and handling. Dual Ethernet ports ensure robust network connectivity and redundancy. LED indicators provide clear visual feedback for power and signal status. The DC-37 connector enables direct integration with terminal boards. The module supports multiple voltage levels for versatile input handling. Application & Compatibility The IS220YDIAS1A module suits industrial control systems requiring discrete signal acquisition and Ethernet-based communication. It integrates seamlessly with GE Mark VIeS terminal boards and supports real-time diagnostics through LED indicators. Use this module in power generation, process automation, and safety-critical environments. Its compatibility with multiple voltage levels and contact inputs makes it ideal for diverse control architectures.
$200.00 $100.00
-
GE GE IS220YAICS1A Mark VIeS Safety Analog I/O Pack
Product Overview The IS220YAICS1A Safety Analog I/O Pack from GE’s Mark VIeS series delivers precise analog signal acquisition and output for industrial control systems. It connects to one or two Ethernet networks and interfaces directly with analog I/O terminal boards. The module includes a processor board and a dedicated acquisition board for analog input functions. This I/O pack supports up to 10 analog inputs. The first eight channels accept ±5 V, ±10 V, or 4–20 mA signals. The last two channels handle ±1 mA or 4–20 mA inputs. Additionally, the pack provides two 0–20 mA current loop outputs for actuator or control signal transmission. Technical Specifications Specification Details Manufacturer GE Series Mark VIeS Model IS220YAICS1A Description Safety Analog I/O Pack Voltage Input 24 Vdc Current Consumption 20 mA Dimensions 8.3 cm × 4.2 cm × 12.2 cm Weight 340 g Analog Inputs 10 total (8 configurable, 2 fixed) Input Signal Range ±5 V, ±10 V, ±1 mA, 4–20 mA Analog Outputs 2 × 0–20 mA current loop Ethernet Ports Dual RJ-45 Power Connector 3-pin Signal Connector DC-37 pin Diagnostic Indicators LED status lights Features & Benefits The IS220YAICS1A supports flexible analog input configurations for varied sensor types. Its compact 8.3×4.2×12.2 cm size fits easily into dense control panels. Weighing just 340 g, the module offers lightweight installation and easy handling. Dual Ethernet ports ensure reliable communication with controllers. The DC-37 connector provides secure signal transmission to terminal boards. LED indicators offer clear visual diagnostics for power and signal status. Two analog outputs enable direct control of field devices or actuators. Application & Compatibility The IS220YAICS1A module suits industrial environments requiring high-precision analog signal processing. It integrates seamlessly with GE Mark VIeS terminal boards and supports real-time data exchange over Ethernet. Use this I/O pack in power generation, chemical processing, and safety-critical automation systems. Its support for multiple input ranges and current loop outputs makes it ideal for interfacing with sensors, transmitters, and control elements. The module’s design ensures compatibility with standard Mark VIeS architecture and ControlST tools.
$200.00 $100.00
-
GE GE IS220PDIAH1A Discrete Input Module
Product Overview The IS220PDIAH1A Discrete Input Module from GE’s Mark VIe series provides a robust interface between Ethernet networks and discrete input terminal boards. It includes a processor board shared across all Mark VIe I/O packs and a dedicated acquisition board for discrete input functions. This module supports up to 24 contact inputs and handles three voltage levels when paired with compatible terminal boards. System input connects via dual RJ-45 Ethernet ports and a three-pin power connector. Discrete signals enter through a DC-37 pin connector, ensuring direct communication with the terminal board. LED indicators offer visual diagnostics for power and signal status. Technical Specifications Specification Details Manufacturer GE Series Mark VIe Model IS220PDIAH1A Description Discrete Input Module Voltage Input 28 V Number of Channels 24 Dimensions 8.3 cm × 4.2 cm × 12.2 cm Weight 340 g Ethernet Ports Dual RJ-45 Power Connector 3-pin Signal Connector DC-37 pin Diagnostic Indicators LED status lights Features & Benefits The IS220PDIAH1A supports 24 discrete inputs for flexible signal acquisition. Its compact 8.3×4.2×12.2 cm size fits easily into control cabinets. Weighing just 340 g, the module simplifies installation and handling. Dual Ethernet ports ensure reliable network communication. LED indicators provide real-time visual feedback for diagnostics. The DC-37 connector enables secure integration with terminal boards. Voltage sensing is supported with TICI boards for isolated input configurations. Application & Compatibility The IS220PDIAH1A module is compatible with multiple GE terminal boards including TBCIH1, TBCIH2, TBCIH3, TICI, and STCIH1A. It supports simplex, dual, and TMR control modes, making it suitable for scalable industrial applications. Use this module in power generation, process automation, and safety-critical systems requiring discrete input monitoring. It does not support DIN-rail mounted DTCI boards, ensuring clear deployment boundaries.
$200.00 $100.00
-
GE GE IS220PDIOH1B Discrete Input/Output Module
Product Overview The IS220PDIOH1B Discrete Input/Output Module from GE’s Mark VIe series combines the functions of both PDIA and PDOA packs into a single, compact unit. It supports up to 24 contact inputs and controls 12 relay outputs, making it ideal for high-density signal processing in industrial control systems. This module connects to the system via dual RJ-45 Ethernet ports and a 3-pin power input. Discrete signals are transmitted through a DC-62 connector, which interfaces directly with the associated terminal board. LED indicators provide visual diagnostics for power, activity, and signal status. Technical Specifications Specification Details Manufacturer GE Series Mark VIe Model IS220PDIOH1B Description Discrete Input/Output Module Voltage Input 28 Vdc Frame Rate 1000 Hz Dimensions 8.3 cm × 4.2 cm × 12.2 cm Weight 340 g Contact Inputs Up to 24 Relay Outputs Up to 12 Ethernet Ports Dual RJ-45 Power Connector 3-pin Signal Connector DC-62 pin Diagnostic Indicators LED status lights Features & Benefits The IS220PDIOH1B supports both input and output functions in one integrated module. Its 8.3×4.2×12.2 cm size allows easy installation in compact control panels. Weighing only 340 g, the module is lightweight and easy to handle. The 1000 Hz frame rate ensures fast and reliable signal processing. Dual Ethernet ports provide robust communication with controllers. LED indicators offer clear visual feedback for diagnostics and system health. The DC-62 connector ensures secure and direct integration with terminal boards. Application & Compatibility The IS220PDIOH1B module is compatible with GE terminal boards such as TDBS for simplex applications and TDBT with WROB for TMR configurations. It suits industrial environments requiring both discrete input monitoring and relay output control. Use this module in power generation, turbine control, and automation systems where space efficiency and signal density are critical. Its combined functionality reduces hardware complexity and simplifies system architecture.
$200.00 $100.00
-
GE GE IS220PPRFH1B PROFIBUS Master Gateway Module
Product Overview The IS220PPRFH1B PROFIBUS Master Gateway Module from GE’s Mark VIe series enables seamless integration of PROFIBUS DPV0 slave devices into Ethernet-based control systems. It combines a standard processor board with a COM-C communication module from Hilscher GmbH, offering a reliable RS-485 interface via a DE-9 D-sub connector. This gateway supports transmission rates from 9.6 KBaud to 12 MBaud and manages up to 125 PROFIBUS slaves, each with 244 bytes of input and output data. It offers flexible redundancy options including simplex, dual Ethernet, and hot-backup configurations for high-availability systems. Technical Specifications Specification Details Manufacturer GE Series Mark VIe Model IS220PPRFH1B Description PROFIBUS Master Gateway Module Voltage Input 28 Vdc Current Consumption 18 A Dimensions 8.3 cm × 4.2 cm × 12.2 cm Weight 340 g Interface Type PROFIBUS RS-485 via DE-9 connector Baud Rate Range 9.6 KBaud to 12 MBaud Slave Device Capacity Up to 125 I/O Capacity per Slave 244 bytes (input/output) Ethernet Ports Dual RJ-45 Redundancy Options Single, Dual, Hot-backup Diagnostic Indicators LED status lights Features & Benefits The IS220PPRFH1B supports high-speed PROFIBUS communication with up to 125 slave devices. Its compact 8.3×4.2×12.2 cm size fits easily into control cabinets. Weighing only 340 g, the module simplifies installation and handling. The DE-9 connector ensures secure RS-485 communication with PROFIBUS networks. Dual Ethernet ports provide robust connectivity and redundancy. Hot-backup mode ensures uninterrupted operation in critical systems. LED indicators offer real-time diagnostics for link and power status. Application & Compatibility The IS220PPRFH1B module is ideal for industrial environments requiring PROFIBUS DPV0 Class 1 master functionality. It integrates seamlessly with GE Mark VIe controllers and supports distributed I/O architectures across power generation, manufacturing, and process automation. Use this gateway to connect smart sensors, actuators, and field devices to your control system. Its flexible redundancy options make it suitable for both standard and high-availability configurations.
$200.00 $100.00
-
GE GE IS220PAICH2A Analog Input/Output Module
Product Overview The IS220PAICH2A Analog Input/Output Module from GE’s Mark* VIe series delivers high-performance analog signal processing for industrial control systems. This compact module integrates seamlessly with analog input terminal boards and supports both voltage and current loop configurations. It features a dedicated acquisition board and a common processor board, enabling precise data handling across up to ten analog input channels. The first eight channels accept ±5 V, ±10 V, or 0–20 mA signals, while the last two support ±1 mA or 0–20 mA inputs. The IS220PAICH2A also includes enhanced hardware for 0–200 mA current output on the first channel. Dual RJ45 Ethernet ports and a three-pin power input ensure reliable connectivity. A DC-37 connector links directly to the terminal board, while onboard LEDs provide quick visual diagnostics. Technical Specifications Specification Details Manufacturer GE Model Number IS220PAICH2A Product Series Mark* VIe Voltage Range ±10 V Max Output Current 200 mA Input Channels 10 total (8 configurable ±5/±10 V or 0–20 mA; 2 ±1 mA or 0–20 mA) Output Channels 2 current loop outputs Dimensions 8.3 cm × 4.2 cm × 12.2 cm Weight 340 g Input Interface Dual RJ45 Ethernet, 3-pin power Output Interface DC-37 pin connector Diagnostics LED indicators Application & Compatibility The IS220PAICH2A module suits a wide range of industrial automation systems requiring precise analog signal acquisition and output. It integrates with GE’s Mark* VIe control architecture and supports compatibility with analog input terminal boards and Ethernet-based I/O networks.
$200.00 $100.00
-
GE GE IS200EXHSG3AEC Exciter Relay Driver Board
Product Overview The IS200EXHSG3AEC Exciter High Speed Relay Driver Board from GE’s EX2100 series delivers fast and reliable relay control for exciter systems. It connects via the Exciter Backplane Board to either simplex or redundant EMIO configurations, ensuring flexible deployment across control architectures. This board includes pilot relays for flashing relays 53A, 53B, and the de-excitation relay KDEP. It processes de-excitation status signals from the EDEX board and crowbar signals from the EXDE board, forwarding them to the EMIO. Three contact inputs—41, 53A, and 53B—receive 70 V DC power and provide monitored feedback to the system. The IS200EXHSG3AEC integrates tightly with the exciter power supply and maintains high-speed signal conditioning for critical relay operations. Technical Specifications Specification Details Manufacturer GE Model Number IS200EXHSG3AEC Product Series EX2100 Functional Revision A Voltage Input 70 V DC Contact Inputs 3 (41, 53A, 53B) Relay Functions Flashing (53A, 53B), De-excitation (KDEP) Dimensions 18 cm × 12 cm × 12 cm Weight 1 kg Signal Conditioning Crowbar and de-excitation status Interface Exciter Backplane to EMIO Application & Compatibility The IS200EXHSG3AEC board is designed for use in GE EX2100 exciter systems. It supports both simplex and redundant EMIO configurations and integrates with EDEX, EXDE, and EBKP boards. This module suits applications requiring high-speed relay control and precise signal feedback.
$200.00 $100.00
-
GE GE IS220PSVOH1B Servo Control I/O Pack
Product Overview The IS220PSVOH1B Servo Control I/O Pack from General Electric’s Mark VIe series provides precise servo valve control for industrial automation systems. It serves as an electrical interface between one or two I/O Ethernet networks and the IS200TSVCH2A terminal board. This module manages two servo valve position loops using the IS410WSVOH1A servo driver. The front faceplate includes multiple LED indicators for real-time diagnostics. Its compact form factor and robust design make it ideal for field-mounted enclosures in demanding environments. Technical Specifications Specification Details Manufacturer General Electric Model Number IS220PSVOH1B Product Series Mark VIe Voltage Input 28 Vdc Current Draw 1 A Dimensions 8.3 cm × 4.2 cm × 12.2 cm Weight 340 g Interface Dual I/O Ethernet Diagnostic Features LED indicators Compatible Terminal Board IS200TSVCH2A Compatible Servo Driver IS410WSVOH1A Application & Compatibility The IS220PSVOH1B module is designed for servo control in turbine and industrial drive systems. It integrates seamlessly with GE’s Mark VIe control architecture and supports high-speed communication with Ethernet networks.
$200.00 $100.00
-
GE GE IS220PPROH1A Backup Turbine Protection Module
Product Overview The IS220PPROH1A Backup Turbine Protection Module from GE’s Mark VI IS200 series delivers reliable protection for gas and steam turbine control systems. It supports integrated monitoring and control functions within the Mark VIe architecture and connects directly to compatible terminal boards such as IS200TREAH1A, IS200TREAH3A, IS200SPROH1A, IS200SPROH2A, IS200TPROH1C, and IS200TPROH2C. This module operates within a voltage range of 27.4–28.6 Vdc and draws 0.37 Adc. Its compact design fits easily into field-mounted enclosures, making it ideal for industrial environments requiring robust backup protection. Technical Specifications Specification Details Manufacturer GE Model Number IS220PPROH1A Product Series Mark VI IS200 Voltage Range 27.4–28.6 Vdc Current Consumption 0.37 Adc Dimensions 8.3 cm × 4.2 cm × 12.2 cm Weight 340 g Mounting Field enclosure compatible Application & Compatibility The IS220PPROH1A module is engineered for backup protection in turbine control systems. It integrates with GE’s Mark VIe platform and supports both generator and mechanical drive applications. This module suits environments requiring high reliability and seamless communication with accessory boards.
$200.00 $100.00
-
GE GE IS200TPROH1CAA Emergency Protection Terminal Board
Product Overview The IS200TPROH1CAA Emergency Protection Terminal Board from GE’s Mark VIe series provides a robust interface for turbine protection systems. It hosts up to three PPRO I/O packs and conditions speed signal inputs for backup trip operations. The board includes two potential transformers (PTs) for bus and generator voltage sensing. Three DC-37 connectors sit adjacent to the PPRO pack slots, allowing direct cabling to backup trip relay boards such as TREG, TREL, TRES, and TREA. The IS200TPROH1CAA supports both simplex and triple modular redundant (TMR) configurations, offering flexibility across various protection architectures. Technical Specifications Specification Details Manufacturer GE Model Number IS200TPROH1CAA Product Series Mark VIe Number of Channels 24 Thermocouple Types E, J, K, S, T Dimensions 18 cm × 12 cm × 12 cm Weight 1 kg Transformer Count 2 PTs Connector Type 3 × DC-37 pin connectors Terminal Style 24 barrier terminals (pluggable) Application & Compatibility The IS200TPROH1CAA board integrates with GE’s PPRO I/O packs and supports emergency trip relay boards for turbine protection. It suits both simplex and TMR systems and enables direct mounting of three IS220PPROH1A modules.
$200.00 $100.00
-
GE GE IS220PSCAH1A Serial Communication Module
Product Overview The IS220PSCAH1A Serial Communication Module from GE’s Mark VIeS control system delivers flexible serial interfacing for industrial automation. It connects one or two I/O Ethernet networks to a serial terminal board and supports six configurable transceiver channels. Each channel on the communications board can be set to RS-232, RS-422, or RS-485 half-duplex standards. The module includes a BPPC processor board and provides visual diagnostics via LED indicators. Input is handled through dual RJ-45 Ethernet ports and a 3-pin power connector, while output uses a DC-62 pin connector for direct terminal board connection. Technical Specifications Specification Details Manufacturer GE Model Number IS220PSCAH1A Product Series Mark VIeS Voltage Input 28 Vdc Current Draw 0.36 A Dimensions 8.3 cm × 4.2 cm × 12.2 cm Weight 340 g Ethernet Ports 2 × RJ-45 Power Connector 3-pin Output Connector DC-62 pin Serial Channels 6 (RS-232/RS-422/RS-485) Diagnostic Features LED indicators Processor Board BPPC Application & Compatibility The IS220PSCAH1A module is designed for serial communication in distributed control systems. It integrates with GE’s Mark VIeS architecture and supports Ethernet Modbus on simplex networks.
$200.00 $100.00
-
GE GE IS220PRTDH1A Resistance Temperature Device Input Module
Product Overview The IS220PRTDH1A Resistance Temperature Device Input Module from GE’s Mark VIe series enables precise RTD signal acquisition for industrial control systems. It connects one or two I/O Ethernet networks to a compatible RTD terminal board, such as TRTD, and supports up to eight RTD inputs natively or sixteen when paired with the terminal board. This I/O pack includes a processor board shared across all Mark VIe modules and a dedicated acquisition board for temperature sensing. Input is handled via a DC-37 pin connector and a three-pin power input, while output uses dual RJ45 Ethernet ports. LED indicators on the faceplate provide quick visual diagnostics. Technical Specifications Specification Details Manufacturer GE Model Number IS220PRTDH1A Product Series Mark VIe Voltage Input 28 Vdc Current Draw 0.36 A Dimensions 8.3 cm × 4.2 cm × 12.2 cm Weight 340 g RTD Channels 8 native, 16 with TRTD board Input Connector DC-37 pin Output Interface Dual RJ45 Ethernet Diagnostic Features LED indicators Application & Compatibility The IS220PRTDH1A module is ideal for temperature monitoring in turbine and industrial automation systems. It integrates seamlessly with GE’s Mark VIe architecture and supports RTD signal acquisition from various sensor types.
$200.00 $100.00
-
GE GE IS420UCECH1B UCEC Controller
Product Overview The IS420UCECH1B UCEC Controller from GE’s Mark VIe series combines the IS420UCSCH1 controller with a seven-port I/O expansion board. This integrated module supports high-speed, real-time control in hazardous environments and mounts directly into a CompactPCI (CPCI) enclosure. It features the same performance and reliability as the standalone IS420UCSCH1 controller, with added I/O flexibility. The controller runs on QNX Neutrino OS, designed for industrial-grade multitasking. Its compact form factor and rugged design make it ideal for demanding control applications. Technical Specifications Specification Details Manufacturer GE Model Number IS420UCECH1B Product Series Mark VIe Origin United States HS Code 85389091 Dimensions 20.3 cm × 15.2 cm × 5.5 cm Weight 0.8 kg Controller Type IS420UCSCH1 with I/O expansion I/O Ports 7 Mounting CPCI enclosure OS QNX Neutrino Certification Hazardous location approved Application & Compatibility The IS420UCECH1B module is designed for use in GE’s Mark VIe control systems. It supports general-purpose industrial applications requiring high reliability and fast processing.
$200.00 $100.00
-
GE GE IS415UCCCH4A Single Slot Controller Board
Product Overview The IS415UCCCH4A Single Slot Controller Board from GE’s Mark VIe series delivers high-speed control and synchronization for distributed systems. This 6U CompactPCI (CPCI) board runs application code using the QNX Neutrino real-time operating system and connects to I/O packs via dedicated Ethernet networks. It mounts in a four-slot CPCI rack and supports simplex, dual, or triple modular redundant (TMR) configurations. The board includes five communication ports for HMI, engineering, and I/O interfaces, including Ethernet and RS-232C. CMOS battery management and jumper settings help extend battery life during storage. The IS415UCCCH4A synchronizes controller clocks to within 100 microseconds using IEEE 1588 across R, S, and T IONets. It supports real-time data exchange and system diagnostics through ToolboxST or NTP server integration. Technical Specifications Specification Details Manufacturer GE Model Number IS415UCCCH4A Product Series Mark VIe Origin United States HS Code 85389091 Dimensions 16 cm × 16 cm × 12 cm Weight 0.8 kg Form Factor 6U CPCI Operating System QNX Neutrino Communication Ports 5 (Ethernet, RS-232C) Synchronization IEEE 1588 (≤100 µs) I/O Network R, S, T IONets Mounting Slot 1 in CPCI rack Application & Compatibility The IS415UCCCH4A controller board is designed for use in GE’s Mark VIe distributed control systems. It supports various industrial applications including balance-of-plant, steam, gas, and aero-derivative turbines.
$200.00 $100.00
-
GE GE IS220PTURH1A Turbine Trip I/O Pack
Product Overview The GE IS220PTURH1A Turbine Specific Primary Trip I/O Pack is engineered for high-reliability turbine protection within the Mark VIe IS200 Series. It pairs seamlessly with the IS200TRPAH1A terminal board to deliver precise trip control and monitoring. This compact module supports multiple input/output ranges and integrates critical trip logic for turbine systems. Its robust design ensures consistent performance in demanding industrial environments. Technical Specifications Parameter Specification Part Number IS220PTURH1A Series Mark VIe IS200 Dimensions 8.3 cm × 4.2 cm × 12.2 cm Weight 340 g Power Supply 28 V DC, 0.41 A DC Speed Input Range -15 V to +15 V DC Voltage Input Range 16 V to 140 V DC E-stop Input 18 V to 140 V DC E-stop Power Output 28 V DC O.C., 17 mA DC S.C. Contact Output 28 V DC, 7 A DC Application & Compatibility The IS220PTURH1A module is specifically designed for turbine trip applications and integrates with IS200TRPAH1A terminal boards. It supports emergency stop logic, speed sensing, and high-voltage input monitoring. Compatible with GE Mark VIe Control Systems, this I/O pack is ideal for gas and steam turbine platforms requiring precise trip coordination.
$200.00 $100.00
-
GE GE IS220PAICH1A Analog I/O Module
Product Overview The GE IS220PAICH1A Analog I/O Module from the Mark VI IS200 Series delivers precise analog signal processing for turbine control systems. Designed for field mounting, it supports seamless integration with IS200STAIH1A, IS200STAIH2A, and IS200TBAIH1C terminal boards. Its compact form factor and robust electrical specifications make it ideal for generator and mechanical drive applications in gas and steam turbines. Technical Specifications Parameter Specification Part Number IS220PAICH1A Series Mark VI IS200 Dimensions 8.3 cm × 4.2 cm × 12.2 cm Weight 340 g Voltage Range 22.5 V to 28 V DC Current Draw 0.49 A DC Application & Compatibility The IS220PAICH1A module supports analog input/output operations for turbine control, protection, and monitoring. It works with IS200STAIH1A, IS200STAIH2A, and IS200TBAIH1C boards, ensuring compatibility across various Mark VIe system configurations. Use this module in industrial enclosures for high-performance control of steam and gas turbines, as well as other mechanical drive systems.
$200.00 $100.00
-
GE GE IS220PDOAH1B Discrete Output Module
Product Overview The GE IS220PDOAH1B Discrete Output I/O Pack from the Mark VIe IS200 Series delivers reliable signal switching for turbine control systems. It supports direct field mounting inside electrical enclosures and connects with multiple terminal boards including IS200TRLYH2E, IS200TRLYH3E, IS200TRLYH1F, and IS200TRLYH2F. This module is ideal for managing discrete output signals in generator and mechanical drive applications across gas and steam turbines. Technical Specifications Parameter Specification Part Number IS220PDOAH1B Series Mark VIe IS200 Dimensions 8.3 cm × 4.2 cm × 12.2 cm Weight 340 g Voltage Range 22.5 V to 28 V DC Current Draw 0.71 A DC Application & Compatibility Use the IS220PDOAH1B module to control discrete outputs in turbine protection and monitoring systems. It integrates with IS200TRLYH2E, IS200TRLYH3E, IS200TRLYH1F, and IS200TRLYH2F boards, ensuring flexible deployment across various Mark VIe configurations. This I/O pack suits industrial environments requiring robust control of switching devices and relay logic.
$200.00 $100.00
-
GE GE IS220PAICH1B Analog I/O Module
Product Overview The GE IS220PAICH1B Analog IN/OUT Module from the Mark VIe IS200 Series delivers high-precision analog signal processing for industrial control systems. This compact unit supports programmable configurations and integrates seamlessly into harsh environments requiring stable and reliable performance. Its modular design allows flexible deployment across various automation platforms, including production lines, motion control systems, and process monitoring applications. Technical Specifications Parameter Specification Part Number IS220PAICH1B Series Mark VIe IS200 Voltage Range 22.5 V to 28 V DC Current Draw 0.49 A DC Dimensions 8.3 cm × 4.2 cm × 12.2 cm Weight 340 g Application & Compatibility The IS220PAICH1B module supports analog input/output operations for a wide range of industrial automation systems. It integrates with GE Intelligent Platforms and is compatible with other Mark VIe components, enabling scalable and expandable control architectures. Use this module in environments requiring high accuracy and stability, such as factory automation, turbine control, and distributed I/O networks.
$200.00 $100.00
You have seen 96 out of 146 products
