Description
Overview

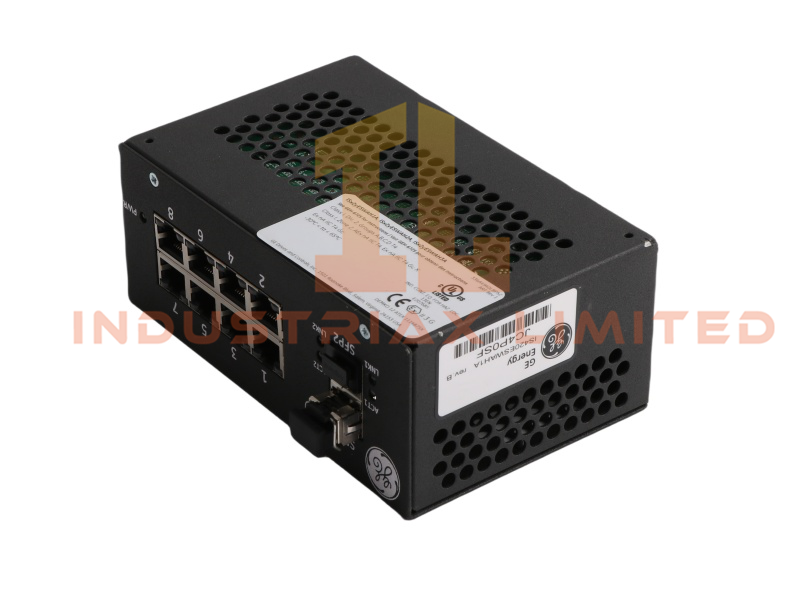

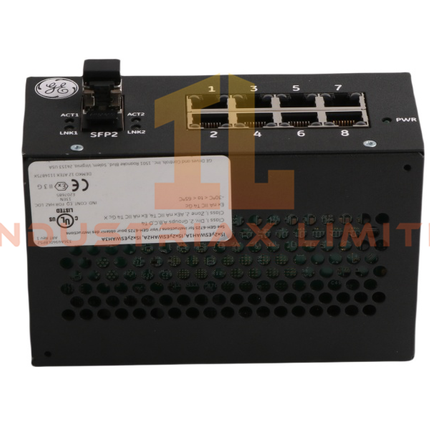

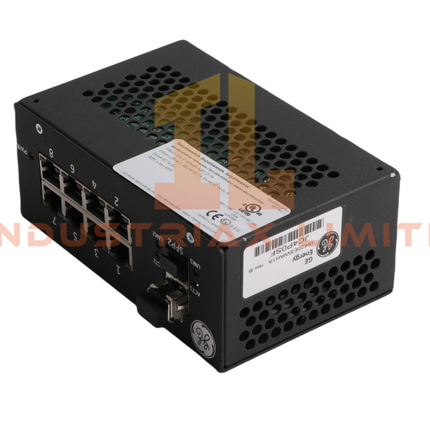

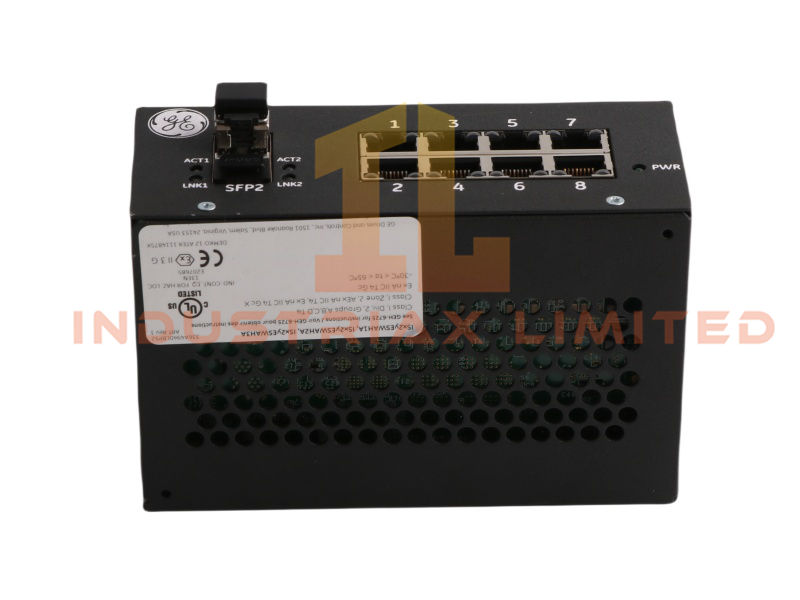

The GE IS420ESWAH1A Ethernet Switch belongs to the Mark VIe series and provides reliable connectivity for industrial control systems. Measuring 2.1x18.6x26.3cm and weighing 0.22kg, this compact module integrates seamlessly into DCS environments. Manufactured in the USA, it supports Ethernet router communication and ensures stable operation in demanding applications.

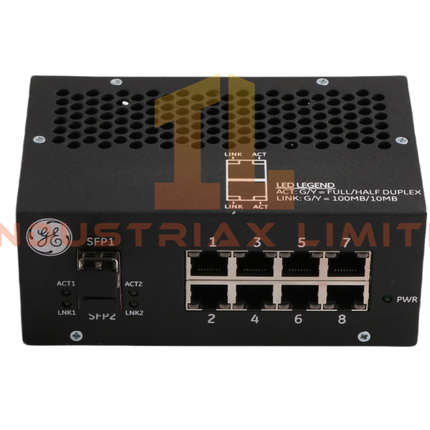

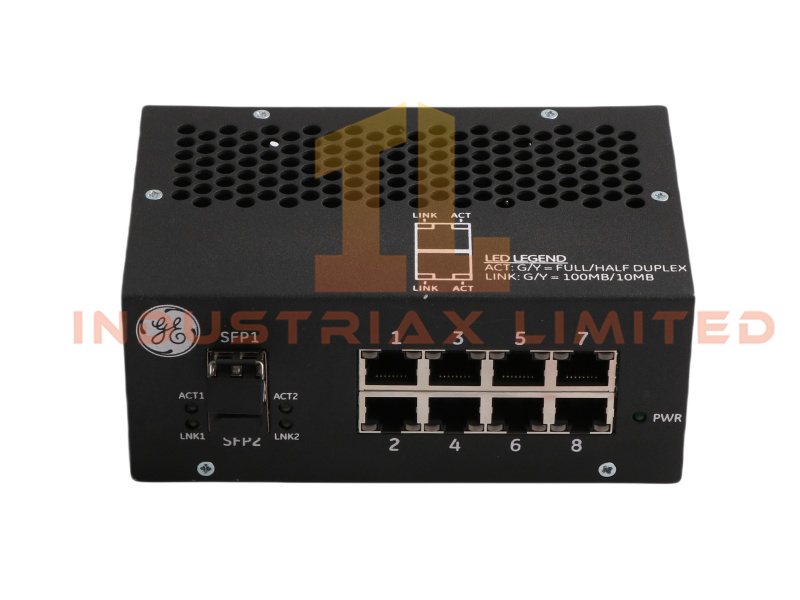

Engineers designed the IS420ESWAH1A with eight 10/100Base-TX ports and one 100Base-FX LC-type connector. Its robust metal housing, LED indicators, and labeled TB1 and TB2 ports simplify diagnostics and connectivity.
Technical Specifications
| Parameter |
Value |
| Model Number |
IS420ESWAH1A |
| Module Type |
Ethernet Switch 8 Port 1 Fiber |
| Manufacturer |
GE |
| Product Range |
Mark VIe |
| Condition |
Brand New |
| Lead Time |
In Stock |
| Weight |
0.22 kg |
| Dimension |
2.1 x 18.6 x 26.3 cm |
| HS Code |
8537101190 |
| MOQ |
1 |
| Origin |
USA |
| System |
DCS |
| Status |
Active |
| Communication Service |
Ethernet router |
Functional Description
The GE IS420ESWAH1A supports two mounting configurations, either perpendicular or parallel to the rail, with clips provided for each orientation. Its RJ45 connectors withstand up to 200 insertion cycles, ensuring durability. The switch includes full/half duplex auto-negotiation, a 256 KB buffer, and support for up to 4,000 MAC addresses.
LED indicators with factory-printed legends simplify diagnostics, while flow control ensures efficient data transmission. This design guarantees reliable communication between Mark VIe and Mark VIeS series products.
Applications and Compatibility
The IS420ESWAH1A Ethernet Switch suits industries requiring dependable DCS integration, including power generation, automation, and heavy machinery. It works seamlessly with GE Mark VIe and Mark VIeS systems, offering compatibility for upgrades and replacements. Professionals rely on the IS420ESWAH1A for secure connectivity, efficient data flow, and reliable turbine control operations.
