Motor Drives & Inverters
-
General Electric GE IS200TSVCH1ADC Servo Terminal Board
GE IS200TSVCH1ADC Servo Terminal Board Configured for servo-valve position feedback processing in the Mark VI Speedtronic turbine control system, the GE IS200TSVCH1ADC (IS200TSVC Servo Terminal Board) provides direct physical/electrical execution for actuator signal termination, LVDT/RVDT feedback conditioning, and controller interface operations. Hardware Specifications Parameter Specification Model IS200TSVCH1ADC Brand GE Origin USA Weight 0.6 kg Dimensions 200 mm x 150 mm x 35 mm Operating Temp -30 deg C to +65 deg C Power Consumption Not specified System Platform Mark VI Speedtronic turbine control system Product Function Servo valve and actuator termination board Input Signals LVDT/RVDT position feedback, up to 4 channels Excitation Voltage 7 VAC RMS nominal, 3 kHz frequency Output Signals +/-10 VDC conditioned feedback to controller Control Interface Servo drive commands from controller Isolation Galvanic isolation between feedback and control circuits Connectors Screw terminals for field wiring, ribbon connectors to control rack Protection Features Surge suppression and EMI filtering Mounting Method DIN-rail or panel mounting Humidity Tolerance Up to 95% non-condensing Compliance IEC 61010-1, UL 508, CE industrial standards GE Mark VI Servo Feedback Signal Processing The IS200TSVCH1ADC provides servo actuator signal termination within the GE Mark VI Speedtronic architecture. The board receives LVDT/RVDT position feedback signals, applies signal conditioning, and transfers proportional feedback values to the turbine controller for closed-loop actuator regulation. The servo interface circuitry supports feedback isolation between field measurement circuits and control electronics. EMI filtering and surge suppression components are integrated to reduce interference effects on analog position measurement paths. The board operates with turbine servo control circuits requiring accurate actuator position feedback. Signal routing includes field wiring termination through screw terminals and rack-side communication through ribbon connectors. Frequently Asked Questions Q: What type of feedback signals does the IS200TSVCH1ADC process?A: The board processes LVDT/RVDT position feedback signals from turbine actuator mechanisms and provides conditioned feedback signals to the controller. Q: Does the IS200TSVCH1ADC provide electrical isolation?A: Yes. The board includes galvanic isolation between feedback circuits and control circuits to separate field signals from controller electronics. Q: What installation considerations apply to the field wiring connections?A: Field signal wiring should maintain proper shielding, grounding, and separation from high-current power cables to reduce electromagnetic interference on analog feedback signals. Field Installation Guidelines Install the IS200TSVCH1ADC on the specified Mark VI control cabinet mounting structure using approved hardware. Verify connector alignment before applying field wiring. Use shielded cables for LVDT/RVDT feedback connections where required by the control system design. Terminate cable shields according to cabinet grounding practices and avoid routing low-level analog feedback wiring parallel to high-voltage or high-current conductors. Confirm field terminal identification before connecting servo-valve feedback and actuator control circuits. Inspect terminal tightness, connector engagement, and grounding continuity during commissioning procedures.
$200.00 $100.00
-
General Electric IS200TSVCH2A GE Servo Terminal Board
GE IS200TSVCH2A Servo Terminal Board The GE IS200TSVCH2A, also cataloged as the IS200TSVC Servo Terminal Board, provides physical signal interfacing for electro-hydraulic servo valve control within the GE Mark VI Speedtronic turbine control system. The board processes analog servo command signals and LVDT feedback connections to execute closed-loop actuator positioning through dedicated servo channels. Hardware Specifications Parameter Specification Model IS200TSVCH2A Brand GE Origin United States Board Type Servo Terminal Board System Compatibility Mark VI Speedtronic turbine control system Signal Type Analog servo control signals Servo Channels 4 independent servo channels Operating Voltage 24 VDC / 125 VDC Output Voltage Range -10 V to +10 V Output Current +/-100 mA per channel Communication Interface VMEbus / backplane bus Weight 0.45 kg Dimensions 200 mm x 150 mm x 35 mm Operating Temp -20 to +65 deg C Power Consumption Approx. 15 W Industrial Control Signal Conditioning and Servo Interface The IS200TSVCH2A integrates with the GE Mark VI Speedtronic architecture through backplane communication and dedicated terminal connections. The board supports analog servo command output, LVDT feedback signal processing, and electro-hydraulic actuator loop control. The servo interface uses differential signal paths and signal conditioning circuits to reduce electrical noise influence in actuator feedback loops. The board supports servo valve current regulation through independent channels and provides connection points for turbine fuel valves, inlet guide vane actuators, and steam admission valve systems. The module design supports GE turbine control configurations using redundant control architectures. Firmware flash compatibility and backplane bus communication functions allow integration with Mark VI controller assemblies. Frequently Asked Questions Q: What type of actuator signals does the IS200TSVCH2A process?A: The board processes analog servo control signals for electro-hydraulic servo valves and interfaces with LVDT feedback devices for closed-loop positioning. Q: How many servo control channels are available on the IS200TSVCH2A?A: The module provides 4 independent servo channels for actuator control and feedback signal termination. Q: Can the board be replaced during system operation?A: Hot replacement depends on the Mark VI rack configuration and operating procedure. Servo loops should be placed in an appropriate maintenance state before module replacement. Field Installation Guidelines Install the IS200TSVCH2A in the designated Mark VI control rack location and verify correct terminal assignments before connecting field wiring. Use shielded twisted-pair cables for analog servo and feedback signals where required by the installation design. Terminate cable shields according to the turbine control cabinet grounding practice to reduce EMI/RFI coupling. Separate low-level analog signal wiring from high-current power conductors and switching circuits. Verify actuator loop polarity, feedback direction, and terminal identification before energizing the control system.
$200.00 $100.00
-
GE IS210SAMBH2AA GE Mark VI Servo Amplifier Module
GE IS210SAMBH2AA Mark VI Servo Amplifier Module The GE IS210SAMBH2AA, also cataloged as the IS210SAMB Servo Amplifier Module, operates as a dedicated hardware component for hydraulic actuator current control within the GE Speedtronic Mark VI turbine control system. The module converts digital commands into proportional servo valve drive current with LVDT feedback processing. Hardware Specifications Parameter Specification Model IS210SAMBH2AA Brand GE Origin United States Weight 0.35 kg Operating Temp -30 to +65 deg C Power Consumption Supplied by +28 VDC nominal input Product Type Servo Amplifier Modules Function Servo amplifier for hydraulic actuators Inputs LVDT feedback signals, up to 2 channels Outputs +/-200 mA current drive for servo valves Resolution 16-bit digital-to-analog conversion Accuracy +/-0.1% of full scale Communication Interface Mark VI controller backplane interface Mounting Rack mount, Mark VI chassis compatible PCB Protection Conformal coating Deterministic Servo Control and Actuator Feedback Processing The IS210SAMBH2AA applies GE Mark VI industrial control architecture for closed-loop hydraulic actuator control. The module receives digital control signals from the controller, converts them into proportional current outputs, and drives servo valves connected to turbine actuators. The Mark VI platform supports deterministic controller communication and I/O density scaling through modular hardware structures. The servo amplifier module processes LVDT feedback signals to maintain actuator position control loops. Firmware flash compatibility must correspond with the installed Mark VI controller hardware revision and system configuration. Frequently Asked Questions Q: What type of actuator interface does the IS210SAMBH2AA provide?A: The module provides proportional current drive outputs for hydraulic servo valves, with outputs rated at +/-200 mA. Q: How does the module process valve position feedback?A: The IS210SAMBH2AA accepts LVDT feedback signals and integrates them into closed-loop actuator control functions. Q: Is the module compatible with redundant Mark VI configurations?A: The module supports Mark VI system architectures including simplex and TMR (Triple Modular Redundancy) configurations. Field Installation Guidelines Install the IS210SAMBH2AA in the assigned Mark VI rack position and verify proper mechanical seating with the chassis backplane connector. Check servo valve wiring polarity, LVDT feedback connections, and actuator loop configuration before system startup. Keep feedback and current drive wiring separated from high-voltage switching circuits to reduce electrical interference. Use shielded cables where required and terminate cable shields according to site grounding practices. Inspect rack mounting, backplane engagement, and grounding continuity before applying operating power.
$200.00 $100.00
-

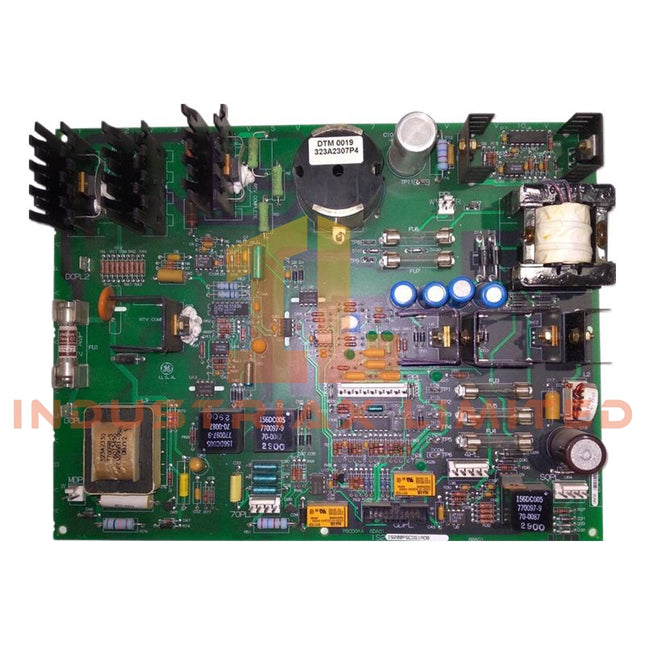

General Electric GE IS200PSCDG1ADB Power Supply Contactor Driver Board
GE IS200PSCDG1ADB Power Supply Contactor Driver Board Configured for regulated DC power conversion and contactor control execution in GE Mark VI / Mark VIe Speedtronic turbine control systems, the GE IS200PSCDG1ADB (IS200PSCDG1ADB Power Supply Contactor Driver Board) provides direct electrical execution through DC regulation circuits, isolated I/O channels, and contactor driver outputs. Hardware Specifications Parameter Specification Model IS200PSCDG1ADB Brand GE Origin United States Weight 0.6 kg Dimensions 16.2 x 8.6 x 4.8 cm Operating Temp -30 to +65 deg C Power Consumption 12 W maximum Product Type Power Supply Contactor Driver Boards System Platform GE Mark VI / Mark VIe Speedtronic turbine control systems Functional Abbreviation PSCD Input Voltage 14-32 V DC dual redundant or 88-132 V AC / 176-264 V AC depending on configuration Output Voltages +5 V DC, +/-15 V DC, +/-24 V DC regulated outputs Contactor Driver Output Up to 0.75 A DC, 100 V DC output for MDA contactor coils Analog Inputs 8 differential channels Analog Outputs 4 channels, 4-20 mA Digital Inputs 16 optically isolated channels Digital Outputs 8 relay outputs Processor 32-bit RISC microcontroller Memory 4 MB Flash, 2 MB battery-backed RAM Analog Sampling 1 kHz per input, 16-bit resolution Isolation 2500 V optical isolation per I/O channel Protection MOV surge protection and conformal coating Backwards Compatibility First two revisions Assembly Type Normal Assembly GE Mark VI Deterministic Power and I/O Control The IS200PSCDG1ADB integrates power regulation, contactor driver execution, and signal interface functions within GE Mark VI / Mark VIe control architectures. The board supports deterministic backplane communication for status feedback, voltage monitoring, and fault reporting. The PSCD board uses redundant power input capability and floating DC bus operation for power distribution management. The floating bus arrangement allows detection of system ground faults while maintaining DC supply separation from earth reference. The module provides I/O density scaling through combined analog and digital interfaces, including differential analog channels, isolated digital inputs, relay outputs, and 4-20 mA analog outputs. Firmware flash compatibility with GE controller environments enables configuration management and diagnostic communication through the turbine control platform. Frequently Asked Questions Q: What power outputs are provided by the IS200PSCDG1ADB?A: The board provides regulated +5 V DC, +/-15 V DC, and +/-24 V DC outputs for connected control hardware. Q: Does the PSCD board support redundant power inputs?A: Yes. The board supports dual redundant DC input configurations and floating DC bus operation. Q: What isolation protection is provided for I/O channels?A: The board provides 2500 V optical isolation per I/O channel. Field Installation Guidelines Install the IS200PSCDG1ADB in the specified GE Mark VI / Mark VIe control cabinet location with correct mounting orientation and connector alignment. Verify all incoming power sources are isolated before performing installation or replacement work. Maintain separation between DC power wiring, contactor circuits, and low-level analog signal wiring. Use proper grounding practices for cabinet assemblies and connect shields according to GE turbine control installation requirements. Confirm redundant input polarity, output wiring, and I/O terminal assignments before energizing the board. After startup, check diagnostic feedback, power status indicators, and backplane communication status through the controller interface.
$200.00 $100.00
-

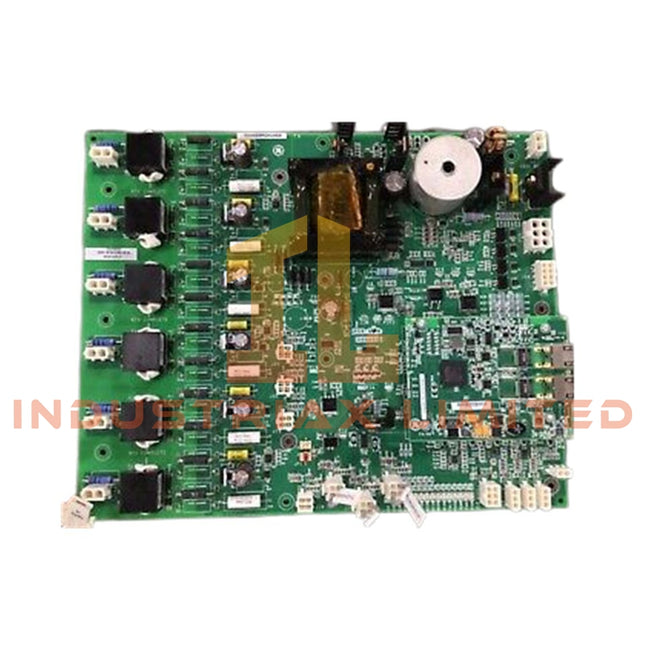

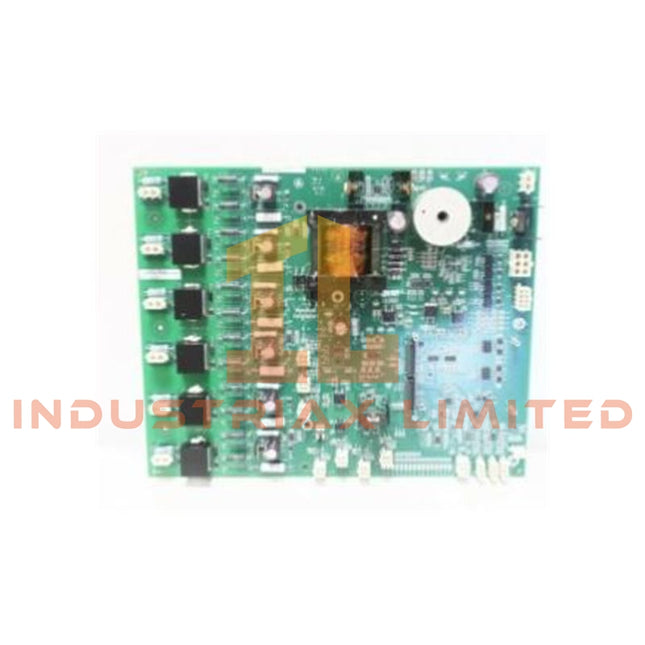

General Electric IS200GDDDG1ABA GE EX2100 Gate Driver Board
GE IS200GDDDG1ABA Gate Driver Dynamic Discharge Board The GE IS200GDDDG1ABA, also cataloged as the IS200GDDDG1ABA Gate Driver Dynamic Discharge Board, operates as a dedicated hardware component for IGBT gate control and DC link energy discharge execution within the GE Mark VI / EX2100 excitation control system. Hardware Specifications Parameter Specification Model IS200GDDDG1ABA Brand GE Origin United States Weight 2.3 kg Dimensions 17.8 cm high x 33.02 cm wide x 90 mm depth Operating Temp -30 to +65 deg C Power Consumption +5 V at 1.2 A, +/-12 V at 200 mA from VME backplane Product Type Gate Driver Dynamic Discharge Boards System Platform GE Mark VI / EX2100 Static Exciter Gate Drive Channels 6 differential gate drive channels Gate Drive Output 15 V differential, 2 A peak, 20 us pulse width Gate Drive Isolation Transformer-isolated gate drive circuits Dynamic Discharge Device 600 V IGBT with 2 kA pulse capability Dynamic Discharge Response 10 us turn-on time Isolation Rating 1500 Vrms gate-to-logic, 500 V channel-to-channel Connectors 96-pin DIN VME connector, two 20-position pluggable headers Protection Functions Gate supply UVLO, desaturation detection, MOV surge suppression Diagnostics LED indicators for Bridge OK, IMOK, and DD AUX Power Available Coating IPC-CC-830 conformal coating GE Mark VI Excitation IGBT Gate Control and Firmware Compatibility The IS200GDDDG1ABA provides IGBT switching control within the GE Mark VI and EX2100 excitation architecture. The board receives gate commands through the VME backplane interface and generates isolated drive signals for six IGBT devices in the exciter bridge. The dynamic discharge circuit manages DC link energy dissipation during fault or shutdown sequences by controlling the discharge IGBT and resistor path. The board supports Mark VI TMR architecture compatibility, allowing synchronized control processing across redundant controller channels. Firmware flash compatibility with the Mark VI control environment allows diagnostic communication and hardware status monitoring. Protection circuits including undervoltage lockout, desaturation detection, and surge suppression monitor gate drive conditions during switching operation. Frequently Asked Questions Q: How many IGBT gate drive channels are provided by the IS200GDDDG1ABA?A: The board provides six isolated differential gate drive channels for IGBT bridge control. Q: What is the purpose of the dynamic discharge function?A: The dynamic discharge circuit transfers stored DC link energy into resistor banks during trip or shutdown events to control overvoltage conditions. Q: What interface connects the board to the Mark VI controller system?A: The board uses a 96-pin DIN VME connector and additional pluggable headers for system interfacing. Field Installation Guidelines Install the IS200GDDDG1ABA in the designated GE Mark VI or EX2100 VME rack position with correct connector alignment. Verify that all excitation power sources and DC link circuits are de-energized before installation or replacement. Maintain separation between gate drive wiring, high-voltage DC conductors, and low-level control wiring. Ensure cabinet grounding and shielding connections follow the excitation system installation requirements to minimize electromagnetic interference. Check VME connector seating, auxiliary power connections, and diagnostic LED status after installation. Verify gate drive signal integrity and system communication before returning the excitation system to service.
$200.00 $100.00
-

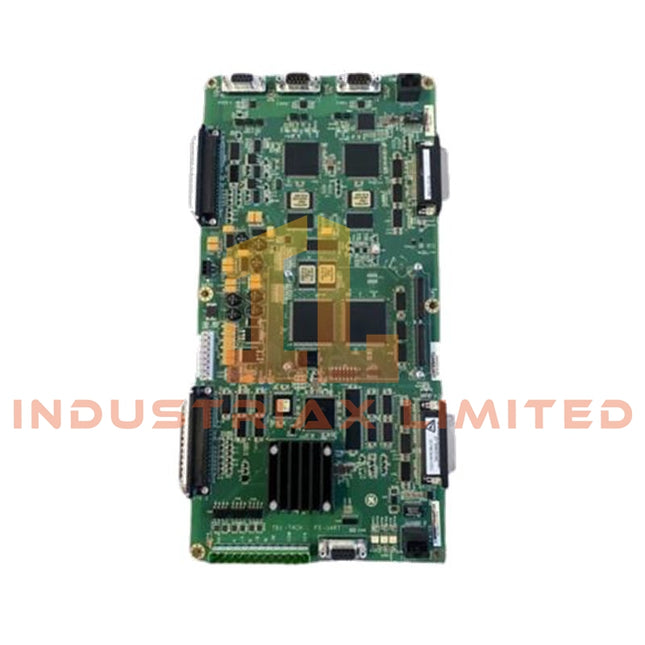

General Electric GE IS210MACCH2A Multi-Application Converter Controller Module
GE IS210MACCH2A Multi-Application Converter Controller Module Configured for closed-loop control execution and field signal conversion in the GE Mark VI/Mark VIe turbine control system, the GE IS210MACCH2A (IS210MACCH2A Multi-Application Converter Controller Module) provides direct processor, I/O, and communication interface functions. The module integrates CPU processing, analog/digital signal handling, and network communication through Speedtronic control architectures. Hardware Specifications Parameter Specification Model IS210MACCH2A Brand GE Origin United States Weight 0.59 kg Dimensions 283 x 182 x 52 mm Operating Temp -40 to +70 deg C Power Consumption Not specified in supplied data Product Type Multi-Application Converter Controller Module Series GE Mark VI / Mark VIe Speedtronic Control System Processor 32-bit High-Speed RISC CPU Memory 16 MB Flash / 8 MB SRAM Supply Voltage 24 VDC (18-30 VDC) or 5 VDC via backplane Analog I/O 16 analog inputs (4-20 mA / 0-10 V), 8 analog outputs Digital I/O 32 digital inputs, 16 relay digital outputs Communication Ports 2 x Ethernet 10/100 Base-T, 2 x RS-485, VME64 backplane Communication Protocols Modbus TCP/RTU, Profibus DP, GE Ethernet Global Data (EGD) Isolation Voltage 1500 V AC channel-to-channel and channel-to-ground Storage Temperature -40 to +85 deg C Certifications CE, UL 508, ATEX Category 3, RoHS Industrial Control Communication and I/O Processing The IS210MACCH2A operates as a GE industrial control processor module with integrated I/O density scaling for turbine control applications. The module combines analog acquisition, relay output control, and serial/Ethernet communication within the Mark VI/Mark VIe platform. The module supports deterministic network communication through Ethernet interfaces and GE control protocols. Firmware flash compatibility allows controller software loading and configuration management through supported Speedtronic engineering tools. Frequently Asked Questions Q: What type of communication interfaces are available on the IS210MACCH2A?A: The module provides dual Ethernet 10/100 Base-T ports, dual RS-485 interfaces, and VME64 backplane communication. Q: What I/O signals can the module process?A: The module supports 16 analog inputs, 8 analog outputs, 32 digital inputs, and 16 relay digital outputs for controller interfacing. Q: Does the module support replacement during system operation?A: The supplied data identifies hot-swappable capability. Actual replacement procedures depend on the installed Mark VI/Mark VIe rack configuration and system maintenance procedures. Field Installation Guidelines Install the IS210MACCH2A in the designated GE Mark VI/Mark VIe rack position and secure the module according to rack mechanical requirements. Verify backplane engagement before applying power. Use shielded cables for analog signal connections and terminate cable shields according to site grounding practices. Separate low-level analog wiring from high-current actuator and power cables to reduce electrical interference. Before commissioning, verify Ethernet and serial communication addressing, confirm I/O channel configuration, and check diagnostic status indicators through the applicable GE engineering software.
$200.00 $100.00
-
General Electric GE IS200TCSAS1ACB Turbine Control Servo Amplifier Board
GE IS200TCSAS1ACB Turbine Control Servo Amplifier Board The GE IS200TCSAS1ACB, also cataloged as the IS200TCSAS1ACB Turbine Control Servo Amplifier Board, operates as a dedicated hardware component for servo actuator drive signal execution within GE Mark VIe turbine control system platforms. It converts controller analog commands into amplified servo outputs for mechanical positioning systems. Hardware Specifications Parameter Specification Model IS200TCSAS1ACB Brand GE Origin United States Weight 0.6 kg Dimensions 150 mm x 180 mm x 95 mm Operating Temp -40 deg C to +70 deg C Product Type Turbine Control Servo Amplifier Boards Series GE Mark VIe Turbine Control System Functional Type TCSA Turbine Control Servo Amplifier Board Servo Outputs 4 independent channels Output Voltage +/-15 VDC Output Current Up to 2 A per channel Control Input +/-10 V analog command Resolution 12-bit DAC Accuracy +/-0.1% of full scale Isolation Channel-to-channel and channel-to-ground isolation Power Supply 24 VDC from backplane Storage Temperature -40 deg C to +85 deg C Humidity Range 5%-95% non-condensing Status Indicators Power, Fault, and Channel Activity LEDs GE Mark VIe Servo Drive Characteristics The IS200TCSAS1ACB applies GE Mark VIe industrial control architecture for analog servo command processing and actuator drive execution. The board receives controller-generated positioning commands and provides four independent servo output channels for turbine valve and mechanical actuator control. The module incorporates GE control platform features including deterministic control network operation, I/O density scaling for multi-channel actuator applications, and firmware flash compatibility with the installed Mark VIe controller configuration. The servo amplifier design includes isolated output paths between channels and ground reference points. The 12-bit DAC conversion provides analog command resolution for closed-loop positioning applications requiring controlled actuator movement. Frequently Asked Questions Q: How many servo output channels are available on the IS200TCSAS1ACB?A: The board provides four independent servo output channels. Q: What type of command signal is accepted by the servo amplifier board?A: The module accepts +/-10 V analog command signals from the turbine control system. Q: What isolation configuration is provided for the servo outputs?A: The available specifications indicate channel-to-channel and channel-to-ground isolation. Field Installation Guidelines Install the IS200TCSAS1ACB into the designated GE Mark VIe rack position with correct mechanical alignment. Connect actuator wiring through the specified terminal block interface and verify all field connections before system startup. Use shielded wiring for analog control and servo output circuits where required by the cabinet grounding design. Separate actuator wiring from high-current switching cables to minimize electromagnetic interference. Configure servo parameters and calibration settings through ToolboxST software. Verify Power, Fault, and Channel Activity LED indicators and perform actuator response testing after installation.
$200.00 $100.00
-
General Electric GE IS200WCSAS1ADB Servo Amplifier Board
GE IS200WCSAS1ADB Servo Amplifier Board The GE IS200WCSAS1ADB, also cataloged as the IS200WCSAS1ADB Servo Amplifier Board, operates as a dedicated hardware component for servo actuator signal amplification within GE Mark VIe wind turbine control system platforms. It converts analog command signals into controlled servo motor drive outputs for pitch and yaw mechanisms. Hardware Specifications Parameter Specification Model IS200WCSAS1ADB Brand GE Origin United States Weight 0.6 kg Dimensions 150 mm x 180 mm x 95 mm Operating Temp -40 deg C to +70 deg C Power Consumption Not specified in available technical data Product Type Servo Amplifier Boards Series GE Mark VIe Wind Turbine Control System Functional Type WCSA Wind Control Servo Amplifier Board Servo Outputs 4 independent channels Output Voltage +/-15 VDC Output Current Up to 2 A per channel Control Input +/-10 V analog command Resolution 12-bit DAC Accuracy +/-0.1% of full scale Isolation Channel-to-channel and channel-to-ground isolation Power Supply 24 VDC from backplane Storage Temperature -40 deg C to +85 deg C Humidity Range 5%-95% non-condensing Status Indicators Power, Fault, and Channel Activity LEDs GE Mark VIe Servo Control Characteristics The IS200WCSAS1ADB applies GE Mark VIe industrial control architecture for closed-loop servo actuator control. The board receives analog command signals and provides amplified drive outputs for servo motor positioning applications including blade pitch and yaw control. The module incorporates GE control platform features including deterministic network behavior through the Mark VIe control architecture, I/O density scaling for multi-channel actuator control, and firmware flash compatibility with the configured controller revision. The servo output section provides four independent channels with isolated output paths. The analog command interface and DAC conversion function allow the controller to execute proportional actuator positioning based on configured control algorithms. Frequently Asked Questions Q: How many servo output channels are available on the IS200WCSAS1ADB?A: The board provides four independent servo output channels. Q: What type of input command signal does the module accept?A: The module accepts +/-10 V analog command signals for servo control execution. Q: Is channel isolation provided between servo outputs?A: Yes. The available specifications indicate channel-to-channel and channel-to-ground isolation. Field Installation Guidelines Install the IS200WCSAS1ADB into the designated GE Mark VIe rack position and verify correct mechanical seating before applying power. Connect servo actuator wiring through the specified terminal block connections. Use shielded cables for analog command and servo output wiring where required by the system grounding design. Route actuator cables separately from high-current switching circuits to reduce electrical interference. Configure servo parameters and calibration settings through ToolboxST software. Verify LED status indicators and perform actuator response checks after installation.
$200.00 $100.00
-

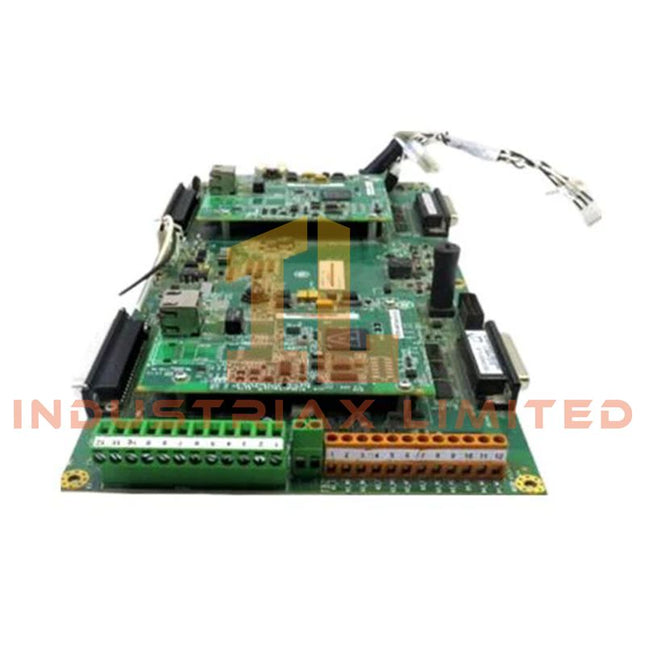

General Electric GE IS210HSLAH1A High-Speed Serial Link Interface Module
GE IS210HSLAH1A High-Speed Serial Link Interface Module Configured for high-speed serial communication execution in GE Mark VI Speedtronic turbine control system networks, the GE IS210HSLAH1A (IS210HSLAH1A High-Speed Serial Link Interface Module) provides direct physical and electrical data transfer between turbine control subsystems through RS-485 and RS-422 communication interfaces. Suffix Breakdown & Model Matrix Model Segment Description IS210 GE Mark VI Speedtronic control system hardware family HSLA High-Speed Serial Link Interface functional acronym H1 Hardware group identifier A Functional revision Hardware Specifications Parameter Specification Model IS210HSLAH1A Brand GE Origin United States Weight 0.6 kg Dimensions 2.9 cm x 27.9 cm x 17.8 cm Product Type High-Speed Serial Link Interface Module Series GE Mark VI Speedtronic Turbine Control System Functional Acronym HSLA Functional Revision A Assembly Type IS210 Special Assembly Communication Protocol High-speed serial data transfer Interface Compatibility RS-485, RS-422 Data Rate Up to 1 Mbps Rated Voltage 24 VDC Communication Function Serial data exchange between turbine control subsystems GE Mark VI Serial Communication Characteristics The IS210HSLAH1A applies GE industrial control communication architecture for deterministic serial data exchange within Mark VI Speedtronic systems. The module supports RS-485 and RS-422 electrical interfaces with communication speeds up to 1 Mbps for subsystem-level data transfer. The module design follows GE Mark VI hardware integration requirements, including firmware flash compatibility with the installed control processor revision and backplane bus communication behavior for coordinated I/O and controller data exchange. The HSLA assembly supports I/O density scaling by providing a dedicated serial communication interface without additional daughterboard components. The special assembly configuration includes no daughterboard, no SCOM grounding terminal, and no metal backplane. Frequently Asked Questions Q: Which serial interfaces are supported by the IS210HSLAH1A?A: The module supports RS-485 and RS-422 electrical communication interfaces for high-speed serial data transfer. Q: Is the IS210HSLAH1A configured as a hot-swappable module?A: Hot-swap capability is not specified. Rack power should be removed before module insertion or removal. Q: What is the maximum communication data rate of the module?A: The module supports serial communication data rates up to 1 Mbps. Field Installation Guidelines Install the IS210HSLAH1A into the designated GE Mark VI rack position with system power removed. Verify module seating, connector engagement, and grounding connections before restoring power. Use shielded communication cables for RS-485 and RS-422 signal wiring. Route serial communication cables separately from high-voltage and high-current conductors to reduce electromagnetic interference. Confirm that the installed controller firmware and Mark VI configuration database support the module revision. Perform communication diagnostics through the Mark VI HMI after installation to verify serial link integrity.
$200.00 $100.00
-

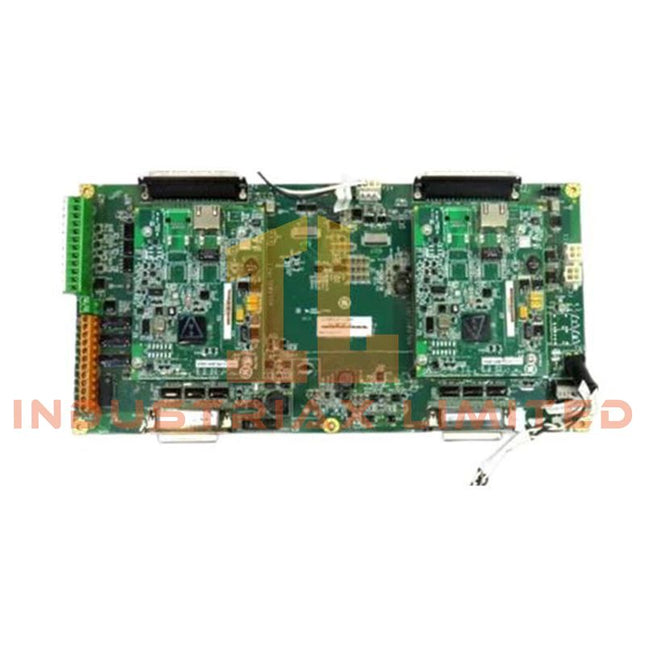

General Electric GE IS210HSLAH1ADE High-Speed Link Adapter Board
GE IS210HSLAH1ADE High-Speed Link Adapter Board The GE IS210HSLAH1ADE, also cataloged as the IS210HSLAH1ADE High-Speed Link Adapter Board, operates as a dedicated hardware component for deterministic serial communication between controller cores and distributed I/O terminal boards within GE Mark VI/Mark VIe control platforms. Hardware Specifications Parameter Specification Model IS210HSLAH1ADE Brand GE Origin United States Weight 600 g Operating Temp 0 deg C to +60 deg C Board Designation INICT01 Module Type High-Speed Link Adapter (HSLA) Board Communication Protocol GE Proprietary High-Speed Link (HSL) serial bus Power Supply 28 VDC via Mark VI backplane Form Factor PCB module, rack-mount compatible Compatibility GE Mark VI VCMI, VTUR, VPRO, VAUX boards; Mark VIe HSL I/O packs Redundancy Support Dual-redundant and Triple Modular Redundant (TMR) architectures Communication Latency Sub-millisecond scan times for turbine protection functions Revision H1ADE Profinet / EtherNet/IP Deterministic Networks and High-Speed Link Processing The IS210HSLAH1ADE provides high-speed serial communication through the GE High-Speed Link (HSL) bus architecture. The board manages deterministic data exchange between controller assemblies and distributed I/O terminal boards, supporting synchronized acquisition and transmission of turbine protection, sequencing, and monitoring signals. The HSLA design supports I/O density scaling within Mark VI/Mark VIe architectures by providing communication expansion between controller modules and multiple field interface assemblies. The module supports dual-redundant and TMR configurations, allowing coordinated communication paths for systems requiring redundant control execution. Firmware flash compatibility should be verified when replacing earlier INICT01 revisions. Hardware revision matching and system configuration validation are required before integration into an existing Mark VI or Mark VIe rack. Frequently Asked Questions (FAQ) Q: What communication interface does the IS210HSLAH1ADE provide?A: The module provides a GE Proprietary High-Speed Link (HSL) serial communication interface between controller cores and distributed I/O terminal boards. Q: Does the IS210HSLAH1ADE support redundant system architectures?A: The board supports dual-redundant and Triple Modular Redundant (TMR) architectures within compatible GE Mark VI/Mark VIe configurations. Q: What power source is required for the IS210HSLAH1ADE?A: The module receives 28 VDC power through the GE Mark VI backplane interface. Field Installation Guidelines Install the IS210HSLAH1ADE in the designated GE Mark VI or Mark VIe rack position and confirm correct PCB alignment with the backplane connector before insertion. Verify the module revision, firmware compatibility, and rack configuration before replacement or system modification. Ensure all HSL communication connections are correctly seated and routed according to GE cabinet wiring practices. Maintain separation between communication wiring and high-current switching conductors to reduce electromagnetic interference. Apply proper cabinet grounding methods and connect cable shields according to the control system installation requirements. Confirm redundant communication configuration settings after installation. Perform system diagnostics to verify HSL communication status, controller synchronization, and I/O data exchange before returning the control system to service.
$200.00 $100.00
-

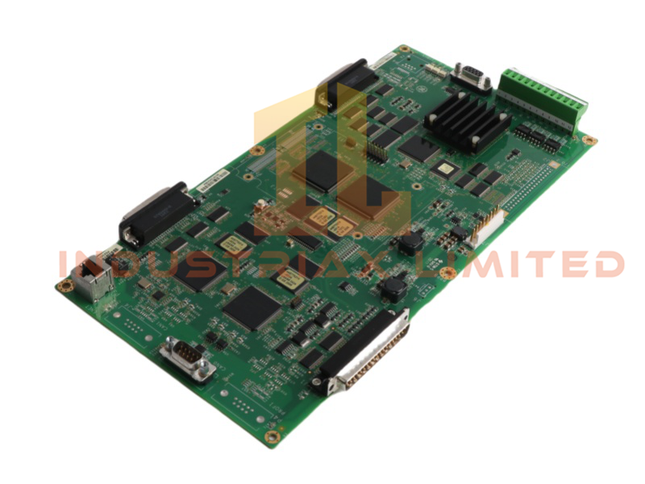

General Electric IS210MACCH2AFG GE Speedtronic Controller Module
GE IS210MACCH2AFG Multi-Application Converter Controller Module The GE IS210MACCH2AFG, also cataloged as the IS210MACCH2AFG Multi-Application Converter Controller Module, operates as a dedicated hardware component for real-time turbine signal processing and closed-loop control within GE Speedtronic Mark VI/Mark VIe control platforms. Hardware Specifications Parameter Specification Model IS210MACCH2AFG Brand GE Origin United States Weight 0.59 kg Dimensions 283 mm x 182 mm x 52 mm Operating Temp -40 deg C to +70 deg C Power Consumption Max. 12 W Processor 32-bit High-Speed RISC CPU Memory 16 MB Flash / 8 MB SRAM Supply Voltage 24 VDC (18-30 VDC) Analog Input 16-channel isolated AI, 4-20 mA / 0-10 V Analog Output 8-channel AO Digital Input 32-channel isolated DI Digital Output 16-channel relay DO Communication Ports 2 x 10/100 Base-T Ethernet RJ45, 2 x RS-485 Supported Protocols Modbus TCP/RTU, Profibus DP, GE Ethernet Global Data (EGD) Isolation Voltage 1500 VAC channel-to-channel and channel-to-ground Mounting Type Standard 6U rack-mount Certifications CE, UL 508, ATEX Category 3 Profinet / EtherNet/IP Deterministic Network and I/O Processing The IS210MACCH2AFG integrates a 32-bit RISC processor for execution of turbine control algorithms, signal conversion, and communication handling. The module processes isolated analog and digital channels while maintaining electrical separation between field wiring and controller circuits. Dual Ethernet ports and RS-485 interfaces provide communication paths for Mark VI/Mark VIe system integration using Ethernet Global Data, Modbus, and Profibus protocols. The module architecture supports industrial control requirements through high I/O density scaling, allowing analog acquisition, relay output execution, and serial communication functions within a single rack-mounted controller assembly. Firmware flash memory supports application software storage and compatibility management for Speedtronic control configurations. Frequently Asked Questions (FAQ) Q: What type of field signals can the IS210MACCH2AFG process?A: The module supports isolated analog inputs including 4-20 mA and 0-10 V signals, isolated digital inputs, analog outputs, and relay digital outputs for turbine control interfaces. Q: What communication interfaces are available on the IS210MACCH2AFG?A: The module provides two 10/100 Base-T Ethernet RJ45 ports and two RS-485 ports supporting Modbus TCP/RTU, Profibus DP, and GE Ethernet Global Data communication. Q: What installation limitation applies to this module?A: The module must be installed in a compatible GE Speedtronic Mark VI/Mark VIe rack environment with correct backplane connection and firmware compatibility. Field Installation Guidelines Install the IS210MACCH2AFG in the designated GE Speedtronic Mark VI/Mark VIe rack position and verify mechanical alignment before inserting the module into the backplane interface. Use shielded signal cables for analog field connections and terminate cable shields according to the grounding practices defined for the control cabinet. Separate low-level analog signal wiring from high-current power cables and switching circuits to reduce electrical interference. Verify 24 VDC supply polarity before energizing the module. Confirm Ethernet and RS-485 wiring termination, communication addressing, and protocol configuration before placing the controller into operational service. Avoid exposing the module to contamination, excessive vibration, or moisture beyond the specified environmental limits. Firmware compatibility should be checked before replacement or system modification.
$200.00 $100.00
-

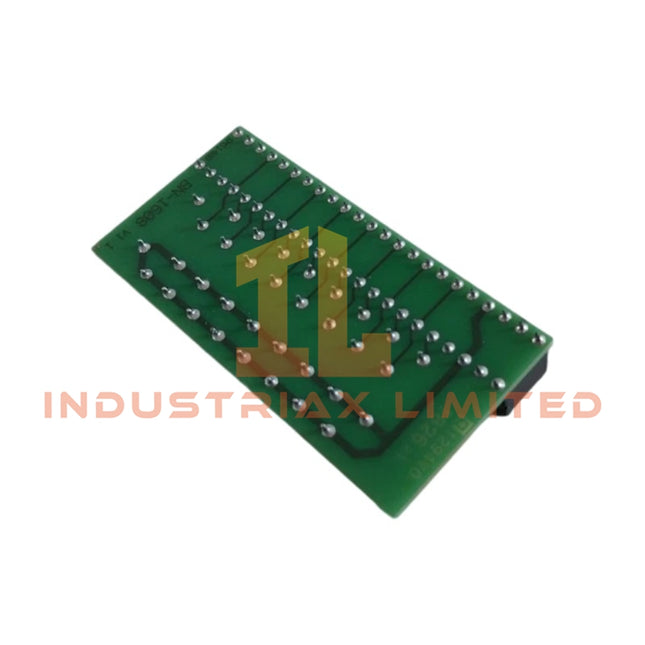

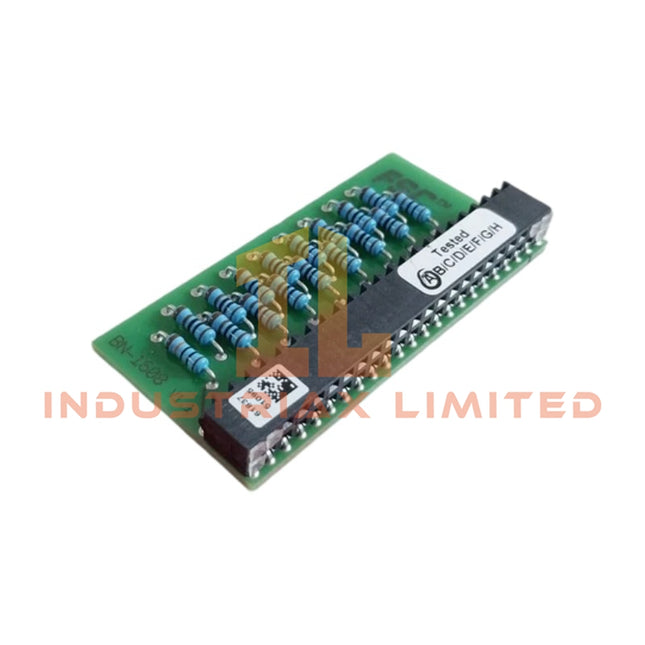

Honeywell Honeywell | FC-BN-1608 | Digital Converter Modules
Honeywell FC-BN-1608 Digital Converter Module for NAMUR Signals Configured for NAMUR signal conversion in Honeywell Safety Manager I/O systems, the Honeywell FS-BN-1608 (BN-1608 Digital Converter Module) provides direct electrical conversion of 16 channel discrete input signals from field devices. Hardware Specifications Parameter Specification Model FC-BN-1608 Brand Honeywell Product Type Digital Converter Modules Function NAMUR signal input conversion module Input Channels 16 Input Type DIN NAMUR compatible Input Current Range 0-8 mA Switch Level 1.4-1.9 mA Hysteresis 0.2 mA +/- 0.05 mA Input Resistance 1 kOhm 1% Absolute Maximum Input Current 20 mA Input Filter First order low pass, 100 Hz Field Wire Resistance Maximum 50 Ohm Cable Capacitance Less than 16 uF total connected cables 8 V Loop Supply Output Voltage 7.9-8.7 V 8 V Loop Supply Output Current 170 mA, short-circuit proof Maximum Load Capacitance 100 nF Earth Resistor Resistance 100 kOhm 1% Maximum Dissipation 0.6 W Approvals CE, TUV, UL, CSA, FM Dimensions 58.5 x 28.5 x 9 mm (2.3 x 1.125 x 0.35 in) Origin USA Process Signal Interface and Channel Isolation The FC-BN-1608 module converts NAMUR type discrete field signals into internal digital input information for Honeywell Safety Manager architectures. The module accepts 16 independent input channels and monitors current switching levels according to DIN NAMUR requirements. The input circuit uses a 1 kOhm resistance path and supports 0-8 mA signal measurement. Furthermore, the integrated 8 V loop supply provides field device excitation with short-circuit protection. The design supports field wiring supervision through defined current thresholds and hysteresis characteristics. Honeywell process control modules commonly integrate channel-to-channel isolation methods within I/O architectures. For this module, field signal processing focuses on stable current detection and controlled NAMUR switching recognition rather than analog measurement conversion. Frequently Asked Questions Q: Does the BN-1608 require an external power supply?A: No. The module does not require separate power input. It operates through the Honeywell I/O backplane connection and provides an 8 V loop supply for connected field devices. Q: How many NAMUR input devices can the BN-1608 connect simultaneously?A: The BN-1608 supports 16 NAMUR input channels. Each channel processes one DIN NAMUR compatible discrete signal. Q: Can the BN-1608 handle field wiring capacitance?A: Yes. The module supports a total connected cable capacitance below 16 uF and accepts field wire resistance up to 50 Ohm. Field Installation Guidelines Install the BN-1608 module directly on the designated programming connector of the Honeywell I/O backplane. No additional chassis mounting space is required. Connect NAMUR field devices according to the specified input wiring arrangement. Keep field signal cables separated from high voltage power cables to reduce electromagnetic interference. Use proper cable shielding and terminate shields according to the system grounding design. Verify the loop supply voltage and field wiring resistance before commissioning. Confirm that connected devices match DIN NAMUR current switching characteristics. Check input current levels during startup to ensure correct channel recognition.
$200.00 $100.00
-

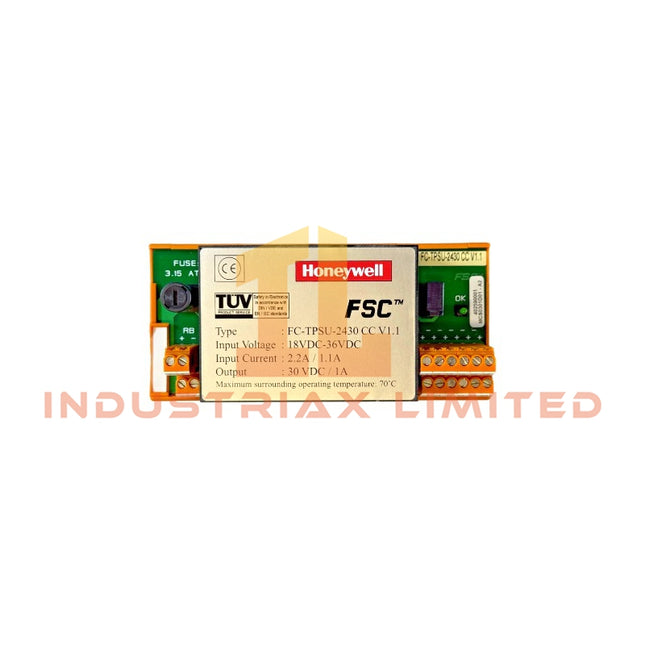

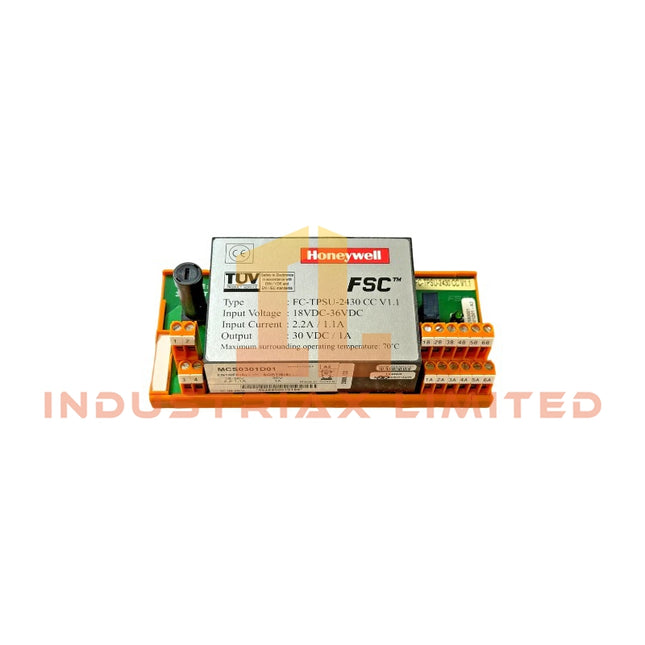

Honeywell FC-TPSU-2430 | DC/DC Converter | Honeywell
Honeywell FC-TPSU-2430 DC/DC Converter Configured for 24 V DC to 30 V DC power conversion in Honeywell Safety Manager platforms, the Honeywell FC-TPSU-2430 (FC-TPSU-2430 DC/DC Converter) provides direct electrical power conditioning for Field Termination Assemblies (FTAs). Hardware Specifications Parameter Specification Model FC-TPSU-2430 Brand Honeywell Product Type DC/DC Converter Origin USA Weight 0.14 kg Dimensions 2 x 19 x 12.8 cm (shipping size) Power Consumption Input: 24 V DC, 110 mA class supply interface Safety Class Up to and including SIL3 Approvals CE, TUV, UL, CSA, FM Input Voltage 24 V DC nominal Input Voltage Range 18-36 V DC Inrush Current <= 4 A Output Voltage 30 V DC +/- 0.25 V Output Current 1 A Short-Circuit Current < 3.3 A Ripple Content (0-30 MHz) < 0.1 Vrms Overvoltage Protection 33 V Long-Term Stability < 0.3% after 30 min operation Tariff Code 8537101190 Spare Model FC-TPSU-2430 V1.1 Process Control Power Conversion Characteristics The FC-TPSU-2430 converts a 24 V DC supply input into a regulated 30 V DC output for Honeywell Safety Manager Field Termination Assemblies. Moreover, the module maintains output regulation within +/- 0.25 V while limiting short-circuit current below 3.3 A. The module supports safety-related hardware configurations with approvals including CE, TUV, UL, CSA, and FM. Therefore, the converter fits installations requiring SIL3 classified safety system power distribution. In addition, Honeywell Safety Manager interfaces commonly require stable DC power paths for field signal conditioning. The FC-TPSU-2430 provides controlled DC output behavior for connected FTA hardware and maintains ripple performance below 0.1 Vrms across the 0-30 MHz measurement range. Frequently Asked Questions (FAQ) Q: What input and output voltage conversion does the FC-TPSU-2430 provide?A: The module accepts 24 V DC nominal input power within an 18-36 V DC range and provides a regulated 30 V DC output at 1 A. Q: Does the FC-TPSU-2430 include protection functions?A: Yes. The converter provides overvoltage protection at 33 V and limits short-circuit current below 3.3 A. Q: What Honeywell system hardware uses this converter?A: The FC-TPSU-2430 provides DC conversion for Honeywell Field Termination Assemblies (FTAs) within Safety Manager system configurations. Field Installation Guidelines Install the FC-TPSU-2430 according to Honeywell Safety Manager cabinet installation procedures. Verify that the 24 V DC input wiring matches the specified voltage range before energizing the module. Maintain proper separation between DC power wiring and field signal cables to reduce electrical interference. Moreover, connect protective grounding according to the cabinet grounding design and ensure terminal connections remain mechanically secured. Before commissioning, check input polarity, output voltage level, and connected FTA power requirements. Do not exceed the specified 1 A output current rating during operation.
$200.00 $100.00
-

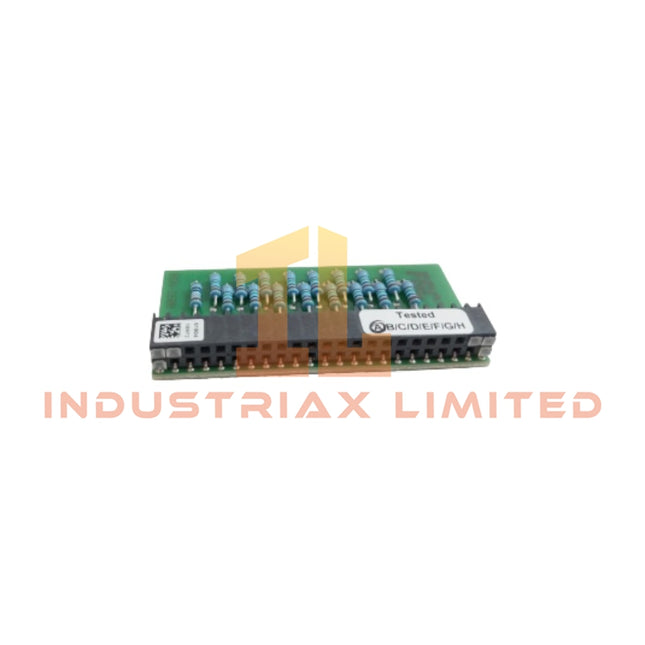

Honeywell FC-BSN-1608 | Honeywell | Safe Namur Sensor Converter
Honeywell FC-BSN-1608 Safe Namur Sensor Converter The Honeywell FC-BSN-1608, also cataloged as the BSN-1608 Safe Namur Sensor Converter, operates as a dedicated hardware component for converting NAMUR sensor input signals within Honeywell safety control I/O backplane systems. Hardware Specifications Parameter Specification Model FC-BSN-1608 Brand Honeywell Product Type Safe Namur Sensor Converter Origin USA Dimensions 58.5 x 28.5 x 9 mm (2.3 x 1.125 x 0.35 in) Power Consumption None Approvals CE, TUV, UL, CSA, FM Input Channels 16 Input Current Range 0-11 mA Input Resistance 715 ohm 1% Absolute Maximum Input Current 25 mA Cable Capacitance Limit Less than 16 uF Earth Resistor Resistance 100 kohm 1% Maximum Dissipation 0.6 W Chassis Space Requirement None; installed on programming connector of I/O backplane Power Requirement None Process Signal Isolation and Loop Interface Characteristics Honeywell FC-BSN-1608 provides NAMUR sensor signal conversion through a 16-channel analog input structure. Moreover, the module processes low-current sensor signals within the 0-11 mA input range while maintaining defined input resistance characteristics. The module uses channel-level electrical interfaces for connection between NAMUR field sensors and Honeywell safety I/O architectures. In addition, the 715 ohm input resistance supports controlled signal measurement, while the 25 mA absolute maximum input current specification defines the electrical protection boundary. For Honeywell process control environments, signal handling concepts align with instrument loop technologies such as 4-20 mA HART loop protocol and channel-to-channel isolation practices. However, the FC-BSN-1608 specification is dedicated to NAMUR sensor conversion and does not define HART communication capability. Frequently Asked Questions Q: Does the FC-BSN-1608 require an external power supply?A: No. The module specification states that no power requirement is required for operation. Q: How many NAMUR sensor input channels does the FC-BSN-1608 support?A: The module supports 16 input channels with an input current range of 0-11 mA. Q: Where is the FC-BSN-1608 installed within the control system?A: The module occupies no standard chassis space and mounts directly on the programming connector of the I/O backplane. Field Installation Guidelines Install the FC-BSN-1608 on the specified Honeywell I/O backplane programming connector and verify mechanical alignment before insertion. Ensure field sensor wiring follows industrial instrumentation practices, including proper cable routing separation from high-voltage power conductors and appropriate shielding methods where required. Confirm that connected NAMUR sensor loops remain within the specified input current and cable capacitance limits. Moreover, check grounding connections according to the system cabinet design to maintain proper signal reference conditions. Verify that the installation environment meets the applicable control system enclosure requirements before system commissioning.
$200.00 $100.00
-
General Electric GE IS210MACCH1AEF Multiple Application Converter Control Module
GE IS210MACCH1AEF Multiple Application Converter Control Module The GE IS210MACCH1AEF, also cataloged as the IS210MACCH1AEF Multiple Application Converter Control Module, operates as a dedicated hardware component for converter control execution and communication processing within GE Mark VIe Speedtronic Control System platforms. Hardware Specifications Parameter Specification Model IS210MACCH1AEF Brand GE (General Electric) Origin United States Weight 0.24 kg Dimensions 100 x 100 x 25 mm Operating Temp -40 to +70 deg C Power Consumption Not specified; 24 VDC nominal input Series Mark VIe Speedtronic Control System Product Type Converter Control Modules Processor 32-bit microcontroller optimized for converter control Input Voltage 24 VDC nominal Communication Interfaces RS485, Ethernet IONet Storage Temperature -40 to +85 deg C Protection Conformal coating and surge suppression Compliance CE, UL, RoHS Application Wind turbine converter and pitch control systems Deterministic Networks and Firmware Flash Compatibility The IS210MACCH1AEF provides converter control processing functions within GE Mark VIe wind turbine control architectures. The module executes converter-related control tasks, manages communication with connected subsystems, and exchanges operational data through RS485 and Ethernet IONet interfaces. Firmware flash compatibility with the installed ControlST software environment is required for correct module operation. The 32-bit microcontroller architecture supports converter control algorithms, runtime data processing, and communication management within the distributed control system. The Ethernet IONet interface provides deterministic communication between the MACC module and Mark VIe system components. The compact hardware design supports integration into turbine control assemblies where converter and pitch control functions require localized processing. Frequently Asked Questions Q: What communication interfaces are available on the IS210MACCH1AEF?A: The module provides RS485 and Ethernet IONet communication interfaces for integration with Mark VIe control system components. Q: What input power supply does the module require?A: The IS210MACCH1AEF operates with a 24 VDC nominal input supply. Q: What type of processing hardware is used for converter control functions?A: The module uses a 32-bit microcontroller optimized for converter control operations. Field Installation Guidelines Install the IS210MACCH1AEF according to GE Mark VIe cabinet and turbine control hardware procedures. Verify mounting alignment, connector engagement, and power polarity before system energization. Use ESD protection when handling the circuit board. Maintain clean connector contacts and inspect communication interfaces for mechanical damage or contamination. Route RS485 and Ethernet communication cables separately from high-current converter wiring to reduce electromagnetic interference. Apply shielding and grounding practices according to the turbine control cabinet design. Before commissioning, confirm firmware compatibility with the ControlST environment and verify converter communication paths through the Mark VIe diagnostic tools.
$200.00 $100.00
-

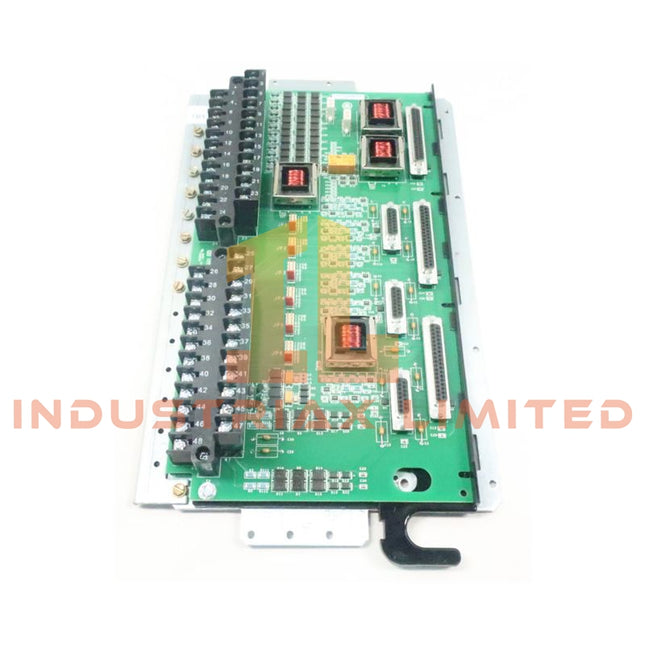

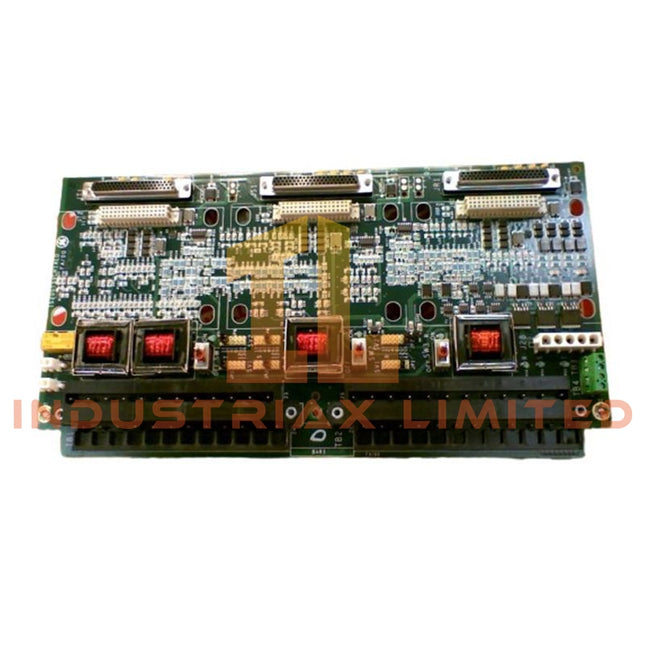

General Electric GE IS200TSVOH1BBB Mark VI Servo Terminal Board
GE IS200TSVOH1BBB Mark VI Servo Terminal Board Configured for servo valve actuator signal processing in the GE Mark VI Speedtronic Control System, the GE IS200TSVOH1BBB (IS200TSVOH1BBB Servo Terminal Board) provides direct physical and electrical execution for hydraulic position control interfaces and feedback signal conditioning. Hardware Specifications Parameter Specification Model IS200TSVOH1BBB Brand GE (General Electric) Origin United States Weight 0.5 kg Operating Temp -30 deg C to +65 deg C Power Consumption Not specified Product Type Servo Terminal Boards Series Mark VI Speedtronic Control System Servo Channels 2 independent servo valve channels Input Signals +/-10 VDC command signals Feedback Signals LVDT (Linear Variable Differential Transformer) inputs Power Supply 24 VDC nominal Isolation Optical/electrical isolation per channel Connectors Screw-type terminal blocks Communication Interface Mark VI backplane interface Technology Surface mount Feedback Signal Span 0.3532 to 4.054 V Protection Conformal coating, surge suppression Humidity Range 5-95% RH, non-condensing Firmware Flash Compatibility and Servo Signal Processing The IS200TSVOH1BBB provides the interface between Mark VI controller hardware and hydraulic servo valve actuator circuits. The board processes +/-10 VDC command signals and receives LVDT position feedback signals for closed-loop actuator positioning. The surface mount design integrates signal conditioning and isolation circuits for servo channels. Firmware flash compatibility with the Mark VI control platform supports configured servo control functions and communication parameters through the controller architecture. Frequently Asked Questions Q: How many servo valve channels are available on the IS200TSVOH1BBB?A: The board provides two independent servo valve channels for actuator command and feedback processing. Q: What type of position feedback is supported by this servo terminal board?A: The IS200TSVOH1BBB supports LVDT feedback inputs for hydraulic actuator position measurement. Q: How does the board connect to the Mark VI controller?A: The board communicates through the Mark VI backplane interface for control data exchange and signal processing. Field Installation Guidelines Install the IS200TSVOH1BBB in the designated Mark VI cabinet terminal board location and verify correct mechanical mounting before connecting field wiring. Confirm cabinet grounding continuity and connector engagement before system startup. Route servo command, LVDT feedback, and power wiring separately from high-current switching conductors. Use appropriate shielded cable practices for feedback circuits and terminate shields according to the turbine control cabinet grounding scheme. Before commissioning, verify servo channel assignments, actuator wiring polarity, and feedback signal scaling. Confirm controller configuration compatibility before enabling hydraulic servo control functions.
$200.00 $100.00
-
General Electric GE IS200VSVOH1BDC Servo Control Board
GE IS200VSVOH1BDC Servo Control Board Configured for electro-hydraulic servo valve current regulation in the GE Mark VI Speedtronic Turbine Control System, the GE IS200VSVOH1BDC (IS200VSVO Servo Control Board) provides direct physical/electrical execution for valve actuator positioning through analog command input and LVDT feedback processing. Hardware Specifications Parameter Specification Model IS200VSVOH1BDC Brand GE Origin United States Weight 0.45 kg Dimensions 26 x 15 x 3 cm Operating Temp -20 to +60 deg C Power Consumption Not specified; powered from VME backplane +5 V and +/-15 VDC rails Series Mark VI Speedtronic Turbine Control System Module Type Servo Control Board (VSVO) Servo Outputs 2 independent channels, +/-200 mA current drive Input Signals +/-10 V analog command input Conversion Resolution 16-bit digital-to-analog conversion Feedback Interface LVDT valve position feedback input Isolation Optical isolation between control logic and field circuits Protection Overcurrent, short-circuit, and thermal protection Environmental Protection Conformal coating for humidity, dust, and corrosive atmosphere resistance Diagnostics Built-in self-test and LED channel status indicators Industrial Servo Actuation and Feedback Control Characteristics The IS200VSVOH1BDC generates regulated current outputs for electro-hydraulic servo valves within the GE Mark VI control architecture. The board receives analog command signals from the controller and converts control data into actuator drive currents for valve positioning. The module supports closed-loop actuator control using LVDT feedback signals. Firmware-independent hardware processing maintains compatibility with Mark VI simplex and TMR configurations. The servo output stage includes current regulation and protection functions for actuator loop operation. Frequently Asked Questions Q: What type of actuator devices are controlled by the IS200VSVOH1BDC?A: The board controls electro-hydraulic servo valves used for fuel valve, steam valve, and compressor valve positioning. Q: How many servo output channels are available on the module?A: The module provides two independent servo output channels with +/-200 mA current drive capability. Q: What feedback signal is used for valve position monitoring?A: The module accepts LVDT (Linear Variable Differential Transformer) feedback signals for valve position measurement. Field Installation Guidelines Install the IS200VSVOH1BDC in the assigned GE Mark VI VME rack location and verify the backplane connector alignment before applying system power. Confirm that the rack power supply levels match the required VME backplane voltage rails. Connect servo valve wiring separately from high-current switching circuits to reduce electromagnetic interference. Maintain proper cable shielding and grounding practices for analog command and LVDT feedback wiring. Verify servo output polarity, actuator wiring, and feedback channel assignment during commissioning. Inspect board connectors, field terminals, and cabinet grounding points before system operation.
$200.00 $100.00
-

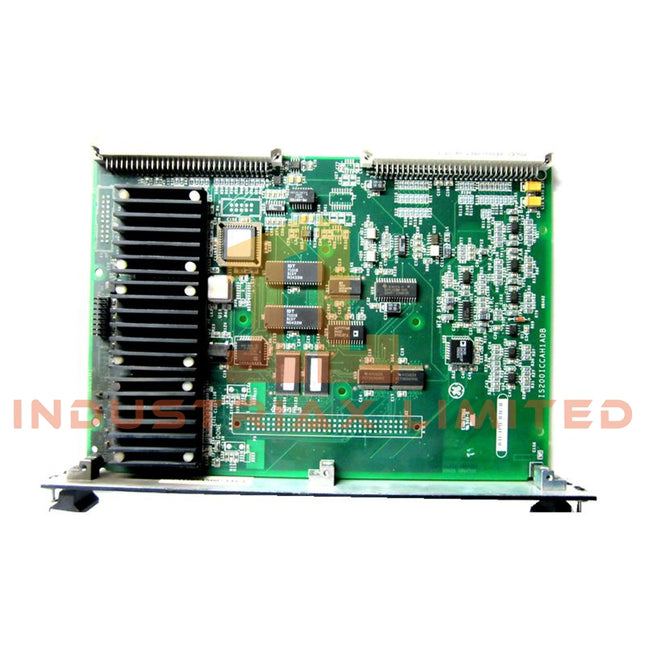

General Electric GE IS200ICCAH1ADB Innovation Drive Control Board
GE IS200ICCAH1ADB Innovation Drive Control Board Configured for real-time signal conditioning and communication processing in GE Mark VI / Mark VIe Speedtronic turbine control platforms, the GE IS200ICCAH1ADB (IS200ICCAH1 Innovation Drive Control Board) provides direct physical/electrical execution for sensor and actuator interfacing through DSP processing, configurable I/O channels, and controller communication links. Hardware Specifications Parameter Specification Model IS200ICCAH1ADB Brand GE Origin United States Weight 0.45 kg Dimensions 170 x 140 mm Operating Temp -20 deg C to +60 deg C Power Consumption 30 W Series Mark VI / Mark VIe Speedtronic Turbine Control System Hardware Type Innovation Drive Control Board / I/O Control & Communication Adapter Processor TMS320C32 DSP, 200 MHz Memory 128 MB RAM, 64 MB Flash I/O Channels 16 configurable channels: 8 analog inputs, 8 digital I/O Communication Protocols GE COREBUS, Ethernet/IP 100 Mbps, Modbus RTU 115.2 kbps Connectivity Ethernet, Serial, USB Backplane Connectors P1, P2 rack integration; P3-P7 signal interfacing Environmental Protection Conformal coating, EMI shielding, vibration resistance Industrial Control Network Communication and DSP Processing The IS200ICCAH1ADB uses a TMS320C32 DSP processor for digital signal filtering and deterministic control data handling within GE Mark VI / Mark VIe architectures. The board manages field signal conversion, conditioning, and communication exchange between connected sensors, actuators, and controller hardware. The module supports GE COREBUS communication and external interfaces including Ethernet/IP and Modbus RTU. These communication paths provide structured data transfer between the I/O subsystem and higher-level control components. The board supports industrial control network integration through defined backplane connections and configurable I/O density scaling. Firmware flash compatibility is maintained through the installed hardware revision and controller configuration requirements. Frequently Asked Questions Q: What processor architecture is used on the IS200ICCAH1ADB?A: The module uses a TMS320C32 DSP processor operating at 200 MHz for digital signal filtering and control data processing. Q: What communication protocols are supported by this control board?A: The board supports GE COREBUS, Ethernet/IP at 100 Mbps, and Modbus RTU at 115.2 kbps. Q: What I/O configuration is available on the IS200ICCAH1ADB?A: The board provides 16 configurable I/O channels consisting of 8 analog inputs and 8 digital I/O channels. Field Installation Guidelines Install the IS200ICCAH1ADB according to the GE Mark VI / Mark VIe rack configuration documentation. Verify the P1 and P2 backplane connectors are correctly aligned before insertion into the rack assembly. Connect field signal wiring to the designated P3-P7 interfaces according to the system wiring diagrams. Maintain separation between low-level signal cables and high-current switching conductors to reduce electromagnetic interference. Use appropriate shielded cables for communication and analog signal connections. Ground cable shields according to cabinet grounding practices and avoid multiple unintended grounding points. Before energizing the module, verify power supply polarity, rack addressing, communication configuration, and firmware compatibility with the installed controller hardware.
$200.00 $100.00
-

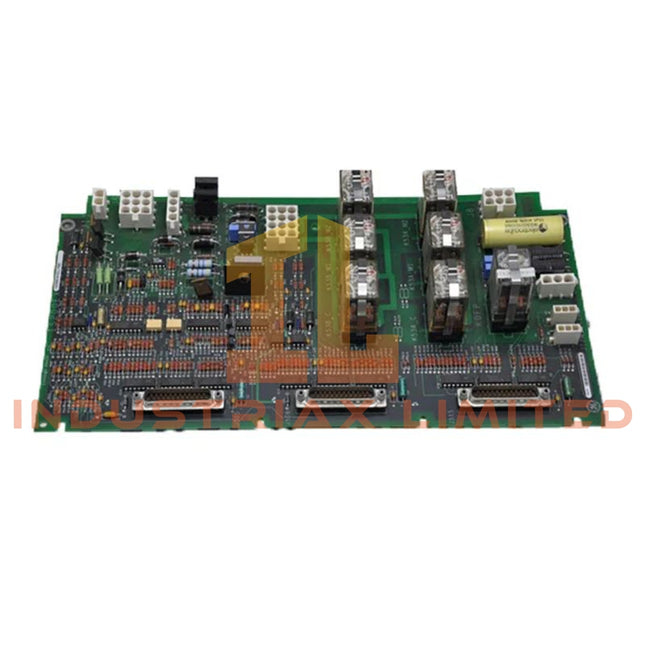

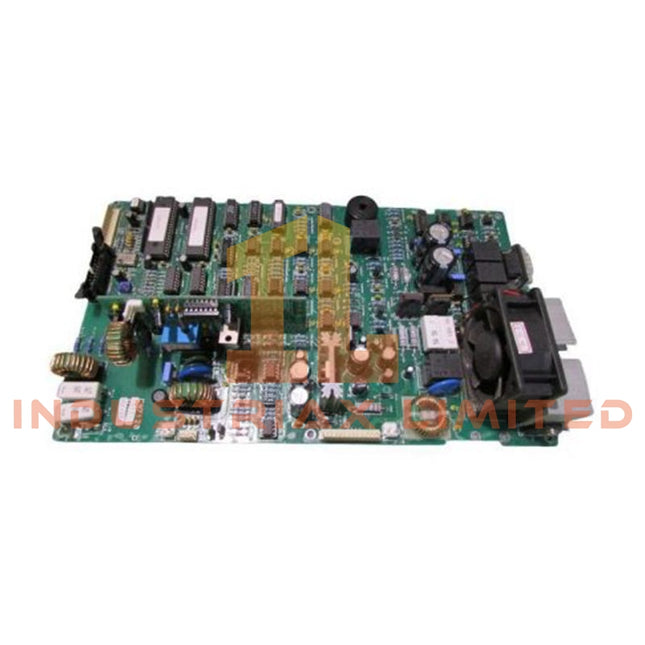

General Electric GE IS200EHFCH1AAA High Frequency Communication Board
GE IS200EHFCH1AAA High Frequency Communication Board Configured for high-speed control data exchange in the GE Mark VI Speedtronic turbine control system, the GE IS200EHFCH1AAA (IS200EHFC High Frequency Communication Board) provides direct physical and electrical execution for VME backplane and IONet communication synchronization between turbine control modules. Hardware Specifications Parameter Specification Model IS200EHFCH1AAA Brand GE Origin United States Weight 0.6 kg Operating Temp -40 deg C to +70 deg C Power Consumption Not specified Product Type High Frequency Communication Boards System Platform GE Mark VI Speedtronic Turbine Control System Communication Interfaces IONet, IEEE 1588 Precision Time Protocol Backplane Interface VMEbus P1/P2 connectors Input Voltage +5 VDC and +/-15 VDC Form Factor VME-style plug-in card System Mode Support Simplex and TMR configurations Protection Features Conformal coating and transient suppression Storage Temperature -55 deg C to +85 deg C Humidity Range 5% to 95% RH, non-condensing Deterministic Communication and Industrial Control Integration The IS200EHFCH1AAA operates as a GE Mark VI communication interface board supporting deterministic data transfer between turbine controllers and I/O modules. The board manages high-frequency communication paths through VMEbus P1/P2 connections and IONet interfaces for synchronized control data exchange. For GE industrial control architectures, the communication board supports firmware flash compatibility within the Mark VI platform and maintains coordinated timing through IEEE 1588 precision time protocol functions. The module architecture supports I/O density scaling by allowing multiple control and acquisition modules to exchange synchronized data within simplex and triple modular redundant configurations. Frequently Asked Questions Q: What communication interfaces are supported by the IS200EHFCH1AAA?A: The board supports IONet communication and IEEE 1588 precision time protocol synchronization through the GE Mark VI control architecture. Q: Can the IS200EHFCH1AAA operate in redundant control configurations?A: Yes. The board supports simplex and triple modular redundant (TMR) system configurations within compatible Mark VI turbine control systems. Q: What type of backplane connection is used by the IS200EHFCH1AAA?A: The board uses VMEbus P1/P2 connectors for connection to the Mark VI control rack backplane. Field Installation Guidelines Install the IS200EHFCH1AAA into the designated VME rack slot within the GE Mark VI control cabinet. Verify connector alignment before insertion to prevent damage to the P1/P2 backplane contacts. Maintain separation between communication wiring and high-current power cables to reduce electromagnetic interference. Cable shields should be terminated according to cabinet grounding practices, with attention to avoiding ground loops. Before system startup, confirm board seating, rack addressing, communication network continuity, and compatibility with installed Mark VI firmware configurations. Follow GE cabinet wiring documentation for grounding, module placement, and network routing requirements.
$200.00 $100.00
-

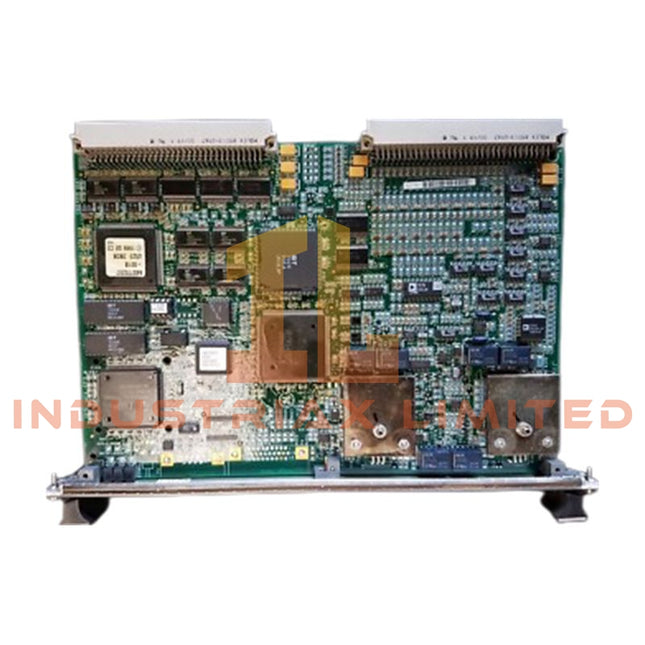

General Electric GE IS200VNH1B VME Servo Control Card
GE IS200VNH1B VME Servo Control Card The GE IS200VNH1B, also cataloged as the IS200VNH1 VME Servo Control Card, operates as a dedicated hardware component for closed-loop servo regulation and actuator command processing within the GE Mark VI Speedtronic Control System. Hardware Specifications Parameter Specification Model IS200VNH1B Brand General Electric (GE / GE Fanuc) Origin United States Card Type VME-based Servo Control Card Series Mark VI Speedtronic Control System Primary Function Closed-loop servo motor and actuator control Communication Interface VMEbus standard Input Voltage Range 0-5 VDC Channel Count Up to 8 input/output channels Signal Accuracy +/-0.1% deviation Power Consumption <10 W Weight 0.8 kg Dimensions 6.30 in x 9.19 in x 0.79 in (160 x 233.5 x 20 mm) Operating Temp Not specified in available technical data PCB Protection Conformal-coated industrial PCB GE Mark VI VME Servo Control Characteristics The IS200VNH1B provides closed-loop control processing for servo motors, hydraulic actuators, and positioning mechanisms. The card receives feedback signals from connected sensors and executes servo regulation functions through the Mark VI control architecture. The VMEbus interface provides communication between the servo control card and other rack-mounted control modules. The module supports multi-channel signal acquisition and command output for actuator positioning applications. Backplane Bus Communication and I/O Density Scaling The IS200VNH1B operates within the GE Mark VI VME rack architecture, where backplane communication provides data exchange between controller modules. The card design supports distributed I/O processing through configured channels for feedback and command signals. Firmware compatibility must be verified against the installed Mark VI hardware configuration before module replacement or system modification. Frequently Asked Questions Q: What type of control function does the IS200VNH1B perform?A: The IS200VNH1B performs closed-loop servo control by processing feedback signals and generating actuator command outputs within the Mark VI control system. Q: What communication interface is used by this servo control card?A: The card uses the VMEbus standard for communication with compatible Mark VI rack modules. Q: How many I/O channels are supported by the IS200VNH1B?A: The available technical data specifies support for up to 8 input/output channels for servo feedback and command processing. Field Installation Guidelines Install the IS200VNH1B in the assigned VME rack slot according to the Mark VI hardware configuration. Verify rack alignment, connector engagement, and module seating before applying power. Separate low-level feedback wiring from high-current power conductors to reduce electrical noise coupling. Maintain proper shielding and grounding practices for analog signal connections. Use standard ESD protection procedures when handling the PCB. Confirm firmware compatibility, rack configuration, and connected I/O wiring before returning the control system to operation.
$200.00 $100.00
-

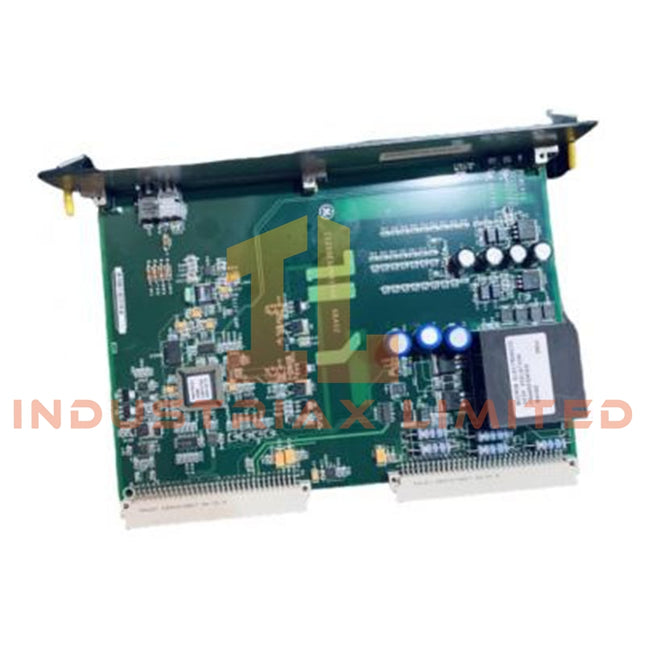

General Electric GE IS200ERGTH1AAA Exciter Regulator Gate Driver Terminal Board
GE IS200ERGTH1AAA Exciter Regulator Gate Driver Terminal Board Configured for isolated gate pulse distribution and feedback monitoring in the GE EX2100 Excitation Control System, the GE IS200ERGTH1AAA (IS200ERGT Exciter Regulator Gate Driver Terminal Board) provides direct physical/electrical execution between control modules and exciter bridge semiconductor devices. Hardware Specifications Parameter Specification Model IS200ERGTH1AAA Brand General Electric (GE) Origin United States Board Type Exciter Regulator Gate Driver Terminal Board (ERGT) Series EX2100 Excitation Control System Function Gate drive signal distribution, feedback monitoring, and protection circuit interface Processor 32-bit digital signal processor Inputs Fiber-optic gate drive signals from EXHS boards Outputs Conditioned gate drive signals to IGBT/thyristor bridge devices Analog Output 0-20 mA Excitation Voltage 24 VDC Maximum Lead Resistance 15 ohm Frequency 50 or 60 Hz Weight 2 lbs Dimensions 17.8 cm high x 33.02 cm Operating Temp 30 to 50 deg C Power Consumption Not specified in available technical data GE EX2100 Gate Drive and Control Interface Characteristics The IS200ERGTH1AAA operates as a terminal interface between excitation control electronics and power semiconductor switching devices. The board receives isolated gate drive signals through fiber-optic links and distributes conditioned control pulses to exciter bridge IGBT or thyristor devices. The module supports industrial control signal processing through DSP-based architecture. Signal routing includes feedback monitoring paths and protective functions such as overcurrent detection, desaturation monitoring, and undervoltage lockout handling. Profinet / EtherNet-IP Deterministic Networks and Firmware Compatibility As part of the GE EX2100 control platform, the board participates in coordinated excitation control through dedicated module interfaces. Hardware signal synchronization depends on the EX2100 architecture, with control communication paths designed for deterministic excitation regulation timing. Firmware and hardware compatibility must match the configured EX2100 system revision. Replacement modules require verification of board revision, terminal connections, and application configuration before installation. Frequently Asked Questions Q: What type of signals does the IS200ERGTH1AAA interface handle?A: The board handles isolated gate drive signals, feedback monitoring signals, and protective circuit interfaces between EX2100 control modules and exciter bridge semiconductor devices. Q: Does the IS200ERGTH1AAA provide direct connection to power semiconductor gates?A: The board provides conditioned gate drive outputs for IGBT or thyristor devices through the exciter bridge interface. It does not function as a standalone power switching device. Q: What installation considerations apply to the fiber-optic gate drive interface?A: Fiber-optic connections must be installed with correct alignment, protected from mechanical stress, and checked for contamination or damage before system operation. Field Installation Guidelines Install the IS200ERGTH1AAA in the designated EX2100 rack position according to the system hardware configuration. Confirm connector alignment before insertion and verify that all terminal interfaces are fully seated. Maintain separation between control wiring and high-current excitation conductors to reduce electrical interference. Fiber-optic cables should be routed with appropriate bend protection and kept free from physical damage. The conformal-coated PCB should be handled using standard ESD protection procedures. Verify grounding paths, shield termination practices, and signal wiring integrity before applying excitation system power.
$200.00 $100.00
-

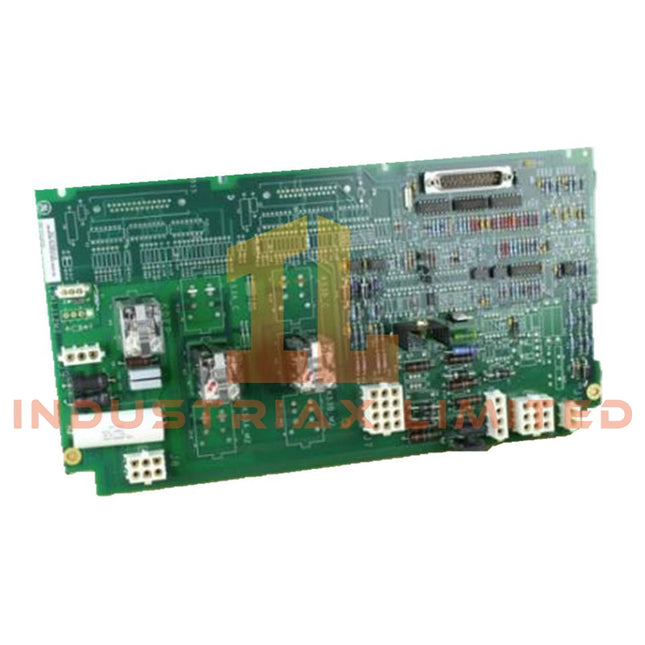

General Electric GE IS200EXHSG3REC EX2100 Exciter High-Speed Gate Driver Board
GE IS200EXHSG3REC EX2100 Exciter High-Speed Gate Driver Board The GE IS200EXHSG3REC, also cataloged as the IS200EXHSG3REC Exciter High-Speed Gate Driver Board, operates as a dedicated hardware component for isolated semiconductor gate pulse control within GE EX2100 excitation control systems. It drives exciter bridge IGBT and thyristor devices through fiber-optic control interfaces. Hardware Specifications Parameter Specification Model IS200EXHSG3REC Brand GE (General Electric) Origin United States Weight 0.5 kg Operating Temp -30 deg C to +65 deg C Series EX2100 Excitation Control System Product Type Exciter High-Speed Gate Driver Boards Board Type High-Speed Gate Driver Board Mounting Rack-mounted, interfaces with exciter bridge Gate Drive Outputs Multiple isolated channels for IGBT/thyristor devices Communication Interface Fiber-optic control links Protection Functions Overcurrent detection, desaturation protection, undervoltage lockout Indicators LED status for gate drive and fault conditions Humidity Range 5%-95% non-condensing PCB Protection Conformal coating for dust, moisture, and chemical resistance Shutdown Function Rapid shutdown capability during fault conditions Firmware Flash Compatibility and System Integration The IS200EXHSG3REC provides isolated gate drive signal generation for GE EX2100 excitation bridge assemblies. The board receives control commands through fiber-optic links and converts them into high-speed gate pulses for power semiconductor switching devices. The module includes protection monitoring functions including desaturation detection, overcurrent monitoring, and undervoltage lockout. These functions control gate output states during abnormal electrical conditions and support controlled shutdown of exciter bridge devices. The REC revision provides compatibility features for EX2100 exciter bridge configurations. The conformal-coated PCB construction supports operation in environments where moisture, dust, and chemical contamination protection are required. Frequently Asked Questions Q: What semiconductor devices can the IS200EXHSG3REC drive?A: The board provides isolated gate drive signals for exciter bridge power semiconductor devices including IGBTs and thyristors. Q: What communication method is used for gate control signals?A: The board uses fiber-optic links for control signal transfer between excitation control modules and the gate driver circuitry. Q: Which protection functions are included in the gate driver board?A: The module provides overcurrent detection, desaturation protection, and undervoltage lockout functions for semiconductor gate control. Field Installation Guidelines Install the IS200EXHSG3REC in the designated GE EX2100 rack position and verify mechanical alignment before connecting power or control interfaces. Inspect fiber-optic connectors and board edge connections for contamination, damage, or improper seating. Maintain correct fiber routing practices and avoid excessive bending or mechanical stress on optical cables. Separate gate drive control wiring from high-current excitation conductors where applicable. Ensure cabinet grounding and shielding practices follow the excitation system installation design. Before operation, verify gate drive channel status indicators, fiber communication links, exciter bridge connections, and fault monitoring functions during commissioning procedures.
$200.00 $100.00
-

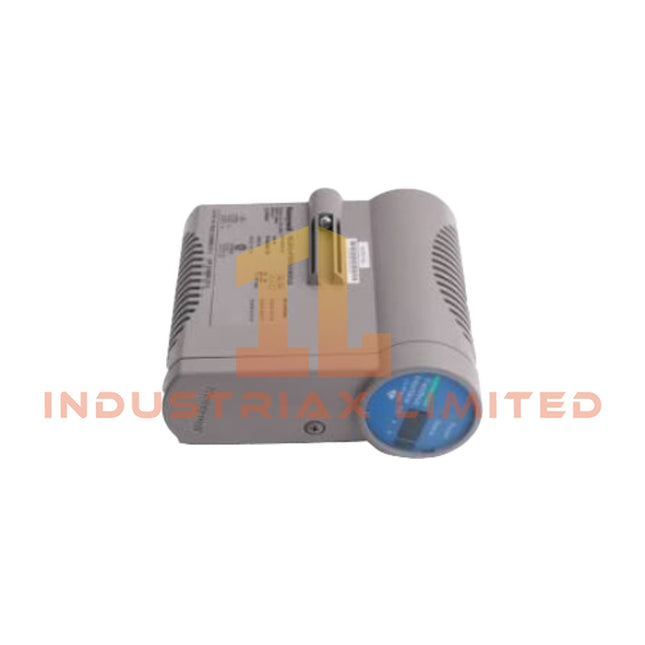

Honeywell CC-TSV211 | Servo Valve Positioner Module | Honeywell
Honeywell CC-TSV211 Servo Valve Positioner Module Configured for servo valve position control in Honeywell Experion PKS Series C I/O systems, the Honeywell CC-TSV211 (51306665-175) (CC-TSV211 Servo Valve Positioner Module) provides direct physical/electrical execution for hydraulic actuator positioning through servo coil drive and position feedback processing. Hardware Specifications Parameter Specification Model CC-TSV211 (51306665-175) Brand Honeywell Product Type Servo Valve Positioner Module Series Experion PKS Series C I/O Origin USA Weight 0.7 kg Dimensions 44.3 x 12 x 7.5 cm Operating Temp Not specified Power Consumption Not specified Output Channels 2 DAC Resolution 16-bit Maximum Open Circuit Voltage +/-14 V Galvanic Isolation +/-500 VDC Input/Output Range 8 V RMS max., 2.5-3.2 kHz Input Impedance > 25 kOhm Input Scan Rate 2.5 ms Common Mode Voltage -6 to +5 V peak, DC to 60 Hz Feedback Interface LVDT/RVDT/4-20 mA position feedback support Control Function Onboard PID servo positioning loop Output Function Direct servo valve coil current drive DCS Signal Conditioning and Channel Isolation Features The CC-TSV211 operates as a Series C I/O servo control interface with onboard signal processing for valve position regulation. The module accepts position feedback signals from LVDT, RVDT, or 4-20 mA devices and executes an internal PID positioning algorithm before generating servo coil output commands. The Honeywell Experion PKS architecture uses channel-level signal conditioning methods similar to other process control I/O modules, including channel-to-channel isolation concepts for minimizing electrical interference between independent signal paths. The CC-TSV211 provides +/-500 VDC galvanic isolation for field-side signal protection and supports controlled analog feedback acquisition with a 2.5 ms input scan rate. The module receives remote valve demand signals from a C300 controller and converts digital control commands into analog servo output behavior. The design supports dual-channel operation, LVDT feedback monitoring, diagnostic processing, and redundant control configurations within compatible Series C I/O installations. Frequently Asked Questions (FAQ) Q: What type of feedback signals can the CC-TSV211 process?A: The module supports LVDT, RVDT, and 4-20 mA valve position feedback inputs for servo valve positioning applications. Q: Does the CC-TSV211 contain an onboard positioning control loop?A: Yes. The module includes an onboard PID positioning loop that processes valve demand commands and feedback signals to control servo valve coil output. Q: What electrical isolation capability is provided by the module?A: The CC-TSV211 provides galvanic isolation rated at +/-500 VDC between applicable electrical sections. Field Installation Guidelines Install the CC-TSV211 in a compatible Honeywell Experion PKS Series C I/O rack according to the system hardware configuration requirements. Verify field wiring polarity and signal termination before connecting servo coil outputs and position feedback inputs. Use shielded instrumentation wiring for LVDT/RVDT and analog feedback connections where required by the site electrical installation standard. Terminate cable shields according to the plant grounding practice to reduce electromagnetic interference. Separate low-level feedback wiring from high-current actuator wiring to reduce induced electrical noise. Confirm controller communication configuration and I/O channel assignment before commissioning the servo positioning loop. Inspect terminal connections and mechanical mounting before applying operating power.
$200.00 $100.00
-
Honeywell CC-TSP411 | Speed Protection Module IOTA | Honeywell
Honeywell CC-TSP411 Speed Protection Module IOTA Configured for speed signal termination and protection functions in Honeywell Experion PKS Series C Turbomachinery I/O systems, the Honeywell CC-TSP411 (CC-TSP411 Speed Protection Module IOTA) provides direct physical/electrical execution between field speed inputs and the associated Speed Protection Module hardware. Hardware Specifications Parameter Specification Model CC-TSP411 Brand Honeywell Product Type Speed Protection Module IOTA Part Number 51306669-175 (Typical) Origin USA Weight Not specified Dimensions 18-inch IOTA block form factor System Compatibility Honeywell Experion PKS Series C DCS Turbomachinery I/O Module Configuration 4-channel speed protection termination assembly Redundancy Supported Speed Input Frequency Range 0 to 10 kHz Speed Setpoint Range 0 to 10,000 RPM Input Power Supply 24 VDC system power Power Consumption Not specified Operating Temp -40 deg C to +85 deg C Storage Temp -55 deg C to +85 deg C Terminal Type Heavy-duty screw terminals Environmental Protection Conformal coated assembly Channel-to-Channel Isolation and DCS Signal Interface The CC-TSP411 is designed for use with Honeywell process control hardware requiring separated speed input termination paths. The assembly provides channel organization for four independent speed monitoring circuits and supports redundant installation arrangements within Experion PKS Series C Turbomachinery I/O cabinets. The termination design maintains electrical separation between field wiring paths and controller-side interfaces. Screw terminal connections provide mechanical retention for rotating equipment applications where continuous vibration exposure may affect signal wiring integrity. Frequently Asked Questions Q: Is the CC-TSP411 a standalone speed protection controller?A: No. The CC-TSP411 is an Input Output Termination Assembly (IOTA) used with the Speed Protection Module hardware. It provides field signal termination and interface functions. Q: Does the CC-TSP411 support redundant configurations?A: Yes. The assembly supports redundant system configurations when installed with compatible Honeywell Experion PKS Series C Turbomachinery I/O components. Q: What type of field signals are connected to the CC-TSP411?A: The module is designed for speed-related input signals from rotating machinery monitoring circuits, with frequency measurement capability up to 10 kHz. Field Installation Guidelines Install the CC-TSP411 in the designated Honeywell Experion PKS Series C Turbomachinery I/O cabinet location according to system hardware documentation. Verify terminal assignments before connecting field speed probe wiring to prevent channel mapping errors. Route speed signal cables separately from high-current power conductors and sources of electromagnetic interference. Apply appropriate cable shielding and grounding practices according to plant instrumentation standards. Confirm redundant wiring paths are separated and correctly terminated before commissioning. Inspect screw terminal torque and mechanical fixing points during installation maintenance activities. Verify field signal polarity, shielding continuity, and input channel identification before system startup.
$200.00 $100.00
