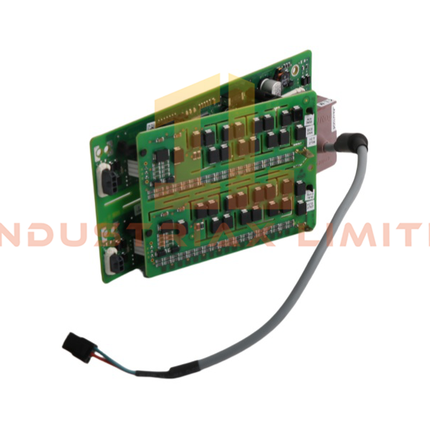

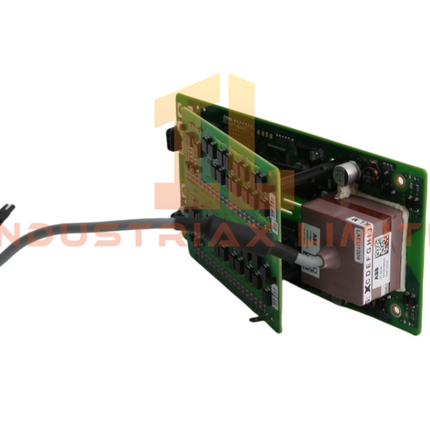

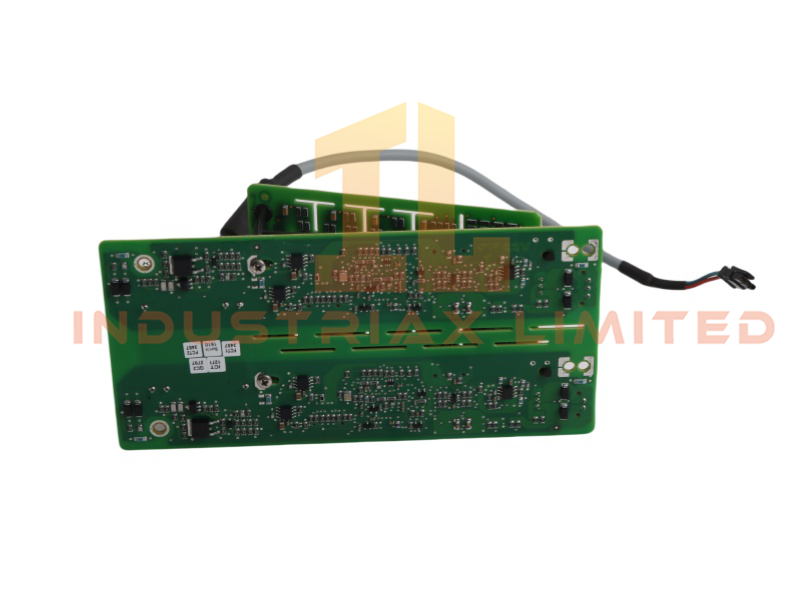

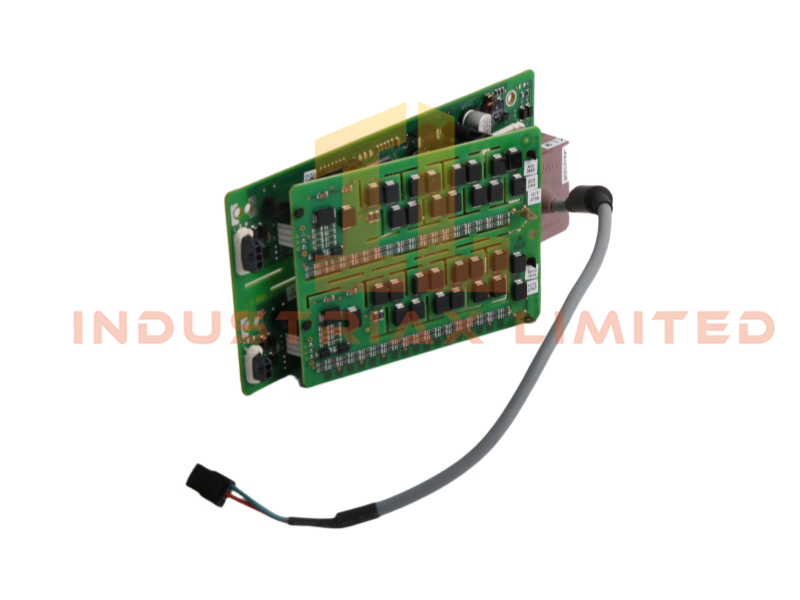

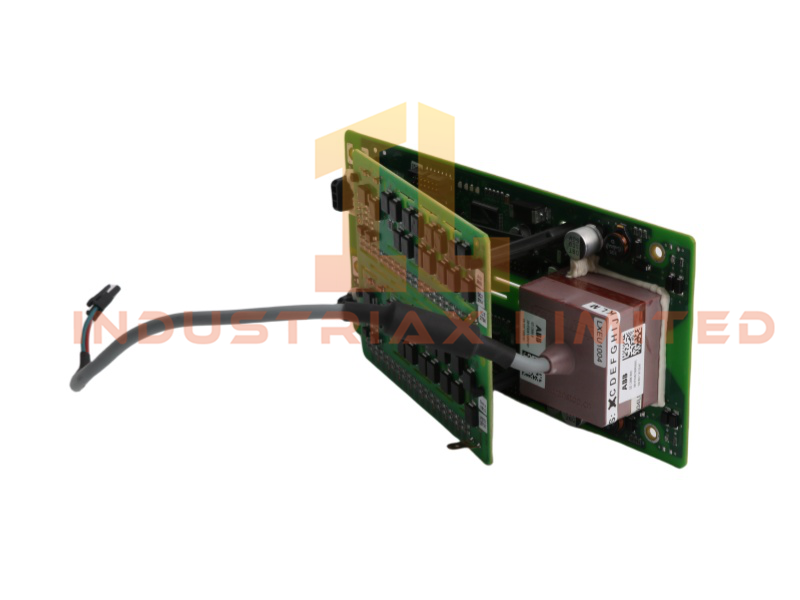

The ABB 3BHE036290R0005 GDC806 B05 Gate Drive Board delivers reliable performance and seamless integration into ACS 1000 systems. Its compact dimensions and lightweight aluminum alloy housing ensure durability and efficiency in space-constrained industrial environments.
Technical Specifications
| Parameter |
Value |
| Model Number |
3BHE036290R0005 GDC806 B05 |
| Manufacturer |
ABB |
| Module Type |
Gate Drive Board |
| Product Range |
ACS 1000 System |
| Dimensions |
17 × 8.2 × 5.5 cm |
| Weight |
0.22 kg |
| Operating Temperature |
-20°C to +70°C |
| Communication Interface |
RS-485, Ethernet router |
| Data Transfer Rate |
Up to 12 Mbps |
| Housing Material |
Aluminum alloy |
| System |
DCS |
| HS Code |
8537101190 |
| Origin |
Sweden |
| Condition |
Brand New |
| MOQ |
1 |
Functional Highlights
The ABB 3BHE036290R0005 GDC806 B05 module combines durability with lightweight efficiency, supporting extreme temperature ranges for versatile deployment. Engineers benefit from its RS-485 communication interface, enabling rapid data transfer rates up to 12 Mbps. Compatibility with ABB Control Strategy, FactoryTalk, and RSLogix 5000 ensures smooth integration into existing automation systems. Certified to ISO 9001:2015 standards, this gate drive board guarantees long-term reliability and operational safety.
Applications and Compatibility
The ABB 3BHE036290R0005 GDC806 B05 Gate Drive Board integrates seamlessly into ACS 1000 and DCS architectures. Its compact design suits space-limited installations, while advanced communication capabilities enhance system efficiency. This module supports industries such as manufacturing, energy, and heavy-duty automation requiring robust gate drive solutions with high-speed data transfer.
