Honeywell
-
Honeywell MU-TDIY22 | Honeywell | Digital Input Field Termination Assembly
Honeywell MU-TDIY22 Digital Input Field Termination Assembly Configured for digital contact signal termination in Honeywell TDC 3000 and Experion PKS process control systems, the Honeywell MU-TDIY22 (51204160-125) MU-TDIY22 Digital Input Field Termination Assembly provides direct physical signal routing and electrical conditioning between field devices and process controllers. Hardware Specifications Parameter Specification Model MU-TDIY22 Brand Honeywell Origin USA Power Consumption Field termination passive interface; system load depends on connected configuration Part Number 51204160-125 Module Type Digital Input Field Termination Assembly (FTA) System Compatibility Honeywell TDC 3000, APM, HPM, and Experion PKS Signal Type Discrete digital input signals from field contacts, switches, and relays Input Voltage 24 VDC standard field logic level Channel Capacity Configuration dependent, typically 16 or 32 digital input channels Termination Method Screw terminal field wiring interface Isolation Method Galvanic or optical isolation between field wiring and control electronics Mounting Type FTA mounting channel or compatible industrial installation structure Honeywell Process Signal Interface and Isolation Characteristics The MU-TDIY22 applies Honeywell process control interface methods for discrete field signal acquisition. It conditions incoming contact signals before transmission to the control processor, which reduces the effect of electrical noise from field wiring. Furthermore, the assembly provides channel-to-channel isolation characteristics required for distributed control input circuits. The module design supports discrete signal separation and protects controller-side electronics from field wiring disturbances. For Honeywell process instrumentation architectures, the signal interface approach remains compatible with digital I/O environments that use 4-20 mA HART loop protocol modules, FOUNDATION Fieldbus or Profibus PA communication modules within the same control system family, although the MU-TDIY22 itself performs digital contact termination rather than analog communication conversion. Frequently Asked Questions Q: What type of field signals does the Honeywell MU-TDIY22 accept?A: The MU-TDIY22 accepts discrete field input signals from devices such as switches, dry contacts, and relay outputs. It terminates and conditions these signals before connection to the Honeywell control system. Q: Does the MU-TDIY22 provide direct controller processing capability?A: No. The MU-TDIY22 functions as a Field Termination Assembly. It performs field wiring termination, signal conditioning, and interface functions, while the controller module executes signal processing. Q: Can the MU-TDIY22 be replaced during system operation?A: Maintenance procedures depend on the installed Honeywell system configuration. Field replacement should follow the approved shutdown, isolation, and maintenance procedures defined for the specific TDC 3000 or Experion PKS installation. Field Installation Guidelines Install the MU-TDIY22 within the designated Honeywell FTA mounting arrangement and maintain proper mechanical fixation. Separate digital input wiring from high-voltage power cables and high-noise switching circuits to reduce electrical interference. Connect field cable shields according to the plant grounding standard and avoid multiple grounding points that may create ground loops. Verify terminal identification before connecting field devices to prevent incorrect channel assignment. Confirm 24 VDC field supply polarity and contact wiring configuration before system commissioning. Inspect terminal tightening, cable routing, and isolation conditions during maintenance activities. Follow Honeywell system documentation for controller interface connection and module replacement procedures.
$200.00 $100.00
-
Honeywell MU-TDOY22 | Honeywell | Digital Output Field Termination Assembly
Honeywell MU-TDOY22 Digital Output Field Termination Assembly Configured for discrete output signal routing in Honeywell TDC 3000 and Experion PKS systems, the Honeywell MU-TDOY22-51204162-125 (MU-TDOY22 Digital Output Field Termination Assembly) provides direct physical and electrical execution between control modules and 24 VDC field devices. Hardware Specifications Parameter Specification Model MU-TDOY22 Brand Honeywell Origin USA Part Number 51204162-125 Product Type Digital Output Field Termination Assembly Signal Type Discrete Digital Output Operating Voltage 24 VDC System Compatibility Honeywell TDC 3000 / Experion PKS Field Connection Screw terminal field wiring interface Controller Connection Ribbon cable interface to I/O module Mounting Type Standard FTA mounting channel / DIN rail Isolation Function Signal conditioning and electrical isolation Process Control Signal Isolation and Field Interface Characteristics The Honeywell MU-TDOY22 interfaces digital output channels from the control system with external field actuators. It routes discrete commands to devices such as solenoid valves, relays, contactors, and status indicators through dedicated terminal connections. The assembly provides channel-level signal conditioning and supports electrical separation between internal control electronics and field wiring. In addition, the terminal structure allows technicians to perform field cable installation and inspection without modifying the controller hardware. For Honeywell process control architectures, field termination assemblies support instrument connectivity requirements associated with discrete and analog I/O systems. Depending on the connected I/O architecture, Honeywell platforms may include communication interfaces such as 4-20 mA HART loop protocol, FOUNDATION Fieldbus, or Profibus PA at the system level. The MU-TDOY22 itself functions as a discrete output termination interface rather than a protocol communication module. Frequently Asked Questions Q: Does the MU-TDOY22 operate as a standalone digital output controller?A: No. The MU-TDOY22 functions as a field termination assembly. It connects field devices to the associated Honeywell I/O hardware and does not execute control logic independently. Q: Can the MU-TDOY22 directly replace an analog output termination assembly?A: No. The MU-TDOY22 is designed for discrete digital output signals. Analog output assemblies use different signal conditioning and termination circuits. Q: What installation practices apply when wiring the MU-TDOY22?A: Technicians should separate field signal wiring from high-voltage power cables, maintain proper cable shielding practices, and verify terminal assignments before energizing connected devices. Field Installation Guidelines Install the MU-TDOY22 on the designated FTA mounting structure according to the Honeywell system hardware configuration. Verify the I/O module cable connection before applying system power. Use correctly rated field wiring for connected 24 VDC digital output devices. Separate signal cables from electromagnetic noise sources such as motor power lines and switching equipment. Connect cable shields according to the plant grounding standard to reduce electrical interference. Confirm terminal identification and field device polarity before commissioning. Inspect terminal tightening conditions during scheduled maintenance intervals.
$200.00 $100.00
-

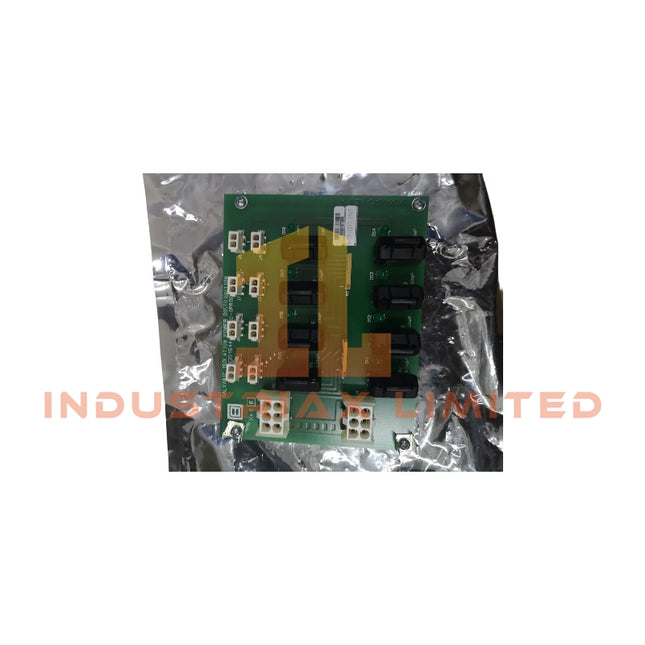

Honeywell MU-GPRD02 | Honeywell | Processor Gateway Module

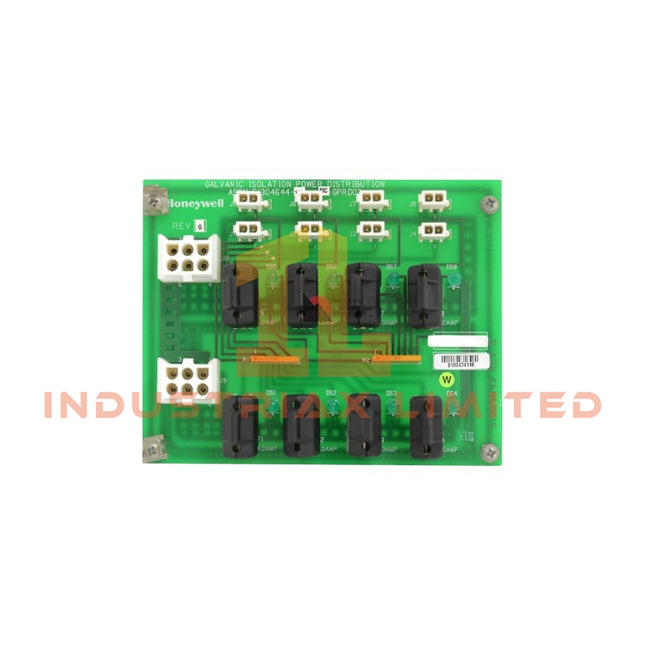

Honeywell MU-GPRD02 Processor Gateway Module Configured for data processing and communication execution in Honeywell TDC 3000 / Experion PKS HPM and APM architectures, the Honeywell MU-GPRD02-125 (MU-GPRD02 Processor Gateway Module) provides direct physical and electrical execution for control network interfacing and module data exchange. Hardware Specifications Parameter Specification Model MU-GPRD02 Part Number 51304644-125 Brand Honeywell Origin USA Product Type Processor Gateway Module System Compatibility Honeywell TDC 3000 / Experion PKS / HPM / APM Component Function Processor and communication interface board Processing Function Real-time industrial control data handling and network communication Power Supply System backplane supplied voltage Operating Voltage 5 VDC / 24 VDC typical system supply Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Relative Humidity 5% to 95% non-condensing Power Consumption Low power design, exact value depends on chassis configuration Installation Type Control rack / backplane slot mounting Status Indication Onboard LED diagnostic indicators Process Control Communication and Interface Functions The Honeywell MU-GPRD02-125 operates as a processor and gateway interface within Honeywell distributed control architectures. It manages communication paths between controller processing resources, I/O subsystems, and system-level networks. The module supports deterministic data exchange required by TDC 3000 and Experion PKS hardware configurations. Additionally, Honeywell process control platforms commonly integrate field communication technologies such as 4-20 mA HART loop protocol, FOUNDATION Fieldbus, and Profibus PA through compatible interface modules. The module design supports channel communication management and diagnostic monitoring functions. Therefore, operators can use front-panel indicators to identify power status, communication conditions, and module fault states during maintenance activities. Frequently Asked Questions Q: Does the MU-GPRD02-125 support hot-swap replacement? A: The module installation method depends on the specific Honeywell chassis and backplane configuration. Technicians must verify system replacement procedures before removing or inserting the module under power. Q: What power source does the MU-GPRD02-125 use? A: The module receives operating power through the Honeywell system backplane. The exact current load depends on the installed rack configuration and connected system components. Q: Can the MU-GPRD02-125 operate as a standalone processor? A: No. The module requires a compatible Honeywell control chassis and system architecture to perform processor and gateway functions. Field Installation Guidelines Install the MU-GPRD02-125 only in the designated Honeywell control rack slot specified by the system configuration. Confirm that the backplane connector is clean and free from contamination before installation. Maintain proper cabinet grounding and follow Honeywell grounding practices for industrial control equipment. Separate communication wiring from high-voltage power cables to reduce electromagnetic interference. Verify module seating, connector engagement, and LED diagnostic status after installation. Use approved Honeywell engineering procedures when replacing modules in an active control system.
$200.00 $100.00
-

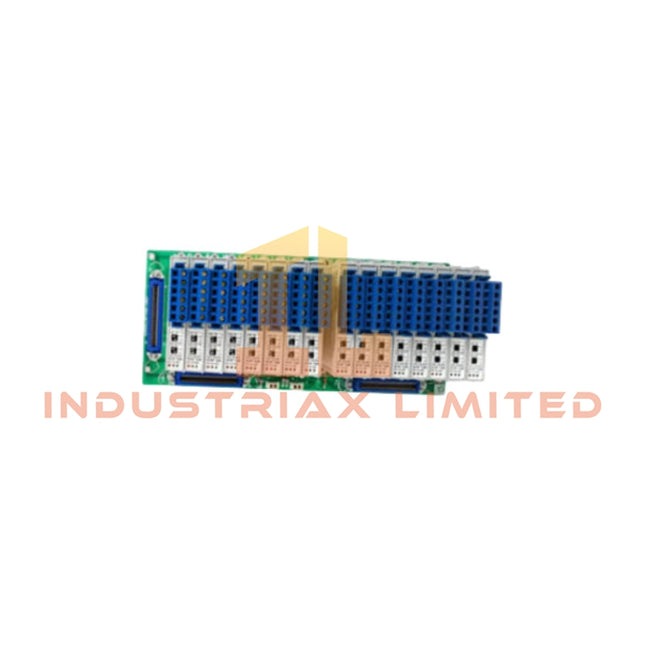

Honeywell MU-GDID12 Digital Input Module | Honeywell
Honeywell MU-GDID12 Digital Input Module Configured for discrete signal acquisition in Honeywell TDC 3000 and Experion PKS HPM/APM architectures, the Honeywell MU-GDID12 (51304640-225) (MU-GDID12 Digital Input Module) provides direct electrical processing of field ON/OFF signals from switches, relay contacts, and limit sensors. Hardware Specifications Parameter Specification Model MU-GDID12 Brand Honeywell Part Number 51304640-225 Origin USA Module Type Digital Input (DI) Module System Compatibility Honeywell TDC 3000, HPM, APM, Experion PKS platforms Input Type Discrete digital input, dry contact, sourcing or sinking signal interface Input Voltage 24 VDC nominal digital input level Channel Capacity Typically 16 or 32 channels depending on FTA configuration Signal Processing Field contact status acquisition and logic level conversion Isolation Galvanic isolation between field circuits and control electronics Mounting Type Card file or rack slot installation Field Interface Honeywell FTA connection through multi-conductor cable assemblies Coating Standard uncoated board configuration Honeywell DCS Digital Signal Interface Characteristics The MU-GDID12 processes binary field states and transfers converted logic information to Honeywell process controllers through the I/O subsystem. The module supports discrete monitoring functions where field contacts require electrical separation from controller-level circuits. Furthermore, Honeywell HPM/APM architectures commonly apply channel-to-channel isolation methods to reduce interference between independent field signals. This design approach supports stable digital status acquisition for process switches, alarms, interlocks, and equipment feedback circuits. The module connects with Honeywell Field Termination Assemblies (FTAs) through dedicated cable assemblies. Therefore, field wiring remains separated from the controller card area, simplifying maintenance activities and signal troubleshooting. Frequently Asked Questions Q: What type of field signals can the Honeywell MU-GDID12 accept?A: The MU-GDID12 accepts discrete ON/OFF signals from field devices such as dry contacts, switches, relay outputs, and limit sensors. The exact input wiring mode depends on the connected FTA configuration. Q: Can the MU-GDID12 support hot-swap replacement?A: Honeywell HPM/APM I/O systems may support hot replacement procedures for specific card configurations. The applicable rack design, controller status, and maintenance procedures must be verified before removing or inserting the module. Q: Does the MU-GDID12 provide electrical isolation?A: The module design includes galvanic isolation between field signal circuits and internal control electronics to protect the control system interface from field-side electrical conditions. Field Installation Guidelines Install the Honeywell MU-GDID12 in the designated Honeywell I/O card file or rack slot according to the system hardware configuration. Verify the module keying, rack position, and backplane connection before insertion. Incorrect placement may prevent communication with the HPM/APM controller. Connect field devices through the approved Honeywell FTA and cable assembly. Maintain proper separation between digital signal wiring and high-voltage power conductors to reduce electromagnetic interference. Use shielded wiring practices where required by the plant installation standard. Connect cable shields according to the site grounding specification and avoid creating unintended ground loops. Before commissioning, verify each digital input channel by applying known field states and confirming correct status indication within the controller database.
$200.00 $100.00
-

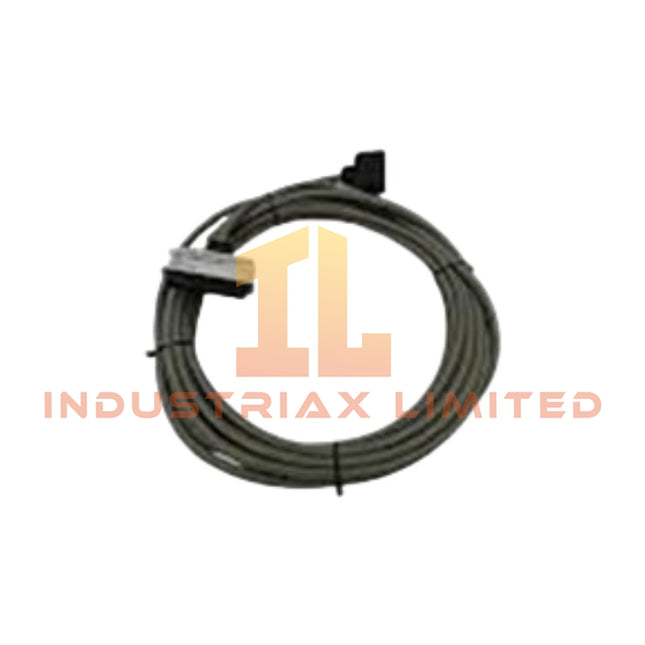

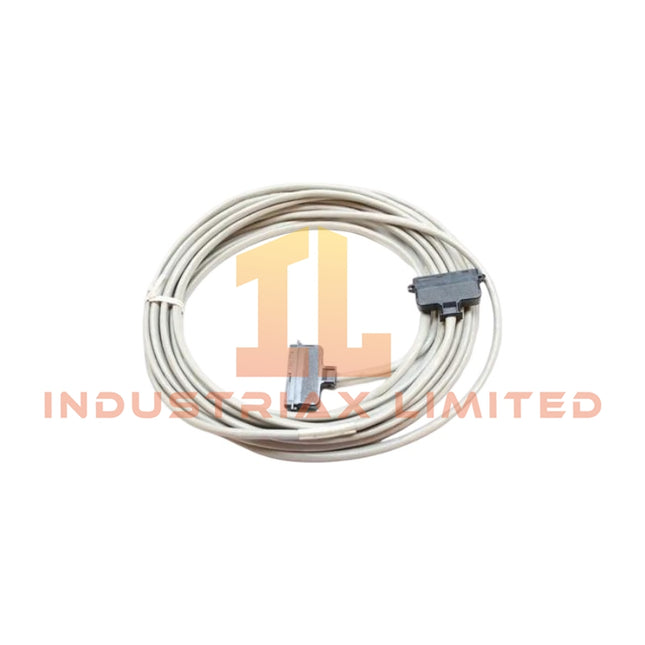

Honeywell Honeywell MU-KFTA10 Field Termination Assembly
Honeywell MU-KFTA10 Field Termination Assembly The Honeywell MU-KFTA10 (51201420-010), also cataloged as the MU-KFTA10 Field Termination Assembly, provides physical signal termination and field wiring interface functions for Honeywell TDC 3000 and Experion PKS I/O systems. Hardware Specifications Parameter Specification Model MU-KFTA10 Brand Honeywell Origin United States Operating Temp Industrial control cabinet operating range; exact value not specified Power Consumption Passive termination assembly; no independent power consumption Product Type Field Termination Assembly (FTA) Part Number 51201420-010 System Compatibility Honeywell TDC 3000 / Experion PKS Signal Interface Field wiring termination and I/O module connection Channel Capacity Typically supports multi-channel analog signal termination Field Connection Compression terminals / screw terminal blocks System Connection Honeywell dedicated I/O cable interface Mounting Method Standard FTA mounting arrangement Process Control Signal Interface Characteristics The MU-KFTA10 operates as a passive field interface component between external instruments and Honeywell control system I/O modules. It organizes field wiring, provides termination points, and maintains signal routing between field devices and controller-side electronics. For Honeywell process control architectures, FTA assemblies support analog instrument loops that may use 4-20 mA HART loop protocol depending on the connected I/O module configuration. In addition, the termination design supports channel-to-channel isolation practices when used with compatible isolated I/O hardware. The assembly provides structured signal access for commissioning and maintenance activities. Therefore, technicians can perform loop verification, wiring inspection, and fault isolation without disturbing controller hardware connections. Frequently Asked Questions Q: Does the MU-KFTA10 contain active electronic processing circuits?A: The MU-KFTA10 is a field termination assembly designed primarily for signal termination and routing. Active signal processing functions depend on the connected Honeywell I/O module. Q: Can the MU-KFTA10 be installed as a standalone control module?A: No. The assembly requires integration with compatible Honeywell TDC 3000 or Experion PKS I/O hardware and associated field wiring. Q: What wiring practices should be considered during installation?A: Field signal cables should maintain proper shielding, grounding, and separation from high-voltage power wiring to reduce electrical interference. Field Installation Guidelines Mount the MU-KFTA10 inside the designated control cabinet or termination area according to the Honeywell system installation drawing. Verify terminal assignments before connecting field instruments to prevent incorrect channel mapping. Use shielded instrumentation cable for analog signal circuits where required by the system design. Connect cable shields according to the approved grounding scheme of the control system. Separate low-level analog signal wiring from AC power conductors and high-current switching circuits. Inspect terminal tightness and cable routing during commissioning and preventive maintenance. Confirm compatibility between the FTA assembly, I/O module type, and associated Honeywell communication cable before system startup.
$200.00 $100.00
-

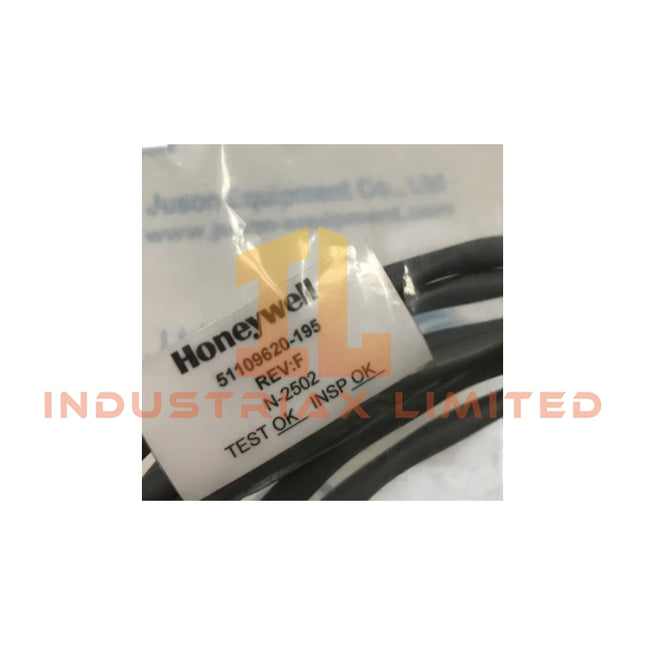

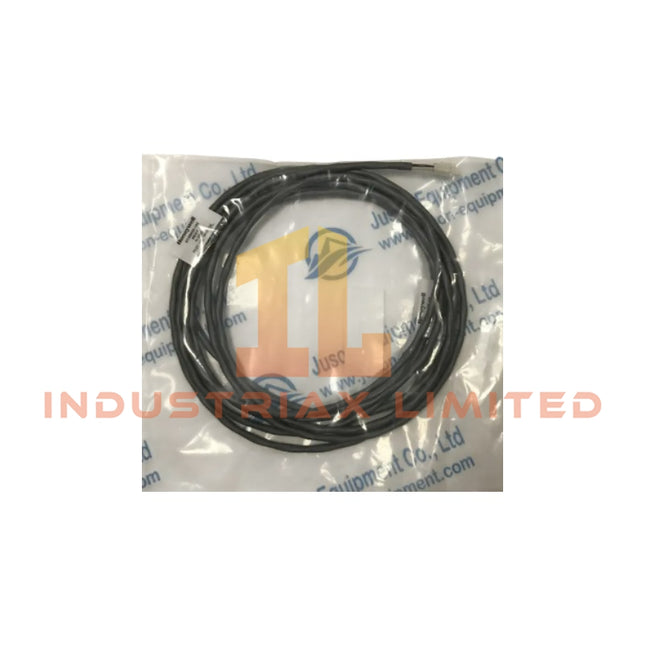

Honeywell Honeywell MU-KGPR05 Control Cable Assembly
Honeywell MU-KGPR05 Control Cable Assembly Configured for signal interconnection between control modules and termination assemblies in Honeywell TDC 3000 and Experion PKS systems, the Honeywell MU-KGPR05 (51109620-195) MU-KGPR05 Control Cable Assembly provides direct physical signal routing between system hardware interfaces. Hardware Specifications Parameter Specification Model MU-KGPR05 Brand Honeywell Origin Germany or Honeywell certified manufacturing facility Operating Temp -20 deg C to +75 deg C typical industrial range Power Consumption Passive cable assembly, no external power consumption Part Number 51109620-195 Component Type Control Cable Assembly / Interconnect Cable Application TDC 3000 and Experion PKS DCS I/O interconnection Signal Interface Control signal and module-level electrical connection Shielding Industrial shielded construction for EMI and RFI reduction Connector Type Dedicated Honeywell multi-pin industrial connectors Cable Construction Industrial-grade conductors with protective jacket and shielding layer Honeywell DCS Signal Interconnection Characteristics The MU-KGPR05 is designed for physical signal transmission between Honeywell control hardware assemblies. It maintains electrical continuity between I/O modules, termination assemblies, and related control system interfaces. For Honeywell process control architectures, cable assemblies support field signal routing requirements associated with DCS hardware. Therefore, proper cable selection and installation maintain signal integrity for connected analog and digital channels. The cable assembly design supports industrial wiring practices, including controlled routing, shield management, and separation from high-voltage conductors. In addition, proper grounding of the shielding layer reduces electromagnetic interference during system operation. Frequently Asked Questions Q: Does the Honeywell MU-KGPR05 require an external power supply?A: No. The MU-KGPR05 is a passive cable assembly and does not consume external electrical power. Q: Can the MU-KGPR05 be installed without considering cable shielding?A: No. The shield layer should follow the Honeywell system grounding practice to reduce electromagnetic interference and maintain signal quality. Q: Is the MU-KGPR05 compatible with non-Honeywell termination systems?A: The cable assembly uses dedicated Honeywell connection interfaces. Compatibility depends on the installed control hardware and connector configuration. Field Installation Guidelines Verify the MU-KGPR05 part number before installation to confirm compatibility with the target Honeywell control assembly. Install the cable according to the system wiring documentation and connector pin assignment requirements. Keep the cable separated from power cables, motor feeders, and high-noise electrical sources. Maintain proper shield termination according to the Honeywell DCS grounding specification. Avoid excessive bending, mechanical stress, or connector loading during cable routing. Inspect connector contacts before installation to prevent signal interruption caused by contamination or improper engagement.
$200.00 $100.00
-

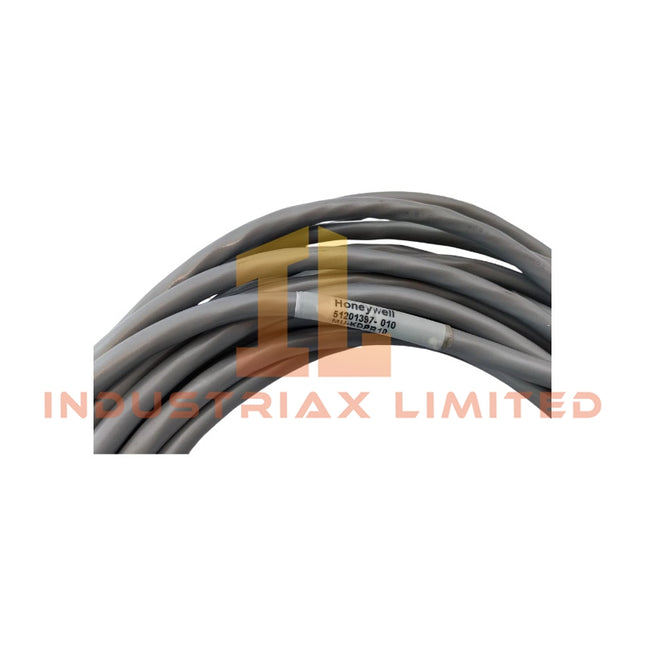

Honeywell MU-KDPR10 | Power Cable Assembly | Honeywell
Honeywell MU-KDPR10 Power Cable Assembly The Honeywell MU-KDPR10 (51201397-010), also cataloged as the MU-KDPR10 Power Cable Assembly, operates as a dedicated power distribution component for DC supply routing within Honeywell TDC 3000 and Experion PKS HPM/APM hardware platforms. Hardware Specifications Parameter Specification Model MU-KDPR10 Brand Honeywell Origin United States Dimensions Cable assembly length: 10 ft (approx. 3.05 m) Operating Temp 0 deg C to 60 deg C Power Consumption Passive cable assembly; no independent power consumption Component Type Power Cable Assembly / Power Distribution Cable Part Number 51201397-010 System Compatibility Honeywell TDC 3000 / Experion PKS HPM and APM platforms Electrical Function DC power distribution between system power supply units and I/O card files Conductor Material Stranded copper conductors Shielding Braided shielding for EMI/RFI reduction Connector Type Keyed industrial multi-pin connectors with locking features Installation Method Factory-terminated cable connection Process Control Signal and Power Interface Characteristics The Honeywell MU-KDPR10 functions as a physical power interface element inside TDC 3000 and Experion PKS control cabinets. It routes DC power between power distribution points and card file assemblies while maintaining controlled electrical separation from communication and field signal wiring. Furthermore, Honeywell control architectures commonly apply channel-to-channel isolation and protected signal routing methods for I/O interfaces. The MU-KDPR10 does not process 4-20 mA HART, FOUNDATION Fieldbus, or Profibus PA signals directly; instead, it provides the power connection path required for powered control hardware assemblies. The cable construction uses shielded conductors to reduce electromagnetic interference coupling. Therefore, installation practice requires proper cable routing separation from high-current switching circuits and variable frequency drive power cables. Frequently Asked Questions Q: Does the MU-KDPR10 cable assembly contain active electronic components?A: No. The MU-KDPR10 is a passive power distribution cable assembly with conductors, shielding, and terminated connectors. Q: Can the MU-KDPR10 be used as a field signal cable for analog or digital I/O channels?A: No. The assembly is designed for DC power distribution between Honeywell system hardware assemblies and does not replace field termination or signal interface cables. Q: What installation factors affect MU-KDPR10 operating performance?A: Correct connector engagement, proper cable routing, and appropriate separation from electrical noise sources affect the installed cable performance. Field Installation Guidelines Verify the cable part number before installation to confirm compatibility with the intended Honeywell HPM or APM hardware configuration. Install the MU-KDPR10 using the keyed connectors provided by the manufacturer. Do not force connector alignment during installation. Route the cable away from AC power conductors, motor drive wiring, and high-frequency switching equipment to reduce electromagnetic interference exposure. Maintain proper cabinet grounding practices. Connect shield layers according to the system cabinet grounding design and avoid uncontrolled shield termination points. Inspect connector locking mechanisms after installation to prevent vibration-related disconnection. During maintenance activities, remove power from the associated hardware assembly before disconnecting the cable.
$200.00 $100.00
-

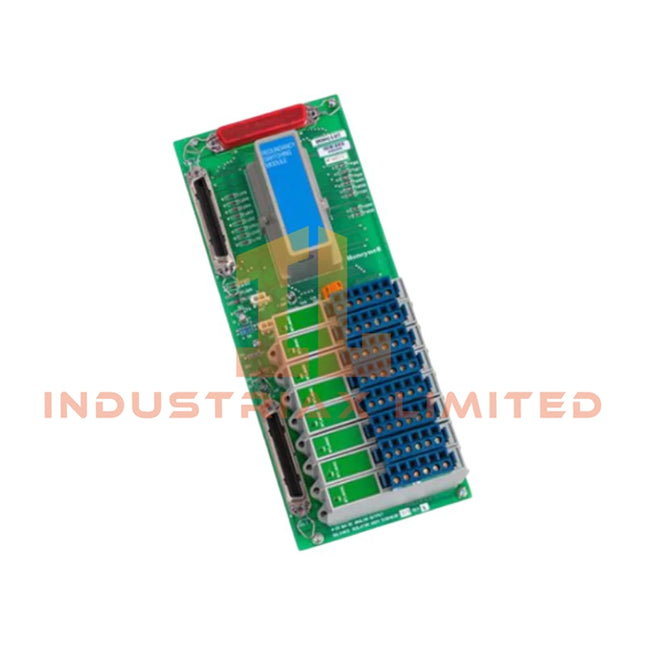

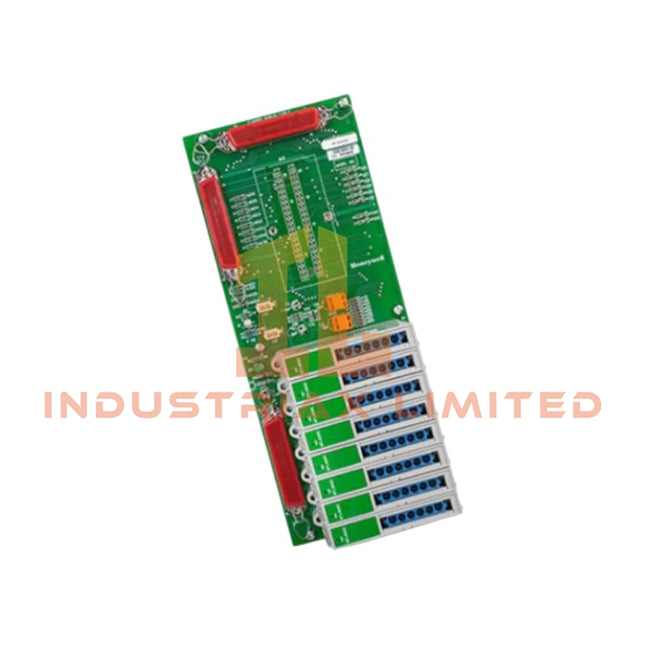

Honeywell MU-GAOX12 51304638-325 | Honeywell | Analog Output Module
Honeywell MU-GAOX12 Analog Output Module The Honeywell MU-GAOX12 51304638-325, also cataloged as the MU-GAOX12 Analog Output Module, operates as a dedicated hardware component for converting DCS control commands into isolated analog output signals within Honeywell Experion PKS and TDC 3000 platforms. Hardware Specifications Parameter Specification Model MU-GAOX12 51304638-325 Brand Honeywell Product Type Analog Output Modules Origin USA Weight Not specified Dimensions Plug-in I/O module format, dimensions not specified Operating Temp 0 deg C to 60 deg C Power Consumption Not specified System Compatibility Honeywell Experion PKS / TDC 3000 Output Type High-Level Analog Output (HLAO), galvanically isolated Output Channels 12 or 16 channels depending on system integration Output Signal Range 4-20 mA, 1-5 VDC, or 0-10 VDC Digital Conversion 12-bit to 16-bit DAC Output Accuracy +/- 0.1% full scale at standard operating conditions Maximum Load Resistance 750 ohm at 20 mA Isolation Method Channel-to-channel galvanic isolation Protection Functions Surge protection, open loop detection Mounting Type Honeywell I/O chassis plug-in module Channel Isolation and Process Signal Interface The Honeywell MU-GAOX12 51304638-325 provides isolated analog signal generation between the control processor and field-level actuators. The module converts internal digital commands into continuous current or voltage outputs for control valves, actuators, and variable speed drive interfaces. The module supports standard process control output ranges, including 4-20 mA current loops and voltage output configurations. In addition, channel-to-channel isolation reduces ground loop influence and separates field wiring disturbances from internal control electronics. For Honeywell DCS applications, the analog output architecture supports direct field control execution. Furthermore, the module can integrate with process instrumentation networks using standard Honeywell I/O subsystem configurations. 4-20 mA HART Loop and DCS Output Characteristics The MU-GAOX12 follows Honeywell process control I/O design principles with isolated analog signal handling. The module supports current loop applications commonly used with proportional valves, actuators, and field controllers. Channel isolation protects individual output paths from wiring faults and transient disturbances. Additionally, open loop detection allows the control system to identify broken field connections and generate diagnostic information. The module operates as an output-side interface only and does not perform field signal measurement. Therefore, input conversion functions, cold junction compensation (CJC), and field transmitter processing are handled by separate Honeywell input modules. Frequently Asked Questions Q: What type of signals does the Honeywell MU-GAOX12 51304638-325 output?A: The module provides analog output signals including 4-20 mA current loops and configurable voltage outputs such as 1-5 VDC or 0-10 VDC. Q: Does the MU-GAOX12 51304638-325 provide channel isolation?A: Yes. The module provides galvanic channel-to-channel isolation to reduce ground loop effects and protect internal control electronics. Q: Can the MU-GAOX12 51304638-325 operate as an analog input module?A: No. The MU-GAOX12 51304638-325 is an analog output module designed for converting DCS commands into field control signals. Field Installation Guidelines Install the MU-GAOX12 51304638-325 into the specified Honeywell I/O chassis or compatible baseplate according to system hardware documentation. Verify module seating before applying system power. Connect field output wiring according to the approved terminal assignment and maintain proper separation between analog signal cables and high-voltage wiring. Use shielded cables for analog output connections when required by the installation environment. Connect cable shields according to site grounding practices to minimize electromagnetic interference. Before commissioning, verify output loop continuity, field device response, and controller channel configuration. Confirm that the installed hardware revision matches the applicable Honeywell system configuration documentation.
$200.00 $100.00
-

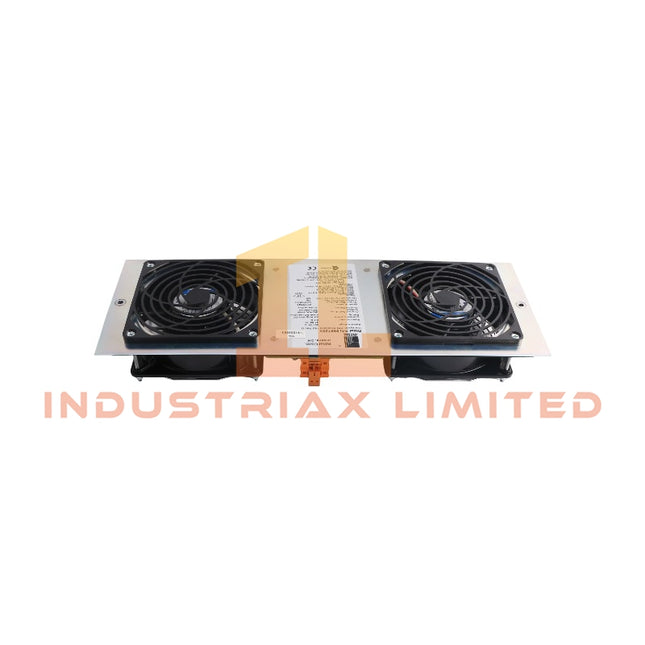

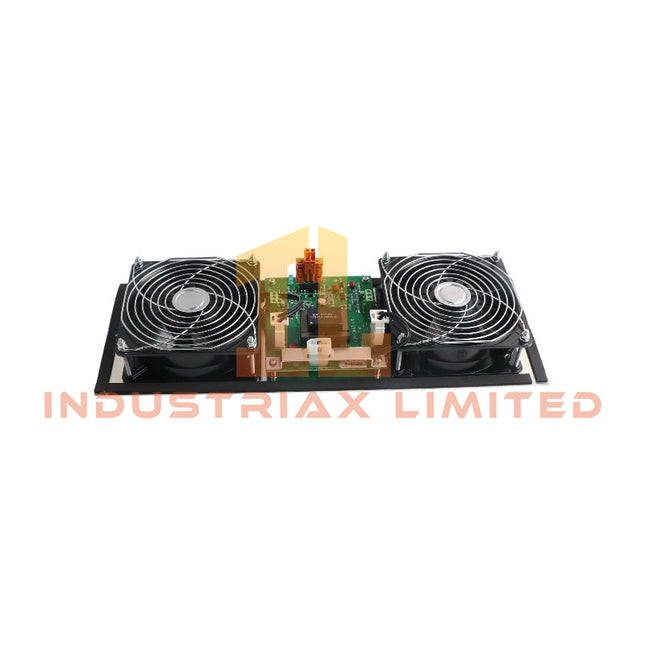

Honeywell MU-FAN611 51303940-150 | Honeywell | Fan Assemblies

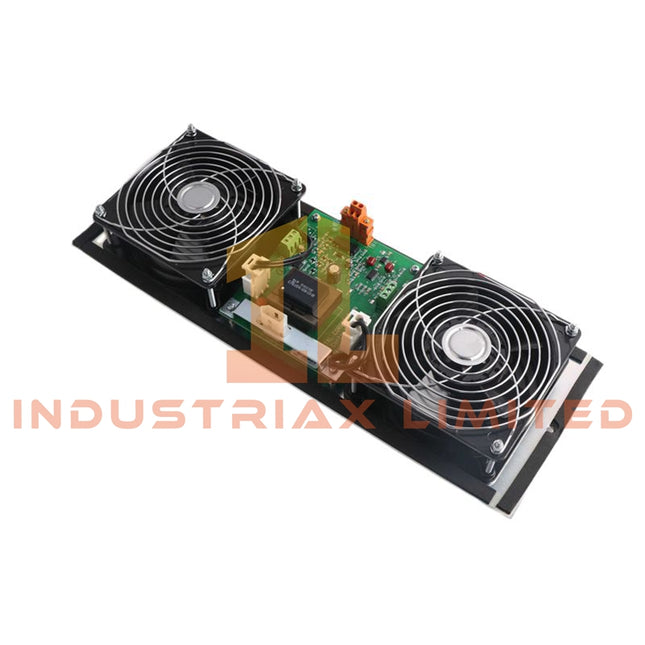

Honeywell MC-FAN611 UCN Dual Fan Assembly Configured for UCN cabinet cooling and airflow control in Honeywell TDC 3000 and related process control platforms, the Honeywell MC-FAN611 51303940-150 (MC-FAN611 UCN Dual Fan Assembly) provides direct mechanical airflow execution for system enclosure temperature management. Hardware Specifications Parameter Specification Model MC-FAN611 51303940-150 Brand Honeywell Product Type UCN Dual Fan Assembly Origin USA Weight 1.88 kg Dimensions 39 x 14.1 x 5.5 cm (shipping size) Power Consumption 0.25 A, 120 VAC Fan Configuration Dual fan assembly Fan Blade Count 3 blades Fan Speed 3100 RPM Alarm Function Integrated alarm output System Application Honeywell UCN hardware cooling infrastructure Tariff Code 8537101190 Manufacturer Status Discontinued by manufacturer Process Control Cooling and Cabinet Airflow Characteristics The Honeywell MC-FAN611 51303940-150 operates as a mechanical cooling component within Honeywell UCN-based control hardware assemblies. It uses two AC-powered fans to maintain forced airflow across installed electronic modules. The assembly operates at 120 VAC with a 0.25 A current rating. In addition, the integrated alarm function provides a status indication path for fan operating conditions. The three-blade fan design rotates at 3100 RPM to support cabinet ventilation requirements. For Honeywell process control systems, this component supports enclosure thermal management rather than signal processing, I/O conversion, or network communication. Therefore, installation must consider airflow direction, cabinet layout, and electrical supply compatibility. Frequently Asked Questions Q: Does the MC-FAN611 51303940-150 process control signals or communication data?A: No. The MC-FAN611 51303940-150 is a mechanical cooling assembly. It provides airflow generation and alarm status functions without handling process signals or network communication. Q: What power supply does the MC-FAN611 51303940-150 require?A: The unit requires a 120 VAC supply and has a specified current rating of 0.25 A. Q: Is the MC-FAN611 51303940-150 a hot-swappable Honeywell module?A: No hot-swap capability is specified for this fan assembly. Maintenance should be performed after removing power from the connected cabinet circuit. Field Installation Guidelines Install the MC-FAN611 51303940-150 according to the cabinet mechanical layout and Honeywell system installation requirements. Verify that the 120 VAC supply matches the fan electrical rating before connection. Maintain clear airflow paths around the fan inlet and outlet areas to prevent restricted ventilation. Route AC power wiring separately from low-level instrumentation wiring to reduce electrical interference. Connect alarm wiring according to the applicable cabinet documentation and verify alarm indication after installation. Before replacement or maintenance, isolate cabinet power and confirm that fan rotation has stopped. Inspect mounting hardware, cable routing, and airflow direction during commissioning.
$200.00 $100.00
-
Honeywell MU-NKD005 | Honeywell | Control System Communication Board

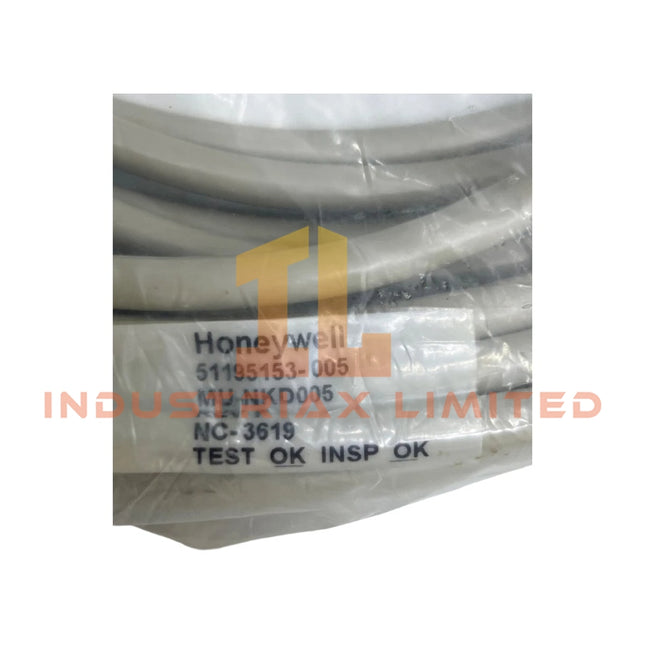

Honeywell MU-NKD005 Control System Communication Board The Honeywell U-NKD005 (51195153-005) serves as the primary U-NKD005 Control System Communication Board utilized to execute data communication and hardware interface functions across Honeywell TDC 3000 and Experion PKS platforms. Hardware Specifications Parameter Specification Model MU-NKD005 Brand Honeywell Part Number 51195153-005 Origin USA Product Type Control System Communication Boards System Compatibility Honeywell TDC 3000 / Experion PKS systems Communication Function Control system data transfer and hardware interface processing Weight 0.28 kg Dimensions Estimated shipping size: 33.5 x 33 x 3 cm Operating Temp 0 deg C to +60 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 5% to 95%, non-condensing Power Consumption Not specified by manufacturer Installation Format Honeywell proprietary rack/slot assembly Diagnostic Interface LED status indication for power, communication, and fault monitoring DCS Communication Interface Characteristics The Honeywell MU-NKD005 performs communication interface functions within Honeywell distributed control system architectures. The module manages electrical data exchange between connected control hardware while maintaining compatibility with Honeywell rack-based system configurations. Furthermore, Honeywell process control platforms integrate communication modules with field interface systems supporting protocols such as 4-20 mA HART loop protocol, FOUNDATION Fieldbus, and Profibus PA connectivity through associated I/O hardware. The U-NKD005 supports the physical communication structure required for controller and module coordination. The module design includes industrial circuit protection features for operation inside control cabinets. In addition, proper cabinet grounding and signal separation help reduce electromagnetic interference effects during system operation. Frequently Asked Questions Q: Does the Honeywell U-NKD005 support hot-swap installation?A: Hot-swap capability depends on the installed Honeywell chassis configuration and system design. Installation procedures should follow the applicable TDC 3000 or Experion PKS hardware manual. Q: What installation environment is required for the U-NKD005?A: The module requires installation inside a compatible Honeywell control rack with correct power, grounding, and communication connections. Q: Does the U-NKD005 require firmware configuration before operation?A: Firmware compatibility and configuration requirements depend on the host Honeywell control system revision and installed hardware architecture. Field Installation Guidelines Confirm the module slot assignment before inserting the U-NKD005 into the Honeywell rack assembly. Inspect the card edge connector and backplane interface for contamination or mechanical damage before installation. Install the module in an environment with controlled temperature, humidity, and cabinet airflow conditions. Maintain separation between communication wiring and high-voltage power conductors to reduce electrical noise coupling. Connect cabinet grounding according to Honeywell system installation requirements. Verify LED status indicators after power application to confirm normal communication and module operation.
$200.00 $100.00
-
Honeywell MU-NKD020 | Honeywell | Control Network Extension Cable
Honeywell MU-NKD020 Control Network Extension Cable Configured for signal and power extension between control modules in Honeywell TDC 3000 and Experion PKS systems, the Honeywell MU-NKD020 (MU-NKD020 Control Network Extension Cable) provides direct physical connection through pre-terminated industrial cable assemblies. Hardware Specifications Parameter Specification Model MU-NKD020 Brand Honeywell Part Number 51195153-020 Origin USA Component Type Control Network / I/O Extension Cable System Compatibility Honeywell TDC 3000 / Experion PKS platforms Cable Length 20 feet (approx. 6.1 meters) Power Consumption Passive cable assembly; no external power consumption Shielding Industrial EMI/RFI shielded cable construction Conductor Material Tinned copper conductors Connector Type Factory-installed multi-pin industrial connectors Application I/O processor, FTA, and network extension interconnection DCS Signal Integrity and Field Connection Characteristics The Honeywell MU-NKD020 uses a shielded cable construction to maintain electrical signal quality between distributed control system hardware assemblies. The cable provides a physical transmission path for control and I/O connections while limiting external electromagnetic interference from nearby industrial equipment. Furthermore, Honeywell DCS cable assemblies support stable field signal routing requirements in systems containing analog and digital process interfaces. The cable design complements Honeywell process control architectures that may include 4-20 mA HART loop devices, FOUNDATION Fieldbus segments, or Profibus PA field networks through associated interface hardware. The factory-terminated connector configuration reduces wiring errors during cabinet installation. In addition, the cable shielding layer requires proper grounding practices to minimize noise coupling between control circuits and power equipment. Frequently Asked Questions Q: Does the MU-NKD020 cable require an external power supply?A: No. The MU-NKD020 is a passive cable assembly and does not contain active electronic circuits or require external power input. Q: Can the MU-NKD020 be installed with standard field wiring practices?A: The cable should follow industrial installation practices, including separation from high-voltage power cables and correct shield termination according to system cabinet requirements. Q: Is the MU-NKD020 compatible with Honeywell TDC 3000 and Experion PKS hardware?A: The MU-NKD020 is specified for Honeywell TDC 3000 and Experion PKS control system environments as an extension cable assembly for compatible hardware connections. Field Installation Guidelines Verify the cable part number and connector configuration before installation into the control cabinet. Route the MU-NKD020 away from high-current power conductors, variable frequency drive cables, and sources of electromagnetic noise. Maintain proper cable bend radius to prevent mechanical stress on connectors and cable jackets. Connect cable shields according to the grounding method defined for the Honeywell control system cabinet. Inspect connector pins and locking mechanisms before operation to prevent intermittent communication faults. Confirm correct module and FTA termination points before system startup and signal verification.
$200.00 $100.00
-

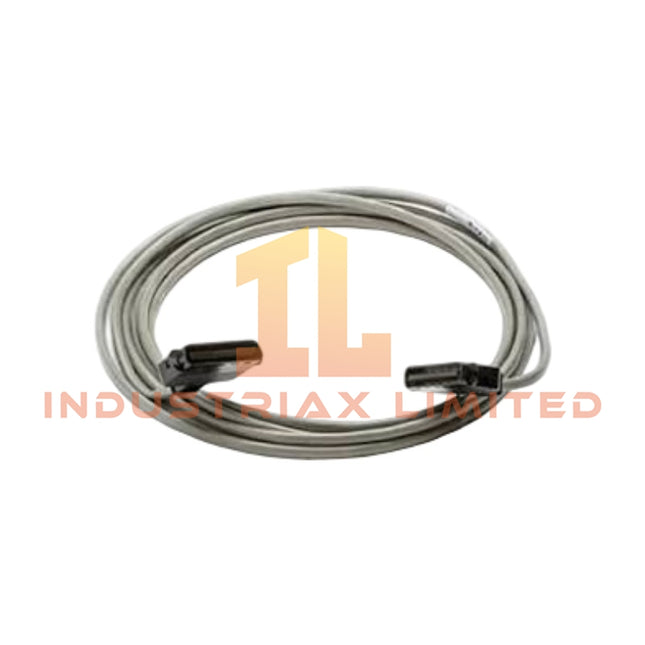

Honeywell MU-KFTA08 Field Termination Assembly | Honeywell
Honeywell MU-KFTA08 Field Termination Assembly The Honeywell MU-KFTA08 (51201420-008), also cataloged as the MU-KFTA08 Field Termination Assembly, operates as a dedicated hardware interface component for field signal termination and electrical distribution within Honeywell TDC 3000 and Experion PKS HPM systems. Hardware Specifications Parameter Specification Model MU-KFTA08 Brand Honeywell Origin USA Operating Temp 0 deg C to 60 deg C Power Consumption Passive termination assembly; no independent power consumption Part Number 51201420-008 Component Type Field Termination Assembly (FTA) System Compatibility Honeywell TDC 3000 / Experion PKS / HPM systems Signal Interface Field wiring termination and I/O signal routing Mounting Type Standard FTA mounting panel installation Termination Method Screw terminal field connections Environmental Protection Industrial conformal coating protection Channel Capacity Configuration dependent; verify installed FTA drawing Process Control Signal Interface Characteristics The MU-KFTA08 provides the physical termination point between field wiring and Honeywell process control I/O modules. It manages field-side signal routing through dedicated terminal connections and connects to control processors through Honeywell FTA cable assemblies. In addition, the assembly supports process instrumentation interfaces commonly associated with Honeywell DCS architectures, including 4-20 mA HART loop applications, FOUNDATION Fieldbus or Profibus PA field connectivity when used with compatible I/O configurations, and channel-to-channel isolation requirements defined by the connected I/O hardware. The FTA design separates field wiring activities from controller cabinet wiring. Therefore, maintenance personnel can inspect, replace, or modify field connections without directly disturbing processor-side modules. Frequently Asked Questions Q: Does the MU-KFTA08 contain active signal processing electronics?A: The MU-KFTA08 functions as a Field Termination Assembly and primarily provides field wiring termination and signal routing. Active signal processing depends on the connected Honeywell I/O module. Q: Can the MU-KFTA08 be installed without verifying terminal assignments?A: No. Field wiring terminals must match the approved Honeywell TDC 3000 or Experion PKS installation drawings because terminal allocation depends on the connected I/O configuration. Q: Does the MU-KFTA08 require external power wiring?A: The FTA itself does not require independent power input. Power requirements are determined by the associated I/O module and field device loop design. Field Installation Guidelines Install the MU-KFTA08 on the specified Honeywell FTA mounting hardware according to the system cabinet layout documentation. Verify all field cable identification before termination to prevent channel assignment errors. Maintain separation between low-level analog signal wiring and high-voltage power conductors to reduce electrical interference. Connect cable shields according to the approved grounding method defined by the control system installation standard. Confirm terminal polarity and signal type before connecting transmitters, switches, or actuator feedback circuits. Inspect screw terminal torque and conductor seating during commissioning activities. Use the approved Honeywell FTA cable assembly between the termination unit and the corresponding I/O processor interface.
$200.00 $100.00
-

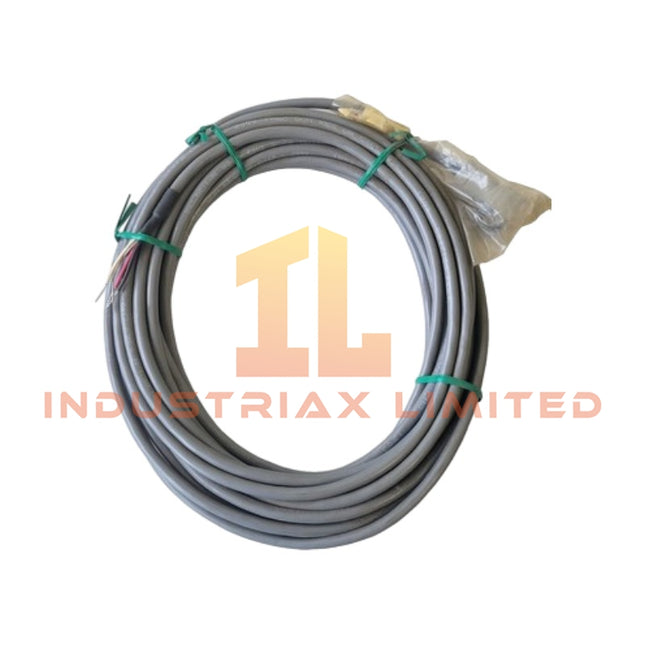

Honeywell MU-KFTA15 Honeywell Field Termination Assembly Cable
Honeywell MU-KFTA15 Field Termination Assembly Cable Configured for I/O module to field termination assembly signal interconnection in Honeywell TDC 3000, TPS, and Experion PKS systems, the Honeywell MU-KFTA15 (51201420-015) (MU-KFTA15 Field Termination Assembly Cable) provides direct physical execution between control cabinet I/O interfaces and FTA wiring points. Hardware Specifications Parameter Specification Model MU-KFTA15 Brand Honeywell Part Number 51201420-015 Product Type Field Termination Assembly Interconnection Cable System Compatibility Honeywell TDC 3000, TPS, Experion PKS, HPM/PM subsystems Origin USA Cable Length 15 m Operating Temp -40 deg C to +70 deg C Power Consumption Passive cable assembly; no external power consumption Application Connects I/O processor modules with Field Termination Assemblies Shielding Overall shield with drain wire for EMI/RFI noise reduction Connector Type Industrial multi-position termination connectors Humidity Range 5% to 95% RH, non-condensing DCS Field Signal Interconnection and Channel Isolation Features The MU-KFTA15 supports direct electrical routing between Honeywell process controller I/O modules and FTA termination points. The cable assembly maintains predefined conductor allocation to reduce field wiring errors during cabinet installation. Furthermore, the shield structure provides electromagnetic interference control for analog and digital signal paths. Proper shield grounding practices help maintain signal integrity in environments containing switching equipment, motor drives, and other electrical noise sources. For Honeywell process control architectures, the FTA interface supports modules handling standard instrumentation signals, including 4-20 mA HART loop protocol and other field-level I/O connections. Channel separation within the termination architecture helps reduce unwanted coupling between adjacent signal circuits. Frequently Asked Questions Q: Is the MU-KFTA15 an active electronic module?A: No. The MU-KFTA15 is a passive Field Termination Assembly interconnection cable and does not contain processing circuits, firmware, or external power requirements. Q: What is the function of the 15 m cable length designation?A: The "-015" suffix identifies the factory-defined 15 m cable assembly length used for cabinet-to-termination routing. Q: How should the cable shield be installed in the control cabinet?A: The shield and drain wire should follow the applicable Honeywell cabinet grounding procedure. Installation should avoid improper grounding loops and maintain separation from high-voltage power conductors. Field Installation Guidelines Install the MU-KFTA15 according to Honeywell cabinet wiring documentation and approved termination drawings. Verify connector keying and pin alignment before installation to prevent incorrect module-to-FTA connections. Route the cable away from high-current AC power lines, variable frequency drive cables, and strong electromagnetic interference sources. Maintain proper cable bending radius to prevent mechanical stress on connectors and conductors. Connect the shield according to the system grounding design to support noise control performance. Inspect connectors for contamination, mechanical damage, and secure locking before system commissioning.
$200.00 $100.00
-

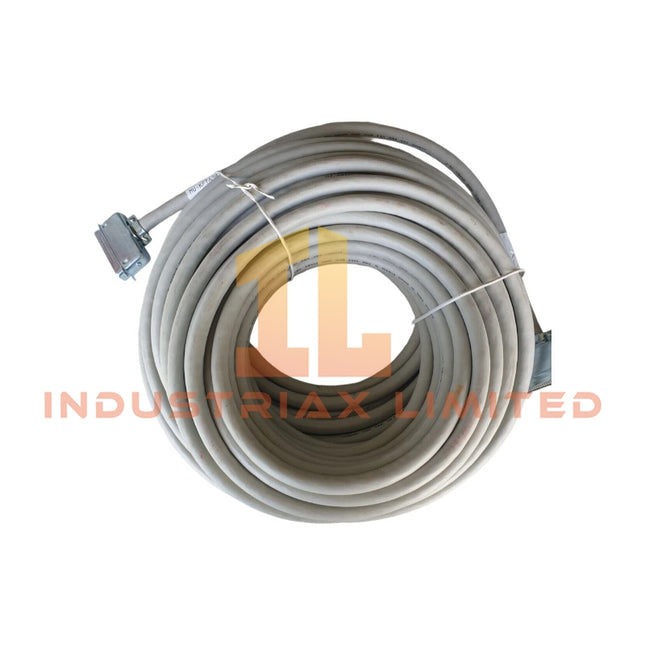

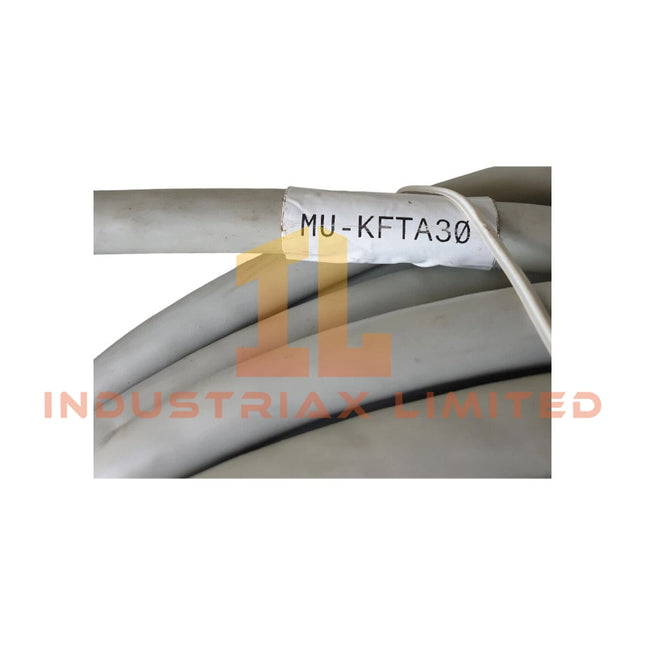

Honeywell MU-KFTA30 Field Termination Assembly | Honeywell
Honeywell MU-KFTA30 Field Termination Assembly The Honeywell MU-KFTA30, also cataloged as the MU-KFTA30 Field Termination Assembly, operates as a dedicated hardware component for field signal termination and electrical interfacing within Honeywell TDC 3000 and Experion PKS control system I/O networks. Hardware Specifications Parameter Specification Model MU-KFTA30 Brand Honeywell Origin United States Product Type Field Termination Assembly (FTA) System Compatibility Honeywell TDC 3000 / Experion PKS systems Application Field wiring termination, signal routing, and I/O module interface Channel Capacity Depends on connected I/O configuration; typically supports 16 or 32 field points Connection Type Screw terminal field wiring and dedicated FTA cable interface Mounting Type FTA mounting channel or DIN rail installation system Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Relative Humidity 5% to 95% non-condensing Power Consumption Passive termination assembly; no independent power consumption Isolation Function Field signal separation and wiring organization through termination design Environmental Protection Optional conformal coating configuration for corrosive environments Process Control Signal Interface and Channel Isolation The MU-KFTA30 provides the physical connection point between field wiring and Honeywell I/O processing modules. It organizes field conductors through labeled terminal blocks and transfers signals through dedicated interface cables. For Honeywell process control applications, the termination assembly supports signal management requirements associated with DCS instrumentation. Therefore, installation practices commonly consider channel-to-channel isolation requirements, shield termination methods, and loop wiring separation to maintain signal integrity. The keyed mechanical structure prevents incorrect cable alignment and reduces installation errors during module maintenance activities. In addition, the assembly design supports organized troubleshooting by providing clear terminal identification for field loop verification. Frequently Asked Questions Q: Does the Honeywell MU-KFTA30 perform signal processing or control logic execution?A: No. The MU-KFTA30 is a passive Field Termination Assembly. It provides field wiring termination and signal routing but does not execute control algorithms or process data. Q: Can the MU-KFTA30 operate as a standalone powered module?A: No. The assembly does not contain an independent power supply. It operates as an interface component connected to compatible Honeywell I/O hardware. Q: What installation factors affect signal performance on the MU-KFTA30?A: Signal performance depends on correct field wiring, cable shielding, grounding methods, terminal tightening, and separation from high-voltage interference sources. Field Installation Guidelines Install the MU-KFTA30 on the designated FTA mounting structure according to the Honeywell system installation procedure. Verify the terminal labeling before connecting field conductors to prevent incorrect loop assignment. Maintain separation between low-level instrumentation wiring and high-voltage power cables to reduce electrical interference. Connect cable shields according to the control system grounding specification and avoid multiple uncontrolled grounding points. Inspect terminal blocks and interface connectors during commissioning and maintenance activities. Confirm compatibility between the FTA cable assembly and the associated Honeywell I/O module before system startup.
$200.00 $100.00
-
Honeywell MU-PDIY22 Digital Input IOP Module | Honeywell
Honeywell MU-PDIY22 Digital Input IOP Module The Honeywell 80363972-100, also cataloged as the MU-PDIY22 Digital Input IOP Module, operates as a dedicated hardware component for processing 24 VDC discrete field signals within Honeywell Experion PKS and TDC 3000 TPS I/O systems. Hardware Specifications Parameter Specification Model MU-PDIY22 Part Number 80363972-100 Brand Honeywell Product Type Digital Input IOP Module System Compatibility Honeywell Experion PKS / TDC 3000 TPS Origin USA Power Consumption Backplane power consumption not specified in available documentation Input Channels 32 digital input channels Input Voltage 24 VDC nominal Input Signal Type Discrete ON/OFF field signals Input Application Dry contacts, limit switches, pushbuttons, and binary sensors Isolation Field-side and logic-side galvanic isolation Mounting Method Honeywell HPM / Experion I/O card file chassis mounting Diagnostic Function Front-panel status indication and module diagnostics Signal Processing Digital input filtering for contact bounce and electrical noise reduction Process Control Signal Interface and Isolation Characteristics The MU-PDIY22 processes binary field inputs and transfers status information through the Honeywell I/O architecture. It accepts 24 VDC discrete signals from field devices and converts them into controller-readable states. Furthermore, the module applies channel isolation between field wiring and internal control electronics. This arrangement limits electrical interference transfer and supports stable operation in industrial control environments. The module supports digital filtering functions to reduce transient switching effects from mechanical contacts. Therefore, devices such as limit switches and pushbuttons can be monitored with improved signal stability. For Honeywell process control platforms, the I/O design follows the same engineering principles used for channel-to-channel isolation, field signal conditioning, and distributed process data acquisition. Although the MU-PDIY22 is a digital input module rather than an analog instrument interface, Honeywell DCS architectures maintain compatibility with standardized field communication methods including 4-20 mA HART loops, FOUNDATION Fieldbus, and Profibus PA networks through corresponding I/O modules. Frequently Asked Questions Q: Does the MU-PDIY22 support 24 VDC discrete field input monitoring?A: Yes. The MU-PDIY22 provides 32 digital input channels designed for 24 VDC ON/OFF signal acquisition from compatible field devices. Q: Does the module provide electrical isolation between field wiring and the controller system?A: Yes. The module uses galvanic isolation between field-side circuits and internal logic circuits to reduce electrical interference and protect control hardware. Q: Can the MU-PDIY22 be installed in Honeywell redundant I/O configurations?A: The module can be applied within Honeywell high-availability I/O architectures when the system configuration and controller hardware support redundant operation. Field Installation Guidelines Install the MU-PDIY22 in the designated Honeywell HPM or Experion I/O chassis position according to the system hardware configuration. Verify that field wiring voltage levels match the 24 VDC digital input requirements before energizing the module. Separate digital input wiring from high-current power cables to reduce electromagnetic interference. Use proper shield termination practices when shielded field cables are installed near high-noise equipment. Confirm terminal polarity and signal return paths before applying field power. Check front-panel LED indicators after installation to verify module communication and input status. Follow Honeywell system engineering manuals for grounding, cabinet wiring, and I/O configuration procedures.
$200.00 $100.00
-

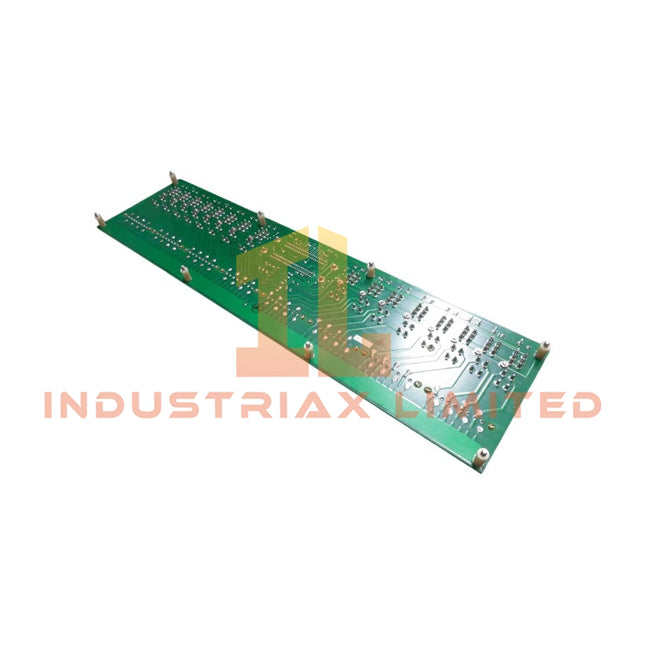

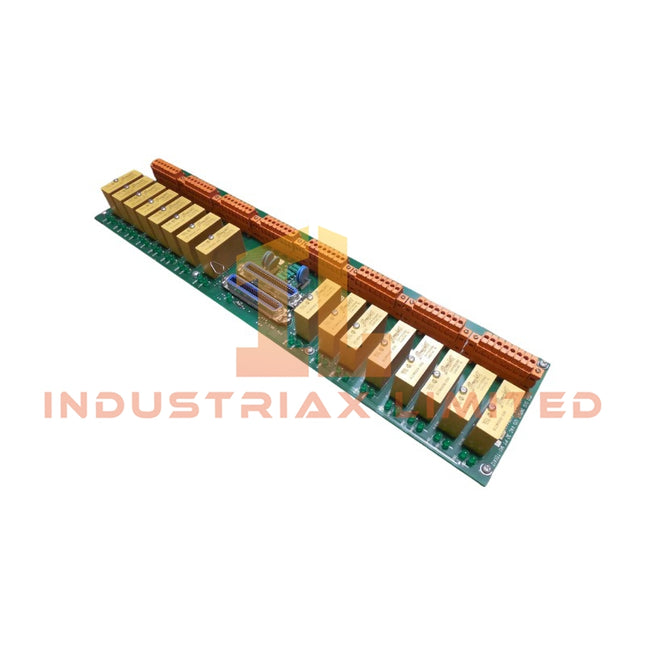

Honeywell Honeywell MU-TDIA12 120 Vac Digital Input Module
Honeywell MU-TDIA12 120 Vac Digital Input Module The Honeywell 51304439-125, also cataloged as the MU-TDIA12 120 Vac Digital Input Module, operates as a dedicated hardware component for 120 Vac field signal acquisition within Honeywell HPM control system platforms. Hardware Specifications Parameter Specification Model MU-TDIA12 Full Model Number 51304439-125 Brand Honeywell Product Type 120 Vac Digital Input Module FTA Type 120 Vac DI Terminal Type Compression Terminal, Type C Channels 32 Mounting HPM Field Termination Assembly configuration Input Signal Type 120 Vac digital field input System Compatibility Honeywell High Performance Module (HPM) system CE Compliance CE compliant version Non-CE Part Number 51304439-100 Origin USA Process Control Signal Interface and Isolation Features The Honeywell MU-TDIA12 provides 32 channels for 120 Vac discrete signal acquisition through a compression terminal field termination assembly. The module receives external on/off electrical states and transfers the processed status information into the Honeywell HPM control environment. In addition, Honeywell digital input assemblies support structured field wiring practices with channel separation and terminal-based signal organization. For process control installations requiring mixed instrument interfaces, Honeywell systems typically apply channel-to-channel isolation techniques to reduce unwanted electrical interaction between field circuits. The MU-TDIA12 design focuses on digital status monitoring rather than analog measurement. Therefore, the module does not perform 4-20 mA signal conversion, HART communication, or FOUNDATION Fieldbus data processing. Frequently Asked Questions Q: What type of field signals does the Honeywell MU-TDIA12 accept?A: The MU-TDIA12 accepts 120 Vac discrete input signals through its Type C compression terminal field termination interface. Q: How many digital input channels are available on the MU-TDIA12?A: The module provides 32 digital input channels for connection to external 120 Vac field devices. Q: Can the MU-TDIA12 directly process analog transmitter signals?A: No. The MU-TDIA12 is a digital input module designed for discrete voltage status detection and does not process analog current or voltage measurement signals. Field Installation Guidelines Install the MU-TDIA12 within the designated Honeywell HPM field termination arrangement according to system hardware manuals. Verify that field wiring matches the specified 120 Vac digital input configuration before energizing the circuit. Use appropriate terminal tightening procedures to maintain stable electrical contact. Route AC digital input wiring separately from low-level analog signal cables and communication wiring to reduce electromagnetic interference. Connect cable shields according to the grounding method defined for the installed Honeywell control cabinet. Before commissioning, confirm each input channel state by applying the corresponding field device signal and verifying correct status recognition in the HPM control system.
$200.00 $100.00
-
Honeywell Honeywell MU-NTAP02 Universal Control Network 2-Drop Tap Assembly Kit
Honeywell MU-NTAP02 Universal Control Network 2-Drop Tap Assembly Kit The Honeywell MU-NTAP02 (51201394-100), also cataloged as the MU-NTAP02 Universal Control Network 2-Drop Tap Assembly Kit, operates as a passive network hardware component for UCN coaxial trunk connection and field drop-point distribution within Honeywell TDC 3000 and Experion PKS systems. Hardware Specifications Parameter Specification Model MU-NTAP02 Brand Honeywell Origin USA Weight Approx. 2.0 kg to 3.0 kg Operating Temp -20 deg C to +60 deg C Power Consumption 0 W (passive network component) Part Number 51201394-100 Product Type Universal Control Network 2-Drop Tap Assembly Kit Network Type Honeywell Universal Control Network (UCN) Application Interface 75 Ohm coaxial trunk cable connection Port Configuration Dual drop tap assembly, one trunk input and one trunk output per tap Nominal Impedance 75 Ohm Storage Temperature -40 deg C to +85 deg C Relative Humidity 10% to 90%, non-condensing Grounding Method Metal mounting bracket with chassis grounding provision Included Components Two 2-port drop taps, mounting brackets, associated hardware UCN Network Tap Signal Distribution Characteristics The Honeywell MU-NTAP02 provides a passive electrical connection point between UCN trunk cables and connected control network devices. It maintains the 75 Ohm coaxial impedance required by Honeywell UCN communication architecture. Furthermore, the assembly supports redundant UCN trunk arrangements by providing paired tap hardware for Trunk A and Trunk B network paths. The passive design introduces no power load and preserves continuous network signal transmission through the coaxial backbone. For Honeywell process control systems, the module operates independently from analog instrument interfaces such as 4-20 mA HART loops, FOUNDATION Fieldbus, or Profibus PA segments. Instead, it performs physical-layer UCN cable distribution and grounding functions. The assembly design incorporates grounding provisions to reduce electromagnetic interference effects. Therefore, correct shield termination and chassis bonding remain required during field installation. Frequently Asked Questions Q: Does the Honeywell MU-NTAP02 require an external power supply?A: No. The MU-NTAP02 is a passive coaxial network tap assembly and does not consume electrical power during operation. Q: Can the MU-NTAP02 support redundant UCN network configurations?A: Yes. The kit contains two drop tap assemblies that can be applied to redundant UCN trunk structures using separate network paths. Q: Does the MU-NTAP02 provide signal conversion between different communication protocols?A: No. The module performs physical UCN coaxial connection and distribution only. It does not convert communication protocols or modify network data. Field Installation Guidelines Install the MU-NTAP02 on a mechanically secured surface using the supplied mounting hardware. Connect UCN coaxial cables according to the Honeywell UCN wiring design and maintain the specified 75 Ohm cable impedance. Verify that coaxial connectors remain properly seated to prevent signal reflection and intermittent communication faults. Bond the mounting bracket to the approved chassis ground point to maintain shielding performance. Separate UCN coaxial routing from high-voltage power cables and strong electromagnetic interference sources. Confirm trunk continuity and termination status before placing the UCN network segment into service.
$200.00 $100.00
-

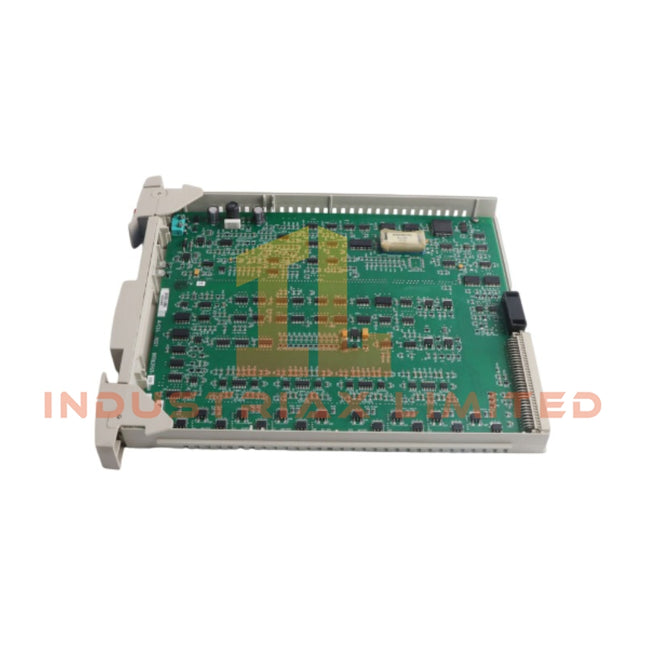

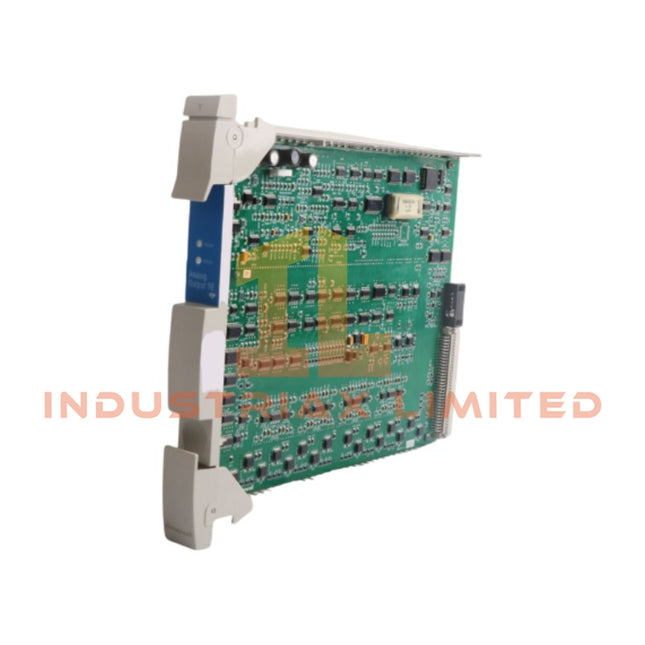

Honeywell MU-PAOY22 Honeywell Analog Output 16-Point Processor/FTA
Honeywell MU-PAOY22 Analog Output 16-Point Processor/FTA Configured for 4-20 mA analog signal execution in Honeywell process control I/O environments, the Honeywell MU-PAOY22 (MU-PAOY22 Analog Output 16-Point Processor/FTA) provides direct physical and electrical output conversion from digital input codes to field current signals. Hardware Specifications Parameter Specification Model MU-PAOY22 Brand Honeywell Product Type Analog Output 16-Point Processor/FTA Origin USA FTA Models MU-TAOY22, MU-TAOY23, MU-TAOY52, MU-TAOY53 Output Type 4-20 mA Output Channels 16 Output Ripple 100 mV peak-to-peak at power line frequency across 250 ohm load Output Temperature Stability +/-0.02% Full Scale/deg C Output Readback Accuracy +/-4% Humidity Effect +/-0.1% full scale at 50% RH +/-40% RH Output Current Linearity +/-0.05% nominal Resolution +/-0.05% Calibrated Accuracy +/-0.35% at 25 deg C including linearity Directly Settable Output Current Range 0 mA, 2.9 mA to 21.1 mA Absolute Maximum Current Output 24 mA Maximum Resistive Load 750 ohm at 24 V supply and 20 V output compliance Maximum Output Compliant Voltage 15 V Output Settling Time 4 ms from digital input code to 98% final output value Surge Withstand Capability ANSI/IEEE C37.90.1-1978 Honeywell 4-20 mA Process Control Output Characteristics The MU-PAOY22 provides sixteen independent analog output channels with a 4-20 mA current interface. Therefore, the module converts internal digital control values into proportional field current signals for process actuators, control valves, and analog input devices. The output stage supports direct current adjustment from 0 mA and 2.9 mA to 21.1 mA. In addition, the module maintains calibrated accuracy within +/-0.35% at 25 deg C while controlling current linearity within +/-0.05% nominal. The design supports process control requirements involving channel-to-channel signal management and stable analog transmission. Furthermore, the output circuit provides surge withstand capability according to ANSI/IEEE C37.90.1-1978 requirements. Frequently Asked Questions Q: What type of field signal does the Honeywell MU-PAOY22 generate?A: The MU-PAOY22 generates 4-20 mA analog current output signals through 16 independent output channels. Q: What is the maximum resistive load supported by each output channel?A: Each output channel supports a maximum resistive load of 750 ohm when the supply condition is 24 V with 20 V output compliance. Q: How fast does the output signal reach the commanded value?A: The module reaches 98% of the final output value within 4 ms after receiving the digital input code. Field Installation Guidelines Install the MU-PAOY22 according to Honeywell system hardware installation procedures and approved cabinet wiring practices. Use shielded cables for analog current loops when the installation environment contains electrical noise sources. Connect cable shields according to the control system grounding design to reduce signal interference. Separate analog output wiring from high-voltage power conductors and switching circuits. Maintain proper terminal identification during field wiring to prevent incorrect current loop connections. Verify the output loop resistance before commissioning. Confirm that connected field devices remain within the module output compliance voltage and current capability limits. Check channel operation by applying controlled digital output commands and measuring the corresponding 4-20 mA field current response.
$200.00 $100.00
-

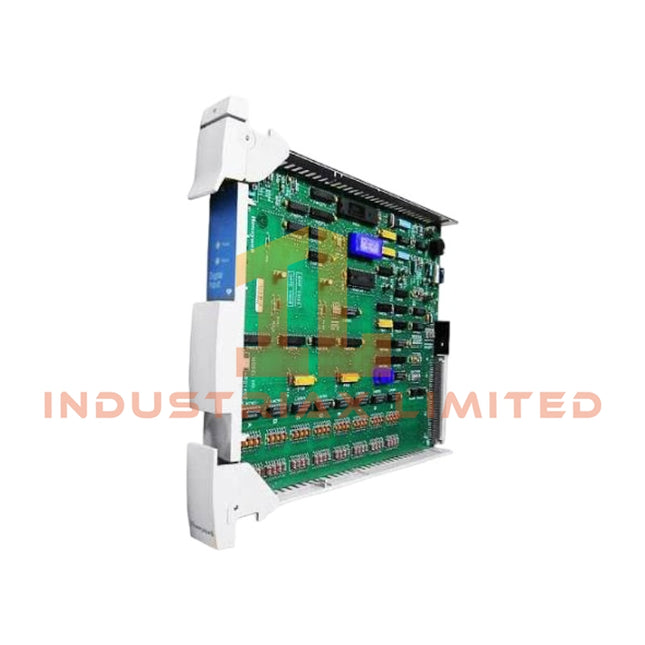

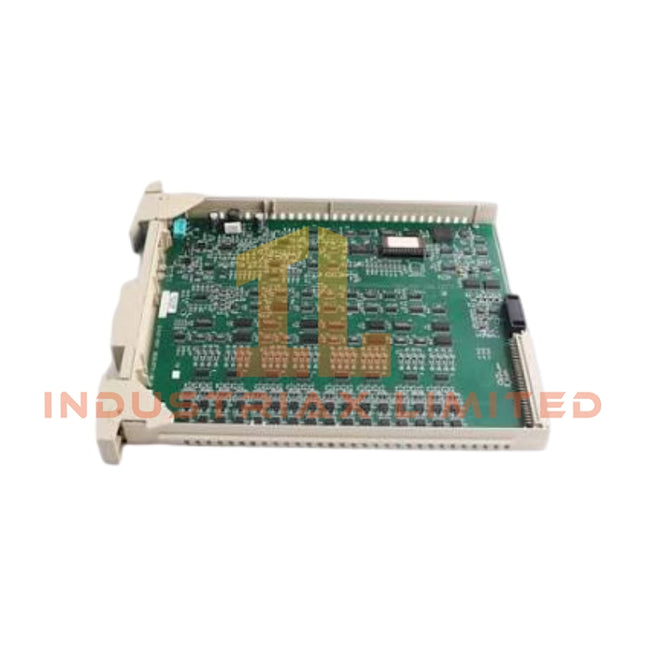

Honeywell Honeywell MU-PDOY22 Digital I/O Cards
Honeywell MU-PDOY22 Digital Output (DO) 32 IOP PWA ASSY MISCELLANEOUS Configured for digital signal output execution in Honeywell TDC 3000 and Experion PKS systems, the Honeywell MU-PDOY22 (MU-PDOY22 Digital Output (DO) 32 IOP PWA ASSY MISCELLANEOUS) provides direct electrical switching interfaces between control logic and field devices. Hardware Specifications Parameter Specification Model MU-PDOY22 / 80363975-100 Brand Honeywell Origin USA Operating Temp 0 deg C to 60 deg C Power Consumption Not specified Product Type Digital Output (DO) I/O Module System Platform Honeywell TDC 3000 / Experion PKS Module Function Digital output signal interface I/O Configuration 32 IOP PWA assembly Signal Type Discrete output Output Interface Relay contact output interface Mounting Type Honeywell control chassis / IOP assembly Storage Temperature -40 deg C to 85 deg C Relative Humidity 5% to 95%, non-condensing Channel Isolation and Process Control Interface The Honeywell MU-PDOY22 provides discrete output handling for process control applications by transferring digital commands from the controller layer to external field circuits. The module supports channel-based output switching and maintains electrical separation between control electronics and external wiring interfaces. In addition, Honeywell process I/O designs typically apply channel-to-channel isolation methods to reduce signal interference between independent field circuits. Therefore, correct termination selection, grounding practices, and field wiring separation directly affect output signal integrity. Frequently Asked Questions Q: What type of field signals does the Honeywell MU-PDOY22 handle?A: The MU-PDOY22 handles digital output signals and provides switching interfaces for external discrete devices through compatible Honeywell I/O termination assemblies. Q: Can the MU-PDOY22 directly replace analog input or analog output modules?A: No. The MU-PDOY22 is designed for discrete output operation and does not provide analog measurement or continuous current output functions. Q: Does the module require specific chassis installation?A: Yes. The module requires installation in a compatible Honeywell TDC 3000 or Experion PKS I/O hardware configuration with matching termination and backplane connections. Field Installation Guidelines Install the MU-PDOY22 in the designated Honeywell I/O chassis position according to system configuration documents. Verify backplane connection alignment before inserting the module into the rack assembly. Confirm field wiring polarity and terminal assignments before energizing output circuits. Separate digital output wiring from high-current power cables to reduce electrical noise coupling. Apply proper shield termination practices when field devices require noise suppression. Check module status indicators after installation to confirm correct communication and output operation. Follow Honeywell maintenance procedures when removing or replacing the I/O assembly.
$200.00 $100.00
-

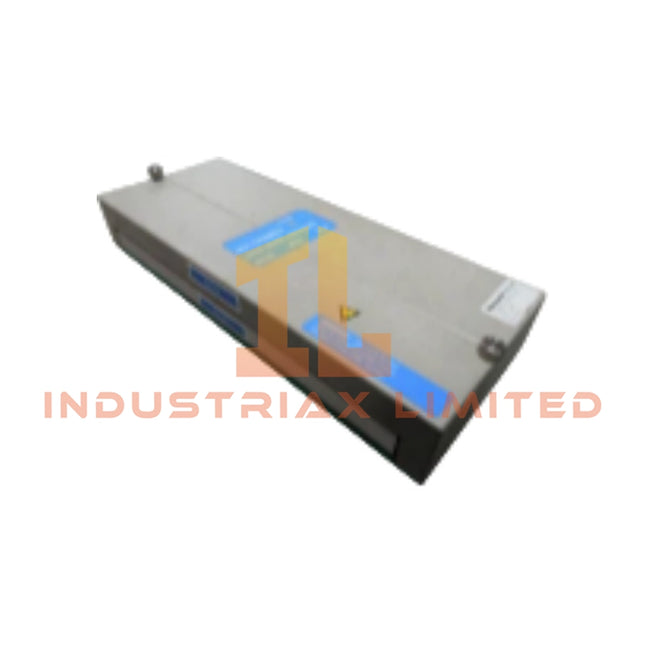

Honeywell Honeywell MU-TMCN02 Network Interface Module
Honeywell MU-TMCN02 Network Interface Module Configured for network communication control in Honeywell TDC 3000 and Experion PKS systems, the Honeywell MU-TMCN02-100 (MU-TMCN02 Network Interface Module) provides direct communication interface execution between control system nodes and connected hardware assemblies. Hardware Specifications Parameter Specification Model MU-TMCN02 / 51196094-100 Brand Honeywell Origin USA Module Type Network Interface Module System Compatibility Honeywell TDC 3000 / Experion PKS / TPS Communication Interface Honeywell proprietary control network interface Communication Protocols UCN / LCN or Honeywell I/O communication links Installation Type Honeywell card cage / rack assembly Operating Temp 0 deg C to +60 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 5% to 95% RH, non-condensing Power Consumption Backplane power loading depends on system configuration Hardware Construction Industrial PCB assembly with optional conformal coating Honeywell DCS Communication Interface Characteristics The MU-TMCN02 performs signal routing and communication conditioning within Honeywell distributed control architectures. It manages deterministic data exchange between network-connected system components and maintains defined communication paths through the control rack infrastructure. Furthermore, Honeywell DCS interfaces typically support structured process communication functions, including channel-to-channel isolation design concepts and compatibility with field communication standards such as 4-20 mA HART loop protocol, FOUNDATION Fieldbus, or Profibus PA when used with corresponding Honeywell interface modules. The module operates as part of a coordinated control network environment where timing, addressing, and data integrity depend on the configured Honeywell system architecture. Therefore, replacement units must match the installed firmware revision, rack configuration, and communication topology. Frequently Asked Questions Q: Does the MU-TMCN02 support standalone operation outside a Honeywell control rack?A: No. The MU-TMCN02 operates as a system-level interface component and requires installation within a compatible Honeywell rack and network architecture. Q: Can the MU-TMCN02 be replaced during system operation?A: Hot-swap capability depends on the installed Honeywell platform configuration. The replacement procedure must follow the applicable TDC 3000 or Experion PKS maintenance procedure. Q: Does the module require firmware compatibility checking before installation?A: Yes. The installed system revision, controller configuration, and communication network settings should be verified before replacement. Field Installation Guidelines Install the MU-TMCN02 in the designated Honeywell card cage slot according to the system cabinet documentation. Verify that the rack power status and maintenance procedures comply with the applicable Honeywell control system requirements before module removal or installation. Maintain proper grounding practices for the cabinet structure and communication cable shields to reduce electromagnetic interference. Route network wiring separately from high-voltage power cables and high-current switching circuits. Confirm connector seating, backplane engagement, and communication addressing after installation. Perform system diagnostics and communication checks after replacement to verify correct network operation.
$200.00 $100.00
-

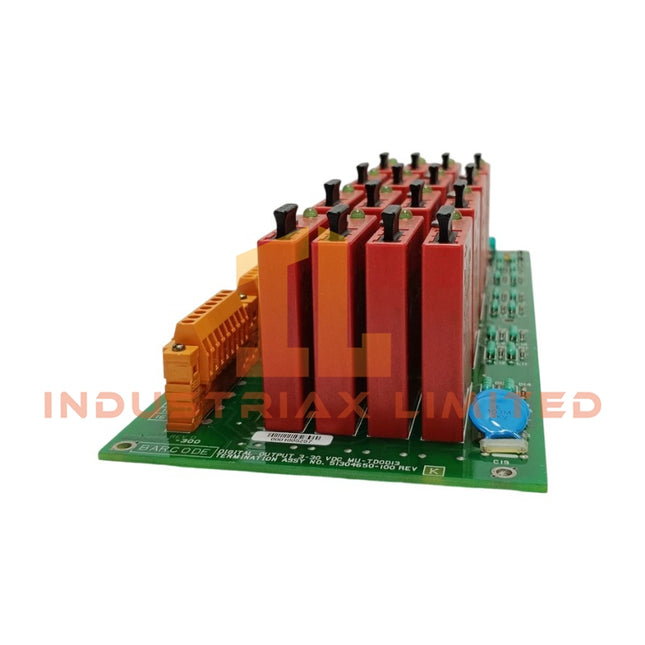

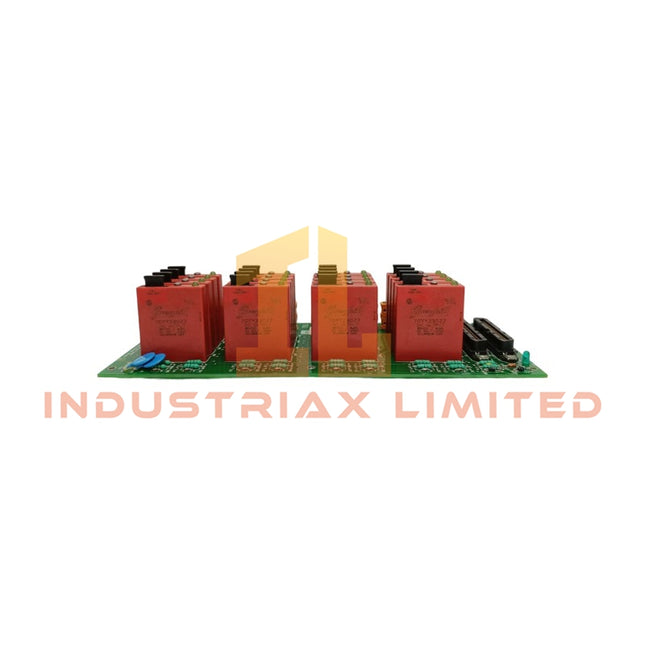

Honeywell Honeywell MU-TDOD13 Digital Output Field Termination Assembly
Honeywell MU-TDOD13 Digital Output Field Termination Assembly Configured for digital output signal switching in Honeywell TDC 3000, TPS, and Experion PKS environments, the Honeywell 51304650-100 (MU-TDOD13 Digital Output Field Termination Assembly) provides direct electrical execution between digital output processors and external field devices. Hardware Specifications Parameter Specification Model MU-TDOD13 Brand Honeywell Origin USA Part Number (MPN) 51304650-100 Module Type Digital Output Field Termination Assembly (FTA) Signal Type Digital Output (DO) Number of Channels 16 Channels Output Switching Type Solid-State Relay (SSR) Isolation Type Optical Isolation Load Voltage Range 3 to 30 VDC System Compatibility Honeywell TDC 3000 / TPS / Experion PKS HPM and PM Systems Mounting Type Honeywell Standard FTA Track Mounting Operating Temp 0 to 60 deg C Weight Approximately 0.68 kg to 1.24 kg Dimensions Standard Honeywell FTA footprint Power Consumption Field load dependent; low internal logic consumption Channel Isolation and Digital Output Switching Characteristics The MU-TDOD13 uses optical isolation and solid-state switching paths to separate field-side electrical circuits from the control system logic interface. Each output channel operates independently, which reduces electrical interaction between connected loads. Furthermore, the isolated output design supports digital command execution from Honeywell process controllers while limiting transient propagation toward controller-side electronics. The assembly maintains signal separation for solenoid valves, status indicators, relay interfaces, and other discrete field devices. For Honeywell DCS installations, channel-to-channel isolation remains a primary design feature because it prevents field wiring disturbances from affecting adjacent digital output circuits. Therefore, engineers can maintain stable discrete control performance across multiple independent field loops. Frequently Asked Questions Q: Does the MU-TDOD13 provide direct connection to AC field loads? A: No. The MU-TDOD13 is designed for DC digital output switching applications within its specified load voltage range. External interface components are required for AC loads. Q: Can the output channels share a common field power supply? A: Yes, field power arrangements can share a supply when the installation design meets Honeywell wiring requirements and maintains proper protection for connected loads. Q: Does the FTA store firmware or configuration data? A: No. The MU-TDOD13 is a field termination assembly and does not contain application firmware. Digital output logic remains controlled by the connected Honeywell processor modules. Field Installation Guidelines Mounting Procedure: Install the MU-TDOD13 on the designated Honeywell FTA mounting track and verify that mechanical locking features engage correctly. Field Wiring Separation: Route digital output wiring separately from high-voltage AC cables and high-current conductors to reduce electrical noise coupling. Shield Grounding: Connect cable shields according to plant grounding standards and minimize exposed drain wire length inside the enclosure. Load Protection: Install suitable suppression components for inductive loads such as solenoid valves and relay coils to limit switching transients. Terminal Inspection: Verify all field terminals for correct conductor placement and secure mechanical tightening before energizing the output circuits.
$200.00 $100.00
-

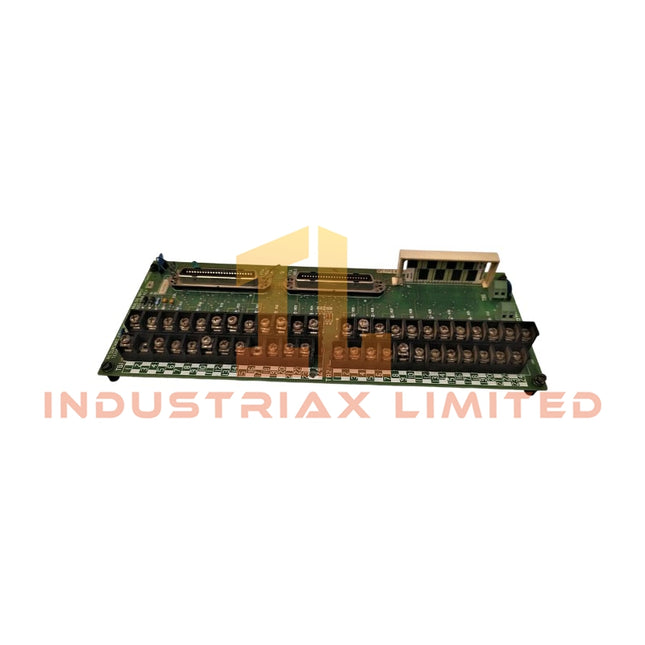

Honeywell Analog Input Modules MU-TAIH62 Honeywell

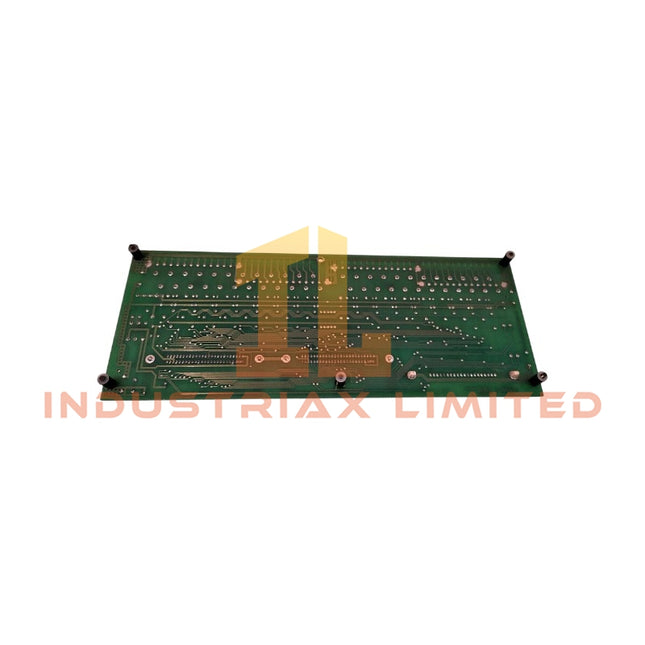

Honeywell MU-TAIH62 High-Level Analog Input Field Termination Assembly Configured for high-level analog signal termination in Honeywell TDC 3000 and Experion PKS systems, the Honeywell MU-TAIH62 (MU-TAIH62 High-Level Analog Input Field Termination Assembly) provides direct physical and electrical execution between field transmitters and DCS I/O processing channels. Hardware Specifications Parameter Specification Model MU-TAIH62 Brand Honeywell Origin USA Operating Temp 0 deg C to +60 deg C Power Consumption 24 VDC nominal supply, value not specified Product Type High-Level Analog Input (HLAI) Field Termination Assembly System Platform Honeywell TDC 3000 / Experion PKS Signal Input Type 4-20 mA current loop, 1-5 VDC or 0-10 VDC voltage input Channel Function Analog field signal termination, conditioning, and routing Isolation Type Galvanic isolation between field wiring and control-side circuits Termination Method Compression screw terminals / marshalling cabinet interface Analog Processing 12-bit to 16-bit conversion path compatibility Storage Temperature -40 deg C to +85 deg C Relative Humidity 5% to 95% RH, non-condensing HART Loop and DCS Signal Interface Characteristics The MU-TAIH62 processes analog instrumentation signals through Honeywell DCS field termination architecture. It supports standard 4-20 mA HART loop protocol interfaces when applied with compatible field devices and I/O processing modules. Additionally, the assembly provides channel-to-channel isolation to reduce ground loop influence and electrical interference between independent process measurement circuits. The termination design maintains signal integrity before transmission to the associated DCS I/O subsystem. The module supports direct integration with process measurement devices including pressure transmitters, temperature transmitters, and flow transmitters. Furthermore, the field wiring interface allows organized cabinet termination for distributed analog measurement loops. Frequently Asked Questions Q: Does the MU-TAIH62 provide direct analog signal conversion? A: The MU-TAIH62 provides field termination, signal conditioning, and routing functions. Analog conversion processing depends on the connected Honeywell I/O controller or processor module. Q: Can the MU-TAIH62 operate with isolated analog input loops? A: Yes. The assembly design supports galvanic isolation functions between field-side circuits and DCS-side interfaces to reduce ground loop effects. Q: Is hot-swap replacement supported for the MU-TAIH62? A: Hot-swap capability depends on the installed Honeywell I/O cabinet configuration and associated control system hardware. Field replacement procedures must follow the applicable TDC 3000 or Experion PKS maintenance documentation. Field Installation Guidelines Install the MU-TAIH62 inside the designated Honeywell I/O cabinet or approved FTA mounting location. Verify field wiring polarity before connecting current loop or voltage input signals. Use shielded instrumentation cables for analog signal circuits where electrical noise conditions exist. Connect cable shields according to the plant grounding standard to minimize signal interference. Separate analog signal wiring from high-voltage power cables and switching circuits. Confirm terminal identification against the system engineering drawings before commissioning. Inspect connector and terminal conditions before energizing the associated I/O channel. Validate loop continuity and transmitter output scaling through the DCS maintenance interface.
$200.00 $100.00
-

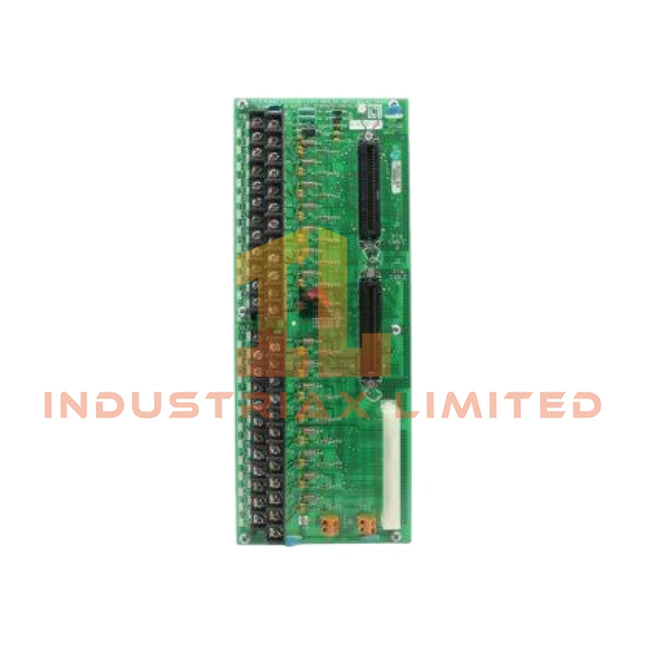

Honeywell Honeywell MU-TAIH23 High-Level Analog Input Termination Assembly
Honeywell MU-TAIH23 High-Level Analog Input Termination Assembly Configured for analog signal termination and conditioning in Honeywell TDC 3000 / TPS control system platforms, the Honeywell MU-TAIH23 (MU-TAIH23 High-Level Analog Input Termination Assembly) provides direct field signal interface execution for 4-20 mA and 1-5 VDC input circuits. Hardware Specifications Parameter Specification Model MU-TAIH23 Brand Honeywell Origin USA Module Type High-Level Analog Input Termination Assembly (FTA) System Platform Honeywell TDC 3000 / TPS series Channel Count 16 analog input channels (typical configuration) Input Signal Type 4-20 mA DC, 1-5 VDC analog signals Signal Function Field analog signal termination, conditioning, and routing Isolation Channel-to-channel and channel-to-ground galvanic isolation Power Supply 24 VDC system power or external loop power depending on configuration Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Relative Humidity 5% to 95% RH, non-condensing Power Consumption Not specified Mounting Type FTA mounting rack or DIN rail installation Protection Features Surge protection and signal conditioning circuits 4-20 mA HART Loop and Channel Isolation Characteristics The MU-TAIH23 interfaces with standard process instrumentation signals through high-level analog input termination circuits. It conditions incoming field signals before transmission to the Honeywell I/O processing hardware. Therefore, the assembly maintains signal integrity through channel isolation and electrical protection. For instrumentation loops using 4-20 mA HART communication protocols, the termination assembly supports the physical connection requirements between field transmitters and DCS input channels. Additionally, channel-to-channel isolation reduces electrical interference between independent measurement loops. The module design supports analog measurement applications requiring stable signal conversion, loop protection, and controlled field wiring termination. Frequently Asked Questions Q: What type of field signals does the Honeywell MU-TAIH23 accept?A: The MU-TAIH23 accepts standard high-level analog input signals, including 4-20 mA DC and 1-5 VDC signals from field transmitters and sensors. Q: Does the MU-TAIH23 provide electrical isolation between input channels?A: The MU-TAIH23 supports channel-to-channel and channel-to-ground galvanic isolation to separate field measurement circuits and reduce signal interference. Q: Can the MU-TAIH23 be replaced during system operation?A: Hot-swap capability depends on the installed Honeywell I/O architecture and rack configuration. Maintenance personnel should verify system procedures before removing or installing the assembly. Field Installation Guidelines Install the MU-TAIH23 according to the approved Honeywell FTA mounting arrangement and system wiring documentation. Separate analog signal cables from high-voltage power cables to reduce electromagnetic interference. Connect cable shields according to the plant grounding standard and avoid multiple-point shield grounding. Verify field transmitter loop polarity before energizing the analog input circuit. Inspect terminal connections for correct tightening and mechanical stability. Confirm the DCS channel configuration matches the connected transmitter signal type before commissioning.
$200.00 $100.00
-

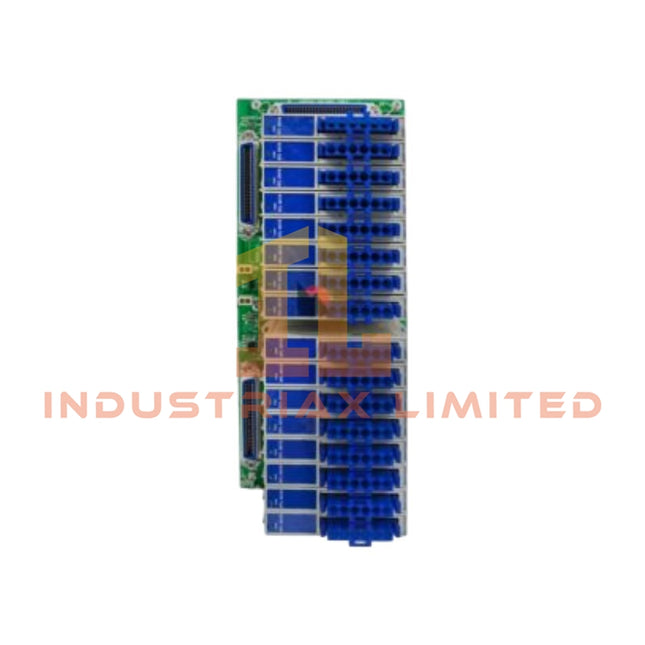

Honeywell Honeywell MU-GAIH84 High-Level Analog Input Module
Honeywell MU-GAIH84 High-Level Analog Input Module Configured for analog signal acquisition in Honeywell DCS platforms, the Honeywell MU-GAIH84 (MU-GAIH84 High-Level Analog Input Module) provides direct physical and electrical execution for field transmitter input processing within Honeywell control system architectures. Hardware Specifications Parameter Specification Model MU-GAIH84 Brand Honeywell Product Type High-Level Analog Input Module System Compatibility Honeywell TDC 3000 / Experion PKS related DCS platforms Signal Input 4-20 mA DC, 1-5 VDC analog signals Channel Capacity Typically 16 analog input channels, depending on chassis configuration A/D Conversion Resolution 16-bit minimum Accuracy +/- 0.05% of full scale at 25 deg C Temperature Drift +/- 0.005% per deg C Input Impedance 250 ohm nominal for current input; greater than 1 Mohm for voltage input Isolation Channel-to-logic isolation up to 500 VDC or 1500 VAC HART Support HART pass-through capability depending on carrier configuration Hot-Swap Capability Supported in compatible system configurations Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Relative Humidity 5% to 95% RH, non-condensing Power Consumption Approx. 3.5 W to 5 W DCS Instrument Interface and Signal Isolation The MU-GAIH84 processes standard process transmitter signals and transfers converted measurement data to the Honeywell control architecture. The module supports 4-20 mA HART loop protocol pass-through functions when the installed carrier and system configuration provide this capability. Furthermore, the module applies channel-to-channel isolation techniques to reduce interference caused by field wiring conditions and ground potential differences. The analog input circuitry maintains signal integrity during continuous process measurement operations. The module design aligns with Honeywell process control I/O architectures that require isolated analog measurement channels, diagnostic monitoring, and field instrument connectivity. Frequently Asked Questions Q: Does the Honeywell MU-GAIH84 support direct connection to 4-20 mA field transmitters?A: Yes. The module accepts standard 4-20 mA DC analog input signals from compatible field transmitters and converts them into controller-readable digital values. Q: Can the MU-GAIH84 maintain operation during module replacement?A: Hot-swap operation depends on the installed Honeywell chassis and system configuration. The replacement procedure must follow the applicable DCS maintenance instructions. Q: Does the module provide electrical isolation between field signals and control electronics?A: Yes. The module includes isolation between input channels and system logic circuits to reduce field-side electrical interference. Field Installation Guidelines Install the MU-GAIH84 according to the applicable Honeywell rack and termination assembly documentation. Verify field transmitter wiring polarity before connecting analog input channels. Use shielded instrumentation cable for low-level analog signal transmission where required by the site wiring standard. Connect cable shields according to the plant grounding specification to prevent unwanted ground loops. Separate analog signal wiring from high-voltage power cables and high-current switching conductors. Confirm the configured input range matches the connected transmitter output before commissioning. Verify channel diagnostics and loop values after installation through the Honeywell engineering workstation.
$200.00 $100.00
You have seen 24 out of 1190 products
