The 1769 CompactLogix series offers compact and modular PLC solutions. Designed for reliable control and communication, these systems are ideal for mid-sized industrial automation applications, supporting I/O integration and network connectivity.
Allen-Bradley 1769 Series (CompactLogix)
-

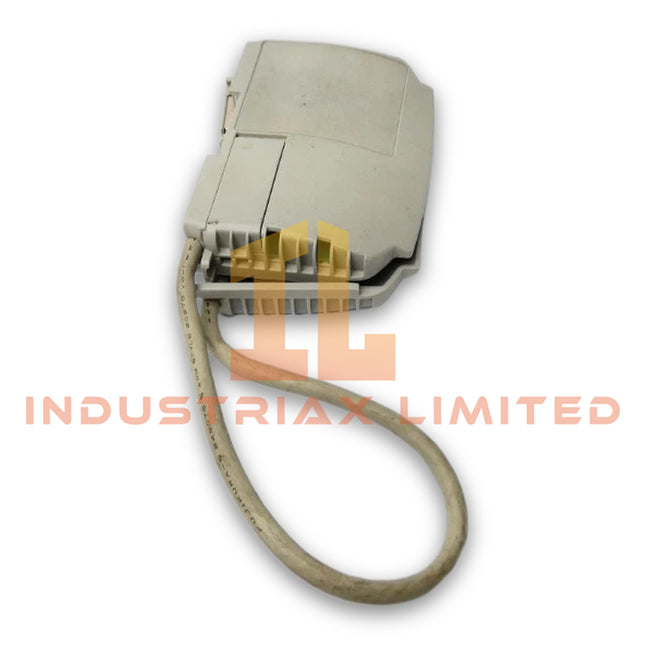

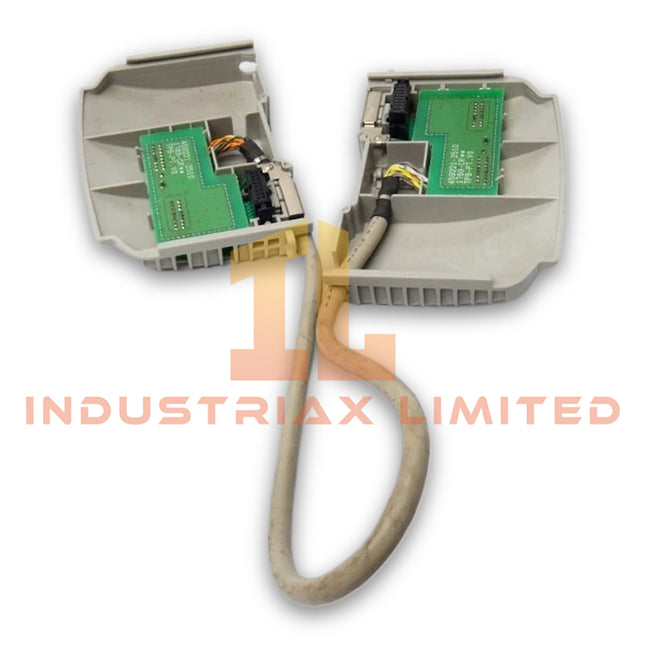

Allen Bradley Allen-Bradley 1769-CRR1 Expansion Cable
Allen-Bradley 1769-CRR1 Expansion Cable The Allen-Bradley 1769-CRR1, also cataloged as the 1769-CRR1 Expansion Cable, operates as a dedicated hardware component for right bank to right bank expansion connections within Bulletin 1769 Allen Bradley CompactLogix systems. Hardware Specifications Parameter Specification Model 1769-CRR1 Brand Allen-Bradley Origin Standard Industrial Supply Weight 1.31 lbs (0.60 kg) Dimensions Length: 1 ft (305 mm) Operating Temp 32 deg F to 140 deg F Power Consumption 33.6 Watts (Power Dissipation: 7.5 Watts) Industrial Control and Network Architecture Engineered for deterministic network communication within modular PLC backplane environments, the 1769-CRR1 actively facilitates bus communication velocity across CompactLogix platforms. Furthermore, the cable maintains low insertion loss and robust signal integrity to support high I/O density scaling. System engineers can seamlessly integrate this expansion link while ensuring that firmware flash compatibility and backplane current metrics (1.4 Amps at 24 Volts) remain within manufacturer-specified operational envelopes. Frequently Asked Questions Q: Can the 1769-CRR1 cable be connected while the system is powered? A: No. You must remove power from all connected devices before installing or removing the 1769-CRR1 expansion cable to prevent electrostatic discharge and electrical damage. Q: What is the maximum backplane current supported by this cable? A: The cable is rated for a backplane current of 1.4 Amps at 24 Volts. Field Installation Guidelines Verify that all connected controllers and I/O modules are fully powered down before handling the expansion cable. Implement appropriate electrostatic discharge (ESD) wrist straps and grounding precautions prior to touching the connector pins. Align the right bank connector securely to ensure proper pin engagement without applying excessive bending force to the 1-foot cable span.
$200.00 $100.00
-
Allen Bradley Allen Bradley 1769-L16ER-BB1B CompactLogix Controller
Allen Bradley 1769-L16ER-BB1B CompactLogix Controller The Allen Bradley 1769-L16ER-BB1B, also cataloged as the 1769-L16ER-BB1B Controller, operates as a dedicated hardware component for deterministic controller task execution within CompactLogix automation networks. Hardware Specifications Parameter Specification Model 1769-L16ER-BB1B Brand Allen Bradley Origin United States Weight 2.00 lbs (0.91 kg) Dimensions Standard CompactLogix Form Factor Operating Temp -20 to 60 deg C Power Consumption Dependent on Backplane and I/O Load Maximum Tasks 32 Tasks Programs per Task 100 Programs per Task Embedded I/O 16 Digital DC Inputs and 16 Digital DC Outputs Ethernet Ports 2 Ports (EtherNet/IP) Profinet / EtherNet/IP Deterministic Networks Featuring dual embedded Ethernet ports, the controller supports high-speed EtherNet/IP deterministic networks for reliable backplane bus communication velocity and controller connections. Furthermore, the unit manages up to 32 tasks and 256 connections simultaneously, thereby ensuring minimal communication latency across distributed industrial automation architectures. Its embedded I/O density scaling provides direct electrical execution for 16 digital DC inputs and 16 digital DC outputs without requiring immediate modular expansion. Frequently Asked Questions Q: What is the maximum local expansion module capacity for this controller? A: The controller supports up to 6 Bulletin 1734 POINT I/O modules on the local expansion bus. Q: Does this model support hot-swapping of I/O modules during operation? A: Yes, removal and insertion under power (RIUP) is supported for compatible local expansion modules under specified hazardous location guidelines. Q: What are the storage temperature limits for this hardware component? A: The storage temperature ranges strictly from -40 to 85 deg C. Field Installation Guidelines Mount the controller securely onto a standard DIN rail within a grounded industrial enclosure to maintain electromagnetic compatibility. Ensure that the operating ambient temperature remains within the specified -20 to 60 deg C threshold to prevent thermal degradation. Verify all DC power and communication cable shielding prior to energizing the backplane bus.
$200.00 $100.00
-

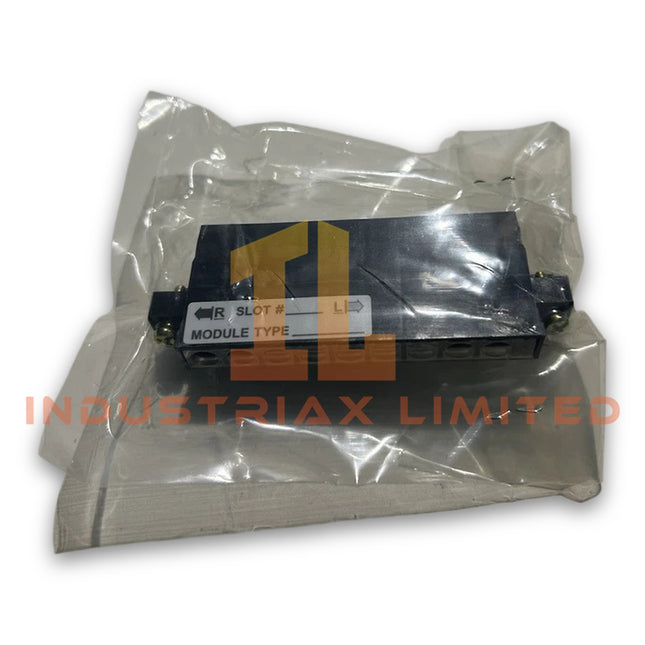

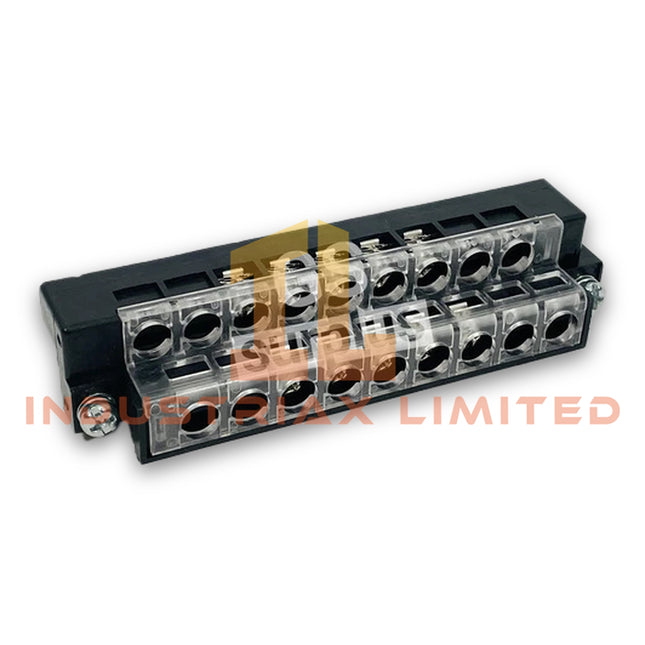

Allen Bradley Allen Bradley 1769-RTBN10 Removable Terminal Block
Allen Bradley 1769-RTBN10 Removable Terminal Block Configured for field wiring termination in industrial control panels, the Allen Bradley 1769-RTBN10, also cataloged as the 1769-RTBN10 Removable Terminal Block, provides direct physical/electrical execution. Hardware Specifications Parameter Specification Model 1769-RTBN10 Brand Allen Bradley Origin Standard Industrial Origin Weight 0.56 lbs (0.26 kg) Dimensions Standard CompactLogix I/O footprint Operating Temp Industrial standard rating (0 deg C to 60 deg C) Power Consumption Passive pass-through component (0 W) Core Performance 10-pin NEMA connector, 22–14 AWG wire range Profinet / EtherNet/IP Deterministic Networks Engineers integrate the Allen Bradley 1769-RTBN10 directly within CompactLogix I/O architectures to secure deterministic network execution at the physical field level. By maintaining robust backplane bus communication velocity linkages, this terminal block ensures that discrete field signals interface seamlessly without signal degradation. Furthermore, its mechanical locking mechanism and screw-clamp retention profile prevent terminal loosening caused by continuous industrial vibration across high-density I/O node deployments. Frequently Asked Questions Q: What wire gauge range does the 1769-RTBN10 support for field wiring? A: The unit accommodates solid or stranded wire sizes ranging from 22 AWG to 14 AWG. Q: Is the 1769-RTBN10 rated for hot-swapping applications? A: Users must remove field power before inserting or extracting the terminal block from the 1769 CompactLogix I/O module to prevent electrical arcing and backplane damage. Field Installation Guidelines When installing the 1769-RTBN10, first ensure that all relevant control power sources are powered down to avoid equipment damage or electrical shock. Align the snap-on module connection carefully with the corresponding 1769 CompactLogix I/O module housing. Press the terminal block firmly into place until the locking mechanism engages completely. Secure each individual conductor within the screw-clamp interface using the recommended torque specifications to maintain optimal electrical conductivity and mechanical stability under continuous operational vibration.
$200.00 $100.00
-

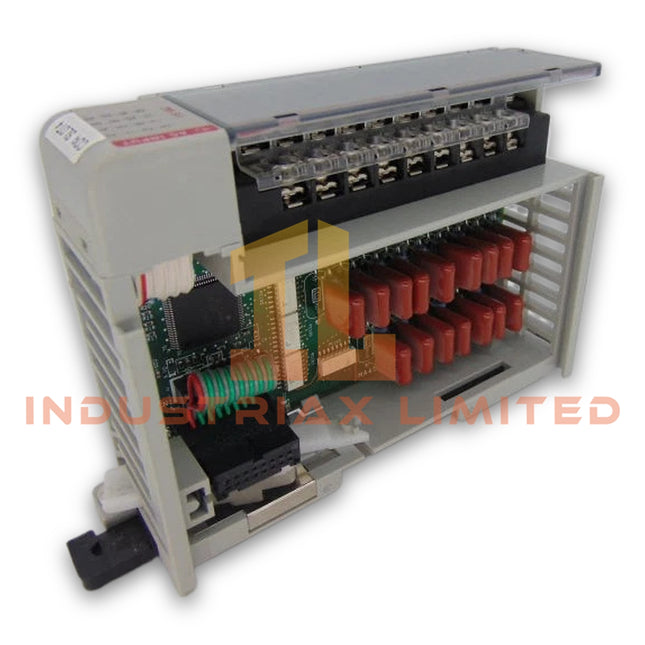

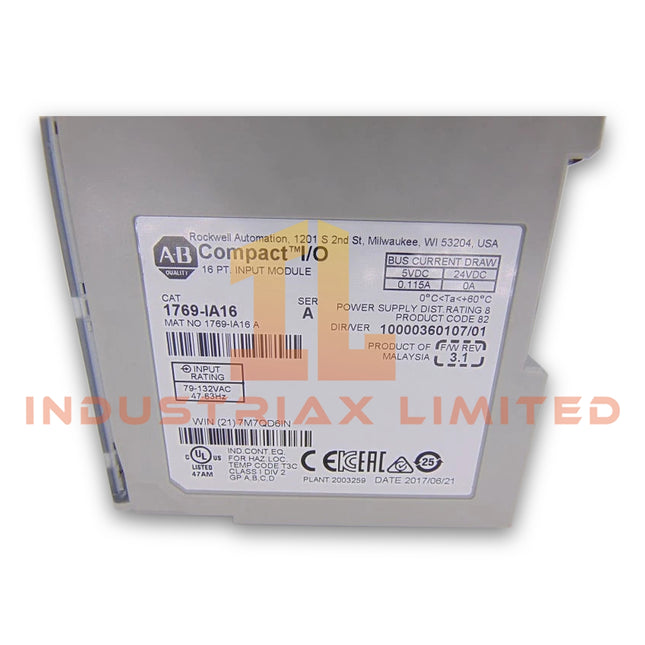

Allen Bradley Allen Bradley 1769-IA16 CompactLogix Input Module
Allen Bradley 1769-IA16 CompactLogix Input Module Configured for discrete signal acquisition in industrial automation networks, the Allen Bradley 1769-IA16 (1769-IA16 Input Module) provides direct physical and electrical execution. Operating as a robust hardware component, this unit acquires up to 16 AC input signals, processing industrial voltage levels effectively while ensuring system integrity across controller backplanes. Hardware Specifications Parameter Specification Model 1769-IA16 Brand Allen Bradley Origin United States (Standard Factory Origin) Weight 0.75 lbs (0.34 kg) Dimensions Standard CompactLogix 1769 Form Factor Operating Temp 0 deg C to 60 deg C (32 deg F to 140 deg F) Power Consumption 115 mA at 5.1 VDC (Backplane current draw) Voltage Category 100/120V AC Operating Voltage Range 79-132V AC Operating Frequency 47-63 Hz Number of Inputs 16 Inputs (Internally Connected Commons) Input Delays 20 ms On / 20 ms Off Maximum Heat Dissipation 3.3 Watts Maximum Inrush Current 250 mA Backplane Bus Communication Velocity and Firmware Flash Compatibility The module integrates seamlessly into the CompactLogix system architecture, utilizing high-speed backplane bus communication to transfer acquired data packets directly to the central processor. Furthermore, firmware flash compatibility ensures that the hardware can receive internal code updates via RSLogix 5000 or Studio 5000 environment toolsets without requiring physical component replacements. Consequently, the internal scanning mechanism operates deterministically, matching the backplane cycle to maintain tight tolerances on input state detection across all sixteen channels simultaneously. Frequently Asked Questions Q: Does the 1769-IA16 module support live insertion and removal under power (hot-swapping)? A: No. Users must disconnect power from the module and the chassis backplane before installing or removing the 1769-IA16 to prevent electrical arcing and backplane bus corruption. Q: How is power supplied to the internal logic circuitry of this input module? A: The module draws its internal logic power directly from the 5.1 VDC and 24 VDC rails of the CompactLogix system backplane, consuming approximately 115 mA at 5.1 VDC. Field Installation Guidelines Ensure that the CompactLogix system power is completely isolated before mounting the 1769-IA16 module onto the DIN rail or panel mount. Secure the module latch firmly to lock it into position adjacent to the controller or previous I/O module. Subsequently, connect field wiring to the removable terminal block (RTB), ensuring that wire stripping lengths comply with manufacturer specifications. Verify that AC supply lines fall strictly within the 79-132V AC operating voltage range before energizing the circuit. Finally, ground the system chassis and enclosure in accordance with local electrical codes to mitigate electromagnetic interference (EMI) and safeguard against transient surge voltages.
$200.00 $100.00
-

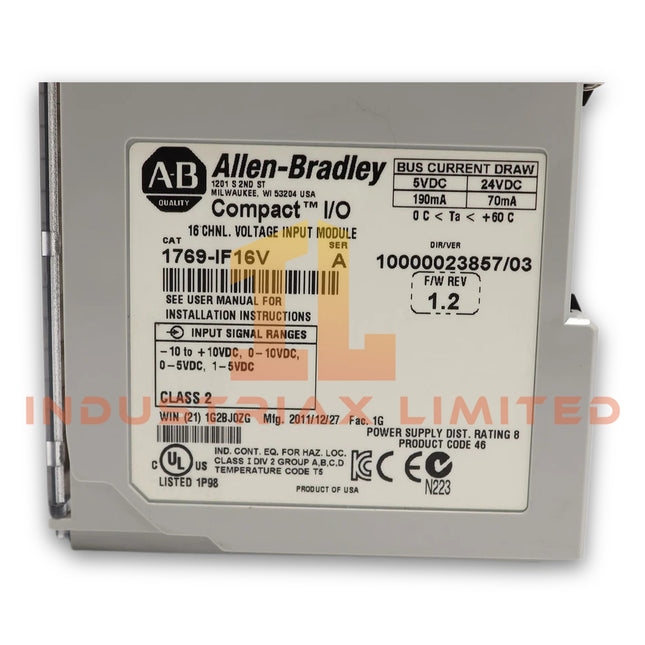

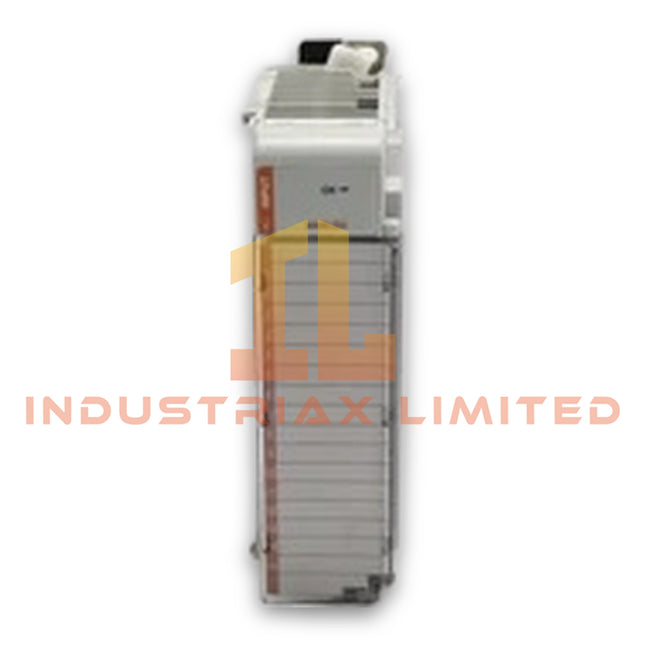

Allen Bradley Allen Bradley 1769-IF16V Compact I/O Modules
Allen Bradley 1769-IF16V Compact I/O Modules The Allen Bradley 1769-IF16V, also cataloged as the 1769-IF16V Analog input Module, operates as a dedicated hardware component for converting physical voltage signals within CompactLogix systems. Hardware Specifications Parameter Specification Model 1769-IF16V Brand Allen Bradley Origin Industrial Automation Standard Weight 0.56 lbs (0.26 kg) Dimensions Standard 1769 Compact I/O Slot Width (1 Slot) Operating Temp Industrial Standard Rating Power Consumption 33.6 Watts (7.5 Watts Power Dissipation) Number of Inputs 16 Single Ended Inputs Input Signal Voltage Range +/-10.5 V DC, -0.5 to 10.5 V DC, -0.5 to 5.25 V DC, 0.5 to 5.25 V DC Resolution 16 bits (unipolar); 15 bits (bipolar) Accuracy +/-0.35% full scale at 25 deg C (77 deg F) Backplane Current 1.4 Amps at 24 V DC Current Draw 190 mA at 5.1 V DC; 70 mA at 24 V DC Backplane Bus Communication Velocity And I/O Density Scaling Engineers deploy the module to maximize I/O density within compact automation footprints while maintaining high-speed backplane bus communication velocity. The sigma-delta analog-to-digital converter executes high-precision conversions across all sixteen channels simultaneously. Furthermore, deterministic data transmission relies upon properly matched backplane current allocation and power supply distance ratings to ensure minimal packet jitter and reliable deterministic networks performance across the controller architecture. Frequently Asked Questions Q: What is the maximum backplane current draw for the 1769-IF16V module? A: The module draws 1.4 Amps at 24 Volts from the backplane, alongside 190 mA at 5.1 V DC and 70 mA at 24 V DC current draw. Q: Does this analog input module support unipolar and bipolar input configurations simultaneously? A: Yes, the module supports 16 bits of resolution for unipolar configurations and 15 bits of resolution for bipolar configurations across its 16 single-ended channels. Q: Which recommended cable should technicians utilize for wiring installations? A: Technicians must utilize Belden 8761 shielded cable to maintain signal integrity and suppress electrical noise. Field Installation Guidelines Mount the module securely on a standard DIN rail or via panel mount configuration within the designated enclosure. Installers must connect Belden 8761 shielded cable to the removable terminal block while ensuring proper ground shield termination to mitigate electromagnetic interference. Verify that the power supply distance rating does not exceed position 8 on the backplane bus, and confirm that backplane power requirements are fully satisfied by compatible power supplies such as the 1769-PA2, 1769-PB2, 1769-PA4, or 1769-PB4 before initial system startup.
$200.00 $100.00
-
Allen Bradley Allen Bradley 1769-L18ER-BB1B CompactLogix Controller
Allen Bradley 1769-L18ER-BB1B CompactLogix Controller Configured for discrete logic execution in EtherNet/IP deterministic networks, the Allen Bradley 1769-L18ER-BB1B, also cataloged as the 1769-L18ER-BB1B Controller, provides direct physical/electrical execution. This hardware component manages up to 32 controller tasks while maintaining 1000 programs per task to guarantee continuous scan cycles across local bus architectures. Hardware Specifications Parameter Specification Model 1769-L18ER-BB1B Brand Allen Bradley Origin USA / Authorized Manufacturing Facilities Weight 2.00 lbs (0.91 kg) Dimensions Standard CompactLogix Form Factor Operating Temp 0 deg C to 60 deg C Power Consumption Dependent on backplane load and I/O draw Onboard Memory 512 KB Max Local I/O Capacity 8 Bulletin 1734 Series POINT I/O Modules Backplane Bus Communication Velocity And Deterministic Networks The internal architecture relies on high-speed backplane bus communication velocity to process cyclic data packets without latency anomalies. Engineers configure the integrated dual-port Ethernet interface to support linear topologies, traditional star topologies, and DLR (Device-Level Ring) topologies, which ensures fault-tolerant media redundancy across demanding factory automation floors. Furthermore, the controller utilizes internal energy storage to preserve user memory and operational states during unexpected power loss events without requiring an external battery backup. Frequently Asked Questions Q: Does the 1769-L18ER-BB1B controller support hot-swap replacement procedures during active operation? A: No, module removal or insertion while backplane power remains energized can cause hardware damage or unintended system faults. Technicians must de-energize the system power supply prior to servicing local modules. Q: How does the controller handle firmware flash compatibility during routine maintenance updates? A: Firmware updates require direct connection via the Ethernet or USB configuration port using ControlFLASH software. Users must verify matching revision levels with associated RSLinx drivers before initiating the flash sequence. Q: What limits apply to local expansion modules connected to this specific CompactLogix processor? A: The processor supports a maximum local I/O module capacity of 8 Bulletin 1734 Series POINT I/O modules directly adjacent to the controller chassis, relying on system power distribution limits. Field Installation Guidelines Technicians must mount the 1769-L18ER-BB1B securely onto a standard DIN rail or panel surface within an industrial enclosure rated for the local environmental conditions. Ensure adequate spacing above and below the controller housing to facilitate proper convection cooling. Connect the functional earth ground terminal directly to the enclosure ground bus bar using low-impedance copper braided wire to mitigate high-frequency electrical noise and transient surges. Verify network cable shielding continuity and terminate drain wires appropriately at designated grounding points before applying system power.
$200.00 $100.00
-

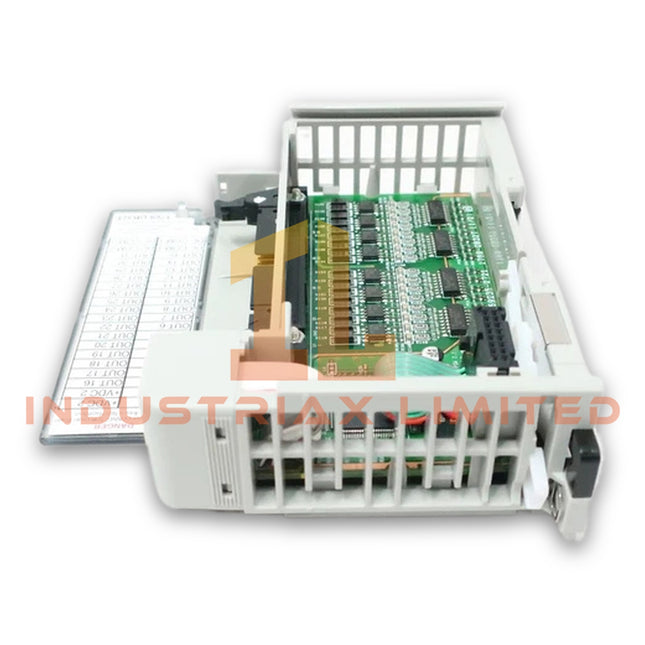

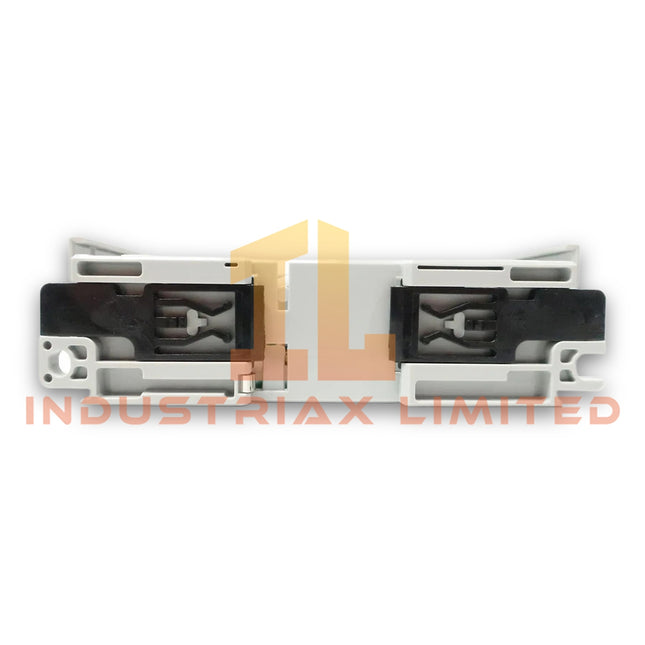

Allen Bradley Allen Bradley 1769-OB32T Digital Output Module
Allen Bradley 1769-OB32T Digital Output Module Configured for discrete logic signal switching and actuator control within industrial control systems, the Allen Bradley 1769-OB32T (1769-OB32T Digital Output Module) provides direct physical and electrical execution. The hardware processes thirty-two distinct 24 VDC sourcing output channels, driving external field devices while interfacing directly with compatible backplane architectures. Hardware Specifications Parameter Specification Model 1769-OB32T Brand Allen Bradley Origin Standard Industrial Manufacturing Weight 1.50 lbs (0.68 kg) Dimensions Standard 1769 Compact I/O Form Factor Operating Temp 0 to 60 deg C (32 to 140 F) Power Consumption 220 mA at 5 VDC (Backplane current draw) Number of Outputs 32-channel sourcing ON State Voltage Range 10.2 to 26.4 VDC (24 VDC nom) Output Current per Point 2.0 A max continuous Output Current per Module 4.0 A max continuous Wire Size 22 to 16 AWG stranded I/O Density Scaling and Backplane Communication Engineers utilize the high-density architecture of the module to maximize control panel spatial efficiency. Furthermore, the unit supports seamless integration across distributed I/O racks by managing high-speed backplane bus communication velocity. System integrators must evaluate the power supply distance rating, which limits the module placement to a maximum of eight modules away from the system power supply. Additionally, firmware flash compatibility ensures that the module synchronizes effectively with connected programmable logic controllers, maintaining deterministic network behavior across execution cycles. Frequently Asked Questions Q: Does the 1769-OB32T module support live insertion and removal under power (hot-swapping)? A: No. Technicians must remove all power from the system backplane and external field wiring terminals before installing or extracting the module to prevent electrical arcing and component degradation. Q: How does the backplane current draw affect system power budgeting? A: The module draws 220 mA from the 5 VDC backplane power supply. Engineers must calculate the cumulative current draw of all connected I/O modules to ensure the system power supply does not exceed its rated capacity. Q: What is the maximum continuous current limitation for the module? A: While each individual point supports up to 2.0 A continuous output current, the total continuous output current for the entire module is limited to 4.0 A simultaneously. Field Installation Guidelines Mounting Procedure: Securely fasten the module to a standard DIN rail within an appropriate open-type industrial enclosure. Ensure the DIN rail is grounded properly to minimize electromagnetic interference. Terminal Wiring: Strip stranded copper conductors to the appropriate length for the 22 to 16 AWG wire capacity. Insert the conductors firmly into the 1769-RTBN18 replacement terminal block and torque terminal screws securely. Power Verification: Verify that the external 24 VDC power supply remains within the operational range of 10.2 to 26.4 VDC prior to energizing the field circuits. Thermal Management: Maintain ambient enclosure temperatures between 0 deg C and 60 deg C, allowing sufficient spacing above and below the module for passive convection cooling.
$200.00 $100.00
-
Allen Bradley Allen Bradley 1769-L23E-QBFC1B CompactLogix Packaged controller
Allen Bradley 1769-L23E-QBFC1B CompactLogix Packaged controller The Allen Bradley 1769-L23E-QBFC1B, also cataloged as the 1769-L23E-QBFC1B Programmable Automation Controller (PAC), operates as a dedicated hardware component for deterministic I/O control and high-speed motion tracking within EtherNet/IP industrial networks. Hardware Specifications Parameter Specification Model 1769-L23E-QBFC1B Brand Allen Bradley Origin Industrial Automation Standard Weight 2.00 lbs (0.91 kg) Dimensions Standard CompactLogix Package Form Factor Operating Temp Standard Industrial Limits (0 deg C to 60 deg C) Power Consumption Powered via external 24 VDC supply Digital Inputs 16 discrete inputs (24 VDC) Digital Outputs 16 discrete outputs (24 VDC) Analog Inputs 4 channels Analog Outputs 2 channels User Memory 512 KB Communication Ports 1 Serial port (DF1/ASCII), 1 Ethernet port (TCP/IP, CIP) Expansion Capability Up to Two (2) 1769 I/O modules EtherNet/IP Deterministic Networks and I/O Density Scaling Engineered for rigorous industrial automation demands, this controller leverages native EtherNet/IP and CIP protocols to maintain low-latency data exchange across distributed nodes. Furthermore, the embedded I/O architecture features sixteen 24 VDC discrete inputs, sixteen 24 VDC discrete outputs, four analog inputs, two analog outputs, and four high-speed counters, thereby optimizing local panel space while scaling control loops efficiently. Additionally, the backplane communication velocity handles up to two physical 1769 expansion modules seamlessly, ensuring deterministic response times across the entire rack configuration. Frequently Asked Questions Q: Does the 1769-L23E-QBFC1B controller support hot-swapping of expansion modules? A: No. Power must be removed from the system and external power supplies before installing or removing any 1769 I/O expansion modules to prevent electrical arcing and memory corruption. Q: What is the maximum number of local expansion modules supported by this controller? A: This packaged controller supports a maximum of two (2) physical 1769 I/O expansion modules connected directly to the right side of the CPU base. Q: Can the embedded serial port be configured for user-defined ASCII communication? A: Yes. The built-in RS232 port supports both DF1 protocol and user-defined ASCII strings for interfacing with barcode scanners, weigh scales, and operator interfaces. Field Installation Guidelines Mounting Security: Mount the controller securely onto a standard DIN rail or directly to a back panel using M4 or #8 screws, ensuring that mechanical vibration limits comply with industrial standards. Grounding Compliance: Connect a low-impedance ground wire directly to the functional ground lug on the chassis to mitigate electromagnetic interference (EMI) and protect internal logic circuits. Wiring and Isolation: Route high-voltage power lines and low-signal analog/communication cables through separate metallic wireways to prevent cross-talk and maintain signal integrity.
$200.00 $100.00
-

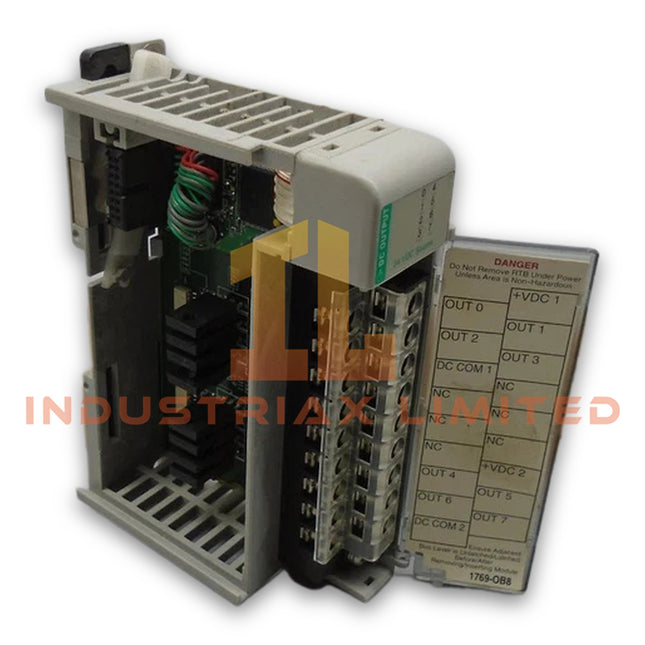

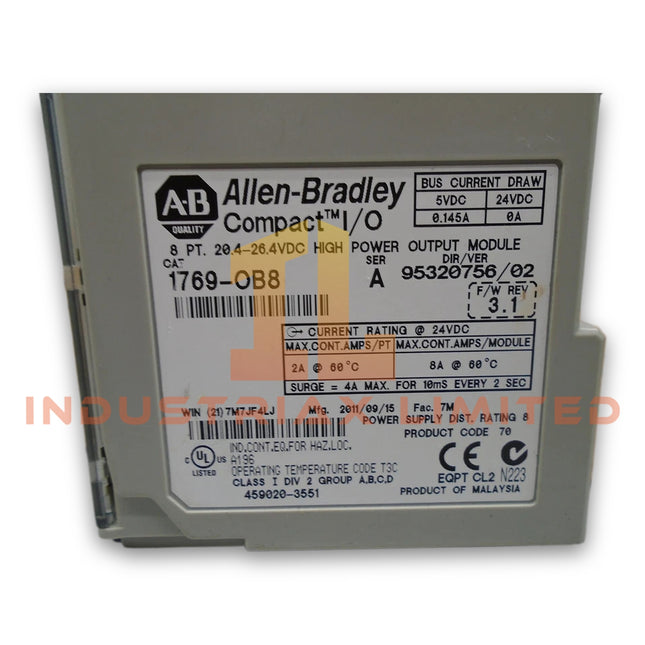

Allen Bradley Allen Bradley 1769-OB8 CompactLogix DC Output Module
Allen Bradley 1769-OB8 CompactLogix DC Output Module Configured for 24 VDC digital signal execution in CompactLogix I/O systems, the Allen Bradley 1769-OB8 (1769-OB8 DC Output Module) provides direct physical switching control for field devices through transistor-based outputs. This module contains 8 DC output channels and supports high-current output operation within Allen-Bradley CompactLogix platforms. Hardware Specifications Parameter Specification Model 1769-OB8 Brand Allen Bradley Origin USA Product Series CompactLogix Module Type DC Digital Output Module Output Channels 8 points Output Type Digital DC Source Output Operating Voltage 24 VDC Output Class High Current Output Module Series Compatibility Series A and B Weight 0.65 kg (1.44 lbs) Wire Size 22-16 AWG stranded wire Mounting Method Panel Mount or DIN Rail Replacement Terminal Block 1769-RTBN18 Replacement Door 1769-RD Configuration Method I/O Memory Mapping EtherNet/IP and CompactLogix I/O Architecture The 1769-OB8 operates as a CompactLogix expansion I/O module and communicates through the controller backplane bus. Therefore, the module exchanges output data through the configured I/O memory mapping structure. The CompactLogix architecture supports I/O density scaling by allowing multiple local and expansion modules within the controller system. In addition, firmware compatibility and controller configuration determine the supported module integration parameters. The module executes transistor output switching commands according to controller logic instructions. Consequently, field wiring receives discrete DC control signals through the 8 output points. Frequently Asked Questions Q: What output signals does the 1769-OB8 generate?A: The 1769-OB8 provides 8 digital DC output channels with 24 VDC operating voltage for controlling external field devices. Q: Can the terminal block and door assembly be replaced on the 1769-OB8?A: Yes. The terminal block can be replaced with the 1769-RTBN18, and the removable door can be replaced with the 1769-RD assembly. Q: How is the 1769-OB8 configured in a CompactLogix controller system?A: The module uses I/O memory mapping for output data exchange between the controller and the physical output channels. Field Installation Guidelines Install the 1769-OB8 on a suitable DIN rail or panel mounting surface according to the CompactLogix installation requirements. Use stranded wire within the specified 22-16 AWG range for terminal connections. Route DC output wiring separately from high-voltage power cables to reduce electrical interference. Connect field device wiring with correct polarity because the module operates as a DC source output device. Maintain proper grounding practices for the control cabinet and ensure the shield termination follows the plant grounding standard. Before replacing the terminal block or door assembly, remove power from the module and verify that no active field voltage remains on the wiring terminals.
$200.00 $100.00
-

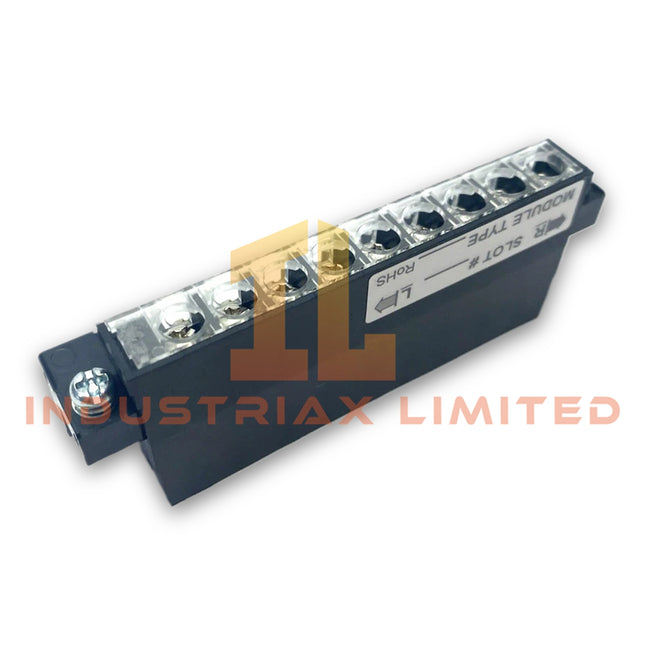

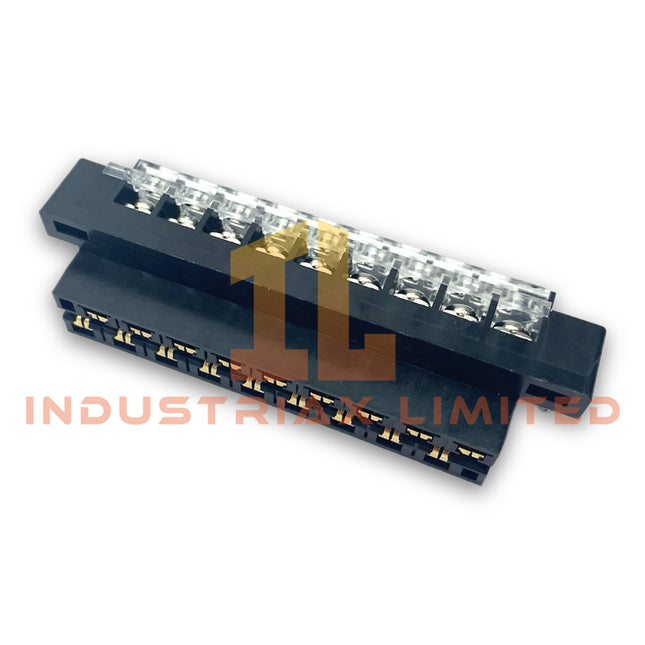

Allen Bradley Allen Bradley 1769-RTBN18 Removable Terminal Block
Allen Bradley 1769-RTBN18 Removable Terminal Block Configured for field wiring termination in CompactLogix 1769 I/O systems, the Allen Bradley 1769-RTBN18 (1769-RTBN18 Removable Terminal Block) provides direct electrical connection between external conductors and compatible I/O modules. Hardware Specifications Parameter Specification Model 1769-RTBN18 Brand Allen Bradley Product Type Removable Terminal Block (RTB) Origin United States Operating Temp Compatible with installed 1769 CompactLogix module operating environment Power Consumption Passive component; no external power consumption Terminal Count 18 terminals Terminal Style Spring-clamp (cage clamp) terminals Compatible Platform Allen Bradley CompactLogix 1769 I/O series Wire Capacity Solid wire: 0.34 to 1.5 mm2 (22 to 16 AWG); stranded wire: 0.34 to 1.0 mm2 (22 to 18 AWG) Mounting Method Direct snap mounting on compatible 1769 I/O modules Keying Feature Mechanical keying to prevent incorrect terminal block installation EtherNet/IP and CompactLogix I/O Hardware Integration The 1769-RTBN18 functions as a passive interface component within the Allen Bradley CompactLogix I/O architecture. Therefore, it does not process data or communicate through the backplane bus. Instead, it maintains the physical termination point between field devices and the I/O module channels. Additionally, the CompactLogix platform uses modular I/O density scaling, allowing different 1769 I/O modules to share standardized removable terminal block designs. The spring-clamp structure reduces terminal loosening caused by vibration and repeated maintenance operations. Frequently Asked Questions Q: Is the 1769-RTBN18 an active I/O module?A: No. The 1769-RTBN18 is a passive removable terminal block. It provides field wiring termination and does not contain signal processing circuits. Q: Can the 1769-RTBN18 be installed on any CompactLogix module?A: No. The terminal block must match the mechanical and electrical requirements of the specific 1769 I/O module. Users must verify module compatibility before installation. Q: Does the 1769-RTBN18 require firmware configuration?A: No. The removable terminal block contains no firmware and does not require software configuration or network addressing. Field Installation Guidelines Confirm that the connected 1769 I/O module supports the 1769-RTBN18 terminal block before installation. Disconnect field power before removing or installing the removable terminal block. Insert conductors according to the specified wire size range and ensure proper spring-clamp engagement. Route field wiring separately from high-voltage and high-noise conductors to reduce electrical interference. Maintain proper shielding and grounding practices according to the connected I/O module installation requirements. Verify terminal identification markings before applying field power. Inspect the terminal block locking mechanism after installation to confirm correct mechanical engagement.
$200.00 $100.00
-

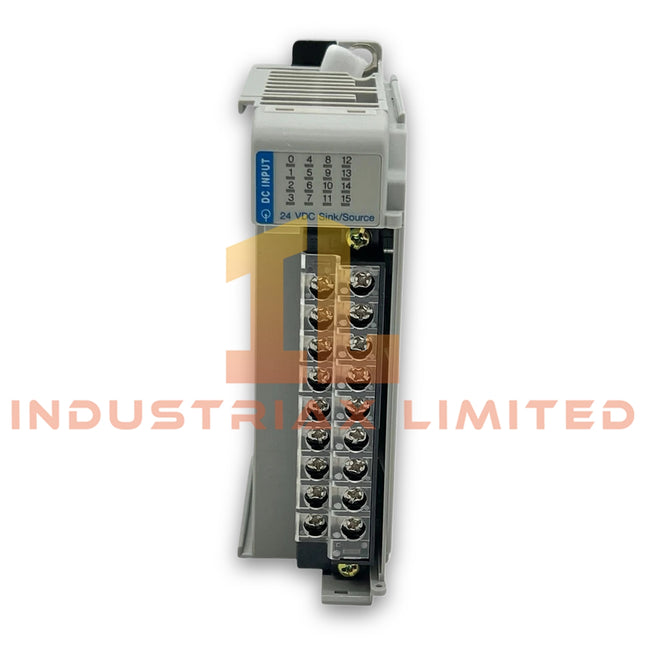

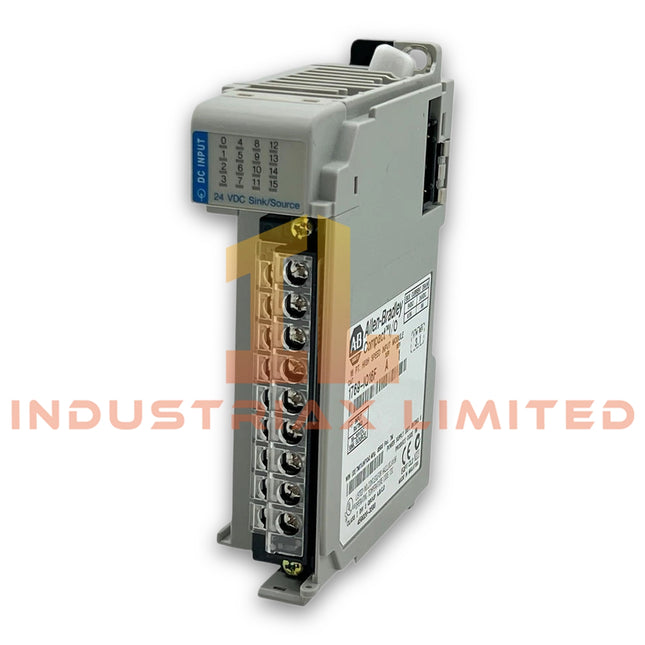

Allen Bradley 1769-IQ16F Allen Bradley CompactLogix High Speed DC Input Module
Allen Bradley 1769-IQ16F CompactLogix High Speed DC Input Module Configured for high-speed 24 VDC digital signal acquisition in the CompactLogix control system, the Allen Bradley 1769-IQ16F (1769-IQ16F Digital DC Input Module) accepts sink or source input signals for PLC logic processing. The module provides 16-point digital input capability and supports replacement of the terminal block and module door. Hardware Specifications Parameter Specification Model 1769-IQ16F Brand Allen Bradley Product Line CompactLogix Module Type High Speed DC Input Module Input Type Digital DC Input Input Channels 16 point Input Configuration Sink or source Rated Input Voltage 24 VDC Working Voltage Rating 30 VAC / 30 VDC Series A and B Communication Cable 16 point Distance Rating 8 modules Weight 0.56 lb (0.26 kg) Replacement Terminal Block 1769-RTBN18 Wire Material Copper Wire Temperature Rating 90 deg C Solid Wire Size 22-14 AWG UPC 611320915679 Industrial Control and I/O Architecture The 1769-IQ16F operates as a CompactLogix digital input module for discrete field signal acquisition. Its 16 input points accept sink or source configurations, allowing the input interface to accommodate different field wiring arrangements. Furthermore, the module supports high-speed digital input operation for applications requiring rapid recognition of discrete state changes. The module connects through the CompactLogix I/O architecture, while the specified distance rating permits installation within a system containing up to 8 modules. The input interface uses copper conductors within the specified 22-14 AWG solid-wire range. The supplied data also specifies a 90 deg C wire temperature rating. Therefore, field wiring should remain within these conductor and temperature limits. The module door and terminal block provide replaceable mechanical interfaces. The specified replacement terminal block is 1769-RTBN18, and the module door can accommodate a door label for circuit identification. Frequently Asked Questions Q: What input configurations does the 1769-IQ16F support?A: The 1769-IQ16F supports both sink and source digital input configurations. Q: What field wiring size is specified for the module?A: The supplied specification lists 22-14 AWG solid copper wire with a 90 deg C temperature rating. Q: Can the terminal block be replaced if it becomes damaged?A: Yes. The specified replacement terminal block is Allen Bradley 1769-RTBN18. Field Installation Guidelines Install the 1769-IQ16F in accordance with the CompactLogix system installation requirements and the applicable Allen Bradley wiring documentation. Use copper conductors within the specified 22-14 AWG solid-wire range. Maintain conductor insulation and temperature ratings appropriate for the installation environment. Verify the selected sink or source wiring configuration before connecting field circuits. Keep discrete input wiring separated from high-voltage power conductors and high-current switching circuits where practical to reduce electrical interference. Confirm terminal assignments before energizing the module. Secure conductors at the terminal block and inspect the terminal interface for mechanical damage before commissioning. When replacing the terminal block or module door, isolate the associated equipment according to the applicable electrical safety procedure before performing mechanical work.
$200.00 $100.00
-
Allen Bradley Allen-Bradley 1769-L27ERM-QBFC1B CompactLogix Controller
Allen-Bradley 1769-L27ERM-QBFC1B CompactLogix Controller Configured for controller task execution and EtherNet/IP communication in a CompactLogix control system, the Allen-Bradley 1769-L27ERM-QBFC1B (1769-L27ERM-QBFC1B controller) provides processor control, Ethernet connectivity, USB access, and integrated digital and analog I/O. Hardware Specifications Parameter Specification Model 1769-L27ERM-QBFC1B Brand Allen-Bradley Product Type CompactLogix Controller Product Line CompactLogix Origin Not specified in supplied data Weight 1.75 lb (0.79 kg) Controller Tasks 32 maximum Programs per Task 100 maximum Ethernet Ports 2 USB Ports 1 Controller Connections 256 maximum Ethernet/IP Nodes 16 maximum Sockets 32 maximum User Memory 1 MB DeviceNet Communication Supported with 1769-SDN scanner Digital Inputs 16 DC inputs Universal Analog Inputs 4 Digital Outputs 16 DC outputs Analog Outputs 2 High-Speed Counter Modules 4 maximum High-Speed Module Outputs 4 maximum Integrated Motion Axes 4 maximum through EtherNet/IP network UPC 885630101262 EtherNet/IP and I/O Architecture The 1769-L27ERM-QBFC1B provides two Ethernet ports for EtherNet/IP communication and supports up to 256 controller connections. It also supports up to 16 EtherNet/IP nodes and 32 sockets. The controller integrates 16 digital DC inputs, 16 digital DC outputs, 4 universal analog inputs, and 2 analog outputs. Therefore, the integrated I/O reduces the need for separate local I/O modules in applications that fit within these channel limits. The controller supports four integrated motion axes through the EtherNet/IP network. In addition, a 1769-SDN scanner provides DeviceNet communication capability. Frequently Asked Questions (FAQ) Q: How many controller tasks can the 1769-L27ERM-QBFC1B execute?A: The controller supports up to 32 controller tasks, with a maximum of 100 programs assigned to each task. Q: What communication interfaces does the controller provide?A: The controller provides two Ethernet ports and one USB port. A 1769-SDN scanner can also provide DeviceNet communication. Q: How much user memory does the controller provide?A: The supplied specifications list 1 MB of user memory. Field Installation Guidelines Install the controller according to the applicable Allen-Bradley CompactLogix installation documentation and enclosure requirements. Maintain adequate physical clearance around the controller and connected I/O modules for wiring access and service operations. Use the specified mounting method and secure the module against mechanical movement. Route Ethernet, I/O, and power wiring separately where practical. Avoid routing communication cables alongside high-current switching conductors for extended distances. Terminate cable shields and functional grounds according to the electrical design and the applicable Allen-Bradley installation requirements. Do not assume that cable shield termination provides protective-earth bonding unless the installation documentation specifies it. Verify the controller, I/O configuration, firmware compatibility, network addressing, and connected EtherNet/IP devices before placing the system into normal operation.
$200.00 $100.00
-

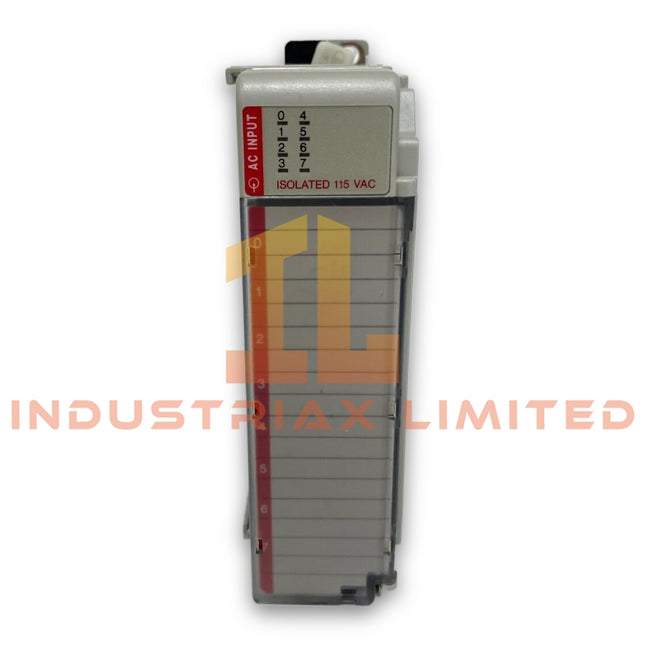

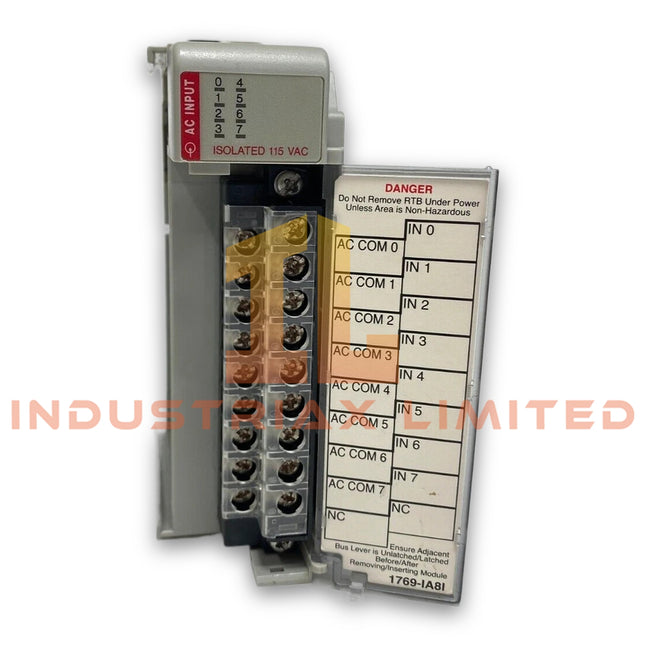

Allen Bradley Allen-Bradley 1769-IA8I CompactLogix Individually Isolated AC Input Module
Allen-Bradley 1769-IA8I CompactLogix Individually Isolated AC Input Module The Allen-Bradley 1769-IA8I, also cataloged as the 1769-IA8I Individually Isolated Discrete Input Module, provides AC voltage signal acquisition for CompactLogix and MicroLogix 1500 controller platforms. The module processes eight isolated 120 VAC input channels with direct electrical separation between field input points. Hardware Specifications Parameter Specification Model 1769-IA8I Brand Allen-Bradley Origin USA Product Line 1769 Compact I/O Module Type Individually Isolated AC Discrete Input Module Weight 0.38 lbs (0.17 kg) Dimensions Single slot module Operating Temp 0 to 60 deg C Power Consumption 33.6 Watts Input Channels 8 isolated input channels Input Voltage 100/120 VAC Operating Voltage Range 79-132 VAC Input Frequency 47-63 Hz Input Delay Time OFF to ON 20 ms Mounting Method DIN rail or panel mount Backplane Current 90 mA at 5.1 Volts Power Supply Distance Rating 8 Enclosure Type Open type Communication Interface Compact I/O backplane Controller Compatibility CompactLogix and MicroLogix 1500 EtherNet/IP and Compact I/O Architecture Compatibility The 1769-IA8I operates as a Compact I/O expansion module within Allen-Bradley control architectures. Therefore, the module communicates through the controller backplane connection and transfers input status data to the processor memory structure. In addition, its eight-channel isolated design supports separated AC field devices where independent input reference protection is required. The module integrates with CompactLogix systems through the 1769 backplane bus architecture. Furthermore, the Compact I/O platform supports I/O density scaling by allowing multiple discrete and analog modules to operate within the same controller assembly when system power and slot limitations are maintained. Frequently Asked Questions Q: How many input channels does the 1769-IA8I provide?A: The module provides eight individually isolated AC input channels. Each channel accepts 79-132 VAC input signals. Q: Is the 1769-IA8I compatible with MicroLogix 1500 controllers?A: Yes. The module supports both CompactLogix controllers and MicroLogix 1500 controllers using the 1769 Compact I/O platform. Q: What backplane current does the module require?A: The module requires 90 mA from the 5.1 Volt backplane supply. Field Installation Guidelines Install the 1769-IA8I on a suitable DIN rail or panel mounting surface according to the controller system installation requirements. Verify that the power supply distance rating remains within the supported range before adding expansion modules. Use separate wiring paths for AC field signals and low-level communication or analog signal cables. Maintain proper grounding practices for the control enclosure and connect field wiring according to the module terminal configuration. Before operation, confirm that the connected AC input devices match the specified 79-132 VAC operating range. Check terminal tightness, insulation condition, and channel isolation requirements during commissioning.
$200.00 $100.00
-

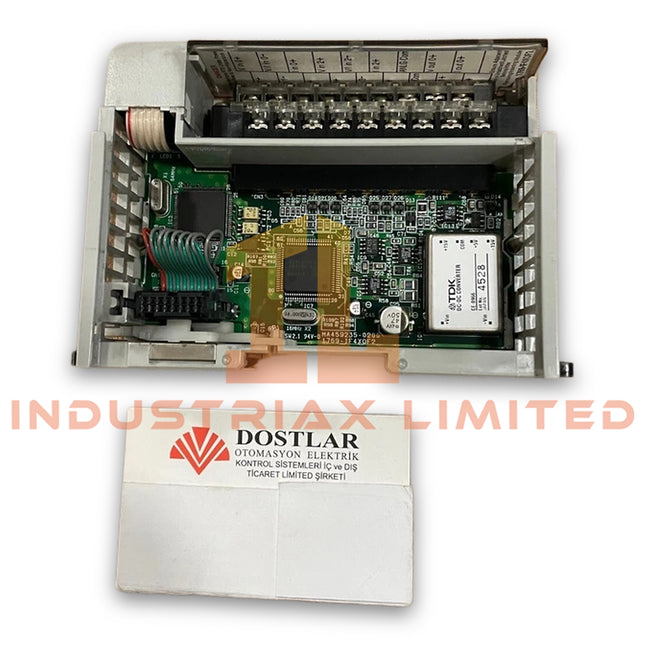

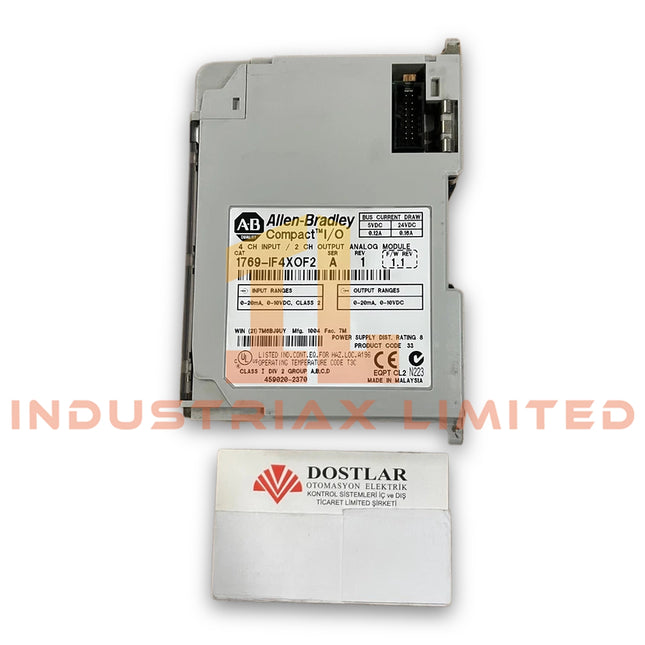

Allen Bradley Allen-Bradley 1769-IF4FXOF2F CompactLogix Analog Combination I/O Module
Allen-Bradley 1769-IF4FXOF2F CompactLogix Analog Combination I/O Module The Allen-Bradley 1769-IF4FXOF2F, also cataloged as the 1769-IF4FXOF2F Analog Combination I/O Module, provides fast analog signal acquisition and output execution within CompactLogix 1769 Compact I/O systems. Hardware Specifications Parameter Specification Model 1769-IF4FXOF2F Brand Allen-Bradley Origin USA Product Type Analog Combination I/O Module Product Series CompactLogix 1769 Compact I/O Module Type Fast analog input and output combination module Weight 0.94 lbs (0.43 kg) Power Consumption 33.6 Watts Input Channels 4 single-ended / differential analog inputs Output Channels 2 single-ended analog outputs Analog Input Range +/-10 V, 0-10 V, 0-5 V, 1-5 V, 0-20 mA Analog Input Resolution 14 bits Analog Output Resolution 13 bits Converter Type Delta Sigma Input Signal Type Analog voltage and current signals Terminal Block Replaceable terminal block Power Supply Type External power supply Module Width Single slot Power Supply Distance Rating 8 Backplane Current at 5.1 Volts 90 mA Backplane Current at 24 Volts 1.4 Amps Communication Cable 4 Point Configuration Method I/O memory mapping EtherNet/IP and CompactLogix Backplane Integration The 1769-IF4FXOF2F operates as a CompactLogix 1769 Compact I/O module and exchanges configured I/O data through the controller backplane interface. Therefore, the module supports system-level I/O memory mapping for input acquisition and output command processing. The module uses Delta Sigma conversion technology to process analog signals. In addition, it provides configurable voltage and current input ranges for different field transmitters and analog devices. The fast input and output channels support applications that require shorter signal update intervals. The Allen-Bradley CompactLogix platform applies backplane bus communication methods for deterministic I/O data transfer. Furthermore, firmware compatibility and controller configuration tools define module recognition, parameter setup, and operational status monitoring. Frequently Asked Questions Q: What analog input signals does the 1769-IF4FXOF2F support?A: The module accepts +/-10 V, 0-10 V, 0-5 V, 1-5 V, and 0-20 mA analog input signals through four configurable input channels. Q: Does the 1769-IF4FXOF2F provide both analog input and analog output functions?A: Yes. The module combines four analog input channels and two analog output channels in one 1769 Compact I/O module. Q: What power requirements apply to the 1769-IF4FXOF2F?A: The module requires an external power supply and consumes 90 mA from the 5.1 Volt backplane supply and 1.4 Amps at 24 Volts. Field Installation Guidelines Install the 1769-IF4FXOF2F in a compatible 1769 Compact I/O rack position and verify controller configuration before applying field signals. Use shielded analog wiring for voltage and current signal connections. Connect cable shields according to the control panel grounding practice to reduce electrical noise coupling. Separate analog signal cables from high-current power conductors, motor wiring, and switching circuits. Maintain correct terminal block wiring according to the module installation documentation. Verify input signal polarity, output device wiring, and external power supply connections before commissioning. Check I/O memory mapping parameters inside the controller project to confirm correct channel addressing.
$200.00 $100.00
-

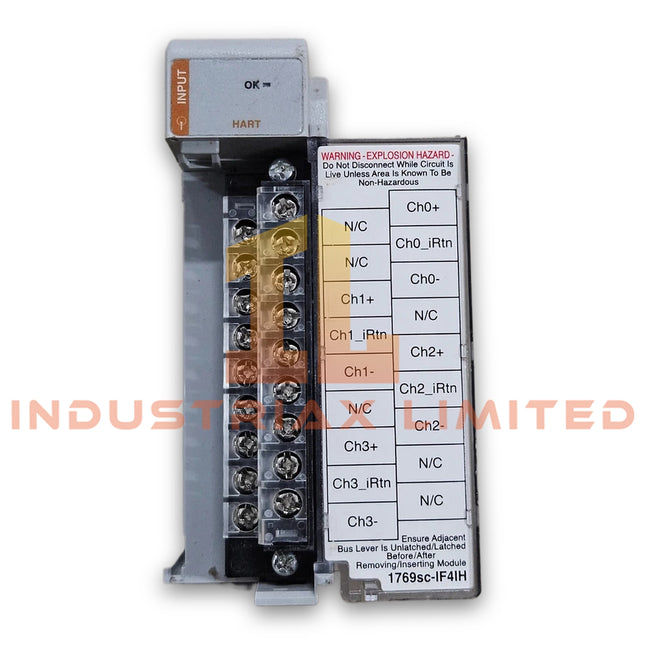

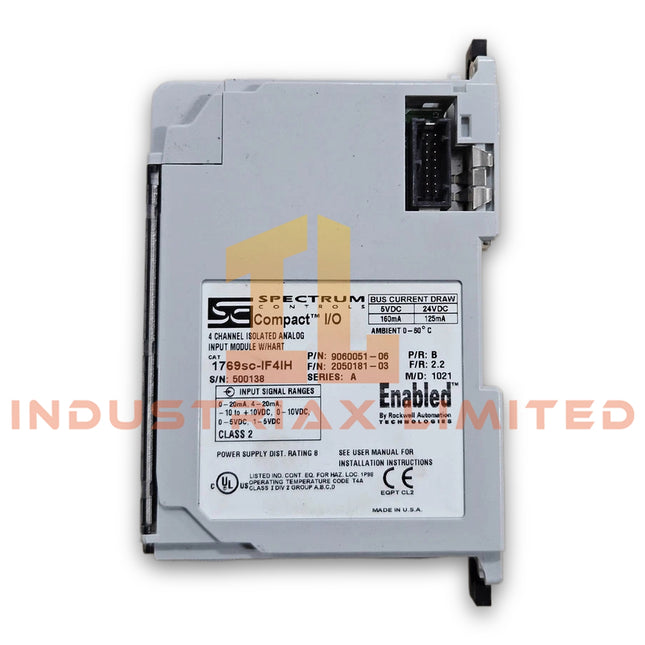

Allen Bradley Allen Bradley 1769sc-IF4IH Analog + HART Input Module
Allen Bradley 1769sc-IF4IH Analog + HART Input Module Configured for analog current, voltage, and HART signal acquisition in CompactLogix and MicroLogix 1500 systems, the Spectrum Controls 1769sc-IF4IH (1769sc-IF4IH Analog + HART Input Module) provides four configurable input channels with 16-bit resolution and Integer data conversion. Hardware Specifications Parameter Specification Model 1769sc-IF4IH Brand Spectrum Controls Product Type Analog + HART Input Module Product Line 1769 Compact I/O Compatible Controllers CompactLogix / MicroLogix 1500 Inputs 4 Input Types Analog + HART Input Voltage 0-5 V, 1-5 V, 0-10 V, +/-10 V Input Current 0-20 mA, 4-20 mA HART Variables PV, SV, TV, FV Resolution 16 bits Data Format Integer Configurable Data Formats Engineering units, Scaled-for-PID, Percent of full-scale, Raw/proportional data Channel Filter Frequencies 28.5 Hz, 50 Hz, 60 Hz, 300 Hz, 360 Hz Voltage Accuracy +/-0.2% of range Current Accuracy +/-0.35% of range Analog Update Time 18 to 488 ms HART Update Time 6 s for all channels Weight 0.63 lb (0.28 kg) EtherNet/IP and Compact I/O Signal Integration The 1769sc-IF4IH operates as a Compact I/O analog acquisition module and interfaces with compatible CompactLogix and MicroLogix 1500 controllers. It converts four analog input channels into Integer data for controller processing. Additionally, the module supports 4-20 mA HART signals and provides access to PV, SV, TV, and FV variables. The module supports several voltage and current ranges, allowing channel configuration for 0-5 V, 1-5 V, 0-10 V, +/-10 V, 0-20 mA, and 4-20 mA signals. Furthermore, selectable filter frequencies provide control over the response characteristics of individual input channels. Frequently Asked Questions (FAQ) Q: How many analog input channels does the 1769sc-IF4IH provide?A: The module provides four analog input channels. Each channel supports configured voltage or current input ranges. Q: Does the module support HART communication?A: Yes. The 1769sc-IF4IH supports HART on 4-20 mA inputs and provides PV, SV, TV, and FV variables. Q: What data format does the module provide to the controller?A: The module converts the acquired input signals into Integer data. Users can also configure engineering units, Scaled-for-PID, Percent of full-scale, or Raw/proportional data formats. Field Installation Guidelines Install the module according to the applicable Compact I/O mechanical installation requirements. Verify the selected voltage or current range before connecting field wiring. Route analog signal wiring separately from high-voltage power and high-current switching conductors. Use appropriate shielded cable for low-level analog and HART signal circuits where the installation requires additional noise control. Terminate cable shields according to the plant grounding standard and avoid creating unintended ground loops. Confirm polarity for all current and voltage input connections before energizing the circuit. For HART loops, verify that the complete loop wiring and field device support the required HART communication path. Check channel configuration against the connected field transmitter before placing the module into service. Keep signal wiring mechanically secured and separated from sources of electromagnetic interference. Verify controller scaling after installation by applying a known input signal and checking the resulting Integer value.
$200.00 $100.00
-

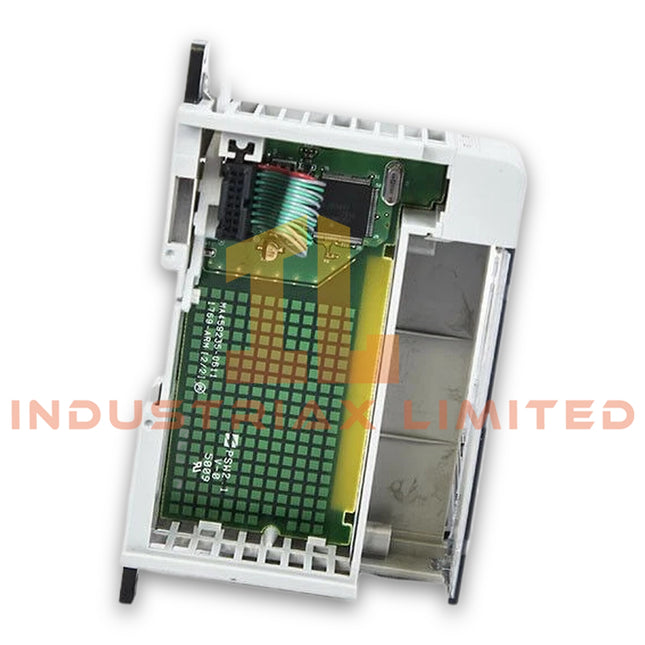

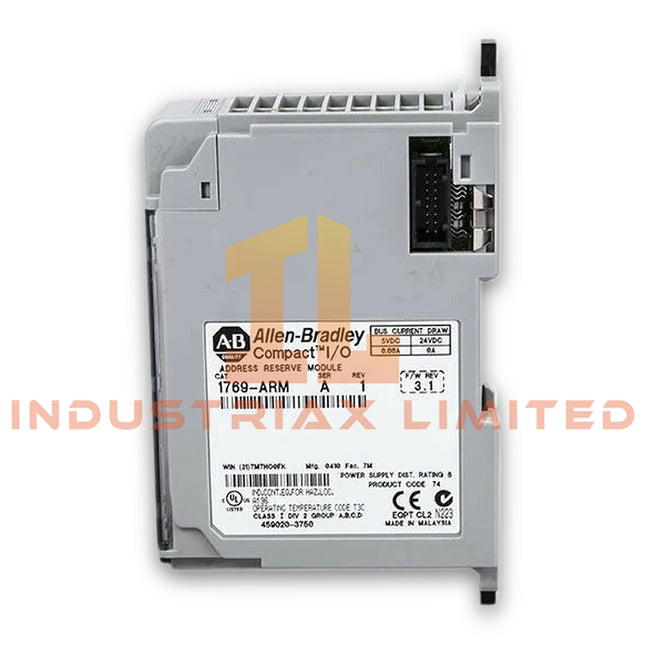

Allen Bradley Allen Bradley 1769-ARM CompactLogix Address Reserve Module
Allen Bradley 1769-ARM CompactLogix Address Reserve Module The Allen Bradley 1769-ARM, also cataloged as the 1769-ARM Address Reserve Module, operates as a dedicated hardware component for I/O address reservation within CompactLogix and MicroLogix controller systems. Hardware Specifications Parameter Specification Model 1769-ARM Brand Allen Bradley Origin USA Weight 0.25 lbs (0.11 kg) Power Consumption 0.3 W maximum heat dissipation Product Type Address Reserve Module Product Line CompactLogix Controller Compatibility CompactLogix and MicroLogix processors Series A and B Module Function I/O address reservation Backplane Current 60 mA at 5.1 V Isolation Voltage 30 Volts continuous Enclosure Type Open EtherNet/IP and Backplane Bus Integration The 1769-ARM module operates as a CompactLogix system component that reserves I/O addresses without providing field signal conversion. Therefore, it maintains the configured I/O layout while allowing future module expansion within the controller architecture. Additionally, the module supports backplane bus communication through the 1769 platform interface. This configuration enables consistent I/O density scaling because the controller retains predefined address locations during system modification. The module does not process analog or digital field signals. Instead, it provides a hardware position placeholder that preserves the controller memory map and I/O configuration structure. Frequently Asked Questions Q: What is the primary function of the 1769-ARM module?A: The 1769-ARM reserves an I/O address position in CompactLogix and MicroLogix systems without performing field signal input or output operations. Q: What backplane power does the 1769-ARM require?A: The module requires 60 mA current draw at 5.1 V through the backplane connection. Q: Can the 1769-ARM provide additional I/O channels?A: No. The module only reserves an address location and does not add physical I/O channels to the controller system. Field Installation Guidelines Install the 1769-ARM module on the 1769 CompactLogix I/O bus according to the controller installation manual. Verify that the module connector is fully seated before applying system power. Keep the backplane connection free from contamination and mechanical stress. Route control wiring separately from high-voltage power conductors to reduce electrical interference. Maintain proper grounding practices for the control cabinet and verify that unused I/O positions match the configured controller project. Confirm the controller I/O configuration after installation to ensure that the reserved address location matches the programmed system layout.
$200.00 $100.00
-

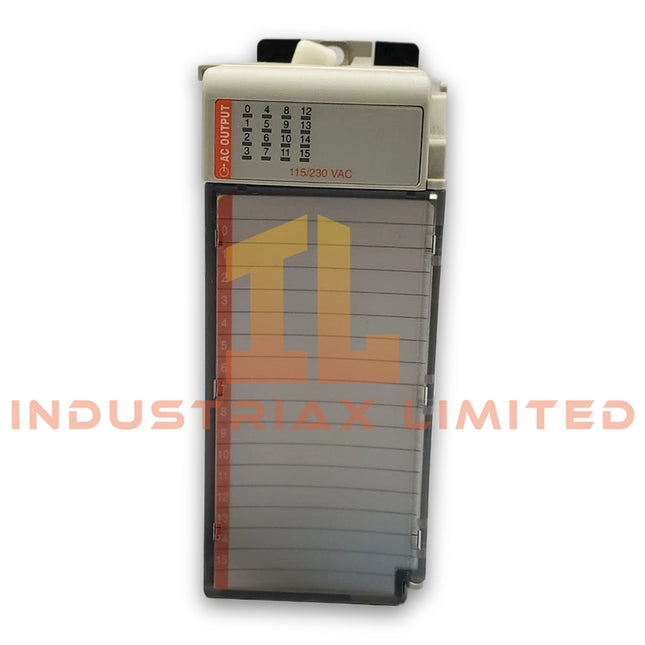

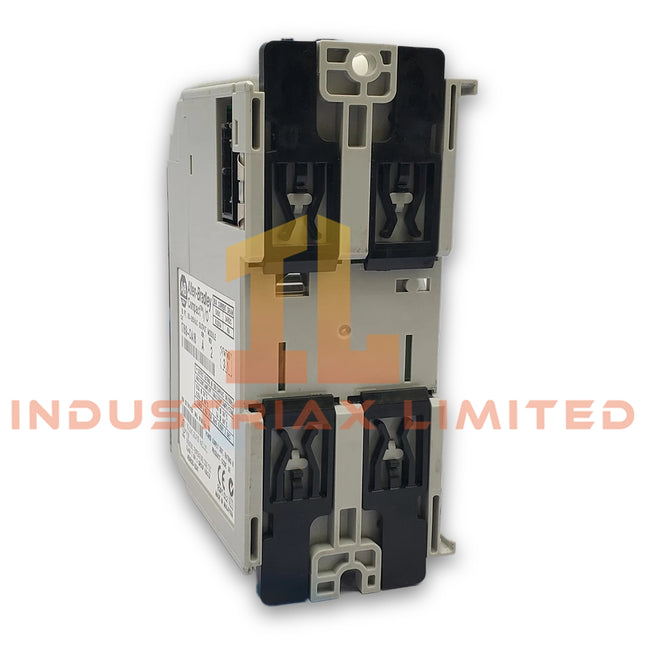

Allen Bradley Allen-Bradley 1769-OA16 CompactLogix Solid-State Output Module
Allen-Bradley 1769-OA16 CompactLogix Solid-State Output Module Configured for AC voltage switching in CompactLogix I/O systems, the Allen-Bradley 1769-OA16 (1769-OA16 Solid-State Output Module) provides direct electrical execution for 16 AC output channels through isolated output groups. The module supports 100-240 V AC operation and allows mixed AC voltage source configurations within the output architecture. Hardware Specifications Parameter Specification Model 1769-OA16 Brand Allen-Bradley Origin USA Product Type Solid-State Output Module Product Line CompactLogix Weight 1.00 lbs (0.45 kg) Operating Temp 0 to 60 deg C Power Consumption 4.9 W total heat dissipation Number of Outputs 16 outputs Output Configuration 2 isolated groups of 8 outputs Output Type Solid-state AC output Voltage Category 100-240 V AC Operating Voltage Range 85 to 265 V AC at 47 to 63 Hz AC Voltage Source Mixing Supports 120 V AC and 240 V AC source mixing Mounting Method DIN rail mounting Maximum Bus Current Draw 225 mA at 5 V DC line voltage Maximum Signal Delay 1/2 cycle for turn-on and turn-off Minimum On-State Current 10 mA Maximum On-State Voltage Drop 1.5 V AC at 0.5 A Industrial Control Interface and I/O Architecture The 1769-OA16 integrates with CompactLogix controllers through the 1769 backplane bus interface. Therefore, the module exchanges output command data through the local I/O architecture while maintaining two isolated output groups for AC circuit separation. In addition, the module supports I/O density scaling within CompactLogix configurations by providing 16 solid-state AC output points in a compact form factor. The isolated group design helps engineers organize different AC voltage circuits while maintaining electrical separation between output sections. The module operates with PLC-based control architectures using backplane bus communication. Furthermore, Allen-Bradley CompactLogix platforms provide structured firmware and controller compatibility management for connected I/O modules. Frequently Asked Questions Q: Can the 1769-OA16 operate with both 120 V AC and 240 V AC loads in one module?A: Yes. The module supports AC voltage source mixing and allows 120 V AC and 240 V AC sources within its two isolated output groups. Q: What is the maximum current draw from the CompactLogix bus?A: The module requires a maximum bus current draw of 225 mA at 5 V DC line voltage. Q: Does the 1769-OA16 use mechanical relays for switching outputs?A: No. The module uses solid-state AC output technology for output switching. Field Installation Guidelines Install the 1769-OA16 on a compatible DIN rail or panel-mounted CompactLogix assembly according to the controller system installation requirements. Before wiring, verify that the connected AC voltage source matches the module voltage category range. Separate different AC circuits according to the isolated output group structure to maintain proper electrical organization. Route AC power wiring separately from low-level signal wiring and communication cables. Use appropriate grounding methods for the control cabinet and connect shields according to site electrical standards. Confirm terminal connections, load ratings, and controller I/O configuration before applying power. Avoid exceeding the specified output current limitations to prevent thermal stress on the solid-state switching components.
$200.00 $100.00
-

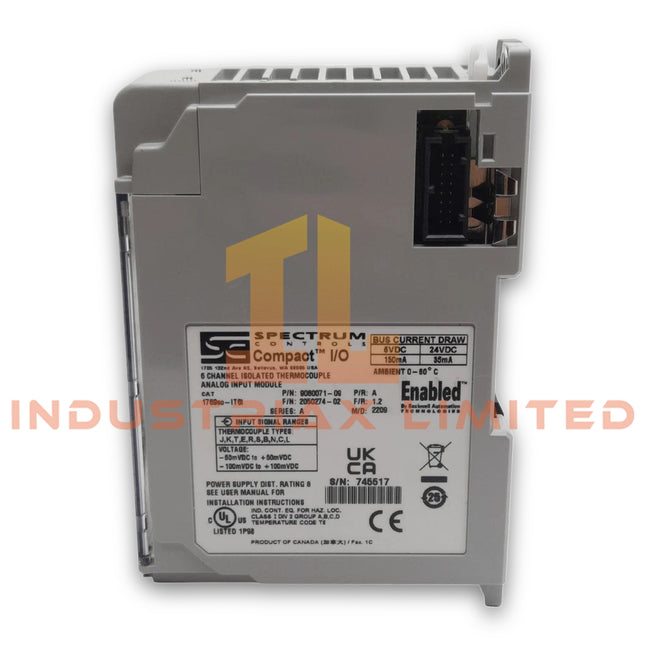

Allen Bradley Allen Bradley 1769sc-IT6I Isolated Thermal Input Module
Allen Bradley 1769sc-IT6I Isolated Thermal Input Module Configured for thermocouple and millivolt signal acquisition in CompactLogix and SLC control platforms, the Allen Bradley 1769sc-IT6I (1769sc-IT6I Isolated Thermal Input Module) provides direct physical and electrical measurement of temperature and low-level voltage signals. Hardware Specifications Parameter Specification Model 1769sc-IT6I Brand Allen Bradley Origin USA Product Type Isolated Thermal Input Module Product Line CompactLogix Series SLC Module Type Thermocouple / mV Input Module Weight 2.00 lbs (0.91 kg) Power Consumption 150 mA at 5 V maximum; 35 mA at 24 V maximum Input Channels 6 individually isolated inputs Input Types 6 TC, mV Compatible Thermocouple Types J, K, T, E, R, B, S, N, C, and L Compatible mV Signals +/-50 mV and +/-100 mV Resolution 16 bits Input Voltage Range 50-100 mV Input Impedance Greater than 1 Mohm Channel-to-Channel Isolation 125 VAC Field Wiring-to-Backplane Isolation 125 VAC Field Wiring-to-Chassis Ground Isolation 125 VAC Input Filter Options 4.17 Hz, 10 Hz, 16.7 Hz, 19.6 Hz, 62 Hz, and 470 Hz Channel Update Time 0.244 sec, 0.104 sec, 0.064 sec, 0.055 sec, 0.020 sec, and 0.006 sec Input Overvoltage Protection +/-35 VDC continuous Backplane Current Required 150 mA at 5 V maximum; 35 mA at 24 V maximum Certifications UL/cUL Listed, ANSI ISA 12.12.01 Class I Div 2 Groups ABCD, CE Recommended Cable Shielded twisted-pair TC extension wire for thermocouple inputs; Belden 8761 or equivalent for mV inputs UPC 850637004151 Industrial PLC I/O Integration and Signal Isolation The 1769sc-IT6I uses individually isolated input channels to separate thermocouple and millivolt signal paths. Therefore, the module reduces interference between measurement circuits and supports direct connection of multiple field temperature devices. The module provides 16-bit signal conversion and supports multiple thermocouple types, including J, K, T, E, R, B, S, N, C, and L. Additionally, it accepts +/-50 mV and +/-100 mV analog signals for low-level measurement applications. The Allen Bradley CompactLogix platform communicates with this module through the controller I/O architecture. The design supports PLC-based temperature monitoring systems where channel isolation and signal accuracy are required. Frequently Asked Questions Q: How many thermocouple input channels does the 1769sc-IT6I provide?A: The module provides six individually isolated thermocouple and millivolt input channels. Q: What thermocouple sensor types can the 1769sc-IT6I process?A: The module supports Type J, K, T, E, R, B, S, N, C, and L thermocouple sensors. Q: What cable type should be used for field wiring?A: Use shielded twisted-pair thermocouple extension wire for TC signals and Belden 8761 or equivalent cable for millivolt inputs. Field Installation Guidelines Install the 1769sc-IT6I according to the controller platform installation requirements and maintain proper module alignment within the I/O assembly. Use shielded twisted-pair wiring for thermocouple connections to reduce electrical noise. Connect cable shields according to the plant grounding standard and avoid routing sensor wiring near high-current power conductors. Verify thermocouple polarity before commissioning because reversed connections can produce incorrect temperature readings. Also, check field wiring insulation and isolation conditions before applying power to the module. Maintain proper separation between low-level millivolt signals and switching circuits to reduce measurement disturbances. Confirm the configured input type matches the connected sensor before placing the control system into operation.
$200.00 $100.00
-

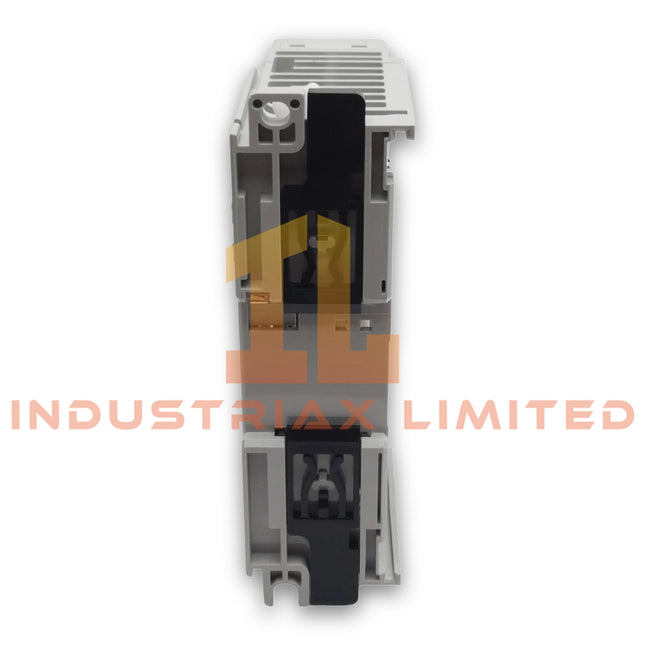

Allen Bradley Allen Bradley 1769sc-IT6I Isolated Thermocouple Input Module
Allen Bradley 1769sc-IT6I Isolated Thermocouple Input Module Configured for isolated thermocouple signal acquisition in Allen Bradley SLC controller platforms, the Allen Bradley 1769sc-IT6I (1769sc-IT6I Isolated Thermocouple Input Module) provides direct electrical measurement of thermocouple and millivolt signals through six individually isolated input channels. Hardware Specifications Parameter Specification Model 1769sc-IT6I Brand Allen Bradley / Spectrum Controls Origin USA Product Type Isolated Thermocouple Input Module Product Line CompactLogix compatible I/O module Series SLC Module Type Thermocouple / mV input module Weight 2.00 lbs (0.91 kg) Power Consumption 150 mA at 5 V maximum; 35 mA at 24 V maximum Input Channels Six individually isolated channels Input Types Thermocouple and millivolt input Compatible Thermocouple Types J, K, T, E, R, B, S, N, C, and L Compatible mV Signals +/-50 mV and +/-100 mV Resolution 16 bits Input Impedance Greater than 1 Mohm Channel Isolation 125 VAC channel-to-channel; 125 VAC field wiring-to-backplane; 125 VAC field wiring-to-chassis ground Input Overvoltage Protection +/-35 VDC continuous Input Filters 4.17 Hz, 10 Hz, 16.7 Hz, 19.6 Hz, 62 Hz, and 470 Hz Channel Update Time 0.244 sec, 0.104 sec, 0.064 sec, 0.055 sec, 0.020 sec, and 0.006 sec Backplane Current Required 150 mA at 5 V maximum; 35 mA at 24 V maximum Certifications UL/cUL Listed, ANSI ISA 12.12.01 Class I Div 2 Groups ABCD, CE Recommended Cable Shielded twisted-pair thermocouple extension wire for TC inputs; Belden 8761 or equivalent for mV inputs UPC 850637004151 PLC I/O Backplane Integration and Signal Processing The 1769sc-IT6I integrates with Allen Bradley controller platforms through the SLC architecture and processes thermocouple and millivolt input signals. The module provides six independent isolated measurement channels, which reduce electrical interference between field signals and controller-side circuits. The module supports I/O density scaling through six configurable input channels. Additionally, the 16-bit conversion resolution enables the controller system to process low-level thermocouple and millivolt signals for temperature measurement applications. Frequently Asked Questions Q: Which thermocouple types does the 1769sc-IT6I support?A: The module supports Type J, K, T, E, R, B, S, N, C, and L thermocouple sensors. It also accepts +/-50 mV and +/-100 mV input signals. Q: Does the 1769sc-IT6I provide channel isolation?A: Yes. The module provides individual channel isolation with 125 VAC isolation ratings between channels, field wiring and backplane, and field wiring and chassis ground. Q: What power load does the module place on the controller backplane?A: The module requires a maximum of 150 mA at 5 V and 35 mA at 24 V from the system power supply. Field Installation Guidelines Install the 1769sc-IT6I according to the controller platform installation requirements and maintain correct module orientation within the I/O assembly. Use shielded twisted-pair thermocouple extension wire for thermocouple connections. For millivolt inputs, use Belden 8761 cable or an equivalent shielded cable type. Route thermocouple and millivolt signal wiring separately from high-voltage power conductors and switching devices to reduce electrical noise coupling. Connect cable shields according to the control system grounding practice and avoid multiple grounding points that can introduce ground loops. Verify sensor polarity, input channel configuration, and thermocouple type settings before placing the controller system into operation. Confirm field wiring insulation and terminal connections before applying system power.
$200.00 $100.00
-

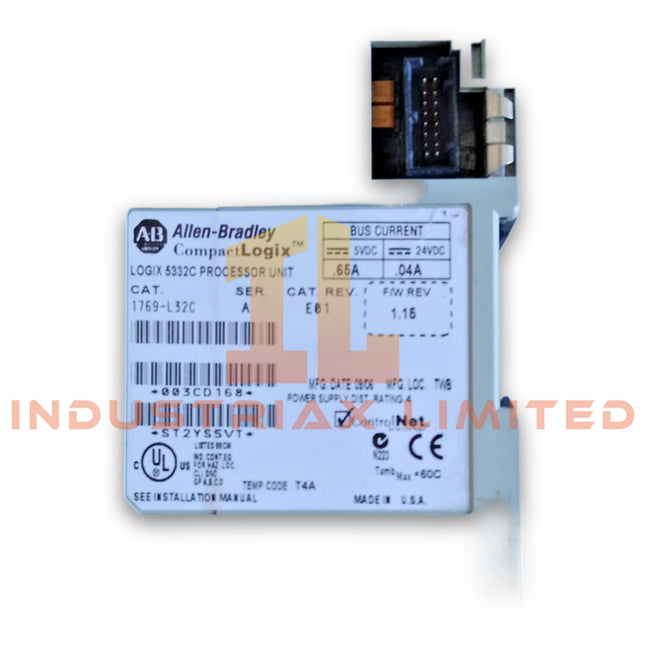

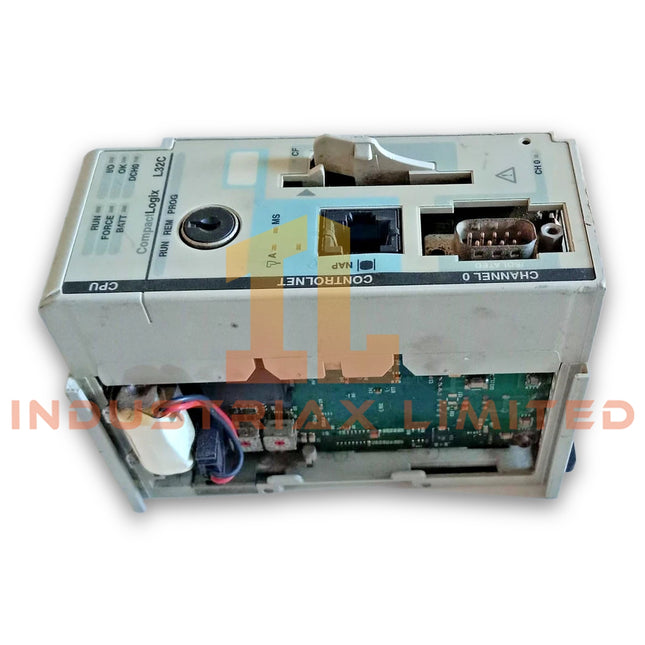

Allen Bradley Allen-Bradley 1769-L32C CompactLogix Processor Module
Allen-Bradley 1769-L32C CompactLogix Processor Module The Allen-Bradley 1769-L32C, also cataloged as the 1769-L32C Processor Module, operates as a dedicated hardware component for executing control logic and serial data communication within CompactLogix controller platforms. Hardware Specifications Parameter Specification Model 1769-L32C Brand Allen-Bradley Origin USA Product Line CompactLogix Module Type Processor Module Category PLCs Communication Serial User Memory 750 KB Series A and B Weight 0.40 kg (0.88 lbs) Dimensions Not specified in provided data Operating Temp 0 to 60 deg C Storage Temp -40 to 85 deg C Power Supply Distance Rating 4 modules Operating Shock, DIN Rail Mount 20 g Operating Shock, Panel Mount 30 g Wire Type Copper, 90 deg C Solid Wire Size 22 to 14 AWG Stranded Wire Size 22 to 16 AWG Industrial Control Platform Integration The 1769-L32C processor module communicates through the CompactLogix backplane architecture and manages controller operations through embedded processing resources. In addition, the module supports system configurations where the processor installation position remains within four modules of the power supply. Furthermore, Allen-Bradley CompactLogix controllers apply structured firmware and hardware compatibility management to maintain communication between processor modules and connected I/O assemblies. The 1769-L32C supports PLC control tasks through its 750 KB user memory capacity and serial communication interface. Frequently Asked Questions Q: What is the maximum operating shock rating of the 1769-L32C module?A: The 1769-L32C withstands 20 g operating shock when installed on a DIN Rail and 30 g when installed on a panel. Q: How far can the 1769-L32C processor module be installed from the system power supply?A: The processor module supports a power supply distance rating of four modules, allowing installation up to four modules away from the power supply. Q: What communication interface does the 1769-L32C provide?A: The 1769-L32C provides serial communication capability for CompactLogix control system applications. Field Installation Guidelines Install the 1769-L32C module according to the CompactLogix system assembly requirements and maintain correct module positioning within the power supply distance limitation. Use copper conductors with the specified wire temperature rating and verify that wire sizes match the terminal requirements before energizing the system. Maintain proper separation between communication wiring and high-voltage power conductors to reduce electrical interference. Connect shielding and grounding according to the installation standards of the control cabinet and the connected equipment. Verify DIN Rail or panel mounting conditions before operation. Confirm that the installation environment remains within the specified operating temperature range of 0 to 60 deg C.
$200.00 $100.00
-

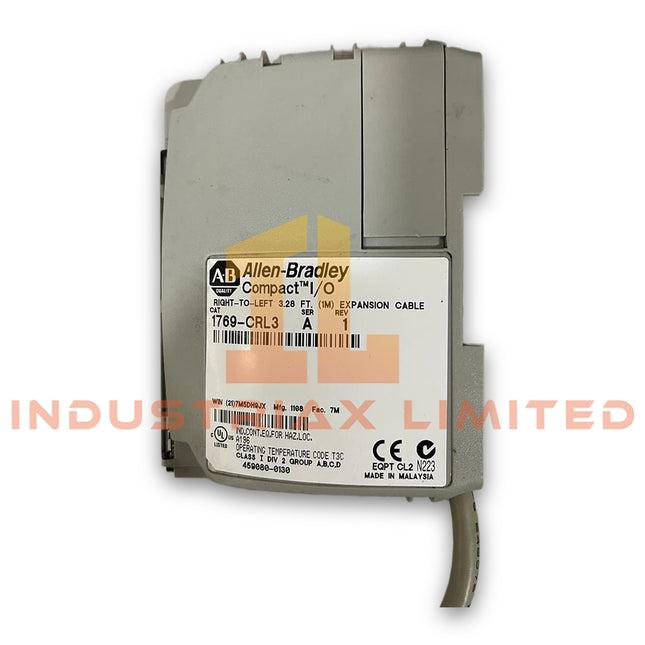

Allen Bradley Allen-Bradley 1769-CRL3 CompactLogix Expansion Cable
Allen-Bradley 1769-CRL3 CompactLogix Expansion Cable Configured for right-to-left expansion bus connection in CompactLogix systems, the Allen-Bradley 1769-CRL3 (1769-CRL3 Expansion Cable) provides direct physical interconnection between Compact I/O modules. It supports a 1 meter cable length for controller and I/O expansion assemblies. Hardware Specifications Parameter Specification Model 1769-CRL3 Brand Allen-Bradley Origin USA Product Type Expansion Cable Product Line CompactLogix Category PLC Components Series A and B Cable Type Right-to-left expansion cable Cable Length 1 m (3.28 ft) Weight 0.20 kg (0.44 lbs) Dimensions Not specified in available data Operating Temp 0 to 60 deg C (32 to 140 deg F) Isolation Voltage 30 V continuous Backplane Current 1.4 A at 24 V Power Consumption 33.6 W Power Dissipation 7.5 W Enclosure Type Open UPC 662468993029 Industrial Control Bus and Expansion Compatibility The 1769-CRL3 operates as a CompactLogix expansion interconnection component and maintains electrical continuity between connected modules. In addition, the cable supports Compact I/O architecture requirements by providing the physical link required for left-to-right or right-to-left module arrangement depending on system configuration. The CompactLogix platform uses structured backplane communication between controller assemblies and I/O modules. Therefore, proper cable orientation, seating, and mechanical installation directly affect expansion bus operation. The cable does not perform signal processing functions; it provides the required electrical path between connected hardware segments. Frequently Asked Questions (FAQ) Q: What function does the Allen-Bradley 1769-CRL3 perform in a CompactLogix system?A: The 1769-CRL3 provides a right-to-left expansion connection between CompactLogix 1769 series modules. It transfers electrical communication and power connections required by the expansion assembly. Q: Can the 1769-CRL3 operate outside the specified temperature range?A: The specified operating range is 0 to 60 deg C. Operation outside this range requires system-level environmental evaluation and may affect cable performance. Q: Does the 1769-CRL3 require ESD protection during handling?A: Yes. Technicians should use static-safe workstations and protective packaging during storage and installation to reduce electrostatic discharge risks. Field Installation Guidelines Install the 1769-CRL3 with power removed from the CompactLogix assembly. Verify the cable direction before connection because the module interface uses a defined expansion orientation. Route the cable away from high-voltage conductors, motor power cables, and sources of electromagnetic interference. Maintain proper cable management to prevent mechanical stress on the connectors. Use ESD-controlled handling procedures during installation and storage. Inspect connectors before installation and confirm that the cable is fully seated within the expansion interface.
$200.00 $100.00
-

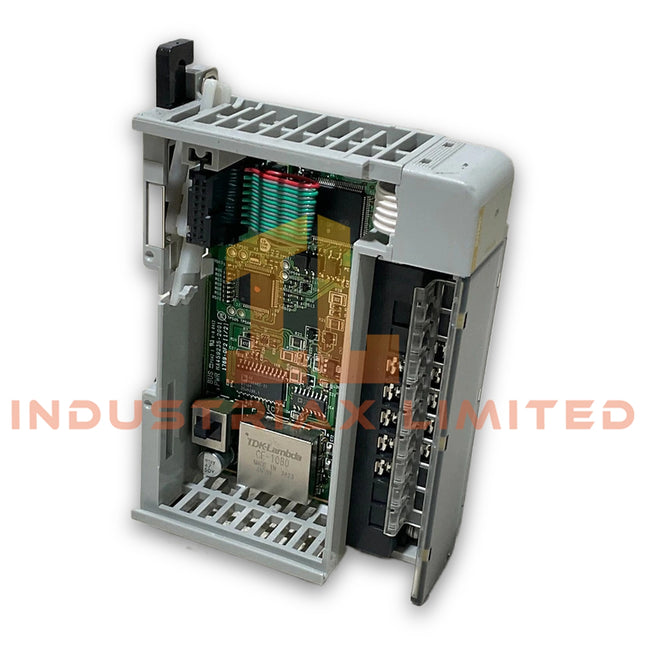

Allen Bradley Allen-Bradley 1769-2WS Weigh Scale Module
Allen-Bradley 1769-2WS Weigh Scale Module The Allen-Bradley 1769-2WS, also cataloged as the 1769-2WS Weigh Scale Module, operates as a dedicated hardware component for load cell signal measurement within CompactLogix and MicroLogix 1500 controller platforms. It processes millivolt strain gauge inputs and provides excitation output for weighing applications. Hardware Specifications Parameter Specification Model 1769-2WS Brand Allen-Bradley Origin United States Product Type Weigh Scale Module Series CompactLogix 1769 Compact I/O Weight 2.00 lbs (0.91 kg) Dimensions Not specified Operating Temp 0 to 60 deg C (32 to 140 deg F) Power Consumption < 0.5 A at 5.1 VDC from backplane Module Type Dual-channel weighing scale input module Compatible Controllers CompactLogix and MicroLogix 1500 Input Channels 2 channels Input Signal Range -0.3 mV to +15.3 mV Sense Input +5 VDC Excitation Output +5 VDC Backplane Current < 0.5 A at 5 VDC Maximum Load Cells Supported Up to 8 load cells Internal Resolution 1:8,388,608 Update Rate 100 updates per second Conversion Rate 100 updates per second Compatible Transducers Strain gauges, load sensors, load cells Weighing Modes Net, Gross, Rate-of-change Calibration Method Electronic C2 calibration and traditional test weight calibration EtherNet/IP and Backplane Integration Characteristics The 1769-2WS integrates with Allen-Bradley CompactLogix architectures through the 1769 backplane bus interface. Therefore, the module exchanges weighing data with the controller while maintaining the defined I/O update cycle. The module supports industrial control configurations that require I/O density scaling across CompactLogix systems. In addition, its firmware architecture follows the Compact I/O platform compatibility requirements for controller communication. The module converts low-level load cell signals from -0.3 mV to +15.3 mV into controller-readable weighing data. Furthermore, it supplies +5 VDC excitation power for connected load cells and supports multiple load cell configurations through parallel sensor wiring. Frequently Asked Questions Q: What type of input signals does the 1769-2WS accept?A: The module accepts strain gauge and load cell signals within a -0.3 mV to +15.3 mV input range and provides +5 VDC excitation output. Q: How many load cells can the 1769-2WS support?A: The module supports connection of up to eight load cells depending on the system wiring configuration and sensor specifications. Q: Does the 1769-2WS require external power?A: No. The module receives operating power from the CompactLogix backplane and draws less than 0.5 A at 5.1 VDC. Field Installation Guidelines Install the 1769-2WS module on a compatible 1769 Compact I/O backplane following Allen-Bradley installation procedures. Connect load cell wiring with proper signal polarity to maintain accurate millivolt measurement. Use shielded instrumentation cable for load cell connections and terminate cable shields according to site grounding practices. Keep load cell signal wiring separated from high-voltage power conductors and sources of electrical interference. Verify excitation voltage and sensor wiring before applying system power. Perform calibration procedures after installation using either electronic C2 calibration or approved test weights. Confirm controller I/O configuration matches the installed module type before placing the system into operation.
$200.00 $100.00
-

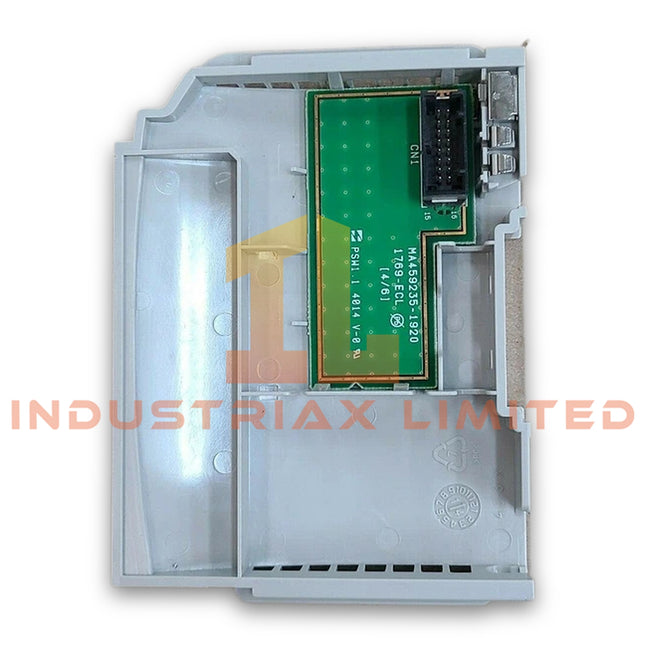

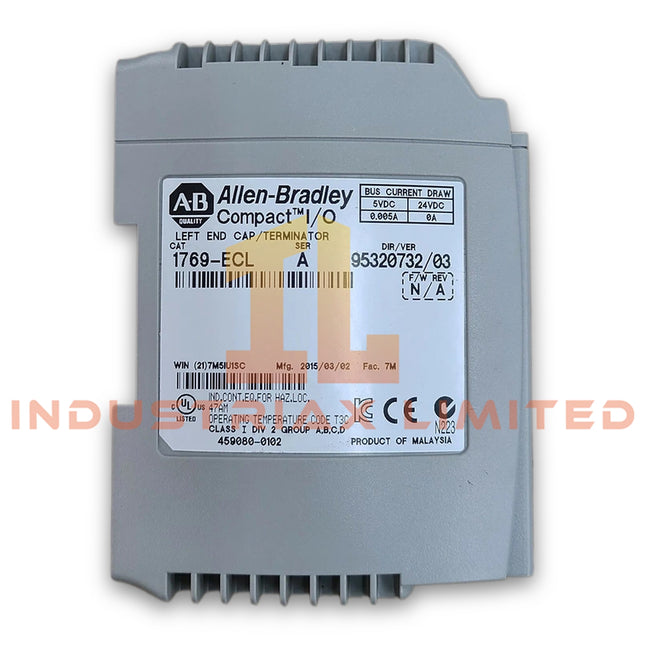

Allen Bradley Allen-Bradley 1769-ECL CompactLogix End Cap Terminator
Allen-Bradley 1769-ECL CompactLogix End Cap Terminator The Allen-Bradley 1769-ECL, also cataloged as the 1769-ECL End Cap/Terminator, operates as a dedicated hardware component for terminating the left side of the CompactLogix 1769 Compact I/O communication bus. This module provides electrical bus closure and maintains proper backplane configuration for CompactLogix controller assemblies. Hardware Specifications Parameter Specification Model 1769-ECL Brand Allen-Bradley Origin United States Product Type CompactLogix End Cap/Terminator Product Line CompactLogix 1769 Compact I/O Series A and B Module Type Left End Cap Weight 0.13 lbs (0.06 kg) Dimensions 87 x 15 x 118 mm Operating Temp 0 to 60 deg C (32 to 140 deg F) Enclosure Type Rating Open Style Maximum Bus Current Draw 5 mA at 5.1 VDC Current Draw at 24 VDC 0 mA Backplane Current 1.4 A at 24 VDC Power Consumption 33.6 W Power Dissipation 7.5 W UPC 662468993050 EtherNet/IP and CompactLogix Bus Configuration Characteristics The 1769-ECL functions as a physical termination component within CompactLogix 1769 I/O assemblies. Furthermore, it closes the left side of the communication bus and supports correct module positioning within the controller system. Allen-Bradley CompactLogix platforms use backplane bus communication to exchange control data between controller components and I/O modules. Therefore, the end cap maintains bus continuity and prevents an open-ended configuration condition at the assembly boundary. The module requires minimal bus power consumption, drawing 5 mA at 5.1 VDC. In addition, it does not consume current from the 24 VDC supply path. The open-style construction supports installation inside industrial control cabinets with appropriate environmental protection. Frequently Asked Questions Q: What is the installation position of the 1769-ECL module?A: The 1769-ECL is installed on the left end of a CompactLogix 1769 Compact I/O assembly. It is designed specifically as a left-side bus termination component. Q: Does the 1769-ECL provide additional I/O channels or communication ports?A: No. The 1769-ECL is a passive end cap component and does not provide input, output, or external communication functions. Q: What power does the 1769-ECL consume from the system bus?A: The module draws 5 mA at 5.1 VDC and draws 0 mA at 24 VDC according to the specified electrical characteristics. Field Installation Guidelines Install the 1769-ECL directly on the left side of the CompactLogix 1769 Compact I/O assembly after all required modules are positioned. Verify that the end cap engages correctly with the adjacent module connector before system power application. Ensure that the controller rack assembly remains mechanically secured inside the control enclosure. Keep the CompactLogix backplane connection area free from contamination, moisture, and conductive debris. Additionally, route field wiring separately from high-voltage conductors to reduce electrical interference. Confirm that the module placement matches the approved CompactLogix system configuration before commissioning the controller assembly.
$200.00 $100.00
-

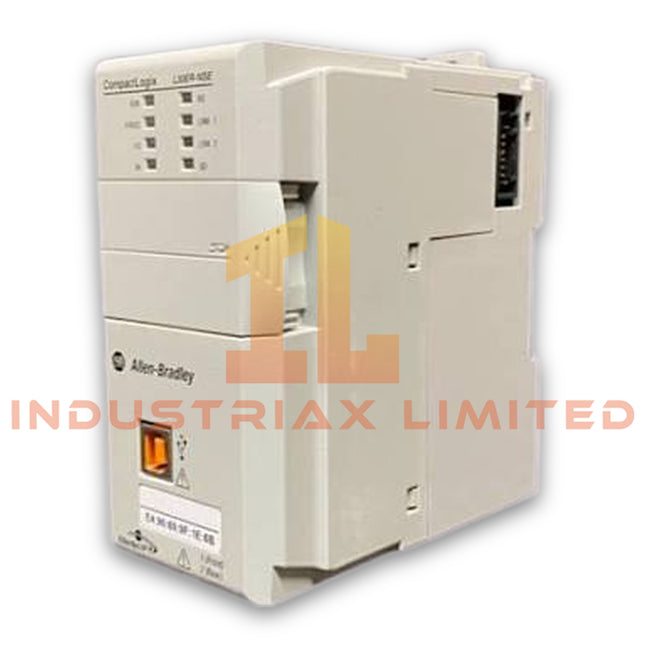

Allen Bradley Allen Bradley 1769-L30ER-NSE CompactLogix Processor Module
Allen Bradley 1769-L30ER-NSE CompactLogix Processor Module Configured for controller execution and EtherNet/IP communication tasks in CompactLogix automation systems, the Allen Bradley 1769-L30ER-NSE (1769-L30ER CompactLogix Processor Module) provides direct processing control with dual Ethernet ports, DLR support, and 1 MB user memory capacity. Hardware Specifications Parameter Specification Model 1769-L30ER-NSE Brand Allen Bradley Origin United States Product Type Processor Module Product Line CompactLogix Controller Series CompactLogix 5370 L3 Weight 12.00 lbs (5.44 kg) Dimensions 11 x 8 x 6 inches Memory Capacity 1 MB Communication Ports Dual Ethernet Ethernet Channels 16 Network Feature Device Level Ring (DLR) enabled I/O Expansion Capacity Supports up to 8 I/O extension modules Real-Time Clock No supercapacitor for RTC backup SD Card Included 1 GB SD card Maximum SD Card Support Up to 2 GB SD card Module Type CPU Module Communication Interface Serial communication listed in catalog data Replacement Terminal Block 1769-RTBN18 Wire Type Copper, 90 deg C Solid Wire Size 22-14 AWG Stranded Wire Size 22-16 AWG UPC 885630101217 EtherNet/IP Network and CompactLogix Control Features The 1769-L30ER-NSE integrates dual Ethernet communication interfaces for CompactLogix controller networks. Therefore, the module supports Ethernet-based system architectures with Device Level Ring (DLR) capability for network topology management. The controller provides 16 Ethernet communication channels and allows I/O density scaling through support for up to 8 CompactLogix I/O extension modules. In addition, the processor uses removable SD storage for application data handling, with the supplied 1 GB card and compatibility with cards up to 2 GB. The Allen Bradley CompactLogix platform uses deterministic EtherNet/IP communication methods for industrial controller synchronization. Furthermore, firmware flash compatibility and controller configuration management depend on the installed processor firmware revision and engineering software version. Frequently Asked Questions Q: Does the 1769-L30ER-NSE include an RTC backup supercapacitor?A: No. The 1769-L30ER-NSE does not include a supercapacitor for real-time clock backup functions. Q: What SD card capacity does the 1769-L30ER-NSE support?A: The controller ships with a 1 GB SD card and supports SD cards up to 2 GB capacity. Q: How many I/O expansion modules can connect with this processor?A: The controller supports up to 8 I/O extension modules within the CompactLogix system configuration. Field Installation Guidelines Install the 1769-L30ER-NSE in a CompactLogix chassis according to the controller installation manual and approved panel layout requirements. Route Ethernet communication cables separately from high-voltage power conductors to reduce electrical interference. Use shielded communication cables where required by the plant grounding design, and connect shields according to the system grounding practice. Verify terminal block wiring before applying power. Use the specified copper conductors and maintain correct wire preparation for the 1769-RTBN18 replacement terminal block. Before controller commissioning, confirm firmware compatibility, I/O configuration settings, Ethernet addressing, and SD card installation status through the approved programming environment.
$200.00 $100.00
You have seen 24 out of 62 products
