Honeywell FSC (Fail Safe Controller)

Overview The 10006/2/1 Battery Communication Module from Honeywell supports high-speed data exchange and diagnostic control in industrial automation. Designed for the FSC System, it integrates seamlessly into distributed control systems (DCS) and enhances operational reliability. Honeywell built the 10006/2/1 to handle complex control tasks in demanding environments. Its compact 4 × 18.5 × 12.7 cm form factor and lightweight 0.24 kg design simplify installation and reduce panel load. The module supports Ethernet routing and advanced diagnostics for real-time system monitoring. Technical Specifications Specification Details Model Number 10006/2/1 Manufacturer Honeywell Module Type Communication Module System Compatibility DCS Product Range FSC System Condition Brand New Dimensions 4 × 18.5 × 12.7 cm Weight 0.24 kg HS Code 8537101190 Communication Ethernet Router Lead Time In Stock Minimum Order Qty 1 Origin USA Features The 10006/2/1 supports real-time diagnostics for proactive system maintenance and uptime. Compact housing fits easily into modular control racks and tight enclosures. Lightweight design reduces structural load and simplifies handling during installation. Ethernet interface enables fast, secure communication with field devices and controllers. Built for continuous operation in high-demand industrial environments.

Read more less

Overview The 10307/1 Vertical Bus Terminator from Honeywell ensures safe and stable communication across distributed control systems. Designed for the FSC System, it supports Ethernet routing and integrates easily into industrial automation networks.Honeywell built the 10307/1 to deliver consistent performance in hazardous environments. Its compact dimensions and lightweight design simplify installation while maintaining high safety standards. The module supports multiple protocols, enabling flexible system integration. Technical Specifications Specification Details Model Number 10307/1 Manufacturer Honeywell Module Type Vertical Bus Terminator System Compatibility DCS Product Range FSC System Condition Brand New Dimensions 2.5 × 12.7 × 20.3 cm Weight 0.2 kg HS Code 8537101190 Communication Ethernet Router Lead Time In Stock Minimum Order Qty 1 Origin USA Features The 10307/1 supports real-time safety monitoring and diagnostics for critical control systems. Compact 2.5 × 12.7 × 20.3 cm design fits easily into vertical rack configurations. Lightweight 0.2 kg module reduces structural load and simplifies handling. Ethernet interface enables fast, secure communication with controllers and field devices. Built to withstand harsh industrial conditions while maintaining reliable performance.

Read more less

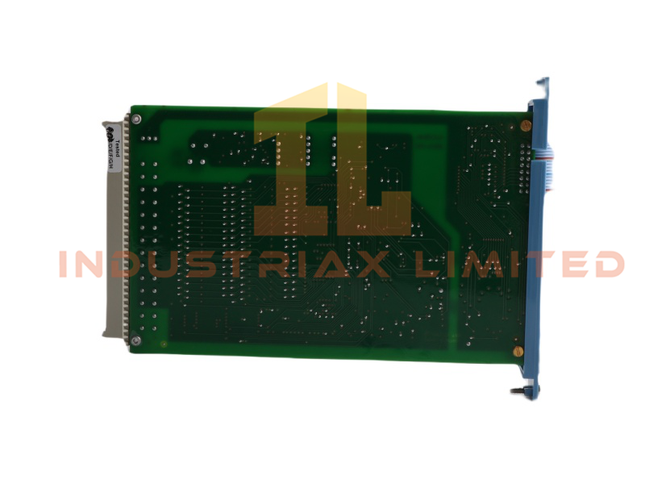

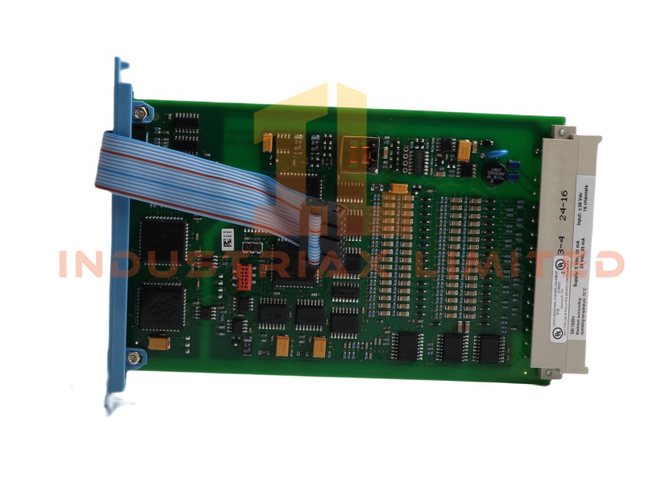

Overview The FC-SAI-160M Safety Manager System Module from Honeywell delivers high-integrity analog input for critical safety applications. Designed for distributed control systems (DCS), it supports real-time monitoring and proactive diagnostics in industrial environments. This compact module measures 2 × 19 × 12.8 cm and weighs only 0.14 kg, making it ideal for space-constrained installations. Honeywell engineered the FC-SAI-160M to handle multiple analog inputs, ensuring reliable data acquisition from field sensors and devices. Technical Specifications Specification Details Model Number FC-SAI-160M Manufacturer Honeywell Module Type Safety Manager System Module System Compatibility DCS Product Range Safety System Condition Brand New Dimensions 2 × 19 × 12.8 cm Weight 0.14 kg HS Code 8537101190 Communication Ethernet Router Lead Time In Stock Minimum Order Qty 1 Origin USA Discontinued Status Active Features The FC-SAI-160M supports multi-channel analog input for safety-critical monitoring. Compact housing simplifies integration into modular control panels and enclosures. Lightweight 0.14 kg design reduces load and eases installation. Ethernet interface enables fast, secure communication with control systems. Built-in diagnostics continuously monitor signal quality and module health.

Read more less

Overview The 10012/1/2 Central Processing Unit from Honeywell delivers high-speed control and diagnostics for industrial automation. Designed for the FSC System, it integrates seamlessly into distributed control systems (DCS) and supports Ethernet routing for efficient data exchange. Honeywell built the 10012/1/2 to withstand harsh industrial conditions while maintaining consistent performance. Its compact form factor and lightweight design simplify installation and reduce panel load. Operators benefit from real-time monitoring and fault-tolerant control capabilities. Technical Specifications Specification Details Model Number 10012/1/2 Manufacturer Honeywell Module Type Central Processing Unit System Compatibility DCS Product Range FSC System Condition Brand New Dimensions 4 × 18.5 × 12.8 cm Weight 0.36 kg HS Code 8537101190 Communication Ethernet Router Lead Time In Stock Minimum Order Qty 1 Origin USA Discontinued Status Discontinued on Dec 31, 2018 Features The 10012-1-2 supports real-time diagnostics for proactive system maintenance and uptime. Compact 4 × 18.5 × 12.8 cm housing fits easily into modular control racks. Lightweight 0.36 kg design reduces structural load and simplifies handling. Ethernet interface enables fast, secure communication with field devices and controllers. Fault-tolerant architecture ensures reliable performance in mission-critical environments.

Read more less

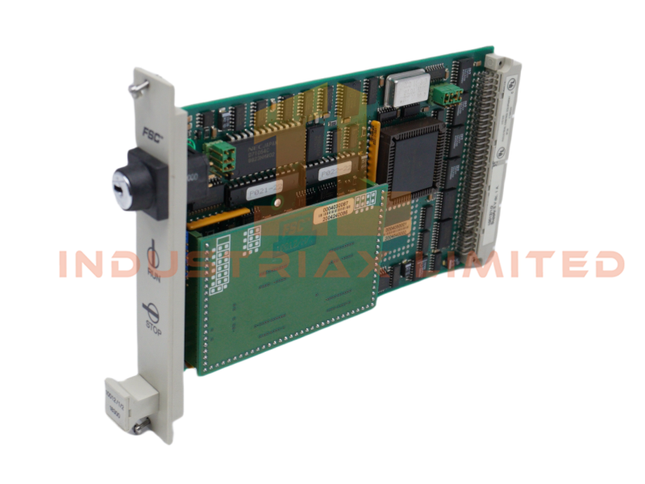

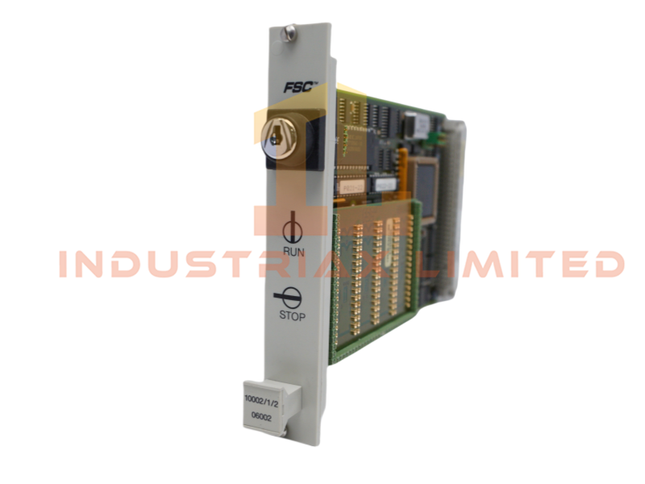

Overview The 10002/1/2 Run Stop Keyed module from Honeywell delivers precise control for industrial automation systems. Designed for the FSC System, it integrates seamlessly into DCS environments and supports Ethernet communication for fast data exchange.Honeywell engineered the 10002/1/2 to withstand harsh conditions while maintaining consistent performance. Its compact form factor and lightweight build simplify installation and reduce panel load. Operators benefit from real-time diagnostics and centralized control capabilities. Technical Specifications Specification Details Model Number 10002/1/2 Manufacturer Honeywell Module Type Run Stop Keyed System Compatibility DCS Product Range FSC System Condition Brand New Dimensions 4 × 18.5 × 12.7 cm Weight 0.24 kg HS Code 8537101190 Communication Ethernet Router Lead Time In Stock Minimum Order Qty 1 Origin USA Features The 10002/1/2 supports multiple communication protocols for flexible system integration. Compact 4 × 18.5 × 12.7 cm design fits easily into control cabinets. Lightweight 0.24 kg module reduces structural load and simplifies handling. Ethernet interface enables fast, secure communication with field devices. Advanced diagnostics allow proactive maintenance and reduce system downtime.

Read more less

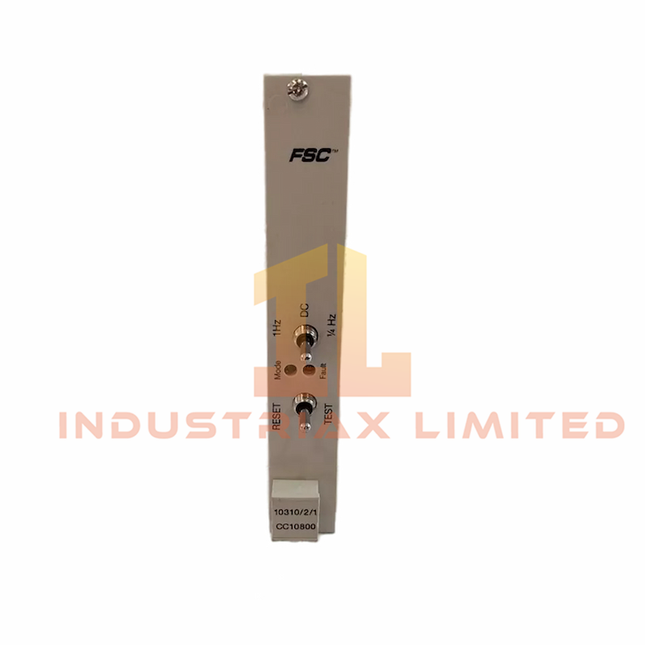

Overview The 10310/2/1 Module Controller by Honeywell delivers precise control and diagnostics for FSC-based DCS systems. It ensures high reliability in safety-critical industrial environments. Technical Specifications Specification Detail Model Number 10310/2/1 Manufacturer Honeywell Module Type Module Controller Product Range FSC System System Compatibility DCS Communication Interface Ethernet Router Dimensions (cm) 2.5 x 12.7 x 20.3 Weight 0.2 kg HS Code 8537101190 Minimum Order Quantity 1 Product Origin USA Condition Brand New Availability In Stock

Read more less

Overview The 10018/2/U Communication Module from Honeywell delivers precise Ethernet routing for FSC-based DCS systems. Its compact design and diagnostic tools enhance industrial automation efficiency. Technical Specifications Specification Detail Model Number 10018/2/U Manufacturer Honeywell Module Type Communication Module Product Range FSC System System Compatibility DCS Communication Interface Ethernet Router Dimensions (cm) 4 x 18.5 x 12.7 Weight 0.36 kg HS Code 8537101190 Minimum Order Quantity 1 Product Origin USA Condition Brand New Availability In Stock

Read more less

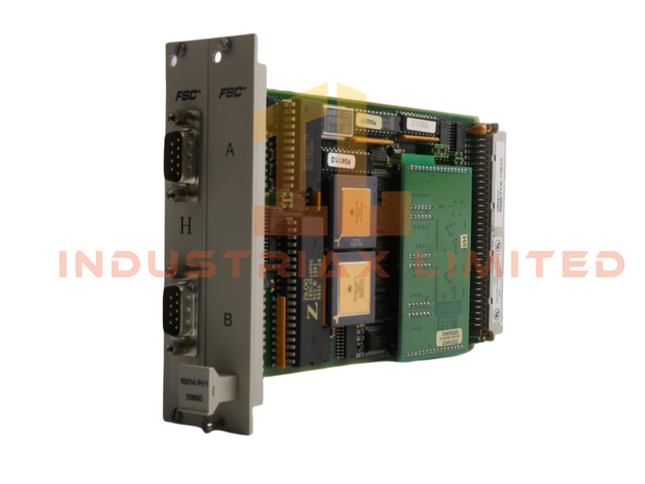

Overview The 10014/H/I Communication Module by Honeywell delivers robust Ethernet routing for FSC-based DCS systems. Designed for industrial-grade reliability, this module ensures seamless data exchange and system-wide connectivity. Technical Specifications Specification Detail Model Number 10014/H/I Manufacturer Honeywell Module Type Communication Module Product Range FSC System System Compatibility DCS Communication Interface Ethernet Router Dimensions (cm) 4 x 18.5 x 12.7 Weight 0.36 kg HS Code 8537101190 Minimum Order Quantity 1 Product Origin USA Condition Brand New Availability In Stock

Read more less

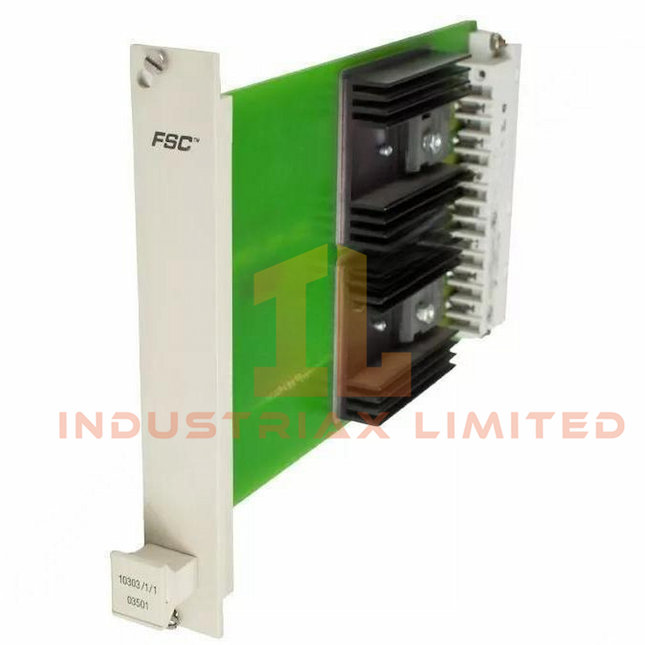

Product Overview The Honeywell 10303/1/1 Power Supply Distribution Module (PSD) is a precision-engineered component for FSC system configurations featuring redundant Central Parts and non-redundant I/O. It consolidates multiple PSU outputs into a single, tightly regulated 5 Vdc supply, ensuring consistent voltage delivery across critical control segments. Technical Specifications Attribute Detail Manufacturer Honeywell Part Number 10303/1/1 System Compatibility FSC System Function Power Supply Distribution Module Input Voltage 5 Vdc Current Rating 20 A Dimensions (mm) 20.3 × 15.2 × 2.5 Weight 0.2 kg Wire Requirement Min. 2.5 mm² (AWG 14) Voltage Tolerance ±5% Key Features Redundant PSU Integration: Combines outputs into a single regulated 5 Vdc supply Voltage Equalization: Ensures consistent voltage drop across Central and I/O sections Compact Form Factor: Ideal for tight cabinet layouts Installation Precision: Must be placed adjacent to PSU modules to minimize wiring loss Safety Note: Module replacement requires PSU power-off condition Application & Use Case The 10303/1/1 PSD module is essential in Honeywell FSC systems where redundant Central Parts interface with non-redundant I/O. It guarantees stable power distribution, protects against voltage fluctuations, and supports high-current loads in process control, safety systems, and critical infrastructure.

Read more less

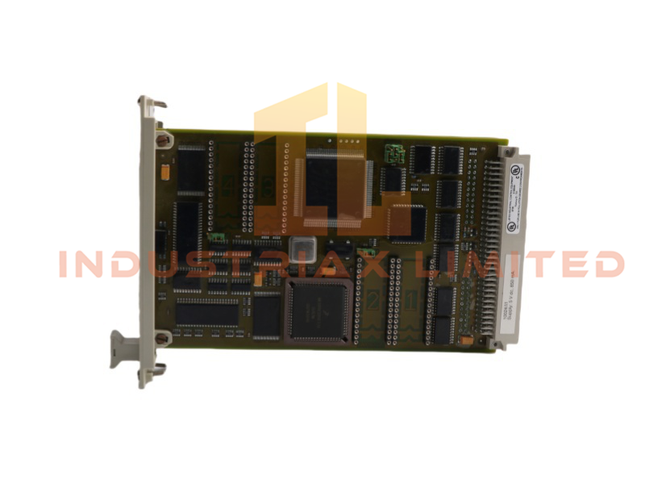

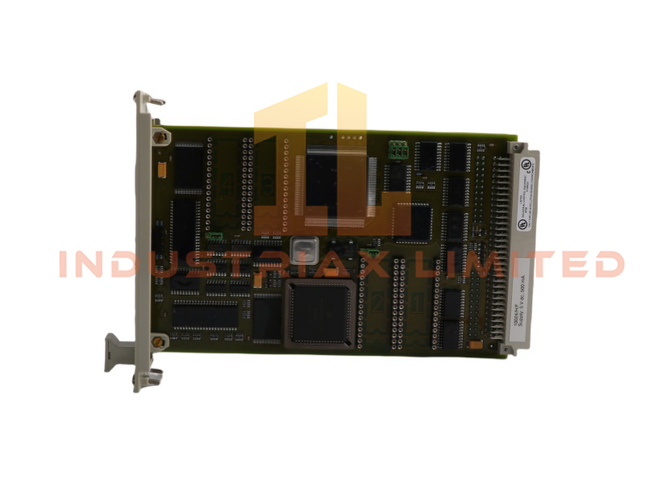

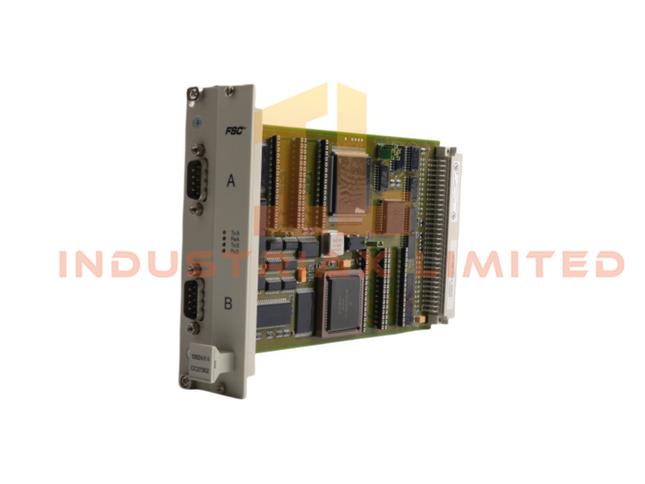

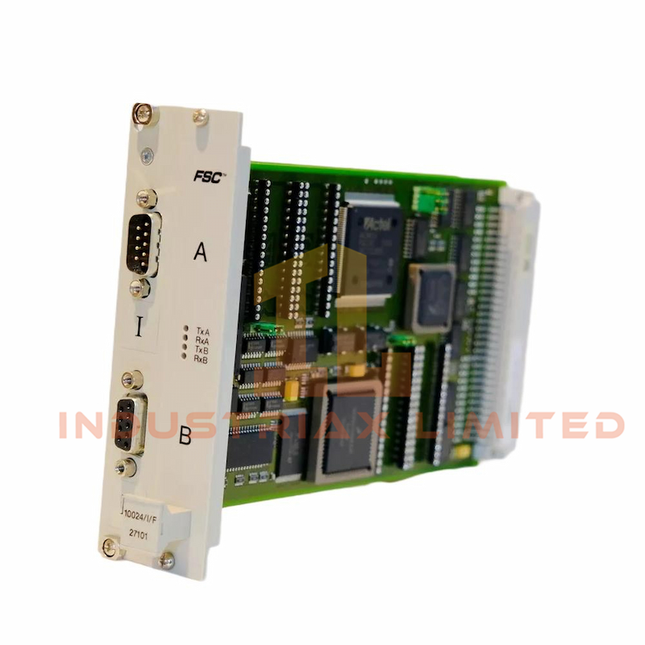

Product Overview The Honeywell 10024/I/F Enhanced Communication Module enables robust serial communication between the FSC system and external computer equipment. Whether deployed in stand-alone safety-critical applications or integrated into Honeywell’s TotalPlant Solution (TPS) or PlantScape, this module ensures high-integrity data exchange with galvanic or optical isolation for signal protection. Technical Specifications Attribute Detail Manufacturer Honeywell Model 10024/I/F System Compatibility FSC System Function Enhanced Serial Communication Voltage 5 VDC Current 650 mA Isolation Galvanic or Optical Max Links per CP 8 (via 4 modules) Dimensions (mm) 20.3 × 15.2 × 2.5 Weight 0.2 kg Key Features Up to 8 Serial Links: Scalable communication capacity per Central Part Galvanic/Optical Isolation: Protects signal integrity across interfaces Redundant Communication Support: Ensures reliability in dual-CPU setups TPS & PlantScape Integration: Compatible with Honeywell’s broader control ecosystem Compact & Rack-Compatible: Designed for seamless FSC system integration Application & Integration Ideal for safety-critical control environments, the 10024/I/F module ensures secure and reliable data exchange between FSC systems and external platforms. Whether integrated into Honeywell’s TPS, PlantScape, or used in stand-alone configurations, it supports functional safety, system availability, and environmental protection.

Read more less

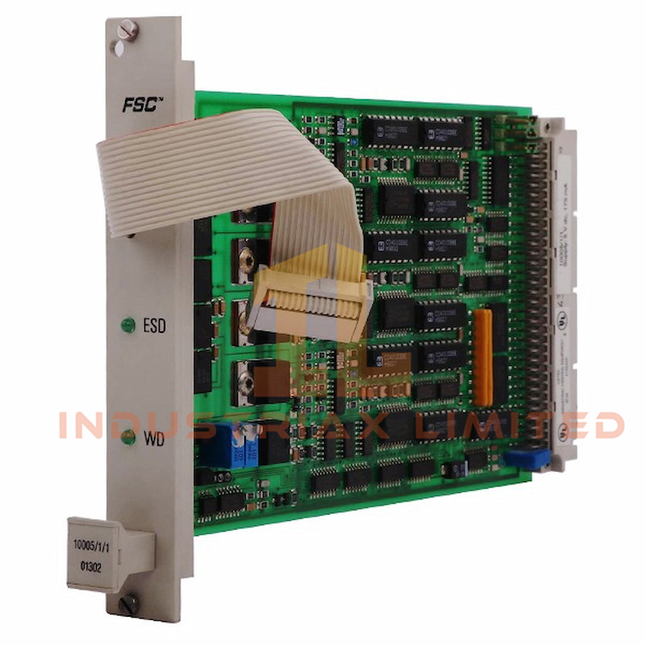

Product Overview The Honeywell 10005/1/1 Watchdog Module is a critical safety component within the FSC system, designed to monitor processor integrity, voltage stability, and memory health. It ensures that the application loop executes correctly—neither hanging nor skipping—and provides independent fault detection via a galvanically isolated 24 VDC ESD input. Technical Specifications Attribute Detail Manufacturer Honeywell Model 10005/1/1 System Compatibility FSC System Function Watchdog Monitoring Module Voltage 5 VDC Current 900 mA (fused at 1 A) ESD Input 24 VDC (galvanically isolated) Voting Logic 2-out-of-3 system Dimensions (mm) 20.3 × 15.2 × 2.5 Weight 0.2 kg Key Features Execution Time Monitoring: Detects both looping and skipped logic Voltage Supervision: Monitors 5 VDC for over/undervoltage  Memory Error Detection: Interfaces with CPU, COM, and MEM modules ESD Override Input: Enables independent fault-triggered shutdown 2-out-of-3 Voting Logic: Ensures robust fault validation WDG OUT Current Capacity: Up to 900 mA; use WDR (10302/1/1) for higher loads Application & Integration Ideal for mission-critical automation systems, the 10005/1/1 watchdog module ensures process integrity, voltage stability, and fault isolation. Use in environments where fail-safe operation, diagnostic transparency, and redundant logic validation are essential.

Read more less

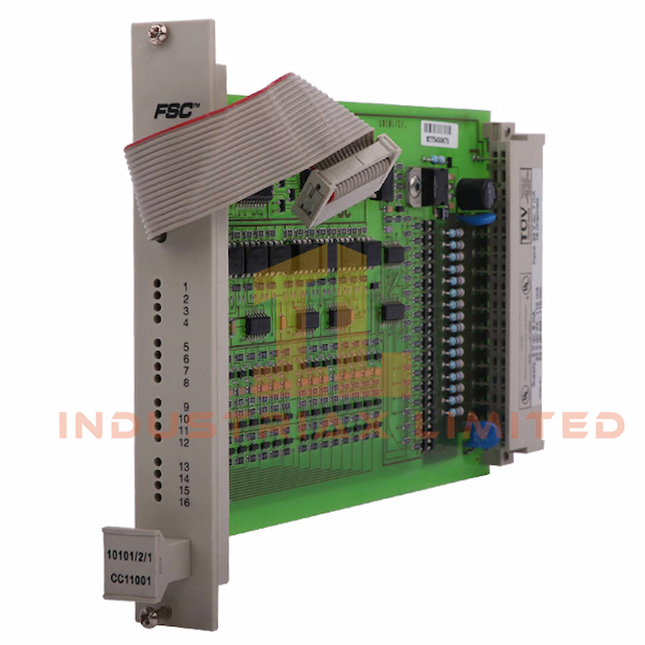

Product Overview The Honeywell 10101/2/1 is a fail-safe digital input module designed for high-integrity signal acquisition in FSC system environments. It features 16 independent 24 VDC input channels, each engineered with a fail-to-safe input stage — meaning any internal component failure results in a de-energized signal, the safe state in normally energized systems. Technical Specifications Attribute Detail Manufacturer Honeywell Model 10101/2/1 System Compatibility FSC System Function Fail-Safe Digital Input (16 channels) Voltage 24 VDC Current 110 mA Signal Type Logic level (0/1) Fail-Safe Behavior De-energized signal on fault Dimensions (mm) 20.3 × 15.2 × 2.5 Weight 0.2 kg Key Features 16 Digital Inputs: High-density signal acquisition for control systems Fail-to-Safe Design: Ensures safe processor input on internal failure Built-in Diagnostics: Validates signal reception and detects crosstalk Compact & Rack-Compatible: Optimized for FSC system integration Safety-Certified Logic: Fully covered by system self-test protocols Application & Integration Ideal for mission-critical automation systems requiring fail-safe digital input monitoring, the 10101/2/1 module ensures reliable signal acquisition with built-in fault tolerance. Use in environments where safety, signal integrity, and diagnostic transparency are essential.

Read more less

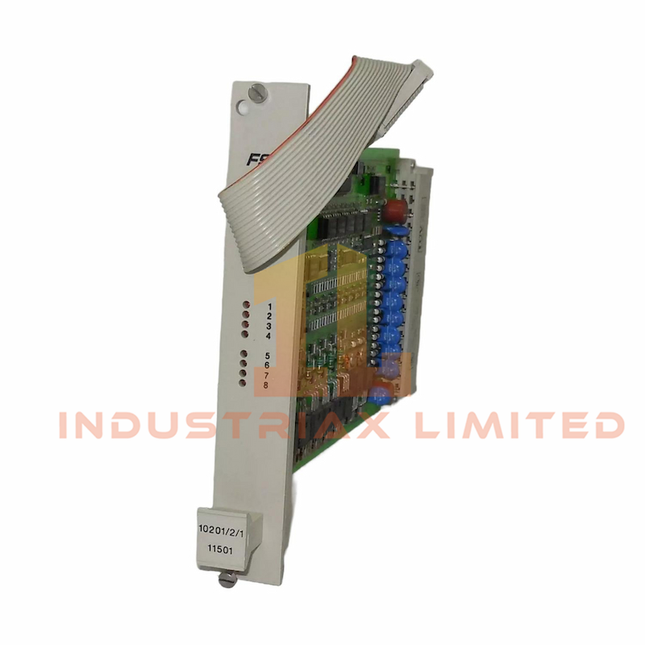

Product Overview The Honeywell 10201/2/1 is a high-integrity fail-safe digital output module designed for FSC system applications. It features eight 24 VDC output channels, each capable of delivering 550 mA to drive loads up to 13 W. Technical Specifications Attribute Detail Manufacturer Honeywell Model 10201/2/1 System Compatibility FSC System Function Fail-Safe Digital Output (8 channels) Voltage 24 VDC Current per Channel 550 mA Load Capacity Up to 13 W per channel Load Types Resistive & Inductive (with suppression) De-energization Individual & group-level (secondary) Dimensions (mm) 20.3 × 15.2 × 2.5 Weight 0.2 kg Key Features Eight Independent Outputs: High-current channels for diverse load types Built-in Suppression Diodes: Ensures safe operation with inductive loads Comprehensive Diagnostics: Output integrity, diode function, and crosstalk checks Fail-Safe Architecture: Watchdog and processor-controlled shutdown paths Group Isolation: Two output groups with selective de-energization logic

Read more less

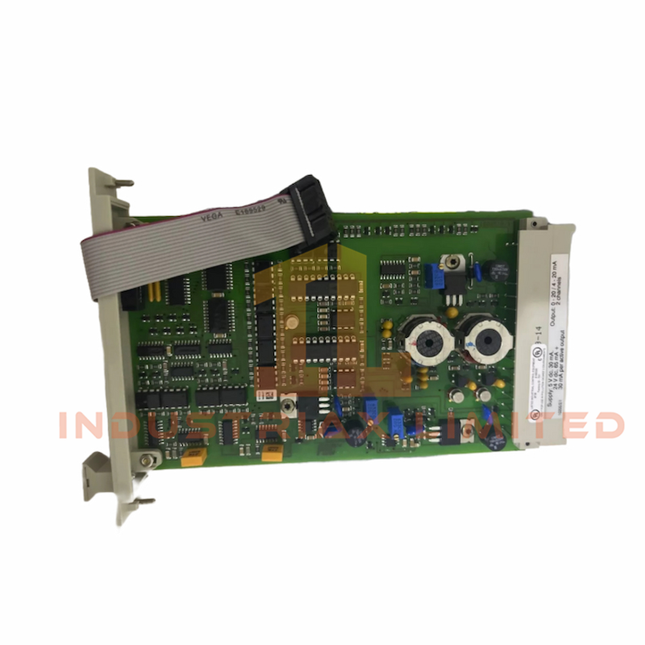

Product Overview The Honeywell 10205/2/1 is a fail-safe analog output module designed for precision control in non-redundant I/O configurations within the FSC system. It features two independent 0(4)–20 mA output channels, each equipped with: A 12-bit D/A converter for analog signal generation An A/D converter for real-time feedback and fault detection Technical Specifications Attribute Detail Manufacturer Honeywell Model 10205/2/1 System Compatibility FSC System Function Fail-Safe Analog Output (2 channels) Output Range 0(4)–20 mA Voltage 24 VDC Current 20 mA Isolation Galvanic (from 24 VDC and 5 VDC) Redundancy Not supported (no parallel outputs) Dimensions (mm) 20.3 × 15.2 × 2.5 Weight 0.2 kg Key Features Dual Analog Channels: Independent control with built-in feedback Fail-Safe Design: Watchdog and processor override for output shutdown  Self-Test Functionality: Ensures signal integrity and fault isolation Galvanic Isolation: Protects system from voltage interference Backplane Compatibility: Requires 10205/A/. module per channel

Read more less

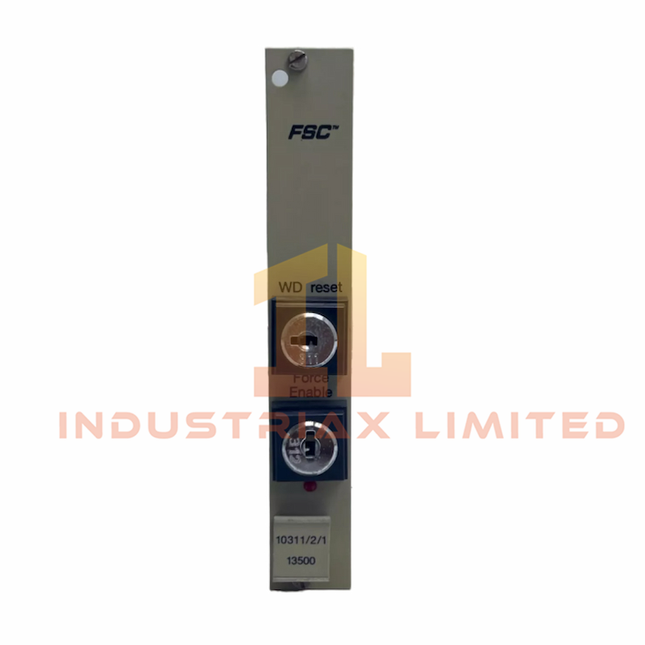

Product Overview The Honeywell 10311/2/1 Dual Key Switch Module is a precision control interface within the FSC system, combining two independent key switches for critical system operations: Watchdog Reset Key Switch Three make contacts Key removable only in open (horizontal) position Used for watchdog and fault reset Force Enable Key Switch One potential-free make contact Key removable in both open (horizontal) and closed (vertical) positions Red LED indicator shows enabled state Used to enable/disable software-controlled I/O forcing Technical Specifications Attribute Detail Manufacturer Honeywell Model 10311/2/1 System Compatibility FSC System Function Dual Key Switch (WD Reset + Force Enable) Voltage 24 VDC Current 5 mA Contacts 3 (WD Reset), 1 (Force Enable) LED Indicator Red (Force Enable status) Dimensions (mm) 20.3 × 15.2 × 2.5 Weight 0.2 kg Key Features Dual Independent Key Switches: Separate control for watchdog reset and I/O forcing Secure Key Removal Logic: Prevents accidental activation or deactivation Visual Status Feedback: Red LED confirms Force Enable state Standardized Keying: Identical keys across modules for streamlined access Compact & Rack-Compatible: Fits FSC system racks with minimal footprint Application & Integration Ideal for industrial automation systems requiring secure manual control over fault resets and I/O forcing. The 10311/2/1 module enhances operational safety and flexibility in critical process environments, especially where software-controlled signal manipulation must be tightly regulated.

Read more less

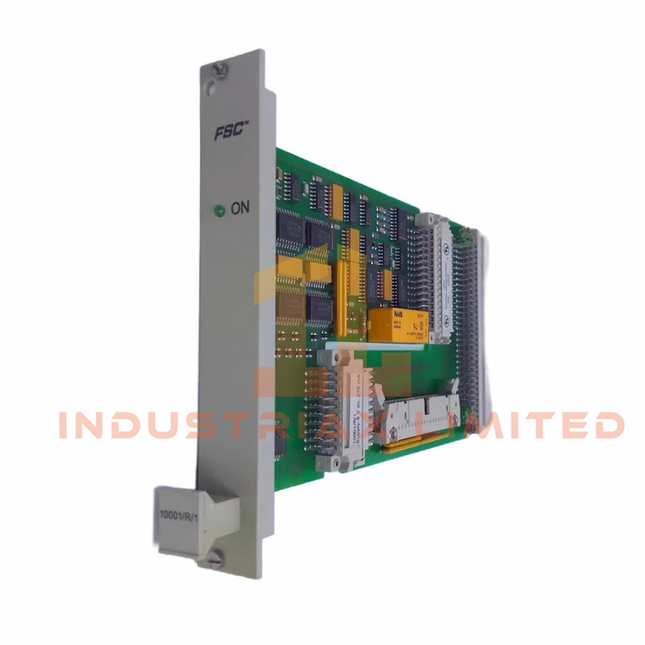

Product Overview The Honeywell 10001/R/1 Vertical Bus Driver (VBD) is a key interface module within the FSC system, enabling seamless communication between the Central Part (CP) and I/O levels. Designed for high-density rack configurations, each VBD supports up to 10 horizontal bus driver (HBD) modules, with a maximum of 14 VBDs per CP. Technical Specifications Attribute Detail Manufacturer Honeywell Model 10001/R/1 System Compatibility FSC System Function Vertical Bus Driver Voltage 5 VDC Current 275 mA Max Distance to I/O 5 m (16.4 ft) Module Capacity Supports up to 10 HBDs Dimensions (mm) 20.3 × 15.2 × 2.5 Weight 0.2 kg Key Features Modular 2-Part Design: Enables quick swap of electronics without cable disconnection. Scalable Architecture: Supports up to 10 HBD modules per VBD, 14 VBDs per CP. Compact & Rack-Ready: Fits standard 19-inch racks with secure bolt mounting. Maintenance-Friendly: Simplifies upgrades and fault isolation with minimal disruption.

Read more less

Product Overview The Honeywell 10310/2/1 Earth Leakage Detector (ELD) module provides precise fault monitoring for 24 VDC, 48 VDC, 60 VDC, and 110 VDC systems. Designed for the FSC system, it features manual self-test, adjustable connection modes, and flip-flop fault memory for enhanced safety diagnostics. Technical Specifications Specification Detail Manufacturer Honeywell Model 10310/2/1 Series FSC System Description Earth Leakage Detector Module Input Voltage 24 VDC Supported Systems 24, 48, 60, 110 VDC Current Rating 1 A Connection Modes DC, 1 Hz, 0.25 Hz Reset Methods Manual, Rst24, Rst110 Dimensions (mm) 20.3 × 15.2 × 2.5 Weight 0.2 kg Key Features Monitors multiple DC systems with adjustable connection modes. Flip-flop logic retains fault state until reset is triggered. Manual and remote reset options enhance operational flexibility. Built-in resistor enables internal earth fault simulation. Compact design fits standard FSC rack configurations.

Read more less

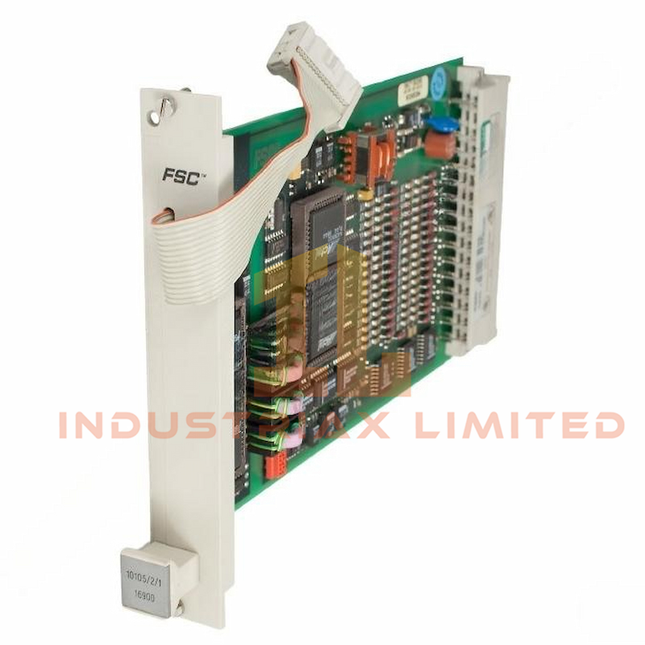

Product Overview The Honeywell 10105/2/1 analog input module delivers high-density, fail-safe signal acquisition for FSC systems. It supports sixteen analog inputs (0–4 V) and one external voltage read-back input. All channels meet AK5 safety standards and share an isolated analog 0 V common. Technical Specifications Specification Detail Manufacturer Honeywell Part Number 10105/2/1 Product Series FSC System Description Fail-Safe High-Density Analog Input Module Voltage 24 VDC Current 35 mA Dimensions 20.3 mm × 15.2 mm × 2.5 mm Weight 0.2 kg Input Channels 16 analog (0–4 V) + 1 read-back Safety Class AK5 Common Ground Isolated analog 0 V Conversion Modules FTA-T-14, 10105/A/1 Rack Compatibility 19-inch I/O backplane Application & Compatibility The Honeywell 10105/2/1 module is ideal for industrial automation systems requiring compact, fail-safe analog input acquisition. It integrates with FSC racks and supports signal conversion from thermocouples, RTDs, and other field devices. Use FTA-T-14 or 10105/A/1 modules to adapt current-loop signals for precise voltage input. The module suits safety-critical environments where signal integrity and diagnostic coverage are essential.

Read more less

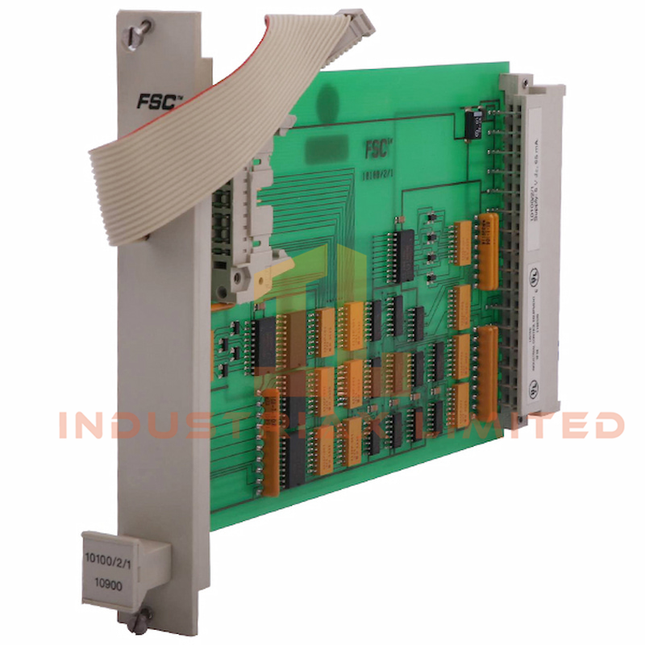

Product Overview The Honeywell 10100/2/1 Horizontal Bus Driver Module integrates seamlessly into FSC I/O racks. This compact module supports both redundant and non-redundant configurations using flat cables A1, A21, or A22. It connects vertically via CN1 and horizontally via CN3, enabling efficient address line termination and bus communication. Technical Specifications Specification Detail Manufacturer Honeywell Part Number 10100/2/1 Product Series FSC System Voltage 5 VDC Current 65 mA Dimensions 20.3 mm × 15.2 mm × 2.5 mm Weight 0.2 kg Interface Connectors CN1 (rear), CN3 (rear), flat cable (front) Cable Options A1, A21, A22 Application & Compatibility The Honeywell 10100/2/1 module suits industrial automation systems requiring flexible I/O rack configurations. Use A1 for non-redundant setups, A21 for single-rack redundancy, and A22 for dual-rack redundancy. It’s compatible with FSC system architectures and supports vertical-to-horizontal bus transitions. This module is ideal for Honeywell-based control systems where reliability, modularity, and compact design are critical. It ensures stable communication between central processors and distributed I/O racks.
