Description
Product Overview

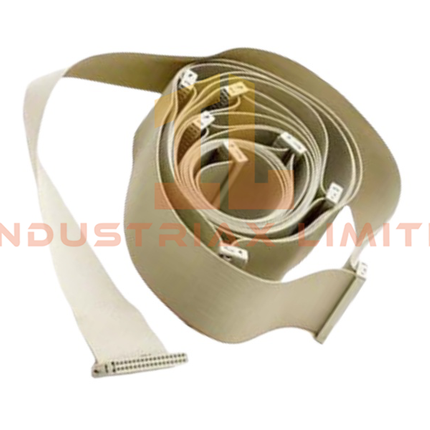

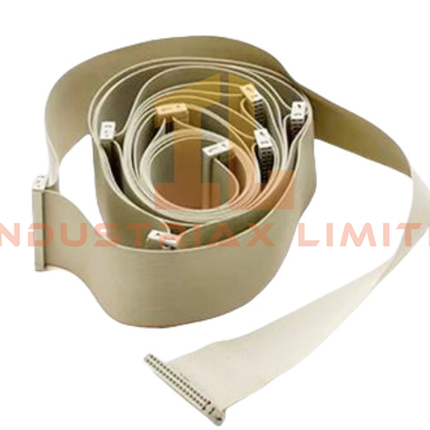

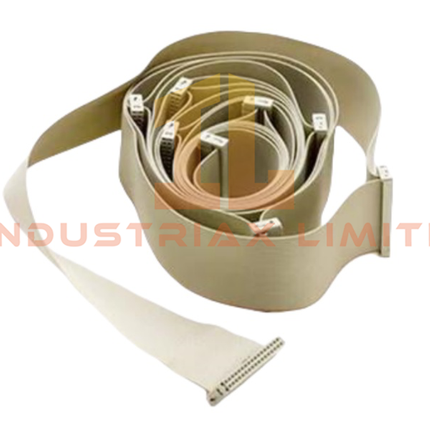

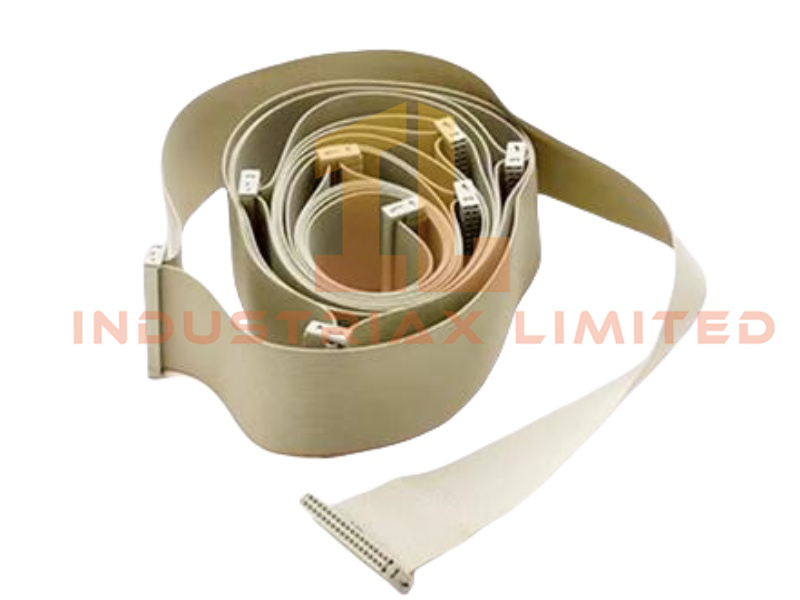

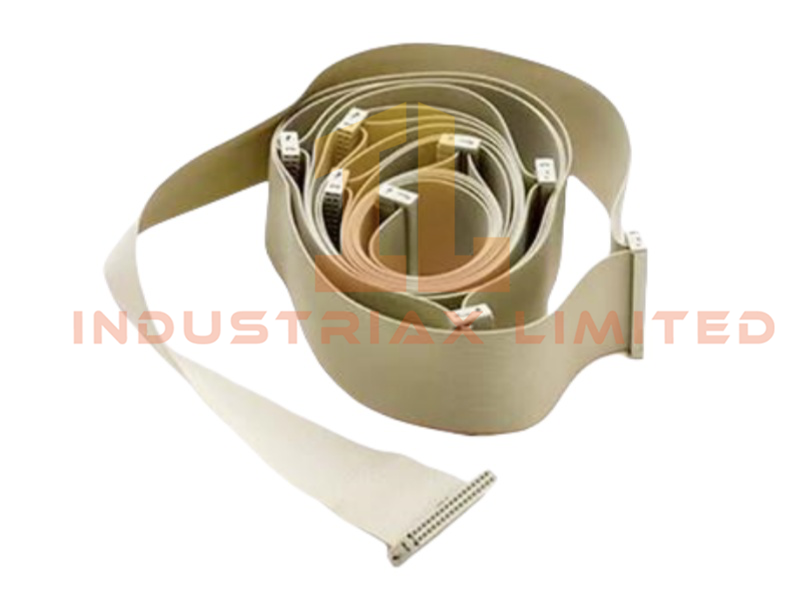

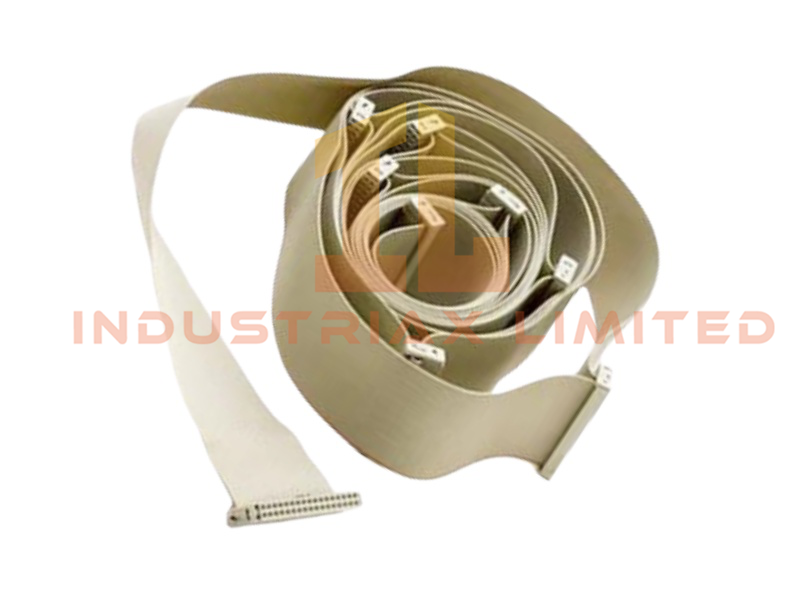

The FS-IOBUS-CPIO6 module from Honeywell’s Safety Manager series delivers stable I/O bus communication across multi‑chassis control environments. Honeywell equips this unit with 34‑pole latch connectors that support cabinet positions 1 through 6, ensuring efficient signal routing inside distributed DCS structures. Its compact 24×18.8×6.5cm frame fits tightly into industrial panels and maintains strong durability in demanding operating conditions.
Technical Specifications
The following table summarizes the essential technical parameters of the FS-IOBUS-CPIO6 I/O Bus In Extension Cabinet:
| Parameter |
Specification |
| Model |
FS-IOBUS-CPIO6 |
| Series |
Safety Manager |
| Type |
I/O Bus In Extension Cabinet |
| Connectors |
34‑pole latch connectors |
| Supported Positions |
1–6 |
| Dimensions |
24 × 18.8 × 6.5 cm |
| Weight |
0.4 kg |
| Origin |
USA |
| System |
DCS |
| HS Code |
8537101190 |
| Condition |
Brand New |
| Lead Time |
In Stock |
| MOQ |
1 |
| Communication |
Ethernet router |
Functional Capabilities
The FS-IOBUS-CPIO6 supports efficient I/O bus communication by linking controller chassis with I/O chassis through secure 34‑pole connectors. The module handles multiple cabinet positions, which helps engineers streamline wiring layouts and maintain consistent signal flow. Honeywell designs this unit to enhance system reliability by ensuring stable communication across extended Safety Manager architectures.
Design & Performance
Honeywell builds the FS-IOBUS-CPIO6 with a compact 24×18.8×6.5cm enclosure that fits easily into extension cabinets. The 0.4kg weight simplifies installation and supports flexible panel arrangements. UL and CSA certifications reinforce the module’s compliance with strict industrial standards, while the rugged structure protects internal components in harsh environments.
Applications & Compatibility
The FS-IOBUS-CPIO6 integrates smoothly with Honeywell Safety Manager systems and supports a wide range of distributed I/O configurations. Industries such as oil and gas, chemical processing, and power generation rely on this module to maintain stable communication between multiple chassis. Its connector layout supports long‑distance cabinet extensions and improves overall system scalability.
Key Advantages
-
Reliable I/O bus communication across multiple cabinet positions
-
Secure 34‑pole latch connectors for stable signal transfer
-
Compact dimensions for efficient panel integration
-
Lightweight design that simplifies installation
-
Strong compatibility with Honeywell Safety Manager systems
