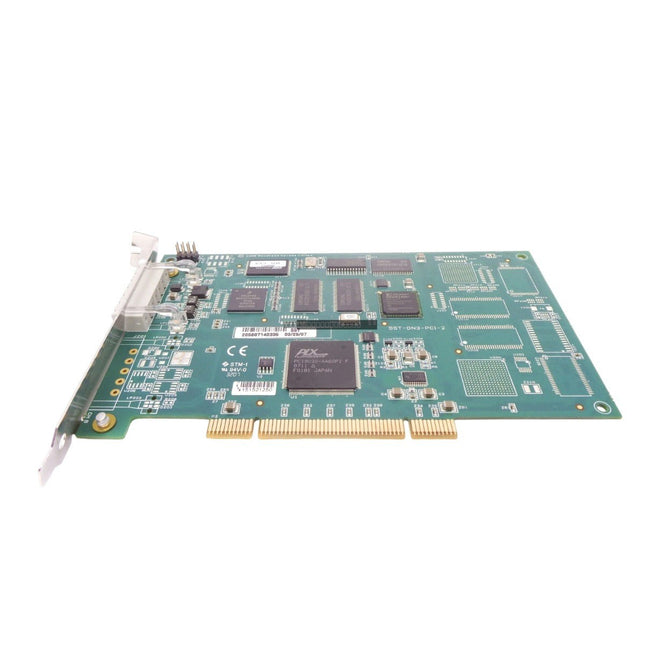

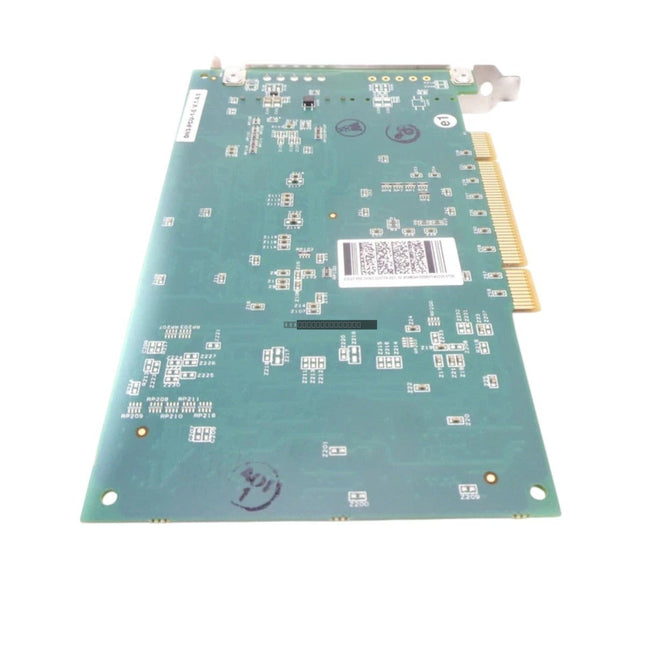

Product OverviewThe Woodward SST-DN3-PCI-2 is a specialized PCI-based communication interface designed to facilitate reliable connectivity between industrial PCs and DeviceNet network architectures. Engineered for high-performance automation environments, this card serves as a robust gateway for real-time data exchange in critical infrastructure, including power generation, energy management, and sophisticated industrial manufacturing processes. By handling protocol-specific tasks locally, the module offloads processing requirements from the host system, ensuring deterministic performance and minimized communication latency.Features
Dedicated Protocol Processing: Utilizes an onboard processor to manage the DeviceNet stack, supporting Master/Slave, Multi-Master, and Peer-to-Peer network configurations.
Optimized Data Transfer: Supports multiple messaging modes, including Polled, Cyclic, and Change-of-State (COS), to maximize network bandwidth efficiency.
Robust Isolation: Features integrated optical isolation to shield the PCI backplane from electrical transients and field-side noise, maintaining high signal integrity.
Industrial Reliability: Built for high-vibration environments, ensuring consistent connectivity and reduced risk of unscheduled system downtime.
ApplicationsThis communication card is widely deployed in industrial control applications requiring high-speed, reliable fieldbus integration. It is suitable for use in:
Power generation control systems.
Oil and gas process monitoring.
Complex automated manufacturing assembly lines.
Industrial PC-based data acquisition systems.
Technical Specifications
Model
SST-DN3-PCI-2
Brand
Woodward
Operating Temperature
0 to 60 deg C
Weight
0.34 kg
Installation Guidelines
ESD Protection: Always utilize an anti-static wrist strap and proper grounding techniques when handling the card to prevent damage to sensitive electronic components.
Power Status: Ensure the host industrial PC is completely powered down and disconnected from the AC supply before inserting or removing the PCI card.
Seating: Ensure the card is firmly seated in a compatible PCI slot; secure the mounting bracket to the chassis to prevent mechanical stress.
Cable Routing: Keep DeviceNet network cabling separated from high-voltage power lines and sources of significant electromagnetic interference (EMI) to ensure optimal signal quality.
FAQWhat is the primary function of the SST-DN3-PCI-2?It acts as a high-performance interface card that allows industrial PCs to act as a node on a DeviceNet network, managing I/O data and protocol processing independently of the host CPU.Does this card support Change-of-State (COS) messaging?Yes, the module supports Polled, Cyclic, and Change-of-State (COS) messaging modes to provide flexible and efficient bandwidth utilization.
5 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
3 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link

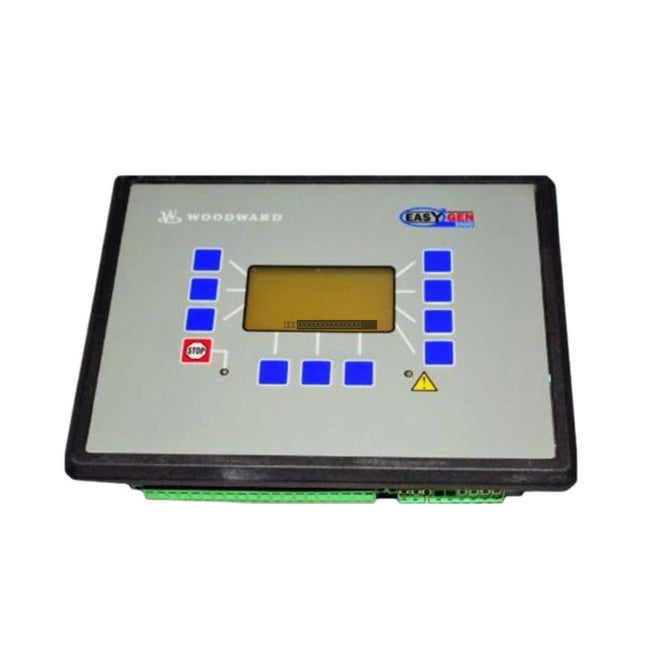

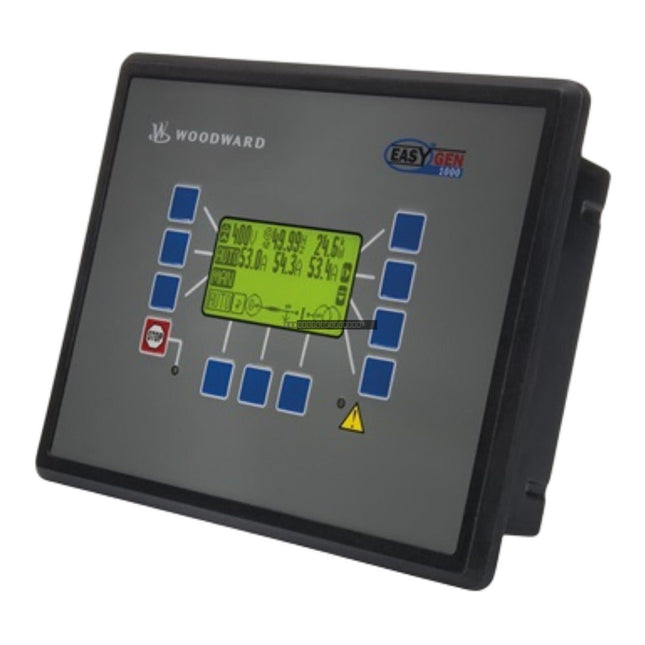

DescriptionThe Woodward EASYGEN-1000 is a dedicated genset control and interface module engineered for single-unit power management applications. This controller provides a comprehensive solution for engine-generator monitoring, system protection, and automated control. Designed for high-reliability environments such as remote industrial mining, data center emergency power, and oil refinery standby systems, the unit optimizes power delivery and ensures consistent operational performance. By automating critical start and stop sequences and delivering real-time fault diagnostics, the EASYGEN-1000 reduces reliance on manual intervention and mitigates downtime risks associated with engine protection faults.Features
Integrated engine-generator monitoring for voltage, current, and frequency.
High-visibility LCD display paired with a tactile keypad for intuitive local parameter configuration.
Advanced microprocessor-based logic for sequence control and protection.
Supports CAN (J1939) communication protocols for seamless electronic engine interfacing.
Flexible I/O architecture allowing for customizable alarm management and control relay mapping.
Robust construction suitable for demanding industrial duty cycles.
ApplicationsThe EASYGEN-1000 is suitable for a variety of power generation applications, including:
Emergency standby power for critical infrastructure and data centers.
Prime power control for remote industrial and mining operations.
Integrated monitoring for oil and gas facility power systems.
Automated start/stop sequencing for localized power generation units.
Technical Specifications
Model
EASYGEN-1000
Manufacturer
Woodward
Controller Type
Single Unit Control Interface
Input Voltage
12/24 VDC (8 to 40 VDC continuous)
Power Consumption
15 W (Maximum)
Operating Temperature
-20 to 70 deg C
Installation Guidelines
Ensure the unit is mounted in an enclosure that provides adequate protection against environmental moisture and vibration.
Verify that the DC power supply is stable and within the 8 to 40 VDC range before connection.
Use shielded cabling for CAN (J1939) communication lines to prevent signal interference in high-EMI environments.
Always isolate power to the module before performing wiring or maintenance to prevent electrical damage.
Ensure proper grounding of the chassis to the system common to maintain signal integrity and safety.
Avoid mounting the unit in areas subject to excessive heat or direct exposure to corrosive elements.
FAQWhat is the primary function of the Woodward EASYGEN-1000?The EASYGEN-1000 is a controller designed for the monitoring, protection, and automated control of single-unit engine-generator sets.Does this unit support electronic engine communication?Yes, the module supports standard CAN (J1939) communication protocols to interface with modern electronic engines.What is the operating voltage range for this module?The unit operates on 12/24 VDC systems, with a continuous operating range of 8 to 40 VDC.
3 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
2 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link

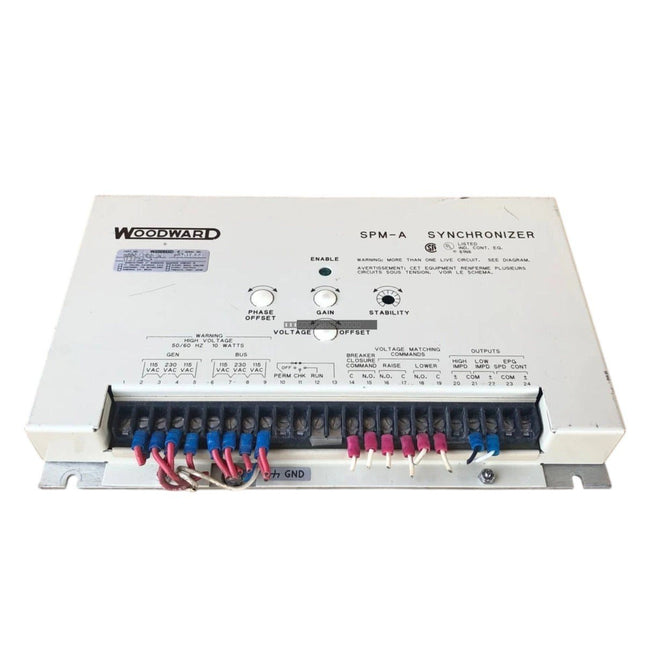

Description

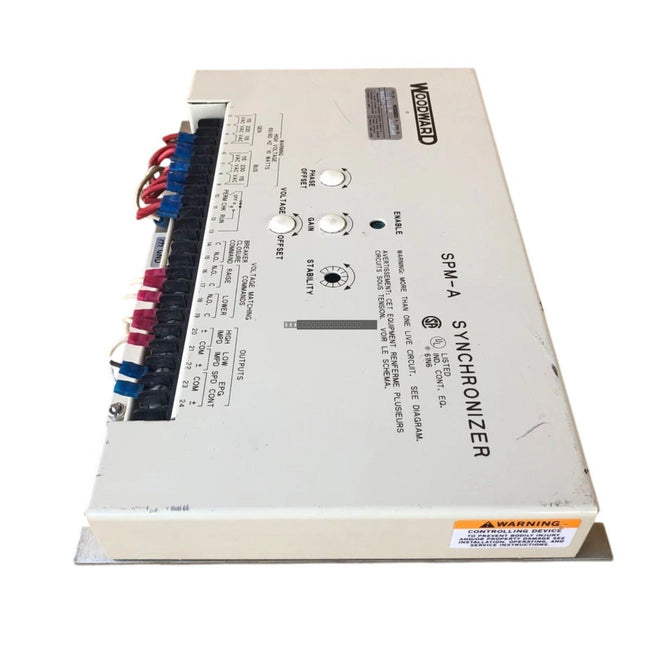

The Woodward 9905-002N is an SPMA (Synchronizer and Phase Matching) control module engineered for the precise synchronization of AC generators to a utility grid or common bus. Rated for 230 V, 60 Hz operations, this unit automates the critical process of matching generator frequency, phase angle, and voltage before the circuit breaker closes. By providing automated control, the 9905-002N significantly reduces the risk of out-of-phase closure, protecting prime movers and electrical switchgear from severe mechanical and electrical transients.
Features
Internal phase-lock loop (PLL) circuitry for real-time phase angle monitoring.
Adjustable setpoints for phase window and dwell time to accommodate varying load dynamics.
Proportional bias output signal for seamless integration with engine governor systems.
Ruggedized construction designed for reliable operation in high-vibration industrial environments.
High electromagnetic interference (EMI) immunity for stable performance in power generation facilities.
Applications
This synchronizer is widely deployed in mission-critical power management environments, including:
Industrial power generation and cogeneration plants.
Standby and emergency power systems for refineries and chemical processing facilities.
Microgrid management for mining operations and remote sites.
Technical Specifications
Model
9905-002N
Brand
Woodward
Device Type
SPMA Synchronizer Control
Input Voltage
230 V
Frequency
60 Hz
Power Consumption
10 W
Operating Temperature
-40 to +70 deg C
Storage Temperature
-55 to +85 deg C
Weight
1.88 kg
Installation Guidelines
Ensure the system power is completely disconnected before installing or removing the module.
Mount in a clean, dry, and vibration-dampened control panel enclosure.
Maintain adequate clearance around the unit for proper thermal dissipation.
Use shielded, twisted-pair cabling for all analog inputs to minimize noise pickup.
Verify that the ground connection is secure to maintain EMI protection integrity.
Confirm that the phase-matching logic settings align with site-specific generator and bus requirements before commissioning.
FAQ
What is the primary function of the 9905-002N?The 9905-002N acts as an automated synchronizer that manages the frequency, voltage, and phase matching of a generator to a bus, ensuring safe and stable circuit breaker closure.
Is this module suitable for high-vibration environments?Yes, the 9905-002N is built with a ruggedized industrial design capable of maintaining logic stability in harsh engine room conditions.
2 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link

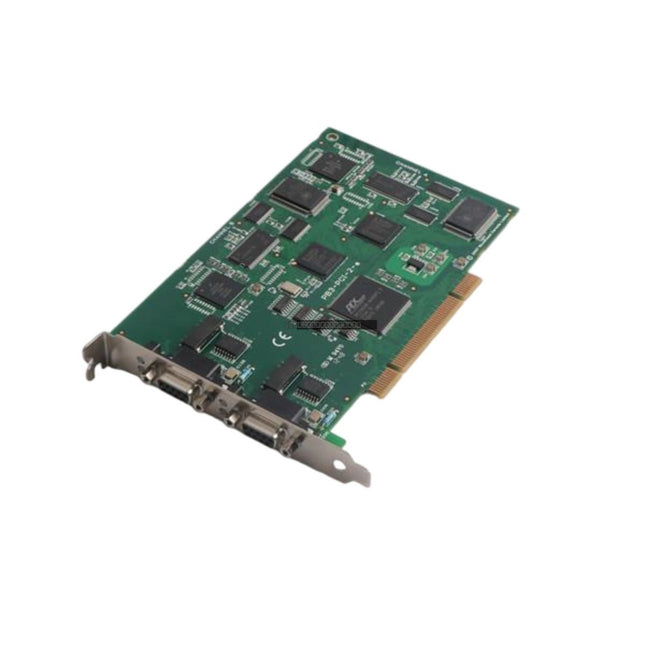

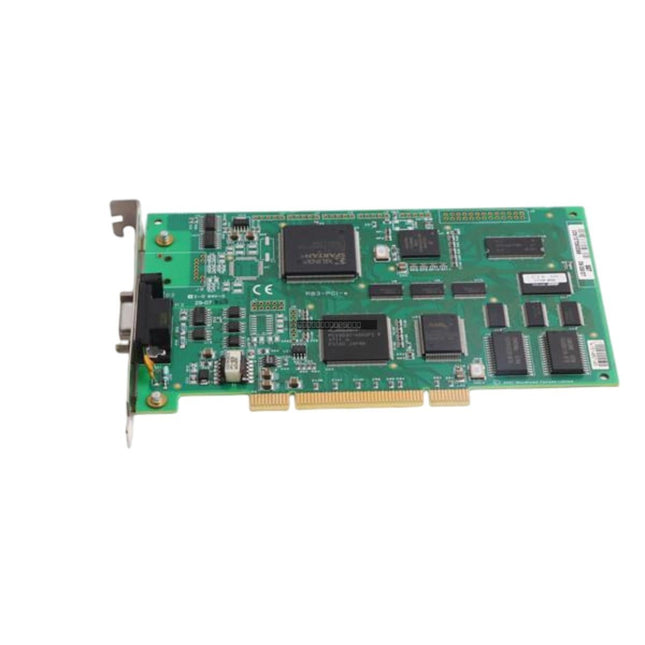

DescriptionThe Woodward SST-PB3-PCU is a robust communication interface card engineered for PCI bus-based industrial computing systems. This module serves as a bridge for high-speed data exchange, allowing industrial PCs to participate in PROFIBUS DP and MPI networks. By offloading protocol management to an internal processor, the card maintains deterministic communication performance, making it a reliable component for demanding control applications in sectors such as energy production, petrochemical processing, and automated manufacturing.Features
Integrated on-board processor for dedicated PROFIBUS protocol stack handling, reducing host CPU utilization.
Supports DP-V0, DP-V1, and MPI communication standards for versatile network integration.
Galvanic isolation provided to mitigate the impact of electrical interference and transient voltages.
Universal PCI interface design compatible with both 3.3 V and 5 V bus architectures.
Optimized for low-latency data throughput in critical industrial automation environments.
ApplicationsThis interface card is typically deployed in industrial control systems requiring reliable connectivity between supervisory PCs and PROFIBUS-enabled field devices. Its primary use cases include data acquisition, supervisory control, and synchronization of distributed I/O across large-scale plant networks.Technical Specifications
Model
SST-PB3-PCU
Brand
Woodward (Molex)
Bus Type
PCI 32-bit (Universal 3.3 V / 5 V)
Protocols
PROFIBUS DP-V0, DP-V1, MPI
Operating Temperature
0 to 60 deg C
Weight
0.12 kg
Installation Guidelines
Ensure the host system is powered down and disconnected from the main power source before inserting or removing the card.
Handle the card by its edges and utilize proper ESD (Electrostatic Discharge) precautions to prevent damage to internal components.
Verify that the PCI slot is free of debris and properly aligned before seating the card.
Ensure that the PROFIBUS cabling is correctly shielded and routed away from high-voltage power lines to minimize EMI.
Secure the mounting bracket to the chassis to provide adequate mechanical support and proper grounding.
FAQWhat protocols does the SST-PB3-PCU support?The card supports PROFIBUS DP-V0, DP-V1, and MPI communication protocols.Is this card compatible with older industrial PCs?Yes, the card features a universal PCI interface that supports both 3.3 V and 5 V signaling, allowing for integration into a wide range of legacy and modern industrial computing hardware.Does this card require specific drivers?Yes, integration typically requires the appropriate Woodward/Molex software stack or drivers installed on the host operating system to manage the PROFIBUS communications.
1 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link

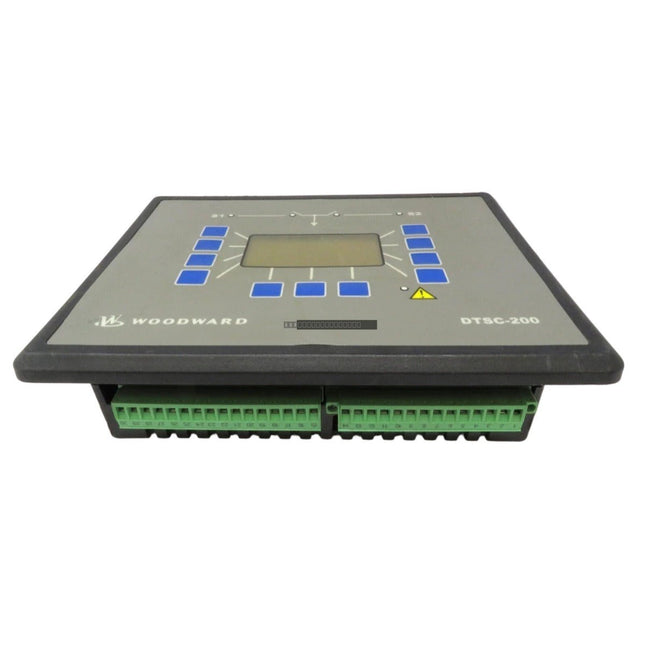

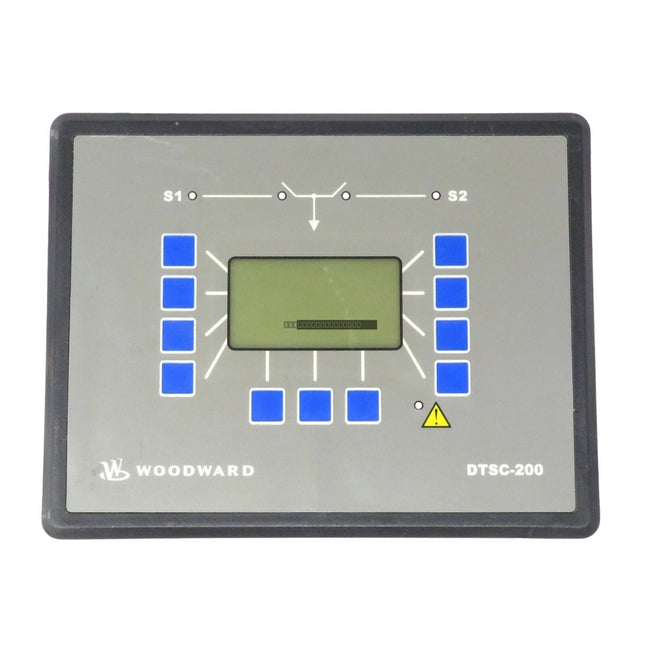

The Woodward DTSC-200-55B is a specialized Automatic Transfer Switch (ATS) controller designed to manage power transitions between utility mains and backup generator sets. This unit provides reliable, automated switching logic, ensuring that critical loads remain powered during grid failures or instability. Built for demanding industrial environments, the DTSC-200-55B is widely utilized in sectors requiring high availability, such as telecommunications, healthcare facilities, and mission-critical data infrastructure.Features
Advanced three-phase voltage and frequency sensing for both utility and generator sources.
Integrated HMI featuring a backlit LCD screen and status LEDs for immediate operational visibility.
Programmable logic for transfer, re-transfer, and engine cool-down sequences.
Support for Modbus RTU communication protocols for seamless integration with external SCADA or Building Management Systems (BMS).
Robust construction designed to withstand electrical noise and harsh transient conditions.
ApplicationsThis control panel is intended for use in automatic transfer switchgear applications where rapid and reliable power source switching is mandatory. It is suitable for oil and gas facilities, distributed power generation sites, and large-scale commercial backup power systems.Technical Specifications
Model
DTSC-200-55B
Brand
Woodward
Device Type
ATS Control Panel
Display
Backlit LCD with Status LEDs
Operating Temperature
-20 to +70 deg C
Weight
0.8 kg
Installation Guidelines
Ensure the controller is mounted in a location protected from excessive moisture and corrosive environments.
Verify that all power sources are isolated before performing wiring connections.
Use shielded communication cables for Modbus RTU connections to minimize electromagnetic interference (EMI).
Maintain adequate clearance around the unit to ensure proper airflow and heat dissipation.
Follow standard ESD (Electrostatic Discharge) precautions during handling and installation to prevent damage to internal microelectronics.
FAQDoes the DTSC-200-55B support remote monitoring?Yes, the unit supports Modbus RTU, which allows for integration with remote monitoring systems and building management platforms.What is the primary function of this Woodward controller?The DTSC-200-55B is designed to monitor utility and generator power parameters and automate the transfer process between these sources during a power failure, ensuring minimal downtime for critical loads.
1 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
1 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link

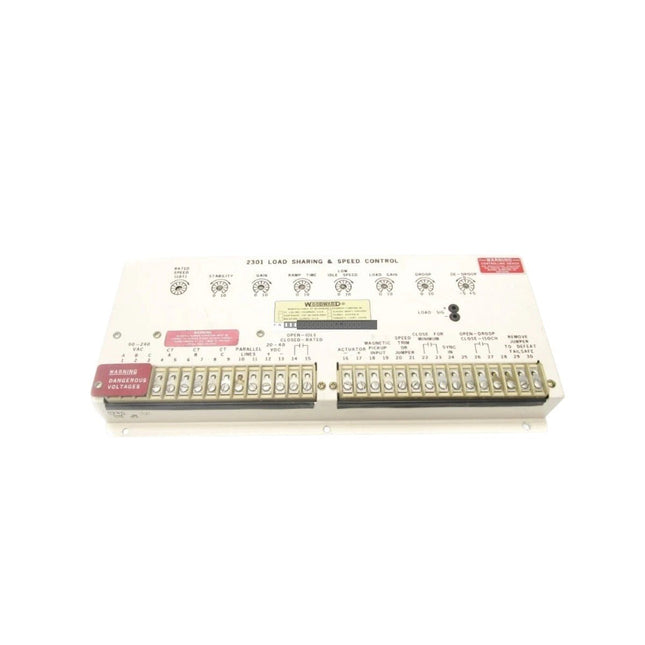

The Woodward 8271-467 is a specialized electronic control unit engineered to provide precise load sharing and speed regulation for industrial power generation systems. Designed for reliability in demanding environments, this module integrates advanced control logic to manage engine speed and ensure stable load distribution across parallel systems.Features
Integrated load sharing and speed control functionality.
Wide operating temperature range suitable for harsh industrial environments.
Robust power management with a nominal 24 V DC operating voltage.
High humidity tolerance for deployment in varied climate conditions.
Technical Specifications
Manufacturer
Woodward
Model
8271-467
Operating Voltage
24 V DC
Power Supply Range
18-32 V DC
Power Consumption
10-25 W
Operating Temperature
-40 degC to +70 degC
Storage Temperature
-55 degC to +85 degC
Humidity
0-95% RH (non-condensing)
Installation Guidelines
Ensure the control module is mounted in a location free from excessive vibration and direct exposure to moisture.
Verify that the supply voltage is within the 18-32 V DC range before powering on the unit.
Use shielded cabling for all I/O connections to minimize electromagnetic interference (EMI).
Maintain adequate clearance around the module to allow for proper heat dissipation.
All wiring should be performed by qualified personnel while the system is de-energized.
FAQWhat is the primary function of the 8271-467?This unit serves as a load sharing and speed control module, ensuring that generators running in parallel maintain synchronized speeds and balanced load distribution.What is the operating temperature range for this unit?The module is rated for operation between -40 degC and +70 degC.Does this module require a specific power supply?Yes, it is designed for a 24 V DC nominal input, with a functional range of 18-32 V DC.
1 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
3 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link

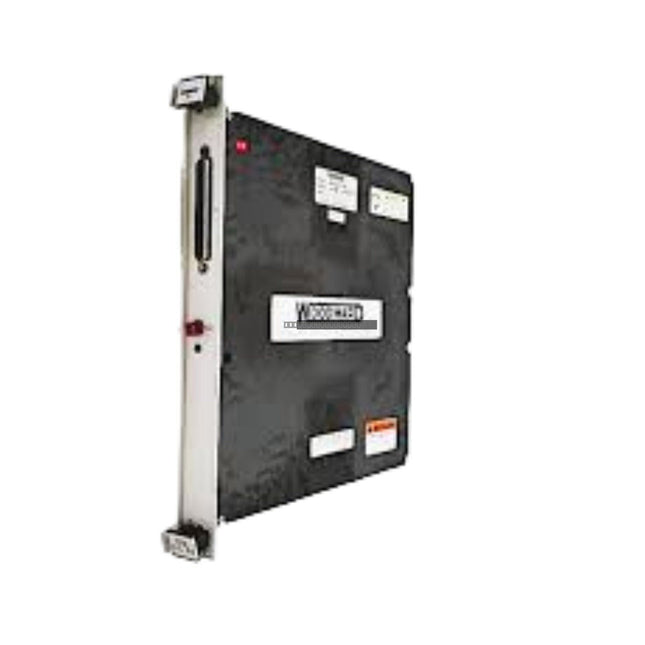

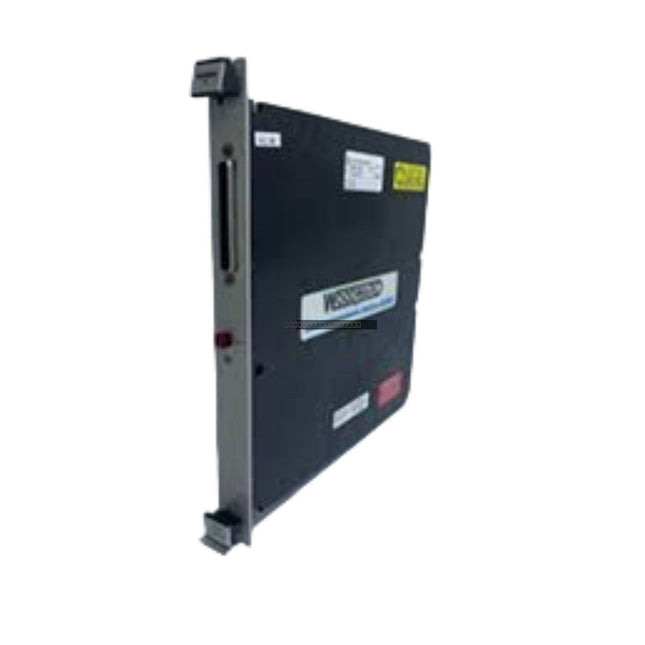

The Woodward 5461-644 is a robust Analog Output Module engineered for seamless deployment within Woodward MicroNet and NetCon control architectures. This module is specifically designed to provide high-precision, deterministic control signals for critical field actuators, including steam turbine governors, fuel control valves, and various industrial drive systems. Built for heavy-duty industrial applications such as power generation, marine propulsion, and petrochemical processing, the 5461-644 delivers superior signal stability and low-latency performance to ensure consistent process regulation.Features
Isolated output channels to mitigate ground loops and reduce electromagnetic interference (EMI).
Advanced onboard diagnostics with read-back capability to verify commanded versus actual output current.
Closed-loop monitoring for immediate detection of field-side faults, including open circuits or short circuits.
Hot-swappable design, allowing for module replacement without interrupting the host control system in redundant configurations.
High-resolution conversion (12-bit to 16-bit) for precise actuator positioning.
ApplicationsThis module is primarily utilized in critical control loops where precise analog signal output is required. Common applications include the management of turbine fuel flow, governor control for power generation, and variable frequency drive (VFD) speed referencing. Its high reliability supports the high-availability requirements of modern industrial control systems.Technical Specifications
Model
5461-644
Brand
Woodward
Module Type
Analog Output Module
Output Channels
8 or 16 (Config dependent)
Signal Range
4-20 mA or 0-200 mA
Resolution
12-bit to 16-bit
Operating Temperature
0 to 60 deg C
Power Consumption
5.0 W (Typical)
Installation Guidelines
Ensure the control system is powered down before inserting or removing the module from the chassis.
Handle the module using proper ESD (Electrostatic Discharge) mitigation techniques to protect internal circuitry.
Verify that all field wiring is properly shielded and routed away from high-voltage power lines to prevent signal noise.
Confirm proper seating within the MicroNet/NetCon backplane to ensure reliable communication with the CPU.
Ensure adequate ventilation in the cabinet to maintain operating temperatures within the 0-60 deg C range.
FAQIs the 5461-644 hot-swappable? Yes, this module is designed to be hot-swappable, allowing for maintenance and replacement without shutting down the entire control system.What diagnostics does the module provide? The module features integrated read-back capabilities, allowing the system to monitor for open-circuit or short-circuit conditions at the output terminal.Does this module support multiple signal ranges? Yes, the module is capable of supporting 4-20 mA or 0-200 mA ranges, depending on the specific application configuration.
3 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Woodward 8406-116 is a specialized Operator Interface Module (OIM) designed to facilitate direct interaction with Woodward digital control systems. This module serves as a critical human-machine interface, enabling onsite operators to view real-time engine or turbine data, adjust system parameters, and perform diagnostic functions. It is widely employed in demanding industrial environments, including power generation facilities, marine propulsion systems, and heavy-duty industrial processing plants, where reliable local control and monitoring are essential for maintaining operational efficiency.Features
Robust industrial design suitable for high-vibration and high-EMI environments.
Integrated keypad and high-contrast display for clear data visualization.
Dedicated serial communication interface for rapid data exchange with the primary controller.
Multi-level security access to prevent unauthorized modification of critical operational setpoints.
Optimized for low power consumption and high reliability in harsh ambient conditions.
ApplicationsThis module is primarily used in conjunction with Woodward governor and turbine control systems. It is an essential component for local troubleshooting, commissioning, and routine maintenance, allowing technicians to access internal variables and alarm logs without the need for additional external computing hardware.Technical Specifications
Model
8406-116
Brand
Woodward
Module Type
Operator Interface Module (OIM)
Input Voltage
24 VDC
Operating Temperature
-20 to 65 deg C
Weight
1.82 kg
Installation Guidelines
Ensure the control system is powered down before installing or removing the module.
Mount the unit in a clean, dry location protected from direct exposure to moisture or corrosive agents.
Use shielded communication cables to minimize the impact of electromagnetic interference.
Maintain proper grounding connections according to the system's technical manual to prevent ground loops and signal noise.
Ensure adequate airflow around the unit to prevent heat accumulation within the enclosure.
FAQWhat is the primary function of the Woodward 8406-116?The 8406-116 acts as a local operator interface, allowing for real-time monitoring and parameter adjustment of Woodward-controlled turbine and engine systems.Is this module suitable for high-vibration areas?Yes, the 8406-116 is engineered with a ruggedized construction specifically intended to withstand the vibration and environmental stressors typical of engine enclosures and industrial turbine rooms.
1 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Woodward 5417-040 is a specialized 10-foot analog interface cable assembly engineered for the Netcon 4700 control system architecture. This component serves as the essential physical bridge for signal transmission between analog input/output modules and field termination assemblies. Designed for high-reliability industrial applications, including gas turbine management and petrochemical processing, the 5417-040 minimizes signal degradation and provides robust noise immunity to maintain precise control loop integrity.Features
Optimized for Netcon 4700 series analog I/O signal routing.
Shielded twisted-pair construction to mitigate electromagnetic interference (EMI) in harsh industrial environments.
Integrated strain relief at connector interfaces to enhance durability against vibration and mechanical stress.
Standardized 10-foot (3.05 m) length for consistent cabinet-to-terminal-block wiring.
Rated for wide-range thermal operation, supporting deployment in demanding field conditions.
ApplicationsThis cable assembly is primarily deployed within Woodward Netcon 4700 control cabinets. It is commonly used in critical infrastructure sectors such as power generation, oil and gas processing, and heavy industrial automation where reliable analog signal acquisition is required for turbine or compressor control.Technical Specifications
Model
5417-040
Manufacturer
Woodward
Series
Netcon 4700
Cable Type
Low-Density Analog Interface
Length
10 ft (3.05 m)
Operating Temperature
-40 to +85 deg C
Signal Compatibility
Analog Voltage and Current
Installation Guidelines
Ensure system power is isolated before installing or removing the cable assembly to prevent potential signal spikes.
Route the cable away from high-voltage power lines and variable frequency drive (VFD) cabling to maintain signal integrity and reduce EMI exposure.
Verify that the connector headers are fully seated and secured to prevent intermittent contact or signal noise.
Avoid excessive bending or tight radius routing near the connector strain relief to prevent long-term wire fatigue.
Use appropriate cable management (e.g., cable ties or wire ducts) to secure the 10-foot length, ensuring it does not obstruct cooling airflow within the control cabinet.
FAQIs the 5417-040 compatible with other Woodward control series?This cable is specifically designed for the Netcon 4700 series. Please verify your specific control system documentation or hardware compatibility list before installation.What is the primary purpose of the shielding in this cable?The shielding is critical for protecting low-level analog signals from electromagnetic interference, which is common in industrial environments containing motors, switchgear, and power electronics.
1 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
1 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
The Woodward 5501-371 is a dedicated interface module designed for the Micronet platform, providing high-speed signal processing and reliable data exchange in complex industrial control applications. This module acts as an essential link between the central control system and field instrumentation, ensuring consistent performance in demanding environments like power generation and petrochemical processing.Features
Engineered for the Woodward Micronet simplex architecture.
Facilitates accurate analog signal processing and conversion.
Optimized for low-latency communication to maintain control loop stability.
Current-limited output stage to protect connected field devices.
Designed for seamless integration with existing Micronet backplane configurations.
ApplicationsThis module is frequently utilized in critical infrastructure control systems, including:
Gas turbine management systems.
Steam power plant regulation.
Oil and gas refinery process control.
High-speed industrial automation synchronization.
Technical Specifications
Model
5501-371
Brand
Woodward
Module Type
Micronet Simplex Interface Module
Operating Voltage
24 VDC
Output Signal
4-20 mA
Max Input Current
25 mA
Operating Temperature
-20 to 65 deg C
Installation Guidelines
Ensure the control system power is fully disconnected before inserting or removing the module from the backplane.
Handle the module using standard ESD (electrostatic discharge) prevention practices to protect internal circuitry.
Verify that the module is firmly seated within the Micronet rack to ensure proper backplane connection.
Route signal wiring away from high-voltage power cables to minimize electromagnetic interference (EMI).
Maintain adequate ventilation within the cabinet to keep the operating temperature within the specified range.
FAQWhat is the primary function of the 5501-371?The 5501-371 is a simplex interface module for the Woodward Micronet system, responsible for processing analog signals and providing stable 4-20 mA outputs to field devices.Is this module compatible with redundant systems?The 5501-371 is designed specifically for simplex operation within the Micronet platform. Please consult your system documentation if you are integrating this into a larger, multi-module control architecture.
1 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
7 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Woodward EASYGEN-2500-5 is a robust genset control unit engineered for advanced power management and synchronization tasks. Capable of managing up to 32 generators in parallel, this controller is suitable for island, isolated, and utility-parallel operations. It provides essential automation for engine sequencing, protection, and load sharing, making it a reliable choice for mission-critical environments such as data centers, industrial manufacturing, and emergency power systems.Features
Advanced Synchronization: Supports comprehensive voltage and frequency matching with dead-bus closure functionality.
Integrated LogicsManager: Allows for custom programmable I/O logic, reducing the requirement for external PLC integration.
Communication Protocols: Compatible with standard industry protocols including CANopen and Modbus RTU for easy SCADA or BMS connectivity.
Protection Suite: Built-in comprehensive monitoring and protection for both engine and alternator parameters.
User Interface: Features a high-contrast LCD for clear, real-time visualization of electrical data and diagnostic alarm logs.
ApplicationsThis controller is widely utilized in sectors requiring high availability and grid stability, including standby power plants, remote mining operations, and critical infrastructure facilities where rapid response to load fluctuations is mandatory.Technical Specifications
Model
EASYGEN-2500-5
Brand
Woodward
Control Type
Genset Management and Synchronization
Input Voltage
12/24 VDC (8 to 40 VDC range)
Power Consumption
15 W Maximum
Operating Temperature
-20 to +70 deg C
Installation Guidelines
Ensure the unit is flush-mounted in a secure, vibration-resistant panel enclosure.
Verify that the power supply voltage remains within the 8 to 40 VDC operating range to prevent logic errors or damage.
Use shielded cabling for all communication interfaces (CANopen/Modbus) to minimize EMI interference in industrial environments.
Always isolate power to the controller before performing wiring connections or maintenance.
Ensure proper grounding of the controller housing to the panel chassis to maintain electrical noise immunity.
FAQCan this controller manage multiple generators? Yes, the EASYGEN-2500-5 is capable of synchronizing and load sharing for up to 32 generators.Does this unit require an external PLC for logic? No, the integrated LogicsManager allows for programmable I/O responses directly within the controller, though it can still be integrated into larger SCADA or BMS networks.
7 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
7 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Woodward ESAYGEN-1000 is a dedicated control interface module designed for the monitoring and management of single-unit generator sets. This controller provides essential engine and generator protection, sequencing, and telemetry processing to maintain power system reliability. It is frequently applied in stationary power generation, including emergency standby systems for critical infrastructure, remote industrial power, and decentralized energy plants. By automating control sequences and providing real-time diagnostic data, this module assists in minimizing system downtime and preserving engine health.Features
Integrated engine and generator monitoring with comprehensive protection logic.
Supports CAN bus (J1939) for direct ECU communication and engine data acquisition.
RS-485 serial interface for integration with SCADA or remote monitoring systems.
Configurable I/O ports for flexible sensor integration, including coolant, oil, and fuel monitoring.
Ruggedized enclosure suitable for high-vibration engine room environments.
Front-panel interface for local configuration and status visualization.
ApplicationsThis controller is designed for use in various power generation scenarios, specifically for single-unit genset applications. Common deployment environments include hospital backup power, telecommunications sites, remote mining power systems, and light industrial standby generators.Technical Specifications
Parameter
Specification
Model
ESAYGEN-1000
Brand
Woodward
Controller Type
Genset Control Interface
DC Supply Voltage
12/24 VDC (8 to 40 VDC continuous)
Generator Voltage Input
100 to 480 VAC
Current Sensing
5 A (Secondary)
Power Consumption
15 W (Maximum)
Operating Temperature
-20 to 70 deg C
Installation Guidelines
Ensure the controller is mounted in a location protected from direct moisture and excessive heat.
Use shielded twisted-pair cabling for all communication interfaces (RS-485/CAN) to minimize electromagnetic interference (EMI).
Verify that the DC supply voltage remains within the 8 to 40 VDC range to prevent logic resets or damage.
Ensure proper grounding of the module chassis to the system common to mitigate noise.
Always power down the unit before connecting or disconnecting I/O wiring or communication cables.
Use appropriate wire gauges for current sensing inputs to ensure accurate measurement and prevent overheating.
FAQDoes this module support parallel operation?The ESAYGEN-1000 is specifically engineered for single-unit generator set control and management. For multi-unit synchronization or load sharing, please consult the Woodward product catalog for series designed for paralleling applications.What communication protocols are supported?The module features integrated CAN bus (J1939) for engine ECU interfacing and RS-485 serial communication for SCADA connectivity.
7 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
8 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
The Woodward 8200-226 is a specialized servo position controller engineered for precise motion control applications. This unit is recognized for its robust construction and is specifically designated as a version with marine listing compliance, making it suitable for demanding environments where reliability and adherence to maritime standards are required.Features
High-precision servo positioning control for industrial actuators.
Designed for integration into complex control systems requiring accurate feedback and signal processing.
Marine-rated construction to ensure operational integrity in shipboard or offshore environments.
Engineered by Woodward to meet rigorous performance standards for motion control.
ApplicationsThis controller is typically utilized in industrial automation systems, maritime propulsion control, and heavy-duty valve positioning applications where exact servo response is critical to system performance.Technical Specifications
Manufacturer
Woodward
Model Number
8200-226
Device Type
Servo Position Controller
Compliance
Marine Listing
Status
Discontinued by Manufacturer
Installation Guidelines
Ensure the control system is fully powered down before attempting to install or remove the module to prevent electrical damage.
Mount the controller in a clean, dry, and vibration-dampened enclosure to protect internal components.
Verify that all wiring connections are secure and follow proper shielding practices to mitigate EMI interference, which is critical in marine-grade installations.
Maintain adequate clearance around the unit to allow for heat dissipation and proper airflow.
Handle the device using standard ESD (Electrostatic Discharge) safety precautions during installation.
FAQIs the Woodward 8200-226 still in production?No, this model has been discontinued by the manufacturer. We provide these units as surplus or refurbished components to support legacy systems.Does this unit include marine certification?Yes, this specific part number (8200-226) is the variant that includes the marine listing.
8 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
4 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
The Woodward 5462-744 is a dedicated I/O module designed for integration within the MicroNet control system architecture. This module serves as a critical interface component, facilitating the processing of digital input signals and the generation of precise analog control signals for industrial automation applications.Features
Designed specifically for the Woodward MicroNet platform.
Equipped with 16 discrete digital inputs rated for 24 V dc operation.
Provides 2 isolated 4–20 mA analog outputs for actuator or process control.
Optimized for low power consumption with a typical draw of 6 W.
Robust construction suitable for standard industrial control cabinet environments.
Technical Specifications
Model Number
5462-744
Manufacturer
Woodward
Supply Voltage
24 V dc
Power Consumption
6 W (typical)
Digital Inputs
16 x 24 V dc
Analog Outputs
2 x 4–20 mA
Operating Temperature
0 degC to +60 degC
Storage Temperature
-40 degC to +85 degC
Relative Humidity
5% to 95% (non-condensing)
Installation Guidelines
Ensure the MicroNet rack is powered down before inserting or removing the 5462-744 module to prevent electrical damage.
Verify that the 24 V dc power supply meets the module's voltage requirements and is properly grounded.
Use shielded cabling for all analog output signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Maintain adequate clearance around the module to allow for proper heat dissipation and airflow.
Handle the module using standard ESD (electrostatic discharge) precautions to protect sensitive internal circuitry.
FAQIs the Woodward 5462-744 compatible with other MicroNet modules?Yes, this module is designed for use within the Woodward MicroNet system. Please ensure your specific control configuration supports the I/O mapping for this part number.What is the typical power consumption for this unit?The module is highly efficient, with a typical power consumption of 6 W during standard operation.
4 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
1 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
The Woodward 5464-544 is a high-precision, four-channel actuator control module designed to provide reliable output regulation in industrial control applications. This module is engineered to deliver a controlled output current range of 0 to 200 mA, ensuring stable performance for connected actuator hardware.Features
Four independent output channels for multi-actuator management.
Precision control with an accuracy of ±0.1% FSR at 25 degC.
Integrated 500 V dc channel-to-bus isolation for enhanced signal integrity and protection.
Low power consumption profile, operating at 60 mA at 24 V dc.
Robust operational temperature range suitable for standard industrial environments.
Technical Specifications
Model
5464-544
Manufacturer
Woodward
Supply Voltage
24 V dc
Module Consumption
60 mA @ 24 V
Output Current Range
0.0–200.0 mA
Accuracy
±0.1 % FSR @ 25 degC
Isolation
500 V dc channel-to-bus
Operating Temperature
0 to +60 degC
Storage Temperature
-40 to +85 degC
Humidity
5–95 % RH (non-condensing)
Installation Guidelines
Ensure the control system is powered down before installing or removing the module to prevent electrical damage.
Mount the module in a clean, dry, and well-ventilated enclosure to maintain operating temperature limits.
Use shielded cabling for all output connections to minimize electromagnetic interference (EMI) in industrial settings.
Verify that the 24 V dc power supply is stable and properly grounded to the system common.
Handle the unit with standard ESD (electrostatic discharge) precautions during installation.
FAQWhat is the primary function of the Woodward 5464-544?This module acts as a dedicated actuator controller, providing precise current output (0-200 mA) across four channels to drive industrial actuators.Does this module require external power?Yes, the module is designed for a 24 V dc supply, consuming approximately 60 mA during normal operation.
1 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
2 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Woodward 9905-007N is a specialized load control module engineered for precise power management within Woodward control systems. This component is essential for governor systems utilized in power generation facilities, offshore drilling platforms, and industrial pumping stations. By facilitating synchronized load sharing and speed control for prime movers, the module ensures grid stability and prevents engine overloads. It maintains exact electrical load distribution between multiple generator sets, thereby minimizing mechanical stress and reducing unplanned downtime in mission-critical environments.Features
Provides high-speed processing of load sensing signals for real-time fuel rack adjustment.
Features robust analog-to-digital interface for seamless communication with Woodward electronic governors and speed controls.
Equipped with internal isolation circuitry to protect sensitive control logic from high-voltage transients.
Compact, vibration-resistant chassis design suitable for demanding industrial environments.
ApplicationsThis module is primarily used in power generation, marine propulsion, and heavy-duty industrial pumping applications where precise load sharing and prime mover synchronization are required to maintain system integrity and efficiency.Technical Specifications
Model
9905-007N
Brand
Woodward
Product Type
Load Control Module
Operating Temperature
-40 to 70 deg C
Installation Guidelines
Ensure the module is mounted in a vibration-resistant enclosure, suitable for DIN rail or panel mounting.
Always power down the control system before inserting or removing the module to prevent electrical damage.
Ensure proper grounding of the chassis to mitigate EMI/RFI interference common in power distribution environments.
Route signal cables away from high-voltage power lines to maintain signal integrity.
Follow standard ESD (Electrostatic Discharge) handling procedures during installation and maintenance.
FAQWhat is the primary function of the 9905-007N?The 9905-007N serves as a load control module that manages power distribution and load sharing between multiple generator sets, ensuring stable operation of prime movers.Is this module compatible with other Woodward governors?Yes, it is designed for integration with Woodward electronic governors and speed control systems to provide real-time adjustments to fuel rack positions based on load sensing signals.What environmental conditions can this module withstand?The unit is designed for industrial use with an operating temperature range of -40 to 70 deg C and a vibration-resistant housing.
2 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
8 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Woodward 8290-180 is a high-precision load sensing unit engineered for advanced power management and generator control systems. This module provides critical real-time measurement of generator load, enabling precise proportional load sharing and speed control synchronization. It is widely implemented in complex power generation facilities, offshore oil platforms, and large-scale mining operations. By accurately detecting electrical load changes and feeding data to the governor, the 8290-180 ensures system stability and prevents frequency fluctuations, maintaining grid integrity and reducing mechanical stress on prime movers.Features
Precise Load Sensing: Converts generator voltage and current transformer (CT) inputs into a proportional DC signal for speed control and load sharing modules.
Calibration Flexibility: Features internal potentiometers for fine-tuning load gain and base load settings to match specific engine-generator characteristics.
Robust Design: Solid-state architecture housed in a ruggedized enclosure, offering high immunity to electromagnetic interference (EMI) and mechanical vibrations.
Wide Thermal Range: Engineered for reliable operation in harsh industrial environments from -40 to +70 deg C.
ApplicationsThe 8290-180 is primarily used in:
Generator paralleling and load sharing systems.
Power management control cubicles.
Marine and offshore power generation.
Industrial prime mover speed control applications.
Technical Specifications
Model
8290-180
Brand
Woodward
Device Type
Generator Load Sensor
Input Signal
Generator Potential and Current Transformer (CT) Inputs
Output Signal
Proportional DC Voltage
Operating Temperature
-40 to +70 deg C
Storage Temperature
-55 to +85 deg C
Weight
1.13 kg
Installation Guidelines
Mounting: Designed for surface mounting within industrial control cubicles. Ensure the mounting surface is flat and free from excessive mechanical shock.
Wiring: Use shielded cabling for signal inputs to minimize electromagnetic interference. Ensure all connections are secure and follow the specific wiring diagram provided in the original Woodward technical manual.
Safety: Always isolate power to the generator control system before installing or removing the module to prevent electrical shock or damage to the unit.
Environment: While the unit is ruggedized, avoid mounting in locations with extreme humidity or direct exposure to corrosive elements.
FAQWhat is the primary function of the Woodward 8290-180?The 8290-180 acts as a load sensor that monitors generator electrical output and provides a proportional DC signal to speed control governors, facilitating effective load sharing between paralleled generators.Can the 8290-180 be calibrated?Yes, the unit includes internal potentiometers that allow field engineers to adjust load gain and base load settings to optimize the response of the generator system.
8 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
3 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Woodward 5453-203 is a dedicated Operator Interface Panel designed for use with the Woodward Micronet control system. This panel features a 2-line LED display and an integrated keypad, providing operators with a robust interface for monitoring system parameters, viewing alarms, and managing control settings directly at the point of operation. Its panel-mount design ensures secure integration into industrial control cabinets and consoles.Features
Integrated 2-line LED display for clear status and data visualization.
Tactile keypad for local operator input and system navigation.
Designed specifically for compatibility with Woodward Micronet control architectures.
Panel-mount configuration for streamlined installation in industrial enclosures.
Supports RS232 and RS422 communication protocols for reliable data exchange.
Technical Specifications
Product Model
5453-203
Manufacturer
Woodward
Display Type
2-Line LED
Communication Ports
RS232, RS422
Connector Type
DB9
Input Power
12VDC at 650 mA
Operating Temperature
-40 degC to 70 degC
Installation Guidelines
Ensure the panel is mounted in a location protected from excessive vibration and direct exposure to harsh environmental contaminants.
Verify that the panel cutout dimensions are correct before mounting to ensure a proper seal and secure fit.
Use shielded communication cables for RS232/RS422 connections to minimize the risk of electromagnetic interference (EMI).
Always disconnect power to the control system before connecting or disconnecting the interface panel to prevent electrical damage.
Ensure proper grounding of the panel chassis to the cabinet ground bus to maintain signal integrity and safety.
FAQWhat is the primary function of the Woodward 5453-203?The 5453-203 serves as a local operator interface for the Woodward Micronet control system, allowing users to view system status and input commands via the integrated display and keypad.What communication protocols does this interface support?This unit supports RS232 and RS422 communication standards, utilizing a DB9 connector for integration with the control network.
3 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
6 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Woodward 5463-581 is a specialized input module designed for industrial control applications. This unit functions as a 4-20mA isolated input module, providing reliable signal conditioning and isolation for critical process control loops. As a component within Woodward control systems, it ensures signal integrity by preventing ground loops and electrical interference from affecting sensitive measurement data.Features
Provides isolated 4-20mA analog input signal processing.
Designed for integration into Woodward control architectures.
Robust construction suitable for demanding industrial environments.
Compatible with legacy Woodward systems requiring 4-20mA signal isolation.
ApplicationsThis module is typically utilized in power generation, turbine control, and engine management systems where precise analog signal monitoring is required. It is commonly deployed in applications involving pressure, temperature, or flow transmitters that output a standard 4-20mA signal.Technical Specifications
Manufacturer
Woodward
Model Number
5463-581
Alternate/Spare Models
1897179, 3077-205
Input Type
4-20mA Isolated Input
Status
Discontinued by Manufacturer
Installation Guidelines
Ensure the control system is powered down before installing or removing the module from the rack.
Handle the module using proper ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.
Verify that all field wiring is properly shielded and grounded to minimize EMI/RFI interference.
Ensure the module is securely seated in the designated slot to maintain reliable backplane communication.
Check for proper ventilation in the control cabinet to maintain optimal operating temperatures.
FAQIs the Woodward 5463-581 still in production?No, this model has been discontinued by the manufacturer. We provide high-quality surplus or refurbished units to support legacy systems.What are the compatible spare model numbers for this unit?The 5463-581 is cross-referenced with spare model numbers 1897179 and 3077-205.
6 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
5 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Woodward 9905-068 2301A is a precision speed control unit designed for industrial prime mover applications. This control system is engineered to provide reliable speed regulation for engines, turbines, and other rotating machinery by monitoring process inputs and modulating actuator outputs to maintain setpoint stability.Features
Supports process inputs of 4–20 mAdc or 1–5 Vdc.
Provides a dedicated actuator output of 0 to 200 mA (30 to 45 Ohm load).
Includes optional speed trim functionality, supporting 0 to 100 Ohm for 0 to –10% speed adjustment.
Designed for high-reliability operation in demanding industrial environments.
Technical Specifications
Product Model
9905-068 2301A
Manufacturer
Woodward
Process Input
4–20 mAdc or 1–5 Vdc
Actuator Output
0 to 200 mA, 30 to 45 Ohm
Operating Temperature
-40 to +85 degC (-40 to +185 degF)
Storage Temperature
-55 to +105 degC (-67 to +221 degF)
Speed Trim (Optional)
0 to 100 Ohm (0 to -10% speed change)
Installation Guidelines
Ensure the unit is mounted in a location protected from excessive vibration and moisture.
Use appropriate shielded cabling for all process input and actuator output connections to minimize EMI interference.
Verify that the power supply matches the requirements specified on the unit nameplate before applying power.
Ensure proper grounding of the chassis to a common earth point to prevent ground loops.
Always disconnect power before performing any wiring changes or maintenance on the terminal blocks.
FAQWhat is the primary function of the Woodward 2301A?The 2301A is a speed control module that regulates the speed of prime movers by adjusting fuel or steam flow via an actuator based on a process input signal.Can the speed be adjusted manually?Yes, the unit supports an optional speed trim input (0 to 100 Ohm) which allows for a speed adjustment range of 0 to -10%.
5 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
6 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Woodward 5464-013 is a specialized semi-insulated input driver module designed for the NetCon 5000 control system architecture. This module serves as a critical interface component, providing precise signal conditioning between field sensors and the central processing unit. Engineered for demanding industrial environments, it is primarily utilized in power generation plants and turbine control systems where high-speed, deterministic data acquisition is required to maintain operational stability.Features
System Compatibility: Specifically engineered for the Woodward NetCon 5000 series control platform.
Signal Conditioning: Semi-insulated design provides a balance between high-speed signal processing and circuit protection.
Diagnostic Capability: Features an integrated red LED fault indicator for rapid visual status monitoring and troubleshooting.
Robust Construction: High-grade PC board design built to withstand thermal stress in enclosed control cabinets.
Deterministic Performance: Interfaces directly with the NetCon 5000 backplane to support time-critical control loops.
ApplicationsThe 5464-013 input driver is widely used in energy and manufacturing sectors, including:
Industrial turbine control systems.
Power generation plant automation.
Legacy control system upgrades and maintenance.
High-EMI environments requiring reliable signal isolation.
Technical Specifications
Model
5464-013
Brand
Woodward
Series
NetCon 5000
Module Type
Semi-Insulated Input Driver
Operating Temperature
-20 to 65 deg C
Power Consumption
4.0 W typical
Fault Indication
Integrated Red LED
Mounting Type
Panel Mount / Rack Add-On
Installation Guidelines
ESD Precautions: Always use a grounded wrist strap and anti-static mat when handling the module to prevent damage to sensitive electronic components.
Power Status: Ensure the control system backplane is powered down before inserting or removing the module.
Mounting: Ensure the module is securely seated in the designated rack slot to maintain proper electrical contact with the backplane.
Wiring: Use shielded cables for field inputs to minimize electromagnetic interference (EMI) in noisy industrial environments.
Ventilation: Ensure adequate airflow within the control cabinet to maintain operating temperatures within the specified -20 to 65 deg C range.
FAQWhat is the primary function of the 5464-013?The 5464-013 acts as an input driver module that conditions signals from field sensors for use by the Woodward NetCon 5000 central processor.How do I troubleshoot a fault on this module?The module features an integrated red LED fault indicator. If the LED is illuminated, it provides immediate visual confirmation of an internal circuit failure or an input signal deviation.
6 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
4 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Woodward 5417-028 is a precision-engineered cable assembly designed for high-reliability signal transmission within industrial control systems. This component provides critical connectivity for MicroNet and 723plus control platforms, ensuring seamless data flow between modules and field devices. Optimized for harsh environments such as power generation and oil refineries, it utilizes high-grade shielding to eliminate electromagnetic interference, which is vital for maintaining system uptime and preventing control logic failures in mission-critical applications.Features
Designed for seamless integration with Woodward MicroNet and 723plus control platforms.
Industrial-grade connectors featuring gold-plated contacts for low contact resistance and long-term durability.
High-grade EMI/RFI shielding to ensure signal integrity in electrically noisy environments.
Rugged outer jacket resistant to oil, heat, and mechanical stress.
Supports high-speed serial or I/O data links within Woodward chassis architectures.
ApplicationsThis cable assembly is primarily used in industrial automation environments, including power generation, turbine control, and oil and gas processing facilities where reliable signal transmission between control modules and field instrumentation is required.Technical Specifications
Model
5417-028
Brand
Woodward
Component Type
Cable Assembly
Shielding
Industrial Grade EMI/RFI
Operating Temperature
-40 to +85 deg C
Installation Guidelines
Ensure the system is powered down before connecting or disconnecting the cable assembly to prevent electrical surges or damage to module ports.
Route the cable away from high-voltage power lines and high-EMI sources to maintain signal integrity.
Ensure connectors are fully seated and locked to prevent intermittent connections due to vibration.
Avoid sharp bends or excessive mechanical tension on the cable during installation to maintain the integrity of the internal shielding and conductors.
Inspect the gold-plated contacts for debris or oxidation before installation to ensure optimal conductivity.
FAQWhat control systems is the 5417-028 compatible with?The 5417-028 is specifically designed for use with Woodward MicroNet and 723plus control platforms.Is this cable suitable for high-temperature environments?Yes, this cable assembly is rated for an operating temperature range of -40 to +85 deg C, making it suitable for most industrial control cabinet environments.Does this cable require special grounding?The cable features integrated shielding designed to provide noise immunity. Ensure that the associated chassis or module grounding points are properly connected to the system earth to maximize the effectiveness of the EMI/RFI shielding.
4 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Woodward 5462-758B is a high-density discrete output module designed for industrial control applications. This module provides 28 isolated discrete output channels, facilitating reliable signal distribution within Woodward control systems. Each channel features integrated LED status indication, allowing for rapid visual diagnostics and troubleshooting during system operation.Features
28 isolated discrete output channels for robust signal management.
Integrated LED status indicators for each channel to simplify maintenance and monitoring.
Designed for 24 V dc rack supply operation.
High isolation rating of 500 V dc (channel-to-bus) to protect internal control circuitry.
Compact modular design suitable for standard industrial control racks.
Technical Specifications
Model
5462-758B
Output Channels
28 x isolated discrete
Rack Supply
24 V dc
Module Consumption
0.3 A @ 24 V
Isolation
500 V dc (channel-to-bus)
Operating Temperature
0 to +60 degC
Storage Temperature
-40 to +85 degC
Humidity
5-95% RH, non-condensing
Installation Guidelines
Ensure the control system is powered down before inserting or removing the module from the rack.
Handle the module using ESD-safe practices to prevent damage to sensitive internal components.
Ensure proper seating in the rack backplane to maintain reliable electrical connectivity.
Route output wiring away from high-voltage AC lines or high-EMI sources to prevent signal interference.
Verify that the 24 V dc power supply is stable and within the specified operating range before energizing the system.
FAQWhat does the LED indication on the 5462-758B signify?The LEDs provide a visual status of the discrete output channels, indicating whether a specific channel is currently active or inactive, which assists in real-time system monitoring.Is this module suitable for high-humidity environments?The module is rated for 5-95% relative humidity (non-condensing). It should be installed in an environment that prevents moisture condensation on the circuit board.
1 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Woodward SST-PFB3-PCI is a high-performance communication interface card designed to integrate PCI-based industrial computers into Profibus DP networks. By offloading the Profibus protocol stack management to an onboard processor, this card ensures deterministic, real-time data exchange while minimizing the processing burden on the host CPU. It is engineered for demanding industrial environments, including power generation, oil and gas refining, and large-scale mining automation, where reliable field-level device management is critical.Features
Protocol Support: Fully compatible with Profibus DP-V0 and DP-V1 standards for both cyclic and acyclic messaging.
Operating Modes: Supports both Master and Slave configurations for versatile network integration.
High-Speed Communication: Supports data rates ranging from 9.6 kbps up to 12 Mbps.
Host Offloading: Onboard processor handles communication tasks to maintain stable system performance and low network latency.
Robust Connectivity: Features a standard DB9 female interface for reliable physical connection to Profibus networks.
ApplicationsThis interface card is primarily used in industrial automation systems requiring high-speed connectivity between PCI-based workstations and field devices. Common applications include distributed control systems (DCS), supervisory control and data acquisition (SCADA) nodes, and real-time monitoring systems in critical infrastructure.Technical Specifications
Model
SST-PFB3-PCI
Brand
Woodward
Bus Interface
PCI
Communication Rate
9.6 kbps to 12 Mbps
Protocol
Profibus DP-V0 / DP-V1
Port Type
DB9 Female
Power Supply
5 VDC (via PCI slot)
Operating Temperature
0 to 60 deg C
Installation Guidelines
ESD Precautions: Always handle the card by its edges and use an anti-static wrist strap to prevent electrostatic discharge damage to sensitive components.
Power Down: Ensure the host computer is completely powered down and disconnected from the AC supply before inserting or removing the PCI card.
Seating: Ensure the card is firmly seated in a compatible PCI slot and secured with the mounting screw to prevent vibration-related disconnects.
Cable Routing: Use shielded Profibus-rated cabling. Keep communication cables routed away from high-voltage power lines and sources of high EMI to maintain signal integrity.
Driver Configuration: Ensure the appropriate Woodward communication drivers are installed on the host operating system to enable proper card recognition and protocol stack management.
FAQDoes this card support both Master and Slave modes?Yes, the SST-PFB3-PCI is designed to support both Master and Slave modes, allowing for flexible deployment within various Profibus network architectures.How is the card powered?The card draws its required 5 VDC power directly from the host computer's PCI slot, requiring no external power supply.
1 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
