Description

Product Overview

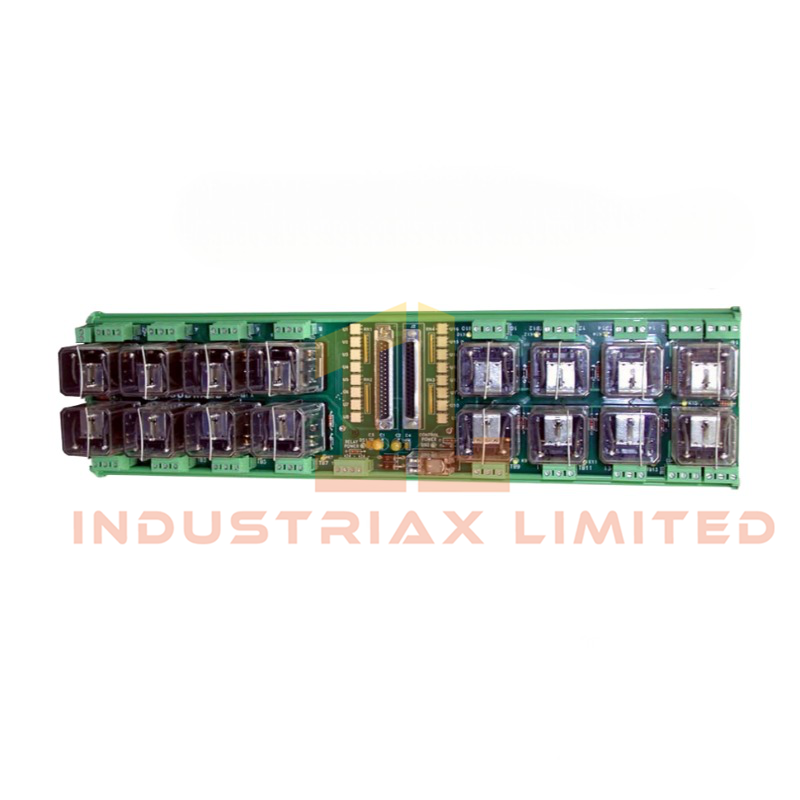

The Woodward 5441-691 Relay Module integrates seamlessly with MicroNet Simplex and MicroNet Plus systems. It features 16 socket-mounted DPDT relays with magnetic blow-out, each energized via a 24 Vdc coil drawing 80 mA. This module supports daisy-chaining through low-density discrete cables and includes an I/O lockout relay for safety-critical applications.

Key Features

• Model: 5441-691

• Manufacturer: Woodward

• Series: MicroNet Simplex & MicroNet Plus

• Relay Count: 16 channels, DPDT

• Relay Type: Dust-tight with magnetic blow-out

• Coil Rating: 80 mA @ 24 Vdc

• Relay Response Time: 15 ms

• Isolation: 1000 Vrms

• Replaceability: Socket-mounted, wire bail retention

• Status LEDs:

  • Yellow: Relay energized

  • Green: Relay power on

  • Green: Control power on

Technical Specifications

Contact Ratings

Specifications

• Dimensions: 205 mm × 65 mm × 55 mm
• Brand: Woodward

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
