Woodward speed and load control modules ensure stable and efficient operation of engines and turbines. They provide accurate regulation, protect equipment from overload, and enhance productivity across energy and industrial applications.
Woodward Speed & Load Control Modules
-
Woodward Woodward 9907-1290 Digital Speed Controller
Overview The Woodward 9907-1290 Digital Speed Controller from the PROACT Model II series delivers precise governor control for diesel generators. This brand-new unit supports PLC integration and Ethernet router communication, ensuring seamless operation in industrial environments. Technical Specifications Parameter Value Model Number 9907-1290 Manufacturer Woodward Module Type Digital Speed Controller Dimensions 28 × 12 × 21 cm Weight 0.96 kg System Compatibility PLC Communication Ethernet router Sensor Circuit High-output integrated Warranty 2 Years (via distributor) HS Code 8537101190 Condition Brand New Lead Time In Stock Minimum Order 1 Unit Product Origin USA
$200.00 $100.00
-
Woodward Woodward 8400-016 Speed Controller
Overview The Woodward 8400-016 Speed Controller belongs to the ACE2000 series, engineered for high-precision turbine speed regulation. This brand-new module integrates seamlessly with PLC systems and supports Ethernet router communication. Its rugged build ensures consistent performance in harsh industrial environments. Technical Specifications Parameter Value Model Number 8400-016 Manufacturer Woodward Module Type Speed Controller Dimensions 28 × 12 × 21 cm Weight 0.96 kg Supply Voltage 24V DC Speed Range 0–6000 rpm Speed Accuracy ±0.25% Response Time <100 ms Analog I/O 4–20mA signals Digital Inputs Start/Stop commands Operating Temp -40°C to +70°C System Compatibility PLC HS Code 8537101190 Condition Brand New Lead Time In Stock Minimum Order 1 Unit Product Origin USA
$200.00 $100.00
-

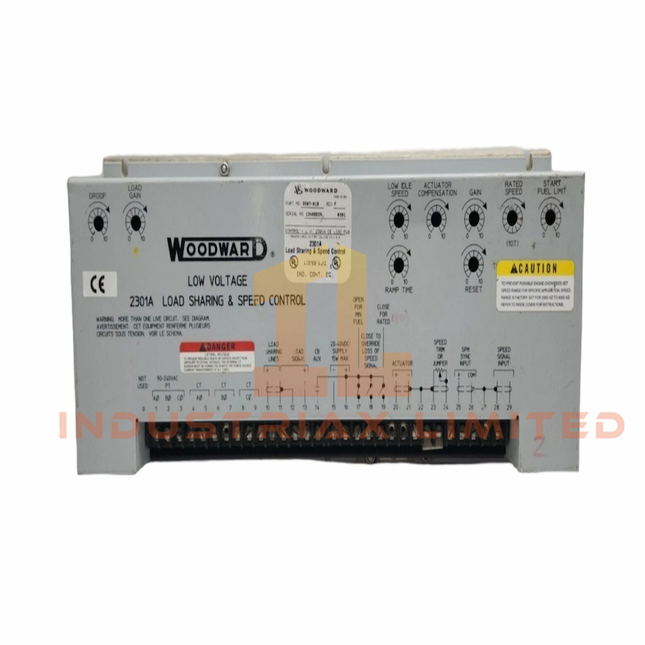

Woodward Woodward 9907-018 Speed Control
Overview The 9907-018 from Woodward is a low-voltage speed control module from the 2301A series, engineered for multi-unit generator systems. It delivers precise load sharing and speed regulation for diesel, gasoline, steam, and gas turbine engines. Its compact metal housing and front-accessible potentiometers simplify field servicing and system tuning. Technical Specifications Specification Detail Model Number 9907-018 Manufacturer Woodward Product Series 2301A Series Module Type Speed Control Dimensions (L×W×H) 10.8 × 20 × 6 cm Weight 0.38 kg Input Voltage Range 18–40 VDC Actuator Signal Output 0–200 mA Drive Capacity Up to 2A Control Modes Isochronous / Droop Load Sharing Accuracy ±2% Speed Stability ±0.25% Load Sharing Signal 0–10V / 4–20mA Speed Feedback Range 50Hz–10kHz Operating Temperature -40°C to +85°C Storage Temperature -50°C to +100°C Certifications CE / CSA Power Consumption <5W System Compatibility PLC Communication Interface Ethernet Router HS Code 8537101190 Condition Brand New Origin USA Lead Time In Stock Minimum Order Quantity 1 Discontinued Status Active Key Features The Woodward 9907-018 supports precise speed control and load sharing. Compatible with EG, PB, EGB, 2301, and TM actuators. Front-panel potentiometers allow quick field adjustments and tuning. Self-contained load sensor enhances performance and system response. CE and CSA certifications ensure global safety and EMC compliance. Automatic start fuel limiting reduces engine wear and emissions. Robust design tolerates extreme temperatures and industrial conditions.
$200.00 $100.00
-
Woodward Woodward 8272-582 Apm Motor Control
Overview The 8272-582 from Woodward is a precision Apm motor control module engineered for 24V DC permanent magnet motors. It converts varying input voltages into a stable, adjustable DC output, ensuring consistent motor speed under changing load conditions. Its compact footprint and adjustable potentiometer make it ideal for industrial speed regulation. Technical Specifications Specification Detail Model Number 8272-582 Manufacturer Woodward Product Series Woodward Module Type Apm Motor Control Dimensions (L×W×H) 28 × 12 × 21 cm Weight 0.96 kg Output Voltage Range 10–24 V DC Motor Compatibility 24 V DC PM motors Speed Adjustment Potentiometer-based System Compatibility PLC Communication Interface Ethernet Router HS Code 8537101190 Condition Brand New Origin USA Lead Time In Stock Minimum Order Quantity 1 Discontinued Status Active Key Features The Woodward 8272-582 delivers variable DC voltage for precise motor control. Adjustable potentiometer allows fine-tuning of speed reference change rate. Compact design supports easy integration into control cabinets. Stable speed output ensures consistent performance under varying loads. Compatible with Woodward 24V DC PM motors and PLC systems. Reliable construction withstands industrial operating conditions.
$200.00 $100.00
-

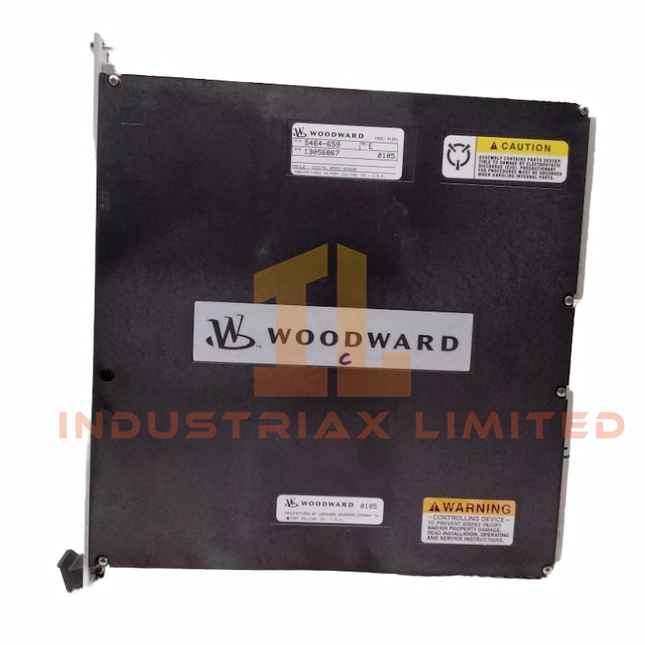

Woodward Woodward 5464-659 Digital Speed Sensor
Product Overview The Woodward 5464-659 Digital Speed Sensor is a precision module designed for MicroNet™ Digital Control Systems, supporting modular integration via 8-position baseplates. It enables accurate speed signal acquisition for turbine and prime mover control applications, interfacing seamlessly with FBMs/FCMs in high-density enclosures. Key Features Model: 5464-659 Series: MicroNet Digital Control Function: Digital speed sensing for turbine control Baseplate Compatibility: Supports 8-position modular baseplates Mounts up to 32 FBMs per enclosure DIP switch for baseplate identification Signal Range: 4–20 mA analog output Voltage Input: 24 Vdc Installation: Modular card guide mounting Standard chassis integration System Integration: Compatible with FBMs/FCMs in MicroNet architecture Technical Specifications Specification Value Part Number 5464-659 Voltage Input 24 Vdc Current Output 4–20 mA Dimensions 160 mm × 160 mm × 12 mm Weight 0.8 kg Product Catalog MicroNet Digital Control
$200.00 $100.00
-
Woodward Woodward 8440-1934 Genset Control Unit
Product Overview The Woodward 8440-1934 Genset Control Unit from the easYgen-3500 Series offers advanced control for complex generator applications. Designed for stand-by, AMF, peak shaving, cogeneration, and distributed generation, it supports isolated, island, and mains-parallel operations. With automatic sequencing, it can manage up to 32 gensets in a network. Key Features Model: 8440-1934 Manufacturer: Woodward Series: easYgen-3500 Genset Control: Up to 32 units with automatic sequencing Sensing: True RMS for voltage and current Protection: Full engine/generator protection and mains monitoring Logic Control: LogicsManager™ with Boolean logic and timers Load Sharing: kW/kvar sharing in island or utility-parallel mode Communication Protocols: CANopen, J1939, Modbus RTU, modem Display: Graphical interface with selectable languages External Interfaces: SCADA, RP-3000 remote panel, external I/O Technical Specifications Specification Value Part Number 8440-1934 Voltage Input 24 Vdc Current Draw 2 A Dimensions 282 mm × 217 mm × 99 mm Weight 1.85 kg
$200.00 $100.00
-

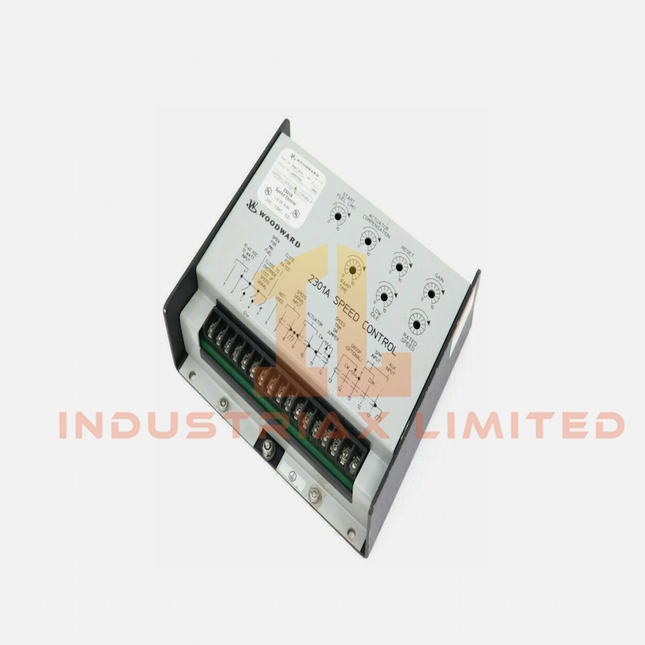

Woodward Woodward 9907-014 Forward Acting Speed Control
Precision Speed Regulation for Prime Movers The Woodward 9907-014 is a forward-acting speed control unit from the 2301A series, designed to regulate generator speed and load sharing for diesel, gasoline, steam, or gas turbine-driven systems. Manufactured by Woodward Inc., this module supports both isochronous and droop control modes, offering flexible performance across isolated and grid-connected operations. Key Features Full authority speed setting via 4–20 mA or 1–5 Vdc input Isochronous mode for constant speed in isolated or base-loaded systems Droop mode for load-dependent speed control in parallel configurations Integrated signal converter within the control package Adjustable high and low speed limits for fine-tuned control Start fuel limit with override for optimized startup behavior Front-access potentiometers for easy field calibration Technical Specifications Specification Details Manufacturer Woodward Inc. Series 2301A Speed Control Model 9907-014 Voltage 24 Vdc Current 4 A Dimensions 160 mm × 160 mm × 120 mm Weight 0.8 kg Speed Input Range 4–20 mA or 1–5 Vdc Control Modes Isochronous / Droop Voltage Models Low and High Voltage Options
$200.00 $100.00
-
Woodward Woodward 9907-018 Load Sharing and Speed Control Module
Isochronous and Droop Control for Prime Movers The Woodward 9907-018 is a precision-engineered control module from the 2301A series, designed to regulate load sharing and speed for generators powered by diesel, gasoline, steam, or gas turbines. Developed by Woodward Inc., this unit supports both isochronous and droop modes, offering flexible control for isolated or grid-connected systems. Key Features Isochronous mode for constant speed in isolated or base-loaded systems Droop mode for load-dependent speed control in parallel operations Front-access potentiometers for easy adjustment Compatible with APTL, Import/Export, and Generator Loading Controls Supports single or multiple prime mover configurations Sheet-metal chassis with integrated printed circuit board Technical Specifications Specification Details Manufacturer Woodward Inc. Series 2301A Load Sharing & Speed Control Model 9907-018 Voltage 24 Vdc Current 1 A Dimensions 160 mm × 160 mm × 120 mm Weight 0.8 kg Speed Ranges 500–1500 Hz, 1000–3000 Hz, 2000–6000 Hz, 4000–12000 Hz
$200.00 $100.00
-
Woodward Woodward 9907-167 Digital Turbine Control Unit
Product Overview The Woodward 9907-205 Hand Held Programmer is a compact terminal designed for configuring and monitoring ProAct™ Digital Speed Control systems. It connects via RS-422 D-sub port and draws power directly from the control unit. Upon connection, the terminal performs a self-test. Users can press the ID key to view the control’s part number and software revision—essential for support and diagnostics. The backlit LCD screen displays four lines, allowing simultaneous viewing of two menu items. Navigation is intuitive using arrow keys, and changes must be saved manually using the SAVE key to prevent data loss during power-down. Technical Specifications Attribute Value Manufacturer Woodward Part Number 9907-205 System Compatibility ProAct™ Digital Speed Control Function Hand Held Programmer Interface RS-422 (D-connector, J1 port) Display 4-line backlit LCD Navigation Arrow keys, ID key, SAVE key Input Voltage 24 VDC Current Consumption 1 A Dimensions 163 mm × 109 mm × 27 mm Weight 0.8 kg
$200.00 $100.00
