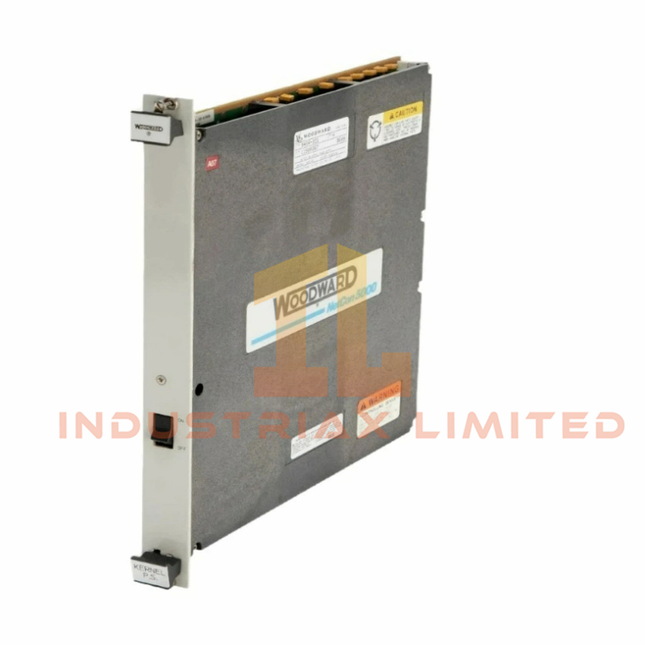

Product Overview The Woodward 5464-331 Kernel Power Supply Module is a high-speed communication interface designed for MicroNet Digital Control systems. It features three independent RS-485 ports, each capable of interfacing with EM or GS/LQ Digital Actuator Drivers. With a rapid 5 ms update rate per port, this module ensures precise and noise-free 16-bit position commands for critical control loops. Key Features Model: 5464-331 Manufacturer: Woodward Series: MicroNet Digital Control RS-485 Ports: 3 independent channels Driver Interface: EM / GS/LQ Digital Actuator Drivers Update Rate: 5 ms per port Command Precision: 16-bit, noise-free position control Rate Group Scheduling: Independent per port Fault Detection: Automatic driver disable on comm fault Remote Access: Driver monitoring and configuration Installation: Slides into chassis card guides Secured with top and bottom screws Handles for easy disengagement Technical Specifications Specification Value Part Number 5464-331 Voltage Input 24 Vdc Current Draw 1 A Dimensions 160 mm × 160 mm × 120 mm Weight 0.1 kg

Read more less

Product Overview The Woodward 5437-1124 Protection Module is a panel-mounted unit designed for integration into the ProTech-GII System, supporting critical overspeed and safety functions. Each ProTech-GII system includes three internal modules (A, B, C), and this module accepts either dual high-voltage (HV) inputs or a combination of HV and low-voltage (LV) inputs, depending on system configuration. Key Features Model: 5437-1124 Manufacturer: Woodward Series: ProTech-GII System Power Inputs: Dual HV or HV + LV (model-dependent) LED Indicator: Confirms power-on status Mounting Type: Panel-mount with vertical orientation Installation Steps: Guided slot insertion Retaining screw fixation Back panel and terminal block setup Power application and LED verification Environmental Compliance: IEC 721-3-3 Class 3C2 Max Purge Pressure: 4 psi Technical Specifications Specification Value Part Number 5437-1124 Voltage Input 24 Vdc Current Draw 500 mA Dimensions 361 mm × 162 mm × 140 mm Weight 2 kg Operating Temperature –20 to +60 °C

Read more less

Product Overview The Woodward 8237-1600 ProTech-GII Overspeed Protection Device is engineered for high-integrity protection of steam, gas, and hydro turbines, compressors, and reciprocating engines. With a rapid response time of 8–26 milliseconds and a wide speed detection range from 0.5 to 32,000 rpm, this SIL-3 certified system ensures precise overspeed and acceleration monitoring. Key Features Model: 8237-1600 Manufacturer: Woodward Series: ProTech-GII System Speed Range: 0.5 to 32,000 rpm Response Time: 8–26 ms (model-dependent) Inputs: 1 speed input per module (3 total) Outputs: 3 trip relay outputs 3 alarm relay outputs 3 analog speed outputs Architecture: Triple modular redundancy with 2-out-of-3 voting Certification: IEC61508 SIL-3 System Compatibility: IEC61508 standalone or IEC61511 plant integration Safety Logic: Fault-tolerant, online repairable design Technical Specifications Specification Value Part Number 8237-1600 Voltage Input 24 Vdc Current Draw 500 mA Dimensions 482.6 mm × 330.2 mm × 147.3 mm Weight 10 kg

Read more less

Product Overview The Woodward 5466-1000 Power Supply Module delivers robust and regulated power for MicroNet Plus Simplex or Redundant control systems. It generates three distinct outputs: 24 V @ 12 A, 5 V @ 32 A (derated above 55 °C), and 5 V pre-charge @ 3 A. These outputs connect to internal power busses via the system’s rear-mounted motherboard. Key Features Model: 5466-1000 Manufacturer: Woodward Series: MicroNet Plus Power Outputs: 24 V @ 12 A (max) 5 V @ 32 A (max, derated above 55 °C) 5 V Pre-charge @ 3 A (max) Load Sharing: Supported for 24 V and 5 V outputs Cold Swap Capability: Safe module replacement with power off LED Indicators: OK Input Fault Over Temperature Power Supply Fault Installation Slots: PS1 and PS2 only Input Connection: Plug/header assembly on front panel Blanking Plate Requirement: For unused slots in non-redundant setups Technical Specifications Specification Value Part Number 5466-1000 Voltage Output 24 Vdc Current Draw 3 A Dimensions 35 cm × 28 cm × 10 cm Weight 1 kg Power Regulation ±10% (24 V), ±5% (5 V), ±10% (5 V Pre-charge) External Access 24 V bus only (fused)

Read more less

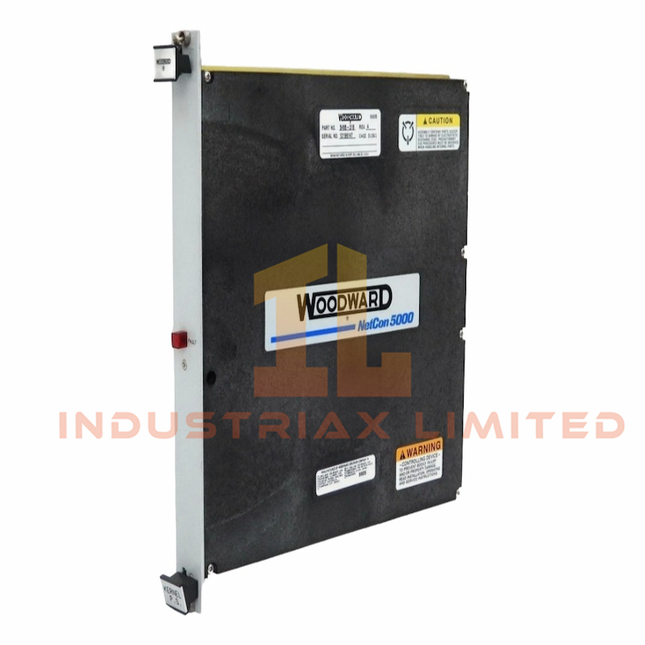

Product Overview The Woodward 5466-318 TMR Kernel PS Module regulates 24 Vdc input to a stable 5 Vdc output at 10 A. It powers all kernel components within the MicroNet Digital Control system. This module ensures safe startup by generating a 5 Vdc precharge voltage, protecting sensitive circuits from power surges. Each 5466-318 module installs in the first slot of the kernel sub-chassis. The adjacent slot must house the Kernel CPU module to maintain correct system configuration. A single LED on the module indicates power health status. Technical Specifications Parameter Specification Manufacturer Woodward Model Number 5466-318 Series MicroNet Digital Control Input Voltage 24 Vdc Output Voltage 5 Vdc Output Current 10 A Operating Current 4 mA Dimensions 16 cm × 16 cm × 12 cm Weight 0.8 kg LED Indicator 1 (Power Health Status) Slot Position First slot in kernel sub-chassis Installation Notes Install the 5466-318 module in the leftmost slot of each kernel sub-chassis. Place the Kernel CPU module immediately to its right. This layout ensures optimal performance and system integrity. Application & Compatibility The Woodward 5466-318 module supports fault-tolerant operation in MicroNet TMR control systems. It suits high-reliability environments such as nuclear facilities, aerospace platforms, and mission-critical industrial automation. Its modular redundancy allows independent kernel operation during power faults, enhancing system uptime. Compatible with MicroNet chassis configurations requiring regulated 5 Vdc distribution.
