Description

Product Overview

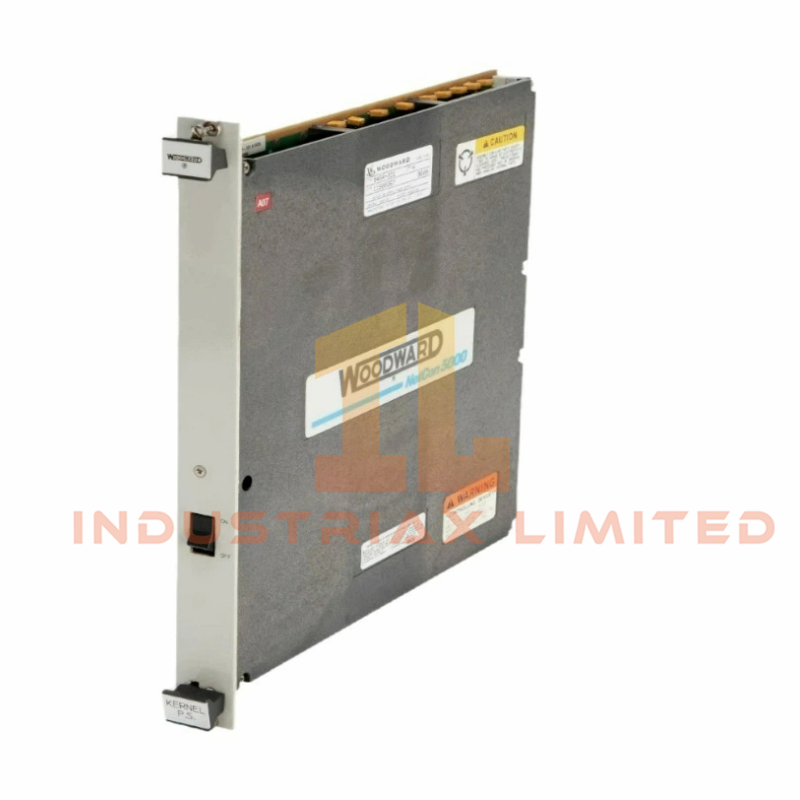

The Woodward 5464-331 Kernel Power Supply Module is a high-speed communication interface designed for MicroNet Digital Control systems. It features three independent RS-485 ports, each capable of interfacing with EM or GS/LQ Digital Actuator Drivers. With a rapid 5 ms update rate per port, this module ensures precise and noise-free 16-bit position commands for critical control loops.

Key Features

• Model: 5464-331

• Manufacturer: Woodward

• Series: MicroNet Digital Control

• RS-485 Ports: 3 independent channels

• Driver Interface: EM / GS/LQ Digital Actuator Drivers

• Update Rate: 5 ms per port

• Command Precision: 16-bit, noise-free position control

• Rate Group Scheduling: Independent per port

• Fault Detection: Automatic driver disable on comm fault

• Remote Access: Driver monitoring and configuration

• Installation:

  • Slides into chassis card guides

  • Secured with top and bottom screws

  • Handles for easy disengagement

Technical Specifications

Specifications

• Dimensions: 160 mm × 160 mm × 120 mm
• Brand: Woodward

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
