Schneider Communication & Networking Modules
-
Schneider Electric Schneider TSXCDP503 Connecting Cable

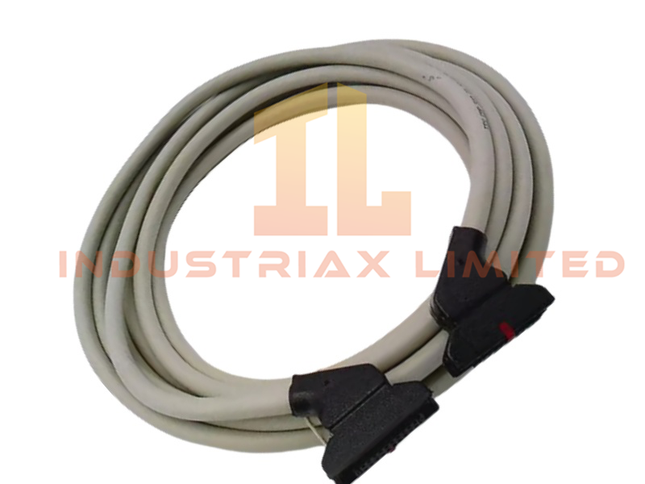

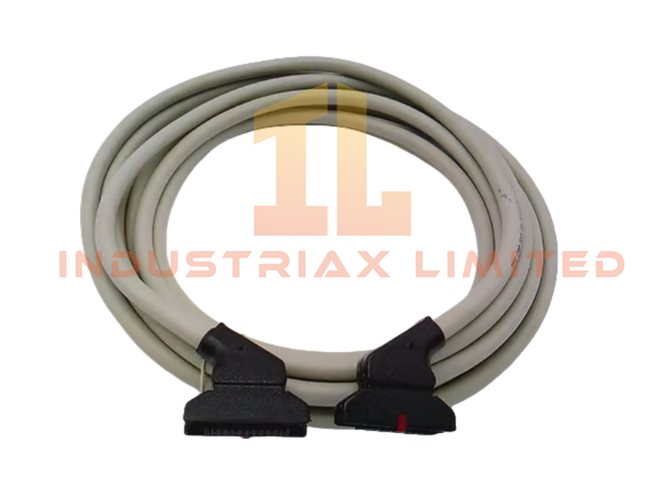

Overview The TSXCDP503 from Schneider Electric is a 5-meter industrial-grade connecting cable designed for Modicon Premium PLC systems. It features HE10 20-pin connectors on both ends, ensuring secure and interference-free communication between modules and controllers. Its shielded construction and flexible design support reliable performance in harsh environments. Technical Specifications Specification Detail Model Number TSXCDP503 Manufacturer Schneider Electric Product Series Modicon Premium Module Type Connecting Cable Cable Length 5 meters Connector Type HE10 20-pin (both ends) Wire Gauge Shielded AWG 4 / AWG 22 conductors Baud Rate Up to 115.2 kbps (RS-485) Voltage Rating 30V DC max Operating Temperature -25°C to +70°C Bending Radius ≥50 mm Dimensions (L×W×H) 6.5 × 23.5 × 25 cm Weight 0.4 kg System Compatibility PLC Communication Interface Ethernet Router HS Code 8537101190 Condition Brand New Origin France Lead Time In Stock Minimum Order Quantity 1 Discontinued Status Active Key Features The Schneider TSXCDP503 supports high-speed RS-485 communication up to 115.2 kbps. Shielded AWG 4 and AWG 22 conductors ensure stable signal transmission. HE10 20-pin connectors simplify integration with Schneider PLC modules. Flexible bending radius allows easy routing in compact control panels. The cable withstands wide temperature ranges for industrial reliability. Compact dimensions and lightweight build support efficient installation.
$200.00 $100.00
-
Schneider Electric Schneider Electric ABE7H16R11 Interface Module
Overview The ABE7H16R11 Interface Module from Schneider Electric supports passive discrete I/O integration for industrial automation. It fits seamlessly into PLC systems, offering reliable performance across manufacturing, energy, and building control applications. This module measures 24.2×12.6×10.5cm and weighs 1.18kg, making it suitable for compact control panels. The ABE7H16R11 operates on a 19–30V DC supply and conforms to IEC 61131-2 standards, ensuring stable performance in demanding environments. Equipped with 16 single-terminal channels, the ABE7H16R11 supports flexible and solid conductors up to 2.5mm². Each channel includes an LED indicator for real-time status, while a green LED confirms power readiness. The module features a 20-pin HE-10 connector for secure signal transmission and includes a 2A internal fuse for short-circuit protection. Its low voltage drop of 0.3V ensures efficient power delivery across connected devices. Mounting options include 35mm DIN rail or solid plate installation using a fixing kit. With 2000V insulation and IEC 60664-1 compliance, the ABE7H16R11 guarantees electrical safety and long-term durability. Technical Specifications Specification Detail Model Number ABE7H16R11 Manufacturer Schneider Electric System Type PLC Product Range Schneider Electric Dimensions 24.2 × 12.6 × 10.5 cm Weight 1.18 kg Channels 16 Discrete Inputs Voltage Range 19–30V DC Fuse Protection 2A Internal Fuse Connector Type 20-pin HE-10 Wire Size Support Up to 2.5 mm² Voltage Drop 0.3V Max Current 1.8A (0.5A per channel) Insulation Voltage 2000V Mounting Options DIN Rail / Solid Plate HS Code 8537101190 Condition Brand New Lead Time In Stock Minimum Order 1 Unit Origin France Discontinued Status Active Features & Benefits ABE7H16R11 supports 16 channels with LED indicators for real-time monitoring. Screw-type terminals accommodate flexible and solid wires up to 2.5mm². 2A fuse protection ensures safety for connected PLC systems. HE-10 connector enables secure and efficient signal transmission. Compact design and DIN rail mounting simplify panel integration.
$200.00 $100.00
-
Schneider Schneider 170NEF11021 Communication Adaptor

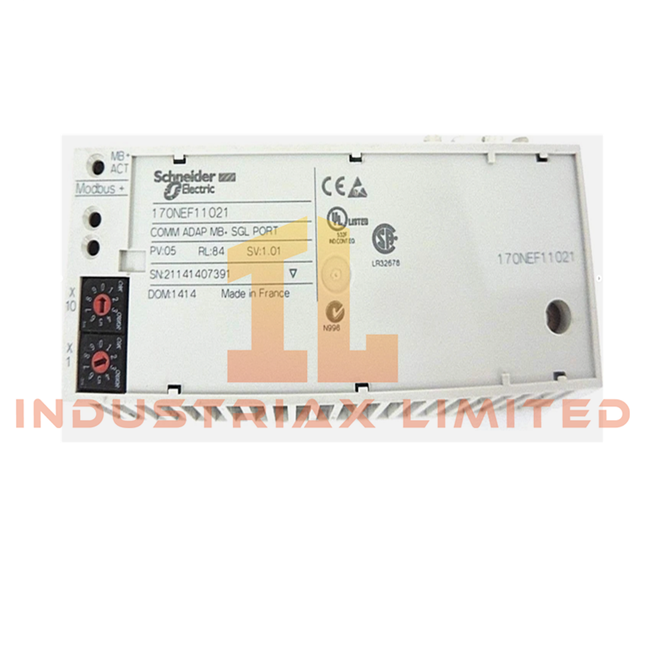

Specifications Range of Product: Modicon Momentum Automation Platform Product Type: Modbus Plus Communication Adaptor Compatible PLC: Bus Manager PLC, Compact 984, Quantum Structure Type: Industrial Communication Protocol: Modbus Plus Method of Access: Peer-to-Peer, Token Bus Transmission Rate: 1 Mbit/s Transmission Medium: Twisted Pair Complementary Topology: Multidrop; device connecting by extension or tap-off cable Number of Devices per Segment: 0–31 per segment, 0–63 all segments Maximum Cable Distance: 16,404.2 ft (5,000 m) with repeater Data Format: 984 Fail State Options: Full Scale Value, Maintain Value, Fallback to Zero, Forcing to State Zero Supply: From I/O Base Marking: CE Local Signalling 1 LED (green) – Module powered up or communicating (MB+ACT) 1 LED (red) – Communication error network A (ERR A) 1 LED (red) – Communication error network B (ERR B) Electrical Connections 1 SUB-D9 connector for Modbus Plus network 1 SUB-D9 connector for redundant Modbus Plus network Environment Certifications: CSA, UL Protective Treatment: TC Resistance to Electrostatic Discharge: 4 kV contact (IEC 801-2), 8 kV air (IEC 801-2) Resistance to Electromagnetic Fields: 9.1 V/yd (10 V/m) 80–1000 MHz (IEC 801-3) Operating Temperature: 32–140 °F (0–60 °C) Storage Temperature: –40–185 °F (–40–85 °C) Relative Humidity: 95% (non-condensing) Operating Altitude: ≤ 5,000 m
