Description

Overview

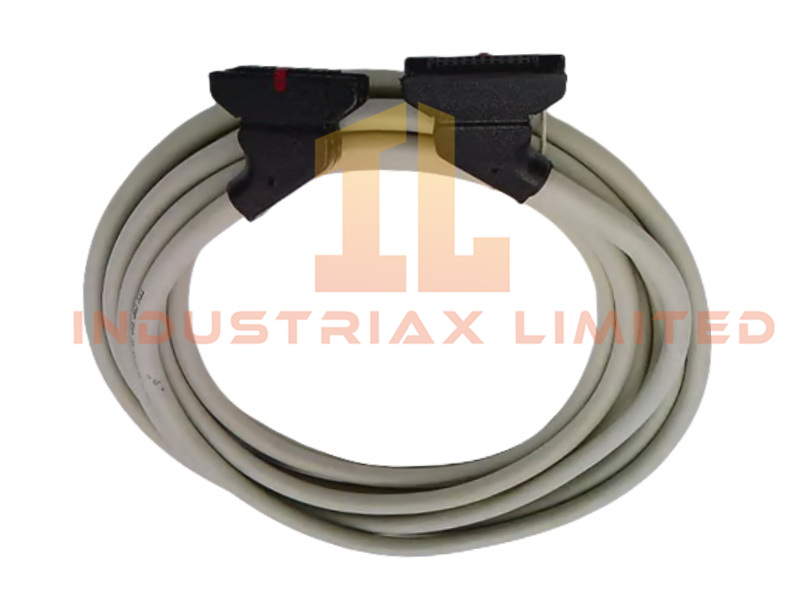

The TSXCDP503 from Schneider Electric is a 5-meter industrial-grade connecting cable designed for Modicon Premium PLC systems. It features HE10 20-pin connectors on both ends, ensuring secure and interference-free communication between modules and controllers. Its shielded construction and flexible design support reliable performance in harsh environments.

Technical Specifications

Specification	Detail
Model Number	TSXCDP503
Manufacturer	Schneider Electric
Product Series	Modicon Premium
Module Type	Connecting Cable
Cable Length	5 meters
Connector Type	HE10 20-pin (both ends)
Wire Gauge	Shielded AWG 4 / AWG 22 conductors
Baud Rate	Up to 115.2 kbps (RS-485)
Voltage Rating	30V DC max
Operating Temperature	-25°C to +70°C
Bending Radius	≥50 mm
Dimensions (L×W×H)	6.5 × 23.5 × 25 cm
Weight	0.4 kg
System Compatibility	PLC
Communication Interface	Ethernet Router
HS Code	8537101190
Condition	Brand New
Origin	France
Lead Time	In Stock
Minimum Order Quantity	1
Discontinued Status	Active

Key Features

• The Schneider TSXCDP503 supports high-speed RS-485 communication up to 115.2 kbps.

• Shielded AWG 4 and AWG 22 conductors ensure stable signal transmission.

• HE10 20-pin connectors simplify integration with Schneider PLC modules.

• Flexible bending radius allows easy routing in compact control panels.

• The cable withstands wide temperature ranges for industrial reliability.

• Compact dimensions and lightweight build support efficient installation.

Specifications

• Dimensions: 6.5 × 23.5 × 25 cm
• Brand: Schneider Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
