Specifications

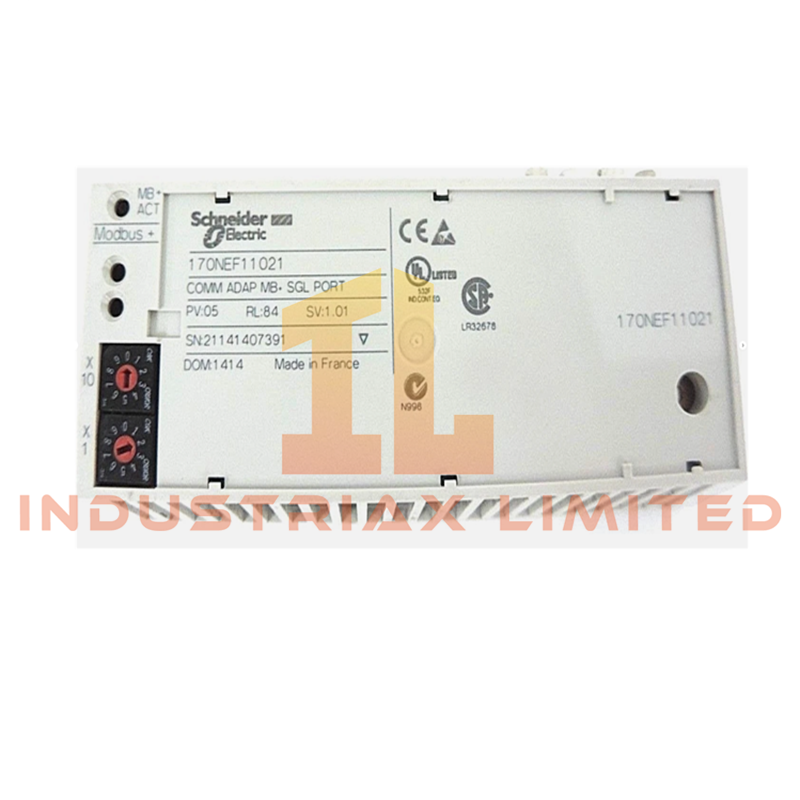

• Range of Product: Modicon Momentum Automation Platform

• Product Type: Modbus Plus Communication Adaptor

• Compatible PLC: Bus Manager PLC, Compact 984, Quantum

• Structure Type: Industrial

• Communication Protocol: Modbus Plus

• Method of Access: Peer-to-Peer, Token Bus

• Transmission Rate: 1 Mbit/s

• Transmission Medium: Twisted Pair

Complementary

• Topology: Multidrop; device connecting by extension or tap-off cable

• Number of Devices per Segment: 0–31 per segment, 0–63 all segments

• Maximum Cable Distance: 16,404.2 ft (5,000 m) with repeater

• Data Format: 984

• Fail State Options: Full Scale Value, Maintain Value, Fallback to Zero, Forcing to State Zero

• Supply: From I/O Base

• Marking: CE

Local Signalling

• 1 LED (green) – Module powered up or communicating (MB+ACT)

• 1 LED (red) – Communication error network A (ERR A)

• 1 LED (red) – Communication error network B (ERR B)

Electrical Connections

• 1 SUB-D9 connector for Modbus Plus network

• 1 SUB-D9 connector for redundant Modbus Plus network

Environment

• Certifications: CSA, UL

• Protective Treatment: TC

• Resistance to Electrostatic Discharge: 4 kV contact (IEC 801-2), 8 kV air (IEC 801-2)

• Resistance to Electromagnetic Fields: 9.1 V/yd (10 V/m) 80–1000 MHz (IEC 801-3)

• Operating Temperature: 32–140 °F (0–60 °C)

• Storage Temperature: –40–185 °F (–40–85 °C)

• Relative Humidity: 95% (non-condensing)

• Operating Altitude: ≤ 5,000 m

Specifications

• Dimensions: 200 mm x 100 mm x 100 mm
• Brand: Schneider

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
