Description

Product Overview

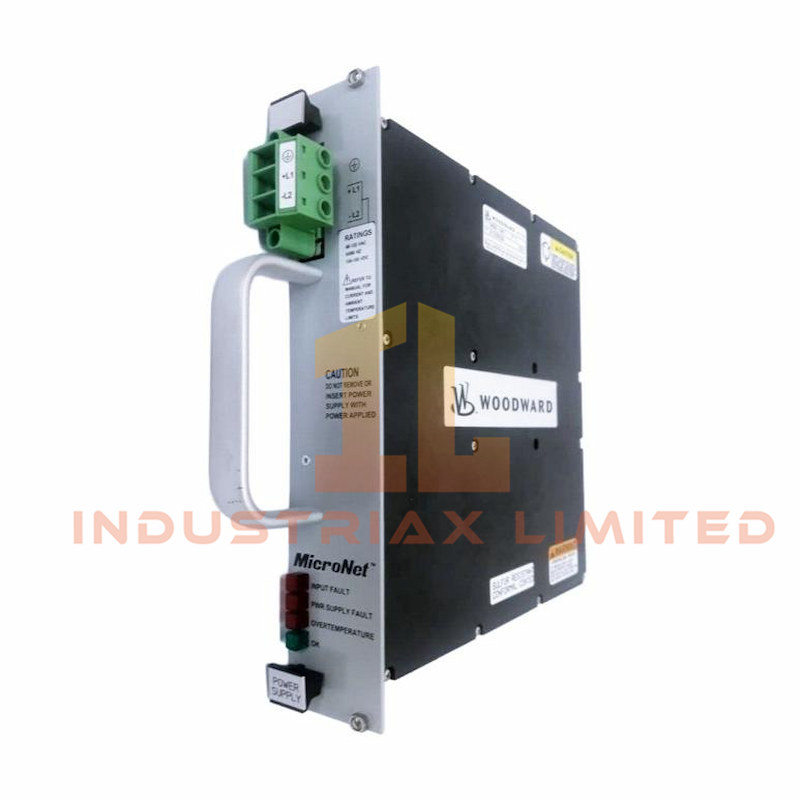

The Woodward 5466-1000 Power Supply Module delivers robust and regulated power for MicroNet Plus Simplex or Redundant control systems. It generates three distinct outputs: 24 V @ 12 A, 5 V @ 32 A (derated above 55 °C), and 5 V pre-charge @ 3 A. These outputs connect to internal power busses via the system’s rear-mounted motherboard.

Key Features

• Model: 5466-1000

• Manufacturer: Woodward

• Series: MicroNet Plus

• Power Outputs:

  • 24 V @ 12 A (max)

  • 5 V @ 32 A (max, derated above 55 °C)

  • 5 V Pre-charge @ 3 A (max)

• Load Sharing: Supported for 24 V and 5 V outputs

• Cold Swap Capability: Safe module replacement with power off

• LED Indicators:

  • OK

  • Input Fault

  • Over Temperature

  • Power Supply Fault

• Installation Slots: PS1 and PS2 only

• Input Connection: Plug/header assembly on front panel

• Blanking Plate Requirement: For unused slots in non-redundant setups

Technical Specifications

Specifications

• Dimensions: 35 cm × 28 cm × 10 cm
• Brand: Woodward

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
