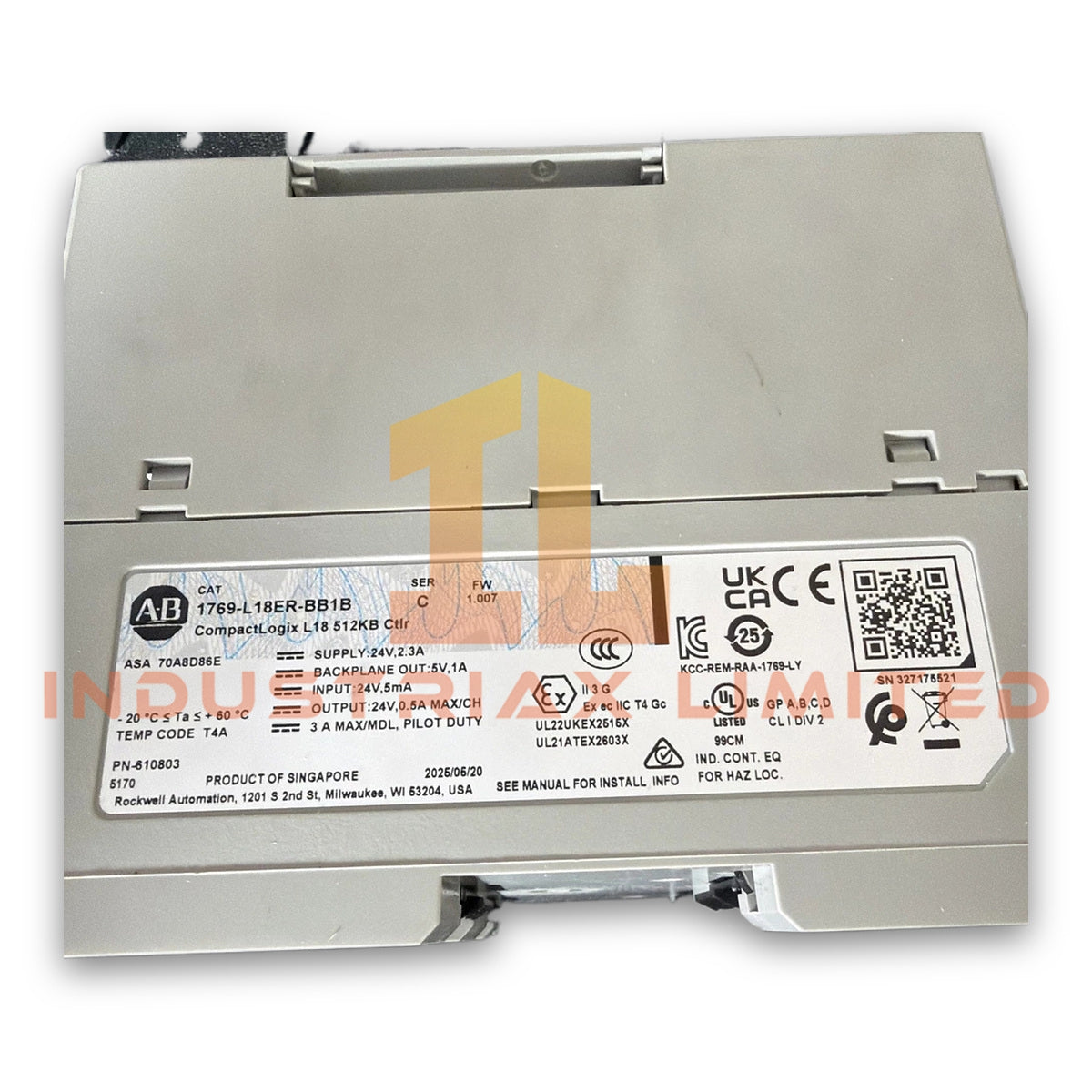

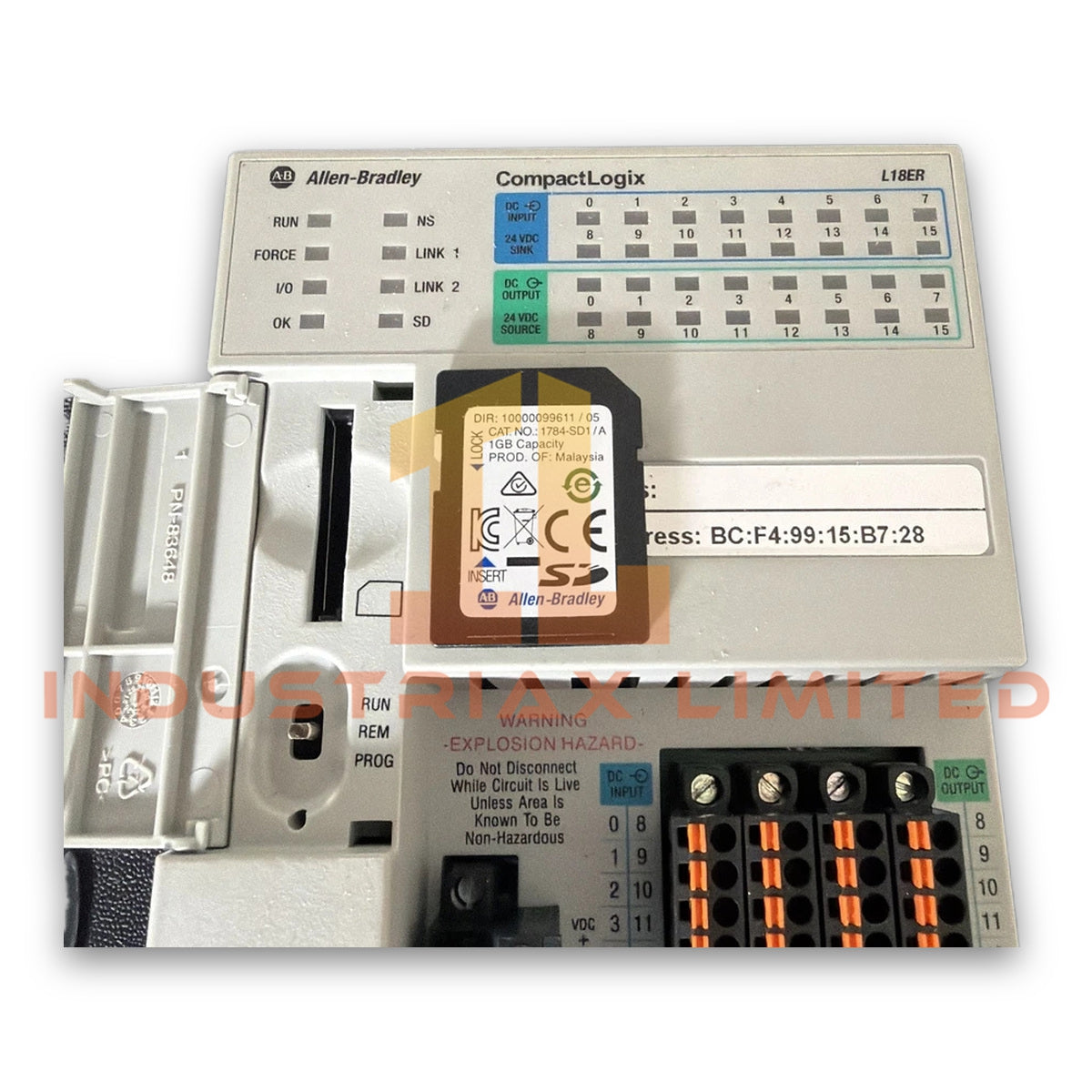

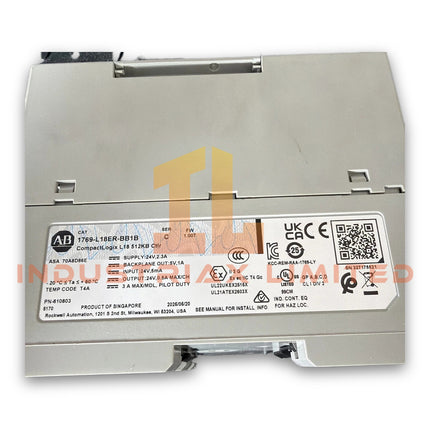

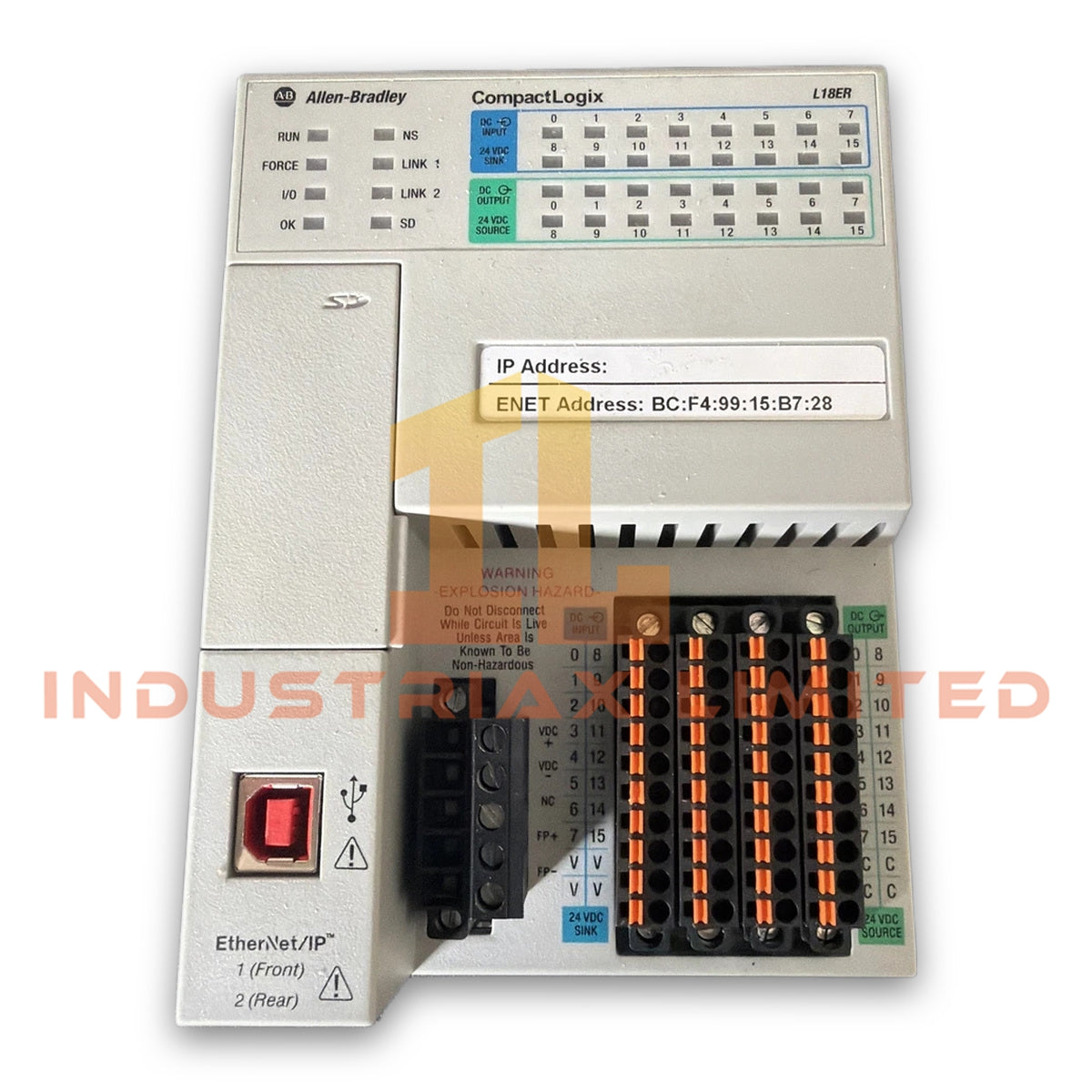

Allen Bradley 1769-L18ER-BB1B CompactLogix Controller

Configured for discrete logic execution in EtherNet/IP deterministic networks, the Allen Bradley 1769-L18ER-BB1B, also cataloged as the 1769-L18ER-BB1B Controller, provides direct physical/electrical execution. This hardware component manages up to 32 controller tasks while maintaining 1000 programs per task to guarantee continuous scan cycles across local bus architectures.

Hardware Specifications

Parameter	Specification
Model	1769-L18ER-BB1B
Brand	Allen Bradley
Origin	USA / Authorized Manufacturing Facilities
Weight	2.00 lbs (0.91 kg)
Dimensions	Standard CompactLogix Form Factor
Operating Temp	0 deg C to 60 deg C
Power Consumption	Dependent on backplane load and I/O draw
Onboard Memory	512 KB
Max Local I/O Capacity	8 Bulletin 1734 Series POINT I/O Modules

Backplane Bus Communication Velocity And Deterministic Networks

The internal architecture relies on high-speed backplane bus communication velocity to process cyclic data packets without latency anomalies. Engineers configure the integrated dual-port Ethernet interface to support linear topologies, traditional star topologies, and DLR (Device-Level Ring) topologies, which ensures fault-tolerant media redundancy across demanding factory automation floors. Furthermore, the controller utilizes internal energy storage to preserve user memory and operational states during unexpected power loss events without requiring an external battery backup.

Frequently Asked Questions

Q: Does the 1769-L18ER-BB1B controller support hot-swap replacement procedures during active operation?

A: No, module removal or insertion while backplane power remains energized can cause hardware damage or unintended system faults. Technicians must de-energize the system power supply prior to servicing local modules.

Q: How does the controller handle firmware flash compatibility during routine maintenance updates?

A: Firmware updates require direct connection via the Ethernet or USB configuration port using ControlFLASH software. Users must verify matching revision levels with associated RSLinx drivers before initiating the flash sequence.

Q: What limits apply to local expansion modules connected to this specific CompactLogix processor?

A: The processor supports a maximum local I/O module capacity of 8 Bulletin 1734 Series POINT I/O modules directly adjacent to the controller chassis, relying on system power distribution limits.

Field Installation Guidelines

Technicians must mount the 1769-L18ER-BB1B securely onto a standard DIN rail or panel surface within an industrial enclosure rated for the local environmental conditions. Ensure adequate spacing above and below the controller housing to facilitate proper convection cooling. Connect the functional earth ground terminal directly to the enclosure ground bus bar using low-impedance copper braided wire to mitigate high-frequency electrical noise and transient surges. Verify network cable shielding continuity and terminate drain wires appropriately at designated grounding points before applying system power.

Specifications

• Brand: Allen Bradley

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
