Honeywell Honeywell MU-GAIH83 Analog Input Modules
Honeywell MU-GAIH83 High-Level Analog Input Field Termination Assembly Configured for high-level analog signal termination in Honeywell TDC 3000 and Experion PKS systems, the Honeywell MU-GAIH83 (MU-GAIH83 High-Level Analog Input Field Termination Assembly) provides direct physical and electrical signal interface execution for field input circuits. Hardware Specifications Parameter Specification Model MU-GAIH83 Brand Honeywell Product Type High-Level Analog Input Field Termination Assembly (HLAI FTA) Power Consumption Passive signal termination assembly; no separate power consumption data provided Input Channels 16 channels Input Signal Type 4-20 mA DC or 1-5 VDC Protection Function Galvanic Isolation (GI) and Intrinsic Safety (IS) Connector Type Round crimp pin connectors System Compatibility Honeywell TDC 3000 and Experion PKS Hazardous Area Compliance ATEX and IECEx compatible according to provided specifications Process Control Signal Isolation and HART Loop Interface The MU-GAIH83 interfaces field analog devices with Honeywell process control systems through high-level analog input termination circuits. The module supports 4-20 mA DC and 1-5 VDC signals for transmitter and measurement device connections. Furthermore, the galvanic isolation design separates field wiring circuits from control system electronics. This channel isolation reduces ground loop effects and limits electrical interference during analog signal transmission. The intrinsic safety protection structure controls energy transfer between the field device and the control system. Therefore, the assembly supports connections to instruments installed in hazardous area environments when applied with approved system barriers and installation methods. Frequently Asked Questions Q: Does the MU-GAIH83 provide direct analog signal conversion?A: No. The MU-GAIH83 functions as a Field Termination Assembly for signal termination, isolation, and interface connection. Signal processing occurs through the associated Honeywell control system input hardware. Q: What field signals can connect to the MU-GAIH83?A: The assembly supports 4-20 mA DC and 1-5 VDC analog input signals according to the provided technical specifications. Q: Can the MU-GAIH83 be installed in hazardous areas?A: The module includes Intrinsic Safety and Galvanic Isolation functions. Installation must follow the approved Honeywell system configuration and hazardous area wiring requirements. Field Installation Guidelines Install the MU-GAIH83 within the designated Honeywell termination cabinet or approved field interface enclosure. Use the specified round crimp pin connectors to maintain correct signal termination and mechanical retention. Separate analog signal wiring from high-voltage power cables to reduce electromagnetic interference. Connect cable shields according to the plant grounding specification and avoid multiple grounding points that may create ground loops. Verify field transmitter signal polarity before connecting 4-20 mA DC or 1-5 VDC circuits. Confirm hazardous area installation requirements before connecting intrinsically safe field devices. Inspect terminal connections and cable routing during commissioning to ensure correct signal continuity.
$200.00 $100.00
-
Honeywell Honeywell MU-TAIH13 High-Level Analog Input FTA Module
Honeywell MU-TAIH13 High-Level Analog Input FTA Module Configured for high-level analog signal termination in Honeywell Experion PKS and TPS/TDC 3000 systems, the Honeywell MU-TAIH13 (MU-TAIH13 High-Level Analog Input FTA Module) provides direct physical and electrical execution for 16 differential field input channels. Hardware Specifications Parameter Specification Model MU-TAIH13 Brand Honeywell Product Type High-Level Analog Input FTA Module Origin USA Operating Temp 0 deg C to 50 deg C Power Consumption Supplied through system interface, value not specified Number of Channels 16 differential analog input channels Input Signal Ranges 4-20 mA via 250 Ohm resistor, 1-5 VDC, 0-5 VDC A/D Converter Resolution 16-bit converter, typically 14 bits utilized Common Mode Rejection Ratio Greater than 70 dB from DC to 60 Hz Normal Mode Rejection Ratio Greater than 32 dB at 60 Hz Maximum Differential Input Voltage +/-30 VDC Accuracy +/-0.075% of full scale at 23.5 deg C Sampling Rate 4 samples/second per channel Mounting Type DIN rail or dedicated FTA mounting channel Humidity Range 5% to 95% relative humidity, non-condensing System Compatibility Honeywell Experion PKS, TPS, TDC 3000 HPM/EHPM architecture Process Instrument Signal Interface and Isolation Characteristics The MU-TAIH13 performs field-level analog signal termination and routing for Honeywell process control platforms. It accepts current and voltage signals from transmitters, sensors, and field instruments, while the integrated precision resistor network converts current loops into voltage measurement signals. Furthermore, the module supports 4-20 mA HART loop protocol applications through compatible system configurations. Channel-to-channel isolation and input protection circuits reduce interference from field wiring conditions. The termination assembly also provides loop power capability for standard 2-wire transmitters when configured within supported Honeywell I/O architectures. The module maintains analog measurement integrity through common mode rejection and normal mode noise rejection characteristics. Therefore, field signal conversion remains stable during typical industrial electrical disturbances. Frequently Asked Questions Q: Does the MU-TAIH13 provide direct connection for 4-20 mA field transmitters?A: Yes. The module supports 4-20 mA input signals through integrated 250 Ohm precision shunt resistors and provides termination for compatible field transmitters. Q: Is the MU-TAIH13 compatible with Honeywell Experion PKS systems?A: Yes. The module is designed for Honeywell Experion PKS and legacy TPS/TDC 3000 HPM/EHPM I/O architectures. Q: Does the MU-TAIH13 support voltage input signals?A: Yes. The module accepts voltage input ranges including 1-5 VDC and 0-5 VDC through its analog input channels. Field Installation Guidelines Install the MU-TAIH13 on the specified FTA mounting channel or DIN rail structure according to Honeywell system installation documentation. Terminate field wiring using correct polarity for differential analog inputs. Use shielded instrument cables for low-level analog signals and connect cable shields according to the site grounding standard. Separate analog signal wiring from high-voltage power cables and switching circuits to reduce electromagnetic interference. Verify transmitter loop polarity, signal range configuration, and input channel assignment before system commissioning. Confirm that field devices operate within the specified input voltage and current ranges before applying power. Check grounding continuity and protective wiring before connecting the FTA to the control system.
$200.00 $100.00
-
Honeywell MU-GAIH14 High Level Analog Input Module | Honeywell
Honeywell MU-GAIH14 High Level Analog Input Module The Honeywell MU-GAIH14, also cataloged as the MU-GAIH14 High Level Analog Input Module, operates as a dedicated hardware component for acquiring conditioned analog transmitter signals within Honeywell TDC 3000 and Experion PKS I/O architectures. Hardware Specifications Parameter Specification Model MU-GAIH14 Brand Honeywell Origin USA Product Type High Level Analog Input Module System Compatibility Honeywell TDC 3000 / Experion PKS Signal Type Analog Input Input Signal High level analog transmitter signals Typical Input Range 4-20 mA Input Device Type Process transmitters Channels Multi-channel analog input interface Signal Conditioning Field signal termination and analog signal conditioning Isolation Channel-to-channel isolation depending on system configuration Communication Interface Honeywell I/O subsystem interface Installation Type Field Termination Assembly interface Mounting Location Control cabinet I/O termination area Operating Temp System dependent, typically 0 deg C to 55 deg C Storage Temp Typically -40 deg C to 70 deg C Power Consumption Supplied through associated Honeywell I/O hardware Weight System dependent Dimensions System dependent Process Instrumentation Signal Interface The Honeywell MU-GAIH14 processes high-level analog signals from field transmitters and transfers measurement data to Honeywell control processors. In addition, the module provides termination functions between field wiring and the I/O subsystem. The module supports process measurement loops using standard 4-20 mA signals. Therefore, it can interface with transmitters that measure pressure, flow, level, and temperature variables. The design follows Honeywell DCS signal processing requirements for analog acquisition and control applications. For Honeywell process control installations, analog channel configurations can support instrument loop applications using HART-compatible transmitters when the related I/O hardware provides HART communication capability. Furthermore, channel-to-channel isolation functions depend on the specific termination and I/O architecture. Frequently Asked Questions Q: What type of field signals does the Honeywell MU-GAIH14 accept?A: The MU-GAIH14 accepts high-level analog input signals from process transmitters, commonly using 4-20 mA current loops. Q: Is the MU-GAIH14 a standalone controller module?A: No. The MU-GAIH14 functions as an analog input termination component and operates together with compatible Honeywell I/O processing hardware. Q: Can the MU-GAIH14 connect directly to any analog transmitter?A: The transmitter output range, wiring method, and Honeywell I/O configuration must match the module application requirements before connection. Field Installation Guidelines Verify the terminal assignment and field wiring diagram before installation. Maintain correct polarity when connecting analog current loops. Use shielded instrumentation cable where required by the control system design. Connect cable shields according to the site grounding specification to reduce electrical interference. Separate analog signal wiring from high-voltage power cables and high-current switching circuits. Confirm the transmitter output configuration before commissioning the input channel. Perform loop checks and input scaling verification after installation. Replace the module only with a compatible Honeywell termination assembly configured for the same I/O architecture.
$200.00 $100.00
-
Honeywell Honeywell MU-TAIH53 High Level Analog Input Termination Assembly
Honeywell MU-TAIH53 High Level Analog Input Termination Assembly Configured for high-level analog signal termination in Honeywell Experion PKS and TDC 3000 systems, the Honeywell MU-TAIH53 (MU-TAIH53 High Level Analog Input Termination Assembly) provides direct physical and electrical execution for field transmitter signal conditioning. Hardware Specifications Parameter Specification Model MU-TAIH53 Brand Honeywell Origin United States Module Type High Level Analog Input (HLAI) Termination Assembly System Compatibility Honeywell Experion PKS and TDC 3000 control systems Input Channels 16 channels Signal Input Range 4-20 mA and 1-5 VDC Current Input Conversion 250 ohm precision shunt resistor interface A/D Conversion Resolution 16 bit minimum Signal Isolation Field-to-logic galvanic isolation Environmental Protection Conformal coating for industrial environments Operating Temp 0 deg C to +60 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 5% to 95% RH, non-condensing Power Consumption 24 VDC nominal system supply 4-20 mA HART and DCS Signal Interface Characteristics The MU-TAIH53 processes high-level analog transmitter signals before the signals enter Honeywell I/O processing modules. Therefore, the termination assembly maintains signal integrity between field instruments and the control system. The module supports standard process instrumentation interfaces, including 4-20 mA current loops and 1-5 VDC voltage inputs. In addition, the termination design incorporates channel-to-channel isolation methods to reduce interference between independent field signals. The assembly supports applications where analog transmitters require controlled termination, signal conversion, and electrical separation. Moreover, the conformal coating protects circuit assemblies against industrial contamination and corrosive environments. Frequently Asked Questions Q: Does the MU-TAIH53 directly execute control logic processing?A: No. The MU-TAIH53 functions as a termination assembly. It conditions and routes field analog signals to Honeywell I/O processing hardware. Q: What field signals can the MU-TAIH53 accept?A: The module accepts high-level analog signals, including 4-20 mA current inputs and 1-5 VDC voltage inputs from process transmitters. Q: Does the MU-TAIH53 provide electrical isolation between field wiring and control electronics?A: Yes. The termination assembly provides galvanic isolation to separate field-side electrical conditions from system-side electronics. Field Installation Guidelines Install the MU-TAIH53 inside the designated Honeywell control cabinet according to the system hardware configuration drawings. Use shielded instrumentation cables for analog field wiring where required by the installation environment. Connect cable shields according to the grounding method defined by the control system engineering standard. Separate analog signal cables from high-voltage power conductors and switching circuits to reduce electromagnetic interference. Verify field polarity, loop continuity, and transmitter power requirements before connecting the termination assembly. Confirm that the installed assembly matches the configured Honeywell I/O module type before system startup. Perform loop checks after installation to validate signal scaling and channel assignment.
$200.00 $100.00
-
Honeywell MU-TMCN02 561401846-200 Control Network Termination Module Honeywell

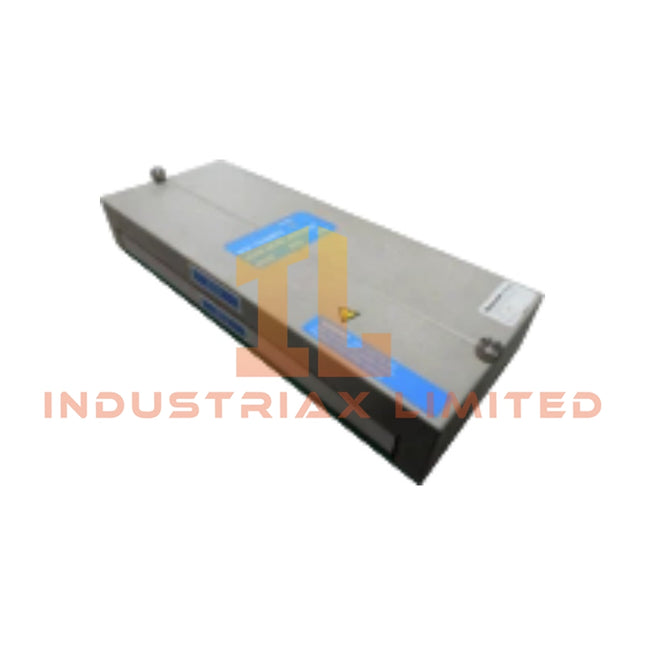

Honeywell MU-TMCN02 Control Network Termination Module Configured for control network termination and signal conditioning in Honeywell TDC 3000 and Experion PKS systems, the Honeywell 561401846-200 (MU-TMCN02 Control Network Termination Module) provides direct physical and electrical execution for communication interface management. Hardware Specifications Parameter Specification Model MU-TMCN02 Brand Honeywell Origin USA Weight 0.7 kg (estimated) Dimensions 30.8 cm x 12.1 cm x 7.2 cm (reference shipping size) Operating Temp 0 deg C to 60 deg C Power Consumption Low power termination and interface circuitry consumption Product Type Control Network Termination Module Part Number 561401846-200 System Compatibility Honeywell TDC 3000 / Experion PKS Primary Function Network termination, signal conditioning, and communication routing Mounting Method Card File / FTA Assembly Rack configuration Communication Interface Control Network and industrial communication bus termination Environmental Protection Industrial environment operation with EMI noise resistance design Humidity Range 5% to 95% relative humidity, non-condensing Honeywell DCS Network Interface Characteristics The MU-TMCN02 manages electrical termination functions within Honeywell process control communication architectures. It applies impedance matching to communication lines; therefore, it reduces signal reflection effects on network conductors and maintains stable bus signal characteristics. In addition, the module supports signal conditioning between Honeywell control processors and connected network segments. The termination design helps maintain communication waveform quality under industrial electrical noise conditions. Honeywell process control modules commonly operate with distributed field communication structures. Therefore, this module architecture aligns with DCS network requirements including channel signal separation, communication integrity control, and field interface coordination. The MU-TMCN02 belongs to Honeywell control system hardware platforms where communication interfaces may include process data exchange through dedicated control networks. It does not perform process calculation functions; instead, it provides physical network termination and interface support. Frequently Asked Questions Q: What is the primary function of the Honeywell MU-TMCN02 module?A: The MU-TMCN02 provides control network termination, signal conditioning, and communication interface support for Honeywell TDC 3000 and Experion PKS system architectures. Q: Does the MU-TMCN02 process analog or digital field signals?A: No. The module does not operate as an analog input, digital input, or output module. It performs network interface and termination functions. Q: What installation factors should be considered for the MU-TMCN02?A: Engineers should verify rack compatibility, communication cable routing, shielding connection, grounding practices, and correct termination placement before system operation. Field Installation Guidelines Install the MU-TMCN02 only in compatible Honeywell control system rack assemblies. Confirm the module position according to the system hardware configuration before insertion. Maintain proper cable separation between communication wiring and high-voltage power conductors. Use appropriate shield grounding methods to reduce electromagnetic interference on network signals. Verify that network termination points match the designed communication topology. Incorrect termination placement may cause communication signal distortion or unstable network operation. During maintenance activities, follow site procedures for module replacement. Confirm that the control network status remains within operating requirements after installation or removal.
$200.00 $100.00
-
Honeywell MU-KLAM06 Low Level Analog Module | Honeywell

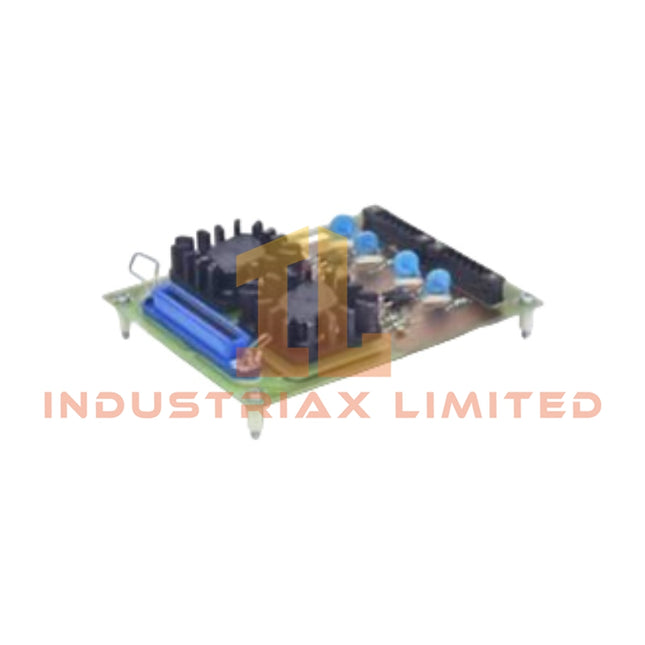

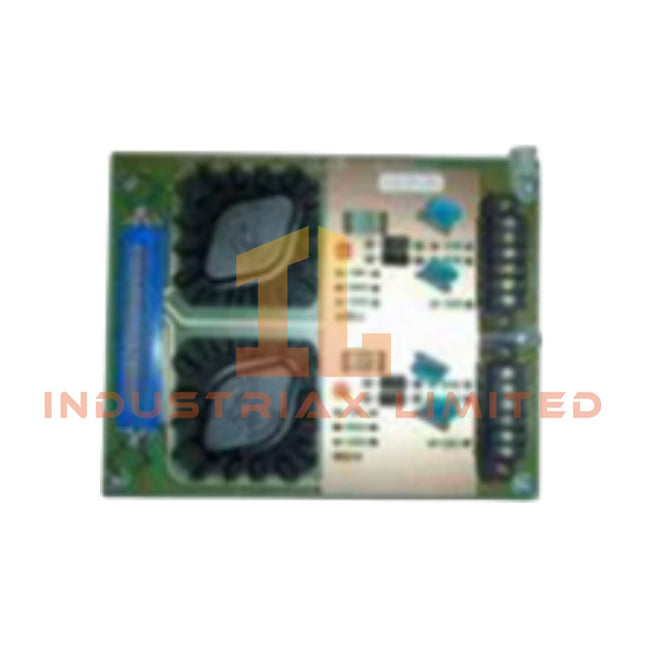

Honeywell MU-KLAM06 Low Level Analog Module Configured for signal interface execution in Honeywell TDC 3000 and Experion PKS platforms, the Honeywell MU-KLAM06-400 (MU-KLAM06 Low Level Analog Module) provides direct physical and electrical signal processing functions within Honeywell control hardware assemblies. Hardware Specifications Parameter Specification Model MU-KLAM06 Brand Honeywell Origin USA Operating Temp 0 deg C to 60 deg C Power Consumption Not specified in available documentation Part Number 51304465-400 System Compatibility Honeywell TDC 3000 / Experion PKS Hardware Category Low Level Analog Interface Module Subsystem Association APM / HPM Control Hardware Environmental Protection Conformal coating for industrial environments 4-20 mA HART and Channel Isolation Interface Characteristics The MU-KLAM06 module belongs to Honeywell process control hardware assemblies designed for analog signal interface functions. It supports field signal conditioning within TDC 3000 and Experion PKS architectures where analog measurement channels require controlled electrical termination. Furthermore, Honeywell process modules typically apply channel-to-channel isolation methods to reduce interference between independent field circuits. The module installation design follows Honeywell backplane connection standards, allowing integration with compatible control chassis hardware. The module supports structured analog signal handling practices used in process automation systems. Field wiring, grounding, and shielding methods must follow the applicable Honeywell system engineering specifications. Frequently Asked Questions Q: Can the MU-KLAM06 be installed as a hot-swappable replacement module?A: Hot-swap operation depends on the specific Honeywell chassis configuration and system design. Verify the approved replacement procedure before removing or installing the module. Q: Does the MU-KLAM06 require field signal shielding and grounding?A: Yes. Analog field wiring should use appropriate shielding and grounding methods to reduce electrical noise and maintain measurement signal quality. Q: Is firmware upgrade information available for the MU-KLAM06?A: No specific firmware upgrade procedure is identified for this hardware module. Compatibility depends on the installed Honeywell control system revision. Field Installation Guidelines Install the MU-KLAM06 module only in compatible Honeywell TDC 3000 or Experion PKS hardware assemblies. Confirm chassis power isolation procedures before module insertion or removal. Route analog signal cables separately from high-voltage power conductors to minimize electromagnetic interference. Connect cable shields according to the Honeywell grounding specification for the installed control cabinet. Verify terminal assignments, module addressing, and control database configuration before returning the system to operation. Inspect the backplane connector condition before installation to ensure proper mechanical and electrical contact.
$200.00 $100.00
-
Honeywell Honeywell MU-TDID72 Digital Input Field Termination Assembly

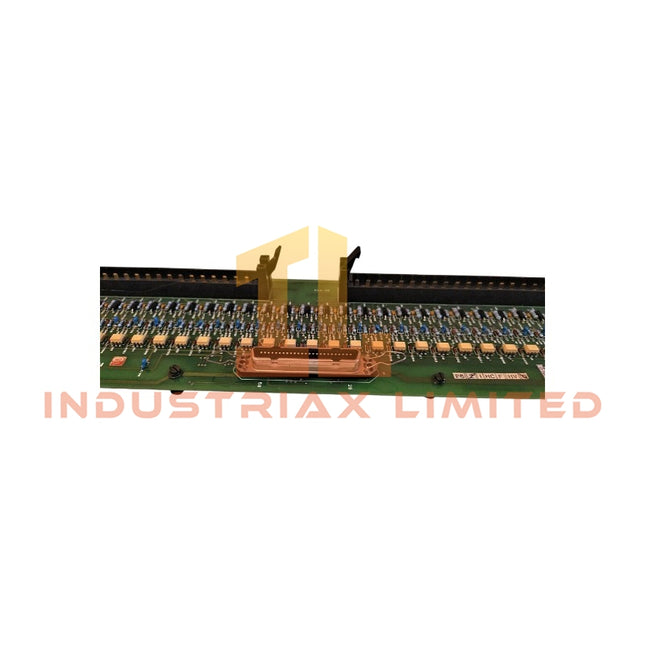

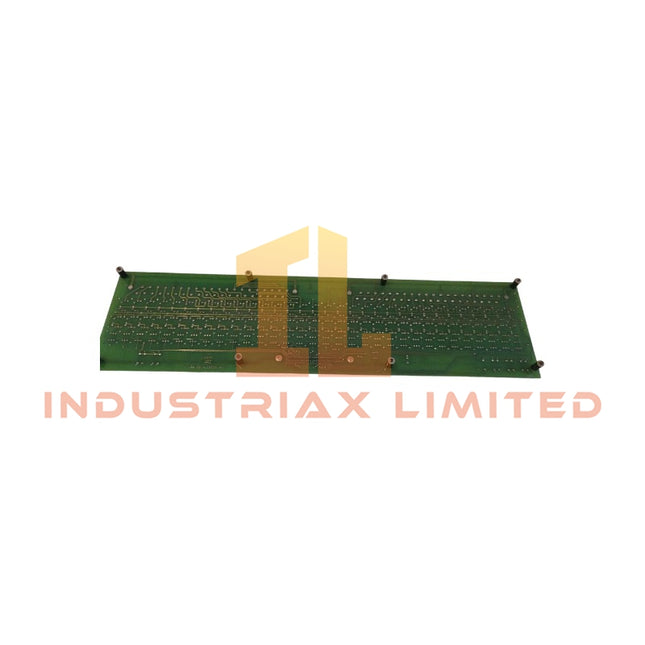

Honeywell MU-TDID72 Digital Input Field Termination Assembly The Honeywell MU-TDID72 51303928-100, also cataloged as the MU-TDID72 Digital Input Field Termination Assembly, operates as a dedicated hardware component for discrete signal termination and conditioning within Honeywell TDC 3000 and Experion PKS I/O systems. Hardware Specifications Parameter Specification Model MU-TDID72 Brand Honeywell Origin USA Operating Temp Industrial control cabinet environment; specific range not specified Power Consumption Passive field termination assembly; no independent power consumption specified Product Type Digital Input Field Termination Assembly Part Number 51303928-100 Signal Type Digital Input / Discrete Input Channel Capacity 32 channels (typical MU-TDID series configuration) Rated Field Voltage 24 VDC digital signal interface System Compatibility Honeywell TDC 3000 and Experion PKS HPM/APM I/O systems Mounting Method Standard FTA mounting arrangement Field Connection Screw terminal field wiring interface Environmental Protection Industrial conformal coating design DCS Process Signal Interface Characteristics The Honeywell MU-TDID72 provides the termination path between field discrete devices and Honeywell control processors. It accepts contact or switch-based digital input signals and transfers conditioned signals toward the associated I/O processing hardware. Furthermore, the module supports channel-to-channel isolation practices used in process control installations to reduce interference between independent field circuits. The termination design separates field wiring from controller-side electronics and maintains organized signal routing inside marshalling cabinets. For Honeywell DCS architectures, the module is integrated with digital I/O signal processing paths rather than performing standalone logic execution. Therefore, configuration, diagnostics, and signal status handling remain controlled by the connected HPM or APM I/O subsystem. Frequently Asked Questions Q: Does the MU-TDID72 execute digital logic processing internally?A: No. The MU-TDID72 is a Field Termination Assembly. It terminates and conditions field signals while the connected Honeywell I/O processor performs signal evaluation and control logic execution. Q: Can the MU-TDID72 connect directly to field switches and contact devices?A: Yes. The module provides terminal interfaces for discrete field devices such as dry contacts and switch inputs. Field wiring must follow the installation requirements of the associated Honeywell I/O system. Q: Does the MU-TDID72 support hot-swapping during system operation?A: Hot-swap capability depends on the connected Honeywell I/O architecture and installation configuration. The FTA should be serviced according to the applicable TDC 3000 or Experion PKS maintenance procedures. Field Installation Guidelines Install the MU-TDID72 inside the designated Honeywell marshalling or I/O termination cabinet location. Verify field wiring polarity, terminal assignment, and signal type before connection. Separate digital input wiring from high-voltage power cables to reduce electrical interference. Use proper cable shielding and connect shields according to the site grounding standard. Confirm that the connected HPM or APM I/O module supports the selected FTA configuration. Inspect terminal tightening, cable routing, and insulation condition during commissioning. Follow Honeywell cabinet layout and grounding documentation for final installation verification.
$200.00 $100.00
-
Honeywell Digital Input Modules MU-TDID12 53104441-100 Honeywell

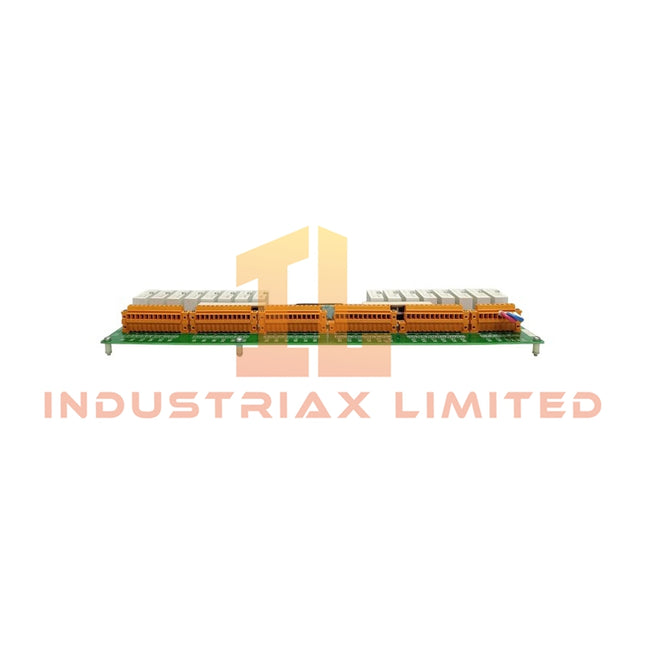

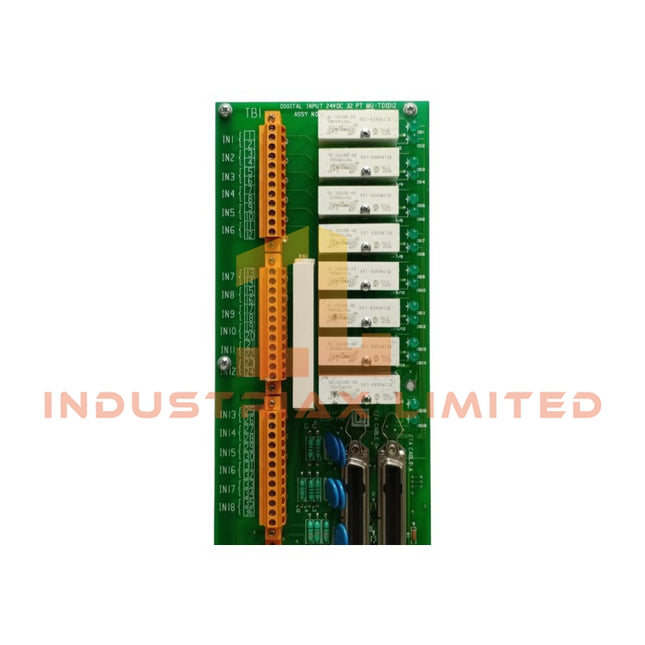

Honeywell MU-TDID12 Digital Input Field Termination Assembly Configured for discrete signal acquisition in Honeywell Experion PKS and TDC 3000 systems, the Honeywell MU-TDID12 53104441-100 (MU-TDID12 Digital Input FTA) provides direct electrical interface execution for field contact and voltage input circuits. Hardware Specifications Parameter Specification Model MU-TDID12 Brand Honeywell Origin USA Operating Temp 0 deg C to 60 deg C Power Consumption Dependent on connected I/O system configuration Part Number 53104441-100 Module Type Digital Input Field Termination Assembly (FTA) Signal Type Discrete digital input Channel Capacity 32 channels (configuration dependent) Input Interface Dry contact or voltage sensing input Nominal Field Voltage 24 VDC Isolation Type Galvanic or optical isolation Mounting Method FTA mounting channel / DIN rail system Protection Features Signal conditioning and overvoltage protection System Compatibility Honeywell Experion PKS and TDC 3000 platforms Process Control Signal Isolation and DCS Interface The MU-TDID12 provides discrete signal termination between field devices and Honeywell control processors. It accepts ON/OFF field signals from switches, contacts, and discrete sensors, then transfers conditioned signals through the I/O interface. For Honeywell process control installations, the module supports structured field wiring and channel separation practices. In addition, channel-to-channel isolation reduces interference between independent field circuits and improves signal integrity during operation. The module design follows DCS termination requirements, where field terminals, signal conditioning circuits, and controller-side interfaces remain separated. Therefore, maintenance personnel can troubleshoot field circuits without directly affecting controller electronics. Frequently Asked Questions Q: What type of field signals does the MU-TDID12 process?A: The MU-TDID12 processes discrete ON/OFF input signals from dry contacts or compatible voltage-based field devices. The exact input method depends on the connected I/O configuration. Q: Does the MU-TDID12 provide electrical isolation between field wiring and system electronics?A: Yes. The module uses galvanic or optical isolation methods to separate field circuits from control system logic circuits. Q: Can the MU-TDID12 be installed directly as a standalone controller module?A: No. The MU-TDID12 functions as a Field Termination Assembly and requires connection with the compatible Honeywell I/O hardware and system cabling. Field Installation Guidelines Install the MU-TDID12 according to the Honeywell approved FTA mounting arrangement and cabinet wiring practices. Verify terminal assignments before connecting field devices to prevent incorrect discrete input mapping. Use shielded field cables where electromagnetic interference may affect low-level control signals. Connect cable shields according to the site grounding standard and avoid multiple grounding points that can create ground loops. Separate digital signal wiring from high-voltage power cables and high-current switching circuits. Confirm field voltage levels before energizing the connected input channels. Inspect terminal connections periodically to maintain stable electrical contact during long-term operation.
$200.00 $100.00
-
Honeywell MU-TAMR03 51309218-125 Honeywell Analog Input Modules

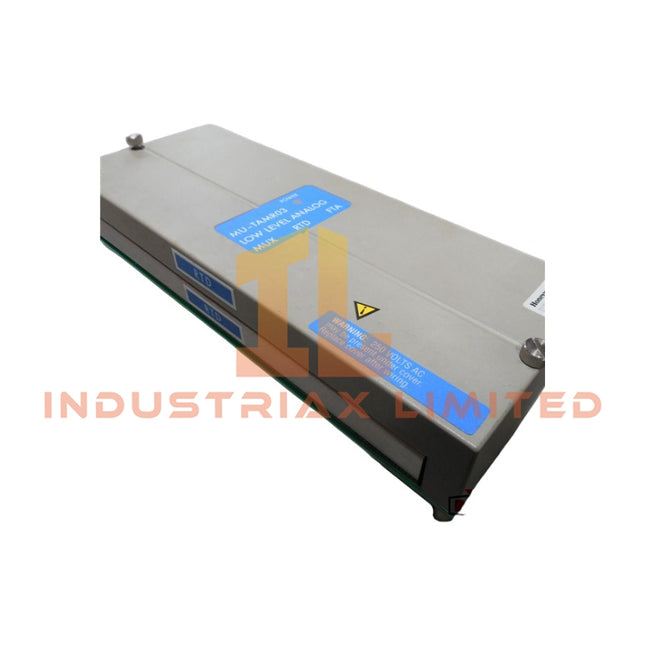

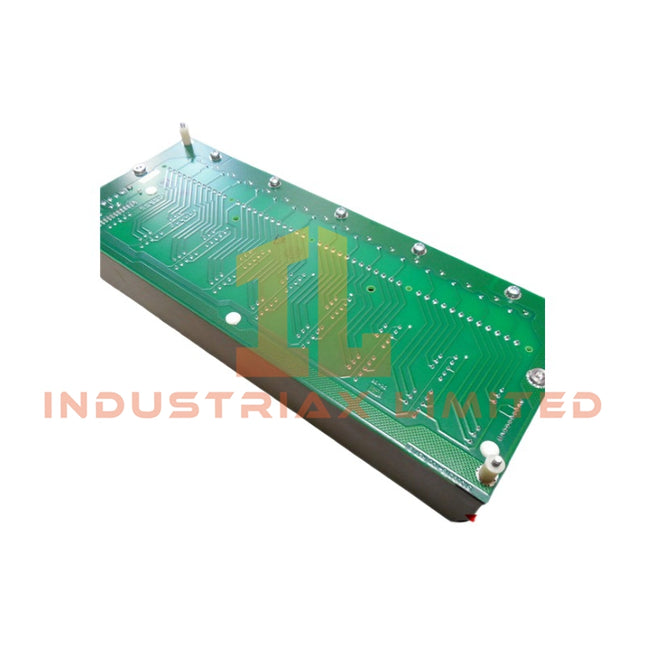

Honeywell MU-TAMR03 51309218-125 Low Level Analog Input Multiplexer RTD FTA The Honeywell MU-TAMR03 51309218-125, also cataloged as the MU-TAMR03 Low Level Analog Input Multiplexer RTD FTA, operates as a dedicated hardware component for RTD signal multiplexing within Honeywell TDC 3000 and Experion PKS I/O systems. It provides 16 input channels with compression terminals and a single IOP interface for low level analog signal routing. Hardware Specifications Parameter Specification Model MU-TAMR03 51309218-125 Brand Honeywell Product Type Low Level Analog Input Multiplexer RTD FTA System Compatibility Honeywell TDC 3000 / Experion PKS I/O systems Input Channels 16 RTD input channels Terminal Type Compression terminals IOP Interface Single IOP interface Origin USA Weight 0.7 kg Dimensions 30.8 cm x 12.1 cm x 7.2 cm Process Signal Multiplexing and DCS Interface The MU-TAMR03 module processes low level RTD signals through a multiplexing structure before transmission to the associated Honeywell IOP interface. Furthermore, the module accepts 16 RTD input channels through compression terminals, which simplifies field wiring connections. For Honeywell process control installations, signal integrity depends on correct field termination practices. Therefore, technicians should maintain proper cable routing, shielding, and grounding methods to reduce electrical interference during temperature measurement. The module supports analog measurement architectures used with Honeywell DCS platforms. However, it does not provide redundant operation, and the hardware configuration requires a single IOP communication path. Channel Isolation and Temperature Measurement Interface The MU-TAMR03 51309218-125 belongs to Honeywell analog input hardware that handles temperature transmitter and RTD field signals. The module design supports low level analog acquisition where stable signal conditioning and controlled wiring arrangements are required. In addition, Honeywell analog input architectures may include channel-to-channel isolation techniques and temperature signal compensation methods depending on the connected IOP hardware. The MU-TAMR03 itself is specified as an RTD multiplexer FTA with compression terminals and does not include independent fieldbus communication functions. Frequently Asked Questions Q: Does the Honeywell MU-TAMR03 51309218-125 support redundant configuration?A: No. The supplied specification states that redundancy is not supported for this RTD FTA module. Q: How many RTD input channels does the MU-TAMR03 provide?A: The module provides 16 RTD input channels through compression terminals. Q: Does the MU-TAMR03 support direct fieldbus communication?A: No. The module uses a single IOP interface and functions as a field termination assembly for Honeywell control system I/O hardware. Field Installation Guidelines Install the MU-TAMR03 module according to the applicable Honeywell cabinet and I/O rack installation procedures. Verify terminal assignments before connecting RTD field wiring to prevent incorrect channel mapping. Use shielded instrumentation cables where required by the site electrical installation standard. Connect cable shields according to the plant grounding philosophy to reduce electromagnetic interference. Separate low level RTD signal wiring from high voltage power cables and switching circuits. Confirm the IOP interface connection before commissioning the temperature measurement channels. Do not install the module in applications requiring redundant FTA operation because this model does not support redundancy.
$200.00 $100.00
-
Honeywell Honeywell MU-TDOR22 51304427-100 Digital Output Relay FTA

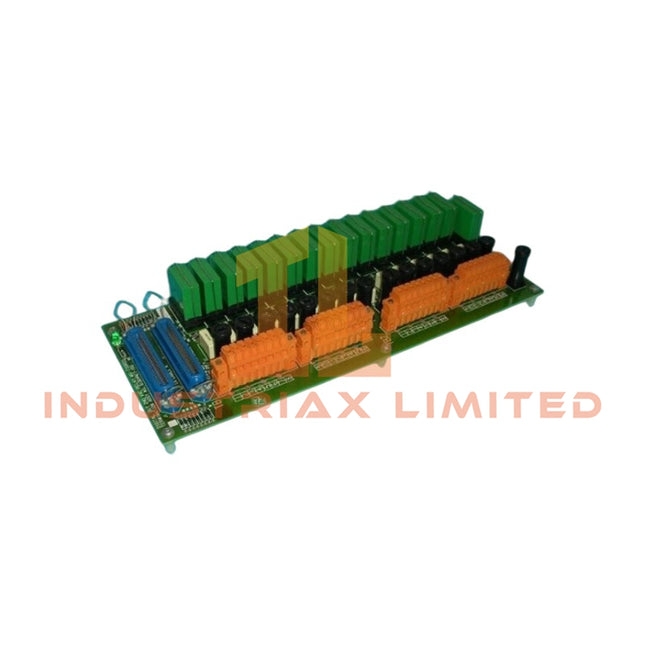

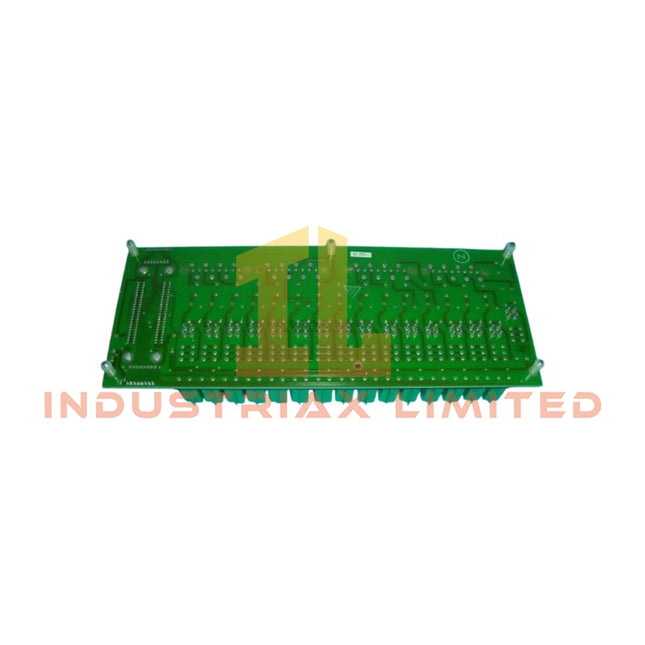

Honeywell MU-TDOR22 Digital Output Relay FTA Configured for relay-based field signal switching in Honeywell TDC 3000 and Experion PKS systems, the Honeywell MU-TDOR22 (51304427-100) (MU-TDOR22 Digital Output Relay FTA) provides direct electrical execution between controller output channels and external field loads. Hardware Specifications Parameter Specification Model MU-TDOR22 Brand Honeywell Part Number 51304427-100 Origin USA Module Type Digital Output Relay Field Termination Assembly (FTA) System Compatibility Honeywell TDC 3000 / Experion PKS HPM and APM subsystems Channel Count 16 digital output channels (typical configuration) Output Type Relay contact outputs Isolation Type Galvanic isolation between control logic and field circuits Mounting Type FTA mounting channel / DIN rail mounting Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Relative Humidity 5% to 95% RH, non-condensing Power Consumption Determined by connected relay configuration and field load requirements Field Connection Screw terminal field wiring interface Status Indication Individual channel LED status indication DCS Field Signal Isolation and Relay Output Interface The MU-TDOR22 provides relay-based switching between Honeywell control system output signals and external electrical devices. It separates the low-voltage controller interface from field-side circuits through galvanic isolation. In addition, the module supports discrete output applications including solenoid valve activation, motor starter commands, alarm outputs, and indicator control. The relay contacts transfer controller commands without directly exposing the I/O electronics to field voltage transients. For Honeywell process control installations, the module architecture supports isolated channel operation and maintains separation between individual field circuits. However, this unit does not provide analog measurement functions such as 4-20 mA HART loop protocol, FOUNDATION Fieldbus, or Profibus PA communication. The relay interface allows maintenance personnel to identify output conditions through local LED indicators. Furthermore, socketed relay designs on compatible configurations allow relay replacement without disturbing permanent field wiring. Frequently Asked Questions Q: Can the MU-TDOR22 directly drive field devices from the controller output signal?A: The MU-TDOR22 provides relay contact switching. External field power is required according to the connected device voltage and current requirements. Q: Does the MU-TDOR22 provide channel isolation between output circuits?A: The module provides galvanic isolation between control-side electronics and field-side circuits. The exact isolation arrangement depends on the installed relay configuration. Q: Can the MU-TDOR22 be installed as a hot-swappable module?A: The FTA mounting arrangement does not define hot-swap capability. Maintenance should follow the approved Honeywell TDC 3000 or Experion PKS shutdown and replacement procedures. Field Installation Guidelines Install the MU-TDOR22 on the specified Honeywell FTA mounting structure and verify mechanical alignment before wiring. Confirm terminal assignments against the system engineering drawings before connecting field devices. Separate relay output wiring from low-level signal wiring to reduce electrical interference. Connect cable shields according to the site grounding standard and avoid multiple ground points on shielded field cables. Verify field load voltage and current ratings before energizing relay contacts. Use external protection devices where required for inductive loads such as solenoid valves and contactor coils. Inspect terminal tightening and cable routing during commissioning to prevent loose connections and unwanted electrical noise.
$200.00 $100.00
-
Honeywell Honeywell MU-TDOD12 Digital Output Field Termination Assembly

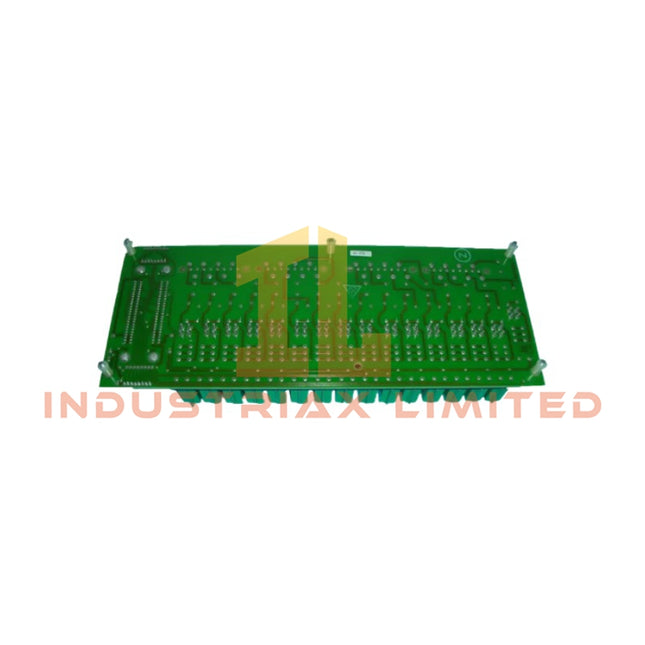

Honeywell MU-TDOD12 Digital Output Field Termination Assembly The Honeywell MU-TDOD12 (51304423-100), also cataloged as the MU-TDOD12 Digital Output Field Termination Assembly, operates as a dedicated hardware component for digital signal termination and field wiring distribution within Honeywell TDC 3000 and Experion PKS system platforms. Hardware Specifications Parameter Specification Model MU-TDOD12 (51304423-100) Brand Honeywell Origin USA Module Type Digital Output Field Termination Assembly (DO FTA) System Compatibility Honeywell TDC 3000 and Experion PKS control systems Signal Type Digital output field signal termination Channel Capacity Typically 16 digital output channels Field Connection Screw terminal blocks for field wiring System Interface Multi-pin cable connection to I/O module interface Isolation Function Field-side signal isolation and protection Mounting Type Honeywell FTA mounting channel or DIN rail compatible installation Weight Approx. 0.5 kg to 0.8 kg Dimensions Standard Honeywell FTA footprint Power Consumption Passive termination assembly, power consumption depends on connected I/O interface Process Control Signal Isolation and DCS Interface The MU-TDOD12 provides the electrical termination path between Honeywell digital output I/O modules and external field devices. It routes controller-generated switching signals to actuators, relays, solenoid valves, and other discrete devices. Furthermore, the assembly supports channel-to-channel isolation practices within process control wiring environments. The termination structure reduces wiring complexity and maintains separation between controller electronics and field circuits. It connects with Honeywell I/O architectures that may include digital signal conditioning and field termination requirements. The module functions as a passive field interface component. Therefore, external power requirements depend on the connected digital output card configuration and field device load characteristics. Frequently Asked Questions Q: Does the MU-TDOD12 provide independent digital output processing?A: No. The MU-TDOD12 is a field termination assembly. It terminates and distributes signals from the connected Honeywell digital output I/O module without performing control logic execution. Q: Can the MU-TDOD12 support direct connection to field devices?A: Yes. The assembly provides terminal points for field wiring. However, the connected I/O module and field device electrical ratings must match the installed configuration. Q: Does the MU-TDOD12 require firmware updates?A: No. The assembly is a hardware termination component and does not contain user-configurable firmware. Field Installation Guidelines Install the MU-TDOD12 on the specified Honeywell FTA mounting structure or compatible DIN rail system. Verify terminal assignments before connecting field wiring to prevent incorrect digital output routing. Use appropriate cable separation between signal wiring and high-voltage power conductors to reduce electrical interference. Connect cable shields according to the system grounding design and plant electrical standards. Confirm that the connected field device voltage and current ratings match the digital output module specifications. Inspect terminal tightening torque and conductor condition during commissioning and maintenance activities.
$200.00 $100.00
-
Honeywell Honeywell FC-TSFIRE-1624 Termination Assembly Module
Honeywell FC-TSFIRE-1624 Termination Assembly Module Configured for safe fire detector input termination in Honeywell Safety Manager platforms, the Honeywell FC-TSFIRE-1624 (TSFIRE-1624 Termination Assembly Module) provides direct physical and electrical execution for 24 V DC fire detection circuits with line monitoring. Hardware Specifications Parameter Specification Model FC-TSFIRE-1624 Spare Model TSFIRE-1624 Brand Honeywell Product Type Termination Assembly Module Origin USA Weight 0.2 kg Dimensions 17 x 7 x 5.7 cm Operating Temp Not specified Power Consumption 11 mA typical at 24 V DC external supply, no load Approvals CE, TUV, UL, CSA, FM Voltage 24 V DC +25% / -15% Maximum Current 570 mA at 24 V DC external supply Typical Current with EOL Resistors 70 mA at 24 V DC external supply Number of Channels 16 Channel Resistance 680 ohm +/-5% Shorted Current 35 mA at 24 V DC external supply Relay Voltage 17 - 39 V DC Relay Current 8.5 mA at 24 V DC Main Function Safe fire detector input FTA with line monitoring Input Function Fire detection input and global reset of connected sensors Tariff Code 8537101190 Place of Shipment Xiamen, China Channel Isolation and Process Signal Interface The FC-TSFIRE-1624 termination assembly module processes 16 fire detector input channels through monitored field wiring circuits. It uses end-of-line resistors to supervise field loop conditions and detect circuit status changes. For Honeywell safety system integration, the module maintains channel-to-channel signal separation for discrete fire detection inputs. Therefore, each input channel can provide individual monitoring of connected field devices while maintaining defined electrical characteristics. The module supports 24 V DC field circuits and provides line monitoring functions for open-circuit and short-circuit detection. The input design allows connection of fire detection sensors requiring global reset control through the termination assembly interface. Frequently Asked Questions Q: How many fire detector input channels does the FC-TSFIRE-1624 support?A: The FC-TSFIRE-1624 supports 16 fire detector input channels with line monitoring capability. Q: What external supply voltage does the FC-TSFIRE-1624 require?A: The module operates with a 24 V DC external supply within the specified range of +25% and -15%. Q: Does the module provide end-of-line supervision?A: Yes. The FC-TSFIRE-1624 supports end-of-line resistor monitoring for supervised fire detection input circuits. Field Installation Guidelines Install the termination assembly module inside the designated Honeywell safety system cabinet or approved enclosure. Connect field fire detector wiring according to the channel assignment and termination requirements defined by the system engineering documentation. Maintain proper separation between fire detection signal wiring and high-voltage power cables to reduce electrical interference. Connect cable shields according to the site grounding design and avoid multiple uncontrolled grounding points. Verify end-of-line resistor installation before commissioning the monitored input circuits. Check 24 V DC supply polarity before energizing the module. Confirm channel status and input response through the safety controller diagnostic interface after installation.
$200.00 $100.00
-
Honeywell Honeywell FC-PSUNI-2424 Universal Power Supply Unit
Honeywell FC-PSUNI-2424 Universal Power Supply Unit Configured for isolated 24 VDC power conversion in Honeywell Safety Manager platforms, the Honeywell FC-PSUNI-2424 (FC-PSUNI-2424 Universal Power Supply Unit) provides direct electrical power conditioning for redundant safety system configurations. Hardware Specifications Parameter Specification Model FC-PSUNI-2424 Brand Honeywell Origin USA Operating Temp -20 deg C to +60 deg C Power Consumption Output power: 576 W, rated output current: 24 A Product Type Universal Power Supply Unit, 24 VDC output System Compatibility Honeywell Safety Manager / Safety Manager SC Input Voltage 115 VAC / 230 VAC nominal, approximately 90 - 265 VAC range Input Frequency 47 - 63 Hz Output Voltage 24 VDC, adjustable approximately 22.0 - 28.0 VDC Output Current 24 A continuous Efficiency > 90% at nominal load Ripple and Noise < 50 mVss peak-to-peak Redundancy Configuration Supports 1+1 and N+1 redundant power configurations Protection Functions Overvoltage, overload, short circuit, and overtemperature protection Diagnostic Interface LED indicators and dry contact relay outputs Cooling Method Convection cooling or cabinet fan-assisted cooling depending on installation Channel Isolation and Safety Power Architecture The Honeywell FC-PSUNI-2424 integrates isolated DC output conversion for Safety Manager power distribution structures. The unit supports diode-coupled or active ORing redundant arrangements, allowing multiple power modules to operate in parallel. Additionally, the power supply provides diagnostic contacts for system monitoring. The dry relay outputs transmit power status information to the safety controller or DCS interface. The protection circuit monitors output voltage, current loading, and thermal conditions to maintain controlled shutdown and restart behavior. The FC-PSUNI-2424 operates as a power subsystem component rather than a signal acquisition module; therefore, it does not provide 4-20 mA HART or FOUNDATION Fieldbus communication channels. Its function is limited to regulated DC power delivery and fault indication within the Honeywell safety architecture. Frequently Asked Questions Q: Does the FC-PSUNI-2424 support redundant power configurations?A: Yes. The unit supports 1+1 and N+1 redundant arrangements through integrated diode coupling or active ORing methods. A parallel power module can assume the load when another unit fails. Q: What diagnostic signals are available from the FC-PSUNI-2424?A: The unit provides LED status indication and volt-free relay contacts for remote monitoring of power conditions, including input failure, output overvoltage, overload, and thermal faults. Q: Can the FC-PSUNI-2424 be installed outside Honeywell Safety Manager systems?A: The unit is designed for Honeywell Safety Manager and Safety Manager SC power architectures. Installation in other systems requires electrical compatibility verification for voltage range, current capacity, and mechanical integration. Field Installation Guidelines Install the FC-PSUNI-2424 inside a suitable control cabinet with adequate ventilation and environmental protection. Verify AC input wiring polarity, protective earth connection, and supply voltage range before energizing the module. Use dedicated power wiring paths and maintain separation between AC input cables and low-level signal wiring. Connect the DC output according to the cabinet power distribution design and confirm correct polarity before operation. When implementing redundant configurations, verify the ORing or diode coupling arrangement before applying load. Connect diagnostic relay contacts to the safety controller or monitoring system using shielded control wiring where required by site standards. Maintain proper grounding practices to reduce electrical noise coupling into adjacent instrumentation circuits.
$200.00 $100.00
-
Honeywell Fan Unit With Readback CC | Honeywell FC-FANWR-24R
Honeywell FC-FANWR-24R 24VDC Fan Unit With Readback CC The Honeywell FC-FANWR-24R, also cataloged as the FC-FANWR-24R 24 VDC Fan Unit, operates as a dedicated hardware component for fan power distribution and status feedback monitoring within Honeywell control system assemblies. Hardware Specifications Parameter Specification Model FC-FANWR-24R Brand Honeywell Product Type 24 VDC Fan Unit With Readback CC Origin USA Weight 0.3 kg Dimensions 9.2 cm x 7.1 cm x 5.8 cm Power Consumption 24 VDC fan supply module; power consumption not specified Power Rating 1 HP Motor Type Induction Motor Speed Control Variable Speed Airflow Capacity 2000 CFM @ 0.5 PSI Duct Compatibility Standard 12 inch diameter Noise Level 72 dB(A) Inlet Diameter 12 inch Voltage 230 V, 60 Hz Tariff Code 8537101190 Place of Shipment Xiamen, China Honeywell DCS Fan Feedback and Power Interface Characteristics The FC-FANWR-24R provides a 24 VDC fan interface with readback capability for monitoring fan operating conditions. Therefore, the module supports direct feedback collection from the connected cooling equipment and allows the control system to supervise fan status. The Honeywell hardware design follows process control interface requirements, where signal separation and channel-to-channel isolation concepts support stable monitoring of connected field devices. However, specific isolation ratings and internal circuit details are not provided in the available technical data. The unit integrates with Honeywell system assemblies that require controlled ventilation management. In addition, the readback function allows external logic or monitoring circuits to evaluate fan operation conditions. Frequently Asked Questions Q: What is the primary function of the Honeywell FC-FANWR-24R?A: The FC-FANWR-24R provides 24 VDC fan power interface capability with readback feedback monitoring for Honeywell control system cooling assemblies. Q: Does the FC-FANWR-24R include variable speed control capability?A: The provided specifications list variable speed control as a feature. Detailed speed adjustment methods and control signal formats are not specified. Q: What electrical information is available for installation verification?A: The available data specifies a 24 VDC fan unit function and a connected fan voltage rating of 230 V, 60 Hz. Additional wiring details require the system installation documentation. Field Installation Guidelines Install the FC-FANWR-24R according to the Honeywell system hardware configuration requirements and approved cabinet layout drawings. Verify the 24 VDC supply wiring before energizing the unit. Use correct polarity connections and maintain separation between power wiring and sensitive signal cables. Route fan feedback wiring separately from high-current conductors to reduce electrical interference. Connect cable shields according to the cabinet grounding standard when shielded instrumentation cables are used. Confirm mechanical mounting clearance before installation. Ensure airflow paths remain unobstructed and maintain proper duct alignment with the specified fan connection dimensions. Inspect all connectors and terminals after installation. Perform functional verification of fan operation and readback status through the connected control system diagnostics.
$200.00 $100.00
-
Honeywell Honeywell FC-IO-0002 I/O Extender Module
Honeywell FC-IO-0002 I/O Extender Module The Honeywell FC-IO-0002, also cataloged as the FC-IO-0002 I/O Extender Module, operates as a dedicated hardware component for extending power and watchdog signal interfaces within Honeywell safety system I/O assemblies. Hardware Specifications Parameter Specification Model FC-IO-0002 Brand Honeywell Product Type I/O Extender Module Origin USA Weight 0.12 kg Dimensions 2 x 19 x 12.8 cm estimated shipping size Power Consumption 5 VDC input, 100 mA plus connected I/O board load Approvals CE, TUV, UL, CSA Space Requirements 4 TE, 3 HE (= 4 HP, 3U) Watchdog Inputs 2 inputs Watchdog Input Current Max. 10 mA for WD1in + WD2in Watchdog Outputs 18 outputs Watchdog Output Current Max. 25 mA Power Inputs 2 inputs, diode OR-ed, 5 VDC Power Input Current 100 mA plus 5 V load of all 18 I/O boards and watchdog load of all 18 I/O boards Power Outputs 2 groups Output Voltage Drop 0.2 V < V < 0.8 V versus highest Vin Output Current Capacity > 1.25 A per group Channel Isolation and Process Interface Characteristics The Honeywell FC-IO-0002 provides electrical extension functions for Honeywell I/O assemblies by distributing 5 VDC power and watchdog-related signals. The module accepts two diode OR-ed power inputs and supplies two output groups for connected I/O boards. The module supports watchdog signal expansion with two watchdog inputs and eighteen watchdog outputs. Therefore, the FC-IO-0002 manages the additional load requirements from multiple I/O boards while maintaining defined current limitations. The design supports Honeywell process control hardware architectures where channel-to-channel isolation and controlled power distribution are required. Furthermore, the module operates as an electrical interface element rather than a signal processing unit and does not perform analog measurement or protocol conversion. Frequently Asked Questions Q: How many watchdog inputs and outputs does the FC-IO-0002 provide?A: The module provides 2 watchdog inputs and 18 watchdog outputs. The watchdog input current is limited to 10 mA maximum, while each output supports up to 25 mA. Q: What power input configuration does the FC-IO-0002 support?A: The module uses 2 diode OR-ed 5 VDC power inputs. The input current requirement is 100 mA plus the connected load from 18 I/O boards and watchdog circuits. Q: Can the FC-IO-0002 process field measurement signals?A: No. The FC-IO-0002 functions as an I/O extender and power/watchdog distribution module. It does not provide analog input, analog output, or communication processing functions. Field Installation Guidelines Install the FC-IO-0002 in the specified Honeywell rack or I/O assembly position with the required 4 TE and 3 HE mechanical space allocation. Verify the 5 VDC supply polarity before connection because the module uses diode OR-ed power inputs. Route power wiring separately from high-voltage switching circuits to reduce electrical interference. Maintain proper grounding practices for the installed control cabinet and cable shielding systems. Check the connected I/O board load before operation to ensure that the total 5 VDC current remains within the module output capability. Confirm watchdog wiring assignments before commissioning to prevent incorrect diagnostic signal routing.
$200.00 $100.00
-
Honeywell Fused Power Distribution Boards | Honeywell | FC-PDB-ARTF05
Honeywell FC-PDB-ARTF05 Safety Manager A.R.T Fused Power Distribution Board The Honeywell FC-PDB-ARTF05, also cataloged as the PDB-ARTF05 Fused Power Distribution Board, provides fused 5 VDC and 24 VDC power distribution with watchdog signal transfer within Honeywell Safety Manager A.R.T. platforms. Hardware Specifications Parameter Specification Model FC-PDB-ARTF05 Brand Honeywell Product Type Safety Manager A.R.T. Fused Power Distribution Board Origin USA Weight 0.4 kg Dimensions 23.5 x 10.8 x 6.8 cm Operating Temp -20 to +70 deg C (T4); -20 to +55 deg C (T5), no derating Storage Temp -40 to +85 deg C Humidity 5 to 95 % RH, non-condensing Power Supply Input 5 VDC +/-5 % and 24 VDC +/-20 % Power Dissipation 8 W typical Hold-up Time >= 10 ms Isolation 1.5 kV RMS Digital Inputs 16 x 24 VDC Digital Outputs 8 x 24 VDC Fuse Protection Individual fuse protection per output channel Functional Safety Rating SIL 3 functional safety compliance Environmental Protection IP66 protection design Tariff Code 8537101190 Channel Isolation and Safety Power Distribution The FC-PDB-ARTF05 distributes fused controller cabinet power and watchdog signals to connected I/O cabinets. Each output channel uses individual fuse protection to isolate field-side faults and prevent power interruption across unaffected channels. Furthermore, the module uses an A.R.T. dual-channel design to support fault-tolerant power distribution functions. The board transfers incoming 5 VDC power from CPx through fuse Fx.y to watchdog connector WdPx.y, maintaining controlled power routing inside the Safety Manager architecture. For Honeywell safety systems, the module supports channel-to-channel isolation concepts used in process control installations. The isolated distribution paths reduce electrical interference between independent I/O circuits and maintain stable signal reference conditions. Frequently Asked Questions Q: What voltage levels does the FC-PDB-ARTF05 distribute?A: The module distributes fused 5 VDC +/-5 % controller power and 24 VDC +/-20 % field-side power circuits. Q: Does the FC-PDB-ARTF05 provide individual channel protection?A: Yes. Each output channel includes individual fuse protection to limit fault propagation between connected circuits. Q: What safety architecture is supported by the FC-PDB-ARTF05?A: The module supports Honeywell Safety Manager A.R.T. architecture with SIL 3 functional safety requirements. Field Installation Guidelines Install the FC-PDB-ARTF05 inside a suitable control cabinet with protection against conductive contamination and excessive vibration. Verify 5 VDC and 24 VDC supply polarity before connecting field wiring. Separate power wiring from low-level signal wiring to reduce electromagnetic interference. Connect cabinet grounding according to the Safety Manager system grounding design. Inspect fuse status indicators and wiring terminals during commissioning and preventive maintenance. Confirm watchdog signal routing between controller cabinets and I/O cabinets before system operation. Maintain environmental conditions within the specified temperature and humidity limits.
$200.00 $100.00
-
Honeywell Honeywell | FC-BN-1608 | Digital Converter Modules
Honeywell FC-BN-1608 Digital Converter Module for NAMUR Signals Configured for NAMUR signal conversion in Honeywell Safety Manager I/O systems, the Honeywell FS-BN-1608 (BN-1608 Digital Converter Module) provides direct electrical conversion of 16 channel discrete input signals from field devices. Hardware Specifications Parameter Specification Model FC-BN-1608 Brand Honeywell Product Type Digital Converter Modules Function NAMUR signal input conversion module Input Channels 16 Input Type DIN NAMUR compatible Input Current Range 0-8 mA Switch Level 1.4-1.9 mA Hysteresis 0.2 mA +/- 0.05 mA Input Resistance 1 kOhm 1% Absolute Maximum Input Current 20 mA Input Filter First order low pass, 100 Hz Field Wire Resistance Maximum 50 Ohm Cable Capacitance Less than 16 uF total connected cables 8 V Loop Supply Output Voltage 7.9-8.7 V 8 V Loop Supply Output Current 170 mA, short-circuit proof Maximum Load Capacitance 100 nF Earth Resistor Resistance 100 kOhm 1% Maximum Dissipation 0.6 W Approvals CE, TUV, UL, CSA, FM Dimensions 58.5 x 28.5 x 9 mm (2.3 x 1.125 x 0.35 in) Origin USA Process Signal Interface and Channel Isolation The FC-BN-1608 module converts NAMUR type discrete field signals into internal digital input information for Honeywell Safety Manager architectures. The module accepts 16 independent input channels and monitors current switching levels according to DIN NAMUR requirements. The input circuit uses a 1 kOhm resistance path and supports 0-8 mA signal measurement. Furthermore, the integrated 8 V loop supply provides field device excitation with short-circuit protection. The design supports field wiring supervision through defined current thresholds and hysteresis characteristics. Honeywell process control modules commonly integrate channel-to-channel isolation methods within I/O architectures. For this module, field signal processing focuses on stable current detection and controlled NAMUR switching recognition rather than analog measurement conversion. Frequently Asked Questions Q: Does the BN-1608 require an external power supply?A: No. The module does not require separate power input. It operates through the Honeywell I/O backplane connection and provides an 8 V loop supply for connected field devices. Q: How many NAMUR input devices can the BN-1608 connect simultaneously?A: The BN-1608 supports 16 NAMUR input channels. Each channel processes one DIN NAMUR compatible discrete signal. Q: Can the BN-1608 handle field wiring capacitance?A: Yes. The module supports a total connected cable capacitance below 16 uF and accepts field wire resistance up to 50 Ohm. Field Installation Guidelines Install the BN-1608 module directly on the designated programming connector of the Honeywell I/O backplane. No additional chassis mounting space is required. Connect NAMUR field devices according to the specified input wiring arrangement. Keep field signal cables separated from high voltage power cables to reduce electromagnetic interference. Use proper cable shielding and terminate shields according to the system grounding design. Verify the loop supply voltage and field wiring resistance before commissioning. Confirm that connected devices match DIN NAMUR current switching characteristics. Check input current levels during startup to ensure correct channel recognition.
$200.00 $100.00
-
Honeywell Honeywell FC-SAO-0220m Analog Output Module
Honeywell FC-SAO-0220m Analog Output Module Configured for analog current output execution in Honeywell Safety Manager systems, the Honeywell FC-SAO-0220m (SAO-0220M Analog Output Module) provides direct physical and electrical signal conversion for active and passive 0-20 mA and 4-20 mA field loops. Hardware Specifications Parameter Specification Model FC-SAO-0220m Spare Model SAO-0220M Brand Honeywell Product Type Analog Output Module Origin USA Weight 0.16 kg Dimensions 2 x 18.9 x 12.8 cm Power Consumption 5 V DC, 30 mA Space Requirements 4 TE, 3 HE (= 4 HP, 3U) Number of Output Channels 2 Output Signal Type Active or passive, 0-20 mA / 4-20 mA D/A Converter Resolution 12-bit Off Current < 0.05 mA Maximum Load Capacitance 100 nF WDG Input Current 0.5 mA Loop Powering (Active) Maximum loop resistance: 600 ohm Loop Powering (Active) Maximum output voltage: 30 V DC External Powering (Passive) Maximum voltage: 40 V DC External Powering (Passive) Minimum voltage drop: <= 7.5 V Tariff Code 8537101190 Place of Shipment Xiamen, China Process Control Current Loop Interface The FC-SAO-0220m provides two analog output channels for current loop signal generation. The module supports both active loop powering and passive external powering configurations. Therefore, it can interface with different field devices that require 0-20 mA or 4-20 mA control signals. Honeywell process control modules commonly integrate current loop communication methods such as 4-20 mA HART loop protocol. However, the FC-SAO-0220m specification defines the analog output hardware layer and does not include HART communication functionality. The module applies channel-level output processing through a 12-bit D/A converter. Additionally, the output circuit manages loop resistance, voltage limitation, and capacitance loading according to the specified electrical parameters. Frequently Asked Questions Q: How many analog output channels does the Honeywell FC-SAO-0220m provide?A: The FC-SAO-0220m provides 2 analog output channels with active or passive 0-20 mA and 4-20 mA operation. Q: What power supply does the FC-SAO-0220m require from the system?A: The module requires 5 V DC with a power consumption of 30 mA. Q: Can the FC-SAO-0220m operate with externally powered field loops?A: Yes. The module supports passive external powering with a maximum external voltage of 40 V DC and a minimum voltage drop of <= 7.5 V. Field Installation Guidelines Install the FC-SAO-0220m according to the Honeywell Safety Manager rack configuration requirements. Verify the module position, backplane connection, and terminal wiring before energizing the system. Use shielded signal cables for analog current loops when the installation environment contains electrical noise sources. Connect cable shields according to the site grounding standard and avoid parallel routing with high-power cables. Check loop polarity, external power supply limits, and field device input requirements before commissioning. Confirm that the connected load remains within the specified loop resistance and capacitance limits.
$200.00 $100.00
-
Honeywell Safe Loop-Monitored Digital Output Module | Honeywell FS-SDOL-0424
Honeywell FS-SDOL-0424 Safe Loop-Monitored Digital Output Module Configured for loop-monitored digital output execution in Honeywell Safety Manager systems, the Honeywell FS-SDOL-0424 (FS-SDOL-0424 Safe Loop-Monitored Digital Output Module) provides direct physical switching control for 24 VDC field loads through four monitored output channels. Hardware Specifications Parameter Specification Model FS-SDOL-0424 Brand Honeywell Product Type Safe Loop-Monitored Digital Output Module Origin USA Weight 0.12 kg Dimensions 2.2 x 19 x 12.7 cm Power Consumption 5 VDC system supply, 24 VDC output supply Space Requirements 4 TE, 3 HE (= 4 HP, 3U) Number of Output Channels 4 Output Specification 24 VDC Maximum Channel Current 1 A Maximum Total Module Load 3.6 A Maximum Load Inductance 0.5 H Maximum Load Capacitance 1 uF Overload Detection Threshold > 10 ohm Voltage Drop < 1.3 V at 1 A Output Monitoring Functions Lead breakage detection, output short circuit monitoring Load De-energization Supported through primary and secondary means Approvals CE, TUV, UL, CSA, FM Tariff Code 8537101190 Place of Shipment Xiamen, China Channel Isolation and Loop Monitoring Characteristics The Honeywell FS-SDOL-0424 performs safe digital output control with loop monitoring functions for field actuator circuits. Furthermore, the module detects abnormal output conditions including external wiring lead breakage and output short circuits. The module supports de-energization through secondary means, which allows the safety system to force field outputs into a defined safe state. Additionally, suppression diodes manage inductive load behavior and reduce electrical disturbances during switching operations. For Honeywell Safety Manager applications, output monitoring maintains channel status visibility while limiting cross-talk effects between output circuits. The design supports 24 VDC field devices with a maximum channel current of 1 A and a total module load capacity of 3.6 A. Frequently Asked Questions Q: What type of field devices can the FS-SDOL-0424 control?A: The FS-SDOL-0424 controls 24 VDC field loads through four digital output channels with loop monitoring functions. Q: How does the module detect field wiring faults?A: The module monitors output circuits and detects conditions such as external output wiring lead breakage and output short circuits. Q: What electrical limits apply to connected loads?A: Each channel supports up to 1 A current, while the complete module supports a maximum load of 3.6 A with specified inductive and capacitive load limits. Field Installation Guidelines Install the FS-SDOL-0424 in the designated Honeywell Safety Manager rack position according to system configuration requirements. Verify the 24 VDC field supply polarity before connecting output wiring. Separate output signal wiring from high-voltage power cables to reduce electrical interference. Connect cable shields according to site grounding practices and safety system installation standards. Confirm actuator wiring continuity before enabling output operation. Check field load characteristics to ensure inductance and capacitance values remain within module specifications. Inspect terminal connections periodically for mechanical looseness or oxidation in industrial environments.
$200.00 $100.00
-
Honeywell Digital Output Module | Honeywell FS-TDO-1624
Honeywell FS-TDO-1624 Digital Output Module Configured for 24 VDC digital signal execution in Honeywell Safety Manager systems, the Honeywell FS-TDO-1624 (FS-TDO-1624 Digital Output Module) provides direct electrical switching control through 16 non-safe output channels. Hardware Specifications Parameter Specification Model FS-TDO-1624 Brand Honeywell Product Type Non-safe Digital Output Module Origin USA Weight 0.3 kg Dimensions 5.5 x 6.5 x 11.8 cm estimated shipping size Power Consumption 5 VDC, 35 mA Number of Output Channels 16 Output Specification 24 VDC Maximum Output Current 100 mA per channel Maximum Lamp Load 50 mA (1.2 W) Maximum Load Capacitance 1 uF Voltage Drop < 1.2 VDC at 100 mA Tariff Code 8537101190 Channel-to-Channel Isolation and Process Output Interface The Honeywell FS-TDO-1624 provides 16 non-safe digital output channels for 24 VDC field device control. Therefore, the module directly drives connected actuators, indicators, and other discrete electrical loads within the Safety Manager I/O architecture. In addition, the output stage supports defined current and capacitance limits to maintain stable switching performance. The module operates with a maximum output current of 100 mA and limits voltage drop to less than 1.2 VDC at the rated current condition. Furthermore, Honeywell I/O modules within this platform require correct field wiring practices to maintain signal separation and minimize electrical interference. The FS-TDO-1624 focuses on discrete output execution rather than analog measurement, HART communication, or fieldbus signal processing. Frequently Asked Questions Q: Is the FS-TDO-1624 a safe digital output module?A: No. The FS-TDO-1624 is specified as a non-safe digital output module with 24 VDC, 16-channel switching capability. Q: What is the maximum load current supported by each output channel?A: Each output channel supports a maximum current of 100 mA according to the provided specifications. Q: What load types can the FS-TDO-1624 drive?A: The module supports 24 VDC discrete loads within the specified current, lamp load, and capacitance limits. Field Installation Guidelines Install the FS-TDO-1624 in the designated Honeywell Safety Manager I/O hardware location according to system configuration requirements. Verify that field wiring matches the 24 VDC output rating before connecting external devices. Separate digital output wiring from high-voltage power cables and high-noise signal sources to reduce electrical interference. Use appropriate grounding and shielding practices when field conditions introduce electromagnetic noise. Confirm connected loads remain within the specified 100 mA output current and 1 uF capacitance limits. Inspect terminal connections and cable routing before system power application.
$200.00 $100.00
-
Honeywell System Interconnection Cable | Honeywell FS-SICC-001/L8-IN
Honeywell FS-SICC-001/L8-IN System Interconnection Cable The Honeywell FS-SICC-001/L8-IN, also cataloged as the FS-SICC-0001/L8 System Interconnection Cable, operates as a dedicated hardware component for signal connection between controller modules and Field Termination Assemblies within Honeywell Safety Manager and FTAS systems. Hardware Specifications Parameter Specification Model FS-SICC-001/L8-IN (FS-SICC-0001/L8) Brand Honeywell Product Type System Interconnection Cables Compatible System Honeywell Safety Manager / FTAS Field Termination Assembly Slim Cable Length 8 m Conductor Material Tinned Copper Conductor Size Typically 18 AWG Shielding Aluminum Mylar Shield with Drain Wire Insulation Material High-density Polyethylene / PVC Termination Type Factory Pre-terminated / Ferrule Terminated Origin United States Weight Approximately 1.0 kg - 1.2 kg Operating Temp -40 deg C to +85 deg C Power Consumption Passive cable assembly, no external power consumption Signal Function Controller-to-FTA system interconnection Process Control Signal Interface and Cable Construction The Honeywell FS-SICC-001/L8-IN provides a direct electrical connection path between Safety Manager hardware and FTAS termination assemblies. Moreover, the cable construction uses shielded conductors to reduce electromagnetic interference and radio frequency interference during signal transmission. The cable assembly uses tinned copper conductors to improve oxidation resistance in industrial environments. In addition, the pre-terminated configuration reduces field wiring operations and maintains consistent connection quality between system components. For Honeywell process control architectures, the cable supports physical signal routing associated with DCS and safety system interfaces. Therefore, installation practices must maintain proper cable separation, grounding, and shielding continuity to preserve signal characteristics. Frequently Asked Questions Q: Does the FS-SICC-001/L8-IN require an external power supply?A: No. The FS-SICC-001/L8-IN is a passive interconnection cable assembly and does not consume external electrical power. Q: What shielding method does the cable use for industrial signal protection?A: The cable uses an aluminum Mylar shield with a drain wire to reduce electromagnetic interference effects on transmitted signals. Q: Can the cable length be modified during field installation?A: Field modification is not recommended because the cable uses factory-terminated connections. Any alteration may affect connector integrity and signal interface performance. Field Installation Guidelines Verify the cable part number before installation to ensure compatibility with the intended Honeywell Safety Manager and FTAS hardware interface. Install the cable using the specified termination orientation and avoid unnecessary mechanical stress on connectors. Maintain separation from high-voltage power cables and strong electromagnetic sources to reduce induced noise. Connect the shield drain according to the system grounding design and maintain continuous shielding where required. Avoid sharp bending, excessive pulling force, or routing methods that may damage the insulation or termination points. Inspect connectors before commissioning and confirm that all mating interfaces are fully seated.
$200.00 $100.00
-
Honeywell Digital Output Field Termination Assembly | Honeywell FS-TSDO-04UNI
Honeywell FS-TSDO-04UNI Safe Digital Output Field Termination Assembly Configured for safe digital output signal termination in Honeywell Safety Manager and FSC systems, the Honeywell FS-TSDO-04UNI (TSDO-04UNI Safe Digital Output Field Termination Assembly) provides direct physical connection between SDO output modules and external field wiring circuits. Hardware Specifications Parameter Specification Model FS-TSDO-04UNI Spare Model TSDO-04UNI Brand Honeywell Product Type Safe Digital Output Field Termination Assembly System Compatibility Honeywell Safety Manager and FSC safety systems Output Interface SDO-04x / SDOL-04x module connection via SICC-0001/Lx cable Number of Channels 4 Supported Field Voltage 24 VDC, 48 VDC, 110 VDC Maximum Voltage 36 VDC - IEC 1010 (1990) Maximum Continuous Current per Channel 4 A Field Wiring Connection Screw terminals Maximum Wire Diameter 2.5 mm2 (AWG 14) Wire Strip Length 7 mm (0.28 in) Mounting Method DIN EN rail snap-in mounting Approvals CE, UL, TUV, CSA Origin USA Place of Shipment Xiamen, China Weight 0.05 kg Dimensions 7 x 6 x 5.5 cm estimated shipping size Power Consumption Passive field termination assembly, no independent power supply 4-20 mA HART and Safety Signal Interface Characteristics The Honeywell FS-TSDO-04UNI operates as a passive termination interface between Safety Manager output modules and field devices. Moreover, the assembly maintains physical separation between system interconnection wiring and external field terminals through dedicated screw terminal connections. The unit supports redundant output configurations by connecting two SDO-04x or SDOL-04x modules through the SICC-0001/Lx system interconnection cable. Therefore, the FTA structure supports fault-tolerant output arrangements where redundant safety output channels require coordinated field termination. In addition, the module provides a DIN rail mounting structure and supports field devices such as shutdown solenoids, contactors, relays, valves, and annunciation equipment. The design follows Honeywell safety system wiring practices for digital output distribution and field circuit termination. Frequently Asked Questions Q: Can the FS-TSDO-04UNI connect directly to external field devices without an SDO module?A: No. The FS-TSDO-04UNI functions as a field termination assembly and requires connection to compatible Honeywell SDO-04x or SDOL-04x output modules through the SICC-0001/Lx system interconnection cable. Q: Does the FS-TSDO-04UNI require an external power supply?A: No. The assembly operates as a passive termination interface and receives output signals through the connected safety output module system. Q: What type of field wiring connection does the module provide?A: The unit uses screw terminals for field wiring connection and supports conductors up to 2.5 mm2 (AWG 14). Field Installation Guidelines Install the FS-TSDO-04UNI on a standard DIN EN rail inside the Honeywell Safety Manager cabinet enclosure. Ensure that the module remains mechanically secured before connecting field conductors. Route field wiring separately from high-voltage power cables and sources of electromagnetic interference. Use proper cable shielding and grounding practices according to the cabinet installation design. Verify terminal assignments before connecting external devices. Confirm that the connected field load characteristics match the supported output module specifications. Maintain correct cable stripping length and tighten screw terminals according to standard industrial wiring procedures. Inspect all connections before system commissioning and safety function testing.
$200.00 $100.00
-
Honeywell Safe Digital Output Modules | Honeywell FS-TSDO-0824
Honeywell FS-TSDO-0824 Safe Digital Output Field Termination Assembly Configured for fail-safe 24 VDC digital output termination in the Honeywell Safety Manager system, the Honeywell FS-TSDO-0824 (TSDO-0824 Safe Digital Output Field Termination Assembly) provides direct electrical connection between redundant output modules and external field wiring. Hardware Specifications Parameter Specification Model FS-TSDO-0824 Spare Model TSDO-0824 Brand Honeywell Product Type Safe Digital Output Field Termination Assembly System Compatibility Honeywell Safety Manager / Fail Safe Control (FSC) platforms Origin USA Weight 0.05 kg Dimensions 60 x 70 x 58 mm (L x W x H) Operating Temp Not specified Power Consumption Passive field termination interface Number of Channels 8 digital output channels Output Voltage Rating 24 VDC system architecture Maximum Voltage 36 VDC, IEC 1010 (1990), Overvoltage Category 3 Maximum Continuous Current per Channel 1.5 A Maximum Wire Diameter 2.5 mm2 (AWG 14) Wire Strip Length 7 mm (0.28 in) Terminal Tightening Torque 0.5 Nm (0.37 ft-lb) Mounting Method Universal DIN EN rail snap-in mounting Supported DIN Rails TS32 / TS35 x 7.5 Used Rail Length 61 mm (2.40 in) Terminal Type Screw terminals System Interconnection Cable SIC-C-12 / SICC-0001/Lx Approvals CE, TUV, UL, CSA, FM Tariff Code 8537101190 Honeywell Safety Manager Fail-Safe Output Interface Characteristics The FS-TSDO-0824 functions as the field termination point between the SIC-C-12 system interconnection cable and external field devices. It connects eight output channels from a redundant pair of safe digital output modules to field wiring through screw terminal connections. Moreover, the assembly supports Honeywell SIS architectures where output signals require controlled fail-safe execution. The termination interface maintains physical separation between system-side communication wiring and external field circuits, reducing wiring complexity in safety control cabinets. The FS-TSDO-0824 applies Honeywell process safety hardware design principles, including channel-to-channel isolation considerations for digital signal handling and structured connection between Safety Manager output modules and field devices. Frequently Asked Questions Q: How many digital output channels does the FS-TSDO-0824 provide?A: The FS-TSDO-0824 provides 8 independent digital output termination channels for connection between safe output modules and field wiring. Q: Which interconnection cable connects the FS-TSDO-0824 to Honeywell output modules?A: The FS-TSDO-0824 connects through the SIC-C-12 or SICC-0001/Lx system interconnection cable to compatible safe digital output modules. Q: What type of field wiring terminals are provided on the FS-TSDO-0824?A: The module uses screw terminals supporting field conductors up to 2.5 mm2 (AWG 14) with a specified tightening torque of 0.5 Nm. Field Installation Guidelines Install the FS-TSDO-0824 on compatible TS32 or TS35 x 7.5 DIN EN rails using the integrated snap-in mounting mechanism. Connect the system-side cable interface to the designated Honeywell safe digital output module connection point. Verify cable routing to maintain separation between signal wiring and high-energy circuits. Terminate field conductors according to the specified wire diameter range and tighten terminal screws using the recommended torque value. Confirm polarity, channel assignment, and field device connection before system commissioning. Maintain appropriate cabinet grounding, shielding, and wiring segregation practices according to the installation requirements of the Honeywell Safety Manager platform.
$200.00 $100.00
-
Honeywell Honeywell FS-TSAI-1620M | Analog Input Modules
Honeywell FS-TSAI-1620M Safe Analog Input Field Termination Assembly The Honeywell FS-TSAI-1620M, also cataloged as the FC-TSAI-1620M Safe Analog Input Field Termination Assembly, operates as a dedicated hardware component for converting field transmitter current signals into analog input voltage signals within Honeywell Safety Manager systems. Hardware Specifications Parameter Specification Model FS-TSAI-1620M / FC-TSAI-1620M Brand Honeywell Product Type Safe Analog Input Field Termination Assembly System Compatibility Honeywell Safety Manager SIS Origin USA Weight 0.3kg Dimensions 210 x 70 x 60 mm (L x W x H) Mounting Rail DIN EN TS32 / TS35 x 7.5 Used Rail Length 211 mm Operating Temp Not specified Power Consumption 30 V DC external, 3 mA (without input loop loads) Approvals CE, TUV, UL, CSA, FM Input Channels 16 channels, arranged as 2 groups of 8 channels with common 0 V reference Input Signal Range 0-20 mA and 4-20 mA current loop signals Maximum Input Current 0-25 mA Input Resistance 250 ohm +/- 1% Output Signal to SAI-1620M 0-4 V DC Output Accuracy 0.10% Passive Transmitter Supply Output Resistance 270 ohm +/- 5% Igniting Current Per Channel Less than 120 mA at 30 V DC Fuse Rating 315 mA Fuse Size 5 x 20 mm Fuse Voltage Rating 125 V AC Maximum Fuse Output Current 220 mA Terminal Type Screw terminals Maximum Wire Diameter 2.5 mm2 (AWG 14) Wire Strip Length 7 mm Terminal Tightening Torque 0.5 Nm Field Circuit Classification Nonincendive field circuits, Class 1 Division 2 Hydrogen Group A and B Loop Inductance Maximum 6 mH Hydrogen Group A and B Loop Capacitance Maximum 0.25 uF Non-Hydrogen Group C and D Loop Inductance Maximum 20 mH Non-Hydrogen Group C and D Loop Capacitance Maximum 5 uF 4-20 mA Process Signal Interface and Isolation Characteristics The Honeywell FS-TSAI-1620M interfaces field-mounted analog transmitters with the SAI-1620M Safe High-Density Analog Input Module. Moreover, the assembly accepts 0-20 mA and 4-20 mA current signals and converts them into a proportional 0-4 V DC signal for module processing. The unit provides sixteen analog input channels divided into two eight-channel groups with a common 0 V reference. Therefore, the signal conversion path maintains consistent analog scaling between field devices and the safety input module. In addition, the module supports transmitter loop applications through a passive transmitter supply output with a 270 ohm output resistance. The design includes channel protection through individual 315 mA fuses and supports nonincendive field circuits for Class 1 Division 2 installation environments. For Honeywell process control interfaces, the analog loop architecture follows standard 4-20 mA instrumentation practices. Furthermore, engineers must verify transmitter wiring, loop resistance, and grounding arrangements before commissioning the SIS input circuit. Frequently Asked Questions Q: How many analog input channels does the FS-TSAI-1620M provide?A: The FS-TSAI-1620M provides sixteen analog input channels arranged as two groups of eight channels with a common 0 V reference. Q: What signal conversion does the field termination assembly perform?A: The assembly converts incoming 0-20 mA or 4-20 mA current loop signals into 0-4 V DC output signals for the SAI-1620M Safe High-Density Analog Input Module. Q: What type of field wiring terminals does the module use?A: The module uses screw terminals supporting wires up to 2.5 mm2 (AWG 14) with a 7 mm strip length and 0.5 Nm tightening torque. Field Installation Guidelines Install the FS-TSAI-1620M on compatible TS32 or TS35 x 7.5 DIN EN rails and verify mechanical fixation before wiring field circuits. Use separate routing paths for analog signal cables and high-current power conductors to reduce electrical interference. Moreover, connect cable shields according to the plant grounding standard and avoid creating unintended ground loops. Verify transmitter polarity, current loop continuity, and external 30 V DC supply wiring before applying power. Ensure field circuits remain within the specified nonincendive Class 1 Division 2 electrical limits. Confirm terminal tightening conditions and inspect all field connections before integrating the module with the Honeywell Safety Manager input system.
$200.00 $100.00
