Product Overview

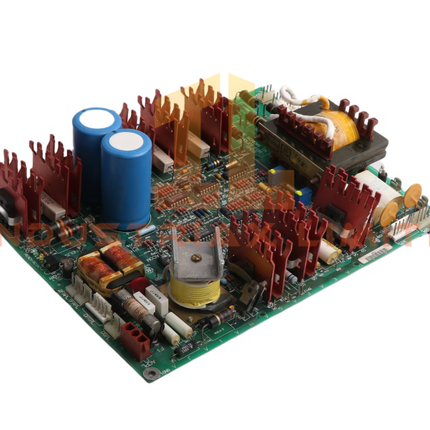

The DS200GDPAG1AEB High-Frequency Power Supply Board from GE’s Mark V series delivers stable power conversion for industrial control systems. It supports both AC and DC input ranges, making it adaptable for GE drives and exciters. With a compact footprint and robust design, this board ensures reliable performance in demanding DCS environments.

Technical Specifications

Specification	Details
Model Number	DS200GDPAG1AEB
Module Type	Frequency Power Supply Board
Product Series	Mark V
Manufacturer	GE Fanuc
Dimensions	28 × 21.4 × 7 cm
Weight	1.4 kg
Power Rating	600–700 W
AC Input Range	80–132 VAC
DC Input Range	105–140 VDC
Internal Supply Voltage	120 VDC
Output Transformer	50 VAC
Inverter Frequency	27 kHz
Diagnostic Indicators	4 LEDs, 2 neon lamps
Circuit Features	Rectifier, filter, regulator
Communication Service	Ethernet router
Compliance	CE, UL/CUL 508
HS Code	8537101190
Condition	Brand New
Origin	USA
System Compatibility	DCS
Discontinued Status	Active
Minimum Order Quantity	1
Lead Time	In Stock

Features & Benefits

• The DS200GDPAG1AEB board supports both AC and DC power sources.

• It includes a 120 VDC supply and a 50 VAC transformer for output regulation.

• Input isolation protects against voltage spikes and ensures uninterrupted operation.

• Four LEDs and two neon indicators provide fast visual diagnostics.

• Internal circuits include rectifier, filter, regulator, and inverter for stable power delivery.

Specifications

• Dimensions: 28 × 21.4 × 7 cm
• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
