Description
Overview

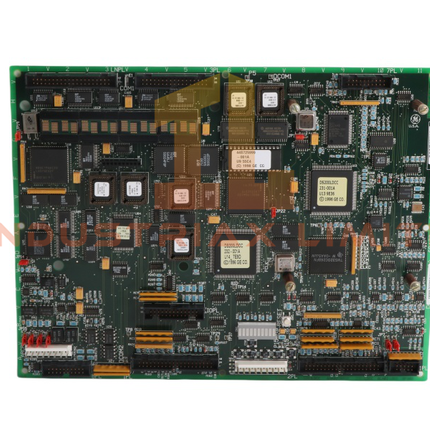

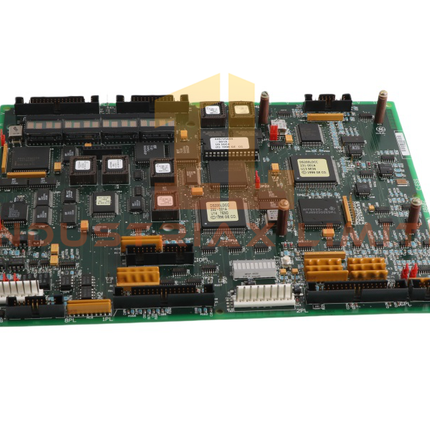

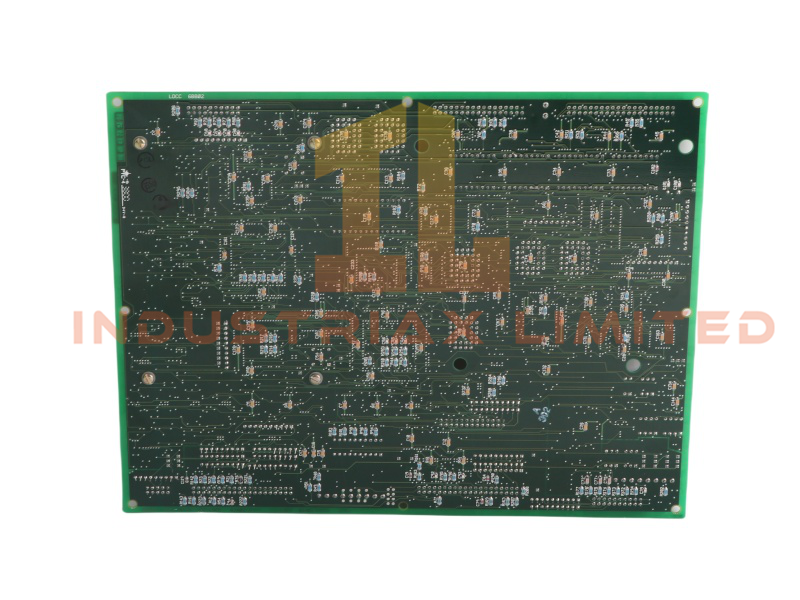

The DS200LDCCH1ALA communications board from GE Fanuc is a key component in the Mark V turbine control system. It manages drive, motor, and I/O operations across wind, steam, and gas turbine assemblies. This board integrates four microprocessors for advanced signal filtering and supports multiple bus protocols including DLAN+, Genius, CPL, and C-Bus.
Its compact 27.8×21.3×3 cm form factor and 0.4 kg weight make it suitable for DIRECTO-MATIC 2000 drive cabinets. The DS200LDCCH1ALA includes a reset button for fault recovery and conforms to GE’s Speedtronic legacy architecture.
Technical Specifications
| Specification |
Details |
| Model Number |
DS200LDCCH1ALA |
| Module Type |
Drive Control / LAN Board |
| Manufacturer |
General Electric (GE) |
| Series |
Mark V |
| System |
DCS |
| Dimensions |
27.8 × 21.3 × 3 cm |
| Weight |
0.4 kg |
| Processors |
DCP, LCP, MCP, CMP |
| Bus Support |
DLAN+, Genius, CPL, C-Bus |
| Installation |
DIRECTO-MATIC 2000 Cabinets |
| Reset Function |
Manual Fault Recovery Button |
| Communication |
Ethernet Router |
| HS Code |
8537101190 |
| Lead Time |
In Stock |
| Minimum Order |
1 Unit |
| Origin |
USA |
| Status |
Active |
Features & Performance
-
The DS200LDCCH1ALA supports both analog and digital I/O signal processing.
-
Its four processors ensure fast and accurate control across turbine systems.
-
The board integrates easily with optional terminal boards for extended functionality.
-
A conformal coating protects against dust and environmental wear.
Applications & Compatibility
The DS200LDCCH1ALA is ideal for legacy GE Mark V turbine control systems used in energy, petrochemical, and industrial automation. It supports high-speed LAN communication and integrates with systems requiring DLAN+, Genius, or C-Bus protocols.
Compatible with DIRECTO-MATIC 2000 cabinets, the DS200LDCCH1ALA ensures reliable performance in demanding turbine environments.
