Description
Product Overview

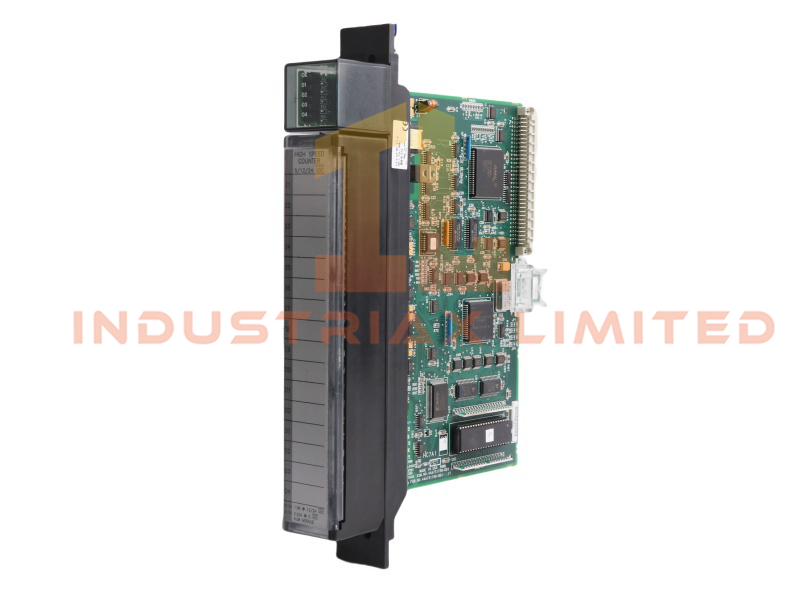

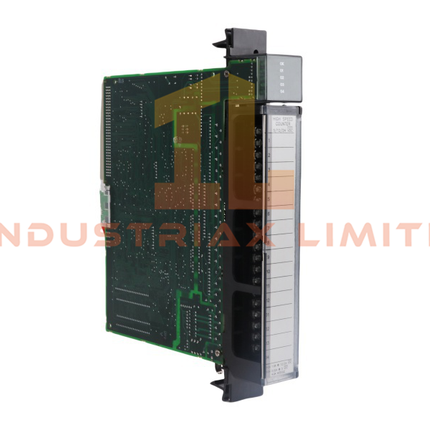

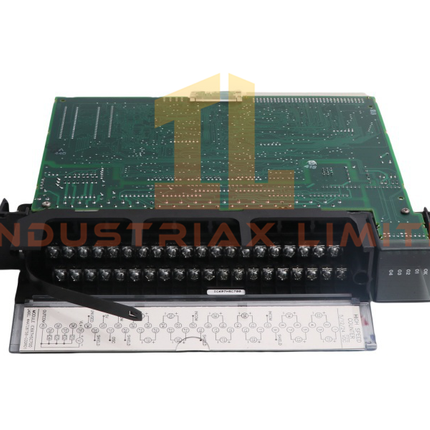

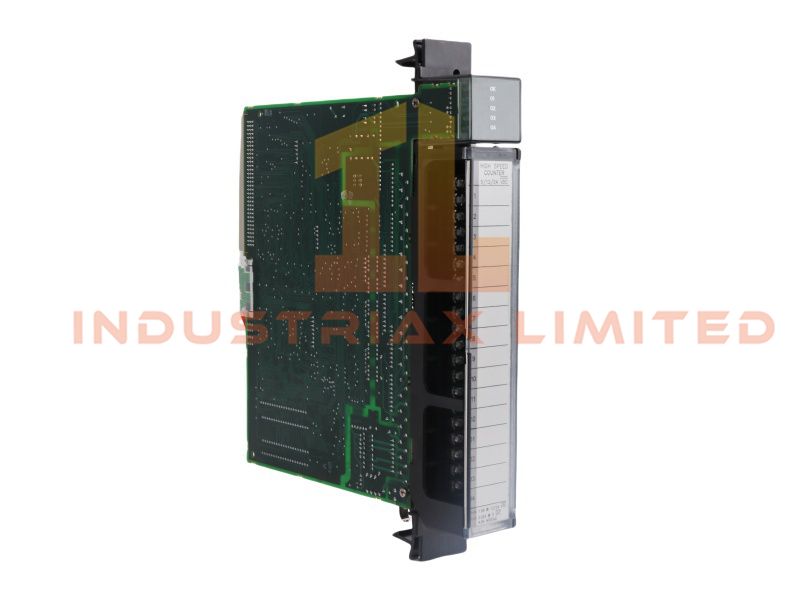

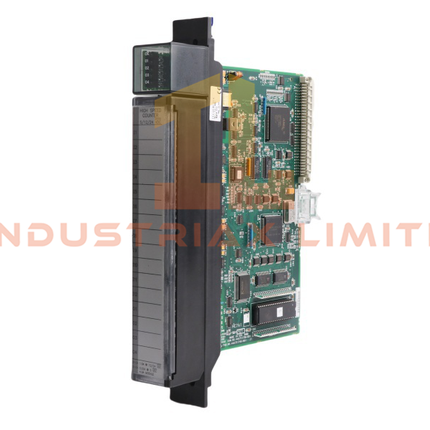

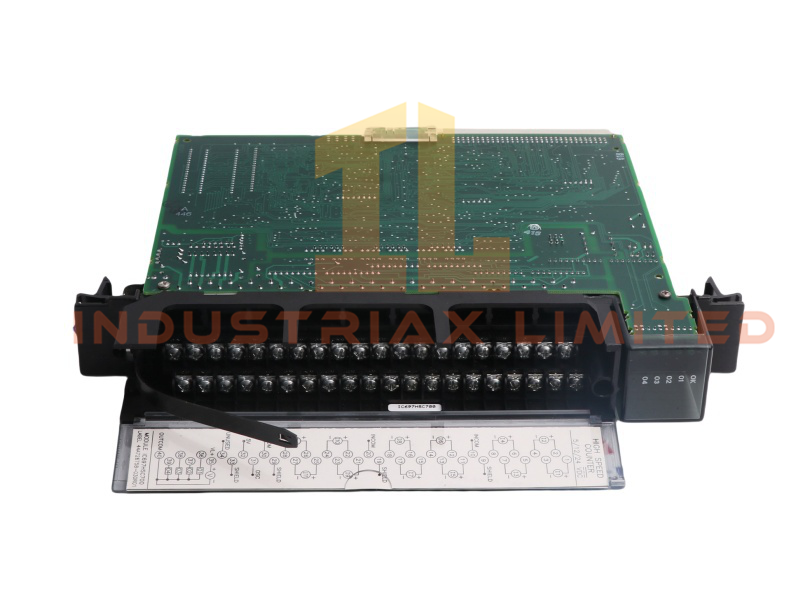

The IC697HSC700 High-Speed Counter Module from GE Fanuc’s Series 90-70 PLC family delivers fast and accurate pulse processing for industrial automation. It supports up to 800 kHz in Quad B mode and 200 kHz in Up/Down Quad mode, making it ideal for motion control, flowmeter monitoring, and velocity measurement.
This module includes 12 single-ended or differential inputs and 4 positive logic outputs rated at 20 mA. It operates within 5 VDC and 10–30 VDC ranges and fits into a single I/O slot on CPU, expansion, or remote baseplates. LED indicators provide real-time diagnostics, and the module supports programming via Logicmaster 90-70, VersaPro, or Proficy Machine Edition.
Technical Specifications
| Specification |
Details |
| Model Number |
IC697HSC700 |
| Module Type |
High-Speed Counter Module |
| Product Series |
Series 90-70 |
| Manufacturer |
GE Fanuc |
| Dimensions |
4 × 21.8 × 29.3 cm |
| Weight |
0.62 kg |
| Input Channels |
12 (single-ended/differential) |
| Output Channels |
4 (positive logic) |
| Output Current |
20 mA @ 10–30 VDC |
| Input Voltage Range |
5 VDC / 10–30 VDC |
| Frequency Capability |
200 kHz (Quad A/D/E), 800 kHz (Quad B) |
| Isolation Rating |
1500 V for 1 sec, 30 VAC/VDC steady |
| Backplane Current Draw |
1 A + 10 mA per active output |
| Programming Software |
Logicmaster, VersaPro, Proficy |
| Communication Ports |
SNP, Ethernet TCP/IP |
| Operating System Support |
Windows, MS-DOS |
| Compliance |
CE, UL/CUL 508 |
| HS Code |
8537101190 |
| Condition |
Brand New |
| Origin |
USA |
| System Compatibility |
PLC |
| Discontinued Status |
Active |
| Minimum Order Quantity |
1 |
| Lead Time |
In Stock |
Features & Benefits
-
The IC697HSC700 supports high-frequency pulse counting up to 800 kHz.
-
It includes 12 configurable inputs and 4 outputs for flexible control.
-
LED indicators simplify diagnostics and output monitoring.
-
The module supports both Windows and MS-DOS programming environments.
-
Input/output isolation ensures safe operation in industrial settings.
