Description
Overview
The GE DS200FCGDH1BAA Gate Distribution and Status Card belongs to the EX2100 series and provides reliable signal interfacing for drive systems. Measuring 2x18.6x26.1cm and weighing 0.26kg, this compact PCB integrates seamlessly into DCS environments. Manufactured in the USA, it supports Ethernet router communication and ensures efficient performance in demanding industrial applications.

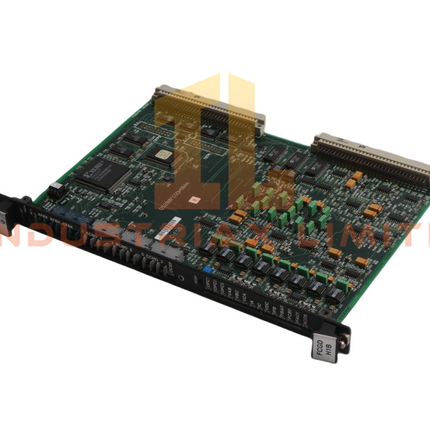

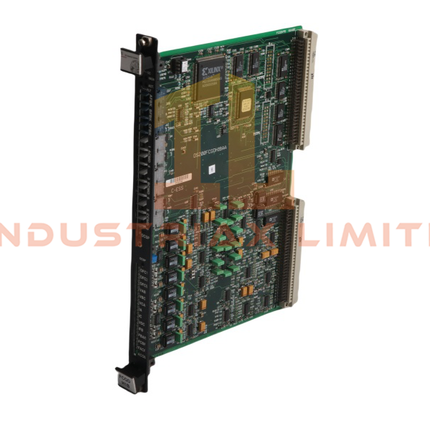

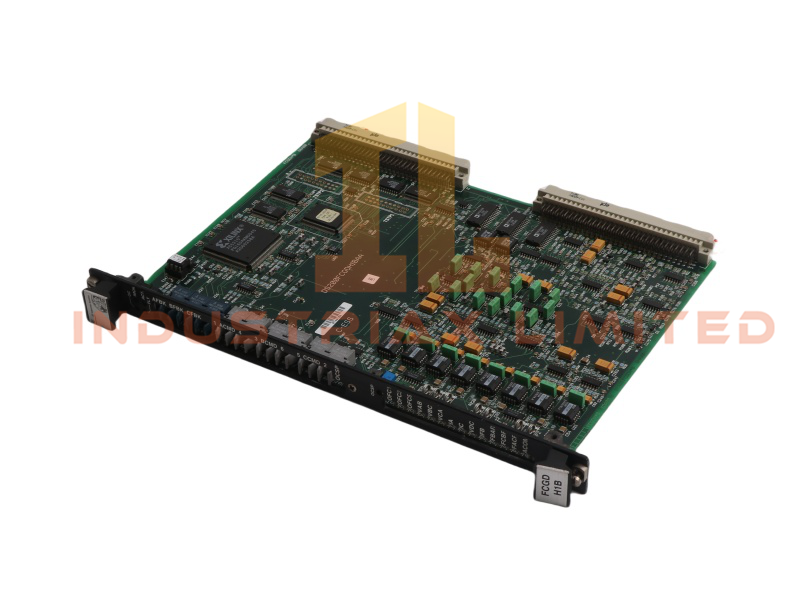

Engineers designed the DS200FCGDH1BAA with a conformal PCB coating, LED indicators, and multiple connector ports. Its robust construction guarantees durability, while integrated circuits including a Xilinx FPGA enhance processing efficiency.
Technical Specifications
| Parameter |
Value |
| Model Number |
DS200FCGDH1BAA |
| Module Type |
Gate Distribution and Status Card |
| Manufacturer |
GE |
| Product Range |
EX2100 |
| Condition |
Brand New |
| Lead Time |
In Stock |
| Weight |
0.26 kg |
| Dimension |
2 x 18.6 x 26.1 cm |
| HS Code |
8537101190 |
| MOQ |
1 |
| Origin |
USA |
| System |
DCS |
| Status |
Active |
| Communication Service |
Ethernet router |
Functional Description
The GE DS200FCGDH1BAA acts as a gate distribution board for phase-controlled non-reversing bridge systems. It relays signals from the DSPC board and transmits processed data through the VME backplane. The front faceplate includes clips for secure placement, LED indicators for monitoring, and multiple connector ports for integration.
Two horizontal male connectors at the rear ensure seamless system connectivity, while integrated circuits and FPGA technology deliver efficient performance. Its conformal coating protects components from environmental stress, ensuring long-term reliability.
Applications and Compatibility
The DS200FCGDH1BAA Gate Distribution and Status Card suits industries requiring dependable DCS integration, including power generation, heavy machinery, and advanced automation. It works seamlessly with GE Mark V and EX2100 systems, offering compatibility for upgrades and replacements. Professionals rely on the DS200FCGDH1BAA for efficient signal distribution, robust monitoring, and reliable turbine control operations.
