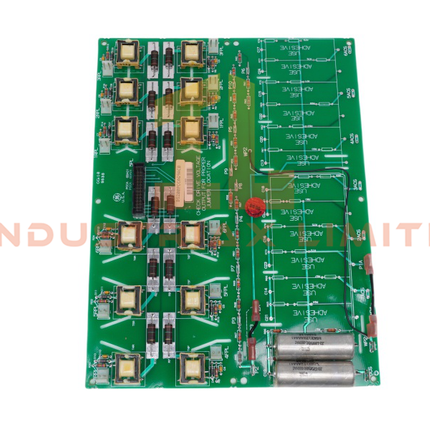

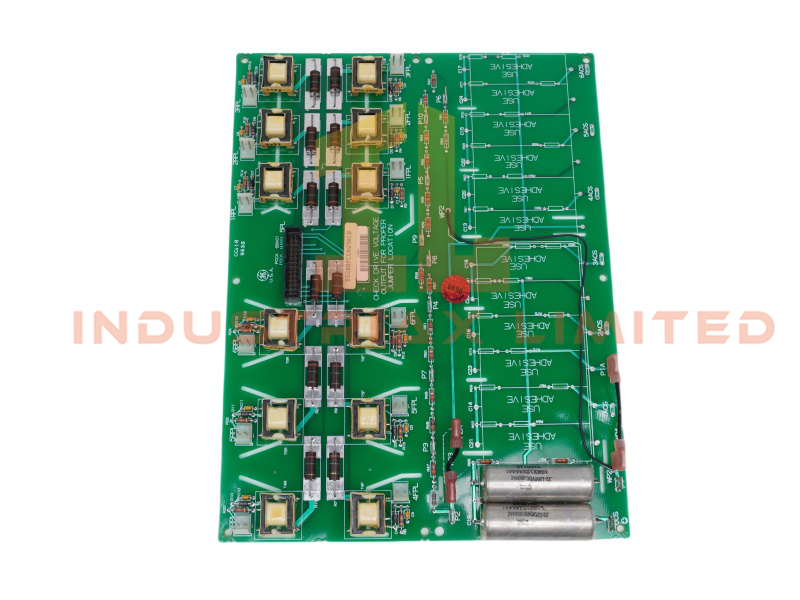

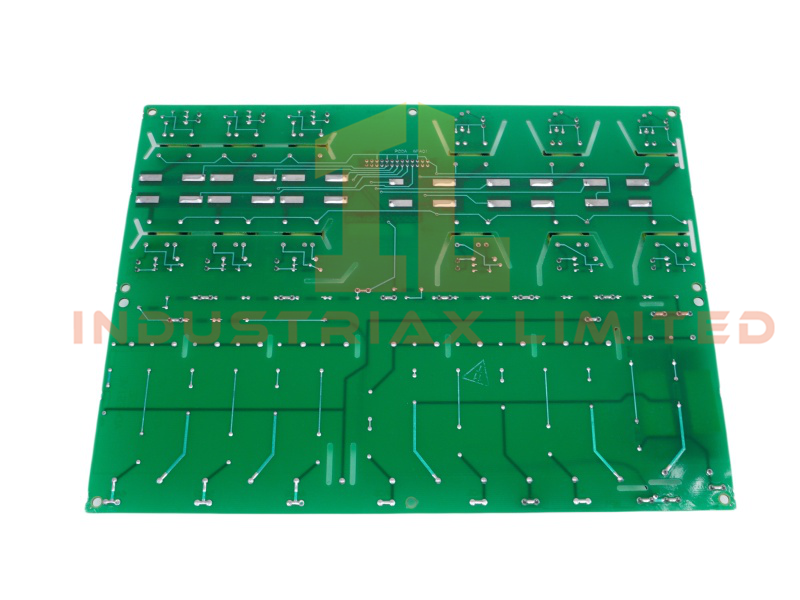

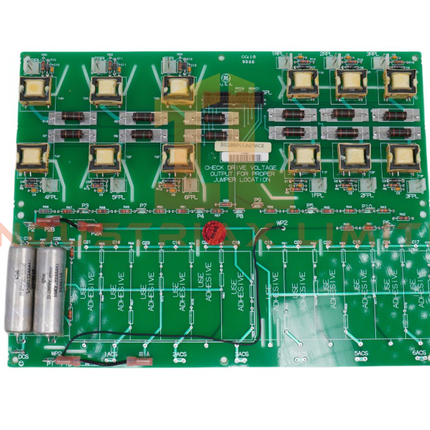

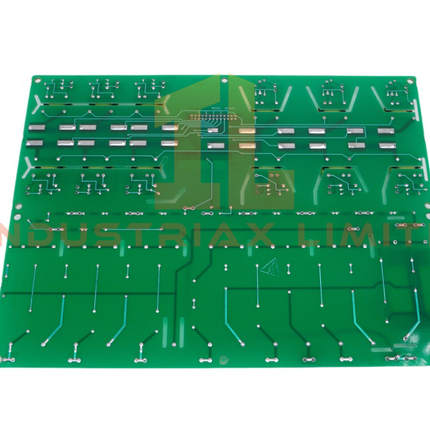

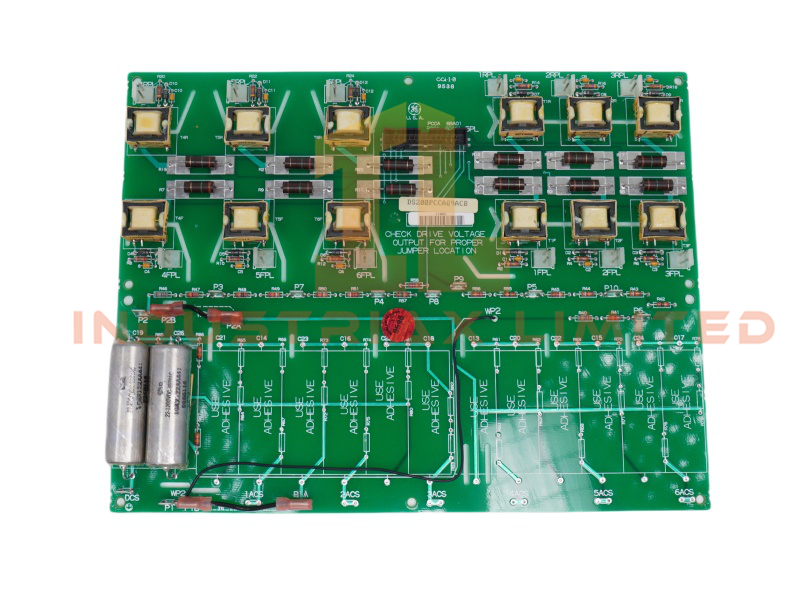

The GE DS200PCCAG9ACB Power Connect Card Assembly belongs to the Mark VIe turbine control system range. Engineers use this module to manage power connections with precision, ensuring compatibility with regenerative and excitation control systems. Its robust design, integrated leg fuse, and reactor make it a reliable solution for demanding industrial environments.
Technical Specifications
| Parameter |
Value |
| Model Number |
DS200PCCAG9ACB |
| Module Type |
Power Connect Card Assembly |
| Manufacturer |
GE |
| Product Range |
Mark VIe |
| Condition |
Brand New |
| Lead Time |
In Stock |
| Weight |
1.4 kg |
| Dimensions |
27.8 x 21.2 x 4.8 cm |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Origin |
USA |
| System |
DCS |
| Status |
Active |
| Communication Service |
Ethernet router |
| Operating Voltage |
630 V regenerative mode |
| AC Voltage Support |
≤ 600 V rms |
| Integrated Components |
Leg fuse, leg reactor |
| Supported Frames |
J and M style |
Functional Description
The GE DS200PCCAG9ACB operates at 630 volts in regenerative mode, supported by J and M-style frames. It integrates DC voltage snubbers, a leg fuse, and a leg reactor, ensuring stable and efficient performance. The module supports both separate and common bus transformers, offering flexibility in power configurations.
Front-panel connectors and factory-labeled terminals simplify installation and diagnostics. The GE DS200PCCAG9ACB enhances turbine control system performance by providing reliable power connection and integration with the SDCI Mark V Series power board.
Applications and Compatibility
The GE DS200PCCAG9ACB Power Connect Card Assembly suits turbine control systems requiring precise power management. It integrates seamlessly with Mark VIe and EX2100 excitation control systems. Typical applications include gas and steam turbine automation, regenerative power setups, and advanced industrial environments where reliability and efficiency are critical.
