Description
Overview

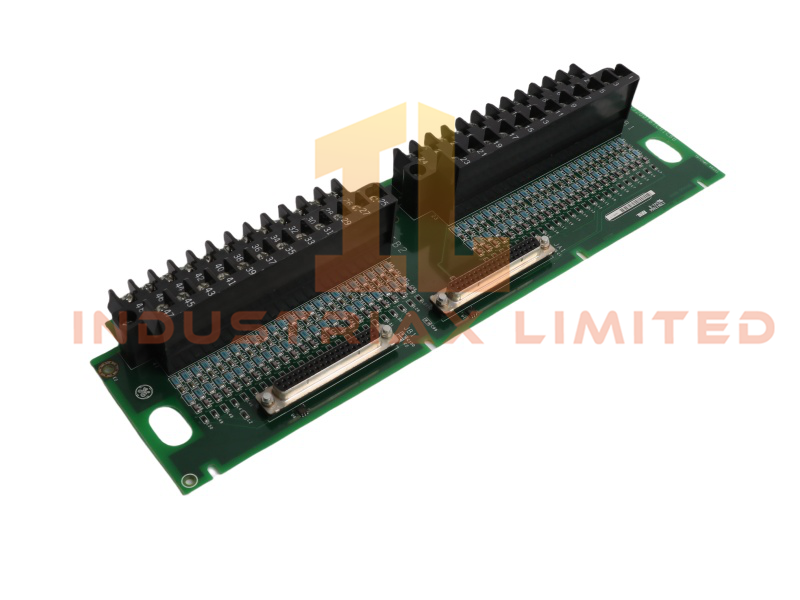

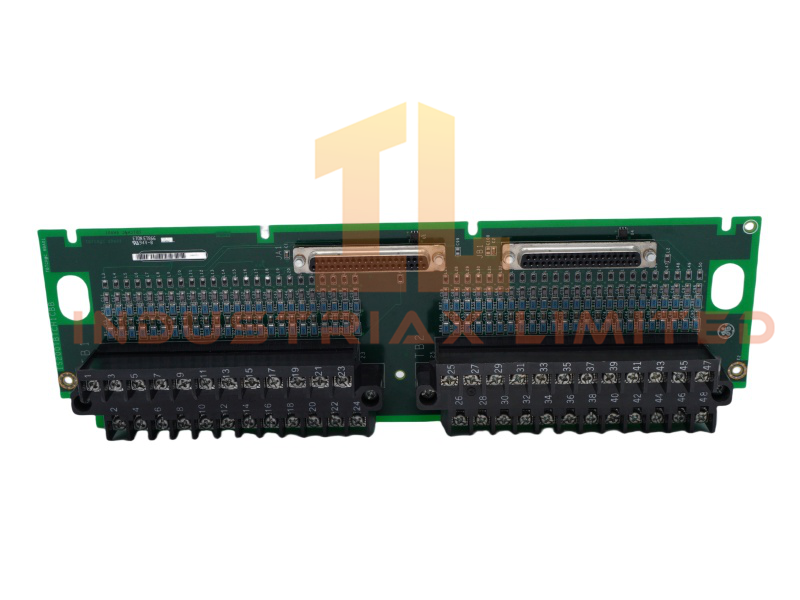

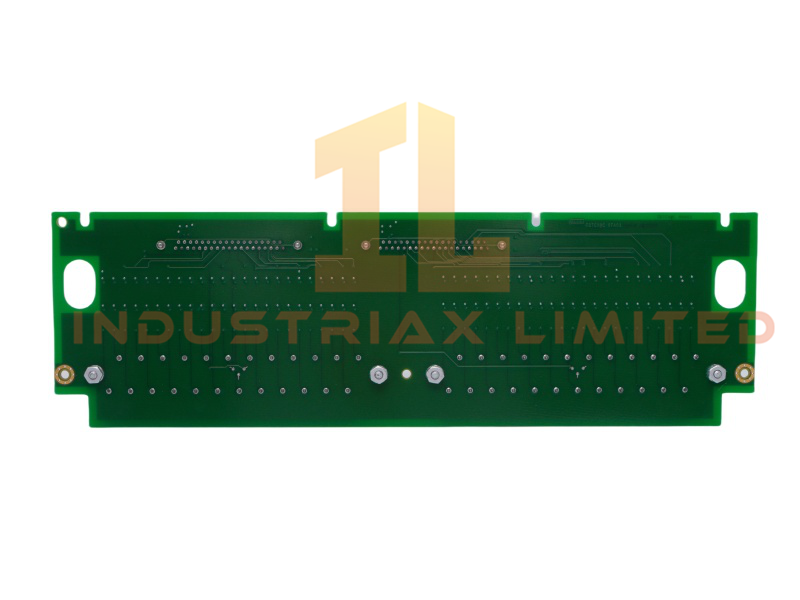

The GE IS200TBTCH1CBB Thermocouple Terminal Board belongs to the EX2100 Excitation Control System Series and provides precise thermal measurement capabilities. Measuring 33x17.7x2.5cm and weighing 0.56kg, this robust PCB integrates seamlessly into DCS environments. Manufactured in the USA, it supports Ethernet router communication and ensures accurate thermal data transmission in demanding industrial applications.
Engineers designed the IS200TBTCH1CBB with advanced noise suppression and cold junction reference processing, guaranteeing reliable signal integrity. Its durable construction and conformal coating protect components from environmental stress, reinforcing long-term stability.
Technical Specifications
| Parameter |
Value |
| Model Number |
IS200TBTCH1CBB |
| Module Type |
Servo Terminal Board |
| Manufacturer |
GE |
| Product Range |
EX2100 |
| Condition |
Brand New |
| Lead Time |
In Stock |
| Weight |
0.56 kg |
| Dimension |
33 x 17.7 x 2.5 cm |
| HS Code |
8537101190 |
| MOQ |
1 |
| Origin |
USA |
| System |
DCS |
| Status |
Active |
| Communication Service |
Ethernet router |
Functional Description
The GE IS200TBTCH1CBB supports 24 thermocouple outputs, directly connecting to the VTCC Thermocouple Processor Board. Two pluggable terminal blocks, each secured with screws, simplify installation and maintenance. These blocks accommodate up to two #12 AWG wires and support voltage levels up to 300V.
Six connector ports labeled JTA, JTB, JSA, JSB, JRA, and JRB streamline system integration. Three LED indicators on the faceplate provide real-time monitoring, signaling power, normal operation, or fault conditions. Over 200 resistors, capacitors, transistors, and diodes contribute to voltage suppression and stable performance.
Applications and Compatibility
The IS200TBTCH1CBB Thermocouple Terminal Board suits industries requiring dependable DCS integration, including power generation and heavy machinery. It works seamlessly with GE EX2100 and Mark VI systems, offering compatibility for upgrades and replacements. Professionals rely on the IS200TBTCH1CBB for accurate thermal measurement, efficient connectivity, and reliable turbine control operations.
