Description
Product Overview

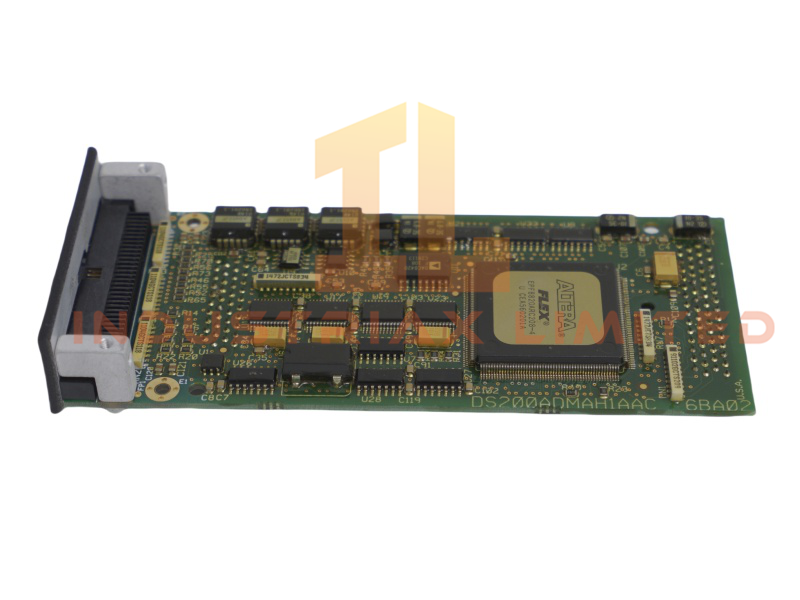

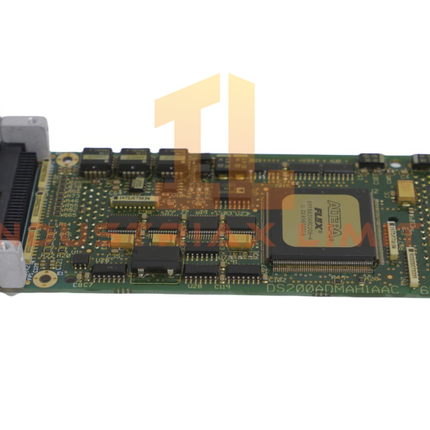

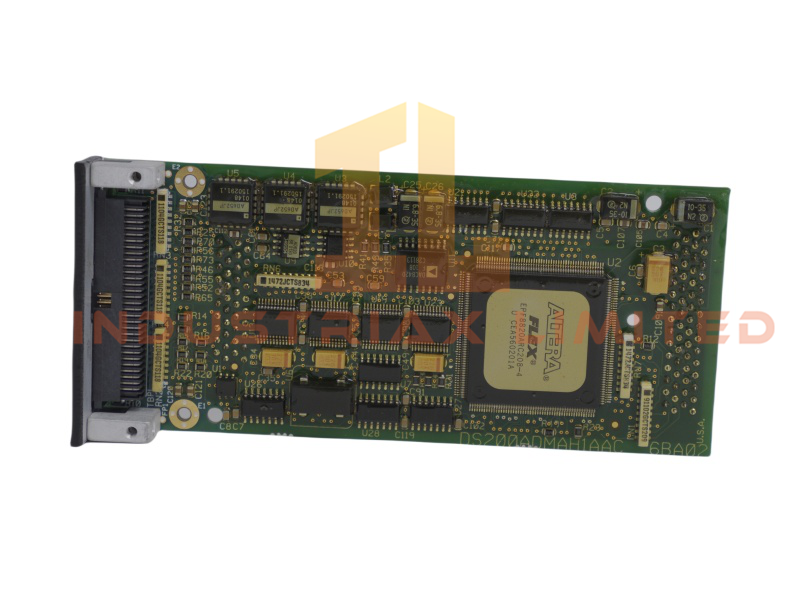

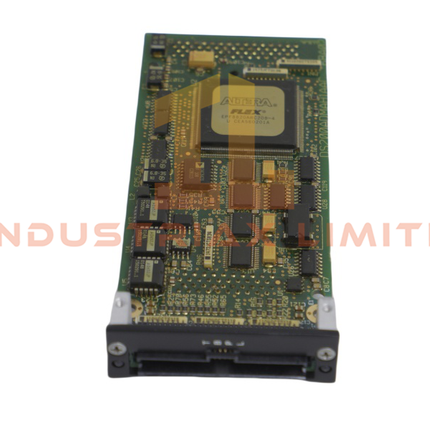

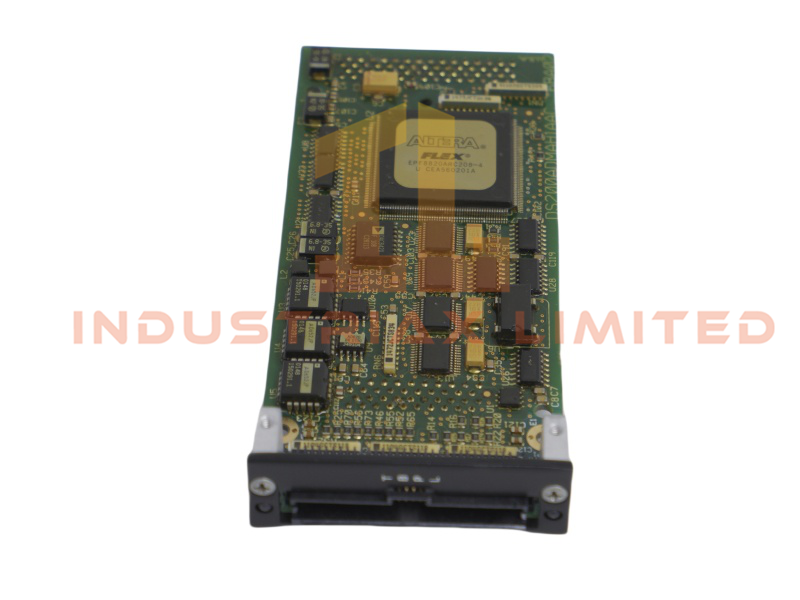

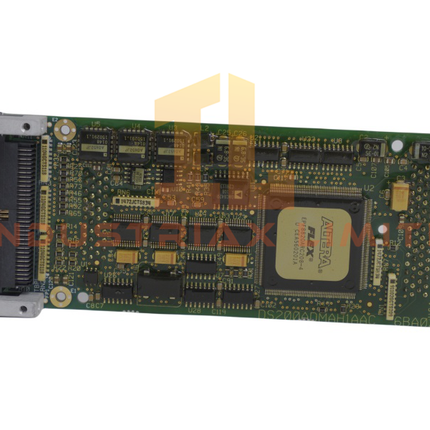

The DS200ADMAH1AAC Gate Pulse Amplifier Board from General Electric belongs to the EX2100 and Mark V Series. This advanced daughterboard weighs 0.84 kg and measures 29.3 x 27 x 3.3 cm, offering compact integration with turbine control systems. Engineers rely on its precise analog-to-digital conversion and robust design for reliable performance in demanding environments.
Technical Specifications
| Parameter |
Value |
| Model Number |
DS200ADMAH1AAC |
| Module Type |
Gate Pulse Amplifier Board |
| Manufacturer |
GE |
| Product Range |
EX2100 / Mark V Series |
| Condition |
Brand New |
| Weight |
0.84 kg |
| Dimensions |
29.3 x 27 x 3.3 cm |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Origin |
USA |
| System |
DCS |
| Status |
Active |
| Communication Service |
Ethernet router |
| Digital I/O Points |
8 |
| Analog Inputs |
12 |
| Analog Outputs |
4 |
| Logic Device |
Programmable |
| Memory |
Static RAM |
| Diagnostic LEDs |
Green IMOK, Red FAIL |
Functional Description
The DS200ADMAH1AAC board enhances turbine control by buffering, filtering, and converting analog and digital I/O signals. Its integration with the DS200DPSC board ensures accurate communication between processor buses. Engineers benefit from eight digital I/O points, twelve analog inputs, and four analog outputs, enabling precise system interfacing.
A programmable logic device supports flexible control, while static RAM maintains reliable communication. Diagnostic LEDs, including green IMOK and red FAIL indicators, provide immediate system status feedback. The durable metal faceplate with cutout patterns simplifies mounting and maintenance.
Applications and Compatibility
The DS200ADMAH1AAC Gate Pulse Amplifier Board suits wind, steam, and gas turbine systems requiring advanced excitation control. It integrates seamlessly with GE Speedtronic EX2100 and Mark V Series, ensuring compatibility across diverse industrial environments. Engineers deploy it in power generation plants, heavy industry, and automation networks where reliable signal conversion and diagnostics are essential.
