Description
Overview
The GE DS200FCSAG2ACB Gate Distribution and Status Card belongs to the EX2100 series and functions as a current sensing interface in Mark V control systems. Measuring 2x18.6x26.1cm and weighing 0.26kg, this compact PCB integrates seamlessly into DCS environments. Manufactured in the USA, it supports Ethernet router communication and ensures reliable current measurement and distribution.
Engineers designed the DS200FCSAG2ACB with compatibility for both TMR (Triple Modular Redundant) and Simplex configurations. Its protective PCB coating enhances durability, while alphanumeric identifiers and drilled corners simplify installation and grounding.
Technical Specifications
| Parameter |
Value |
| Model Number |
DS200FCSAG2ACB |
| Module Type |
Gate Distribution and Status Card |
| Manufacturer |
GE |
| Product Range |
EX2100 |
| Condition |
Brand New |
| Lead Time |
In Stock |
| Weight |
0.26 kg |
| Dimension |
2 x 18.6 x 26.1 cm |
| HS Code |
8537101190 |
| MOQ |
1 |
| Origin |
USA |
| System |
DCS |
| Status |
Active |
| Communication Service |
Ethernet router |
Functional Description

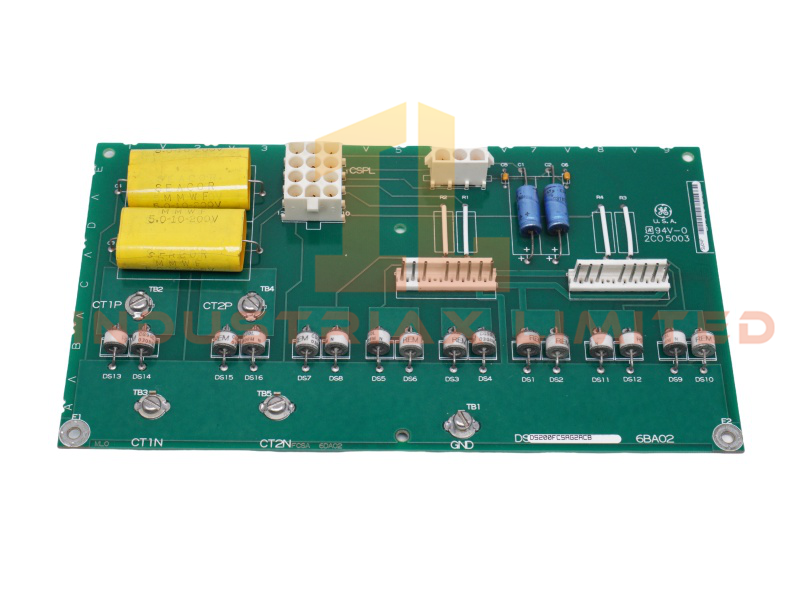

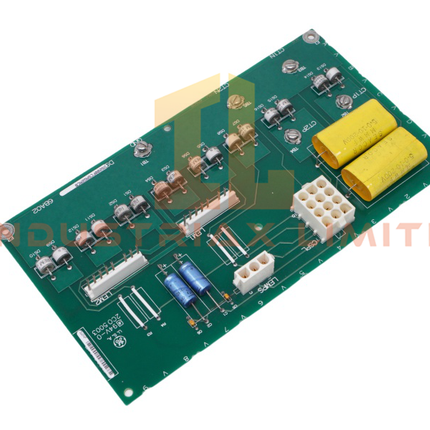

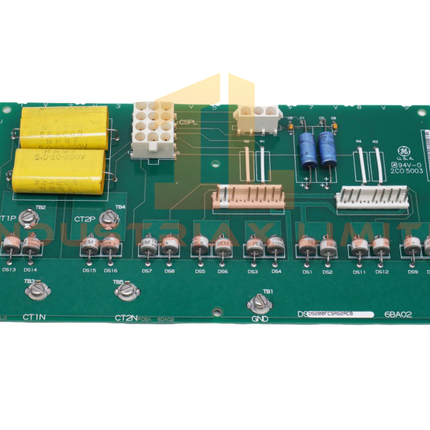

The GE DS200FCSAG2ACB integrates two pin header connectors, two polyvinyl capacitors, and two electrolytic capacitors to stabilize current flow. Sixteen diodes arranged in eight pairs enhance circuit protection, while four surface wires act as resistors to regulate energy. Two Mate-N-Lok connectors expand integration options, ensuring compatibility with other Mark V PCBs.
A crystal oscillator generates precise frequency, while protective layers safeguard components from environmental stress. These design elements guarantee long-term reliability in industrial applications.
Applications and Compatibility
The DS200FCSAG2ACB Speedtronic PCB suits industries requiring dependable DCS integration, including power generation, heavy machinery, and advanced automation. It works seamlessly with GE Mark V and EX2100 systems, offering compatibility for upgrades and replacements. Despite being part of a legacy series, professionals continue to rely on the DS200FCSAG2ACB for efficient current sensing and distribution in turbine control systems.
