GE Multilin G60-G01-HCH-F8F-H67-M8F-P6D-U6D-W6C Generator Protection System
The GE Multilin G60-G01-HCH-F8F-H67-M8F-P6D-U6D-W6C, also cataloged as the G60 Generator Protection System, operates as a dedicated hardware component for generator protection, control, metering, and fault signal processing within GE Multilin Universal Relay (UR) platforms.
Hardware Specifications
Parameter
Specification
Model
G60-G01-HCH-F8F-H67-M8F-P6D-U6D-W6C
Brand
GE Multilin
Origin
General Electric Grid Solutions
Dimensions
19-inch rack format Universal Relay enclosure
Operating Temp
-40 deg C to +60 deg C
Product Series
UR Series Universal Relay G60 Generator Protection
Power Supply
125-250 VDC / 120-240 VAC high voltage supply option
Protection Functions
Generator differential, stator ground, field ground, loss of excitation, overexcitation V/Hz, power swing blocking, out-of-step tripping
AC Input Modules
Configurable CT and VT input modules supporting generator current and voltage measurement circuits
Digital I/O
Configurable contact inputs and Form-A/Form-C output relay modules
Communication Protocols
IEC 61850 Ed. 1 and Ed. 2, DNP 3.0, Modbus RTU/TCP, IEC 60870-5-104, IEEE 1588
User Interface
Front panel LCD interface with RS232 communication port
Cybersecurity Functions
CyberSentry functions including RBAC, RADIUS authentication, Syslog, and audit trail logging
PLC/DCS Communication and Modular Architecture
The GE Multilin G60 platform uses a modular Universal Relay architecture with configurable CPU, power supply, communication, and I/O assemblies. The hardware configuration supports deterministic substation communication through IEC 61850 networks and integration with protection control systems.
The UR backplane structure provides module-to-module communication between protection processing units and field interface assemblies. Firmware flash compatibility supports controlled configuration updates for installed hardware revisions.
The G60 design supports I/O density scaling through selectable CT, VT, digital input, and output relay modules. Ethernet communication interfaces provide integration capability with substation automation systems and distributed control system networks.
Frequently Asked Questions
Q: Does the G60 support hot-swappable hardware modules?A: The UR Series uses field-replaceable modular assemblies. Hot-swap operation limitations depend on the installed module type and system configuration. Power isolation and approved maintenance procedures are required before module replacement.
Q: Which communication interfaces are supported by the G60-G01-HCH-F8F-H67-M8F-P6D-U6D-W6C configuration?A: The configuration supports Ethernet-based IEC 61850 communication and additional protocols including DNP 3.0, Modbus RTU/TCP, IEC 60870-5-104, and IEEE 1588 time synchronization.
Q: How are generator measurement signals connected to the relay?A: Generator current and voltage signals are connected through configurable CT and VT input modules. Digital status and trip signals are handled through installed contact input and output relay modules.
Field Installation Guidelines
Install the relay in the specified 19-inch rack mounting structure with adequate mechanical support.
Verify power supply wiring polarity and voltage range before energizing the unit.
Use shielded wiring for low-level CT, VT, and communication signal circuits where required by site practices.
Connect cable shields according to the grounding method defined for the protection panel design.
Separate high-voltage wiring paths from communication and low-level measurement wiring to reduce electrical interference.
Verify CT polarity, VT phase references, and digital input contact logic before commissioning.
Confirm Ethernet network addressing, protocol configuration, and time synchronization settings before system integration.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE Multilin F650BABF1G0HI Feeder Protection Relay and Digital Bay Controller
The GE Multilin F650BABF1G0HI, also cataloged as the F650 Feeder Protection Relay and Digital Bay Controller, operates as a dedicated hardware component for feeder protection, breaker control, and substation automation data exchange within GE Multilin F650 protection platforms.
Hardware Specifications
Parameter
Specification
Model
F650BABF1G0HI
Brand
GE Multilin
Operating Temp
-20 deg C to +60 deg C
Power Consumption
30 W / 30 VA nominal
Device Type
Feeder Protection Relay and Digital Bay Controller
Power Supply
110-250 V DC / 110-240 V AC
Phase Current Inputs
1 A or 5 A CT configurable
Ground Current Inputs
1 A or 5 A CT configurable
Voltage Inputs
Up to 300 V AC nominal VT input
Frequency Rating
50 Hz / 60 Hz
Display Interface
Graphical LCD with configurable SLD display
Mounting Type
Flush mount / draw-out case structure
Front Communication
Isolated RS232 setup port
Rear Communication
10/100Base-T Ethernet RJ45 and RS485
Supported Protocols
IEC 61850, DNP3.0, Modbus RTU, Modbus TCP, IEC 60870-5-103/104
Profinet / Ethernet Communication and Firmware Compatibility
The GE Multilin F650BABF1G0HI integrates Ethernet-based substation communication interfaces with deterministic data exchange requirements for protection and control networks. The rear Ethernet 10/100Base-T interface supports IEC 61850 communication services, while RS485 communication supports serial protocol integration.
Firmware flash compatibility allows configuration updates through approved GE Multilin engineering tools. Communication parameters, protection logic settings, and programmable control functions are stored within the relay configuration environment for controlled commissioning procedures.
Frequently Asked Questions (FAQ)
Q: What current transformer inputs are supported by the F650BABF1G0HI?A: The relay supports configurable phase and ground current inputs for 1 A or 5 A nominal CT applications.
Q: Does the F650BABF1G0HI support hot-swapping of hardware modules?A: The available documentation does not specify hot-swap capability. Hardware replacement should follow approved isolation and maintenance procedures for protection relay equipment.
Q: Which communication interfaces are available for system integration?A: The unit provides an isolated RS232 front setup port, Ethernet 10/100Base-T rear port, and RS485 serial communication interface supporting IEC 61850, DNP3.0, Modbus, and IEC 60870 communication protocols.
Field Installation Guidelines
Install the F650BABF1G0HI in a suitable protection panel or control cabinet using the specified flush-mount or draw-out case arrangement. Maintain separation between CT/VT signal wiring, communication cables, and high-voltage switching conductors to reduce electromagnetic interference.
Terminate CT secondary wiring according to protection relay wiring practices and verify polarity before energizing the protection circuit. Use shielded communication cables where required and connect cable shields according to the substation grounding design.
Before commissioning, confirm power supply polarity, communication addressing, CT/VT scaling parameters, breaker control wiring, and trip circuit supervision connections. Verify protection settings and logic operation through approved relay test equipment before placing the device into service.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE Multilin F650NFLF2G5HIP6E Feeder Protection Relay and Digital Bay Controller
The GE Multilin F650NFLF2G5HIP6E, also cataloged as the F650 Feeder Protection Relay and Digital Bay Controller, operates as a dedicated hardware component for feeder protection, circuit breaker control, and substation automation within GE Multilin 650 series protection systems.
Hardware Specifications
Parameter
Specification
Model
F650NFLF2G5HIP6E
Brand
GE Multilin
Origin
General Electric, USA
Dimensions
Standard 19-inch rack / flush-mount drawout or fixed case construction
Operating Temp
-20 deg C to +60 deg C
Auxiliary Supply Voltage
110-250 V DC / 110-230 V AC
Phase Current Inputs
1 A / 5 A selectable
Ground Current Inputs
1 A / 5 A nominal
Voltage Inputs
50-240 V AC nominal phase-to-neutral
Frequency Range
50 Hz / 60 Hz configurable
Current Input Burden
< 0.2 VA at 5 A
Communication Protocols
IEC 61850 Ed.1/Ed.2, Modbus RTU/TCP, DNP3.0, IEC 60870-5-103/-104
Ethernet Interface
Dual Ethernet RJ45/Fiber optic with HSR, PRP, RSTP support depending on board assembly
Time Synchronization
IEEE 1588 PTP, IRIG-B, SNTP
Recording Function
Oscillography up to 128 samples per cycle, COMTRADE format
Event Storage
Timestamped event recorder, up to 512-1024 events
Industrial Control and Communication Architecture
The GE Multilin F650 platform incorporates digital signal processing, programmable FlexLogic control, and configurable communication interfaces for protection and automation functions. The F650NFLF2G5HIP6E configuration includes expanded I/O capability, IEC 61850 communication support, and redundant Ethernet hardware options for integration with substation control networks.
The relay supports deterministic Ethernet communication structures through IEC 61850 messaging and synchronized data exchange. The hardware configuration supports Ethernet redundancy functions including HSR, PRP, and RSTP where applicable, allowing network topology adaptation within protection and control systems.
Firmware flash compatibility is managed through the GE EnerVista 650 Setup software environment, providing configuration access, relay logic programming, event extraction, and maintenance functions.
Frequently Asked Questions
Q: Does the F650NFLF2G5HIP6E support hot-swapping of internal hardware modules?A: The F650 is designed as a fixed protection relay assembly. Module replacement and servicing should follow GE maintenance procedures with the relay isolated from auxiliary power and field circuits.
Q: What communication interfaces are available for SCADA integration?A: The relay provides front USB/RS232 access and rear communication interfaces including Ethernet and RS485. Supported protocols include IEC 61850, Modbus, DNP3.0, and IEC 60870 series protocols.
Q: How is firmware compatibility handled during configuration updates?A: Firmware and configuration management are performed through compatible GE EnerVista 650 Setup software. The installed firmware version must match the supported relay hardware configuration.
Field Installation Guidelines
Install the relay in a suitable protective enclosure using the specified rack or flush-mount mechanical arrangement.
Connect auxiliary supply wiring according to the rated 110-250 V DC or 110-230 V AC input range.
Maintain separation between CT/VT signal wiring, communication cables, and high-energy switching circuits to reduce electromagnetic interference.
Ground cable shields according to substation grounding practices, with shield termination applied consistently at the designated grounding points.
Verify CT polarity, phase sequence, and grounding circuit connections before energizing protection functions.
Confirm Ethernet fiber or copper communication routing meets site network requirements before enabling IEC 61850 services.
Perform functional verification of protection elements, breaker control logic, and communication channels after installation.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE Multilin F650BFEF2G0HIC Feeder Protection Relay
The GE Multilin F650BFEF2G0HIC, also cataloged as the F650 Feeder Protection Relay, operates as a dedicated hardware component for feeder circuit protection, measurement, control, and communication within electrical distribution protection systems.
Hardware Specifications
Parameter
Specification
Model
F650BFEF2G0HIC
Brand
GE Multilin
Origin
GE Multilin F650 Series
Operating Temp
-20 deg C to +60 deg C
Power Consumption
< 25 W typical, < 45 VA
Power Supply
110-250 VDC / 110-230 VAC
Current Inputs
5 A nominal phase and neutral CT inputs, 50/60 Hz
Voltage Inputs
3 phase voltage inputs plus neutral/auxiliary voltage input
Digital Inputs
Opto-isolated dry/wet contact inputs
Output Relays
Form-A and Form-C trip, close, and alarm outputs
Protection Functions
50P/51P, 50G/N/51G/N, 67P/67G/N, 27P/59P, 81O/81U, 49, 79, 50BF, 25
Communication Ports
Rear RS485, Ethernet RJ45, front USB/RS232 maintenance port
Communication Protocols
Modbus RTU, Modbus TCP/IP, IEC 60870-5-103, DNP 3.0, IEC 61850 optional
Front Protection Rating
IP54
Firmware, Communication and Protection Logic
The GE Multilin F650BFEF2G0HIC incorporates programmable protection logic through the F650 platform FlexLogic engine. The relay processes current transformer and voltage transformer signals for feeder protection functions including phase overcurrent, ground fault detection, directional protection, breaker failure monitoring, and automatic reclosing sequences.
The communication architecture supports RS485 and Ethernet-based data exchange for integration with substation control networks. The relay supports deterministic protection data transfer through configured protocols including Modbus RTU, Modbus TCP/IP, IEC 60870-5-103, DNP 3.0, and optional IEC 61850 interfaces.
The hardware configuration includes 5 A CT measurement inputs, voltage measurement channels, isolated digital inputs, and configurable output contacts for breaker control and alarm circuits. The conformal-coated circuit board option provides additional protection for operation in environments requiring coated electronic assemblies.
Frequently Asked Questions
Q: What type of current transformer input does the F650BFEF2G0HIC support?A: The relay uses 5 A nominal phase and neutral current transformer inputs for feeder current measurement and protection calculations.
Q: Does the relay support Ethernet communication?A: Yes. The F650BFEF2G0HIC configuration includes Ethernet RJ45 communication capability with support for configured industrial protection protocols.
Q: What are the installation considerations for the conformal-coated hardware option?A: The conformal coating protects the circuit board assembly from environmental contaminants. Field wiring practices should maintain proper separation between power circuits, CT/VT signals, and communication wiring.
Field Installation Guidelines
Install the relay in a suitable protective enclosure with grounding and wiring practices compatible with substation protection equipment.
CT secondary wiring should use dedicated twisted pairs where applicable and maintain correct polarity from instrument transformers to relay terminals. VT wiring should be routed separately from high-current switching conductors to reduce electromagnetic interference.
Communication cables should maintain shield continuity according to site grounding requirements. RS485 networks should follow standard termination and biasing practices. Ethernet connections should use industrial-grade cabling suitable for the installation environment.
Before energizing the relay, verify auxiliary power polarity, CT circuit continuity, VT input levels, digital input contact states, and output relay wiring against the approved protection drawings.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE Multilin F650BFEF2G0HI Feeder Protection Relay
The GE Multilin F650BFEF2G0HI, also cataloged as the F650 Feeder Protection Relay, operates as a dedicated hardware component for feeder protection, breaker control, and electrical measurement within distribution protection systems.
Hardware Specifications
Parameter
Specification
Model
F650BFEF2G0HI
Brand
GE Multilin
Operating Temp
-20 deg C to +60 deg C
Power Consumption
Not specified in provided documentation
Power Supply
110-250 V DC / 110-230 V AC
Nominal Frequency
50 Hz / 60 Hz auto-sensing
Current Inputs
1 A / 5 A CT inputs, phase and ground configurable
Voltage Inputs
AC voltage sensing inputs for phase and zero-sequence measurement
Digital Inputs
Configurable high-density binary inputs
Digital Outputs
Configurable trip, close, and alarm output relays
Protection Functions
ANSI 50/51, 50N/51N, 67/67N, 27/59, 81U/81O, 79, 46, 50BF
Event Recording
Up to 512 event records
Local Interface
Graphical LCD display, target LEDs, RS232/USB configuration port
Communication Protocols
Modbus RTU, Modbus TCP/IP, IEC 60870-5-103, IEC 61850 optional
Communication Ports
RS485 and/or Ethernet RJ45 / fiber optic
Front Protection Rating
IP54
Rear Terminal Protection Rating
IP20
GE Multilin Deterministic Protection and Communication Functions
The GE Multilin F650 platform incorporates industrial control functions based on programmable protection logic and deterministic communication interfaces. The relay supports FlexLogic programming for configurable interlocking, breaker operation sequences, alarm processing, and protection coordination.
The device provides Profinet / EtherNet-IP deterministic networks compatibility concepts through structured industrial communication design where applicable, while the supplied hardware supports Modbus RTU, Modbus TCP/IP, IEC 60870-5-103, and optional IEC 61850 interfaces. Firmware flash compatibility depends on the installed relay hardware revision and supported software package.
The F650 supports I/O density scaling through configurable current, voltage, digital input, and digital output arrangements. Protection execution includes phase overcurrent, ground fault, directional elements, voltage supervision, frequency protection, automatic reclosing, and breaker failure functions.
Frequently Asked Questions
Q: Does the F650BFEF2G0HI support hot-swap replacement of internal modules?A: The provided documentation does not specify hot-swap capability. Module replacement should be performed with the relay isolated from control power and field wiring according to installation procedures.
Q: What communication interfaces are available for configuration and monitoring?A: The relay provides front-panel RS232/USB configuration access and rear communication through RS485 and/or Ethernet interfaces supporting Modbus RTU, Modbus TCP/IP, IEC 60870-5-103, and optional IEC 61850.
Q: What protection functions are executed by the relay hardware?A: The relay executes feeder protection functions including phase and ground overcurrent, directional protection, voltage protection, frequency protection, automatic reclosing, negative sequence protection, and breaker failure protection.
Field Installation Guidelines
Install the F650BFEF2G0HI in a protected control cabinet environment with appropriate mechanical support and clearance for terminal access. Verify CT and VT wiring polarity before energization to prevent incorrect protection element operation.
Use shielded communication cables where required by the installation environment. Terminate cable shields according to site grounding practices, avoiding parallel routing with high-current power conductors to reduce electromagnetic interference.
Separate low-level communication and measurement wiring from breaker control circuits and high-voltage switching paths. Confirm auxiliary power voltage matches the relay power supply rating before connection.
Verify Ethernet, RS485, and serial communication wiring according to the selected protocol configuration. Perform insulation checks and protection setting validation before placing the relay into service.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE Multilin F650BFEF1G0HI Feeder Protection Relay
Configured for feeder fault protection and measurement execution in substation automation networks, the GE Multilin F650BFEF1G0HI (F650 Feeder Protection Relay) provides direct physical and electrical execution for phase, ground, and sensitive ground current protection functions within distribution power systems.
Hardware Specifications
Parameter
Specification
Model
GE Multilin F650BFEF1G0HI
Brand
GE Multilin
Origin
GE Multilin F650 Series
Operating Temp
-20 deg C to +60 deg C
Power Consumption
Nominal < 15 W, Maximum < 30 W
Control Power Supply
110-250 VDC / 110-230 VAC
Operating Voltage Range
88-300 VDC / 88-264 VAC
Current Inputs
Phase and ground CT inputs, selectable 1 A or 5 A
Rated Frequency
50 Hz / 60 Hz configurable
Thermal Current Withstand
20 A continuous, 100 A for 10 s, 500 A for 1 s
Digital Inputs
Optically isolated configurable voltage threshold inputs
Output Contacts
Form C trip and alarm relay contacts
Break Capacity
30 A make for 0.2 s, 8 A continuous at 250 VAC / 30 VDC
Communication Interfaces
Dual RJ45 Ethernet, RS232 / USB front port
Communication Protocols
IEC 61850, Modbus TCP/IP, DNP 3.0, IEC 60870-5-104
Event Recording
Up to 512 time-tagged events with 1 ms resolution
Mounting Type
Panel flush mounting / 19-inch rack installation
Protection Class
IP54 front panel, IP20 rear terminals
EtherNet and Feeder Protection Control Functions
The F650BFEF1G0HI integrates deterministic protection logic with Ethernet-based substation communication functions. The dual RJ45 communication interface supports redundant network connection methods using IEC 61850, Modbus TCP/IP, DNP 3.0, and IEC 60870-5-104 protocols.
The relay processes phase current, neutral current, and sensitive ground current measurements for ANSI protection functions including 50/51, 50N/51N, 50G/51G, 46, 79, 37, 27/59, 81U/81O, and breaker failure protection (50BF).
The high-density I/O configuration provides optically isolated digital inputs and Form C output relay contacts for breaker trip, alarm, and control circuits. The firmware supports configurable protection logic, event recording, waveform capture, and fault analysis data storage.
Frequently Asked Questions
Q: Does the F650BFEF1G0HI support hot-swappable module replacement?A: The available documentation does not specify hot-swap capability. Installation and replacement should be performed with the relay isolated from control power and external protection circuits.
Q: What current input levels are supported by the relay?A: The phase and ground current inputs support selectable nominal CT ratings of 1 A or 5 A.
Q: Which communication interfaces are available for system integration?A: The relay provides dual RJ45 Ethernet ports and a front RS232 / USB interface for local configuration and communication.
Field Installation Guidelines
Install the relay in a panel or rack location that maintains mechanical support and allows access to front configuration ports.
Verify CT polarity, phase sequence, and secondary wiring before energizing protection circuits.
Use shielded communication cables for Ethernet and serial connections where required by the substation grounding design.
Terminate cable shields according to site grounding practices to reduce electrical interference.
Separate low-level communication wiring from high-voltage breaker control and power conductors.
Confirm auxiliary supply voltage compatibility before applying control power.
Verify protection settings, input assignments, and output relay logic through the configuration software before placing the relay into service.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe IC600YB842 is an analog input module designed for the General Electric Series Six programmable logic controller (PLC) system. As a component of the Series Six architecture, this module is engineered to process analog signals within industrial automation environments, providing reliable data acquisition for control and monitoring applications.Features
Compatible with GE Series Six PLC systems.
Analog input functionality supporting a signal range of -10VDC to +10VDC.
Designed for integration into standard Series Six I/O rack configurations.
Robust construction suitable for industrial control cabinet environments.
ApplicationsThis module is typically utilized in legacy industrial automation systems where precise analog voltage monitoring is required. Common applications include process control, instrumentation feedback, and signal conditioning for machinery managed by the Series Six platform.Technical Specifications
Manufacturer
General Electric
Model
IC600YB842
Series
Series Six
Module Type
Analog Input Module
Input Range
-10VDC to +10VDC
Weight
0.36 kg
Installation Guidelines
Ensure the PLC system is powered down before installing or removing the module from the I/O rack.
Verify that the module is correctly seated in the backplane connector to ensure proper signal communication.
Use shielded cabling for analog signal inputs to minimize electromagnetic interference (EMI) and noise.
Maintain proper ventilation within the control cabinet to prevent overheating of the I/O rack components.
Handle with care to prevent electrostatic discharge (ESD) damage to the module's internal circuitry.
FAQIs the IC600YB842 still in production?No, this module has been discontinued by the manufacturer. We provide refurbished or surplus units to support legacy system maintenance.What is the input range for this module?The IC600YB842 is designed to accept analog voltage signals ranging from -10VDC to +10VDC.
9 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe IS200BPVCG1BR1 is a specialized Backplane ASM Board designed for the GE Speedtronic Mark VI gas turbine control system. This critical infrastructure component serves as the communication backbone for multi-board rack systems in high-demand industrial sectors such as oil and gas refineries, thermal power plants, and large-scale mining operations. By centralizing data distribution between processing modules and field I/O, it ensures consistent signal integrity and rapid hardware integration. The dual-sided design optimizes cabinet space while facilitating direct operator access to external ribbon cable connections, effectively reducing mean time to repair (MTTR) during hardware upgrades or maintenance cycles.Features
Serves as the primary communication bus for Mark VI rack-mounted control modules.
Features a high-density dual-sided architecture for efficient signal routing.
Equipped with 21 female backplane connectors for secure module seating.
Includes 39 external I/O connectors for ribbon cable and field wiring integration.
Designed for high-vibration environments typical of gas turbine control cabinets.
ApplicationsThis backplane assembly is intended for use within GE Speedtronic Mark VI control systems. It is primarily utilized in power generation, turbine management, and heavy industrial automation environments where reliable, high-speed data communication between I/O modules and processors is required.Technical Specifications
Model
IS200BPVCG1BR1
Brand
General Electric (GE)
Series
Mark VI Speedtronic
Backplane Connectors
21 Female Ports
External I/O Connectors
39 Ports
Connection Type
Ribbon Cable / Multi-pin Interconnect
Operating Temperature
0 to 60 deg C
Installation Guidelines
Ensure the rack chassis is powered down before attempting to install or remove any modules from the backplane.
Verify that the backplane is securely mounted to the rack frame to prevent mechanical stress on the connectors.
Use ESD-safe handling procedures when touching the board to prevent damage to sensitive electronic components.
Ensure all ribbon cables are fully seated and locked into their respective I/O connectors to maintain signal integrity.
Route external wiring away from high-voltage power lines to minimize electromagnetic interference (EMI).
FAQWhat is the primary function of the IS200BPVCG1BR1?The IS200BPVCG1BR1 acts as the backplane assembly for the GE Mark VI system, providing the physical and electrical interface required to interconnect multiple control modules and external I/O cables.Can this board be used in other GE systems?This board is specifically engineered for the Mark VI Speedtronic series. It is not intended for use in earlier or later generations of GE control systems unless explicitly specified by the manufacturer.How should I clean the connectors if signal issues occur?Use only approved electronic contact cleaner and a lint-free applicator. Ensure the system is powered off and the board is completely dry before re-inserting modules.
9 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
10 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe IC693ALG390 is a high-performance analog output module designed for the General Electric Series 90-30 Programmable Logic Controller (PLC) system. This module provides two independent output channels capable of delivering precise voltage signals in the range of -10 to +10 VDC. It is engineered for demanding industrial environments, facilitating closed-loop control, signal transmission to measuring instruments, and integration with data logging systems.Features
Two isolated analog output channels (-10 to +10 VDC).
High resolution of 2.5 mV per count.
Absolute accuracy of ± 5 mV at 25 degC.
1500 VDC isolation between field wiring and PLC logic circuitry.
Fast 5 ms update rate.
Supports hold-last-state or 0V default configuration.
External 24 VDC power supply input for standby operation.
ApplicationsThis module is typically utilized in process control applications where precise voltage-based control is required, including:
Closed-loop process control systems.
Driving analog actuators and valves.
Interfacing with chart recorders and data acquisition systems.
Industrial automation test benches.
Technical Specifications
Model
IC693ALG390
Output Channels
2
Output Range
-10 to +10 VDC
Resolution
2.5 mV
Absolute Accuracy
± 5 mV at 25 degC
Update Rate
5 ms
Isolation
1500 VDC (Field to Logic)
External Supply Voltage
18 to 30 VDC (24 VDC nominal)
Output Load Capacitance
2000 pF maximum
Installation Guidelines
Power Down: Always disconnect power from the PLC rack before inserting or removing the module to prevent electrical damage.
Mounting: Ensure the module is fully seated in the 90-30 baseplate slot and secured with the integrated locking screws.
Wiring: Use shielded twisted-pair cabling for analog signals to minimize EMI interference. Ensure the shield is grounded at the source end only.
Isolation: The module provides 1500V isolation; however, ensure external field wiring is routed away from high-voltage AC power lines.
Environment: Maintain ambient operating temperatures between 0 and 60 degC. Ensure adequate ventilation within the enclosure.
FAQWhat is the IC693ALG390?The GE IC693ALG390 is a 2-channel, isolated analog voltage output module for the Series 90-30 PLC system.What is the voltage output range?It provides a bipolar voltage output range of -10 to +10 VDC.Does this module support current output?No, this module is strictly for voltage output. For current output applications (e.g., 4-20mA), please refer to alternative modules such as the IC693ALG391 or IC693ALG392.
10 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
8 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link

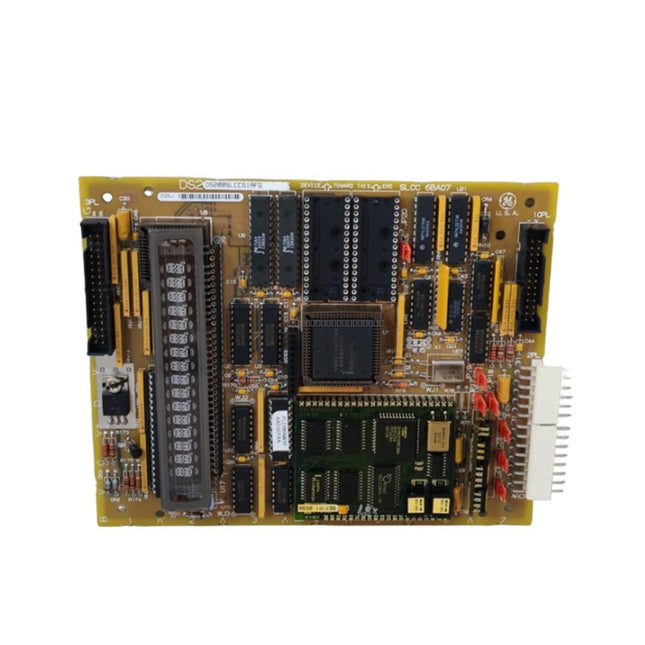

DescriptionThe DS200SLCCG1AFG is a critical LAN Communication Board engineered for the GE Mark V Speedtronic turbine control system. This module facilitates high-level data exchange and communication protocols within both Simplex and Triple Modular Redundant (TMR) architectures, managing industrial gas and steam turbine operations. Acting as a bridge for system diagnostics and control signals, this board ensures network integrity and supports reliable operation in power generation and heavy industrial environments. This specific AFG version incorporates three functional revisions to provide enhanced artwork configuration and logic processing capabilities compared to original hardware iterations.Features
Integrated 16-position alphanumeric display for real-time status updates and error reporting.
Dedicated mounting interface for installation directly onto the SDCC drive control board via standoffs.
Includes sockets for U6 and U7 EPROMs (typically shipped empty; requires software transfer or specific configuration).
Features KPPL connector for localized operator keyboard interfacing.
Configurable jumper settings for RS-422 DLAN driver modification and DLAN circuit isolation.
Equipped with a protective PCB coating to enhance resistance to environmental wear.
ApplicationsThe DS200SLCCG1AFG is designed for use within the GE Mark V Speedtronic control system, primarily serving gas and steam turbine control applications in power plants, industrial energy facilities, and utility-scale generation systems.Technical Specifications
Model
DS200SLCCG1AFG
Brand
GE Fanuc
Series
Mark V Speedtronic
Module Type
LAN Communication Card
Display Type
16-character Alphanumeric
Mounting
Standoff mount to SDCC board
Operating Temperature
0 to 60 deg Celsius
Storage Temperature
-40 to 85 deg Celsius
Installation Guidelines
Ensure the system is fully powered down before attempting to install or remove the module.
Use proper ESD (Electrostatic Discharge) protection when handling the board to prevent damage to sensitive internal components.
Mount the board securely to the SDCC control board using the provided standoff points.
Ensure the four protective posts (ST1-ST4) are correctly positioned to shield the alphanumeric display glass.
Verify jumper configurations (such as J19 for crystal logic) match the specific requirements of the control cabinet architecture before commissioning.
FAQDoes this board come with pre-installed firmware?No, the U6 and U7 EPROM sockets are typically shipped empty. Users must transfer existing software from their previous module or obtain the appropriate firmware configuration for their specific turbine application.Is this module compatible with all Mark V systems?This module is designed for Group 1 Mark V systems and is backwards compatible with earlier revisions of the SLCC board. Always verify your specific system revision requirements before installation.
8 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
10 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe General Electric IC600LX624 is a memory module designed for the GE Series Six programmable logic controller (PLC) system. This module provides essential memory capacity for logic and register storage, ensuring the reliable execution of control programs in industrial automation environments. It is often associated with the IC600FP608K and IC600LX624L component identifiers within the Series Six architecture.Features
Designed specifically for GE Series Six PLC systems.
Provides 16K of logic memory capacity.
Provides 8K of register memory for data storage.
Robust construction suitable for industrial control cabinet mounting.
ApplicationsThis memory module is utilized in legacy GE Series Six PLC systems, commonly found in manufacturing, power generation, and process control industries where reliable, high-capacity memory is required for complex logic sequences and data logging.Technical Specifications
Product Model
IC600LX624 (IC600FP608K / IC600LX624L)
Manufacturer
General Electric
Product Type
Memory Module
Logic Capacity
16K
Register Capacity
8K
System Compatibility
Series Six
Tariff Code
8537101190
Installation Guidelines
Ensure the PLC system power is completely disconnected before attempting to install or remove the memory module.
Handle the module by the edges to prevent electrostatic discharge (ESD) damage to the internal components.
Ensure the module is firmly seated in the designated Series Six backplane slot to maintain proper electrical contact.
Verify that the module is correctly aligned with the chassis guides before applying pressure.
Maintain a clean, dry, and vibration-free environment within the control cabinet to ensure long-term operational stability.
FAQWhat is the primary function of the IC600LX624 module?The IC600LX624 serves as a memory expansion or replacement module for the GE Series Six PLC, providing 16K of logic memory and 8K of register memory to support control program execution.Is this module compatible with other GE PLC series?No, this module is specifically engineered for the GE Series Six architecture and is not cross-compatible with newer GE Fanuc or Emerson PLC platforms.
10 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
2 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe GE Fanuc IC660BBR100 is a 16-point Relay Output Block belonging to the Genius I/O product series. This module is designed to provide reliable discrete output control in industrial automation environments, facilitating the interface between a controller and field devices. The unit features a robust design capable of handling both AC and DC voltage applications, offering flexibility for various control system architectures.Features
16 isolated relay outputs configured in 4 groups of 4 outputs each.
Normally Closed (NC) output contact configuration.
Supports CPU redundancy for high-availability control applications.
Compatible with the Genius I/O communication network.
Designed for industrial environments requiring reliable switching of field loads.
Technical Specifications
Manufacturer
General Electric (GE Fanuc)
Series
Genius I/O
Part Number
IC660BBR100
Product Type
Relay Output Block
Number of Outputs
16
Output Configuration
4 Groups of 4 Outputs
Output Voltage Type
AC or DC
Power Requirements
87 mA at 115 VAC
Redundancy
Supported
Installation Guidelines
Ensure the control system is powered down before installing or removing the module from the I/O rack.
Mount the block in a location that allows for adequate ventilation to prevent overheating during operation.
Use appropriate shielded cabling for communication and I/O connections to minimize electromagnetic interference (EMI).
Verify that all field wiring is properly secured to the terminal blocks and that the voltage ratings of the connected loads do not exceed the relay specifications.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
FAQWhat is the primary function of the IC660BBR100?The IC660BBR100 is a Genius I/O relay output block used to interface a PLC or controller with field devices, providing 16 discrete outputs for control operations.Does this module support AC and DC loads?Yes, the IC660BBR100 is designed to handle both AC and DC voltage types for its relay outputs, providing versatility in industrial control applications.Is this module compatible with redundant CPU systems?Yes, the IC660BBR100 supports CPU redundancy, making it suitable for critical control processes where system uptime is essential.
2 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE Multilin F650BABF1G0HIC Feeder Protection Relay
Configured for feeder protection, control, and bay-level monitoring in substation automation systems, the GE Multilin F650BABF1G0HIC (F650 Feeder Protection Relay) provides direct physical and electrical execution of protection logic, measurement processing, and communication functions within GE Multilin F650 series platforms.
Hardware Specifications
Parameter
Specification
Model
F650BABF1G0HIC
Brand
GE Multilin
Origin
GE Grid Solutions
Operating Temp
-40 deg C to +70 deg C
Power Consumption
Not specified in available technical data
Device Type
Digital Feeder Protection Relay / Bay Controller
Mounting Type
Rack/panel mounting chassis
Current Inputs
1 A / 5 A field selectable
Voltage Input Rating
Up to 300 V AC nominal
System Frequency
50 Hz / 60 Hz
Protection Functions
50P, 51P, 50G, 51G, 67P, 67N, 27, 59, 81O/U, 49, 79, 50BF
Communication Interfaces
RS232, redundant RS485, 10/100 Base-TX RJ45 Ethernet
Communication Protocols
DNP3.0 Level 2, Modbus RTU, Modbus TCP, IEC 60870-5-103, IEC 61850 optional/model dependent
Front Protection Rating
IP54
Profinet / EtherNet Deterministic Networks and Industrial Control Integration
The GE Multilin F650 platform applies industrial communication architecture for feeder data acquisition and substation automation integration. The F650BABF1G0HIC supports Ethernet and serial communication channels for deterministic data exchange with SCADA and DCS systems. The processing hardware executes programmable FlexLogic equations for interlocking, control schemes, and automated switching sequences.
The relay architecture supports firmware-managed configuration compatibility, allowing protection settings, logic equations, and communication parameters to be maintained within the defined F650 hardware environment. Digital I/O expansion and high-density signal processing allow scaling of feeder monitoring functions according to application requirements.
Frequently Asked Questions (FAQ)
Q: What communication interfaces are available on the F650BABF1G0HIC?A: The unit provides front RS232 configuration access, rear redundant RS485 serial communication, and rear 10/100 Base-TX RJ45 Ethernet communication interfaces.
Q: Does the F650BABF1G0HIC support programmable control logic?A: Yes. The relay includes FlexLogic programmable equations for custom interlocking, control sequences, and protection scheme operations.
Q: What type of protection elements are executed by this relay hardware?A: The relay executes feeder protection functions including phase and ground overcurrent, directional overcurrent, voltage protection, frequency protection, thermal protection, autoreclose, and breaker failure functions.
Field Installation Guidelines
Install the F650BABF1G0HIC in a suitable rack or panel mounting location with appropriate mechanical support and environmental protection.
Current transformer and voltage transformer wiring should follow protection relay installation practices, including correct polarity verification, separation of measurement circuits from high-noise power cables, and secure terminal connections.
Communication cable routing should maintain separation from high-voltage switching conductors. Shielded communication cables should be terminated according to site grounding practices to reduce electromagnetic interference.
Before energizing the relay, verify auxiliary power wiring, CT/VT input connections, digital I/O termination, communication addressing, and protection setting parameters. Firmware and configuration files should match the installed hardware revision.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE Multilin F650BFBF1G0HICE Feeder Protection Relay
The GE Multilin F650BFBF1G0HICE, also cataloged as the F650 Feeder Protection Relay, operates as a dedicated hardware component for feeder protection, breaker control, and electrical measurement execution within GE Multilin 650 series protection networks.
Hardware Specifications
Parameter
Specification
Model
F650BFBF1G0HICE
Brand
GE Multilin
Origin
GE Multilin 650 Series
Power Consumption
25 VA nominal, 45 VA maximum
Product Type
Feeder Protection Relay
Auxiliary Power Supply
110-250 V DC / 120-230 V AC high range supply
Current Inputs
Universal CT inputs, 1 A / 5 A nominal
Voltage Inputs
AC voltage inputs, 275 V AC maximum nominal input
Digital Inputs
16 configurable digital inputs
Relay Outputs
8 programmable output relays
Ethernet Communication
10/100 Base-TX Ethernet
Communication Protocols
IEC 61850 Edition 2, Modbus RTU/TCP, DNP3, IEC 60870-5-104
Display Interface
4 lines x 20 characters alphanumeric display
PCB Protection
Harsh environment conformal coating
Front Interface
Enhanced display with front USB / serial configuration port
Holdup Time
Greater than 100 ms typical after supply loss
GE Multilin Feeder Protection and IEC 61850 Communication Features
The F650BFBF1G0HICE integrates feeder protection logic, bay control functions, and communication processing within the GE Multilin 650 platform. The relay supports deterministic protection processing for ANSI functions including 50/51 phase overcurrent, 50N/51N ground overcurrent, 67/67N directional overcurrent, 27/59 voltage protection, 81 frequency protection, 50BF breaker failure, and 79 autoreclose control.
The integrated logic engine supports IEC 61131-3 programmable control functions for interlocking, transfer schemes, load shedding, and breaker control sequences. Communication functions include IEC 61850 Edition 2, Modbus RTU/TCP, DNP3, and IEC 60870-5-104 protocol operation through the configured communication interfaces.
Frequently Asked Questions (FAQ)
Q: Does the F650BFBF1G0HICE support hot-swap replacement during energized operation?A: The available documentation does not specify hot-swap capability. Replacement should follow standard protection relay isolation procedures with auxiliary supply and field wiring disconnected before removal.
Q: What is the digital input and output hardware capacity of this configuration?A: The configuration includes 16 configurable digital inputs and 8 programmable relay outputs. Input filtering and output assignment are configured through the relay settings.
Q: Which communication interfaces are supported by this model configuration?A: This model supports IEC 61850 Edition 2, Modbus RTU/TCP, DNP3, and IEC 60870-5-104 communication protocols through its configured Ethernet and serial interfaces.
Field Installation Guidelines
Install the relay in a suitable protection panel enclosure with controlled grounding, ventilation, and access clearance according to the installation requirements of the GE Multilin 650 series.
Terminate CT and VT wiring using dedicated protection terminal blocks. Maintain separation between low-level communication wiring and high-energy current or voltage circuits to reduce electromagnetic interference.
Connect the protective earth terminal using an appropriate grounding conductor. Apply shield grounding practices for communication cables according to the selected protocol installation standard.
Verify auxiliary supply polarity and voltage range before energization. The HI power supply option accepts 110-250 V DC and 120-230 V AC input ranges within the specified operating limits.
Perform secondary injection testing after installation to verify protection elements, trip outputs, breaker control logic, and communication data exchange.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE Multilin F650BFBF1G0HIC F650 Feeder Protection Relay
The GE Multilin F650BFBF1G0HIC, also cataloged as the F650 Feeder Protection Relay, operates as a dedicated hardware component for feeder protection, bay control, and electrical fault monitoring within IEC 61850 substation automation networks.
Hardware Specifications
Parameter
Specification
Model
F650BFBF1G0HIC
Brand
GE Multilin
Product Type
Feeder Protection Relay
Series
Multilin F650 Feeder Protection System
Mounting Type
Panel Mount / Standard 19-inch Rack Mount
Rated Frequency
50 / 60 Hz selectable
CT Inputs
1 A / 5 A phase CT inputs, neutral CT input
VT Inputs
50 V - 240 V AC phase-to-neutral
Auxiliary Supply
110-250 V DC / 110-230 V AC high range
Communication Protocols
IEC 61850, Modbus RTU / TCP, DNP3.0, IEC 60870-5-103/104
Communication Interfaces
RS485, rear Ethernet RJ45 / fiber optic, front USB / RS232
Display Interface
Backlit graphical display with keypad and LED indicators
Protection Functions
50/51, 50N/51N, 50G/51G, 67/67N, 27, 59, 81U, 81O, 81R, 49, 46, 50BF
Control Functions
Circuit breaker open/close, autoreclose, synchronism check, programmable logic
Monitoring Functions
Metering, SOE records, fault records, waveform capture
Industrial Control Network Communication and Firmware Compatibility
The GE Multilin F650 platform uses industrial communication interfaces for substation automation and protection system integration. The relay supports IEC 61850 Ethernet communication, Modbus RTU/TCP, DNP3.0, and IEC 60870-5-103/104 protocols for data exchange with protection, SCADA, and control systems.
The F650 series architecture supports programmable logic execution, bay control functions, and firmware-based configuration management. Engineering verification should include communication mapping, firmware compatibility, and application configuration validation before integration into existing protection networks.
Frequently Asked Questions
Q: What electrical measurement inputs are available on the F650BFBF1G0HIC?A: The relay accepts phase current transformer inputs rated for 1 A or 5 A secondary signals, neutral current input, and voltage transformer inputs from 50 V to 240 V AC phase-to-neutral.
Q: Which communication interfaces are supported by this relay model?A: The F650BFBF1G0HIC supports RS485, rear Ethernet interfaces with RJ45 or fiber optic options, and front USB/RS232 connection interfaces.
Q: Does the relay provide breaker control and protection logic functions?A: Yes. The unit provides circuit breaker open/close control, autoreclose functions, breaker failure protection, synchronism check, and programmable logic equations.
Field Installation Guidelines
Install the relay in a protected panel or standard rack enclosure according to the mechanical mounting requirements of the installation site.
Terminate CT and VT wiring using appropriate protection relay wiring practices. Maintain separation between instrument transformer circuits, communication cables, and high-energy power conductors to reduce electromagnetic interference.
Connect communication cable shields according to the site grounding design. Verify Ethernet, RS485, and serial communication wiring polarity before energizing the device.
Before commissioning, confirm auxiliary power voltage compatibility, verify CT polarity and phase sequence, test protection settings, and validate breaker control circuits through functional testing.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE Multilin 750-P5-G1-S5-HI-A20-R-E-H Feeder Management Relay
The GE Multilin 750-P5-G1-S5-HI-A20-R-E-H, also cataloged as the 750 Feeder Management Relay, operates as a dedicated hardware component for feeder protection, current measurement, breaker control, and monitoring within GE Multilin 750/760 Protection System platforms.
Hardware Specifications
Parameter
Specification
Model
750-P5-G1-S5-HI-A20-R-E-H
Brand
GE Multilin
Origin
GE Multilin 750/760 Protection System Series
Weight
14.00 lbs
Operating Temp
-40 deg C to +60 deg C
Power Consumption
Not specified in available technical data
Device Type
Feeder Management Relay
Control Power Supply
88-300 VDC or 70-265 VAC, 48-62 Hz
Phase Current Input
5 A CT secondary
Ground Current Input
5 A CT secondary zero-sequence input
Sensitive Ground Input
5 A CT secondary
Analog Outputs
Eight assignable 4-20 mA DC outputs
Display Interface
Enhanced 40-character (2 x 20) backlit LCD with keypad navigation
Communication Interfaces
RS232, RS422/RS485, Ethernet
Communication Protocols
Modbus RTU, Modbus TCP/IP, DNP 3.0
Enclosure Type
Draw-out chassis with conformal coating option
Industrial Control and Protection Integration
The GE Multilin 750 series relay incorporates feeder monitoring functions through configurable current inputs, analog outputs, and digital communication interfaces. The 750-P5-G1-S5-HI-A20-R-E-H configuration supports 5 A phase current measurement, 5 A ground current sensing, and 5 A sensitive ground measurement channels for feeder protection schemes.
The relay configuration supports SCADA and DCS data acquisition through Modbus RTU, Modbus TCP/IP, and DNP 3.0 communication protocols. The A20 option provides eight assignable 4-20 mA outputs for analog signal transmission to external monitoring systems.
The relay hardware supports deterministic network communication requirements through Ethernet and serial communication ports. Firmware flash compatibility and configuration management are performed through the GE Multilin relay engineering environment for installed protection system maintenance.
Frequently Asked Questions
Q: What current input configuration is provided by the 750-P5-G1-S5-HI-A20-R-E-H model?A: The relay provides 5 A phase current inputs, 5 A ground current input, and 5 A sensitive ground current input according to the ordering configuration.
Q: Does the relay support hot-swap replacement during feeder operation?A: The unit uses a draw-out chassis design. Removal or insertion procedures must follow site protection maintenance procedures and verify isolation conditions before servicing.
Q: Which communication interfaces are available for system integration?A: The relay provides front RS232, RS422/RS485, and Ethernet communication interfaces supporting Modbus RTU, Modbus TCP/IP, and DNP 3.0 protocols.
Field Installation Guidelines
Install the relay in a compatible protection panel or control cabinet with correct mechanical support for the draw-out chassis.
Verify CT secondary wiring polarity and terminal connections before energizing current inputs.
Maintain separation between CT wiring, control power wiring, and communication cables to reduce electromagnetic interference.
Apply cable shielding and grounding practices according to site electrical installation standards.
Confirm the control power supply range before connection: 88-300 VDC or 70-265 VAC at 48-62 Hz.
Check communication wiring termination for RS422/RS485 networks before commissioning.
Verify analog output loop wiring for correct polarity when connecting 4-20 mA channels to SCADA or DCS equipment.
Ensure conformal-coated units are installed according to environmental requirements for moisture and chemical exposure conditions.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE Multilin 750-P1-G1-S1-HI-A20-R Feeder Management Relay
The GE Multilin 750-P1-G1-S1-HI-A20-R, also cataloged as the 750-P1-G1-S1-HI-A20-R Feeder Management Relay, operates as a dedicated hardware component for feeder protection, current monitoring, and control execution within GE Multilin 750/760 feeder management platforms.
Hardware Specifications
Parameter
Specification
Model
750-P1-G1-S1-HI-A20-R
Brand
GE Multilin
Origin
General Electric Multilin
Weight
4.8 kg
Dimensions
17.8 cm x 22.9 cm x 17.8 cm
Operating Temp
-40 deg C to +60 deg C
Power Consumption
15 W / 35 VA nominal, 25 W / 45 VA maximum
Protection Inputs
1 A phase CT inputs, 1 A ground CT inputs, 1 A sensitive ground input
Control Power
88-300 VDC or 88-265 VAC, 45-66 Hz
Analog Outputs
Eight configurable 4-20 mA DC analog outputs
Communications
RS232 front port, RS485 rear ports, Modbus RTU support
Construction
Full drawout relay case for rack mounting or panel installation
Frequency Tracking
Automatic tracking from 20.0 Hz to 65.0 Hz
Deterministic Network and Firmware Compatibility
The GE Multilin 750-P1-G1-S1-HI-A20-R uses a microprocessor-based relay architecture with digital signal processing and programmable FlexLogic execution. The firmware environment supports configurable protection logic, event processing, waveform capture, and communication parameter management.
The relay integrates industrial control functions through RS232 and RS485 communication interfaces. Modbus RTU communication enables integration with supervisory systems for parameter access, metering retrieval, and relay status monitoring. The drawout construction supports controlled module replacement without disturbing fixed field wiring.
The hardware platform provides configurable I/O density scaling through eight 4-20 mA analog outputs assigned to measured electrical quantities including current, voltage, power, and frequency parameters.
Frequently Asked Questions
Q: Does the 750-P1-G1-S1-HI-A20-R support hot-swap module replacement?A: The relay uses a drawout case design intended for maintenance access and module removal. Field replacement procedures must follow the applicable GE Multilin installation manual and system isolation requirements.
Q: What CT input ratings are supported by this relay configuration?A: This model configuration uses 1 A secondary phase current inputs, 1 A ground current inputs, and a 1 A sensitive ground input.
Q: Which communication ports are available for system integration?A: The relay provides a front RS232 setup port and rear RS485 communication ports supporting Modbus RTU protocol.
Field Installation Guidelines
Install the relay in a suitable protective enclosure with sufficient clearance for the drawout mechanism and rear terminal access.
Connect CT secondary wiring using dedicated twisted pairs and maintain correct polarity between current transformers and relay terminals.
Apply shielded communication cables for RS232 and RS485 connections where required by site electromagnetic compatibility practices.
Connect cable shields according to the equipment grounding design to minimize induced noise on measurement and communication circuits.
Separate low-level analog signal wiring from high-voltage power conductors to reduce electromagnetic interference.
Verify control power voltage range before energizing the relay.
Confirm protection settings, CT ratios, output assignments, and communication parameters before placing the feeder protection system into service.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE Multilin T60N00HUHF8LH6TM8NP6CU6CWXX Transformer Protection Relay
Configured for transformer differential protection and substation automation in GE UR (Universal Relay) platforms, the GE Multilin T60N00HUHF8LH6TM8NP6CU6CWXX (T60 Transformer Protection Relay) provides direct physical and electrical execution for transformer fault detection, control, and monitoring functions.
Hardware Specifications
Parameter
Specification
Model
T60N00HUHF8LH6TM8NP6CU6CWXX
Brand
GE Multilin
Origin
GE UR (Universal Relay) Series
Operating Temp
-40 deg C to +60 deg C
Power Consumption
Not specified in provided data
Protection Function
Transformer differential protection, overcurrent protection, thermal overload, overexcitation protection
CPU Module
N00 Standard CPU/Processor Module
Power Supply
88-300 VDC / 88-264 VAC high range power supply
CT Inputs
1 A or 5 A secondary current inputs
VT Inputs
Configurable voltage inputs up to 240 V AC nominal
Digital Inputs
Opto-isolated configurable inputs
Relay Outputs
Form-C heavy-duty output contacts
Communication Interfaces
Dual 100Base-FX fiber optic / 10/100Base-T Ethernet, RS485, RS232
Communication Protocols
IEC 61850 Edition 1 and Edition 2, DNP 3.0, Modbus RTU, Modbus TCP, IEC 60870-5-104
Time Synchronization
IRIG-B, IEEE 1588 PTP, SNTP/NTP
GE UR Series Industrial Control and Communication Features
The T60N00HUHF8LH6TM8NP6CU6CWXX uses the GE UR (Universal Relay) platform architecture with configurable I/O modules, Ethernet communication interfaces, and firmware-based protection logic. The relay supports deterministic substation communication through IEC 61850 networks and provides data exchange through fiber optic and copper Ethernet interfaces.
The modular design allows I/O density scaling through configurable CT, VT, digital input, and relay output modules. Firmware flash compatibility enables controlled software maintenance procedures while retaining configured protection and communication parameters.
The relay incorporates transformer protection algorithms including 87T differential protection with dual-slope restraint characteristics, harmonic restraint for magnetizing inrush conditions, thermal overload modeling based on IEEE C57.91 requirements, and V/Hz overexcitation protection.
Frequently Asked Questions (FAQ)
Q: Does the T60 support direct transformer differential protection inputs?A: Yes. The T60 supports CT input modules configured for transformer differential applications, including high-current CT input configurations and multi-winding differential protection logic.
Q: What communication interfaces are available for substation integration?A: The relay supports dual Ethernet communication using 100Base-FX fiber optic and 10/100Base-T copper interfaces, along with serial communication through RS485 and RS232 ports.
Q: Can the relay operate with different auxiliary power sources?A: Yes. The specified high range power supply accepts 88-300 VDC and 88-264 VAC auxiliary power inputs.
Field Installation Guidelines
Install the relay in a protected control cabinet or relay panel using the specified rack mounting arrangement. Maintain separation between CT/VT wiring, communication cables, and high-energy switching conductors to reduce electromagnetic interference.
Connect CT secondary circuits using proper terminal practices and maintain correct polarity for differential protection applications. Apply shielded communication cabling where required and terminate cable shields according to the substation grounding design.
Verify auxiliary power polarity, protective earth bonding, and module seating before energizing the unit. Confirm communication settings, time synchronization sources, and protection configuration parameters during commissioning.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE Multilin 369-HI-R-M-0-P-0-E Motor Protection Relay
The GE Multilin 369-HI-R-M-0-P-0-E, also cataloged as the 369 Motor Protection Relay, operates as a dedicated hardware component for three-phase motor protection, thermal monitoring, metering, and diagnostic execution within GE Multilin 369 motor protection systems.
Hardware Specifications
Parameter
Specification
Model
369-HI-R-M-0-P-0-E
Brand
GE Multilin / General Electric
Origin
United States
Operating Temp
-40 deg C to +60 deg C
Power Consumption
Not specified in available documentation
Control Power Supply
90-300 VDC / 70-265 VAC, 50/60 Hz
Phase Current Inputs
1 A or 5 A secondary CT inputs, field selectable
Ground Current Inputs
1 A / 5 A CT or 50:0.025 zero-sequence CT
Voltage Inputs
Up to 600 VAC direct input or VT ratio configuration
Frequency Range
20 to 70 Hz
RTD Inputs
12 RTD inputs
Protection Functions
Thermal overload, phase overcurrent, ground fault, undercurrent, voltage protection, stall and acceleration protection
Enclosure Protection
NEMA 12 / IP54 front panel
Environmental Protection
Conformal coated PCB construction
GE Multilin 369 Thermal Model and Motor Monitoring Functions
The GE Multilin 369 series uses a dynamic thermal model with motor thermal capacity utilization (TCU) calculation for overload protection. The relay processes current imbalance, ambient temperature compensation, and motor operating conditions to calculate thermal stress during startup and running states.
The relay supports motor condition evaluation through real-time electrical measurement including voltage, current, frequency, power, energy, and power factor values. Optional metering functions provide additional operational data acquisition for motor load analysis.
The protection logic includes instantaneous and timed phase overcurrent elements, sensitive ground fault detection through residual or core balance CT connections, undercurrent monitoring for loss-of-load conditions, and stall protection for locked rotor or mechanical jam conditions.
Frequently Asked Questions
Q: Does the 369-HI-R-M-0-P-0-E support remote display operation?A: Yes. The R suffix indicates a remote display configuration with enhanced faceplate interface and keypad functionality.
Q: What current transformer inputs are supported by this relay?A: The relay accepts field-selectable 1 A or 5 A secondary phase CT inputs and supports ground CT configurations including zero-sequence CT connections.
Q: Can the relay communicate through industrial protocols?A: The 369 platform supports optional communication interfaces, including PROFIBUS-DP protocol options depending on installed configuration.
Field Installation Guidelines
Install the relay in a compatible protective relay enclosure with suitable ventilation and environmental control. Verify control power polarity and voltage range before energizing the unit.
Terminate CT wiring according to protection relay installation practices. Maintain proper polarity between current transformers and relay input terminals. Use shielded wiring for low-level measurement and communication circuits, with cable shields grounded according to site grounding procedures.
Separate power conductors from signal wiring to reduce electrical noise coupling. Verify RTD wiring continuity and sensor identification before commissioning. Confirm relay configuration parameters, motor ratings, CT ratios, and protection thresholds before placing the motor circuit into service.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE Multilin 750-P5-G1-S1-HI-A20-R Feeder Management Relay
The GE Multilin 750-P5-G1-S1-HI-A20-R, also cataloged as the 750 Feeder Management Relay, operates as a dedicated hardware component for feeder protection, measurement, breaker control, and electrical fault analysis within GE Multilin distribution protection systems.
Hardware Specifications
Parameter
Specification
Model
750-P5-G1-S1-HI-A20-R
Brand
GE Multilin
Weight
8.5 kg
Dimensions
18 cm W x 16.5 cm L x 21.5 cm H
Operating Temp
-40 deg C to +60 deg C
Power Consumption
Typical < 15 W, Maximum 35 W
Control Power Supply
90-265 VAC, 48-62 Hz / 105-300 VDC
Phase CT Input
5 A secondary
Ground CT Input
1 A secondary
Sensitive Ground Input
1 A secondary
Frequency Range
25 to 60 Hz nominal
Digital Inputs
Up to 12 configurable dry contact inputs
Output Relays
Up to 8 configurable output relays
Analog Inputs
8 DC current inputs, selectable 0-1 mA, 0-20 mA, 4-20 mA
Analog Outputs
2 channels, 4-20 mA configurable
Communication Interface
Dual RS485 Modbus RTU ports, RS232 front port
Communication Baud Rate
300 to 19200 baud
Display Interface
40-character backlit LCD with LEDs and keypad
Enclosure Rating
IP54 front panel
Mounting Type
19-inch rack mount or panel cutout draw-out case
Profinet / EtherNet-IP Network and Firmware Compatibility
The GE Multilin 750-P5-G1-S1-HI-A20-R integrates programmable protection logic, digital processing, and communication functions within a modular feeder relay platform. The relay executes FlexLogic control sequences for breaker operation, interlocking, alarm processing, and automation functions.
The device supports deterministic protection system communication through dual redundant RS485 interfaces using Modbus RTU protocol. Internal firmware management maintains compatibility between protection logic execution, metering functions, event recording, and configuration software environments.
The relay processes waveform capture data including 4 current channels, 3 voltage channels, 14 logic input states, and 8 output relay states for disturbance analysis and system diagnostics.
Frequently Asked Questions
Q: Does the 750-P5-G1-S1-HI-A20-R support hot-swap replacement of internal modules?A: The relay uses a draw-out case architecture. Module removal and replacement shall follow the manufacturer-defined isolation and de-energization procedures. Live replacement capability is not specified for this model.
Q: What communication ports are available for control system integration?A: The relay provides dual redundant RS485 rear communication ports supporting Modbus RTU and an RS232 front port for local configuration and maintenance.
Q: What CT input characteristics are provided for protection measurements?A: The unit includes a 5 A phase CT input, 1 A ground CT input, and 1 A sensitive ground input with continuous and short-duration thermal withstand ratings defined by the relay protection specifications.
Field Installation Guidelines
Install the relay in a suitable panel or rack enclosure with sufficient clearance for wiring access and ventilation. Verify CT polarity, secondary grounding, and terminal identification before energization.
Use shielded communication cables for RS485 wiring where required by the installation environment. Connect cable shields according to the site grounding practice to reduce electromagnetic interference.
Separate CT circuits, control power wiring, analog signal wiring, and communication cables to minimize coupling between high-energy and low-level signal paths.
Confirm control power voltage selection matches the installed HI power supply range before applying auxiliary power. Verify protection settings, input assignments, output logic, and communication parameters during commissioning.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE Multilin 369-HI-R-M-F-P1-0-E Motor Protection Relay
The GE Multilin 369-HI-R-M-F-P1-0-E, also cataloged as the 369 Motor Protection Relay, operates as a dedicated hardware component for motor protection, measurement, and trip control within GE Multilin motor management relay systems.
Hardware Specifications
Parameter
Specification
Model
GE Multilin 369-HI-R-M-F-P1-0-E
Brand
GE Multilin
Weight
10.00 lbs
Operating Temp
-40 deg C to +60 deg C
Power Consumption
20 W typical, 35 W maximum
Power Supply
50-300 VDC / 60-265 VAC, 50/60 Hz
Motor Application
Three-phase induction and synchronous motor protection
Current Inputs
1 A or 5 A secondary phase current inputs
Ground Current Input
1 A / 5 A secondary or 50:0.025 core balance CT
Voltage Inputs
50 to 240 VAC direct, up to 600 VAC via VT
RTD Inputs
12 programmable RTD channels
Output Relays
4 output relays
Digital Inputs
5 opto-isolated assignable inputs
Communication Ports
RS232, RS485 Modbus RTU, fiber optic ST port
Communication Protocol
Modbus RTU, optional Profibus-DPV1
Event Recording
Up to 256 events with trip logs and motor history
GE Multilin Industrial Control Integration Features
The 369-HI-R-M-F-P1-0-E incorporates GE Multilin motor protection functions for current, voltage, thermal, and mechanical condition monitoring. The relay firmware provides ANSI protection elements including 49 thermal overload, 50/51 overcurrent, 37 undercurrent, 46 negative sequence current, 50N/51N ground fault, 66 start supervision, 48/51R stall protection, and 27/59 voltage protection when the metering option is installed.
The communication architecture supports deterministic industrial control integration through RS485 Modbus RTU and fiber optic communication using an ST connector. The fiber interface provides electrical isolation from high-noise motor environments. The relay supports firmware flash compatibility for installed feature configurations and maintains recorded operating data including fault reports, trip records, start history, and running hours.
Frequently Asked Questions
Q: Does the GE Multilin 369-HI-R-M-F-P1-0-E support hot-swap replacement?A: The relay is designed as a panel-mounted motor protection device. Hot-swap operation is not specified. Replacement procedures require verification of control power isolation and field wiring conditions before removal.
Q: How are RTD inputs configured on this relay model?A: The P1 option provides 12 programmable RTD inputs supporting 100 ohm Platinum, 120 ohm Nickel, 100 ohm Nickel, and 10 ohm Copper RTD types for motor temperature monitoring.
Q: What communication interfaces are available on this configuration?A: This configuration includes RS232 local interface, RS485 Modbus RTU communication, and a fiber optic port with ST connector. Profibus-DPV1 is available as an optional interface.
Field Installation Guidelines
Install the relay in a protected control enclosure with appropriate clearance for terminal access and communication connections. Verify that current transformer secondary wiring is correctly terminated before energizing the device.
Use shielded cables for low-level measurement signals including RTD circuits. Connect cable shields according to site grounding practices to minimize electromagnetic interference from motor feeders and switching equipment.
Separate power wiring, CT circuits, voltage sensing conductors, RTD wiring, and communication cables according to industrial control panel routing requirements. Confirm control voltage compatibility before applying the 50-300 VDC or 60-265 VAC supply input.
For fiber optic communication, maintain correct ST connector alignment and protect the optical cable from mechanical stress or excessive bending during installation.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE Multilin 369-HI-R-M-0-0-H-E Motor Protection Relay
The GE Multilin 369-HI-R-M-0-0-H-E, also cataloged as the 369 Motor Protection Relay, operates as a dedicated hardware component for AC motor protection, measurement, and control execution within industrial electrical protection networks.
Hardware Specifications
Parameter
Specification
Model
369-HI-R-M-0-0-H-E
Brand
GE Multilin
Weight
10.95 lbs
Dimensions
29.6 cm H x 10.7 cm W x 20.5 cm L
Operating Temp
-40 deg C to +60 deg C
Power Consumption
Nominal 10-15 W, maximum 25 VA
Control Power Input
50-300 VDC or 60-265 VAC, 50/60 Hz
Protection Functions
Thermal overload, jam/stall, undercurrent, phase reversal, current unbalance, ground fault
Current Inputs
1 A or 5 A CT selectable
Voltage Inputs
50 to 240 VAC nominal
RTD Inputs
Up to 12 RTD inputs through external module integration
Analog Outputs
Configurable 4-20 mA or 0-1 mA outputs
Digital Inputs
Optically isolated programmable inputs
Relay Outputs
Form-C SPDT contacts, 10 A continuous at 250 VAC / 30 VDC
Communication Interfaces
Ethernet 10Base-T RJ45, Modbus TCP/IP, RS485 Modbus RTU, front RS232
Industrial Control and Communication Functions
The GE Multilin 369-HI-R-M-0-0-H-E integrates motor management functions with PLC and DCS communication systems through Ethernet and serial communication interfaces. The Ethernet option provides Modbus TCP/IP connectivity for supervisory monitoring and control networks. The relay supports deterministic data exchange for motor status, protection events, metering values, and diagnostic records.
The firmware architecture supports configuration storage, event recording, waveform capture, and maintenance diagnostics. The hardware platform includes communication ports for integration with engineering software and industrial control systems.
Frequently Asked Questions
Q: Does the 369-HI-R-M-0-0-H-E support hot-swap replacement?A: The relay is designed as a panel-mounted protection device. Hot-swap operation is not specified. Power isolation and proper shutdown procedures are required before removal or replacement.
Q: What communication protocols are available on this model?A: The unit provides Ethernet 10Base-T communication with Modbus TCP/IP, rear RS485 communication with Modbus RTU, and a front RS232 configuration interface.
Q: How are motor thermal and fault conditions recorded?A: The relay stores trip records, alarm logs, motor start records, self-test events, and waveform capture data for diagnostic review.
Field Installation Guidelines
Install the relay in a suitable protective enclosure with wiring separation between power circuits, CT inputs, voltage sensing circuits, and communication cables.
Use shielded communication wiring where required by the installation environment. Terminate cable shields according to the control system grounding design to reduce electrical noise coupling.
Verify CT polarity, phase sequence, and voltage input wiring before energizing the relay. Confirm control power compatibility with the selected supply range.
For harsh environment installations, inspect the conformal coated electronic assembly condition and maintain enclosure protection against moisture, conductive dust, and corrosive contaminants.
Maintain appropriate clearance for rear terminal access and ensure terminal connections are mechanically secured before commissioning.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE Multilin 369-HI-R-M-0-0-0 Motor Management Relay
The GE Multilin 369-HI-R-M-0-0-0, also cataloged as the 369 Motor Management Relay, operates as a dedicated hardware component for motor protection, thermal monitoring, and electrical measurement within GE Multilin motor protection platforms.
Hardware Specifications
Parameter
Specification
Model
369-HI-R-M-0-0-0
Brand
GE Multilin
Weight
4.5 kg
Dimensions
29.6 cm x 10.7 cm x 20.5 cm
Operating Temp
-40 deg C to +60 deg C
Power Consumption
Not specified
Device Type
Digital Microprocessor-Based Motor Management Relay
Control Power
50-300 VDC / 60-265 VAC, 50/60 Hz
Current Inputs
1 A or 5 A secondary CT inputs, field configurable
Voltage Inputs
Up to 280 VAC phase line voltage via metering option
RTD Inputs
12 programmable RTD inputs
Digital Inputs
6 optically isolated assignable inputs
Analog Outputs
4 configurable outputs, 0-1 mA, 0-20 mA, or 4-20 mA
Communication Interface
RS232 front port and RS485 rear port with Modbus RTU
Mounting Type
Standard panel mount
GE Multilin Motor Thermal and Power Monitoring Functions
The 369-HI-R-M-0-0-0 integrates motor protection algorithms with thermal measurement and power metering functions. The 12-channel RTD package provides direct temperature acquisition for stator windings, bearings, and ambient monitoring. The motor thermal model supports ANSI 49 protection behavior, while current and voltage measurement channels provide monitoring of operating electrical conditions.
The integrated metering option provides measurement of kW, kVA, kvar, power factor, kWh, frequency, and additional analog output assignment. Analog channels can be configured for process monitoring or connection to external control systems.
Frequently Asked Questions
Q: Does the 369-HI-R-M-0-0-0 support hot-swap replacement during operation?A: The relay is designed for panel mounting and fixed wiring installation. Hot-swap operation is not specified for this hardware configuration.
Q: Which communication protocol is available through the rear communication port?A: The rear RS485 port supports Modbus RTU communication for connection to supervisory or control systems.
Q: How are RTD inputs used in the relay application?A: The 12 programmable RTD inputs acquire motor thermal signals from sensors such as platinum, nickel, and copper resistance temperature devices for temperature-based protection functions.
Field Installation Guidelines
Install the GE Multilin 369-HI-R-M-0-0-0 in a suitable panel enclosure with adequate clearance for wiring access and heat dissipation. Connect CT secondary wiring according to the required phase and ground current measurement configuration.
Use shielded cables for low-level analog and communication wiring where required. Terminate cable shields according to site grounding practices to reduce electrical noise coupling. Separate communication, RTD, and analog signal wiring from high-current motor feeder conductors.
Verify control power compatibility before energizing the relay. Confirm CT polarity, VT connections, RTD channel assignments, and communication parameters during commissioning. Firmware compatibility should be checked before performing any configuration or maintenance procedure.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
GE Multilin 369-HI-R-0-0-0-0-E Motor Protection Relay
Configured for three-phase motor protection, monitoring, and trip control in industrial motor management systems, the GE Multilin 369-HI-R-0-0-0-0-E (369 Motor Protection Relay) provides direct physical/electrical execution.
Hardware Specifications
Parameter
Specification
Model
369-HI-R-0-0-0-0-E
Brand
GE Multilin
Origin
General Electric Multilin product family
Weight
8 lb
Dimensions
11 cm W x 30 cm H x 21 cm L
Operating Temp
-40 deg C to +60 deg C
Power Consumption
Nominal 10 W, maximum 20 W
Product Type
Digital Motor Protection Relay
Series
369 Motor Management Relay
Control Power Supply
50-300 VDC, 60-265 VAC, 48-62 Hz
Phase Current Input
1 A and 5 A secondary CT inputs
Ground Current Input Frequency
20 to 100 Hz
Communication Interface
RS485 Modbus RTU
RTD Inputs
3-wire RTD inputs for 100 ohm platinum, 100 ohm nickel, 120 ohm nickel, and 10 ohm copper
Output Relays
4 configurable relays for trip, auxiliary, and alarm functions
Conformal Coating
Environmental option E coating for industrial environments
Industrial Control and Firmware Compatibility
The GE Multilin 369 series uses microprocessor-based processing for motor protection calculations, event recording, metering, and relay control functions. The relay supports RS485 Modbus RTU communication for integration with industrial control networks.
The unit provides deterministic relay operation through embedded protection firmware, including thermal overload modeling, phase current analysis, ground fault detection, locked rotor protection, mechanical jam detection, and undercurrent monitoring. Firmware operation supports configuration storage, self-testing routines, and recorded trip information.
Frequently Asked Questions
Q: Does the 369-HI-R-0-0-0-0-E support hot-swap replacement during operation?A: The relay is designed as a panel-mounted protection device. Replacement procedures require isolation of control power, current inputs, and field wiring before removal.
Q: What current transformer inputs are supported by this relay?A: The relay accepts phase current transformer inputs rated for 1 A or 5 A secondary values with software selection.
Q: Which communication protocol is available through the rear communication port?A: The relay provides an RS485 serial interface supporting Modbus RTU communication.
Field Installation Guidelines
Install the relay in a suitable protective enclosure with access for control wiring, CT wiring, communication connections, and operator interface access.
Maintain separation between CT signal wiring, digital input wiring, and high voltage conductors to reduce electrical interference. Apply shield grounding practices according to the installation environment and system grounding requirements.
Verify CT polarity, phase sequence, and grounding connections before commissioning. Confirm control voltage compatibility with the selected HI power supply range before energizing the relay.
RTD wiring should use appropriate three-wire connection methods and avoid routing alongside high-current motor feeder cables. Configure protection parameters according to motor nameplate data and application requirements before placing the relay into service.
17 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
