Description
Overview

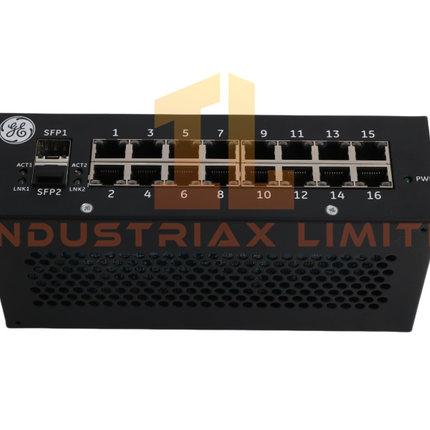

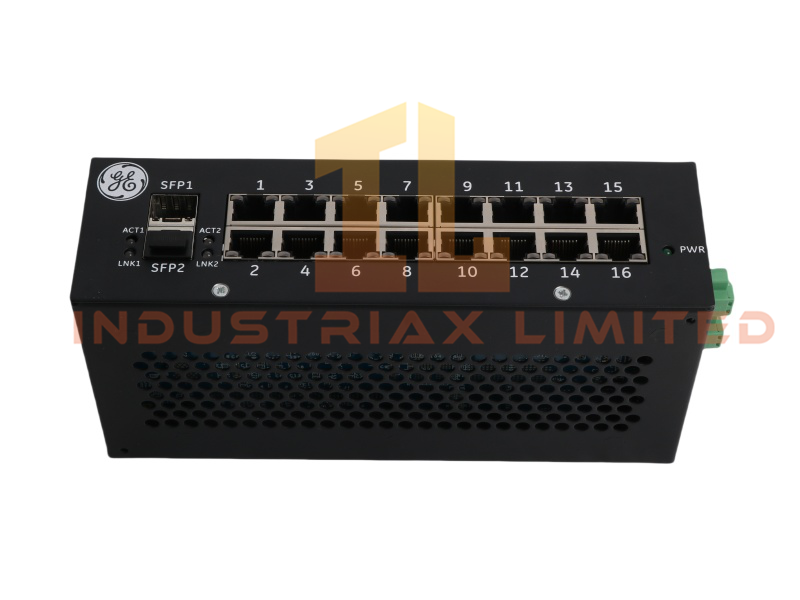

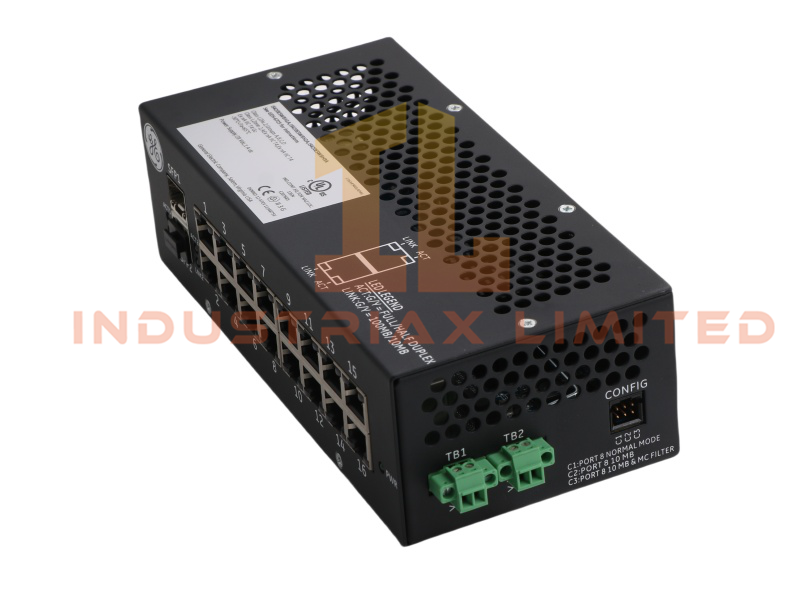

The GE IS420ESWBH1A Ethernet IONet Switch 10/100Base-TX is the second-generation model in the ESWB series. Engineers use this switch to manage industrial Ethernet networks with high reliability and flexible installation options. Its compact design, multiple copper and fiber ports, and compatibility with redundancy configurations make it a trusted solution for turbine control systems.
Technical Specifications
| Parameter |
Value |
| Model Number |
IS420ESWBH1A |
| Module Type |
Ethernet IONet Switch 10/100Base-TX |
| Manufacturer |
GE |
| Product Range |
Mark VIe |
| Condition |
Brand New |
| Lead Time |
In Stock |
| Weight |
0.22 kg |
| Dimensions |
2.1 x 18.6 x 26.3 cm |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Origin |
USA |
| System |
DCS |
| Status |
Active |
| Communication Service |
Ethernet router |
| Copper Ports |
16 RJ45 100/100Base-TX |
| Fiber Port |
1 LC-type 100Base-FX |
| Mounting Options |
DIN-rail, panel, parallel, perpendicular |
| Redundancy Support |
Simplex, dual, TMR controllers |
Functional Description
The GE IS420ESWBH1A provides sixteen RJ45 copper ports and one LC-type fiber port, ensuring versatile connectivity. Engineers benefit from flexible installation options, including DIN-rail and panel mounting, with perpendicular mounting supported by the 259B2451BVP4 clip.
This switch integrates seamlessly into Ethernet-based systems, supporting up to three network connections for redundancy configurations such as simplex, dual, and TMR. Documented in the GEI-100869 Mark VIe Industrial Ethernet/IONet Switches guide, the GE IS420ESWBH1A remains an active and reliable product for industrial networking.
Applications and Compatibility
The GE IS420ESWBH1A Ethernet IONet Switch suits turbine control systems requiring robust Ethernet connectivity. It integrates with Mark VIe controllers and supports redundancy setups for critical industrial automation. Typical applications include gas turbine monitoring, steam turbine control, and distributed control systems where reliable communication and flexible installation are essential.
