Description
Product Overview

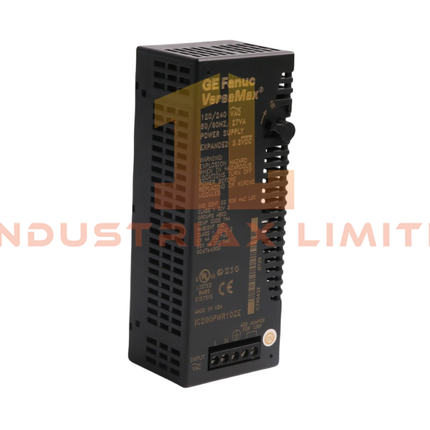

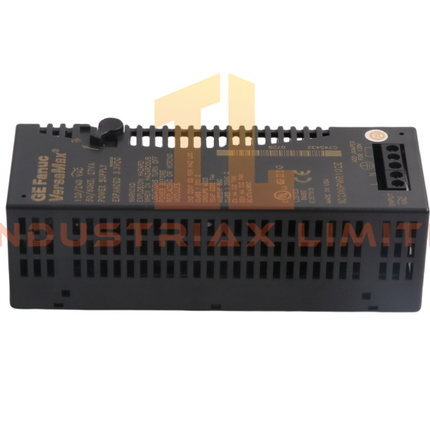

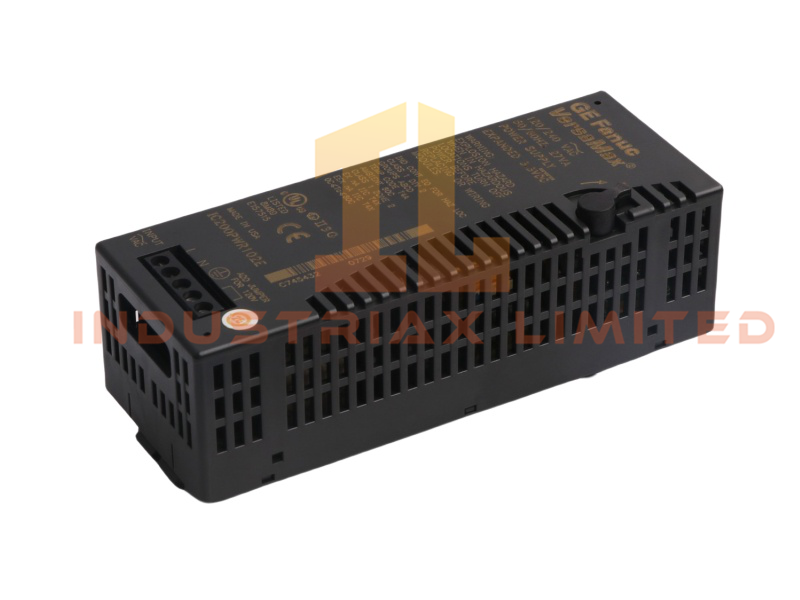

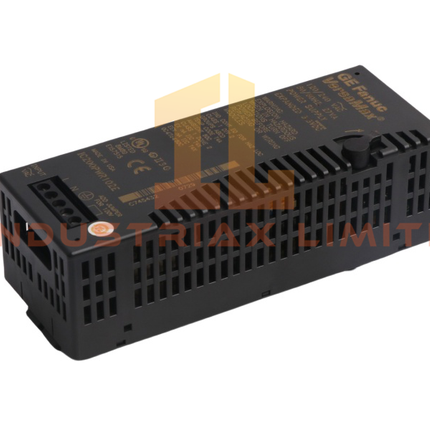

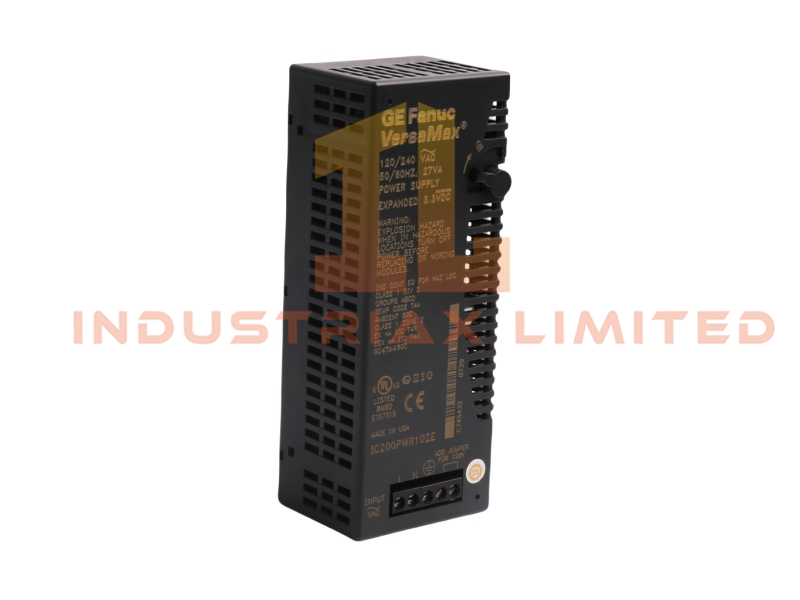

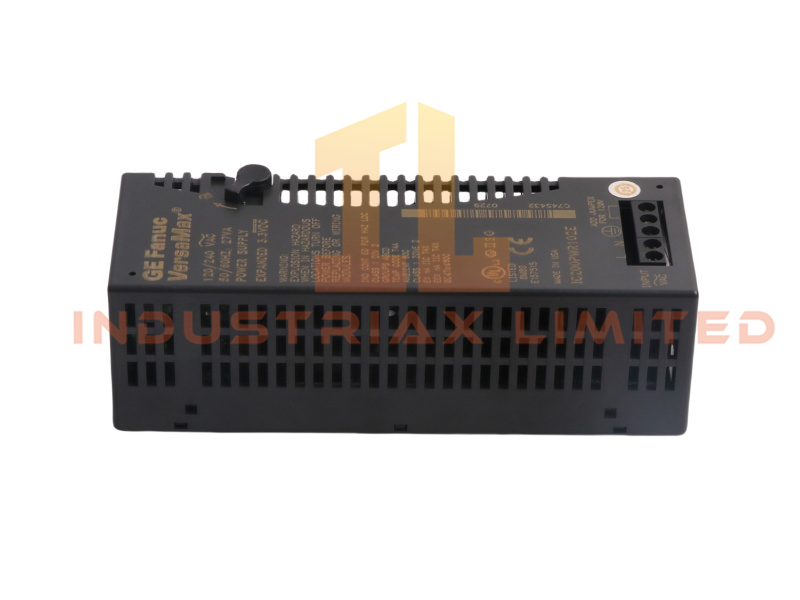

The GE Fanuc IC200PWR102 Expanded 3.3V Power Supply belongs to the VersaMax product family, designed for PLC systems requiring stable backplane power. Its compact 11x3.5x3cm dimensions and lightweight 0.06kg build simplify installation in space-constrained environments. Engineers rely on the IC200PWR102 for powering CPUs, NIUs, I/O modules, and intelligent modules with reliable short-circuit and overload protection.
Technical Specifications
| Parameter |
Value |
| Model Number |
IC200PWR102 |
| Module Type |
Power Supply |
| Manufacturer |
GE Fanuc |
| Product Range |
VersaMax |
| Condition |
Brand New |
| Dimensions |
11 × 3.5 × 3 cm |
| Weight |
0.06 kg |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Origin |
USA |
| System Compatibility |
PLC |
| Communication Service |
Ethernet Router |
| Status |
Active |
Functional Description
The IC200PWR102 operates with AC input voltages of 85–132V or 176–264V at 47–63 Hz, consuming 27VA. It delivers 5V DC and 3.3V DC outputs with a combined 1.5A capacity, including a 1.0A limit on the 3.3V channel.
A jumper setting determines input voltage: installed for 120V AC nominal, removed for 240V AC nominal. Incorrect jumper use at 240V AC may damage the board. The IC200PWR102 includes short-circuit and overload protection, ensuring safe operation. With a 20ms holdup time, it maintains stable power delivery even during brief interruptions.
Applications and Compatibility
The GE Fanuc IC200PWR102 Expanded 3.3V Power Supply integrates seamlessly into VersaMax PLC systems. Engineers deploy it as a primary or supplemental supply, especially when installed on a Power Supply Booster Carrier.
Its compact footprint and lightweight design make the IC200PWR102 ideal for installations requiring efficient space usage. Compatibility with VersaMax modules ensures smooth integration into GE industrial infrastructures, reinforcing its role as a dependable power solution.
