Description
Overview
The GE 531X300CCHAGM5 Drive Control Card Board is a critical component in GE’s general-purpose drive systems, including the DC-300 and VA-4 systems. Engineers use this module to manage control functions with precision, ensuring compatibility with AC and DC power inputs. Its robust design, populated with multiple electronic components, guarantees reliable performance in demanding industrial environments.
Technical Specifications
| Parameter |
Value |
| Model Number |
531X300CCHAGM5 |
| Module Type |
Drive Control Card Board |
| Manufacturer |
GE |
| Product Range |
Multilin |
| Condition |
Brand New |
| Lead Time |
In Stock |
| Weight |
0.68 kg |
| Dimensions |
28 x 21.4 x 3.5 cm |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Origin |
USA |
| System |
DCS |
| Status |
Active |
| Communication Service |
Ethernet router |
| Potentiometers |
8 |
| Resistor Arrays |
25 |
| Jumper Switches |
30 |
| Transistors |
11 |
| LED Indicators |
6 red LEDs |
| Connectors |
6 vertical pin, 2 header |
| Auxiliary Support |
2 boards via standoffs |
Functional Description

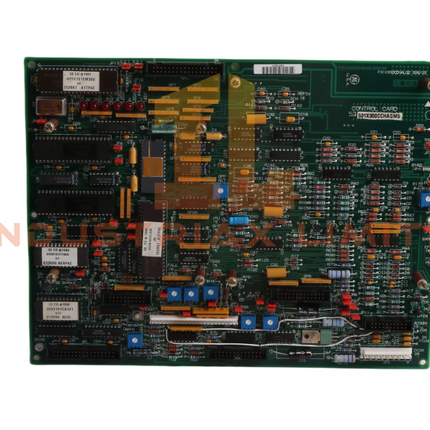

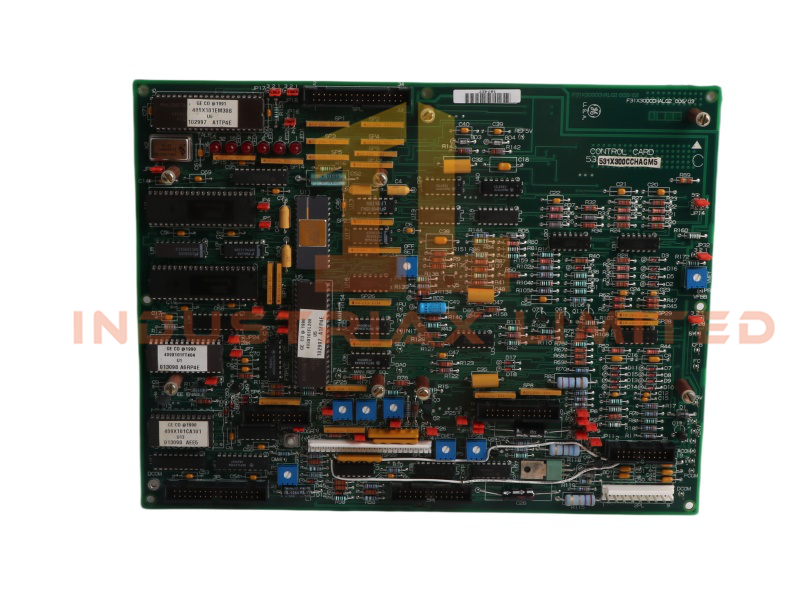

The GE 531X300CCHAGM5 features eight standoffs for auxiliary board attachment, enabling flexible expansion. Six vertical pin cable connectors and two header connectors ensure seamless communication with the motherboard. Engineers benefit from integrated components such as potentiometers, resistor arrays, transistors, and LED indicators that provide diagnostic clarity.
A voltage regulator located at the lower right corner stabilizes electrical performance, while test points allow precise troubleshooting. The GE 531X300CCHAGM5 supports both heavy-duty and light-duty drive ratings, making it versatile across industrial applications.
Applications and Compatibility
The GE 531X300CCHAGM5 Drive Control Card Board integrates with DC-300 and VA-4 systems, ensuring compatibility with GE’s general-purpose drives. It suits industrial automation projects requiring reliable control, diagnostic monitoring, and flexible expansion. Typical applications include motor control, turbine drives, and advanced automation environments where durability and precision are essential.
