Schneider Electric Serial Link Module Schneider Electric Modicon X80 BMXNOM0200
Schneider Electric BMXNOM0200 Modicon X80 Serial Link Module Configured for asynchronous serial communication interfacing in Modicon X80 I/O architecture, the Schneider Electric BMXNOM0200 (BMXNOM0200 Serial link module) provides direct physical/electrical execution for RS232 and RS485 communication handling within backplane-integrated control systems. Suffix Breakdown & Model Matrix No official suffix decomposition or segmented ordering structure is defined for BMXNOM0200 within available product documentation. The full model designation is treated as a single functional module identifier. Hardware Specifications Parameter Specification ModelBrand Schneider Electric BMXNOM0200 Origin France Weight 0.23 kg Dimensions Not specified OperatingTemp 0 to 60 degC PowerConsumption 80 mA at 24 V DC Serial Interfaces 1 x RS232 (RJ45, 115.2 kbit/s), 1 x RS485 (RJ45, 57.6 kbit/s) Protocol Modes Modbus, Character mode Backplane Supply Internal via Modicon X80 rack Environmental Protection IP20 Backplane Communication & Deterministic Serial Handling The Modicon X80 platform integrates BMXNOM0200 through rack-based backplane power and communication arbitration. Within Schneider Electric PLC architectures, backplane bus synchronization governs module scan alignment and cyclic data exchange timing across distributed serial interfaces. Firmware flash compatibility is maintained at rack-level consistency boundaries, ensuring deterministic task scheduling across Modicon CPU and communication modules. I/O density scaling behavior is constrained by backplane current budget and slot-level addressing limitations in X80 chassis configurations. Frequently Asked Questions Q: Does BMXNOM0200 support simultaneous RS232 and RS485 operation?A: Yes. The module provides two independent physical ports operating concurrently under separate serial channel control logic. Q: What is the limitation on RS485 topology loading?A: RS485 port implementation follows standard differential bus constraints; termination and biasing must be externally managed according to fieldbus wiring rules. Q: Is hot-swap supported for this module in X80 racks?A: Hot-swap behavior depends on rack controller configuration; electrical insertion under power requires adherence to X80 backplane sequencing rules. Field Installation Guidelines Ensure rack power is isolated before insertion or removal unless hot-swap configuration is explicitly enabled by system design. Maintain shield continuity for RS485 twisted pair cabling with single-point grounding at cabinet earth reference. RS232 wiring must respect maximum cable length constraints to avoid signal degradation. Avoid routing serial lines parallel to high-current power conductors to reduce electromagnetic coupling. Verify backplane slot alignment before mechanical seating to prevent connector damage.
$200.00 $100.00
-

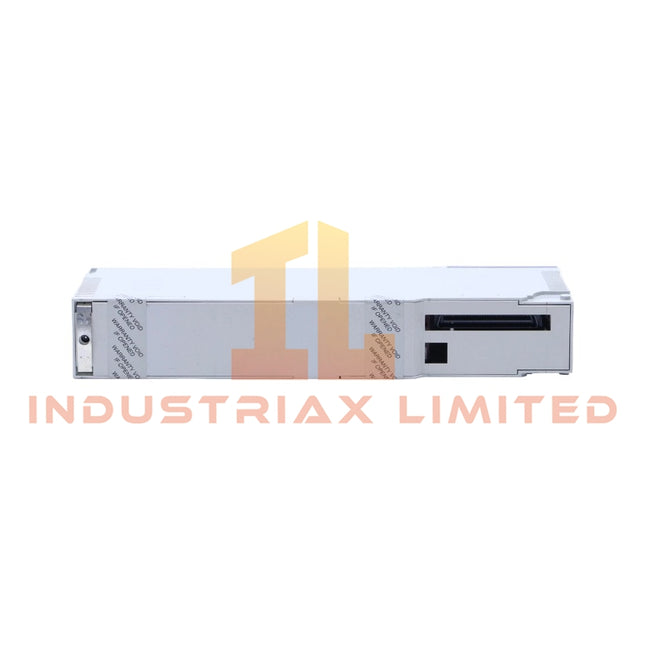

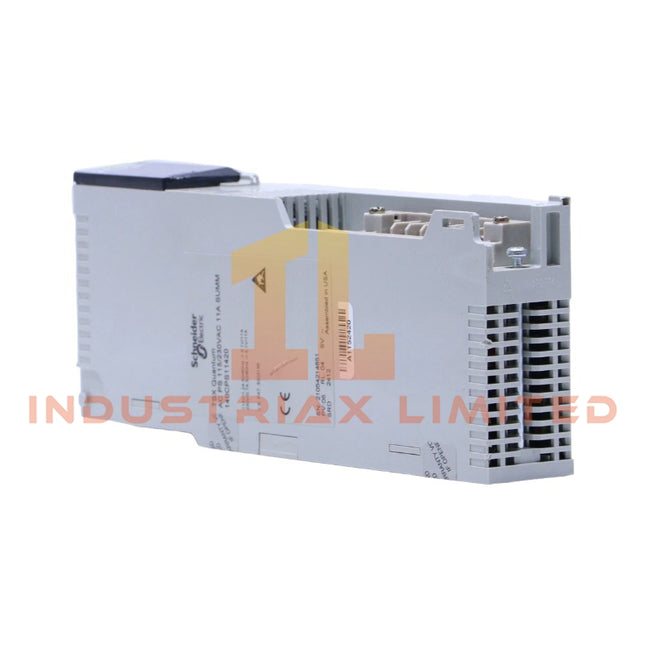

Schneider Electric 140CPS11420 Schneider Electric Modicon Quantum Power Supply Module
Schneider Electric 140CPS11420 Power Supply Module Configured for DC backplane power conversion in Modicon Quantum automation platform, the Schneider Electric 140CPS11420 (140CPS11420 Power Supply Module) provides direct physical/electrical execution within Modicon Quantum automation platform, delivering regulated 5.1 VDC distribution to rack-level backplane loads with selectable summable or standalone operation. Suffix Breakdown & Model Matrix 140CPS11420 is a fixed-order identifier within the Modicon Quantum power supply family.No manufacturer-provided suffix segmentation or functional sub-code decomposition is defined for this model. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140CPS11420 Origin France Weight 0.65 kg Dimensions Not specified OperatingTemp 0 to 60 degC PowerConsumption 130 VA input rating; dissipation = 6 + (1.5 x Iout) W Input Voltage 115 VAC (93 to 132 VAC), 230 VAC (170 to 276 VAC), 47 to 63 Hz Input Current 1300 mA at 115 VAC; 750 mA at 230 VAC Inrush Current 38 A at 115 VAC; 19 A at 230 VAC Output Voltage 5.1 VDC Output Current 11 A standalone at 60 degC; 20 A summable at 60 degC Protection Internal overvoltage and overload protection Alarm Output 1 NC contact, 6 A at 220 VAC Fuse Rating 2 A slow-blow Compliance UL 508, CSA C22.2 No 142, CE PLC Backplane Power Distribution Characteristics Within Schneider Electric Modicon Quantum architecture, the 140CPS11420 power supply module interfaces directly with the rack backplane distribution bus, where deterministic power delivery is coupled with module-level load segmentation. Backplane communication timing is not data-protocol driven but electrically synchronized through regulated DC rail stability. The module supports rack summation mode, enabling parallel current contribution across compatible supplies, while maintaining voltage regulation stability under variable Iout conditions. Internal regulation topology maintains output integrity under transient load steps associated with module insertion and removal cycles. Firmware-level interaction is limited to hardware supervisory signaling; no field network protocol stack is embedded. Electrical compatibility with Quantum backplane ensures deterministic voltage rail maintenance under multi-slot expansion configurations. Frequently Asked Questions Q: Can the 140CPS11420 be hot-swapped during operation?A: The module supports rack-level replacement only under system-defined power isolation conditions. Backplane voltage presence must be removed to avoid transient bus disturbance. Q: What happens in summable operation mode?A: In summable mode, multiple power supplies share load current on the same 5.1 VDC rail while maintaining internal current balancing constraints defined by rack architecture. Q: Does the module interact with fieldbus protocols such as Profinet?A: No. The module operates strictly at backplane power level and does not execute Profinet, EtherNet/IP, or application-layer communication. Field Installation Guidelines Install the module only in Modicon Quantum-compatible racks with verified backplane alignment. Ensure AC input is fully isolated before insertion or removal. Maintain correct grounding of rack chassis to minimize noise coupling into the DC rail. Avoid partial insertion under energized conditions. Verify fuse integrity (2 A slow-blow type) before commissioning. Maintain ventilation clearance to support thermal dissipation under maximum Iout load conditions. Backplane connectors must be free of oxidation or mechanical deformation prior to installation to prevent contact resistance increase.
$200.00 $100.00
-
Schneider Electric 140AVI03000 Schneider Electric Modicon Quantum Analog Input Module
Schneider Electric 140AVI03000 Analog Input Module Configured for multi-range analog signal acquisition in Modicon Quantum backplane I/O architecture, the Schneider Electric 140AVI03000 (140AVI03000 Analog Input Module) provides direct physical/electrical execution for 8-channel differential voltage and current measurement within Modicon Quantum automation platforms. The module implements 16-bit conversion per channel with configurable bipolar and unipolar ranges including 0-5 V, 0-10 V, +/-5 V, +/-10 V, 0-20 mA, and 4-20 mA-compatible measurement modes. Input filtering is realized via single-pole low-pass response with -3 dB cutoff at 847 Hz +/- 20 percent. Channel-to-backplane isolation is rated up to 500 Vrms for 60 s, supporting segmented field wiring integrity under high common-mode conditions. Suffix Breakdown & Model Matrix 140AVI03000 is a fixed-order analog input module identifier within the Modicon Quantum AVI series. 140: Modicon Quantum hardware family prefix AVI: Analog Voltage/Current Input class 03000: Specific configuration identifier for 8-channel multirange differential input design Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140AVI03000 Origin France Weight 0.3 kg PowerConsumption 2.2 W Analog Input Channels 8 differential Input Types +/-10 V, +/-5 V, 0-10 V, 0-5 V, 0-20 mA Resolution 16 bit Update Time 10 ms Input Impedance > 20 MOhm (voltage) Bus Current 280 mA Isolation 500 Vrms (channel to bus, 60 s) Linearity Error +/- 0.008 percent Accuracy Drift up to 0.004 percent per degC PLC Backplane Deterministic I/O Behavior (Schneider Electric Quantum Class) Within Modicon Quantum backplane architecture, the AVI input module exchanges digitized process values via cyclic bus scheduling. Backplane communication timing is deterministic under rack scan execution, with each input word mapped into a 9-word addressing structure. The module maintains channel independence via galvanic separation, minimizing cross-channel interference under mixed voltage/current configurations. Firmware-level scaling supports linear conversion mapping across full input span without external signal conditioning. Frequently Asked Questions Q: Does the module support simultaneous mixed voltage and current inputs across channels?A: Yes. Each of the 8 differential channels is individually configurable for voltage or current input mode within supported ranges. Q: What is the backplane load contribution of this module?A: The module draws 280 mA from the Quantum backplane power bus under nominal operating conditions. Q: Is hot swapping supported during runtime?A: Hot insertion is dependent on rack configuration; backplane power integrity and system state must be evaluated before module replacement. Field Installation Guidelines Maintain shield continuity across analog input cabling and terminate shields at a single system ground reference point. Avoid routing low-level analog signal lines parallel to high-voltage or high-frequency switching conductors. Ensure differential input pairs are kept twisted and length-matched to reduce common-mode noise coupling. Backplane insertion must be performed with rack power disabled unless system architecture explicitly supports live insertion. Verify channel configuration scaling parameters prior to energizing field loops.
$200.00 $100.00
-

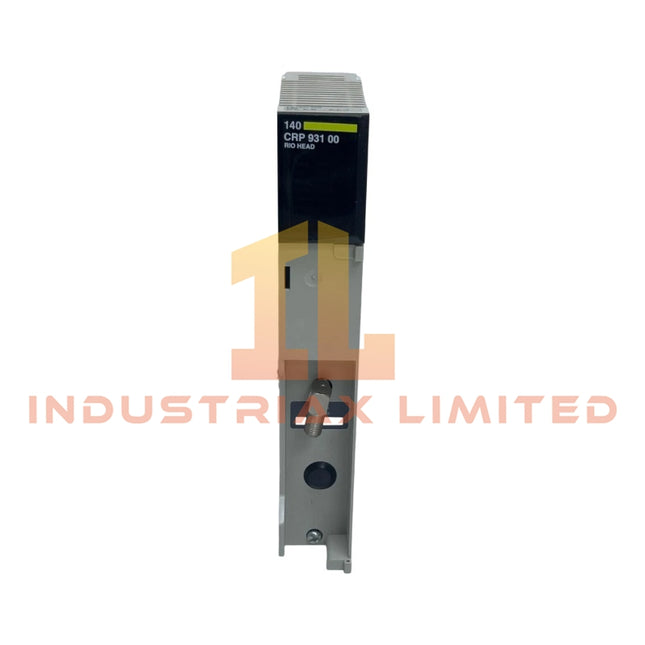

Schneider Electric Schneider Electric 140CRP93100 RIO Head-End Adaptor Module

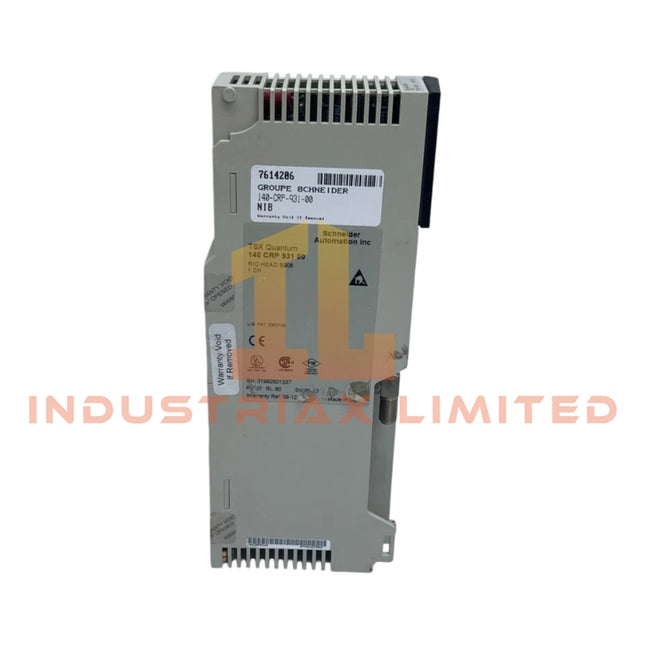

Schneider Electric 140CRP93100 RIO Head-End Adaptor Module Configured for remote I/O head-end aggregation in Modicon Quantum backplane/RIO network, the Schneider Electric 140CRP93100 (140CRP93100 RIO head-end adaptor module) provides direct physical/electrical execution of coaxial-based RIO communication interfacing for distributed Quantum and Symax I/O drops within Modicon Quantum automation platform environments. Suffix Breakdown & Model Matrix Model 140CRP93100 is a fixed configuration RIO head-end adaptor module. No documented structured suffix segmentation (functional parameters embedded at catalog level). Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140CRP93100 Dimensions Standard Quantum module format (exact mechanical drawing not specified) OperatingTemp 0 to 60 degC PowerConsumption 3 W (1 channel) Backplane Current 600 mA (1 channel) Transmission Medium 75 Ohm coaxial cable Data Rate 1544 Mbit/s Network Capacity <= 31 drops per network I/O Capacity 64 I / 64 O words per drop Isolation Voltage 500 V DC (center conductor to ground) Relative Humidity 95 percent non-condensing Storage Temperature -40 to 85 degC Schneider Electric PLC/DCS Backplane & Deterministic Network Characteristics The 140CRP93100 integrates into the Quantum backplane communication layer where cyclic determinism is maintained through synchronized scan exchange between CPU rack and RIO head-end module. Backplane bus communication velocity is governed by deterministic scan scheduling, ensuring consistent update windows for distributed I/O mapping across up to 31 remote drops. Profinet/EtherNet/IP style deterministic network behavior is not native to this module; instead, RIO coaxial transport uses fixed-frame timing with collision-free token-like arbitration. Firmware compatibility is tied to Quantum rack controller revisions, where I/O density scaling is constrained by head-end memory allocation and drop table indexing limits. Frequently Asked Questions Q: Can the module support hot-swap replacement in an energized Quantum rack?A: The module is not designed for live coaxial disconnect under load. Removal typically requires system shutdown or controlled rack power isolation to avoid RIO link desynchronization. Q: What is the limiting factor for maximum drops on the RIO network?A: The limit of 31 drops is enforced by head-end addressing space and cyclic scan table allocation, not by coaxial signal amplitude. Q: Does signal attenuation affect I/O integrity over long coaxial runs?A: Yes. Coaxial loss impacts signal margin; however, the module provides 35 dB dynamic range and 75 Ohm impedance matching to maintain valid frame recovery. Field Installation Guidelines Use only 75 Ohm impedance-matched coaxial cable with controlled shielding continuity. Maintain single-point shield grounding at designated panel earth reference to avoid ground loop injection. Avoid tight bending radius violations on F-type elbow connector interface to prevent impedance discontinuities. Verify center conductor isolation before energizing backplane to confirm 500 V DC isolation integrity. Ensure drop addressing does not exceed 31 nodes to prevent RIO table overflow conditions.
$200.00 $100.00
-
Schneider Electric Schneider Electric 140DAI55300 Modicon Quantum Discrete Input Module
Schneider Electric 140DAI55300 Modicon Quantum Discrete Input Module Configured for high-voltage digital acquisition in the Modicon Quantum automation platform, the Schneider Electric 140DAI55300 (base model 140DAI553) provides direct physical/electrical execution of 32-channel 115 V AC discrete input sensing into the backplane bus. Hardware Specifications Parameter Specification Brand Schneider Electric Origin France Weight 0.33 kg Dimensions Standard Quantum module format Operating Temp 0...60 degC Power Consumption <= 10.9 W Discrete Input Number 32 Input Voltage 115 V AC Input Current <= 13.2 mA @ 47...53 Hz; <= 11.1 mA @ 57...63 Hz Guaranteed State 1 Voltage 85...132 V AC @ 47...53 Hz; 79...132 V AC @ 57...63 Hz Guaranteed State 0 Voltage 0...20 V AC @ 47...63 Hz Input Impedance 14400 Ohm capacitive @ 47...53 Hz; 12000 Ohm capacitive @ 57...63 Hz Network Frequency Limits 47...63 Hz Leakage Current <= 2.1 mA Absolute Max Input 200 V for 1 cycle; 156 V for 10 s; 132 V continuous Response Time 7.3...12.3 ms On-Off; 4.9...0.75 ms x line cycle Off-On Isolation 1780 Vrms group-to-group & group-to-bus for 1 min Bus Current Requirement 250 mA Indicators 32 green LEDs (input status), 1 red LED (external fault), 1 green LED (bus active) Certifications CUL, FM Class 1 Div 2, CSA C22.2 No 142, UL 508 Backplane Bus Communication Velocity Licensing The 140DAI55300 interfaces with the Quantum backplane via a parallel data bus governed by firmware flash compatibility constraints. Module addressing consumes two input words, requiring precise allocation in the controller memory map. Firmware revisions must match the licensing profile of the installed CPU to ensure deterministic scan updates without introducing propagation delays in high-speed logic execution. Frequently Asked Questions Q: Can the 140DAI55300 be hot-swapped while the Quantum rack is powered? A: Hot-swap capability depends strictly on the host rack’s power supply and CPU firmware version. Verify the CPU supports live insertion before attempting removal or replacement under load. Q: What is the maximum backplane current load imposed by this module? A: The module draws up to 250 mA from the backplane bus at rated conditions. Ensure total rack consumption does not exceed the power supply rating. Q: Does this module support mixed AC frequencies in different channel groups? A: No. All inputs must operate within the same configured frequency range (47...53 Hz or 57...63 Hz). Mixed frequency operation is not supported. Field Installation Guidelines Mount the module on a standard 35 mm DIN rail or directly into a Quantum rack slot. Ensure all field wiring uses shielded twisted pair cabling, with the shield terminated to earth ground at the panel entry only. Maintain separation of at least 75 mm between AC input wiring and low-voltage signal cables to prevent inductive coupling. Torque terminal screws to the manufacturer’s specified value (typically 0.5…0.6 N·m). Confirm proper grounding of the rack chassis before applying power.
$200.00 $100.00
-

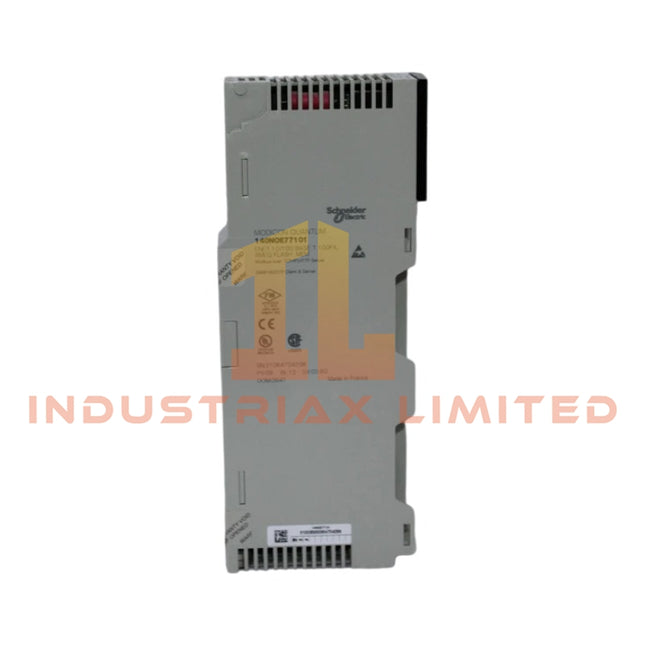

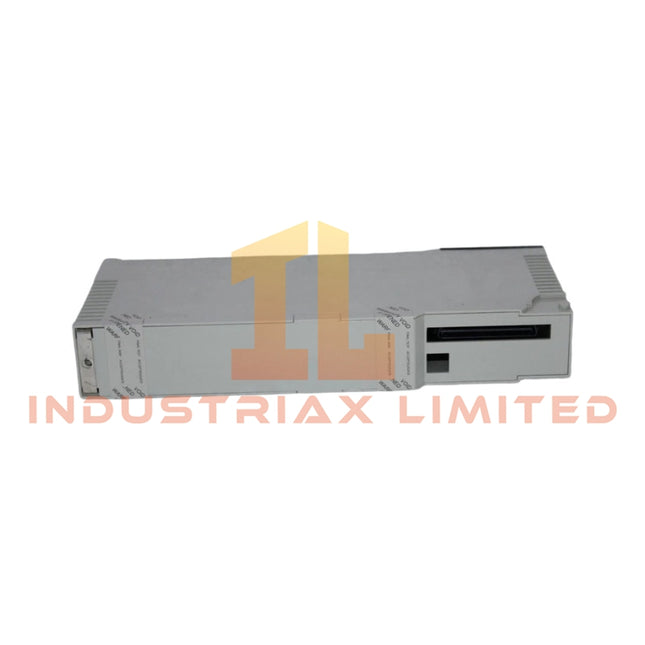

Schneider Electric Ethernet Network TCP/IP Module Schneider Electric 140NOE77101
Schneider Electric 140NOE77101 Ethernet Network TCP/IP Module The Schneider Electric 140NOE77101, also cataloged as the B30 Ethernet network TCP/IP module, operates as a dedicated hardware component for real-time data communication and I/O scanning within Modicon Quantum automation platforms. Hardware Specifications Parameter Specification ModelBrand Schneider Electric Origin France Weight 0.345 kg Dimensions Standard module format OperatingTemp 0...60 degC StorageTemp -40...85 degC RelativeHumidity 95% non-condensing OperatingAltitude <= 4500 m IPDegree IP20 SupplyVoltage 5 V DC via rack power supply CurrentConsumption 750 mA TransmissionRate 10/100 Mbit/s PhysicalInterface MT/RJ 100BASE-FX fiber optic, RJ45 10BASE-T/100BASE-TX twisted pair CommunicationProtocols Ethernet, Modbus TCP/IP, SNMP Redundancy Yes, hot standby architecture DataServices Global Data I/O scanning, FDR server, Modbus TCP messaging, Web services, Web server, Rack viewer, Data editor via PC Diagnostics Predefined web pages Certifications CUL, UL 508, CSA C22.2 No 142, FM Class 1 Division 2 EMC/ESD ESD: 4 kV contact, 8 kV air; EMF: 10 V/m 80-1000 MHz Industrial Control Technical Features The 140NOE77101 module supports deterministic backplane bus communication and is compatible with Profinet/EtherNet/IP networks. It provides firmware flash compatibility for upgrades without system downtime and ensures odensity scaling for precise I/O throughput across the Quantum PLC platform. Frequently Asked Questions Q: VnA: Can the module be hot-swapped in a live rack?A: Yes, the module supports hot standby redundancy and can be replaced while maintaining system integrity, following standard hot-swap precautions. Q: VnA: What is the maximum bandwidth for data I/O scanning?A: The module supports 10/100 Mbit/s Ethernet and Modbus TCP messaging bandwidths, with deterministic scheduling over the backplane bus. Q: VnA: Are firmware upgrades compatible with all Quantum PLC versions?A: Firmware upgrades are compatible within the same Quantum platform generation; cross-generation compatibility requires verification. Field Installation Guidelines Mount module in standard Quantum rack slots with proper alignment on the DIN rail. Ensure shielded twisted-pair Ethernet or fiber optic cables are properly grounded. Maintain minimum separation from high-voltage sources to reduce electromagnetic interference. Connect redundant hot-standby modules following the rack wiring plan to ensure failover operation. Verify rack power supply voltage of 5 V DC and current capacity of at least 750 mA per module. Use predefined web pages for initial diagnostics and system verification before full network integration.
$200.00 $100.00
-
Schneider Electric Digital Output Modules | Schneider Electric Modicon TSXDST2472
Schneider Electric TSXDST2472 Digital Output Modules Configured for discrete signal actuation in Modicon backplane I/O architectures, the Schneider Electric TSXDST2472 (TSXDST2472 Output Module) provides direct electrical switching of field devices through 24 V DC digital output channels across rack-based PLC systems. Suffix Breakdown & Model Matrix No explicit suffix segmentation or functional variant coding is defined for TSXDST2472 in the provided specification set. The designation is treated as a single fixed module identifier within the Modicon output module family. Hardware Specifications Parameter Specification ModelBrand Schneider Electric TSXDST2472 Origin France Weight 1.25 lbs (0.57 kg) Dimensions Not specified OperatingTemp 0 degC to 60 degC Output Type Discrete (Digital) Output Points 24 channels Output Voltage 24 V DC Output Current per Point 0.5 A Total Output Current 8 A max Isolation Channel to logic isolation Response Time < 1 ms Protection Short-circuit and overload Frequently Asked Questions Q: Does the TSXDST2472 support hot-swap insertion under live backplane power?A: Hot-swap capability is not specified. Standard practice requires power isolation of the rack before module insertion or removal to prevent backplane disturbance. Q: What is the output switching behavior during PLC scan cycle jitter?A: Output state updates are synchronized to the backplane scan cycle. Any jitter is constrained by CPU scan timing and rack communication scheduling. Q: Can channels operate independently under partial overload conditions?A: Yes. Each channel includes individual short-circuit and overload protection, limiting fault impact to the affected output point only. Field Installation Guidelines Ensure DIN rail or rack mounting alignment is mechanically secured before applying backplane connection force. Verify 24 V DC field wiring polarity prior to energization. Maintain separation between output wiring harnesses and high-noise conductors to reduce induced coupling on fast-switching channels. Shield grounding should be terminated at a single reference earth point to avoid circulating ground currents across the output cabinet. Do not exceed 0.5 A per channel or 8 A total module load. Allow sufficient ventilation spacing within the rack to maintain thermal stability within 0 degC to 60 degC operating limits.
$200.00 $100.00
-

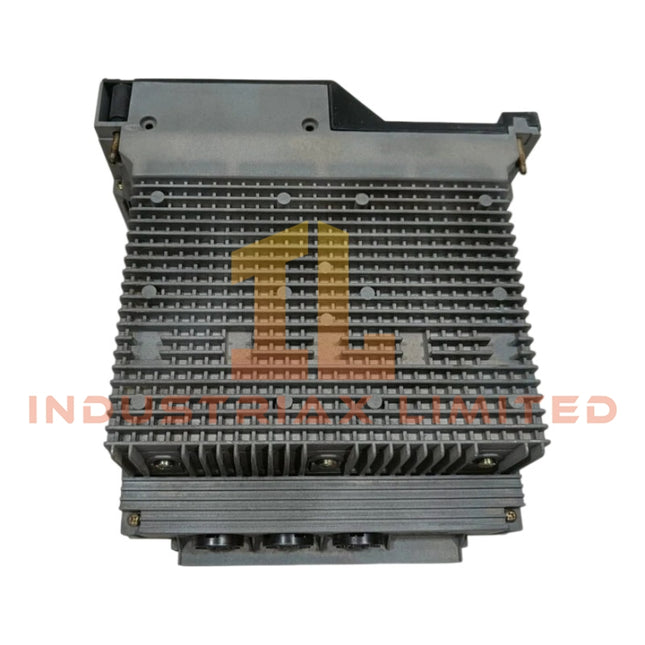

Schneider Electric TSXSUP702 | Schneider Electric | Modicon Power Supply Module

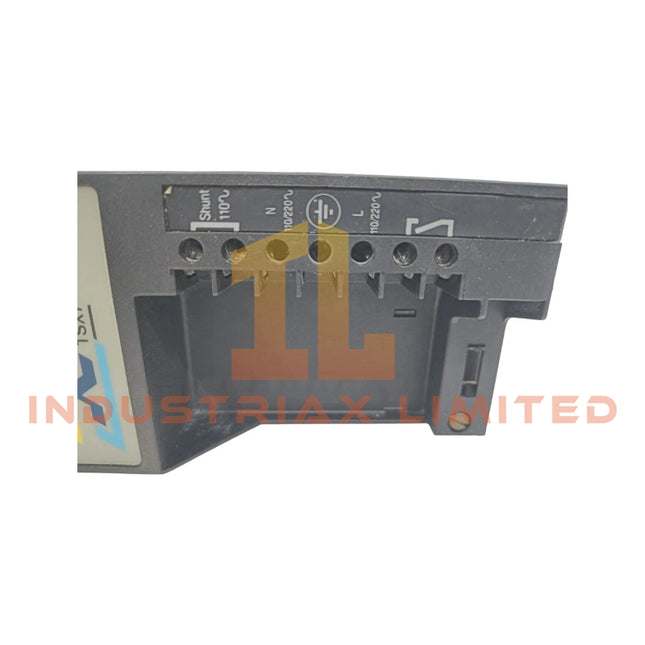

Schneider Electric TSXSUP702 Modicon Power Supply Module The Schneider Electric TSXSUP702, also cataloged as the TSXSUP702 Power Supply Module, operates as a dedicated hardware component for providing stable AC-to-DC power conversion within Modicon PLC platforms. Suffix Breakdown & Model Matrix This model is a fixed single configuration unit. No suffix variations or sub-model matrix exist for the TSXSUP702. Hardware Specifications Parameter Specification ModelBrand Schneider Electric Origin France Weight 1.81 kg (4.00 lbs) Dimensions Standard Modicon rack module form factor OperatingTemp 0 to 60 degC OperatingHumidity 80% RH non-condensing StorageHumidity 80% RH non-condensing MaximumOperatingAltitude 1000 m without derating InputVoltage 220 to 240 V AC OutputPower 65 W VoltageType AC Industrial Control Technical Features The TSXSUP702 integrates with Modicon backplane bus systems, supporting deterministic communication across Profinet and EtherNet/IP networks. Firmware flash compatibility ensures in-field updates without bus interruptions. Odensity scaling is applied to maintain power stability under variable input conditions, optimizing module-to-module voltage distribution in multi-rack setups. Frequently Asked Questions Q: VnA: Can the TSXSUP702 be hot-swapped without shutting down the PLC?A: The module supports insertion and removal under powered conditions if the backplane bus current load is within specified limits. Standard ESD precautions must be followed. Q: VnA: How does the TSXSUP702 manage overvoltage or transient spikes?A: The unit incorporates internal surge suppression circuits to protect the DC output from brief AC voltage surges. External line protection is recommended for high-risk installations. Q: VnA: Is firmware flash required for standard operation?A: Firmware updates are optional and relate solely to compatibility improvements. Standard operation is maintained with factory firmware. Field Installation Guidelines Mount the module vertically in a standard Modicon rack to ensure proper airflow. Maintain a minimum 20 mm clearance around the module for heat dissipation. Connect AC input lines using appropriately rated conductors with tight torque to terminals. Ensure the backplane bus connectors are fully engaged to avoid intermittent contact. Follow proper grounding and shielding practices to minimize electrical noise and maintain deterministic bus performance. Avoid routing high-current power cables parallel to communication bus lines to prevent interference.
$200.00 $100.00
-

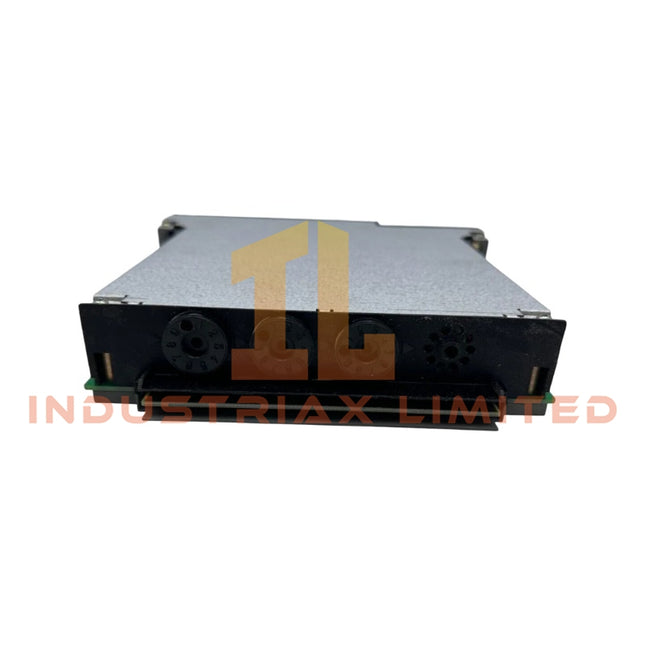

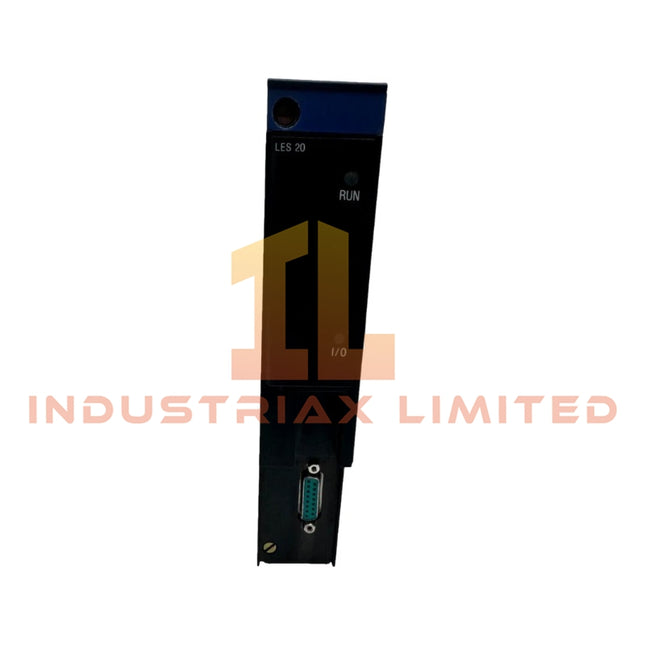

Schneider Electric TSXLES20 | Extension Control Unit Schneider Electric
Schneider Electric TSXLES20 Extension Control Unit Configured for Profibus communication extension within PLC communication architectures, the Schneider Electric TSXLES20 (TSXLES20 Extension Control Unit) provides direct physical/electrical execution for modular communication interfacing across Schneider Electric PLC backplane environments. The unit operates as an extension node supporting Profibus-based data exchange under defined industrial control timing constraints, with environmental qualification for indoor installations and non-corrosive atmospheres. Suffix Breakdown & Model Matrix TSXLES20 is a fixed-order identifier. No manufacturer-documented suffix segmentation or option coding is specified for this part number. Functional classification is derived directly from product line designation (LES Type 20 extension control unit). Hardware Specifications Parameter Specification ModelBrand Schneider Electric TSXLES20 Origin France Weight 0.31 kg (0.69 lbs) Dimensions Not specified OperatingTemp 0 to 60 degC PowerConsumption Not specified Communication Protocol Profibus Operating Humidity <= 80% RH, non-condensing Storage Humidity <= 80% RH, non-condensing Operating Altitude <= 1000 m without derating Storage Altitude <= 1000 m Environment Indoor, non-corrosive atmosphere PLC Backplane Communication and Deterministic Bus Behavior The TSXLES20 integrates into Schneider Electric PLC modular architectures where backplane bus synchronization governs inter-module data exchange timing. In Profibus-linked configurations, deterministic frame scheduling is maintained through cyclic polling behavior, ensuring controlled latency across extension nodes. Firmware compatibility is aligned with PLC system-level communication stacks, allowing consistent mapping between backplane I/O routing and fieldbus telegram handling. Electrical isolation between communication segments supports stable signal integrity under industrial electromagnetic interference conditions. Frequently Asked Questions Q: Does TSXLES20 support hot-swap insertion under load?A: No hot-swap behavior is specified for this module. Installation should be performed with system power in a de-energized state to maintain bus integrity. Q: What is the backplane current impact of the module?A: Backplane current consumption is not explicitly defined in the available specifications. Load impact must be evaluated at system architecture level. Q: Can TSXLES20 operate outside Profibus networks?A: The module is designed for Profibus communication only. Operation outside this protocol is not supported at the hardware level. Field Installation Guidelines The TSXLES20 shall be mounted within a compatible Schneider Electric PLC rack system ensuring proper backplane connector alignment. Shielded Profibus cabling must maintain continuous braid termination to the designated grounding points to reduce electromagnetic coupling. Cable routing should avoid high-voltage conductors and switching inductive loads. Mechanical seating of the module must be verified to ensure full engagement of the backplane connector. Environmental conditions must remain within specified limits of 0 to 60 degC and non-condensing humidity during operation.
$200.00 $100.00
-

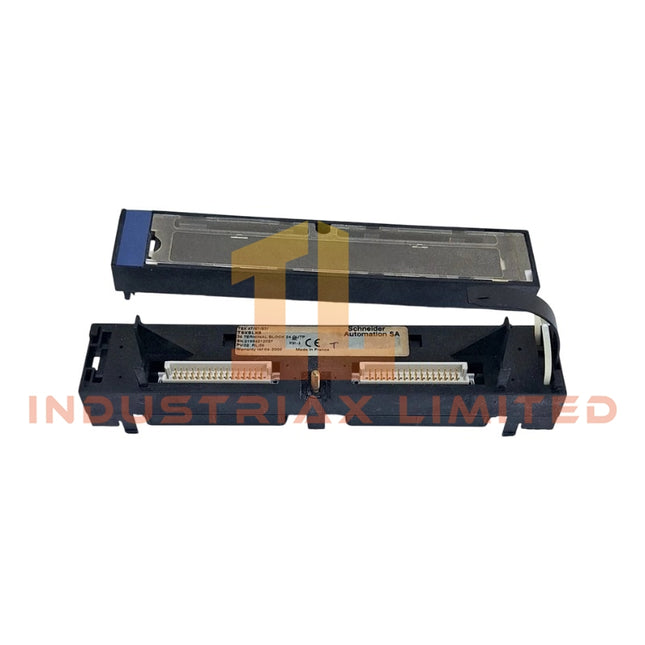

Schneider Electric Blanking Plates Schneider Electric | TSXBLK8

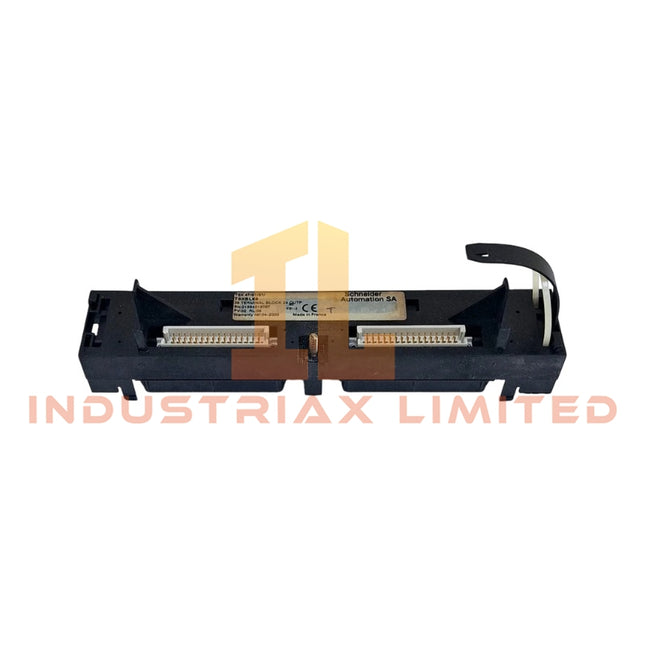

Schneider Electric TSXBLK8 Modicon TSX Blanking Plates The Schneider Electric TSXBLK8, also cataloged as the TSXBLK8 blanking plate, operates as a dedicated hardware component for slot coverage and backplane protection within Modicon TSX Micro PLC systems. Hardware Specifications Parameter Specification ModelBrand Schneider Electric TSXBLK8 Origin France Weight 0.05 kg Dimensions Standard TSX Micro slot size (approx. 40 mm x 90 mm) OperatingTemp 0 to 60 degC (operation), -25 to 70 degC (storage) PowerConsumption N/A (passive component) Material Industrial-grade polycarbonate/plastic Color Standard Modicon Grey/Black Compatibility TSX Micro PLC racks (TSX3705, TSX3710, TSX3721/22) FixingMode Clip-on / Screw-in (integrated locking) IP Rating Maintains IP20 when installed Backplane Bus Communication Features The TSXBLK8 ensures proper mechanical and electrical termination continuity across the TSX Micro backplane. While passive, its installation directly affects backplane bus communication velocity by preventing impedance discontinuities. The component is compatible with firmware flash updates across TSX Micro modules and does not introduce signal reflections when occupying unused slots. Frequently Asked Questions Q: Does the TSXBLK8 support hot-swapping in the TSX Micro rack?A: No. As a passive blanking plate, it must be installed with the PLC powered down to avoid mechanical interference or static discharge. Q: How does the TSXBLK8 affect backplane signal integrity?A: Proper installation maintains uniform spacing and mechanical alignment, preventing reflections and ensuring deterministic network communication. Q: Can the TSXBLK8 be used in outdoor or high-humidity enclosures?A: It supports 5% to 95% relative humidity without condensation but is designed primarily for IP20 indoor-rated enclosures. Field Installation Guidelines Ensure the PLC rack is de-energized before installation. Align the TSXBLK8 with the empty slot, engaging the clip-on or screw-in locking mechanism. Avoid forcing the plate; it should fit flush with neighboring modules. Maintain grounding and shielding continuity across the rack to preserve electromagnetic compatibility. Confirm that adjacent modules are fully seated to prevent airflow disruption or backplane misalignment.
$200.00 $100.00
-

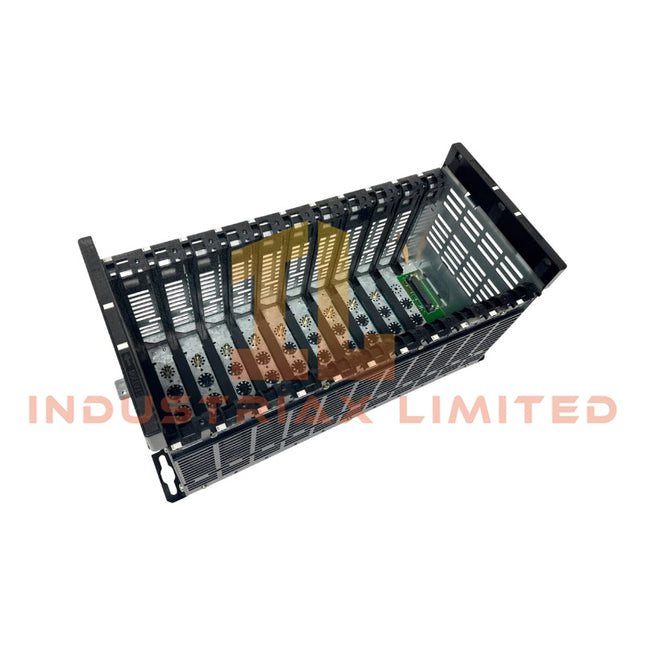

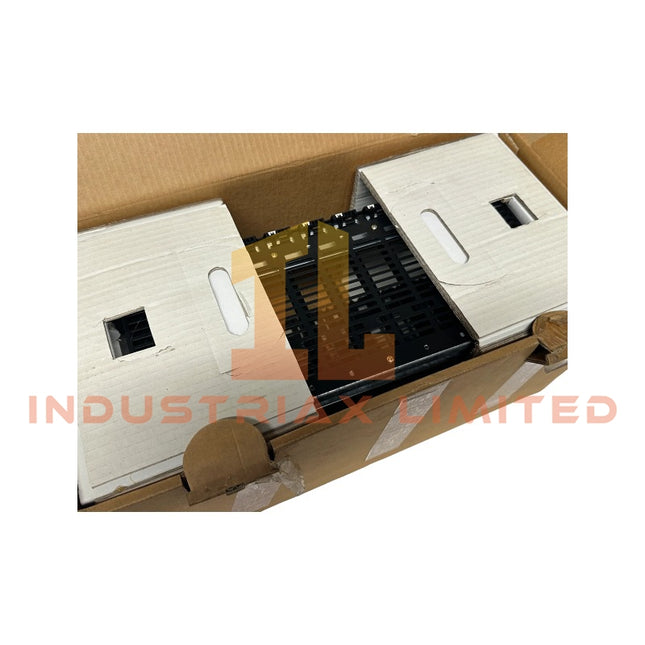

Schneider Electric Rack Expansion Connector Module Schneider Electric TSXRKN8
Schneider Electric TSXRKN8 Rack Expansion Connector Module Configured for rack expansion/backplane extension in Modicon TSX Micro systems, the Schneider Electric TSXRKN8 (TSXRKN8 rack expansion connector) provides direct physical/electrical execution of inter-rack bus continuity within TSX Micro PLC architectures. The TSXRKN8 functions as a backplane extension coupling element for the Modicon TSX Micro platform, enabling electrical continuity of the internal rack bus between a main rack and an expansion rack. It establishes a multi-pin interconnect path for power distribution reference signals and module communication lines, allowing additional I/O and functional modules to be integrated beyond the base rack slot capacity. SuffixBreakdown & Model Matrix No structured suffix segmentation is defined for TSXRKN8. The identifier is treated as a single-order part number without functional subfield encoding. Hardware Specifications Parameter Specification ModelBrand Schneider Electric TSXRKN8 Origin France / EU manufacturing network (legacy Modicon platform) OperatingTemp 0 degC to 60 degC PowerConsumption Passive component, no active consumption Core Function Rack-to-rack backplane bus extension connector Compatibility Modicon TSX Micro PLC (TSX37 series) Electrical Interface Multi-pin backplane bus coupling interface Mounting Rack-mounted mechanical interconnect assembly Backplane Bus Communication & PLC Rack Coupling Behavior Within TSX Micro architectures, the TSXRKN8 participates in deterministic backplane signal propagation across extended rack segments. The connector maintains continuity of shared bus lines including address, data, and synchronization rails used by I/O and processor modules. Signal integrity is dependent on mechanical alignment tolerance and consistent impedance across the rack-to-rack interface. Firmware-level interaction is not present in the TSXRKN8 itself; compatibility is fully governed by the host PLC CPU firmware and rack bus protocol versioning within the TSX platform. Backplane extension length is limited by system-defined electrical loading constraints and rack topology rules defined by TSX Micro architecture specifications. Frequently Asked Questions Q: Does TSXRKN8 require electrical configuration or addressing?A: No. It is a passive backplane interconnect and does not participate in addressing or configuration logic. Q: Can TSXRKN8 affect bus timing or communication latency?A: It does not introduce active delay; however, mechanical contact quality and rack loading can influence overall backplane signal integrity. Q: Is hot-swap supported when installing TSXRKN8?A: No. Installation requires full power-down due to direct backplane electrical coupling. Field Installation Guidelines Ensure all TSX Micro rack assemblies are fully de-energized before installation. Align the expansion rack mechanically with the main rack to guarantee correct multi-pin engagement across the backplane connector. Avoid lateral stress during insertion to prevent pin deformation. Maintain proper shielding continuity across rack enclosures and ensure protective earth bonding between interconnected racks. Verify that rack mounting rails are level to prevent uneven connector loading. Do not exceed system-defined maximum rack expansion limits specified for TSX Micro architectures.
$200.00 $100.00
-

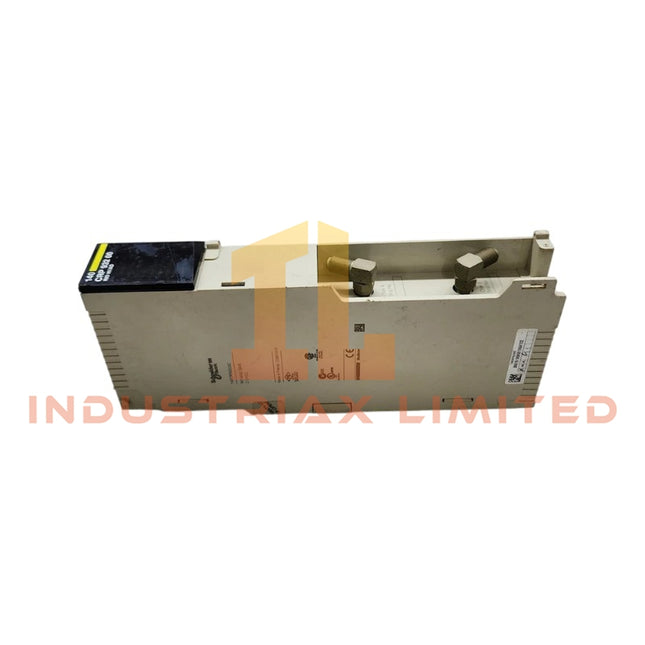

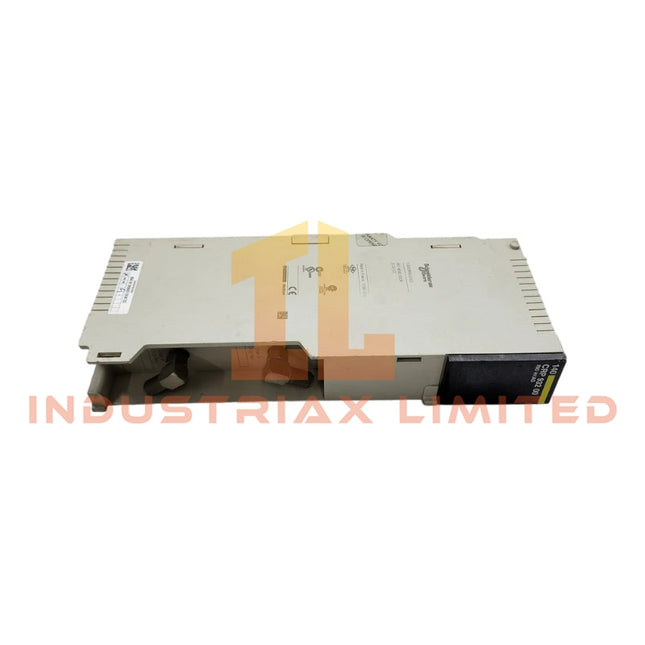

Schneider Electric Schneider Electric 140CRP93200 RIO Head-End Adaptor Module
Schneider Electric 140CRP93200 RIO Head-End Adaptor Module The Schneider Electric 140CRP93200, also cataloged as the 140CRP93200 RIO head-end adaptor module, operates as a dedicated hardware component for remote I/O communication with redundant coaxial cabling within the Modicon Quantum automation platform. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140CRP93200 Origin France Weight 0.6 kg Dimensions Standard Modicon Quantum module form factor OperatingTemp 0...60 degC StorageTemp -40...85 degC RelativeHumidity 95% non-condensing OperatingAltitude <= 5000 m ProductCompatibility Quantum 200/500/800 series, Symax (any mix) Drops/Network <= 31 I/O Words/Drop 64 I / 64 O TypeOfCable Coaxial 75 Ohm TransmissionRate 1544 Mbit/s DynamicRange 35 dB IsolationVoltage 500 V DC (coaxial center to ground) ElectricalConnection 2 female F connectors, elbowed, redundant cable PowerDissipation 3 W per channel (2 channels) BusCurrentRequirement 750 mA per channel Diagnostics Startup LAN controller check, memory check, power up Certifications FM Class 1 Division 2, CSA C22.2 No 142, CUL, UL 508 EMC/ESD ESD 4 kV contact, 8 kV air; EM field 10 V/m (80-1000 MHz) Industrial Control Communication Features The module implements deterministic backplane bus communication, supporting high-speed data transmission across redundant RIO links. Firmware flash compatibility ensures seamless integration with existing Quantum CPU firmware. Channel-to-channel signaling preserves signal integrity, while /Odensity scaling provides consistent I/O word distribution for large network topologies. Frequently Asked Questions Q: What is the maximum number of drops supported per network?A: The module supports up to 31 drops per RIO network. Q: Can this module be hot-swapped in the field?A: No. Removal or insertion while powered may disrupt bus communication; ensure the controller is powered down before servicing. Q: What is the bus current requirement for two-channel operation?A: 750 mA per channel. Field Installation Guidelines Mount the module in a standard Modicon Quantum rack slot. Connect coaxial 75 Ohm cables to both female F connectors ensuring redundant paths are maintained. Verify grounding of coaxial shields at a single point to prevent ground loops. Maintain cable bend radius per manufacturer specification to avoid signal degradation. Ensure ambient conditions remain within 0...60 degC and humidity below 95% non-condensing. Use appropriate EMC shielding practices when routing cables near high-current or high-frequency equipment.
$200.00 $100.00
-

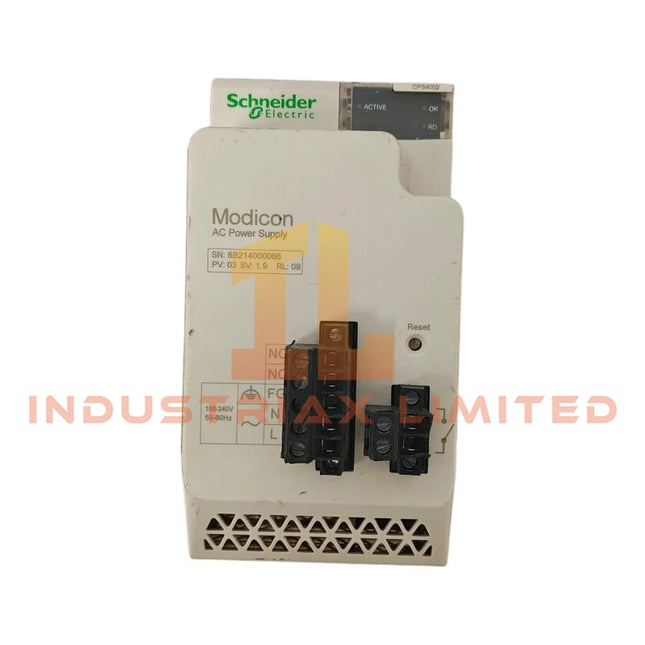

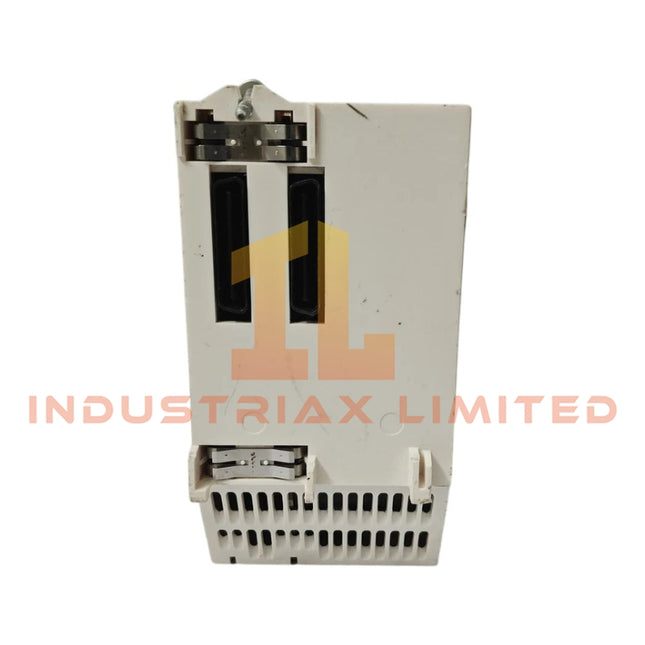

Schneider Electric Schneider Electric BMXCPS4002 Modicon X80 Power Supply Module
Schneider Electric BMXCPS4002 Modicon X80 Power Supply Module Configured for AC-to-DC backplane power conversion in Modicon X80 systems, the Schneider Electric BMXCPS4002 (BMXCPS4002 power supply module) provides direct electrical execution for distributed I/O and processor power provisioning across Modicon X80 backplane architectures. Hardware Specifications Parameter Specification ModelBrand Schneider Electric BMXCPS4002 Origin France Weight 0.51 kg Dimensions Not specified OperatingTemp 0 degC to 60 degC PowerConsumption 8.5 W max dissipation Input Voltage 100 to 240 VAC Frequency 50/60 Hz (47 to 63 Hz limits) Apparent Power 0.13 kVA Inrush Current 30 A at 120 V, 60 A at 240 V Secondary Output 3.3 V 18 W (I/O logic supply) Secondary Output 24 V 40 W (I/O + processor supply) Input Current 0.55 A at 240 V, 1.01 A at 115 V Protection Fuse (internal, not accessible), overload, short-circuit, overvoltage Schneider Electric Backplane Power Distribution Characteristics The Modicon X80 power subsystem implements backplane-level energy distribution across I/O racks with deterministic load allocation between 3.3 VDC logic rails and 24 VDC field/interface rails. Backplane communication and power arbitration are synchronized with module insertion states, supporting firmware-level compatibility checks during hot insertion cycles. Firmware flash and module identification routines operate through rack-level bus sequencing to ensure consistent voltage domain stabilization during system initialization and replacement events. Frequently Asked Questions Q: Can the module be hot-swapped during system operation?A: Hot swap is supported at rack level; backplane voltage sequencing manages inrush limiting and module identification prior to load engagement. Q: How is secondary output load divided?A: The module separates 3.3 VDC logic power (18 W) and 24 VDC I/O/processor power (40 W) with independent protection domains. Q: Does the module require external protection devices?A: No external primary protection is defined; internal fuse and secondary overload/short-circuit protection are integrated. Field Installation Guidelines Install the module only on compatible Modicon X80 backplanes with proper mechanical seating across all connector pins. Ensure protective earth connection is secured via the designated supply connector before energization. Maintain separation between power cabling and signal wiring to reduce coupling effects on backplane rails. Verify rack-level voltage presence indicators prior to connecting downstream I/O loads. All wiring should follow standard industrial shielding and grounding practices for AC supply modules.
$200.00 $100.00
-
Schneider Electric Schneider Electric 140ARI03010 Modicon Quantum Analog Input Module
Schneider Electric 140ARI03010 Modicon Quantum Analog Input Module Configured for resistance temperature input acquisition in Modicon Quantum automation architecture, the Schneider Electric 140ARI03010 (140ARI03010 analog input module) provides direct physical/electrical execution for multi-channel RTD signal conversion across Quantum backplane systems. Suffix Breakdown & Model Matrix No explicit manufacturer-supplied suffix segmentation or functional sub-code breakdown is defined for 140ARI03010 in the provided technical dataset. The full ordering code is treated as a single functional identifier for an 8-channel RTD analog input module within the Modicon Quantum family. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140ARI03010 Weight 0.3 kg Dimensions Standard Modicon Quantum rack module form factor (exact mm not specified) OperatingTemp 0 to 60 degC (drift referenced range) PowerConsumption 1 W Input Channels 8 differential RTD inputs Input Types Pt100, Pt200, Pt500, Pt1000, Ni100, Ni200, Ni500, Ni1000 Resolution 13 bits Isolation 1780 VAC / 2500 VDC bus isolation, 300 Vrms channel isolation Update Time 640 ms (2/4-wire), 1200 ms (3-wire) Schneider Electric Quantum Backplane Signal Processing Characteristics The 140ARI03010 module integrates into Modicon Quantum backplane architecture with deterministic I/O word mapping (9 input words addressing requirement). Backplane communication supports synchronized acquisition cycles aligned with rack-level scan execution, enabling stable I/O density scaling across multi-slot configurations. Firmware-level compatibility is aligned with Quantum rack communication services, supporting consistent module recognition during hot insertion under system power constraints. Channel-level galvanic separation is implemented between field inputs and system bus, reducing cross-channel electrical interaction under mixed RTD wiring topologies (2-wire, 3-wire, and 4-wire configurations). Signal conditioning logic applies linearization and scaling for both platinum and nickel RTD curves across extended temperature domains. Frequently Asked Questions Q: Can the module operate mixed RTD types simultaneously across channels?A: Yes. Each of the 8 channels can be independently configured for Pt or Ni sensor types, provided wiring configuration matches selected input mode. Q: What is the effect of 3-wire RTD configuration on update time?A: 3-wire acquisition mode increases processing cycle time to approximately 1200 ms due to additional compensation computation per channel. Q: Does the module support hot-swap replacement on the Quantum backplane?A: Hot-swap behavior depends on rack configuration and system power state; electrical isolation prevents channel damage but scan interruption occurs during module reinsertion. Field Installation Guidelines Ensure rack backplane is de-energized when inserting or removing module unless system supports controlled hot-swap procedures. Maintain correct RTD wiring topology (2-wire, 3-wire, or 4-wire) per channel configuration to avoid measurement drift. Use shielded twisted pair cables for all temperature probe inputs, with shield grounded at a single point on cabinet earth bar. Verify channel addressing allocation (9 input words) in Quantum configuration software prior to commissioning. Avoid routing RTD signal lines parallel to high voltage or high frequency switching conductors to reduce induced noise coupling.
$200.00 $100.00
-
Schneider Electric Schneider Electric 170ADI34000 Modicon Momentum Discrete Input Module
Schneider Electric 170ADI34000 Modicon Momentum Discrete Input Module The Schneider Electric 170ADI34000, also cataloged as the 170ADI34000 Discrete Input Module, operates as a dedicated hardware component for processing 24 VDC discrete signals within Modicon Momentum automation platforms. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 170ADI34000 Origin France Weight 0.35 kg Dimensions 120 mm x 50 mm x 80 mm OperatingTemp 0…60 degC StorageTemp -40…85 degC RelativeHumidity 95% non-condensing OperatingAltitude ≤ 5000 m InputType Discrete DC InputChannels 16 channels InputVoltage 24 VDC VoltageLimits -3…30 V VoltageState0 -3…5 V VoltageState1 11…30 V CurrentState0 ≤ 1.2 mA CurrentState1 ≥ 2.5 mA InputResistance 4 kOhm ResponseTime0to1 2.2 ms ResponseTime1to0 3.3 ms Isolation 500 V AC between channels and bus PowerDissipation 5 W max, 3 W typical ProtectiveTreatment TC Certifications FM Class 1 Division 2, CSA, UL EMCResistance 10 V/m 80…1000 MHz ESDResistance 4 kV contact, 8 kV air Industrial Control Features The module supports deterministic backplane bus communication velocity and ensures compatibility with Profinet/EtherNet/IP networks for high-speed data transfer. Firmware flash updates are supported without requiring full system shutdown. Channel-to-channel isolation mitigates signal interference and maintains consistent digital input accuracy. Odensity scaling is applied to ensure uniform input signal resolution across the 16 channels. Frequently Asked Questions Q: Can the 170ADI34000 module be hot-swapped?A: Hot-swap is not supported; the module must be powered down before replacement to maintain bus integrity. Q: What is the maximum backplane load for the module?A: The module draws a nominal 3 W and must be integrated within the overall Momentum backplane power budget. Q: Are firmware upgrades compatible across all Momentum backplane revisions?A: Firmware is backward compatible with Momentum platforms but requires adherence to Schneider Electric’s versioning guidelines. Field Installation Guidelines Ensure DIN-rail mounting is secure and level to prevent mechanical stress. Connect discrete inputs using shielded twisted pair cables; ground shields at one end only. Maintain a minimum spacing of 5 mm between signal and high-voltage lines to reduce crosstalk. Avoid routing input cables near power switching devices or variable frequency drives. Verify correct polarity for 24 VDC inputs before energizing the module.
$200.00 $100.00
-
Schneider Electric Discrete I/O Module Modicon Momentum Schneider Electric 170ADM35010
Schneider Electric 170ADM35010 Modicon Momentum Discrete I/O Module Configured for discrete signal acquisition and switching in Modicon Momentum backplane architectures, the Schneider Electric 170ADM35010 (170ADM35 Discrete Solid State I/O Base) provides direct physical/electrical execution for 24 VDC digital input and output interfacing within Momentum distributed I/O networks. Suffix Breakdown & Model Matrix 170ADM35: Base series identifier for Momentum discrete I/O base 010: Specific configuration variant within 16 I/O solid-state DC module family Momentum platform designation: Modular distributed I/O system architecture Hardware Specifications Parameter Specification ModelBrand Schneider Electric 170ADM35010 Input Channels 16 inputs (IEC 1131-2 Type 1) Input Voltage 24 VDC (range -3 to 30 V) Input Logic Positive logic Input Current Threshold 0: <= 1.2 mA, 1: >= 2.5 mA Output Channels 16 solid-state outputs Output Grouping 2 groups of 8 outputs Output Voltage 24 VDC (<= 30 VDC max) Output Current 0.5 A per point, 4 A per group, 8 A per module Leakage Current < 1 mA per output circuit Peak Output Current 5 A Schneider Electric PLC Backplane & Deterministic I/O Behavior Within Modicon Momentum architectures, the 170ADM35010 executes cyclic I/O refresh through backplane bus communication, where deterministic scan timing governs input latching and output state propagation. The module interfaces with controller-level scheduling via internal rack arbitration, ensuring predictable state update sequencing across distributed I/O segments. Firmware-level compatibility is aligned with Momentum platform configuration tools, supporting parameter download and module mapping via system-level configuration. Backplane communication velocity and I/O refresh rate are dependent on host processor scan cycle and rack topology, with deterministic behavior maintained under standard PLC scan execution. Frequently Asked Questions Q: Does the 170ADM35010 support hot-swap replacement under live backplane power conditions?A: The module is designed for Momentum rack integration; hot-swap behavior depends on system configuration and backplane power segmentation. Electrical arcing risk must be evaluated at rack level. Q: What is the output load limitation per channel group?A: Output grouping is rated at 4 A per group and 0.5 A per individual point, with total module limit of 8 A under DC solid-state switching conditions. Q: How does input filtering affect signal stability?A: Input logic uses IEC 1131-2 Type 1 thresholds with defined voltage windows, providing noise immunity against floating or undefined 24 VDC field signals. Field Installation Guidelines Mount module into Modicon Momentum backplane ensuring full connector seating to avoid intermittent bus communication faults Maintain shielded wiring for 24 VDC input lines where electromagnetic interference is present Observe group current limits to prevent thermal accumulation in solid-state output stages Verify correct polarity for positive logic input configuration prior to energization Ensure adequate spacing for thermal dissipation in dense rack assemblies
$200.00 $100.00
-
Schneider Electric Discrete Output Module Modicon Momentum Schneider Electric 170ADO34000
Schneider Electric 170ADO34000 Momentum Discrete Output Module The Schneider Electric 170ADO34000 also cataloged as the 170ADO34000 discrete output module operates as a dedicated hardware component for electrical switching of field actuators within the Schneider Electric Modicon Momentum I/O architecture. Configured for 24 VDC solid-state output execution in distributed backplane systems, the 170ADO34000 (170ADO34000 discrete output base DC) provides direct channel-level switching across 16 isolated output points. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 170ADO34000 PowerConsumption 3.5 W typical / 4.5 W max Output Channels 16 (2 groups of 8) Output Type Solid state switch Output Voltage 24 VDC Current per Channel 0.5 A Group Current 4 A per group Module Current 8 A total Response Time 0.1 ms (ON/OFF) Isolation 500 VAC channel-to-bus Protection Electronic short-circuit and overload protection PLC Backplane Communication and Output Execution Profile Within the Modicon Momentum distributed control topology, the 170ADO34000 module operates via backplane-bus synchronized output refresh cycles, where deterministic scan alignment governs output state transitions across 16 channels. The module supports high-speed digital actuation with 0.1 ms state change latency, optimized for tight I/O coupling in modular PLC racks. Channel grouping architecture (8+8 segmentation) enables localized current distribution across backplane power domains, reducing thermal concentration per output bank. Frequently Asked Questions Q: Can the 170ADO34000 outputs be hot-swapped under load conditions?A: The module is not designed for live hot-swap of field loads. Removal under energized output conditions may cause transient backplane disturbance and undefined output states. Q: What is the limitation of channel-to-channel isolation?A: Output channels share group-level architecture; isolation is provided to backplane (500 VAC), but channels within the same group are not individually galvanically isolated. Q: How does the module handle inductive load switching?A: External suppression (flyback diode or RC snubber) is required. Internal protection is limited to electronic short-circuit detection and shutdown. Field Installation Guidelines Ensure 24 VDC supply stability before insertion into the Modicon Momentum backplane. Maintain separation between field wiring and logic wiring to minimize capacitive coupling across output groups. Shielded cabling is recommended for long-run inductive loads, with single-point grounding at the cabinet earth bar. Do not exceed 0.5 A per channel or 4 A per output group. Verify output polarity consistency prior to energization to prevent reverse conduction stress on solid-state switching elements.
$200.00 $100.00
-
Schneider Electric 170FNT11001 Schneider Electric Fipio Communication Adaptor

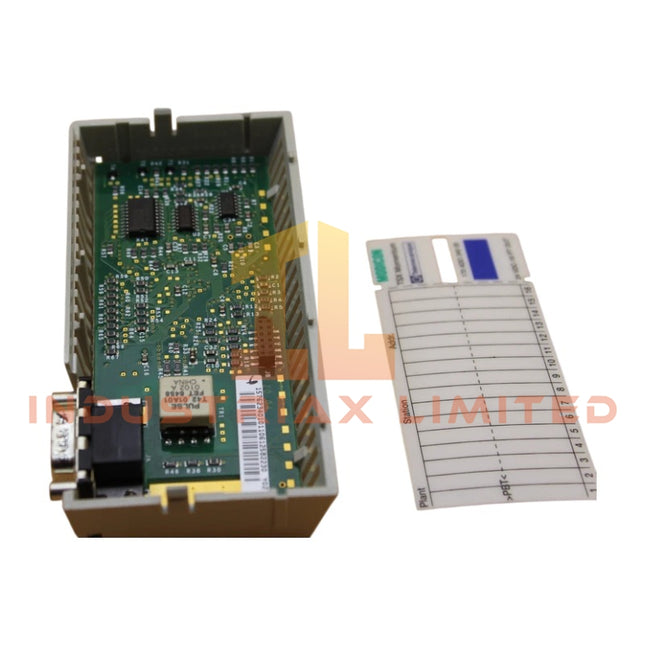

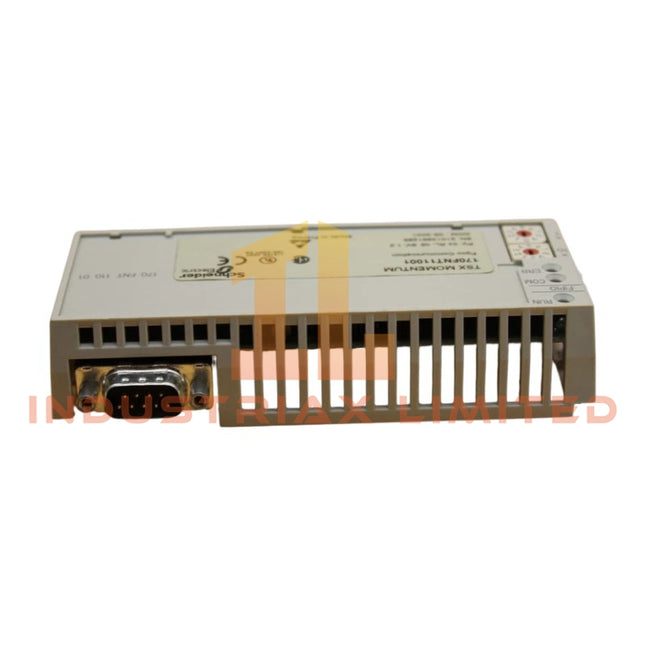

Schneider Electric 170FNT11001 Fipio Communication Adaptor Configured for deterministic fieldbus data exchange in Modicon Momentum I/O architectures, the Schneider Electric 170FNT11001 (170FNT11001 Fipio communication adaptor) provides direct physical/electrical execution within Fipio industrial network segments. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 170FNT11001 Origin France Weight 0.11 kg Dimensions Not specified OperatingTemp 0 to 60 degC PowerConsumption Supplied from I/O base (backplane powered) Communication Protocol Fipio Transmission Rate 1 Mbit/s Medium Optical fiber 50/125, 62.5/125; twisted shielded pair Device Capacity 0 to 31 per segment (no repeater), up to 97 with repeater Cable Length 1000 to 5000 m Topology Extension or tap-off cable Fail State Behavior Fallback to zero / force to zero / hold value options Backplane Bus Communication and Deterministic I/O Execution Within Schneider Electric PLC architecture, Modicon Momentum modules implement backplane-driven I/O scheduling where communication timing is synchronized through deterministic bus arbitration. The 170FNT11001 Fipio adaptor maps field devices into a cyclic producer/consumer model, maintaining fixed scan exchange windows at 1 Mbit/s. Signal integrity is dependent on segment termination, fiber attenuation limits, and tap-off impedance matching across distributed nodes. Frequently Asked Questions Q: Can the module be hot-swapped during system operation?A: Hot-swap capability depends on baseplate configuration. Removal under power may interrupt Fipio token passing and force segment reinitialization. Q: What is the maximum supported segment loading?A: Up to 31 devices per segment without repeater, extended to 97 devices with repeaters, subject to bus timing constraints. Q: How is fault state handled on communication loss?A: The adaptor supports fallback-to-zero, forced zero output, or maintained last-value hold depending on controller configuration. Field Installation Guidelines The module shall be mounted on a compatible Modicon Momentum I/O base ensuring correct backplane alignment and grounding continuity. Fiber optic segments must respect minimum bend radius and attenuation limits for 50/125 and 62.5/125 media. Shielded twisted pair installations require single-point grounding to avoid ground loop injection. Segment termination must be verified to maintain stable Fipio token circulation. Avoid routing communication cables in parallel with high-power switching conductors.
$200.00 $100.00
-
Schneider Electric BMEXBP0400 Schneider Electric Modicon X80 Rack Backplane Module

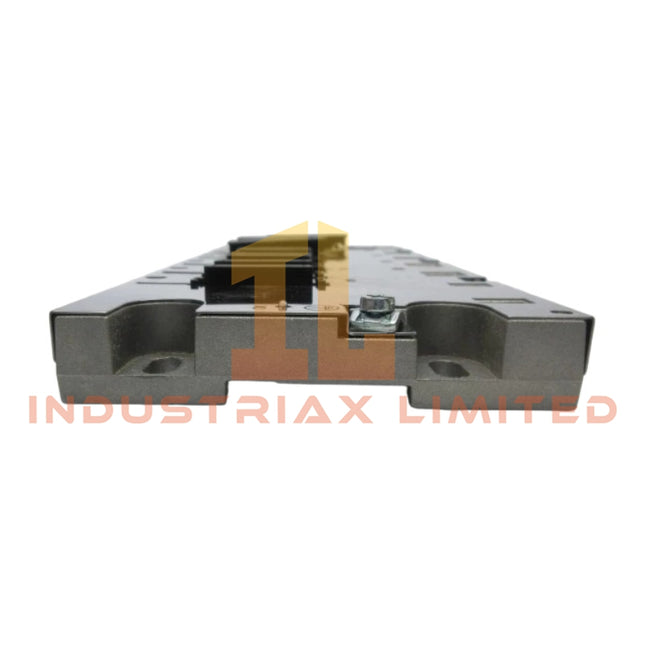

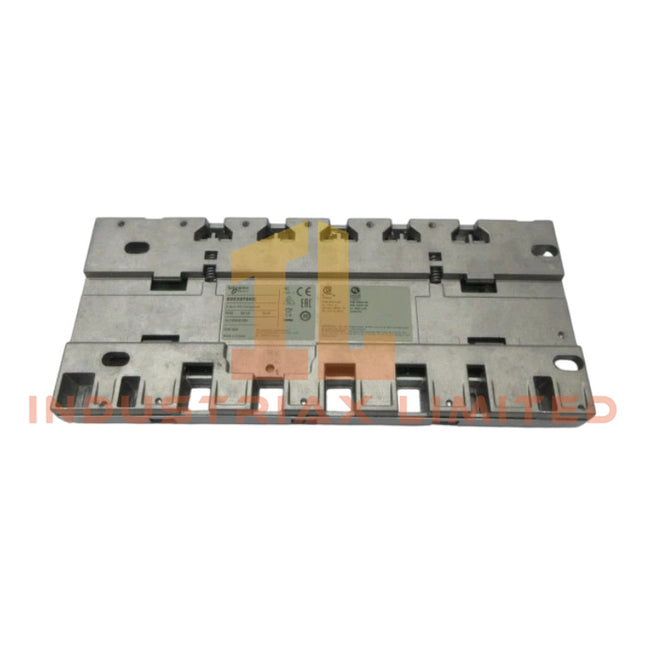

Schneider Electric BMEXBP0400 Rack Backplane Module Configured for backplane signal distribution and Ethernet bus interconnection in Modicon X80 architectures, the Schneider Electric BMEXBP0400 (BMEXBP0400 Rack X80 - 4 slots - Ethernet backplane) provides direct physical/electrical execution. The module defines a 4-slot X80 rack segment integrating X bus and Ethernet backplane communication, enabling deterministic module-to-module data exchange between CPU, I/O, and power supply elements within the same rack structure. Suffix Breakdown & Model Matrix BMEXBP: X80 Ethernet backplane rack family identifier 0400: 4-slot rack configuration No additional functional suffix segmentation is defined for this catalog reference. Hardware Specifications Parameter Specification ModelBrand Schneider Electric BMEXBP0400 Weight 0.705 kg OperatingTemp 0 degC to 60 degC PowerConsumption 2.8 W Backplane Slots 4 slots (X bus + Ethernet) Current Consumption 49 mA at 3.3 VDC, 118 mA at 24 VDC Electrical Interface XBE connector Mounting Method DIN rail, panel, plate (M6 / screw fixing) Protection Class IP20 Schneider Electric Backplane Bus Deterministic Communication Behavior Within Modicon X80 systems, the BMEXBP0400 implements segmented backplane routing for X bus and Ethernet-enabled module communication. The rack design maintains deterministic frame propagation across installed CPU (BMEP58 series), power supply (BMXCPS), and I/O modules. Backplane timing integrity is dependent on slot adjacency and internal rack impedance matching, ensuring stable inter-module exchange without external cabling within the rack boundary. Firmware-level compatibility is aligned with X80 backplane arbitration rules and module discovery sequencing during system initialization. Frequently Asked Questions Q: Does BMEXBP0400 support hot-swap of modules in the rack?A: Hot-swap capability depends on installed X80 modules and system configuration. The backplane itself provides passive connectivity without switching logic. Q: What is the electrical load limitation on the backplane power distribution?A: Backplane load is determined by cumulative module consumption across 3.3 VDC and 24 VDC rails within the rack power budget defined by the BMXCPS supply. Q: Is Ethernet communication routed through the same backplane as X bus signals?A: The rack supports combined X bus and Ethernet backplane architecture with logical separation at protocol level. Field Installation Guidelines Install the rack on a 35 mm DIN rail or rigid panel using four-point M6 or equivalent screw fixation. Ensure conductive grounding continuity between rack chassis and cabinet earth reference. Maintain minimum clearance for thermal dissipation across 0 to 60 degC ambient range. Avoid mechanical stress on XBE connector during module insertion. Shielded cabinet wiring practices should be applied for Ethernet segments to maintain signal integrity across adjacent X80 modules.
$200.00 $100.00
-
Schneider Electric Schneider Electric 140CPU65150 Modicon Quantum Unity Processor
Schneider Electric 140CPU65150 Modicon Quantum Unity Processor Configured for deterministic execution of PLC scan cycles in Modicon Quantum automation platform backplane architecture, the 140CPU65150 (140CPU65150 Unity processor) provides direct CPU-level processing and communication handling for distributed I/O and remote rack synchronization within Quantum chassis systems. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140CPU65150 Origin France / EU manufacturing lineage (Quantum platform) OperatingTemp Industrial standard PLC module range (exact limits not provided) CPU Clock Frequency 166 MHz Memory 768 kB Local Rack Capacity Up to 2 racks Slot Configuration 10 / 16 / 2 / 4 / 6 slots (rack dependent configuration) Distributed I/O Up to 63 stations per network Remote I/O Up to 31 stations Discrete I/O Capacity 8000 inputs / 8000 outputs (distributed), 31744 inputs / 31744 outputs (remote) Analog I/O Capacity 500 inputs / 500 outputs (distributed), 1984 inputs / 1984 outputs (remote) Integrated Interfaces Ethernet TCP/IP, Modbus, Modbus Plus, USB Backplane Bus Communication and Firmware Execution Model The 140CPU65150 executes cyclic task scheduling through Quantum backplane arbitration, where memory exchange between CPU and I/O modules is synchronized via deterministic scan intervals. Firmware execution supports multi-interface routing across Modbus, Modbus Plus, and Ethernet TCP/IP stacks, enabling parallel handling of process data and diagnostic frames. Backplane throughput is governed by slot addressing density and rack segmentation rules, with firmware compatibility tied to Unity processor runtime image alignment. Frequently Asked Questions Q: Can the 140CPU65150 support hot-swapping of I/O modules?A: Hot-swap capability depends on rack configuration and module type. CPU operation continues during limited module replacement, but backplane re-enumeration is required for full synchronization. Q: What is the effect of adding distributed I/O stations on scan cycle time?A: Increasing distributed stations introduces additional communication overhead on network arbitration layers, impacting cyclic scan time proportional to station count and protocol load. Q: Does firmware mismatch affect backplane communication stability?A: Yes. Firmware version mismatch between Unity processor and module firmware may result in partial enumeration failure or restricted communication mapping. Field Installation Guidelines The 140CPU65150 shall be installed on a grounded Quantum backplane with controlled torque insertion to avoid slot connector deformation. Shielded communication cables must maintain single-point grounding at cabinet earth reference to prevent differential noise across Modbus and Ethernet segments. Backplane slots must remain within rated configuration limits (maximum rack slot population as defined by chassis type). Excessive slot loading can introduce signal propagation delay and backplane arbitration latency. Ethernet and Modbus cabling shall be physically separated from high-voltage conductors to minimize inductive coupling. Maintain minimum bend radius according to industrial Ethernet cabling standards. Firmware upload operations should be executed under stable DC supply conditions with uninterrupted backplane power to avoid memory corruption during flash cycles.
$200.00 $100.00
-

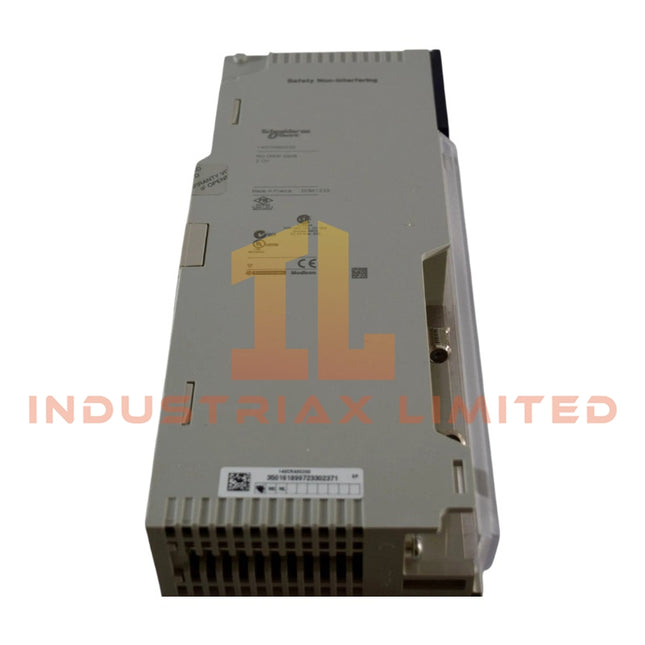

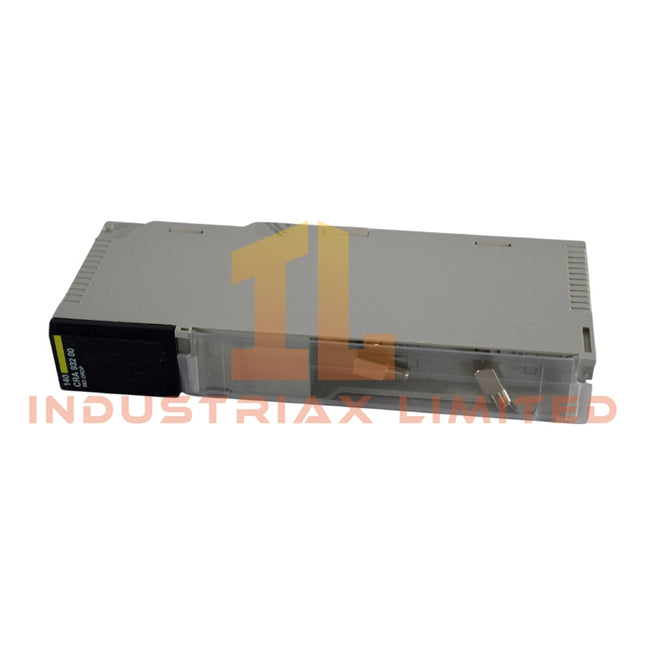

Schneider Electric RIO Drop Adaptor Module Schneider Electric Modicon Quantum 140CRA93200
Schneider Electric 140CRA93200 RIO Drop Adaptor Module The Schneider Electric 140CRA93200 serves as the primary 140CRA93200 RIO Drop Adaptor Module utilized to execute remote I/O drop communication coupling across Modicon Quantum automation platforms. It provides dual-channel coaxial redundancy for deterministic RIO data exchange and physical layer signal adaptation within the Quantum backplane architecture. Suffix Breakdown & Model Matrix No officially published suffix decomposition or functional sub-code segmentation is provided for 140CRA93200. The identifier is treated as a single-order hardware reference without structured option fields in the supplied dataset. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140CRA93200 Origin France Weight 545 g Dimensions 5.0 cm x 16.5 cm x 31.5 cm OperatingTemp 0 degC to 60 degC PowerConsumption 3.8 W (2 channels) Product Type RIO Drop Adaptor Module Cable Type 75 Ohm coaxial cable Transmission Rate 1544 Mbit/s Isolation Voltage 500 V DC (coaxial center to ground) Bus Current Requirement 750 mA (2 channels) Diagnostics Startup and runtime, RAM address/data, executive checksum Modicon Quantum Remote I/O Backplane Communication Characteristics Within the Modicon Quantum platform, the 140CRA93200 functions as a remote I/O drop interface supporting dual redundant coaxial links. Signal transport is implemented over 75 Ohm transmission media with controlled impedance matching to maintain stable bit-level integrity under industrial EMI conditions. Backplane coordination is aligned with deterministic scan cycles of the Quantum CPU, where module-level diagnostics (checksum verification and runtime monitoring) are continuously evaluated. Channel redundancy allows failover continuity in the event of single-link degradation without interruption of I/O scanning consistency. Frequently Asked Questions Q: Does the module support hot-swap during system operation?A: The module is designed for Quantum rack integration; hot-swap capability depends on system configuration and backplane rules. Electrical isolation does not inherently guarantee live insertion without controller support. Q: What is the function of the dual coaxial connectors?A: The two F-type female connectors implement redundant RIO communication channels, allowing continuous data transfer if one coaxial path experiences degradation or disconnection. Q: How is electrical isolation implemented?A: Isolation is specified at 500 V DC between coaxial center conductor and ground reference, providing separation between field transmission path and chassis grounding. Field Installation Guidelines The module shall be installed in a Modicon Quantum compatible rack slot designed for RIO communication adapters. Coaxial cabling must maintain 75 Ohm impedance continuity across the full segment length, with shield termination applied according to standard industrial grounding practices at designated single-point earth references. Avoid sharp bending radius below manufacturer-defined coaxial limits to prevent impedance discontinuity. Ensure redundant channels are routed separately to minimize correlated failure risk due to physical damage or electromagnetic coupling. Backplane insertion force must be applied uniformly to avoid connector misalignment. Verify checksum and startup diagnostics after power-up before enabling full I/O scan operation.
$200.00 $100.00
-
Schneider Electric Schneider Electric Modicon Quantum 140ACO13000 Analog Output Module
Schneider Electric 140ACO13000 Analog Output Module Configured for analog current output signal generation in Modicon Quantum backplane I/O network, the Schneider Electric 140ACO13000 (140ACO13000 Analog Output Module) provides direct physical/electrical execution. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140ACO13000 Weight 0.3 kg PowerConsumption 5 W max dissipation Analog Output Channels 8 outputs Output Types 0-20 mA, 0-25 mA, 4-20 mA current loops Resolution 0-20000 / 0-25000 / 0-16000 / 0-4095 counts Loop Voltage 6-30 V DC Isolation 1780 V AC for 1 minute (channel to bus) Update Time 5 ms Settling Time 1.6 ms to 5 percent, 3.2 ms to 0.1 percent Accuracy +/- 0.2 percent full scale at 25 degC Temperature Drift 0.004 percent FS per degC typical Backplane Bus Communication and Deterministic Control Behavior Within the Schneider Electric Modicon Quantum architecture, the 140ACO13000 module exchanges output words via the backplane I/O bus with 8-word addressing allocation. The deterministic scan cycle is synchronized with Quantum rack communication timing, ensuring fixed update behavior independent of field load conditions. Firmware-level backplane arbitration manages channel refresh sequencing across all 8 analog outputs without inter-channel timing skew beyond module update time limits. Channel scaling is executed locally, reducing controller-side computational overhead during cyclic task execution. Frequently Asked Questions Q: Can the module outputs be configured independently per channel?A: Yes. Each of the 8 channels supports independent range selection including 0-20 mA, 0-25 mA, or 4-20 mA scaling mapped into digital counts. Q: What happens under open loop conditions in 4-20 mA mode?A: The module implements open-circuit detection and flags a channel fault via diagnostic LED and bus status bit. Q: Is hot-swap supported on the Quantum backplane for this module?A: The module supports rack insertion/removal according to Quantum backplane rules; field loop current should be removed prior to module replacement. Field Installation Guidelines Maintain shield continuity for all analog current loops and terminate cable shielding at a single reference ground point to prevent ground loop formation. Ensure loop power supply remains within 6-30 V DC under full load conditions across all 8 channels. Backplane connector seating must be fully engaged to guarantee stable 1780 V AC isolation integrity. Avoid routing analog output conductors parallel to high-frequency switching lines or motor drive cabling to reduce induced coupling noise on 4-20 mA loops.
$200.00 $100.00
-

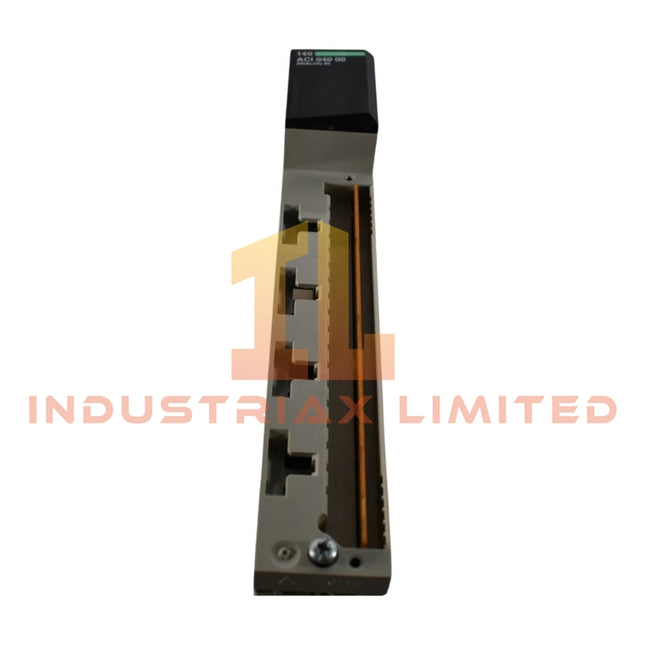

Schneider Electric Schneider Electric 140ACI04000 Modicon Quantum Analog Input Module
Schneider Electric 140ACI04000 Modicon Quantum Analog Input Module The Schneider Electric 140ACI04000 (140ACI04000 Analog Input Module) serves as the primary Modicon Quantum analog input module utilized to execute multi-channel current signal acquisition across Modicon Quantum backplane architectures. Configured for 16-channel differential current measurement in Modicon Quantum I/O systems, the Schneider Electric 140ACI04000 provides direct electrical acquisition of 4-20 mA, 0-20 mA, and 0-25 mA process signals with multi-range digital conversion and backplane data transfer execution. Suffix Breakdown & Model Matrix No structured suffix decomposition is defined for 140ACI04000 within the provided technical dataset. The identifier is treated as a fixed orderable part number. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140ACI04000 Weight 0.3 kg PowerConsumption 5 W Analog Input Channels 16 differential inputs Input Signal Types 4-20 mA, 0-20 mA, 0-25 mA Resolution Up to 16000 / 20000 / 25000 counts (range dependent) Input Impedance 250 Ohm Update Time 15 ms Isolation 1780 V AC channel-to-bus for 60 s Bus Current Requirement 360 mA Filter Type Single pole low pass, 3 dB at 34 Hz +/- 25 % PLC Backplane Communication and IO Density Scaling The 140ACI04000 integrates into Modicon Quantum backplane structures where deterministic IO scan behavior is governed by slot-based cyclic bus arbitration. IO density scaling is managed through fixed 17-word addressing per module, enabling predictable memory mapping across Quantum racks. Backplane transaction timing is synchronized with firmware-level cyclic scheduling, supporting stable analog sampling intervals (15 ms update class). Firmware flash compatibility is maintained through Quantum platform revision alignment, ensuring consistent module enumeration during hot replacement events within supported system configurations. Frequently Asked Questions Q: Does the module support hot-swap insertion in a powered Quantum rack?A: The module supports rack insertion under Quantum backplane rules; proper slot initialization and bus rescan are required to avoid channel state invalidation. Q: What limits the measurement accuracy at higher ambient temperature drift?A: Accuracy drift is defined as up to +/- 0.0025 % of full scale per degC, dominated by internal reference scaling and input stage thermal variation. Q: How is channel isolation implemented?A: Each module provides 1780 V AC isolation between input channels and backplane bus for 60 seconds, ensuring separation of field wiring and logic domain. Field Installation Guidelines Ensure all 4-20 mA loops are wired using twisted shielded pairs with shield termination at a single earth reference point. Maintain correct polarity across differential input terminals to avoid saturation of the 250 Ohm input impedance stage. Backplane seating must be fully engaged to ensure stable 360 mA bus current distribution. Avoid routing high-voltage conductors parallel to analog input wiring to reduce induced coupling into low-level current loops. Verify module addressing allocation (17 input words) within Quantum configuration software prior to commissioning to prevent register overlap across adjacent I/O modules.
$200.00 $100.00
-
Schneider Electric Analog Input Module Schneider Electric Modicon Quantum 140ACI03000

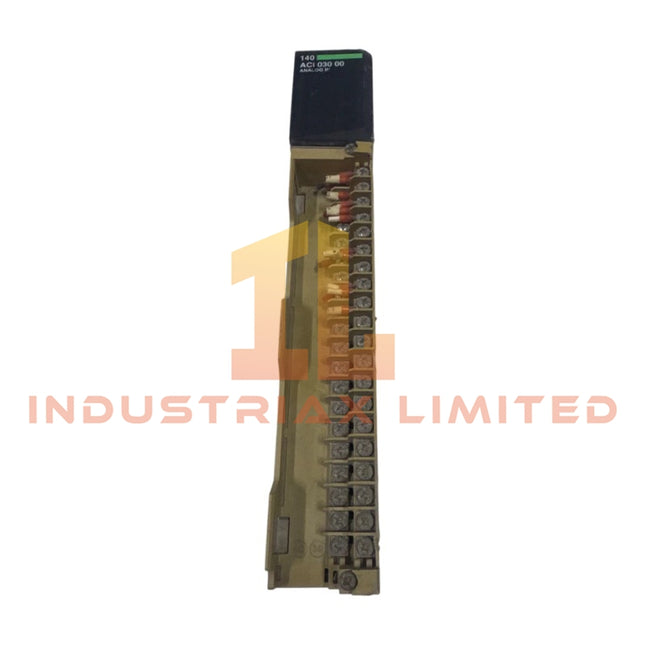

Schneider Electric Modicon Quantum 140ACI03000 Analog Input Module Configured for signal acquisition in Modicon Quantum I/O system, the Schneider Electric Modicon Quantum Analog Input Module (Modicon Quantum Analog Input Module Analog Input Module) provides direct physical/electrical execution. Suffix Breakdown & Model Matrix No explicit order code or suffix segmentation is provided in the source data. The module is referenced at series level as Modicon Quantum analog input hardware without additional variant identifiers. Hardware Specifications Parameter Specification ModelBrand Schneider Electric Modicon Quantum Analog Input Module Weight 0.3 kg PowerConsumption 2 W Analog Input Channels 8 differential inputs Input Types 1-5 V, 4-20 mA Resolution 12 bits Update Time 5 ms Input Impedance > 20 MOhm (voltage), 250 Ohm (current) Isolation 1000 V DC channel-to-bus, 3000 V DC for 60 s Common Mode Rejection > -72 dB at 60 Hz Accuracy +/- 0.05 % of full scale Linearity Error +/- 0.04 % Bus Current Requirement 240 mA Filter Type Single pole low pass, 3 dB at 15 Hz +/- 20 % Backplane Bus Communication and I/O Integration Characteristics The Modicon Quantum analog input module interfaces through deterministic backplane communication channels within the Quantum rack architecture. Backplane bus throughput defines the 5 ms update cycle alignment between input sampling and PLC scan execution. I/O data is mapped into 9 input words addressing space, enabling structured register-based acquisition across Schneider Electric PLC memory blocks. The module design supports stable signal acquisition under high-density rack configurations where I/O scaling and firmware compatibility are managed at controller level. Frequently Asked Questions Q: Does the module support hot swap replacement during rack operation?A: Hot-swap capability is dependent on system rack configuration. Electrical backplane separation must be ensured prior to insertion or removal to avoid transient bus disturbance. Q: How is the 4-20 mA loop fault detected?A: The module monitors current loop continuity and flags broken wire conditions when input falls outside valid operating range thresholds. Q: What limits the 5 ms update time?A: Update time is determined by internal A/D conversion cycle, backplane scan scheduling, and module-to-CPU communication latency. Field Installation Guidelines Ensure the module is fully seated into the Quantum rack backplane connector before energizing the system. Maintain shield termination at a single-point ground to reduce differential noise coupling on 1-5 V and 4-20 mA loops. Avoid routing analog signal cables parallel to high-voltage or high-frequency switching conductors. Verify channel isolation integrity prior to commissioning, especially in multi-module rack assemblies.
$200.00 $100.00
