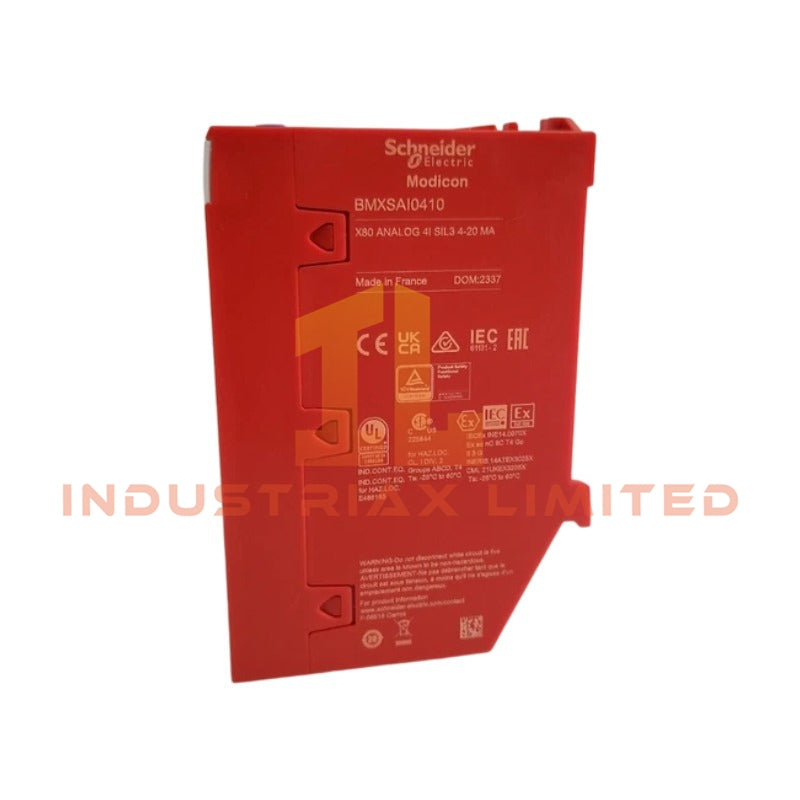

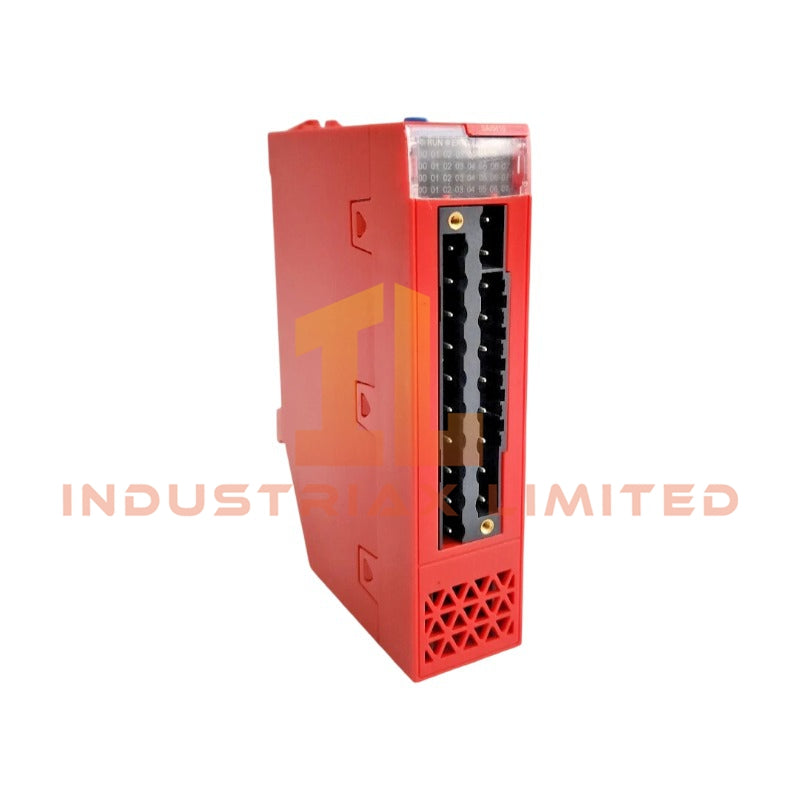

Schneider Electric BMXSAI0410 Safety Analog Input Module
Configured for high-integrity signal acquisition in Safety Instrumented Systems (SIS), the Schneider Electric BMXSAI0410 (BMXSAI Safety Analog Input Module) provides direct physical/electrical execution of 4-20 mA current loops into deterministic digital data via the X80 backplane.
Hardware Specifications
Parameter
Specification
Model Brand
Schneider Electric BMXSAI0410
Origin
France
Weight
340 g
Dimensions
25.8 cm x 17.9 cm x 5.4 cm
Operating Temp
-25 to 60 degC
Power Consumption
1.5 W typical (via backplane)
Analog Input Number
4 isolated channels
Input Type
Current 4...20 mA
Conversion Resolution
16 bits
Measurement Resolution
2 uA
Isolation Voltage
500 V DC (Channel-Ch) / 1500 V DC (Ch-GND/Bus)
Nominal Read Cycle
6 ms for 4 channels
TMR Architecture and Fail-Safe Execution
The module supports integration into SIL3-rated architectures utilizing triple modular redundancy principles. It executes fail-safe state transitions upon detection of open-circuit or over-range conditions exceeding 25 mA. Channel-to-channel galvanic isolation is maintained at 500 V DC to prevent ground loop interference and ensure data integrity during partial system faults.
Frequently Asked Questions
Q: Does the BMXSAI0410 support hot-swap removal under load?
A: No. The module must be de-energized prior to removal or insertion to prevent arcing on the 20-way connector and to maintain the integrity of the safety checksum.
Q: What is the default scaling for the raw digital value?
A: The default user scale is +/- 10000 counts. Recalibration and scaling to +/- 32000 counts must be configured via the control system programming software.
Q: How is crosstalk suppressed between adjacent channels?
A: Crosstalk attenuation is maintained at a minimum of 120 dB through independent conversion resistors and second-order digital filtering per channel.
Field Installation Guidelines
Install the module onto a standard 35 mm DIN rail within the X80 rack. Ensure the shield of the analog input cables is terminated at the cable gland or terminal block to maintain EMC compliance. Torque the connector screws to 0.5 Nm. Verify the gap voltage and loop continuity before applying power to the safety controller.
