Description

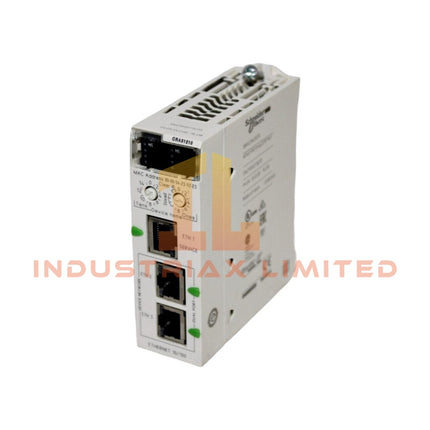

Schneider Electric BMXCRA31210 Modicon X80 Ethernet RIO Drop Adaptor

Configured for deterministic remote I/O communication in the Modicon X80 distributed I/O architecture, the Schneider Electric BMXCRA31210 (base model BMXCRA) provides direct physical backplane bus bridging and EtherNet/IP protocol execution. This adapter manages cyclic input data acquisition and output updates between the remote head adaptor and local I/O modules via the X bus backplane.

Hardware Specifications

Parameter	Specification
Brand	Schneider Electric
Origin	France
Weight	270 g
Dimensions	125 x 110 x 55 mm
Operating Temp	0 to 60 degC
Power Consumption	1.5 W typical (via backplane)
Bus Type	X Bus (Remote Backplane)
Ports	3 x RJ45
Supported Channels	0 to 1024 discrete / 0 to 256 analog
Protocols	EtherNet/IP, RSTP

EtherNet/IP Deterministic Networks and Firmware Flash Compatibility

The BMXCRA31210 executes real-time data exchange using scheduled I/O messaging over EtherNet/IP. It supports Configuration Change on the Fly (CCOTF), allowing modification of I/O parameters without processor stoppage, contingent upon firmware flash compatibility with the local rack controller. The module maintains data integrity through 10 ms timestamp recording for diagnostic logging. Network topology supports daisy chain loops utilizing Rapid Spanning Tree Protocol (RSTP) to ensure deterministic recovery times.

Frequently Asked Questions

Q: Does the BMXCRA31210 support hot-swap insertion?

A: No. The module must be inserted into a powered-down backplane. Hot-swapping may cause backplane bus contention and data corruption.

Q: What is the maximum backplane current load imposed by this adaptor?

A: The module draws approximately 300 mA at 3.3 VDC from the backplane power supply. Ensure the rack power budget accounts for this load.

Q: Is explicit messaging supported through the service port?

A: The service port is restricted to configuration and diagnostics. It does not support cyclic I/O data exchange required for control logic execution.

Field Installation Guidelines

Mount the module in a standard Modicon X80 rack slot. Torque terminal connections to 0.5 N·m. Maintain a minimum bend radius of 50 mm for Ethernet cables to prevent pair untwisting. Ground the shield drain wire to the rack ground bus bar at one end only to mitigate common-mode noise. Verify IP addressing and subnet masks prior to establishing the EtherNet/IP connection to avoid broadcast storms.

Specifications

• Brand: Schneider Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
