Description

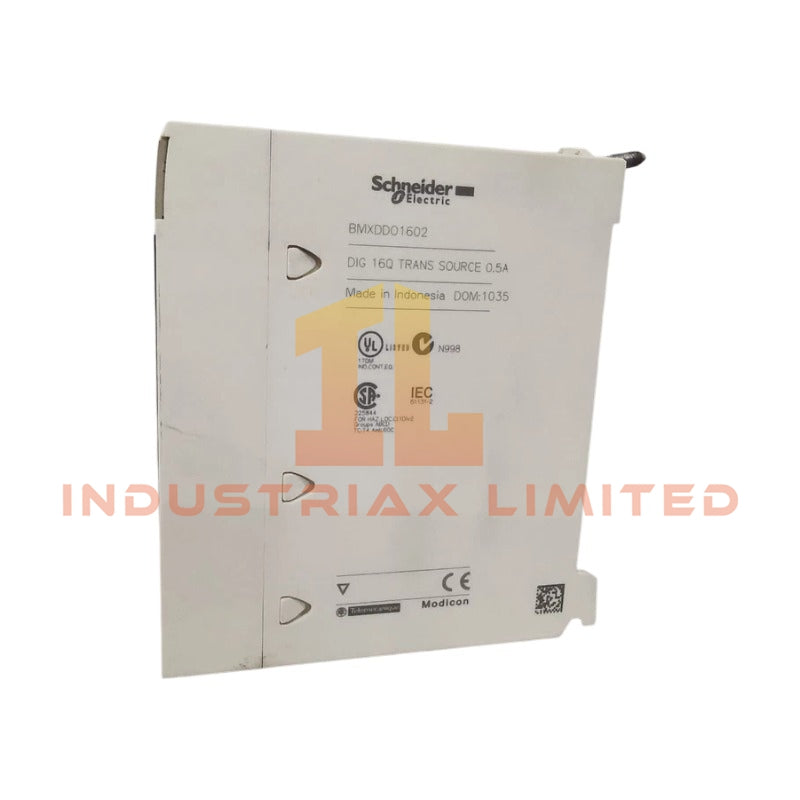

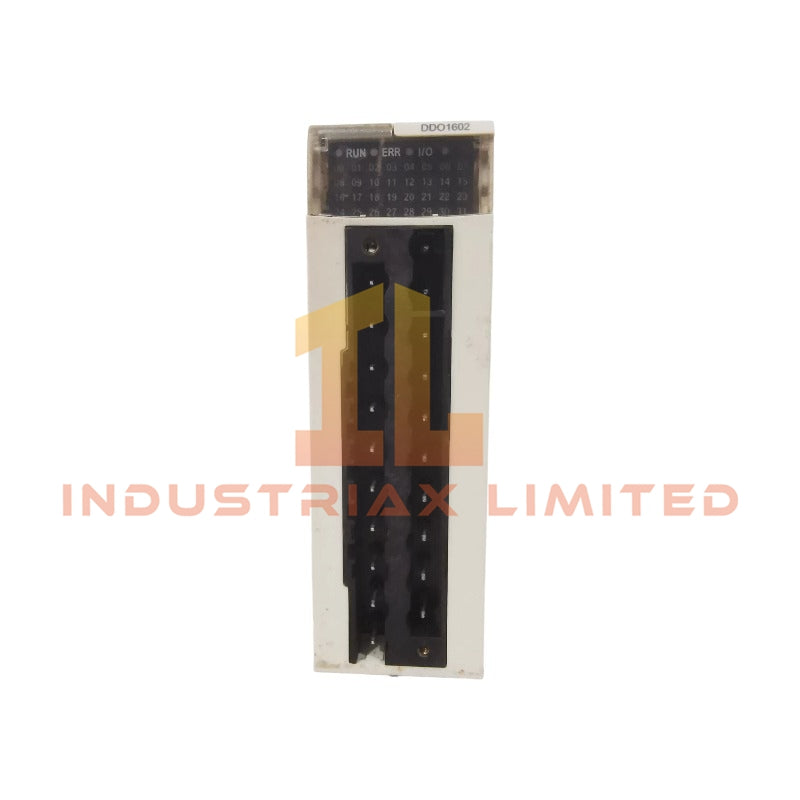

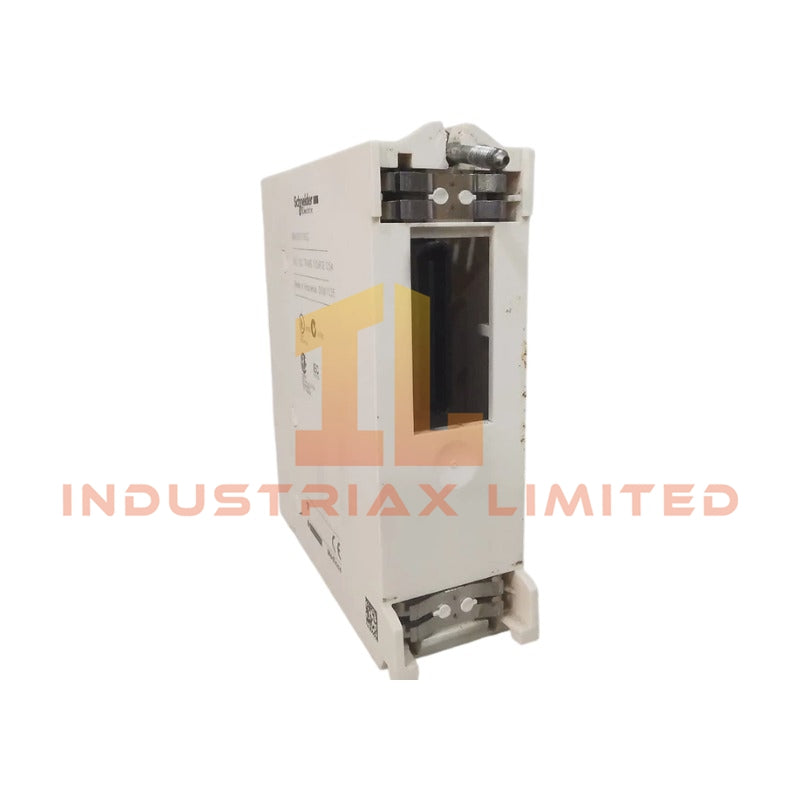

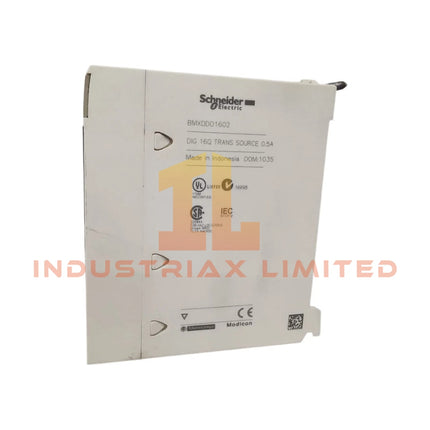

Schneider Electric BMXDDO1602 Modicon X80 Discrete Output Module

Configured for solid-state digital signal routing in Modicon X80 automation platforms, the Schneider Electric BMXDDO1602 (BMXDDO1602 Discrete Output Module) provides direct physical/electrical execution. This module commands 16 discrete channels using positive source logic to interface directly with actuators, relays, and field contactors without intermediate mechanical degradation.

Hardware Specifications

Parameter	Specification
Model Brand	Schneider Electric
Origin	Standard factory profile
Weight	0.12 kg net weight (145 g gross package weight)
Dimensions	5.600 cm x 11.000 cm x 12.000 cm
Operating Temp	0...60 degC
Storage Temp	-40...85 degC
Power Consumption	4 W maximum power dissipation
Typical Current Consumption	79 mA at 3.3 V DC backplane power
Discrete Output Number	16 conforming to IEC 61131-2
Discrete Output Type	Solid state
Discrete Output Logic	Positive (Source)
Discrete Output Voltage	24 V DC (operational range 19...30 V DC)
Discrete Output Current	0.5 A per channel nominal (0.625 A maximum per channel)
Maximum Current per Module	10 A
Maximum Leakage Current	0.5 mA at state 0
Maximum Voltage Drop	<1.2 V at state 1
Response Time on Output	1.2 ms
Paralleling of Outputs	Supported, 2 outputs maximum
Overload Protection	Electronic circuit breaker 1.5 In < Id < 2 In, with current limiter
Short-Circuit Protection	External 2 A fast-blow fuse required per channel/group
Overvoltage Protection	Integrated transil diode
Reverse Polarity Protection	Integrated reverse mounted diode
Voltage Detection Threshold	<14 V DC (preactuator fault), >18 V DC (state 0 preactuator)
Maximum Tungsten Load	6 W
Load Impedance Ohmic	>48 Ohm
Insulation Resistance	>10 MOhm at 500 V DC
Dielectric Strength	1500 V AC at 50/60 Hz for 1 minute (output/ground & output/internal logic)
IP Degree of Protection	IP20

Industrial Control and Backplane Integration

The module features deterministic backplane bus communication velocity sync, which correlates data refresh cycles directly with the Modicon X80 controller task cycle. Bus clock synchronization guarantees low-latency execution of logic transitions across high-density physical topologies. This hardware structure utilizes specialized firmware flash compatibility paths to support online configuration changes without interrupting the broader deterministic industrial network runtime or dropping physical channel statuses during processing updates.

Frequently Asked Questions

Q: What happens when the electronic circuit breaker trips due to an output overload?

A: The module activates its internal electronic circuit breaker when the current demands reach 1.5 to 2 times the nominal value. The current limiter restricts the fault current until the threshold triggers an output shutdown. A preactuator fault is flagged via the internal register when voltage falls below 14 V DC under active state demands.

Q: Can multiple outputs be wired in parallel to drive higher current loads?

A: Yes. Paralleling of outputs is permitted up to a maximum of 2 channels. This arrangement allows the handling of inductive or resistive loads requiring steady-state capacities above the single-channel 0.625 A threshold, provided that total module current does not exceed the absolute 10 A upper physical limit.

Q: What external protection is mandatory for short-circuit mitigation?

A: While internal transil diodes handle overvoltage and electronic limiters manage overloads, a fast-acting 2 A external fuse must be installed in series with the external power distribution line to guarantee complete short-circuit isolation and prevent permanent trace damage.

Field Installation Guidelines

• Mounting and Grounding: Insert the module firmly into the Modicon X80 backplane slot until the mechanical locking lever clicks into place. Ensure the backplane rack is bonded to the central functional earth (FE) busbar using a minimum 4 mm2 copper conductor to maintain the 1500 V AC isolation barrier performance.
• Wiring Limitations: Use shielded twisted pair (STP) cabling for routing paths exceeding 30 meters or when routed through high electromagnetic noise zones. Keep 24 V DC signal lines physically separated from high-voltage AC motor drives or power infrastructure lines by a minimum distance of 100 mm.
• Fuse Installation: Install an individual 2 A fast-blow external fuse on the 24 V DC supply path powering the actuator circuits to prevent cascading overcurrent faults during direct terminal short circuits.

Specifications

• Brand: Schneider Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
