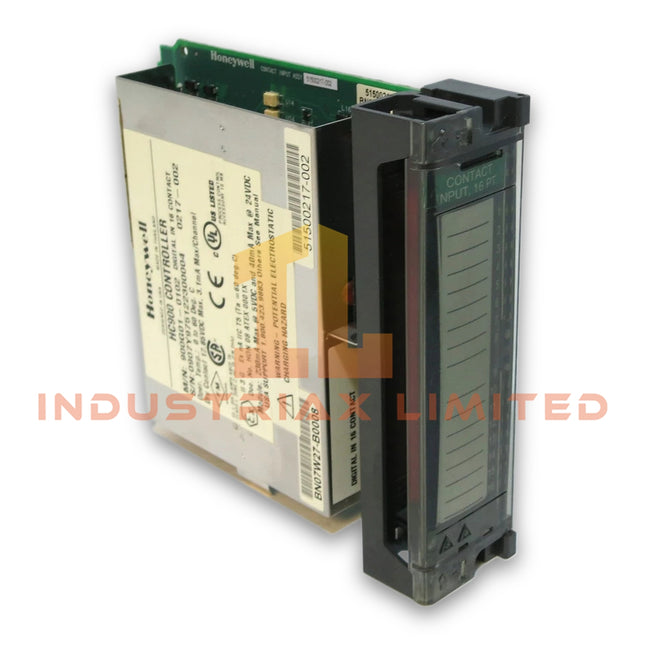

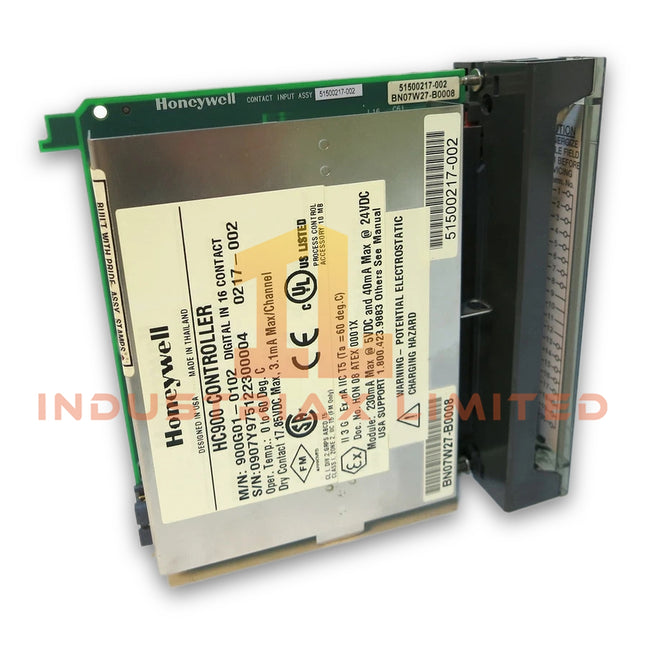

Honeywell Honeywell 900G01-0102 ControlEdge HC900 Digital Input Module
Honeywell 900G01-0102 ControlEdge HC900 Digital Input Module Configured for binary status monitoring and discrete signal acquisition within ControlEdge HC900 Process and Safety Controller platforms, the Honeywell 900G01-0102 (51500217-002 Digital Input Module) provides direct physical/electrical execution. Specifically, this hardware unit processes external contact closures and DC voltage inputs, converting field-level binary states into deterministic controller data through the internal backplane bus. Furthermore, it operates continuously to monitor switches, dry contacts, and digital sensors without signal degradation under standard operating conditions. Hardware Specifications Parameter Specification Model 900G01-0102 Brand Honeywell Origin Made in USA / Mexico Weight 0.35 kg Dimensions 110 mm x 35 mm x 105 mm Operating Temp 0 deg C to 60 deg C Power Consumption 2.5 W max from backplane Number of Channels 16 Channels Input Type Contact / Dry Contact or DC Voltage compatible Compatibility HC900 Controller Racks / Process Controller systems Isolation Optical channel-to-channel and channel-to-backplane isolation Honeywell Process Control & DCS Architecture Operating within industrial process control and manufacturing automation architectures, the module executes channel-to-channel isolation and galvanic signal filtering. Specifically, each of the 16 input channels incorporates optical isolation barriers to suppress electromagnetic interference (EMI) and common-mode transient voltages originating from external field wiring. Consequently, high-frequency noise from heavy inductive loads is prevented from corrupting the internal backplane bus communication. In addition, the circuit design maintains steady state voltage thresholds to accurately discriminate between open and closed contact states, thereby ensuring reliable digital telemetry across extended operational lifecycles. Frequently Asked Questions Q: What are the restrictions regarding hot-swap operations on the Honeywell 900G01-0102 module? A: The module supports hot-insertion and removal under power when installed within approved HC900 chassis racks, provided that field wiring terminal blocks are securely latched and no excessive transient currents are present on the backplane bus. Q: How is backplane power loading calculated when multiple 900G01-0102 modules are mounted in a single rack? A: Each module consumes a maximum of 2.5 W from the 24 VDC rack power supply. System integrators must sum the current draw of all adjacent I/O cards to ensure total power consumption does not exceed the maximum output rating of the system power supply unit. Q: What is the nominal response time for channel state transitions? A: The hardware filtering circuit introduces a fixed nominal input response time of 8 ms to eliminate contact bounce from mechanical switches prior to registering state changes in the controller register. Field Installation Guidelines When deploying the Honeywell 900G01-0102 module in an industrial enclosure, technicians must adhere to standard electrical safety and shielding practices. Specifically, mount the unit securely onto standard 35 mm DIN rails or designated HC900 chassis backplanes, ensuring proper mechanical engagement and ground continuity. Furthermore, route all field input wiring separately from high-voltage AC power cables and variable frequency drive (VFD) motor leads to minimize capacitive coupling and cross-talk. Ground all signal cable shields at a single designated grounding bar to maintain noise immunity and protect sensitive internal components from electrostatic discharge (ESD) and surge transients.
$200.00 $100.00
-

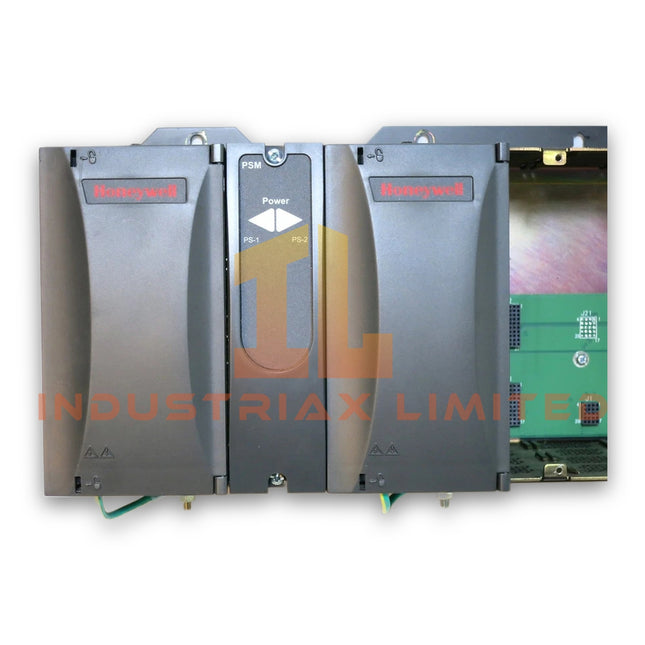

Honeywell Honeywell 900R08R-0101 ControlEdge 8-Slot Rack Module
Honeywell 900R08R-0101 ControlEdge 8-Slot Rack Module The Honeywell 900R08R-0101, also cataloged as the 900R08R 8-Slot Rack Module, provides physical mounting, power distribution, and backplane communication functions for Honeywell ControlEdge and Experion PKS Modular Controller platforms. Hardware Specifications Parameter Specification Model 900R08R-0101 Brand Honeywell Origin USA Product Type 8-Slot I/O and Controller Rack Module Series ControlEdge / Experion PKS Modular Controller Number of Slots 8 module slots Mounting Type DIN rail or panel mounting Backplane Communication Internal high-speed bus for module data and power transmission Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Relative Humidity 10% to 90% non-condensing Enclosure Protection IP20 Power Consumption Supplied through rack power distribution; module load depends on installed cards Process Control Bus and I/O Integration The Honeywell 900R08R-0101 rack provides the mechanical and electrical interface between controller modules, I/O cards, and system power components. It distributes internal power rails and maintains communication paths through the rack backplane. For Honeywell process control architectures, the rack supports module-level signal processing systems that use industrial communication structures. The design accommodates I/O configurations requiring channel-to-channel isolation, 4-20 mA HART loop protocol integration, and FOUNDATION Fieldbus or Profibus PA connectivity when compatible modules are installed. The rack itself does not perform signal conversion or field measurement. Instead, installed controller and I/O modules execute analog, digital, and communication functions while the rack maintains module positioning and backplane connectivity. Frequently Asked Questions Q: Does the 900R08R-0101 perform analog or digital signal processing directly?A: No. The rack provides physical support, power distribution, and backplane communication. Signal processing requires compatible Honeywell controller and I/O modules installed in the rack. Q: Can modules be replaced while the rack remains installed?A: Hot-swap capability depends on the installed controller and I/O module specifications. Verify module replacement procedures before removing any card from an operating system. Q: Does the rack require separate field wiring connections?A: No. Field wiring terminates on the installed I/O modules or terminal assemblies. The rack provides internal module interconnection through the backplane. Field Installation Guidelines Install the 900R08R-0101 on a stable DIN rail or panel surface according to cabinet mechanical requirements. Maintain separation between power wiring, communication cables, and high-voltage conductors to reduce electrical interference. Connect cabinet grounding points according to industrial control system grounding practices. Use shielded communication cables where required and terminate shields according to the system installation manual. Verify rack alignment before inserting controller or I/O modules to prevent backplane connector damage. Confirm installed module compatibility with the ControlEdge or Experion PKS platform before system startup.
$200.00 $100.00
-

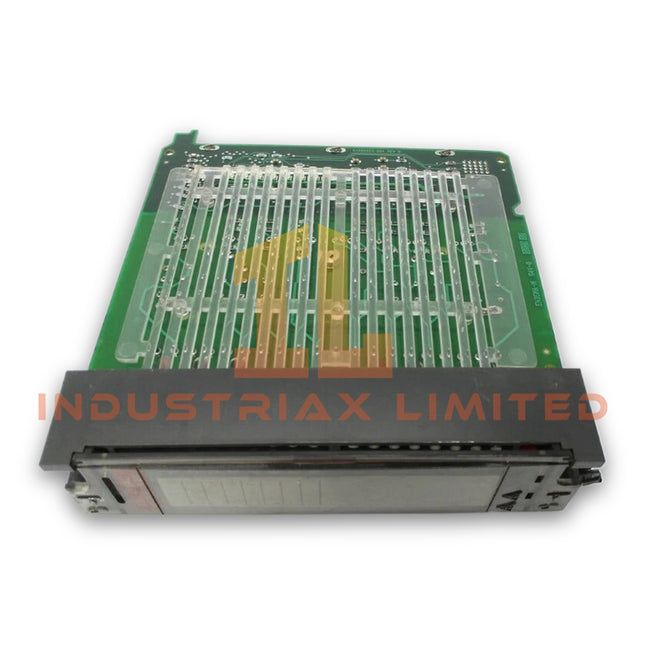

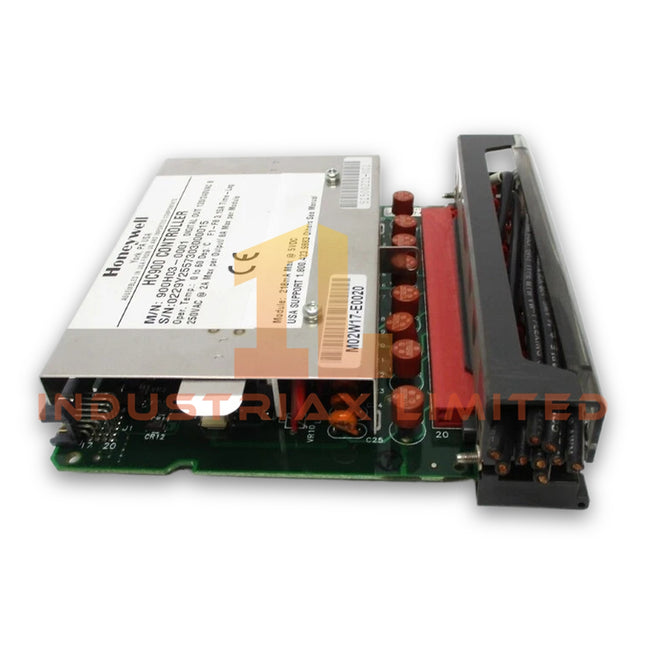

Honeywell Honeywell 900H03-0001 ControlEdge HC900 I/O Module
Honeywell 900H03-0001 ControlEdge HC900 I/O Module The Honeywell 900H03-0001, also cataloged as the 900H03-0001 ControlEdge HC900 I/O module, provides hardware signal interface functions for process control execution within the Honeywell ControlEdge HC900 controller platform. Hardware Specifications Parameter Specification Model 900H03-0001 Brand Honeywell Origin USA Product Type Industrial I/O Module System Platform ControlEdge HC900 Process Automation Controller Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 70 deg C Operating Humidity 10% to 90% RH, non-condensing Power Consumption Determined by I/O configuration and controller backplane load Mounting Type DIN rail or chassis-mounted rack installation Diagnostics LED indicators for power, module status, and channel conditions Communication Interface HC900 controller backplane communication Compliance CE, UL/cUL, CSA options depending on hardware configuration Process Control Signal Interface Characteristics The Honeywell 900H03-0001 operates within the ControlEdge HC900 architecture to exchange process signals between field devices and the controller processing unit. Therefore, the module supports structured I/O data transfer through the controller backplane. The HC900 platform supports process instrumentation interfaces that include 4-20 mA HART loop protocol compatibility, FOUNDATION Fieldbus and Profibus PA connectivity through applicable interface modules. Additionally, channel-to-channel isolation design principles help reduce interference between independent field signal paths. For analog measurement applications, compatible HC900 modules can apply cold junction compensation (CJC) functions when thermocouple inputs require temperature reference correction. The specific signal type and electrical characteristics depend on the exact I/O module configuration associated with the 900H03-0001 hardware assembly. Frequently Asked Questions Q: Does the Honeywell 900H03-0001 support direct field device connection without configuration?A: No. The module requires controller configuration through the HC900 engineering environment before field signals can be processed. Q: Can the 900H03-0001 operate independently without the ControlEdge HC900 controller chassis?A: No. The module depends on the HC900 controller architecture and communicates through the system backplane. Q: Does the module support hot-swap replacement during controller operation?A: Hot-swap capability depends on the specific HC900 chassis configuration, firmware version, and module type. Follow the applicable Honeywell installation procedure before removing or replacing hardware. Field Installation Guidelines Install the Honeywell 900H03-0001 in the specified HC900 rack or DIN rail assembly according to the mechanical mounting requirements. Maintain proper separation between power wiring, signal wiring, and communication cables to reduce electromagnetic interference. Use shielded cables for analog field signals when required by the installation environment, and connect cable shields according to the site grounding practice. Verify terminal wiring, polarity, and field loop conditions before applying power. Confirm that the controller recognizes the module through the engineering configuration software after installation. Avoid installing the module in locations with excessive vibration, conductive dust, moisture, or temperatures outside the specified operating range.
$200.00 $100.00
-

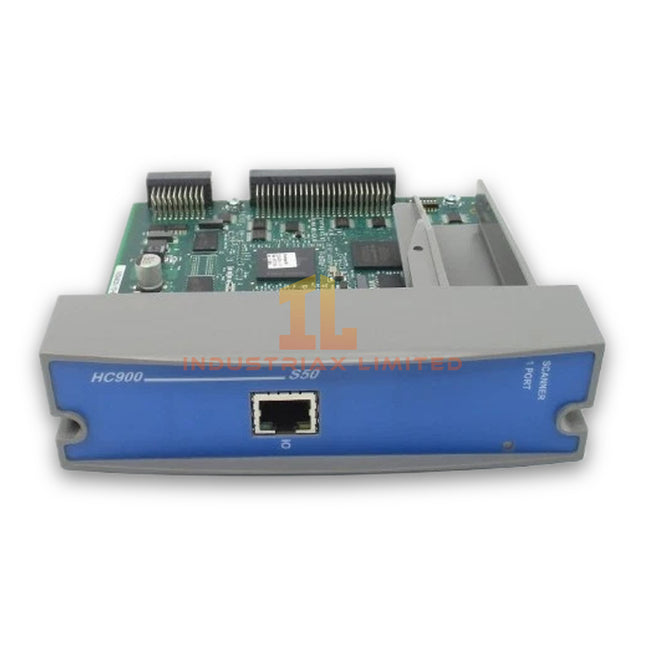

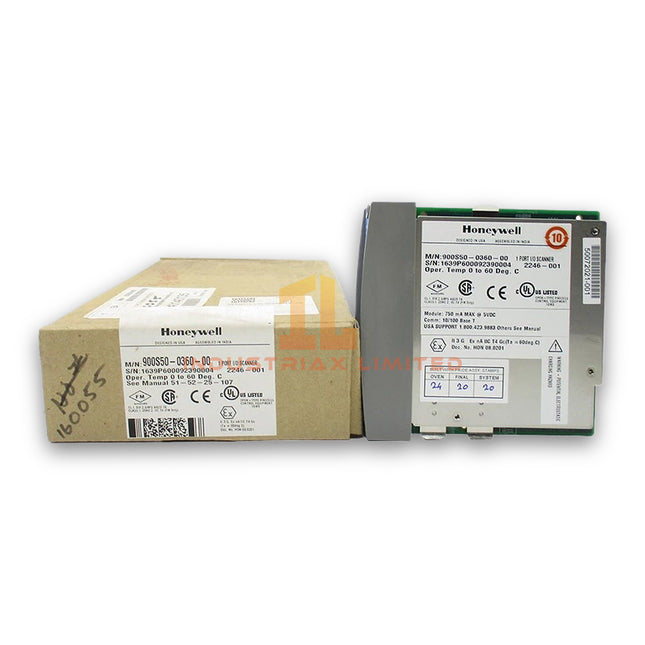

Honeywell Honeywell 900S50-0360-00 Remote I/O Scanner Module
Honeywell 900S50-0360-00 Remote I/O Scanner Module Configured for remote I/O data transfer in the Honeywell ControlEdge HC900 System, the Honeywell 900S50-0360-00 (900S50-0360-00 Remote I/O Scanner Module) provides direct physical communication execution between expansion racks and controller networks. Hardware Specifications Parameter Specification Model 900S50-0360-00 Brand Honeywell Origin USA Module Type Remote I/O Scanner Module System Compatibility Honeywell ControlEdge HC900 Controller System Communication Interface 1 x 10/100 Base-T Ethernet port with RJ45 connector Network Function Remote rack I/O data exchange with HC900 controller Mounting Type Slot-mounted into HC900 I/O rack Hot-Swap Capability Supports Removal and Insertion Under Power (RIUP) Weight Approx. 360 g Dimensions Approx. 137 mm x 38.1 mm Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Relative Humidity 10% to 90% RH, non-condensing Power Consumption 750 mA max @ 5 VDC via rack backplane Status Indicators Front-panel LEDs for power, module status, and Ethernet activity Process Control Communication and Isolation Features The 900S50-0360-00 manages Ethernet-based communication between remote HC900 I/O racks and the controller processing unit. It collects input states from installed I/O modules and transfers output commands back through the rack backplane. Honeywell ControlEdge HC900 architectures commonly integrate field instrumentation communication methods such as 4-20 mA HART loop protocol and FOUNDATION Fieldbus / Profibus PA connectivity through compatible I/O modules. Therefore, the scanner module maintains the data transport path between field-level signal modules and the controller application layer. The module supports distributed I/O expansion by using standard Ethernet communication. In addition, the rack backplane provides local power distribution and internal module communication. The design supports channel isolation requirements when installed with compatible HC900 signal modules. Frequently Asked Questions Q: Does the 900S50-0360-00 operate as a standalone controller module?A: No. The module functions as a remote I/O scanner and requires an HC900 controller system with compatible I/O racks. Q: How does the module exchange data with the main controller?A: The module transfers I/O data through its 10/100 Base-T Ethernet interface while communicating with local I/O modules through the rack backplane. Q: Can the module be replaced while the rack remains powered?A: The module supports Removal and Insertion Under Power (RIUP). Installation procedures should follow Honeywell HC900 maintenance instructions and site electrical safety requirements. Field Installation Guidelines Install the module only in compatible Honeywell ControlEdge HC900 I/O racks. Verify rack power availability and backplane connections before insertion. Connect the Ethernet cable using industrial wiring practices and maintain separation from high-voltage power conductors. Apply proper cable shielding and grounding methods according to the plant electrical standard. Confirm Ethernet link and module status LEDs after installation. Check controller configuration software settings to ensure the remote I/O rack address and communication parameters match the system design.
$200.00 $100.00
-

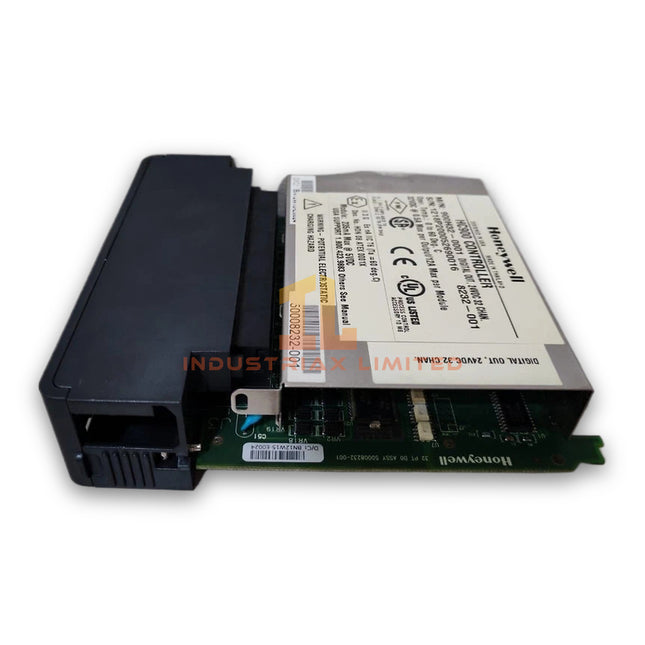

Honeywell Honeywell 900H32-0001 32-Point Digital Output Module
Honeywell 900H32-0001 32-Point Digital Output Module The Honeywell 900H32-0001, also cataloged as the 900H32-0001 32-Point Digital Output Module, operates as a dedicated hardware component for discrete signal switching within the Honeywell HC900 Control System. Hardware Specifications Parameter Specification Model 900H32-0001 Brand Honeywell Origin USA Module Type 32-Point 24 VDC Digital Output Module System Compatibility Honeywell HC900 Control System Output Channels 32 channels (4 groups of 8 points) Output Type Solid-state transistor digital output Operating Voltage Range 10 VDC to 32 VDC Nominal Voltage 24 VDC Maximum Current per Channel 0.5 A per point Maximum Module Current 16 A total Response Time Less than 1 ms ON to OFF and OFF to ON Isolation Voltage 1500 VAC field-to-logic isolation Status Indicators 32 channel LEDs and module status LED Terminal Connection Standard HC900 terminal block required Hot Swap Capability Supported for module removal and insertion under power Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Relative Humidity 10% to 90% RH non-condensing Power Consumption Approximately 4.5 W maximum Process Control Signal Isolation and Output Switching The Honeywell 900H32-0001 uses solid-state output switching circuits to control external field devices through 32 independent digital channels. The module separates field-side circuits from internal controller logic through galvanic isolation, which reduces electrical interference transfer between wiring layers. In addition, the module supports channel-level LED indication for output state verification. Therefore, maintenance personnel can identify channel activation conditions directly at the hardware level without additional diagnostic equipment. For Honeywell process control platforms, the module architecture supports discrete I/O density expansion while maintaining HC900 backplane communication compatibility. The design applies standard industrial isolation methods for connection with valves, relays, contactors, and indicator devices. Frequently Asked Questions Q: Does the Honeywell 900H32-0001 support hot-swap operation? A: Yes. The module supports removal and insertion under power within the HC900 system configuration. Field wiring and terminal block conditions should be checked before replacement operations. Q: What type of field devices can the 900H32-0001 control? A: The module provides transistor digital outputs for devices such as solenoids, relays, contactors, and status indicators that operate within the specified DC voltage and current range. Q: How does the module handle electrical separation between field signals and controller logic? A: The module uses field-to-logic galvanic isolation with a rated isolation voltage of 1500 VAC to separate external circuits from internal HC900 controller electronics. Field Installation Guidelines Install the 900H32-0001 module only in compatible Honeywell HC900 rack assemblies. Verify that field power supply voltage remains within the specified 10 VDC to 32 VDC operating range before connection. Use proper terminal block installation procedures to prevent loose field wiring connections. Route digital output wiring separately from high-current power cables to reduce electrical noise coupling. Connect cable shields according to the plant grounding standard when shielded instrumentation wiring is used. Confirm output polarity and load requirements before energizing connected field devices. Check channel LED indicators after installation to verify correct output operation.
$200.00 $100.00
-

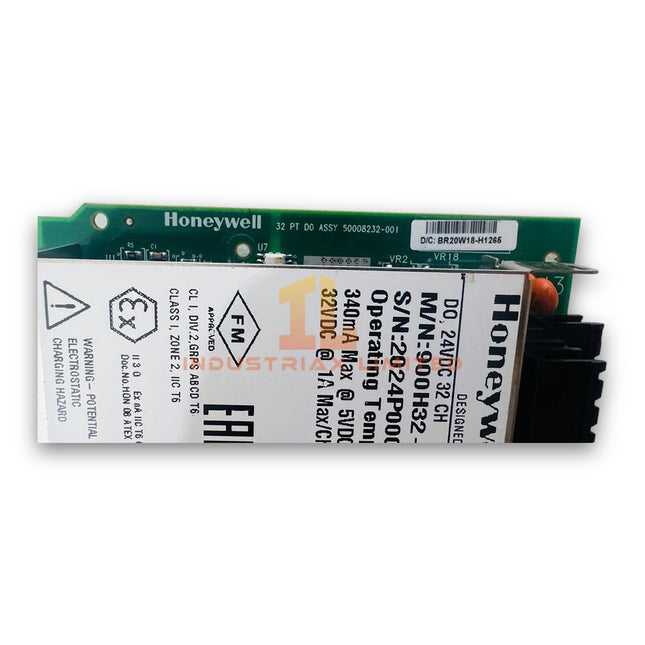

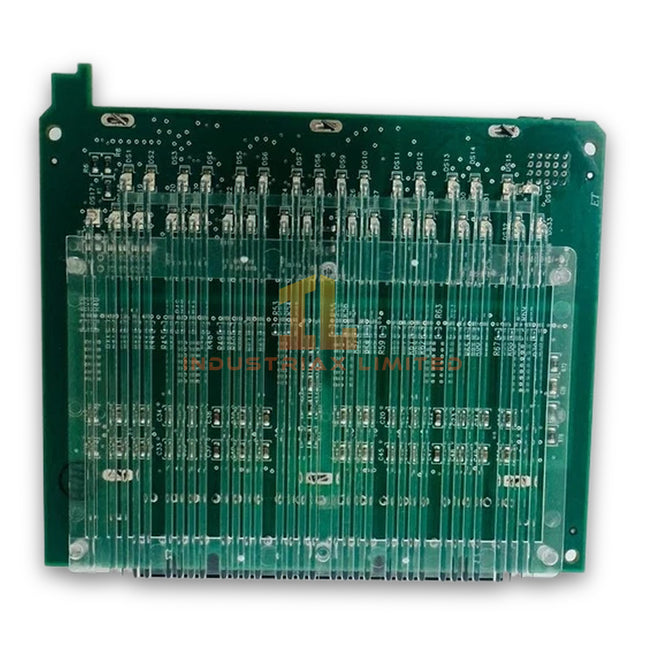

Honeywell Honeywell 900H32-0102 High Density Digital Output Module
Honeywell 900H32-0102 High Density Digital Output Module Configured for 24 VDC solid-state output execution in the Honeywell ControlEdge HC900 Controller system, the Honeywell 900H32-0102 (900H32-0102 High Density Digital Output Module) provides direct electrical switching for 32 discrete field output channels. Hardware Specifications Parameter Specification Model 900H32-0102 Brand Honeywell Origin United States Product Type Digital Output Module System Compatibility Honeywell ControlEdge HC900 Controller Number of Outputs 32 channels Output Type Solid-State Digital Output Operating Voltage 24 VDC nominal, 32 VDC maximum Current Rating 0.5 A maximum per output channel Total Module Load Current 12 A maximum per module Output Protection Per-channel overcurrent and short circuit protection Internal Bus Power Consumption 235 mA maximum @ 5 VDC Weight 230 g Dimensions 137 mm x 35.6 mm Operating Temp 0 deg C to 60 deg C Hazardous Location Certification Class I, Div 2 / Zone 2, ATEX / IECEx Ex nA IIC T6 Gc Hot Swap Support Supported under non-hazardous installation conditions Status Indication Individual channel LED indicators and diagnostic status display Process Control I/O Signal Management The Honeywell 900H32-0102 uses a high-density solid-state switching architecture to control 32 discrete output points from the ControlEdge HC900 backplane. Therefore, the module supports compact cabinet layouts where multiple field actuators require direct 24 VDC switching. The module design includes channel-level current limitation and diagnostic monitoring. In addition, the output circuitry provides channel-to-channel isolation characteristics suitable for distributed process control wiring configurations. For Honeywell process control platforms, digital output modules typically integrate with DCS field interfaces using discrete signal conditioning methods rather than analog loop protocols such as 4-20 mA HART. The 900H32-0102 focuses on binary actuator control, including valve solenoids, relays, alarms, and contactor interfaces. Frequently Asked Questions Q: Does the Honeywell 900H32-0102 support hot-swapping?A: The module supports removal and insertion under power in non-hazardous environments. Field procedures must follow ControlEdge HC900 installation requirements before module replacement. Q: How many field devices can the 900H32-0102 control?A: The module provides 32 independent solid-state digital output channels. Each channel supports up to 0.5 A output current within the specified module load limits. Q: What installation factors should be considered for output wiring?A: Field wiring should maintain separation between power conductors and low-level signal cables. Proper terminal tightening, grounding, and protective device selection should follow site electrical standards. Field Installation Guidelines Install the module only in compatible Honeywell ControlEdge HC900 racks and verify backplane alignment before insertion. Confirm that the field supply voltage matches the 24 VDC output requirements before connecting external loads. Route output wiring separately from high-current motor cables and sources of electromagnetic interference. Connect cable shields according to plant grounding practices to reduce electrical noise coupling. Verify channel addressing and controller configuration before placing field outputs into service. Inspect terminal connections periodically to maintain stable electrical contact during long-term operation.
$200.00 $100.00
-

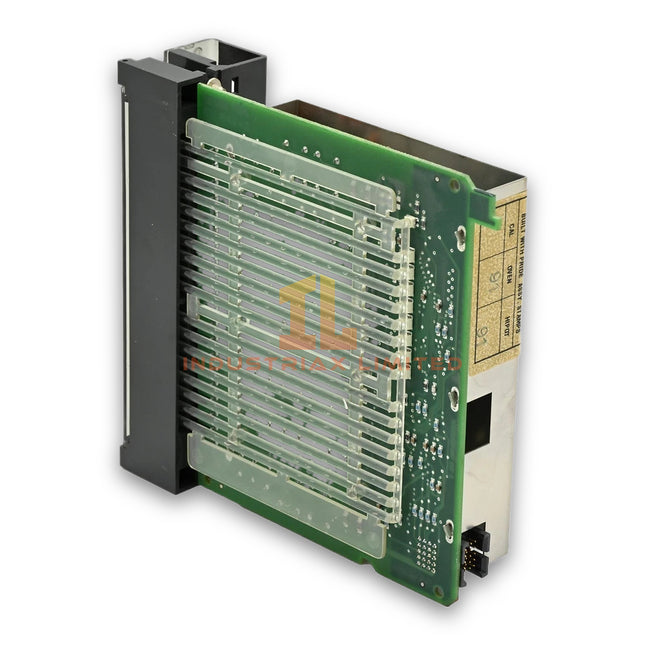

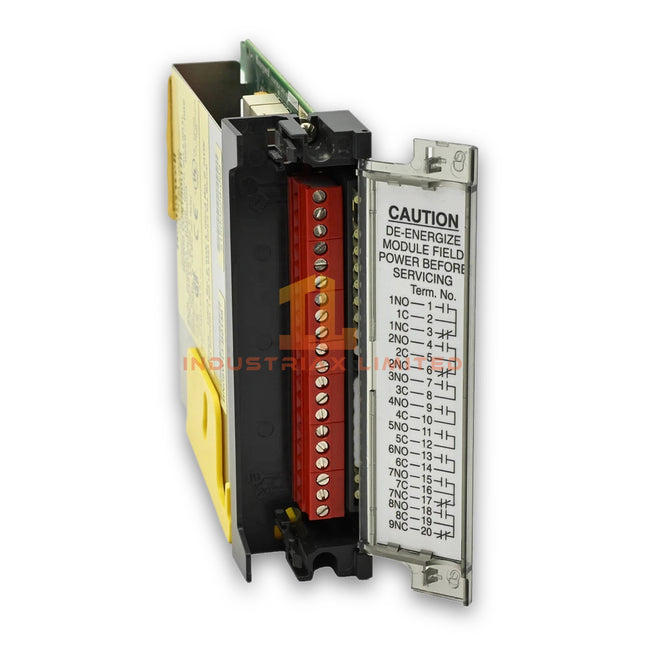

Honeywell Honeywell 900H01-0102 Digital Relay Output Module
Honeywell 900H01-0102 Digital Relay Output Module Configured for discrete relay switching in Honeywell ControlEdge HC900 Controller System platforms, the Honeywell 900H01-0102 (900H01-0102 Digital Relay Output Module) provides direct physical electrical execution for field device control circuits. Hardware Specifications Parameter Specification Model 900H01-0102 Brand Honeywell Origin USA Module Type Digital Relay Output Module System Compatibility Honeywell ControlEdge HC900 Controller System Output Channels 8 relay output channels Relay Configuration 4 Form-A and 4 Form-C electromechanical relays Output Contact Type Dry relay contacts AC Voltage Rating Up to 250 VAC DC Voltage Rating Up to 30 VDC Current Rating Up to 4 A per relay channel Isolation Channel-to-logic and channel-to-channel isolation Hot Swap Support Supported under controller operating conditions Status Indication Individual channel LEDs and module status LED Backplane Current Approximately 140 mA at 5 VDC and 100 mA at 24 VDC Operating Temp 0 deg C to +60 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 5% to 95% non-condensing Dimensions Approximately 137 x 38 x 151 mm Weight Approximately 0.3 kg to 0.4 kg Power Consumption Approximately based on backplane current loading Process Control Relay Interface Characteristics The Honeywell 900H01-0102 integrates relay switching functions with the ControlEdge HC900 I/O architecture. It provides eight isolated relay channels for direct connection to discrete field loads. Additionally, the mixed Form-A and Form-C relay arrangement allows normally open and changeover contact configurations within the same module. The module supports channel-to-channel isolation to reduce electrical interaction between independent field circuits. Furthermore, the relay outputs provide programmable output behavior during controller communication interruptions, including hold-last-state or predefined OFF-state execution. For Honeywell process control applications, the module supports isolated discrete signal handling rather than analog loop communication. Therefore, it operates independently from 4-20 mA HART input processing and FOUNDATION Fieldbus device interfaces used by other HC900 I/O modules. Frequently Asked Questions Q: Does the Honeywell 900H01-0102 support hot-swapping?A: Yes. The module supports removal and insertion under power when installed within a compatible ControlEdge HC900 rack configuration. Follow controller procedures before replacing hardware. Q: How are relay channels isolated on the 900H01-0102?A: The module provides channel-to-logic and channel-to-channel isolation to separate field relay circuits from internal controller electronics. Q: What type of loads can the relay outputs control?A: The relay contacts can switch discrete field devices such as solenoid valves, alarms, contactors, and motor starter control circuits within specified voltage and current limits. Field Installation Guidelines Install the Honeywell 900H01-0102 module only in a compatible ControlEdge HC900 rack slot. Verify rack power status and controller configuration before module insertion. Connect field wiring according to the relay contact arrangement, including Form-A normally open contacts and Form-C changeover contacts. Keep relay output wiring separated from low-level analog signal cables to reduce electrical noise coupling. Terminate cable shields according to the site grounding standard. Use appropriate protective devices when switching inductive loads such as contactors or solenoid valves to limit transient voltage effects. Confirm channel LED status after installation and verify each relay output operation through the controller configuration software before placing the connected field equipment into service.
$200.00 $100.00
-
Honeywell Honeywell 900C72R-0100-43 ControlEdge HC900 Redundant CPU Controller Module
Honeywell 900C72R-0100-43 ControlEdge HC900 Redundant CPU Controller Module Configured for redundant process execution in Honeywell ControlEdge HC900 systems, the Honeywell 900C72R-0100-43 (900C72R-0100 Redundant CPU Controller Module) provides direct control processing, communication handling, and failover management between redundant controller units. Hardware Specifications Parameter Specification Model 900C72R-0100-43 Brand Honeywell Origin USA Product Series ControlEdge HC900 Series Module Type Redundant CPU Controller Module Processor Architecture 32-bit RISC PowerPC processor Memory Battery-backed DDR2 RAM with ECC Redundant Configuration Dual CPU arrangement with RSM based failover management Communication Ports Dual 10/100 Base-T Ethernet ports Serial Communication RS-232 / RS-485 Modbus RTU Diagnostics Watchdog timer, firmware diagnostics, hardware self-test functions Status Indicators Front panel LED indicators for power, status, mode, and redundancy state Operating Temp 0 deg C to +60 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 5% to 95% RH, non-condensing Weight 0.2 kg (estimated) Application Process logic control, sequence control, loop management, and redundant controller operation Process Control Communication and Signal Management The Honeywell 900C72R-0100-43 operates within the ControlEdge HC900 architecture and manages controller execution, I/O data processing, and network communication tasks. It supports industrial communication interfaces including Ethernet host connections and Modbus RTU serial communication. Furthermore, the controller design supports process instrumentation integration where analog and digital field devices communicate through HC900 I/O modules. The system architecture supports functions such as 4-20 mA HART loop protocol communication, FOUNDATION Fieldbus / Profibus PA connectivity through compatible interface modules, and channel-to-channel isolation within supported I/O configurations. The redundant CPU arrangement maintains synchronized execution states between controller modules. Therefore, the system can transfer control authority when a primary CPU module detects an operational fault or maintenance condition. Frequently Asked Questions Q: Does the 900C72R-0100-43 support redundant controller operation?A: Yes. The module supports dual CPU redundant configurations with failover management through the HC900 redundant system architecture. Q: What communication interfaces are available on this controller module?A: The module provides dual 10/100 Base-T Ethernet ports and RS-232 / RS-485 Modbus RTU serial communication interfaces. Q: Can the CPU module be replaced while the system remains operational?A: Hot-swap capability depends on the complete HC900 rack configuration and installed redundancy hardware. Field replacement procedures must follow Honeywell system maintenance documentation. Field Installation Guidelines Install the module in a compatible Honeywell ControlEdge HC900 rack with approved power and backplane connections. Verify the rack power supply capacity before installing redundant CPU modules. Connect Ethernet communication cables using industrial shielding practices and maintain separation from high voltage power wiring. Ground cable shields according to site electrical standards to reduce electromagnetic interference. Confirm CPU firmware compatibility with the controller configuration software before commissioning. Verify redundancy synchronization status through the controller diagnostics interface after installation. Follow Honeywell approved procedures for module replacement, configuration loading, and system validation.
$200.00 $100.00
-

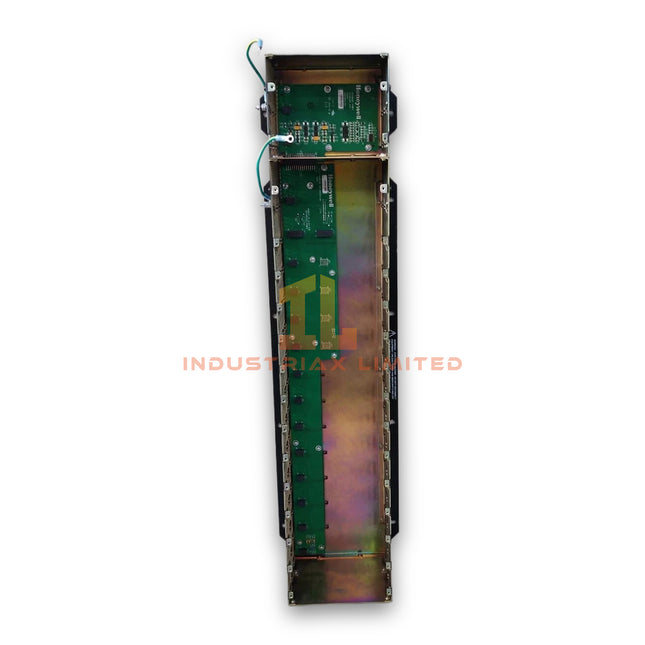

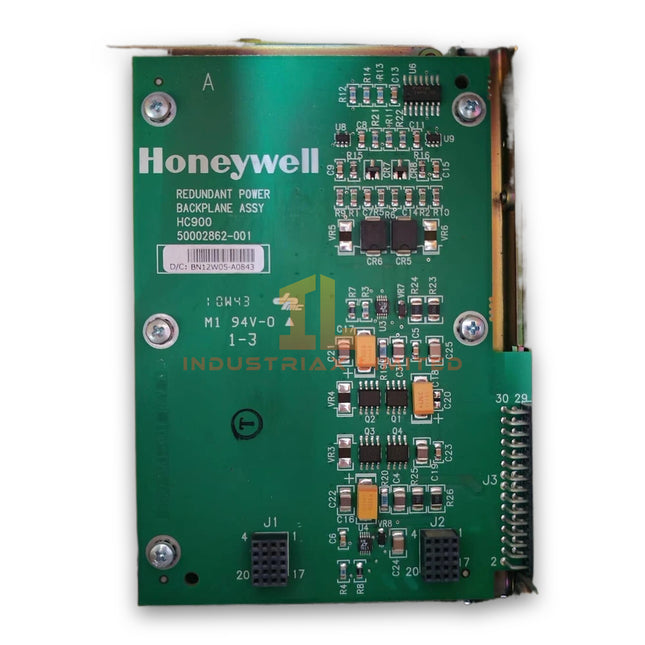

Honeywell Honeywell 900R12R-0101 HC900 Redundant 12-Slot I/O Rack Assembly
Honeywell 900R12R-0101 HC900 Redundant 12-Slot I/O Rack Assembly Configured for redundant I/O module mounting and backplane power distribution in the Honeywell HC900 ControlEdge Hybrid Control System, the Honeywell 900R12R-0101 (900R12R-0101 Redundant I/O Rack Assembly) provides the physical chassis interface for controller, power, and I/O expansion modules. Hardware Specifications Parameter Specification Model 900R12R-0101 (P/N: 50002673-001) Brand Honeywell Origin USA Operating Temp 0 deg C to +60 deg C Power Consumption Backplane power distribution supports 5 VDC @ 6 A and 24 VDC @ 2 A Series / Platform HC900 ControlEdge Hybrid Control System Product Type Redundant 12-Slot I/O Rack Assembly Slot Capacity 12 universal I/O module slots Backplane Configuration Dual redundant power support and redundant I/O bus Module Support Hot-swappable I/O module installation Mounting Type Panel mount or DIN rail mount Relative Humidity 5% to 95% RH, non-condensing Storage Temperature -40 deg C to +70 deg C Certifications Class I, Div 2, Groups A-D (T6), Zone 2 IIC T6, CE marked Enclosure Color Red industrial housing Process Control I/O Rack Architecture The 900R12R-0101 provides the mechanical and electrical platform for HC900 I/O expansion modules. It distributes backplane power and maintains communication paths between installed modules and the controller system. The rack supports redundant configurations where continuous module operation requires dual power paths and redundant I/O bus operation. For Honeywell process control architectures, the rack design supports field signal integration with modules using industrial communication standards. Channel-to-channel isolation remains dependent on the installed I/O module type, while signal interface functions such as 4-20 mA HART loop protocol, FOUNDATION Fieldbus, or Profibus PA connectivity are provided by compatible modules rather than the rack assembly itself. Frequently Asked Questions Q: Does the Honeywell 900R12R-0101 support hot-swapping of I/O modules?A: Yes. The rack supports hot-swappable I/O modules when installed modules and system configuration meet HC900 operational requirements. Q: What backplane power ratings does the 900R12R-0101 support?A: The rack supports redundant backplane power distribution with 5 VDC @ 6 A and 24 VDC @ 2 A supply capability. Q: Can the rack operate as a standalone controller chassis?A: No. The 900R12R-0101 functions as an I/O rack assembly and requires compatible HC900 controller hardware and I/O modules for operation. Field Installation Guidelines Install the 900R12R-0101 on a mechanically stable panel or approved DIN rail mounting structure. Verify that the rack position allows sufficient clearance for module insertion, wiring access, and maintenance activities. Connect protective grounding according to industrial control panel standards. Maintain proper separation between power wiring, communication cables, and field signal wiring to reduce electrical interference. Before installing I/O modules, confirm module compatibility with the HC900 ControlEdge system configuration. Check that redundant power connections, backplane interfaces, and module locking mechanisms are correctly engaged. Avoid installing the rack in locations with excessive vibration, conductive dust, or moisture exposure beyond the specified environmental limits. Use approved industrial wiring practices for all field connections associated with installed I/O modules.
$200.00 $100.00
-

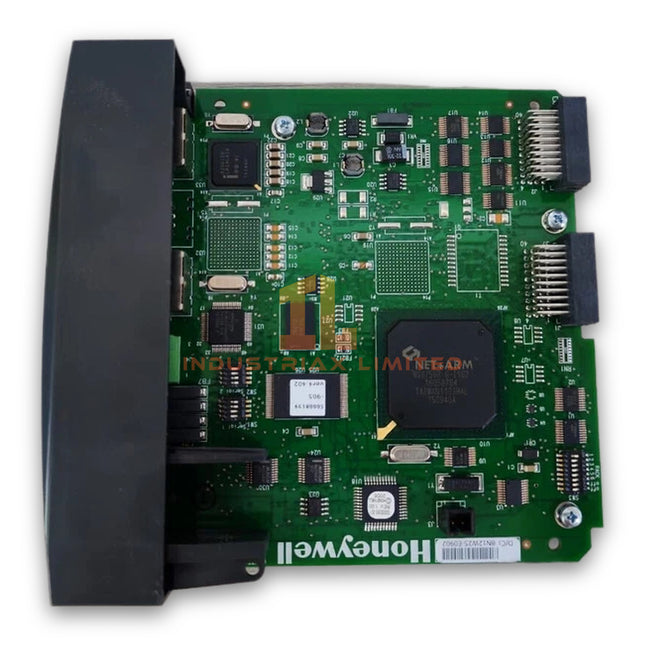

Honeywell Honeywell 900C73R-0100-44 Redundant I/O Scanner Module
Honeywell 900C73R-0100-44 Redundant I/O Scanner Module The Honeywell 900C73R-0100-44, also cataloged as the 900C73R-0100-44 Redundant I/O Scanner Module, operates as a dedicated hardware component for real-time remote I/O data scanning within the Honeywell ControlEdge HC900 controller network. Hardware Specifications Parameter Specification Model 900C73R-0100-44 Brand Honeywell Origin USA Weight Approx. 0.4 kg - 0.5 kg Dimensions Approx. 3.8 cm x 14.0 cm x 14.7 cm Operating Temp 0 deg C to 60 deg C Power Consumption 5 VDC backplane power supply Product Line ControlEdge HC900 Series Module Type Redundant I/O Scanner Module Communication Interface Dual Ethernet ports, 10/100 Mbps Network Topology Supports star and ring I/O network configurations Installation Method Rack-mounted module with hot-swappable capability Relative Humidity 5% to 95% non-condensing Storage Temperature -40 deg C to 85 deg C Honeywell Process Control Communication Features The 900C73R-0100-44 manages communication between the HC900 controller and distributed I/O racks through Ethernet-based data exchange. It performs cyclic I/O scanning, diagnostic monitoring, and communication error handling within the controller architecture. In addition, the module supports redundant network configurations to maintain controller-to-I/O communication during a primary communication path failure. The dual Ethernet interface allows flexible network wiring, including ring-based architectures for distributed process applications. The module operates within Honeywell process control environments where channel-to-channel signal separation and structured I/O communication management are required. It supports system integration with analog and digital I/O modules connected through the HC900 platform. Frequently Asked Questions Q: Does the Honeywell 900C73R-0100-44 support hot-swapping during system operation?A: The module supports removal and insertion under power when the HC900 system configuration and installation procedures permit RIUP operation. Verify controller firmware and rack configuration before replacement. Q: What communication interface does the 900C73R-0100-44 use for remote I/O scanning?A: The module uses dual Ethernet communication ports for remote I/O network connections and supports 10/100 Mbps data transmission. Q: How does the redundant configuration affect system operation?A: The redundant architecture allows the system to maintain I/O communication availability by transferring operation to the available communication path when a configured fault condition occurs. Field Installation Guidelines Install the module in the designated HC900 rack position according to the controller hardware configuration manual. Verify that the backplane connector is clean and correctly aligned before insertion. Connect Ethernet communication cables using industrial grounding and shielding practices. Separate communication cables from high-voltage power wiring to reduce electromagnetic interference. Ground cable shields according to plant electrical standards and avoid multiple uncontrolled grounding points. Confirm network addressing, controller configuration, and firmware compatibility before commissioning. Inspect module diagnostic indicators after installation to verify communication status and fault conditions.
$200.00 $100.00
-

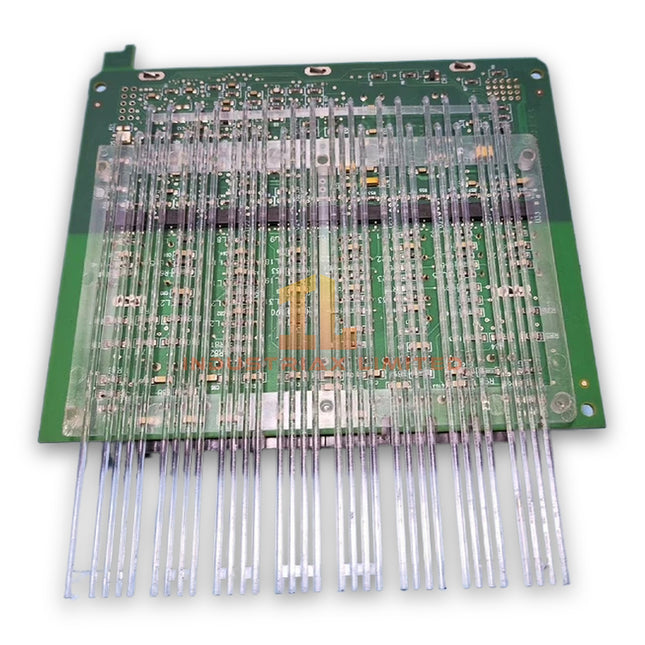

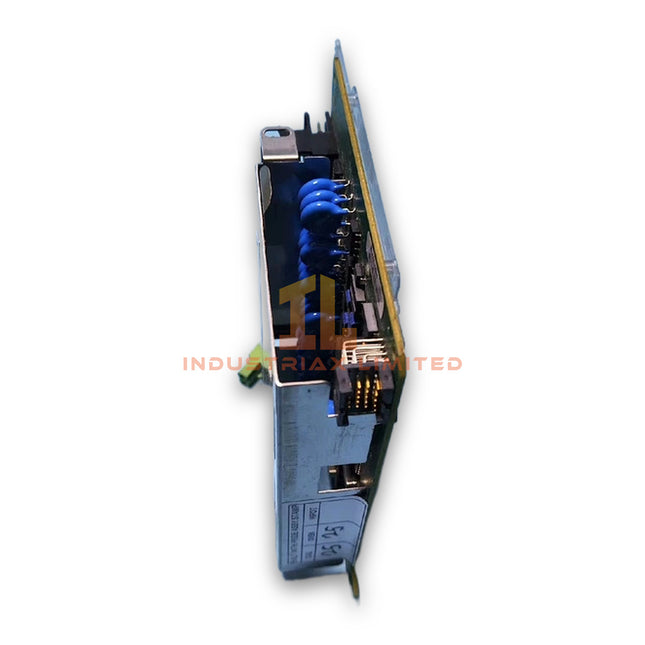

Honeywell Honeywell 900A16-0101 HC900 High-Level Analog Input Module
Honeywell 900A16-0101 HC900 High-Level Analog Input Module Configured for high-level analog signal acquisition in Honeywell HC900 / ControlEdge 900 systems, the Honeywell 900A16-0101 (900A16-0101 High-Level Analog Input Module) provides direct physical signal conversion for voltage and current field inputs. Hardware Specifications Parameter Specification Model 900A16-0101 Brand Honeywell Product Type High-Level Analog Input Module Series HC900 / ControlEdge 900 Input Channels 16 isolated analog input channels Input Signal Types Configurable voltage and current inputs Input Ranges 0-10 V, +/- 10 V, 0-20 mA, 4-20 mA A/D Resolution 15 bit Accuracy Factory calibrated: +/- 0.1% of range; Field calibrated: +/- 0.05% of range Update Rate 100 ms parallel module update Input Impedance Greater than 1 Mohm for voltage input; 250 ohm for current input with shunt resistor Channel Isolation Up to 400 VDC channel-to-channel isolation Logic Isolation Up to 1000 VDC channel-to-backplane isolation Backplane Power Consumption 5 VDC, 75 mA max External Supply Consumption 24 VDC, 50 mA max Noise Rejection CMRR greater than 90 dB at 120 VAC; SMRR greater than 31 dB Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Relative Humidity 10% to 90% non-condensing Estimated Shipping Size 13.3 x 3 x 14.5 cm Weight 0.2 kg Honeywell Process Signal Interface Characteristics The 900A16-0101 module processes standard process instrumentation signals through configurable analog input channels. Each channel accepts voltage or current inputs independently, which allows mixed signal measurement within the same module. The module supports 4-20 mA HART loop protocol applications when used with compatible external transmitters and system configurations. Additionally, the channel-to-channel isolation structure separates field circuits and reduces signal interaction during multi-point analog measurement. The integrated 250 ohm current shunt resistor can be enabled through onboard DIP switch settings. Therefore, external precision resistors are not required for standard current loop measurement configurations. Frequently Asked Questions Q: Does the Honeywell 900A16-0101 support mixed analog input types on one module?A: Yes. Each of the 16 input channels can be configured independently for voltage or current signal measurement. Q: Does the module provide electrical isolation between input channels?A: Yes. The module provides galvanic isolation between individual channels and between field input circuits and the HC900 backplane. Q: What power supply interface does the 900A16-0101 use?A: The module receives backplane power from the HC900 system and requires 5 VDC backplane power with an additional 24 VDC supply connection. Field Installation Guidelines Install the 900A16-0101 module in the designated HC900 / ControlEdge 900 rack position according to the controller hardware configuration manual. Connect analog field wiring using shielded instrumentation cable where required. Ground cable shields at the recommended single grounding point to reduce electromagnetic interference. Separate analog signal wiring from high-voltage power cables and switching circuits. Verify polarity, signal range configuration, and channel settings before applying field power. Check module LED status indicators after installation. Confirm normal module operation through the controller configuration software before placing the analog channels into process service.
$200.00 $100.00
-

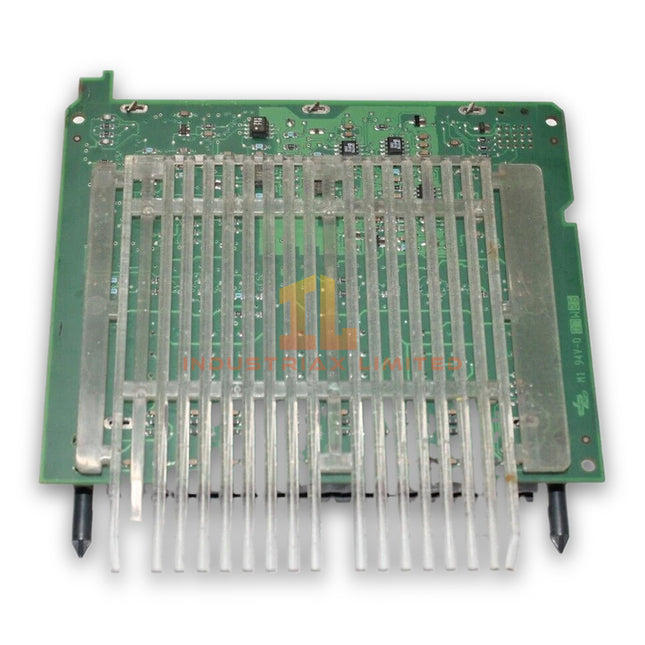

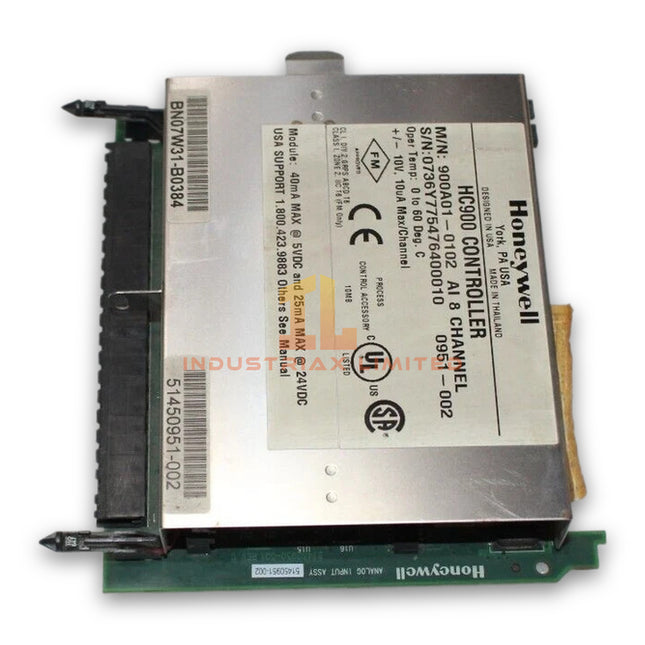

Honeywell Honeywell 900A01-0102 Universal Analog Input Module
Honeywell 900A01-0102 Universal Analog Input Module Configured for universal analog signal acquisition in the Honeywell HC900 / ControlEdge HC900 system, the Honeywell 900A01-0102 (900A01-0102 Universal Analog Input Module) provides direct physical and electrical processing of field temperature, voltage, current, and resistance signals. Hardware Specifications Parameter Specification Model 900A01-0102 Brand Honeywell Origin USA Module Type Universal Analog Input Module System Compatibility Honeywell HC900 / ControlEdge HC900 Process Controller Input Channels 8 universal analog input channels Supported Signals Thermocouple, RTD, voltage, millivolt, current, resistance, slidewire Current Input Range 4-20 mA DC with signal conditioning support Voltage Input Range 0-10 VDC, 0-5 VDC, 1-5 VDC, +/-10 VDC, millivolt ranges RTD Support Pt100, Pt200, Pt500, Pt1000, Ni120, Cu10 and related sensor types Thermocouple Support Types B, E, J, K, N, R, S, T and other supported thermocouple inputs Isolation Channel-to-channel isolation and backplane isolation Conversion Method Digital conversion synchronized with controller execution Diagnostics Channel status monitoring, sensor fault indication, configuration diagnostics Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 70 deg C Operating Humidity 10% to 90% RH, non-condensing Dimensions Approx. 137 mm H x 35.6 mm W x 152 mm D Weight Approx. 0.2 kg Estimated Shipping Size 13.2 x 14.2 x 3.2 cm Power Consumption Supplied from HC900 controller rack backplane Process Signal Conditioning and Isolation Characteristics The Honeywell 900A01-0102 processes multiple field signal types through configurable input channels. Each channel supports independent engineering configuration for sensor selection, scaling, and alarm handling. The module applies channel-to-channel isolation to reduce signal interference between field devices. In addition, the input design supports cold junction compensation (CJC) for thermocouple measurements and maintains measurement accuracy during temperature changes at the terminal connection point. For process instrumentation loops, the module can interface with 4-20 mA HART signal sources through suitable external signal conditioning arrangements. It also supports integration with FOUNDATION Fieldbus and Profibus PA based field architectures when used with compatible Honeywell system interfaces. Frequently Asked Questions Q: Can the 900A01-0102 accept different input types on separate channels?A: Yes. Each of the 8 channels can be configured independently for supported thermocouple, RTD, voltage, current, resistance, or millivolt input types. Q: Does the 900A01-0102 provide electrical isolation between input channels?A: Yes. The module provides channel-to-channel isolation and backplane isolation to limit interference between field signals and controller electronics. Q: Does the module support hot-swap replacement?A: The module replacement procedure depends on the HC900 rack configuration and system operating conditions. Field replacement should follow the applicable Honeywell hardware installation procedure. Field Installation Guidelines Install the module in the designated Honeywell HC900 controller rack position. Verify rack power isolation before removing or inserting the module. Connect field wiring according to the configured input type and terminal assignment. Use shielded cables for low-level analog signals such as thermocouple and millivolt inputs. Connect cable shields according to the plant grounding standard to reduce electrical noise. Separate analog signal wiring from high-current power cables and switching circuits. Confirm channel configuration parameters before placing the controller into normal operation. Check diagnostic indicators after installation to verify module status and field signal integrity.
$200.00 $100.00
-

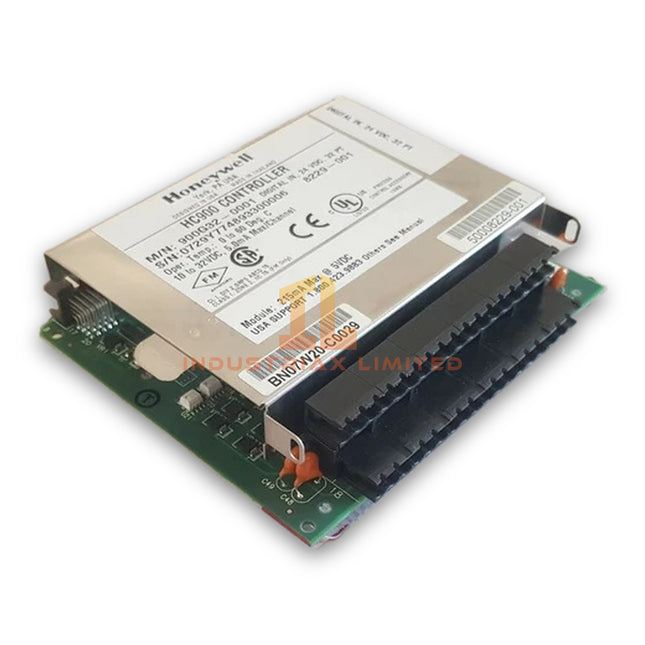

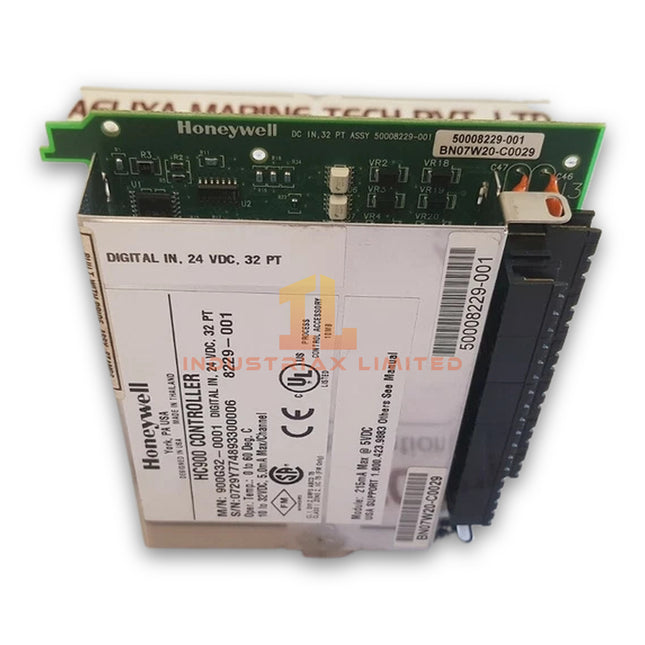

Honeywell Honeywell 900G32-0001 HC900 Digital Input Module
Honeywell 900G32-0001 HC900 Digital Input Module Configured for 24 VDC discrete signal acquisition in the Honeywell HC900 Controller platform, the Honeywell 900G32-0001 (900G32-0001 Digital Input Module) provides direct physical signal processing for 32 digital input channels. Hardware Specifications Parameter Specification Model 900G32-0001 Brand Honeywell Product Type Digital Input Module Series HC900 Controller Origin USA Weight 0.18 kg Dimensions 13.5 x 15.2 x 3 cm Input Type Digital Input Number of Channels 32 Channels Input Voltage 24 VDC Shipping Status Discontinued by manufacturer Process Control Signal Interface Characteristics The Honeywell 900G32-0001 provides 32-channel digital input acquisition for HC900 controller configurations. The module receives 24 VDC discrete field signals and transfers input status data through the controller backplane interface. Furthermore, Honeywell HC900 I/O modules support structured process control architectures where digital and analog field devices connect through distributed I/O assemblies. The 900G32-0001 focuses on discrete signal detection and channel-level input processing rather than analog measurement functions. For process instrumentation interfaces, Honeywell controller platforms may integrate communication protocols such as 4-20 mA HART, FOUNDATION Fieldbus, and Profibus PA through dedicated interface modules. However, the 900G32-0001 itself operates as a digital input hardware module and does not provide direct analog protocol conversion. Frequently Asked Questions Q: What type of field signals does the Honeywell 900G32-0001 accept?A: The module accepts 24 VDC digital input signals and processes discrete ON/OFF field states through 32 input channels. Q: Is the 900G32-0001 an analog input module?A: No. The 900G32-0001 is a digital input module designed for discrete signal acquisition within the HC900 controller system. Q: Can the module operate independently without an HC900 controller rack?A: No. The module requires installation within the compatible HC900 controller hardware structure and communicates through the system backplane. Field Installation Guidelines Install the 900G32-0001 only in compatible Honeywell HC900 controller racks and verify slot configuration before power application. Connect field wiring according to the approved HC900 installation documentation and maintain correct 24 VDC polarity. Separate digital input wiring from high-voltage power cables to reduce electrical interference. Use proper shield termination practices for field devices when shielded cables are applied. Verify terminal assignments, grounding conditions, and input status indication after installation. Confirm controller firmware and hardware compatibility before replacing an existing I/O module.
$200.00 $100.00
-

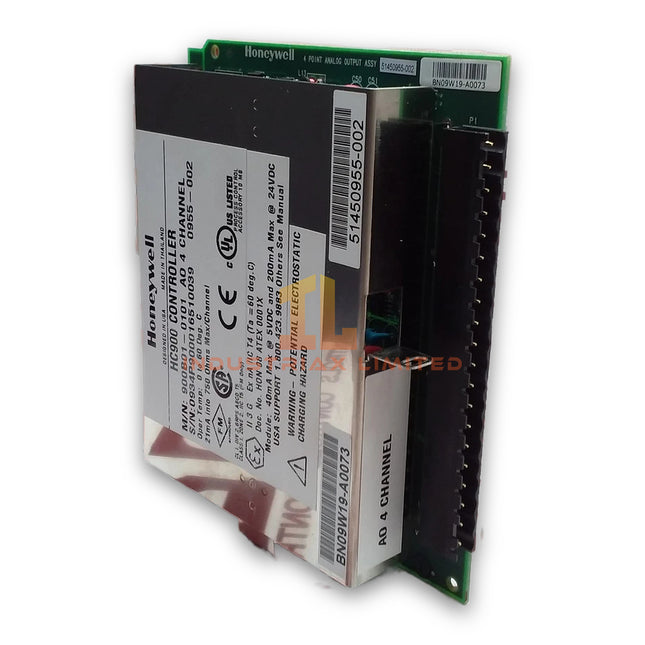

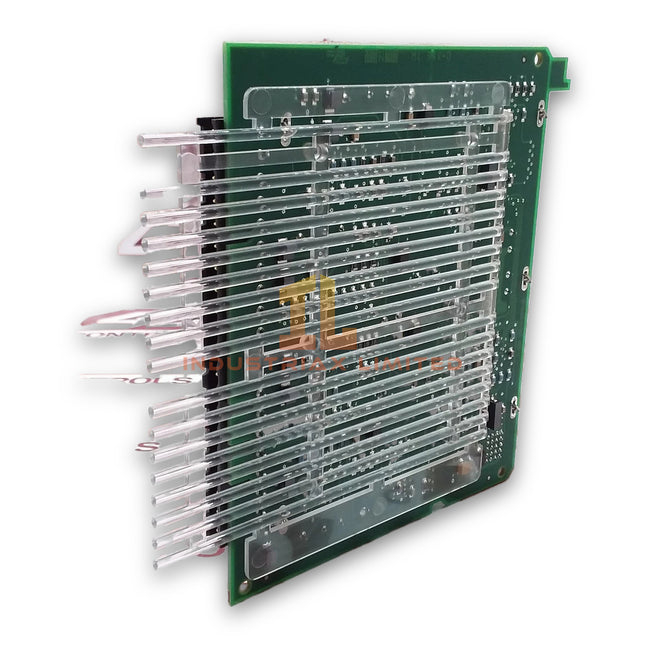

Honeywell Honeywell 900B01-0101 HC900 Analog Output Module
Honeywell 900B01-0101 HC900 Analog Output Module Configured for analog current signal generation in the Honeywell HC900 Control System, the Honeywell 900B01-0101 (900B01-0101 Analog Output Module) provides direct electrical output execution for 0-21 mA field devices. Hardware Specifications Parameter Specification Model 900B01-0101 Brand Honeywell Product Type Analog Output Module Series HC900 Origin USA Weight 0.22 kg Dimensions 13.3 x 14.1 x 3.2 cm Operating Temp 0 to 60 deg C Power Consumption 5 VDC supply Output Type Analog current output Output Range 0-21 mA Load Resistance 750 Ohm System Platform Honeywell HC900 Controller System Status Discontinued by manufacturer Process Control Signal Interface The Honeywell 900B01-0101 provides analog output conversion between HC900 controller logic and external field devices. The module generates current signals for proportional control applications, including valve positioners, actuators, and analog control inputs. In addition, the module supports a 0-21 mA output range with a 750 Ohm load capability. The 5 VDC backplane supply powers the module electronics and allows integration within the HC900 rack architecture. Frequently Asked Questions Q: What signal type does the Honeywell 900B01-0101 provide?A: The module provides analog current output signals with a 0-21 mA range for connection to external field control devices. Q: What load resistance does the 900B01-0101 support?A: The module supports a maximum load resistance of 750 Ohm according to the available technical specifications. Q: Can the 900B01-0101 operate as a standalone device?A: No. The module requires installation within a Honeywell HC900 controller rack and receives power and communication through the system backplane. Field Installation Guidelines Install the 900B01-0101 module in the designated HC900 rack slot according to the controller hardware configuration. Verify that the rack power is removed before module insertion or removal. Connect field wiring using appropriate industrial wiring practices. Keep analog signal cables separated from high-voltage power conductors to reduce electrical interference. Apply proper shield grounding methods based on the field instrument and control cabinet grounding design. Confirm output channel wiring polarity before energizing the system. After installation, check controller diagnostics and verify analog output values against the configured engineering range.
$200.00 $100.00
-

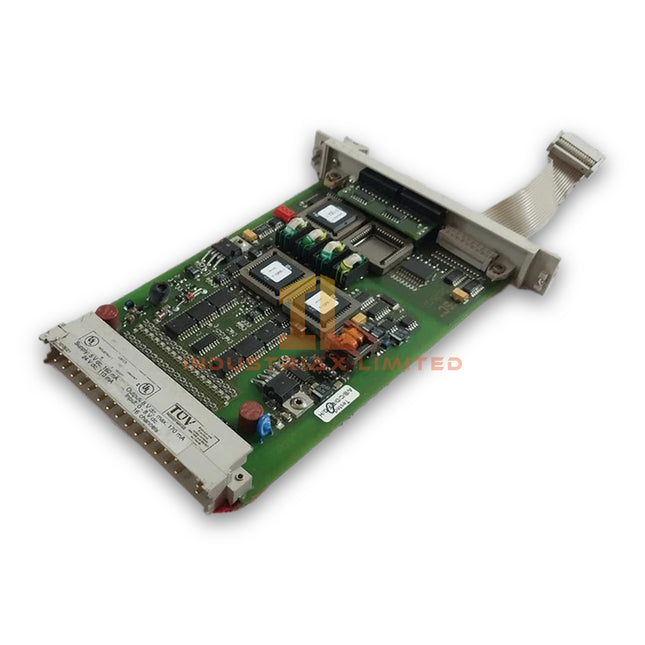

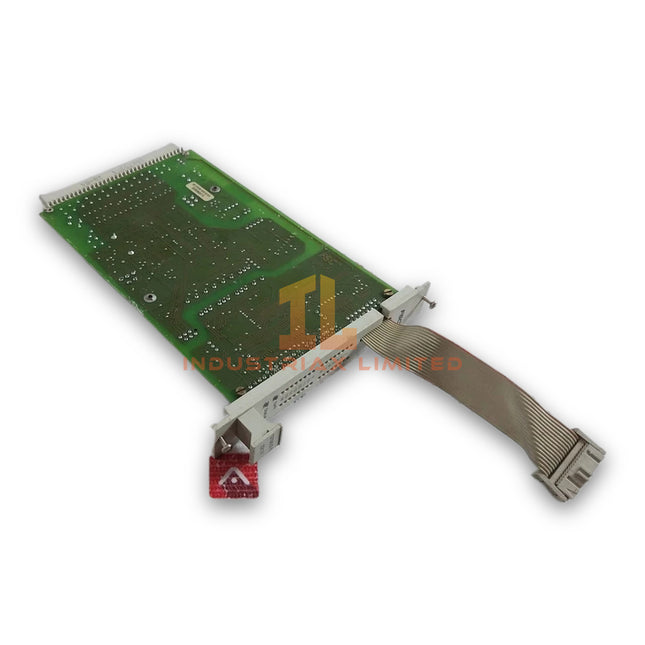

Honeywell Honeywell 10106/2/1 Digital Input Module
Honeywell 10106/2/1 Digital Input Module The Honeywell 10106/2/1, also cataloged as the 10106/2/1 Digital Input Module, operates as a dedicated hardware component for fail-safe discrete signal acquisition within Honeywell FSC safety control system platforms. Hardware Specifications Parameter Specification Model 10106/2/1 Brand Honeywell Product Type Digital Input Module Origin USA Weight 0.12 kg Dimensions 2 x 18.8 x 12.7 cm estimated shipping size Operating Temp Not specified Power Consumption 5 VDC 160 mA; 24 VDC 110 mA Safety Class AK1-6 Approvals CE, UL, TÜV, FM Software Version Compatibility >= 510 Space Requirement 4 TE, 3 HE (= 4 HP, 3U) Number of Input Channels 16 Input Type NAMUR interface according to DIN 19234 Switch Level 1.4 to 1.9 mA Hysteresis 0.2 mA +/- 0.05 mA Field Wire Resistance Maximum 50 Ohm Output Voltage 7.9 to 8.7 V Output Current 170 mA Supply Voltage 24 VDC Process Signal Interface and Channel Isolation The Honeywell 10106/2/1 Digital Input Module processes 16 discrete input channels using NAMUR signal characteristics according to DIN 19234. Therefore, the module measures current-based switching states from field devices and transfers validated input conditions to the safety controller. The module operates with 24 VDC field supply requirements and provides defined switching thresholds from 1.4 to 1.9 mA. In addition, the input circuitry applies hysteresis control at 0.2 mA +/- 0.05 mA to reduce unstable transitions caused by field signal variations. For Honeywell safety control architectures, the digital input design supports channel-to-channel signal separation and controlled field interface behavior. Furthermore, NAMUR-compatible input processing allows connection with intrinsically safe switching devices through suitable interface components. Frequently Asked Questions Q: How many field input channels does the Honeywell 10106/2/1 provide?A: The module provides 16 digital input channels for NAMUR-type discrete field signals. Q: Which input standard does the 10106/2/1 support?A: The module supports NAMUR input signals according to DIN 19234 with a switching level of 1.4 to 1.9 mA. Q: What power supply values are required for this module?A: The module requires 5 VDC 160 mA and 24 VDC 110 mA power supplies for operation. Field Installation Guidelines Install the Honeywell 10106/2/1 module inside the designated FSC system rack position according to the hardware configuration manual. Verify that the backplane connection is fully seated before applying system power. Use suitable field wiring practices for NAMUR signal loops, including proper cable routing separation from high-voltage conductors and electromagnetic interference sources. Connect field signal wiring with appropriate shielding and grounding methods according to site electrical standards. Check input polarity, loop continuity, and field device switching behavior before commissioning. Confirm the installed software version compatibility before replacing or integrating the module into an existing safety control system.
$200.00 $100.00
-
Honeywell Honeywell 10315/1/1 Field Termination Assembly Base Interface Board
Honeywell 10315/1/1 Field Termination Assembly Base Interface Board The Honeywell 10315/1/1, also cataloged as the 10315/1/1 Field Termination Assembly Base Interface Board, operates as a dedicated hardware component for discrete field signal termination and routing within Honeywell Fail Safe Control (FSC) and Safety Manager systems. Hardware Specifications Parameter Specification Model Honeywell 10315/1/1 (suffix variation /19) Brand Honeywell Module Type Field Termination Assembly (FTA) / Base Interface Board System Compatibility Honeywell Fail Safe Control (FSC) and Safety Manager platforms Signal Type Discrete input / dry contact field signal interface Channel Capacity Multi-channel discrete interface, typically 16-channel configuration Operating Voltage 24 VDC nominal field circuit supply Isolation Galvanic isolation between field wiring and internal system circuits Mounting Type DIN-rail or panel mounting within FSC rack assembly Terminal Connection Screw-type or pluggable field wiring terminals Operating Temp -20 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 5% to 95%, non-condensing Power Consumption Not specified; supplied through connected FSC system interface Honeywell FSC Field Signal Termination and Isolation The Honeywell 10315/1/1 provides direct electrical termination between discrete field devices and FSC safety processing modules. The board routes dry contact signals, status inputs, and discrete field circuits through defined termination points while maintaining channel-to-channel isolation. In addition, the module supports Honeywell safety system architectures where signal integrity depends on controlled field wiring, electrical separation, and diagnostic compatibility. The design follows FSC interface requirements for fail-safe state execution and safety loop monitoring. Frequently Asked Questions Q: What type of field signals does the Honeywell 10315/1/1 support?A: The 10315/1/1 supports discrete field signal termination, including dry contact inputs and status switch connections used by Honeywell FSC and Safety Manager systems. Q: Does the 10315/1/1 provide electrical isolation?A: Yes. The assembly provides galvanic isolation between field wiring interfaces and internal control system circuits to reduce interference and maintain signal separation. Q: Can the module be replaced while the safety system remains powered?A: Hot-swap capability depends on the specific FSC rack configuration and system operating procedures. Field replacement should follow Honeywell approved maintenance instructions. Field Installation Guidelines Install the 10315/1/1 within the specified Honeywell FSC rack or approved panel assembly location. Verify terminal identification before connecting field wiring to prevent incorrect channel assignment. Route field signal cables separately from high-voltage power conductors to reduce electromagnetic interference. Connect cable shields according to the plant grounding standard and avoid multiple-point shield grounding unless required by the system design. Inspect terminal tightening, connector seating, and PCB condition before system commissioning. Confirm field loop continuity and insulation conditions before applying system power.
$200.00 $100.00
-
Honeywell Honeywell 16159/1/1 Digital Input Module
Honeywell 16159/1/1 Digital Input Module The Honeywell 16159/1/1, also cataloged as the 16159/1/1 Digital Input Module, operates as a dedicated hardware component for acquiring isolated field contact signals within Honeywell Fail Safe Controller (FSC) systems. Hardware Specifications Parameter Specification Model 16159/1/1 Brand Honeywell Origin USA Module Type Digital Input Module Input Function Isolated digital signal acquisition Number of Channels 16 isolated digital inputs Input Voltage Rating 24 VDC / 240 VAC dependent on configuration Input Current 20 mA Input Impedance 100 kOhm Isolation Voltage 3000 VDC Communication Protocol System integrated communication interface Communication Speed 9600 bps Mounting Type Rack mount / DIN rail mounting Dimensions Approx. 2.0 cm x 12.7 cm x 19.1 cm Weight Approx. 0.11 kg to 0.20 kg Process Control Signal Isolation and Interface Characteristics The Honeywell 16159/1/1 Digital Input Module provides electrical separation between field devices and the FSC processing layer. It accepts discrete signals from switches, relay contacts, and sensor outputs, then transfers the acquired states to the controller logic. Furthermore, the module design supports channel-to-channel isolation to reduce interference between independent field circuits. The isolated input structure improves signal integrity when connected to distributed field wiring systems. The module follows Honeywell process control hardware practices and supports integration with safety-related input monitoring architectures. However, specific HART, FOUNDATION Fieldbus, or Profibus PA functions are not applicable because this module performs discrete input acquisition rather than analog transmitter communication. Frequently Asked Questions Q: Does the Honeywell 16159/1/1 support hot-swap replacement during system operation?A: Hot-swap capability depends on the installed FSC rack configuration and system hardware revision. Verify the approved replacement procedure before removing the module from an active rack. Q: What type of field signals can connect to the 16159/1/1 inputs?A: The module accepts discrete field signals from contact devices and digital switching sources within the specified voltage range. Q: How should field wiring be installed to reduce signal interference?A: Install field cables according to site wiring standards, separate signal cables from high-power conductors, and apply appropriate grounding practices for shielded cables. Field Installation Guidelines Install the module in the designated Honeywell FSC rack or approved mounting location. Confirm the module part number before installation to maintain hardware compatibility. Connect field input wiring according to the approved terminal assignment documentation. Separate digital input cables from high-voltage power wiring to minimize electrical noise coupling. Ground cable shields according to the site instrumentation grounding specification. Verify input channel status after installation through the FSC diagnostic interface. Perform functional testing of connected field devices before placing the control loop into service.
$200.00 $100.00
-
Honeywell Honeywell 10206/2/1 Digital Output Module
Honeywell 10206/2/1 Digital Output Module The Honeywell 10206/2/1, also cataloged as the 10206/2/1 Digital Output Module, operates as a dedicated hardware component for 24 VDC discrete actuator control within Honeywell FSC Safety Control System platforms. Hardware Specifications Parameter Specification Model 10206/2/1 Brand Honeywell Origin United States Product Type Digital Output Module System Family Honeywell FSC Safety Control System Output Type 24 VDC solid-state source output Number of Output Channels 12 channels Output Configuration Two groups of six channels Maximum Channel Current 550 mA per channel Maximum Load Power 13 W per output channel Maximum Lamp Load 275 mA, 6.6 W Output Protection Short-circuit protected solid-state output Inductive Load Protection Integrated suppression diode Maximum Load Capacitance 1 F Voltage Drop Less than 1.5 VDC at 500 mA Off Current Less than 0.1 mA Watchdog Input Current 0.06 mA Internal Supply Voltage 5 VDC Internal Power Consumption 25 mA at 5 VDC External Supply Voltage 24 VDC External Supply Current 230 mA without output load Rack Space Requirement 4 TE, 3 HE (4 HP, 3U) Approvals CE, TÜV, UL Software Compatibility Version 3.00 Module Coding Holes A9, C13 Rack Coding Large pins A9, C13 Channel Isolation and Process Output Control The Honeywell 10206/2/1 provides twelve solid-state digital output channels for discrete field device operation. Each channel switches a 24 VDC supply source and supports resistive and inductive loads. Additionally, the module divides outputs into two six-channel groups, which allows separate external supply connections for field power distribution. The output circuitry integrates short-circuit protection and suppression components. Therefore, the module reduces switching disturbances when controlling inductive devices such as solenoid valves and relay coils. The FSC watchdog function monitors system operation and forces output deactivation when the controller enters a shutdown condition. Frequently Asked Questions Q: Does the Honeywell 10206/2/1 provide fail-safe tested outputs?A: No. The module provides standard solid-state digital outputs and does not implement tested fail-safe output functions. Q: How does the module handle inductive field loads?A: The module integrates suppression diodes to reduce voltage disturbances generated by inductive loads during switching operations. Q: How are the output channels arranged for external power connection?A: The twelve channels are divided into two groups of six outputs, allowing separate 24 VDC external supply connections. Field Installation Guidelines Install the Honeywell 10206/2/1 in the designated FSC rack position according to the hardware configuration requirements. Verify module coding positions before insertion to prevent incorrect rack installation. Connect the external 24 VDC field supply lines according to the specified output group arrangement. Separate field wiring from high-voltage power cables to reduce electrical interference. Use appropriate shield grounding practices for connected field devices when required by the installation design. Confirm actuator polarity, load current, and protection requirements before commissioning. During maintenance activities, verify output status through FSC diagnostics before disconnecting field wiring. Follow the approved FSC system procedures for module replacement and functional testing.
$200.00 $100.00
-
Honeywell Honeywell 10005/0/3 Fail Safe Control Bus Communication Module
Honeywell 10005/0/3 Fail Safe Control Bus Communication Module The Honeywell 10005/0/3, also cataloged as the 10005/0/3 Bus Communication Module, operates as a dedicated hardware component for system bus communication and signal routing within Honeywell FSC and Safety Manager platforms. Hardware Specifications Parameter Specification Model 10005/0/3 Brand Honeywell Origin USA Module Type Bus Communication Interface Module System Compatibility Honeywell Fail Safe Control (FSC) / Safety Manager Functional Role System bus communication and internal signal routing Safety Integrity Level Up to SIL 3 according to IEC 61508 / IEC 61511 Mounting Type FSC rack / sub-rack installation Operating Temp 0 deg C to +60 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 5% to 95% non-condensing Safety Manager Bus Communication and Fault Handling The Honeywell 10005/0/3 provides internal communication between FSC system components through the safety controller backplane architecture. It manages bus-level data exchange, module addressing, and signal routing functions required by the Safety Manager platform. Additionally, the module supports diagnostic monitoring to identify internal communication faults and hardware status deviations. The FSC architecture applies fail-safe execution principles, where detected hardware errors trigger predefined safety responses. The module design supports safety system configurations requiring SIL 3 operation. Furthermore, its hardware isolation and fault detection functions maintain controlled communication behavior during abnormal operating conditions. Frequently Asked Questions Q: Does the Honeywell 10005/0/3 support hot-swapping?A: The module is designed for FSC rack maintenance procedures. Hot replacement capability depends on the specific rack configuration and system operating rules. Q: What communication function does the 10005/0/3 provide in the FSC system?A: The module performs internal bus communication and signal routing between Honeywell FSC and Safety Manager system components. Q: Can the module operate in SIL 3 safety applications?A: The module supports Honeywell safety system architectures designed for SIL 3 applications when installed within an approved FSC configuration. Field Installation Guidelines Install the module only in the designated Honeywell FSC rack or approved Safety Manager sub-rack position. Verify rack power isolation before module insertion or removal during maintenance activities. Confirm backplane connector alignment before securing the module into the rack. Maintain proper cabinet grounding and shielding practices to reduce electromagnetic interference. Route communication wiring separately from high-voltage power cables to minimize electrical noise coupling. Check system diagnostics after installation to confirm communication status and module recognition.
$200.00 $100.00
-
Honeywell Honeywell 10213/2/3 Fail-Safe Digital Output Module
Honeywell 10213/2/3 Fail-Safe Digital Output Module The Honeywell 10213/2/3, also cataloged as the 10213/2/3 Fail-Safe Digital Output Module, operates as a dedicated hardware component for fail-safe output switching within Honeywell FSC Safety Instrumented System platforms. The module executes field device control through solid-state digital output channels with defined safe-state behavior. Hardware Specifications Parameter Specification Model 10213/2/3 Spare Model 12200 Brand Honeywell Origin USA Module Type Fail-Safe Digital Output Module Application System Honeywell Fail-Safe Controller (FSC) / Safety Instrumented System (SIS) Output Channels 4 solid-state digital output channels Output Type Fail-safe solid-state switching Field Output Voltage 48 VDC nominal Maximum Channel Current 750 mA per channel Maximum Channel Load 36 W per channel Internal Power Consumption Approx. 25 mA at 5 VDC; approx. 20 mA at 48 VDC no load Weight 0.2 kg Dimensions 2.5 cm x 12.7 cm x 20.3 cm Operating Temp -20 deg C to +60 deg C Estimated Shipping Size 2.5 cm x 12.7 cm x 20.3 cm Fail-Safe Output Execution and Isolation The Honeywell 10213/2/3 module controls field actuators through isolated solid-state output circuits. It monitors output conditions and drives connected devices to the configured safe state when internal diagnostics detect abnormal operation. In addition, the module applies galvanic isolation between controller electronics and field wiring interfaces. This isolation reduces electrical interference effects and supports fail-safe state execution in SIS architectures. The output circuitry includes protection functions for inductive and resistive loads. Therefore, field devices such as solenoid valves, relays, alarms, and shutdown actuators can receive controlled switching signals from the FSC platform. Frequently Asked Questions Q: Does the Honeywell 10213/2/3 support hot-swap replacement?A: The module design supports maintenance replacement procedures within FSC rack configurations when the system configuration permits. Operators must follow approved shutdown and replacement procedures. Q: How does the module handle output faults?A: The module uses diagnostic monitoring and fail-safe output logic to force outputs into predefined safety states when detected faults occur. Q: What type of field devices can connect to this digital output module?A: The module supports field devices requiring solid-state digital switching, including actuators, solenoids, relays, and alarm devices within supported electrical limits. Field Installation Guidelines Install the module in the designated Honeywell FSC rack slot according to system configuration documentation. Verify rack power isolation before module insertion or removal. Use properly terminated field wiring and maintain separation between signal cables and high-energy power conductors. Connect cable shields according to plant grounding standards to reduce electrical noise coupling. Confirm output polarity, field voltage level, and load characteristics before energizing connected devices. Perform system diagnostics after installation to verify correct channel operation and fail-safe response behavior.
$200.00 $100.00
-

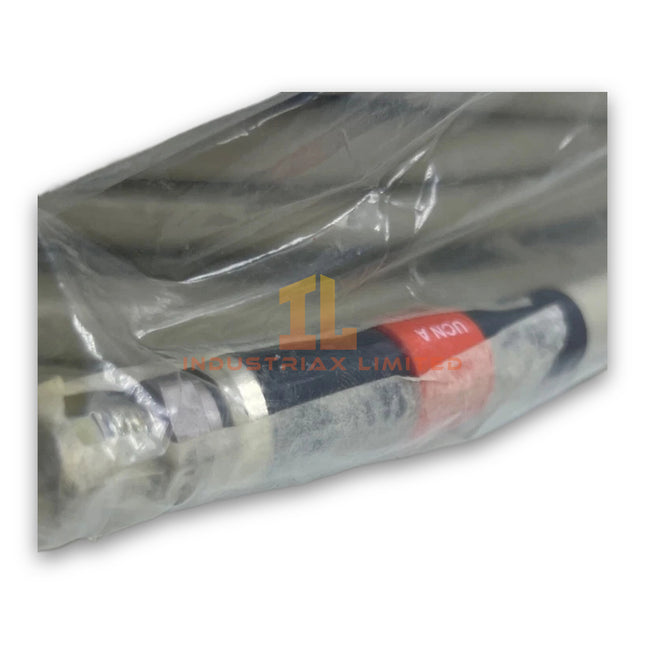

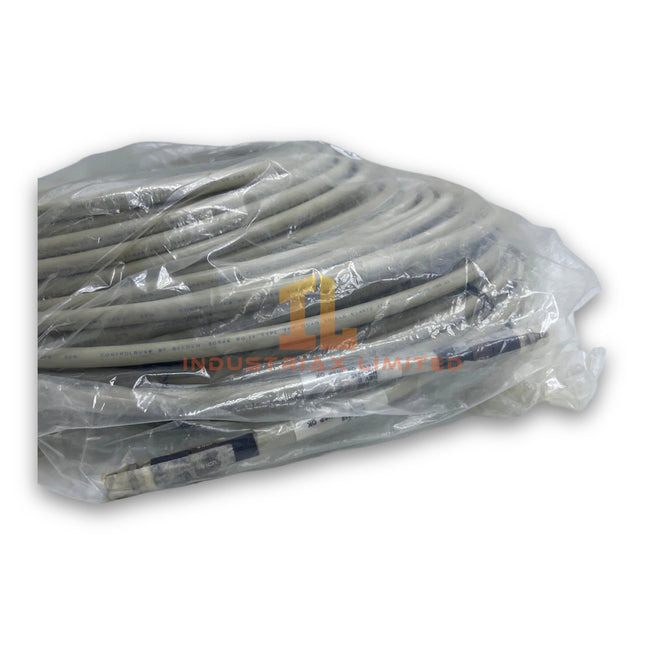

Honeywell Honeywell MU-NKT050 UCN Trunk Cable Assembly
Honeywell MU-NKT050 UCN Trunk Cable Assembly The Honeywell MU-NKT050, also cataloged as the MU-NKT050 UCN Trunk Cable Assembly, operates as a dedicated hardware component for UCN communication signal transmission within Honeywell TDC 3000 and TPS system networks. Hardware Specifications Parameter Specification Model MU-NKT050 Brand Honeywell Origin USA Dimensions 50 m cable assembly length Operating Temp 0 deg C to +70 deg C Power Consumption Passive cable assembly, no external power consumption Part Number 51195199-050 System Compatibility Honeywell TDC 3000, TPS, HPM, APM systems Component Type Universal Control Network (UCN) Trunk Cable Cable Length 50 meters Cable Structure Pre-assembled coaxial communication cable Signal Type High-speed UCN communication data link Cable Impedance 75 Ohms Connector Interface UCN coaxial connectors, BNC / TNC type depending on tap interface Jacket Material Industrial PVC or flame-retardant outer sheath Storage Temperature -40 deg C to +85 deg C Relative Humidity 10% to 90% non-condensing Honeywell DCS Communication Interface Characteristics The MU-NKT050 functions as a physical communication path for Honeywell Universal Control Network (UCN) segments. It connects process control nodes, including High-Performance Process Manager (HPM), Advanced Process Manager (APM), and Network Interface Module (NIM) assemblies. The cable assembly maintains the coaxial transmission characteristics required for UCN data exchange. Furthermore, the 75 Ohm impedance design supports signal continuity across connected network segments. For Honeywell process control architectures, UCN communication remains separated from field instrument signal layers. Therefore, this cable does not perform 4-20 mA HART conversion, FOUNDATION Fieldbus interfacing, or channel-to-channel isolation functions. It provides only the physical medium for UCN digital communication. Frequently Asked Questions Q: Does the Honeywell MU-NKT050 require external power supply?A: No. The MU-NKT050 is a passive coaxial cable assembly and does not require external electrical power. Q: What network function does the MU-NKT050 perform in a TDC 3000 system?A: The cable provides the physical connection path for UCN communication between compatible Honeywell control system nodes. Q: Can the MU-NKT050 replace standard Ethernet communication cables?A: No. The MU-NKT050 is designed specifically for Honeywell UCN network architecture and does not support Ethernet communication protocols. Field Installation Guidelines Install the MU-NKT050 according to Honeywell UCN network wiring requirements and approved cabinet layouts. Verify connector compatibility before connection to UCN taps, NIM interfaces, or process manager communication points. Maintain proper coaxial cable routing practices and avoid sharp bending that may affect signal characteristics. Keep the cable separated from high-voltage power conductors and high-current switching circuits. Confirm connector seating and mechanical locking before system startup. Inspect cable shielding and grounding connections according to the installed Honeywell DCS cabinet grounding specification. Avoid unauthorized cable extensions or impedance changes because they may affect UCN communication performance.
$200.00 $100.00
-
Honeywell Honeywell MU-CULF01 Cooling Fan Assembly
Honeywell MU-CULF01 Cooling Fan Assembly The Honeywell MU-CULF01, also cataloged as the MU-CULF01 Cooling Fan Assembly, operates as a dedicated hardware component for forced-air thermal control within Honeywell TDC 3000, APM, and HPM cabinet platforms. Hardware Specifications Parameter Specification Model MU-CULF01 / 51304487-100 Brand Honeywell Origin USA Operating Temp 0 deg C to +60 deg C Power Consumption 24 VDC cabinet power supply input Product Type Cooling Fan Assembly System Compatibility Honeywell TDC 3000, Advanced Process Manager (APM), High-Performance Process Manager (HPM) cabinets Mounting Position Left-side rack enclosure mounting Airflow Function Forced internal cabinet ventilation Storage Temperature -40 deg C to +85 deg C Relative Humidity 10% to 90% RH, non-condensing Monitoring Function Fan status and fault indication through cabinet monitoring interface Replacement Method Hot-swap capable cabinet service replacement DCS Cabinet Thermal Management and Control Interface The Honeywell MU-CULF01 provides controlled airflow circulation across process control cards installed in TDC 3000, APM, and HPM cabinet assemblies. Therefore, the module maintains cabinet air movement and reduces thermal accumulation around electronic assemblies. Honeywell process control cabinets typically require continuous cooling operation to maintain card operating conditions. The MU-CULF01 connects to the cabinet power distribution structure and supports fan condition monitoring through the associated cabinet alarm interface. In addition, the module supports DCS hardware maintenance procedures by allowing service personnel to replace the cooling assembly without removing the complete process control rack from operation. The fan assembly works as part of the cabinet thermal design rather than as an independent field I/O component. For Honeywell DCS installations, cabinet-level hardware design normally separates field signal processing from environmental control functions. As a result, the MU-CULF01 provides mechanical airflow support while maintaining compatibility with the cabinet electrical monitoring architecture. Frequently Asked Questions Q: Is the Honeywell MU-CULF01 a field signal processing module?A: No. The MU-CULF01 is a cabinet cooling fan assembly. It provides forced-air circulation and does not process analog or digital field signals. Q: Can the MU-CULF01 support hot replacement procedures?A: The module is designed for cabinet service replacement procedures. Maintenance personnel must verify cabinet power conditions and applicable system procedures before removal. Q: Does the MU-CULF01 communicate through the DCS control network?A: No. The assembly does not operate as a network communication module. It interfaces with cabinet power and monitoring circuits for fan operation status. Field Installation Guidelines Install the MU-CULF01 only in the designated left-side mounting position of compatible Honeywell TDC 3000, APM, or HPM cabinet assemblies. Verify the cabinet slot arrangement and connector alignment before installation. Confirm that the power interface matches the cabinet distribution wiring before energizing the fan assembly. Maintain sufficient airflow clearance around cabinet ventilation paths to prevent restricted cooling performance. Route fan power and monitoring wiring separately from high-noise power conductors where applicable. Inspect connectors for contamination, oxidation, or mechanical damage before replacement. Follow Honeywell cabinet maintenance procedures when replacing the module during online system operation.
$200.00 $100.00
-

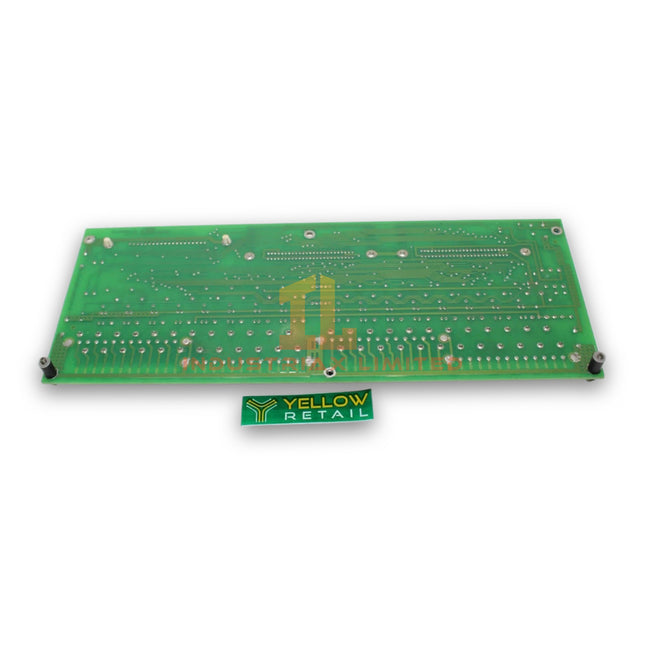

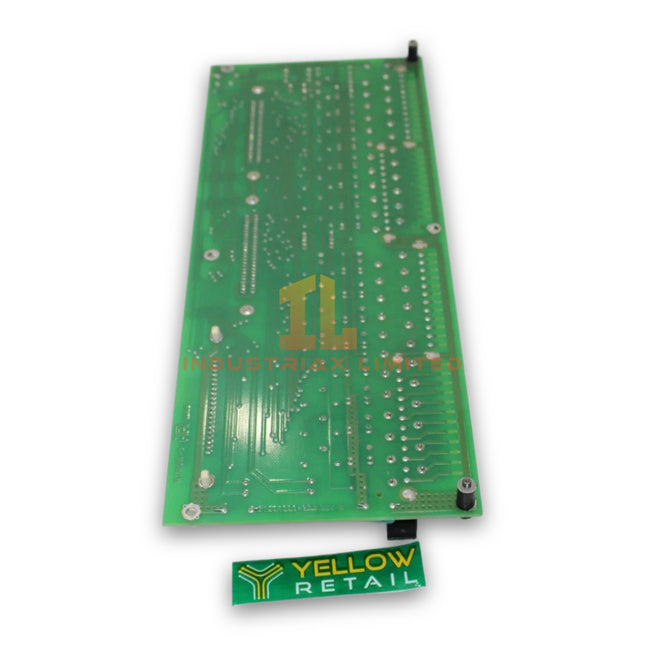

Honeywell Honeywell MU-TAIH52 Redundant High-Level Analog Input Field Termination Assembly
Honeywell MU-TAIH52 Redundant High-Level Analog Input Field Termination Assembly Configured for redundant high-level analog input signal termination in Honeywell TDC 3000 and TPS systems, the Honeywell MU-TAIH52-200 (MU-TAIH52 Redundant High-Level Analog Input FTA) provides direct field wiring interface and electrical signal routing between smart transmitters and I/O Processors. Hardware Specifications Parameter Specification Model MU-TAIH52 Brand Honeywell Origin USA Operating Temp 0 deg C to +60 deg C Power Consumption Passive field termination assembly; no independent power consumption specified Part Number 51304337-200 Module Type Redundant High-Level Analog Input / Smart Transmitter Interface FTA System Compatibility Honeywell TDC 3000 / TotalPlant Solution (TPS) Supported Controllers Process Manager (PM), Advanced Process Manager (APM), High-Performance Process Manager (HPM) Input Channels 16 channels Input Signal Type 4-20 mA DC / Smart Transmitter DE protocol Redundancy Configuration Dual redundant HLAI or STI input card interface Mounting Method DIN rail / cabinet mounting Field Connection Screw terminal field wiring interface Storage Temperature -40 deg C to +85 deg C Humidity Range 5% to 95% RH, non-condensing 4-20 mA HART Loop Interface and Channel Isolation The MU-TAIH52 operates as a field termination interface for Honeywell analog input architectures. It routes 4-20 mA current signals and Smart Transmitter Interface signals from field devices to redundant input processing cards. Furthermore, the assembly supports transmitter communication paths used in process instrumentation applications. The termination design separates field wiring connections and system-side interfaces to maintain controlled signal transmission. Channel-to-channel isolation depends on the connected I/O card architecture and system configuration. The redundant arrangement allows two compatible input paths to receive field signals through the termination assembly. Therefore, maintenance activities on one processing path can occur while the paired path remains connected according to the configured TPS or TDC 3000 architecture. Frequently Asked Questions Q: Does the MU-TAIH52 provide signal conversion from field analog input signals? A: No. The MU-TAIH52 functions as a Field Termination Assembly. It terminates and routes field signals but does not perform analog-to-digital conversion. Q: Can the MU-TAIH52 operate with non-redundant input cards? A: The assembly is designed for redundant HLAI or STI input configurations. Compatibility depends on the installed Honeywell I/O processor and cabinet configuration. Q: Does the MU-TAIH52 require separate field power wiring? A: The FTA does not contain an independent power supply. Field transmitter power requirements depend on the connected transmitter circuit and associated I/O hardware. Field Installation Guidelines Install the MU-TAIH52 inside the designated Honeywell control cabinet or marshalling enclosure using the approved DIN rail mounting arrangement. Verify terminal assignments before connecting field transmitters or Smart Transmitter Interface wiring. Separate analog signal wiring from high-voltage power cables to reduce electromagnetic interference. Connect cable shields according to the plant grounding standard and Honeywell cabinet wiring practices. Confirm redundancy pairing between the FTA and the associated HLAI or STI input cards before commissioning. Check field loop polarity and continuity before applying system power. Verify transmitter communication status after installation through the connected Honeywell control system diagnostics.
$200.00 $100.00
-

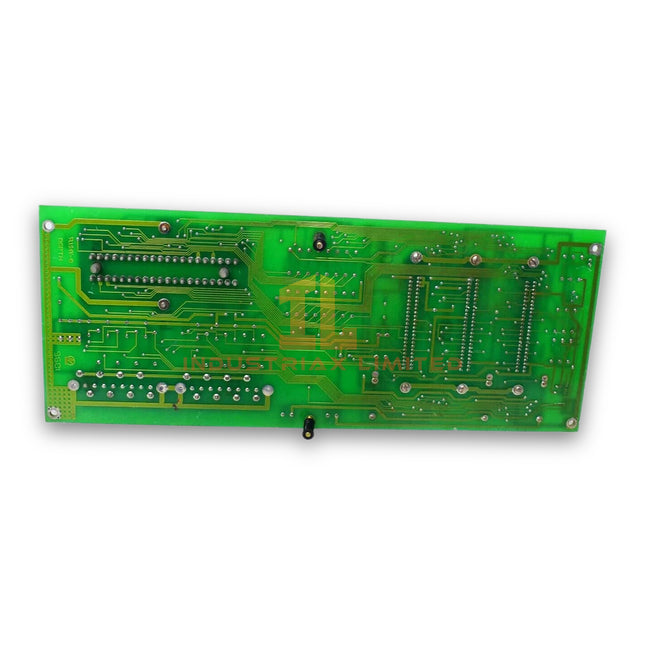

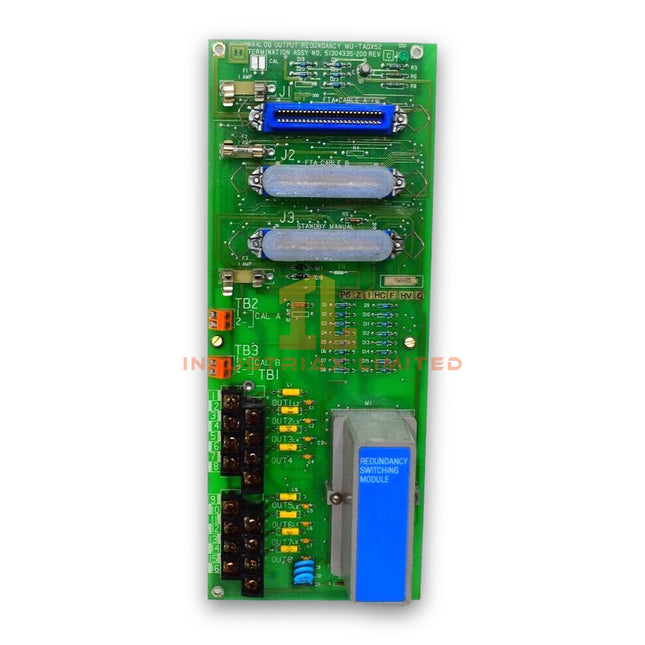

Honeywell Honeywell MU-TAOX52 Analog Output Field Termination Assembly
Honeywell MU-TAOX52 Analog Output Field Termination Assembly Configured for analog signal termination and field output interface execution in Honeywell TDC 3000 and Experion PKS HPM / IOP platforms, the Honeywell MU-TAOX52-200 (MU-TAOX52 Analog Output Field Termination Assembly) provides direct physical and electrical execution for 8 channel analog output connections. Hardware Specifications Parameter Specification Model MU-TAOX52 Brand Honeywell Process Solutions Origin United States Module Type Analog Output Field Termination Assembly (AO FTA) Part Number 51304335-200 System Compatibility Honeywell TDC 3000 / Experion PKS HPM and IOP architectures Signal Type Analog Output Interface Channel Count 8 channels Terminal Type Screw / compression terminals Redundancy Support Supports redundant analog output configurations Dimensions Size B board format, approximately 12 inches / 307 mm Weight Approximately 0.53 kg Power Consumption Passive termination assembly, no independent power input specified Mounting Method Honeywell FTA mounting channels / DIN rail compatible hardware 4-20 mA HART Loop Interface and Channel Isolation The MU-TAOX52 operates as a field termination interface for Honeywell analog output channels. Therefore, it provides physical termination points between the I/O processor and external control devices such as valve positioners, actuators, and control elements. In addition, the assembly supports process control signal routing within Honeywell DCS architectures. The terminal design allows technicians to perform field wiring inspection, signal verification, and maintenance activities without modifying the control processor connections. The FTA architecture follows Honeywell process control requirements for analog loop handling. However, specific HART communication functions, channel-to-channel isolation ratings, and loop diagnostic parameters depend on the connected I/O processor and system configuration. Frequently Asked Questions Q: Does the MU-TAOX52 provide independent analog output signal generation?A: No. The MU-TAOX52 is a Field Termination Assembly that provides terminal interfacing and field wiring connection. The analog output signal generation occurs in the associated Honeywell I/O module. Q: Can the MU-TAOX52 support redundant analog output configurations?A: Yes. The assembly supports redundant AO system configurations when installed with compatible Honeywell I/O hardware and approved system architecture. Q: What wiring practices should be applied when installing the MU-TAOX52?A: Field cables should follow industrial control wiring practices. Shielded signal cables should use proper grounding methods, and analog output wiring should be separated from high-voltage power conductors to reduce electrical interference. Field Installation Guidelines Install the MU-TAOX52 according to Honeywell FTA mounting requirements and the associated I/O cabinet design. Verify terminal assignments before connecting field devices to prevent incorrect analog output routing. Use appropriate shielded instrumentation cables for analog signal connections where required. Maintain separation between low-level analog wiring and high-current switching circuits. Confirm grounding methods for cable shields according to the plant instrumentation grounding standard. Inspect screw terminal tightness during commissioning and scheduled maintenance. Verify redundant configuration wiring before placing the analog output channels into operational service.
$200.00 $100.00
لقد شاهدت 240 من أصل 1578 منتجًا
