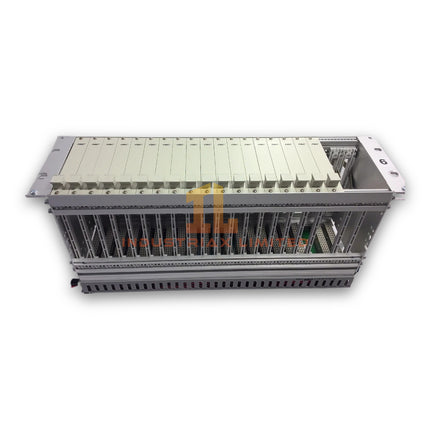

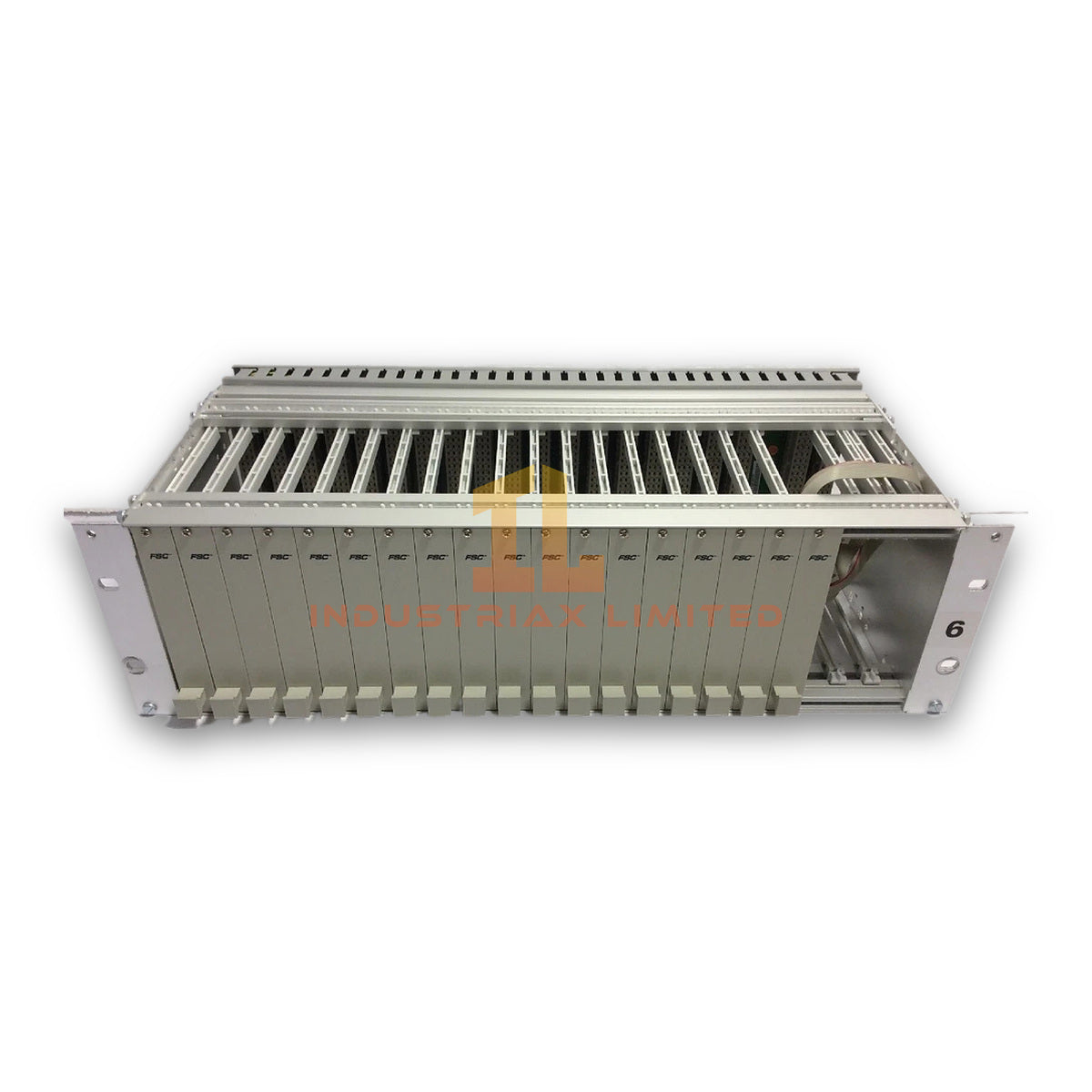

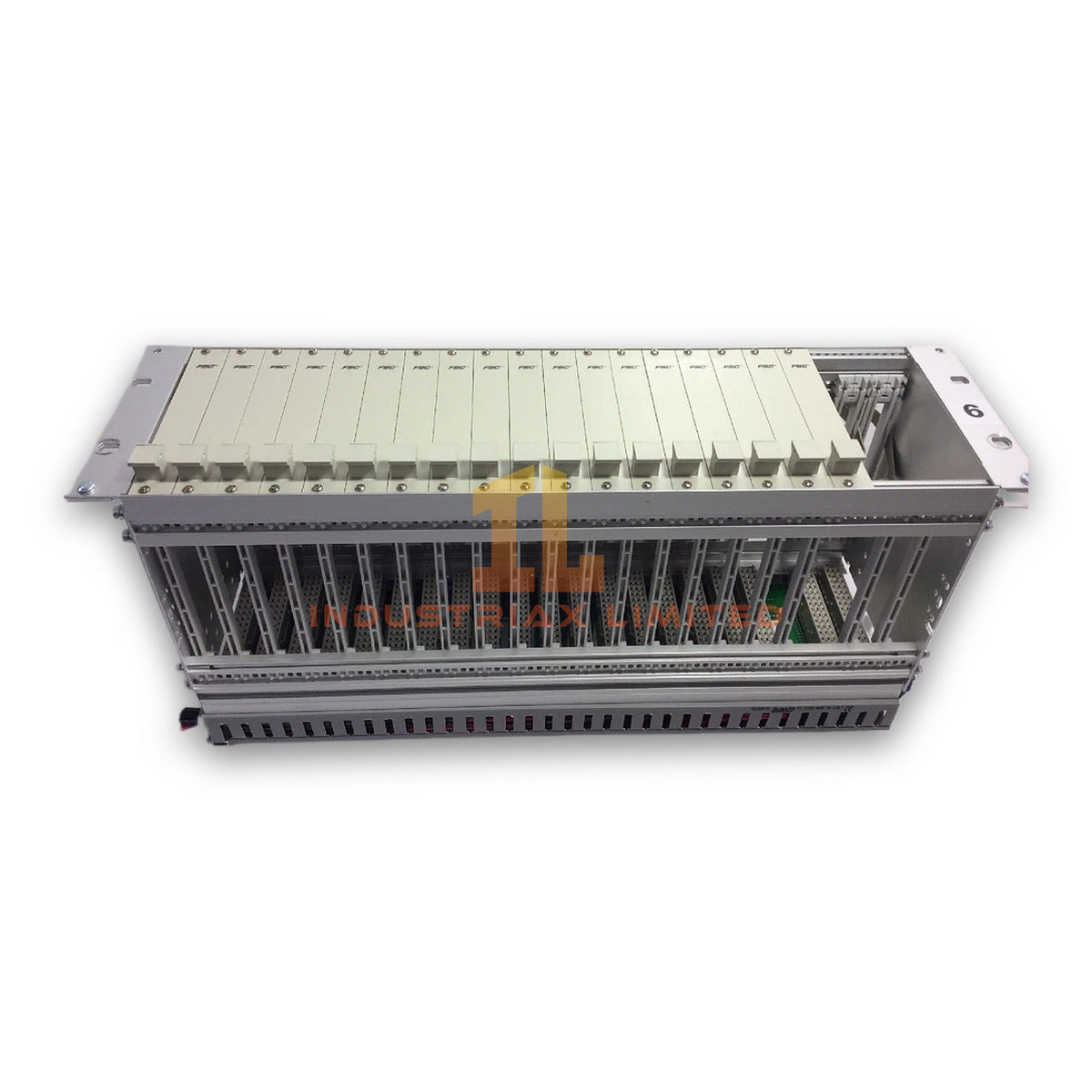

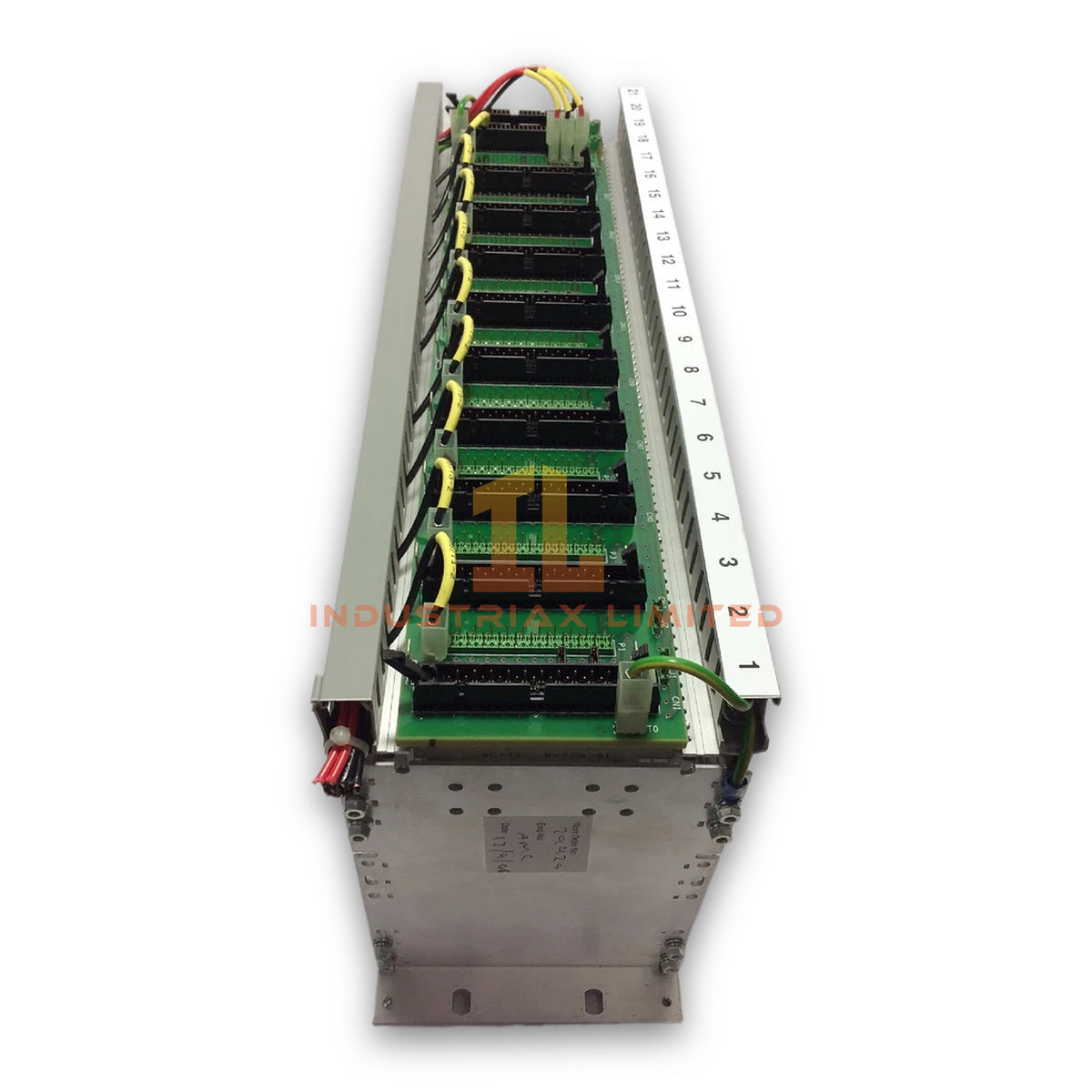

Honeywell 10315/1/1 Field Termination Assembly Base Interface Board

The Honeywell 10315/1/1, also cataloged as the 10315/1/1 Field Termination Assembly Base Interface Board, operates as a dedicated hardware component for discrete field signal termination and routing within Honeywell Fail Safe Control (FSC) and Safety Manager systems.

Hardware Specifications

Parameter	Specification
Model	Honeywell 10315/1/1 (suffix variation /19)
Brand	Honeywell
Module Type	Field Termination Assembly (FTA) / Base Interface Board
System Compatibility	Honeywell Fail Safe Control (FSC) and Safety Manager platforms
Signal Type	Discrete input / dry contact field signal interface
Channel Capacity	Multi-channel discrete interface, typically 16-channel configuration
Operating Voltage	24 VDC nominal field circuit supply
Isolation	Galvanic isolation between field wiring and internal system circuits
Mounting Type	DIN-rail or panel mounting within FSC rack assembly
Terminal Connection	Screw-type or pluggable field wiring terminals
Operating Temp	-20 deg C to +70 deg C
Storage Temp	-40 deg C to +85 deg C
Relative Humidity	5% to 95%, non-condensing
Power Consumption	Not specified; supplied through connected FSC system interface

Honeywell FSC Field Signal Termination and Isolation

The Honeywell 10315/1/1 provides direct electrical termination between discrete field devices and FSC safety processing modules. The board routes dry contact signals, status inputs, and discrete field circuits through defined termination points while maintaining channel-to-channel isolation.

In addition, the module supports Honeywell safety system architectures where signal integrity depends on controlled field wiring, electrical separation, and diagnostic compatibility. The design follows FSC interface requirements for fail-safe state execution and safety loop monitoring.

Frequently Asked Questions

Q: What type of field signals does the Honeywell 10315/1/1 support?
A: The 10315/1/1 supports discrete field signal termination, including dry contact inputs and status switch connections used by Honeywell FSC and Safety Manager systems.

Q: Does the 10315/1/1 provide electrical isolation?
A: Yes. The assembly provides galvanic isolation between field wiring interfaces and internal control system circuits to reduce interference and maintain signal separation.

Q: Can the module be replaced while the safety system remains powered?
A: Hot-swap capability depends on the specific FSC rack configuration and system operating procedures. Field replacement should follow Honeywell approved maintenance instructions.

Field Installation Guidelines

• Install the 10315/1/1 within the specified Honeywell FSC rack or approved panel assembly location.
• Verify terminal identification before connecting field wiring to prevent incorrect channel assignment.
• Route field signal cables separately from high-voltage power conductors to reduce electromagnetic interference.
• Connect cable shields according to the plant grounding standard and avoid multiple-point shield grounding unless required by the system design.
• Inspect terminal tightening, connector seating, and PCB condition before system commissioning.
• Confirm field loop continuity and insulation conditions before applying system power.
