تقدم جنرال إلكتريك (GE) مجموعة شاملة من منتجات الأتمتة الصناعية. تشمل محفظتها أنظمة PACSystems RX3i/RX7i، ووحدات الإدخال والإخراج Genius، ووحدات التحكم Mark VIe، وأنظمة التحكم المنطقي القابلة للبرمجة (PLC). تضمن منتجات GE تشغيلًا موثوقًا، وأتمتة قابلة للتطوير، ودعمًا طويل الأمد للتطبيقات الصناعية حول العالم.
جنرال إلكتريك
-

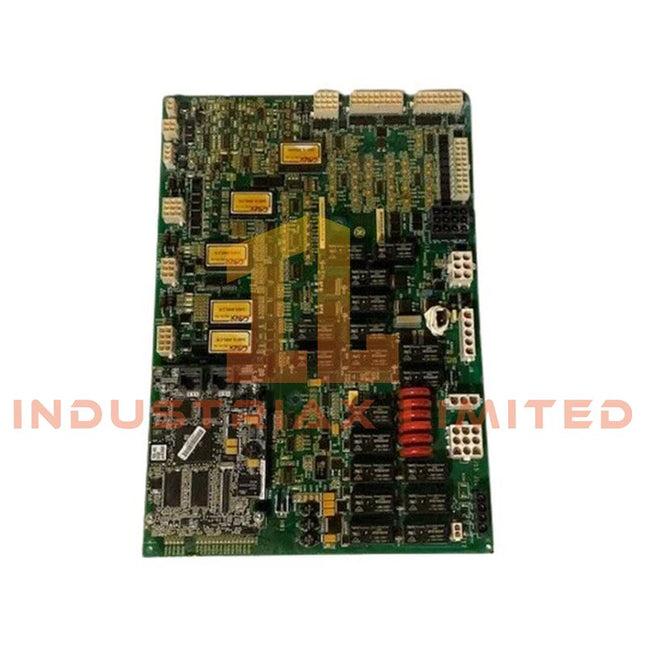

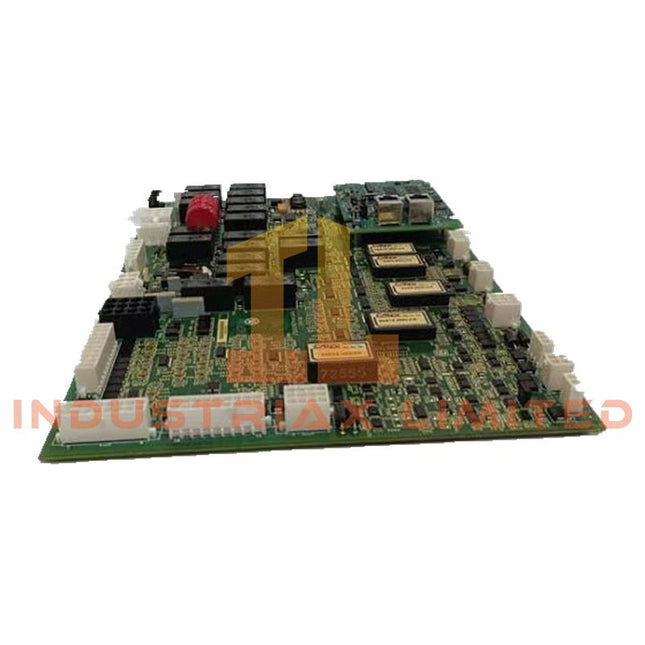

General Electric GE IS200WORBH1A Digital Output Register Board
GE IS200WORBH1A Digital Output Register Board Configured for deterministic digital output register interfacing in the Mark VI Speedtronic turbine control system, the GE IS200WORBH1A (IS200WORB Digital Output Register Board) provides direct physical/electrical execution for controller output signals, relay interfaces, and field device switching circuits. Suffix Breakdown & Model Matrix The IS200WORBH1A identification defines a GE Mark VI Speedtronic control board assembly. The available documentation identifies the complete ordering designation as IS200WORBH1A. No additional suffix segmentation details are specified for separate hardware variants. Model Element Description IS200 GE Mark VI board family identifier WORB Write-Only Register Board function designation H1A Hardware revision and assembly identifier Hardware Specifications Parameter Specification Model IS200WORBH1A Brand GE Origin USA Weight 0.6 kg Dimensions 200 mm x 150 mm x 35 mm Operating Temp -30 deg C to +65 deg C Power Consumption Not specified System Platform Mark VI Speedtronic turbine control system Product Function Digital output register interface board Output Channels 32 digital outputs Output Type TTL logic levels with optical isolation Voltage Range 5 VDC logic, field-driven through external drivers Response Time Less than 1 ms typical Isolation Channel-to-channel and channel-to-ground isolation Connectors Ribbon connectors to controller backplane, screw terminals for field wiring Protection Features Overvoltage suppression and short-circuit protection Mounting Method Panel or DIN-rail mounting Humidity Tolerance Up to 95% non-condensing Compliance IEC 61010-1, UL 508, CE industrial standards GE Mark VI Output Register Interface and Control Logic The IS200WORBH1A functions as a digital output interface between the Mark VI controller and external field devices. The board receives register-based output commands and transfers switching signals through isolated output channels. The GE Mark VI platform uses deterministic controller communication paths for output execution. The board design supports firmware-controlled register operations and digital I/O density scaling within the controller rack architecture. Optically isolated output channels separate controller-side logic circuits from field-side loads. Overvoltage suppression and short-circuit protection circuits are incorporated to reduce electrical stress during relay, solenoid, and contactor operation. Frequently Asked Questions Q: What type of output signals does the IS200WORBH1A provide?A: The board provides 32 digital outputs using TTL logic levels with optical isolation for interfacing external field devices. Q: Does the IS200WORBH1A support direct high-voltage field loads?A: No. The board provides logic-level output interfacing. Field devices require external drivers or interface components according to the control system design. Q: What communication interface connects the board to the Mark VI controller?A: The board uses ribbon connectors for controller rack interfacing and screw terminals for field wiring connections. Field Installation Guidelines Install the IS200WORBH1A according to the Mark VI cabinet hardware arrangement. Verify board orientation, connector alignment, and terminal identification before connecting field wiring. Route digital output wiring separately from high-voltage power conductors and high-current switching circuits where possible. Use appropriate grounding methods for cable shields and maintain separation between controller communication wiring and field power wiring. Inspect ribbon connector engagement and terminal screw tightness during installation. Confirm output channel mapping before energizing connected relays, solenoids, or contactor circuits.
$200.00 $100.00
-
General Electric GE IS200TSVCH1ADC Servo Terminal Board
GE IS200TSVCH1ADC Servo Terminal Board Configured for servo-valve position feedback processing in the Mark VI Speedtronic turbine control system, the GE IS200TSVCH1ADC (IS200TSVC Servo Terminal Board) provides direct physical/electrical execution for actuator signal termination, LVDT/RVDT feedback conditioning, and controller interface operations. Hardware Specifications Parameter Specification Model IS200TSVCH1ADC Brand GE Origin USA Weight 0.6 kg Dimensions 200 mm x 150 mm x 35 mm Operating Temp -30 deg C to +65 deg C Power Consumption Not specified System Platform Mark VI Speedtronic turbine control system Product Function Servo valve and actuator termination board Input Signals LVDT/RVDT position feedback, up to 4 channels Excitation Voltage 7 VAC RMS nominal, 3 kHz frequency Output Signals +/-10 VDC conditioned feedback to controller Control Interface Servo drive commands from controller Isolation Galvanic isolation between feedback and control circuits Connectors Screw terminals for field wiring, ribbon connectors to control rack Protection Features Surge suppression and EMI filtering Mounting Method DIN-rail or panel mounting Humidity Tolerance Up to 95% non-condensing Compliance IEC 61010-1, UL 508, CE industrial standards GE Mark VI Servo Feedback Signal Processing The IS200TSVCH1ADC provides servo actuator signal termination within the GE Mark VI Speedtronic architecture. The board receives LVDT/RVDT position feedback signals, applies signal conditioning, and transfers proportional feedback values to the turbine controller for closed-loop actuator regulation. The servo interface circuitry supports feedback isolation between field measurement circuits and control electronics. EMI filtering and surge suppression components are integrated to reduce interference effects on analog position measurement paths. The board operates with turbine servo control circuits requiring accurate actuator position feedback. Signal routing includes field wiring termination through screw terminals and rack-side communication through ribbon connectors. Frequently Asked Questions Q: What type of feedback signals does the IS200TSVCH1ADC process?A: The board processes LVDT/RVDT position feedback signals from turbine actuator mechanisms and provides conditioned feedback signals to the controller. Q: Does the IS200TSVCH1ADC provide electrical isolation?A: Yes. The board includes galvanic isolation between feedback circuits and control circuits to separate field signals from controller electronics. Q: What installation considerations apply to the field wiring connections?A: Field signal wiring should maintain proper shielding, grounding, and separation from high-current power cables to reduce electromagnetic interference on analog feedback signals. Field Installation Guidelines Install the IS200TSVCH1ADC on the specified Mark VI control cabinet mounting structure using approved hardware. Verify connector alignment before applying field wiring. Use shielded cables for LVDT/RVDT feedback connections where required by the control system design. Terminate cable shields according to cabinet grounding practices and avoid routing low-level analog feedback wiring parallel to high-voltage or high-current conductors. Confirm field terminal identification before connecting servo-valve feedback and actuator control circuits. Inspect terminal tightness, connector engagement, and grounding continuity during commissioning procedures.
$200.00 $100.00
-

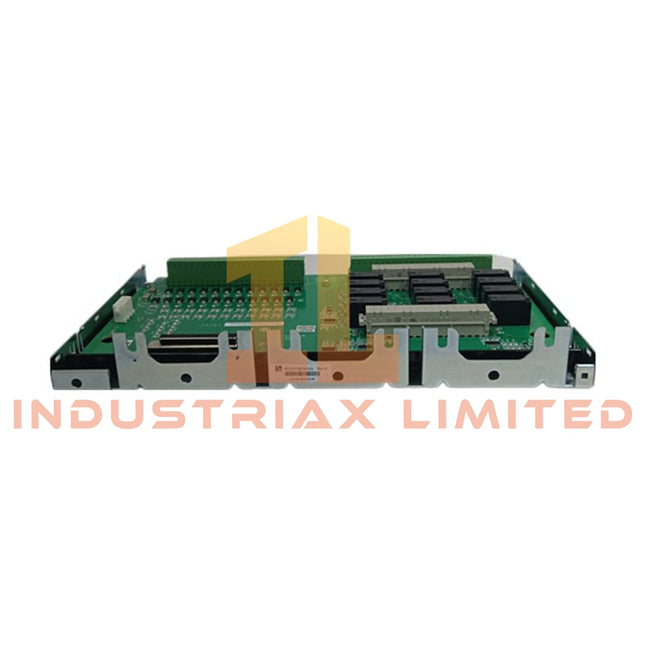

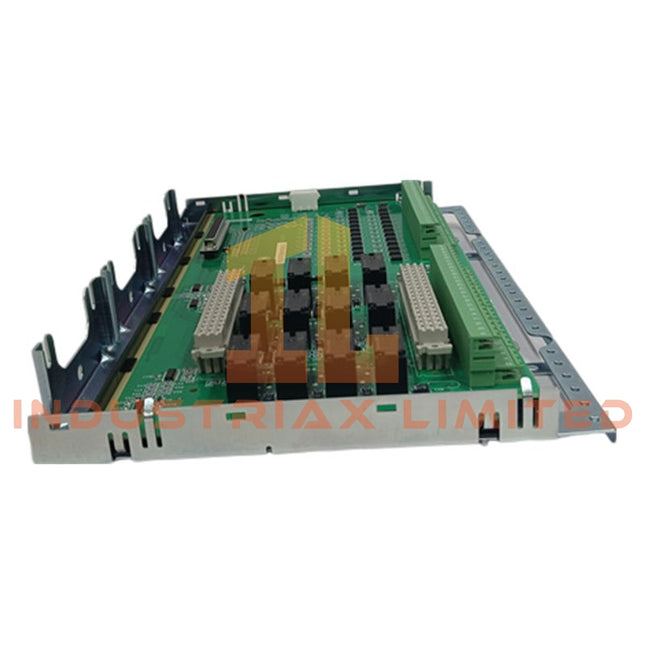

General Electric GE IS230SRTDH2A RTD Input Terminal Board
GE IS230SRTDH2A RTD Input Terminal Board The GE IS230SRTDH2A, also cataloged as the IS230SRTDH2A RTD Input Terminal Board, operates as a dedicated hardware component for RTD signal termination and temperature data conditioning within the GE Mark VIe turbine control system. The board provides 16 RTD input channels, sensor excitation, signal isolation, and conditioned analog transmission to I/O packs for turbine temperature measurement circuits. Hardware Specifications Parameter Specification Model IS230SRTDH2A Brand GE Origin United States Weight 0.7 kg Dimensions 200 mm x 150 mm x 35 mm Operating Temp -30 deg C to +65 deg C Power Consumption Supplied from 28 VDC system distribution Input Channels 16 RTD input channels Sensor Compatibility Pt100, Ni120, Cu10 and other RTD types Input Configuration 2-wire and 3-wire RTD connection support Temperature Range -200 deg C to +850 deg C Excitation Current Approx. 1 mA per channel Resolution 0.1 deg C Accuracy +/- 0.5 deg C typical Isolation Channel-to-channel and channel-to-ground isolation Field Connection Screw terminals for field wiring Controller Interface Ribbon connector interface to Mark VIe I/O packs Compliance IEC 61010-1, UL 508, CE industrial standards Industrial Control Signal Conditioning and I/O Interface The IS230SRTDH2A integrates RTD measurement conditioning within the GE Mark VIe control architecture. The terminal board receives low-level resistance signals from temperature sensors, applies excitation current, and transfers conditioned measurement data through the connected I/O interface. The design supports I/O density scaling through 16 independent temperature input channels while maintaining channel isolation for distributed turbine monitoring circuits. The board supports Profinet and Ethernet-based Mark VIe control network architectures through the associated I/O pack interface. Firmware flash compatibility is managed at the connected controller and I/O pack level, while the terminal board provides the physical termination layer for sensor wiring. Frequently Asked Questions (FAQ) Q: What RTD sensor configurations are supported by the IS230SRTDH2A?A: The board supports 2-wire and 3-wire RTD connections, including Pt100, Ni120, Cu10, and compatible resistance temperature detector types. Q: Does the IS230SRTDH2A provide electrical isolation between measurement channels?A: Yes. The board provides channel-to-channel and channel-to-ground isolation for RTD measurement circuits. Q: How is the RTD signal transferred to the Mark VIe controller?A: The board terminates field RTD wiring and sends conditioned signals through ribbon connectors to compatible Mark VIe I/O packs. Field Installation Guidelines Install the IS230SRTDH2A on the designated Mark VIe terminal board mounting assembly and verify mechanical fixation before field wiring. Connect RTD sensor cables according to the specified terminal assignments. Use shielded instrumentation cable for analog temperature circuits where required, and terminate cable shields following the plant grounding standard. Keep RTD wiring separated from high-voltage power cables and high-current switching conductors to reduce electromagnetic interference. Verify sensor polarity, wire configuration, and terminal tightness before energizing the control system. Confirm that connected I/O packs recognize the terminal board configuration and that RTD channel values correspond with the installed field sensors.
$200.00 $100.00
-

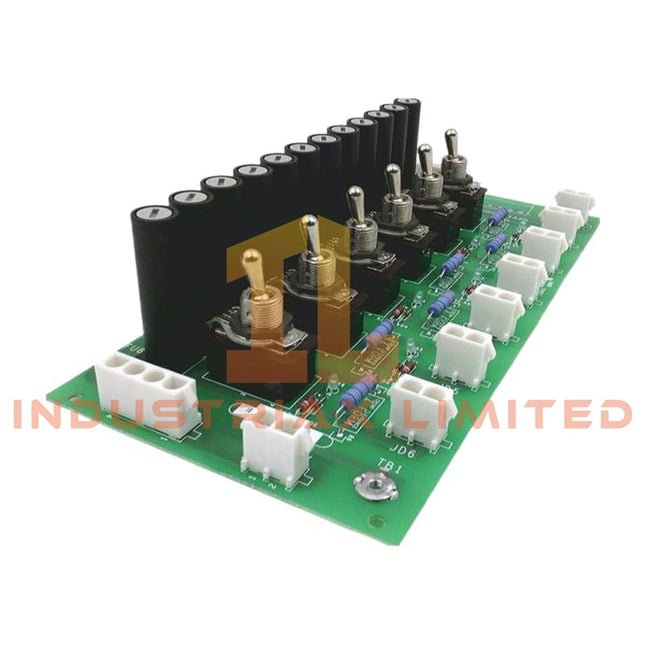

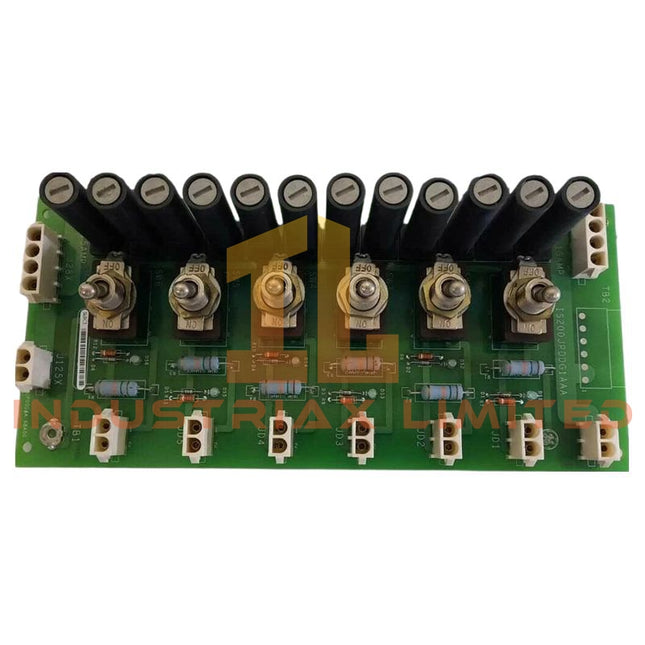

General Electric GE IS200JPDHG1A Power Distribution Module
GE IS200JPDHG1A Power Distribution Module Configured for regulated DC power distribution in the GE Mark VI Speedtronic turbine control system, the GE IS200JPDHG1A (IS200JPDH Power Distribution Module) provides direct physical power routing and voltage conditioning for I/O packs and turbine control electronics. Hardware Specifications Parameter Specification Model IS200JPDHG1A Brand GE Origin USA Weight 0.7 kg Dimensions 200 mm x 150 mm x 35 mm Operating Temp -30 deg C to +65 deg C Power Consumption Supplied from 125 VDC input; output load depends on connected Mark VI modules System Platform Mark VI Speedtronic turbine control system Module Type Power Distribution Module (JPDB) Input Voltage 125 VDC nominal Output Voltages +5 VDC, +/-15 VDC, +28 VDC regulated outputs Distribution Channels Multiple isolated outputs with fuse protection Protection Features Overvoltage, undervoltage, short-circuit protection and surge suppression Isolation Galvanic isolation between input and output circuits Connections Terminal blocks and ribbon connectors Mounting Panel or DIN-rail mounting configuration Industrial Control Power Distribution Characteristics The GE IS200JPDHG1A operates as a DC power distribution interface within Mark VI Speedtronic control architectures. The module accepts incoming 125 VDC supply and provides regulated output rails for connected control hardware. The power paths include isolated distribution channels with protective elements for limiting fault propagation between supply and downstream electronic assemblies. The module supports deterministic power delivery for turbine control I/O hardware through controlled voltage conversion and separated output circuits. Its electrical design allows integration with Mark VI control racks requiring multiple DC voltage levels for analog, digital, and relay-based control assemblies. Frequently Asked Questions Q: What input supply voltage is required for the IS200JPDHG1A?A: The module is designed for a nominal 125 VDC input supply from a station battery or rectifier source. Q: Which output voltages are provided by the module?A: The module provides regulated +5 VDC, +/-15 VDC, and +28 VDC output rails for connected Mark VI control electronics. Q: Does the module provide electrical isolation between supply sections?A: The module incorporates galvanic isolation between input and output circuits to separate power distribution paths. Field Installation Guidelines Install the IS200JPDHG1A on the designated control panel or mounting structure with sufficient clearance for wiring access and heat dissipation. Verify the 125 VDC input polarity before energizing the module. Use properly rated DC wiring and separate power conductors from low-level analog signal cables to reduce electrical interference. Connect cable shields according to site grounding practices, normally using a controlled single-point grounding method for instrumentation circuits. Inspect terminal blocks, ribbon connectors, and fuse interfaces before commissioning. Confirm output voltage levels and wiring continuity before connecting downstream Mark VI I/O packs or control boards.
$200.00 $100.00
-

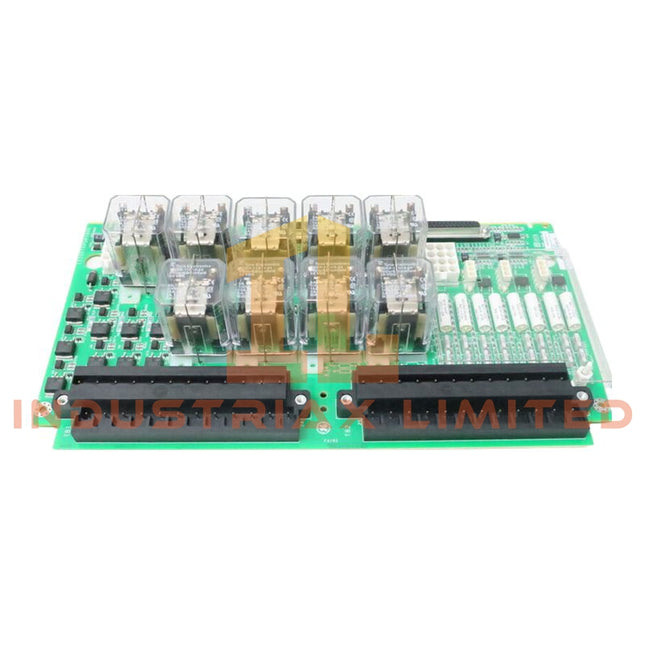

General Electric GE IS200JPDEG1A Power Distribution Module
GE IS200JPDEG1A Power Distribution Module The GE IS200JPDEG1A, also cataloged as the IS200JPDE Power Distribution Module, operates as a dedicated hardware component for regulated DC power distribution and voltage conversion within GE Mark VI Speedtronic turbine control platforms. The module receives DC supply input and distributes isolated power outputs to control electronics. Hardware Specifications Parameter Specification Model IS200JPDEG1A Brand GE Origin United States Series Mark VI Speedtronic Module Type Power Distribution Module Input Voltage 125 VDC nominal Output Voltages +5 VDC, +/-15 VDC, +28 VDC regulated outputs Output Current Capacity Supports multiple I/O packs and control boards Distribution Channels Multiple isolated outputs with fuses Protection Functions Overvoltage, undervoltage, short-circuit, surge suppression Isolation Galvanic isolation between input and output circuits Connectors Terminal blocks for power wiring; ribbon connectors Mounting Panel mount or DIN-rail mount Weight 0.7 kg Dimensions 200 mm x 150 mm x 35 mm Operating Temp -30 to +65 deg C Humidity Up to 95% RH non-condensing Industrial Control Power Distribution and Backplane Interface The IS200JPDEG1A operates as a power interface component within the GE Mark VI Speedtronic control architecture. The module receives external DC power input, regulates multiple voltage levels, and distributes isolated outputs to connected I/O packs and controller assemblies. The power distribution design supports industrial control system I/O density scaling by providing multiple protected supply channels for analog, digital, and relay-based control modules. Galvanic isolation separates incoming supply circuits from distributed outputs to reduce electrical coupling between power domains. The module incorporates protection functions including overvoltage limitation, undervoltage monitoring, short-circuit protection, and surge suppression. These functions support controlled power delivery for Mark VI control rack components. Frequently Asked Questions Q: What input power source is used by the IS200JPDEG1A?A: The module accepts a 125 VDC nominal input from a station battery or rectifier supply system. Q: Which DC voltage outputs are provided by the IS200JPDEG1A?A: The module provides regulated +5 VDC, +/-15 VDC, and +28 VDC outputs for connected control electronics. Q: Does the IS200JPDEG1A provide electrical isolation between input and output circuits?A: Yes. The module uses galvanic isolation between the incoming DC supply and distributed power outputs. Field Installation Guidelines Install the IS200JPDEG1A inside the designated GE Mark VI control cabinet location according to system wiring documentation. Verify DC input polarity and output terminal assignments before energizing the module. Route power wiring separately from low-level analog and communication cables to reduce electromagnetic interference. Connect protective grounding and cable shields according to the cabinet grounding design. Inspect terminal connections, fuse holders, and ribbon connectors before commissioning. Verify output voltage levels and distribution paths before connecting downstream I/O packs and control boards.
$200.00 $100.00
-

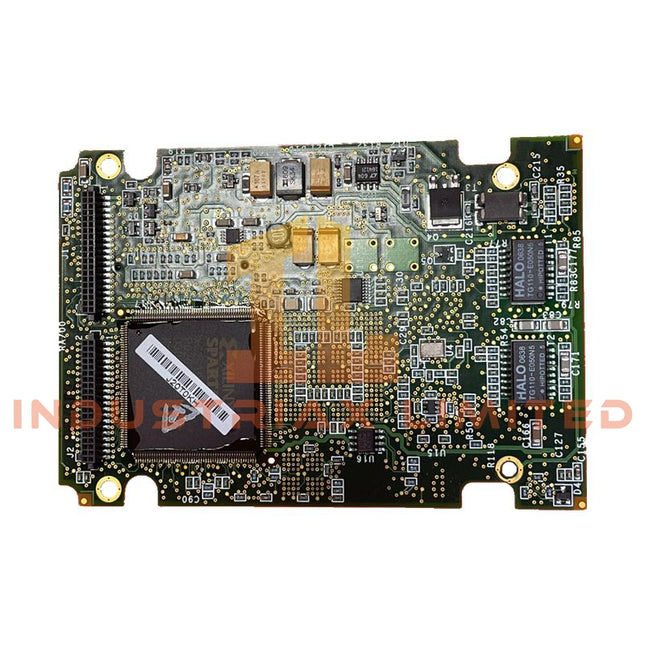

General Electric GE IS200BAPAH1AGD Bridge Amplifier Module
GE IS200BAPAH1AGD Bridge Amplifier Module The GE IS200BAPAH1AGD, also cataloged as the IS200BAPA Bridge Amplifier Module, operates as a dedicated hardware component for LVDT/RVDT position signal conditioning and actuator feedback processing within GE Mark VI Speedtronic turbine control platforms. Hardware Specifications Parameter Specification Model IS200BAPAH1AGD Brand GE Fanuc / General Electric Origin United States Series Mark VI Speedtronic Module Type Bridge Amplifier Module Signal Type LVDT/RVDT position feedback Input Channels 4 differential inputs Excitation Frequency 3.0 kHz +/-0.1% Excitation Voltage 7 VAC RMS nominal Output Signal +/-10 VDC Linearity Error <= +/-0.25% of full scale Power Supply +/-15 VDC and +5 VDC via backplane Mounting VME backplane slot Communication Interface Deterministic backplane protocols Hot-Swap Capability Supported in Mark VI racks with proper configuration Weight 0.6 kg Operating Temp -20 to +70 deg C Power Consumption Not specified Industrial Control Backplane Communication and I/O Density Scaling The IS200BAPAH1AGD operates as an analog signal processing module within the GE Mark VI Speedtronic control architecture. It provides excitation generation, demodulation, and linearization for LVDT and RVDT displacement sensors before transmitting conditioned feedback signals to the turbine controller. The module supports industrial control I/O density scaling by integrating multiple differential position feedback channels within a VME-based control rack. The deterministic backplane interface transfers synchronized sensor data according to controller scan timing requirements. Firmware flash compatibility and rack configuration management allow the module to operate within supported Mark VI control assemblies. Signal conditioning circuits process raw transformer-based sensor outputs into calibrated +/-10 VDC feedback signals for closed-loop actuator and servo-valve control. Frequently Asked Questions Q: What sensor types can the IS200BAPAH1AGD interface with?A: The module is designed for LVDT and RVDT position sensors and processes differential displacement feedback signals. Q: What type of output signal is provided by the bridge amplifier module?A: The module provides conditioned +/-10 VDC analog output signals after excitation, demodulation, and linearization processing. Q: Can the IS200BAPAH1AGD be replaced while the Mark VI rack remains energized?A: Hot-swap operation is supported in Mark VI racks when the rack configuration and maintenance procedures permit module replacement. Field Installation Guidelines Install the IS200BAPAH1AGD in the assigned GE Mark VI VME rack slot and verify rack addressing and connector alignment before system startup. Use shielded wiring for LVDT/RVDT sensor connections and route feedback cables separately from high-current power conductors to reduce electromagnetic interference. Connect cable shields according to the control cabinet grounding design. Verify sensor excitation wiring, differential input polarity, and backplane seating before commissioning. Confirm that the connected actuator feedback loop operates within the configured controller parameters.
$200.00 $100.00
-

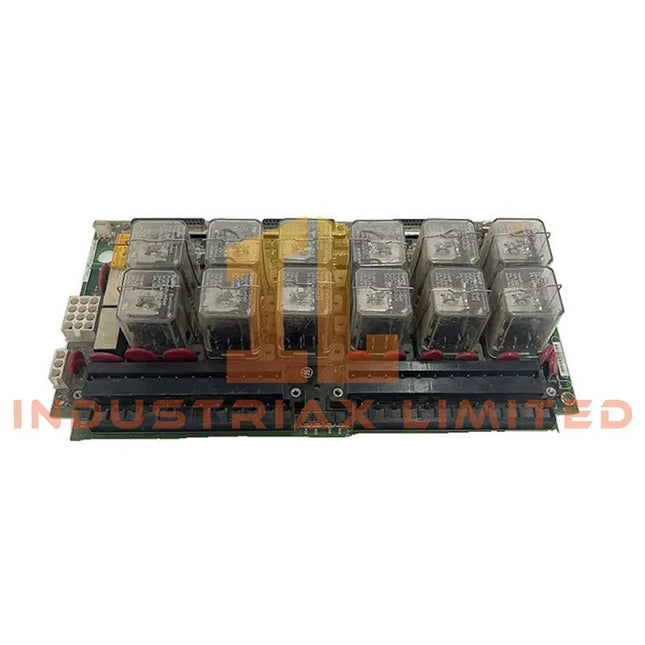

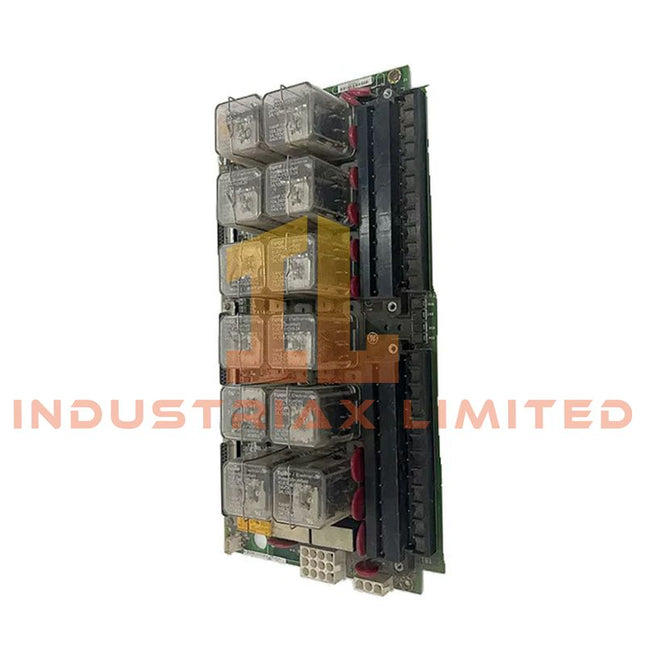

General Electric GE IS200TREGH1A Emergency Trip Terminal Board
GE IS200TREGH1A Emergency Trip Terminal Board Configured for emergency trip solenoid signal termination in GE Mark VI Speedtronic turbine control systems, the GE IS200TREGH1A (IS200TREG Emergency Trip Terminal Board) provides direct physical/electrical execution for trip command distribution, solenoid driver interfacing, and protective circuit isolation. Hardware Specifications Parameter Specification Model IS200TREGH1A Brand GE Origin United States Series Mark VI Speedtronic Module Type Emergency Trip Terminal Board Product Function Trip solenoid termination and emergency trip interface Number of Trip Solenoids 3 Relay Outputs 3 Trip Inputs 125 VDC / 24 VDC Trip Outputs Supports 3 trip solenoid drivers, 24 VDC coil typical Solenoid Response Time 0.1 sec Contact Rating 2 A at 30 VDC; 0.5 A at 125 VDC Isolation Galvanic isolation between trip circuits and control logic Connectors Screw terminals for field wiring; ribbon connectors to control rack Protection Functions Surge suppression, arc suppression, fault isolation Mounting Panel mount or DIN-rail mount Weight 0.65 kg Operating Temp -30 to +65 deg C Humidity Up to 95% RH non-condensing Power Consumption Not specified Industrial Control I/O Scaling and Firmware Flash Compatibility The IS200TREGH1A operates as a terminal interface assembly within the GE Mark VI Speedtronic protection architecture. The board receives trip commands from the controller, interfaces with emergency trip circuits, and controls energizing or de-energizing of turbine trip solenoids. The module supports industrial control I/O density scaling by providing multiple isolated trip output channels within a dedicated emergency shutdown interface. Galvanic isolation separates external trip devices from controller logic circuits, reducing electrical coupling between field protection wiring and internal control electronics. The terminal board incorporates protection functions including surge suppression, contact arc suppression, and fault isolation. Its interface structure is designed for integration with Mark VI trip logic modules and associated turbine protection hardware. Frequently Asked Questions Q: How many trip solenoid circuits can the IS200TREGH1A interface?A: The board supports three trip solenoid driver channels and three relay outputs for emergency trip circuit control. Q: What input voltage levels are supported for trip commands?A: The module supports trip input circuits at 24 VDC and 125 VDC levels according to the provided specifications. Q: Does the IS200TREGH1A directly provide mechanical turbine shutdown action?A: No. The board provides electrical termination and switching interface functions for trip solenoids. Mechanical shutdown is performed by the connected turbine protection devices. Field Installation Guidelines Install the IS200TREGH1A according to GE Mark VI cabinet drawings and verify terminal assignments before connecting emergency trip wiring. Route trip solenoid cables separately from high-current switching conductors to reduce electromagnetic interference. Use appropriate grounding and shielding practices for signal wiring according to the control cabinet design. Check screw terminal torque, ribbon connector engagement, and field wiring polarity before commissioning. Verify trip circuit continuity and insulation condition during installation and maintenance procedures.
$200.00 $100.00
-

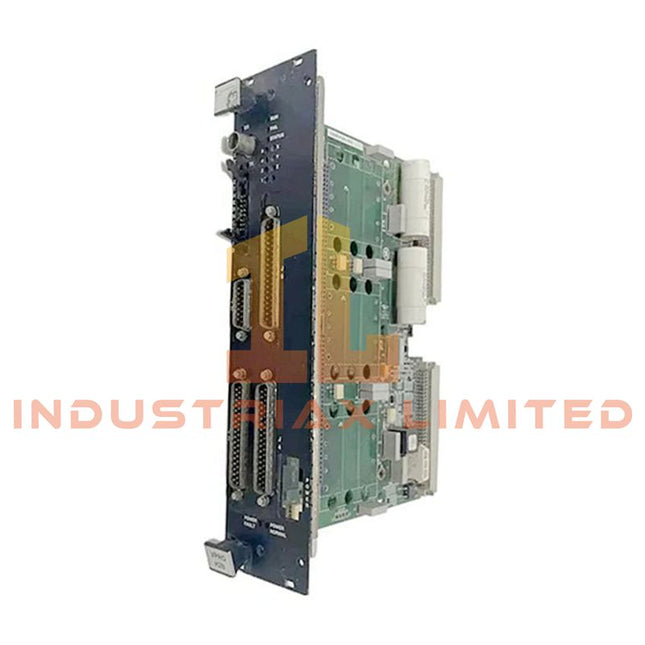

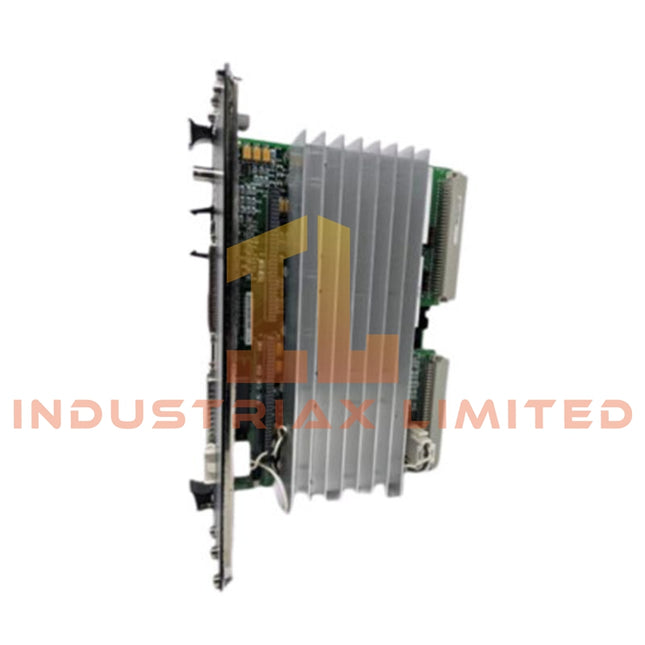

General Electric IS200VPROH2B GE Mark VI Turbine Protection
GE IS200VPROH2B Turbine Protection Termination Board The GE IS200VPROH2B, also cataloged as the IS200VPRO Turbine Protection Termination Board, operates as a dedicated hardware component for protection signal termination and relay output execution within GE Mark VI Speedtronic turbine control platforms. The board processes trip commands, protective relay contacts, and fault inputs for turbine protection logic circuits. Hardware Specifications Parameter Specification Model IS200VPROH2B Brand GE Origin United States Series Mark VI Speedtronic Module Type Turbine Protection Termination Board Input Signals Trip commands, protective relay contacts, fault inputs Output Signals Relay actuation signals, trip outputs Relay Type Electromechanical relays, 24 VDC coil Contact Rating 2 A at 30 VDC; 0.5 A at 125 VDC Isolation Galvanic isolation between trip circuits and control logic Connectors Screw terminals for field wiring; ribbon connectors to control rack Protection Functions Surge suppression, contact arc suppression MPU Pulse Rate Range 2 Hz to 20 kHz Frame Rate Up to 100 Hz Input Filter Hardware filter, 4 ms Mounting Panel mount or DIN-rail mount Weight 0.65 kg Dimensions 200 mm x 150 mm x 35 mm Operating Temp 0 to +60 deg C Humidity Up to 95% RH non-condensing Power Consumption Not specified Industrial Control Protection Logic and I/O Interface The IS200VPROH2B operates as a protection interface assembly in the GE Mark VI Speedtronic architecture. The board receives external protective signals, provides electrical separation through galvanic isolation, and transfers trip-related information to the turbine control system. The module supports industrial control protection logic execution through dedicated relay interfaces and digital signal paths. Its I/O structure allows protection circuits to be separated from controller electronics, reducing interference between field wiring and internal control processing. The board architecture supports deterministic turbine protection signal handling, with hardware filtering applied to input circuits for noise reduction. Relay output circuits include contact arc suppression and surge protection for connected protection devices. Frequently Asked Questions Q: What protection signals are handled by the IS200VPROH2B?A: The board processes turbine trip commands, protective relay contacts, fault inputs, and provides relay actuation outputs to the associated protection circuits. Q: Does the IS200VPROH2B provide electrical isolation between field protection circuits and control logic?A: Yes. The board provides galvanic isolation between trip circuits and Mark VI control logic interfaces. Q: What type of relay outputs are used on the IS200VPROH2B?A: The module uses electromechanical relay interfaces with 24 VDC coils and specified contact ratings for protection signal switching. Field Installation Guidelines Install the IS200VPROH2B according to GE Mark VI cabinet wiring documentation and verify terminal assignments before connecting trip and protection circuits. Separate protection signal wiring from high-current power conductors to reduce electromagnetic interference. Use appropriate shield grounding methods for signal cables where required by the control cabinet design. Check screw terminal tightness, ribbon connector engagement, and relay circuit wiring polarity during installation. Confirm insulation condition and verify that external protection circuits are correctly isolated before commissioning.
$200.00 $100.00
-

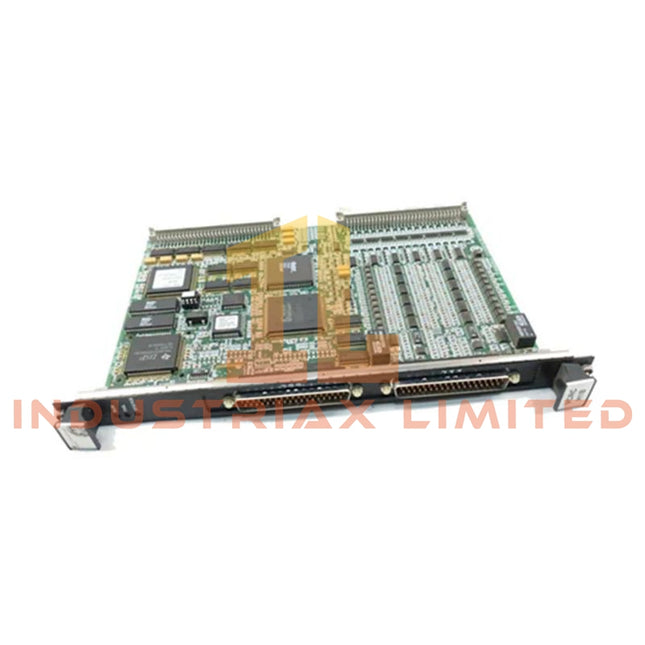

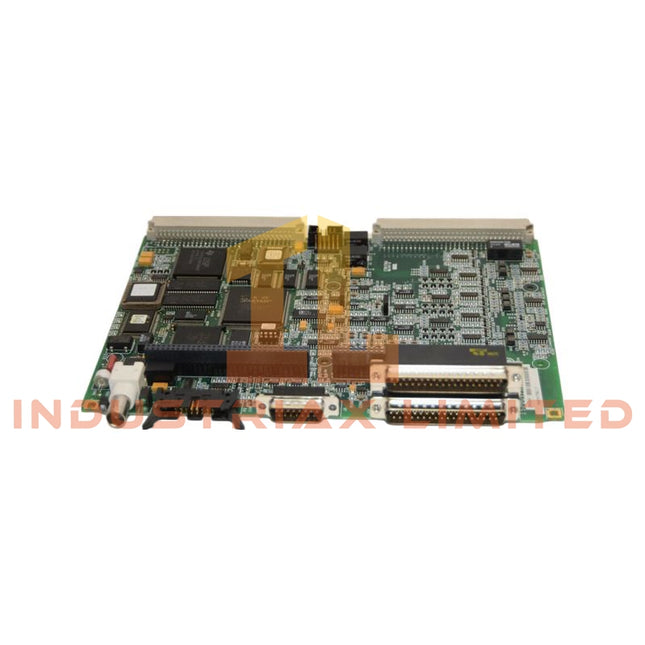

General Electric GE IS200ERIOH1ABB Exciter Regulator I/O Board
GE IS200ERIOH1ABB Exciter Regulator I/O Board The GE IS200ERIOH1ABB, also cataloged as the IS200ERIO Exciter Regulator I/O Board, operates as a dedicated hardware component for exciter feedback signal conditioning and regulator interface execution within GE Mark VI Speedtronic turbine control platforms. The board processes generator field voltage, current feedback, and digital status signals between field circuits and control modules. Hardware Specifications Parameter Specification Model IS200ERIOH1ABB Brand GE Origin United States Series Mark VI Speedtronic Module Type Exciter Regulator I/O Board Input Signals Generator field voltage, exciter current, regulator feedback Output Signals Conditioned analog signals to exciter control module Voltage Sensing Range Up to 500 VDC Current Sensing Range Up to 10 ADC Digital I/O Status signals, fault inputs, trip outputs Connectors Ribbon connectors to control rack; screw terminals for field wiring Protection Functions Surge suppression, overvoltage protection, current limiting Mounting Panel mount or DIN-rail mount Weight 0.6 kg Dimensions 200 mm x 150 mm x 35 mm Operating Temp -30 to +65 deg C Humidity Up to 95% RH non-condensing Industrial Control I/O Scaling and Backplane Communication The IS200ERIOH1ABB functions as an interface board within the GE Mark VI Speedtronic control architecture. It performs signal termination, conditioning, and transfer between exciter regulator circuits and the turbine controller. The board supports industrial control I/O density scaling by combining analog feedback channels and digital status interfaces on a single regulator interface assembly. Field signals are converted and conditioned before transmission through the control rack interface, maintaining separation between external wiring and controller electronics. Protection circuits integrated into the board provide signal handling functions including surge suppression, overvoltage limitation, and current limiting for connected excitation circuits. Frequently Asked Questions Q: What type of signals are connected to the IS200ERIOH1ABB?A: The board interfaces with generator field voltage, exciter current feedback, regulator feedback signals, digital status inputs, fault inputs, and trip output signals. Q: Does the IS200ERIOH1ABB directly control exciter power output?A: No. The board provides signal interface and conditioning functions between the exciter regulator and the Mark VI control system. Power regulation is performed by associated excitation control hardware. Q: What installation environment is specified for the IS200ERIOH1ABB?A: The module is specified for operation from -30 to +65 deg C with humidity tolerance up to 95% non-condensing. Field Installation Guidelines Install the IS200ERIOH1ABB according to GE Mark VI control cabinet documentation and verify all terminal assignments before applying excitation system power. Route field voltage and current feedback wiring separately from high-power conductors to minimize electrical interference. Use appropriate shielding practices for low-level feedback circuits and terminate shields according to the cabinet grounding design. Check ribbon cable connections, terminal blocks, and mounting hardware for proper mechanical engagement before commissioning. Verify field wiring polarity and insulation condition during installation and maintenance activities.
$200.00 $100.00
-

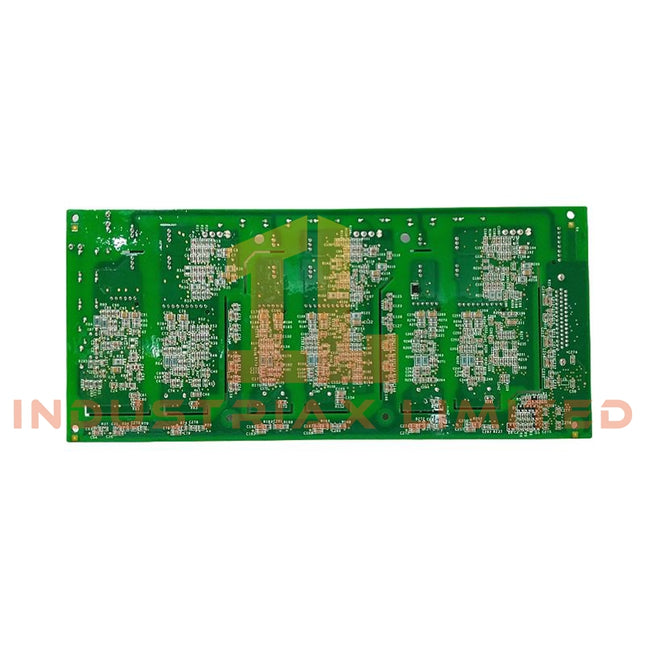

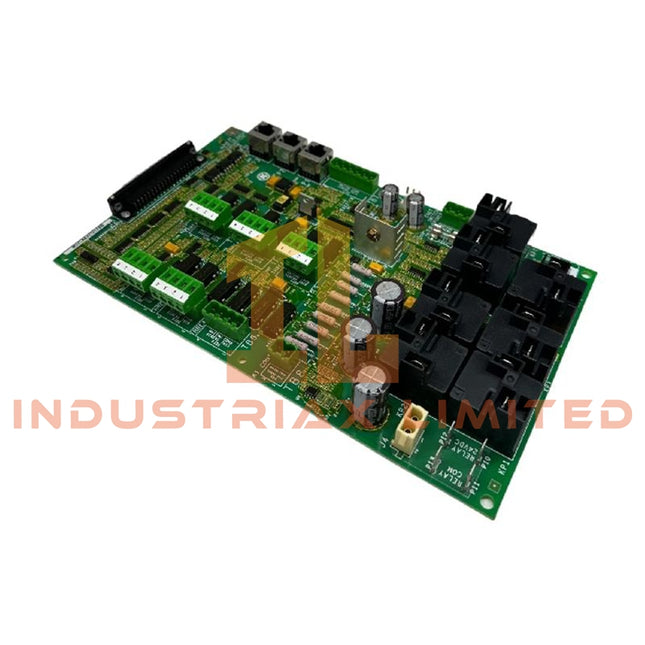

General Electric GE IS210AEAAH3B Mark VIe Analog/Digital I/O Interface Module
GE IS210AEAAH3B Mark VIe Analog/Digital I/O Interface Module Configured for analog and digital signal acquisition in GE Mark VIe turbine control systems, the GE IS210AEAAH3B (IS210AEAAH Analog/Digital I/O Interface Module) provides direct physical/electrical execution for sensor input conditioning, channel isolation, and controller interface operations. Hardware Specifications Parameter Specification Model IS210AEAAH3B Brand GE Vernova Origin United States Series Mark VI / Mark VIe Speedtronic Module Type Analog/Digital I/O Interface Module Form Factor Standalone PCB, panel/chassis mount, or VME 6U rack compatible Processor High-speed DSP, Revision 3 hardware Input Signals 4-20 mA, 0-10 V, J/K/T thermocouples, Pt100 and Ni120 RTDs Channel Configuration 8-16 configurable analog/digital channels A/D Resolution 16-bit Accuracy +/-0.1% typical Channel Isolation 1500 V AC channel-to-channel Ground Isolation 2500 V AC channel-to-ground Sampling Rate Up to 100 samples/sec per channel Communication Interface SPI / IONet, VME or PCI backplane Power Supply 24 VDC +/-10% or +5 VDC via backplane Power Consumption 18 W max Weight 0.68 kg Operating Temp -40 to +70 deg C Environmental Protection Conformal coating for moisture, dust, and salt fog resistance Protection Circuits Overvoltage, reverse polarity, and short-circuit protection Industrial Control Backplane Communication and I/O Density Scaling The IS210AEAAH3B operates as a field I/O interface component within the GE Mark VIe architecture. The module performs analog signal conversion, digital signal processing, and electrical separation between field devices and controller-level communication paths. The Revision 3 hardware incorporates DSP processing improvements and timing margin enhancements for Mark VIe control applications. Its configurable channel structure supports multiple signal types, including current loops, voltage inputs, thermocouple measurement, and RTD temperature acquisition. The module supports deterministic communication through GE control network interfaces including IONet and backplane communication structures. Channel isolation and protective circuits reduce signal interference during industrial control operations. Frequently Asked Questions Q: What field signal types can the IS210AEAAH3B process?A: The module supports 4-20 mA current inputs, 0-10 V voltage inputs, thermocouple signals, and RTD temperature measurement signals. Q: Does the IS210AEAAH3B provide electrical isolation between field channels?A: Yes. The module provides channel-to-channel isolation and channel-to-ground isolation for field signal separation. Q: What power interfaces are supported by the IS210AEAAH3B?A: The module accepts 24 VDC +/-10% external power input or +5 VDC power through the control backplane interface. Field Installation Guidelines Install the IS210AEAAH3B in the designated GE Mark VIe control cabinet or rack position according to system drawings. Verify connector orientation and terminal assignments before connecting field wiring. Separate analog signal cables from high-current power conductors to reduce electromagnetic interference. Use shielded cables for low-level analog signals and connect cable shields according to the cabinet grounding practice. Confirm that the conformal-coated PCB surface is free from contamination and mechanical damage before installation. Ensure proper seating of rack connectors and verify field wiring polarity for current loops, voltage inputs, RTDs, and thermocouple circuits.
$200.00 $100.00
-

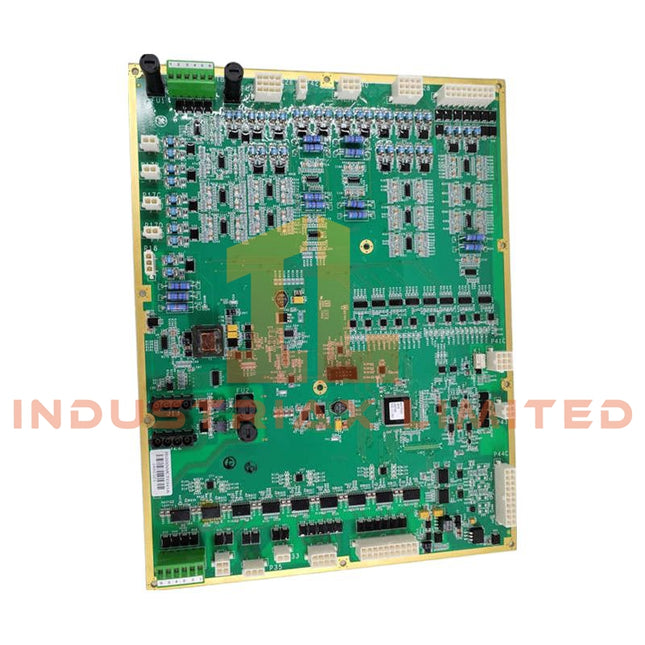

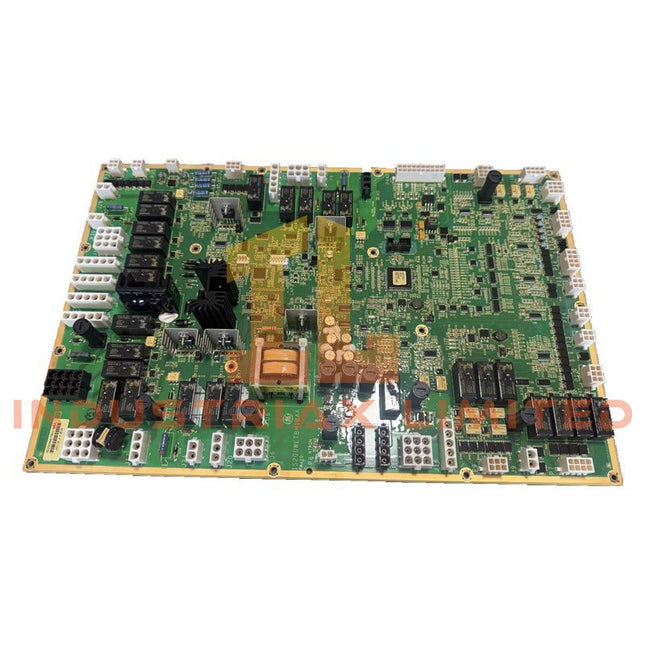

General Electric GE IS200WETCH1A WETC Exciter Terminal Board
GE IS200WETCH1A WETC Exciter Terminal Board The GE IS200WETCH1A, also cataloged as the IS200WETC Exciter Terminal Board, operates as a dedicated hardware component for generator field signal termination and feedback conditioning within GE Mark VI/VIe Speedtronic turbine control platforms. The module provides physical electrical interfacing for exciter voltage and current feedback circuits, connecting field measurement signals with exciter control electronics. Hardware Specifications Parameter Specification Model IS200WETCH1A Brand GE Energy Origin United States Functional Acronym WETC Functional Description WETC Top Box Module C Assembly System Compatibility Mark VI / Mark VIe Speedtronic turbine control system Signal Interface Generator field voltage and current feedback Input Signal Range Up to 500 VDC field voltage; up to 10 ADC field current Output Signals Conditioned analog signals to exciter control module Protection Functions Overvoltage suppression, current limiting, surge protection Connectors Terminal blocks for field wiring; ribbon connectors to control rack Mounting Panel mount or control cabinet installation Weight 0.6 kg Dimensions 200 mm x 150 mm x 35 mm Operating Temp -30 to +65 deg C Humidity Up to 95% RH non-condensing Power Consumption Not specified; powered through associated control system interface PCB Coating Conformal coating Functional Revision Revision A Firmware Flash Compatibility and Exciter Signal Interface The IS200WETCH1A operates as an electrical termination and signal conditioning interface within the GE Mark VIe control architecture. The board processes generator field voltage and current feedback signals before transmission to exciter control modules. Its circuit design includes signal protection paths for transient suppression and controlled current feedback handling. The WETC assembly supports GE industrial control cabinet architectures where terminal-level wiring interfaces with rack-based control electronics. The module maintains signal integrity through dedicated field connections and structured control rack communication paths. Frequently Asked Questions Q: What signals are connected to the GE IS200WETCH1A module?A: The module interfaces with generator field voltage and current feedback signals and provides conditioned analog outputs to the exciter control electronics. Q: Does the IS200WETCH1A provide direct generator field power switching?A: No. The module functions as an exciter terminal interface and signal conditioning assembly. Power switching functions are performed by associated exciter power components. Q: What environmental conditions are specified for the IS200WETCH1A?A: The module is specified for operation from -30 to +65 deg C with humidity tolerance up to 95% non-condensing. Field Installation Guidelines Install the IS200WETCH1A inside the designated GE Mark VI/VIe control cabinet location using the approved mechanical mounting arrangement. Verify terminal block wiring against the exciter control drawings before energizing the circuit. Route generator field signal cables separately from high-current switching conductors to reduce electromagnetic interference. Use shielded instrumentation cables where required and terminate cable shields according to the control cabinet grounding standard. Inspect ribbon connectors and terminal interfaces for proper seating before system startup. Confirm insulation condition, connector cleanliness, and cable strain relief during installation and maintenance procedures.
$200.00 $100.00
-

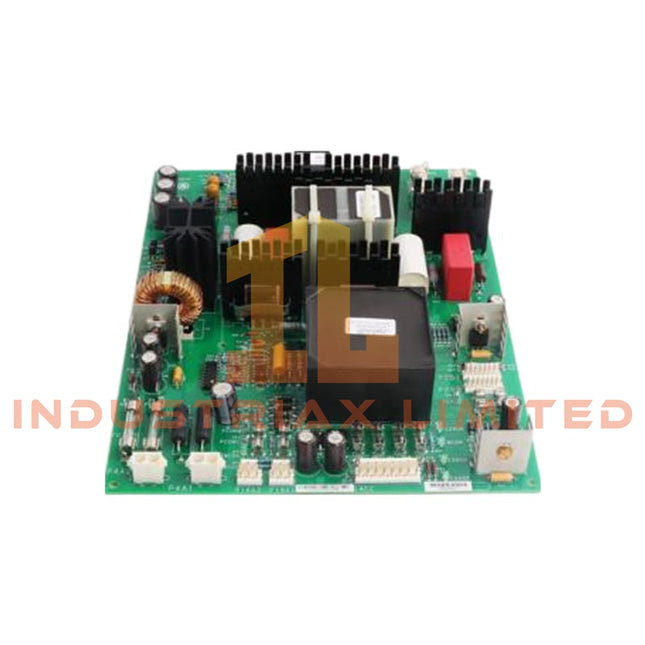

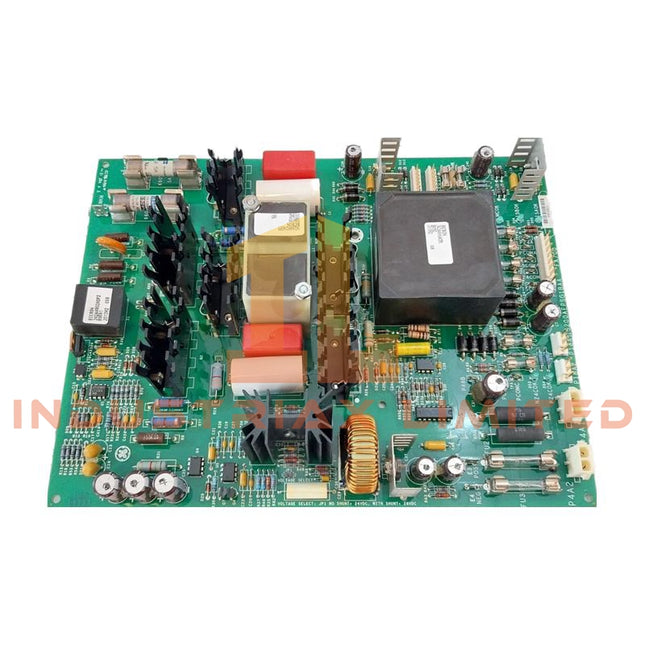

General Electric GE IS210AEPSG1B Auxiliary Emergency Power Supply Module
GE IS210AEPSG1B Auxiliary Emergency Power Supply Module Configured for emergency DC power conditioning in the GE Mark VIe turbine control system, the GE IS210AEPSG1B (IS210AEPSG1B Auxiliary Emergency Power Supply Module) provides regulated backup power conversion and status monitoring for critical control and I/O circuits. Hardware Specifications Parameter Specification Model IS210AEPSG1B Brand GE Origin United States Weight 0.5 kg Dimensions 168 x 150 x 55 mm Operating Temp 0 to 60 deg C Power Consumption 125 VDC nominal input, output load dependent Product Type Auxiliary Emergency Power Supply Modules Series Mark VIe Wind Functional Acronym AEPS Functional Description Alternative Energy Power Supply Input Voltage 125 VDC nominal from station battery supply Output Voltages +5 VDC and +/-15 VDC Hold-up Time 50-100 ms after input power loss Transfer Time Microsecond-level switchover Protection Functions Overvoltage, undervoltage, short-circuit, reverse polarity protection Status Indication LED indicators for input, output, and fault status Communication Health and status signals to Mark VIe controller Mounting Type Universal Rack (UR) or auxiliary cabinet installation PCB Coating Conformal coating GE Mark VIe Power Conversion and Control Interface The IS210AEPSG1B integrates regulated DC conversion functions within the Mark VIe control power architecture. The module receives 125 VDC station battery input and generates conditioned DC outputs for selected control and I/O circuits. The module supports industrial control power continuity through fast transfer operation and monitored power status feedback. The design incorporates protection circuits for abnormal input conditions and maintains compatibility with Mark VIe system power distribution requirements. The GE industrial control platform supports deterministic control networks, I/O density scaling, and firmware flash compatibility across approved Mark VIe hardware configurations. The AEPS module operates as a power subsystem component rather than a field signal acquisition device. Frequently Asked Questions Q: What input power source is required for the IS210AEPSG1B?A: The module accepts a nominal 125 VDC input supply from a station battery source. Q: Which DC outputs are generated by the AEPS module?A: The module provides +5 VDC and +/-15 VDC outputs for compatible Mark VIe control and I/O circuits. Q: Does the IS210AEPSG1B provide system communication functions?A: The module provides health and status signals to the Mark VIe controller for power condition monitoring. Field Installation Guidelines Install the IS210AEPSG1B in the designated GE Mark VIe rack or auxiliary cabinet position using the approved mechanical mounting and electrical interfaces. Verify input polarity, DC supply wiring, and connector seating before energizing the module. Route power conductors separately from low-level analog or communication wiring to reduce electrical interference. Maintain conformal-coated PCB protection by avoiding unnecessary handling of exposed circuit surfaces. Confirm grounding paths, cabinet bonding, and protective earth connections according to the turbine control cabinet installation requirements.
$200.00 $100.00
-

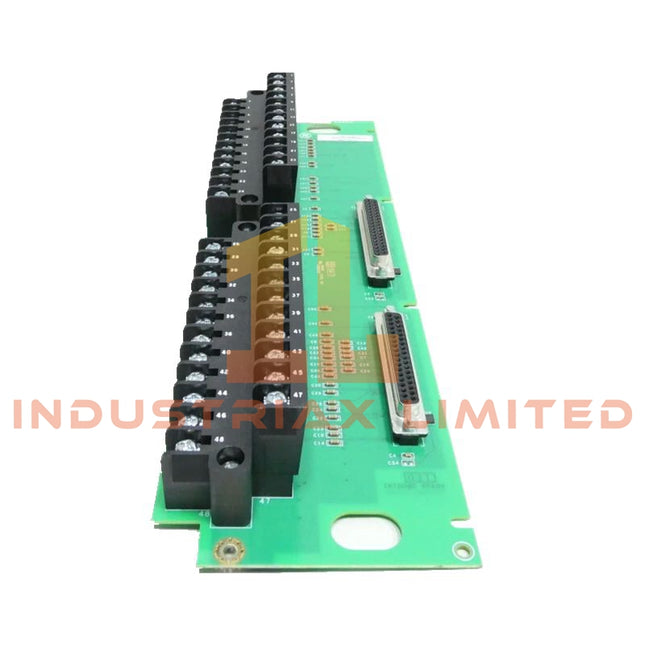

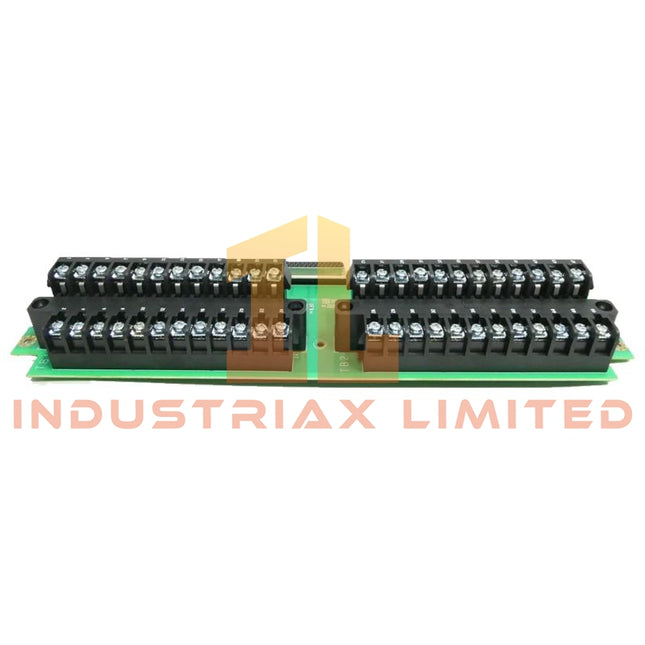

General Electric IS200TRTDH1C GE RTD Input Board
GE IS200TRTDH1C RTD Input Terminal Board Configured for RTD signal acquisition in the GE Mark VI/Mark VIe Speedtronic turbine control system, the GE IS200TRTDH1C (IS200TRTDH1C RTD Input Terminal Board) provides direct physical signal termination and conditioning for temperature sensor inputs. The board interfaces RTD devices with turbine control hardware through conditioned analog channels for temperature measurement functions. Hardware Specifications Parameter Specification Model IS200TRTDH1C Brand GE Origin United States Weight 0.7 kg Dimensions 22 cm x 17 cm x 4.5 cm Operating Temp 0 to 60 deg C Power Consumption 24 VDC input, 150-200 mA typical Product Type RTD Input Terminal Board Series Mark VIe RTD Channels 16 channels supported (application configuration may vary) RTD Sensor Types PT100, copper 10 ohm, nickel 120 ohm RTD RTD Wiring 2-wire and 3-wire RTD connection Temperature Measurement Range -200 to +850 deg C Excitation Current 1 mA per channel Resolution 0.1 deg C Accuracy +/- 0.5 deg C Input Impedance >10 Mohm Host Interface 50-pin ribbon connector Power Connector 6-pin terminal block PCB Construction 4-layer PCB with guarded analog traces System Compatibility GE Mark VI / Mark VIe Speedtronic control systems GE RTD Signal Conditioning and Mark VIe Interface The IS200TRTDH1C performs RTD input termination, excitation, and analog signal conditioning before data transfer to the Mark VIe controller architecture. The guarded analog trace layout and filtering components are configured to reduce electrical noise effects on low-level temperature measurement signals. The board supports Mark VIe control architectures including simplex, duplex, and TMR configurations when installed within compatible system hardware. RTD channel processing maintains sensor scaling and measurement conversion for turbine temperature monitoring applications. Frequently Asked Questions Q: What RTD sensor connections are supported by the IS200TRTDH1C?A: The board supports 2-wire and 3-wire RTD connections, including PT100 and other resistance-based temperature sensors. Q: What is the power input requirement for this terminal board?A: The board operates from a 24 VDC supply with a typical current consumption range of 150-200 mA. Q: Does the IS200TRTDH1C provide direct temperature measurement output?A: The board conditions RTD analog signals and transfers processed input data through the Mark VIe control system interface. Field Installation Guidelines Install the IS200TRTDH1C in the designated GE Mark VI/Mark VIe turbine control rack location using the approved mounting hardware and connector interfaces. RTD signal wiring should be routed separately from high-current power conductors and switching circuits to reduce electromagnetic interference. Shielded instrumentation cables should be used where required, with cable shields terminated according to the control system grounding design. Verify RTD polarity, channel assignment, connector seating, and supply voltage before system startup. Avoid modifying PCB components or analog signal paths during installation or maintenance activities.
$200.00 $100.00
-

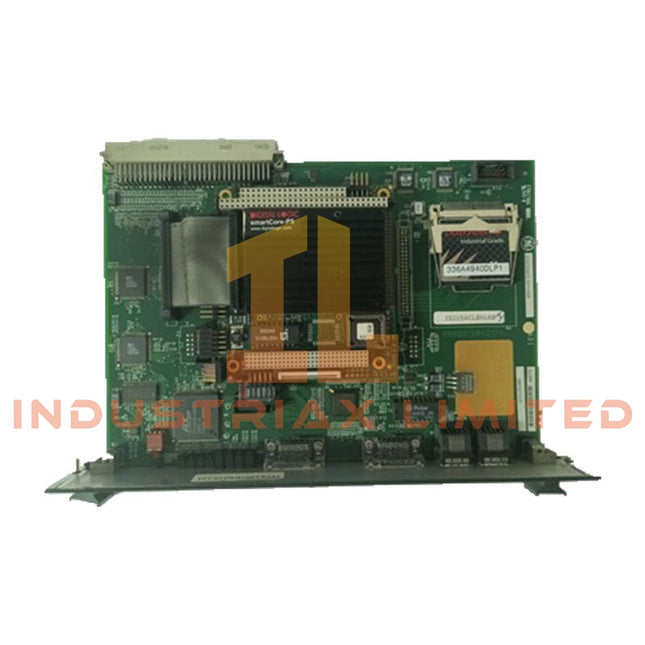

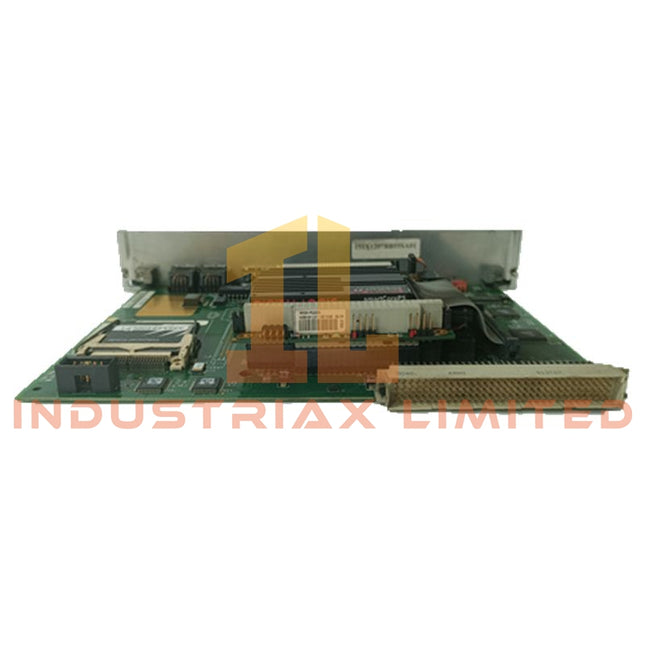

General Electric GE IS215AEPAH1A AEPA Wind Pitch Axis Control Module
GE IS215AEPAH1A AEPA Wind Pitch Axis Control Module Configured for closed-loop blade pitch actuator control in the GE Mark VIe Wind turbine control system, the GE IS215AEPAH1A (IS215AEPAH1A AEPA Wind Pitch Axis Control Module) provides direct physical and electrical execution for 20 Nm pitch drive positioning through analog signal processing and VME-based controller communication. Hardware Specifications Parameter Specification Model IS215AEPAH1A Brand GE Origin United States Product Type Wind Pitch Axis Control Modules Series Mark VIe Wind Functional Acronym AEPA Functional Description AEPA - 20 Nm Wind Pitch Axis Control Form Factor 6U VMEbus single slot Pitch Drive Rating 20 Nm pitch axis control Operating Voltage 24 VDC +/-10% Analog Inputs 16 channels, configurable 4-20 mA, 0-10 V, +/-5 V Analog Outputs 8 channels, configurable 4-20 mA, 0-10 V Signal Resolution 16-bit precision Communication Interface Dual redundant VME bus, Ethernet IONet, Modbus TCP, Profinet PCB Coating Conformal coating Weight 0.48 kg Dimensions 6U VMEbus single-slot format Operating Temp -30 to +65 deg C Power Consumption <=15 W typical, <=20 W maximum Deterministic Control Network and I/O Processing Characteristics The IS215AEPAH1A operates within the GE Mark VIe Wind platform using VMEbus communication architecture for controller data exchange. The module processes analog feedback and command signals for pitch actuator positioning, supporting configurable input and output channels for pitch position, actuator feedback, and control references. The module design incorporates industrial control features including deterministic bus communication, I/O density scaling, and firmware compatibility with the Mark VIe Wind control architecture. Dual redundant VME communication paths provide controller-level data exchange for pitch control functions. The conformal-coated PCB structure provides additional protection for electrical assemblies exposed to industrial environmental conditions. Signal conditioning circuits include overvoltage, overcurrent, and thermal protection functions for connected pitch control interfaces. Frequently Asked Questions Q: What type of actuator does the IS215AEPAH1A control?A: The IS215AEPAH1A is configured for 20 Nm wind turbine pitch axis control applications and manages closed-loop blade pitch actuator positioning. Q: What communication interface is used by this module?A: The module supports dual redundant VMEbus communication and Ethernet-based interfaces including IONet, Modbus TCP, and Profinet. Q: What analog signal types are supported by the I/O channels?A: The analog inputs support configurable 4-20 mA, 0-10 V, and +/-5 V signals. Analog outputs support configurable 4-20 mA and 0-10 V signals. Field Installation Guidelines Install the IS215AEPAH1A into a compatible 6U VME rack slot and verify mechanical alignment before applying insertion force. Confirm backplane connector engagement and rack grounding continuity before system energization. Use shielded instrumentation cables for analog signal connections where required. Route low-level analog wiring separately from high-current actuator power cables to reduce electromagnetic interference. Verify operating voltage polarity and system distribution compatibility before startup. Inspect conformal-coated PCB surfaces for contamination, mechanical damage, or connector oxidation during maintenance activities.
$200.00 $100.00
-

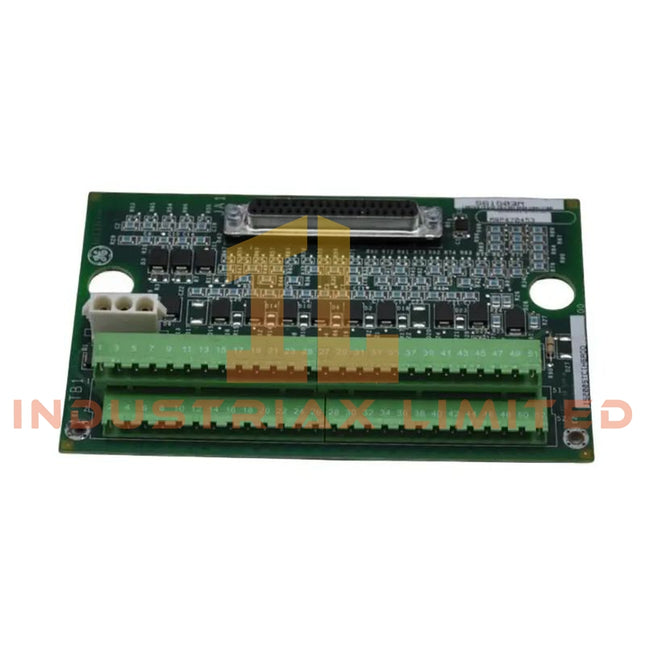

General Electric IS200STCIH6A GE Mark VIe Contact Input Board
GE IS200STCIH6A Contact Input Terminal Board Configured for discrete field signal termination in the GE Mark VIe Speedtronic control system, the GE IS200STCIH6A (IS200STCIH6A Contact Input Terminal Board) provides physical connection between turbine field contact devices and PDIA I/O packs through DIN-rail mounted terminal interfaces. Hardware Specifications Parameter Specification Model IS200STCIH6A Brand GE Origin United States Product Type Contact Input Terminal Board System Platform Mark VIe Speedtronic Functional Part Number IS200STCIH1A Input Style Discrete contact input I/O Pack Quantity One PDIA I/O Pack Excitation Voltage 24 VDC, 48 VDC, or 125 VDC field-selectable Isolation Galvanic isolation between field channels and backplane interface Connectors Screw terminals and ribbon header interfaces Mounting 35 mm DIN rail Weight 0.52 kg Dimensions 200 mm x 150 mm x 35 mm Operating Temp -30 to +65 deg C Power Consumption Field excitation dependent; no independent control power input specified Discrete Signal Isolation and Mark VIe Interface Characteristics The IS200STCIH6A provides termination and signal conditioning for discrete contact inputs connected to GE Mark VIe turbine control cabinets. The board accepts voltage-free contact signals from external devices and routes the processed input states through a PDIA I/O pack interface. The terminal board incorporates galvanic isolation, EMI filtering, and surge suppression functions to reduce interference from turbine cabinet wiring environments. The design supports discrete input applications including limit switches, relay contacts, emergency stop circuits, and auxiliary status contacts. The board operates as a simplex terminal interface with one associated PDIA I/O pack connection. The DIN-rail mechanical format allows installation within compact control panels while maintaining separation between field wiring and controller electronics. Frequently Asked Questions Q: What type of field signals can the IS200STCIH6A terminate?A: The IS200STCIH6A terminates discrete contact signals from field devices such as switches, relay contacts, and emergency stop circuits. The input style is discrete contact input. Q: Does the IS200STCIH6A provide electrical isolation?A: Yes. The terminal board provides galvanic isolation between field input channels and the backplane interface to the associated PDIA I/O pack. Q: What mounting method is used for this terminal board?A: The IS200STCIH6A uses a 35 mm DIN-rail mounting arrangement for installation inside Mark VIe control cabinets. Field Installation Guidelines Install the IS200STCIH6A on a correctly secured 35 mm DIN rail inside the control cabinet. Verify terminal assignments before connecting field wiring to prevent incorrect discrete input mapping. Route contact input cables separately from high-current power conductors and switching circuits to reduce electromagnetic interference. Maintain proper cable shielding and connect shield layers according to cabinet grounding practices. Confirm that field excitation voltage selection matches the connected device requirements before energizing the circuit. Inspect ribbon header and I/O pack connections for proper mechanical engagement before system startup.
$200.00 $100.00
-

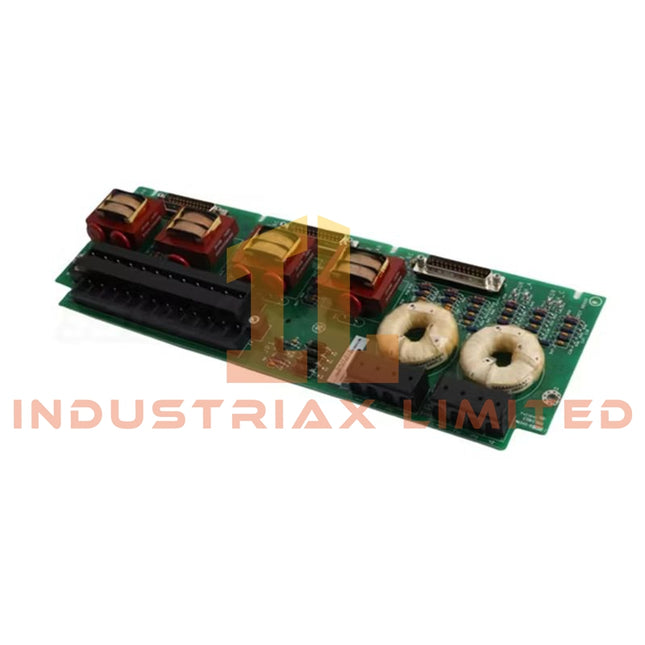

General Electric GE IS200EACFG1A EX2100 Exciter AC Feedback Board
GE IS200EACFG1A EX2100 Exciter AC Feedback Board The GE IS200EACFG1A, also cataloged as the IS200EACFG1A Exciter AC Feedback Board, operates as a dedicated hardware component for exciter voltage and flux feedback signal conditioning within the GE EX2100 Excitation Control System. The board converts AC feedback signals into isolated low-level inputs for controller processing. Hardware Specifications Parameter Specification Model IS200EACFG1A Brand GE Origin United States Weight 0.6 kg Dimensions Compact terminal board form factor Operating Temp -40 to 70 deg C Power Consumption Passive board design, no external power required Product Type Exciter AC Feedback Boards Series EX2100 Functional Acronym EACF Board Function Exciter AC Feedback Signal Interface PPT Input Voltage 480 VRMS, 50/60 Hz, +/-20% Transformer Secondary Output 1.6 VRMS Air Core CT / Flux Coil Inputs 0-0.8 VRMS at 50/60 Hz Coil Inputs 4 Isolation Rating 1500 VAC channel-to-chassis Connectors 3 x 9-pin D-sub connectors for M1, M2, C controllers Terminal Blocks TB1-TB4 voltage input terminals Backplane Cable Limit 90 mm EBKP backplane connection Noise Suppression High-frequency filtering at signal entry Installation Location EX2100 exciter auxiliary cabinet Deterministic Feedback Interface and Signal Conditioning Characteristics The IS200EACFG1A provides an analog feedback interface within the EX2100 excitation architecture. The board uses passive transformer coupling and filtering circuits to scale 480 VRMS exciter power potential transformer signals into approximately 1.6 VRMS isolated controller-level signals. The board supports I/O signal distribution between exciter feedback sources and GE controller sections through dedicated M1, M2, and C controller connections. The passive design eliminates onboard processing functions while maintaining signal isolation and electromagnetic noise suppression. The EX2100 platform uses defined feedback signal scaling and controller interface configurations. The EACF board provides compatible signal conditioning for generator excitation monitoring without firmware-based processing functions. Frequently Asked Questions Q: What type of signals are processed by the IS200EACFG1A?A: The board processes three-phase AC voltage feedback from the exciter PPT and flux coil current feedback signals from air-core CT inputs. Q: Does the IS200EACFG1A require an external power supply?A: No. The board uses passive signal interface components including transformers and filtering networks without onboard powered electronics. Q: How is electrical isolation provided between field signals and controllers?A: Isolation is provided through transformer coupling and rated channel-to-chassis isolation between AC feedback inputs and controller interfaces. Field Installation Guidelines Install the IS200EACFG1A in the designated EX2100 exciter auxiliary cabinet location and verify all connector positions before system energization. Connect PPT voltage inputs and flux coil feedback wiring according to the EX2100 system drawings. Maintain correct phase identification for AC voltage feedback signals. Use appropriate shielded wiring practices for feedback circuits. Ground cable shields according to site standards and keep shield termination points close to cable entry locations to reduce electrical interference. Maintain short EBKP backplane connections and route feedback wiring separately from high-current excitation conductors. Verify terminal block assignments and controller interface connections before commissioning.
$200.00 $100.00
-

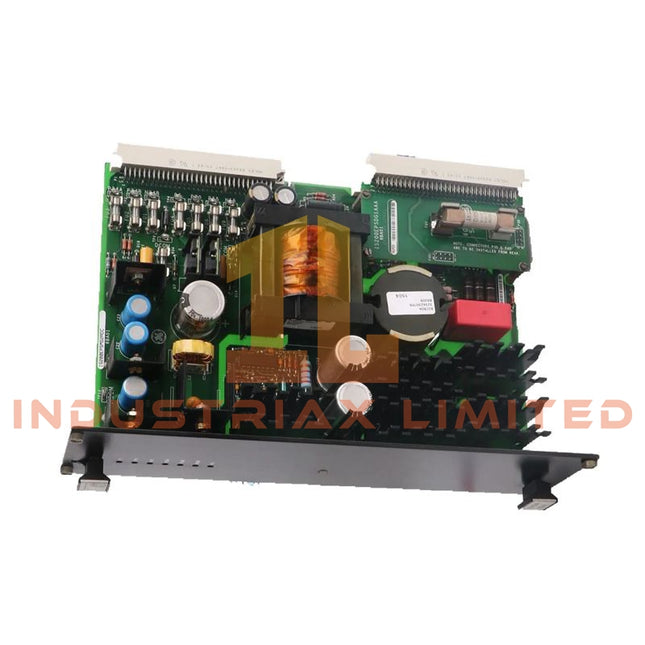

General Electric GE IS200EPSMG1A EX2100 Exciter Power Supply Module
GE IS200EPSMG1A EX2100 Exciter Power Supply Module The GE IS200EPSMG1A, also cataloged as the IS200EPSMG1A Exciter Power Supply Module, operates as a dedicated hardware component for regulated DC power conversion within GE EX2100 Excitation Control System platforms. The module converts 125 VDC input power into multiple isolated DC output rails for excitation and control circuits. Hardware Specifications Parameter Specification Model IS200EPSMG1A Brand GE Origin United States Weight 0.95 kg Dimensions 230 mm x 170 mm x 40 mm Operating Temp -10 to 55 deg C Product Type Exciter Power Supply Modules Series EX2100 System Compatibility GE Mark VI / EX2100 Excitation Control Systems Input Voltage 125 VDC +/-20% Output Voltages +5 VDC, +/-15 VDC, +24 VDC, +70 VDC, 55 VDC, 20 VAC Total Output Power Approx. 150 W maximum Efficiency Approx. 85% at full load Intermediate Voltage Stage 50 VDC buck regulator stage Hold-up Time 15 ms at full load Ripple <50 mV (24 V), <20 mV (5 V), <30 mV (15 V) Cooling Method Passive cooling with dual heatsinks PCB Construction 6-layer PCB with HV/LV trace separation Protection Functions Overcurrent, overvoltage, short-circuit, thermal protection Indicators LED status indicators for voltage rails Industrial Control Power Conversion Characteristics The IS200EPSMG1A applies switching regulator topology with transformer isolation to generate multiple regulated power rails for EX2100 excitation hardware. The isolated output architecture separates individual voltage domains, supporting distributed power delivery to control boards, crowbar circuits, ground detection circuits, and de-excitation components. The module is installed through the EPBP backplane architecture and operates as a dedicated power component for Mark VI and EX2100 control sections. Power architecture compatibility is managed through GE system configuration and firmware-controlled controller assemblies. The EX2100 platform uses defined backplane power distribution and module-level hardware compatibility. The IS200EPSMG1A provides regulated DC conversion with protection monitoring and LED-based voltage rail status indication. Frequently Asked Questions Q: What input voltage is required for the IS200EPSMG1A?A: The module accepts a 125 VDC input supply with an allowable range of +/-20%. Q: Which output rails are generated by the power supply module?A: The module provides regulated +5 VDC, +/-15 VDC, +24 VDC, +70 VDC, 55 VDC, and 20 VAC outputs for different excitation control circuits. Q: How is the module installed within the EX2100 system?A: The IS200EPSMG1A is installed into the EPBP backplane inside Mark VI and EX2100 cabinets according to system hardware configuration requirements. Field Installation Guidelines Install the IS200EPSMG1A into the designated EPBP backplane position and verify connector alignment before applying DC input power. Confirm the input polarity and voltage level before energizing the module. Ensure power wiring is separated from low-level signal wiring to reduce electrical noise coupling. Maintain proper grounding practices for the cabinet and verify that protective earth connections meet site electrical standards. Do not modify PCB shielding or insulation barriers during installation. Check LED voltage rail indicators after startup and verify downstream control modules receive the required DC supplies before system operation.
$200.00 $100.00
-
General Electric GE IS220PAOCH1A Mark VIe Analog Output I/O Module
GE IS220PAOCH1A Mark VIe Analog Output I/O Module Configured for actuator current signal generation in the GE Mark VIe Turbine Control System, the GE IS220PAOCH1A (IS220PAOCH1A Analog Output I/O Module) provides direct physical/electrical execution through eight isolated 0-20 mA output channels with digital conversion and current feedback monitoring. Hardware Specifications Parameter Specification Model IS220PAOCH1A Brand GE Origin United States Weight 0.5 kg Dimensions 8.26 cm high x 4.19 cm wide x 12.1 cm Operating Temp -30 to 65 deg C Power Consumption Approx. 10-15 W depending on load Product Type Analog Output I/O Module Series Mark VIe Output Channels 8 independent current output channels Analog Output Range 0-20 mA Load Capacity Up to 900 ohm per channel Compliance Voltage 18 V Digital Conversion 16-bit DAC with 16-bit ADC feedback Accuracy +/-0.5% over -30 to 65 deg C Communication Interface Dual 10/100Base-TX Ethernet ports Processor BPPB processor board with dedicated AO hardware Power Supply 27.4-28 V DC nominal Isolation Reinforced galvanic isolation, 2500 Vrms Connectors Dual RJ-45 Ethernet, DC-37 pin terminal board, 3-pin power Protection Rating IP51 enclosure, conformal coating Certifications Class I Div 2 / ATEX Zone 2 Deterministic Ethernet and I/O Density Scaling Characteristics The IS220PAOCH1A operates within the GE Mark VIe control architecture using dual Ethernet communication paths for controller data exchange. The module receives digital output commands and converts them into isolated analog current signals through eight dedicated output channels. The 16-bit DAC output stage and ADC-based current feedback circuit provide closed-loop verification of actual output current values. The module incorporates I/O density scaling through multi-channel analog output processing, allowing multiple actuator command loops to be managed within a single Mark VIe I/O package. The BPPB processor performs internal diagnostics including RAM, flash memory, processor status, and Ethernet communication checks. Firmware compatibility is managed according to the installed Mark VIe system configuration. Frequently Asked Questions Q: What type of output signals are generated by the IS220PAOCH1A?A: The module provides eight isolated 0-20 mA analog current outputs for actuator control applications. Q: Does the module support hot installation?A: The module includes a soft-start circuit designed to support hot-plugging within compatible Mark VIe hardware configurations. Installation procedures must follow system maintenance requirements. Q: How is output accuracy maintained during operation?A: The module uses 16-bit DAC conversion with ADC current feedback sensing to monitor actual loop output values. Field Installation Guidelines Install the IS220PAOCH1A in the designated Mark VIe I/O carrier position and verify correct mechanical seating before system operation. Connect output wiring according to the applicable terminal board documentation. Use shielded signal cables for analog current loops where required and terminate shields according to site grounding practices. Route analog output wiring separately from high-current switching conductors and excitation power cables to reduce electromagnetic interference. Verify channel assignment, loop polarity, and actuator input compatibility before commissioning. Confirm Ethernet connections, terminal board compatibility, and controller configuration before applying system power. Perform output loop verification using appropriate measurement equipment after installation.
$200.00 $100.00
-

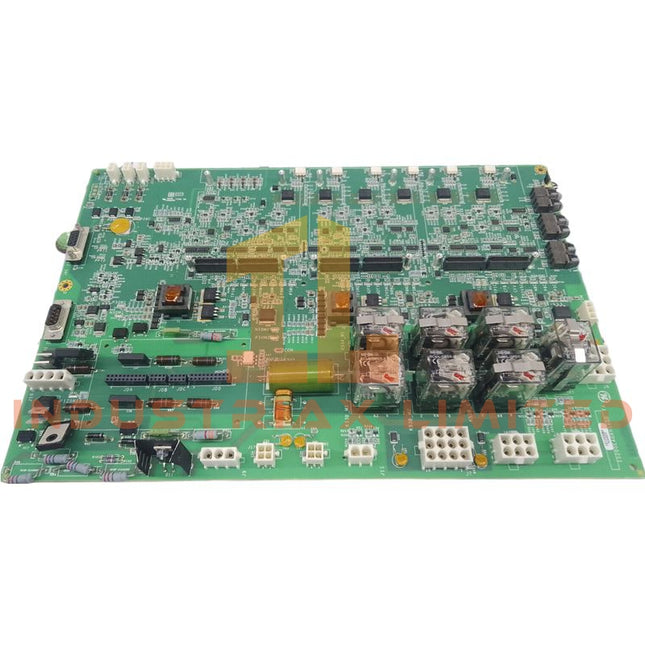

General Electric GE IS200ESYSH3A EX2100e I/O Terminal Board
GE IS200ESYSH3A EX2100e I/O Terminal Board The GE IS200ESYSH3A, also cataloged as the IS200ESYSH3A I/O Terminal Board, operates as a dedicated hardware component for generator excitation signal termination and distribution within the GE EX2100e Excitation Control System. The board processes CT/PT feedback, auxiliary contact inputs, and trip relay outputs through the M1 control section interface. Hardware Specifications Parameter Specification Model IS200ESYSH3A Brand GE Origin United States Weight 0.5 kg Dimensions 147 mm x 51.5 mm x 114 mm Operating Temp 0 to 60 deg C Power Consumption 8.5 W max Product Type I/O Terminal Board Series EX2100e Control Section M1 Functional Acronym ESYS Group Variation H3 Redundancy Type Simplex Control CT Inputs 2 channels, selectable 1 A or 5 A PT Inputs 2 x 3-phase generator voltage inputs, 120/240 VAC Trip Relays 2 x Form-C, 250 VAC / 5 A resistive Auxiliary Inputs 7 opto-isolated contact inputs, 24 VDC Power Supply Input 24 VDC (18-36 VDC) Serial Interface HSLA high-speed serial interface Serial Data Rate 1.2 Mbps Update Cycle 10 ms deterministic cycle Isolation 2500 Vrms CT/PT-to-logic, 500 Vrms channel-to-channel Connector Configuration 6 Sub-D pin connectors Board Coating Conformal industrial coating Industrial Control and Excitation Interface Characteristics The IS200ESYSH3A integrates with the EX2100e excitation architecture through the HSLA high-speed serial interface, providing deterministic communication between field signal circuits and the M1 control section. The board performs signal conditioning for generator current transformers, potential transformers, auxiliary contacts, and trip relay circuits. The CT/PT acquisition paths support scaled generator feedback measurement for excitation regulation. Relay outputs provide Form-C switching functions for excitation-related protection circuits, while opto-isolated contact inputs maintain electrical separation between external devices and control electronics. The EX2100e platform uses defined I/O density scaling through dedicated terminal board configurations. The H3 variant is configured for simplex control operation, with firmware and hardware compatibility determined by the installed Mark VI / EX2100e system configuration. Frequently Asked Questions Q: What type of field signals are connected to the IS200ESYSH3A?A: The board terminates generator CT inputs, PT voltage inputs, auxiliary contact signals, and trip relay circuits used by the EX2100e excitation system. Q: What communication method is used between the terminal board and controller?A: The IS200ESYSH3A communicates through the HSLA high-speed serial interface at 1.2 Mbps with a defined update cycle. Q: Is the IS200ESYSH3A configured for redundant operation?A: The H3 group variation supports simplex control operation. Other EX2100e board variants provide different redundancy configurations. Field Installation Guidelines Install the IS200ESYSH3A in the designated EX2100e control cabinet location and verify correct connector engagement before energizing the excitation system. Terminate CT and PT wiring according to the system wiring drawings. Maintain correct polarity and phase identification for generator feedback signals. Use shielded instrumentation wiring where required and connect shields according to site grounding practices. Separate analog measurement wiring from high-current excitation conductors and switching circuits to reduce electromagnetic interference. Verify auxiliary contact wiring, relay output circuits, and isolation requirements before commissioning. Confirm the installed board variant, control section assignment, and firmware compatibility with the EX2100e system configuration before replacement or startup activities.
$200.00 $100.00
-

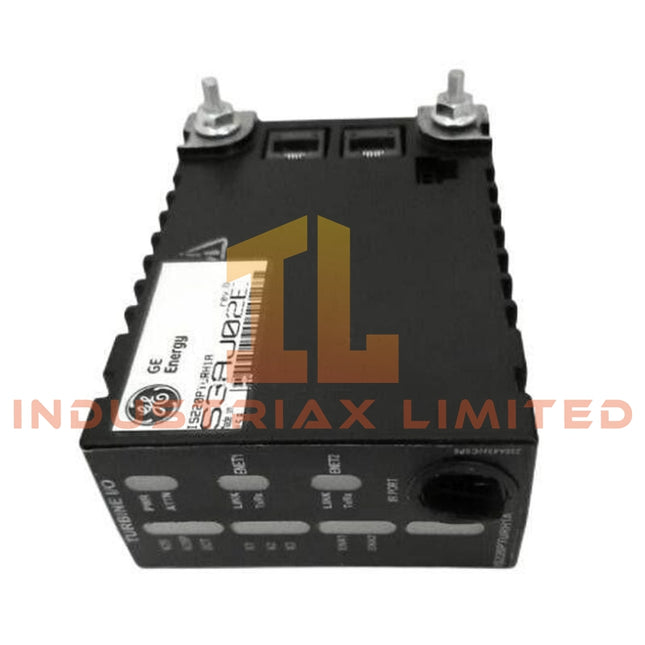

General Electric IS220PHRAH1A GE Mark VIe Analog I/O Pack
GE IS220PHRAH1A Mark VIe HART Analog Input/Output Pack The GE IS220PHRAH1A, also cataloged as the IS220PHRAH1A HART Analog Input/Output Pack, provides direct signal acquisition and output execution for Mark VIe control platforms. The module processes 4-20 mA and voltage input signals through 16-bit conversion channels and provides analog output functions through embedded I/O processing hardware. Hardware Specifications Parameter Specification Model IS220PHRAH1A Brand GE Origin United States Weight 0.5 kg Operating Temp -30 to 65 deg C Functional Designation HART Analog Input/Output Pack (PHRA) Channel Configuration 12 channels per terminal board (10 AI, 2 AO) Analog Input Range 4-20 mA DC, +/-5 V DC (Inputs 1-8) Input Converter Resolution 16-bit ADC Analog Output Converter 14-bit DAC Output Load 800 ohm for 4-20 mA output Scan Time 5 ms normal scan (200 Hz) Measurement Accuracy Better than 0.1% Input Noise Suppression 3 Hz, 6 Hz, 12 Hz selectable Common Mode Rejection 60 dB at 60 Hz Common Mode Voltage Range +/-5 V Technology Surface-mount electronics Communication Interface TCP/IP via Mark VIe backplane Analog Signal Processing and HART I/O Characteristics The IS220PHRAH1A performs analog signal conversion through integrated ADC and DAC circuits. The 16-bit analog-to-digital converter supports input measurement processing, while the 14-bit digital-to-analog converter generates current output signals. Input filtering functions provide selectable noise suppression at 3 Hz, 6 Hz, and 12 Hz to support signal conditioning requirements. The module supports channel-level analog processing with common mode rejection capability of 60 dB at 60 Hz and a common mode voltage range of +/-5 V. The 4-20 mA output channels support external loads up to 800 ohm. Frequently Asked Questions Q: What analog input signals can the IS220PHRAH1A process?A: The module supports 4-20 mA DC current inputs and +/-5 V DC voltage inputs on configured analog input channels. Q: What conversion resolution is provided for signal processing?A: Analog input conversion is performed using a 16-bit ADC, and analog outputs use a 14-bit DAC converter. Q: How does the module connect to the Mark VIe control system?A: The IS220PHRAH1A communicates through the Mark VIe backplane using TCP/IP-based communication. Field Installation Guidelines Install the IS220PHRAH1A module in the designated Mark VIe rack position and verify mechanical engagement with the backplane connector before applying power. Use shielded instrumentation cables for analog signal wiring. Connect cable shields according to site grounding standards and avoid routing low-level analog cables parallel to high-current power conductors. Verify terminal board compatibility before field wiring. Confirm input signal polarity, channel assignment, and current loop configuration before commissioning. Maintain proper separation between analog signal wiring and switching or motor drive circuits to reduce electromagnetic interference. Perform insulation checks and signal validation after installation.
$200.00 $100.00
-

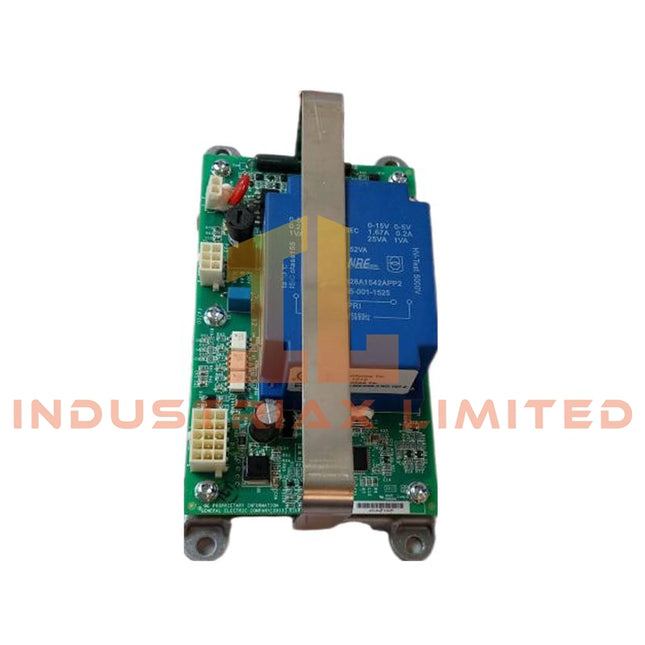

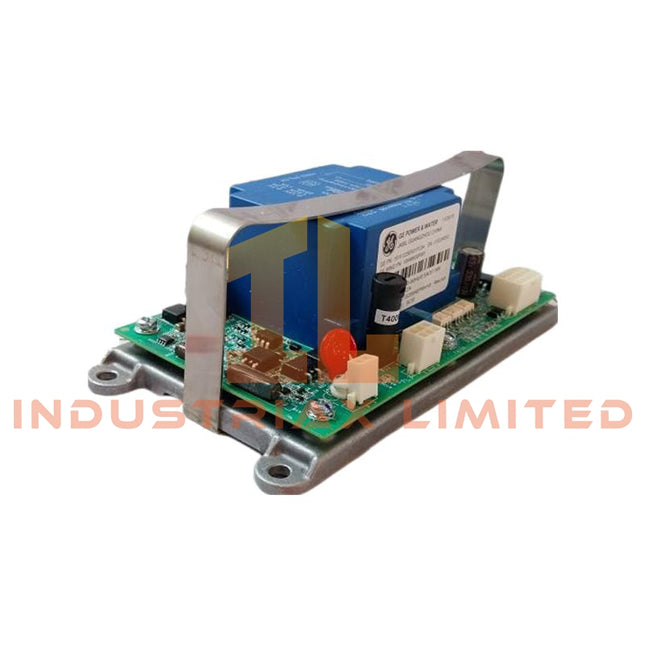

General Electric GE IS200AEPBH1B Analog Excitation Power Board
GE IS200AEPBH1B Analog Excitation Power Board Configured for excitation power signal processing in GE Mark VIe control systems, the GE IS200AEPBH1B (IS200AEPB Analog Excitation Power Board) provides direct physical/electrical execution for voltage and current regulation, feedback processing, and control communication within GE industrial control platforms. Suffix Breakdown & Model Matrix Suffix Description IS200 GE Mark VIe series hardware identification AEPB Analog Excitation Power Board functional acronym H1 Hardware revision identifier B Functional revision level Hardware Specifications Parameter Specification Model IS200AEPBH1B Brand GE Energy Origin United States Weight 0.5 kg Operating Temp -40 to +70 deg C Power Consumption 24 VDC input supply Functional Description AEPB Module Board / Analog Excitation Power Board Input Voltage 24 VDC Output Voltage 0-500 VDC Output Current 0-100 A Communication Interfaces RS232, RS485, Ethernet, Modbus TCP/IP PCB Coating Conformal coating Functional Revision B Connector Interface Board-level industrial control connectors EtherNet and Firmware Flash Compatibility Characteristics The IS200AEPBH1B is an analog excitation control board within the GE Mark VIe hardware platform. The module performs analog power signal processing, output regulation, and communication exchange through RS232, RS485, Ethernet, and Modbus TCP/IP interfaces. The board architecture supports industrial control I/O density scaling through integrated analog signal handling and communication channels. Firmware flash compatibility within the supported GE control environment allows configuration updates and application parameter management. The conformal-coated PCB construction provides additional protection against environmental contamination during operation. The board design incorporates industrial electrical interfaces for excitation-related voltage and current control functions. Frequently Asked Questions Q: What is the input power requirement of the IS200AEPBH1B?A: The board operates from a 24 VDC input supply. Q: Which communication interfaces are supported by the IS200AEPBH1B?A: The module supports RS232, RS485, Ethernet, and Modbus TCP/IP communication interfaces. Q: What type of PCB protection is applied to this board?A: The PCB uses conformal coating for protection of electronic components against environmental exposure. Field Installation Guidelines Install the IS200AEPBH1B in the designated GE Mark VIe control system assembly. Verify connector alignment, mechanical mounting, and power isolation before installation or replacement. Route communication and signal wiring separately from high-voltage conductors. Use shielded cables where required, and terminate cable shields according to the system grounding design to reduce electromagnetic interference. Confirm voltage and current configuration parameters before energizing the board. Verify RS232, RS485, Ethernet, and Modbus TCP/IP communication settings during commissioning.
$200.00 $100.00
-

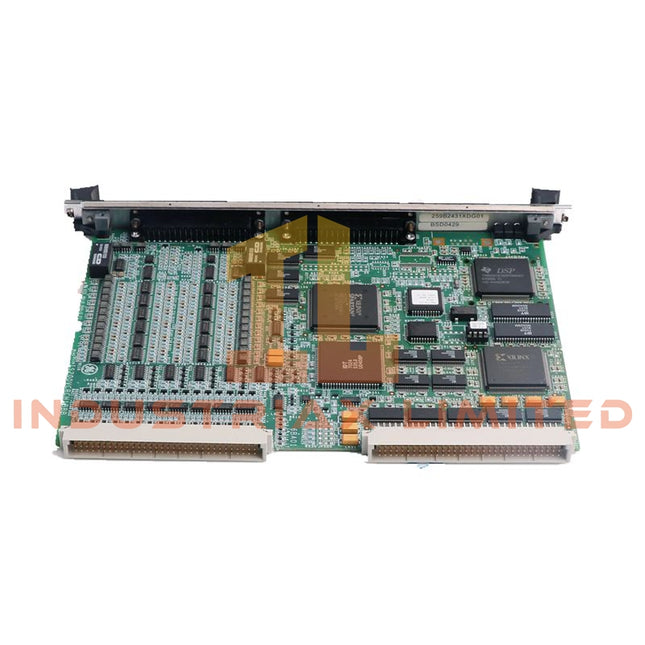

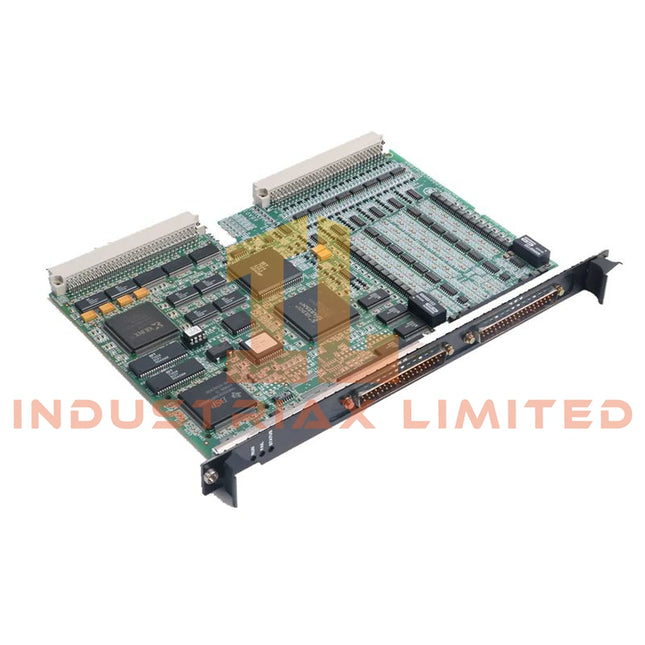

General Electric IS200VVIBH1C GE Vibration Input Module
GE IS200VVIBH1C Vibration Input Module Configured for vibration signal acquisition in GE Mark VI / Mark VIe Speedtronic control systems, the GE IS200VVIBH1C (IS200VVIB Vibration Input Module) provides direct physical/electrical execution for multi-channel sensor conditioning, digitization, and machinery monitoring signal processing. Hardware Specifications Parameter Specification Model IS200VVIBH1C Brand GE (General Electric) Origin United States Weight 0.5 kg Dimensions 6U VME single-slot card form factor Operating Temp -20 to +70 deg C Power Consumption 2.8 A @ 5 VDC Input Channels Up to 8 ICP/IEPE vibration inputs or up to 14 proximity, velocity, accelerometer, and LVDT inputs Sensor Excitation 4 mA constant current for ICP sensors; -28 VDC nominal for proximity probes Input Voltage Range +/-10 V for ICP sensors; +/-20 VDC for proximity probe signals Frequency Range 0.5 Hz to 20 kHz programmable filtering range Sampling Rate Up to 100 kHz per channel on Mark VIe; 4,600 SPS per channel on Mark VI Resolution 16-bit ADC Dynamic Range Approx. 80 dB Isolation 1500 V RMS field-to-logic; 500 V channel-to-channel Redundancy Support Compatible with simplex, dual, and TMR Mark VI configurations Profinet / EtherNet Deterministic Signal Processing Characteristics The IS200VVIBH1C operates as a vibration acquisition interface within GE Speedtronic Mark VI and Mark VIe architectures. The module receives analog vibration and position signals from field sensors, performs signal conditioning, and converts input data through a 16-bit ADC for controller-level processing. The module supports industrial control I/O density scaling through multiple sensor input configurations, including proximity probes, accelerometers, velocity transducers, and LVDTs. Its compatibility with simplex, dual, and triple modular redundancy configurations enables integration into different Mark VI control architectures. Signal processing functions include configurable band-pass, low-pass, and high-pass filtering. The module architecture supports firmware flash compatibility within the supported GE control platform for configuration and application management. Frequently Asked Questions Q: What sensor types can be connected to the IS200VVIBH1C?A: The module accepts vibration and position signals from ICP/IEPE accelerometers, proximity probes, velocity transducers, and LVDTs according to the configured input mode. Q: What type of signal conversion is used in the vibration input module?A: The module uses a 16-bit ADC for analog signal digitization with programmable sampling performance depending on Mark VI or Mark VIe system configuration. Q: Can the IS200VVIBH1C operate in redundant control architectures?A: The module supports integration with simplex, dual, and TMR (Triple Modular Redundancy) Mark VI system configurations. Field Installation Guidelines Install the IS200VVIBH1C in the designated 6U VME rack slot of the GE Mark VI or Mark VIe control system. Verify card seating, connector engagement, and rack power isolation before insertion or removal. Route vibration sensor wiring separately from high-voltage power conductors and high-current switching circuits. Use shielded sensor cables where required, and terminate cable shields according to the turbine control system grounding design. Confirm sensor type configuration, excitation settings, input channel assignment, and filtering parameters before commissioning. Verify proximity probe polarity, signal reference connections, and field-to-logic isolation requirements during installation.
$200.00 $100.00
-

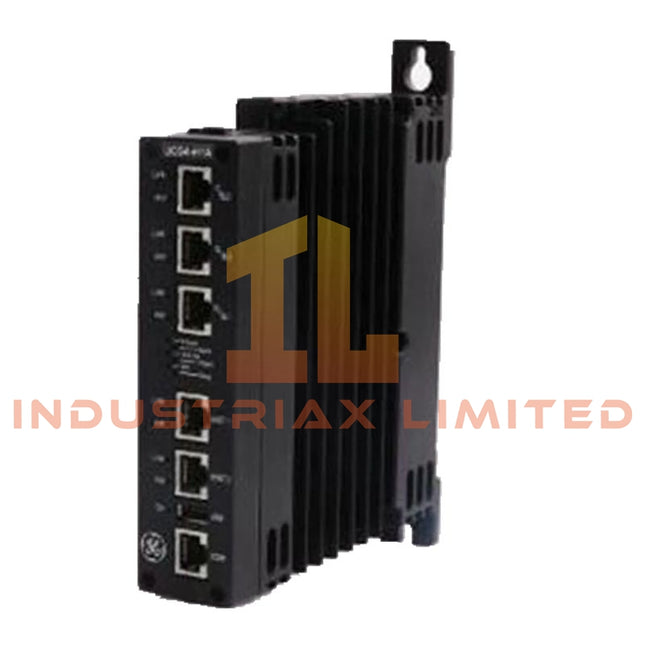

General Electric IS400UCLIH1A GE Industrial Controller Module
GE IS400UCLIH1A Industrial Controller Module The GE IS400UCLIH1A, also cataloged as the IS400UCLI Industrial Controller Module, operates as a dedicated hardware component for real-time control execution and data communication within GE Speedtronic Mark V / Mark VIe control platforms. Hardware Specifications Parameter Specification Model IS400UCLIH1A Brand GE (General Electric) Origin United States Weight 0.95 kg Dimensions 72 x 36 x 85 mm Operating Temp -40 to +70 deg C Power Consumption 24 VDC supply, 5 A current input Processor High-speed industrial CPU for real-time control processing Memory Volatile and non-volatile memory with Flash and RAM support Communication Ethernet, serial, fieldbus, and GE proprietary protocols I/O Support Modular I/O expansion interface for control system integration Mounting Rack installation, DIN rail, or panel mounting EtherNet/IP and Control Bus Execution Characteristics The IS400UCLIH1A is configured as a control processor module within GE Speedtronic Mark V / Mark VIe architectures. The module executes application logic, manages real-time I/O data exchange, and communicates with distributed control components through supported Ethernet, serial, fieldbus, and proprietary communication channels. The controller architecture supports modular I/O density scaling through connected input and output assemblies. Firmware flash compatibility allows application software updates and controller configuration management within the supported GE control environment. Frequently Asked Questions Q: What power input is required for the IS400UCLIH1A controller module?A: The module operates from a 24 VDC power source with a specified current requirement of 5 A. Q: Does the IS400UCLIH1A support replacement without system shutdown?A: The module design supports hot-swappable replacement procedures when applied within a compatible GE rack configuration and according to system installation requirements. Q: Which communication interfaces are available on this controller module?A: The module supports Ethernet, serial communication, fieldbus interfaces, and GE proprietary communication protocols. Field Installation Guidelines Install the IS400UCLIH1A in the designated GE Speedtronic Mark V / Mark VIe rack or approved mounting assembly. Verify mechanical seating, connector alignment, and power isolation before module insertion or removal. Use shielded communication cables where required by the control system design. Connect cable shields according to site grounding practices to reduce electromagnetic interference. Separate communication wiring from high-voltage power conductors and maintain appropriate cable routing practices. Confirm firmware compatibility, controller configuration parameters, and I/O addressing before commissioning. Ensure ventilation paths remain unobstructed and that environmental conditions remain within the specified operating range.
$200.00 $100.00
-

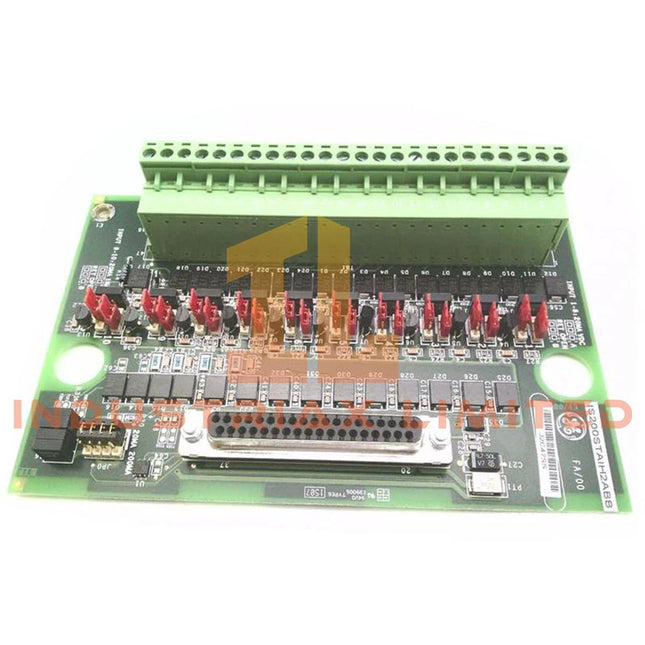

General Electric GE IS200STAIH2A Simplex Analog Input Terminal Board
GE IS200STAIH2A Simplex Analog Input Terminal Board The GE IS200STAIH2A, also cataloged as the IS200STAIH2A Simplex Analog Input Terminal Board, operates as a dedicated hardware component for analog signal termination and conditioning within GE Mark VIe Speedtronic turbine control platforms. It provides field sensor signal routing, filtering, and interface functions between analog devices and controller input processing modules. Hardware Specifications Parameter Specification Model IS200STAIH2A Brand GE (General Electric) Origin USA Product Type Simplex Analog Input Terminal Board System Compatibility Mark VI / Mark VIe Speedtronic Signal Channels 12 analog input channels Signal Interface Analog field signal termination Supported Signals Analog voltage/current inputs via terminal interface Maximum Lead Resistance 15 ohm Output Supply 24 VDC Technology Surface mount technology Mounting DIN rail or panel mounting Weight 0.5 kg Operating Temp -30 to +65 deg C Power Consumption Supplied through associated control system interface GE Mark VIe Analog Signal Interface Characteristics The IS200STAIH2A provides analog input field termination for GE turbine control architectures. The board supports I/O density scaling through multiple analog input channels and transfers conditioned field signals to compatible analog processing modules. The terminal board design incorporates filtering components and signal separation methods to reduce field noise coupling. Surface mount construction supports compact installation within Mark VIe control cabinets. The board operates as a physical signal interface and does not perform standalone signal computation. Frequently Asked Questions Q: What is the primary function of the IS200STAIH2A?A: The IS200STAIH2A terminates and conditions analog field signals before transmission to the turbine controller input processing hardware. Q: Does the IS200STAIH2A contain an independent processor?A: No. The board functions as a terminal interface component. Analog conversion and processing are performed by the associated controller input modules. Q: What installation method is supported for this terminal board?A: The board supports cabinet installation using DIN rail or panel mounting arrangements according to the Mark VIe system configuration. Field Installation Guidelines Install the IS200STAIH2A on a properly secured control cabinet mounting surface. Verify terminal assignments before connecting field wiring. Use shielded cables for low-level analog signal wiring where required. Connect cable shields according to the cabinet grounding design to reduce EMI/RFI coupling. Separate analog signal wiring from high-current power conductors and relay switching circuits. Inspect terminal connections for proper mechanical tightening and confirm that field device polarity matches the controller wiring documentation before system energization.
$200.00 $100.00
