The Honeywell CC-PWRR01 is a high-reliability redundant power system designed to provide consistent 24-26VDC output for critical Distributed Control System (DCS) applications. This 20A power assembly is engineered to ensure continuous operation through dual power supply redundancy, minimizing the risk of downtime in industrial control environments.Features
Redundant power configuration utilizing dual power supply modules.
Input voltage compatibility ranging from 100 to 230 VAC (47-63 Hz).
Integrated battery backup support providing up to 30 minutes of runtime at 20A maximum load.
Includes essential components: 2x Indication Cables (51202343-001), 2x Power Adapter Boards (51199935-100), 4x Power Supply Modules (SPS5710-2-LF / 51198685-100), and 2x Rack TDI Power Transistors (SPS5713 / 51199930-100).
Designed for high-availability control system architectures.
Technical Specifications
Model
CC-PWRR01
Output Voltage
24-26 VDC
AC Input
100-230 VAC (rms)
Frequency
47-63 Hz
Holdup Time
20 ms
Efficiency
65% minimum
Load Regulation
30 to 100% change
Installation Guidelines
Ensure the installation environment is free from excessive dust, moisture, and corrosive gases.
Verify that the input AC power supply is stable and within the specified 100-230 VAC range before connection.
Use proper ESD protection when handling modules to prevent damage to sensitive electronic components.
Ensure all cabling, including the provided indication cables and adapter boards, is securely seated to maintain redundant signal integrity.
Maintain adequate clearance around the power supply rack to facilitate proper thermal dissipation and airflow.
Always disconnect the primary power source before performing any maintenance or module replacement.
FAQDoes the CC-PWRR01 include all necessary components for installation?Yes, this system is supplied as a complete assembly including the redundant power supply modules, adapter boards, indication cables, and rack TDI power transistors as detailed in the technical specifications.What is the primary function of this unit?The CC-PWRR01 provides a stable, redundant 24VDC power source for Honeywell DCS equipment, ensuring that the control system remains powered even in the event of a single power supply module failure.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

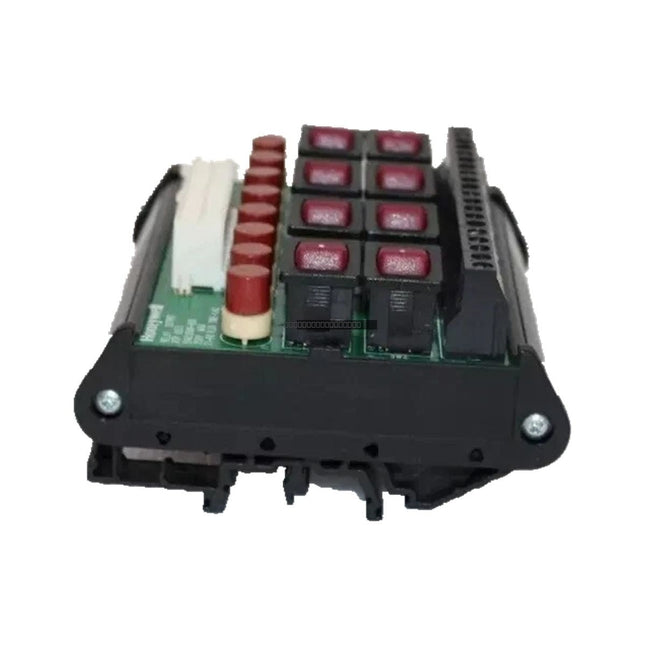

The Honeywell 900RTR-H001 is a dedicated Remote Terminal Panel (RTP) designed to facilitate reliable field wiring connections for HC900 ControlEdge relay output modules. This terminal assembly simplifies the integration of control systems with field devices, ensuring organized signal distribution and robust electrical connectivity in industrial automation environments.Features
Designed specifically for compatibility with HC900 relay output configurations.
Supports a versatile voltage range for both DC and AC applications, accommodating various field device requirements.
High insulation resistance ensures operational stability and signal integrity.
Engineered for industrial temperature ranges, providing reliability in demanding facility conditions.
Compact footprint allows for efficient cabinet space utilization in control panels.
Technical Specifications
Model
900RTR-H001
Function
Remote Terminal Panel for Relay Output Modules
Voltage Range
5-250V DC / 24-250V AC
Contact Rating
2A at 30V DC, 0.5A (AC)
Insulation Resistance
>100 M-ohm at 500V DC
Operating Temperature
-20 degC to +70 degC
Relative Humidity
5-95% non-condensing
Installation Guidelines
Ensure all power to the control cabinet is disconnected before installing or removing the terminal panel.
Mount the unit securely within the enclosure, ensuring adequate clearance for cable routing and heat dissipation.
Verify that wiring connections are tightened to the specified torque to prevent loose connections and high-resistance faults.
Maintain proper segregation between signal wiring and high-voltage power lines to minimize electromagnetic interference (EMI).
Use appropriate wire ferrules or crimp terminals to ensure secure contact and prevent fraying.
FAQWhat is the primary function of the 900RTR-H001?The 900RTR-H001 serves as a termination interface for Honeywell HC900 relay output modules, providing a structured way to connect field instrumentation to the control system.Can this panel be used with both AC and DC signals?Yes, this terminal panel supports a wide operating voltage range, covering 5-250V DC and 24-250V AC, making it flexible for various relay output applications.What are the environmental requirements for this module?The module is designed for industrial use, operating effectively within a temperature range of -20 degC to +70 degC and handling relative humidity levels between 5% and 95% (non-condensing).
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

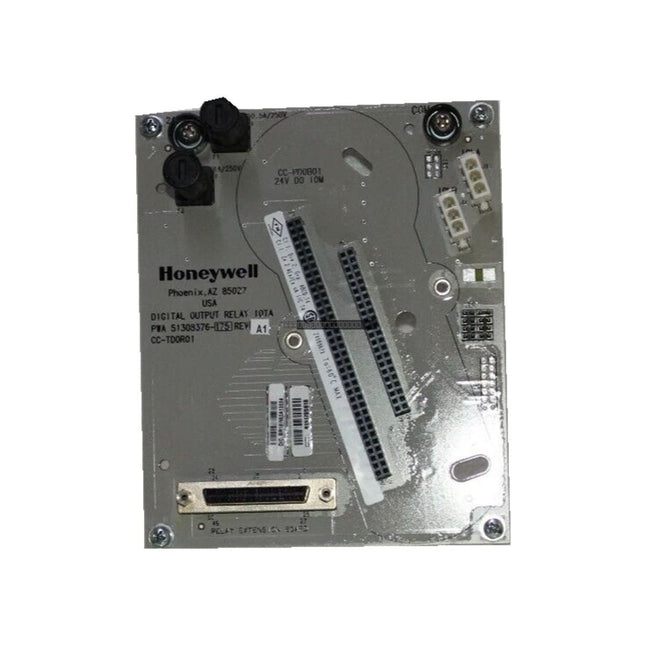

DescriptionThe Honeywell CC-TDOR01, also identified by part number 51308376-175, is a high-performance Digital Output Relay Module designed for integration within Honeywell Distributed Control Systems (DCS). This module provides reliable switching capabilities for industrial automation applications, featuring a conformal coated design to enhance durability and performance in demanding environmental conditions.Features
Conformal coated circuitry for improved environmental resilience.
Supports a broad range of load voltages, up to 250 VAC (RMS) or 125 VDC.
Optimized for low-voltage switching with a minimum load threshold of 12 VDC.
Integrated isolation rated at 1500 VAC RMS or ±1500 VDC to protect control circuitry.
Designed for consistent switching performance with a 20 ms maximum turn-on and turn-off time.
Technical Specifications
Product Model
CC-TDOR01 (51308376-175)
Module Type
Digital Output Relay
Max Load Voltage
250 VAC (RMS) / 125 VDC
Min Load Voltage
12 VDC
Min Load Current
100 mA
Max Inrush Current
10 A (for 4s at 10% duty cycle)
Isolation
1500 VAC RMS / ±1500 VDC
Switching Time
20 ms max (on/off)
Installation Guidelines
Ensure all power is disconnected from the I/O rack before inserting or removing the module to prevent electrical damage.
Verify that the module is securely seated in the designated slot to ensure proper backplane communication.
Use appropriate ESD protection when handling the module to prevent damage to sensitive electronic components.
Route signal wiring away from high-voltage cables or sources of significant electromagnetic interference (EMI) to maintain signal integrity.
Confirm that the field wiring connections are tightened to the required torque specifications to prevent loose contacts.
FAQWhat is the primary function of the CC-TDOR01 module?The CC-TDOR01 is a digital output module that utilizes relays to provide isolated switching for field devices within a Honeywell DCS environment.Is this module suitable for high-current applications?While it supports an inrush current of up to 10A for short durations, please consult the product datasheet to ensure your specific load requirements fall within the continuous operating limits of the relay hardware.What does the 'Coated' specification mean?The 'Coated' designation indicates that the module's printed circuit board has been treated with a conformal coating, which provides a protective barrier against moisture, dust, and corrosive chemicals common in industrial plant environments.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Honeywell MU-TDPR01 is a specialized Digital Input Power Distribution Assembly engineered for use within Experion and broader distributed control system (DCS) architectures. This component serves as a critical interface for field signal termination and power distribution, facilitating organized wiring for up to 16 digital input channels. By centralizing the routing of field power and signal return paths, the assembly assists in maintaining signal integrity and reducing the complexity of cabinet wiring in demanding industrial environments.Features
Supports 16-channel digital input power routing and termination.
Optimized for integration with Honeywell Experion control platforms.
Reduces field wiring complexity and improves signal referencing.
Passive design ensures minimal internal power consumption and high reliability.
Robust construction suitable for continuous operation in process control cabinets.
ApplicationsThe MU-TDPR01 is widely deployed in mission-critical process automation sectors, including oil and gas production, chemical processing, power generation facilities, and refining operations. It is specifically designed to support I/O structures where stable, noise-resistant signal termination is required for digital input monitoring.Technical Specifications
Model
MU-TDPR01
Function
Digital Input Power Distribution / Termination
Channel Count
16 Channels
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Humidity
5 to 95 percent (non-condensing)
Power Consumption
Passive (< 2 W typical)
Mounting
Panel Mount
Installation Guidelines
Ensure the system power is fully disconnected before installing or removing the assembly.
Mount the module in a clean, dry cabinet environment to prevent moisture or particulate accumulation.
Use appropriate shielded cabling for field connections to minimize EMI/RFI interference.
Maintain proper cable management practices to ensure accessibility and prevent mechanical stress on the terminals.
Verify that all field wiring is correctly seated and tightened to prevent intermittent signal loss or high-resistance connections.
FAQWhat is the primary function of the MU-TDPR01?The MU-TDPR01 acts as a termination assembly that provides organized power distribution and signal path routing for 16 digital input channels in Honeywell Experion systems.Is this module active or passive?The MU-TDPR01 is a passive termination component with negligible internal power consumption, making it a highly reliable element in the I/O signal chain.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Honeywell MC-TSIM12 (51303932-476) is a specialized serial interface module engineered for seamless integration within Honeywell Distributed Control Systems (DCS). This PCB-based communication component serves as a robust bridge between legacy field instrumentation and modern industrial control architectures. By providing reliable serial data exchange, it ensures that critical process data remains consistent and accurate across the control network, minimizing the risk of signal degradation or communication loss in complex industrial environments.Features
Designed for high-reliability serial data transmission in industrial automation environments.
Facilitates integration of serial-based field devices into the broader Honeywell DCS ecosystem.
Provides electrical isolation to protect the control system backplane from field-level noise and transients.
Optimized PCB layout to maintain high signal integrity over extended cabling distances.
Transparent operation ensures deterministic data flow without the need for additional module-level configuration.
Compact, rack-mount design for efficient utilization of space within existing I/O chassis.
ApplicationsThe MC-TSIM12 is widely utilized in heavy industrial sectors, including power generation, oil and gas refining, and chemical manufacturing. It is specifically suited for applications requiring stable connectivity for serial I/O devices, legacy instrumentation, and peripheral control equipment that must communicate directly with the central DCS controller.Technical Specifications
Model
MC-TSIM12
Part Number
51303932-476
Brand
Honeywell
Module Type
Serial Interface PCB
Operating Temperature
0 to 60 deg C
Mounting
Rack-mounted
Power Supply
Internal backplane
Installation Guidelines
Ensure the control chassis is powered down before inserting or removing the MC-TSIM12 module to prevent electrical damage.
Handle the PCB using standard ESD-safe practices to avoid static discharge damage to sensitive components.
Verify that the module is fully seated in the designated rack slot to ensure reliable backplane communication.
Use shielded cabling for all serial connections to mitigate the effects of electromagnetic interference (EMI) in high-noise environments.
Maintain proper ventilation within the control cabinet to ensure the module operates within its specified temperature range.
FAQWhat is the primary function of the MC-TSIM12?The MC-TSIM12 acts as a serial interface module that allows serial-based field devices to communicate effectively with a Honeywell DCS, ensuring data integrity and system-wide connectivity.Is this module compatible with all Honeywell systems?The MC-TSIM12 is designed for specific Honeywell DCS architectures. Please verify your system's hardware compatibility and part number (51303932-476) against your current I/O documentation before installation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

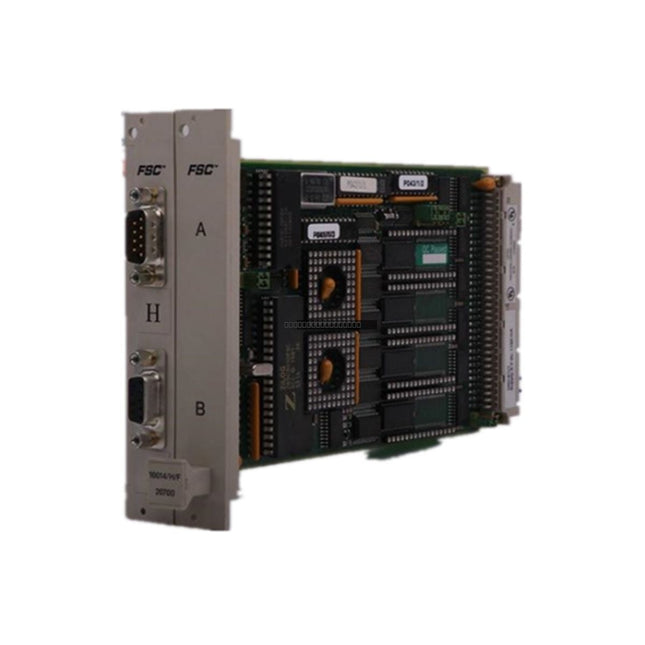

The Honeywell 10014/I/F is a high-integrity digital output module engineered for safety-critical applications. Designed specifically for Safety Instrumented Systems (SIS), this module provides 8 isolated 24 VDC solid-state channels, ensuring reliable de-energization to a safe state when a fault is detected. Its robust architecture is suitable for demanding industrial environments including chemical processing, power generation, and oil refineries where deterministic equipment shutdown is essential.Features
8 independent, isolated sourcing digital output channels.
Fail-safe solid-state design ensures outputs transition to a de-energized state during power loss or internal diagnostic failure.
Optimized for direct control of field actuators, such as solenoids, relays, and emergency shutdown valves.
Rack-mount configuration for efficient integration into Honeywell safety backplane systems.
High-speed switching performance with no mechanical wear components.
ApplicationsThis module is primarily utilized in safety-critical loops where high availability and system integrity are required. It serves as a key component in emergency shutdown systems (ESD), fire and gas monitoring, and burner management systems where maintaining a safe state is the primary operational requirement.Technical Specifications
Model
10014/I/F
Output Channels
8 Isolated
Output Type
Solid State Sourcing
Rated Voltage
24 VDC
Output Current
550 mA per channel
Max Lamp Load
120 mA (approx. 2.9 W)
Max Load Capacitance
1 uF
Voltage Drop
< 2.0 V at 500 mA
Off-State Leakage
< 0.1 mA
Power Consumption
3 W to 5 W (load dependent)
Operating Temperature
0 to 60 deg C
Installation Guidelines
Ensure the system power is completely disconnected before inserting or removing the module from the rack.
Verify that all field wiring is properly shielded and routed away from high-voltage AC lines to minimize electromagnetic interference.
Maintain proper ventilation within the cabinet to ensure the module operates within its specified temperature range.
Confirm proper grounding of the rack backplane to prevent noise-related faults in safety-critical circuits.
Handle with standard ESD precautions to prevent damage to sensitive internal electronic components.
FAQWhat is the primary function of the 10014/I/F module?The 10014/I/F is designed for safety-instrumented systems to provide reliable, fail-safe digital outputs that de-energize to a safe state upon internal fault detection.Is this module compatible with standard Honeywell safety racks?Yes, this module is designed for standard rack-mount installation within compatible Honeywell safety system backplanes.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

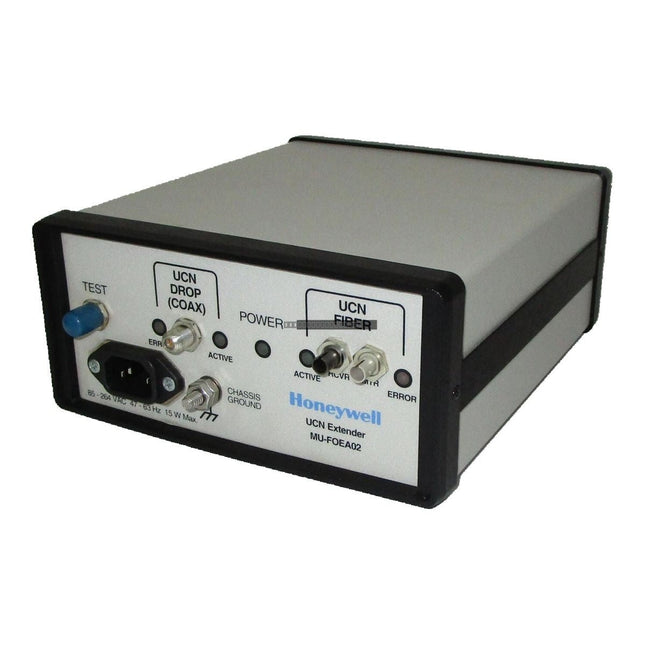

The Honeywell MU-FOEA02 (51197564-100) is a specialized fiber optic communication module engineered for the Universal Control Network (UCN) within Honeywell TDC 3000 Distributed Control System (DCS) architectures. This module facilitates the transmission of UCN signals over fiber optic media, providing the necessary distance extension and electrical isolation required for geographically dispersed control nodes in demanding industrial environments.Features
