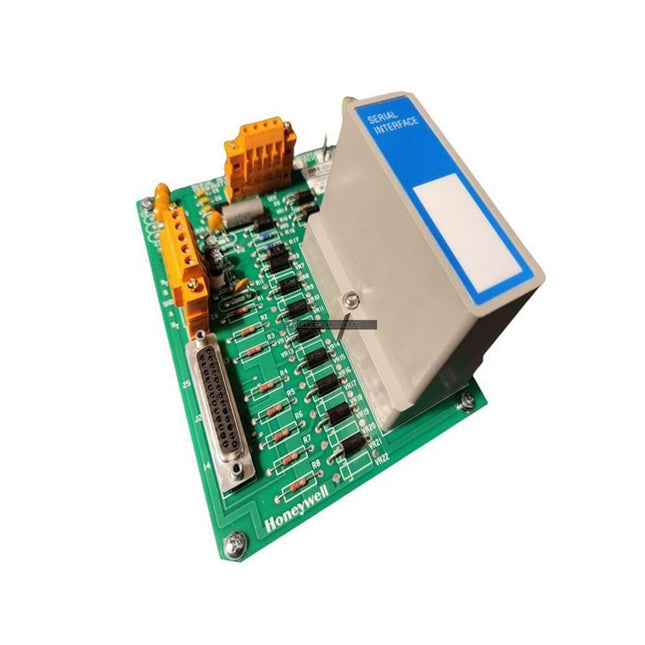

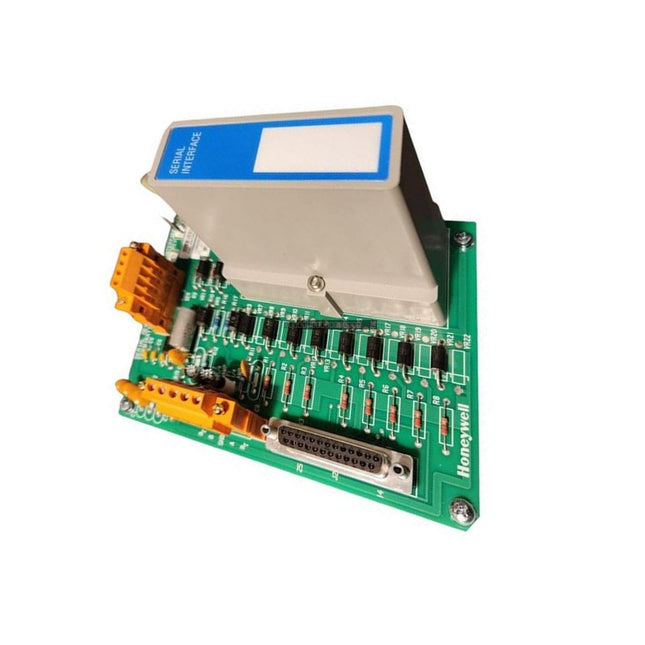

DescriptionThe Honeywell MC-TSIM12 (51303932-476) is a specialized serial interface module engineered for seamless integration within Honeywell Distributed Control Systems (DCS). This PCB-based communication component serves as a robust bridge between legacy field instrumentation and modern industrial control architectures. By providing reliable serial data exchange, it ensures that critical process data remains consistent and accurate across the control network, minimizing the risk of signal degradation or communication loss in complex industrial environments.Features
Designed for high-reliability serial data transmission in industrial automation environments.
Facilitates integration of serial-based field devices into the broader Honeywell DCS ecosystem.
Provides electrical isolation to protect the control system backplane from field-level noise and transients.
Optimized PCB layout to maintain high signal integrity over extended cabling distances.
Transparent operation ensures deterministic data flow without the need for additional module-level configuration.
Compact, rack-mount design for efficient utilization of space within existing I/O chassis.
ApplicationsThe MC-TSIM12 is widely utilized in heavy industrial sectors, including power generation, oil and gas refining, and chemical manufacturing. It is specifically suited for applications requiring stable connectivity for serial I/O devices, legacy instrumentation, and peripheral control equipment that must communicate directly with the central DCS controller.Technical Specifications
Model
MC-TSIM12
Part Number
51303932-476
Brand
Honeywell
Module Type
Serial Interface PCB
Operating Temperature
0 to 60 deg C
Mounting
Rack-mounted
Power Supply
Internal backplane
Installation Guidelines
Ensure the control chassis is powered down before inserting or removing the MC-TSIM12 module to prevent electrical damage.
Handle the PCB using standard ESD-safe practices to avoid static discharge damage to sensitive components.
Verify that the module is fully seated in the designated rack slot to ensure reliable backplane communication.
Use shielded cabling for all serial connections to mitigate the effects of electromagnetic interference (EMI) in high-noise environments.
Maintain proper ventilation within the control cabinet to ensure the module operates within its specified temperature range.
FAQWhat is the primary function of the MC-TSIM12?The MC-TSIM12 acts as a serial interface module that allows serial-based field devices to communicate effectively with a Honeywell DCS, ensuring data integrity and system-wide connectivity.Is this module compatible with all Honeywell systems?The MC-TSIM12 is designed for specific Honeywell DCS architectures. Please verify your system's hardware compatibility and part number (51303932-476) against your current I/O documentation before installation.
