Description

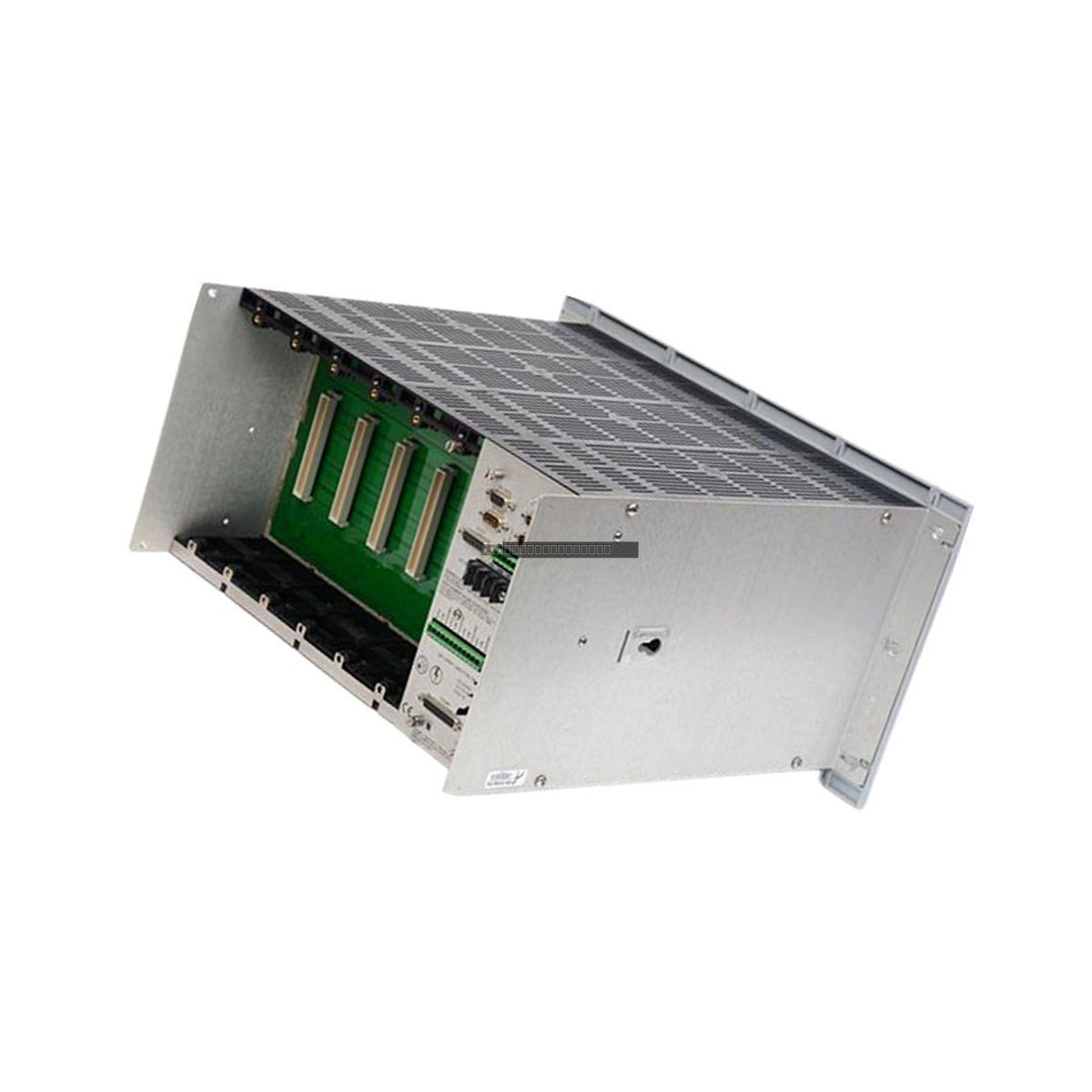

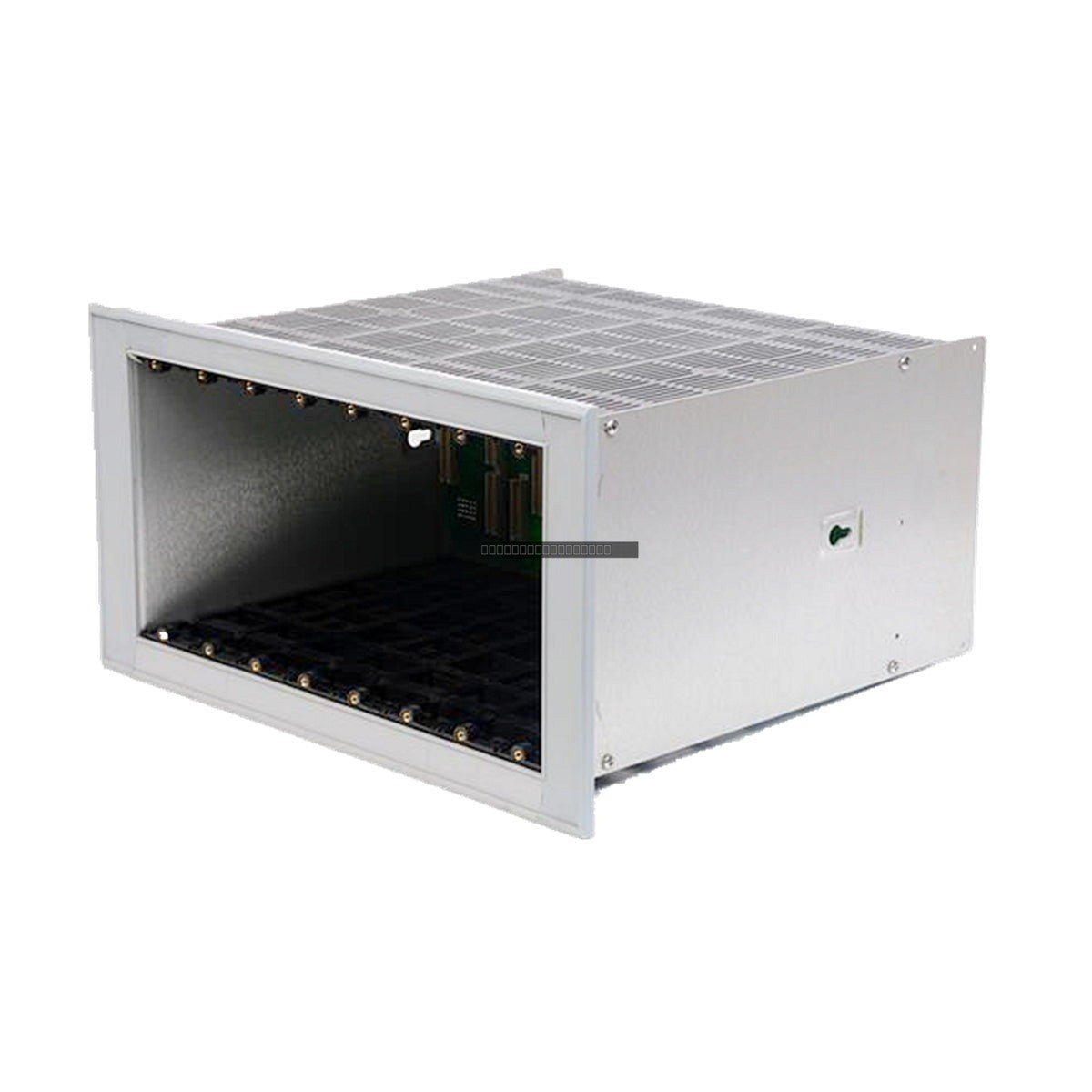

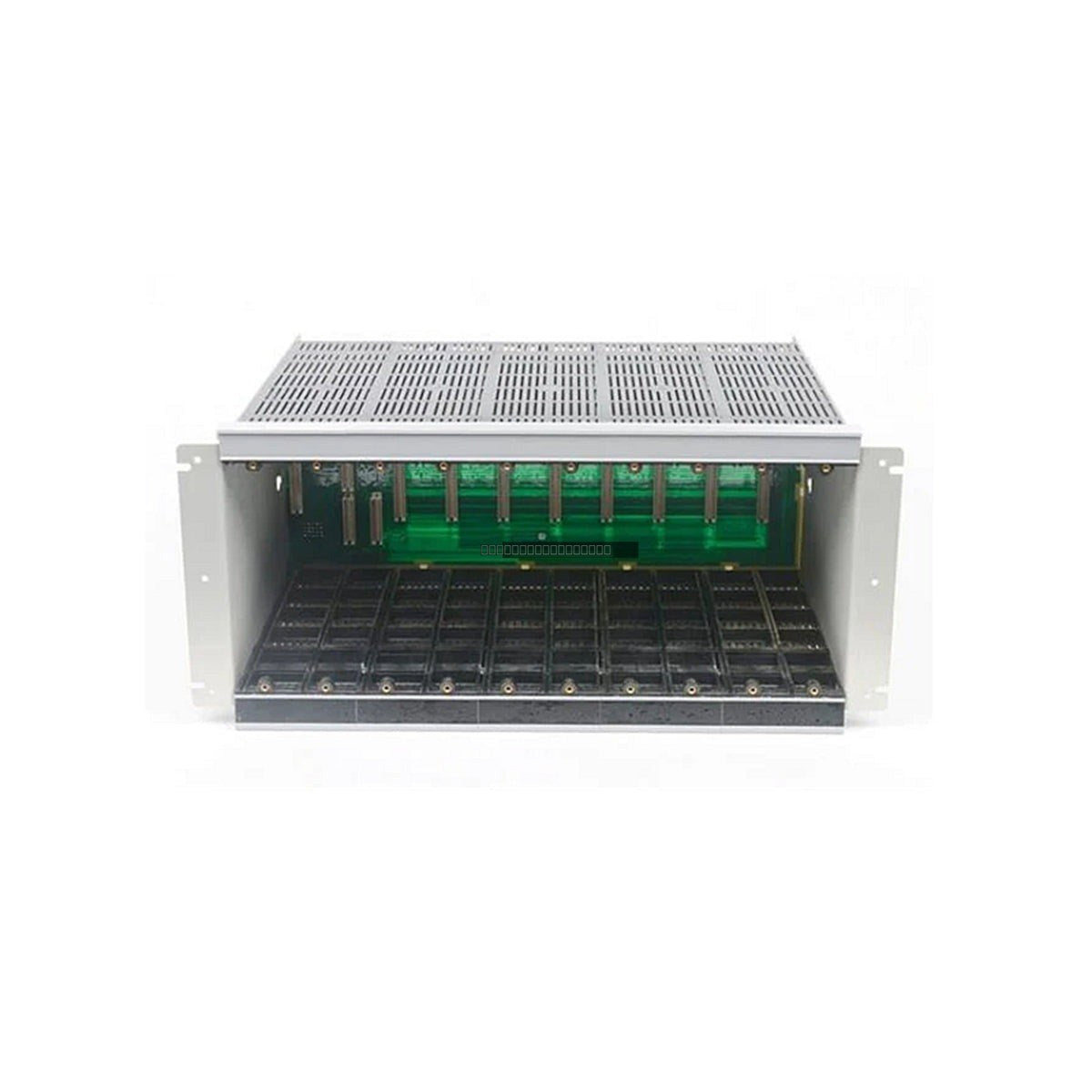

The Bently Nevada 3300/05-26-00-00 is a robust 12-slot rack chassis designed to serve as the primary mechanical and electrical foundation for the 3300 Monitoring System. This chassis provides the necessary backplane infrastructure to house, power, and facilitate communication between various 3300 series monitoring modules, including vibration, thrust, eccentricity, and temperature monitors. By ensuring precise module alignment and secure mechanical mounting, this rack system is essential for maintaining the integrity of industrial machinery protection installations.
Features
- Designed for the 3300 series monitoring architecture.
- 12-slot capacity for high-density monitoring applications.
- Integrated backplane for reliable power distribution and inter-module signal communication.
- Standard mechanical mounting profile for quick integration into existing control cabinets.
- Optimized for industrial environments requiring continuous machinery protection.
Ordering Information
| Model Code |
Description |
| 3300/05 |
Base Rack System |
| 26 |
12-Slot Chassis Configuration |
| 00 |
Standard Mounting Hardware |
| 00 |
Standard Agency Approval |
Technical Specifications
| Model |
3300/05-26-00-00 |
| Brand |
Bently Nevada |
| Series |
3300 |
| Product Type |
12-Slot Rack Chassis |
| Operating Temperature |
0 to 60 degC |
| Compatibility |
Supports 3300/12 Power Supply Modules |
Installation Guidelines
- Ensure the rack is mounted in a clean, dry environment within the specified operating temperature range.
- Verify that the chassis is securely fastened to the panel or rack frame to prevent vibration-induced mechanical stress.
- Always power down the system before inserting or removing any monitoring modules to prevent electrical arcing or component damage.
- Ensure proper grounding of the chassis to the cabinet earth to minimize EMI/RFI noise interference.
- Maintain adequate clearance around the chassis to allow for proper airflow and heat dissipation.
FAQ
Is this chassis compatible with all 3300 series modules?
Yes, the 3300/05-26-00-00 is designed to house standard 3300 series monitoring modules, including power supplies, I/O, and specialized vibration monitoring cards.
Does this rack include power supplies?
No, this listing is for the chassis only. Power supply modules such as the 3300/12 must be ordered separately or installed from your existing inventory.
