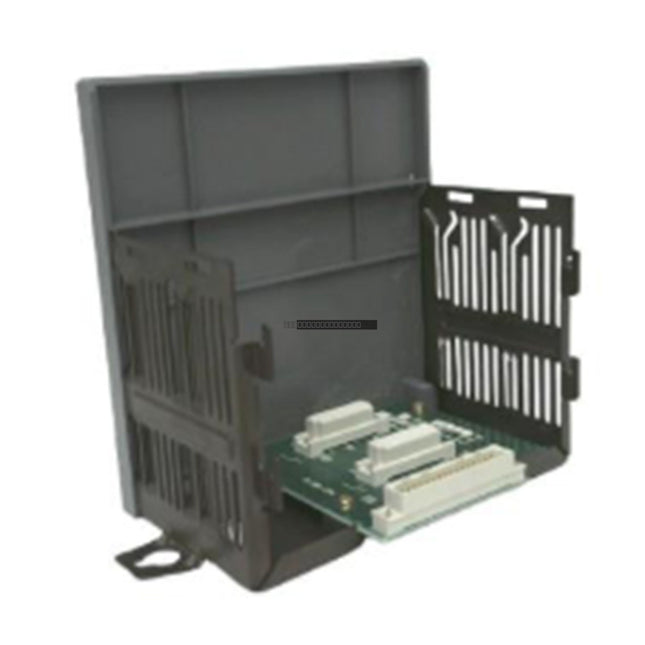

DescriptionThe Allen-Bradley 1746-A2 is a two-slot modular chassis designed for the SLC 500 control platform. This compact unit serves as an efficient solution for small-scale I/O expansion or remote rack applications. By providing the necessary backplane communication and power distribution, the 1746-A2 ensures seamless integration of SLC 500 modules into your industrial control network.Features
Two-slot configuration for flexible I/O density.
Compatible with SLC 500 processors or remote I/O adapters (e.g., 1747-ASB, 1747-ACN) in Slot 0.
Supports system expansion up to a maximum of 30 slots when daisy-chained with additional chassis.
Robust backplane design supporting high current capacity for demanding I/O requirements.
Panel-mount design for secure installation in enclosures.
ApplicationsThis chassis is frequently deployed in distributed control architectures where space is limited. It is ideal for local expansion of small machine control systems or as a secondary rack in remote I/O configurations, allowing for modular growth of the SLC 500 system.Technical Specifications
Brand
Allen-Bradley
Product Line
SLC 500
Slot Capacity
2 Slots
Max Backplane Current (5.1V DC)
10 Amps
Max Backplane Current (24V DC)
2.88 Amps
Mounting
Panel Mount
Operating Temperature
0 to 60 degC
Storage Temperature
-40 to 85 degC
Relative Humidity
5 to 95% (Non-condensing)
Installation Guidelines
Ensure the chassis is mounted to a clean, flat, and vibration-resistant surface within an industrial enclosure.
Verify that the power supply is disconnected before installing or removing any modules from the chassis slots.
Maintain adequate clearance around the chassis to facilitate proper ventilation and prevent overheating.
When using multiple chassis, ensure that interconnect cables are properly seated and secured to prevent intermittent backplane communication errors.
Maintain proper grounding practices to protect against electromagnetic interference (EMI) and electrostatic discharge (ESD).
FAQCan I use this chassis for a standalone processor? Yes, the 1746-A2 is designed to house an SLC 500 processor or an I/O adapter in the first slot (Slot 0).How many chassis can be connected together? You can interconnect up to three chassis in a single local system, providing a total capacity of up to 30 slots.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

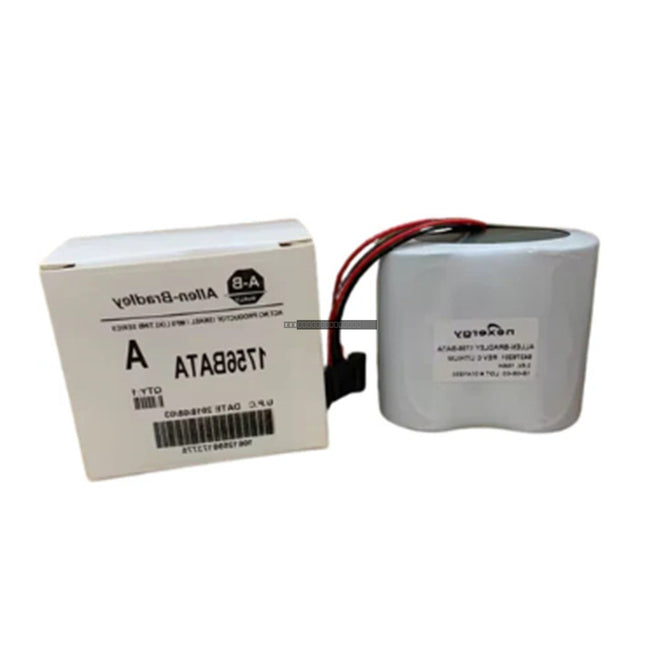

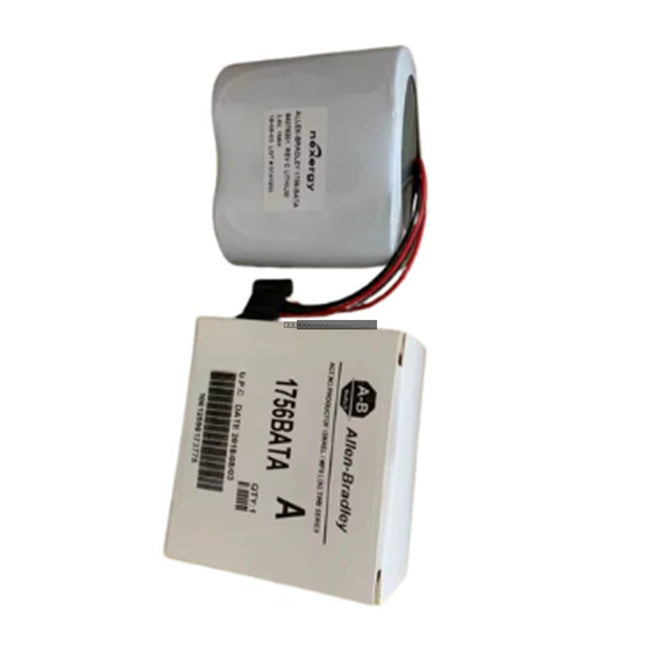

The Allen-Bradley 1756-BATA is a high-capacity, industrial-grade lithium battery assembly engineered specifically for use with the 1756-BATM externally mounted battery module. This component provides the necessary power backup for volatile memory retention in ControlLogix controller systems, particularly in applications where extended memory hold-up times or elevated operating temperatures are present.Features
Dual-Cell Configuration: Features two primary lithium cells connected in series to ensure reliable power delivery.
Extended Capacity: Provides a nominal capacity of 19,000 mAh (19 Ah), significantly outperforming standard internal controller batteries.
Stable Output: Delivers a consistent 3.6V DC operating voltage.
Robust Chemistry: Utilizes Lithium-Thionyl Chloride (Li-SOCl2) technology for superior energy density and low self-discharge characteristics.
Technical Specifications
Brand
Allen-Bradley
Part Number
1756-BATA
Chemistry
Lithium-Thionyl Chloride (Li-SOCl2)
Voltage
3.6V DC
Capacity
19,000 mAh (19 Ah)
Lithium Content
Approximately 10 grams total
Operating Temperature
0 to 60 degC (32 to 140 degF)
Installation Guidelines
Module Compatibility: This battery is designed exclusively for the 1756-BATM external battery module. Do not attempt to install directly into a processor faceplate.
Handling: Handle with care to prevent short-circuiting the terminals. Store in a cool, dry environment away from direct heat sources.
Safety: Follow facility hazardous materials protocols for disposal of lithium batteries. Do not incinerate, recharge, or disassemble.
Replacement: Ensure the 1756-BATM module is properly secured and the cable is correctly seated when performing a battery swap.
FAQIs the 1756-BATA compatible with standard ControlLogix processors?The 1756-BATA is designed specifically for the 1756-BATM external battery module. It is not intended to be installed directly into the battery slot of a standard ControlLogix processor faceplate.What is the primary benefit of using this high-capacity battery?The 1756-BATA provides a significantly larger energy reservoir compared to standard on-board batteries, making it ideal for systems with large memory requirements or those operating in environments where standard batteries may experience shortened service lives due to temperature.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

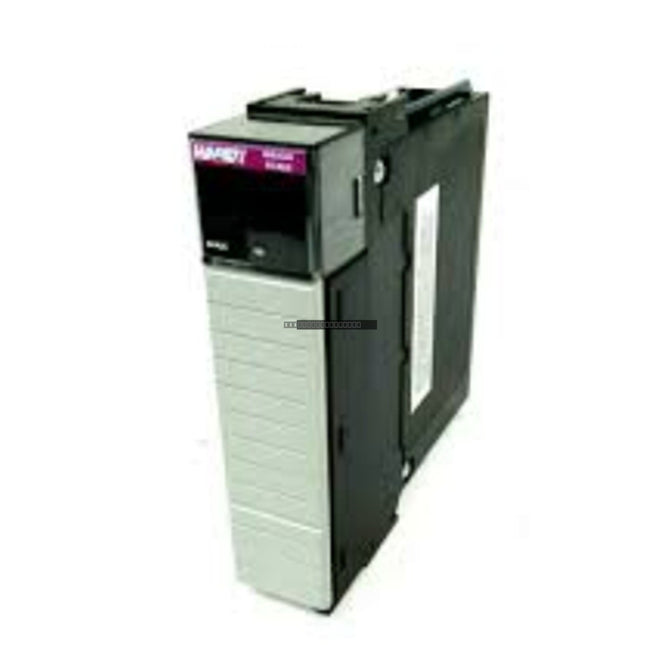

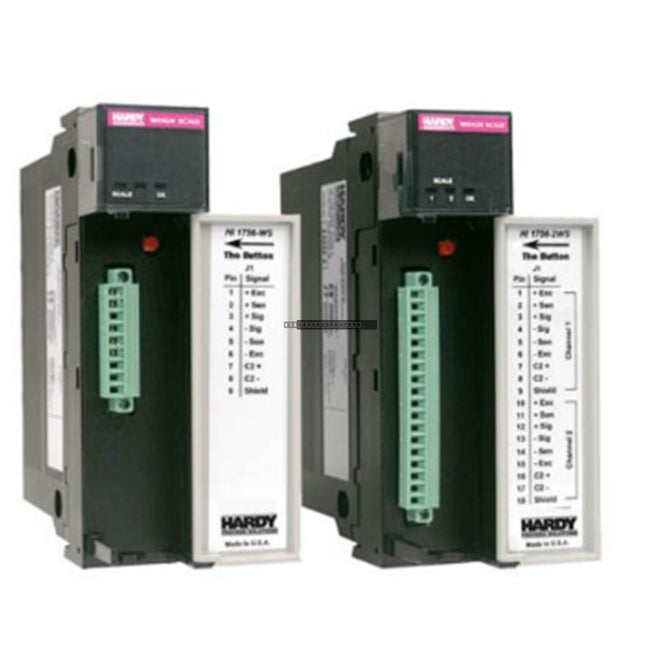

The Allen-Bradley 1756-WS is a high-performance weigh scale interface module engineered for the ControlLogix platform. Developed through a partnership with Hardy Process Solutions, this module integrates directly into the ControlLogix chassis, enabling seamless communication between industrial load cells and the controller. By eliminating the necessity for external signal conditioners or transmitters, it streamlines system architecture and reduces wiring complexity in critical weighing operations.Features
Direct integration with ControlLogix backplane for high-speed data exchange.
Single-channel design capable of supporting up to four 350-Ohm load cells.
High-speed processing with an update rate of 50 updates per second for real-time monitoring.
Exceptional measurement precision featuring 0.0015% of full-scale non-linearity.
Supports advanced industrial weighing tasks including batching, filling, and vessel monitoring.
ApplicationsThis module is ideal for demanding industrial environments requiring precise force measurement and weight control. It is commonly utilized in automated batching systems, liquid filling lines, hopper and tank weighing, and general-purpose force measurement applications where high repeatability and accuracy are mandatory.Technical Specifications
Brand
Allen-Bradley (Hardy Process Solutions)
Platform
ControlLogix
Module Type
Weigh Scale / Load Cell Module
Channels
Single Channel
Load Cell Support
Up to four 350-Ohm load cells
Update Rate
50 updates per second
Non-Linearity
0.0015% of Full Scale
Excitation Voltage
5V DC
Common-Mode Voltage
2.5V DC maximum
Operating Temperature
0 to 60 degC (32 to 140 degF)
Storage Temperature
-40 to 85 degC (-40 to 185 degF)
Relative Humidity
0% to 90% non-condensing
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-WS module.
Install the module into any available slot within the ControlLogix I/O chassis.
Use shielded twisted-pair cabling for load cell connections to minimize electromagnetic interference (EMI).
Maintain proper grounding practices for the chassis backplane to ensure signal integrity.
Verify that the load cell wiring matches the terminal block pinout configuration to prevent excitation voltage errors.
FAQDoes this module require an external transmitter?No, the 1756-WS is designed to connect directly to load cells, acting as the interface to the ControlLogix backplane without external signal conditioning hardware.How many load cells can be connected?The module supports a single channel, which can accommodate up to four 350-Ohm load cells connected in parallel.

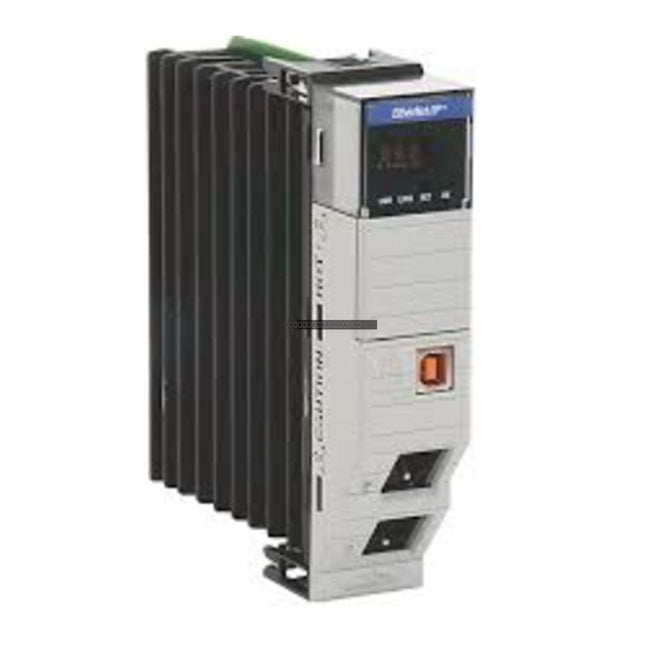

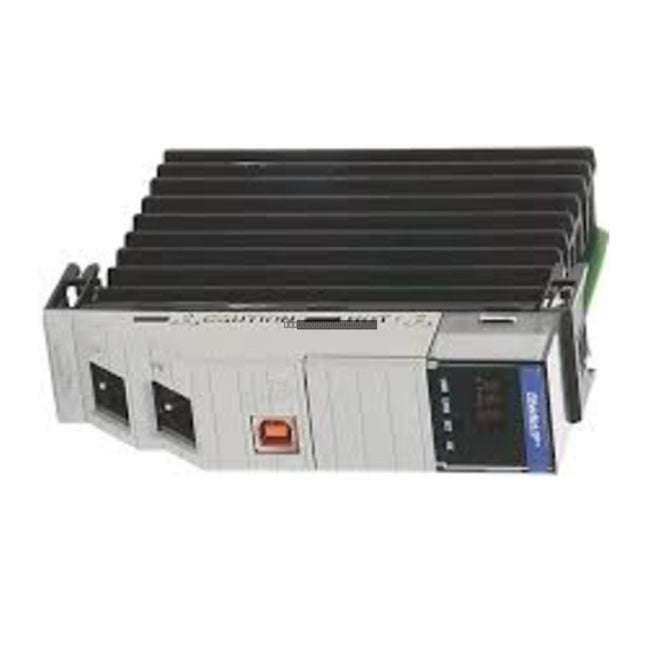

DescriptionThe Allen-Bradley 1756-CN2 is a high-performance communication module designed for the ControlLogix platform, specifically engineered to facilitate reliable data transfer over a ControlNet network. This module serves as a critical bridge for industrial automation systems, allowing for seamless integration and real-time communication between controllers, I/O, and other devices within the ControlLogix architecture.Features
Supports standard media for robust ControlNet connectivity.
Provides high-speed data transfer rates of 5 Mbps.
Supports up to 128 Logix connections for complex system configurations.
Capable of managing up to 99 nodes on a single network.
Designed for seamless integration within standard 1756 ControlLogix chassis.
Technical Specifications
Product Model
1756-CN2
Communication Type
ControlNet
Data Rate
5 Mbps
Logix Connections
128
Maximum Nodes
99
Manufacturer
Allen-Bradley
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-CN2 module to prevent electrical damage or system faults.
Verify that the module is fully seated in the chassis slot and the top and bottom latches are securely engaged.
Follow standard industrial grounding practices to minimize EMI and ensure signal integrity across the ControlNet network.
Use appropriate ControlNet cabling and ensure proper termination at both ends of the network trunk to maintain communication stability.
Handle the module using ESD-safe practices to protect sensitive internal circuitry.
FAQWhat is the primary function of the 1756-CN2?The 1756-CN2 is a communication interface module that allows a ControlLogix controller to communicate over a ControlNet network, supporting high-speed data exchange and multi-node connectivity.How many nodes can this module support?This specific model is capable of supporting up to 99 nodes on the ControlNet network.Is the 1756-CN2 compatible with all ControlLogix chassis?Yes, it is designed for standard 1756 ControlLogix chassis. Always ensure your firmware and project configuration are compatible with this specific hardware revision.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

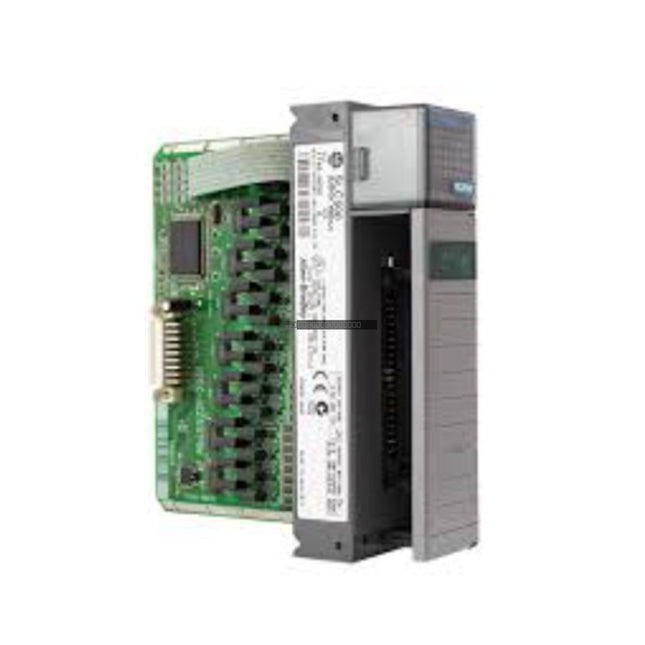

DescriptionThe Allen-Bradley 1746-NI4 is a high-performance analog input module designed for the SLC 500 programmable controller family. This module provides four differential analog input channels, allowing for precise data acquisition in various industrial automation applications. It is engineered to integrate seamlessly into an SLC 500 chassis, facilitating reliable signal processing for sensors and transmitters that utilize standard voltage or current inputs.Features
Four differential analog input channels for noise-immune signal sensing.
Designed specifically for compatibility with the Allen-Bradley SLC 500 modular control system.
Supports standard industrial voltage and current signal ranges.
Rack-mount configuration for efficient cabinet space utilization.
Robust construction suitable for demanding industrial environments.
ApplicationsThis module is frequently utilized in process control systems, manufacturing machinery, and monitoring stations where analog feedback such as temperature, pressure, or flow data is required. It is an essential component for applications requiring precise analog-to-digital conversion within an Allen-Bradley SLC 500 architecture.Technical Specifications
Product Model
1746-NI4
Manufacturer
Allen-Bradley
Module Type
Analog Input Module
Number of Channels
4 Differential
System Compatibility
SLC 500
Mounting
Chassis / Rack Mount
Weight
0.3 kg
Installation Guidelines
Ensure the SLC 500 chassis power is disconnected before installing or removing the 1746-NI4 module.
Verify that the module is fully seated in the chassis slot and that the retaining screws are tightened to ensure proper electrical contact and grounding.
Use shielded twisted-pair cabling for analog signal wiring to minimize electromagnetic interference (EMI).
Route signal cables away from high-voltage power lines and noisy electrical equipment to maintain signal integrity.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
FAQIs the 1746-NI4 compatible with all SLC 500 processors?The 1746-NI4 is designed for use within the SLC 500 rack system. Compatibility depends on the specific chassis slot configuration and the power supply load capacity of your system.Does this module require external power?The module is powered directly through the SLC 500 backplane. Ensure your chassis power supply is sized correctly to accommodate the total power consumption of all installed modules.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

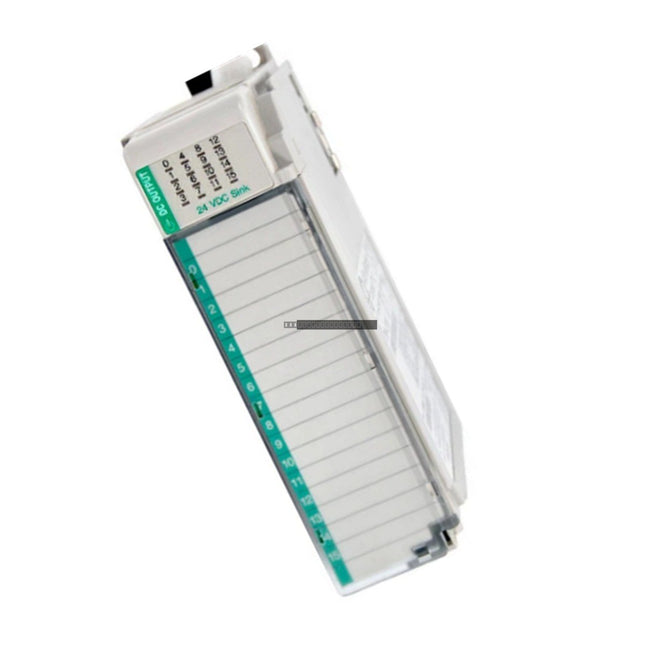

The Allen-Bradley 1769-OB16 is a 16-point digital output module designed for integration within the CompactLogix control platform. This module provides reliable switching for 24V DC field devices, serving as a standard component for distributed I/O or localized control cabinet automation.Features
16 isolated output points for flexible control configurations.
Operates on a 24V DC nominal voltage range.
Designed for seamless mounting within the CompactLogix system architecture.
Compact hardware footprint to optimize panel space.
Supports high-speed digital switching for industrial control requirements.
ApplicationsThis output module is primarily utilized in industrial automation environments for controlling actuators, relays, solenoid valves, and indicator lamps. It is commonly deployed in manufacturing, material handling, and process control systems where CompactLogix controllers manage discrete I/O operations.Technical Specifications
Model
1769-OB16
Manufacturer
Allen-Bradley
Module Type
Digital Output Module
Number of Points
16
Voltage Range
24V DC
Weight
0.18 kg
Installation Guidelines
Ensure the controller and I/O power are disconnected before installing or removing the module from the DIN rail or backplane.
Verify that the module is securely latched into the adjacent 1769 series I/O block to maintain electrical continuity.
Use appropriate shielded cabling for field wiring to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Maintain proper clearance around the module to allow for adequate airflow and heat dissipation.
Follow standard ESD (Electrostatic Discharge) procedures when handling the module to prevent damage to internal circuitry.
FAQWhat is the primary function of the 1769-OB16?The 1769-OB16 is a digital output module that provides 16 points of 24V DC output control for devices connected to a CompactLogix PLC system.Is this module compatible with all CompactLogix controllers?The 1769-OB16 is designed for use within the 1769 Compact I/O system; please verify your specific controller's I/O capacity and firmware compatibility prior to installation.

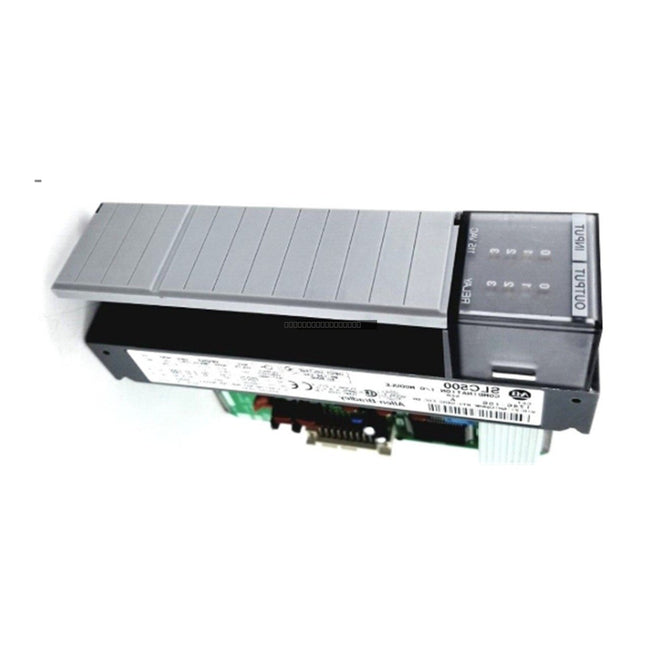

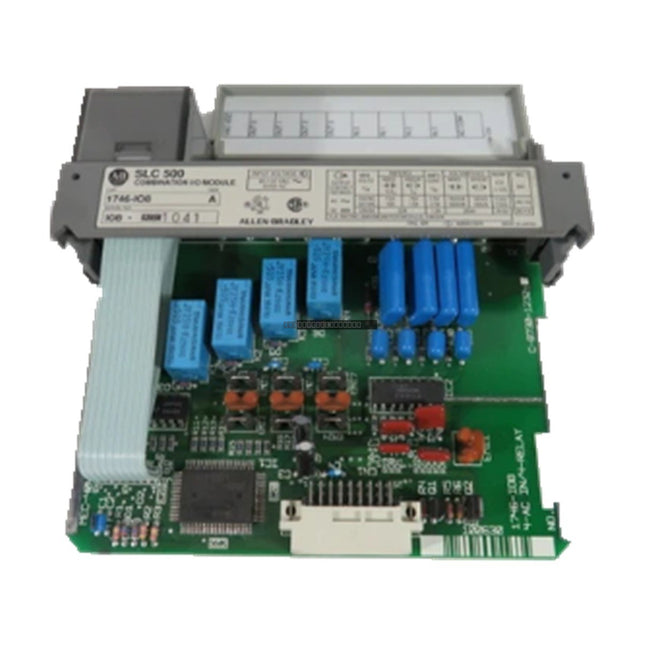

DescriptionThe Allen-Bradley 1746-IO8 is a combination input/output module designed for use within the SLC 500 programmable controller platform. This module provides a versatile solution for applications requiring a mix of discrete signal monitoring and relay-based control. Featuring 4 inputs and 4 relay outputs, it integrates seamlessly into the SLC 500 chassis, allowing for efficient I/O configuration in space-constrained control systems.Features
4 discrete inputs for monitoring field device status.
4 relay outputs suitable for switching external loads.
Compatible with the Allen-Bradley SLC 500 modular hardware architecture.
Operating voltage range of 85-132 VAC for industrial AC control environments.
Integrated signal delay characteristics (35-45 milliseconds) to ensure stable logic processing.
Technical Specifications
Model
1746-IO8
Manufacturer
Allen-Bradley
Product Type
Combination Input/Output Module
Inputs
4
Outputs
4 (Relay)
Operating Voltage
85-132 VAC
Output Current (24VDC)
1.2 A
Signal Delay
35-45 ms
Tariff Code
8537101190
Installation Guidelines
Ensure the SLC 500 chassis is powered down before inserting or removing the 1746-IO8 module to prevent electrical damage.
Verify that the module is fully seated in the chassis slot and secured with the top and bottom retaining screws.
Use appropriate shielded cabling for input/output signals to minimize interference from high-voltage or high-frequency equipment.
Maintain proper grounding practices for the chassis to ensure reliable operation and safety.
Check that the field wiring complies with the specified voltage ratings (85-132 VAC) to avoid exceeding the relay contact limits.
FAQIs the 1746-IO8 still available from the manufacturer?No, this model has been discontinued by the manufacturer. We supply tested, reliable units to support legacy system maintenance.What is the primary function of this module?The 1746-IO8 is a combination module that saves rack space by providing both input sensing and relay output control within a single slot of an SLC 500 system.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

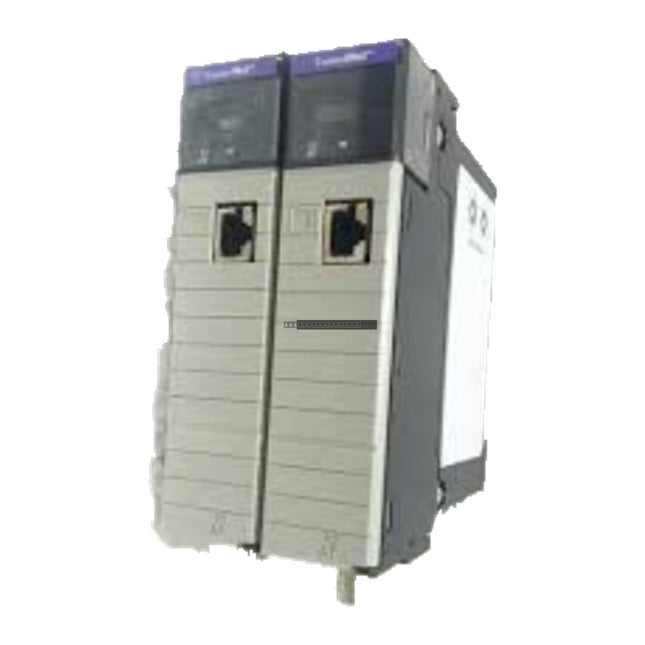

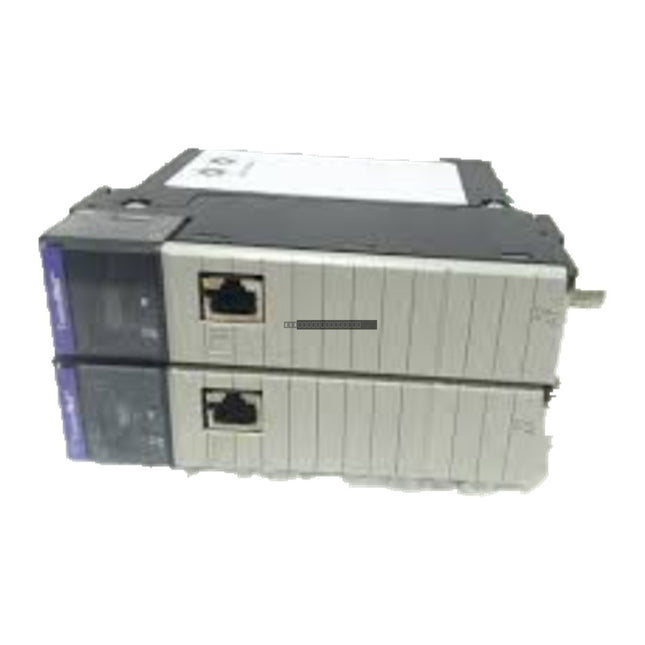

OverviewThe Allen-Bradley 1756-CNBR/E is a high-performance ControlNet Bridge module from the Series E hardware generation, specifically designed for the ControlLogix automation platform. This module facilitates deterministic communication between ControlLogix processors and remote I/O chassis, providing essential media redundancy to maintain network integrity. By utilizing dual communication channels, the 1756-CNBR/E ensures that scheduled I/O data and unscheduled messaging persist even in the event of a localized cable failure or tap disconnection.Features
Media Redundancy: Dual-channel architecture allows for instantaneous failover between coaxial lines, preventing system downtime during physical network faults.
Deterministic Throughput: Maintains a constant 5 Mbps data rate, critical for time-sensitive control applications.
Scalable Architecture: Supports up to 99 nodes on a single ControlNet segment, with a capacity for 64 concurrent system connections.
Logix Integration: Provides 40 to 48 dedicated Logix communication connections and 20 buffers for unconnected messaging, ensuring efficient data handling.
Flexible Configuration: Features two BNC coaxial ports for redundant media and one RJ45 port for supplemental connectivity.
Technical Specifications
Model
1756-CNBR/E
Series
Series E
Communication Rate
5 Mbps
Max Node Capacity
99 Nodes
Max Connections
64
Backplane Current (5.1V)
970 mA
Backplane Current (24V)
1.7 mA
Power Dissipation
5.5 Watts
Operating Temperature
0 to 60 degC
Isolation Voltage
30V (Basic Insulation)
Installation Guidelines
ESD Protection: Always utilize a grounded wrist strap or similar ESD-preventative measures when handling the module to prevent damage to sensitive internal circuitry.
Chassis Seating: The module occupies a single slot in a standard 1756 ControlLogix chassis. Ensure the module is fully seated and the top/bottom retaining latches are locked before applying power.
Power Requirements: Verify that the chassis power supply is rated to handle the additional 5.5W load of the module.
Cable Management: Use 1786-RG6 quad-shield coaxial cabling. Ensure cables are routed away from high-voltage lines or high-EMI sources to maintain signal integrity.
Redundancy Setup: When implementing redundancy, ensure both channel A and channel B are connected to independent trunk lines to maximize fault tolerance.
FAQDoes this module require a specific firmware version?The 1756-CNBR/E Series E hardware is generally compatible with standard ControlLogix firmware revisions; however, always verify compatibility with your specific controller firmware version via the Studio 5000 or RSLogix 5000 software environment.Can this module be hot-swapped?Yes, the ControlLogix system supports Removal and Insertion Under Power (RIUP). Ensure the area is non-hazardous and proper safety protocols are followed before removing or inserting the module into an active chassis.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

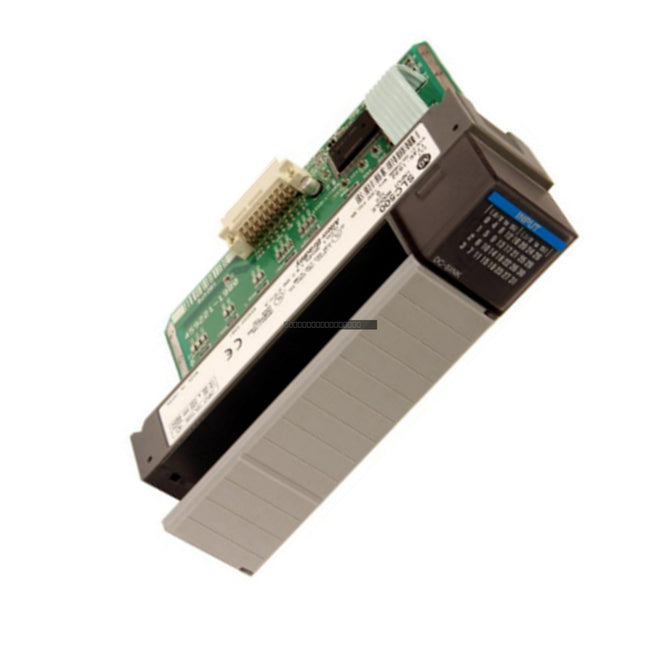

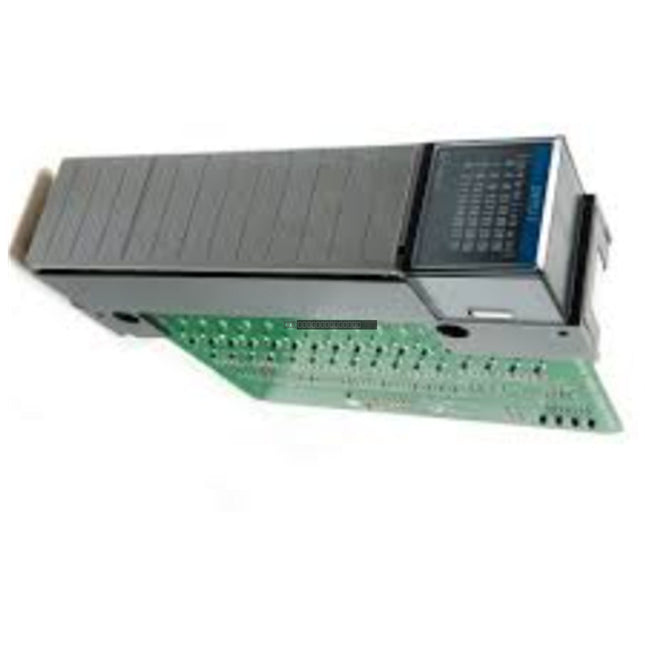

The Allen-Bradley 1746-IC16 is a 16-point digital input module designed for use within the SLC 500 programmable logic controller system. This module provides a reliable interface for monitoring 48V AC/DC digital signals, making it suitable for a wide range of industrial automation and control applications. Although this specific model has been discontinued by the manufacturer, it remains a critical component for maintaining legacy SLC 500 control architectures.Features
16 isolated input points for high-density signal monitoring.
Compatible with 48V AC/DC input signal levels.
Designed specifically for seamless integration into the SLC 500 I/O chassis.
Compact modular design for space-efficient control cabinet layouts.
Provides status indication for each input channel for simplified troubleshooting.
ApplicationsThis digital input module is typically utilized in industrial environments requiring the monitoring of discrete field devices such as sensors, switches, and pushbuttons. It is commonly found in manufacturing production lines, material handling systems, and general machine control applications where 48V signal compatibility is required.Technical Specifications
Manufacturer
Allen-Bradley
Model Number
1746-IC16
Module Type
Digital Input
Input Points
16
Voltage Rating
48V AC/DC
System Compatibility
SLC 500 Series
Installation Guidelines
Ensure the SLC 500 power supply is disconnected before installing or removing the module from the chassis.
Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
Slide the module into the designated slot in the SLC 500 chassis and secure it using the integrated locking mechanism.
Ensure that all field wiring is routed correctly and that the terminal block is securely seated to maintain reliable connectivity.
Verify that the voltage levels of the connected field devices match the 48V rating of the module to prevent electrical damage.
FAQIs the 1746-IC16 still being manufactured?No, this module is discontinued by Allen-Bradley. It is primarily available through surplus or refurbished inventory channels.What voltage range does this module support?The 1746-IC16 is designed for 48V AC/DC input signals.Can this module be used in any SLC 500 chassis?Yes, it is designed to be compatible with standard SLC 500 I/O chassis configurations.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Allen-Bradley 1756-IB16D is a high-performance diagnostic digital input module designed for the ControlLogix platform. This module provides 16 points of 12-24V DC sinking inputs, specifically engineered to support diagnostic monitoring in demanding industrial automation applications. It is built to offer reliable signal acquisition with integrated fault detection capabilities, ensuring robust system operation.Features
16 diagnostic input channels for comprehensive signal monitoring.
Supports 12-24V DC sinking input configurations.
Wide operating voltage range from 10-30V DC to accommodate various power environments.
Integrated diagnostic features to detect field-side faults.
Low power dissipation of 5.8 Watts at 60 degC.
Compact ControlLogix form factor for high-density rack mounting.
Technical Specifications
Model
1756-IB16D
Input Type
16 Diagnostic Inputs (Sink)
Voltage Range
10-30V DC
Nominal Voltage
12-24V DC
Off-State Current (Max)
1.5 mA per point
Operating Current (Min)
2 mA at 10V DC
Operating Current (Max)
13 mA at 30V DC
Backplane Current (5V)
150 mA
Power Dissipation
5.8 Watts at 60 degC
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage or backplane faults.
Mount the module in any slot of a ControlLogix chassis; use the appropriate Removable Terminal Block (RTB) housing for field wiring.
Maintain proper grounding practices for the chassis to minimize electromagnetic interference (EMI).
Ensure adequate ventilation in the cabinet to stay within the power dissipation limits, especially at higher ambient temperatures.
Route signal wiring away from high-voltage AC power lines to prevent signal noise and potential induction issues.
FAQWhat is the primary function of the 1756-IB16D?This is a diagnostic digital input module for the ControlLogix system. It monitors 16 input points and provides diagnostic data to the controller, allowing for faster troubleshooting of field-side wiring and device faults.Is this module compatible with standard ControlLogix chassis?Yes, the 1756-IB16D is designed for standard ControlLogix I/O chassis and communicates via the ControlLogix backplane.What is the input voltage range for this module?The module operates within a 10-30V DC range, with a nominal operating voltage of 12-24V DC.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Allen-Bradley 1756-IF4FXOF2F is a high-performance, combination analog I/O module designed for the ControlLogix platform. This module integrates high-speed processing capabilities, providing four differential high-speed analog inputs and two high-speed analog outputs, ideal for demanding control applications requiring sub-millisecond response times.Features
Four high-speed, sub-millisecond differential analog input channels.
Two high-speed analog output channels supporting both voltage and current signals.
Configurable input ranges including ±10V, 0-10V, 0-5V, and 0-20 mA.
Configurable output ranges including ±10V and 0-20 mA.
High-resolution conversion for precision measurement and control.
Seamless integration into existing ControlLogix chassis architectures.
ApplicationsThis module is engineered for industrial environments where rapid signal acquisition and output are critical, such as high-speed motion control, precision process regulation, and fast-loop feedback systems within manufacturing and automation lines.Technical Specifications
Module Type
High-Speed Analog I/O
Inputs
4 High-speed differential
Outputs
2 High-speed (Voltage/Current)
Input Ranges
±10V, 0-10V, 0-5V, 0-20 mA
Output Ranges
±10V, 0-20 mA
Input Resolution
14 bits (±10.5V DC), 12 bits (21 mA)
Output Resolution
13 bits (21 mA), 14 bits (21.8V)
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
Verify that the module is fully seated in the chassis slot and secured with the top and bottom latching mechanisms.
Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI).
Maintain proper grounding practices for the chassis and signal wiring to ensure signal integrity.
Avoid routing signal cables near high-voltage power lines or high-frequency switching equipment.
FAQWhat is the primary function of the 1756-IF4FXOF2F?It is a combination module that provides both high-speed analog input and output functionality for Allen-Bradley ControlLogix systems, specifically designed for applications requiring sub-millisecond processing.Does this module support both current and voltage signals?Yes, the module is software-configurable to handle various voltage and current ranges for both inputs and outputs.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 1756-IF6I is a high-performance isolated analog input module designed for the ControlLogix platform. This module provides six isolated input channels, ensuring signal integrity by preventing ground loops and electrical interference in complex industrial control environments. Utilizing sigma-delta conversion, it delivers precise data acquisition for voltage and current signals, making it suitable for demanding process automation applications.Features
Six isolated analog input channels for improved noise immunity.
High-resolution 16-bit conversion for accurate signal monitoring.
Supports multiple input ranges, including bipolar voltage (±10.5V), unipolar voltage (0-10.5V, 0-5.25V), and current (0-21 mA).
Flexible data formats supporting both integer (2's complement) and IEEE 32-bit floating point representations.
Optimized power consumption with a maximum power dissipation of 4.3 W in current mode.
Technical Specifications
Model
1756-IF6I
Module Type
Isolated Analog Input
Input Channels
6 Isolated
Conversion Method
Sigma-Delta
Resolution
16-bit
Backplane Current (5V)
250 mA
Backplane Current (24V)
100 mA
Power Dissipation (Max)
Voltage: 3.7 W; Current: 4.3 W
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the module.
Use shielded twisted-pair cabling for all analog signal connections to minimize EMI-induced noise.
Verify that the module is fully seated in the chassis slot and secured with the top and bottom mounting screws.
Observe proper grounding practices for the cable shields at the signal source or the module end, depending on the specific application requirements.
Maintain adequate ventilation around the chassis to prevent exceeding the maximum operating temperature.
FAQWhat are the supported signal ranges for this module?The 1756-IF6I supports ±10.5V, 0-10.5V, 0-5.25V, and 0-21 mA ranges.Is this module compatible with all ControlLogix chassis?Yes, the 1756-IF6I is designed to fit into any standard Allen-Bradley ControlLogix I/O chassis.Does this module support floating-point data?Yes, it supports both integer mode (left-justified, 2's complement) and IEEE 32-bit floating-point data formats.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Allen-Bradley 1756-IF6CIS is a high-performance analog input module designed for the ControlLogix platform. This module provides six points of isolated, current-sourcing analog inputs, engineered to meet the demanding requirements of industrial process control and data acquisition applications.Features
Six isolated, current-sourcing input channels.
Advanced Sigma-Delta conversion method for high-accuracy signal processing.
Supports a wide input range of 0 to 21 mA.
Configurable data formats including 2's complement integer and IEEE 32-bit floating point.
Designed for seamless integration into the ControlLogix chassis backplane.
ApplicationsThis module is ideal for industrial environments requiring precise current loop monitoring. Common applications include the measurement of process variables from transmitters, flow meters, and pressure sensors where channel-to-channel isolation is necessary to prevent ground loops and signal interference.Technical Specifications
Model
1756-IF6CIS
Input Points
6 Isolated, Current Sourcing
Conversion Method
Sigma-Delta
Input Current Range
0 to 21 mA
Backplane Current (5V)
250 mA
Backplane Current (24V)
275 mA
Max Power Dissipation
5.1 Watts at 60 degC
Data Formats
Integer (left-justified, 2's complement), IEEE 32-bit floating point
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the module.
Handle the module using proper ESD precautions to prevent damage to internal circuitry.
Verify that the module is fully seated in the chassis slot and that the locking tab is engaged.
Use shielded twisted-pair cabling for all analog input signals to minimize electromagnetic interference (EMI).
Maintain adequate spacing within the cabinet to allow for proper airflow and heat dissipation, as the module can dissipate up to 5.1 Watts.
Route signal wiring away from high-voltage AC lines or high-current DC conductors.
FAQWhat is the primary function of the 1756-IF6CIS?The 1756-IF6CIS is an isolated analog input module used to convert incoming current signals (0-21 mA) into digital data that the ControlLogix processor can utilize for control logic.Does this module require external power?The module draws its power from the ControlLogix backplane. Ensure your power supply is sized to accommodate the 250 mA (5V) and 275 mA (24V) current draw requirements.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Allen-Bradley 1756-HYD02 is a specialized ControlLogix Hydraulic Servo Module designed to provide precise motion control for hydraulic systems. This module supports two axes per unit, enabling high-performance positioning and velocity control in industrial automation applications. It integrates directly into the ControlLogix backplane, allowing for seamless communication with the controller and other I/O modules.Features
Supports control for up to two independent hydraulic axes per module.
High-resolution 32-bit floating point gain settings.
Selectable update rates ranging from 500 Hz to 4 kHz.
Compatible with PWM, Start/Stop (rising or falling edge) LDT inputs.
Includes an optically isolated, current-sinking registration input.
Provides ±10V DC analog output with 16-bit resolution.
Features solid-state isolated relay contacts for discrete output control.
ApplicationsThis module is engineered for demanding hydraulic motion control tasks, including injection molding machines, heavy-duty presses, material handling systems, and other industrial processes requiring precise position and rate control of hydraulic actuators.Technical Specifications
Model
1756-HYD02
Axes per Module
2
Axes per Controller
32
Analog Output
±10V DC
Analog Output Resolution
16 bits
Backplane Current (5V)
700 mA
Backplane Current (24V)
2.5 mA
Power Dissipation
5.5 Watts
Absolute Position Range
230,000 LDT counts
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the module.
Verify that the module is fully seated in the chassis slot and the top/bottom retaining screws are tightened to secure the connection.
Use shielded cables for LDT and analog signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Maintain proper grounding practices for the chassis to ensure signal integrity and safety.
Ensure adequate airflow within the cabinet to accommodate the 5.5W power dissipation.
FAQWhat is the primary function of the 1756-HYD02?It is a dedicated motion control module used to interface with hydraulic servo systems, providing the necessary analog outputs and LDT inputs to manage hydraulic axis positioning.How many axes can I control with this module?Each 1756-HYD02 module supports two axes. A single ControlLogix controller can support up to 32 axes in total depending on system configuration.Is the registration input isolated?Yes, the registration input is optically isolated and configured as a current-sinking input.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 1756-IB16IF is a high-performance, 16-point fast digital input module designed for the ControlLogix platform. This module provides rapid signal processing capabilities, making it suitable for applications requiring high-speed data acquisition and precise timing. It features isolated input channels and supports peer-to-peer communication, ensuring reliable integration within complex automation architectures.Features
16 isolated DC digital input points.
Fast input response time for high-speed industrial processes.
Integrated module health and communication status diagnostics display.
Compatible with 10-30 VDC input voltage ranges.
Designed for seamless integration into the ControlLogix chassis.
Technical Specifications
Model
1756-IB16IF
Input Voltage Range
10-30 VDC
Power Dissipation
3.8 Watts
Current Draw (5.1V)
275 mA
Current Draw (24V)
3 mA
Manufacturer
Allen-Bradley
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
Verify that the module is properly seated in the chassis slot and that the locking tab is fully engaged.
Use appropriate shielded cabling to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Maintain adequate spacing around the module for proper ventilation and heat dissipation.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
FAQIs the 1756-IB16IF module isolated? Yes, the 1756-IB16IF features isolated input channels to protect against ground loops and electrical interference.What is the primary application for this 'Fast' module? The 'Fast' designation indicates that this module is optimized for applications where high-speed input response is critical, such as high-speed counting or rapid event triggering.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Allen-Bradley 1746-P6 is a dedicated system power supply module engineered for the SLC 500 programmable controller platform. It is specifically designed to accept a 48V DC nominal input, making it an essential component for industrial applications where standard AC mains are unavailable, such as telecommunications infrastructure, remote solar installations, or battery-backed facility power systems.Features
Designed for SLC 500 chassis-based systems.
Supports a wide input voltage range of 30–60V DC.
Provides 5.0 Amps at 5V DC and 0.96 Amps at 24V DC to the backplane.
Includes a dedicated 24V DC user power output (200 mA) for external field sensors or small auxiliary loads.
High electrical isolation of 1800V AC RMS protects internal processor logic from external surges and noise.
Integrated hold-up time capabilities for stable operation during brief input power fluctuations.
ApplicationsThis power supply is intended for use in environments requiring DC-to-DC power conversion for control systems. It is commonly deployed in remote monitoring stations, mobile platforms, and critical infrastructure sites where 48V DC battery banks serve as the primary power source.Technical Specifications
Brand
Allen-Bradley
Product Line
SLC 500
Input Voltage
48V DC (Range: 30–60V DC)
Backplane Output (5V)
5.0 A
Backplane Output (24V)
0.96 A
User Power Output
200 mA (18–30V DC)
Inrush Current
20.0 A (max)
Isolation
1800V AC RMS
Operating Temperature
0 to 60 degC
Installation Guidelines
Ensure the PLC chassis is powered down before installing or removing the 1746-P6 module.
Verify input voltage polarity before connecting to the terminal block to prevent damage to the unit.
Maintain adequate spacing around the power supply in the chassis to ensure proper airflow and heat dissipation.
Use shielded cabling for input power to minimize electromagnetic interference (EMI) in high-noise environments.
Confirm the chassis backplane is properly grounded to the system earth to maintain safety and signal integrity.
FAQWhat is the primary input voltage for the 1746-P6?The module is designed for a nominal 48V DC input, with an operational range between 30V and 60V DC.Can this module power external sensors?Yes, the 1746-P6 features a dedicated 24V DC user power output rated at 200 mA, which can be used to supply field sensors or other low-power external devices.Is this power supply compatible with all SLC 500 chassis?The 1746-P6 is designed to fit standard SLC 500 modular chassis; always verify your specific chassis power budget requirements before installation.
DescriptionThe Allen-Bradley 1756-A7 is a 7-slot chassis designed for the ControlLogix platform. This chassis serves as the physical foundation for mounting ControlLogix modules, providing the necessary backplane communication and power distribution for I/O, communication, and processor modules within an industrial automation system.Features
Provides 7 dedicated slots for modular ControlLogix components.
Supports high-speed backplane communication for seamless data exchange between modules.
Robust mechanical design for secure mounting in standard industrial enclosures.
Optimized for efficient power distribution across all installed modules.
Technical Specifications
Model
1756-A7
Slots
7
Power Dissipation (Max)
5 W
Operating Temperature
0 to 60 degC (32 to 140 degF)
Storage Temperature
-40 to +85 degC (-40 to +185 degF)
Relative Humidity
5 to 95% (noncondensing)
Backplane Current @ 1.2V DC
1.5 A
Backplane Current @ 3.3V DC
4 A (per slot max)
Backplane Current @ 5.1V DC
15 A (total) / 6 A (per slot max)
Backplane Current @ 24V DC
2.8 A (per slot max)
Installation Guidelines
Ensure the chassis is mounted on a flat, stable surface within an industrial enclosure to prevent mechanical stress.
Maintain adequate clearance around the chassis to allow for proper airflow and cooling, adhering to the specified operating temperature range.
Always disconnect power before installing or removing modules from the chassis backplane to prevent electrical damage.
Ensure the chassis is properly grounded in accordance with local electrical codes to minimize EMI and protect against surges.
Verify that all modules are fully seated and secured using the integrated module locking mechanisms.
FAQIs this chassis compatible with all ControlLogix modules? Yes, the 1756-A7 is designed to support standard ControlLogix modules that conform to the 1756 form factor.What is the maximum power dissipation for this unit? The maximum power dissipation for the 1756-A7 chassis is 5 W.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Allen-Bradley 1756-A17 is a standard 17-slot chassis designed to serve as the backbone for ControlLogix control systems. This open-style enclosure provides the necessary backplane communication and power distribution required to integrate a wide array of I/O, communication, and controller modules within an industrial rack environment.Features
17-slot capacity for high-density system configurations.
Integrated backplane for high-speed data exchange and power distribution between modules.
Supports RIUP (Removable Insertion Under Power) for maintenance without system downtime.
Electronic keying capabilities to prevent the installation of incorrect modules.
Built-in SOE (Sequence of Events) timestamping support for precise process monitoring.
Applications
Automated vehicle assembly and manufacturing lines.
Centralized control for municipal water and sewage treatment facilities.
Large-scale logistics and warehousing sorting systems.
Integrated food and beverage processing control stations.
Technical Specifications
Model
1756-A17
Slots
17
Enclosure Type
Open
Backplane Current (5V DC)
10 A
Backplane Current (24V DC)
2.8 A
Power Dissipation (Max)
6 W
Operating Temperature
0 to 60 degC (32 to 140 degF)
Mounting
Horizontal panel mount
Installation Guidelines
Ensure the chassis is mounted horizontally using the 10 integrated mounting tabs (5 top, 5 bottom).
Maintain required clearances: 10.2 cm plus power supply width on the left, 7.7 cm plus power supply width on the right, 15.3 cm top clearance, and 5.1 cm bottom clearance.
Proper grounding is mandatory: Utilize a Functional Earth (8.3 mm² / 8 AWG) and Protective Earth (2.1 mm² / 14 AWG) connection to ensure noise immunity and electrical safety.
The chassis is compatible with both standard and SEM screw mounting configurations; verify hardware requirements based on your specific assembly.
This unit does not feature a conformal coating; install only in controlled environments free from excessive moisture or corrosive contaminants.
FAQWhat is the primary function of the 1756-A17 chassis?The 1756-A17 acts as the physical mounting rack and communication backplane for the Allen-Bradley ControlLogix platform, supplying power and data pathways to all installed modules.Is this chassis compatible with hot-swapping?Yes, the ControlLogix architecture supports RIUP (Removable Insertion Under Power), allowing modules to be serviced while the chassis remains powered.Can I mount this chassis vertically?No, the 1756-A17 is designed strictly for horizontal mounting configurations to ensure proper heat dissipation and module seating.What are the grounding requirements?The chassis requires dedicated Functional Earth and Protective Earth connections to maintain system integrity and minimize electrical noise interference.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Allen-Bradley 1746-OB8 is a high-performance digital DC output module designed for use within the SLC 500 programmable controller platform. This module provides eight sourcing output channels, engineered to drive 10V to 50V DC loads, including solenoids, relays, and various industrial actuators. By switching the positive potential of the DC supply, this sourcing module maintains compatibility with standard industrial control architectures requiring positive-side switching.Features
Eight (8) sourcing output channels grouped for streamlined wiring.
Wide operating voltage range from 10V to 50V DC.
Optical isolation rated at 1500V AC to protect the backplane and processor from transient electrical noise.
Robust current handling with thermal derating support for high-temperature environments.
Integrated status indicators for clear visual monitoring of individual output states.
ApplicationsThis module is widely utilized in discrete manufacturing and process control environments where reliable DC load switching is required. It is ideal for interfacing with 24V DC control devices, such as pilot lights, contactors, and small DC motors, within an SLC 500 rack-based system.Technical Specifications
Brand
Allen-Bradley
Series
SLC 500
Module Type
Digital DC Output (Sourcing)
Number of Outputs
8 (1 group of 8)
Voltage Range
10-50V DC
Backplane Current (5V)
135 mA
On-Signal Delay
0.1 ms (resistive load)
Off-Signal Delay
1.0 ms (resistive load)
Current per Point
1.0A (30 degC) / 0.5A (60 degC)
Total Heat Dissipation
6.9 Watts
Installation Guidelines
Ensure the SLC 500 power supply is disconnected before inserting or removing the module from the chassis.
Mount the module in an appropriate SLC 500 chassis slot, ensuring the backplane connector is fully seated and the module is secured with the top and bottom retaining screws.
Maintain proper ventilation within the control cabinet; note that current capacity is subject to thermal derating at temperatures above 30 degC.
Use shielded cabling for I/O connections to minimize the impact of electromagnetic interference (EMI) in high-noise environments.
Verify that the external power supply for the DC loads is within the specified 10-50V DC range to prevent damage to the output transistors.
FAQWhat is the primary function of the 1746-OB8 module?The 1746-OB8 is a digital output module that provides eight sourcing DC outputs, allowing the SLC 500 PLC to control external 10V to 50V DC devices.Does this module require external power?Yes, the module requires an external DC power source to drive the connected loads, as it performs high-side switching of the provided DC voltage.How does temperature affect the output current?The module's current capacity is temperature-dependent. At 30 degC, it supports up to 1.0A per point, but this must be reduced to 0.5A per point when operating at the maximum ambient temperature of 60 degC.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Allen-Bradley 1756SC-IF8H is a high-performance analog input module designed for the ControlLogix platform. This 8-point module provides specialized functionality for process control applications, featuring integrated HART (Highway Addressable Remote Transducer) support to facilitate advanced diagnostics and configuration of field devices directly through the control system.Features
8-point analog input capacity for versatile signal monitoring.
Integrated HART communication support for enhanced field device management.
Designed for seamless integration within the ControlLogix chassis architecture.
Supports both current and voltage input signal ranges.
Robust construction suitable for industrial environments.
ApplicationsThis module is engineered for process automation environments where HART-enabled field instrumentation is utilized. It is commonly deployed in sectors such as chemical processing, water treatment, and power generation, where precise analog signal acquisition and remote device diagnostics are critical to operational efficiency.Technical Specifications
Model
1756SC-IF8H
Manufacturer
Allen-Bradley
Platform
ControlLogix
Input Points
8-point
Signal Type
Analog Current/Voltage
Communication
HART Protocol supported
Status
Discontinued by Manufacturer
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
Verify that the module is fully seated in the chassis slot and the locking latch is engaged.
Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI) and signal noise.
Maintain proper grounding practices for the chassis and signal shields to ensure signal integrity.
Avoid routing analog signal cables near high-voltage power lines or heavy inductive loads.
FAQIs the 1756SC-IF8H still in production?No, this model has been discontinued by the manufacturer. We provide access to high-quality surplus units for system maintenance and legacy support.Does this module support HART communication?Yes, the 1756SC-IF8H includes HART protection and communication capabilities, allowing for the pass-through of HART data from field devices.Can this module handle both voltage and current signals?Yes, it is designed to accept both analog current and voltage inputs, providing flexibility for various sensor types.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 1746-IA16 is a high-density digital input module designed for integration within the SLC 500 programmable logic controller system. This module provides 16 individual input points, facilitating the monitoring of AC signals from field devices such as pushbuttons, limit switches, and sensors. Engineered for reliability in industrial environments, it serves as a critical interface between external AC-powered equipment and the SLC 500 processor.Features
Provides 16 isolated input points for high-density signal monitoring.
Compatible with standard SLC 500 chassis configurations.
Designed for operation within an input voltage range of 85-132 VAC.
Supports a frequency range of 47-63 Hz, ensuring stable performance across typical AC power grids.
Status indicators on the front panel provide immediate visual feedback for each input channel.
Technical Specifications
Manufacturer
Allen-Bradley
Model Number
1746-IA16
System Compatibility
SLC 500
Input Points
16
Voltage Category
120V AC
Operating Voltage Range
85-132 VAC
Frequency Range
47-63 Hz
Weight
0.45 kg
Installation Guidelines
Ensure the SLC 500 system power is disconnected before installing or removing the module to prevent electrical damage or personal injury.
Verify that the module is firmly seated in the chassis slot and secured using the provided mounting screws to ensure proper backplane connection.
Route field wiring away from high-voltage AC lines or heavy equipment to minimize electromagnetic interference (EMI).
Use appropriate shielded cabling for input signals where necessary to maintain signal integrity in high-noise industrial settings.
Follow standard ESD (electrostatic discharge) precautions when handling the module to protect internal circuitry.
FAQWhat is the primary function of the 1746-IA16?The 1746-IA16 is a digital input module that detects the status of 16 separate AC input signals and communicates this data to the SLC 500 processor for logic execution.Can this module be used with DC signals?No, the 1746-IA16 is specifically designed for 85-132 VAC input signals. Attempting to use this module with DC voltage will result in improper operation or potential damage to the input circuitry.Is this module hot-swappable?The SLC 500 system is generally not designed for hot-swapping. We recommend powering down the system before inserting or removing the module to ensure the safety of the backplane and the module components.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 1746-OA16 is a high-performance 16-point AC output module designed for integration into the SLC 500 programmable logic controller system. This module provides reliable switching for general-purpose 120V or 240V AC loads, facilitating seamless control of industrial actuators, contactors, and solenoids within a distributed I/O architecture.Features
16 isolated output points for flexible circuit configuration.
Wide operating voltage range of 85-265V AC, suitable for standard industrial power environments.
Integrated backplane interface for direct communication with the SLC 500 processor.
Robust design optimized for high-density I/O requirements in automated control systems.
Technical Specifications
Model Number
1746-OA16
Output Points
16
Operating Voltage
85-265V AC
Backplane Current Draw
370 mA
Compatible Series
SLC 500
Weight
0.45 kg
Installation Guidelines
Ensure the SLC 500 chassis power is disconnected before installing or removing the module to prevent electrical damage.
Verify that the backplane connector is properly aligned and fully seated to ensure reliable communication.
Use appropriate shielded cabling for AC output circuits to minimize electromagnetic interference (EMI) with low-voltage control signals.
Maintain adequate spacing within the control cabinet to allow for proper airflow and heat dissipation.
Follow local electrical codes for grounding and overcurrent protection on all output circuits.
FAQWhat is the primary function of the 1746-OA16?The 1746-OA16 is a digital AC output module used to interface the SLC 500 controller with field devices such as lamps, relays, and motor starters that operate on 120V or 240V AC power.Is this module compatible with all SLC 500 chassis?Yes, the 1746-OA16 is designed to fit into any standard SLC 500 I/O chassis slot, provided the power supply can support the 370 mA backplane current requirement.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 1746-NO4V is a specialized analog output module engineered for the SLC 500 control system. It features four independent voltage output channels, providing precise control for industrial actuators, servo drives, and variable frequency drives (VFDs). This module is designed to handle various voltage ranges, including ±10V, 0-10V, 0-5V, and 1-5V, making it a versatile component for complex automation tasks that require rapid response times.Features
Four analog voltage output channels for flexible control integration.
High-speed parallel processing with a total update time of 512 microseconds.
Supports multiple output signal ranges to accommodate various industrial hardware standards.
Backplane-to-field isolation rated at 500V DC for enhanced system protection.
Compact design optimized for the SLC 500 chassis environment.
ApplicationsThis module is typically utilized in motion control systems, process regulation, and speed control applications where low latency is critical to maintaining system stability and performance. It serves as a reliable interface between the SLC 500 processor and external analog-controlled equipment.Technical Specifications
Brand
Allen-Bradley
Product Line
SLC 500
Module Type
Analog Voltage Output
Number of Outputs
4
Signal Ranges
±10V, 0–10V, 0–5V, 1–5V DC
Update Time
512 µs (all channels)
Backplane Current (5V)
55 mA
Backplane Current (24V)
145 mA
Isolation
500V DC (Backplane to Field)
Operating Temperature
0 to 60 degC (32 to 140 degF)
Installation Guidelines
Power down the SLC 500 chassis before installing or removing the module.
Ensure the module is fully seated in the I/O slot to maintain reliable backplane communication.
Use shielded twisted-pair cabling for all analog signal connections to minimize electromagnetic interference (EMI).
Maintain proper grounding practices for the cable shields to prevent ground loops.
Ensure adequate ventilation within the cabinet to keep operating temperatures within the specified 0-60 degC range.
FAQAre the output channels isolated from each other?No, the 1746-NO4V provides isolation between the backplane and field wiring, but the individual output channels are non-isolated from one another.Does this module require external power?Yes, the module requires a 24V DC external power supply for proper operation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Product OverviewThe Allen-Bradley 1746SC-INI4I is a specialized 4-channel isolated analog input module engineered by Spectrum Controls for integration within the Allen-Bradley SLC 500 control platform. This module is specifically designed to handle high-precision measurement tasks in industrial environments where electrical noise, ground loops, or potential signal interference are concerns. By providing full channel-to-channel isolation, the 1746SC-INI4I ensures that individual sensor loops remain independent, preventing cross-talk or fault propagation between channels.Features
Four fully isolated differential input channels for robust signal integrity.
16-bit resolution providing high-granularity data for process monitoring.
Supports both voltage and current signal inputs for flexible sensor connectivity.
Selectable digital filtering to balance between rapid response times and noise rejection.
Designed for seamless integration into the SLC 500 rack system.
ApplicationsThis module is ideal for critical instrumentation tasks, including monitoring pressure, flow, temperature, and level in harsh environments. Its isolation capabilities make it particularly suitable for distributed sensor networks where ground potential differences could otherwise impact measurement accuracy.Technical Specifications
Manufacturer
Spectrum Controls
Platform
SLC 500
Channels
4 (Isolated, Differential)
Resolution
16-bit
Accuracy
+/- 0.1% of full scale
Isolation
1500V DC channel-to-channel
Update Rate
10 ms per channel
Voltage Impedance
1 MΩ
Current Impedance
250 Ω
Installation Guidelines
Ensure the SLC 500 rack is powered down before inserting or removing the module to prevent electrical damage.
Verify that the module is firmly seated into the backplane connector and secured with the chassis screws.
Use shielded twisted-pair cabling for all analog inputs to minimize EMI pickup.
Ensure that cable shields are grounded at a single point to prevent ground loops.
Maintain proper ventilation in the control cabinet to keep ambient temperatures within the specified operating limits for the SLC 500 system.
FAQDoes this module require external power for the inputs?The 1746SC-INI4I derives its operational power from the SLC 500 backplane, though sensor loops may require external loop power depending on the specific transmitter type used.Can I mix current and voltage inputs on the same module?Yes, the module is designed to support both current and voltage inputs, allowing for versatile configurations across its four channels.
