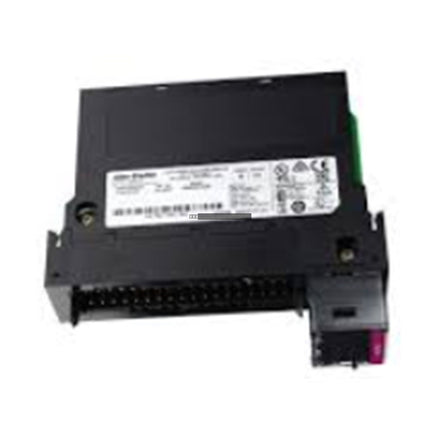

The Allen-Bradley 1756-HSC is a high-performance module designed for the ControlLogix platform, specifically engineered to manage high-speed pulse inputs for precise motion control, flow measurement, and totalizing applications. This module provides reliable counting capabilities with high-speed input channels, enabling seamless integration into industrial automation systems requiring real-time feedback.
Features
- Supports 3 inputs per counter for flexible signal monitoring.
- Integrated 4-point output functionality for control logic execution.
- Compatible with 1756-TBCH and 1756-TBS6H removable terminal blocks for simplified field wiring.
- Designed for installation in any available slot within a standard ControlLogix chassis.
- Wide count range up to 16,214,777 to accommodate diverse industrial applications.
Technical Specifications
| Module Type |
High Speed Counter |
| Backplane Current (5V) |
300 mA |
| Backplane Current (24V) |
3 mA |
| Max Power Dissipation |
5.6 Watts at 60 degC |
| Count Range |
0 to 16,214,777 |
| Compatible RTB |
1756-TBCH, 1756-TBS6H |
Installation Guidelines
- Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-HSC module to prevent potential electrical damage.
- Always use appropriate ESD protection when handling the module to avoid damage to sensitive internal circuitry.
- Verify that the removable terminal block (RTB) is fully seated and secured to the module faceplate to ensure reliable contact.
- Route signal cabling away from high-voltage lines or high-EMI sources to maintain signal integrity for high-speed pulse inputs.
- Ensure adequate airflow within the cabinet to stay within the module's maximum power dissipation limits at operating temperatures.
FAQ
What is the primary function of the 1756-HSC?
The 1756-HSC is a dedicated high-speed counter module used to process rapid pulse signals from encoders or flow meters, translating them into count values that the ControlLogix controller can use in real-time control loops.
Can this module be installed in any slot?
Yes, the 1756-HSC is designed for installation in any slot within a standard ControlLogix chassis, provided the chassis has sufficient power supply capacity to support the module's backplane current requirements.
