نظام هانيويل إكسبيريون للمعرفة العملية (PKS) هو منصة متقدمة لأنظمة التحكم الموزعة (DCS) والمراقبة الإشرافية وتحصيل البيانات (SCADA)، تُستخدم لأتمتة العمليات. يركز هذا المشروع على دمج إكسبيريون في وحدة أنظمة الحاسوب الصناعية بجامعة مردوخ، مما يُمكّن الطلاب من تعلم وحدات التحكم التنظيمية، ومحاكاة معرّفات التكامل والتفاضل (PID)، وعمليات العمليات الصناعية من خلال التدريب العملي.
هانيويل إكسبيريون PKS
-
Honeywell Honeywell 8C-PAIMA1 Low-Level Analog Input Module
Honeywell 8C-PAIMA1 Low-Level Analog Input Module Configured for low-level temperature signal acquisition in Honeywell Experion PKS Series 8 / C300 systems, the Honeywell 8C-PAIMA1 (8C-PAIMA1 Low-Level Analog Input Module) provides direct electrical conversion of RTD and thermocouple sensor signals into controller process data. Hardware Specifications Parameter Specification Model 8C-PAIMA1 Brand Honeywell Origin USA Dimensions Standard Series 8 IOM form factor Operating Temp -40 deg C to +70 deg C System Compatibility Experion PKS Series 8 / C300 Module Type Low-Level Analog Input Module (LLAI) Input Channels 16 channels Input Sensor Types Thermocouples and Resistance Temperature Detectors (RTD) Supported Thermocouple Types Type B, E, J, K, N, R, S, T Supported RTD Types Pt100, Pt200, Pt500, Ni120, Cu10 RTD Wiring Support 2-wire, 3-wire, or 4-wire depending on IOTA configuration Input Voltage Range -20 mV to +100 mV Analog-to-Digital Conversion 16-bit resolution Common Mode Rejection Ratio >120 dB at 50/60 Hz Normal Mode Rejection Ratio >60 dB at 50/60 Hz Accuracy Typically +/-0.05% of span Associated IOTA 8C-TAIMA1 Low-Level AI IOTA Environmental Protection Conformal coating according to ISA S71.04 Class G3 Mounting Method Direct plug-in connection to Series 8 IOTA Replacement Function Hot-swappable module replacement support Cold Junction Compensation and Channel Isolation The 8C-PAIMA1 performs direct temperature measurement processing through RTD and thermocouple inputs. Therefore, the module integrates cold junction compensation (CJC) for thermocouple signal correction and applies digital linearization to improve measurement conversion accuracy. Furthermore, the module provides channel-level signal processing to reduce interference between sensor inputs. The conformal coating protects internal electronic components from humidity, corrosive contaminants, and industrial environmental exposure. The module follows Honeywell process I/O design practices for Experion PKS systems. It supports temperature monitoring loops without external signal conversion devices when compatible sensors connect through the associated 8C-TAIMA1 IOTA. Frequently Asked Questions Q: What sensor types can the Honeywell 8C-PAIMA1 accept?A: The module accepts low-level temperature signals from thermocouples and RTD sensors. Supported thermocouple types include B, E, J, K, N, R, S, and T, while RTD support includes Pt100, Pt200, Pt500, Ni120, and Cu10. Q: Does the 8C-PAIMA1 provide thermocouple cold junction compensation?A: Yes. The module includes cold junction compensation (CJC) for thermocouple input processing and performs digital temperature signal correction. Q: Can the 8C-PAIMA1 be replaced while the system remains powered?A: Yes. The module supports hot-swappable replacement within the Series 8 I/O architecture, following the applicable system maintenance procedures. Field Installation Guidelines Install the 8C-PAIMA1 module directly onto the compatible 8C-TAIMA1 IOTA assembly. Verify that the IOTA wiring matches the selected RTD or thermocouple configuration before applying power. Use shielded instrumentation cables for low-level temperature signals. Connect cable shields according to the plant grounding standard to reduce electromagnetic interference. Separate sensor wiring from high-current power conductors and switching circuits. Before operation, verify sensor polarity, terminal assignments, and input configuration parameters within the Experion PKS engineering environment. Confirm that diagnostic status indicators show normal module operation after installation.
$200.00 $100.00
-
Honeywell 8C-PCIW02 | Series 8 Honeywell | Process I/O Control Module
Honeywell 8C-PCIW02 Series 8 Process I/O Control Module Configured for deterministic process I/O execution in Honeywell Experion PKS Series 8 systems, the Honeywell 8C-PCIW02 51454363-275 (8C-PCIW02 Process I/O Control Module) provides direct electrical and data processing functions between field I/O assemblies and the control system network. Hardware Specifications Parameter Specification Model 8C-PCIW02 Brand Honeywell Origin USA Part Number 51454363-275 System Platform Experion PKS Series 8 Module Type Process I/O Control Module Weight Approx. 0.5 kg Dimensions Approx. 3.8 cm x 12.7 cm x 18.4 cm Operating Temp 0 deg C to +60 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 5% to 95%, non-condensing Power Consumption Supplied through Series 8 IOTA baseplate, 24 VDC nominal system supply Mounting Interface Series 8 IOTA (Input Output Termination Assembly) Isolation Field-to-system galvanic isolation Protection Type Conformal coating for Series 8 environmental protection DCS Process Signal Interface Characteristics The Honeywell 8C-PCIW02 operates within the Experion PKS Series 8 architecture and exchanges process data through the I/O termination assembly interface. The module manages deterministic I/O execution timing and supports communication between field-level devices and the controller environment. For Honeywell process control applications, the Series 8 I/O structure supports instrument integration methods including 4-20 mA HART loop protocol, FOUNDATION Fieldbus, and Profibus PA connectivity when combined with compatible I/O modules. In addition, channel-to-channel isolation design reduces electrical interference between independent field circuits. The module design supports industrial process environments through conformal coating and integrated diagnostic functions. Therefore, maintenance personnel can identify module status conditions through system diagnostics without removing field wiring connections. Frequently Asked Questions Q: What system platform supports the Honeywell 8C-PCIW02 module?A: The 8C-PCIW02 operates within the Honeywell Experion PKS Series 8 platform and mounts through a compatible Series 8 IOTA assembly. Q: Does the 8C-PCIW02 provide field circuit isolation?A: Yes. The module design includes field-to-system galvanic isolation to separate field wiring circuits from system-level electronics. Q: Can the module be installed directly without an IOTA baseplate?A: No. The 8C-PCIW02 requires the designated Series 8 IOTA interface for mechanical mounting, power connection, and field signal termination. Field Installation Guidelines Install the 8C-PCIW02 on the specified Honeywell Series 8 IOTA baseplate according to system hardware documentation. Verify that the IOTA assembly provides correct power distribution and field termination compatibility before module insertion. Maintain separation between analog signal wiring, communication cables, and high-voltage power conductors to reduce electrical noise coupling. Connect cable shields according to plant grounding standards and avoid multiple grounding points that may create ground loops. Confirm module diagnostics and communication status after installation through the Experion PKS engineering tools. Follow approved procedures for module removal and replacement to prevent interruption of active control functions.
$200.00 $100.00
-

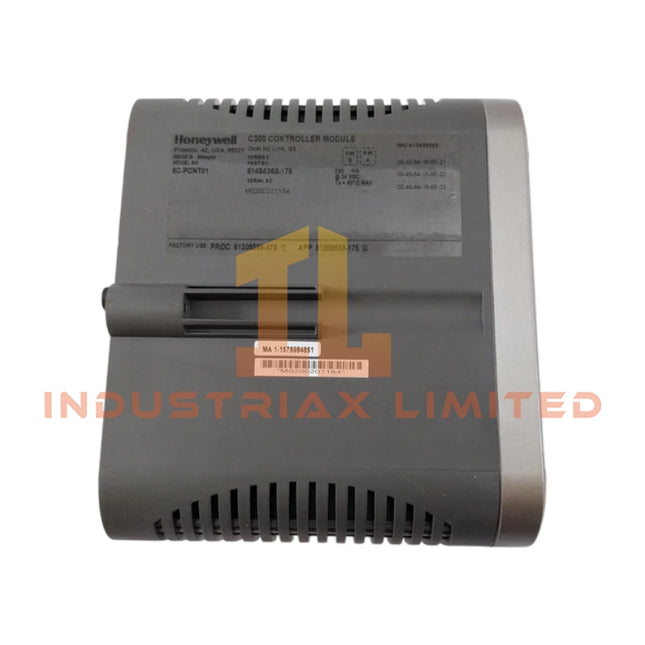

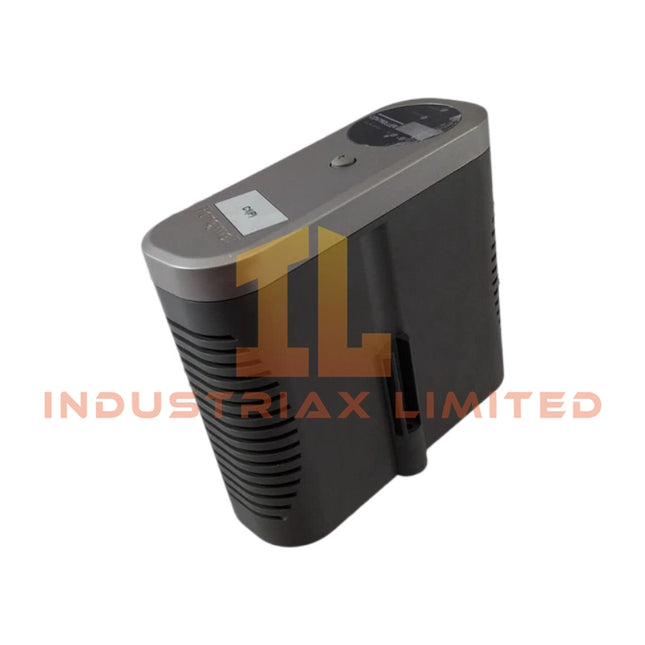

Honeywell 8C-PCNT01 C300 Honeywell Controller Module
Honeywell 8C-PCNT01 C300 Controller Module Configured for deterministic process control execution in the Honeywell Experion PKS Series 8 control network, the Honeywell 8C-PCNT01 (8C-PCNT01 C300 Controller Module) provides direct physical and electrical control processing functions for C300-based automation systems. Hardware Specifications Parameter Specification Model 8C-PCNT01 Brand Honeywell Product Type C300 Controller Module System Platform Experion PKS Series 8 Part Number 51454363-175 Origin USA Weight Approx. 480 g Operating Temp -40 deg C to +60 deg C Storage Temp -40 deg C to +85 deg C Power Supply 24 VDC nominal Power Consumption Approx. 320 mA at 24 VDC Control Environment Control Execution Environment (CEE) Execution Cycle Configurable execution blocks, down to 50 ms loop rates Communication Interface Dual I/O Link and Fault Tolerant Ethernet (FTE) via carrier Redundancy Support 1:1 controller redundancy configuration Environmental Protection ANSI/ISA S71.04 G3 conformal coating Process Control Communication and Signal Execution The 8C-PCNT01 executes control strategies through the Honeywell Control Execution Environment (CEE). It processes configured control algorithms, manages Series 8 I/O communication, and transfers control data between field-connected I/O modules and higher-level Experion PKS functions. For Honeywell process control applications, the controller architecture supports field instrument integration through standard DCS communication structures. The system design allows analog and digital process variables to be handled through connected I/O modules, including signals based on 4-20 mA HART loops and FOUNDATION Fieldbus or Profibus PA networks when supported by the installed I/O configuration. The controller hardware supports channel-to-channel isolation requirements through the associated I/O architecture. Therefore, field signal separation and diagnostic handling depend on the installed termination assemblies and I/O module selection. Frequently Asked Questions Q: Does the 8C-PCNT01 support redundant controller operation?A: Yes. The module supports 1:1 controller redundancy configurations. The redundant pair operates with synchronized control execution to maintain process operation during controller failover conditions. Q: What power supply does the 8C-PCNT01 require?A: The controller operates from a 24 VDC nominal supply and consumes approximately 320 mA at 24 VDC according to the provided technical data. Q: Can the 8C-PCNT01 communicate directly with Series 8 I/O modules?A: Yes. The controller communicates with Series 8 I/O modules through dual I/O Link interfaces installed within the Series 8 architecture. Field Installation Guidelines Install the 8C-PCNT01 on the designated Honeywell Series 8 carrier assembly according to the system hardware installation manual. Verify that the 24 VDC power wiring uses correct polarity and proper industrial grounding practices before energizing the controller. Maintain separation between control wiring, field signal wiring, and high-current power conductors to reduce electrical interference. Connect communication interfaces using approved cable routing methods and ensure shield termination follows the plant grounding standard. Before commissioning, verify controller redundancy status, firmware compatibility, I/O communication health, and diagnostic indicators through the Experion PKS engineering tools.
$200.00 $100.00
-

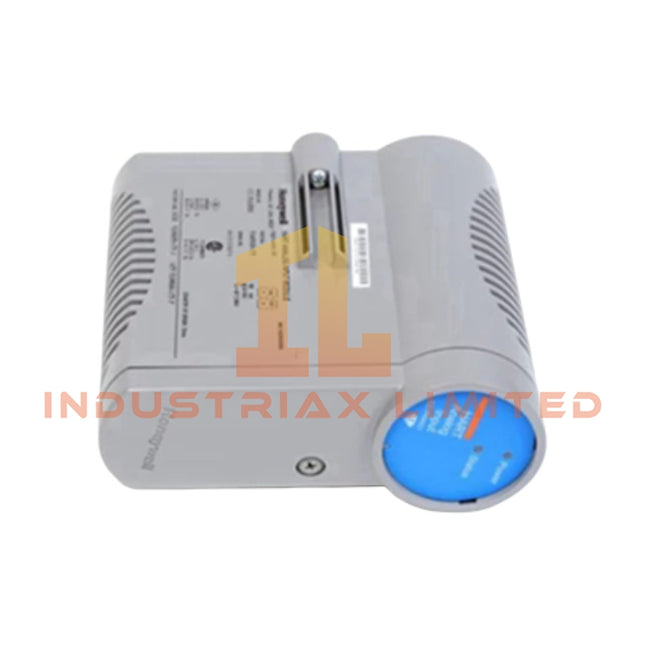

Honeywell 8C-PDILA1 | Series 8 Digital Input Module | Honeywell
Honeywell 8C-PDILA1 Series 8 Digital Input Module Configured for discrete signal acquisition in Honeywell Experion PKS C300 control systems, the Honeywell 8C-PDILA1 (51454471-175) (8C-PDILA1 Digital Input Module) provides direct electrical monitoring of 24 VDC field devices through 32 digital input channels. Hardware Specifications Parameter Specification Model 8C-PDILA1 Brand Honeywell Part Number 51454471-175 Product Type Series 8 Digital Input Module System Platform Honeywell Experion PKS / Experion LX C300 Origin USA Operating Temp 0 deg C to +60 deg C Storage Temp -40 deg C to +85 deg C Power Consumption Approx. 95 mA at 24 VDC Channel Count 32 digital input channels Input Voltage 24 VDC nominal Input Type Sinking current-limiting digital input Isolation Field-to-logic galvanic isolation Isolation Rating Up to 1000 VAC / 1500 VDC Coating Type Conformal coating Mounting Interface Series 8 IOTA connection Compatible IOTA 8C-TDILA1 / 8C-TDILB1 Hot Swap Support Supports online insertion and removal (RIUP) Process Control Signal Isolation and Channel Interface The Honeywell 8C-PDILA1 uses a digital input architecture designed for discrete field signal collection within the Series 8 I/O platform. Each input channel receives switching states from field devices including limit switches, relay contacts, push buttons, and proximity sensors. Furthermore, the module applies field-to-system galvanic isolation to reduce the impact of electrical noise, transient conditions, and potential differences between field wiring and controller electronics. The conformal coating protects the module circuitry against industrial contaminants, moisture exposure, and corrosive airborne particles. The module supports connection with redundant I/O termination assemblies. Therefore, the C300 controller can maintain I/O availability through redundant hardware configurations when installed according to Honeywell Series 8 system design requirements. Channel Isolation and DCS Interface Characteristics The 8C-PDILA1 operates as a discrete signal interface between field devices and the Honeywell Experion PKS control environment. Unlike analog measurement modules, this module processes two-state electrical conditions and transfers channel status information through the Series 8 backplane communication structure. Additionally, the module architecture follows Honeywell DCS I/O design principles, including isolated channel handling and modular I/O replacement capability. The Series 8 platform supports process instrumentation integration where discrete field status monitoring is required. Frequently Asked Questions Q: What type of field signals can the 8C-PDILA1 monitor?A: The module monitors 24 VDC discrete signals from devices such as switches, relay contacts, and proximity sensors. Q: Does the 8C-PDILA1 support hot replacement during system operation?A: Yes. The module supports RIUP functionality, allowing online insertion and removal when the system configuration and procedures permit. Q: What is the function of the conformal coating on this module?A: The conformal coating protects the electronic assembly from moisture, dust, and corrosive industrial contaminants. Field Installation Guidelines Install the 8C-PDILA1 only with compatible Honeywell Series 8 IOTA assemblies and C300 controller hardware. Verify the field wiring polarity and voltage level before energizing the digital input channels. Use separated cable routes for signal wiring and high-energy power circuits to minimize electrical interference. Connect cable shields according to the site grounding standard. Avoid multiple grounding points on shielded signal cables unless the control system engineering specification requires them. Confirm the IOTA terminal assignments before connecting field devices. After installation, check each input channel status through the Experion PKS engineering tools and verify correct field device response.
$200.00 $100.00
-

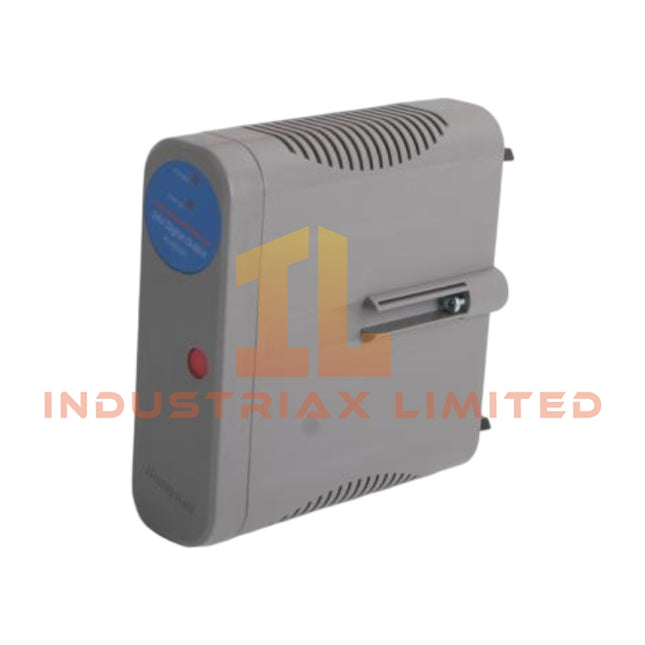

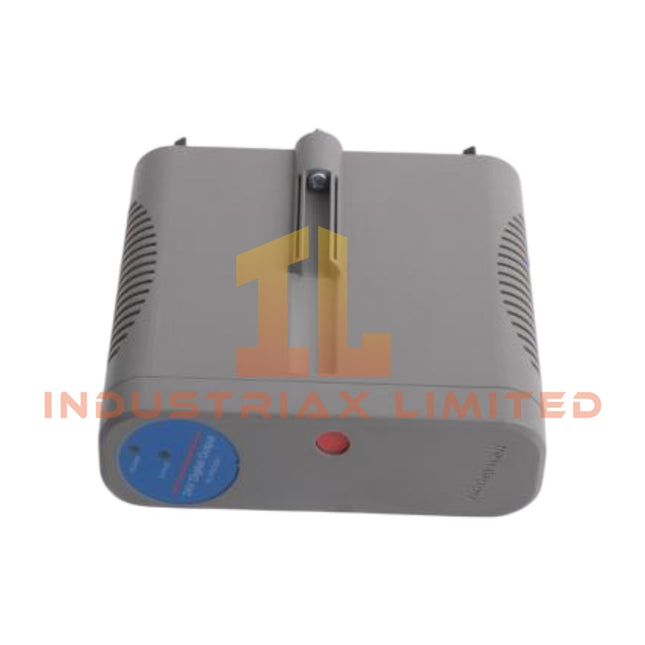

Honeywell Honeywell 8C-POODA1 Series 8 Analog Output Module
Honeywell 8C-POODA1 Series 8 Analog Output Module Configured for analog current signal execution in Honeywell Experion PKS C300 control systems, the Honeywell 8C-POODA1 (8C-POODA1 Analog Output Module) provides direct electrical output conversion for field control loops. Hardware Specifications Parameter Specification Model 8C-POODA1 Brand Honeywell Origin USA Product Type Analog Output Module Product Family Experion PKS Series 8 I/O Controller Platform Honeywell C300 Controller Output Channels 16 Channels Output Signal 4-20 mA DC Digital Resolution 12 to 16 bits typical DAC resolution HART Support HART pass-through compatible depending on base configuration and firmware Redundancy Supported through redundant module base configurations Channel Isolation Channel-to-channel and channel-to-bus galvanic isolation Operating Voltage 24 VDC system power Form Factor Series 8 vertical I/O form factor Conformal Coating Available for harsh environmental applications 4-20 mA HART Loop and Channel Isolation Characteristics The Honeywell 8C-POODA1 processes digital control commands from the Experion PKS C300 controller and converts them into analog 4-20 mA output signals for field actuators. Therefore, the module supports direct regulation of devices such as control valves, positioners, and variable frequency drives. The module supports HART pass-through functions when the installed base configuration and firmware provide compatibility. Additionally, channel-to-channel and channel-to-bus galvanic isolation separates field circuits from internal system communication paths, reducing interference between independent analog loops. The Series 8 architecture supports high I/O density within the Experion PKS platform. Furthermore, the module supports removal and insertion under power (RIUP) functions for maintenance activities when installed within compatible Series 8 configurations. Frequently Asked Questions Q: Does the 8C-POODA1 support hot-swapping during system operation?A: The module supports Removal and Insertion Under Power (RIUP) when installed in compatible Honeywell Series 8 I/O configurations. The site procedure must follow the approved Experion PKS maintenance guidelines. Q: What type of field signals does the 8C-POODA1 generate?A: The module provides analog output signals in the 4-20 mA DC range for connection to field control devices. Q: Does the module provide electrical isolation between output channels?A: Yes. The module design provides channel-to-channel and channel-to-bus galvanic isolation for separated analog output circuits. Field Installation Guidelines Install the 8C-POODA1 module only in compatible Honeywell Series 8 I/O termination and carrier assemblies. Verify that field wiring polarity matches the assigned analog output channel terminals before energizing the loop. Use shielded instrumentation cables for analog current loops where electromagnetic interference may affect signal stability. Connect cable shields according to site grounding standards and avoid creating multiple grounding paths. Separate analog signal wiring from high-current power cables and variable frequency drive output cables. Confirm controller configuration, module addressing, and I/O channel assignments before commissioning. Verify output loop operation using calibrated measurement equipment before connecting final field actuators.
$200.00 $100.00
-

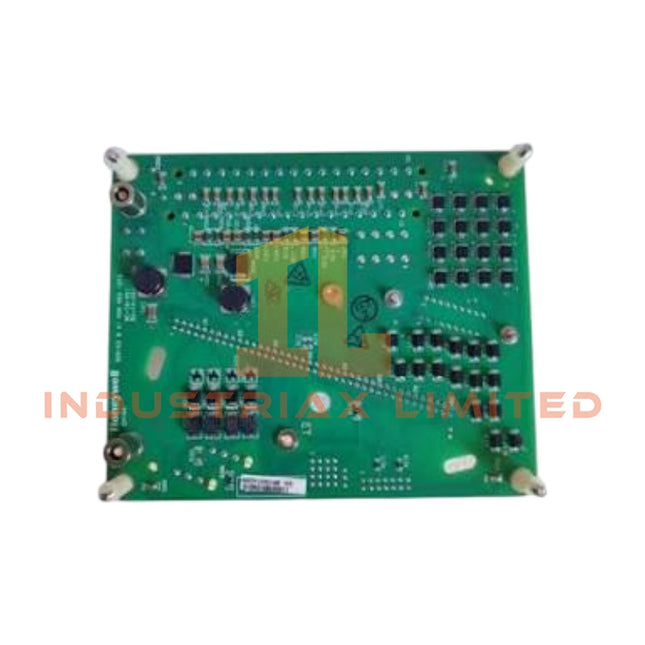

Honeywell 8C-TAID51 | Analog Input Modules | Honeywell
Honeywell 8C-TAID51 Series 8 Analog Input Differential Terminal Assembly The Honeywell 8C-TAID51, also cataloged as the 8C-TAID51 Analog Input Differential Terminal Assembly, operates as a dedicated hardware component for differential analog signal termination within the Honeywell Experion PKS Series 8 I/O system. Hardware Specifications Parameter Specification Model 8C-TAID51 Brand Honeywell Product Series Experion PKS Series 8 I/O Module Type Analog Input Differential Terminal Assembly Origin USA Channel Count 16 differential analog input channels Input Signal Range 4-20 mA DC / 1-5 VDC A/D Converter Resolution 16-bit Input Impedance Approximately 250 ohm for current input mode; high impedance for voltage input mode Isolation Channel-to-system galvanic isolation Power Supply 24 VDC via IOM/IOTA system bus Operating Temp -40 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 5% to 95% RH, non-condensing Mounting Type Series 8 IOTA carrier / DIN rail mounting Conformal Coating Standard protective coating for industrial environments Process Instrument Signal Interface Characteristics The Honeywell 8C-TAID51 interfaces field transmitters with the Experion PKS C300 controller through differential analog input termination. The module accepts standard process signals, including 4-20 mA HART loop protocol compatible current inputs and 1-5 VDC voltage signals. Furthermore, the differential input design improves channel-to-channel isolation performance and reduces common-mode interference during field signal acquisition. The termination assembly maintains signal integrity between field wiring circuits and the Series 8 I/O architecture. The module supports process instrumentation applications that require precise analog measurement transmission, including transmitter loops, monitoring devices, and control measurement circuits. Therefore, proper shielding and grounding practices remain necessary for accurate analog signal processing. Frequently Asked Questions Q: What type of signals does the Honeywell 8C-TAID51 accept?A: The 8C-TAID51 accepts differential analog input signals including 4-20 mA DC and 1-5 VDC signals from field instruments. Q: Does the 8C-TAID51 provide electrical isolation between input channels and the system?A: The module provides channel-to-system galvanic isolation to reduce interference between field circuits and the control system interface. Q: Can the 8C-TAID51 operate in redundant C300 configurations?A: The module supports Series 8 I/O system configurations designed for redundant controller architectures when installed according to Honeywell system configuration requirements. Field Installation Guidelines Install the 8C-TAID51 on the designated Series 8 IOTA carrier and verify correct mechanical engagement before applying system power. Connect field analog wiring according to the approved Honeywell terminal assignment documentation. Keep low-level analog signal cables separated from high-voltage power conductors to reduce electromagnetic interference. Use shielded instrumentation cables where required. Connect cable shields according to the site grounding standard and avoid multiple grounding points that may introduce ground loop currents. Verify transmitter polarity, loop wiring continuity, and input signal type before commissioning. Confirm that the configured input range in the Experion PKS system matches the connected field device output. Maintain appropriate cabinet ventilation and environmental conditions within the specified operating temperature and humidity limits.
$200.00 $100.00
-

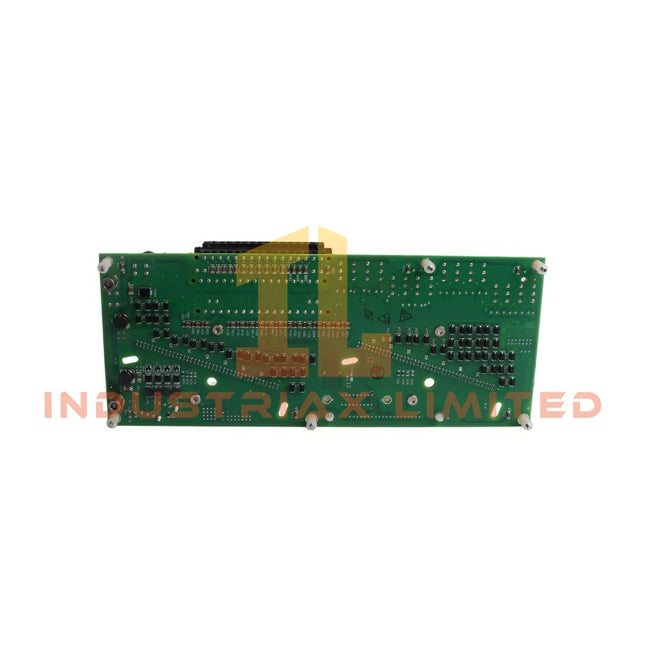

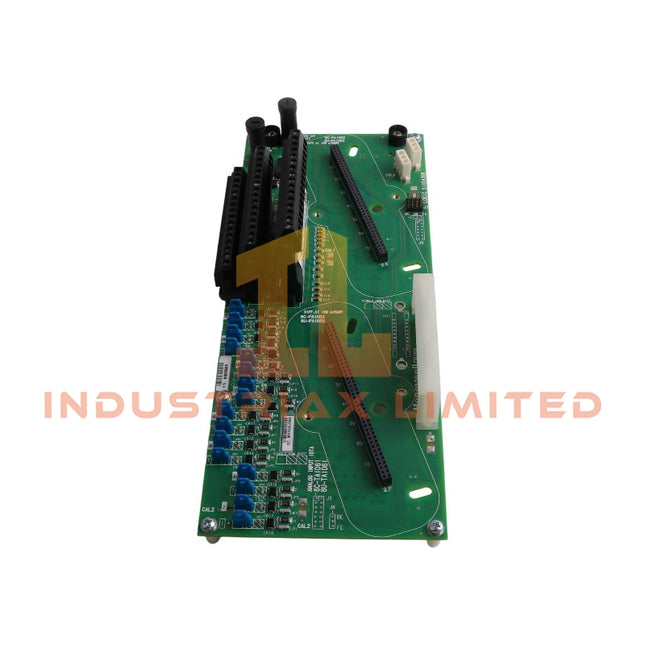

Honeywell Honeywell 8C-TAID61 Analog Input Module
Honeywell 8C-TAID61 Analog Input Module Configured for differential analog signal acquisition in the Honeywell Experion PKS C300 control system, the Honeywell 8C-TAID61 51307069-175 (8C-TAID61 Analog Input Module) provides direct electrical signal conversion and field interface execution. Hardware Specifications Parameter Specification Model 8C-TAID61 Spare Model 51307069-175 Brand Honeywell Product Type Analog Input Module Origin USA Weight 0.42 kg Dimensions 29.5 x 12 x 7.5 cm Operating Temp -20 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Power Supply 5 V DC Power Consumption 4-12 W Input Channels 16 channels Input Impedance 250 ohm Isolation 1500 V AC Humidity 5-95% RH, non-condensing Input Function Analog signal acquisition Field Power Non-incendive field power supply Diagnostic Function Extensive self-diagnostics Redundancy Support Optional redundancy configuration Wiring Monitoring Open Wire Detection 4-20 mA HART and Channel Isolation Features The Honeywell 8C-TAID61 Analog Input Module interfaces field analog signals through the Experion PKS C300 I/O architecture. The module supports 16 input channels and provides channel-level electrical separation for process measurement applications. Furthermore, the module design supports field signal monitoring functions including Open Wire Detection. The integrated self-diagnostic functions continuously monitor module operating conditions and assist system maintenance activities. The module provides non-incendive field power capability for compatible field devices. In addition, the optional redundancy configuration allows system designers to implement higher availability I/O arrangements. Frequently Asked Questions Q: What type of signals does the Honeywell 8C-TAID61 process?A: The 8C-TAID61 is an Analog Input Module designed for acquisition of analog field signals through the Honeywell Experion PKS C300 I/O system. Q: Does the 8C-TAID61 support field device power supply functions?A: Yes. The module provides non-incendive field power capability for supported field instrumentation connections. Q: What diagnostic functions are available on this module?A: The module provides extensive self-diagnostics and Open Wire Detection functions for monitoring field wiring and module status. Field Installation Guidelines Install the Honeywell 8C-TAID61 module according to the Experion PKS C300 hardware installation requirements. Verify that the 5 V DC supply connections match the system power distribution specifications before energizing the module. Connect field wiring using proper industrial instrumentation practices. Keep analog signal cables separated from high-voltage power conductors to reduce electromagnetic interference. Ground cable shields according to the control system grounding design and avoid multiple grounding points that may introduce signal loops. Confirm terminal assignments, field device polarity, and channel configuration before commissioning. Check the module diagnostic status after installation to verify correct communication and input channel operation.
$200.00 $100.00
-

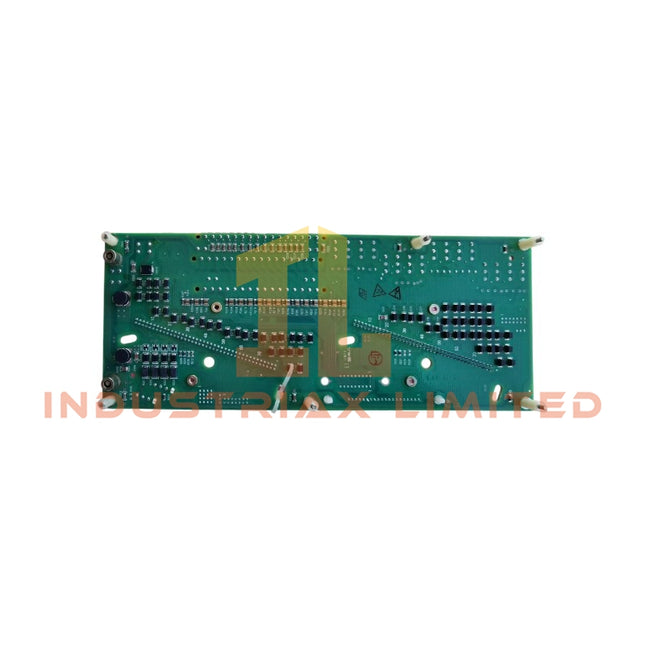

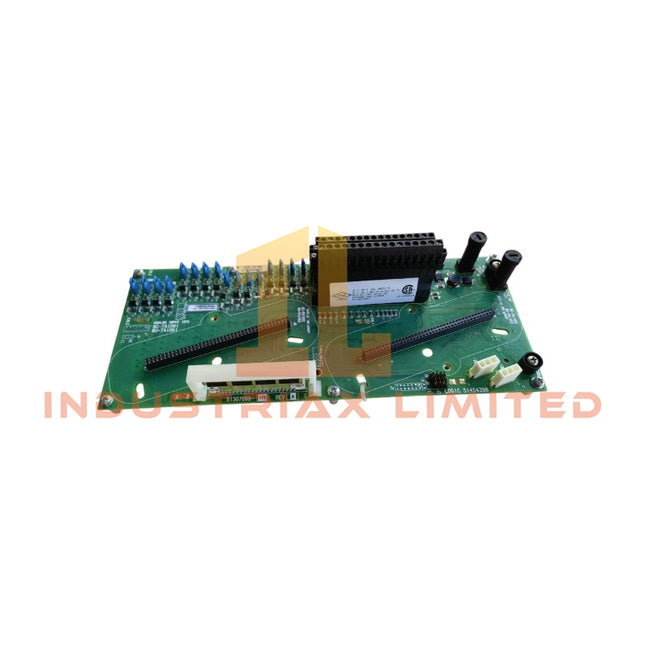

Honeywell 8C-TAID61 51307069-175 Analog Input Module Honeywell
Honeywell 8C-TAID61 51307069-175 Analog Input Module Configured for differential analog signal acquisition in the Honeywell Experion PKS Series 8 I/O system, the Honeywell 8C-TAID61 51307069-175 (8C-TAID61 Analog Input Module) provides direct physical and electrical signal conversion for field measurement channels. Hardware Specifications Parameter Specification Model 8C-TAID61 51307069-175 Brand Honeywell Product Type Analog Input Module Origin USA Weight 0.42 kg Dimensions 29.5 x 12 x 7.5 cm Operating Temp -20 deg C to +70 deg C Storage Temperature -40 deg C to +85 deg C Power Supply 5 V DC Power Consumption 4-12 W Input Channels 16 channels Input Impedance 250 ohm Isolation 1500 V AC Humidity 5-95% RH non-condensing Input Function Analog signal acquisition Diagnostic Function Extensive self-diagnostics Field Power Non-incendive field power supply support Redundancy Optional redundancy configuration Detection Function Open Wire Detection Channel Isolation and Process Signal Handling The Honeywell 8C-TAID61 51307069-175 provides 16 analog input channels for process measurement applications within the Experion PKS Series 8 architecture. The module maintains electrical separation through channel isolation and supports field signal integrity through a 250 ohm input impedance. Furthermore, the module incorporates open wire detection to identify field circuit discontinuity conditions. It also provides non-incendive field power capability for compatible field device connections. For process instrumentation integration, the module architecture supports DCS analog input requirements including transmitter signal monitoring, channel diagnostics, and isolated measurement acquisition. Honeywell process I/O designs commonly support integration methods such as 4-20 mA HART loop protocol, FOUNDATION Fieldbus, and Profibus PA connectivity depending on the installed I/O family and interface configuration. Frequently Asked Questions Q: What type of signals does the 8C-TAID61 51307069-175 process?A: The module processes analog input signals through 16 input channels within the Honeywell Series 8 I/O system. The provided specifications define it as an Analog Input Module. Q: Does the module support redundant operation?A: The 8C-TAID61 51307069-175 supports optional redundancy configuration. The actual redundancy implementation depends on the installed Experion PKS hardware configuration. Q: What diagnostic functions are included in this module?A: The module provides extensive self-diagnostics and open wire detection functions to monitor field connection conditions and module operating status. Field Installation Guidelines Install the 8C-TAID61 51307069-175 according to the Honeywell Experion PKS Series 8 I/O installation requirements. Verify that the 5 V DC backplane power supply matches the system power configuration before installation. Install the module in the designated Series 8 I/O mounting position with correct mechanical alignment. Route analog field wiring separately from high-voltage power cables to reduce electrical interference. Connect cable shields according to the site grounding standard and avoid multiple grounding points. Check field wiring continuity before enabling process measurement channels. Confirm open wire detection operation after completing field device termination. Maintain environmental conditions within the specified operating temperature and humidity range.
$200.00 $100.00
-
Honeywell 51307069-175 Honeywell 8C-TAID61 Series 8 Analog Input Modules
Honeywell 8C-TAID61 Series 8 Analog Input Differential Terminal Assembly Configured for differential analog signal termination in Honeywell Experion PKS C300 systems, the Honeywell 8C-TAID61 51307069-175 (8C-TAID61 Analog Input Differential Terminal Assembly) provides direct physical signal routing and electrical interface execution for Series 8 I/O channels. Hardware Specifications Parameter Specification Model 8C-TAID61 51307069-175 Brand Honeywell Origin USA Operating Temp -40 deg C to +70 deg C Power Consumption Passive I/O termination assembly; power consumption not specified Product Type Analog Input Differential Terminal Assembly System Compatibility Honeywell Experion PKS C300 Controller System I/O Function Differential analog input signal termination Signal Interface 4-20 mA / 1-5 VDC process signals Channel Configuration High-density differential input termination Isolation Method Channel-to-system galvanic isolation Mounting Method DIN rail or C300 I/O carrier assembly Environmental Protection Conformal coating for industrial environments Process Signal Interface and Isolation Characteristics The 8C-TAID61 51307069-175 is designed for Honeywell Series 8 C300 I/O architectures. It terminates differential analog input wiring and transfers field signals to the associated I/O module. The assembly supports standard process instrumentation signals, including 4-20 mA current loops and 1-5 VDC voltage inputs. In addition, the differential input structure reduces common-mode interference during field signal transmission. For Honeywell process control installations, channel-to-channel isolation and galvanic isolation help separate field wiring conditions from controller-side electronics. Furthermore, the terminal assembly supports integration with analog measurement loops using standard DCS instrumentation practices. Frequently Asked Questions Q: What signal types can the Honeywell 8C-TAID61 51307069-175 terminate?A: The assembly supports differential analog input signals, including common process ranges such as 4-20 mA and 1-5 VDC. Q: Does the 8C-TAID61 provide signal isolation?A: The assembly provides channel-to-system galvanic isolation characteristics to reduce electrical interference between field signals and system electronics. Q: Can the 8C-TAID61 be replaced during system operation?A: Replacement procedures depend on the installed C300 I/O carrier configuration and plant maintenance rules. Technicians should verify hot-swap limitations before removing field termination hardware. Field Installation Guidelines Install the 8C-TAID61 on the designated Honeywell Series 8 C300 I/O carrier or approved DIN rail mounting location. Route analog field wiring separately from high-voltage power cables and high-current switching circuits to reduce electromagnetic interference. Connect cable shields according to the plant grounding standard and avoid multiple-point shield grounding unless required by the control system design. Verify terminal identification before connecting field transmitters and ensure correct polarity for differential input wiring. Inspect terminal connections for proper mechanical tightness before applying system power. Confirm signal loop continuity and transmitter output range before commissioning the associated analog input channel.
$200.00 $100.00
-

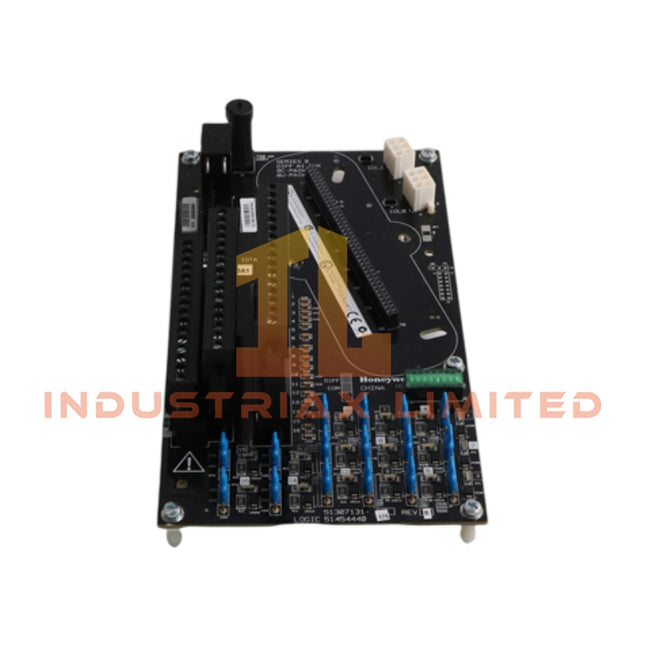

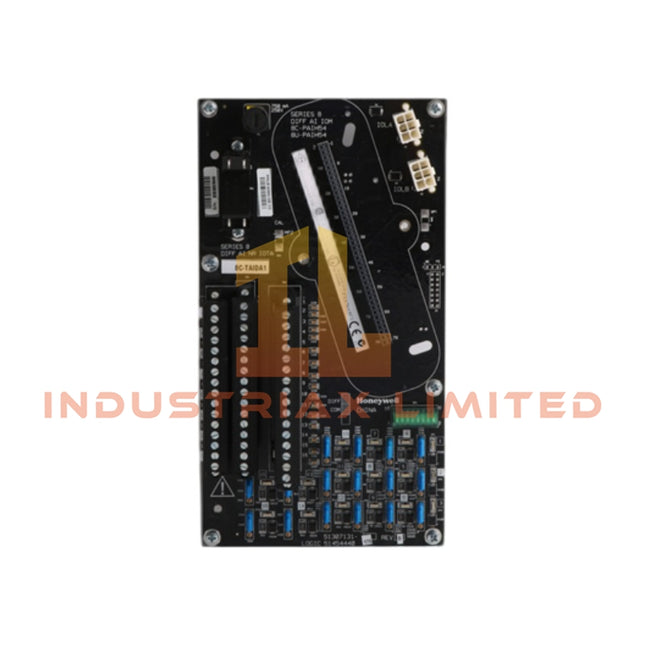

Honeywell Honeywell 8U-TAIDA1 Analog Input IOTA Termination Assembly
Honeywell 8U-TAIDA1 Analog Input IOTA Series 8 Termination Assembly The Honeywell 8U-TAIDA1, also cataloged as the 8U-TAIDA1 Analog Input Termination Assembly, operates as a dedicated hardware component for differential analog signal termination within Honeywell Experion PKS C300 Series 8 I/O platforms. Hardware Specifications Parameter Specification Model 8U-TAIDA1 Brand Honeywell Origin USA Product Type Analog Input Termination Assembly (IOTA) System Compatibility Honeywell Experion PKS C300 Series 8 I/O system Module Function Differential analog input field wiring termination interface Signal Type 4-20 mA current loops and voltage input signals Channel Capacity Supports 8 or 16 differential analog input channels Coating Type Uncoated (non-conformal coated) Mounting Method DIN rail or cabinet panel mounting Operating Temp -40 deg C to +70 deg C Power Consumption Passive termination assembly; no active field signal processing power requirement Weight Approx. 0.5 kg Process Control Signal Interface Characteristics The 8U-TAIDA1 provides the physical termination interface between field transmitters and Honeywell Series 8 analog input modules. Therefore, it supports direct field signal routing for differential analog measurements while maintaining the wiring structure required by the C300 I/O architecture. The assembly supports 4-20 mA HART loop protocol applications when paired with compatible Honeywell analog input modules. Additionally, the IOTA design provides channel-to-channel signal separation through the associated I/O module interface, which helps maintain measurement integrity in multi-channel process monitoring configurations. The module itself contains no active signal conversion electronics. Instead, it provides mechanical mounting, terminal connection, and field wiring organization for installed analog input hardware. Frequently Asked Questions Q: Does the 8U-TAIDA1 perform analog-to-digital signal conversion?A: No. The 8U-TAIDA1 is a passive Input Output Termination Assembly. The connected analog input module performs signal conversion and processing. Q: Can the 8U-TAIDA1 support HART communication signals?A: Yes. When installed with compatible Honeywell analog input modules, the termination assembly supports field wiring arrangements used for 4-20 mA HART loop applications. Q: Does the 8U-TAIDA1 require a separate power supply connection?A: No. The assembly functions as a passive termination interface and does not require independent operating power. Field Installation Guidelines Install the 8U-TAIDA1 inside the approved Honeywell Series 8 cabinet or panel mounting location. Connect field analog wiring according to the approved Experion PKS C300 I/O wiring diagram. Maintain correct polarity for differential input connections. Separate analog signal cables from high-voltage power conductors and high-current switching circuits to reduce electrical interference. Terminate cable shields according to the site grounding standard. Use a controlled grounding point to prevent unwanted ground loops. Verify terminal tightness, cable identification, and module alignment before commissioning the connected analog input channel. Confirm that the installed analog input module matches the configured channel type and field signal range before applying system power.
$200.00 $100.00
-

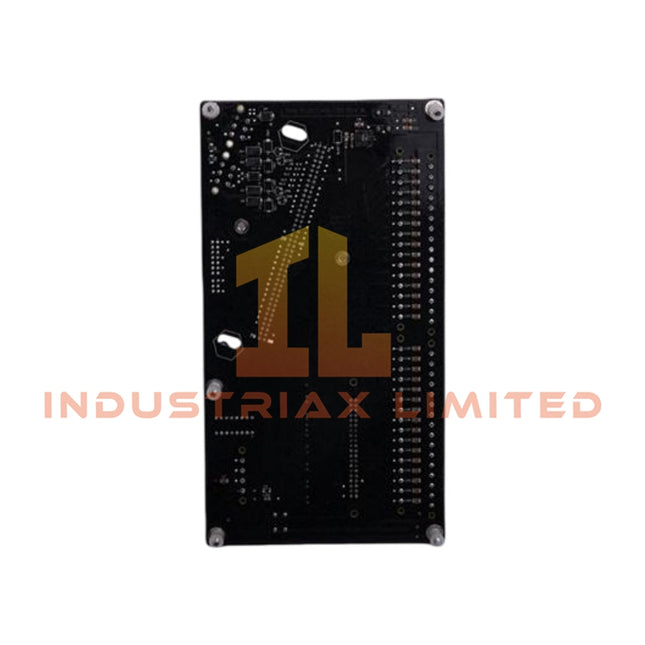

Honeywell 8U-TAIDB1 | Honeywell | Analog Input IOTA Assembly
Honeywell 8U-TAIDB1 Analog Input IOTA Assembly Configured for differential analog signal termination in Honeywell Experion PKS / Experion LX C300 Series 8 systems, the Honeywell 8U-TAIDB1 (8U-TAIDB1 Analog Input IOTA Assembly) provides direct physical and electrical execution for redundant 4-20 mA and HART field connections. Hardware Specifications Parameter Specification Model 8U-TAIDB1 Brand Honeywell Product Type Analog Input IOTA Assembly System Compatibility Honeywell Experion PKS / Experion LX C300 Series 8 Assembly Function Passive field wiring termination and I/O module interface Signal Type Differential high-level analog input Input Signal Range 4-20 mA DC / 0-20 mA DC HART Support HART communication pass-through for smart transmitters Channel Capacity 16 channels when paired with compatible Series 8 Analog Input IOM Redundancy Support Supports redundant I/O module configurations Wiring Interface Removable screw terminal blocks Mounting Method Series 8 carrier mounting / cabinet installation Coating Uncoated version Nominal Supply Voltage 24 VDC system power distribution Operating Temp -40 deg C to +70 deg C Relative Humidity 5% to 95% RH, non-condensing 4-20 mA HART Loop and Channel Isolation Characteristics The 8U-TAIDB1 supports Honeywell Series 8 analog input architectures that process differential field signals through dedicated I/O modules. The differential input arrangement reduces common-mode interference and supports stable transmitter signal acquisition in industrial control cabinets. Furthermore, the assembly maintains HART communication pass-through between smart field devices and the control system. The terminal interface allows configuration data, diagnostic information, and transmitter variables to transfer through compatible HART-enabled analog input modules. The IOTA design separates field wiring termination from active I/O processing. Therefore, maintenance personnel can replace or service plug-in I/O modules without modifying field cable connections. Frequently Asked Questions Q: Does the 8U-TAIDB1 perform analog signal conversion internally?A: No. The 8U-TAIDB1 is a passive Input/Output Termination Assembly. The connected Series 8 Analog Input Module performs signal conversion and processing. Q: Does the 8U-TAIDB1 support HART communication signals?A: Yes. The assembly supports HART signal pass-through when used with compatible Honeywell analog input modules and field transmitters. Q: Can the 8U-TAIDB1 be used in redundant configurations?A: Yes. The design supports redundant Series 8 I/O module arrangements for applications requiring continuous control system availability. Field Installation Guidelines Install the 8U-TAIDB1 on the designated Series 8 carrier assembly according to Honeywell cabinet installation procedures. Verify terminal assignments before connecting field transmitters to prevent channel wiring errors. Use shielded instrumentation cable for analog signal wiring where required by the plant grounding specification. Connect cable shields according to the approved grounding method to reduce electromagnetic interference. Separate analog signal cables from high-voltage power cables and variable frequency drive wiring. Confirm correct polarity for differential input connections before applying system power. Inspect removable terminal blocks for proper mechanical engagement after field wiring completion. Verify HART communication performance after connecting smart transmitters and completing I/O configuration.
$200.00 $100.00
-

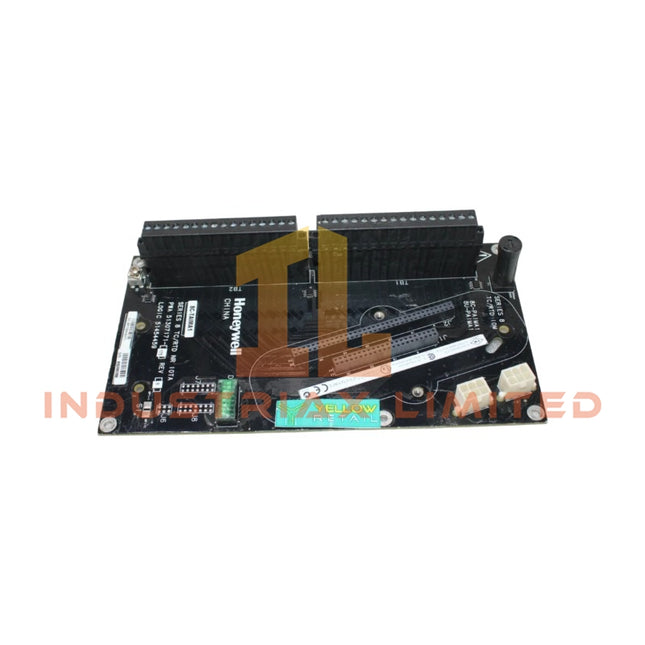

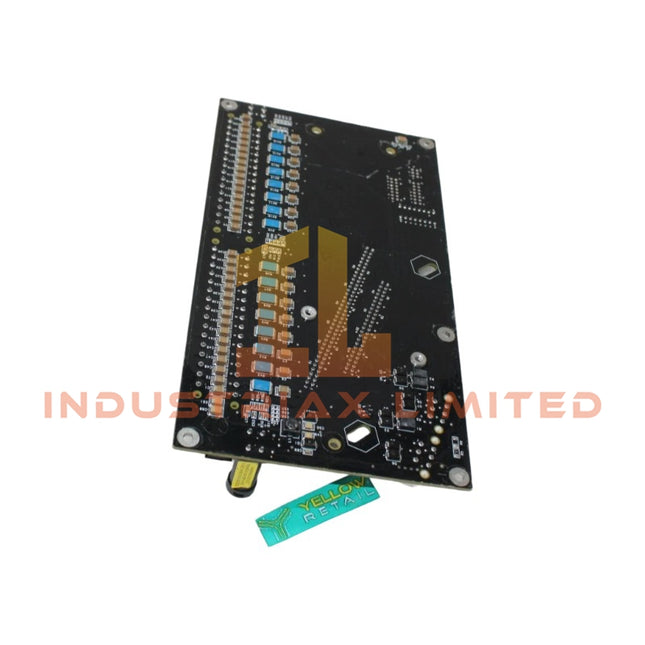

Honeywell 8U-TAIMA1 | Honeywell | Low-Level Analog Input IOTA Assembly
Honeywell 8U-TAIMA1 Low-Level Analog Input IOTA Assembly Configured for thermocouple and RTD signal acquisition in Honeywell Experion PKS and Experion LX Series 8 systems, the Honeywell 8U-TAIMA1 (8U-TAIMA1 Low-Level Analog Input IOTA Assembly) provides direct field signal termination and electrical isolation for temperature measurement channels. Hardware Specifications Parameter Specification Model Honeywell 8U-TAIMA1 Brand Honeywell Origin USA Dimensions Series 8 9-inch size assembly Operating Temp 0 deg C to +60 deg C Power Consumption Approximately 120 mA at 24 VDC System Compatibility Honeywell Experion PKS / Experion LX Series 8 Module Type Low-Level Analog Input IOTA Assembly Input Channels 16 fully isolated channels Supported Sensors Thermocouples (TC) and Resistance Temperature Detectors (RTD) Signal Isolation Channel-to-channel and channel-to-IOL isolation Supply Voltage 24 VDC nominal Coating Type Uncoated version Hot Swap Function RIUP supported (Removal and Insertion Under Power) Installation Format Series 8 I/O cabinet mounting Process Control Signal Isolation and Temperature Input Handling The Honeywell 8U-TAIMA1 provides isolated temperature signal termination for TC and RTD field devices connected to Series 8 I/O architectures. Furthermore, the assembly separates individual input channels and the I/O Link interface to reduce electrical interference during analog measurement. The module supports low-level temperature inputs that require stable signal conditioning before controller processing. In addition, thermocouple applications can use cold junction compensation (CJC) functions provided by the associated Series 8 analog input hardware to maintain temperature measurement accuracy. The IOTA assembly design supports direct connection between field wiring and the Experion PKS I/O subsystem. Therefore, engineers can perform module replacement using the RIUP function without removing system power, when the overall cabinet configuration permits hot maintenance operations. Frequently Asked Questions Q: Does the Honeywell 8U-TAIMA1 support both thermocouple and RTD inputs?A: Yes. The assembly is designed for low-level analog temperature inputs from thermocouples and resistance temperature detectors. Q: What isolation functions are provided by the 8U-TAIMA1?A: The module provides channel-to-channel isolation and channel-to-IOL isolation to separate field signals and reduce unwanted electrical interaction. Q: Can the 8U-TAIMA1 be removed while the system remains powered?A: Yes. The assembly supports RIUP functionality, allowing removal and insertion under power when used within a compatible Series 8 cabinet configuration. Field Installation Guidelines Install the 8U-TAIMA1 in a compatible Honeywell Series 8 I/O cabinet location according to system hardware documentation. Connect thermocouple and RTD field wiring using the recommended terminal assignments for the selected input channel. Separate low-level temperature signal wiring from high-voltage power cables to reduce electromagnetic interference. Use appropriate cable shielding and connect shields according to the plant grounding standard. Verify sensor polarity before energizing the I/O assembly, especially for thermocouple circuits. Confirm controller configuration, channel scaling, and sensor type settings before placing the input channel into operation. Maintain cabinet environmental conditions within the specified operating temperature range.
$200.00 $100.00
-

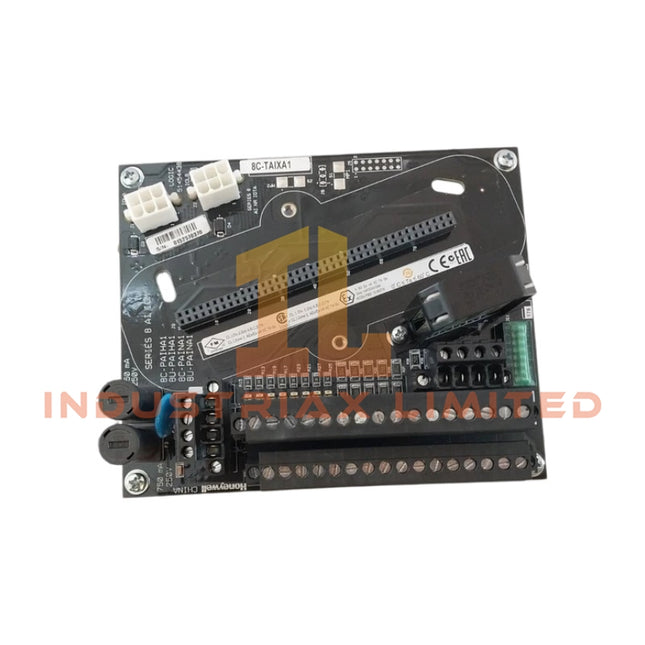

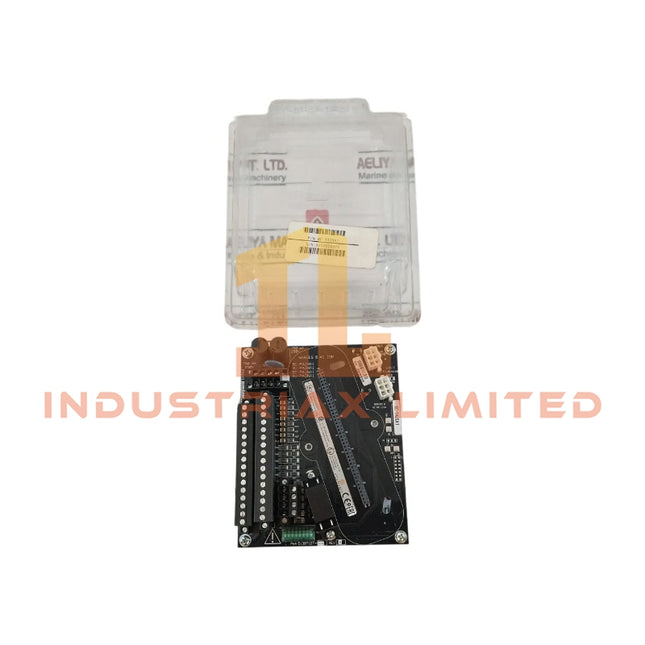

Honeywell Honeywell 8U-TAIXA1 Series 8 Analog Input Terminal Assembly
Honeywell 8U-TAIXA1 Series 8 Analog Input Terminal Assembly Configured for single-ended analog input termination in Honeywell Experion PKS Series 8 I/O systems, the Honeywell 8U-TAIXA1 (8U-TAIXA1 Analog Input Terminal Assembly) provides direct physical and electrical execution for field transmitter signal connection. Hardware Specifications Parameter Specification Model 8U-TAIXA1 Brand Honeywell Origin USA Dimensions Series 8 compact I/O footprint Operating Temp -20 deg C to +70 deg C Power Consumption Passive termination assembly; power supplied through Series 8 I/O module interface Product Type Analog Input Terminal Assembly System Platform Honeywell Experion PKS Series 8 I/O Controller Compatibility C300 Controller Series Signal Type Single-ended Analog Input / HART Input Range 4-20 mA DC Channel Capacity 16 channels Coating Type Uncoated standard version Mounting Method Series 8 I/O carrier / DIN rail mounting Humidity Range 5% to 95% RH, non-condensing 4-20 mA HART Loop Interface and Channel Isolation The Honeywell 8U-TAIXA1 provides field wiring termination for Series 8 analog input modules handling 4-20 mA HART transmitter signals. The assembly routes analog current loops between field devices and the I/O module while maintaining the required channel wiring structure. Additionally, the terminal assembly supports HART communication pass-through functions for compatible smart transmitters. The design follows Honeywell DCS I/O architecture requirements for signal separation, field termination, and module-level processing. The Series 8 analog input architecture applies channel-to-channel isolation techniques within the I/O module system to reduce signal interference during multi-channel measurement operations. Frequently Asked Questions Q: Does the 8U-TAIXA1 support HART-enabled field transmitters?A: Yes. The terminal assembly supports 4-20 mA analog input loops with HART communication when used with compatible Honeywell Series 8 Analog Input modules. Q: Is the 8U-TAIXA1 a standalone analog input module?A: No. The 8U-TAIXA1 is an I/O termination assembly that provides field wiring connection between transmitters and the Series 8 analog input module. Q: Can the 8U-TAIXA1 be used in coated harsh-environment applications?A: No. The 8U designation identifies the uncoated version. Applications requiring conformal coating should use the corresponding coated Series 8 variant. Field Installation Guidelines Install the 8U-TAIXA1 on the approved Honeywell Series 8 I/O carrier according to system hardware configuration requirements. Terminate field wiring according to the designated channel assignments. Use shielded instrumentation cable for analog signal circuits where required by the installation environment. Connect cable shields using the plant grounding standard to minimize electromagnetic interference. Keep analog input wiring separated from high-voltage power cables and high-current switching circuits. Verify transmitter loop polarity, terminal assignments, and HART communication wiring before applying system power. Confirm that the installed I/O module configuration matches the connected field devices through the Experion PKS engineering tools.
$200.00 $100.00
-

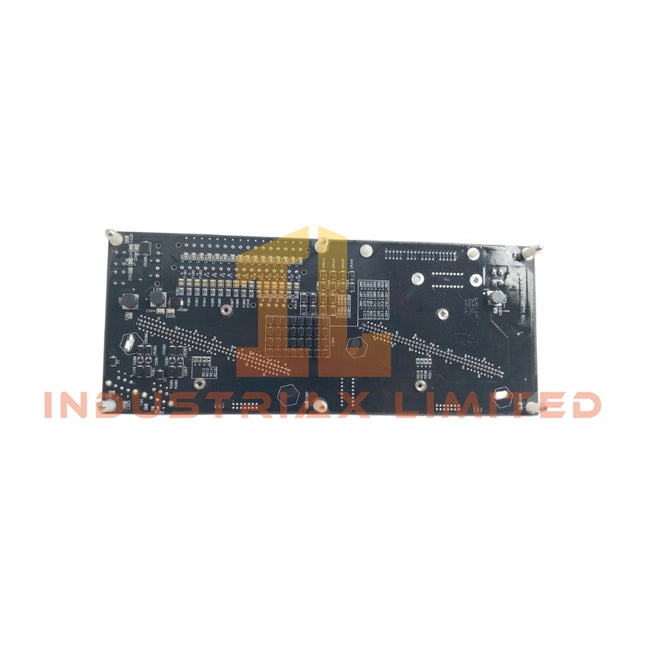

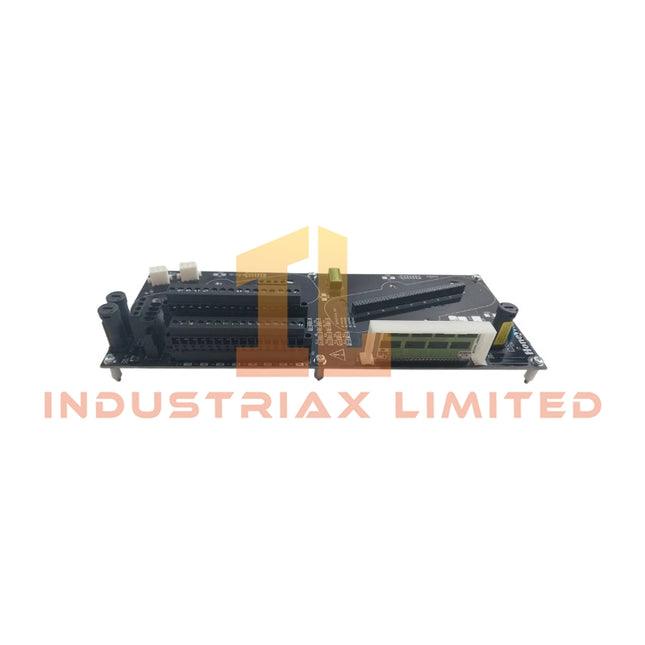

Honeywell Honeywell 8U-TAIXB1 Analog Input Redundant IOTA
Honeywell 8U-TAIXB1 Analog Input Redundant IOTA Configured for redundant analog signal termination in Honeywell Experion PKS Series 8 platforms, the Honeywell 8U-TAIXB1 (8U-TAIXB1 Analog Input Redundant IOTA) provides direct field wiring termination and signal distribution for redundant analog input modules. Hardware Specifications Parameter Specification Model 8U-TAIXB1 Brand Honeywell Origin USA Operating Temp 0 deg C to +60 deg C Power Consumption Not specified Product Type Analog Input Redundant IOTA (Input Output Termination Assembly) System Compatibility Honeywell Experion PKS / LX Series 8 Coating Uncoated standard configuration Configuration Redundant IOTA base assembly Channel Capacity 16 channels Supported Signal Type 4-20 mA / HART-compatible analog signals Operating Voltage 24 VDC Mounting Type Series 8 Carrier Channel Assembly Field Wiring Interface Direct field wire termination without external marshalling cabinet Redundancy Connection Redundancy sync connector with CAT5e cable 4-20 mA HART Loop Interface and Channel Isolation The Honeywell 8U-TAIXB1 supports analog input termination for 4-20 mA field signals and HART communication channels connected to Series 8 analog input modules. The IOTA routes field wiring to the associated input modules while maintaining the required signal conditioning path. Additionally, the termination assembly supports redundant analog input configurations using interconnected IOTA bases. The redundancy synchronization connection allows the standby module to assume process input handling when the active module becomes unavailable. The assembly maintains channel separation through dedicated termination paths, supporting stable analog measurement transmission between field instruments and the Experion PKS control system. Frequently Asked Questions Q: Does the 8U-TAIXB1 support redundant analog input operation?A: Yes. The 8U-TAIXB1 supports redundant analog input configurations by connecting two IOTA bases through a redundancy synchronization cable. Q: What field signal types can connect to the 8U-TAIXB1?A: The assembly supports 4-20 mA analog signals and HART-compatible analog input loops when used with compatible Honeywell Series 8 analog input modules. Q: Does the 8U-TAIXB1 require an external marshalling cabinet?A: No. The IOTA provides direct field wiring termination for supported Series 8 configurations, reducing the requirement for external marshalling hardware. Field Installation Guidelines Install the 8U-TAIXB1 on the designated Honeywell Series 8 carrier channel assembly according to system hardware documentation. Connect field wiring directly to the approved termination points and maintain proper separation between analog signal cables and high-voltage power conductors. For HART communication loops, verify cable shielding and grounding practices according to site instrumentation standards. Avoid routing signal wiring near sources of electromagnetic interference. When configuring redundant operation, install the redundancy synchronization connection between IOTA bases and verify correct module addressing before system commissioning. Confirm that the connected analog input modules match the supported Series 8 hardware configuration before applying field power.
$200.00 $100.00
-

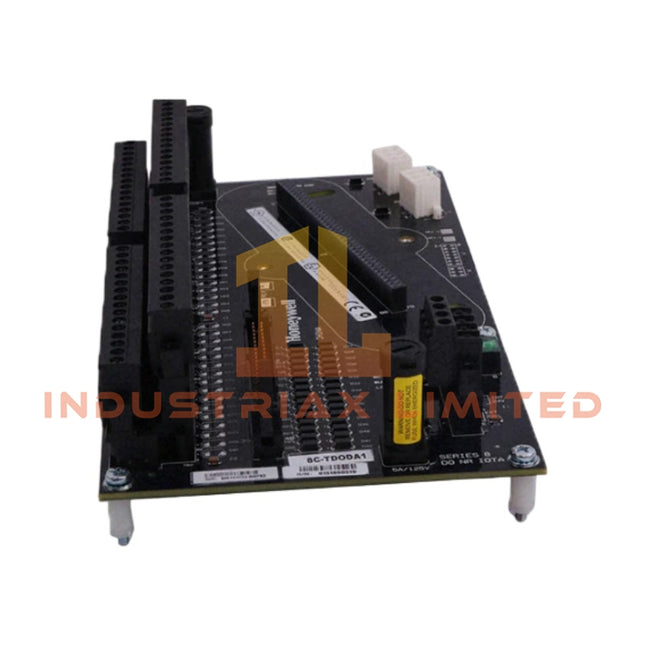

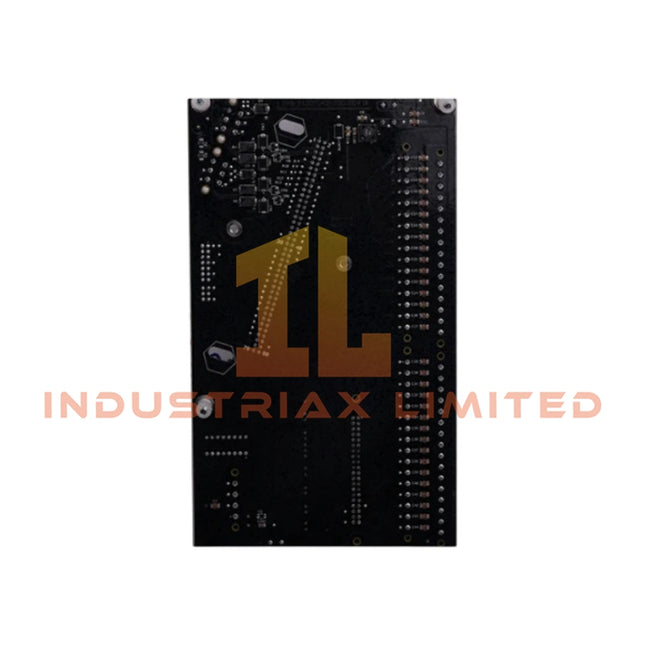

Honeywell Honeywell 8U-TDODA1 Digital Output I/O Assemblies
Honeywell 8U-TDODA1 Series 8 Digital Output I/O Termination Assembly Configured for discrete field output signal termination in Honeywell Experion LX and Series 8 C300 I/O systems, the Honeywell 8U-TDODA1 (8U-TDODA1 Digital Output I/O Termination Assembly) provides direct electrical interfacing between controller output channels and external 24 VDC field devices. Hardware Specifications Parameter Specification Model 8U-TDODA1 Brand Honeywell Origin USA Operating Temp -40 deg C to +70 deg C Power Consumption Field and logic power dependent; not specified in available data Product Series Experion LX / Series 8 C300 I/O Module Type Digital Output I/O Termination Assembly (IOTA) Coating Type Uncoated Channel Count 32 Digital Output Channels Output Voltage 24 VDC nominal field supply Operating Voltage Range 10 VDC to 35 VDC Output Circuit Type High-side switching discrete output interface Channel Current Rating Approximately 0.5 A per channel Isolation Voltage 500 VDC logic to field isolation Redundancy Configuration Non-redundant single configuration Mounting Method Series 8 carrier frame / DIN rail mounting structure Environmental Protection Standard industrial environment, non-conformal coated version DCS Field Output Signal Interface The Honeywell 8U-TDODA1 provides the physical termination interface for Series 8 digital output signals. It connects controller-generated discrete commands to external field devices, including solenoid valves, relay coils, annunciators, and indicator lamps. The assembly maintains channel separation between the C300 controller side and field wiring side. Furthermore, the IOTA design supports diagnostic feedback through the Experion control environment for output status monitoring and fault identification. Because the module belongs to the Honeywell Experion process control platform, it operates within a DCS architecture that supports standard process instrumentation communication methods, including 4-20 mA HART loop integration and FOUNDATION Fieldbus / Profibus PA network interfaces through compatible Series 8 I/O modules. The termination assembly design also supports channel-to-channel isolation requirements in industrial process control applications where discrete output circuits require controlled electrical separation. Frequently Asked Questions Q: Does the Honeywell 8U-TDODA1 support hot-swapping?A: The Series 8 I/O architecture supports maintenance procedures with module removal and insertion capabilities; however, field wiring conditions and system procedures must follow the applicable Experion installation guidelines. Q: How many field output channels does the 8U-TDODA1 provide?A: The 8U-TDODA1 provides 32 digital output channels for connection to 24 VDC discrete field devices. Q: Can the 8U-TDODA1 operate as a redundant output assembly?A: The 8U-TDODA1 is specified as a non-redundant single output termination assembly and does not provide a redundant configuration by itself. Field Installation Guidelines Install the 8U-TDODA1 on the designated Honeywell Series 8 carrier frame according to cabinet layout requirements. Verify field voltage polarity before connecting external 24 VDC output devices. Route discrete output wiring separately from high-voltage power cables and high-noise sources to reduce electrical interference. Use appropriate shield grounding practices when field devices include shielded signal cables. Confirm terminal identification and channel assignment before energizing the output circuits. Check field device load characteristics to ensure they remain within the specified channel current capability. Maintain proper cabinet grounding and protective earth connections according to site electrical standards. Perform channel diagnostic verification through the Experion engineering interface after installation.
$200.00 $100.00
-

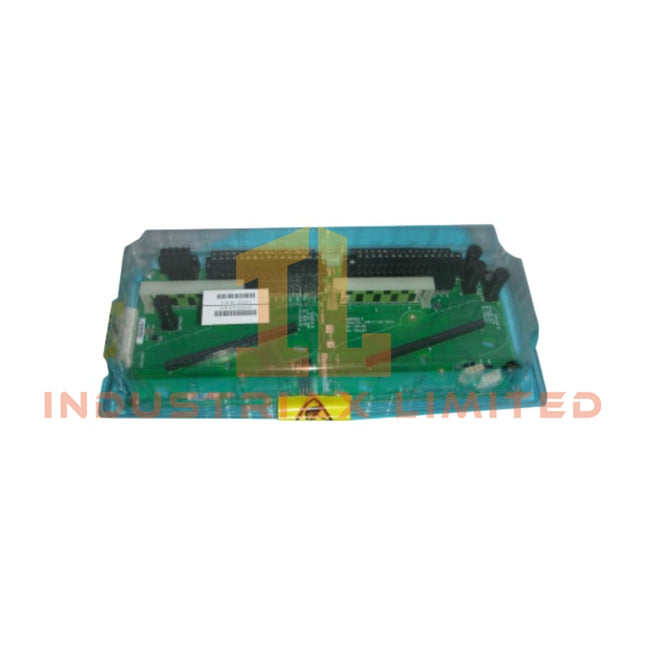

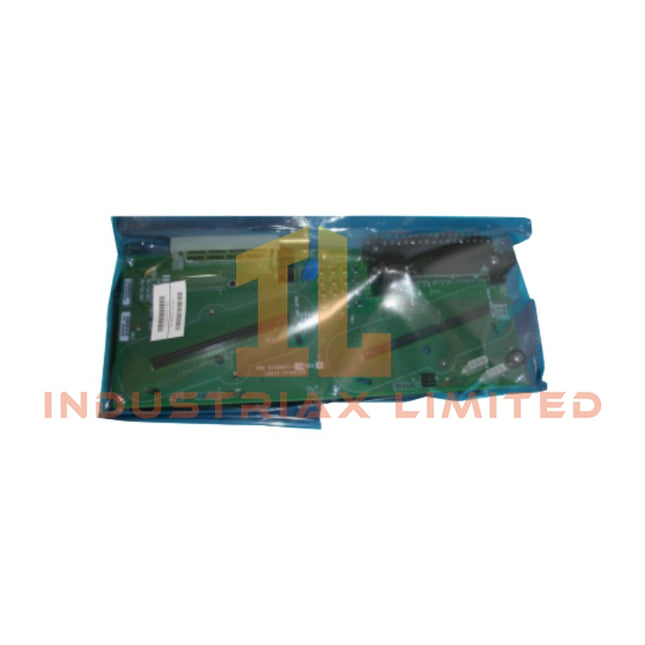

Honeywell Honeywell 51306856-175 Digital Input Terminal Assembly
Honeywell 51306856-175 Digital Input Terminal Assembly Configured for 24 VDC discrete signal acquisition in Honeywell Experion PKS C300 Controller Series 8 systems, the Honeywell 51306856-175 (8C-TDIL01 / 8U-TDIL01 Digital Input Terminal Assembly) provides direct electrical interfacing between field devices and digital control processing modules. Hardware Specifications Parameter Specification Model 51306856-175 Brand Honeywell Product Type Digital Input Terminal Assembly System Compatibility Honeywell Experion PKS / C300 Controller Series 8 Associated Models 8C-TDIL01 (Conformal Coated), 8U-TDIL01 (Uncoated) Input Type Digital Input, 24 VDC discrete signals Number of Channels 32 Channels Nominal Input Voltage 24 VDC Input Voltage Range 18 VDC to 30 VDC Signal Interface Dry contact and solid-state digital sensors Input Logic Current sinking / sourcing configuration Isolation Type Field-to-logic galvanic isolation Isolation Rating 1500 VAC / 2500 VDC Coating Option 8C-TDIL01 conformal coating; 8U-TDIL01 uncoated design Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Relative Humidity 5% to 95% RH, non-condensing Mounting Type I/O Module Carrier / DIN Rail Mount Assembly Channel Isolation and Process Control Interface The Honeywell 51306856-175 interfaces field discrete signals with Experion PKS Series 8 control hardware through isolated digital input channels. Therefore, the assembly separates field wiring circuits from controller electronics to reduce electrical interference caused by industrial switching devices. The module supports 32-channel digital input acquisition for devices including limit switches, relay contacts, and discrete status sensors. In addition, the conformal coated 8C-TDIL01 version applies protective coating technology for environments requiring resistance against moisture and corrosive atmospheric conditions. The terminal assembly operates within Honeywell process control architectures where channel-to-channel isolation and field signal conditioning maintain stable digital status transmission. Frequently Asked Questions Q: What field signals can the Honeywell 51306856-175 accept?A: The module accepts 24 VDC discrete input signals from dry contacts and solid-state field devices. The input circuitry converts these field states into digital information for Experion PKS control processing. Q: What is the difference between 8C-TDIL01 and 8U-TDIL01 configurations?A: The 8C-TDIL01 version uses conformal coating for additional environmental protection, while the 8U-TDIL01 version uses an uncoated construction for standard installation environments. Q: Does the module provide electrical isolation between field wiring and controller electronics?A: Yes. The assembly provides galvanic isolation between field circuits and logic-side electronics to limit electrical noise transfer and protect connected control hardware. Field Installation Guidelines Install the module on the specified Honeywell Series 8 I/O carrier assembly according to system hardware documentation. Verify field wiring polarity and voltage levels before connecting 24 VDC digital input circuits. Separate low-level signal wiring from high-current switching cables to reduce electromagnetic interference. Connect cable shields according to the plant grounding standard and avoid multiple grounding points that can create ground loops. Confirm terminal tightening conditions and inspect wiring insulation before system startup. For coated versions, avoid mechanical damage to protective surfaces during handling and installation. Verify controller configuration and channel assignment before enabling field device operation.
$200.00 $100.00
-

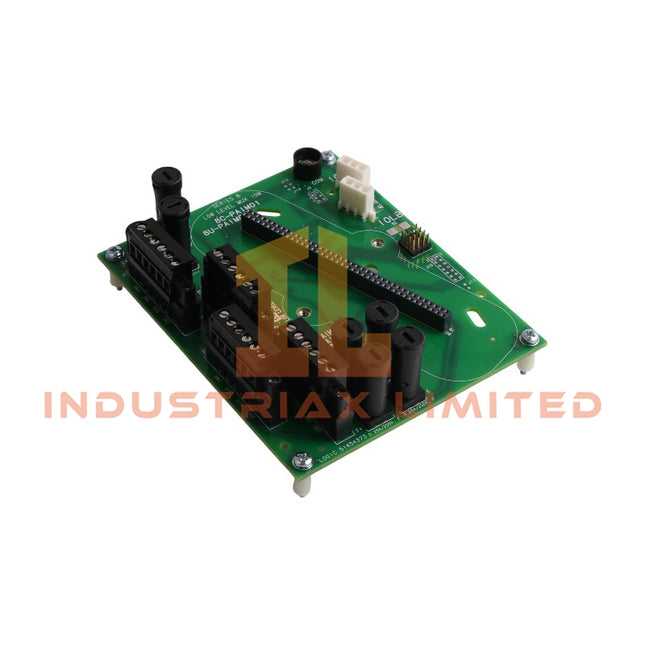

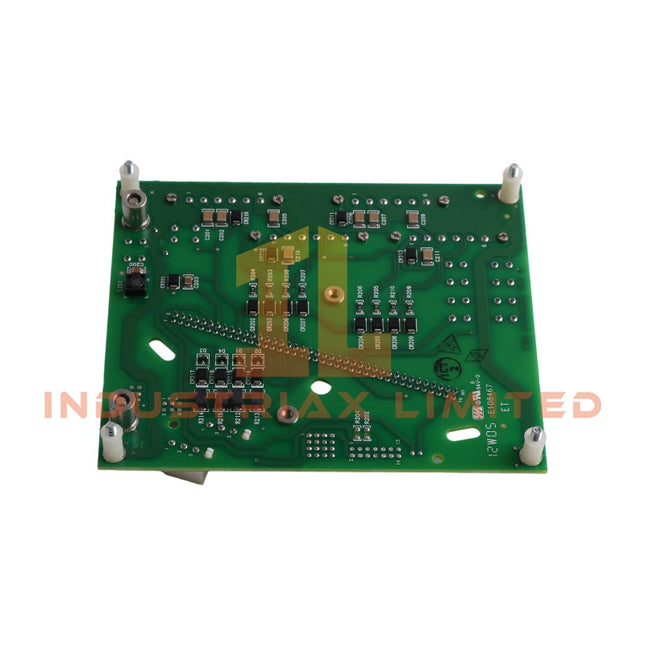

Honeywell Honeywell 8C-TAIM01 Analog Input Module
Honeywell 8C-TAIM01 Analog Input Module Configured for thermocouple and RTD signal acquisition in the Honeywell Experion PKS Series 8 I/O system, the Honeywell 8C-TAIM01 51306999-175 (8C-TAIM01 Analog Input Module) provides direct physical signal conversion and isolated measurement execution. Hardware Specifications Parameter Specification Model 8C-TAIM01 51306999-175 Brand Honeywell Product Type Analog Input Module System Platform Honeywell Experion PKS Series 8 I/O Origin USA Weight 0.24 kg Dimensions 14.5 x 12 x 5 cm Input Type Thermocouple and / or RTD Input Channels 64 fully-isolated channel-to-channel inputs Input Scan Rate 1 Second fixed by IOM Channel Bandwidth 0 to 4.7 Hz (-3 dB) Nominal Input Range -20 to +100 mV Temperature Stability +/-20 ppm per deg C max Long Term Drift 500 ppm Isolation Type Channel-to-channel electrical isolation Channel Isolation and Process Signal Handling The Honeywell 8C-TAIM01 51306999-175 processes thermocouple and RTD field signals through 64 fully-isolated input channels. Therefore, each measurement channel maintains electrical separation from adjacent inputs to reduce field wiring interference. The module supports temperature measurement applications where cold junction compensation (CJC) and sensor linearization functions are managed through the Series 8 I/O processing architecture. Additionally, the input bandwidth of 0 to 4.7 Hz (-3 dB) defines the signal response range for temperature-related process variables. Unlike current loop input modules designed for 4-20 mA HART signals, this module directly accepts millivolt-level thermocouple signals and resistance-based RTD measurements. Consequently, sensor type selection and field termination configuration determine the final measurement behavior. Frequently Asked Questions Q: What field signals does the 8C-TAIM01 51306999-175 accept?A: The module accepts thermocouple and RTD input signals through 64 fully-isolated channels. It supports a nominal input range of -20 to +100 mV. Q: Does the module provide channel-to-channel isolation?A: Yes. The 8C-TAIM01 provides fully-isolated channel-to-channel inputs, which separates individual measurement circuits and reduces electrical coupling between field signals. Q: What is the fixed input scan rate of this module?A: The input scan rate is 1 Second and is fixed by the associated Series 8 I/O Module (IOM) processing architecture. Field Installation Guidelines Install the 8C-TAIM01 51306999-175 module in the designated Honeywell Series 8 I/O mounting assembly according to the system hardware configuration requirements. Use shielded field wiring for thermocouple and RTD connections where the installation environment contains electrical noise sources. Connect cable shields according to the site grounding standard and avoid parallel routing with high-current power conductors. Verify correct sensor wiring polarity before energizing the I/O assembly. Thermocouple connections require correct lead identification because reversed polarity affects temperature measurement direction. RTD wiring should maintain consistent conductor routing to minimize resistance measurement errors. Confirm that field terminals, I/O connectors, and module seating are mechanically secure before system commissioning. Perform channel verification through the Experion PKS engineering tools after installation.
$200.00 $100.00
-

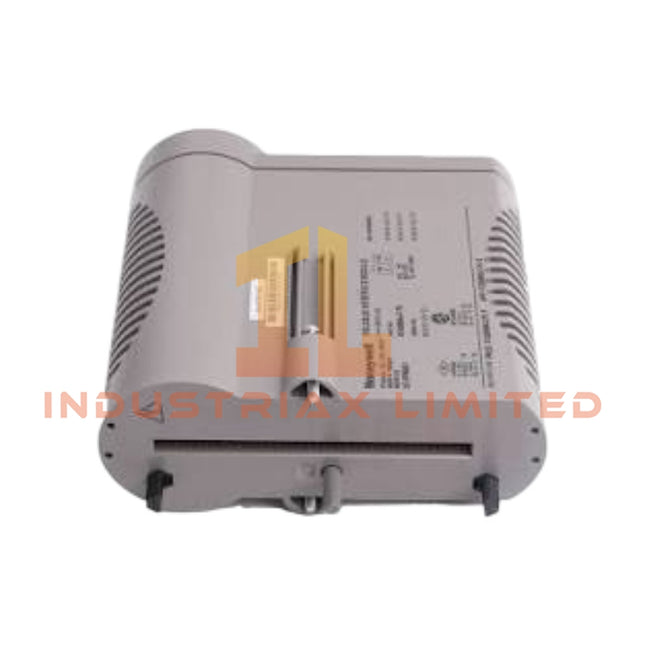

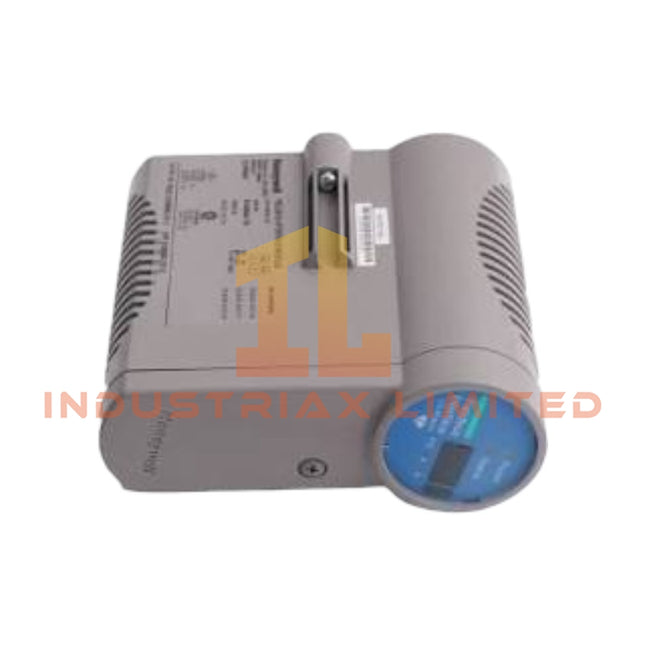

Honeywell Honeywell 8U-TDIL11 Series 8 Digital Input Module
Honeywell 8U-TDIL11 Series 8 Digital Input Module The Honeywell 8U-TDIL11, also cataloged as the 8U-TDIL11 Digital Input Module, operates as a dedicated hardware component for discrete field signal acquisition within the Honeywell Experion PKS Series 8 I/O system. The module receives 24 VDC status signals from field devices and transfers processed input states to the C300 Controller. Hardware Specifications Parameter Specification Model 8U-TDIL11 Brand Honeywell Origin USA Series Experion PKS Series 8 I/O Module Type Digital Input Module (DI) Coating Standard Uncoated Input Channels 32 channels Input Signal Type Discrete voltage input Nominal Input Voltage 24 VDC Input Voltage Range 18 VDC to 30 VDC ON-State Voltage 15 VDC to 30 VDC OFF-State Voltage 0 VDC to 5 VDC Input Current Approximately 2.5 mA to 5.0 mA per channel at 24 VDC Isolation Field-to-logic optical isolation Mounting Series 8 I/O Termination Assembly (IOTA) / DIN rail mounting Communication Interface Experion Series 8 I/O backplane interface Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Relative Humidity 5% to 95% non-condensing Power Consumption Typically less than 3 W depending on field load DCS Channel Isolation and Discrete Signal Processing The 8U-TDIL11 integrates channel-level signal conditioning for Honeywell Experion PKS Series 8 I/O applications. Furthermore, the module applies channel-to-channel isolation to reduce electrical interference between field inputs. Each input channel monitors discrete voltage states from switches, relay contacts, and digital field devices, while the module transfers validated status information through the Series 8 I/O communication structure. Additionally, the module architecture supports galvanic isolation between field wiring and internal logic circuits. This design reduces the influence of transient electrical conditions and maintains stable digital input acquisition in process control cabinets. Frequently Asked Questions Q: Does the 8U-TDIL11 support hot-swapping during system operation?A: The Series 8 I/O platform supports Removal and Insertion Under Power (RIUP) functions. Actual hot-swap operation depends on the installed I/O configuration, controller status, and system engineering rules. Q: What type of field signals can the 8U-TDIL11 accept?A: The module accepts 24 VDC discrete signals from field devices such as switches, relay contacts, and digital status outputs within the specified input voltage range. Q: Does the module provide electrical isolation between field signals and controller electronics?A: Yes. The module uses optical isolation between field input circuits and internal logic electronics to separate field wiring from the control system electronics. Field Installation Guidelines Install the 8U-TDIL11 module in the designated Honeywell Series 8 I/O mounting assembly according to cabinet engineering drawings. Verify that field wiring polarity matches the digital input terminal assignment before energizing the circuit. Separate digital signal wiring from high-voltage power cables and high-current switching conductors to reduce electrical noise coupling. Connect cable shields according to the plant grounding standard and avoid multiple-point shield grounding unless required by the control system design. Confirm that field input voltage levels remain within the specified 18 VDC to 30 VDC operating range before commissioning. Inspect terminal connections, IOTA interfaces, and module seating position during maintenance activities.
$200.00 $100.00
-
Honeywell Honeywell 8C-PAINA1 Series 8 High-Level Analog Input Module
Honeywell 8C-PAINA1 Series 8 High-Level Analog Input Module Configured for non-HART analog current signal acquisition in Honeywell Experion PKS Series 8 I/O systems, the Honeywell 8C-PAINA1 (8C-PAINA1 High-Level Analog Input Module) provides direct electrical conversion of 4-20 mA DC field inputs into controller process data. Hardware Specifications Parameter Specification Model 8C-PAINA1 Brand Honeywell Origin USA Operating Temp -40 deg C to +70 deg C Power Consumption Not specified Series Platform Experion PKS Series 8 I/O Module Type High-Level Analog Input Module (Non-HART) Input Channels 16 single-ended channels Input Signal Range 4-20 mA DC A/D Resolution 16-bit Accuracy +/- 0.05% of full scale span at 25 deg C Isolation Voltage 250 VAC continuous channel-to-system / field isolation Mounting Interface Direct plug-in installation on Series 8 IOTA assemblies including 8C-TAIXA1 and 8C-TAIXB1 Redundancy Support Supported through dual IOM installation on redundant IOTA configuration Conformal Coating ANSI/ISA-71.04 Class G3 compliant coating Relative Humidity 5% to 95% RH, non-condensing Certifications CE, ATEX, IECEx, FM Class I Div 2, CSA Compatible Uncoated Version 8U-PAINA1 Process Control Signal Interface and Isolation Features The Honeywell 8C-PAINA1 processes 16 single-ended 4-20 mA DC analog input channels without HART communication support. It converts field current signals through a 16-bit analog-to-digital conversion path and transfers measured values through the Experion PKS Series 8 I/O architecture. The module implements channel-to-system and field isolation with a continuous 250 VAC isolation rating. Therefore, the input interface reduces electrical interaction between field wiring and system electronics. The conformal coating supports operation in environments requiring ANSI/ISA-71.04 Class G3 protection. Unlike HART-enabled analog modules, the 8C-PAINA1 focuses on direct current measurement applications. It does not provide HART loop protocol communication, FOUNDATION Fieldbus connectivity, or Profibus PA interface functions. Frequently Asked Questions Q: Does the 8C-PAINA1 support HART communication over the 4-20 mA input loop?A: No. The 8C-PAINA1 is a non-HART analog input module and supports direct 4-20 mA DC signal measurement only. Q: Can the 8C-PAINA1 operate in a redundant I/O configuration?A: Yes. The module supports redundant operation when installed as dual IOMs on a compatible redundant Series 8 IOTA assembly. Q: What installation consideration applies to field signal wiring?A: Field wiring should maintain proper separation from high-voltage conductors, use appropriate shielding practices, and follow Honeywell grounding requirements for analog signal integrity. Field Installation Guidelines Install the 8C-PAINA1 directly onto the specified Series 8 IOTA assembly before connecting field terminals. Verify the IOTA model compatibility, including 8C-TAIXA1 or 8C-TAIXB1 interfaces, before module insertion. Confirm that field devices provide a compatible 4-20 mA DC output signal range. Route analog signal cables separately from high-energy power cables to reduce electromagnetic interference. Connect cable shields according to site grounding standards and Honeywell installation procedures. Inspect module seating and connector engagement before system power application. Verify channel configuration and input scaling parameters within the Experion PKS engineering environment after installation.
$200.00 $100.00
-
Honeywell Honeywell 8C-PCNT02 Series 8 C300 Controller Processor Module
Honeywell 8C-PCNT02 Series 8 C300 Controller Processor Module The Honeywell 8C-PCNT02, also cataloged as the 8C-PCNT02 C300 Controller Processor Module, provides deterministic control execution and communication processing within the Honeywell Experion PKS Series 8 C300 control platform. Hardware Specifications Parameter Specification Model 8C-PCNT02 Brand Honeywell Product Type C300 Controller Processor Module System Compatibility Honeywell Experion PKS Series 8 C300 Origin USA Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Power Consumption Approx. 320 mA at 24 VDC Input Voltage 24 VDC +/- 10% Mounting Type Series 8 assembly / DIN rail mounting Communication Interface FTE (Fault Tolerant Ethernet) network interface Redundancy Configuration Supports optional 1:1 controller redundancy Humidity Range 5% to 95% non-condensing Hazardous Area Rating ATEX / IECEx Zone 2, Class I Div 2 Process Control Communication and Execution Features The Honeywell 8C-PCNT02 executes CEE (Control Execution Environment) functions for Series 8 C300 control applications. It processes configured control strategies, manages I/O data exchange, and maintains deterministic communication with connected Series 8 I/O modules. Furthermore, the controller architecture supports DCS field integration through standard Honeywell Experion PKS communication structures. The module handles process data transfer between field I/O channels, controller algorithms, and supervisory system layers. For Honeywell process control systems, hardware-level signal processing supports common industrial instrumentation interfaces, including 4-20 mA HART loop protocol, FOUNDATION Fieldbus, and Profibus PA connectivity when configured through compatible I/O modules. Channel-to-channel isolation is implemented at supported I/O interface levels to reduce electrical interference between field circuits. Frequently Asked Questions Q: Does the 8C-PCNT02 support redundant controller operation?A: Yes. The 8C-PCNT02 supports optional 1:1 hardware redundancy configurations for continuous controller operation. The redundancy function requires compatible Series 8 hardware and system configuration. Q: What power supply does the 8C-PCNT02 require?A: The controller operates from a 24 VDC supply with an approximate current consumption of 320 mA at nominal voltage. Q: Can the 8C-PCNT02 be installed in hazardous areas?A: The module supports installation in systems using ATEX / IECEx Zone 2 and Class I Div 2 certified configurations when the complete installation meets the applicable certification requirements. Field Installation Guidelines Install the 8C-PCNT02 in the designated Series 8 controller mounting assembly according to Honeywell cabinet installation procedures. Verify that the 24 VDC power source meets system voltage requirements before energizing the controller. Use properly shielded communication cables for FTE network connections and maintain separation from high-voltage power wiring. Connect cable shields according to the cabinet grounding design to reduce electromagnetic interference. Confirm controller firmware compatibility with the Experion PKS software revision before replacement or commissioning. Verify redundancy configuration settings after installation when the controller operates in a 1:1 redundant arrangement.
$200.00 $100.00
-
Honeywell 8C-TAIXA1 | Honeywell Series 8 Analog Input I/O Termination Assembly
Honeywell 8C-TAIXA1 Series 8 Analog Input I/O Termination Assembly Configured for analog field signal termination in Honeywell Experion PKS and Experion LX Series 8 control systems, the Honeywell 8C-TAIXA1 (8C-TAIXA1 Analog Input I/O Termination Assembly) provides direct physical and electrical connection between field wiring and Series 8 analog input modules. Hardware Specifications Parameter Specification Model 8C-TAIXA1 (51307127-175) Brand Honeywell Origin USA Dimensions 6 inch mounting format Operating Temp 0 deg C to +60 deg C Power Consumption Field loop power distribution only; module consumption not specified System Architecture Honeywell Series 8 / Experion PKS / Experion LX Module Type Analog Input I/O Termination Assembly Input Channels 16 single-ended analog input channels Signal Type 4-20 mA current input Field Device Support 2-wire and self-powered transmitters Redundancy Type Non-redundant Coating Type Conformal coated Environmental Rating Class G3 harsh environment protection Nominal Voltage Rating 24 VDC Storage Temperature -40 deg C to +85 deg C Humidity Range 5% to 95% RH non-condensing Hazardous Area Certification Class I, Division 2, Groups A, B, C, D; Class I, Zone 2 Process Control Analog Signal Interface The Honeywell 8C-TAIXA1 supports Series 8 analog input signal termination through a dedicated field wiring interface. The assembly routes 16 single-ended analog signals to compatible Series 8 Analog Input Modules, including the 8C-PAINA1 module. Furthermore, the termination assembly maintains organized field connections and supports transmitter loop wiring for 4-20 mA process instruments. The conformal coating protects circuit surfaces against moisture, airborne contaminants, and corrosive industrial environments. The IOTA design separates field wiring access from the electronic input module connection point. Therefore, maintenance personnel can replace associated I/O modules while keeping field wiring connections installed. Frequently Asked Questions Q: Does the 8C-TAIXA1 provide analog signal conversion? A: No. The 8C-TAIXA1 is an I/O Termination Assembly. It provides field wiring termination and signal routing, while signal processing is performed by the connected Series 8 Analog Input Module. Q: Can the 8C-TAIXA1 support redundant operation? A: No. The 8C-TAIXA1 is specified as a non-redundant termination assembly. Redundancy functions depend on the connected controller and I/O architecture configuration. Q: What installation practices are required for 4-20 mA field wiring? A: Field cables should use proper shielding, grounding, and separation from high-voltage power conductors. The shield termination method should follow the plant grounding standard and Honeywell installation requirements. Field Installation Guidelines Install the 8C-TAIXA1 on the designated Series 8 mounting channel and verify mechanical alignment before connection. Connect field transmitter wiring according to the approved Honeywell terminal assignment documentation. Maintain cable segregation between analog signal wiring and high-energy switching circuits to reduce electromagnetic interference. Terminate cable shields according to the site grounding philosophy. Avoid multiple shield grounding points unless required by the control system design. Before commissioning, verify each analog input loop for correct polarity, continuity, and transmitter power distribution. Confirm that the connected Series 8 Analog Input Module recognizes all configured channels.
$200.00 $100.00
-
Honeywell 8C-PDIDA1 Series 8 | Honeywell | Digital Input Module
Honeywell 8C-PDIDA1 Series 8 Digital Input Module The Honeywell 8C-PDIDA1, also cataloged as the 8C-PDIDA1 Digital Input Module, operates as a dedicated hardware component for discrete signal acquisition within the Honeywell Experion PKS Series 8 I/O system. It receives 24 VDC field contact signals and transfers processed status information to the C300 controller through the Series 8 I/O architecture. Hardware Specifications Parameter Specification Model 8C-PDIDA1 Brand Honeywell Product Series Experion PKS Series 8 I/O Module Type Digital Input Module Origin USA Operating Temp -40 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Power Consumption Typically less than 3 W Input Channels 32 channels Input Signal Type 24 VDC discrete input Input Compatibility Dry contact and solid-state field devices Operating Voltage Range 18 VDC to 30 VDC Input Logic OFF: 0 VDC to 5 VDC; ON: 15 VDC to 30 VDC Isolation Method Channel-to-system optical isolation Conformal Coating Standard 8C Series coated construction Hot Swap Function Supports Removal and Insertion Under Power (RIUP) Diagnostics Module status and channel-level diagnostics Installation Platform Honeywell Series 8 I/O Carrier Channel Isolation and Process Control Interface The Honeywell 8C-PDIDA1 applies optical isolation between field input circuits and the control system interface. Therefore, the module limits electrical interference transfer from field wiring to the Experion PKS controller. In addition, each input channel provides status monitoring through integrated diagnostic functions. The module is designed for discrete process signals rather than analog measurement loops. It accepts switching states from field devices such as limit switches, relay contacts, and digital transmitters. Furthermore, the Series 8 I/O architecture supports compact cabinet installation with direct communication to Honeywell C300 controllers. Frequently Asked Questions Q: Does the 8C-PDIDA1 support hot replacement during system operation?A: Yes. The module supports Removal and Insertion Under Power (RIUP), allowing replacement procedures without removing power from the I/O carrier. Field wiring conditions must follow approved maintenance procedures. Q: What type of field signals can the 8C-PDIDA1 process?A: The module processes 24 VDC discrete signals from dry contacts and solid-state switching devices. It does not provide analog current or voltage measurement functions. Q: How does the module protect controller-side circuits from field disturbances?A: The module uses optical isolation between field input channels and system electronics to reduce electrical coupling between external wiring and internal control circuits. Field Installation Guidelines Install the 8C-PDIDA1 on the designated Honeywell Series 8 I/O carrier position according to system configuration documentation. Verify that field wiring polarity and voltage levels match the 24 VDC digital input requirements before energizing the circuit. Separate digital input wiring from high-voltage power cables and high-current switching conductors to reduce electromagnetic interference. Connect cable shields according to site grounding standards and avoid creating multiple ground paths. Confirm channel status indicators after installation to verify correct field signal recognition. Use approved maintenance procedures when performing RIUP operations to prevent accidental signal interruption.
$200.00 $100.00
-
Honeywell 8C-PCNT03 | Honeywell | Series 8 C300 Controller Module
Honeywell 8C-PCNT03 Series 8 C300 Controller Module The Honeywell 8C-PCNT03 51454363-275, also cataloged as the 8C-PCNT03 C300 Controller Module, executes deterministic control strategies and process logic within Honeywell Experion PKS Series 8 control networks. Hardware Specifications Parameter Specification Model 8C-PCNT03 Brand Honeywell Origin USA Operating Temp 0 deg C to +60 deg C Power Consumption Supplied through Series 8 power distribution system, value not specified Component Part Number 51454363-275 System Compatibility Honeywell Experion PKS / Experion LX Series 8 Controller Type C300 Control Processor Module Associated IOTA 8C-TCNTA1 Control Software Environment Control Execution Environment (CEE) Uplink Communication Dual Fault Tolerant Ethernet (FTE) ports I/O Communication Two redundant I/O links, up to 750 kbps per link Supported I/O Capacity Up to 80 I/O Units, 40 per I/O link Execution Period 50 ms to 2000 ms configurable Control Capacity 5,500 Execution Units and 4,095 tagged objects Environmental Protection Conformal coating for harsh industrial atmosphere applications Mounting Method Direct installation on Series 8 IOTA assembly 4-20 mA HART and DCS Process Interface Functions The Honeywell Series 8 control architecture integrates process signal management through distributed I/O modules connected to the C300 controller. Therefore, the controller coordinates analog and digital process execution while maintaining deterministic scan timing through the Control Execution Environment (CEE). The Series 8 platform supports process instrumentation integration, including 4-20 mA HART loop protocol communication, FOUNDATION Fieldbus and Profibus PA connectivity through compatible I/O interfaces. Additionally, channel-to-channel isolation within supported I/O modules separates field signal paths and reduces electrical interference between measurement channels. The 8C-PCNT03 focuses on controller execution rather than direct field signal conversion. It processes configured control algorithms, manages I/O communication cycles, and maintains synchronized data exchange with the Experion supervisory layer. Frequently Asked Questions Q: Does the 8C-PCNT03 support redundant controller operation?A: Yes. The 8C-PCNT03 supports non-redundant and 1:1 redundant controller configurations when installed in compatible Series 8 architectures. Q: Which communication interfaces are integrated into the controller module?A: The module provides dual Fault Tolerant Ethernet (FTE) ports for supervisory communication and redundant I/O links for Series 8 I/O expansion. Q: Can the 8C-PCNT03 directly connect field transmitters?A: No. The controller does not provide direct field termination. Field devices connect through compatible Series 8 I/O modules and IOTA assemblies. Field Installation Guidelines Install the 8C-PCNT03 only with the specified Series 8 IOTA assembly, such as the 8C-TCNTA1. Verify cabinet grounding before controller installation to maintain proper electrical reference potential. Keep Ethernet communication cables separated from high-voltage power conductors to reduce electromagnetic interference. Confirm redundant communication wiring before placing the controller into service. Use approved firmware and CEE configuration files compatible with the installed Experion PKS or Experion LX system version. Inspect the conformal coating condition before installation in corrosive industrial environments. Follow Honeywell cabinet layout requirements for power distribution, grounding, and signal routing.
$200.00 $100.00
-
Honeywell 8C-PCNT02 | Honeywell | Control Processor Module
Honeywell 8C-PCNT02 Control Processor Module Configured for control execution and I/O link management in Honeywell Experion PKS Series 8 systems, the Honeywell 8C-PCNT02 51454363-275 (8C-PCNT02 Control Processor Module) provides direct processing functions for dual I/O link communication and controller operations. Hardware Specifications Parameter Specification Model 8C-PCNT02 51454363-275 Brand Honeywell Product Type Control Processor Module Series Honeywell Series 8 I/O Spare Model 51454363-275 Origin USA Weight 0.46 kg Dimensions 4.4 x 15.2 x 14.3 cm Power Consumption 24 VDC power supply requirement Processor Core Single core Program Memory 16 MB Supported I/O Types Series 8 I/O Supported I/O Links 2 I/O Links Coating Type Uncoated Configuration Dual Link Honeywell Experion PKS Process Control Characteristics The 8C-PCNT02 51454363-275 functions as a processor module within the Honeywell Series 8 I/O architecture. It executes controller-level processing tasks and manages communication through two I/O links. Furthermore, the module supports Series 8 I/O devices through dedicated link communication. The processor uses 24 VDC input power and provides 16 MB program memory for application execution and configuration storage. The module operates within DCS environments where distributed I/O communication, controller processing, and field signal management require coordinated execution. In addition, Honeywell process control platforms commonly integrate channel-to-channel isolation concepts and field communication protocols such as 4-20 mA HART and FOUNDATION Fieldbus at the I/O subsystem level. Frequently Asked Questions Q: What power supply does the Honeywell 8C-PCNT02 51454363-275 require?A: The module requires a 24 VDC power supply input for operation. Q: How many I/O communication links does the 8C-PCNT02 support?A: The module supports 2 I/O Links for Series 8 I/O communication. Q: Is the 8C-PCNT02 module designed with redundant processor cores?A: No. The provided specification identifies this module as using a single processor core architecture. Field Installation Guidelines Install the Honeywell 8C-PCNT02 51454363-275 in the designated Series 8 I/O rack position according to the system hardware configuration. Verify the 24 VDC power connection before energizing the module. Maintain proper cable routing between processor communication interfaces and I/O links to reduce electromagnetic interference. Use appropriate grounding practices for cabinet installation. Keep signal wiring separated from high-voltage power conductors, and confirm connector seating before system startup. Check module status indicators and controller communication diagnostics after installation. Confirm that configured I/O links communicate correctly with associated Series 8 I/O modules.
$200.00 $100.00
لقد شاهدت 24 من أصل 605 منتجًا
