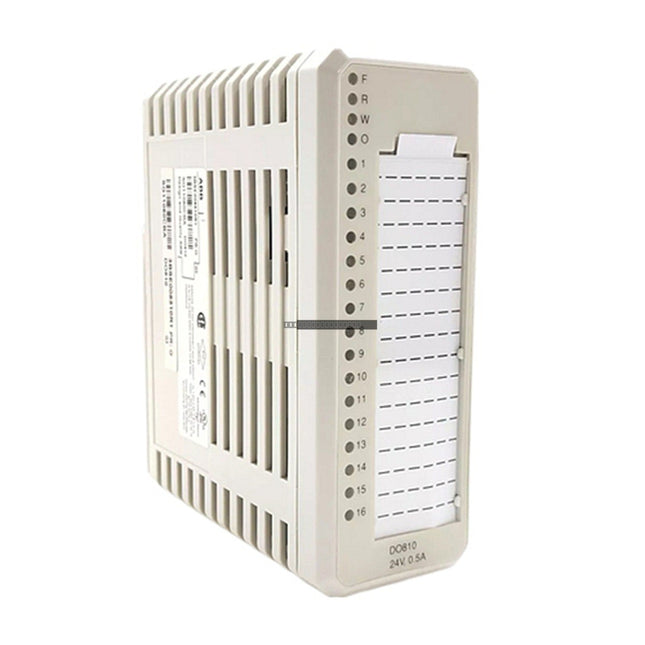

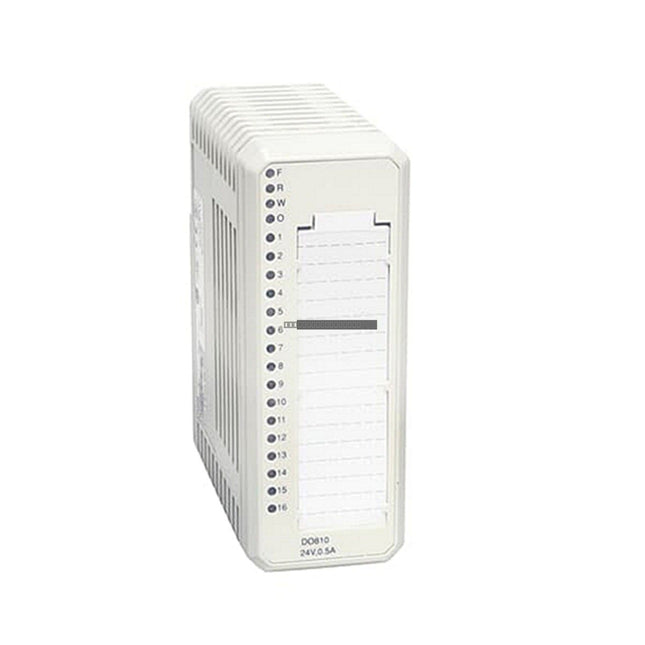

The ABB DO810 (3BSE008510R1) is a 16-channel digital output module designed for the S800 I/O system. This module provides reliable control for field devices such as contactors, relays, and indicator lamps. It features two isolated groups of eight channels, each equipped with process voltage supervision to ensure system integrity and diagnostics.Features
16 digital output channels (24 V DC, current sourcing).
Two isolated groups of 8 channels with independent process voltage monitoring.
Integrated Output Set to Predetermined state (OSP) functionality for safe-state management during communication loss.
Comprehensive protection including short-circuit, over-temperature, and over-voltage monitoring.
Optical isolation barrier between field and system side.
LED status indicators for individual output channel monitoring.
Applications
Burner Management Systems: Sequencing fuel valves and ignition hardware.
Motor Control: Managing start/stop logic for large motor starters and pump sequences.
Turbine Auxiliaries: Controlling hydraulic pumps, cooling fans, and valve actuators.
Substation Automation: Interfacing with circuit breakers and isolators.
Technical Specifications
Model
DO810 (3BSE008510R1)
Channels
16 (2 x 8 isolated groups)
Output Voltage
10 to 30 V DC
Max Continuous Current
0.5 A per channel
Modulebus Consumption
80 mA (+5 V)
Rated Insulation
50 V
Dielectric Test
500 V AC
Operating Temperature
0 to +55 degC
Storage Temperature
-40 to +70 degC
Relative Humidity
5 to 95% (non-condensing)
Installation Guidelines
Ensure the power supply is disconnected before installing or removing the module from the ModuleBus.
Mount the module in a clean, dry environment within an appropriately rated industrial enclosure to protect against dust and moisture.
Ensure proper grounding of the S800 I/O station to minimize electromagnetic interference (EMI).
Maintain adequate ventilation clearance around the module to prevent overheating during operation.
Use shielded cables for field wiring to ensure signal integrity and compliance with EMC standards.
Handle with standard ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
FAQWhat does the OSP function do on the DO810?The Output Set to Predetermined (OSP) function allows the module to force outputs into a pre-configured safe state if a communication error occurs or if the watchdog timer expires, preventing uncontrolled operation of field equipment.Are the channels in the DO810 isolated?Yes, the 16 channels are divided into two isolated groups of eight. Each group features its own supervision input that reports process voltage status via the ModuleBus.Can this module drive inductive loads?The DO810 includes built-in inductive load suppression components, allowing it to drive standard industrial relays and solenoids directly.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

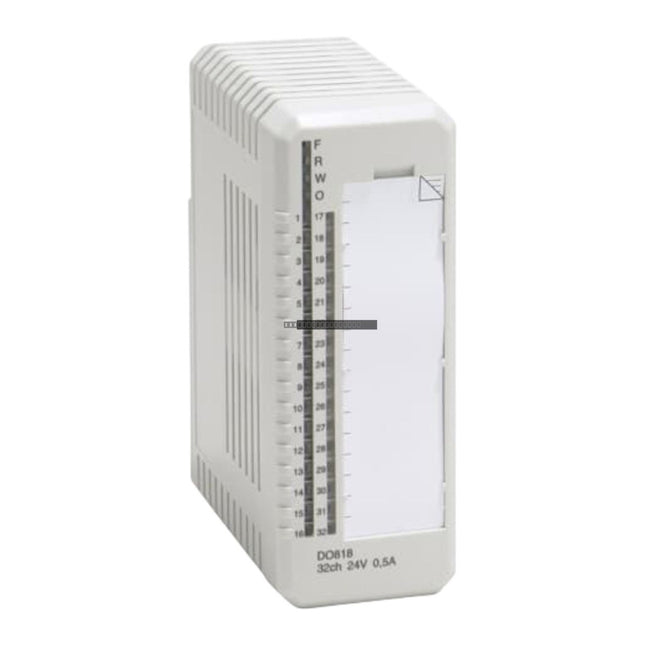

The ABB DO818 (3BSE069053R1) is a 32-channel digital output module designed for the S800 I/O distributed process control system. It provides high-performance 24 V DC transistor outputs, organized into two electrically isolated groups of 16 channels each. Each group incorporates dedicated process voltage supervision to ensure system integrity and diagnostics.Features
32-channel digital output capacity with 24 V DC operation.
Two individually isolated groups, each with 16 channels and a dedicated process voltage supervision input.
High-side driver technology for each channel, providing current sourcing and current limiting.
Integrated protection against short-circuits, over-temperature, and over-voltage conditions.
Optical isolation barrier between the field signals and the ModuleBus.
Inductive load suppression and output state indication LEDs for each channel.
Applications
Oil & Gas: Flow manifold control, chemical injection, and burner management systems.
Chemical & Petrochemical: Hazardous area isolation, reactor venting, and bulk material transfer.
Power & Water: Backwash valve actuation, cooling fan control, and switchgear tripping.
Mining & Paper: Sorting gates, lime kiln control, and emergency stop cascades.
Technical Specifications
Model
DO818 (3BSE069053R1)
Channels
32
Signal Type
24 V DC (12-32 V DC range)
Output Current
Max 0.5 A per channel
Isolation
Two groups, 16 channels each
Power Dissipation
Typ 2.8 W
ModuleBus Consumption
70 mA (+5 V)
Max Cable Length
600 meters
Insulation Voltage
50 V (Rated) / 500 V AC (Dielectric)
Installation Guidelines
Mount the module horizontally on standard DIN rails. Note that vertical mounting reduces the maximum operating temperature from 55 degC to 40 degC.
Maintain a minimum of 100 mm of clear space above and below the module to facilitate convection cooling.
Ensure the installation environment meets Pollution Degree 2 (IEC 60664-1).
The module is G3 coated to provide protection against corrosive environments.
Always power down the system before inserting or removing the module from the I/O base to prevent electrical damage.
FAQWhat is the primary function of the DO818 module?The DO818 is a high-density digital output module for the S800 I/O system, used to interface control signals from the PLC to field actuators while providing channel-level diagnostics and fault protection.How does the short-circuit protection function?The module limits current to approximately 1.4 A initially. If a fault persists, it switches to a lower current limit (1.1 A). If the temperature exceeds 135 degC, the module enters a PWM thermal shutdown mode to protect the circuitry.Is this module compatible with System 800xA?Yes, the DO818 is a standard component of the S800 I/O family and is fully compatible with ABB Ability System 800xA and AC 800M controllers.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

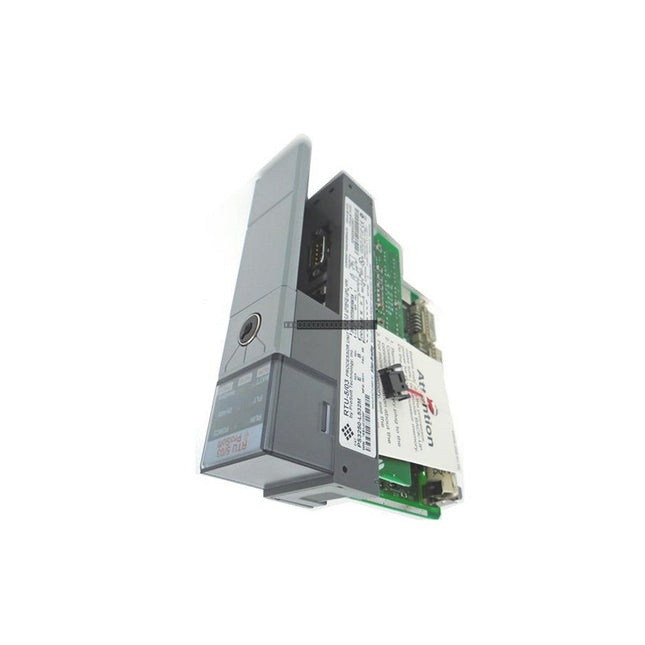

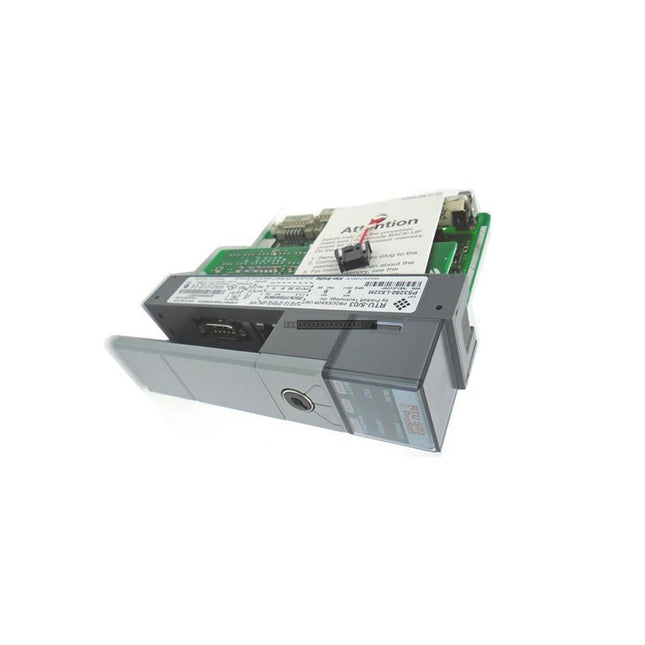

The 3250-L532M is a specialized Remote Terminal Unit (RTU) built upon the reliable SLC 5/03 processor architecture. Designed for decentralized control, this module enables efficient data acquisition and local logic execution in demanding industrial environments, including electrical substations, oil and gas infrastructure, and large-scale mining operations. By maintaining high-speed serial connectivity and local processing capabilities, it ensures operational continuity at the network edge, effectively isolating field-level faults from the central control system.Features
Integrated Communication: Features native Modbus Slave protocol support on Channel 0, allowing for direct integration into existing SCADA frameworks without the need for external protocol converters.
Flexible Serial Connectivity: Equipped with three RJ45 ports: one dedicated RS-232 configuration port and two application-specific ports (PRT1 and PRT2) that support RS-232, RS-422, and RS-485 physical layers.
Robust Processing: Leverages the standard SLC 5/03 instruction set to execute complex discrete logic and mathematical functions, providing deterministic performance for critical monitoring tasks.
Simplified Deployment: Designed for seamless integration into standard SLC 500 backplanes, utilizing the existing power and communication infrastructure.
Technical Specifications
Model
3250-L532M
Processor Base
SLC 5/03
Configuration Port
1 x RJ45 RS-232
Application Ports
2 x RJ45 (RS-232/422/485)
Protocols
Modbus Slave (Ch 0), DH-485, ASCII
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Humidity
5% to 95% (Non-condensing)
Power Requirements
Integrated SLC Backplane Power
Installation Guidelines
Ensure the system power is disconnected before installing or removing the module from the SLC 500 chassis.
Use shielded communication cables for all serial connections to minimize EMI interference, especially in high-voltage environments.
Verify that the RJ45 port selection (RS-232/422/485) matches the specific field device requirements before finalizing wiring.
Maintain proper ventilation in the control cabinet to ensure the ambient temperature remains within the 0 to 60 deg C operating range.
Follow standard ESD precautions when handling the module to prevent damage to internal circuitry.
FAQCan this unit be used as a standalone controller? Yes, the 3250-L532M is designed for edge-of-network applications, allowing it to handle local logic and control tasks independently.What physical layers are supported on the application ports? The two application ports (PRT1 and PRT2) are software-configurable to support RS-232, RS-422, or RS-485 standards.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

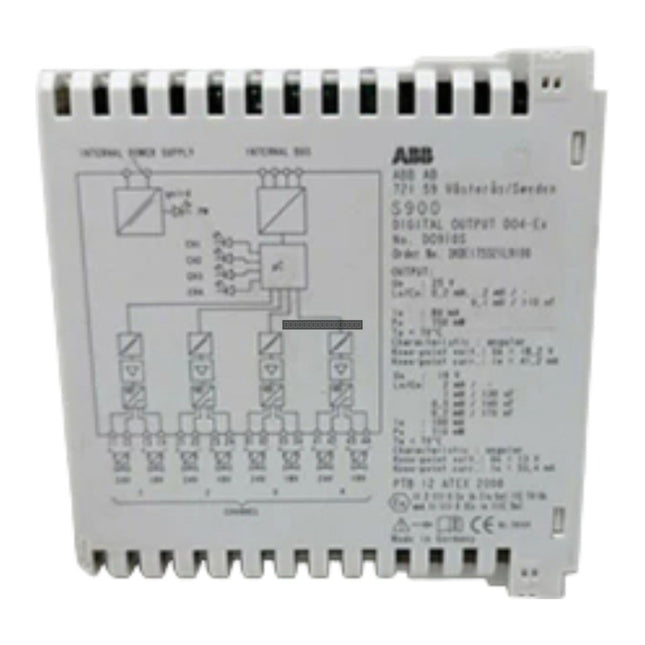

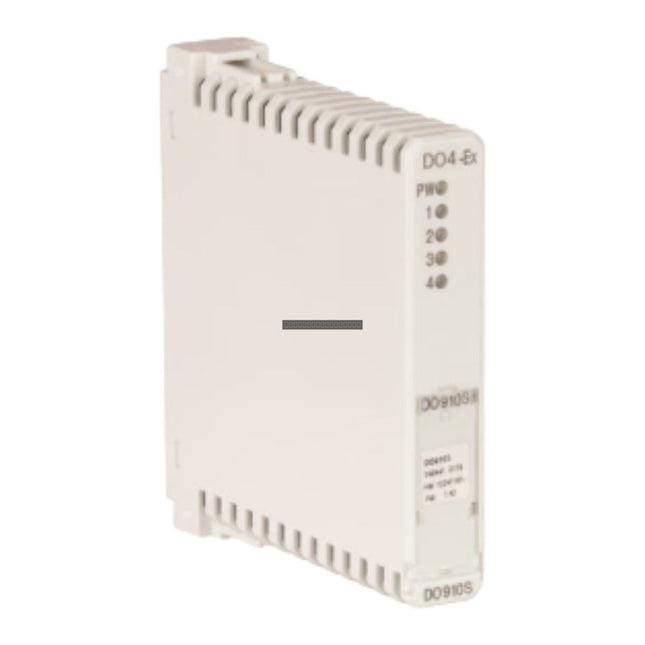

DescriptionThe ABB DO910 (Order Code: 3KDE175321L9100) is a high-performance, 4-channel digital output module engineered for the S900 I/O system. Designed specifically for hazardous environments, this module provides intrinsically safe outputs, ensuring reliable control in demanding industrial applications. It is fully compatible with Zone 1 and Zone 2 hazardous area installations and features robust G3-coating to resist environmental corrosion.Features
Four independent digital output channels for precise control.
ATEX-certified for operation within Zone 1 and Zone 2 hazardous locations.
Supports system-level redundancy for both power and communication, ensuring high availability.
Engineered for hot-swapping and hot configuration during active operation, minimizing system downtime.
Integrated G3-coating for enhanced durability against corrosive atmospheric conditions.
Comprehensive diagnostics and setup via FDT/DTM standard protocols.
Technical Specifications
Model
DO910
Order Number
3KDE175321L9100
Series
S900 I/O
Channels
4
Operating Temperature
-20 degC to +60 degC
Humidity
Max 93% plus/minus 3% at 40 degC
Certification
ATEX (Zone 1/2)
Installation Guidelines
Ensure all wiring is consistent with intrinsically safe installation practices and local electrical codes.
The module supports hot-swapping; however, ensure the surrounding environment is safe before performing maintenance or module replacement.
Maintain proper grounding and shielding for all field wiring to prevent EMI interference.
Verify that the S900 I/O backplane is correctly seated and that the module is locked firmly into position to ensure reliable electrical contact.
Keep the module away from high-vibration sources and ensure adequate ventilation in the cabinet to maintain the specified operating temperature range.
FAQIs this module suitable for hazardous areas? Yes, the DO910 is ATEX-approved for use in both Zone 1 and Zone 2 hazardous areas.Does this module support hot-swapping? Yes, the DO910 is designed for hot-swap functionality and hot configuration during runtime, allowing for maintenance without stopping the process.What kind of protection does the module have against corrosion? The unit is treated with G3-coating, which provides significant protection against corrosive environmental conditions.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

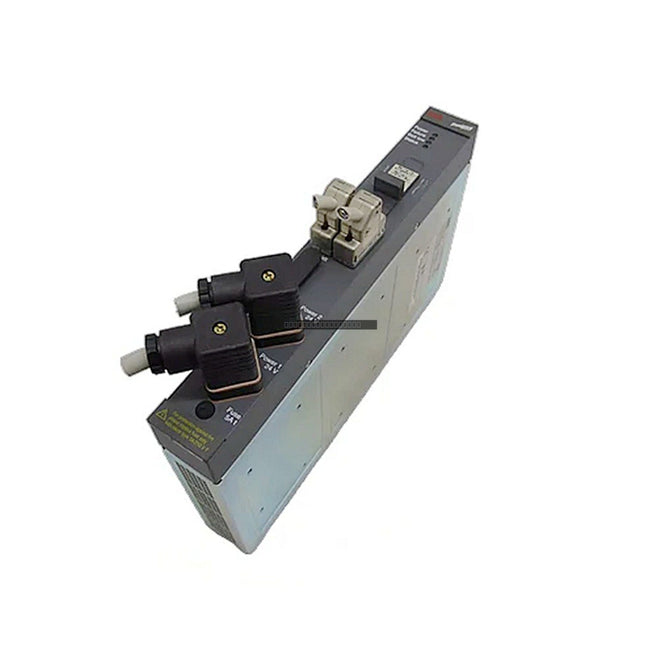

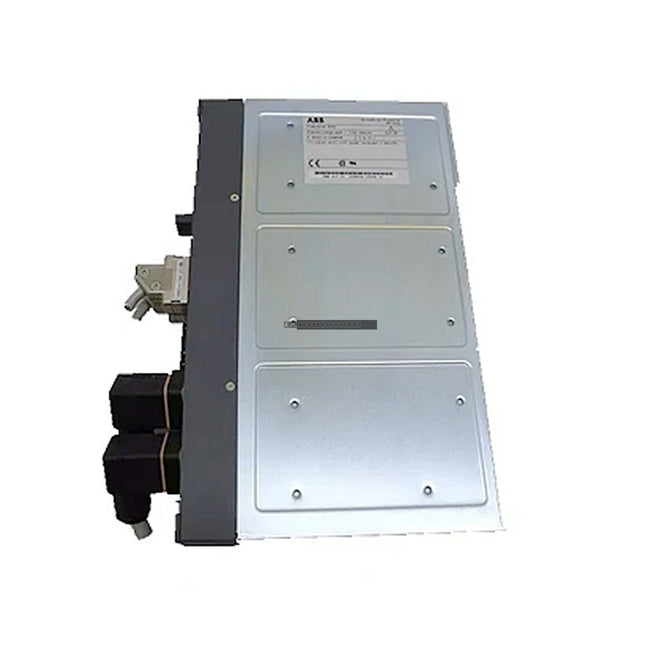

The ABB DLM 02 (Order Number: 0338434M) is a specialized link module engineered for integration within the Freelance 2000 distributed control system architecture. This Version 3 module facilitates reliable communication and data exchange across industrial networks, ensuring seamless connectivity within the control environment.Features
Designed specifically for the Freelance 2000 series control systems.
Supports multiple industrial communication protocols, including EtherNet/IP, DeviceNet, and Modbus TCP.
Capable of maintaining data transmission speeds reaching up to 1 Mbps.
Robust build quality suitable for demanding industrial automation applications.
Technical Specifications
Model
DLM 02
Order Code
0338434M
Series
Freelance 2000
Version
V3
Voltage Rating
24 V d.c.
Power Consumption
7 W
Max Transmission Speed
1 Mbps
Communication Support
EtherNet/IP, DeviceNet, Modbus TCP
Weight
1.68 kg
Installation Guidelines
Ensure the control system is powered down before attempting to install or remove the module from the rack.
Verify that the backplane or mounting base is properly secured and grounded to prevent electrical interference.
Maintain proper ventilation around the module to ensure heat dissipation, keeping within specified operating temperature ranges.
Use shielded communication cabling to minimize EMI/RFI impact on data transmission integrity.
Handle the module using standard ESD (electrostatic discharge) protection practices to prevent damage to internal circuitry.
FAQWhat is the primary function of the DLM 02?The DLM 02 acts as a link module for the ABB Freelance 2000 system, enabling connectivity and protocol management for distributed control tasks.Does this module support Modbus TCP?Yes, the DLM 02 supports Modbus TCP, alongside EtherNet/IP and DeviceNet protocols.What is the power requirement for this unit?The module operates on a 24 V d.c. power supply and consumes approximately 7 W during operation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The ABB DO930 (Order Number: 3BDS014114) is a high-performance digital relay output module designed specifically for the S900 I/O system. This module provides six independent relay output channels, offering robust control for industrial automation applications requiring galvanic isolation and high-voltage switching capabilities.Features
Six independent digital relay output channels.
Supports a wide output voltage range up to 250V AC/DC.
Maximum switching current of 2A per channel.
Integrated individual channel isolation for increased system safety and signal integrity.
Supports system-level power and communication redundancy.
Designed for high-availability environments with hot-swap capability.
Supports hot configuration in run (HCIR) for seamless maintenance without process interruption.
ApplicationsThe DO930 module is engineered for use in the ABB S900 remote I/O system, commonly utilized in process automation, oil and gas, energy management, and chemical processing facilities where reliable relay-based switching of field devices is required.Technical Specifications
Model
DO930
Order Code
3BDS014114
Series
S900 I/O
Channels
6
Max Output Voltage
250V AC/DC
Max Current
2A per channel
Isolation
Individual channel isolation
Redundancy
Power and Communication
Hot Swap
Supported
Installation Guidelines
Ensure the S900 I/O station power is off before physically installing or removing the module, unless the system is specifically configured for hot-swapping in a live environment.
Verify that all field wiring is properly secured to the terminal blocks to prevent intermittent contact.
Maintain proper spacing within the control cabinet to ensure adequate ventilation and cooling for the S900 rack.
Ensure all signal cables are shielded and properly grounded to minimize electromagnetic interference (EMI) in industrial environments.
Always consult the specific S900 system manual for wiring diagrams and configuration requirements before commissioning.
FAQDoes the DO930 support hot-swapping?Yes, the module is designed for hot-swap functionality, allowing for replacement during system operation.What is the maximum current rating for the relay outputs?The module supports a maximum current of 2A per channel.Is the DO930 compatible with other S900 I/O modules?Yes, it is a standard component of the ABB S900 I/O series and is designed to integrate seamlessly within the S900 rack architecture.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

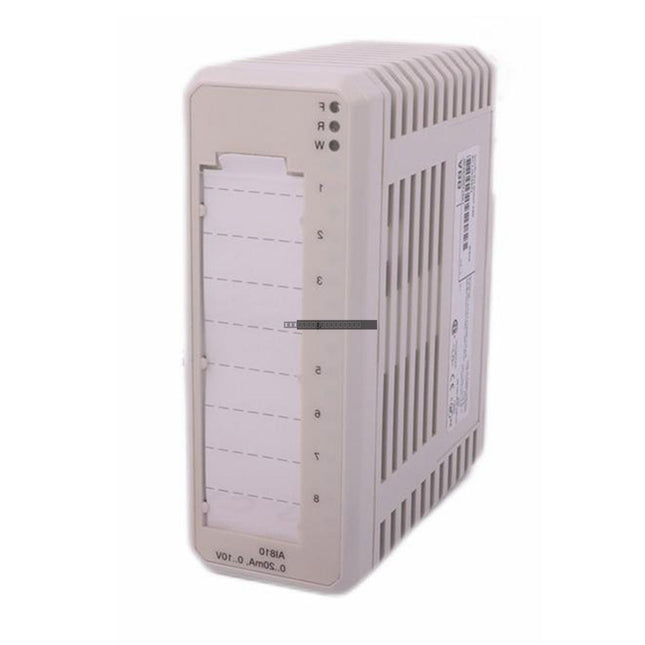

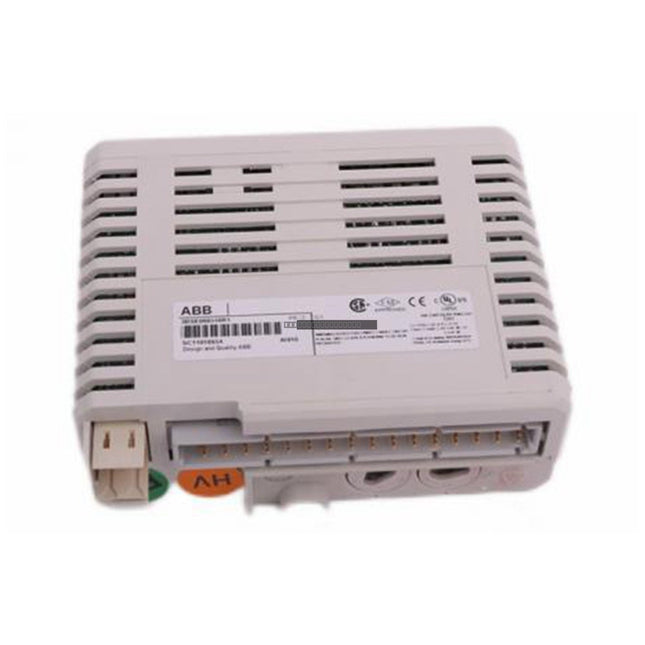

The ABB AI810 (3BSE008516R1) is a high-performance, 8-channel analog input module designed for the S800 I/O distributed control system. This module provides versatile signal processing, allowing each of its eight channels to be independently configured for current (0–20 mA, 4–20 mA) or voltage (0–10 V, 2–10 V) inputs. Engineered for demanding industrial environments, the AI810 includes 12-bit resolution and supports HART communication, ensuring transparent transmission of digital diagnostics alongside analog process values.Features
8 single-ended, unipolar input channels.
Independent channel configuration for voltage or current signals.
Integrated HART communication support for intelligent field device integration.
Enhanced protection with PTC current-limiting resistors on all inputs.
Short-circuit protection against transmitter supply voltages up to 30 V DC.
12-bit analog-to-digital conversion accuracy.
Electrical isolation of the 8-channel group from ground.
Applications
Refinery and petrochemical process control for pressure, flow, and level monitoring.
Turbine auxiliary system instrumentation, including lube oil and steam monitoring.
Boiler combustion control and water level management.
Renewable energy site management for hydraulic and pitch control systems.
Technical Specifications
Model
AI810 (3BSE008516R1)
Channels
8
Input Signals
0-20 mA, 4-20 mA, 0-10 V, 2-10 V
Resolution
12 bit
Input Resistance (Current)
250 ohm (PTC included)
Input Resistance (Voltage)
290k ohm
Max Input Voltage (Non-destructive)
30 V DC
Power Dissipation
1.5 W
Modulebus Current (+5V)
70 mA
Modulebus Current (+24V)
40 mA
Isolation
500 V AC (Dielectric test)
Installation Guidelines
Ensure the system is powered down before inserting or removing the module from the Module Termination Unit (MTU).
The AI810 is compatible with various MTUs, including TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838, and TU850.
Use shielded cabling for field signals to minimize EMI/RFI interference; ensure the shield is properly grounded at the cabinet entry.
Maintain proper ventilation in the control cabinet to stay within operating temperature limits.
Ensure all field wiring is secured and checked for correct polarity before applying power to the loop.
FAQIs the ABB AI810 compatible with older S800 systems?Yes, the AI810 is a standard component of the ABB S800 I/O platform and is designed for seamless integration into existing S800 architectures using compatible MTUs.Does the module support HART?Yes, the AI810 supports HART communication, allowing digital data to pass through the module alongside the analog signal.What protection is provided for the input channels?The module features PTC resistors on each channel to limit current, protecting the circuitry against short circuits to the transmitter supply up to 30 V DC.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

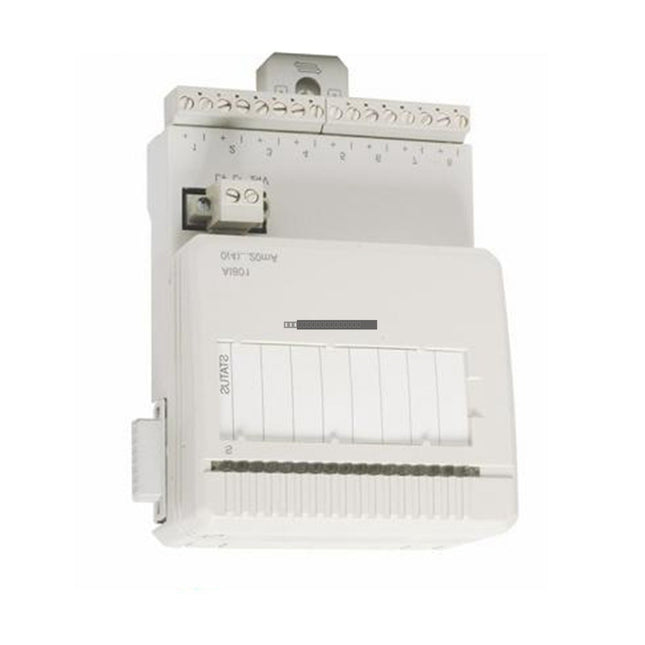

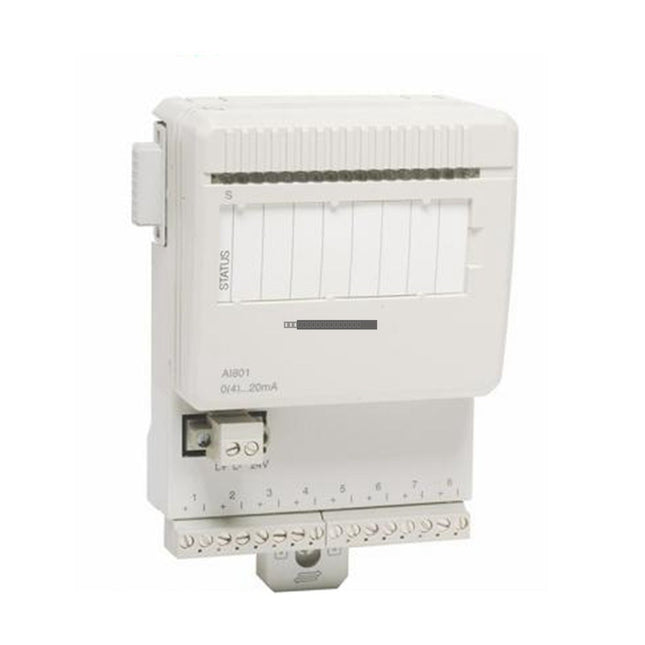

DescriptionThe ABB AI801 (3BSE020512R1) is an 8-channel analog input module designed for the S800 I/O series. This module is engineered for high-precision data acquisition in industrial process control environments, providing reliable conversion of analog current signals into digital values for processing by the controller.Features
Eight isolated analog input channels
Input signal range: 0 to 20 mA
12-bit resolution for accurate signal representation
Input impedance of 250 ohms
Fast scanning time of 10 ms per channel
Robust design suitable for operation in demanding industrial temperatures
ApplicationsThe AI801 module is typically deployed in distributed control systems (DCS) or PLC architectures where monitoring of process variables such as flow, pressure, or level via current loops is required. It is commonly found in power generation, chemical processing, and manufacturing automation systems.Technical Specifications
Model
AI801
Order Code
3BSE020512R1
Channels
8
Input Signal
0 to 20 mA
Resolution
12-bit
Input Impedance
250 Ohm
Accuracy
+/- 0.1% of full-scale
Voltage Drop
Max 5V
Scanning Time
10 ms / channel
Operating Temperature
-25 degC to +70 degC
Installation Guidelines
Ensure the system power is disconnected before installing or removing the module from the I/O base.
Verify that the module is properly seated in the S800 I/O base to ensure secure backplane communication.
Use shielded twisted-pair cabling for analog signal inputs to minimize electromagnetic interference (EMI).
Maintain proper grounding practices for the cable shields to prevent ground loops.
Ensure adequate ventilation in the cabinet to maintain the specified operating temperature range.
Handle with care to prevent electrostatic discharge (ESD) damage during installation.
FAQWhat is the primary function of the ABB AI801 module?The AI801 is an analog input module that converts 0-20 mA current signals from field instruments into digital data for use within an ABB Advant or S800 I/O-based control system.Is this module compatible with existing S800 I/O stations?Yes, the 3BSE020512R1 is designed for integration into standard S800 I/O mounting bases. Please confirm your system architecture supports the AI801 model before installation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

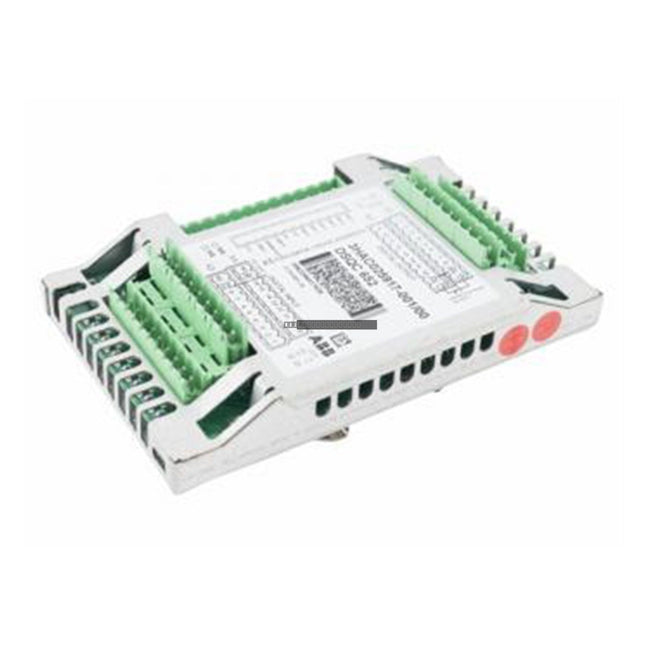

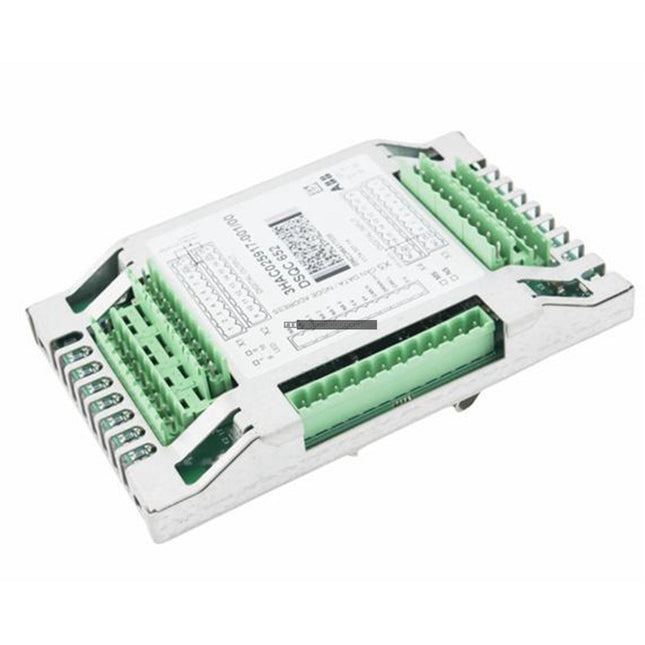

DescriptionThe ABB DSQC652 (3HAC025917-001) is a specialized digital I/O unit designed for integration within ABB robotic control systems. This module provides essential input/output functionality, facilitating reliable communication between the robot controller and peripheral field devices. Engineered for robust performance in industrial automation environments, it ensures precise signal processing and high-speed response times required for complex robotic operations.Features
Equipped with 16 digital input channels for versatile signal monitoring.
Standardized 24V DC operating voltage suitable for common industrial control architectures.
Optimized response delay of ≤0.5 ms for real-time control applications.
Low power dissipation of 150 mW per channel to minimize thermal load within the control cabinet.
Designed for durability in demanding factory floor conditions.
Technical Specifications
Model
DSQC652 (3HAC025917-001)
Manufacturer
ABB
Digital Input Channels
16
Rated Voltage
24 V DC
Input Voltage Threshold
15 to 35 V
Input Current
Approx. 5 mA (at rated voltage)
Operating Temperature
-10 degC to +55 degC
Humidity
5% to 95% (non-condensing)
Weight
0.44 kg
Installation Guidelines
Ensure the control system is powered down before installing or removing the DSQC652 module to prevent electrical damage.
Mount the unit securely within the designated robot controller rack, ensuring proper ventilation to maintain operating temperatures below 55 degC.
Verify that all field wiring is properly shielded and routed away from high-voltage cables to mitigate electromagnetic interference (EMI).
Ensure correct polarity when connecting 24V DC power to the module terminals.
Handle with standard ESD precautions to protect internal circuitry during installation.
FAQWhat is the primary function of the DSQC652 module?The DSQC652 acts as a high-performance digital I/O interface for ABB robot controllers, allowing the system to process up to 16 digital inputs from external sensors or switches.What are the input voltage requirements for this unit?The unit is rated for 24V DC operation, with an input voltage threshold range of 15V to 35V.Is this module compatible with all ABB robots?The DSQC652 is specific to certain generations of ABB robotic control systems. Please verify your controller's hardware compatibility list or check the exact part number (3HAC025917-001) against your existing system documentation before installation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

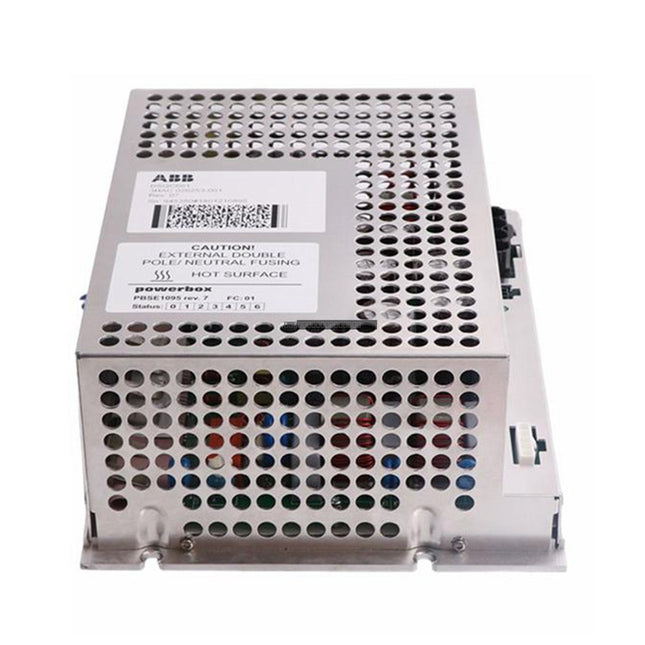

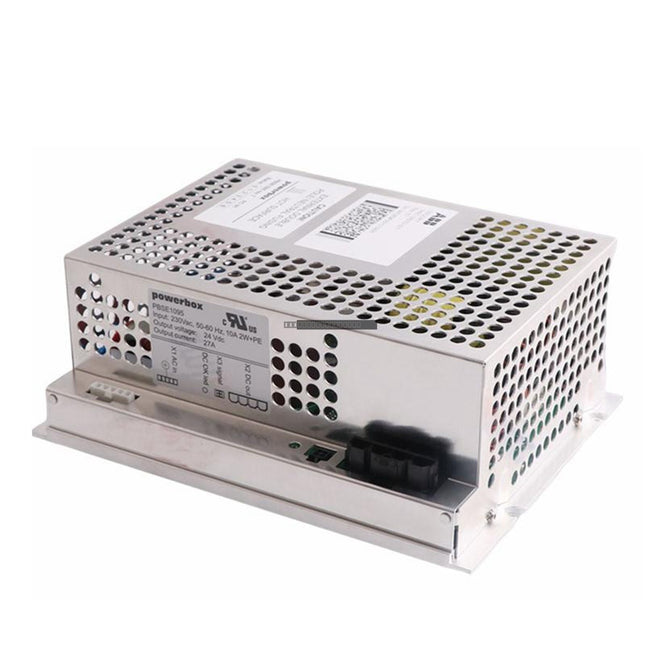

The ABB DSQC661 (3HAC026253-001) is a specialized power supply unit engineered for integration within ABB industrial robotic and control systems. This module provides reliable power distribution and voltage regulation, ensuring consistent performance for critical automation components.Features
Designed for seamless integration with ABB control hardware.
Robust construction to withstand demanding industrial environments.
Optimized for stable output voltage and power delivery.
Compact footprint for efficient cabinet space utilization.
ApplicationsThis power supply module is primarily used in ABB robotic systems and related industrial automation control cabinets where stable DC power is required for logic and I/O operations.Technical Specifications
Product ID
3HAC026253-001
Model
DSQC 661
Product Type
Power Supply Module
Net Weight
2.46 kg
Customs Tariff Number
85044083
WEEE Category
Not in WEEE Scope
Installation Guidelines
Ensure the control cabinet is fully de-energized before attempting to install or remove the module.
Verify that the mounting surface is clean and secure to support the unit's weight and ensure proper heat dissipation.
Maintain adequate clearance around the module to allow for natural airflow and prevent overheating during operation.
Ensure all cable connections are tightened to the specified torque to prevent intermittent contact or arcing.
Adhere to standard ESD (Electrostatic Discharge) precautions when handling the module to protect sensitive internal circuitry.
FAQIs the DSQC661 compatible with all ABB robot controllers?The DSQC661 is model-specific. Please verify your system's parts list or the existing module's label to ensure compatibility with your specific controller generation.What is the weight of this unit?The net weight of the module is 2.46 kg.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

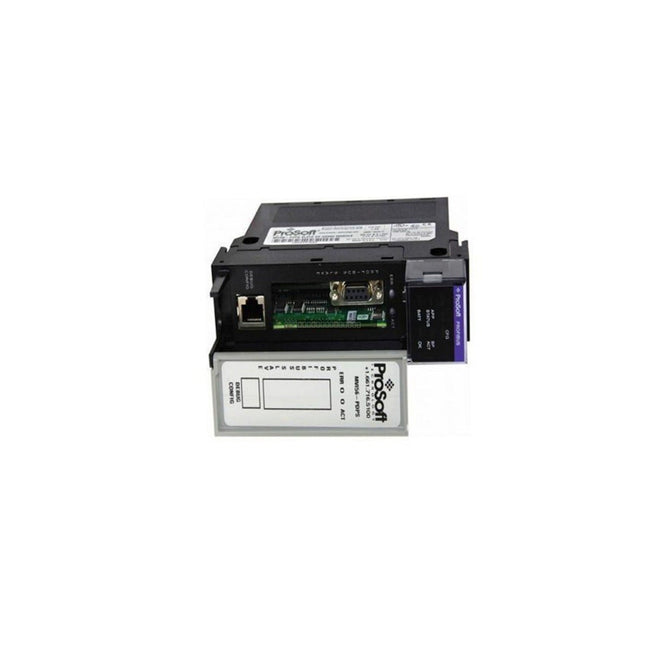

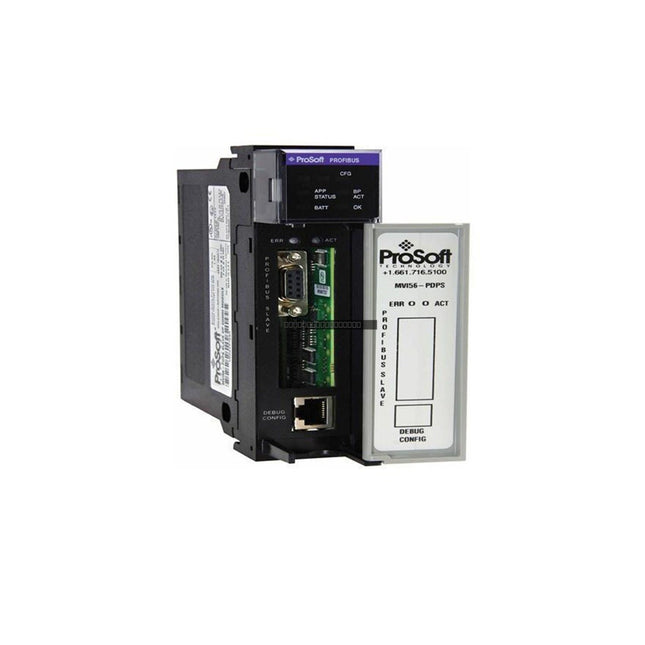

The ProSoft MVI56-PDPS is a dedicated communication module engineered for the Rockwell Automation ControlLogix platform, providing a reliable interface for PROFIBUS DP Slave connectivity. This single-slot module serves as a bridge, allowing the ControlLogix processor to exchange data with a PROFIBUS DP Master network. By operating as a native I/O module, it maps data directly into the processor's memory, ensuring efficient, high-speed communication suitable for demanding industrial automation applications.Features
Designed for seamless integration with 1756 ControlLogix backplanes.
Functions as a PROFIBUS DP V0 Slave device.
Supports automatic baud rate detection ranging from 9.6 kbps up to 12 Mbps.
Offloads protocol processing from the main PLC CPU to enhance overall system performance.
Configured via standard text files and integrated into RSLogix 5000 or Studio 5000 using Ladder Logic.
Features 500 V optical isolation for enhanced signal integrity and protection.
ApplicationsThe MVI56-PDPS is frequently deployed in complex industrial environments requiring cross-protocol interoperability, including power generation, petrochemical processing, and large-scale manufacturing facilities. It is ideal for integrating legacy or third-party PROFIBUS equipment into a modern ControlLogix-based architecture.Technical Specifications
Brand
ProSoft Technology
Model
MVI56-PDPS
Backplane Compatibility
Rockwell Automation ControlLogix (1756)
Slot Width
1 (Single Slot)
Current Load
800 mA at 5 VDC; 3 mA at 24 VDC
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Relative Humidity
5 to 95 percent (Non-condensing)
PROFIBUS Interface
DB9 Female Connector
Baud Rate Support
9.6 kbps to 12 Mbps
Isolation
500 V optical isolation
Installation Guidelines
Ensure power to the 1756 chassis is disconnected before inserting or removing the module.
Always follow standard ESD (Electrostatic Discharge) prevention procedures when handling the module.
Seat the module firmly into the designated 1756 backplane slot and secure it using the integrated latching mechanism.
Use shielded PROFIBUS-compliant cabling for the DB9 interface to minimize EMI interference.
Ensure proper grounding of the ControlLogix chassis to maintain signal integrity and safety.
Verify that the module configuration file matches the intended PROFIBUS network mapping before commissioning.
FAQIs the MVI56-PDPS compatible with all ControlLogix processors?The module is designed for 1756 ControlLogix chassis. It is compatible with most ControlLogix processors that support standard I/O module communication. Please refer to your specific processor documentation to ensure compatibility with third-party communication modules.Does this module require special software for configuration?Configuration is handled via a text file that is downloaded to the module. Integration within the PLC environment is achieved using standard Ladder Logic in RSLogix 5000 or Studio 5000, requiring no proprietary software for basic setup.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe ABB DSQC 609, identified by part number 3HAC14178-1, is a dedicated power supply module engineered for industrial control environments. This unit is designed to provide stable power distribution within the control system architecture, ensuring consistent operational performance for connected automation components.Features
Reliable power regulation for ABB control systems.
Compact modular design for efficient cabinet space utilization.
Robust construction suitable for industrial deployment.
Designed to meet specific electrical requirements for the DSQC 609 series.
ApplicationsThis power supply module is typically utilized in robotics and automated production line control systems where the DSQC 609 series is specified. It serves as a critical component in maintaining the voltage stability required for logic processing and I/O communication.Technical Specifications
Product ID
3HAC14178-1
Model Name
DSQC 609
Product Type
Power Supply Module
Customs Tariff Number
85044083
Net Weight
0.46 kg
Installation Guidelines
Ensure the control cabinet is de-energized before attempting installation or removal of the module.
Verify that the mounting surface is clean and provides adequate support for the module's weight.
Maintain proper clearance around the unit to allow for natural convection and heat dissipation.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connectors.
Ensure all power input and output connections are tightened to the manufacturer's specified torque to prevent intermittent contact or overheating.
FAQWhat is the primary function of the ABB DSQC 609?The DSQC 609 (3HAC14178-1) acts as a specialized power supply unit designed to provide regulated power to components within ABB industrial control systems.Is this module compatible with other series?This module is specific to the DSQC 609 series. It is recommended to verify your system's part number compatibility before installation.What is the weight of this unit?The net weight of the 3HAC14178-1 module is 0.46 kg.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

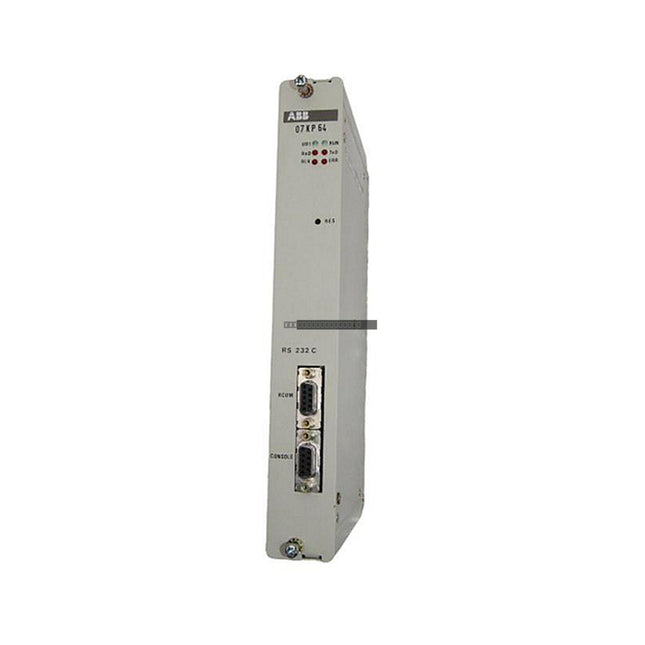

DescriptionThe ABB 07 KP 64 (Order Code: GJR5240600R0101) is a specialized communication processor designed for integration within industrial automation systems. This module facilitates reliable data exchange via the RS232 interface and supports the RCOM communication protocol. Engineered for robust performance, it serves as a critical link for serial data transmission in ABB control environments.Features
Interface: RS232 serial communication port.
Protocol: Supports RCOM communication standards.
Compatibility: Designed for seamless integration with compatible ABB PLC and control systems.
Form Factor: Compact module housing for efficient rack or panel space management.
Technical Specifications
Product Model
07 KP 64
Order Code
GJR5240600R0101
Manufacturer
ABB
Communication Standard
RS232
Protocol Support
RCOM
Weight
0.9 kg
Installation Guidelines
Ensure the power supply is disconnected before installing or removing the module from the rack.
Verify that the module is firmly seated in the intended slot to ensure proper backplane connection.
Use shielded RS232 cabling to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Maintain adequate clearance around the module to allow for proper airflow and cooling.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
FAQWhat is the primary function of the ABB 07 KP 64?This module functions as a communication processor, enabling serial data communication between your control system and external devices using the RS232 physical layer and RCOM protocol.Is this module compatible with all ABB PLC systems?The 07 KP 64 is designed for specific ABB control architectures. Please verify your system's hardware documentation or the original equipment manual to confirm compatibility with your specific controller series before installation.

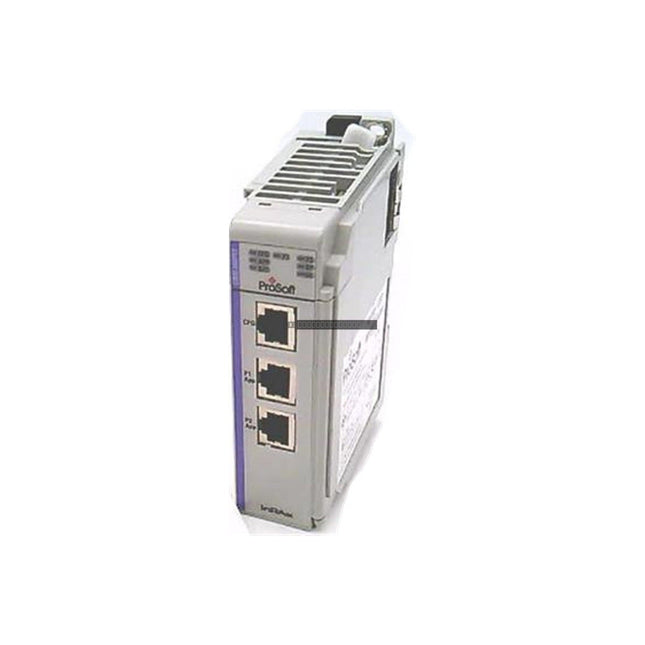

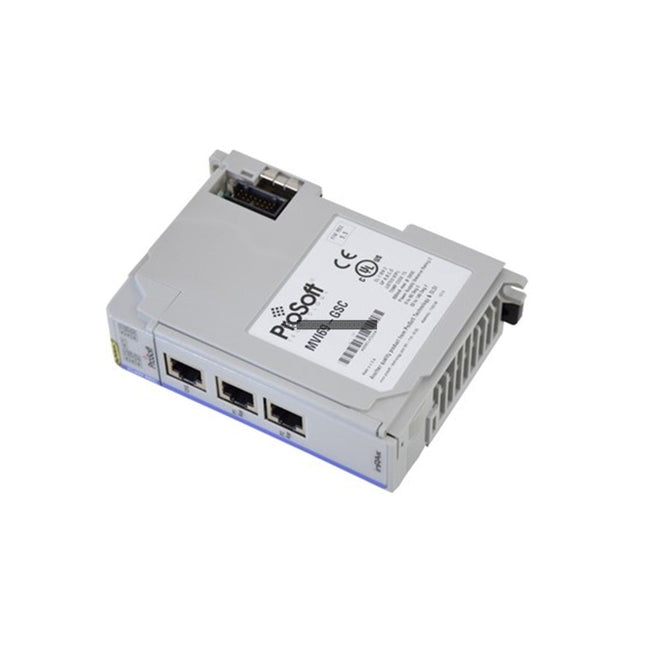

DescriptionThe Prosoft MVI69-GSC is a high-performance, single-slot communication module engineered to integrate generic ASCII serial devices into the Rockwell Automation CompactLogix platform. By offloading serial data processing from the main controller, the module streamlines system performance and ensures reliable communication with peripheral equipment such as barcode scanners, industrial printers, and weighing instruments. It serves as a robust bridge between the 1769 backplane and external serial hardware, facilitating efficient data exchange in demanding industrial environments.Features
Dual independent serial ports supporting RS-232, RS-422, or RS-485 configurations.
Direct 1769 backplane interface for seamless integration with CompactLogix controllers.
Reduces CPU load by managing serial string processing via an internal database.
Supports a wide range of baud rates from 110 bps up to 115.2 kbps.
Configurable parity, data bits, and stop bits for versatile device compatibility.
ApplicationsThis module is frequently deployed in logistics, automotive assembly, and food and beverage processing. It is ideal for facilities requiring the integration of legacy serial instrumentation into modern, high-speed control architectures to reduce latency and maintain system uptime.Technical Specifications
Model
MVI69-GSC
Brand
Prosoft Technology
Compatibility
Rockwell Automation CompactLogix (1769 Backplane)
Backplane Current
800 mA at 5 VDC
Serial Ports
2 (RS-232/422/485 configurable)
Baud Rate Range
110 bps to 115.2 kbps
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Installation Guidelines
Ensure the CompactLogix rack is powered down before inserting or removing the MVI69-GSC module.
Verify that the module is properly seated and the backplane locking tab is engaged.
Use appropriate shielded cabling for serial connections to minimize EMI, especially in high-noise industrial environments.
Adhere to proper grounding practices for RS-422/485 signal commons to prevent ground loops.
Ensure the module is installed in a location with adequate ventilation to maintain operating temperatures within the specified 0 to 60 deg C range.
FAQDoes this module require external power?No, the MVI69-GSC draws all necessary operating power directly from the 1769 backplane.Can this module support multiple serial protocols simultaneously?The module features two independent ports that can be configured for different serial standards (RS-232, RS-422, or RS-485) and communication parameters, allowing for simultaneous connection to diverse field devices.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

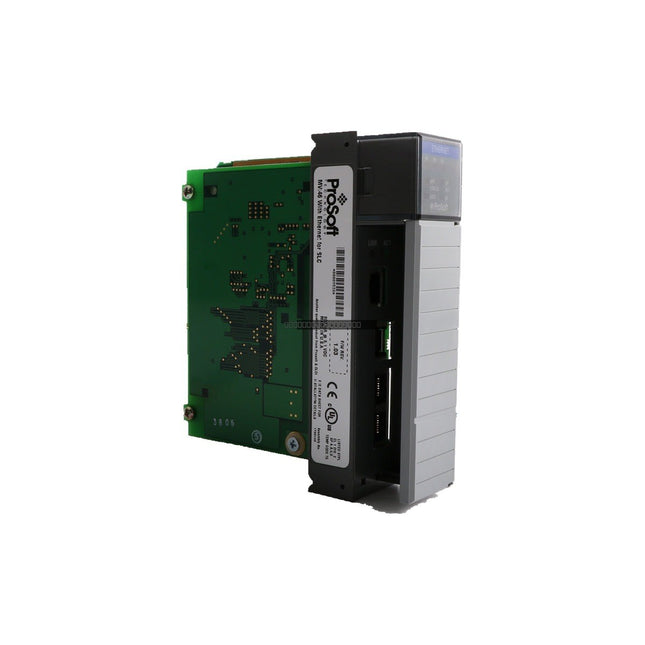

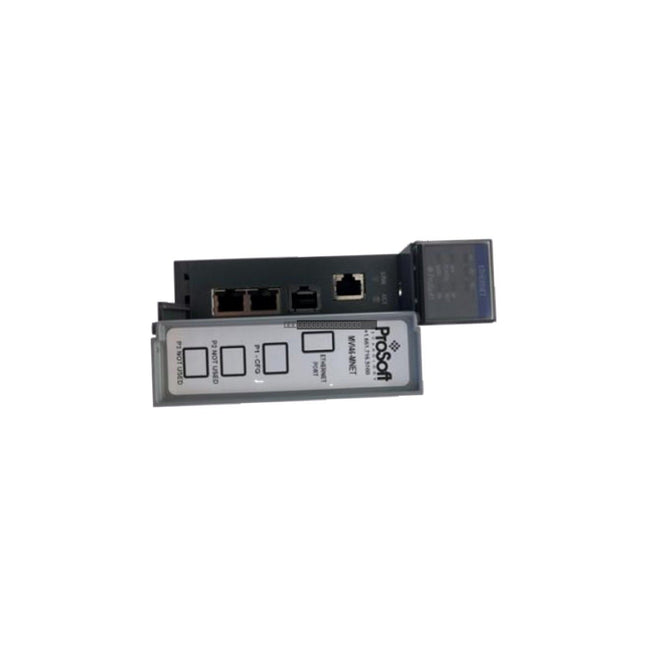

The ProSoft MVI46-MNET is a high-performance communication module designed to provide seamless connectivity between Allen-Bradley SLC 500 control systems and Modbus TCP/IP networks. This module acts as a gateway, allowing the SLC processor to exchange data with a wide variety of Modbus-compliant devices such as sensors, drives, and other PLCs over Ethernet.Features
Designed for single-slot installation within an Allen-Bradley 1746 I/O chassis.
Supports high-speed Ethernet communication for Modbus TCP/IP protocols.
Large data capacity with support for up to 5000 words of data transfer.
Direct backplane communication with the SLC 500 processor.
Compatible with SLC 5/02 and newer processors that support M0/M1 file transfers.
Technical Specifications
Manufacturer
ProSoft Technology
Model Number
MVI46-MNET
Backplane Current Load
800 mA @ 5 V DC
Module Width
Single Slot
Data Capacity
5000 words
Compatible Chassis
Allen-Bradley 1746
Processor Compatibility
SLC 5/02 or newer (M0/M1 capable)
Installation Guidelines
Ensure the PLC chassis power is disconnected before installing or removing the module.
Insert the module into any available single slot within the 1746 chassis; ensure the backplane connector is fully seated.
Use shielded twisted-pair Ethernet cabling to minimize electromagnetic interference (EMI) in industrial environments.
Verify that the SLC processor is configured correctly for M0/M1 file access to enable proper data block mapping.
Always follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
FAQWhat processors are compatible with the MVI46-MNET?This module is compatible with Allen-Bradley SLC 500 series processors, specifically the SLC 5/02 or newer models that support M0/M1 file transfers.How much power does this module draw from the backplane?The MVI46-MNET consumes 800 mA of current from the 5 V DC backplane supply of the 1746 chassis.Can this module be used in any slot of the SLC 500 chassis?Yes, it is designed for a single-slot footprint and can be placed in any available slot within the 1746 chassis, provided the power supply can support the additional current load.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

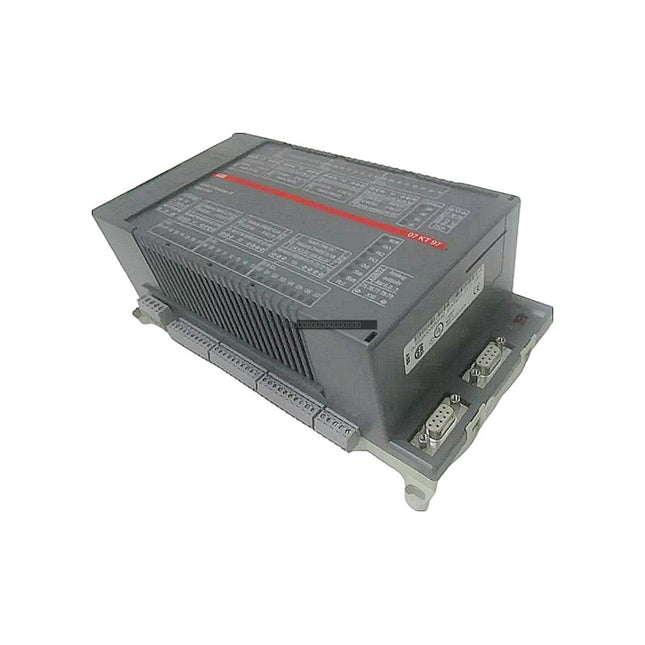

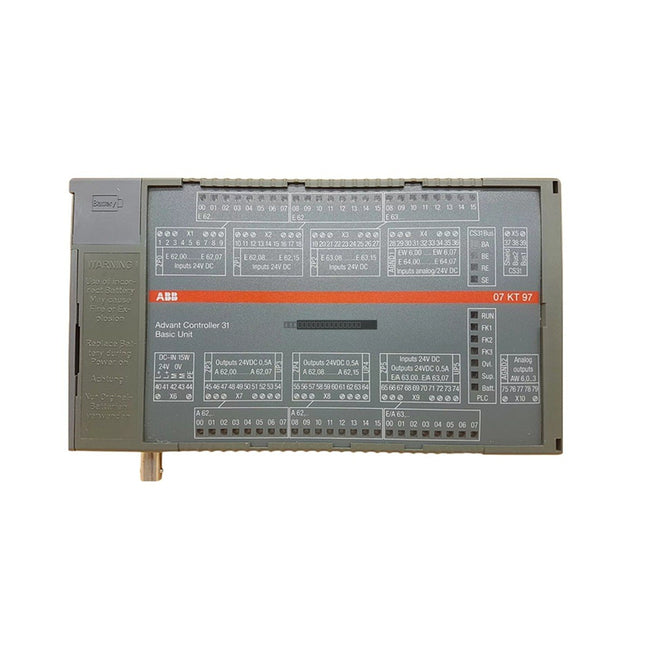

DescriptionThe ABB 07KT97 is a central processing unit belonging to the Advant Controller 31 (AC31) series. Designated by order code GJR5253000R0276, this basic unit serves as a core control component in industrial automation systems, designed to handle complex logic, data processing, and communication tasks. It is engineered for reliability in demanding industrial environments, providing the necessary computational power for integrated machine control and process management.Features
Integrated Ethernet and ARCnet communication interfaces for robust network connectivity.
High-performance processing capabilities within the AC31 architecture.
Compact design suitable for standard industrial control cabinet mounting.
Supports modular expansion, allowing for seamless integration with additional I/O modules in the AC31 family.
Engineered for stable operation in varied industrial temperature and environmental conditions.
ApplicationsThis controller is widely utilized in factory automation, distributed control systems (DCS), and machine-to-machine (M2M) communication networks. It is commonly found in manufacturing plants, power distribution facilities, and processing lines where precise, real-time control and reliable network communication are critical.Technical Specifications
Model
07KT97
Order Code
GJR5253000R0276
Series
Advant Controller 31 (AC31)
Communication
Ethernet, ARCnet
Weight
0.9 kg
Installation Guidelines
Ensure the controller is mounted in a clean, dry, and well-ventilated control cabinet to prevent overheating.
Always disconnect power before installing or removing the unit from the mounting rail or backplane.
Use shielded cables for communication ports to minimize electromagnetic interference (EMI) in high-noise environments.
Verify that the supply voltage matches the specified requirements before powering on the device.
Follow standard ESD (electrostatic discharge) precautions when handling the module to prevent damage to internal circuitry.
FAQWhat is the primary function of the 07KT97?The 07KT97 is a CPU unit for the AC31 series, responsible for executing control logic and managing communication between field devices and the broader control network.Does this unit support Ethernet communication?Yes, this specific model (GJR5253000R0276) includes integrated Ethernet and ARCnet interfaces for versatile connectivity options.Is this unit compatible with other AC31 modules?Yes, it is designed to function as the central processing unit within the AC31 ecosystem, supporting communication and data exchange with compatible expansion modules.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

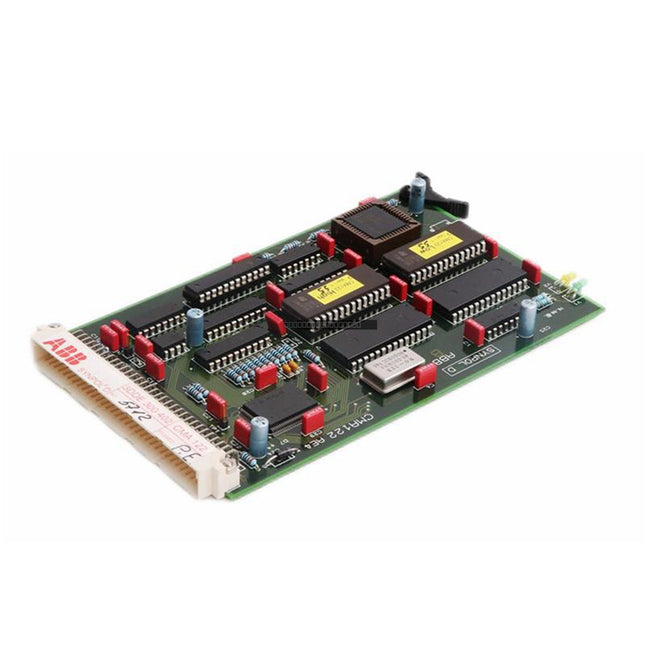

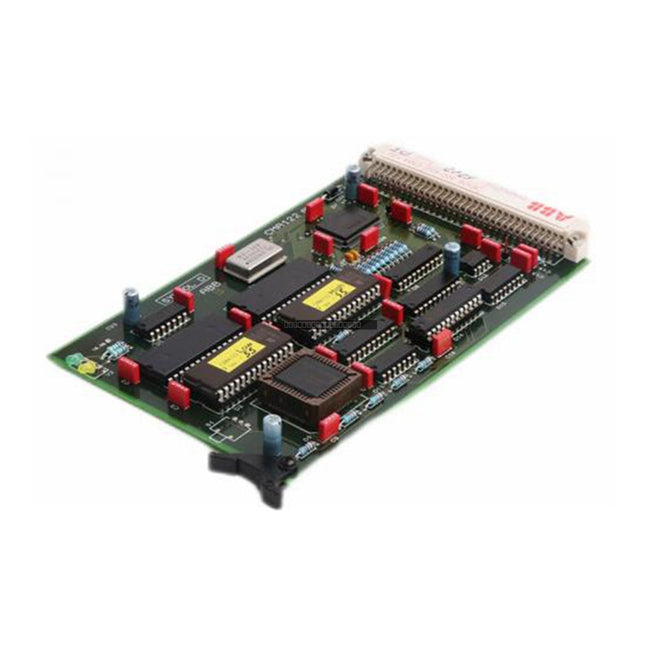

DescriptionThe ABB CMA122, identified by order code 3DDE300402, serves as a primary CPU card within the Synpol D control system architecture. This module is engineered to handle core computational tasks, including logic execution, process control, and system-level communication management. As a critical component of the Synpol D platform, the CMA122 ensures reliable data processing and coordination between connected field devices and the broader control network.Features
Central processing unit designed specifically for the Synpol D control environment.
Facilitates complex logic control and real-time process monitoring.
Manages integrated system communication protocols to ensure seamless data flow.
Compact hardware design optimized for standard industrial rack integration.
Technical Specifications
Model
CMA122
Order Code
3DDE300402
System Series
Synpol D
Function
CPU Card / Central Processing Unit
Installation Guidelines
Ensure the system power is completely disconnected before inserting or removing the CPU card to prevent electrical damage.
Handle the module using proper electrostatic discharge (ESD) precautions, such as wearing a grounded wrist strap.
Verify that the card is fully seated in the designated rack slot and that all locking mechanisms are engaged to ensure a stable connection.
Maintain proper ventilation in the control cabinet to prevent thermal accumulation, as CPU modules require consistent airflow for optimal performance.
Avoid routing communication cables near high-voltage power lines to minimize electromagnetic interference (EMI) impact.
FAQIs the ABB 3DDE300402 compatible with other systems? No, this CPU card is specifically designed for the ABB Synpol D control system architecture.What is the primary function of the CMA122 card? The CMA122 acts as the central processor, managing logic control, system communications, and overall process coordination within its host Synpol D system.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

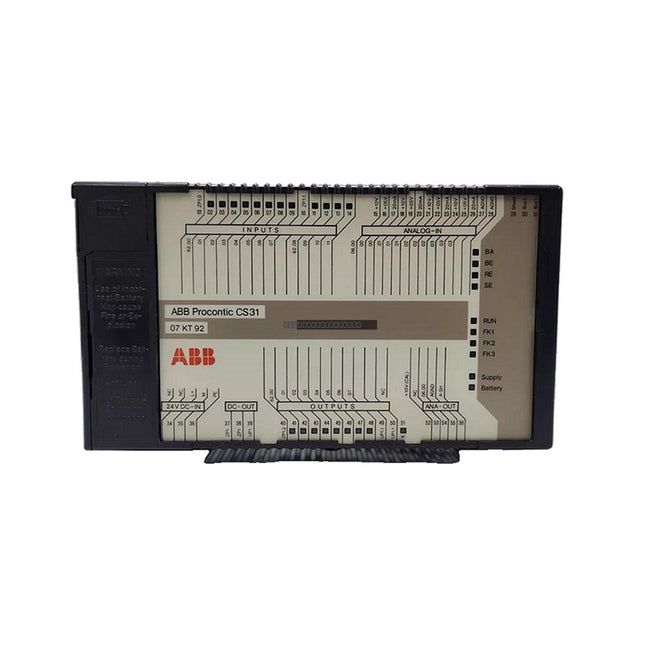

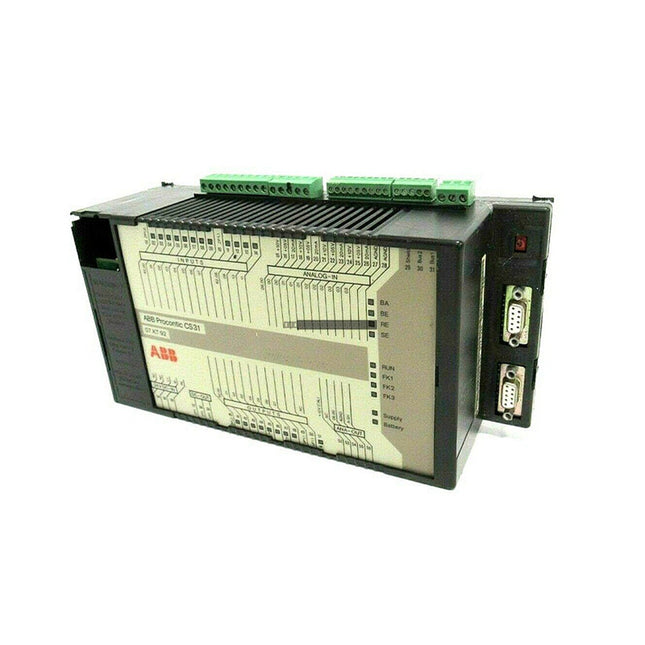

DescriptionThe ABB 07KT92 is a high-performance Central Processing Unit (CPU) designed for the Procontic CS31 series programmable logic controller systems. This module serves as the core intelligence for industrial automation tasks, managing logic execution, communication, and system-wide process control. Engineered for reliability in demanding environments, the 07KT92 ensures seamless integration within the CS31 architecture.Features
Core processing unit for Procontic CS31 PLC systems
High-speed logic execution for industrial automation
Robust design suitable for standard industrial control cabinets
Seamless compatibility with existing CS31 I/O and communication modules
ApplicationsThis CPU is primarily utilized in industrial control systems where the Procontic CS31 platform is deployed. It is suitable for manufacturing line automation, process control monitoring, and machinery management where stable, deterministic logic processing is required.Technical Specifications
Manufacturer
ABB
Model / Order Code
GJR5250500R0902
Series
Procontic CS31
Device Type
Central Processing Unit (CPU)
Weight
0.7 kg
Installation Guidelines
Ensure the power supply is disconnected before installing or removing the CPU module from the rack.
Mount the unit in a clean, dry environment with adequate ventilation to prevent overheating.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to sensitive internal circuitry.
Verify that all terminal connections are secure and that the module is properly seated in its designated slot.
Maintain proper grounding practices to minimize the impact of electromagnetic interference (EMI) on system performance.
FAQIs this unit compatible with all CS31 series components?The 07KT92 is designed for the Procontic CS31 ecosystem. Please verify your specific system configuration and firmware requirements to ensure full compatibility with your existing I/O modules.What should I do if the CPU shows a fault indicator?First, check the power supply voltage and ensure all communication cables are securely connected. Refer to the original ABB Procontic CS31 technical manual for specific diagnostic codes and troubleshooting steps.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

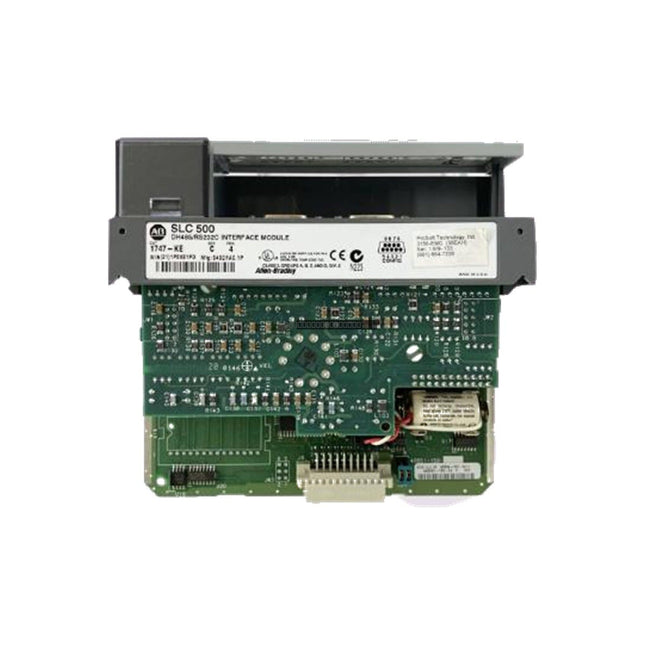

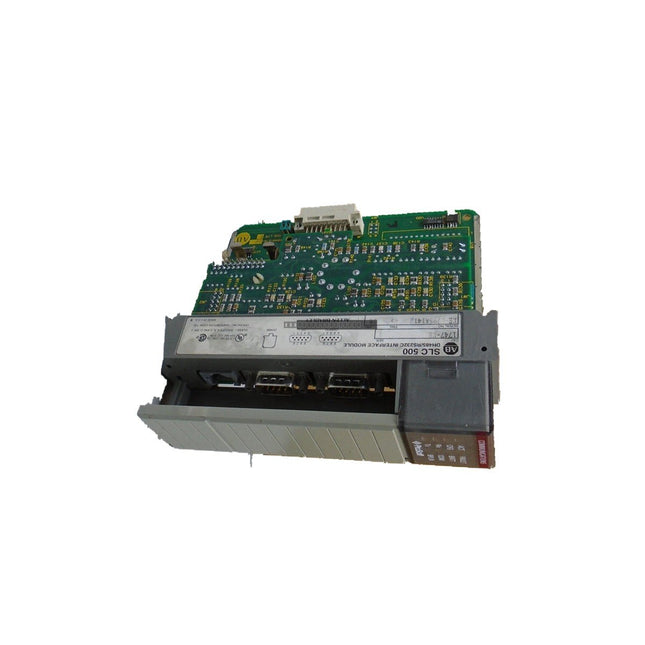

DescriptionThe ProSoft 2150-AGA is a dedicated communication interface module engineered for integration within Allen-Bradley SLC 500 rack systems. This module serves as a reliable bridge for serial connectivity, allowing the SLC backplane to communicate effectively with external peripheral devices. It is frequently deployed in legacy industrial control environments to facilitate data exchange with HMIs, SCADA systems, or other serial-based field instrumentation. By providing a stable interface, the 2150-AGA supports continued operation and data acquisition in critical infrastructure sectors including power generation and water management.Features
Direct backplane mounting within the SLC 500 chassis for seamless system integration.
Supports RS-232 and RS-422 serial communication standards.
Integrated diagnostic LEDs providing real-time status monitoring of backplane activity and serial port data traffic.
Robust industrial construction designed for long-term reliability in high-interference environments.
Protocol support tailored for DF1 serial interface logic, ensuring compatibility with standard industrial communication requirements.
Technical Specifications
Model
2150-AGA
Brand
ProSoft Technology
Platform Compatibility
Allen-Bradley SLC 500
Product Type
Serial Interface Module
Communication Ports
RS-232 / RS-422
Protocol Support
DF1
Backplane Current Load
500 mA at 5 VDC
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Relative Humidity
5 to 95 percent (non-condensing)
Installation Guidelines
Ensure the SLC 500 rack power is disconnected before installing or removing the 2150-AGA module.
Slide the module into an available slot in the SLC 500 chassis, ensuring the backplane connector is fully seated and aligned.
Secure the module using the built-in chassis fasteners to ensure proper grounding and mechanical stability.
Use properly shielded serial cabling to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Verify that the serial communication settings (baud rate, parity, stop bits) on the module match the requirements of the connected external device.
FAQWhat is the primary function of the 2150-AGA module?The 2150-AGA acts as a serial communication bridge for the SLC 500 platform, allowing the processor to exchange data with external serial devices via RS-232 or RS-422 protocols.Is this module compatible with all SLC 500 processors?The 2150-AGA is designed for the SLC 500 series backplane architecture; however, always verify your specific processor firmware and rack configuration to ensure compatibility with your system revision.How is the module powered?The module draws its operating power directly from the SLC 500 backplane, requiring 500 mA at 5 VDC.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

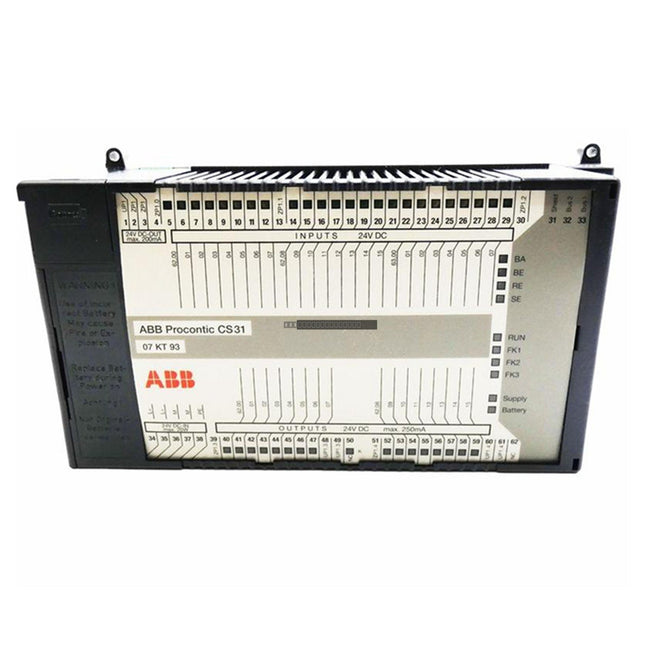

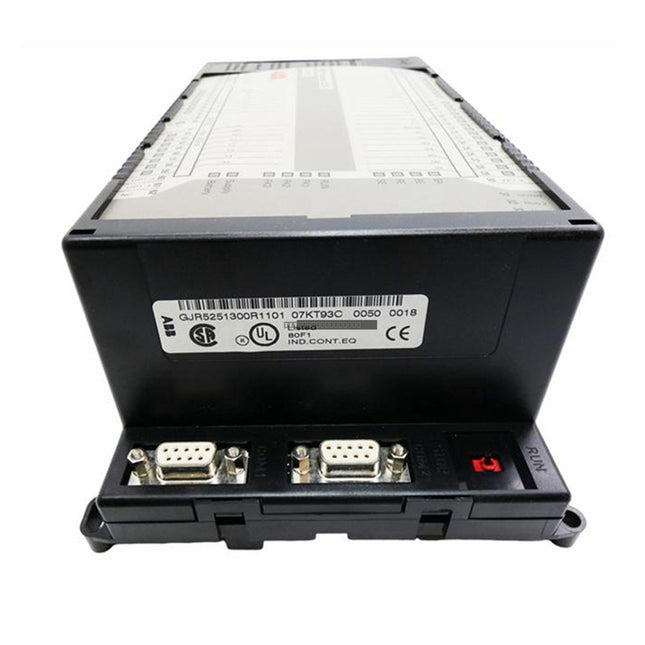

DescriptionThe ABB 07KT93 is a high-performance central processing unit belonging to the Procontic CS31 90 Series. Designed for industrial automation and control tasks, this unit provides robust logic processing capabilities, integrated I/O management, and versatile communication options to support complex machine control and process automation applications.Features
Integrated CPU with 14 K flash EPROM memory for reliable program storage.
Equipped with 24 x 24 VDC digital inputs.
Features 16 x 24 VDC transistor outputs rated at 0.5A per channel.
Dual programmable RS-232 serial ports for peripheral connectivity.
RS-485 system bus support for distributed I/O and networking.
Built-in real-time clock for timestamping and scheduled operations.
Advanced high-speed counter functionality up to 10 kHz.
Integrated PID control functions for precise process regulation.
Operates on a standard 24 VDC power supply.
ApplicationsThe 07KT93 is suitable for a wide range of industrial environments, including packaging machines, assembly lines, and small to medium-scale process control systems where reliable sequence control and high-speed input monitoring are required.Technical Specifications
Model
07KT93
Series
Procontic CS31 90 Series
Supply Voltage
24 VDC
Digital Inputs
24 x 24 VDC
Digital Outputs
16 x 24 VDC (0.5A Transistor)
Memory
14 K flash EPROM
Communication
2 x RS-232, 1 x RS-485
Special Functions
High-speed counter (10 kHz), PID control, Real-time clock
Installation Guidelines
Ensure the unit is installed in an enclosure that provides adequate protection against environmental contaminants and moisture.
Maintain proper ventilation around the unit to prevent overheating; verify that ambient temperatures remain within the manufacturer's specified operating range.
Always disconnect power before performing any wiring, module insertion, or removal to prevent electrical damage or injury.
Use shielded cables for communication lines (RS-232/RS-485) and route them separately from high-voltage power lines to minimize electromagnetic interference (EMI).
Ensure a solid, low-impedance connection to the system ground to maintain signal integrity and safety.
Handle with standard ESD (Electrostatic Discharge) precautions during installation and maintenance.
FAQWhat is the primary function of the 07KT93?The 07KT93 serves as a central control unit (PLC) for the ABB Procontic CS31 system, managing logic execution, I/O handling, and communication tasks.Does this unit support external communication?Yes, it features two programmable RS-232 ports and an RS-485 system bus for integration with other devices and fieldbus networks.What is the power requirement for this module?The unit operates on a 24 VDC power supply.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

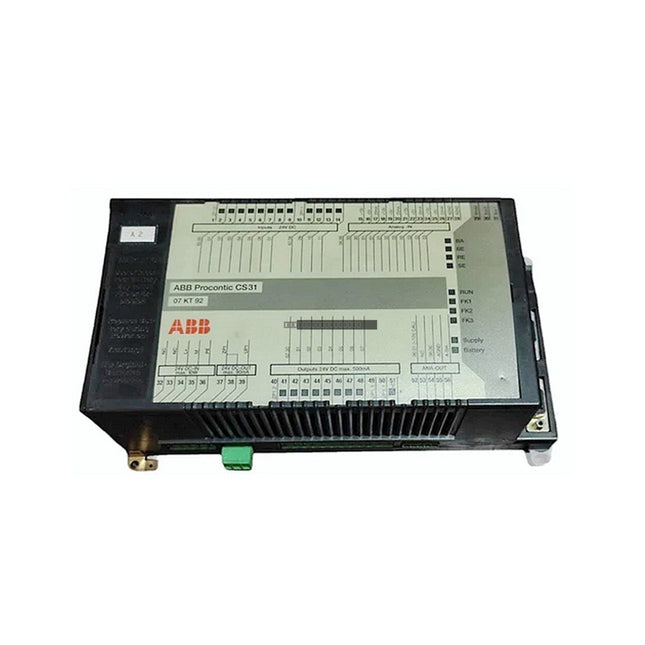

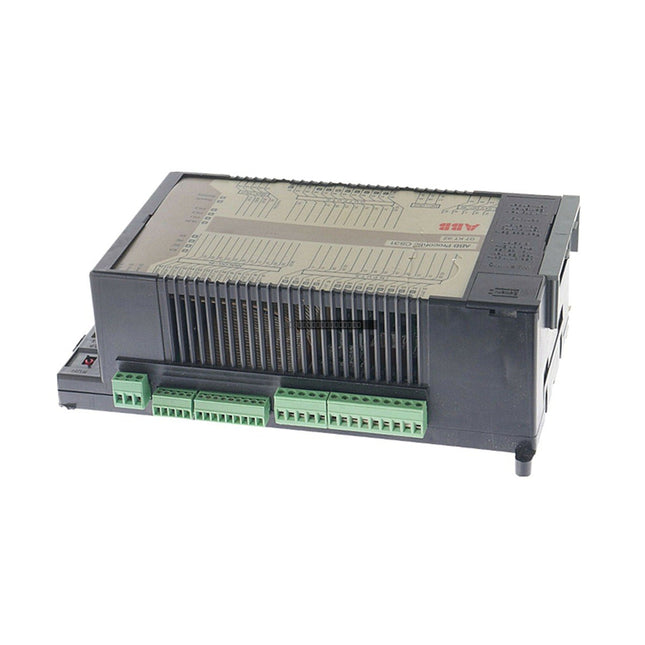

The ABB 07KT92 (GJR5250500R0262) is a central processing unit from the Procontic 90 series, designed for industrial automation and control applications. This unit includes integrated Real-Time Clock (RTC) functionality, providing precise timing capabilities for sequence control and data logging within the CS31 system architecture.Features
Part of the established ABB Procontic 90 series product line.
Integrated Real-Time Clock (RTC) for time-stamped operations.
Robust architecture suitable for demanding industrial environments.
Designed for seamless integration with CS31 fieldbus communication protocols.
ApplicationsThis CPU is primarily utilized in legacy industrial automation systems where high-reliability logic processing and fieldbus management are required. It is commonly found in manufacturing, process control, and machine automation environments relying on the Procontic CS31 ecosystem.Technical Specifications
Manufacturer
ABB
Model Number
GJR5250500R0262
Type
07KT92 Central Processing Unit
Series
Procontic 90
Features
Includes RTC (Real-Time Clock)
Status
Discontinued by Manufacturer
Installation Guidelines
Ensure the CPU is installed in a clean, dry, and vibration-free environment to prevent hardware damage.
Always disconnect power supply before inserting or removing the module from the rack to avoid electrical arcing or short-circuiting.
Verify that all communication cables are properly shielded and routed away from high-voltage power lines to minimize electromagnetic interference (EMI).
Ensure proper ventilation around the unit to maintain operating temperatures within the manufacturer's specified range.
Follow standard ESD (electrostatic discharge) precautions when handling the module to protect sensitive internal circuitry.
FAQIs the ABB 07KT92 still in production?No, this model has been officially discontinued by the manufacturer. We provide these units as refurbished or surplus spare parts to support legacy system maintenance.Does this unit include the battery for the RTC?The unit is supplied as a hardware module. Depending on the specific surplus condition, the internal battery for the real-time clock may require replacement upon installation to ensure time-keeping accuracy.Is this CPU compatible with all Procontic 90 series components?The 07KT92 is designed for the Procontic 90 series and CS31 bus systems. Please consult your original system documentation or wiring diagrams to ensure compatibility with your specific existing rack configuration.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

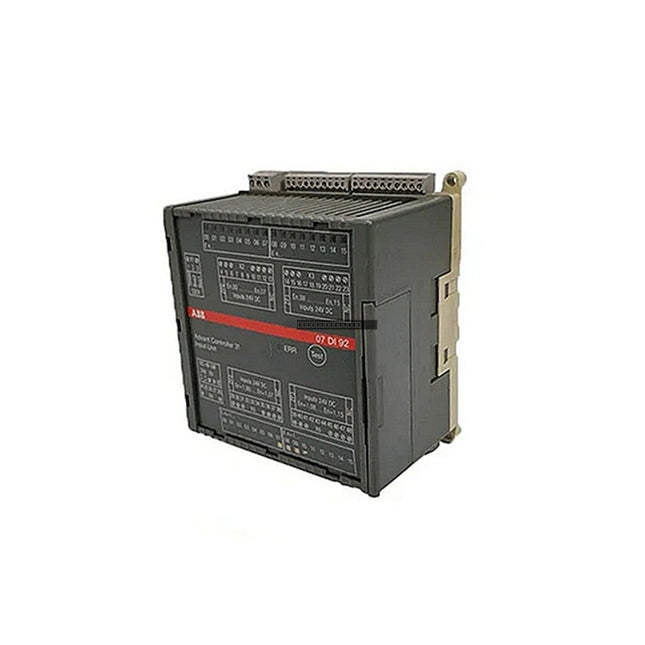

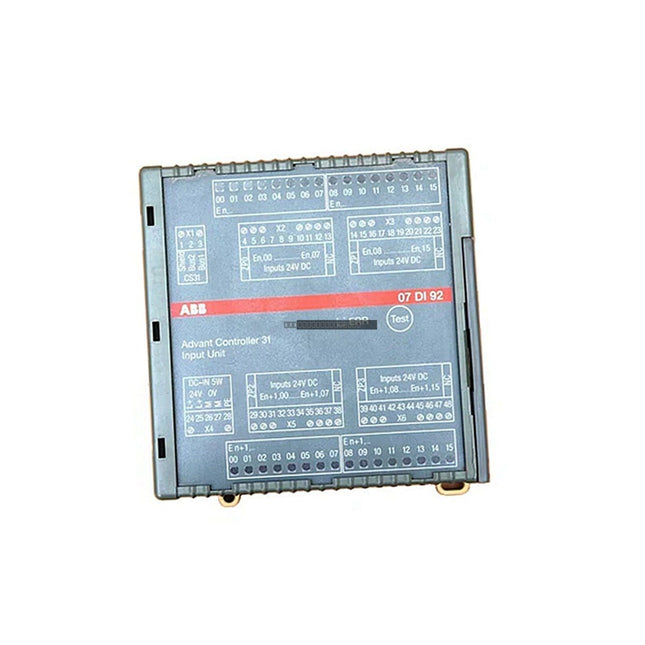

DescriptionThe ABB 07 DI 92 WT92 (GJR5252400R4101) is a high-density digital input module designed for industrial automation applications. This module provides reliable signal processing, allowing for the integration of 32 digital inputs into your control system architecture. Engineered for consistent performance, it operates efficiently with a 24VDC supply, making it suitable for a wide range of standard industrial sensing and monitoring tasks.Features
Provides 32 dedicated digital input channels for high-density I/O requirements.
Standard 24VDC operating voltage compatible with common industrial sensors and switches.
Designed for robust operation within an ambient temperature range of 0 to +55 degC.
Compact modular design suitable for standard control cabinet integration.
Technical Specifications
Model Number
07 DI 92 WT92
Order Code
GJR5252400R4101
Number of Channels
32
Input Type
Digital
Supply Voltage
24 V DC
Operating Temperature
0 to +55 degC
Storage Temperature
-25 to +70 degC
Certifications
CE, CSA, LR
Installation Guidelines
Ensure the control system is powered down before installing or removing the module from the rack or backplane.
Handle the module using proper ESD precautions to prevent damage to internal electronic components.
Verify that the supply voltage matches the 24VDC specification before applying power to the I/O terminals.
Maintain proper ventilation in the control cabinet to keep the ambient temperature within the specified 0 to +55 degC range.
Route signal wiring away from high-voltage power cables to minimize electromagnetic interference (EMI).
FAQWhat is the primary function of the ABB 07 DI 92 WT92?This module serves as a digital input interface, converting field-level digital signals into a format processed by the ABB control system.Is this module compatible with standard 24VDC systems?Yes, the module is designed for 24VDC input applications, which is standard for most industrial automation and PLC environments.What should I do if the module is exposed to temperatures outside the operating range?Operating outside the specified 0 to +55 degC range may result in reduced reliability or permanent damage. Always ensure the cabinet cooling system is functioning correctly.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe ABB 07AI91 (GJR5251600R0202) is a high-performance analog I/O module designed for the Advant Controller 31 (AC31) system. This versatile unit provides flexible signal processing for industrial automation tasks, supporting a wide range of input configurations including voltage, current, and RTD sensors. Engineered for reliability in demanding environments, the module features robust isolation and high-resolution signal conversion for precise process control.Features
Supports 8 differential or 16 single-ended analog inputs.
Configurable for U/I/RTD input types.
16-bit resolution (including sign) for high-precision data acquisition.
Supports 1/3-wire connection configurations.
Integrated 1500V AC isolation for protection against electrical noise and transients.
Optimized for 24V DC supply voltage with low power consumption.
Technical Specifications
Model
07AI91 (GJR5251600R0202)
System
Advant Controller 31 (CS31)
Supply Voltage
24V DC +/- 10%
Power Consumption
3.2W (typical)
Input Channels
8 Differential / 16 Single-ended
Resolution
16-bit (including sign)
Current Input
0-20mA, 4-20mA
Accuracy
+/- 0.1% of span (at 25 degC)
Operating Temperature
-25 degC to +60 degC
Storage Temperature
-40 degC to +85 degC
Relative Humidity
5% to 95% (non-condensing)
Installation Guidelines
Ensure the control system is powered down before installing or removing the module from the rack.
Mount the module in a clean, dry environment with adequate ventilation to maintain operating temperatures within the specified range.
Use shielded twisted-pair cabling for all analog signals to minimize electromagnetic interference (EMI).
Maintain proper grounding practices to ensure signal integrity and electrical safety.
Verify that the supply voltage is stable and within the 24V DC +/- 10% tolerance before powering the system.
FAQWhat type of sensors can be connected to the 07AI91?This module is designed to accept voltage, current (0-20mA/4-20mA), and RTD inputs, making it suitable for a variety of industrial sensors and transmitters.Is this module compatible with the CS31 bus?Yes, the 07AI91 is a dedicated component for the ABB Advant Controller 31 (CS31) series, designed for seamless integration into the CS31 fieldbus architecture.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

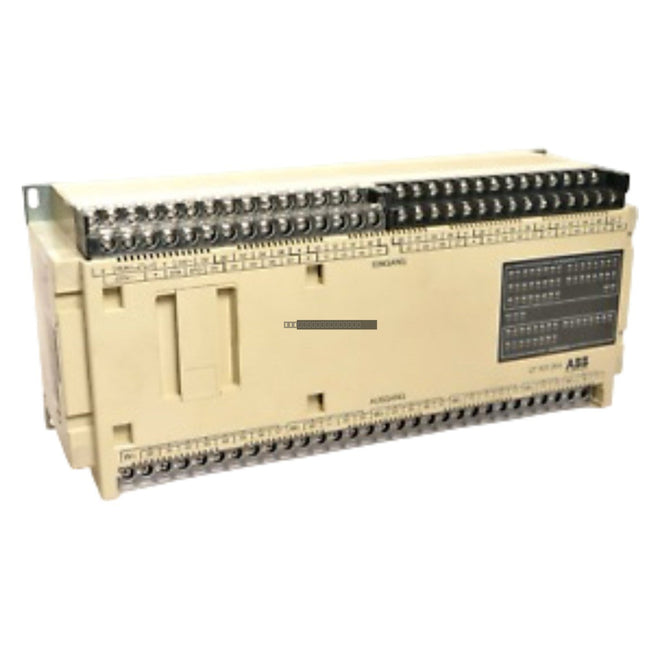

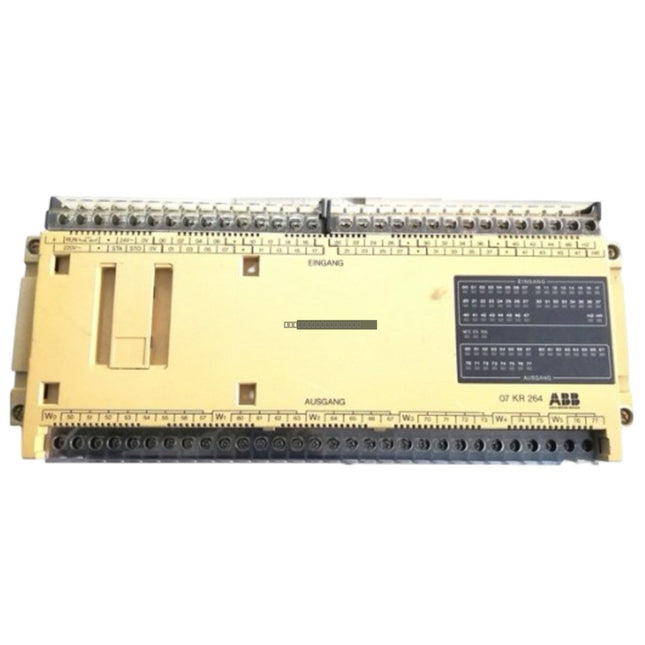

DescriptionThe ABB 07KR264 is a fundamental configuration unit designed for the PROCONTIC K200 programmable logic controller (PLC) system. This module serves as a critical component in managing the basic operational parameters and system configuration within the K200 architecture. Engineered for industrial environments, it facilitates stable control functions and system integration for automation tasks requiring reliable processing capabilities.Features
Designed specifically for compatibility with the ABB PROCONTIC K200 series.
Functions as a foundational configuration unit for system setup and operation.
Supports standard 220 V power input requirements.
Robust construction suitable for integration into industrial control panels.
ApplicationsThe 07KR264 module is primarily utilized in legacy automation systems where the PROCONTIC K200 platform is employed. It is typically found in manufacturing, process control, and machine automation environments where centralized logic control and system configuration management are required.Technical Specifications
Manufacturer
ABB
Model / Order Code
07KR264
System Series
PROCONTIC K200
Supply Voltage
220 V
Product Type
Basic Configuration Unit
Installation Guidelines
Ensure all power is disconnected from the rack before inserting or removing the 07KR264 unit to prevent electrical damage.
Verify that the module is securely seated in the designated slot within the PROCONTIC K200 backplane.
Maintain adequate spacing around the module to allow for proper thermal dissipation during operation.
Ensure the installation environment is free from excessive vibration, dust, and moisture to maintain long-term reliability.
Follow standard ESD (Electrostatic Discharge) protocols when handling the module to protect internal circuitry.
FAQIs this unit compatible with newer ABB PLC systems?The 07KR264 is specifically engineered for the legacy PROCONTIC K200 series. It is not designed for direct compatibility with contemporary ABB AC500 or similar modern controller series.What is the primary function of the 07KR264?This unit acts as a basic configuration module, essential for defining the operational parameters and system-level settings within the K200 PLC architecture.
