هانيويل FSC (وحدة التحكم الآمنة من الفشل)
-

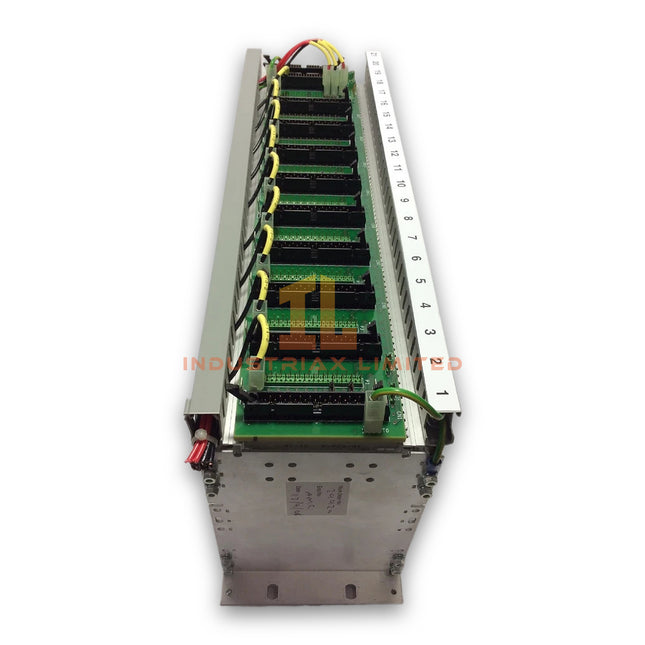

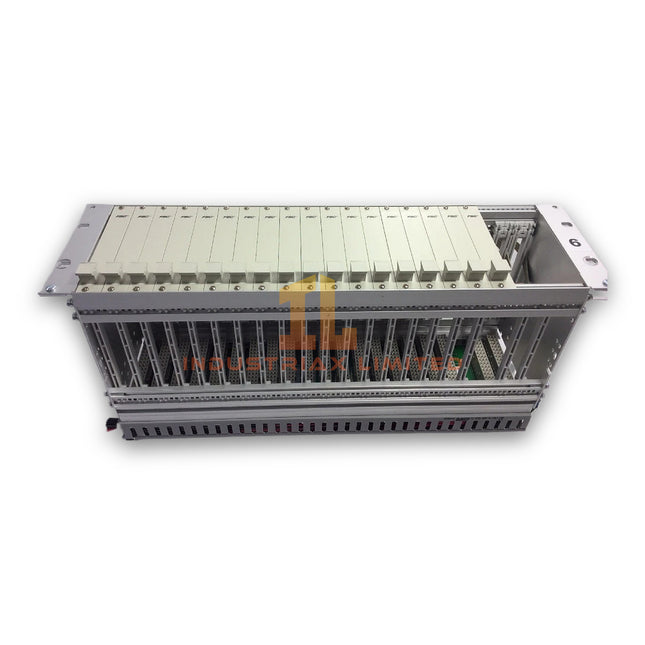

Honeywell Honeywell 10315/1/1 Field Termination Assembly Base Interface Board
Honeywell 10315/1/1 Field Termination Assembly Base Interface Board The Honeywell 10315/1/1, also cataloged as the 10315/1/1 Field Termination Assembly Base Interface Board, operates as a dedicated hardware component for discrete field signal termination and routing within Honeywell Fail Safe Control (FSC) and Safety Manager systems. Hardware Specifications Parameter Specification Model Honeywell 10315/1/1 (suffix variation /19) Brand Honeywell Module Type Field Termination Assembly (FTA) / Base Interface Board System Compatibility Honeywell Fail Safe Control (FSC) and Safety Manager platforms Signal Type Discrete input / dry contact field signal interface Channel Capacity Multi-channel discrete interface, typically 16-channel configuration Operating Voltage 24 VDC nominal field circuit supply Isolation Galvanic isolation between field wiring and internal system circuits Mounting Type DIN-rail or panel mounting within FSC rack assembly Terminal Connection Screw-type or pluggable field wiring terminals Operating Temp -20 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 5% to 95%, non-condensing Power Consumption Not specified; supplied through connected FSC system interface Honeywell FSC Field Signal Termination and Isolation The Honeywell 10315/1/1 provides direct electrical termination between discrete field devices and FSC safety processing modules. The board routes dry contact signals, status inputs, and discrete field circuits through defined termination points while maintaining channel-to-channel isolation. In addition, the module supports Honeywell safety system architectures where signal integrity depends on controlled field wiring, electrical separation, and diagnostic compatibility. The design follows FSC interface requirements for fail-safe state execution and safety loop monitoring. Frequently Asked Questions Q: What type of field signals does the Honeywell 10315/1/1 support?A: The 10315/1/1 supports discrete field signal termination, including dry contact inputs and status switch connections used by Honeywell FSC and Safety Manager systems. Q: Does the 10315/1/1 provide electrical isolation?A: Yes. The assembly provides galvanic isolation between field wiring interfaces and internal control system circuits to reduce interference and maintain signal separation. Q: Can the module be replaced while the safety system remains powered?A: Hot-swap capability depends on the specific FSC rack configuration and system operating procedures. Field replacement should follow Honeywell approved maintenance instructions. Field Installation Guidelines Install the 10315/1/1 within the specified Honeywell FSC rack or approved panel assembly location. Verify terminal identification before connecting field wiring to prevent incorrect channel assignment. Route field signal cables separately from high-voltage power conductors to reduce electromagnetic interference. Connect cable shields according to the plant grounding standard and avoid multiple-point shield grounding unless required by the system design. Inspect terminal tightening, connector seating, and PCB condition before system commissioning. Confirm field loop continuity and insulation conditions before applying system power.
$200.00 $100.00
-

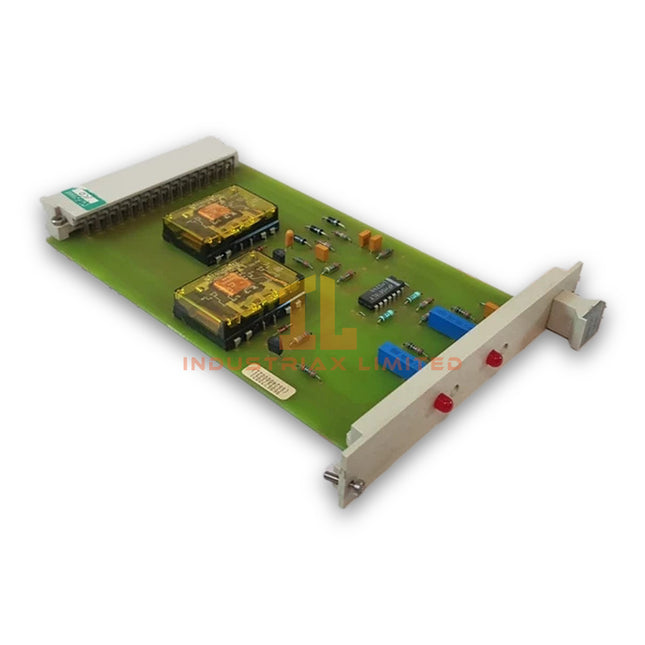

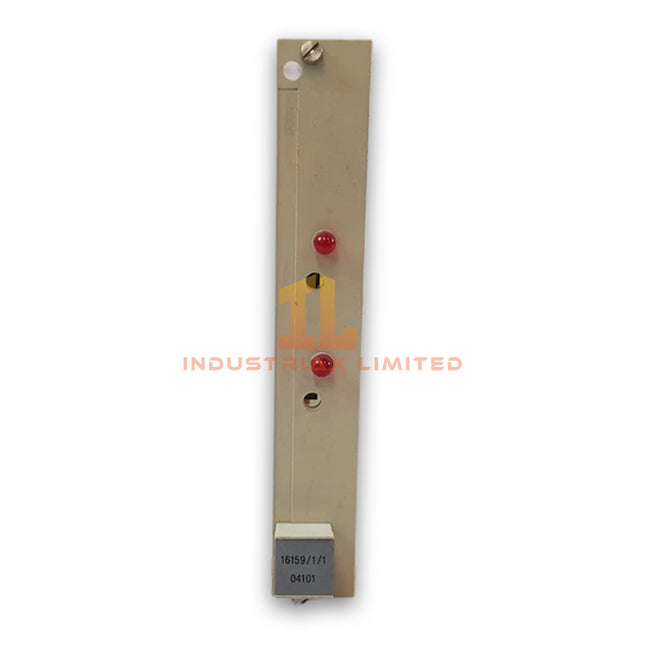

Honeywell Honeywell 16159/1/1 Digital Input Module
Honeywell 16159/1/1 Digital Input Module The Honeywell 16159/1/1, also cataloged as the 16159/1/1 Digital Input Module, operates as a dedicated hardware component for acquiring isolated field contact signals within Honeywell Fail Safe Controller (FSC) systems. Hardware Specifications Parameter Specification Model 16159/1/1 Brand Honeywell Origin USA Module Type Digital Input Module Input Function Isolated digital signal acquisition Number of Channels 16 isolated digital inputs Input Voltage Rating 24 VDC / 240 VAC dependent on configuration Input Current 20 mA Input Impedance 100 kOhm Isolation Voltage 3000 VDC Communication Protocol System integrated communication interface Communication Speed 9600 bps Mounting Type Rack mount / DIN rail mounting Dimensions Approx. 2.0 cm x 12.7 cm x 19.1 cm Weight Approx. 0.11 kg to 0.20 kg Process Control Signal Isolation and Interface Characteristics The Honeywell 16159/1/1 Digital Input Module provides electrical separation between field devices and the FSC processing layer. It accepts discrete signals from switches, relay contacts, and sensor outputs, then transfers the acquired states to the controller logic. Furthermore, the module design supports channel-to-channel isolation to reduce interference between independent field circuits. The isolated input structure improves signal integrity when connected to distributed field wiring systems. The module follows Honeywell process control hardware practices and supports integration with safety-related input monitoring architectures. However, specific HART, FOUNDATION Fieldbus, or Profibus PA functions are not applicable because this module performs discrete input acquisition rather than analog transmitter communication. Frequently Asked Questions Q: Does the Honeywell 16159/1/1 support hot-swap replacement during system operation?A: Hot-swap capability depends on the installed FSC rack configuration and system hardware revision. Verify the approved replacement procedure before removing the module from an active rack. Q: What type of field signals can connect to the 16159/1/1 inputs?A: The module accepts discrete field signals from contact devices and digital switching sources within the specified voltage range. Q: How should field wiring be installed to reduce signal interference?A: Install field cables according to site wiring standards, separate signal cables from high-power conductors, and apply appropriate grounding practices for shielded cables. Field Installation Guidelines Install the module in the designated Honeywell FSC rack or approved mounting location. Confirm the module part number before installation to maintain hardware compatibility. Connect field input wiring according to the approved terminal assignment documentation. Separate digital input cables from high-voltage power wiring to minimize electrical noise coupling. Ground cable shields according to the site instrumentation grounding specification. Verify input channel status after installation through the FSC diagnostic interface. Perform functional testing of connected field devices before placing the control loop into service.
$200.00 $100.00
-

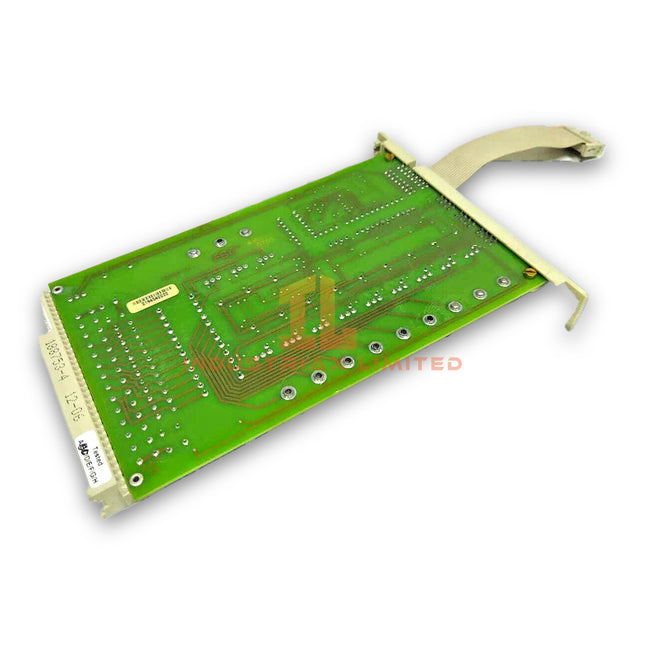

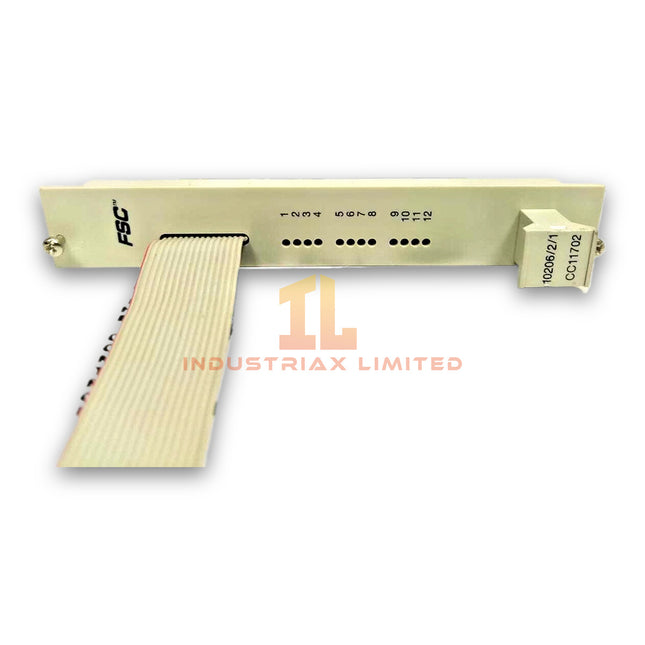

Honeywell Honeywell 10206/2/1 Digital Output Module
Honeywell 10206/2/1 Digital Output Module The Honeywell 10206/2/1, also cataloged as the 10206/2/1 Digital Output Module, operates as a dedicated hardware component for 24 VDC discrete actuator control within Honeywell FSC Safety Control System platforms. Hardware Specifications Parameter Specification Model 10206/2/1 Brand Honeywell Origin United States Product Type Digital Output Module System Family Honeywell FSC Safety Control System Output Type 24 VDC solid-state source output Number of Output Channels 12 channels Output Configuration Two groups of six channels Maximum Channel Current 550 mA per channel Maximum Load Power 13 W per output channel Maximum Lamp Load 275 mA, 6.6 W Output Protection Short-circuit protected solid-state output Inductive Load Protection Integrated suppression diode Maximum Load Capacitance 1 F Voltage Drop Less than 1.5 VDC at 500 mA Off Current Less than 0.1 mA Watchdog Input Current 0.06 mA Internal Supply Voltage 5 VDC Internal Power Consumption 25 mA at 5 VDC External Supply Voltage 24 VDC External Supply Current 230 mA without output load Rack Space Requirement 4 TE, 3 HE (4 HP, 3U) Approvals CE, TÜV, UL Software Compatibility Version 3.00 Module Coding Holes A9, C13 Rack Coding Large pins A9, C13 Channel Isolation and Process Output Control The Honeywell 10206/2/1 provides twelve solid-state digital output channels for discrete field device operation. Each channel switches a 24 VDC supply source and supports resistive and inductive loads. Additionally, the module divides outputs into two six-channel groups, which allows separate external supply connections for field power distribution. The output circuitry integrates short-circuit protection and suppression components. Therefore, the module reduces switching disturbances when controlling inductive devices such as solenoid valves and relay coils. The FSC watchdog function monitors system operation and forces output deactivation when the controller enters a shutdown condition. Frequently Asked Questions Q: Does the Honeywell 10206/2/1 provide fail-safe tested outputs?A: No. The module provides standard solid-state digital outputs and does not implement tested fail-safe output functions. Q: How does the module handle inductive field loads?A: The module integrates suppression diodes to reduce voltage disturbances generated by inductive loads during switching operations. Q: How are the output channels arranged for external power connection?A: The twelve channels are divided into two groups of six outputs, allowing separate 24 VDC external supply connections. Field Installation Guidelines Install the Honeywell 10206/2/1 in the designated FSC rack position according to the hardware configuration requirements. Verify module coding positions before insertion to prevent incorrect rack installation. Connect the external 24 VDC field supply lines according to the specified output group arrangement. Separate field wiring from high-voltage power cables to reduce electrical interference. Use appropriate shield grounding practices for connected field devices when required by the installation design. Confirm actuator polarity, load current, and protection requirements before commissioning. During maintenance activities, verify output status through FSC diagnostics before disconnecting field wiring. Follow the approved FSC system procedures for module replacement and functional testing.
$200.00 $100.00
-

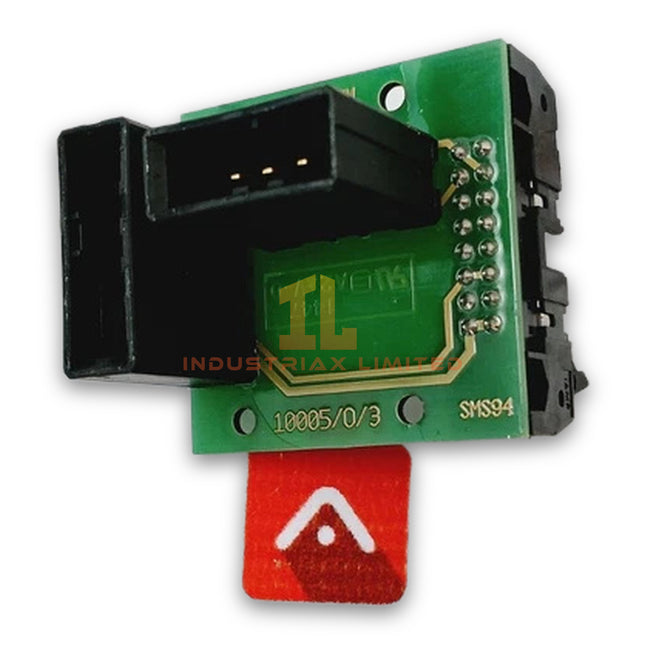

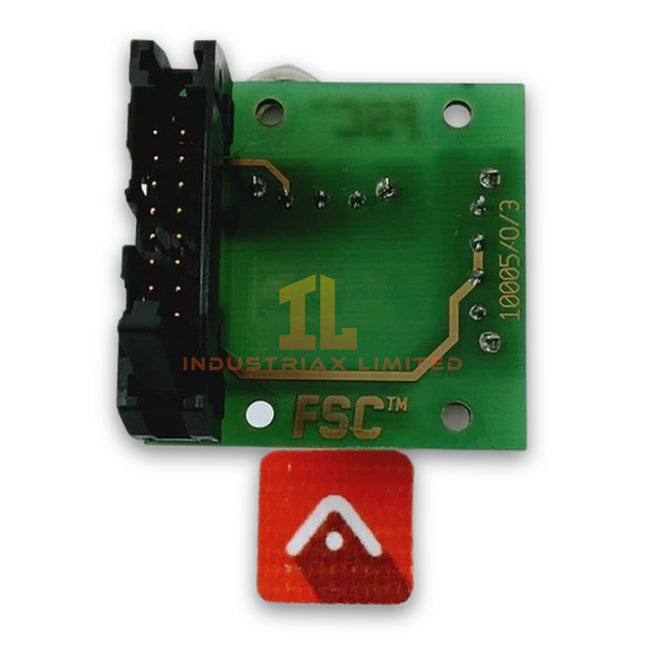

Honeywell Honeywell 10005/0/3 Fail Safe Control Bus Communication Module
Honeywell 10005/0/3 Fail Safe Control Bus Communication Module The Honeywell 10005/0/3, also cataloged as the 10005/0/3 Bus Communication Module, operates as a dedicated hardware component for system bus communication and signal routing within Honeywell FSC and Safety Manager platforms. Hardware Specifications Parameter Specification Model 10005/0/3 Brand Honeywell Origin USA Module Type Bus Communication Interface Module System Compatibility Honeywell Fail Safe Control (FSC) / Safety Manager Functional Role System bus communication and internal signal routing Safety Integrity Level Up to SIL 3 according to IEC 61508 / IEC 61511 Mounting Type FSC rack / sub-rack installation Operating Temp 0 deg C to +60 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 5% to 95% non-condensing Safety Manager Bus Communication and Fault Handling The Honeywell 10005/0/3 provides internal communication between FSC system components through the safety controller backplane architecture. It manages bus-level data exchange, module addressing, and signal routing functions required by the Safety Manager platform. Additionally, the module supports diagnostic monitoring to identify internal communication faults and hardware status deviations. The FSC architecture applies fail-safe execution principles, where detected hardware errors trigger predefined safety responses. The module design supports safety system configurations requiring SIL 3 operation. Furthermore, its hardware isolation and fault detection functions maintain controlled communication behavior during abnormal operating conditions. Frequently Asked Questions Q: Does the Honeywell 10005/0/3 support hot-swapping?A: The module is designed for FSC rack maintenance procedures. Hot replacement capability depends on the specific rack configuration and system operating rules. Q: What communication function does the 10005/0/3 provide in the FSC system?A: The module performs internal bus communication and signal routing between Honeywell FSC and Safety Manager system components. Q: Can the module operate in SIL 3 safety applications?A: The module supports Honeywell safety system architectures designed for SIL 3 applications when installed within an approved FSC configuration. Field Installation Guidelines Install the module only in the designated Honeywell FSC rack or approved Safety Manager sub-rack position. Verify rack power isolation before module insertion or removal during maintenance activities. Confirm backplane connector alignment before securing the module into the rack. Maintain proper cabinet grounding and shielding practices to reduce electromagnetic interference. Route communication wiring separately from high-voltage power cables to minimize electrical noise coupling. Check system diagnostics after installation to confirm communication status and module recognition.
$200.00 $100.00
-

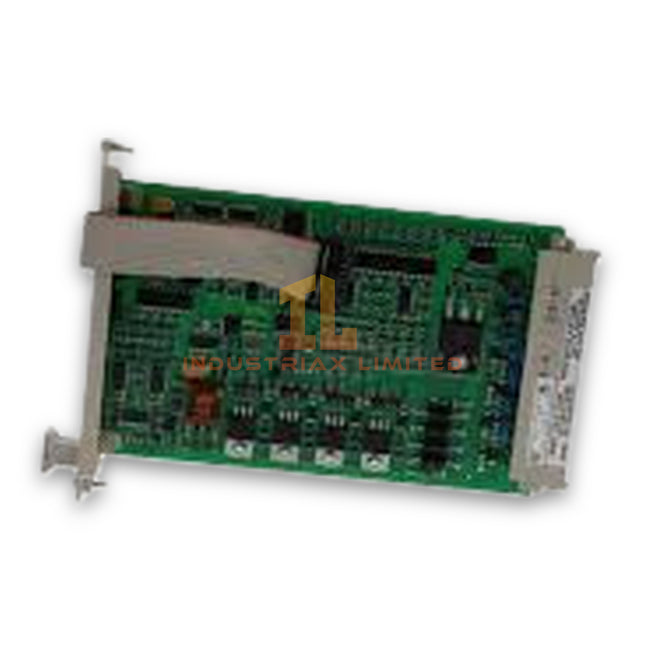

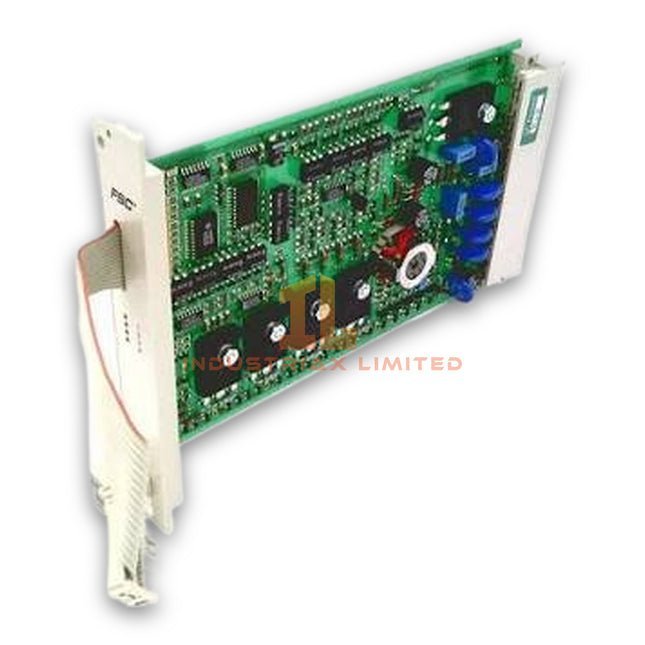

Honeywell Honeywell 10213/2/3 Fail-Safe Digital Output Module
Honeywell 10213/2/3 Fail-Safe Digital Output Module The Honeywell 10213/2/3, also cataloged as the 10213/2/3 Fail-Safe Digital Output Module, operates as a dedicated hardware component for fail-safe output switching within Honeywell FSC Safety Instrumented System platforms. The module executes field device control through solid-state digital output channels with defined safe-state behavior. Hardware Specifications Parameter Specification Model 10213/2/3 Spare Model 12200 Brand Honeywell Origin USA Module Type Fail-Safe Digital Output Module Application System Honeywell Fail-Safe Controller (FSC) / Safety Instrumented System (SIS) Output Channels 4 solid-state digital output channels Output Type Fail-safe solid-state switching Field Output Voltage 48 VDC nominal Maximum Channel Current 750 mA per channel Maximum Channel Load 36 W per channel Internal Power Consumption Approx. 25 mA at 5 VDC; approx. 20 mA at 48 VDC no load Weight 0.2 kg Dimensions 2.5 cm x 12.7 cm x 20.3 cm Operating Temp -20 deg C to +60 deg C Estimated Shipping Size 2.5 cm x 12.7 cm x 20.3 cm Fail-Safe Output Execution and Isolation The Honeywell 10213/2/3 module controls field actuators through isolated solid-state output circuits. It monitors output conditions and drives connected devices to the configured safe state when internal diagnostics detect abnormal operation. In addition, the module applies galvanic isolation between controller electronics and field wiring interfaces. This isolation reduces electrical interference effects and supports fail-safe state execution in SIS architectures. The output circuitry includes protection functions for inductive and resistive loads. Therefore, field devices such as solenoid valves, relays, alarms, and shutdown actuators can receive controlled switching signals from the FSC platform. Frequently Asked Questions Q: Does the Honeywell 10213/2/3 support hot-swap replacement?A: The module design supports maintenance replacement procedures within FSC rack configurations when the system configuration permits. Operators must follow approved shutdown and replacement procedures. Q: How does the module handle output faults?A: The module uses diagnostic monitoring and fail-safe output logic to force outputs into predefined safety states when detected faults occur. Q: What type of field devices can connect to this digital output module?A: The module supports field devices requiring solid-state digital switching, including actuators, solenoids, relays, and alarm devices within supported electrical limits. Field Installation Guidelines Install the module in the designated Honeywell FSC rack slot according to system configuration documentation. Verify rack power isolation before module insertion or removal. Use properly terminated field wiring and maintain separation between signal cables and high-energy power conductors. Connect cable shields according to plant grounding standards to reduce electrical noise coupling. Confirm output polarity, field voltage level, and load characteristics before energizing connected devices. Perform system diagnostics after installation to verify correct channel operation and fail-safe response behavior.
$200.00 $100.00
-

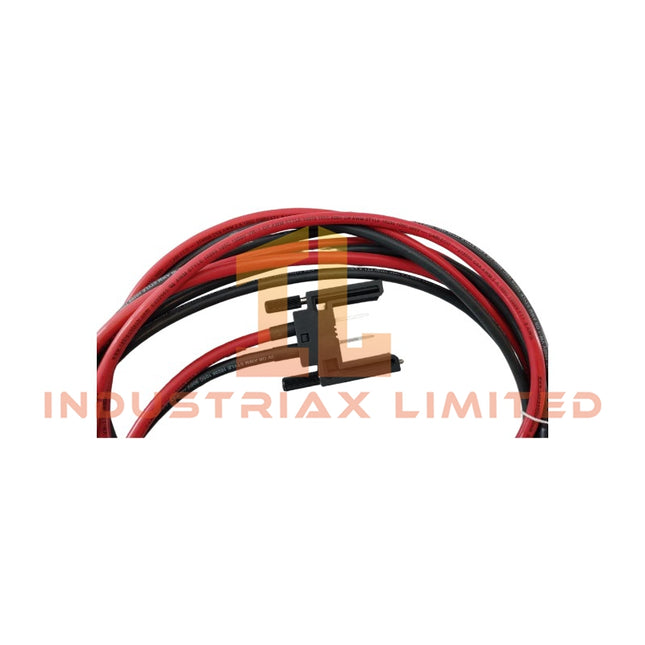

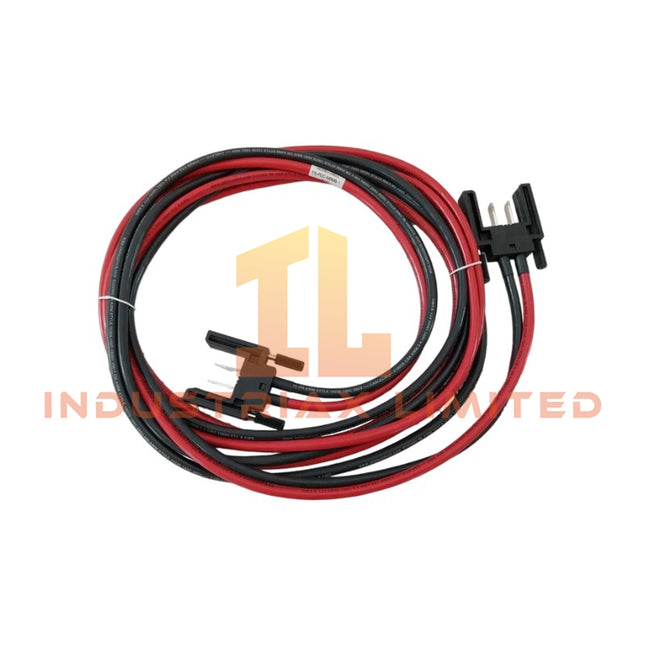

Honeywell Honeywell FS-PDC-MBMB-1 Power Distribution Cable
Honeywell FS-PDC-MBMB-1 Power Distribution Cable Configured for 24 VDC and 48 VDC power rail interconnection in Honeywell Safety Manager systems, the Honeywell FS-PDC-MBMB-1 (FS-PDC-MBMB-1 Power Distribution Cable) provides direct electrical power transfer between FS-MB-0001 mains power rails inside control cabinets. Hardware Specifications Parameter Specification Model FS-PDC-MBMB-1 Brand Honeywell Origin USA Power Consumption Passive cable assembly, no independent power consumption Product Type Power Distribution Cable System Compatibility Honeywell Safety Manager / FSC System Application FS-MB-0001 mains power rail to mains power rail connection Operating Voltage 24 VDC / 48 VDC Current Rating Up to 30 A per cable; up to 100 A with dual parallel cable configuration Connector Type Polarized plug with integrated locking screws Installation Location Internal cabinet power distribution wiring Honeywell Power Distribution and Cabinet Electrical Interface The FS-PDC-MBMB-1 transfers DC power between matching FS-MB-0001 mains power rails within Honeywell Safety Manager cabinet assemblies. The polarized connector design maintains correct polarity during installation and prevents incorrect cable insertion. In addition, the integrated locking screws secure the connector directly to the power rail housing nut positions. This mechanical retention reduces the possibility of connector loosening caused by cabinet vibration or maintenance activities. The cable supports high-current cabinet power distribution configurations. Therefore, systems requiring current capacity above 30 A can install two FS-PDC-MBMB-1 cables in parallel, with one cable positioned near the upper section and one near the lower section of the power rails. Frequently Asked Questions Q: Can the FS-PDC-MBMB-1 connect different types of power rails?A: No. The FS-PDC-MBMB-1 is designed for connection between FS-MB-0001 mains power rails of the same type. Q: Does the FS-PDC-MBMB-1 require a separate power supply or communication interface?A: No. The cable assembly provides passive DC power distribution and does not contain active electronics or communication circuits. Q: How is higher cabinet current capacity achieved with this cable?A: A dual FS-PDC-MBMB-1 parallel configuration increases current handling capability for applications requiring up to 100 A distribution capacity. Field Installation Guidelines Install the FS-PDC-MBMB-1 only between compatible FS-MB-0001 mains power rails. Verify DC voltage level and polarity before connecting the cable assembly. Tighten the integrated locking screws to maintain mechanical retention after installation. Route the cable inside the cabinet according to the approved power wiring layout. Separate high-current DC power cables from sensitive signal wiring to reduce electrical interference. Inspect connector seating and mechanical fastening during cabinet commissioning and maintenance procedures.
$200.00 $100.00
-

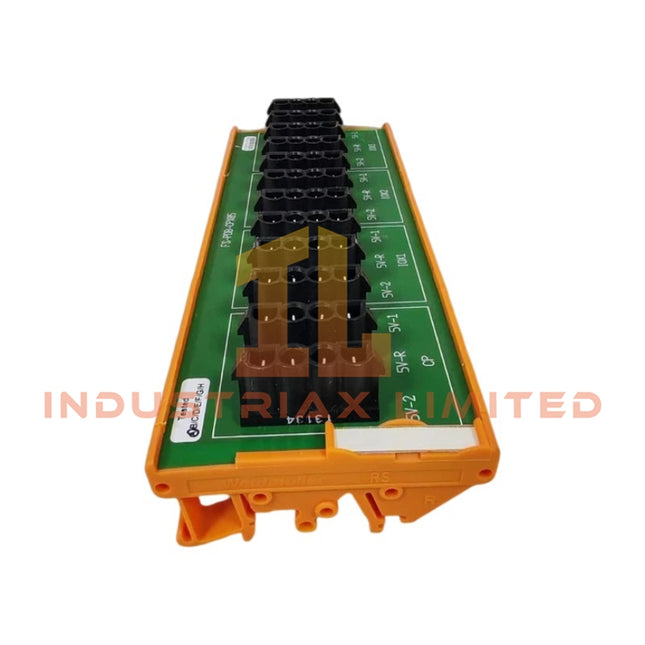

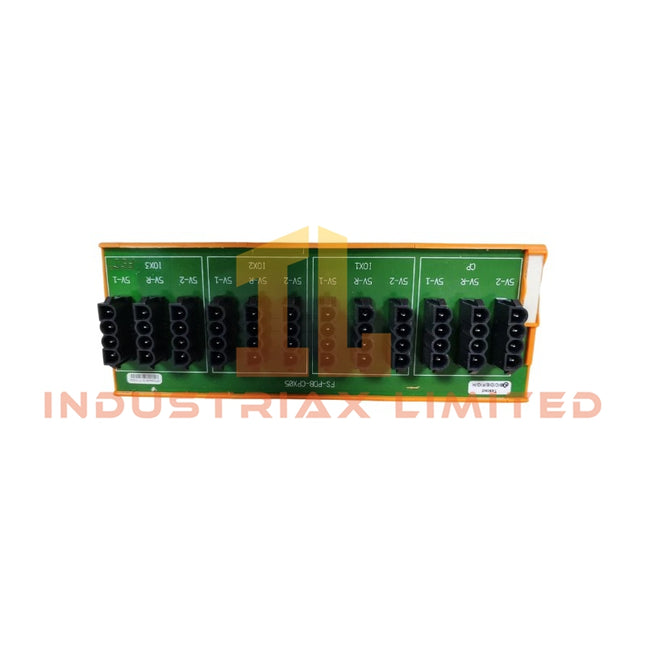

Honeywell FS-PDB-CPX05 | Power Distribution Board | Honeywell
Honeywell FS-PDB-CPX05 Power Distribution Board Configured for 5 VDC rail distribution in Honeywell controller chassis assemblies, the Honeywell FS-PDB-CPX05 (FS-PDB-CPX05 Power Distribution Board) provides direct physical power routing between controller hardware sections. Hardware Specifications Parameter Specification Model FS-PDB-CPX05 Brand Honeywell Product Type Power Distribution Board Origin USA Weight 0.22 kg Dimensions 17.1 x 7.1 x 5.8 cm (shipping size) Operating Temp -40 deg C to +70 deg C Power Consumption Passive power distribution board; powered from controller chassis 5 VDC rails Input Voltage From controller chassis 5 VDC rails Connector Type 4-pin action-pin header Mounting Type DIN-rail TS32 / TS35 x 7.5 mm Humidity Up to 95% RH, non-condensing Tariff Code 8537101190 Shipment Location Xiamen, China Honeywell Process Control Power Distribution Characteristics The FS-PDB-CPX05 distributes controller chassis 5 VDC supply rails through a dedicated power distribution interface. The board uses a 4-pin action-pin header connection to transfer electrical power between compatible Honeywell control hardware assemblies. Furthermore, the board supports DIN-rail installation with TS32 and TS35 x 7.5 mm mounting methods. The mechanical design allows integration into Honeywell controller cabinet arrangements while maintaining defined wiring paths. The module operates as a passive distribution component and does not provide process signal conversion, 4-20 mA HART loop communication, FOUNDATION Fieldbus connectivity, or Profibus PA interface functions. Its electrical role remains limited to chassis-level DC power routing. Frequently Asked Questions Q: Does the FS-PDB-CPX05 perform voltage conversion or regulation?A: No. The FS-PDB-CPX05 receives 5 VDC rails from the controller chassis and distributes the supplied voltage through its connector interface. Q: What mounting hardware is compatible with the FS-PDB-CPX05?A: The board supports DIN-rail mounting configurations using TS32 and TS35 x 7.5 mm rails. Q: Can the FS-PDB-CPX05 be used for analog or digital I/O signal connections?A: No. The board is designed for power distribution only and does not process field input or output signals. Field Installation Guidelines Install the FS-PDB-CPX05 on a compatible DIN rail using the specified TS32 or TS35 x 7.5 mm mounting method. Verify that the controller chassis provides the required 5 VDC supply rail before connection. Inspect the 4-pin action-pin header for correct alignment before insertion. Route power wiring separately from high-noise signal cables to reduce electrical interference. Maintain proper cabinet grounding practices according to the control system installation standard. Check connector seating after installation to prevent intermittent power distribution faults. Avoid applying external voltages to unused connection points.
$200.00 $100.00
-

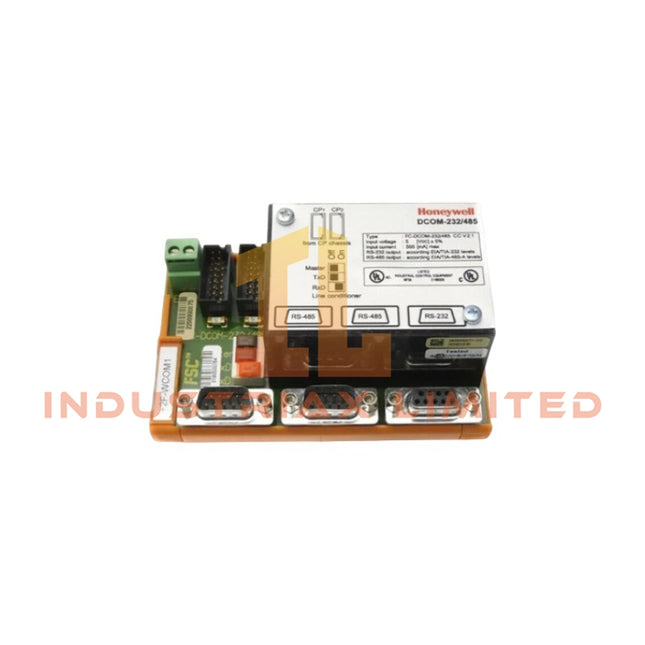

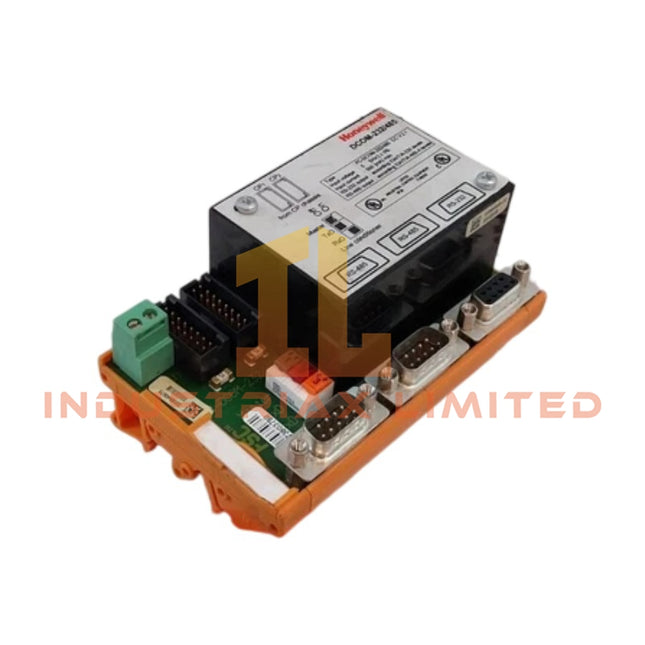

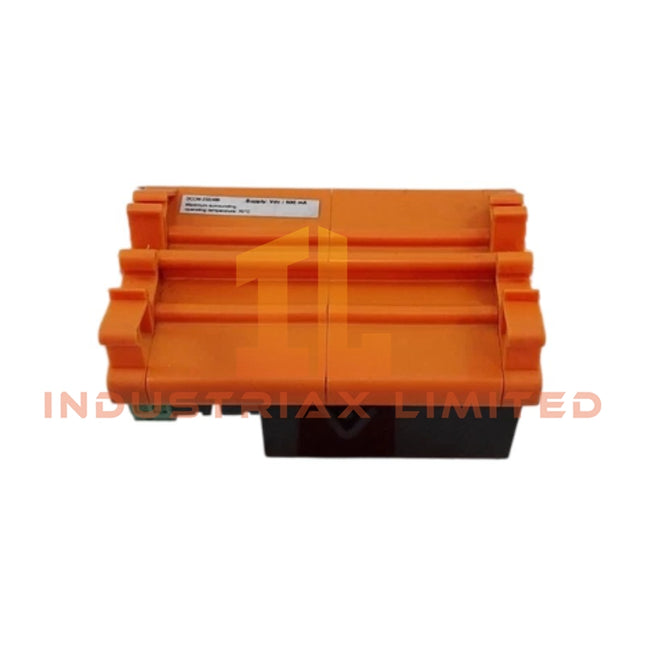

Honeywell Honeywell FS-DCOM-232/485 Communication Interface Module
Honeywell FS-DCOM-232/485 Communication Interface Module Configured for serial communication interface conversion in the Honeywell Safety Manager system, the Honeywell FS-DCOM-232/485 (FS-DCOM-232/485 Communication Interface Module) provides direct electrical connection between Safety Manager control processors and RS232, RS485, or RS422 field communication networks. Hardware Specifications Parameter Specification Model FS-DCOM-232/485 Brand Honeywell Product Type Communication Interface Module Origin USA Weight 0.14 kg Dimensions 11 x 7 x 6 cm (estimated shipping size) Power Consumption Supplied by connected Control Processor(s), input 5 V DC +/-5%, max 500 mA System Compatibility Honeywell Safety Manager Communication Ports 1 x RS232 output, 2 x RS485/422 output RS232 Output Level According to EIA/TIA-232 levels RS232 Baud Rate 0-250 kBaud RS485/422 Output Level According to EIA/TIA-485-A levels RS485/422 Baud Rate 0-2 MBaud Input Voltage 5 V DC +/-5% Input Current Maximum 500 mA DIN Rail Compatibility TS32 / TS35 x 7.5 Used Rail Length 117 mm (4.6 in) Mounting Type Universal snap-in DIN EN rail mounting Approvals CE, TUV, UL, FM Safety Manager Serial Communication Interface The FS-DCOM-232/485 provides serial communication access for Honeywell Safety Manager controllers through RS232, RS485, and RS422 physical interfaces. The module receives power directly from one or two redundant Control Processor units, therefore separate supply wiring is not required. Furthermore, the communication interface supports EIA/TIA electrical signaling standards and enables connection to external communication devices through shielded field cables. The module uses a 2-pin earth connector to connect internal cable shields and field connector housings to cabinet earth. For process control networks using Honeywell safety architectures, communication modules must maintain correct grounding and shielding practices. The FS-DCOM-232/485 installation method supports DIN EN rail mounting and controlled cabinet wiring environments. Process Communication and Isolation Characteristics The Honeywell FS-DCOM-232/485 is designed for Safety Manager communication networks where serial protocol transmission requires defined electrical interface levels. Unlike analog process modules, this unit performs digital serial signal handling and does not provide 4-20 mA HART loop processing, FOUNDATION Fieldbus, or Profibus PA field interface functions. However, the module follows Honeywell control system communication requirements by providing defined RS232 and RS485/422 signal interfaces. Proper cable shielding and earth connection reduce communication disturbances caused by cabinet noise coupling and external electromagnetic interference. Frequently Asked Questions Q: Does the FS-DCOM-232/485 require an independent power supply connection?A: No. The module receives power from the connected Safety Manager Control Processor(s). Separate field power wiring is not required. Q: Which communication standards are supported by the FS-DCOM-232/485?A: The module supports RS232 according to EIA/TIA-232 levels and RS485/422 according to EIA/TIA-485-A levels. Q: How should the communication interface be grounded during installation?A: The supplied 2-pin earth connector must connect the module earth point to cabinet earth. This connection bonds cable shields and field connector housings to the grounding system. Field Installation Guidelines Install the FS-DCOM-232/485 on compatible TS32 or TS35 x 7.5 DIN EN rails using the integrated snap-in mounting mechanism. Connect the earth terminal before communication cable installation to provide proper shield bonding. Use communication cables specified for the Safety Manager system and maintain shield continuity through cabinet wiring. Separate serial communication cables from high-current power conductors to reduce electromagnetic interference. Verify RS232, RS485, or RS422 wiring polarity before applying system power. Confirm that connected Control Processor units provide the required 5 V DC module supply through the system connection. Check communication parameters, including baud rate settings, before commissioning the serial network.
$200.00 $100.00
-
Honeywell Honeywell FS-SICC-1011/L15 RUSIO System Interconnection Cable
Honeywell FS-SICC-1011/L15 RUSIO System Interconnection Cable Configured for signal interconnection between RUSIO I/O assemblies and field termination interfaces in Honeywell Safety Manager and Experion PKS systems, the Honeywell FS-SICC-1011/L15 (FS-SICC-1011 System Interconnection Cable) provides direct physical signal and power routing through shielded multi-core cabling. Hardware Specifications Parameter Specification Model FS-SICC-1011/L15 Brand Honeywell Origin USA Product Type RUSIO System Interconnection Cable Cable Length 15 m Connector Type Female Sub-D Connector Cable Construction Shielded multi-core / twisted pair cable Operating Voltage 24 VDC nominal Maximum Voltage 36 VDC Wire Gauge 24 AWG - 28 AWG Operating Temp -40 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 5% to 95% non-condensing Jacket Material Industrial PVC flame-retardant oil-resistant jacket Shielding Braided and foil shield structure Power Consumption Passive cable assembly, no independent power consumption Honeywell Process Control Interconnection Characteristics The FS-SICC-1011/L15 supports physical signal transmission within Honeywell Safety Manager and Experion PKS architectures. The shielded cable construction reduces electromagnetic interference during I/O signal transfer between RUSIO modules, termination assemblies, and marshalling interfaces. In addition, the cable assembly maintains separated signal paths through multi-core wiring, which supports channel-to-channel isolation practices used in process control installations. The assembly does not process 4-20 mA HART signals or FOUNDATION Fieldbus communication directly; instead, it provides the electrical connection path between compatible Honeywell I/O hardware interfaces. Frequently Asked Questions Q: Does the FS-SICC-1011/L15 require an external power supply?A: No. The FS-SICC-1011/L15 is a passive interconnection cable and does not contain active electronic circuits or independent power requirements. Q: What connector type does the FS-SICC-1011/L15 use?A: The cable uses a female Sub-D connector configuration for connection between compatible Honeywell RUSIO I/O assemblies and field interface equipment. Q: How should the cable shield be installed in an industrial cabinet?A: The shield should follow the system grounding design. Installers should avoid multiple unintended ground paths and maintain proper separation from high-current power wiring. Field Installation Guidelines Install the FS-SICC-1011/L15 using cabinet wiring practices defined for Honeywell Safety Manager and Experion PKS systems. Maintain physical separation between the interconnection cable and high-voltage power conductors to reduce electrical noise coupling. Connect the cable shield according to the approved grounding scheme of the control cabinet. Verify the Sub-D connector engagement before system commissioning to prevent intermittent signal interruption. Avoid excessive bending, mechanical stress, or sharp routing angles that may damage internal conductors. Confirm cable identification and termination points before connecting to RUSIO modules or field interface assemblies.
$200.00 $100.00
-

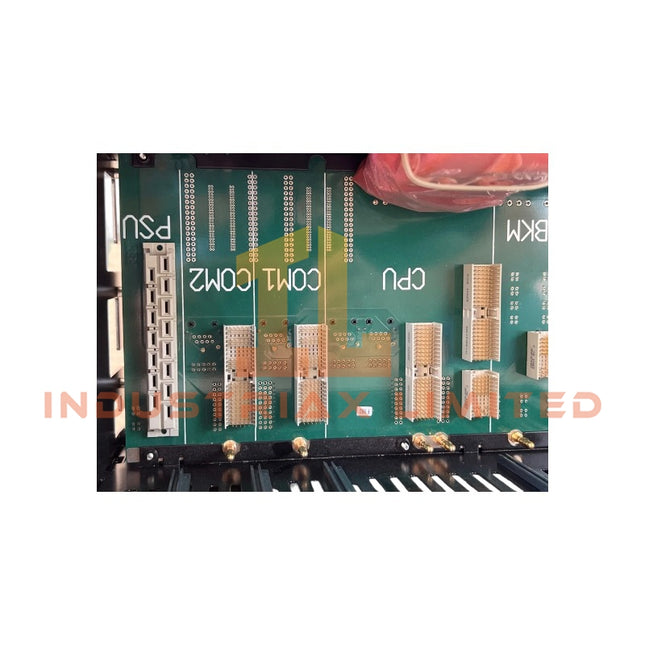

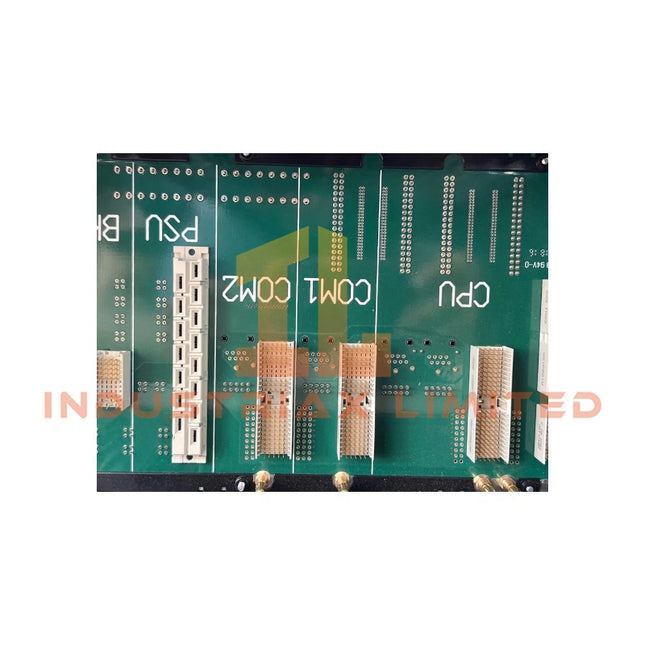

Honeywell Control Processor Chassis | FS-CPCHAS-0001 | Honeywell
Honeywell FS-CPCHAS-0001 Control Processor Chassis Configured for controller mounting and power distribution in Honeywell control processor platforms, the Honeywell FS-CPCHAS-0001 (FS-CPCHAS-0001 Control Processor Chassis) provides the physical chassis structure for redundant or non-redundant controller configurations. Hardware Specifications Parameter Specification Model FS-CPCHAS-0001 Brand Honeywell Product Type Control Processor Chassis Origin USA Weight 5.84 kg Dimensions 48.3 x 28 x 17.6 cm Operating Temp -40 deg C to +70 deg C Storage Temp -50 deg C to +85 deg C Humidity 5-95% RH, condensing Shock Resistance 30 g, 11 ms half-sine Power Consumption 5V-1: 0.05 A; 5V-2: 0.05 A Tariff Code 8537101190 Approvals CE, UL, CSA, TUV, FM Process Control Chassis Integration and DCS Hardware Characteristics The Honeywell FS-CPCHAS-0001 provides the mechanical framework for installing control processor assemblies within Honeywell process control architectures. It supports both redundant and non-redundant controller arrangements and maintains physical alignment between controller modules, power connections, and associated hardware interfaces. Furthermore, the chassis design supports Honeywell DCS hardware configurations where controller availability depends on correct module positioning, power distribution, and backplane connection integrity. The unit operates as a passive hardware structure and does not execute control algorithms or process signal conversion. The FS-CPCHAS-0001 chassis supports installation environments where process controllers interface with field I/O modules using standard DCS communication structures. Therefore, proper module seating, grounding, and cabinet installation practices directly affect system operation. Frequently Asked Questions Q: Does the FS-CPCHAS-0001 execute controller processing functions?A: No. The FS-CPCHAS-0001 is a physical chassis component. The installed controller modules perform processing, communication, and control execution functions. Q: Can the FS-CPCHAS-0001 support redundant controller configurations?A: Yes. The chassis is designed for redundant or non-redundant controller arrangements according to the configured Honeywell control system architecture. Q: What installation factors affect chassis operation?A: Correct module insertion, mechanical alignment, grounding connection, and cabinet environmental conditions affect the chassis installation quality. Field Installation Guidelines Install the FS-CPCHAS-0001 inside a compatible control cabinet with sufficient mechanical support. Verify that controller modules are correctly positioned before applying power. Maintain proper grounding connections between the chassis assembly and cabinet grounding system. Route power and communication wiring separately from high-voltage switching circuits to reduce electrical interference. Inspect connectors and mounting points before commissioning the installed controller hardware. Follow Honeywell installation manuals for cabinet layout, module placement, and system-specific configuration requirements.
$200.00 $100.00
-

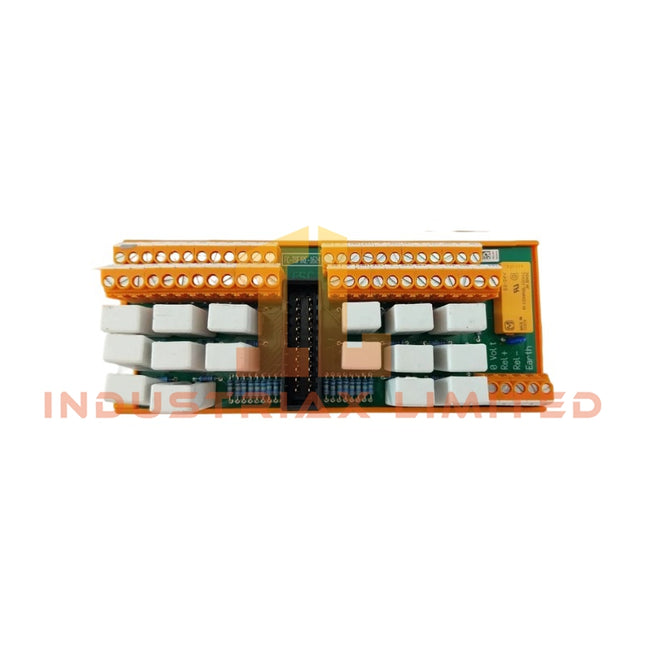

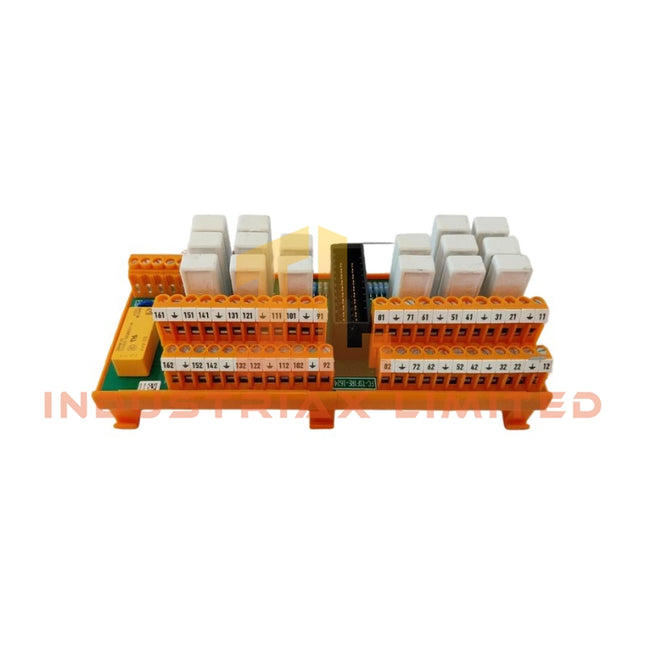

Honeywell Honeywell FC-TSFIRE-1624 Termination Assembly Module
Honeywell FC-TSFIRE-1624 Termination Assembly Module Configured for safe fire detector input termination in Honeywell Safety Manager platforms, the Honeywell FC-TSFIRE-1624 (TSFIRE-1624 Termination Assembly Module) provides direct physical and electrical execution for 24 V DC fire detection circuits with line monitoring. Hardware Specifications Parameter Specification Model FC-TSFIRE-1624 Spare Model TSFIRE-1624 Brand Honeywell Product Type Termination Assembly Module Origin USA Weight 0.2 kg Dimensions 17 x 7 x 5.7 cm Operating Temp Not specified Power Consumption 11 mA typical at 24 V DC external supply, no load Approvals CE, TUV, UL, CSA, FM Voltage 24 V DC +25% / -15% Maximum Current 570 mA at 24 V DC external supply Typical Current with EOL Resistors 70 mA at 24 V DC external supply Number of Channels 16 Channel Resistance 680 ohm +/-5% Shorted Current 35 mA at 24 V DC external supply Relay Voltage 17 - 39 V DC Relay Current 8.5 mA at 24 V DC Main Function Safe fire detector input FTA with line monitoring Input Function Fire detection input and global reset of connected sensors Tariff Code 8537101190 Place of Shipment Xiamen, China Channel Isolation and Process Signal Interface The FC-TSFIRE-1624 termination assembly module processes 16 fire detector input channels through monitored field wiring circuits. It uses end-of-line resistors to supervise field loop conditions and detect circuit status changes. For Honeywell safety system integration, the module maintains channel-to-channel signal separation for discrete fire detection inputs. Therefore, each input channel can provide individual monitoring of connected field devices while maintaining defined electrical characteristics. The module supports 24 V DC field circuits and provides line monitoring functions for open-circuit and short-circuit detection. The input design allows connection of fire detection sensors requiring global reset control through the termination assembly interface. Frequently Asked Questions Q: How many fire detector input channels does the FC-TSFIRE-1624 support?A: The FC-TSFIRE-1624 supports 16 fire detector input channels with line monitoring capability. Q: What external supply voltage does the FC-TSFIRE-1624 require?A: The module operates with a 24 V DC external supply within the specified range of +25% and -15%. Q: Does the module provide end-of-line supervision?A: Yes. The FC-TSFIRE-1624 supports end-of-line resistor monitoring for supervised fire detection input circuits. Field Installation Guidelines Install the termination assembly module inside the designated Honeywell safety system cabinet or approved enclosure. Connect field fire detector wiring according to the channel assignment and termination requirements defined by the system engineering documentation. Maintain proper separation between fire detection signal wiring and high-voltage power cables to reduce electrical interference. Connect cable shields according to the site grounding design and avoid multiple uncontrolled grounding points. Verify end-of-line resistor installation before commissioning the monitored input circuits. Check 24 V DC supply polarity before energizing the module. Confirm channel status and input response through the safety controller diagnostic interface after installation.
$200.00 $100.00
-

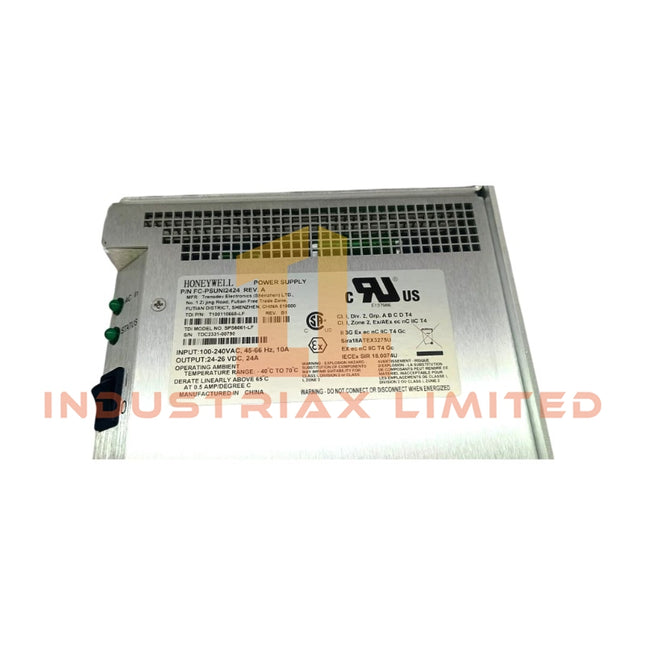

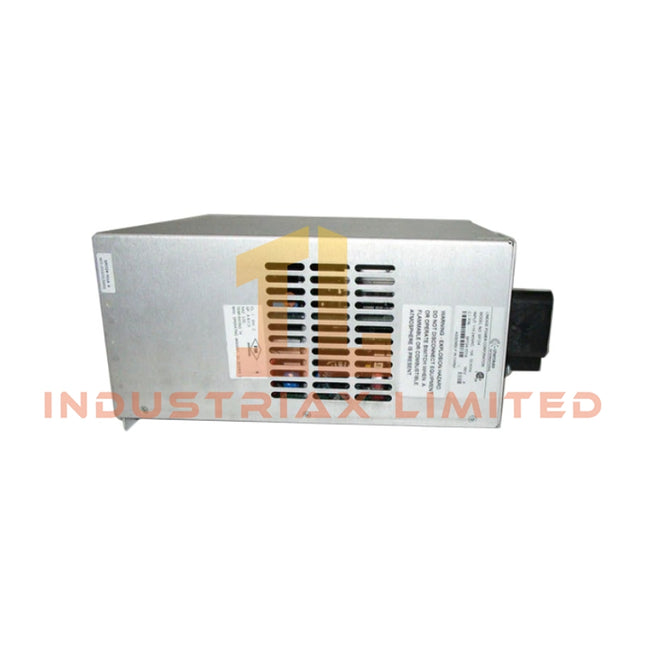

Honeywell Honeywell FC-PSUNI-2424 Universal Power Supply Unit
Honeywell FC-PSUNI-2424 Universal Power Supply Unit Configured for isolated 24 VDC power conversion in Honeywell Safety Manager platforms, the Honeywell FC-PSUNI-2424 (FC-PSUNI-2424 Universal Power Supply Unit) provides direct electrical power conditioning for redundant safety system configurations. Hardware Specifications Parameter Specification Model FC-PSUNI-2424 Brand Honeywell Origin USA Operating Temp -20 deg C to +60 deg C Power Consumption Output power: 576 W, rated output current: 24 A Product Type Universal Power Supply Unit, 24 VDC output System Compatibility Honeywell Safety Manager / Safety Manager SC Input Voltage 115 VAC / 230 VAC nominal, approximately 90 - 265 VAC range Input Frequency 47 - 63 Hz Output Voltage 24 VDC, adjustable approximately 22.0 - 28.0 VDC Output Current 24 A continuous Efficiency > 90% at nominal load Ripple and Noise < 50 mVss peak-to-peak Redundancy Configuration Supports 1+1 and N+1 redundant power configurations Protection Functions Overvoltage, overload, short circuit, and overtemperature protection Diagnostic Interface LED indicators and dry contact relay outputs Cooling Method Convection cooling or cabinet fan-assisted cooling depending on installation Channel Isolation and Safety Power Architecture The Honeywell FC-PSUNI-2424 integrates isolated DC output conversion for Safety Manager power distribution structures. The unit supports diode-coupled or active ORing redundant arrangements, allowing multiple power modules to operate in parallel. Additionally, the power supply provides diagnostic contacts for system monitoring. The dry relay outputs transmit power status information to the safety controller or DCS interface. The protection circuit monitors output voltage, current loading, and thermal conditions to maintain controlled shutdown and restart behavior. The FC-PSUNI-2424 operates as a power subsystem component rather than a signal acquisition module; therefore, it does not provide 4-20 mA HART or FOUNDATION Fieldbus communication channels. Its function is limited to regulated DC power delivery and fault indication within the Honeywell safety architecture. Frequently Asked Questions Q: Does the FC-PSUNI-2424 support redundant power configurations?A: Yes. The unit supports 1+1 and N+1 redundant arrangements through integrated diode coupling or active ORing methods. A parallel power module can assume the load when another unit fails. Q: What diagnostic signals are available from the FC-PSUNI-2424?A: The unit provides LED status indication and volt-free relay contacts for remote monitoring of power conditions, including input failure, output overvoltage, overload, and thermal faults. Q: Can the FC-PSUNI-2424 be installed outside Honeywell Safety Manager systems?A: The unit is designed for Honeywell Safety Manager and Safety Manager SC power architectures. Installation in other systems requires electrical compatibility verification for voltage range, current capacity, and mechanical integration. Field Installation Guidelines Install the FC-PSUNI-2424 inside a suitable control cabinet with adequate ventilation and environmental protection. Verify AC input wiring polarity, protective earth connection, and supply voltage range before energizing the module. Use dedicated power wiring paths and maintain separation between AC input cables and low-level signal wiring. Connect the DC output according to the cabinet power distribution design and confirm correct polarity before operation. When implementing redundant configurations, verify the ORing or diode coupling arrangement before applying load. Connect diagnostic relay contacts to the safety controller or monitoring system using shielded control wiring where required by site standards. Maintain proper grounding practices to reduce electrical noise coupling into adjacent instrumentation circuits.
$200.00 $100.00
-

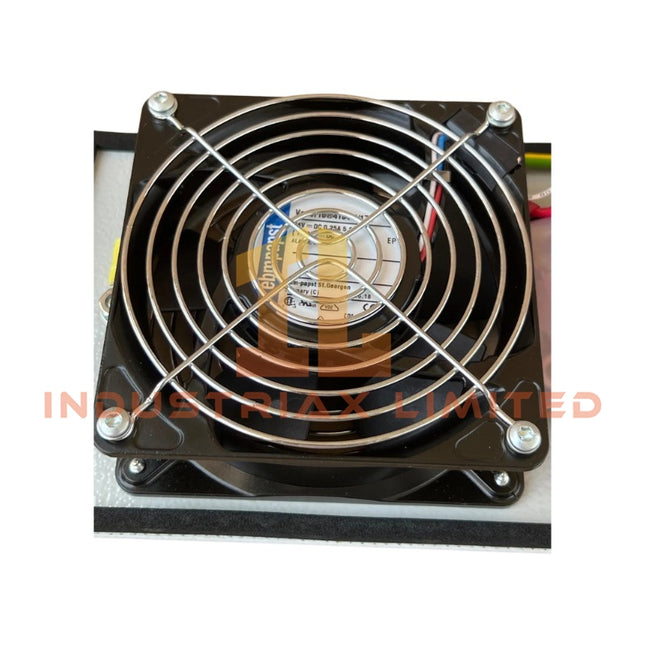

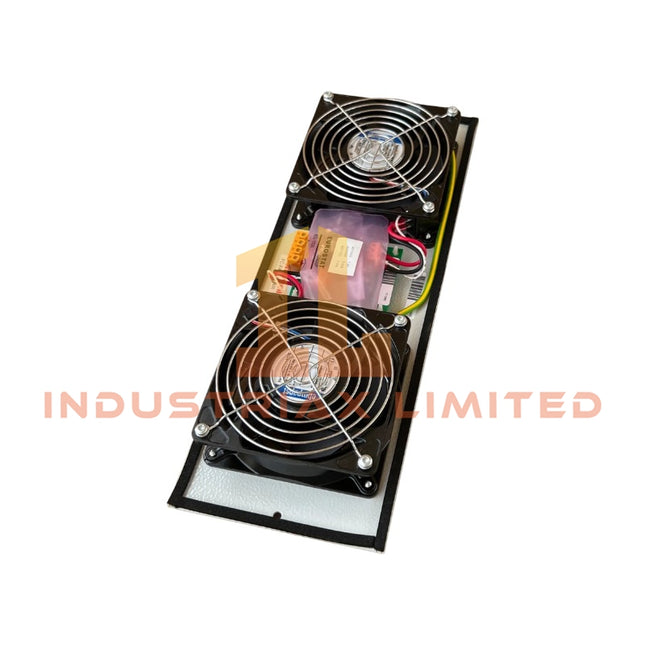

Honeywell Fan Unit With Readback CC | Honeywell FC-FANWR-24R
Honeywell FC-FANWR-24R 24VDC Fan Unit With Readback CC The Honeywell FC-FANWR-24R, also cataloged as the FC-FANWR-24R 24 VDC Fan Unit, operates as a dedicated hardware component for fan power distribution and status feedback monitoring within Honeywell control system assemblies. Hardware Specifications Parameter Specification Model FC-FANWR-24R Brand Honeywell Product Type 24 VDC Fan Unit With Readback CC Origin USA Weight 0.3 kg Dimensions 9.2 cm x 7.1 cm x 5.8 cm Power Consumption 24 VDC fan supply module; power consumption not specified Power Rating 1 HP Motor Type Induction Motor Speed Control Variable Speed Airflow Capacity 2000 CFM @ 0.5 PSI Duct Compatibility Standard 12 inch diameter Noise Level 72 dB(A) Inlet Diameter 12 inch Voltage 230 V, 60 Hz Tariff Code 8537101190 Place of Shipment Xiamen, China Honeywell DCS Fan Feedback and Power Interface Characteristics The FC-FANWR-24R provides a 24 VDC fan interface with readback capability for monitoring fan operating conditions. Therefore, the module supports direct feedback collection from the connected cooling equipment and allows the control system to supervise fan status. The Honeywell hardware design follows process control interface requirements, where signal separation and channel-to-channel isolation concepts support stable monitoring of connected field devices. However, specific isolation ratings and internal circuit details are not provided in the available technical data. The unit integrates with Honeywell system assemblies that require controlled ventilation management. In addition, the readback function allows external logic or monitoring circuits to evaluate fan operation conditions. Frequently Asked Questions Q: What is the primary function of the Honeywell FC-FANWR-24R?A: The FC-FANWR-24R provides 24 VDC fan power interface capability with readback feedback monitoring for Honeywell control system cooling assemblies. Q: Does the FC-FANWR-24R include variable speed control capability?A: The provided specifications list variable speed control as a feature. Detailed speed adjustment methods and control signal formats are not specified. Q: What electrical information is available for installation verification?A: The available data specifies a 24 VDC fan unit function and a connected fan voltage rating of 230 V, 60 Hz. Additional wiring details require the system installation documentation. Field Installation Guidelines Install the FC-FANWR-24R according to the Honeywell system hardware configuration requirements and approved cabinet layout drawings. Verify the 24 VDC supply wiring before energizing the unit. Use correct polarity connections and maintain separation between power wiring and sensitive signal cables. Route fan feedback wiring separately from high-current conductors to reduce electrical interference. Connect cable shields according to the cabinet grounding standard when shielded instrumentation cables are used. Confirm mechanical mounting clearance before installation. Ensure airflow paths remain unobstructed and maintain proper duct alignment with the specified fan connection dimensions. Inspect all connectors and terminals after installation. Perform functional verification of fan operation and readback status through the connected control system diagnostics.
$200.00 $100.00
-

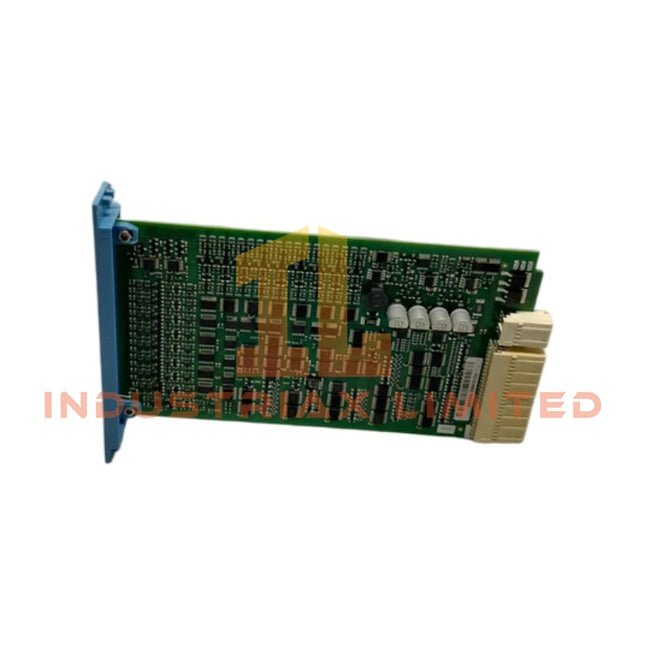

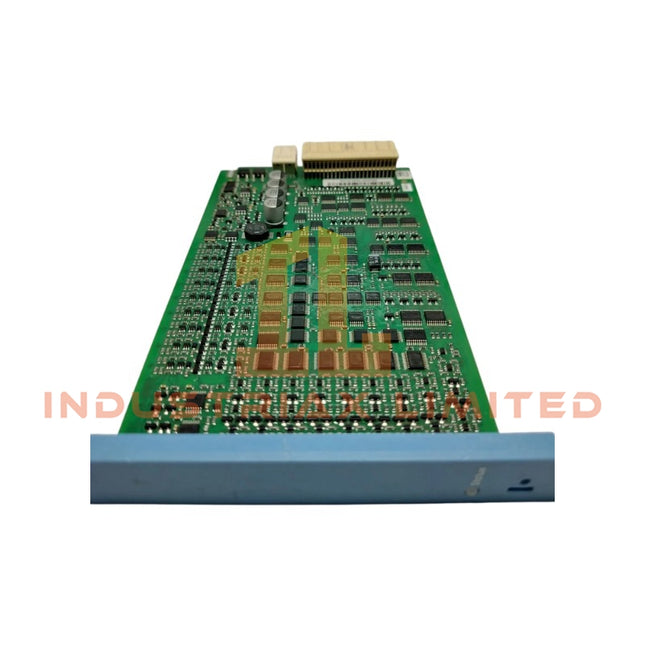

Honeywell Honeywell FC-IO-0002 I/O Extender Module
Honeywell FC-IO-0002 I/O Extender Module The Honeywell FC-IO-0002, also cataloged as the FC-IO-0002 I/O Extender Module, operates as a dedicated hardware component for extending power and watchdog signal interfaces within Honeywell safety system I/O assemblies. Hardware Specifications Parameter Specification Model FC-IO-0002 Brand Honeywell Product Type I/O Extender Module Origin USA Weight 0.12 kg Dimensions 2 x 19 x 12.8 cm estimated shipping size Power Consumption 5 VDC input, 100 mA plus connected I/O board load Approvals CE, TUV, UL, CSA Space Requirements 4 TE, 3 HE (= 4 HP, 3U) Watchdog Inputs 2 inputs Watchdog Input Current Max. 10 mA for WD1in + WD2in Watchdog Outputs 18 outputs Watchdog Output Current Max. 25 mA Power Inputs 2 inputs, diode OR-ed, 5 VDC Power Input Current 100 mA plus 5 V load of all 18 I/O boards and watchdog load of all 18 I/O boards Power Outputs 2 groups Output Voltage Drop 0.2 V < V < 0.8 V versus highest Vin Output Current Capacity > 1.25 A per group Channel Isolation and Process Interface Characteristics The Honeywell FC-IO-0002 provides electrical extension functions for Honeywell I/O assemblies by distributing 5 VDC power and watchdog-related signals. The module accepts two diode OR-ed power inputs and supplies two output groups for connected I/O boards. The module supports watchdog signal expansion with two watchdog inputs and eighteen watchdog outputs. Therefore, the FC-IO-0002 manages the additional load requirements from multiple I/O boards while maintaining defined current limitations. The design supports Honeywell process control hardware architectures where channel-to-channel isolation and controlled power distribution are required. Furthermore, the module operates as an electrical interface element rather than a signal processing unit and does not perform analog measurement or protocol conversion. Frequently Asked Questions Q: How many watchdog inputs and outputs does the FC-IO-0002 provide?A: The module provides 2 watchdog inputs and 18 watchdog outputs. The watchdog input current is limited to 10 mA maximum, while each output supports up to 25 mA. Q: What power input configuration does the FC-IO-0002 support?A: The module uses 2 diode OR-ed 5 VDC power inputs. The input current requirement is 100 mA plus the connected load from 18 I/O boards and watchdog circuits. Q: Can the FC-IO-0002 process field measurement signals?A: No. The FC-IO-0002 functions as an I/O extender and power/watchdog distribution module. It does not provide analog input, analog output, or communication processing functions. Field Installation Guidelines Install the FC-IO-0002 in the specified Honeywell rack or I/O assembly position with the required 4 TE and 3 HE mechanical space allocation. Verify the 5 VDC supply polarity before connection because the module uses diode OR-ed power inputs. Route power wiring separately from high-voltage switching circuits to reduce electrical interference. Maintain proper grounding practices for the installed control cabinet and cable shielding systems. Check the connected I/O board load before operation to ensure that the total 5 VDC current remains within the module output capability. Confirm watchdog wiring assignments before commissioning to prevent incorrect diagnostic signal routing.
$200.00 $100.00
-

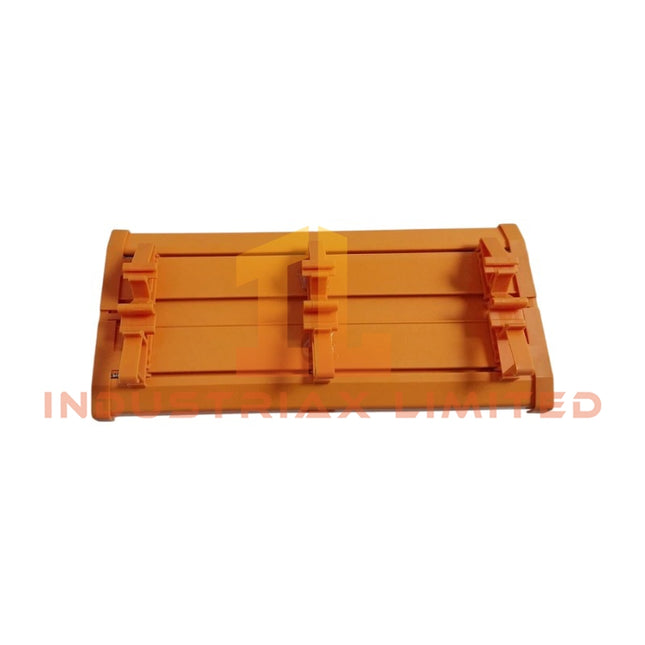

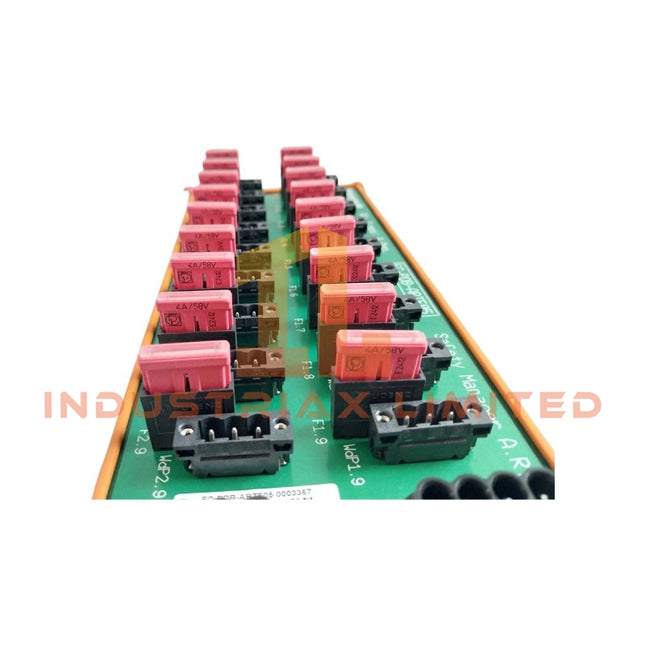

Honeywell Fused Power Distribution Boards | Honeywell | FC-PDB-ARTF05
Honeywell FC-PDB-ARTF05 Safety Manager A.R.T Fused Power Distribution Board The Honeywell FC-PDB-ARTF05, also cataloged as the PDB-ARTF05 Fused Power Distribution Board, provides fused 5 VDC and 24 VDC power distribution with watchdog signal transfer within Honeywell Safety Manager A.R.T. platforms. Hardware Specifications Parameter Specification Model FC-PDB-ARTF05 Brand Honeywell Product Type Safety Manager A.R.T. Fused Power Distribution Board Origin USA Weight 0.4 kg Dimensions 23.5 x 10.8 x 6.8 cm Operating Temp -20 to +70 deg C (T4); -20 to +55 deg C (T5), no derating Storage Temp -40 to +85 deg C Humidity 5 to 95 % RH, non-condensing Power Supply Input 5 VDC +/-5 % and 24 VDC +/-20 % Power Dissipation 8 W typical Hold-up Time >= 10 ms Isolation 1.5 kV RMS Digital Inputs 16 x 24 VDC Digital Outputs 8 x 24 VDC Fuse Protection Individual fuse protection per output channel Functional Safety Rating SIL 3 functional safety compliance Environmental Protection IP66 protection design Tariff Code 8537101190 Channel Isolation and Safety Power Distribution The FC-PDB-ARTF05 distributes fused controller cabinet power and watchdog signals to connected I/O cabinets. Each output channel uses individual fuse protection to isolate field-side faults and prevent power interruption across unaffected channels. Furthermore, the module uses an A.R.T. dual-channel design to support fault-tolerant power distribution functions. The board transfers incoming 5 VDC power from CPx through fuse Fx.y to watchdog connector WdPx.y, maintaining controlled power routing inside the Safety Manager architecture. For Honeywell safety systems, the module supports channel-to-channel isolation concepts used in process control installations. The isolated distribution paths reduce electrical interference between independent I/O circuits and maintain stable signal reference conditions. Frequently Asked Questions Q: What voltage levels does the FC-PDB-ARTF05 distribute?A: The module distributes fused 5 VDC +/-5 % controller power and 24 VDC +/-20 % field-side power circuits. Q: Does the FC-PDB-ARTF05 provide individual channel protection?A: Yes. Each output channel includes individual fuse protection to limit fault propagation between connected circuits. Q: What safety architecture is supported by the FC-PDB-ARTF05?A: The module supports Honeywell Safety Manager A.R.T. architecture with SIL 3 functional safety requirements. Field Installation Guidelines Install the FC-PDB-ARTF05 inside a suitable control cabinet with protection against conductive contamination and excessive vibration. Verify 5 VDC and 24 VDC supply polarity before connecting field wiring. Separate power wiring from low-level signal wiring to reduce electromagnetic interference. Connect cabinet grounding according to the Safety Manager system grounding design. Inspect fuse status indicators and wiring terminals during commissioning and preventive maintenance. Confirm watchdog signal routing between controller cabinets and I/O cabinets before system operation. Maintain environmental conditions within the specified temperature and humidity limits.
$200.00 $100.00
-
Honeywell Honeywell | FC-BN-1608 | Digital Converter Modules
Honeywell FC-BN-1608 Digital Converter Module for NAMUR Signals Configured for NAMUR signal conversion in Honeywell Safety Manager I/O systems, the Honeywell FS-BN-1608 (BN-1608 Digital Converter Module) provides direct electrical conversion of 16 channel discrete input signals from field devices. Hardware Specifications Parameter Specification Model FC-BN-1608 Brand Honeywell Product Type Digital Converter Modules Function NAMUR signal input conversion module Input Channels 16 Input Type DIN NAMUR compatible Input Current Range 0-8 mA Switch Level 1.4-1.9 mA Hysteresis 0.2 mA +/- 0.05 mA Input Resistance 1 kOhm 1% Absolute Maximum Input Current 20 mA Input Filter First order low pass, 100 Hz Field Wire Resistance Maximum 50 Ohm Cable Capacitance Less than 16 uF total connected cables 8 V Loop Supply Output Voltage 7.9-8.7 V 8 V Loop Supply Output Current 170 mA, short-circuit proof Maximum Load Capacitance 100 nF Earth Resistor Resistance 100 kOhm 1% Maximum Dissipation 0.6 W Approvals CE, TUV, UL, CSA, FM Dimensions 58.5 x 28.5 x 9 mm (2.3 x 1.125 x 0.35 in) Origin USA Process Signal Interface and Channel Isolation The FC-BN-1608 module converts NAMUR type discrete field signals into internal digital input information for Honeywell Safety Manager architectures. The module accepts 16 independent input channels and monitors current switching levels according to DIN NAMUR requirements. The input circuit uses a 1 kOhm resistance path and supports 0-8 mA signal measurement. Furthermore, the integrated 8 V loop supply provides field device excitation with short-circuit protection. The design supports field wiring supervision through defined current thresholds and hysteresis characteristics. Honeywell process control modules commonly integrate channel-to-channel isolation methods within I/O architectures. For this module, field signal processing focuses on stable current detection and controlled NAMUR switching recognition rather than analog measurement conversion. Frequently Asked Questions Q: Does the BN-1608 require an external power supply?A: No. The module does not require separate power input. It operates through the Honeywell I/O backplane connection and provides an 8 V loop supply for connected field devices. Q: How many NAMUR input devices can the BN-1608 connect simultaneously?A: The BN-1608 supports 16 NAMUR input channels. Each channel processes one DIN NAMUR compatible discrete signal. Q: Can the BN-1608 handle field wiring capacitance?A: Yes. The module supports a total connected cable capacitance below 16 uF and accepts field wire resistance up to 50 Ohm. Field Installation Guidelines Install the BN-1608 module directly on the designated programming connector of the Honeywell I/O backplane. No additional chassis mounting space is required. Connect NAMUR field devices according to the specified input wiring arrangement. Keep field signal cables separated from high voltage power cables to reduce electromagnetic interference. Use proper cable shielding and terminate shields according to the system grounding design. Verify the loop supply voltage and field wiring resistance before commissioning. Confirm that connected devices match DIN NAMUR current switching characteristics. Check input current levels during startup to ensure correct channel recognition.
$200.00 $100.00
-

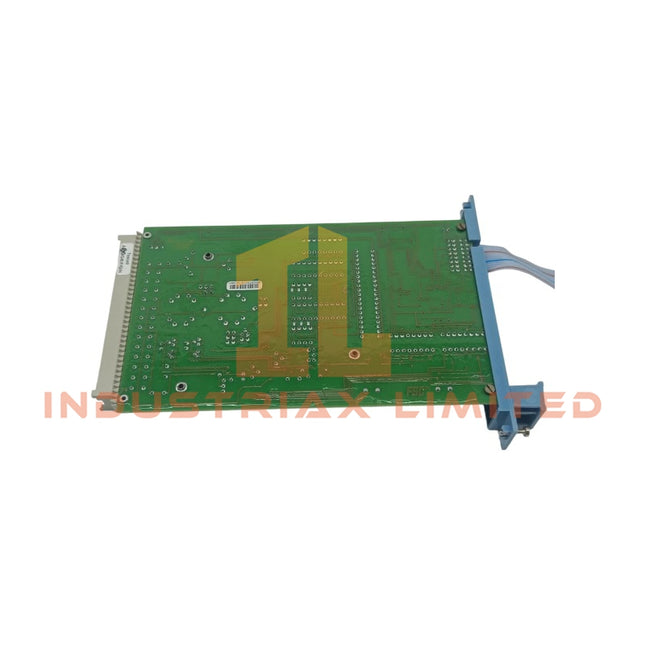

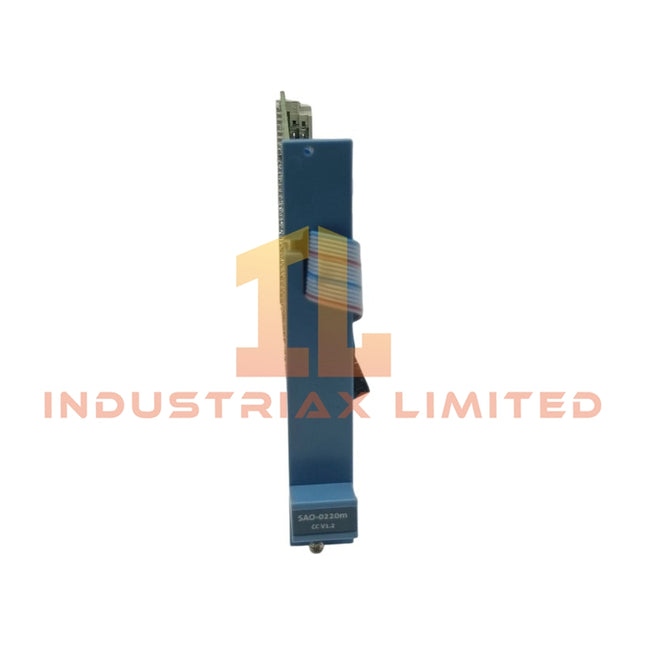

Honeywell Honeywell FC-SAO-0220m Analog Output Module
Honeywell FC-SAO-0220m Analog Output Module Configured for analog current output execution in Honeywell Safety Manager systems, the Honeywell FC-SAO-0220m (SAO-0220M Analog Output Module) provides direct physical and electrical signal conversion for active and passive 0-20 mA and 4-20 mA field loops. Hardware Specifications Parameter Specification Model FC-SAO-0220m Spare Model SAO-0220M Brand Honeywell Product Type Analog Output Module Origin USA Weight 0.16 kg Dimensions 2 x 18.9 x 12.8 cm Power Consumption 5 V DC, 30 mA Space Requirements 4 TE, 3 HE (= 4 HP, 3U) Number of Output Channels 2 Output Signal Type Active or passive, 0-20 mA / 4-20 mA D/A Converter Resolution 12-bit Off Current < 0.05 mA Maximum Load Capacitance 100 nF WDG Input Current 0.5 mA Loop Powering (Active) Maximum loop resistance: 600 ohm Loop Powering (Active) Maximum output voltage: 30 V DC External Powering (Passive) Maximum voltage: 40 V DC External Powering (Passive) Minimum voltage drop: <= 7.5 V Tariff Code 8537101190 Place of Shipment Xiamen, China Process Control Current Loop Interface The FC-SAO-0220m provides two analog output channels for current loop signal generation. The module supports both active loop powering and passive external powering configurations. Therefore, it can interface with different field devices that require 0-20 mA or 4-20 mA control signals. Honeywell process control modules commonly integrate current loop communication methods such as 4-20 mA HART loop protocol. However, the FC-SAO-0220m specification defines the analog output hardware layer and does not include HART communication functionality. The module applies channel-level output processing through a 12-bit D/A converter. Additionally, the output circuit manages loop resistance, voltage limitation, and capacitance loading according to the specified electrical parameters. Frequently Asked Questions Q: How many analog output channels does the Honeywell FC-SAO-0220m provide?A: The FC-SAO-0220m provides 2 analog output channels with active or passive 0-20 mA and 4-20 mA operation. Q: What power supply does the FC-SAO-0220m require from the system?A: The module requires 5 V DC with a power consumption of 30 mA. Q: Can the FC-SAO-0220m operate with externally powered field loops?A: Yes. The module supports passive external powering with a maximum external voltage of 40 V DC and a minimum voltage drop of <= 7.5 V. Field Installation Guidelines Install the FC-SAO-0220m according to the Honeywell Safety Manager rack configuration requirements. Verify the module position, backplane connection, and terminal wiring before energizing the system. Use shielded signal cables for analog current loops when the installation environment contains electrical noise sources. Connect cable shields according to the site grounding standard and avoid parallel routing with high-power cables. Check loop polarity, external power supply limits, and field device input requirements before commissioning. Confirm that the connected load remains within the specified loop resistance and capacitance limits.
$200.00 $100.00
-

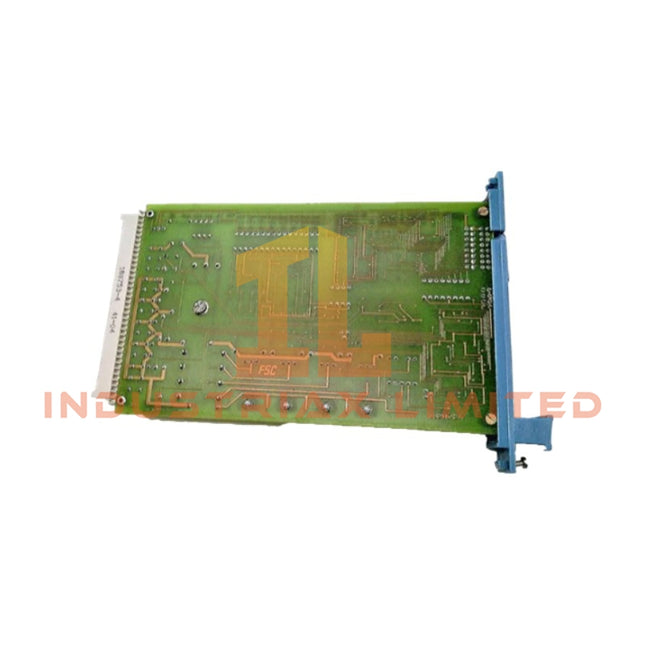

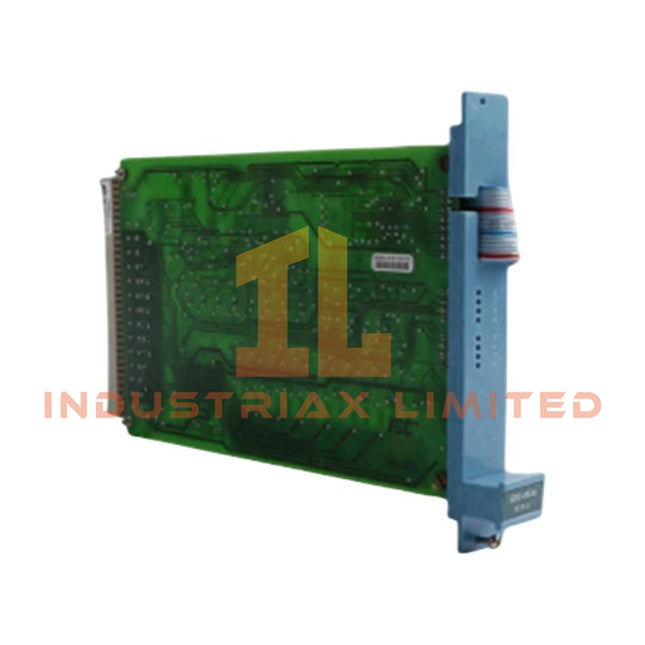

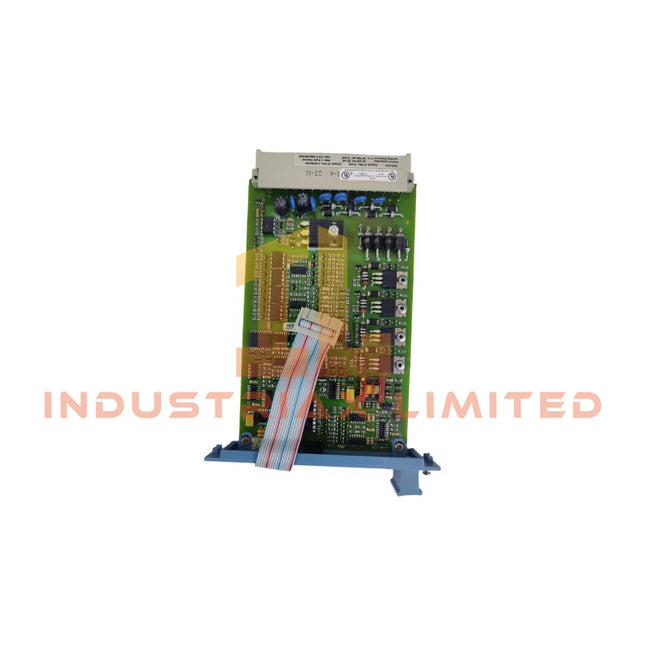

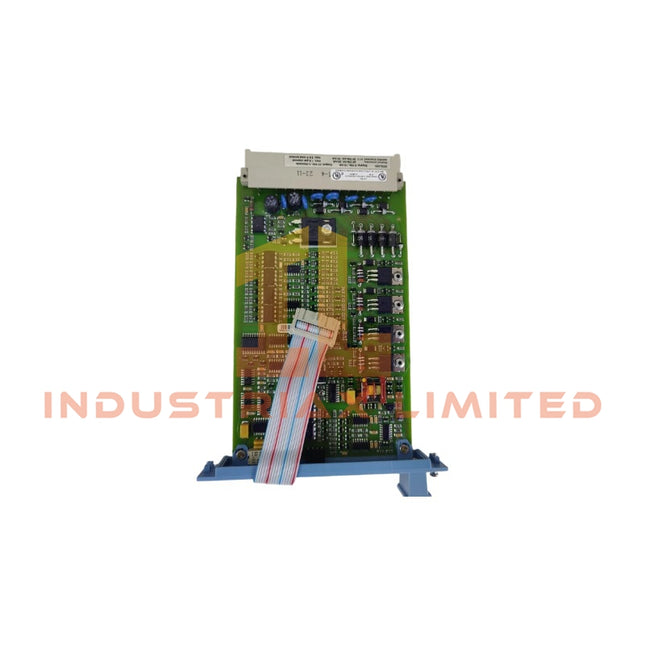

Honeywell Safe Loop-Monitored Digital Output Module | Honeywell FS-SDOL-0424
Honeywell FS-SDOL-0424 Safe Loop-Monitored Digital Output Module Configured for loop-monitored digital output execution in Honeywell Safety Manager systems, the Honeywell FS-SDOL-0424 (FS-SDOL-0424 Safe Loop-Monitored Digital Output Module) provides direct physical switching control for 24 VDC field loads through four monitored output channels. Hardware Specifications Parameter Specification Model FS-SDOL-0424 Brand Honeywell Product Type Safe Loop-Monitored Digital Output Module Origin USA Weight 0.12 kg Dimensions 2.2 x 19 x 12.7 cm Power Consumption 5 VDC system supply, 24 VDC output supply Space Requirements 4 TE, 3 HE (= 4 HP, 3U) Number of Output Channels 4 Output Specification 24 VDC Maximum Channel Current 1 A Maximum Total Module Load 3.6 A Maximum Load Inductance 0.5 H Maximum Load Capacitance 1 uF Overload Detection Threshold > 10 ohm Voltage Drop < 1.3 V at 1 A Output Monitoring Functions Lead breakage detection, output short circuit monitoring Load De-energization Supported through primary and secondary means Approvals CE, TUV, UL, CSA, FM Tariff Code 8537101190 Place of Shipment Xiamen, China Channel Isolation and Loop Monitoring Characteristics The Honeywell FS-SDOL-0424 performs safe digital output control with loop monitoring functions for field actuator circuits. Furthermore, the module detects abnormal output conditions including external wiring lead breakage and output short circuits. The module supports de-energization through secondary means, which allows the safety system to force field outputs into a defined safe state. Additionally, suppression diodes manage inductive load behavior and reduce electrical disturbances during switching operations. For Honeywell Safety Manager applications, output monitoring maintains channel status visibility while limiting cross-talk effects between output circuits. The design supports 24 VDC field devices with a maximum channel current of 1 A and a total module load capacity of 3.6 A. Frequently Asked Questions Q: What type of field devices can the FS-SDOL-0424 control?A: The FS-SDOL-0424 controls 24 VDC field loads through four digital output channels with loop monitoring functions. Q: How does the module detect field wiring faults?A: The module monitors output circuits and detects conditions such as external output wiring lead breakage and output short circuits. Q: What electrical limits apply to connected loads?A: Each channel supports up to 1 A current, while the complete module supports a maximum load of 3.6 A with specified inductive and capacitive load limits. Field Installation Guidelines Install the FS-SDOL-0424 in the designated Honeywell Safety Manager rack position according to system configuration requirements. Verify the 24 VDC field supply polarity before connecting output wiring. Separate output signal wiring from high-voltage power cables to reduce electrical interference. Connect cable shields according to site grounding practices and safety system installation standards. Confirm actuator wiring continuity before enabling output operation. Check field load characteristics to ensure inductance and capacitance values remain within module specifications. Inspect terminal connections periodically for mechanical looseness or oxidation in industrial environments.
$200.00 $100.00
-

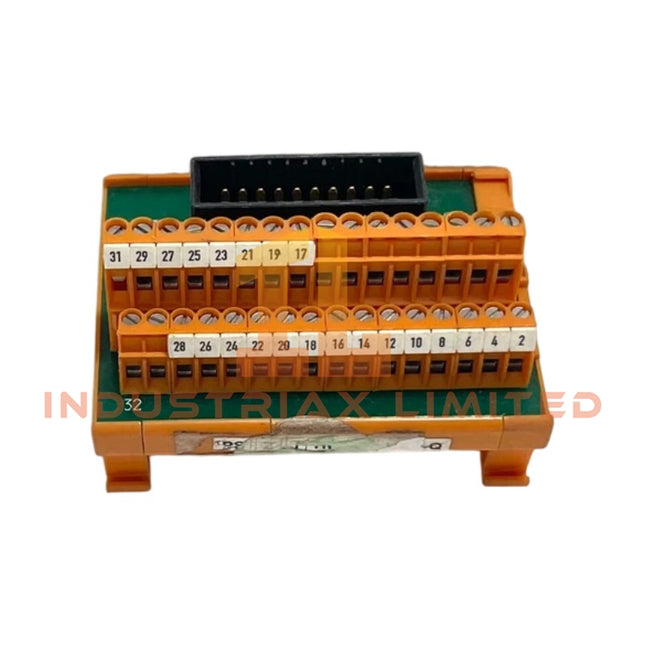

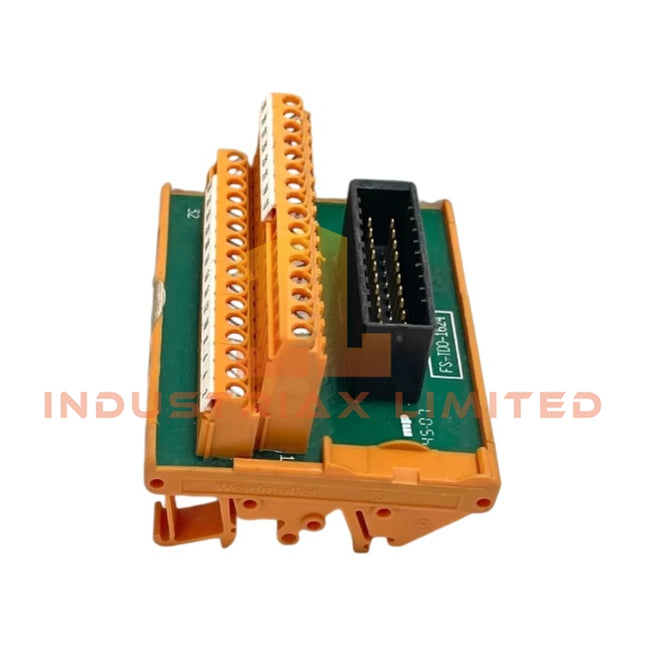

Honeywell Digital Output Module | Honeywell FS-TDO-1624
Honeywell FS-TDO-1624 Digital Output Module Configured for 24 VDC digital signal execution in Honeywell Safety Manager systems, the Honeywell FS-TDO-1624 (FS-TDO-1624 Digital Output Module) provides direct electrical switching control through 16 non-safe output channels. Hardware Specifications Parameter Specification Model FS-TDO-1624 Brand Honeywell Product Type Non-safe Digital Output Module Origin USA Weight 0.3 kg Dimensions 5.5 x 6.5 x 11.8 cm estimated shipping size Power Consumption 5 VDC, 35 mA Number of Output Channels 16 Output Specification 24 VDC Maximum Output Current 100 mA per channel Maximum Lamp Load 50 mA (1.2 W) Maximum Load Capacitance 1 uF Voltage Drop < 1.2 VDC at 100 mA Tariff Code 8537101190 Channel-to-Channel Isolation and Process Output Interface The Honeywell FS-TDO-1624 provides 16 non-safe digital output channels for 24 VDC field device control. Therefore, the module directly drives connected actuators, indicators, and other discrete electrical loads within the Safety Manager I/O architecture. In addition, the output stage supports defined current and capacitance limits to maintain stable switching performance. The module operates with a maximum output current of 100 mA and limits voltage drop to less than 1.2 VDC at the rated current condition. Furthermore, Honeywell I/O modules within this platform require correct field wiring practices to maintain signal separation and minimize electrical interference. The FS-TDO-1624 focuses on discrete output execution rather than analog measurement, HART communication, or fieldbus signal processing. Frequently Asked Questions Q: Is the FS-TDO-1624 a safe digital output module?A: No. The FS-TDO-1624 is specified as a non-safe digital output module with 24 VDC, 16-channel switching capability. Q: What is the maximum load current supported by each output channel?A: Each output channel supports a maximum current of 100 mA according to the provided specifications. Q: What load types can the FS-TDO-1624 drive?A: The module supports 24 VDC discrete loads within the specified current, lamp load, and capacitance limits. Field Installation Guidelines Install the FS-TDO-1624 in the designated Honeywell Safety Manager I/O hardware location according to system configuration requirements. Verify that field wiring matches the 24 VDC output rating before connecting external devices. Separate digital output wiring from high-voltage power cables and high-noise signal sources to reduce electrical interference. Use appropriate grounding and shielding practices when field conditions introduce electromagnetic noise. Confirm connected loads remain within the specified 100 mA output current and 1 uF capacitance limits. Inspect terminal connections and cable routing before system power application.
$200.00 $100.00
-

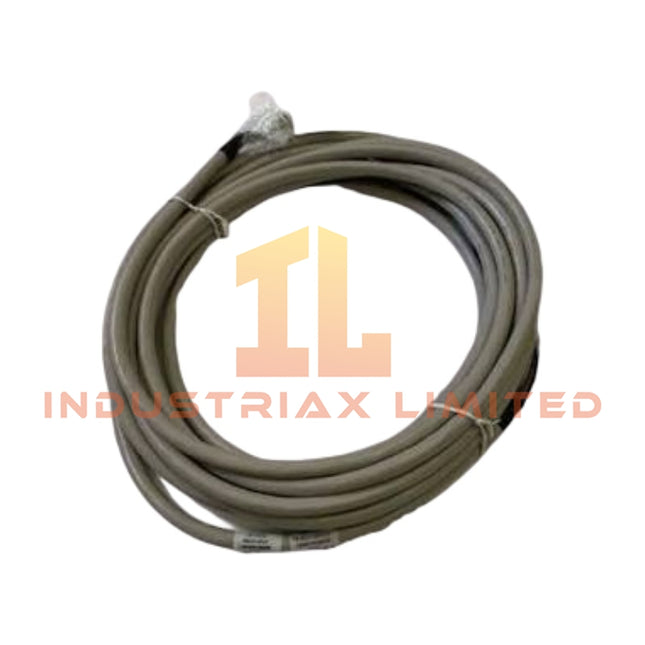

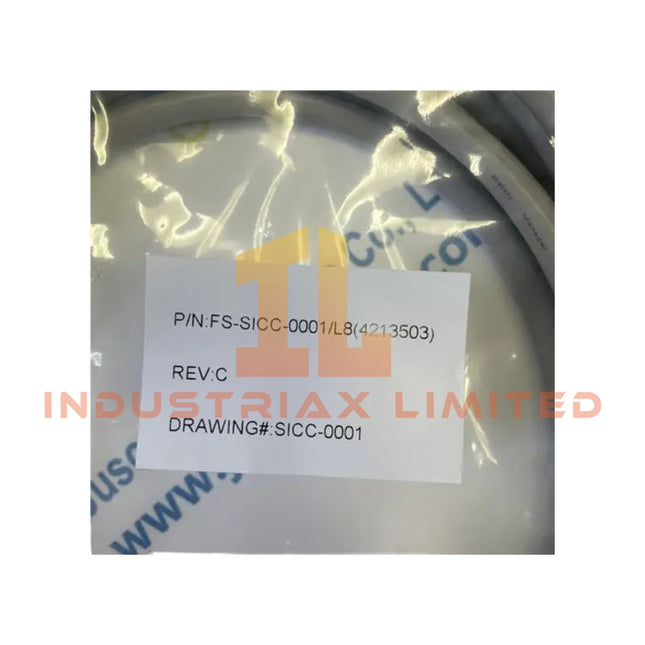

Honeywell System Interconnection Cable | Honeywell FS-SICC-001/L8-IN
Honeywell FS-SICC-001/L8-IN System Interconnection Cable The Honeywell FS-SICC-001/L8-IN, also cataloged as the FS-SICC-0001/L8 System Interconnection Cable, operates as a dedicated hardware component for signal connection between controller modules and Field Termination Assemblies within Honeywell Safety Manager and FTAS systems. Hardware Specifications Parameter Specification Model FS-SICC-001/L8-IN (FS-SICC-0001/L8) Brand Honeywell Product Type System Interconnection Cables Compatible System Honeywell Safety Manager / FTAS Field Termination Assembly Slim Cable Length 8 m Conductor Material Tinned Copper Conductor Size Typically 18 AWG Shielding Aluminum Mylar Shield with Drain Wire Insulation Material High-density Polyethylene / PVC Termination Type Factory Pre-terminated / Ferrule Terminated Origin United States Weight Approximately 1.0 kg - 1.2 kg Operating Temp -40 deg C to +85 deg C Power Consumption Passive cable assembly, no external power consumption Signal Function Controller-to-FTA system interconnection Process Control Signal Interface and Cable Construction The Honeywell FS-SICC-001/L8-IN provides a direct electrical connection path between Safety Manager hardware and FTAS termination assemblies. Moreover, the cable construction uses shielded conductors to reduce electromagnetic interference and radio frequency interference during signal transmission. The cable assembly uses tinned copper conductors to improve oxidation resistance in industrial environments. In addition, the pre-terminated configuration reduces field wiring operations and maintains consistent connection quality between system components. For Honeywell process control architectures, the cable supports physical signal routing associated with DCS and safety system interfaces. Therefore, installation practices must maintain proper cable separation, grounding, and shielding continuity to preserve signal characteristics. Frequently Asked Questions Q: Does the FS-SICC-001/L8-IN require an external power supply?A: No. The FS-SICC-001/L8-IN is a passive interconnection cable assembly and does not consume external electrical power. Q: What shielding method does the cable use for industrial signal protection?A: The cable uses an aluminum Mylar shield with a drain wire to reduce electromagnetic interference effects on transmitted signals. Q: Can the cable length be modified during field installation?A: Field modification is not recommended because the cable uses factory-terminated connections. Any alteration may affect connector integrity and signal interface performance. Field Installation Guidelines Verify the cable part number before installation to ensure compatibility with the intended Honeywell Safety Manager and FTAS hardware interface. Install the cable using the specified termination orientation and avoid unnecessary mechanical stress on connectors. Maintain separation from high-voltage power cables and strong electromagnetic sources to reduce induced noise. Connect the shield drain according to the system grounding design and maintain continuous shielding where required. Avoid sharp bending, excessive pulling force, or routing methods that may damage the insulation or termination points. Inspect connectors before commissioning and confirm that all mating interfaces are fully seated.
$200.00 $100.00
-

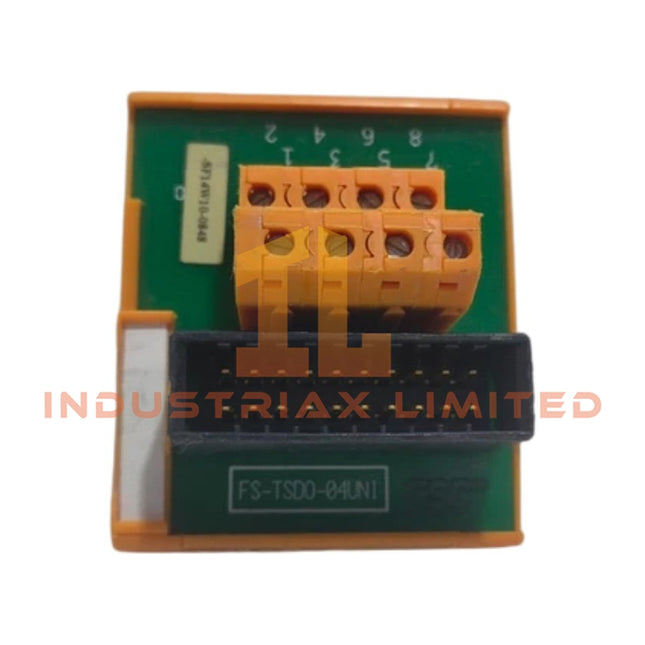

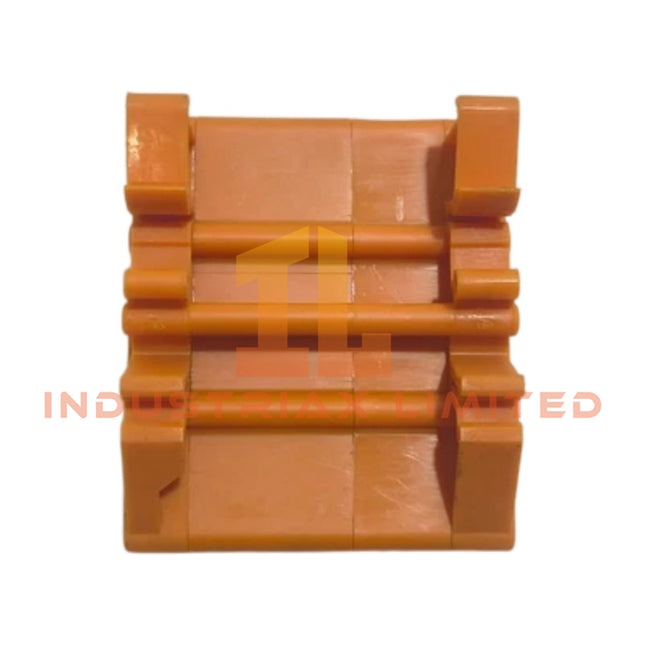

Honeywell Digital Output Field Termination Assembly | Honeywell FS-TSDO-04UNI
Honeywell FS-TSDO-04UNI Safe Digital Output Field Termination Assembly Configured for safe digital output signal termination in Honeywell Safety Manager and FSC systems, the Honeywell FS-TSDO-04UNI (TSDO-04UNI Safe Digital Output Field Termination Assembly) provides direct physical connection between SDO output modules and external field wiring circuits. Hardware Specifications Parameter Specification Model FS-TSDO-04UNI Spare Model TSDO-04UNI Brand Honeywell Product Type Safe Digital Output Field Termination Assembly System Compatibility Honeywell Safety Manager and FSC safety systems Output Interface SDO-04x / SDOL-04x module connection via SICC-0001/Lx cable Number of Channels 4 Supported Field Voltage 24 VDC, 48 VDC, 110 VDC Maximum Voltage 36 VDC - IEC 1010 (1990) Maximum Continuous Current per Channel 4 A Field Wiring Connection Screw terminals Maximum Wire Diameter 2.5 mm2 (AWG 14) Wire Strip Length 7 mm (0.28 in) Mounting Method DIN EN rail snap-in mounting Approvals CE, UL, TUV, CSA Origin USA Place of Shipment Xiamen, China Weight 0.05 kg Dimensions 7 x 6 x 5.5 cm estimated shipping size Power Consumption Passive field termination assembly, no independent power supply 4-20 mA HART and Safety Signal Interface Characteristics The Honeywell FS-TSDO-04UNI operates as a passive termination interface between Safety Manager output modules and field devices. Moreover, the assembly maintains physical separation between system interconnection wiring and external field terminals through dedicated screw terminal connections. The unit supports redundant output configurations by connecting two SDO-04x or SDOL-04x modules through the SICC-0001/Lx system interconnection cable. Therefore, the FTA structure supports fault-tolerant output arrangements where redundant safety output channels require coordinated field termination. In addition, the module provides a DIN rail mounting structure and supports field devices such as shutdown solenoids, contactors, relays, valves, and annunciation equipment. The design follows Honeywell safety system wiring practices for digital output distribution and field circuit termination. Frequently Asked Questions Q: Can the FS-TSDO-04UNI connect directly to external field devices without an SDO module?A: No. The FS-TSDO-04UNI functions as a field termination assembly and requires connection to compatible Honeywell SDO-04x or SDOL-04x output modules through the SICC-0001/Lx system interconnection cable. Q: Does the FS-TSDO-04UNI require an external power supply?A: No. The assembly operates as a passive termination interface and receives output signals through the connected safety output module system. Q: What type of field wiring connection does the module provide?A: The unit uses screw terminals for field wiring connection and supports conductors up to 2.5 mm2 (AWG 14). Field Installation Guidelines Install the FS-TSDO-04UNI on a standard DIN EN rail inside the Honeywell Safety Manager cabinet enclosure. Ensure that the module remains mechanically secured before connecting field conductors. Route field wiring separately from high-voltage power cables and sources of electromagnetic interference. Use proper cable shielding and grounding practices according to the cabinet installation design. Verify terminal assignments before connecting external devices. Confirm that the connected field load characteristics match the supported output module specifications. Maintain correct cable stripping length and tighten screw terminals according to standard industrial wiring procedures. Inspect all connections before system commissioning and safety function testing.
$200.00 $100.00
-

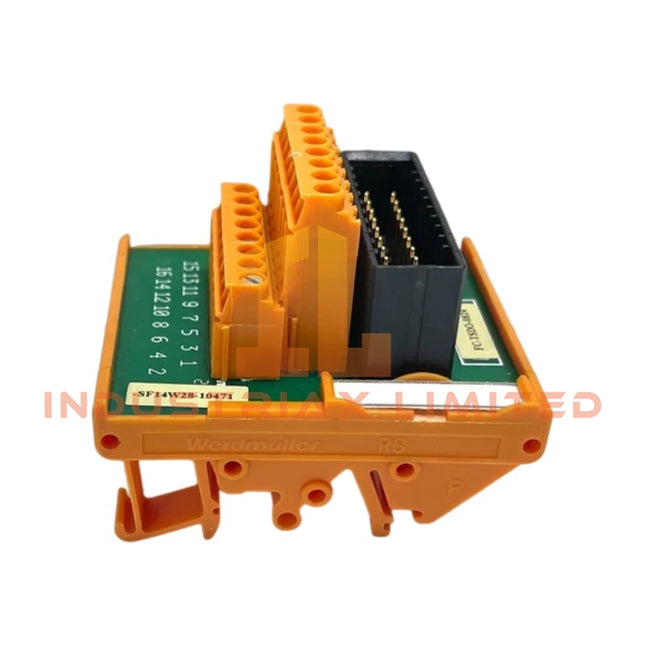

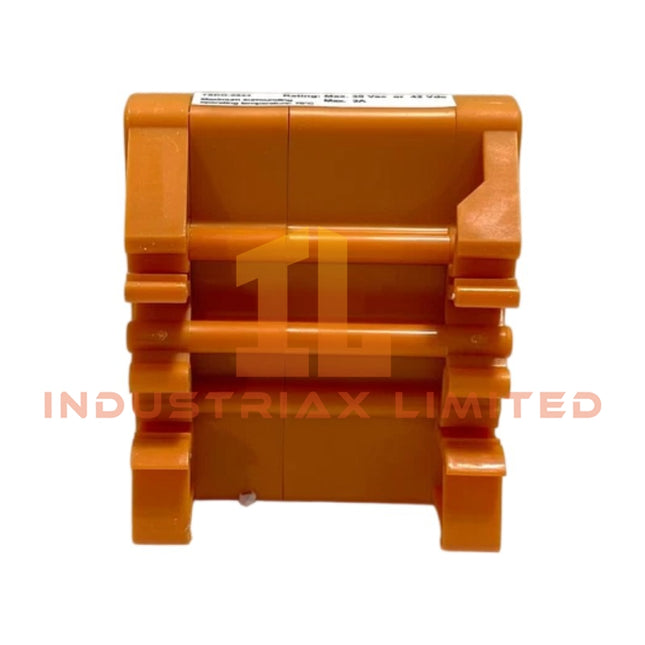

Honeywell Safe Digital Output Modules | Honeywell FS-TSDO-0824
Honeywell FS-TSDO-0824 Safe Digital Output Field Termination Assembly Configured for fail-safe 24 VDC digital output termination in the Honeywell Safety Manager system, the Honeywell FS-TSDO-0824 (TSDO-0824 Safe Digital Output Field Termination Assembly) provides direct electrical connection between redundant output modules and external field wiring. Hardware Specifications Parameter Specification Model FS-TSDO-0824 Spare Model TSDO-0824 Brand Honeywell Product Type Safe Digital Output Field Termination Assembly System Compatibility Honeywell Safety Manager / Fail Safe Control (FSC) platforms Origin USA Weight 0.05 kg Dimensions 60 x 70 x 58 mm (L x W x H) Operating Temp Not specified Power Consumption Passive field termination interface Number of Channels 8 digital output channels Output Voltage Rating 24 VDC system architecture Maximum Voltage 36 VDC, IEC 1010 (1990), Overvoltage Category 3 Maximum Continuous Current per Channel 1.5 A Maximum Wire Diameter 2.5 mm2 (AWG 14) Wire Strip Length 7 mm (0.28 in) Terminal Tightening Torque 0.5 Nm (0.37 ft-lb) Mounting Method Universal DIN EN rail snap-in mounting Supported DIN Rails TS32 / TS35 x 7.5 Used Rail Length 61 mm (2.40 in) Terminal Type Screw terminals System Interconnection Cable SIC-C-12 / SICC-0001/Lx Approvals CE, TUV, UL, CSA, FM Tariff Code 8537101190 Honeywell Safety Manager Fail-Safe Output Interface Characteristics The FS-TSDO-0824 functions as the field termination point between the SIC-C-12 system interconnection cable and external field devices. It connects eight output channels from a redundant pair of safe digital output modules to field wiring through screw terminal connections. Moreover, the assembly supports Honeywell SIS architectures where output signals require controlled fail-safe execution. The termination interface maintains physical separation between system-side communication wiring and external field circuits, reducing wiring complexity in safety control cabinets. The FS-TSDO-0824 applies Honeywell process safety hardware design principles, including channel-to-channel isolation considerations for digital signal handling and structured connection between Safety Manager output modules and field devices. Frequently Asked Questions Q: How many digital output channels does the FS-TSDO-0824 provide?A: The FS-TSDO-0824 provides 8 independent digital output termination channels for connection between safe output modules and field wiring. Q: Which interconnection cable connects the FS-TSDO-0824 to Honeywell output modules?A: The FS-TSDO-0824 connects through the SIC-C-12 or SICC-0001/Lx system interconnection cable to compatible safe digital output modules. Q: What type of field wiring terminals are provided on the FS-TSDO-0824?A: The module uses screw terminals supporting field conductors up to 2.5 mm2 (AWG 14) with a specified tightening torque of 0.5 Nm. Field Installation Guidelines Install the FS-TSDO-0824 on compatible TS32 or TS35 x 7.5 DIN EN rails using the integrated snap-in mounting mechanism. Connect the system-side cable interface to the designated Honeywell safe digital output module connection point. Verify cable routing to maintain separation between signal wiring and high-energy circuits. Terminate field conductors according to the specified wire diameter range and tighten terminal screws using the recommended torque value. Confirm polarity, channel assignment, and field device connection before system commissioning. Maintain appropriate cabinet grounding, shielding, and wiring segregation practices according to the installation requirements of the Honeywell Safety Manager platform.
$200.00 $100.00
-

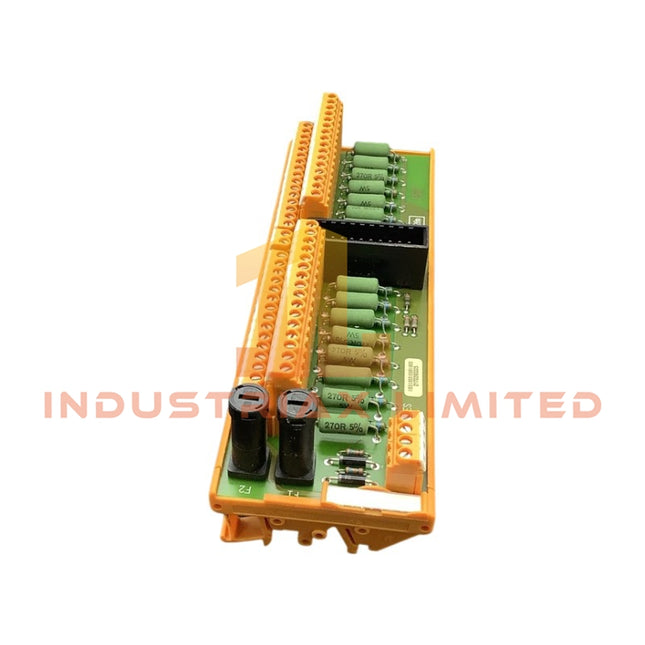

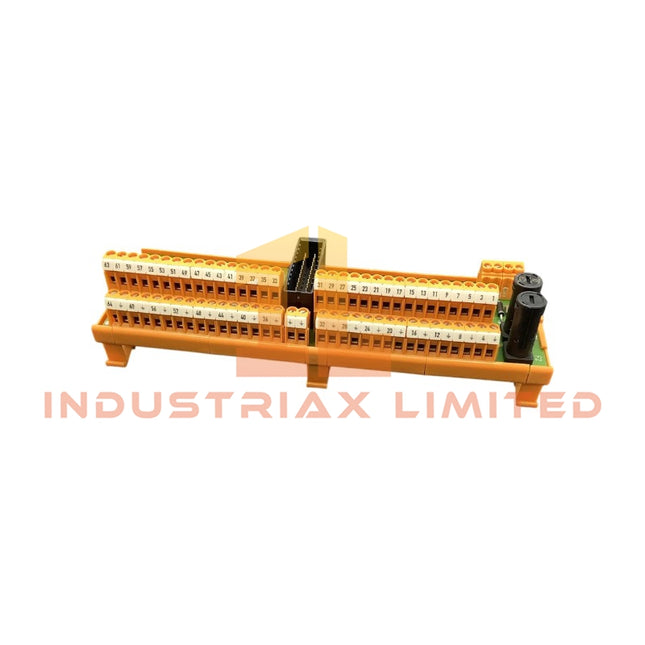

Honeywell Honeywell FS-TSAI-1620M | Analog Input Modules
Honeywell FS-TSAI-1620M Safe Analog Input Field Termination Assembly The Honeywell FS-TSAI-1620M, also cataloged as the FC-TSAI-1620M Safe Analog Input Field Termination Assembly, operates as a dedicated hardware component for converting field transmitter current signals into analog input voltage signals within Honeywell Safety Manager systems. Hardware Specifications Parameter Specification Model FS-TSAI-1620M / FC-TSAI-1620M Brand Honeywell Product Type Safe Analog Input Field Termination Assembly System Compatibility Honeywell Safety Manager SIS Origin USA Weight 0.3kg Dimensions 210 x 70 x 60 mm (L x W x H) Mounting Rail DIN EN TS32 / TS35 x 7.5 Used Rail Length 211 mm Operating Temp Not specified Power Consumption 30 V DC external, 3 mA (without input loop loads) Approvals CE, TUV, UL, CSA, FM Input Channels 16 channels, arranged as 2 groups of 8 channels with common 0 V reference Input Signal Range 0-20 mA and 4-20 mA current loop signals Maximum Input Current 0-25 mA Input Resistance 250 ohm +/- 1% Output Signal to SAI-1620M 0-4 V DC Output Accuracy 0.10% Passive Transmitter Supply Output Resistance 270 ohm +/- 5% Igniting Current Per Channel Less than 120 mA at 30 V DC Fuse Rating 315 mA Fuse Size 5 x 20 mm Fuse Voltage Rating 125 V AC Maximum Fuse Output Current 220 mA Terminal Type Screw terminals Maximum Wire Diameter 2.5 mm2 (AWG 14) Wire Strip Length 7 mm Terminal Tightening Torque 0.5 Nm Field Circuit Classification Nonincendive field circuits, Class 1 Division 2 Hydrogen Group A and B Loop Inductance Maximum 6 mH Hydrogen Group A and B Loop Capacitance Maximum 0.25 uF Non-Hydrogen Group C and D Loop Inductance Maximum 20 mH Non-Hydrogen Group C and D Loop Capacitance Maximum 5 uF 4-20 mA Process Signal Interface and Isolation Characteristics The Honeywell FS-TSAI-1620M interfaces field-mounted analog transmitters with the SAI-1620M Safe High-Density Analog Input Module. Moreover, the assembly accepts 0-20 mA and 4-20 mA current signals and converts them into a proportional 0-4 V DC signal for module processing. The unit provides sixteen analog input channels divided into two eight-channel groups with a common 0 V reference. Therefore, the signal conversion path maintains consistent analog scaling between field devices and the safety input module. In addition, the module supports transmitter loop applications through a passive transmitter supply output with a 270 ohm output resistance. The design includes channel protection through individual 315 mA fuses and supports nonincendive field circuits for Class 1 Division 2 installation environments. For Honeywell process control interfaces, the analog loop architecture follows standard 4-20 mA instrumentation practices. Furthermore, engineers must verify transmitter wiring, loop resistance, and grounding arrangements before commissioning the SIS input circuit. Frequently Asked Questions Q: How many analog input channels does the FS-TSAI-1620M provide?A: The FS-TSAI-1620M provides sixteen analog input channels arranged as two groups of eight channels with a common 0 V reference. Q: What signal conversion does the field termination assembly perform?A: The assembly converts incoming 0-20 mA or 4-20 mA current loop signals into 0-4 V DC output signals for the SAI-1620M Safe High-Density Analog Input Module. Q: What type of field wiring terminals does the module use?A: The module uses screw terminals supporting wires up to 2.5 mm2 (AWG 14) with a 7 mm strip length and 0.5 Nm tightening torque. Field Installation Guidelines Install the FS-TSAI-1620M on compatible TS32 or TS35 x 7.5 DIN EN rails and verify mechanical fixation before wiring field circuits. Use separate routing paths for analog signal cables and high-current power conductors to reduce electrical interference. Moreover, connect cable shields according to the plant grounding standard and avoid creating unintended ground loops. Verify transmitter polarity, current loop continuity, and external 30 V DC supply wiring before applying power. Ensure field circuits remain within the specified nonincendive Class 1 Division 2 electrical limits. Confirm terminal tightening conditions and inspect all field connections before integrating the module with the Honeywell Safety Manager input system.
$200.00 $100.00
-

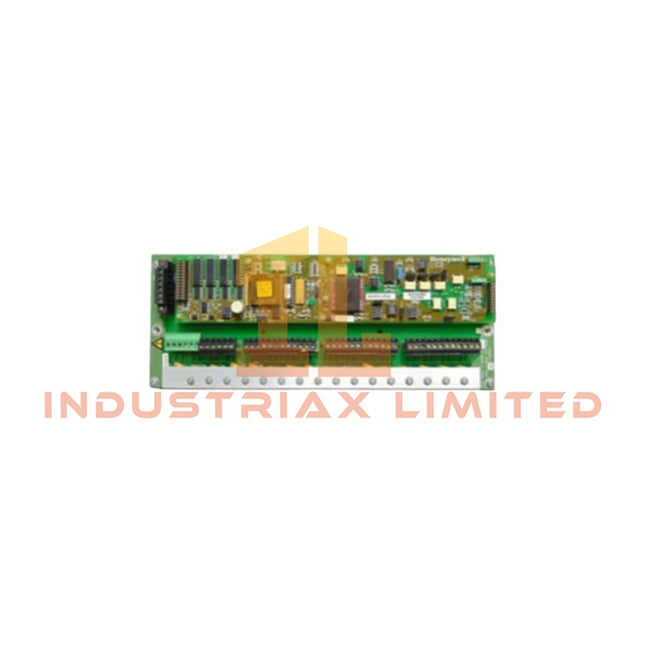

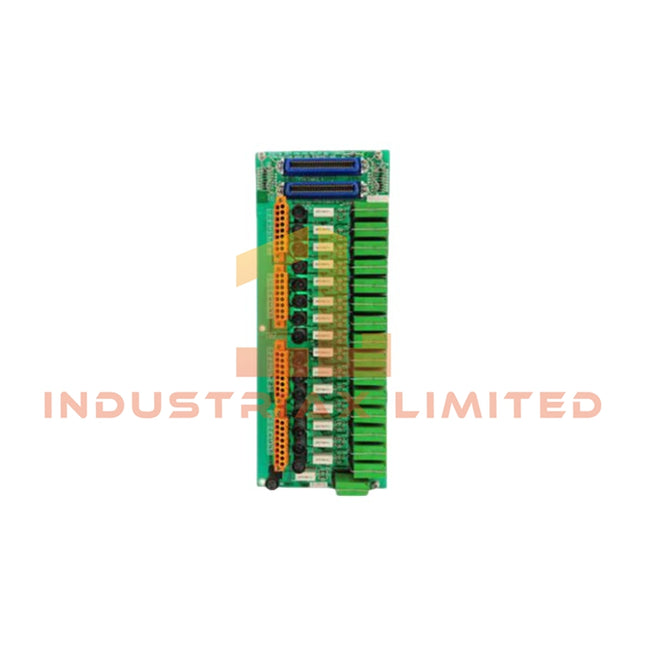

Honeywell Honeywell FS-16DI-RL Fail-Safe Digital Input Module
Honeywell FS-16DI-RL Fail-Safe Digital Input Module Configured for line-monitored digital signal acquisition in Honeywell Safety Manager systems, the Honeywell FS-16DI-RL (FS-16DI-RL Fail-Safe Digital Input Module) provides direct physical and electrical execution for field contact monitoring. Hardware Specifications Parameter Specification Model FS-16DI-RL Brand Honeywell Origin USA Module Type Fail-Safe Digital Input Module Input Channels 16 channels Input Type Dry contact input with resistance-based line monitoring Nominal Field Voltage 24 VDC Safety Integrity Level Up to SIL 3 according to IEC 61508 Diagnostic Functions Open circuit detection, short circuit detection, field wiring diagnostics Galvanic Isolation Yes, field circuit isolation from internal logic Diagnostic Coverage > 99% Operating Temp -5 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 5% to 95% non-condensing Power Consumption Approx. 1.5 W to 3.0 W depending on channel load Hot Swap Capability Supported in redundant configuration Safety Manager Fail-Safe Signal Processing and Isolation The FS-16DI-RL processes 24 VDC field contact signals through monitored input circuits. Moreover, the module evaluates wiring conditions including normal contact states, open circuits, and short circuits to provide diagnostic information to the Safety Manager controller. Honeywell safety modules apply galvanic isolation between field terminals and internal processing circuits. Therefore, the FS-16DI-RL reduces electrical interference transfer between external devices and controller electronics. The module supports safety applications requiring SIL 3 operation. In addition, redundant configurations allow system designers to maintain input availability during module replacement or fault conditions. 4-20 mA HART Loop and DCS Interface Compatibility Honeywell Safety Manager architectures commonly integrate with process instrumentation through standardized industrial signal interfaces. However, the FS-16DI-RL specifically handles discrete contact inputs rather than analog measurement loops. The module design follows Honeywell process safety hardware practices, including channel separation, diagnostic monitoring, and controlled signal transmission between field devices and safety logic execution layers. Frequently Asked Questions Q: Does the FS-16DI-RL support line monitoring for field wiring faults?A: Yes. The module monitors field circuits and detects conditions including open circuits and short circuits through resistance-based diagnostics. Q: Can the FS-16DI-RL operate in redundant safety configurations?A: Yes. The module supports redundant installation arrangements to improve system availability during module faults or maintenance activities. Q: What type of field devices can connect to the FS-16DI-RL inputs?A: The module accepts dry contact devices such as limit switches, pushbuttons, and contact-based safety devices. Field Installation Guidelines Install the FS-16DI-RL according to Honeywell Safety Manager system installation procedures and approved cabinet layouts. Use appropriate field wiring separation practices to prevent interference between safety input circuits and high-energy conductors. Moreover, connect cable shields according to the site grounding standard to maintain signal integrity. Verify input polarity, terminal assignments, and field loop continuity before system commissioning. Therefore, perform open circuit and short circuit diagnostic checks after wiring completion. Install the module in a controlled environment that complies with the specified operating temperature and humidity limits. Follow the approved redundancy configuration requirements when applying hot-swap replacement procedures.
$200.00 $100.00
لقد شاهدت 24 من أصل 148 منتجًا
