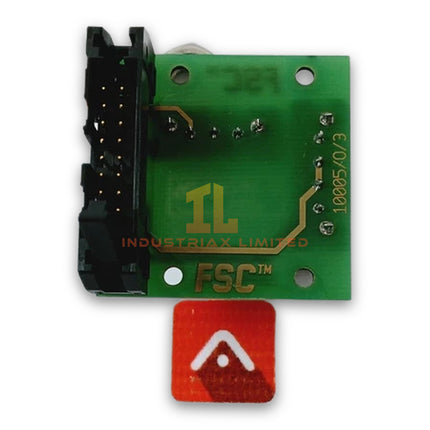

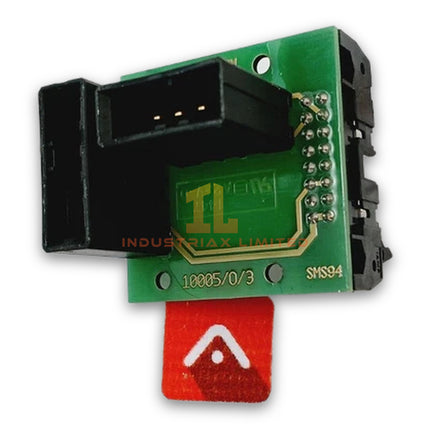

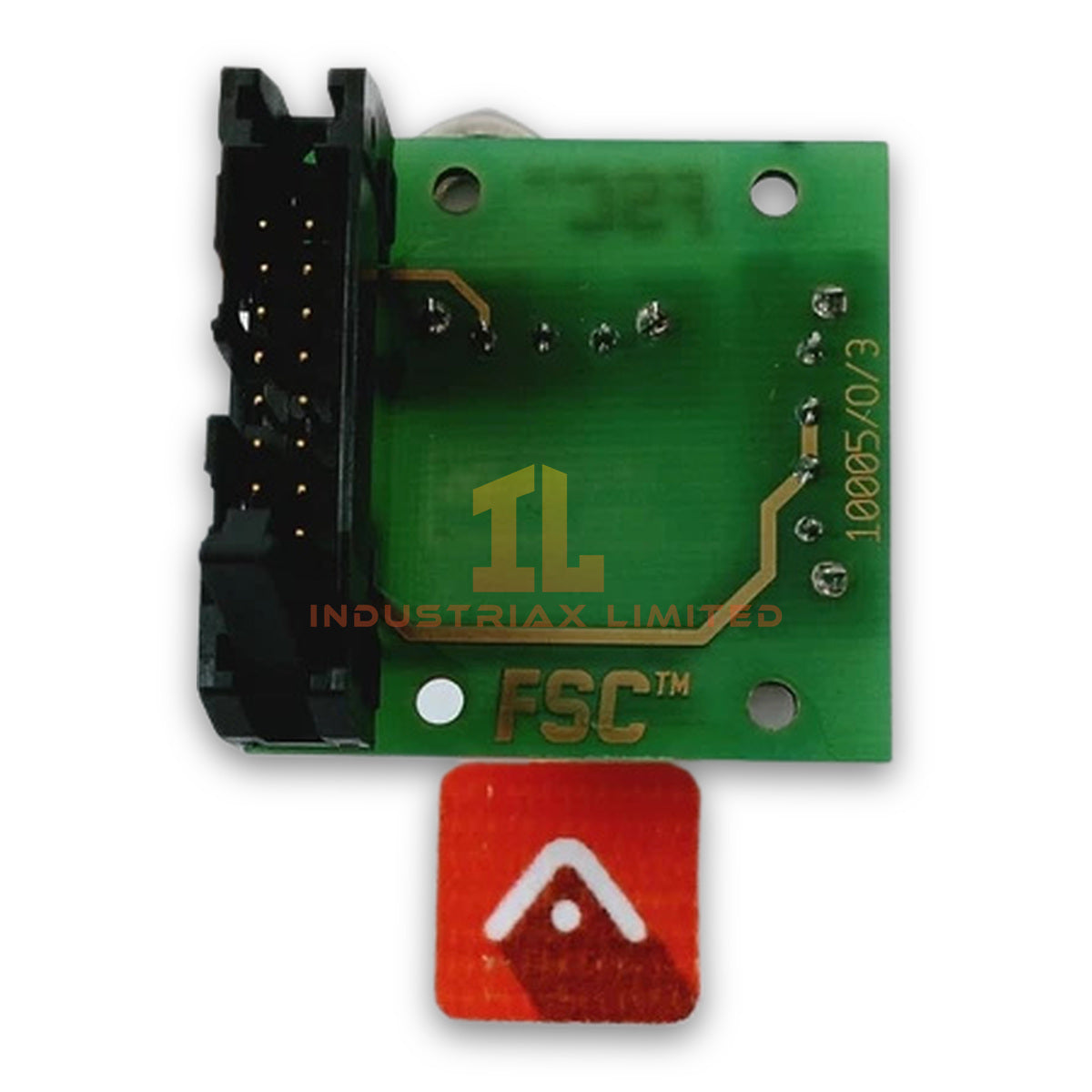

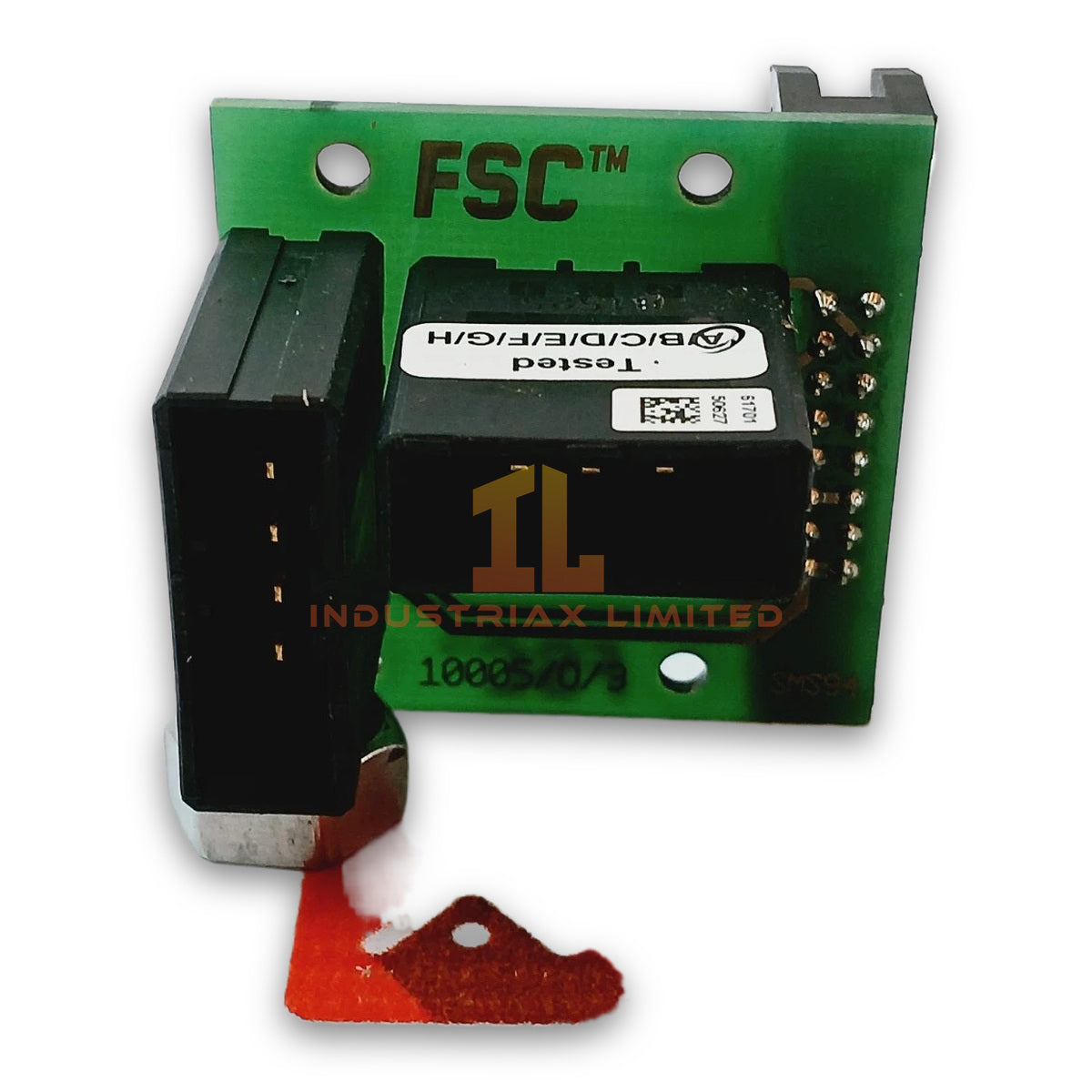

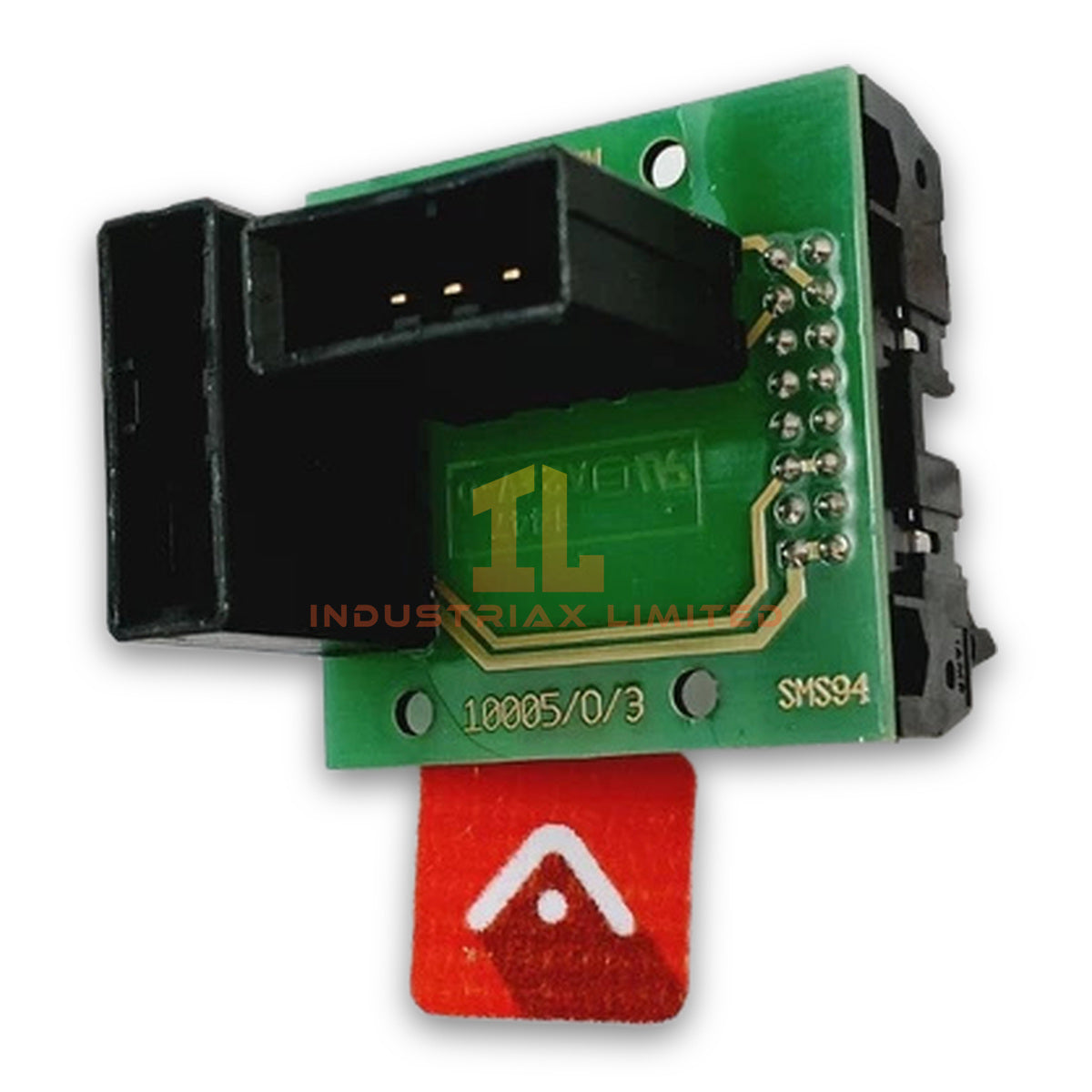

Honeywell 10005/0/3 Fail Safe Control Bus Communication Module

The Honeywell 10005/0/3, also cataloged as the 10005/0/3 Bus Communication Module, operates as a dedicated hardware component for system bus communication and signal routing within Honeywell FSC and Safety Manager platforms.

Hardware Specifications

Parameter	Specification
Model	10005/0/3
Brand	Honeywell
Origin	USA
Module Type	Bus Communication Interface Module
System Compatibility	Honeywell Fail Safe Control (FSC) / Safety Manager
Functional Role	System bus communication and internal signal routing
Safety Integrity Level	Up to SIL 3 according to IEC 61508 / IEC 61511
Mounting Type	FSC rack / sub-rack installation
Operating Temp	0 deg C to +60 deg C
Storage Temp	-40 deg C to +85 deg C
Relative Humidity	5% to 95% non-condensing

Safety Manager Bus Communication and Fault Handling

The Honeywell 10005/0/3 provides internal communication between FSC system components through the safety controller backplane architecture. It manages bus-level data exchange, module addressing, and signal routing functions required by the Safety Manager platform.

Additionally, the module supports diagnostic monitoring to identify internal communication faults and hardware status deviations. The FSC architecture applies fail-safe execution principles, where detected hardware errors trigger predefined safety responses.

The module design supports safety system configurations requiring SIL 3 operation. Furthermore, its hardware isolation and fault detection functions maintain controlled communication behavior during abnormal operating conditions.

Frequently Asked Questions

Q: Does the Honeywell 10005/0/3 support hot-swapping?
A: The module is designed for FSC rack maintenance procedures. Hot replacement capability depends on the specific rack configuration and system operating rules.

Q: What communication function does the 10005/0/3 provide in the FSC system?
A: The module performs internal bus communication and signal routing between Honeywell FSC and Safety Manager system components.

Q: Can the module operate in SIL 3 safety applications?
A: The module supports Honeywell safety system architectures designed for SIL 3 applications when installed within an approved FSC configuration.

Field Installation Guidelines

• Install the module only in the designated Honeywell FSC rack or approved Safety Manager sub-rack position.
• Verify rack power isolation before module insertion or removal during maintenance activities.
• Confirm backplane connector alignment before securing the module into the rack.
• Maintain proper cabinet grounding and shielding practices to reduce electromagnetic interference.
• Route communication wiring separately from high-voltage power cables to minimize electrical noise coupling.
• Check system diagnostics after installation to confirm communication status and module recognition.
