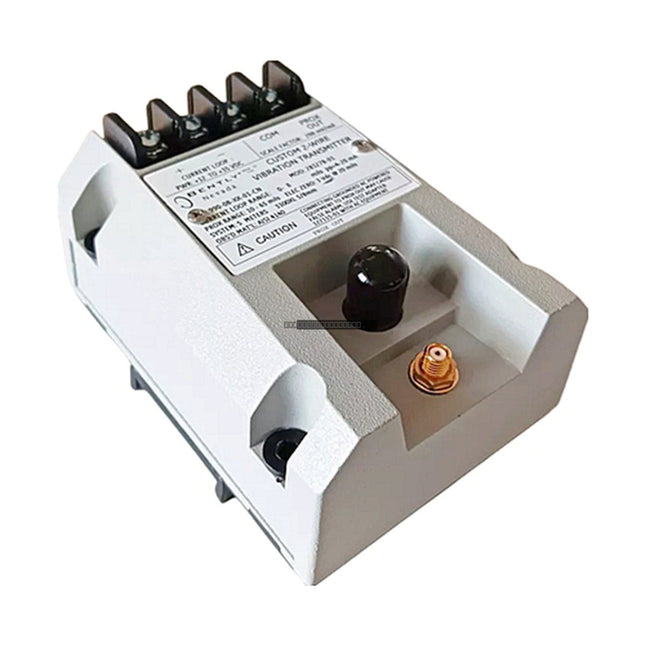

The Bently Nevada 990-08-XX-01-00 is a specialized vibration transmitter designed for continuous monitoring of machinery vibration in industrial environments. This unit provides a reliable interface for converting transducer signals into a standard 4-20 mA output, facilitating integration with PLC, DCS, or SCADA control systems.Features
Designed for integration with 35 mm DIN rail mounting systems.
Supports a wide power supply range of +12 to +35 Vdc at the transmitter terminal.
Maximum loop resistance capability of 1,000 ohms when operating at 35 Vdc.
Integrated current limiting feature set to 23 mA typical for circuit protection.
Certified for use in ATEX Zone 2 hazardous locations and includes ABS maritime approval for marine-grade reliability.
ApplicationsThis transmitter is primarily utilized in industrial rotating machinery monitoring, including pumps, fans, compressors, and motors. It is well-suited for applications where direct vibration data transmission to a control system is required without the need for a full-scale rack-based monitoring system.Technical Specifications
Product Model
990-08-XX-01-00
Device Type
Vibration Transmitter
Power Supply
+12 to +35 Vdc
Max Loop Resistance
1,000 Ohm
Current Limiting
23 mA
Certifications
ATEX Zone 2, ABS Maritime
Weight
0.44 kg
Installation Guidelines
Ensure the device is mounted securely on a standard 35 mm DIN rail.
Verify that the power supply voltage is within the specified +12 to +35 Vdc range at the terminals before energizing.
Maintain proper shielding on signal cables to minimize EMI interference in industrial environments.
Always power down the system before performing wiring changes or module removal to prevent electrical damage.
Ensure the installation environment complies with relevant safety standards for ATEX Zone 2 areas.
FAQWhat is the primary function of the 990-08-XX-01-00? It acts as a signal converter that takes raw vibration input and outputs a 4-20 mA current loop signal for control system monitoring.Does this unit require specific mounting hardware? It is designed for standard 35 mm DIN rail mounting, which is included with this specific configuration.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Product OverviewThe Honeywell MC-TSTX03 is a specialized Field Termination Assembly (FTA) designed for high-level analog input processing within industrial control environments. This Smart Transmitter Interface Processor serves as a critical bridge between field instrumentation and the control system, specifically engineered to support 16 channels of analog data. It is widely utilized in sectors such as oil and gas, power generation, and chemical processing, where maintaining signal integrity and high availability is essential for continuous operations.Features
Supports 16 individual input channels for flexible signal acquisition.
Compatible with Honeywell digital enhanced bidirectional communication protocols.
Integrated support for both single-variable and multi-variable smart transmitters.
Redundancy-ready design to facilitate high-availability configurations and hot-standby operation.
Optimized for centralized field termination to simplify cabinet wiring and maintenance.
Engineered for stable performance in demanding industrial control system architectures.
ApplicationsThe MC-TSTX03 is primarily deployed in distributed control system (DCS) environments. Typical applications include monitoring and control loops in refineries, power plants, and large-scale industrial instrumentation networks where smart transmitter data must be reliably converted and integrated into the primary controller.Technical Specifications
Model
MC-TSTX03
Brand
Honeywell
Input Channels
16
Supported Protocols
Honeywell Digital Enhanced Bidirectional
Operating Temperature
0 to 60 deg C
Coating
Non-conformal
Compliance
CE
Installation Guidelines
Ensure the control cabinet environment is controlled and free from excessive dust, moisture, or corrosive elements.
Power down the system backplane before attempting to install or remove the module to prevent electrical damage.
Verify that all field wiring is properly terminated to the FTA to ensure signal accuracy and minimize EMI interference.
Maintain proper grounding practices as specified by the Honeywell system documentation to protect the integrity of the analog loops.
Ensure adequate ventilation within the cabinet to maintain ambient temperatures within the specified 0 to 60 deg C range.
FAQDoes this module support redundant configurations?Yes, the MC-TSTX03 is engineered to support redundant operation, allowing for dual-path signal processing which enhances overall system availability in critical control loops.What type of transmitters can be connected to the MC-TSTX03?This module is designed to interface with Honeywell digital enhanced bidirectional protocol devices, as well as standard single-variable and multi-variable smart transmitters.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Honeywell MU-TSTX03 is a robust Smart Transmitter Interface Field Termination Assembly (FTA) designed to facilitate reliable communication between field-mounted smart transmitters and host control systems. By utilizing the RS-485 communication standard, this assembly provides high-speed, stable data exchange, making it an essential component for critical process automation, power generation, and oil and gas infrastructure.Features
High-Speed Communication: Supports data transfer rates up to 1 Mbps, ensuring rapid transmission of process variables and diagnostic data.
Industrial Reliability: Engineered for operation in demanding environments with high electromagnetic interference, providing excellent signal integrity.
Wide Temperature Range: Rated for operation between -40 and 85 deg C, allowing for installation in both climate-controlled cabinets and harsh field enclosures.
Energy Efficient: Low power consumption design, operating at 5 VDC with less than 0.5 W power draw.
ApplicationsThe MU-TSTX03 is typically deployed in distributed control system (DCS) architectures where smart transmitters must interface with central controllers. It is ideal for monitoring pressure, temperature, and flow transmitters in large-scale industrial facilities requiring high signal accuracy and system uptime.Technical Specifications
Model
MU-TSTX03
Brand
Honeywell
Communication Protocol
RS-485
Data Transfer Rate
Up to 1 Mbps
Operating Temperature
-40 to 85 deg C
Power Supply
5 VDC
Power Consumption
< 0.5 W
Installation Guidelines
ESD Protection: Always utilize proper electrostatic discharge (ESD) grounding procedures when handling this module to prevent damage to internal circuitry.
Wiring Integrity: Ensure that RS-485 cabling is properly shielded and routed away from high-voltage power lines to minimize signal interference.
Mounting: Install the FTA in a location that facilitates sufficient airflow to maintain the specified operating temperature range.
Power Down: Always disconnect power to the assembly before performing any maintenance, wiring changes, or module insertion/extraction.
FAQDoes this module support long-distance communication?Yes, the MU-TSTX03 utilizes the RS-485 protocol, which is well-suited for long-distance communication in industrial environments, provided that proper cabling and termination practices are followed.What is the primary function of the MU-TSTX03?It acts as a field termination assembly that interfaces smart field transmitters with the control system, ensuring that data, status information, and diagnostics are transmitted reliably to the host controller.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Honeywell MU-GAIH13 is a high-level analog input (HLAI) smart transmitter interface (STI) field termination assembly (FTA). It is engineered for integration within Honeywell TPS and process automation systems to facilitate the acquisition of analog signals from field instrumentation. This module supports up to 16 high-level DC analog channels, providing isolated floating DC power for 2-wire or 3-wire 4-20 mA transmitters, particularly in hazardous process environments. The unit functions by repeating the transmitter current into a safe-area range spool circuit, which produces a 1 to 5 VDC signal compatible with Honeywell HLAI IOP modules.Features
Supports 16 independent analog input channels.
Provides isolated floating DC power for field-mounted transmitters.
Compatible with both 2-wire and 3-wire 4-20 mA smart transmitter configurations.
Converts field current inputs to 1-5 VDC output signals for DCS processing.
Designed for high-reliability signal conditioning in electrically noisy environments.
Reduces signal distortion and enhances transmitter stability.
ApplicationsThe MU-GAIH13 is widely utilized in critical process industries, including:
Refinery and petrochemical processing units.
Offshore oil and gas production platforms.
Thermal and nuclear power generation facilities.
Hazardous-area process automation and control systems.
Technical Specifications
Model
MU-GAIH13
Channel Capacity
16 Analog Input Channels
Input Signal
4-20 mA DC
Output Signal
1-5 VDC
Transmitter Support
2-wire and 3-wire Smart Transmitters
System Compatibility
Honeywell TPS DCS
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Humidity
5 to 95% non-condensing
Power Consumption
Approx. 8 W
Installation Guidelines
Ensure the cabinet mounting surface is clean and provides adequate grounding for the FTA assembly.
Always power down the system before installing or removing the module to prevent electrical damage.
Use shielded twisted-pair cabling for all analog signal runs to minimize EMI/RFI interference.
Maintain proper segregation between signal wiring and high-voltage power lines within the cabinet.
Verify that the floating power supply configuration matches the specific requirements of the connected field transmitters.
Handle with standard ESD precautions to protect internal circuitry.
FAQWhat is the primary function of the MU-GAIH13?The MU-GAIH13 serves as an interface between field-mounted 4-20 mA transmitters and the Honeywell DCS. It provides the necessary power to the transmitters and converts the current signal into a 1-5 VDC voltage signal that the control system can process.Is this module suitable for hazardous locations?Yes, the MU-GAIH13 is designed to provide the necessary isolation for transmitters installed in hazardous process environments, ensuring safe operation within the broader Honeywell TPS architecture.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

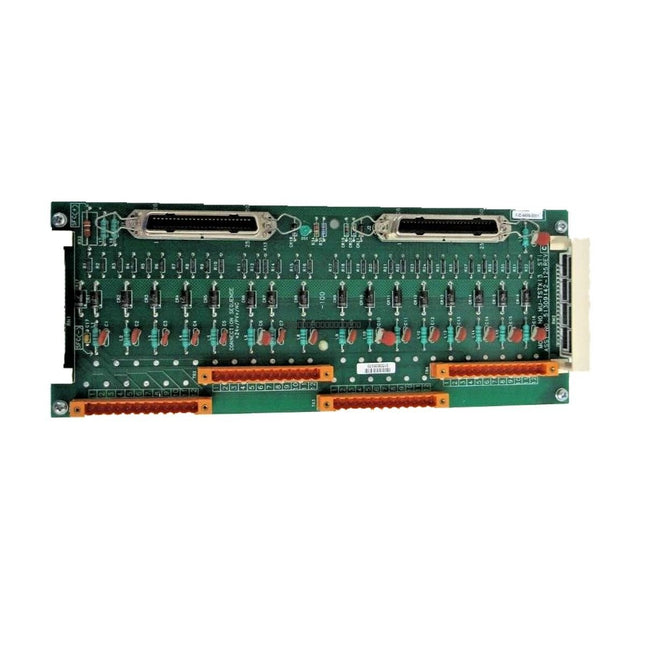

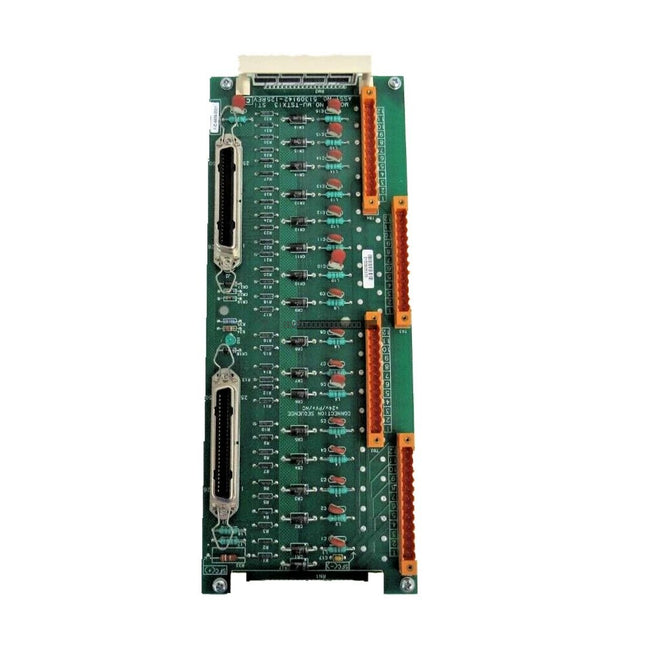

DescriptionThe Honeywell MC-TSTX13 is a high-density Smart Transmitter Interface Field Termination Assembly (FTA) engineered for integration within Honeywell distributed control systems. This module serves as a critical interface layer, providing signal termination, conditioning, and routing for up to 16 analog input channels from smart field transmitters. Designed for mission-critical process environments, the MC-TSTX13 ensures signal integrity and reliable data acquisition between field instrumentation and control processors.Features
Supports 16 individual input channels for smart transmitter connectivity.
Redundant input path configuration to enhance system availability and fault tolerance.
Integrated signal conditioning to minimize noise and eliminate ground loop interference.
Optimized for seamless integration with Honeywell control system I/O architectures.
Robust construction designed for industrial process control environments.
ApplicationsThe MC-TSTX13 is widely utilized in large-scale industrial automation, including oil and gas refining, chemical processing, and power generation facilities. It is specifically suited for applications requiring high-density analog signal processing where system uptime and signal stability are paramount.Technical Specifications
Model
MC-TSTX13
Brand
Honeywell
Module Type
Smart Transmitter Interface FTA
Input Channels
16
Signal Type
Smart transmitter analog input
Redundancy
Supported (dual input path)
Operating Temperature
0 to 60 deg C
Certifications
CE Mark
Installation Guidelines
Ensure the control system is powered down before installing or removing the FTA module to prevent electrical damage.
Mount the module in a clean, dry, and vibration-free environment within a standard control cabinet.
Use appropriate shielded cabling for all field instrument connections to maintain signal integrity and reduce EMI.
Ensure proper grounding of the FTA chassis to the cabinet ground bus to minimize noise and potential ground loops.
Verify that all terminal connections are secure and properly labeled according to the system wiring diagram.
FAQDoes the MC-TSTX13 support redundant configurations?Yes, the module is designed to support redundant input path configurations, allowing for improved reliability and uninterrupted signal processing in critical control loops.What is the primary function of this FTA?The MC-TSTX13 acts as a termination and conditioning interface, bridging the gap between field-mounted smart transmitters and the main control system I/O modules.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Bently Nevada 990-10-XX-01-00 (MOD 163930-01) is a two-wire, loop-powered vibration transmitter designed to provide a 4-20 mA proportional signal for machinery control systems. This device integrates the Proximitor sensor directly into the transmitter housing, eliminating the need for external signal conditioning units. It is specifically engineered for OEM applications involving small pumps, motors, fans, and centrifugal air compressors.Features
Integrated Proximitor sensor functionality for reduced installation complexity.
Non-isolated PROX OUT and COM terminals, supplemented by a coaxial connector.
Non-interacting zero and span potentiometers for precise calibration.
Dedicated test input pin for rapid verification of loop signal output.
Not OK/Signal Defeat circuit to prevent false alarms or erroneous high outputs.
Potted construction suitable for high-humidity environments, including up to 100% condensing conditions.
Applications
Centrifugal air compressor monitoring.
Vibration trending for small pumps and motors.
Integration into PLC-based machinery protection systems.
General-purpose vibration monitoring in industrial environments.
Technical Specifications
Model
990-10-XX-01-00 MOD 163930-01
Full-scale Range
0-10 mils pp (0-250 um pp)
System Length
5.0 meters or 7.0 meters
Mounting
35 mm DIN rail clips
Device Type
2-wire, loop-powered transmitter
Compatible Probes
3300 NSv proximity probes
Output Signal
4-20 mA
Installation Guidelines
Ensure the system is powered down before performing any wiring, installation, or removal of the module.
Mount the transmitter on a 35 mm DIN rail in a location protected from excessive heat and direct moisture.
Use shielded cabling for the 4-20 mA loop to minimize electromagnetic interference (EMI).
Verify that the proximity probe and extension cable match the system length requirements (5m or 7m) specified for the transmitter.
Ensure proper grounding of the signal shield at the control system end to maintain signal integrity.
Handle the device with standard ESD precautions to prevent damage to internal circuitry.
FAQWhat is the primary function of the 990-10-XX-01-00?This transmitter is designed to convert vibration data from a 3300 NSv proximity probe into a 4-20 mA signal, allowing standard PLCs to monitor vibration levels on rotating machinery.Is this unit compatible with System 1 software?No, the 4-20 mA output provides peak-to-peak trending data only and does not support the advanced diagnostic capabilities required for systems like Bently Nevada System 1 or Rule Paks.What system lengths are supported?The 990-10-XX-01-00 is compatible with 5.0-meter and 7.0-meter system length configurations.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe ABB HESG447024R1 (70BT01C) is a high-performance bus transmitter and isolation amplifier module designed specifically for the ABB PROCONTROL P distributed control system. This module functions as a critical interface between the main PROCONTROL control system and the PROCONTROL-PS protection system, enabling the seamless integration of protection signals into the P bus architecture.Features
System Integration: Facilitates communication between PROCONTROL-PS protection systems and the main PROCONTROL P bus.
Galvanic Isolation: Provides 1500 V DC isolation to ensure electrical safety and mitigate ground loop interference between disparate system segments.
Signal Processing: Supports up to 32 binary or analog input signals, converting them into 32 compatible PROCONTROL P bus signals.
Configuration: Configured via the Process Data Display System (PDDS) with nonvolatile storage in onboard EEPROM.
High-Speed Communication: Supports deterministic remote bus communication for real-time process signal availability.
Redundancy: Designed to support redundant communication architectures to enhance system reliability.
ApplicationsThis module is widely utilized in large-scale industrial automation environments, including:
Power Generation: Thermal, hydropower, and nuclear power plants for turbine control and protection.
Metallurgical Industry: Automation of blast furnaces and monitoring of steel rolling lines.
Petrochemical: Process monitoring in oil refining and chemical production.
Manufacturing: Conveyor system monitoring and grinding machine control in cement and paper mills.
Technical Specifications
Model
HESG447024R1 / HEB67077-31B / 70BT01C
Manufacturer
ABB
Power Supply
24 V DC
Power Consumption
< 10 W
Input Capacity
Up to 32 binary/analog signals
Isolation Voltage
1500 V DC
Operating Temperature
-20 degC to +60 degC
Storage Temperature
-40 degC to +85 degC
Humidity
0 - 95 % RH (non-condensing)
Installation Guidelines
Safety First: Always disconnect power from the rack before inserting or removing the module to prevent electrical damage.
Handling: This module contains sensitive electronic components; use proper ESD (Electrostatic Discharge) protection during handling.
Mounting: Ensure the module is securely seated in the designated PROCONTROL P rack slot to maintain proper bus backplane contact.
Environment: Install in a clean, dry environment within the specified temperature range. Ensure adequate ventilation to prevent heat buildup.
Wiring: Use shielded cables for signal input to minimize EMI/RFI interference. Ensure proper grounding of the cable shields at the designated terminal points.
FAQWhat is the primary function of the HESG447024R1?The HESG447024R1 acts as a bus transmitter and isolation amplifier, bridging the gap between the PROCONTROL-PS protection system and the main PROCONTROL P bus system.How is the module configured?Configuration is performed using the ABB PDDS (Process Data Display System). Users load marshalling and limit-value lists into the module's RAM, which can then be saved to the onboard nonvolatile EEPROM.Does this module support redundant systems?Yes, the module is designed to be compatible with redundant communication architectures, helping to prevent system-wide failures in the event of a single module fault.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

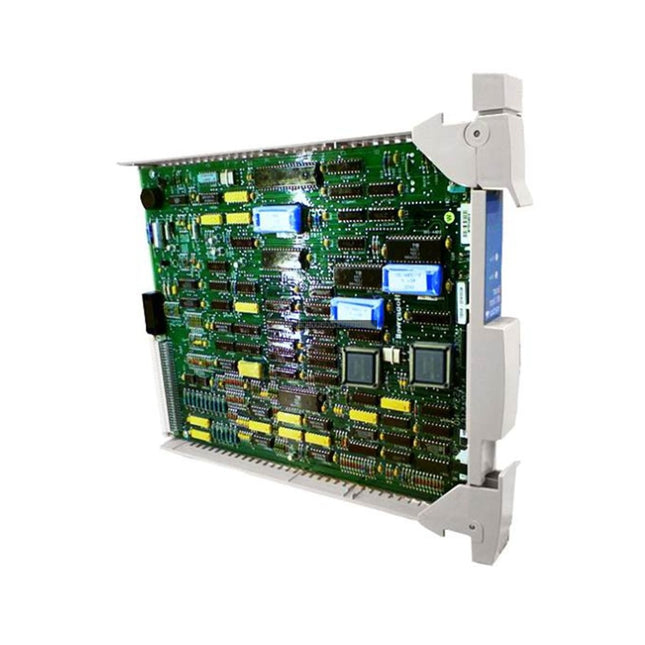

DescriptionThe Honeywell 51304516-250 (MC-PSTX03) is a Smart Transmitter Interface Multivariable (STIM) module designed for high-integrity communication within Honeywell distributed control systems. This module serves as a dedicated processor interface, enabling seamless integration with intelligent field transmitters. It is engineered to process up to 16 input channels, facilitating advanced process monitoring and control in critical industrial environments such as petrochemical facilities, refineries, and power generation plants. This specific version is CE compliant, featuring enhanced electromagnetic compatibility (EMC) to ensure reliable operation in electrically noisy environments.Features
Supports up to 16 smart transmitter input channels for multivariable process monitoring.
CE compliant design with enhanced EMC protection.
Includes filtered IOP connectors to suppress conducted noise.
Equipped with dedicated IOP connector grounding panels for improved shielding.
Features a rear backpanel shield structure for increased stability.
Conformal coated hardware for protection against humidity and airborne contaminants.
Optimized for deterministic communication and high-availability process control.
ApplicationsThe MC-PSTX03 is utilized in advanced process control loops where high-fidelity data from intelligent transmitters is required. It is commonly deployed in systems requiring precise diagnostics and visibility of process variables across large-scale industrial architectures.Technical Specifications
Model
MC-PSTX03
Part Number
51304516-250
Module Type
Smart Transmitter Interface Multivariable (STIM)
Input Capacity
16 Channels
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Compliance
CE Compliant (EMC Enhanced)
Protection
Filtered IOP connectors, Grounding panels, Rear shield
Construction
Conformal coated
Installation Guidelines
Ensure the control system is powered down before inserting or removing the module from the backplane.
Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
Ensure the module is fully seated in the designated rack slot to maintain proper backplane communication.
Verify that all IOP connectors are securely fastened and that the grounding panels are properly bonded to the system ground.
Maintain adequate ventilation in the cabinet to ensure the module operates within its specified temperature range (0 to 60 deg C).
Route signal cables away from high-voltage lines and high-EMI sources to maintain signal integrity.
FAQWhat is the primary function of the 51304516-250 module?The MC-PSTX03 acts as a smart transmitter interface that collects and processes data from up to 16 multivariable field transmitters, providing the control system with reliable process variables and diagnostic information.What distinguishes the 51304516-250 from non-CE versions?The 51304516-250 is a CE-compliant version that includes specific EMC enhancements: filtered IOP connectors, dedicated grounding panels, and a rear backpanel shield to mitigate communication instability caused by electrical noise.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Bently Nevada 991-01-XX-01-00 Vibration Transmitter is a two-wire, loop-powered device engineered for the continuous monitoring of rotating machinery. It is specifically designed to interface with 3300 NSv proximity probes, converting raw vibration signals into a standard 4-20 mA output. This output is directly compatible with industrial control systems such as PLCs, DCS, and SCADA, providing a robust solution for machinery protection in environments like compressors, pumps, and fans.Features
Loop-Powered Design: Operates on a 24 VDC nominal loop, eliminating the requirement for external power supplies and simplifying field wiring.
Signal Processing: Converts proximity probe inputs into a proportional 4-20 mA signal for vibration amplitude.
Diagnostic Circuitry: Features an integrated Not OK/Signal Defeat circuit to prevent false alarms during sensor or cable faults.
Dynamic Output: Provides both dynamic vibration and gap voltage outputs for advanced diagnostics and signal analysis.
Calibration: Equipped with a test pin for quick and efficient field calibration.
ApplicationsThis transmitter is ideal for industrial plant applications where reliable, cost-effective vibration monitoring is required for balance-of-plant rotating equipment, including centrifugal compressors, industrial pumps, cooling fans, and blowers.Technical Specifications
Model
991-01-XX-01-00
Brand
Bently Nevada
Output
4-20 mA (proportional to vibration)
Power Supply
Loop-powered (24 VDC nominal)
Operating Temperature
-40 degC to +85 degC
System Compatibility
3300 NSv Proximity Probes
Installation Guidelines
Mounting: The unit supports standard DIN-rail or bulkhead mounting configurations. Ensure the mounting surface is clean and provides adequate heat dissipation.
Wiring: Use shielded instrumentation cable to minimize EMI/RFI interference. Ensure proper grounding of the cable shield at the control system end only to prevent ground loops.
Handling: As a precision electronic component, handle with care to avoid ESD damage. Ensure the system is powered down before making or breaking electrical connections.
Environment: While robust, the unit should be installed in a location protected from direct moisture and extreme corrosive atmospheres unless housed in an appropriate NEMA-rated enclosure.
FAQWhat is the primary function of the 991-01-XX-01-00?This module acts as a signal conditioner that takes the raw signal from a 3300 NSv proximity probe and converts it into a 4-20 mA signal, which is the industry standard for integration into PLC or DCS monitoring systems.Does this transmitter require an external power supply?No, this is a two-wire, loop-powered device. It derives its operating power directly from the 4-20 mA current loop, which simplifies installation and reduces cabling requirements.What should I do if the Not OK circuit triggers?The Not OK circuit indicates a fault in the probe, extension cable, or the transmitter itself. Check the integrity of the proximity probe and the cabling connections to the transmitter before verifying the transmitter's internal diagnostics via the test pin.
The Bently Nevada 177230-02-01-05 is a loop-powered seismic transmitter designed to provide reliable vibration protection and condition monitoring for general-purpose machinery, including motors, pumps, and fans. This device converts mechanical vibration into an industry-standard 4-20 mA signal, allowing for direct integration into PLCs, DCS, or SCADA systems.Features
Loop-powered design (4 to 20 mA output) for simplified integration.
Requires no field configuration or adjustments.
Robust ceramic/shear sensing element for consistent performance.
Protected interface design to ensure signal integrity.
Compatible with a variety of industry-standard interface cables.
Applications
Electric power industry: Bearing vibration monitoring for gas turbines, steam turbines, and hydroelectric generators.
Oil and gas: Vibration monitoring for compressor units in long-distance pipelines.
Petrochemical industry: Monitoring of key rotating machinery in refineries and fertilizer plants.
Manufacturing and mining: Online monitoring of large electric motors, centrifuges, and heavy grinding machinery.
Technical Specifications
Model
177230-02-01-05
Measurement Range
0 to 50.8 mm/s (0 to 2.0 in/s)
Frequency Response
10 Hz to 1 kHz
Excitation Voltage
12 to 30 Vdc
Sensing Element
Ceramic / Shear
Operating Temperature
-40 degC to +85 degC
Installation Guidelines
The unit typically mounts directly to the machine via a stud.
If using a magnetic base, avoid "snapping" the unit onto the machine surface, as this can generate high-amplitude spikes that may damage internal electronics. Always roll the magnetic base onto the surface.
Ensure the loop power supply is within the 12-30 Vdc range before connection.
Follow standard industrial practices for shielded cable routing to minimize EMI/RFI interference.
Ensure the mounting surface is clean and flat to maintain accurate frequency response.
FAQWhat is the 177230-02-01-05?The Bently Nevada 177230-02-01-05 is a 2-wire, loop-powered Seismic Transmitter designed for monitoring machinery vibration (velocity) in industrial environments.What is the 177230-02-01-05 measurement range?The 02 suffix indicates a measurement range of 0 to 50.8 mm/s (0 to 2.0 in/s) peak velocity.What is the 177230-02-01-05 frequency response?The 01 suffix indicates a frequency response of 10 Hz to 1 kHz (600 to 60 kcps) RMS.What is the 177230-02-01-05 power requirement?It is a loop-powered device requiring an excitation voltage of 12 to 30 Vdc.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Bently Nevada 990-04-70-01-00 is a dedicated vibration transmitter designed for continuous monitoring of radial vibration in industrial machinery. As part of the 990 series, this unit provides a reliable, cost-effective solution for applications where a full-scale rack-based monitoring system is not required. It converts raw vibration signals into a proportional 4-20 mA output, allowing for direct integration into PLCs, DCS, or SCADA systems for machinery protection and condition monitoring.Features
Full-scale range: 0-4 mils pp (0-100 um pp)
Cable length: 7.0 meters (23.0 feet)
Mounting: Integrated 35 mm DIN rail clips for standard industrial cabinet installation
Adjustments: Non-interacting external zero and span controls for precise calibration
Power requirements: Operates on +12 to +35 Vdc input at the transmitter terminal
Current limiting: 23 mA typical protection
Technical Specifications
Product Model
990-04-70-01-00
Full-Scale Range
0-4 mils pp (0-100 um pp)
Cable Length
7.0 meters (23.0 feet)
Mounting
35 mm DIN rail
Power Input
+12 to +35 Vdc
Current Limiting
23 mA typical
Weight
0.46 kg
Installation Guidelines
Ensure the transmitter is mounted in a clean, dry environment within the specified temperature range.
Use the provided 35 mm DIN rail clips for secure attachment to the equipment rack or panel.
Ensure all wiring is shielded and routed away from high-voltage power lines to prevent EMI/RFI interference.
Verify correct polarity of the +12 to +35 Vdc power supply before applying power to the terminal.
Perform calibration using the external zero and span adjustments only after the system has reached thermal equilibrium.
Always disconnect power before installing or removing the module from the DIN rail.
FAQWhat is the primary function of the 990 vibration transmitter?The 990 transmitter is designed to monitor radial vibration on rotating machinery and provide a 4-20 mA output signal proportional to the vibration level, which is ideal for simple monitoring applications.Can the zero and span be adjusted on this unit?Yes, the 990-04-70-01-00 features non-interacting external adjustments that allow for precise calibration of the zero and span settings without affecting the other parameter.What type of mounting does this model support?This specific model is configured with 35 mm DIN rail clips for standard industrial mounting.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Bently Nevada 284398-01 991 Thrust Transmitter
Configured for axial displacement signal conversion in Bently Nevada machinery monitoring systems, the Bently Nevada 284398-01 (284398-01 991 Thrust Transmitter) provides direct physical/electrical execution between 3300 NSv proximity probe inputs and 4-20 mA output loops.
Hardware Specifications
Parameter
Specification
Model
284398-01
Brand
Bently Nevada
Product Type
991 Thrust Transmitter
Series
991 Series
Origin
USA
Weight
0.22 kg
Dimensions
88 mm x 35 mm x 70 mm
Operating Temp
-40 deg C to +85 deg C
Power Consumption
Loop powered, 18 to 30 VDC supply
Input Signal
3300 NSv eddy-current proximity probe signal
Output Signal
4-20 mA proportional axial displacement output
Measurement Range
Approximately +/- 1.0 mm
Accuracy
+/- 0.5% full scale
Probe System Compatibility
5 m or 7 m probe extension system
Signal Interface
Two-wire loop powered transmitter
Housing Protection
IP65
Mounting Type
Industrial field mounting
Eddy-Current Probe Scaling and Rotor Position Measurement
The 284398-01 transmitter processes eddy-current probe displacement signals and converts probe gap variations into a proportional 4-20 mA axial position signal. The input circuit maintains scaling between the 3300 NSv proximity probe system and the connected monitoring or control equipment.
The transmitter operation depends on correct probe calibration and gap voltage validation. Bently Nevada proximity measurement systems typically use -10 VDC target gap voltage references for probe operating point verification. Proper gap setting allows accurate rotor thrust position measurement and reduces measurement deviation caused by incorrect probe installation.
The unit supports machinery condition monitoring applications where rotor dynamics and axial movement data are required. The signal conversion path provides compatibility with PLC, DCS, and machinery protection interfaces using standard analog current loops.
Frequently Asked Questions
Q: What type of sensor input does the 284398-01 accept?A: The transmitter accepts input signals from Bently Nevada 3300 NSv eddy-current proximity probe systems for axial displacement measurement.
Q: What electrical output is provided by the transmitter?A: The unit provides a two-wire loop powered 4-20 mA output proportional to measured thrust position.
Q: What installation factor affects measurement accuracy?A: Correct probe gap adjustment, cable configuration, and signal wiring practices affect axial position measurement performance.
Field Installation Guidelines
Install the transmitter according to the specified environmental limits and mechanical mounting requirements.
Verify the proximity probe gap voltage before commissioning the measurement loop.
Use shielded signal wiring and maintain proper cable separation from high-voltage power conductors.
Confirm compatibility between the 3300 NSv probe, extension cable length, and transmitter configuration.
Connect the 4-20 mA loop with correct polarity and verify the receiving PLC or DCS analog input scaling.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Bently Nevada P3403893-0416 990 Series Vibration Transmitter
The Bently Nevada P3403893-0416, also cataloged as the P3403893-0416 990 Series Vibration Transmitter, operates as a dedicated hardware component for converting vibration signals into 4-20 mA outputs within industrial machinery monitoring systems.
Hardware Specifications
Parameter
Specification
Model
P3403893-0416
Brand
Bently Nevada
Product Type
Vibration Transmitter
Series
990 Series
Origin
USA
Weight
Approximately 0.55 kg
Dimensions
Approximately 7.5 cm x 6 cm x 10 cm
Operating Temp
-40 deg C to +85 deg C
Power Consumption
Less than 25 mA
Measurement Input
Compatible vibration sensor input
Output Signal
4-20 mA DC, 2-wire loop powered
Supply Voltage
12-35 VDC
Load Resistance
Up to 600 ohms
Frequency Response
3 to 1,000 Hz typical configuration
Enclosure Rating
IP65 / NEMA 4X type housing, configuration dependent
Eddy-Current Measurement and Rotor Dynamics Interface
The P3403893-0416 processes vibration signals from compatible Bently Nevada sensing systems and converts dynamic mechanical movement into a proportional 4-20 mA current signal. The transmitter interface supports vibration measurement chains based on eddy-current probe technology, where probe scaling and signal conditioning define the relationship between shaft displacement and electrical output.
The device is applied in machinery monitoring loops where rotor dynamics analysis requires continuous vibration trend data. Proper probe installation requires verification of probe gap conditions and signal integrity. Bently Nevada proximity systems commonly reference -10 VDC gap voltage targets for standard eddy-current probe operating points.
Signal processing design considers measurement stability, sensor response characteristics, and cross-talk suppression requirements within vibration monitoring installations. These functions allow integration with PLC, DCS, and condition monitoring platforms for analog vibration data acquisition.
Frequently Asked Questions
Q: What type of electrical output is provided by the P3403893-0416?A: The transmitter provides a 4-20 mA DC output through a two-wire loop-powered connection for vibration monitoring circuits.
Q: Does the P3403893-0416 require a separate vibration monitoring module?A: The transmitter provides a conditioned analog output and can connect directly to compatible PLC, DCS, or monitoring input channels that accept 4-20 mA signals.
Q: What sensor technology is associated with this transmitter?A: The unit is designed for use with compatible Bently Nevada vibration sensing systems, including configurations based on eddy-current proximity measurement technology.
Field Installation Guidelines
Install the transmitter in a location protected from excessive mechanical shock, moisture, and contamination.
Use shielded instrumentation cable for signal wiring where required by the plant grounding practice.
Connect cable shields according to site grounding standards to reduce electrical interference.
Verify sensor wiring polarity and loop power availability before commissioning.
Confirm vibration sensor gap settings and signal scaling before connecting the transmitter output to the control system.
Maintain separation between low-level vibration signal wiring and high-voltage power cables.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Bently Nevada 991-01-XX-01-00 MOD: 288865-01 Thrust Transmitter
The Bently Nevada 991-01-XX-01-00 MOD: 288865-01, also cataloged as the 991-01-XX-01-00 Thrust Transmitter, operates as a dedicated hardware component for axial shaft position measurement within Bently Nevada TSI monitoring systems.
Hardware Specifications
Parameter
Specification
Model
991-01-XX-01-00 MOD: 288865-01
Brand
Bently Nevada
Product Type
Thrust Transmitter
Origin
USA
Weight
0.5 kg
Dimensions
10 x 7.4 x 6 cm
Operating Temp
-35 deg C to +85 deg C
Power Consumption
+12 to +35 VDC input at transmitter terminal
Input Signal
3300 NSv non-contacting proximity probe system
Output Signal
4-20 mA proportional thrust position signal
System Length Option
5.0 meters / 7.0 meters
Mounting Option
35 mm DIN-rail clips
Agency Approval
Not required
Current Limiting
23 mA typical
Eddy-Current Probe Scaling and Thrust Position Measurement
The 991 Thrust Transmitter processes displacement signals from a Bently Nevada eddy-current proximity probe system. The transmitter scales probe output into a proportional 4-20 mA current signal representing axial shaft position.
The module uses gap voltage validation to maintain probe operating conditions, with standard Bently Nevada probe systems typically referenced around -10 VDC target gap voltage. The signal conversion maintains measurement consistency for thrust monitoring applications.
The transmitter architecture supports rotor dynamics analysis by providing continuous axial displacement feedback. Internal signal conditioning reduces measurement interference and supports cross-talk suppression when installed with adjacent proximity measurement channels.
Frequently Asked Questions
Q: What input device is compatible with the 991-01-XX-01-00 Thrust Transmitter?A: The transmitter accepts input from a Bently Nevada 3300 NSv non-contacting eddy-current proximity probe system.
Q: What mounting method is specified for this transmitter model?A: The model uses 35 mm DIN-rail clips for mechanical installation.
Q: What power supply range is required for operation?A: The transmitter requires a +12 to +35 VDC input applied at the transmitter terminals.
Field Installation Guidelines
Install the transmitter on a suitable 35 mm DIN-rail mounting structure with adequate mechanical support. Maintain separation between probe signal wiring and high-current power cables to reduce electrical interference.
Connect the proximity probe system using shielded instrumentation wiring where required by the installation environment. Apply correct cable routing practices and connect cable shields according to plant grounding standards.
Verify the probe gap voltage before commissioning the measurement loop. Confirm the 4-20 mA output response and ensure the connected monitoring system is configured for the correct thrust position scaling.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Bently Nevada 991-25-XX-01-CN 991 Thrust Transmitter
The Bently Nevada 991-25-XX-01-CN, also cataloged as the 991-25-XX-01-CN 991 Thrust Transmitter, operates as a dedicated hardware component for axial shaft position measurement within Bently Nevada TSI monitoring systems.
Hardware Specifications
Parameter
Specification
Model
991-25-XX-01-CN
Brand
Bently Nevada
Product Type
Thrust Transmitter
Origin
USA
Weight
0.44 kg
Dimensions
7.3 x 5 x 10 cm (estimated shipping size)
Input
1 non-contacting 3300 NSv Proximity Probe and extension cable
Output Signal
4-20 mA proportional thrust position signal
Power Supply
+12 to +35 VDC input at transmitter terminal
Maximum Loop Resistance
1,000 ohm including cable at 35 VDC
Current Limiting
23 mA typical
Zero Adjustment
External non-interacting adjustment
Span Adjustment
External non-interacting adjustment
Full Scale Option
25-0-25 mils
System Length Option
5.0 meters (16.4 feet)
Mounting Method
35 mm DIN-rail clips
Eddy-Current Probe Signal Scaling and Rotor Position Measurement
The 991-25-XX-01-CN receives displacement signals from a 3300 NSv eddy-current proximity probe system and converts the probe output into a proportional 4-20 mA transmission signal. The transmitter processes shaft axial movement based on the probe gap relationship and provides continuous thrust position data for TSI monitoring applications.
The eddy-current probe scaling circuit maintains signal conversion between the probe displacement range and transmitter output range. External zero and span adjustments allow field calibration without interaction between the two settings.
The system architecture supports mechanical condition monitoring by measuring rotor axial position changes. Proper probe installation, gap voltage validation, and signal cable routing are required to maintain measurement accuracy and reduce electrical interference.
Frequently Asked Questions
Q: What type of sensor input does the 991-25-XX-01-CN accept?A: The transmitter accepts one non-contacting 3300 NSv Proximity Probe with matching extension cable for axial displacement measurement.
Q: What power supply range is required for operation?A: The transmitter requires a +12 to +35 VDC input connected at the transmitter terminal.
Q: How is the output signal adjusted during commissioning?A: Zero and span calibration are performed through external non-interacting adjustment controls on the transmitter.
Field Installation Guidelines
Install the transmitter on a suitable 35 mm DIN rail mounting system using the supplied DIN-rail clips.
Connect the 3300 NSv proximity probe and extension cable according to the Bently Nevada installation documentation.
Maintain proper cable routing separation from high-current power conductors to reduce electromagnetic interference.
Verify probe wiring polarity and shield termination before system energization.
Perform zero and span calibration after mechanical installation and confirm the 4-20 mA output corresponds with the required thrust position range.
Ensure the DC supply voltage remains within the specified +12 to +35 VDC operating range.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Bently Nevada 991-06-XX 991 Thrust Transmitter
The Bently Nevada 991-06-XX, also cataloged as the 991-06-XX Thrust Transmitter, operates as a dedicated hardware component for axial shaft displacement measurement using 3300 NSv proximity probe systems within machinery protection monitoring loops.
Hardware Specifications
Parameter
Specification
Model
991-06-XX
Brand
Bently Nevada
Product Type
Thrust Transmitter
Origin
USA
Weight
Approximately 0.43 kg
Dimensions
Industrial transmitter housing format
Operating Temp
-35 deg C to +85 deg C
Power Consumption
Loop powered, 12 VDC to 48 VDC supply range
Measurement Input
3300 NSv Eddy Current Proximity Probe
Measurement Function
Axial shaft position / thrust displacement
Output Signal
4-20 mA proportional current output
Output Configuration
2-wire loop powered
Probe System Length
5 m or 7 m options
Response Time
Less than 10 ms
Accuracy
Approximately +/- 0.1% full scale
Mounting Method
DIN rail or bulkhead mounting
Diagnostic Terminals
PROX OUT and COM terminals
Eddy-Current Measurement and Gap Voltage Validation
The Bently Nevada 991-06-XX applies eddy-current probe scaling technology to convert probe gap variations into axial shaft position data. The connected 3300 NSv proximity probe generates an electromagnetic field, and the transmitter processes impedance changes caused by shaft movement.
The measurement circuit performs probe signal conditioning and displacement linearization before transmitting the 4-20 mA output signal. Gap voltage validation functions allow technicians to verify probe installation condition and operating range during commissioning. The system supports typical Bently Nevada proximity measurement practices using negative gap voltage targets near -10 VDC for correct probe positioning.
The transmitter architecture supports rotor dynamics monitoring applications by maintaining stable displacement measurement during axial movement events. Signal processing functions also reduce measurement interference caused by electrical noise and cross-talk between monitoring channels.
Frequently Asked Questions
Q: What type of sensor input is supported by the 991-06-XX?A: The transmitter accepts input from Bently Nevada 3300 NSv eddy-current proximity probe systems with compatible extension cables.
Q: What electrical output does the 991-06-XX provide?A: The device provides a 4-20 mA proportional output through a 2-wire loop-powered connection.
Q: Does the transmitter include integrated signal conditioning?A: Yes. The 991-06-XX contains integrated Proximitor signal conditioning functions and does not require a separate external Proximitor module.
Field Installation Guidelines
Install the transmitter on a rigid mounting surface with protection from mechanical impact and excessive vibration.
Confirm compatibility between the proximity probe, extension cable length, and transmitter configuration before startup.
Adjust probe installation gap according to the specified 3300 NSv operating range.
Verify loop wiring polarity and shielding connection before applying power.
Route signal wiring separately from high-voltage power cables to reduce electrical interference.
Use PROX OUT and COM diagnostic terminals to check probe condition during commissioning.
Confirm the 4-20 mA loop output using calibrated measurement equipment before connecting to the control system.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Bently Nevada 991-25-50-01-00 Thrust Transmitter
Configured for axial shaft displacement measurement in rotating machinery, the Bently Nevada 991-25-50-01-00 (991 Thrust Transmitter) provides direct physical/electrical signal conversion for thrust position monitoring within Bently Nevada TSI monitoring architectures.
Hardware Specifications
Parameter
Specification
Model
991-25-50-01-00
Brand
Bently Nevada
Product Type
Thrust Transmitter
Origin
USA
Full-scale Option
25-0-25 mils
System Length Option
5.0 metres (16.4 feet)
Mounting Option
35 mm DIN-rail clips
Agency Approval Option
Not required
Measurement Function
Axial shaft position / thrust displacement transmission
Output Interface
4-20 mA proportional transmitter output
Input System
Bently Nevada proximity probe system interface
Eddy-Current Probe Scaling and Gap Voltage Validation
The 991 series Thrust Transmitter processes displacement signals from eddy-current probe systems and converts probe movement into a proportional current output. The transmitter scaling corresponds to the configured full-scale range, allowing axial position changes to be represented within the monitoring loop.
The system operation depends on correct probe gap positioning and signal conditioning. Gap voltage validation follows Bently Nevada proximity measurement principles, including the typical -10 VDC target reference used for probe operating verification. Proper probe scaling supports accurate thrust position interpretation and rotor axial movement analysis.
Frequently Asked Questions
Q: What type of measurement does the 991-25-50-01-00 perform?A: The transmitter measures axial shaft displacement using a compatible eddy-current proximity probe system and converts the signal into a 4-20 mA output.
Q: What mounting method is specified for this model?A: This model includes a 35 mm DIN-rail clip mounting option for cabinet installation.
Q: Does this model include agency approval certification?A: The 991-25-50-01-00 configuration specifies that agency approval is not required.
Field Installation Guidelines
Install the transmitter on a stable DIN rail surface inside an appropriate control cabinet enclosure. Maintain separation between probe signal wiring and high-voltage power cables to reduce electrical interference.
Verify the proximity probe connection, extension cable compatibility, and probe gap voltage before commissioning. Use proper shield termination practices according to site grounding requirements.
Confirm the configured full-scale range and system cable length before integrating the 4-20 mA output into the monitoring or control system. Avoid mechanical stress on field wiring and ensure terminal connections remain secure during operation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Bently Nevada 990-10-XX-02-00 2-Wire Vibration Transmitter
Configured for vibration amplitude measurement in machinery protection monitoring loops, the Bently Nevada 990-10-XX-02-00 (990-10-XX-02-00 2-Wire Vibration Transmitter) provides direct physical signal conversion from vibration input to a 4-20 mA output loop.
Hardware Specifications
Parameter
Specification
Model
990-10-XX-02-00
Brand
Bently Nevada
Product Type
2-Wire Vibration Transmitter
Origin
USA
Weight
Approx. 0.44 kg
Dimensions
Compact transmitter housing design
Operating Temp
Industrial operating environment
Power Consumption
Loop-powered through 4-20 mA circuit
Input Type
Integrated proximity sensing system
Output Signal
4-20 mA proportional vibration signal
Wiring Configuration
Two-wire loop connection
Measurement Function
Converts vibration displacement into electrical current output
Signal Processing
Internal signal conditioning and amplification
Mounting Application
OEM centrifugal compressors, pumps, motors, and fans
Eddy-Current Probe Scaling and Rotor Dynamics Monitoring
The 990-10-XX-02-00 transmitter processes vibration signals through an integrated proximity measurement arrangement. The device applies eddy-current probe scaling principles to convert mechanical shaft movement into a proportional electrical output.
The transmitter architecture supports rotor dynamics monitoring by conditioning vibration amplitude signals before transmission to control or monitoring equipment. The signal path is designed for continuous vibration measurement without requiring a separate external transmitter module.
The Bently Nevada measurement approach includes gap voltage validation practices, with proximity systems typically referenced around -10 VDC target gap voltage conditions for correct probe operating range verification. Signal conditioning also considers cross-talk suppression requirements in rotating machinery environments where multiple vibration channels operate nearby.
Frequently Asked Questions
Q: Does the 990-10-XX-02-00 require a separate power supply connection?A: No. The transmitter uses a two-wire loop-powered configuration and receives operating power through the 4-20 mA current loop.
Q: What type of output signal does this transmitter provide?A: The device provides a conditioned 4-20 mA analog output proportional to the measured vibration level.
Q: Can the transmitter connect directly to a control system input?A: Yes. The standard 4-20 mA output is designed for connection to compatible industrial control and monitoring input channels.
Field Installation Guidelines
Install the transmitter according to the approved mechanical mounting arrangement of the monitored machine.
Maintain correct proximity probe positioning and verify probe gap conditions before operation.
Use shielded instrumentation wiring where required by the installation environment.
Connect cable shields according to site grounding practices to reduce electrical interference.
Separate vibration signal wiring from high-current power cables to minimize induced noise.
Confirm the receiving control system input is configured for a 4-20 mA current loop signal.
Inspect all terminal connections for correct polarity before energizing the measurement loop.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Bently Nevada 990-05-XX 990 Vibration Transmitter
The Bently Nevada 990-05-XX, also cataloged as the 990-05-XX 990 Vibration Transmitter, operates as a dedicated hardware component for converting eddy-current probe vibration signals into 4-20 mA outputs within machinery monitoring and control systems.
Hardware Specifications
Parameter
Specification
Model
990-05-XX
Brand
Bently Nevada
Product Type
Vibration Transmitter
Origin
USA
Weight
Approximately 0.44 kg
Dimensions
Compact DIN rail / bulkhead transmitter housing
Operating Temp
-40 deg C to +85 deg C
Power Consumption
Less than 30 mA
Measurement Input
3300 NSv proximity probe and extension cable system
Measurement Principle
Eddy-current displacement sensing
Output Signal
4-20 mA DC proportional vibration output
Configuration
Two-wire loop-powered transmitter
Full Scale Range
0-5 mils pp (0-125 um pp) option
Power Supply
+12 to +35 VDC
Frequency Response
5 Hz to 6,000 Hz (+0, -3 dB)
Probe Gap Range
0.5 mm to 1.75 mm
Accuracy
Approximately +/- 1.5% of full scale
Loop Resistance
Up to 1,000 ohm at 35 VDC
Mounting Type
35 mm DIN rail or bulkhead mounting
Diagnostic Output
PROX OUT and COM terminals
Hazardous Area Compatibility
Zone 2 / Division 2 compatible options
Eddy-Current Probe Scaling and Rotor Dynamics Monitoring
The 990-05-XX transmitter applies Bently Nevada eddy-current probe scaling technology to process shaft vibration displacement signals from the 3300 NSv proximity probe system. The integrated electronics convert probe voltage variations into a proportional vibration current output for external monitoring equipment.
The transmitter validates probe operation through gap voltage measurement during installation and operation. Proper probe positioning maintains the sensor within the linear measurement range, while the signal conditioning circuit processes dynamic shaft movement for rotor dynamics analysis.
The design supports machinery vibration trending by providing direct access to vibration amplitude and gap-related diagnostic signals. In addition, the transmitter structure reduces signal interference effects through controlled signal conditioning and dedicated diagnostic terminals.
Frequently Asked Questions
Q: What type of input sensor is compatible with the 990-05-XX?A: The transmitter is designed for the Bently Nevada 3300 NSv eddy-current proximity probe system with a matching extension cable configuration.
Q: What electrical output does the 990-05-XX provide?A: The device provides a two-wire loop-powered 4-20 mA DC proportional vibration output for connection to PLC, DCS, or monitoring systems.
Q: How is probe installation condition verified?A: Probe operating condition is checked through gap voltage measurement, allowing verification of probe position and signal quality during commissioning.
Field Installation Guidelines
Verify the transmitter, proximity probe, and extension cable system length compatibility before wiring.
Install the unit on a suitable DIN rail or bulkhead mounting surface with proper mechanical support.
Use shielded signal wiring for the 4-20 mA loop connection in areas with electrical noise sources.
Maintain correct cable routing between the probe and transmitter to reduce electromagnetic interference.
Confirm the loop power supply voltage is within the specified operating range before startup.
Check probe gap voltage and vibration output signals after mechanical installation and system commissioning.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Bently Nevada 991-25-70-01-CN 991 Thrust Transmitter
The Bently Nevada 991-25-70-01-CN, also cataloged as the 991-25-70-01-CN 991 Thrust Transmitter, operates as a dedicated hardware component for axial shaft position measurement within machinery protection monitoring systems. The transmitter processes 3300 NSv proximity probe signals and converts thrust displacement into a 4-20 mA loop-powered output.
Hardware Specifications
Parameter
Specification
Model
991-25-70-01-CN
Brand
Bently Nevada
Product Type
Thrust Transmitter
Series
991
Origin
USA
Input Type
3300 NSv non-contacting proximity probe with extension cable
Measurement Function
Axial shaft displacement / thrust position monitoring
Measurement Range
25-0-25 mils
Linear Range
0.25 to 1.65 mm
Output Signal
4-20 mA DC
Output Configuration
2-wire loop-powered transmitter
Power Supply
+12 to +35 VDC
System Length
7.0 m (23.0 ft)
Mounting Type
35 mm DIN-rail mounting clips
Loop Accuracy
Typically within +/-1.5 % of full scale
Maximum Loop Resistance
1000 ohms at 35 VDC including cable
Current Limitation
Approximately 23 mA
Signal Failure Output
Less than 3.6 mA within 100 us
Zero and Span Adjustment
External non-interactive adjustment
Operating Temp
-35 deg C to +85 deg C
Storage Temp
-51 deg C to +100 deg C
Probe Operating Temp
-35 deg C to +177 deg C
Probe Storage Temp
-51 deg C to +177 deg C
Weight
Approximately 0.43 kg
Dimensions
53.3 mm x 73.9 mm x 100.1 mm
Power Consumption
Loop-powered operation, dependent on supply voltage and loop resistance
Eddy-Current Probe Scaling and Rotor Dynamics Processing
The 991-25-70-01-CN uses an eddy-current measurement interface to process displacement signals from the 3300 NSv proximity probe. The transmitter applies probe scaling characteristics to convert gap-related voltage changes into proportional shaft position data.
The system design includes gap voltage validation principles based on eddy-current probe operation. A typical probe operating point uses a -10 VDC gap voltage target to maintain measurement linearity and displacement accuracy.
The transmitter output represents axial rotor movement and supports rotor dynamics analysis by providing continuous thrust position feedback. Signal conditioning functions maintain measurement stability by reducing electrical interference effects during machinery operation.
Frequently Asked Questions
Q: What type of input sensor is compatible with the 991-25-70-01-CN?A: The transmitter accepts input from a Bently Nevada 3300 NSv non-contacting proximity probe with a matching extension cable system.
Q: What electrical output does the transmitter provide?A: The unit provides a proportional 4-20 mA DC signal through a 2-wire loop-powered configuration.
Q: Does the transmitter require cabinet mounting hardware?A: The device uses 35 mm DIN-rail clips for installation inside industrial control panels.
Field Installation Guidelines
Install the transmitter on a standard 35 mm DIN rail inside a protected control cabinet environment.
Connect the proximity probe, extension cable, and transmitter input wiring according to the approved Bently Nevada installation documentation.
Maintain proper cable routing separation between probe wiring and high-voltage power conductors to reduce electrical interference.
Verify probe gap voltage before commissioning to confirm correct eddy-current measurement operation.
Connect the 4-20 mA loop with correct polarity and confirm loop power availability before operation.
Use shielded instrumentation wiring where required and terminate cable shields according to site grounding practices.
Perform zero and span adjustment verification after mechanical installation and shaft position alignment.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Bently Nevada 991-06-70-01-00 991 Vibration Transmitter
Configured for vibration amplitude monitoring in rotating machinery protection systems, the Bently Nevada 991-06-70-01-00 (991 Vibration Transmitter) provides direct physical signal conversion from a proximity probe input into a proportional 4-20 mA output signal.
Hardware Specifications
Parameter
Specification
Model
991-06-70-01-00
Brand
Bently Nevada
Product Type
Vibration Transmitter
Origin
USA
Weight
0.44 kg
Dimensions
10 x 7.4 x 5.8 cm
Power Consumption
Loop-powered design, current limiting 23 mA typical
Full-scale Option
0.6-0-0.6 mm
System Length Option
7.0 meters (23.0 feet)
Mounting Option
35 mm DIN-rail clips
Agency Approval Option
Not required
Signal Output
4-20 mA proportional vibration output
Input Sensor Type
Eddy-current proximity probe interface
Tariff Code
8537101190
Eddy-Current Measurement and Rotor Dynamics Interface
The Bently Nevada 991 series vibration transmitter processes eddy-current probe signals for machinery vibration measurement. The 991-06-70-01-00 configuration supports a 0.6-0-0.6 mm full-scale measurement range with a 7.0 meter system length option.
Moreover, the transmitter maintains probe signal scaling for converting shaft displacement measurements into a standardized current output. The eddy-current interface requires correct probe installation and gap voltage validation to maintain measurement accuracy. Bently Nevada proximity systems typically use -10 VDC target gap voltage verification for proper probe operating position.
The device supports vibration monitoring applications where rotor dynamics analysis requires continuous displacement signal transmission. Signal conditioning inside the transmitter reduces measurement errors caused by electrical interference and supports stable monitoring of rotating equipment vibration behavior.
Frequently Asked Questions
Q: What type of sensor input does the 991-06-70-01-00 support?A: The transmitter is designed for use with Bently Nevada eddy-current proximity probe systems and converts displacement signals into a 4-20 mA output.
Q: What is the purpose of the 7.0 meter system length option?A: The 7.0 meter option defines the compatible probe and extension cable system length for the vibration measurement configuration.
Q: How is the transmitter mounted in an industrial control cabinet?A: The unit uses 35 mm DIN-rail clips for panel installation.
Field Installation Guidelines
Install the transmitter on a suitable DIN rail inside a protected control cabinet environment. Maintain separation between signal wiring and high-current power cables to reduce electrical noise interference.
Connect the proximity probe system according to the specified sensor wiring requirements. Verify probe polarity, cable shielding, and grounding practices before commissioning.
Check the probe gap voltage during installation to confirm correct eddy-current measurement operation. Ensure cable routing avoids strong electromagnetic sources and mechanical stress points.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Bently Nevada 991-50-XX-01-00 991 Thrust Transmitter
Configured for axial shaft position measurement in rotating machinery monitoring systems, the Bently Nevada 991-50-XX-01-00 (991-50-XX-01-00 991 Thrust Transmitter) provides direct physical signal conversion from a 3300 NSv proximity probe input to a proportional 4-20 mA output.
Hardware Specifications
Parameter
Specification
Model
991-50-XX-01-00
Brand
Bently Nevada
Origin
USA
Weight
Approx. 0.43 kg
Dimensions
Compact DIN-rail mounting enclosure
Operating Temp
-35 deg C to +85 deg C
Power Consumption
Loop-powered, 12 to 35 VDC supply
Product Type
Thrust Transmitter
Measurement Function
Axial shaft displacement and thrust position monitoring
Input Sensor
Bently Nevada 3300 NSv proximity probe
Output Signal
4-20 mA DC proportional current output
Circuit Configuration
Two-wire transmitter
Mounting Type
DIN-rail mounting
Measurement Range
+/- 0.5 mm full-scale
Cable Interface
75 ohm coaxial probe cable system
Storage Temperature
-51 deg C to +100 deg C
Humidity Rating
100% condensing, non-submerged with connector protection
Application
Rotating machinery condition monitoring systems
Eddy-Current Probe Scaling and Rotor Dynamics Signal Processing
The Bently Nevada 991-50-XX-01-00 operates with eddy-current proximity measurement technology through the 3300 NSv probe system. The probe generates an electromagnetic field, and shaft movement changes the probe impedance to provide proportional displacement information.
The transmitter performs probe signal conditioning and eddy-current probe scaling before converting the measured axial displacement into a 4-20 mA output signal. Therefore, external signal conversion equipment is not required for connection to compatible monitoring inputs.
The installation process includes gap voltage validation based on Bently Nevada probe operating requirements. The system uses controlled probe excitation and signal processing methods to maintain measurement accuracy during rotor axial movement monitoring.
Frequently Asked Questions
Q: What input sensor is required for the 991-50-XX-01-00 transmitter?A: The transmitter requires a compatible Bently Nevada 3300 NSv proximity probe with the matching cable system for axial position measurement.
Q: What electrical output does the 991-50-XX-01-00 provide?A: The unit provides a two-wire 4-20 mA DC proportional output representing measured thrust position.
Q: How should the transmitter be mounted in a control cabinet?A: The transmitter is designed for DIN-rail mounting inside an industrial control enclosure with appropriate wiring separation and cable routing practices.
Field Installation Guidelines
Verify compatibility between the transmitter, proximity probe, and extension cable before commissioning.
Confirm correct probe installation position and perform gap voltage validation during setup.
Route probe cables separately from high-current power wiring to reduce electrical interference.
Connect the 4-20 mA loop according to the receiving PLC, DCS, or machinery monitoring input requirements.
Maintain proper shielding and grounding practices for low-level proximity measurement signals.
Inspect terminal connections and loop current values after installation to confirm correct signal transmission.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Bently Nevada 991-01-XX-01-00 MOD: 284318-01 Thrust Transmitter
The Bently Nevada 991-01-XX-01-00 MOD: 284318-01, also cataloged as the 991 Thrust Transmitter, operates as a dedicated hardware component for axial shaft displacement measurement using a 3300 NSv proximity probe within Bently Nevada TSI monitoring systems.
Hardware Specifications
Parameter
Specification
Model
991-01-XX-01-00 MOD: 284318-01
Brand
Bently Nevada
Product Type
Thrust Transmitter
Origin
USA
Weight
0.5 kg
Dimensions
Estimated shipping size: 10 x 7.4 x 5.8 cm
Operating Temp
Not specified
Power Consumption
Requires +12 to +35 VDC input at transmitter terminal
Input Signal
Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable
Output Signal
4-20 mA proportional thrust position signal
Current Limiting
23 mA typical
System Length Option
5.0 meters / 7.0 meters
Mounting Option
35 mm DIN-rail clips
Eddy-Current Probe Scaling and Rotor Position Measurement
The 991 Thrust Transmitter processes the displacement signal from a Bently Nevada 3300 NSv eddy-current proximity probe and converts shaft axial movement into a proportional electrical output. The transmitter maintains probe scaling characteristics to provide consistent thrust position measurement.
The input circuit interfaces with the proximity probe and extension cable assembly while maintaining signal conditioning for turbine and rotating equipment monitoring applications. The design supports verification of probe gap conditions, including typical Bently Nevada -10 VDC gap voltage targets during installation calibration.
The transmitter architecture is configured for TSI applications where rotor dynamics, axial position changes, and mechanical movement trends require continuous monitoring. Signal conditioning functions support measurement stability and reduce interference effects caused by installation environments.
Frequently Asked Questions
Q: What type of sensor input does the 991-01-XX-01-00 accept?A: The transmitter accepts one non-contacting 3300 NSv proximity probe with the corresponding extension cable assembly.
Q: What power supply range is required for operation?A: The unit requires +12 to +35 VDC input power applied at the transmitter terminal.
Q: What mounting method is specified for this model configuration?A: This configuration uses 35 mm DIN-rail clips for mechanical installation.
Field Installation Guidelines
Install the transmitter on a suitable DIN rail location with adequate clearance for terminal wiring and maintenance access.
Connect the 3300 NSv proximity probe and extension cable according to the specified signal wiring arrangement. Maintain proper cable routing practices and separate probe wiring from high-voltage power conductors to reduce electrical interference.
Verify the probe gap voltage before commissioning. Confirm the transmitter power supply polarity and voltage range at the terminal connection point.
Ensure cable shielding and grounding follow the applicable plant instrumentation standards. Avoid excessive bending or mechanical stress on the probe extension cable during installation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Bently Nevada 991-06-50-01-CN 991 Thrust Transmitter
The Bently Nevada 991-06-50-01-CN, also cataloged as the 991 Thrust Transmitter, operates as a dedicated hardware component for axial shaft displacement measurement within machinery protection monitoring systems.
Hardware Specifications
Parameter
Specification
Model
991-06-50-01-CN
Brand
Bently Nevada
Product Type
991 Thrust Transmitter
Origin
USA
Weight
0.43 kg
Dimensions
Not specified in available technical data
Operating Temp
-35 deg C to +85 deg C
Power Consumption
Loop-powered, supplied from 12 to 35 VDC loop power
Measurement Type
Axial displacement / thrust position
Input Sensor
3300 NSv Proximity Probe
Output Signal
4-20 mA proportional current output
Loop Configuration
2-wire loop-powered transmitter
Full Scale Option
0.6-0-0.6 mm thrust measurement range
System Length
5.0 m
Mounting Method
35 mm DIN-rail mounting clips
Maximum Loop Resistance
1,000 ohms at 35 VDC
Probe Linear Range
0.25 to 1.65 mm
Prox Out Scale Factor
7.87 mV/um (200 mV/mil) typical
Loop Accuracy
±1.5% of specified full-scale range typical
Fault Detection
Not OK output reduction below 3.6 mA within 100 us after fault detection
Probe Operating Temperature
-52 deg C to +177 deg C
Eddy-Current Probe Scaling and Rotor Dynamics Monitoring
The 991-06-50-01-CN transmitter processes eddy-current proximity probe signals from the 3300 NSv sensor system and converts displacement measurements into a linear 4-20 mA output. The signal conditioning circuit maintains the relationship between probe gap variation and axial shaft position.
The transmitter supports gap voltage validation during commissioning. The probe system uses a negative bias voltage measurement method, with typical gap verification referenced around the -10 VDC operating target for eddy-current probe calibration.
The unit provides PROX OUT diagnostic access for monitoring probe gap conditions and dynamic signal behavior. The design supports rotor dynamics analysis by maintaining proportional displacement information required for thrust position monitoring.
Frequently Asked Questions
Q: What input sensor is required for the Bently Nevada 991-06-50-01-CN?A: The transmitter requires a compatible Bently Nevada 3300 NSv proximity probe and matching extension cable system for axial displacement measurement.
Q: What electrical output does the 991-06-50-01-CN provide?A: The transmitter provides a 4-20 mA proportional current output through a 2-wire loop-powered configuration.
Q: What mounting method is used for this transmitter?A: The unit uses 35 mm DIN-rail mounting clips for installation inside industrial control cabinets.
Field Installation Guidelines
Install the transmitter on a correctly secured 35 mm DIN rail inside a protected enclosure.
Verify probe wiring polarity and cable shielding before applying loop power.
Maintain separation between probe signal wiring and high-voltage power cables to reduce electrical interference.
Confirm the probe gap voltage during commissioning before performing thrust position calibration.
Connect the 4-20 mA loop according to the receiving PLC, DCS, or machinery protection input requirements.
Verify grounding practices for shielded instrumentation cables according to site electrical standards.
