Description

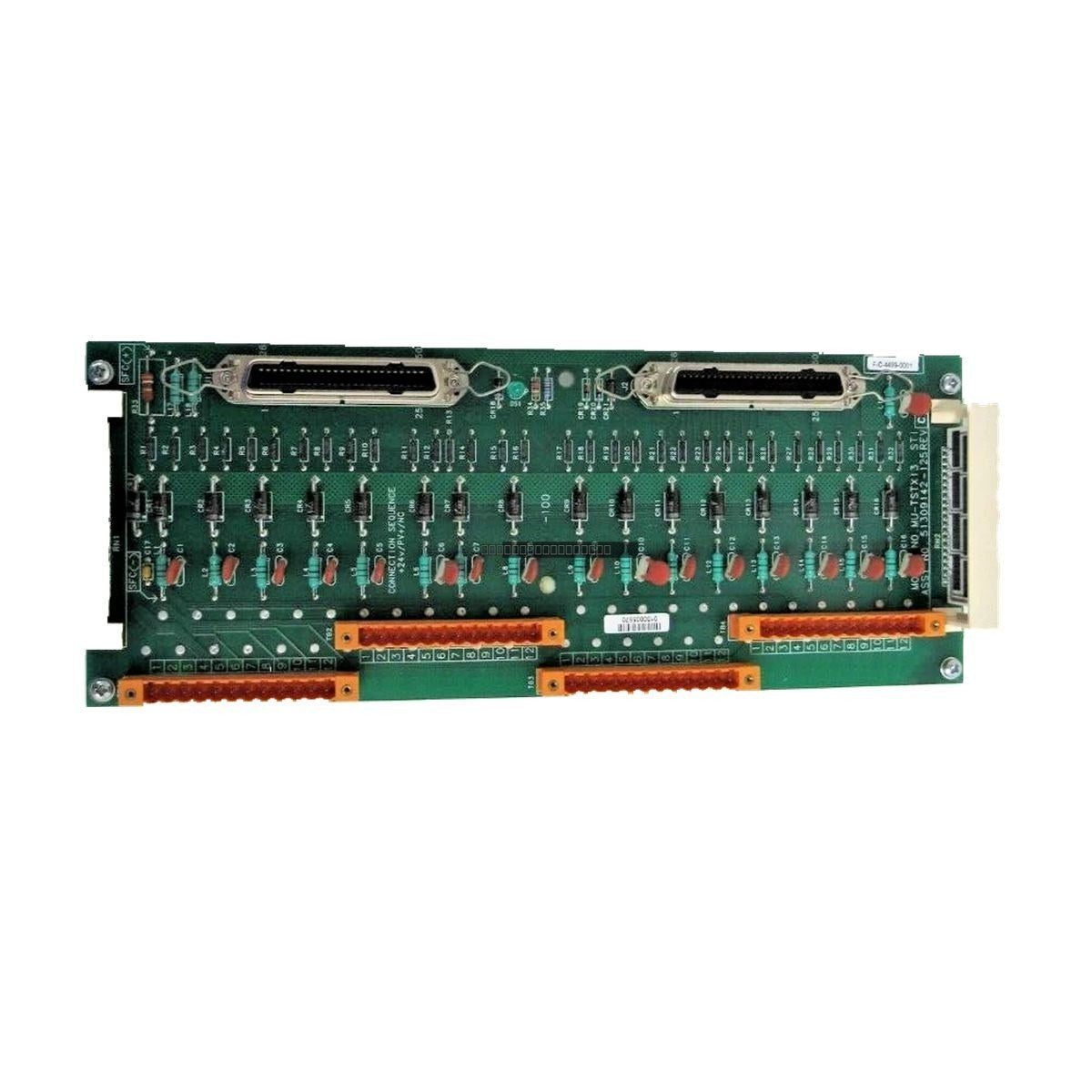

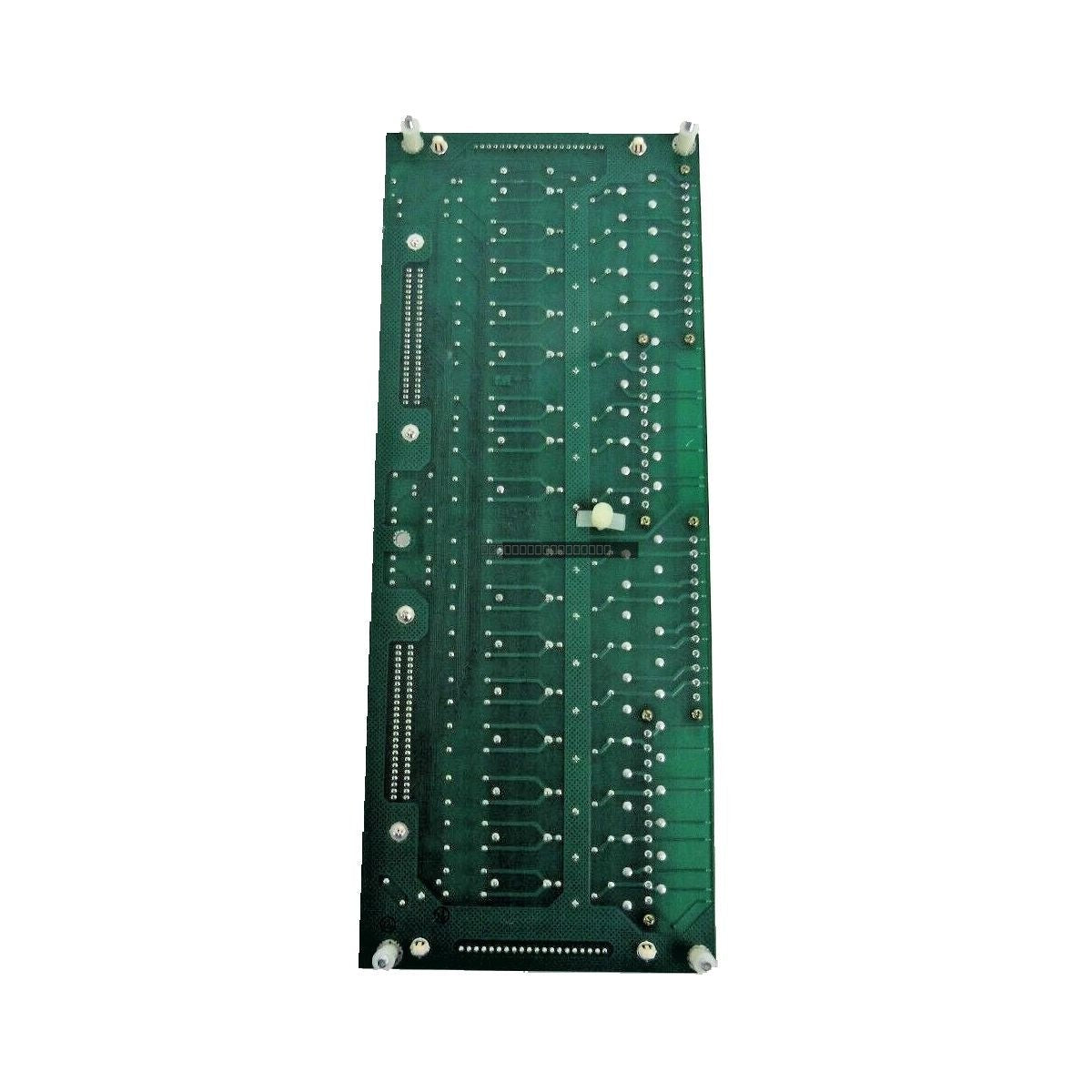

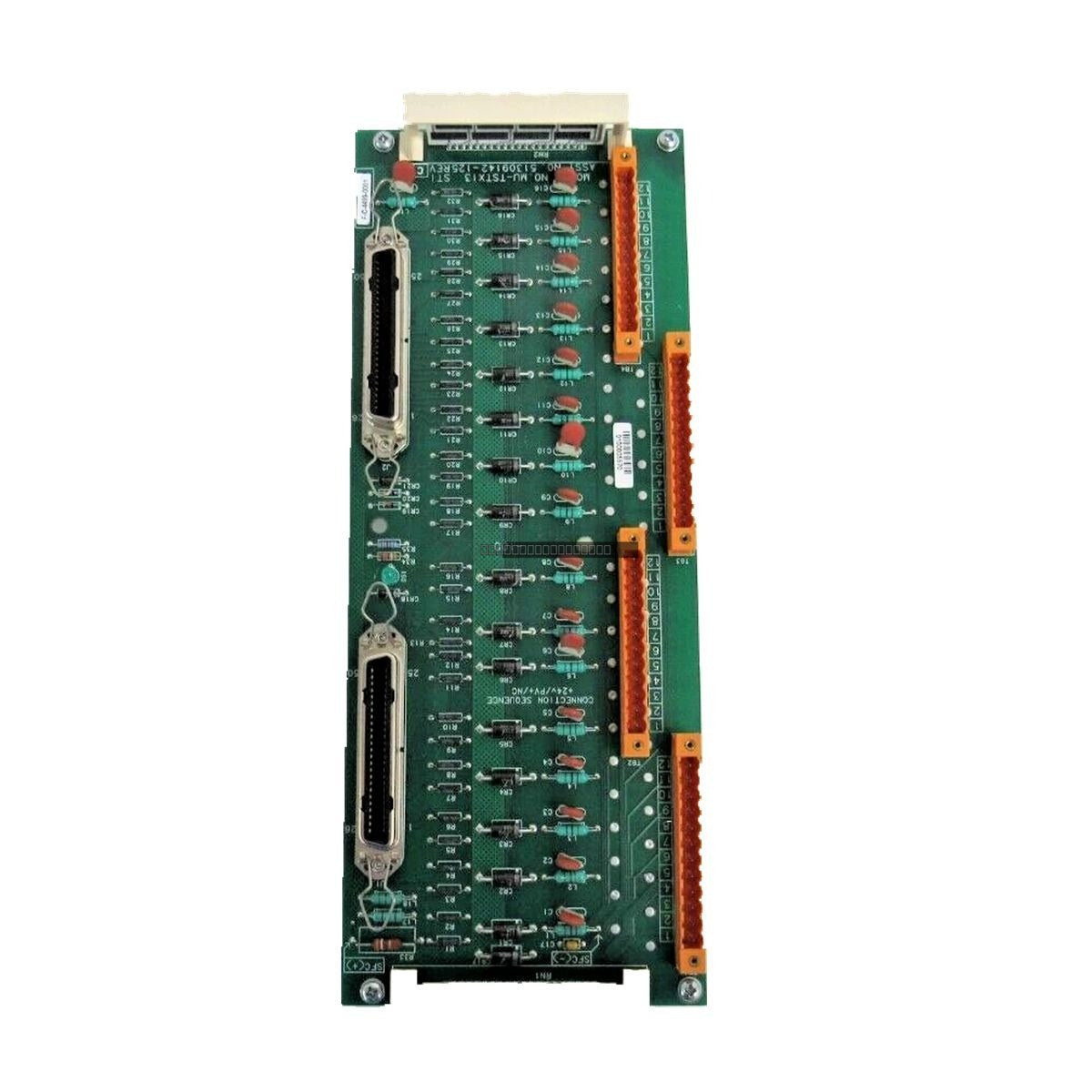

The Honeywell MC-TSTX13 is a high-density Smart Transmitter Interface Field Termination Assembly (FTA) engineered for integration within Honeywell distributed control systems. This module serves as a critical interface layer, providing signal termination, conditioning, and routing for up to 16 analog input channels from smart field transmitters. Designed for mission-critical process environments, the MC-TSTX13 ensures signal integrity and reliable data acquisition between field instrumentation and control processors.
Features
- Supports 16 individual input channels for smart transmitter connectivity.
- Redundant input path configuration to enhance system availability and fault tolerance.
- Integrated signal conditioning to minimize noise and eliminate ground loop interference.
- Optimized for seamless integration with Honeywell control system I/O architectures.
- Robust construction designed for industrial process control environments.
Applications
The MC-TSTX13 is widely utilized in large-scale industrial automation, including oil and gas refining, chemical processing, and power generation facilities. It is specifically suited for applications requiring high-density analog signal processing where system uptime and signal stability are paramount.
Technical Specifications
| Model |
MC-TSTX13 |
| Brand |
Honeywell |
| Module Type |
Smart Transmitter Interface FTA |
| Input Channels |
16 |
| Signal Type |
Smart transmitter analog input |
| Redundancy |
Supported (dual input path) |
| Operating Temperature |
0 to 60 deg C |
| Certifications |
CE Mark |
Installation Guidelines
- Ensure the control system is powered down before installing or removing the FTA module to prevent electrical damage.
- Mount the module in a clean, dry, and vibration-free environment within a standard control cabinet.
- Use appropriate shielded cabling for all field instrument connections to maintain signal integrity and reduce EMI.
- Ensure proper grounding of the FTA chassis to the cabinet ground bus to minimize noise and potential ground loops.
- Verify that all terminal connections are secure and properly labeled according to the system wiring diagram.
FAQ
Does the MC-TSTX13 support redundant configurations?
Yes, the module is designed to support redundant input path configurations, allowing for improved reliability and uninterrupted signal processing in critical control loops.
What is the primary function of this FTA?
The MC-TSTX13 acts as a termination and conditioning interface, bridging the gap between field-mounted smart transmitters and the main control system I/O modules.
