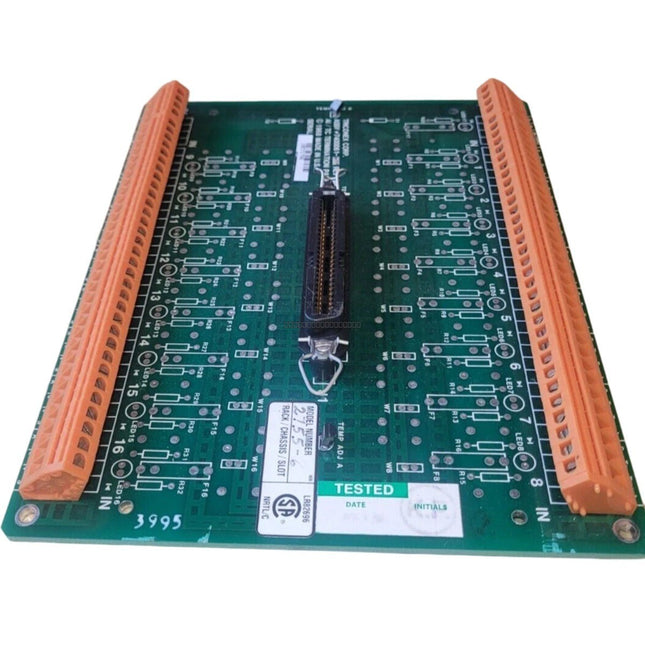

DescriptionThe Triconex 2755 7400061-600 is a specialized interface module engineered for seamless integration within the Tricon Triple Modular Redundant (TMR) safety system architecture. This module serves as a critical bridge between the high-integrity safety controller and external field devices, including actuators, sensors, and distributed control network infrastructure. Designed for high-availability industrial environments, it facilitates robust communication and fault isolation within Safety Instrumented Systems (SIS), ensuring reliable operation in mission-critical applications such as chemical processing, hydrocarbon refining, and power generation.Features
Supports Triple Modular Redundancy (TMR) for high-integrity fault tolerance and parallel data verification.
Designed for integration into 32-bit SIS environments to maintain strict emergency shutdown protocols.
Features hot-swap capability, allowing for module replacement during active process operation without requiring a system shutdown.
Provides galvanic isolation to protect the main processing backplane from field-side electrical interference and noise.
Advanced real-time diagnostics for early detection and isolation of communication errors.
ApplicationsThis module is primarily deployed in safety-critical control loops where fault tolerance is mandatory. Typical applications include emergency shutdown systems (ESD), burner management systems (BMS), and fire and gas monitoring in hazardous industrial facilities.Technical Specifications
Model
2755 7400061-600
Brand
Triconex
Platform
32-bit Safety Instrumented System (SIS)
Operating Temperature
0 to 60 deg C
Weight
3.2 kg
Installation Guidelines
Ensure the Tricon chassis is powered down if required by site safety procedures before inserting or removing the module, although the design supports hot-swapping under specific system conditions.
Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal logic circuits.
Verify that the module is fully seated in the designated chassis slot to ensure proper backplane connection.
Ensure all field wiring is properly routed and secured to prevent mechanical stress on the interface terminals.
Maintain adequate ventilation in the cabinet to ensure the module remains within its specified operating temperature range of 0 to 60 deg C.
FAQIs this module compatible with all Tricon systems?The 2755 7400061-600 is designed for specific Tricon TMR architectures. Please verify your system's revision level and hardware compatibility matrix before installation.Does this module support hot-swapping?Yes, the module is designed to support hot-swapping, allowing for maintenance without interrupting the active process control loop, provided the system configuration allows for online replacement.

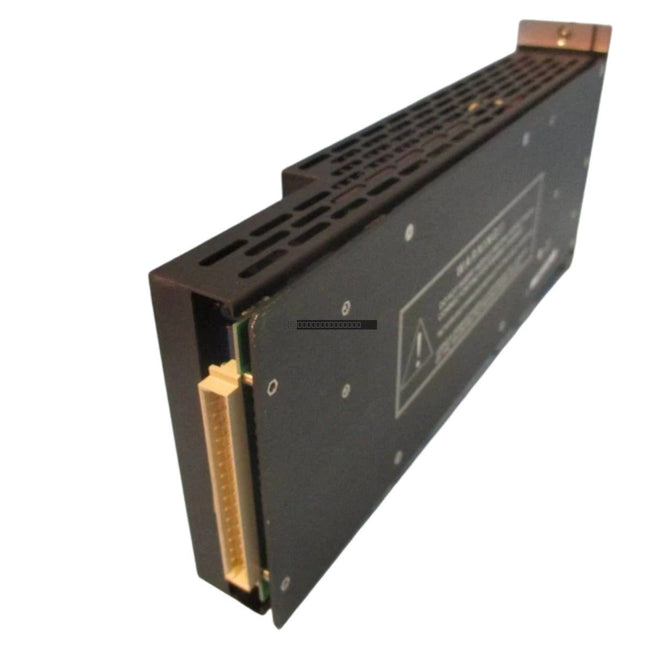

DescriptionThe Triconex 8300 is a dedicated power supply module designed to provide stable, regulated 24 VDC power within critical safety and distributed control system architectures. Built for high-availability environments, this module supports the continuous operation of processing units in demanding industrial settings, including chemical processing plants, power generation facilities, and oil and gas infrastructure. It is engineered to maintain operational integrity and minimize system downtime in mission-critical automation networks.Features
Designed for high-reliability power distribution in safety-critical systems.
Regulated 24 VDC output ensures consistent performance for connected processing modules.
Robust mechanical design optimized for standard industrial rack mounting.
Enhanced thermal management to support operation in harsh environments.
ApplicationsThe 8300 module is primarily utilized in Triconex safety systems where reliable power delivery is essential for maintaining control and safety logic execution. It is suitable for deployment in environments requiring high uptime and protection against power-related system faults.Technical Specifications
Brand
Invensys Triconex
Model
8300
Product Type
Power Supply Module
Input Voltage
24 VDC
Operating Temperature
-40 to 85 deg C
Installation Guidelines
Ensure the rack slot is clean and free of debris before inserting the module.
Confirm that the system power is disconnected or the rack is in a safe state before installation or removal of the module.
Verify that the module is fully seated and the locking mechanisms are engaged to ensure proper electrical contact and structural stability.
Maintain adequate clearance around the module to allow for proper airflow and thermal dissipation, especially in high-temperature environments.
Use shielded cabling for all communication interfaces to prevent signal interference from high-EMI industrial equipment.
FAQWhat is the primary function of the Triconex 8300?The 8300 is a power supply module designed to provide reliable 24 VDC power to critical control and safety system components.What are the environmental operating limits for this module?The module is rated for operation in temperatures ranging from -40 to 85 deg C, making it suitable for a wide variety of industrial field conditions.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

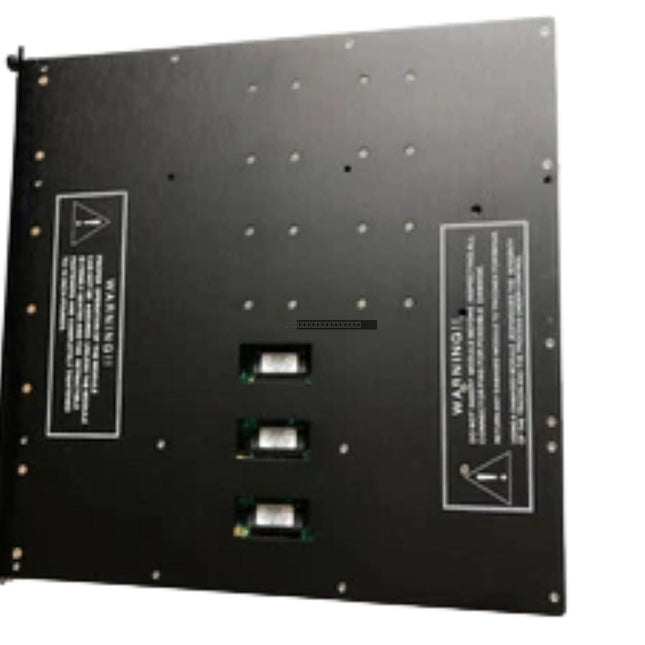

DescriptionThe Triconex 3601 is a high-integrity digital output module designed for use within Triple Modular Redundant (TMR) safety systems. This module is specifically engineered to control 115 VAC field devices such as solenoids, motor starters, and safety interlocks in critical industrial environments. By employing a TMR architecture, the module ensures high availability and fault tolerance, making it a standard choice for safety-instrumented systems (SIS) in the petrochemical, power generation, and oil and gas sectors. The module features robust opto-isolation for each channel to protect the system backplane from field-side transients and electrical noise.Features
TMR (Triple Modular Redundant) architecture for high-reliability safety control.
16 non-commoned output channels providing independent signal paths.
Opto-isolation on every channel to prevent cross-channel interference and backplane contamination.
Designed for 115 VAC field applications with a wide operating voltage range.
Integrated hardware voting logic to ensure deterministic and fail-safe operation.
Front-panel status indicators for efficient field diagnostics and maintenance.
ApplicationsThe 3601 module is deployed in safety-critical loops where high availability is required. Typical applications include:
Emergency Shutdown Systems (ESD).
Burner Management Systems (BMS).
Process interlock and alarm management.
Control of high-voltage field actuators in hazardous or demanding environments.
Technical Specifications
Brand
Invensys Triconex
Model
3601
Output Points
16 (non-commoned)
Nominal Voltage
115 VAC
Voltage Range
80 to 155 VAC
Frequency Range
47 to 63 Hz
Isolation
Opto-isolated channels
Power Consumption
15 W (max)
Operating Temperature
0 to 60 deg C
Installation Guidelines
Ensure the Triconex system is powered down before inserting or removing the 3601 module.
Use appropriate ESD protection when handling the module to prevent damage to internal circuitry.
Verify that the field wiring is properly shielded and routed away from high-power AC lines to minimize EMI.
Ensure the module is fully seated in the rack backplane to guarantee proper connection of the TMR voting circuits.
Regularly inspect terminal blocks for secure connections and verify field-side voltage levels against the operating range of 80-155 VAC.
FAQIs the Triconex 3601 compatible with standard TMR systems? Yes, the 3601 is designed specifically for integration into the Triconex TMR safety controller architecture.Does this module require common returns? No, the 3601 features non-commoned channels, meaning each output point has an individual return path, which enhances fault isolation.What is the primary function of the opto-isolation? The opto-isolation decouples the field-side high-voltage signals from the internal logic backplane, preventing damage from surges or electrical faults originating in the field.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

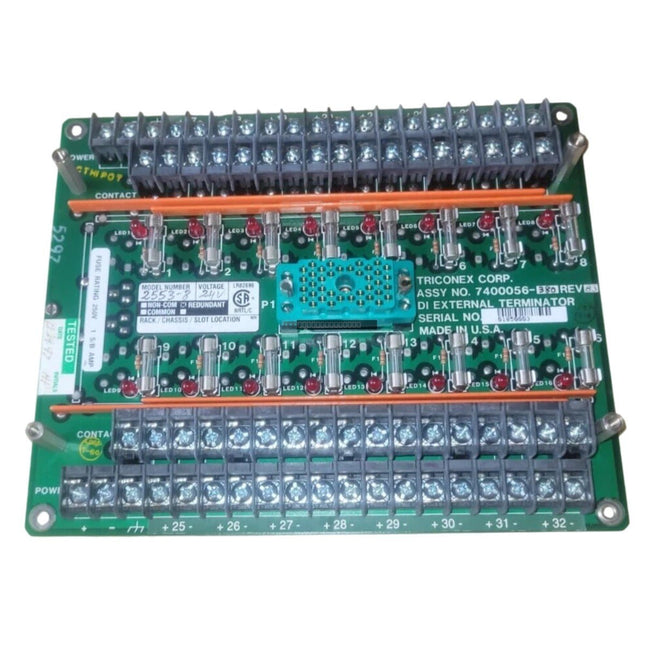

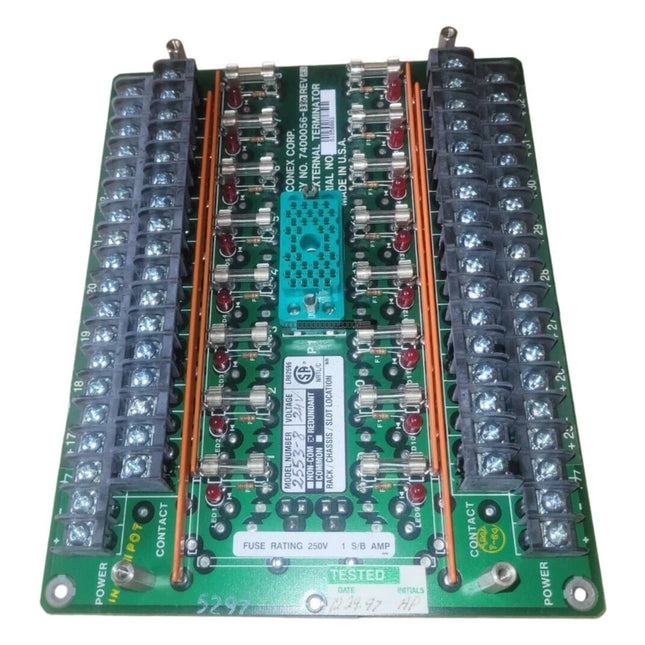

Product OverviewThe Triconex 2553-8 (7400056-380) serves as a specialized field termination assembly engineered for high-integrity safety instrumented systems. This terminal board provides a reliable physical interface between field-level instrumentation wiring and Triconex I/O modules. By centralizing signal distribution, it facilitates efficient cable management and maintenance within critical infrastructure, including petrochemical, oil and gas, and power generation sectors. Its design emphasizes electrical stability and signal integrity, ensuring that sensitive control loops remain isolated from common field-side disturbances.Features
Robust terminal block architecture designed for secure, vibration-resistant field connections.
Optimized signal path mapping for seamless integration with compatible Triconex I/O assemblies.
Passive circuit design ensures zero power consumption at the board level.
Integrated grounding planes support stable reference potentials for shielded instrumentation cabling.
Engineered to minimize signal cross-talk and prevent localized overvoltage propagation.
ApplicationsThis terminal board is primarily utilized in safety-critical automation environments where high availability and fault tolerance are required. It is commonly deployed in marshaling cabinets to bridge the gap between field sensors/actuators and the main safety controller, supporting both analog and digital signal processing requirements.Technical Specifications
Brand
Invensys Triconex
Model / Order Code
2553-8 (7400056-380)
Product Type
Terminal Board
Operating Voltage
24 VDC nominal
Power Consumption
Passive (0 W)
Operating Temperature
0 to 60 deg C
Installation Guidelines
Ensure the system is fully de-energized before performing any wiring or module installation.
Mount the board within a clean, dry, and climate-controlled enclosure to prevent dust and moisture ingress.
Use appropriate wire ferrules to ensure secure, low-resistance connections in the terminal blocks.
Maintain proper segregation between signal-level wiring and high-voltage power cables to minimize EMI.
Verify that all shield terminations are properly bonded to the ground plane to maintain noise immunity.
FAQIs this board active or passive?The 2553-8 is a passive terminal board and consumes no electrical power during operation.What is the primary function of this module in a Triconex system?It acts as a field interface, allowing field wiring to be easily connected to and disconnected from the Triconex I/O modules without disturbing the permanent field-side wiring.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

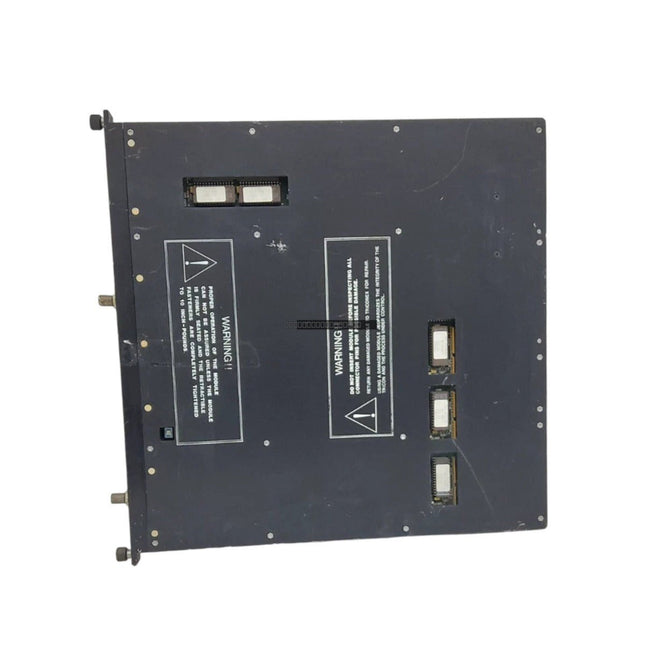

DescriptionThe TRICONEX 4500 Highway Interface Module is a specialized communication component designed for integration within Triple Modular Redundancy (TMR) safety systems. This module acts as a robust communication gateway, facilitating reliable data transfer between the Tricon controller and external supervisory systems or distributed control networks. It is engineered to support the high-integrity requirements of safety instrumented systems (SIS), including emergency shutdown (ESD) and fire and gas (F&G) applications, ensuring persistent system visibility and operational safety in demanding industrial environments.Features
Designed for seamless integration with Tricon TMR architecture to maintain system-wide fault tolerance.
Provides a deterministic communication path for real-time process data and diagnostic monitoring.
Supports high-speed networking to enable synchronization across multiple Tricon chassis.
Engineered for high-reliability operation in safety-critical applications, supporting SIL 3 standards.
Handles complex signal arbitration and data verification to prevent corruption of safety-related information.
ApplicationsThis module is widely utilized in sectors requiring stringent safety protocols, including petrochemical processing, power generation, and offshore oil and gas production. It is essential for facilities that require high-speed, reliable communication between safety controllers and plant-wide control systems without introducing single points of failure.Technical Specifications
Model
4500
Manufacturer
TRICONEX (Schneider Electric)
Product Type
Highway Interface Module
Operating Temperature
0 to 60 deg C
Installation Guidelines
Ensure the Tricon chassis is powered down before inserting or removing the 4500 module to prevent electrical damage.
Verify correct slot alignment on the backplane to ensure proper engagement of the communication bus connectors.
Use appropriate ESD grounding procedures when handling the module to protect internal sensitive electronic components.
Route communication cables away from high-voltage power lines or heavy electromagnetic interference (EMI) sources to maintain signal integrity.
Confirm that the module is securely seated and the locking mechanisms are engaged to withstand vibration in industrial environments.
FAQWhat is the primary function of the 4500 module?The 4500 acts as a highway interface that allows the Tricon controller to communicate with other plant systems, providing a bridge for process data and diagnostic information while maintaining the integrity of the safety system.Is this module compatible with all Tricon systems?The 4500 is designed for specific Tricon TMR architectures. Please verify your system hardware revision and compatibility requirements before installation.What environmental conditions are required for operation?The module is rated for operation within a temperature range of 0 to 60 deg C. It should be installed in a clean, controlled environment consistent with standard industrial safety system requirements.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

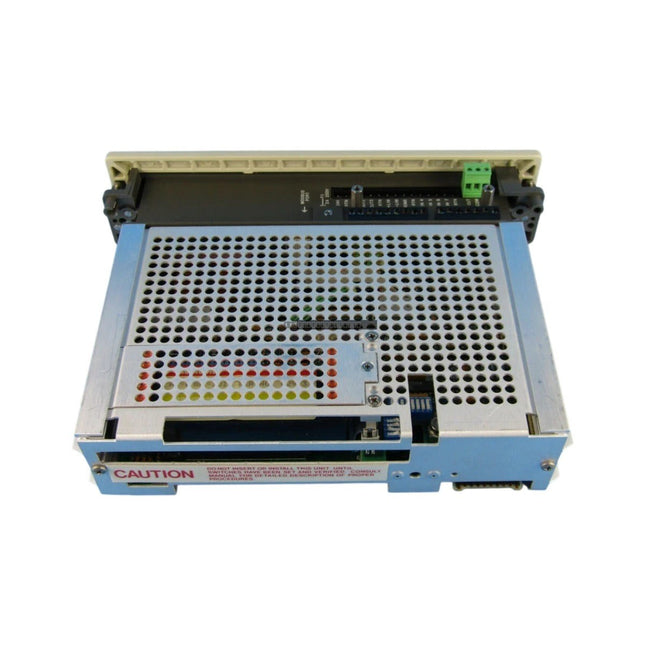

DescriptionThe Schneider Electric ASB885100 is a specialized diagnostic module engineered for the Modicon 800 Series I/O backplane architecture. Designed to facilitate robust system maintenance, this unit performs hardware loop validation and structural diagnostic isolation. It is particularly effective for high-availability industrial environments, including power generation, petrochemical processing, and mining, where rapid identification of signal path issues is essential for minimizing downtime.Features
Performs hardware-based loop validation and diagnostic isolation within the 800 Series chassis.
Simulates fixed internal network parameters and electrical variables to verify signal path integrity.
Reduces maintenance overhead by allowing for slot routing register checks without requiring full system reconfiguration.
Features solid-state trace circuitry to execute background verification routines across the backplane bus matrix.
Includes on-board status indicators for real-time monitoring of bus continuity, data integrity, and logic power stability.
Designed for seamless integration with host CPU firmware via standard configuration parameters.
ApplicationsThis diagnostic module is intended for use in critical control systems where signal path tracing and hardware verification are required to maintain high operational availability. It is suitable for deployment in:
Petrochemical refining facilities
Coal-fired power generation plants
Underground mining control systems
Large-scale industrial automation backplanes requiring frequent loop debugging
Technical Specifications
Model
ASB885100 (AS-B885-100)
Brand
Schneider Electric
Power Consumption
300 mA at 5 VDC
Slot Allocation
1 standard 800 Series slot
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Relative Humidity
5 to 95% non-condensing
Dielectric Insulation
1500 VAC bus-to-slot
Protection Rating
IP20
Installation Guidelines
Ensure the system power is disconnected before installing or removing the module from the 800 Series chassis.
Handle the module using proper ESD (Electrostatic Discharge) mitigation techniques to protect sensitive internal components.
Verify that the slot is clear of debris and that the module is fully seated within the backplane connector to ensure proper bus contact.
Ensure the module is installed in an environment that complies with the specified operating temperature and humidity ranges.
Configure hardware jumpers and software registers according to your specific system requirements before initiating full-scale diagnostic routines.
FAQWhat is the primary function of the ASB885100 module?The module is designed to perform structural diagnostic isolation and hardware loop validation, allowing users to verify signal integrity and troubleshoot backplane connections without needing to reconfigure the entire system.Does this module require external power?No, the module draws its power directly from the 800 Series chassis rail (300 mA at 5 VDC).Can this module be used in harsh environments?Yes, it is designed for demanding industrial landscapes, provided the ambient temperature and humidity remain within the specified operational limits.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Product OverviewThe Schneider Electric Modicon TSX3721DC is a robust programmable logic controller (PLC) unit designed for the Modicon Micro automation platform. This controller is engineered to provide reliable, scalable control for small to medium-sized industrial machinery and process automation tasks. It features integrated processing capabilities and flexible I/O configurations, making it a dependable choice for applications requiring consistent performance in demanding environments.Features
High-performance processing architecture for efficient execution of logic sequences.
Designed for seamless integration into the Modicon Micro series ecosystem.
Supports modular expansion to adapt to varying control requirements.
Integrated communication ports for connectivity with field devices and supervisory systems.
Compact hardware footprint optimized for space-constrained control cabinets.
ApplicationsThe TSX3721DC is suitable for diverse industrial sectors, including material handling, packaging machinery, water treatment, and light manufacturing control systems. Its architecture is specifically optimized for tasks requiring precise timing and reliable input/output management.Installation Guidelines
Ensure the controller is mounted vertically on a standard DIN rail to facilitate proper natural convection cooling.
Maintain adequate clearance around the unit to prevent thermal buildup during operation.
Use shielded cables for all signal wiring to minimize electromagnetic interference (EMI) in high-noise industrial settings.
Verify that the power supply matches the rated input voltage before energizing the module.
Always disconnect power from the backplane before inserting or removing the controller to prevent electrical damage.
Ensure a low-impedance ground connection is established to the chassis to maintain signal integrity and safety.
FAQWhat is the primary function of the TSX3721DC?The TSX3721DC serves as a central controller for the Modicon Micro PLC system, managing logic execution, I/O monitoring, and control tasks for industrial automation processes.Is this controller compatible with other Modicon Micro modules?Yes, the TSX3721DC is designed to operate within the Modicon Micro architecture and supports expansion with compatible I/O modules from the same series.What should I do if the module displays a fault status?First, check the physical connections and ensure the power supply is stable. Consult the Modicon Micro system manual to interpret the specific LED diagnostic codes displayed on the front panel of the unit.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

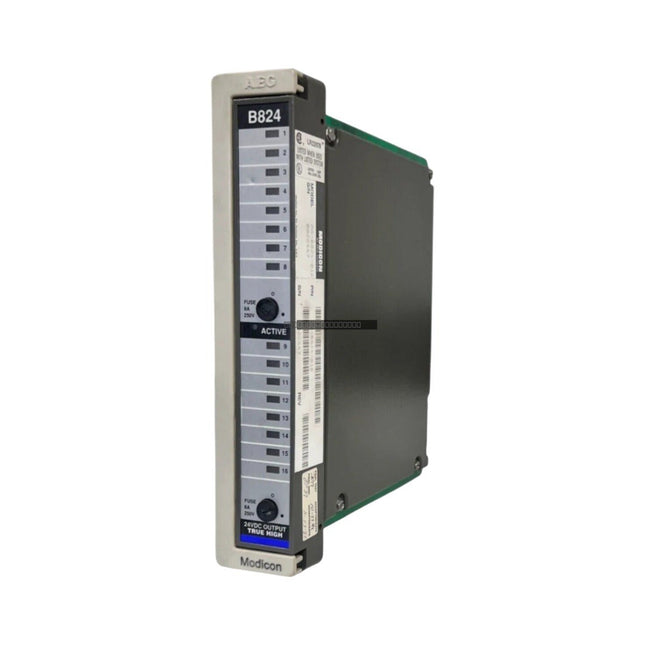

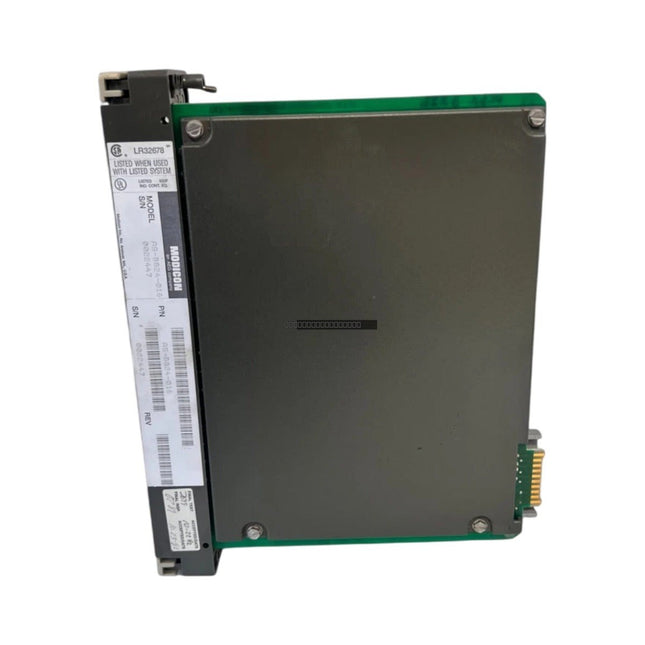

DescriptionThe Schneider Electric ASB824016, also designated as the B824-016, is a robust digital output module engineered for the Modicon 800 Series I/O family. This unit functions as a high-capacity discrete output interface, specifically designed to handle demanding industrial switching requirements. By facilitating direct control of field loads, it minimizes the necessity for auxiliary interposing relays, thereby streamlining control loops and enhancing overall system reliability in challenging operational environments such as power generation and heavy manufacturing.Features
Sixteen independent discrete output channels for versatile field device control.
High-current switching capability designed to manage inductive loads like solenoids and motor starters.
Fused grouping architecture to isolate potential faults and protect module circuitry.
Optimized for the Modicon 800 Series backplane, ensuring seamless communication and low logic power consumption.
Rugged construction suitable for continuous duty cycles in high-EMI industrial settings.
ApplicationsThis module is widely utilized in large-scale automation architectures where high-density discrete output control is required. Typical applications include the activation of industrial valves, signaling indicators, motor starter contactors, and process control actuators in sectors such as petrochemical processing, water treatment, and automated assembly lines.Technical Specifications
Model
ASB824016 (B824-016)
Output Channels
16
Voltage Range
20 to 30 VDC
Max Current Per Point
2.0 A (continuous)
Max Current Per Module
16.0 A (total)
Backplane Power Draw
350 mA at 5 VDC
Isolation
1500 VAC (field-to-bus)
Operating Temp
0 to 60 deg C
Storage Temp
-40 to 85 deg C
Humidity
5 to 95% (non-condensing)
Installation Guidelines
Ensure all power is disconnected from the backplane before inserting or removing the module.
Verify that the module is fully seated in the Modicon 800 Series rack to ensure proper backplane contact.
Maintain proper ventilation within the cabinet to stay within the 0 to 60 deg C operating range.
Route field wiring away from high-voltage AC lines to minimize electromagnetic interference.
Use appropriate wire gauges for the 2.0 A per-point load capacity to prevent overheating.
Adhere to standard ESD (Electrostatic Discharge) protocols when handling the module to prevent damage to internal components.
FAQWhat is the primary function of the ASB824016?This module acts as a 16-channel digital output interface for the Modicon 800 Series, allowing the controller to drive field devices directly with high-current capacity.Can this module handle inductive loads?Yes, the B824-016 is specifically designed to handle the inrush currents associated with inductive loads like solenoid coils and motor starters.Is this module isolated?Yes, it features 1500 VAC isolation between the field-side output channels and the internal bus status lines.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Schneider 499NOS17100 is a high-performance industrial Ethernet switch engineered for the ConneXium cabling system. This managed hardware solution is designed to facilitate robust local area network connectivity in challenging industrial environments. Featuring a hybrid port configuration, it bridges standard copper-based instrumentation with high-speed fiber-optic plant backbones. By providing reliable 10/100 Mbps data transmission, this switch ensures consistent communication across automated control nodes, effectively minimizing network jitter and reducing the risk of data transmission failures in critical production cycles.Features
Hybrid Architecture: Equipped with 5 twisted-pair copper (TX) ports and 2 fiber-optic (FX) ports for versatile network integration.
Auto-Negotiation: RJ45 ports support auto-MDI/MDIX crossover detection, simplifying the installation process.
Long-Distance Connectivity: Dual fiber-optic channels allow for extended transmission distances without the need for signal repeaters.
Passive Cooling: The fanless, industrial-grade enclosure design prevents dust ingress and mechanical failure, promoting long-term reliability.
Diagnostic Monitoring: Integrated front-panel LED indicators provide real-time status updates on link activity, data speed, and power supply health.
ApplicationsThis switch is suitable for high-interference industrial settings, including water treatment facilities, power distribution substations, oil and gas refineries, and mining infrastructure. It is specifically designed to support deterministic control communication where network stability is essential for process safety and uptime.Technical Specifications
Model
499NOS17100
Brand
Schneider Electric
Product Range
ConneXium
Network Type
Industrial Ethernet Switch
Ports
5 x RJ45 (TX), 2 x Fiber (FX)
Data Rate
10/100 Mbps
Operating Voltage
24 VDC
Power Consumption
6.5 W
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Installation Guidelines
Mounting: Ensure the device is installed in a well-ventilated enclosure to maintain optimal operating temperatures.
Grounding: Always connect the device chassis to a common earth ground to mitigate electromagnetic interference (EMI).
Wiring: Use shielded Ethernet cabling in high-EMI environments to maintain signal integrity.
Power: Verify that the 24 VDC power source is stable and within the specified range before energizing the unit.
Safety: Power down the system before performing any hardware connections or maintenance to prevent electrical shorts.
FAQDoes this switch support auto-crossover? Yes, the 5 copper ports feature auto-MDI/MDIX, which automatically detects and adjusts for straight-through or crossover cable connections.What is the primary power requirement? The unit operates on a 24 VDC power supply with a typical consumption of 6.5 W.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Foxboro FBM242 (P0916TA) is a high-density discrete output module engineered for the I/A Series distributed control system. It provides 16 isolated digital output channels, enabling precise control over field devices such as motor starters, solenoid valves, and indicator lamps. Designed for rigorous industrial environments, this module features channel-to-ground isolation and redundant communication paths, ensuring reliable, deterministic operation in sectors including power generation, petrochemical processing, and manufacturing.Features
High-Density Output: Provides 16 independent sourcing outputs in a compact Eurocard footprint.
Redundant Communication: Supports dual-redundant fieldbus connections to maintain system integrity during cable faults.
Solid-State Reliability: Utilizes advanced solid-state switching to eliminate mechanical wear and extend service life.
Diagnostic Monitoring: Includes integrated LED status indicators for each channel to streamline field troubleshooting and loop verification.
Inductive Load Protection: Onboard suppression circuitry mitigates back-EMF spikes, protecting internal components from inductive kickback.
Hot-Swappable Design: Allows for maintenance and module replacement without requiring a system-wide power-down.
ApplicationsThe FBM242 is suitable for critical control applications where high-density digital output is required. It is commonly deployed in I/A Series racks to interface with field-side actuators, providing the necessary galvanic isolation to protect the control bus from electrical interference generated in harsh process areas.Technical Specifications
Model
FBM242 (P0916TA)
Module Type
16-Channel Discrete Output
Output Voltage
15 to 60 VDC
Max Total Current
2.25 Amps per module
Galvanic Isolation
600 V AC (field-to-bus)
Power Consumption
3 W maximum
Operating Temperature
-20 to +70 deg C
Humidity
5 to 95% (non-condensing)
Environmental Rating
G3 Harsh (ISA S71.04)
Installation Guidelines
Ensure the baseplate is properly grounded before inserting the module to prevent electrostatic discharge (ESD) damage.
The FBM242 is hot-swappable; ensure the module is fully seated in the baseplate slot to establish a secure connection with the backplane.
Verify that output wiring is routed away from high-voltage AC lines to minimize electromagnetic interference (EMI).
Maintain adequate ventilation within the cabinet to stay within the specified -20 to +70 deg C operating range.
Confirm that field power supplies are within the 15-60 VDC range before initiating output commands.
FAQWhat is the primary function of the FBM242?The FBM242 is a 16-channel discrete output module that interfaces I/A Series controllers with field devices, providing isolated, solid-state switching for digital control logic.Is this module compatible with existing I/A Series baseplates?Yes, the FBM242 is designed for standard I/A Series high-density baseplates and supports hot-swapping for maintenance without disrupting adjacent I/O operations.Does the module require external suppression for inductive loads?No, the FBM242 includes internal suppression circuitry to handle back-EMF from inductive loads such as relays and solenoids, protecting the switching transistors.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Triconex 3101S2 is a specialized redundant processor module engineered to function as the core computational unit within Triconex fault-tolerant safety systems. Designed for mission-critical industrial applications, including petrochemical processing, oil and gas, and power generation, this module executes safety logic with high precision and reliability. By leveraging triple-modular redundant (TMR) technology, the 3101S2 ensures continuous system availability by mitigating the risk of single-point failures and supporting uninterrupted safety-instrumented functions.Features
Supports high-speed execution of safety-critical control logic.
Implements triple-modular redundancy (TMR) for verified data integrity and fault detection.
Designed for hot-swappable replacement, enabling maintenance without stopping the safety loop.
Integrated diagnostic routines for real-time monitoring of processor health and memory status.
Optimized for performance in harsh industrial environments.
ApplicationsThis processor is intended for use in safety-instrumented systems (SIS) where downtime is not acceptable. It is commonly deployed in emergency shutdown systems (ESD), burner management systems (BMS), and fire and gas detection arrays where high-integrity control is required.Technical Specifications
Model
3101S2
Brand
Triconex
Operating Temperature
0 to 60 degC
Typical Power Consumption
12 W
Installation Guidelines
Ensure the Triconex chassis is powered down or follow site-specific safety protocols before inserting or removing the 3101S2 module.
Handle the module using proper ESD-safe practices to prevent damage to sensitive internal circuitry.
Verify that the module is fully seated in the designated slot to ensure proper backplane communication.
Maintain adequate airflow within the cabinet to keep ambient temperatures within the specified 0 to 60 degC operating range.
Confirm that the module is correctly configured in the system software to match the redundancy requirements of the specific safety loop.
FAQWhat is the primary function of the 3101S2?The 3101S2 serves as a redundant processor module within a Triconex TMR safety system, responsible for executing safety logic and maintaining system-wide fault tolerance.Does this module support hot-swapping?Yes, the 3101S2 is designed to be hot-swappable, allowing for replacement during active system operation without disrupting the safety functions.What is the typical power consumption of this unit?The module typically consumes 12 W during standard operation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Product OverviewThe Triconex 2401 is a specialized digital output baseplate engineered to serve as the foundational infrastructure for safety-critical control systems. It is specifically designed to support fault-tolerant digital output modules within a Triple Modular Redundancy (TMR) framework. By providing robust signal routing and power distribution, the 2401 ensures high availability for field actuators, solenoids, and indicators in demanding industrial settings, including power generation, oil and gas, and chemical manufacturing. This baseplate is essential for maintaining the integrity of emergency shutdown (ESD) systems and safety-critical interlocking logic.Features
Designed for seamless integration with TMR architectures to eliminate single points of failure.
Supports high-availability field device connectivity for critical interlocking and shutdown operations.
Advanced multi-layer circuit design for reliable signal path integrity.
Dual-redundant 24 VDC power distribution paths for enhanced system resilience.
Integrated mechanical keying to prevent improper module installation.
Optimized layout with robust grounding planes for superior EMI protection.
ApplicationsThe 2401 baseplate is optimized for use in high-stakes industrial environments where system uptime and safety are paramount. Typical applications include emergency shutdown systems (ESD), fire and gas detection, boiler management, and critical process control loops where continuous operation is required during maintenance or module replacement.Technical Specifications
Model
2401
Brand
Triconex
Product Type
Digital Output Baseplate
Compatibility
16-channel or 32-channel digital output modules
Bus Topology
Triplicated TMR communication
Rated Voltage
24 VDC
Max Bus Current
20 A
Power Dissipation
5 W (max)
Operating Temperature
0 to 60 deg C
Installation Guidelines
Ensure the system power is disconnected before installing or removing any modules from the baseplate.
Mount the baseplate securely within a standard industrial enclosure, ensuring adequate clearance for airflow and thermal management.
Maintain proper grounding connections to the chassis to mitigate the impact of electrical noise and field transients.
Avoid routing signal cables in close proximity to high-voltage power lines to prevent electromagnetic interference.
Verify that the module keying matches the slot configuration before insertion to prevent hardware damage.
FAQIs the Triconex 2401 suitable for online module replacement?Yes, the 2401 baseplate is designed to support the live, online replacement of digital output modules, which helps to minimize unscheduled downtime in critical safety systems.What is the primary function of the TMR architecture support?The TMR (Triple Modular Redundancy) support ensures that control signals are triplicated across the baseplate, allowing the system to continue operation even if one path or module experiences a fault.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Schneider Electric 140DAO84220C is a high-density discrete AC output module engineered for the Modicon Quantum automation series. This unit features 16 output channels arranged into two independently isolated groups, facilitating the control of 100-240 VAC field devices. The 'C' suffix indicates that this module is factory-fitted with a conformal coating, providing essential protection against harsh industrial elements such as moisture, dust, and corrosive gases. This design enhancement ensures reliable operation in demanding environments like chemical processing, water treatment, and heavy manufacturing, where standard electronics might face accelerated degradation.Features
16 discrete AC output channels organized into two groups of 8 for flexible wiring.
Conformal coating applied to internal circuitry for enhanced environmental resilience.
Galvanic isolation of 1780 VAC between field-side outputs and the Quantum backplane.
Integrated diagnostic LEDs: 16 status indicators, one 'Ready' indicator, and one 'Module Error' indicator.
Supports a wide operating voltage range from 85 to 264 VAC.
Optimized for high-current applications with up to 2.0 A per channel at 30 deg C.
Technical Specifications
Model
140DAO84220C
Number of Outputs
16 (2 isolated groups of 8)
Voltage Range
85 to 264 VAC (100-240 VAC nominal)
Frequency
47 to 63 Hz
Max Current (per channel)
2.0 A (at 30 deg C) / 1.0 A (at 60 deg C)
Max Current (per module)
16.0 A (at 30 deg C) / 8.0 A (at 60 deg C)
Bus Consumption
250 mA (from backplane)
Isolation
1780 VAC for 60 seconds
Power Dissipation
4.5 W + 1.1 W per Ampere
Operating Temperature
0 to 60 deg C
Installation Guidelines
Ensure the Quantum backplane is powered down before inserting or removing the module to prevent electrical arcing or damage to the backplane pins.
Seat the module firmly into the rack slot and secure the top and bottom screws to ensure proper grounding and mechanical stability.
Use shielded cables for field wiring to minimize electromagnetic interference (EMI) in high-noise industrial settings.
Maintain adequate airflow around the Quantum rack to keep the operating temperature within the specified 0 to 60 deg C range.
Handle the module by the housing; avoid direct contact with the PCB or components to maintain the integrity of the conformal coating and prevent ESD damage.
FAQWhat does the 'C' suffix signify for this model?The 'C' suffix denotes that the module is conformal coated. This is a protective polymer layer applied to the internal circuit boards to defend against corrosion, humidity, and airborne contaminants, making it suitable for aggressive industrial environments.Can this module be used in hazardous locations?Yes, the 140DAO84220C is rated for FM Class 1 Division 2 environments, provided it is installed in accordance with local electrical codes and the specific hazardous location requirements of your facility.How are the output groups isolated?The 16 outputs are split into two groups of 8. This architecture allows you to control two separate AC power sources or phases independently while maintaining galvanic isolation from the internal controller backplane.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Schneider Electric 110CPU72200 is a high-performance central processing unit designed for the Modicon Quantum automation platform. This controller is built to handle intensive computational tasks, including complex logic processing and regulatory control loops, making it suitable for mission-critical industrial applications such as power generation, petrochemical processing, and large-scale manufacturing.Features
High-speed logic execution for demanding control sequences.
Integrated support for Modbus RS232 and Modbus Plus communication protocols.
Seamless integration with standard Quantum backplane architectures.
Comprehensive built-in diagnostic routines for monitoring system integrity and bus health.
Optimized for ladder logic, structured text, and function block programming environments.
ApplicationsThis CPU module is widely utilized in environments requiring high reliability and rapid response times. It is commonly deployed in distributed control systems (DCS), automated material handling, and large-scale infrastructure monitoring where system stability is paramount.Technical Specifications
Model
110CPU72200
Brand
Schneider Electric
Processor Speed
20 MHz
Internal RAM
512 KB
Power Requirements
5 VDC, 1250 mA (via backplane)
Operating Temperature
0 to 60 degC
Storage Temperature
-40 to 85 degC
Humidity
95% non-condensing
Slot Usage
Single Slot
Installation Guidelines
Ensure the power supply is disconnected before installing or removing the module from the Quantum backplane.
Verify that the module is fully seated in the slot and that the locking mechanism is engaged to prevent poor contact.
Maintain proper ventilation within the control cabinet to ensure ambient temperatures remain within the 0-60 degC operating range.
Use shielded cables for all communication ports to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Handle the module using standard ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuits.
FAQIs the 110CPU72200 compatible with existing Modicon Quantum backplanes?Yes, this unit is designed for standard Modicon Quantum backplane mounting.What communication protocols are supported by this CPU?The module features integrated support for Modbus RS232 and Modbus Plus networks.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Product OverviewThe Triconex 3624 is a high-integrity supervised digital output module designed for critical safety-instrumented systems. It provides reliable control interfacing for safety-critical applications, including emergency shutdown (ESD) systems. By integrating advanced field-line monitoring, the module continuously detects open-circuit and short-circuit conditions, whether the field load is currently energized or de-energized. This capability ensures that command execution is verified and helps prevent spurious trips in demanding environments such as chemical processing, power generation, and oil refining.Features
Triple Modular Redundant (TMR) architecture utilizing 2-out-of-3 (2oo3) voting logic for fault-tolerant operation.
Integrated field-line supervision that monitors integrity without triggering connected loads.
Galvanic isolation via high-performance optocouplers to protect internal logic from field-side voltage transients.
Supports online hot-swapping, allowing for module replacement without interrupting the operation of other I/O loops.
16 independent, supervised output channels.
ApplicationsThis module is engineered for safety-critical industrial environments where high availability and fault tolerance are mandatory. Typical installations include emergency shutdown systems (ESD), burner management systems, and critical process control loops where continuous diagnostic feedback is required to maintain operational safety.Technical Specifications
Model
3624
Output Channels
16 Supervised
Nominal Voltage
24 VDC
Voltage Operating Range
20 to 30 VDC
Max Current per Channel
2 A
Isolation Rating
1500 VDC
Power Consumption
10 W (max)
Operating Temperature
0 to +60 deg C
Installation Guidelines
Ensure the Triconex chassis is properly grounded before installing the module.
Handle the module using standard ESD-safe practices to prevent damage to sensitive internal components.
The module is designed for hot-swapping; however, ensure all field wiring is properly secured and verified before inserting the module into the rack.
Route field wiring away from high-voltage AC lines or high-EMI sources to maintain signal integrity.
Verify that the voltage levels and load requirements are within the specified 20-30 VDC range before activation.
FAQDoes the 3624 support hot-swapping? Yes, the module is designed for hot-swapping, allowing maintenance personnel to replace the unit while the chassis remains powered and other I/O modules continue to operate.What is the primary function of the line supervision? The supervision circuitry continuously monitors the field wiring for faults like open circuits or shorts, providing diagnostic data to the safety system without actuating the connected field devices.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Product OverviewThe Triconex 2551 is a specialized external termination assembly designed for integration with high-availability safety instrumented systems. This hardware serves as a critical interface component, facilitating the transition from field-based digital input wiring to the internal processing architecture of the Triconex system. By providing a structured termination point, the 2551 ensures secure signal routing and electrical integrity for critical safety loops in demanding industrial environments, including petrochemical, power generation, and chemical processing facilities.Features
Designed specifically to support Triple Modular Redundant (TMR) system architectures.
Provides robust physical termination for field digital input signals.
Integrated transient protection circuitry to mitigate the impact of electrical noise and voltage spikes.
Heavy-duty screw terminal blocks designed for secure, vibration-resistant wire connections.
Includes dedicated grounding provisions to assist in shielding and common-mode noise suppression.
Engineered for high-reliability performance in safety-critical control applications.
ApplicationsThe 2551 External Terminator is utilized primarily in safety-critical applications where reliable signal acquisition from field sensors is paramount. It is commonly deployed in emergency shutdown systems (ESD), burner management systems (BMS), and fire and gas detection arrays within complex industrial plants.Technical Specifications
Model
2551
Brand
Triconex (Invensys)
Component Type
External Terminator (Digital Input)
Operating Temperature
0 to 60 deg C
Weight
3.75 kg
Installation Guidelines
Ensure the system is fully de-energized before performing any wiring or installation of the termination module.
Mount the module in a location that minimizes exposure to extreme thermal gradients or excessive vibration.
Utilize appropriate wire gauges for the screw terminals to ensure a gas-tight, secure connection; verify all terminals are torqued to manufacturer specifications.
Ensure all grounding bars are connected to a clean, low-impedance earth ground to maintain effective EMI/RFI shielding.
Maintain proper clearance for cable routing to avoid signal crosstalk and to facilitate modular maintenance access.
FAQWhat is the primary function of the Triconex 2551?The 2551 acts as an interface bridge between field-side digital inputs and the Triconex controller, providing organized signal termination, transient protection, and improved electrical noise rejection.Is this module suitable for TMR systems?Yes, the 2551 is designed to support the signal distribution requirements of Triple Modular Redundant (TMR) safety architectures.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Triconex 3005 is a primary Main Processor Module engineered for high-availability, safety-critical control environments. As the central computational component of the Triconex safety system, it utilizes a robust Triple Modular Redundancy (TMR) architecture to maintain operational integrity in demanding industrial sectors, including petrochemical processing, power generation, and critical manufacturing.Features
TMR Architecture: Employs triple-redundant processing paths to ensure continuous fault tolerance and high-integrity logic execution.
Fault Isolation: Features high-speed hardware voting mechanisms that identify and mask discrepancies across channels, preventing single-point failures.
Hot-Swappable Design: Engineered for seamless maintenance, allowing for module replacement during active system operation without compromising safety or control functions.
Synchronized Processing: Utilizes the proprietary Tribus backplane for high-speed cross-communication and synchronization between independent microprocessor channels.
ApplicationsThe 3005 module is intended for use in safety instrumented systems (SIS) where continuous uptime and reliable fault detection are mandatory. Typical applications include emergency shutdown systems (ESD), burner management, and critical process control where downtime or system failure could lead to significant environmental or safety hazards.Technical Specifications
Brand
Triconex
Model
3005
Module Type
Main Processor
Architecture
Triple Modular Redundancy (TMR)
Operating Temperature
0 to 60 deg C
Power Consumption
15 W (typical)
Installation Guidelines
Ensure the Triconex chassis is properly grounded before installing or removing any modules.
Handle the module using standard ESD (Electrostatic Discharge) safety protocols to prevent damage to internal circuitry.
Verify that the backplane slots are clear of debris and that the module is fully seated to ensure reliable connection with the Tribus bus.
Perform system diagnostics after installation to confirm that the new processor is correctly synchronized with the existing TMR cluster.
Always power down or follow established hot-swap procedures per the specific system manual before physical handling.
FAQIs the 3005 module compatible with all Triconex systems? The 3005 is a specific processor model; please verify your existing chassis configuration and firmware requirements to ensure compatibility with your specific safety system revision.Does this module support hot-swapping? Yes, the 3005 is designed for online maintenance, allowing for removal and replacement in a live system without interrupting the safety functions of the remaining redundant channels.
DescriptionThe 170INT11003 is a specialized communication adapter module designed for the Schneider Electric Modicon Premium automation platform. This unit serves as an Interbus interface, facilitating seamless data exchange and network connectivity within industrial control architectures. Please note that this component has been discontinued by the manufacturer, making it a critical spare part for maintaining legacy control systems.Features
Designed for integration with Modicon Premium series processors.
Provides dedicated Interbus communication protocol support.
Features SUPI3 technology for reliable fieldbus data management.
Compact hardware footprint suitable for standard rack-mount installations.
Technical Specifications
Manufacturer
Schneider Electric
Model Number
170INT11003
Module Type
Interbus Communication Adapter
Technology
SUPI3
Status
Discontinued
Installation Guidelines
Ensure the PLC rack power is fully disconnected before attempting to insert or remove the communication module.
Verify that the module is correctly seated in the designated slot to ensure proper backplane connectivity.
Handle the module by the edges to prevent electrostatic discharge (ESD) damage to the internal circuitry.
Confirm that the Interbus cabling is shielded and routed away from high-voltage power lines to minimize electromagnetic interference (EMI).
Check for proper ventilation around the rack to maintain operating temperatures within specified industrial limits.
FAQIs this module compatible with all Modicon Premium CPUs?The 170INT11003 is specific to Interbus network configurations within the Modicon Premium range. Compatibility depends on your specific rack configuration and firmware version. Consult your original system documentation to verify slot requirements.What does the SUPI3 designation indicate?SUPI3 refers to the specific Siemens Universal Protocol Interface technology integrated into this module to manage the Interbus fieldbus communication tasks.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Schneider Electric Modicon Quantum 140CRA21110 is a specialized Distributed I/O (DIO) drop interface module designed for the Modicon Quantum automation platform. This unit facilitates reliable communication between remote I/O racks and the central PLC controller. By integrating both the communication interface and a dedicated AC power supply into a single housing, it optimizes space within field enclosures while maintaining deterministic data transmission across the Modbus Plus network.Features
Integrated Power and Comm: Combines a single-port Modbus Plus network interface with an internal AC power supply to drive remote rack backplanes.
Manual Addressing: Features front-mounted rotary decimal switches for quick, hardware-level station addressing (1 to 64).
Real-Time Monitoring: Includes front-panel status indicators to provide immediate visual verification of network traffic, power status, and module health.
Robust Design: Engineered for demanding industrial environments, including chemical processing, mining, and manufacturing facilities.
High Availability: Designed to maintain synchronized, deterministic signal processing to minimize downtime in critical control loops.
Technical Specifications
Model
140CRA21110
Brand
Schneider Electric
Series
Modicon Quantum
Module Type
DIO Drop Interface Module
Network Protocol
Modbus Plus (Single Port)
Input Voltage (115 VAC)
93 to 132 VAC (47-63 Hz)
Input Voltage (230 VAC)
170 to 264 VAC (47-63 Hz)
Station Address Range
1 to 64
Max Inrush Current
10A (115V) / 20A (230V)
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Humidity
95% non-condensing
Installation Guidelines
Power Safety: Always ensure the system power is disconnected before installing or removing the module from the rack backplane.
ESD Precautions: Handle the module using proper electrostatic discharge (ESD) prevention techniques to protect sensitive internal circuitry.
Mounting: Ensure the module is fully seated in the rack slot and secured according to standard Quantum backplane mounting procedures.
Grounding: Follow standard industrial grounding practices to minimize EMI and ensure signal integrity across the Modbus Plus network.
Environment: Maintain adequate clearance around the module to facilitate airflow and heat dissipation within the enclosure.
FAQQ: Does this module require external software for addressing?A: No, the 140CRA21110 uses physical rotary switches on the front panel to set the station address, allowing for rapid configuration without software tools.Q: Can this module operate on both 115V and 230V AC?A: Yes, it is designed to accept wide-range AC utility power, covering 115 VAC and 230 VAC nominal ranges with specific tolerance bands.Q: What is the primary function of the 140CRA21110?A: It acts as an interface between a remote Modicon Quantum I/O rack and the main control system via a Modbus Plus network, while simultaneously providing the necessary DC power to the local rack backplane.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Triconex 2553 is a specialized dual-panel External Termination Assembly (ETA) designed to facilitate reliable signal interfacing within Triconex digital input subsystems. This unit serves as a critical bridge between field instrumentation and high-density PLC input modules, ensuring robust signal conditioning for 24 VAC/VDC discrete inputs. By centralizing field wiring and providing integrated protection, the 2553 supports high-integrity data acquisition in demanding industrial environments, including power generation and petrochemical processing.Features
Dual-panel configuration designed for efficient field wiring management.
Optimized for 24 VAC/VDC digital input signal conditioning.
Integrated test points to simplify maintenance and loop troubleshooting.
Field-side fuse protection to shield sensitive PLC input circuitry from transient electrical faults.
High-density layout suitable for installation within standard marshalling cabinets.
ApplicationsThis termination assembly is commonly deployed in safety-critical and process control systems where discrete signal integrity is paramount. Typical applications include the integration of proximity sensors, mechanical limit switches, and auxiliary relay contacts into the Triconex safety PLC architecture.Technical Specifications
Model
2553
Brand
Triconex
Module Type
Digital Input External Termination Panel
Input Rating
24 VAC/VDC
Operating Temperature
0 to 60 deg C
Weight
1.84 kg
Installation Guidelines
Ensure all power to the system is disconnected before installing or removing the termination assembly.
Mount the module securely on a standard DIN rail within a clean, dry, and temperature-controlled marshalling cabinet.
Maintain physical separation between high-voltage field wiring and low-voltage signal cables to minimize electromagnetic interference (EMI).
Verify proper grounding of the assembly to the cabinet chassis to ensure effective surge suppression.
Use appropriate wire gauges and torque settings as specified in your system's site-specific documentation.
FAQDoes the 2553 include fuses for channel protection?Yes, the 2553 is designed with field-side fuses to provide a layer of protection for the downstream input modules against electrical transients.Can this module be used for both AC and DC signals?Yes, the 2553 is rated for 24 VAC/VDC discrete inputs, making it versatile for various field device types.What is the primary purpose of the dual-panel design?The dual-panel architecture allows for high-density termination in space-constrained cabinets while maintaining clear separation between field-side and system-side cabling.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Schneider Electric TSXP4720 is a dedicated module designed for the TSX series programmable controller architecture. This unit serves as a critical component for legacy automation control systems, providing reliable processing and interface capabilities for industrial logic applications.Features
Engineered specifically for compatibility with the Schneider Electric TSX series controller environment.
Robust construction designed for standard industrial control cabinet mounting.
Reliable operation for legacy PLC infrastructure maintenance and system expansion.
Integrated design to facilitate seamless communication within the TSX backplane architecture.
Technical Specifications
Model
TSXP4720
Manufacturer
Schneider Electric
Series
TSX Series
Product Type
Programmable Controller Module
Weight
1.1 kg
Installation Guidelines
Ensure the controller power is fully disconnected before attempting to install or remove the TSXP4720 module to prevent electrical damage or system faults.
Verify that the module is properly seated in the designated TSX series rack slot to ensure reliable backplane connectivity.
Maintain adequate clearance around the module to allow for proper thermal dissipation and airflow within the enclosure.
Adhere to standard ESD (Electrostatic Discharge) handling procedures during installation to protect sensitive internal circuitry.
Confirm that all associated field wiring is correctly terminated according to the specific system documentation and local electrical safety standards.
FAQIs the TSXP4720 still in production?No, the TSXP4720 is classified as discontinued by the manufacturer. We provide this unit as a reliable solution for maintaining or repairing existing legacy installations.What should I do if the module is not recognized by the PLC rack?First, verify that the module is firmly seated in the rack and that the backplane pins are not bent. Ensure that the system power supply is sufficient and that the configuration software reflects the correct slot assignment for this module.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Schneider Electric 140DDI85300 is a high-density discrete input module engineered for the Modicon Quantum PLC platform. This module is specifically designed to interface with 230 VAC field devices, converting high-voltage input signals into internal logic levels for the controller. It is a critical component for large-scale automation systems in sectors such as water treatment, power generation, and chemical processing, where reliable monitoring of AC-powered field devices is required. The module features robust opto-isolation to shield internal control circuitry from electrical noise and voltage transients common in industrial environments.Features
32 discrete input channels, organized into four isolated groups of eight.
Supports a wide input voltage range of 170 to 276 VAC.
Internal RC filtering on each channel to mitigate contact bounce and high-frequency interference.
Front-panel LED status indicators for real-time channel diagnostics.
Supports hot-swapping capability within compatible Quantum backplane configurations.
Integrated opto-isolation between field circuits and the backplane for enhanced system protection.
Technical Specifications
Model
140DDI85300
Input Points
32 (4 groups of 8)
Voltage Category
230 VAC
Input Voltage Range
170 to 276 VAC
Frequency Range
47 to 63 Hz
Internal Bus Power
300 mA at 5 VDC
Isolation Voltage
1780 Vrms (1 minute)
Response Time
12 to 24 ms
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Relative Humidity
0 to 95% (non-condensing)
Installation Guidelines
Ensure the Quantum rack is powered down before inserting or removing the module to prevent electrical damage.
Verify that field wiring is properly shielded and routed away from high-voltage power cables to minimize EMI.
Ensure the module is fully seated in the backplane slot and the locking tabs are engaged.
Maintain adequate ventilation within the cabinet to keep ambient temperatures within the 0 to 60 deg C operating range.
Check that the input power source matches the 230 VAC specification before connecting to the terminal block.
FAQIs this module compatible with other Modicon series?The 140DDI85300 is designed specifically for the Modicon Quantum platform and is not directly compatible with Momentum or Premium series backplanes.Can I replace this module while the system is running?Yes, this module supports hot-swapping in supported Quantum rack configurations, allowing for replacement without halting the entire control process.What is the purpose of the 4 isolated groups?The grouping allows you to interface with different AC power phases or independent power sources on a single module, providing greater flexibility for complex cabinet wiring.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Schneider Electric 140CPU65160 is a high-performance central processing unit engineered for the Modicon Quantum automation platform. Optimized for the Unity Pro software environment, this processor utilizes a 266 MHz RISC engine to manage complex algorithmic operations, floating-point calculations, and multi-network communication tasks. It is designed to sustain demanding industrial automation environments, including power generation, chemical processing, and large-scale manufacturing, by providing reliable control logic and minimizing system latency.Features
266 MHz RISC processor for high-speed logic execution.
1024 kB internal RAM, with 768 kB dedicated to program execution.
Integrated Modbus Plus and Modbus serial (RS-232/RS-485) communication ports.
Dedicated USB interface for local programming and maintenance access.
PCMCIA Type III memory expansion slot for external data logging and application storage.
Advanced onboard diagnostic monitoring for internal parity and bus transaction integrity.
Supports high-density distributed I/O configurations up to 8000 digital and 1024 analog points.
Technical Specifications
Model
140CPU65160
Processor Speed
266 MHz
Internal Logic RAM
1024 kB
Power Consumption
12.5 W
Backplane Current
2.5 A @ 5 VDC
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Humidity
0 to 95% (non-condensing)
Installation Guidelines
Ensure the rack is powered down before inserting or removing the CPU module to prevent electrical damage.
Verify that the backplane is properly grounded to mitigate electromagnetic interference (EMI).
Maintain adequate ventilation around the Quantum rack to accommodate the 12.5 W heat dissipation.
Use shielded cables for all serial communication connections to ensure signal integrity.
Handle with standard ESD precautions to protect internal circuitry during installation or memory card insertion.
FAQWhat software is required for this CPU?The 140CPU65160 is designed for use with the Schneider Electric Unity Pro software suite.Can I expand the memory of this module?Yes, the module features a front-facing PCMCIA Type III slot that supports memory cards for additional storage of application files and data logs.Does this processor support redundant operations?The onboard diagnostic logic is designed to monitor system health and can switch to a supervisor state to maintain control loop execution in the event of memory errors or network collisions.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Schneider Electric XBTF034510 is a high-performance operator interface terminal from the Magelis series. Designed for industrial visualization and control, this unit features a 10.4-inch touch screen interface, providing clear data display and intuitive input capabilities for machine operators. Although this model has been discontinued by the manufacturer, it remains a critical component for maintaining legacy automation systems and human-machine interface (HMI) stations.Features
Large 10.4-inch display for enhanced operator visibility
Integrated touch screen interface for streamlined process control
Designed for 24 VDC power supply environments
Robust construction suitable for demanding plant-floor conditions
Part of the established Magelis series operator interface ecosystem
Technical Specifications
Manufacturer
Schneider Electric
Model Number
XBTF034510
Series
Magelis
Display Size
10.4 inches
Supply Voltage
24 VDC
Power Consumption
35 W
Status
Discontinued by Manufacturer
Installation Guidelines
Ensure the control cabinet is properly ventilated to dissipate the 35 W heat load generated during operation.
Verify that the 24 VDC power source is stable and filtered to prevent signal noise or premature component failure.
Mount the panel in a cutout that meets the manufacturer's specified dimensions to maintain the integrity of the bezel seal.
Use appropriate ESD precautions when handling the terminal to protect internal circuitry.
Confirm that all communication cables are shielded and routed away from high-voltage power lines to minimize electromagnetic interference.
FAQIs the XBTF034510 still supported by Schneider Electric?This specific model is classified as discontinued by the manufacturer. While it may no longer be available for direct purchase from new stock, it is often sourced through specialized industrial suppliers to support existing installations.What power supply is required for this operator panel?The XBTF034510 is designed to operate on a 24 VDC power supply with a power consumption of 35 W.
